Hunter Fan HTF10083 Owner Manual

Model: 59451 Brushed Nickel
Fan weight ±2 lbs: 20.7 lbs (9.4 kg)

Dempsey

Installation Manual

©2018 Hunter Fan Co.

PG3721 r121118

1886

Congratulations on purchasing your new Hunter® ceiling fan!

Here are the tools you’ll need to complete your installation:

The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This instruction manual contains

WARNING

complete instructions for installing and operating your fan. We are proud of our work and appreciate the opportunity to supply you with the
best ceiling fan available anywhere in the world.

We are here to help!

This Instruction Manual is designed to make installation as simple as possible. While working through this Instruction Manual, keep
your smartphone or tablet nearby. We have added video links to help you through the more technical sections. If you are unfamiliar or
uncomfortable with wiring, contact a qualied electrician. We also provide telephone support at 1.888.830.1326 or visit us
at HunterFan.com.

READ and SAVE These Instructions

Warning

w.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the
mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you
cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between

rotating fan blades.

Caution

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions
may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.
Caution: modications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Ladder

This product conforms to UL Standard 507.

OPTIONAL

If mounting to a support structure, you will also need these tools.

Screwdriver

9/64” Drill BitDrill

Pliers

1

Wire Strippers

1886

We recommend that you pull everything out of the box and lay it out. We have

Here is what comes in your box:

grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.

Hunter Pro Tip:

Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.

bag

Washer

x2

For installing the hanger bracket and wiring the fan

x12 x12

bag bag

Blade

x4

Wood Screw

Wire Nut

x2

x4

Blade ScrewBlade Washer

Ceiling Bracket

Canopy

Downrod

bag

For installing the canopy

Motor

Light Kit Assembly

Canopy Screw

x2

For installing the blades

bag

For your convenience,
you may receive extra fasteners.

Spare Parts

Downrod

Remote Control

Remote Receiver

Remote Components

Remote Cradle

LED Assembly

Glass

Light Kit Screw

bag

For installing the light kit

x6

Find a part that is missing or damaged?

Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.

M3730-01 r040519

2

1886

1886

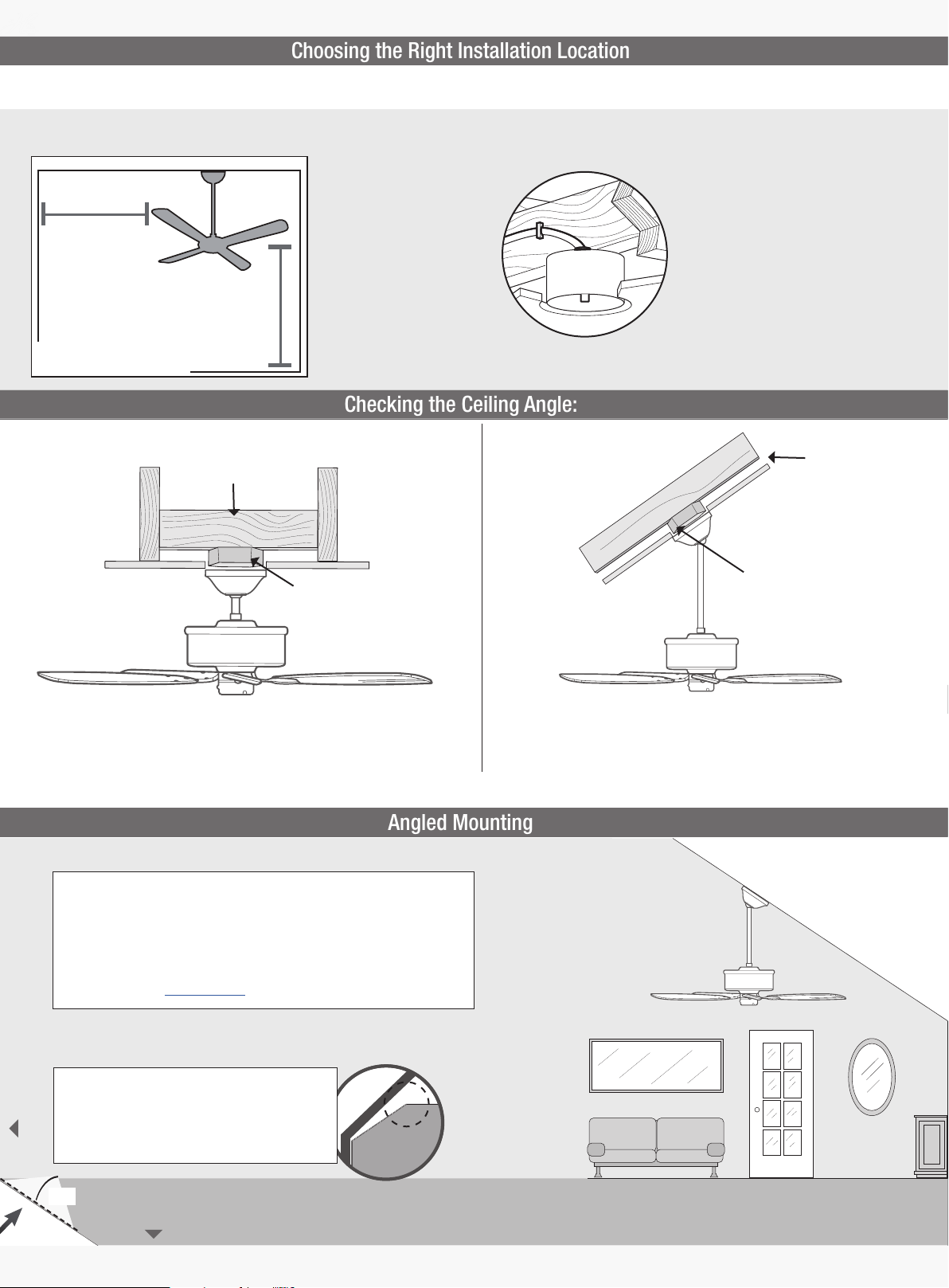

Choosing the Right Installation Location

Checking the Ceiling Angle:

Angled Mounting

You probably bought this fan with a location in mind. Let’s check below to make sure it is a good t.

Installing the Downrod

Installing the Ceiling Bracket

Check the room dimensions: Check the outlet box:

30 inches

from blade tip to
nearest wall or
obstruction

7 feet

from bottom edge

of blade to the

oor

Standard Mounting

Support Structure

Outlet Box

(required)

Ceiling

You must be able to
secure the fan to building
structure or fan-rated
outlet box.

Support
Structure

Angled Mounting

Ceiling

Outlet Box

(required)

If you have a at ceiling:

Hang your fan by a standard downrod. Some fans come
with a shorter downrod for a Low Prole installation.

A little more information on Angled Mounting:

For optimum performance and appearance, a longer downrod should
be used with your Hunter ceiling fan when installing on high or angled
ceiling. If your ceiling is angled greater than 34° you will also need an
Angled Mounting Kit. Longer downrods and the Angled Mounting Kit are
sold separately at HunterFan.com.

Hunter Pro Tip:

Determining if you need an Angled Mounting Kit:

Fold on the dotted line. Place against edge against
the wall. Slide towards the ceiling.

If the guide touches the wall but not the ceiling, you
need an angled mounting kit.

WALL

If you have an angled or vaulted ceiling:

1. You will need a longer downrod. (sold separately at HunterFan.com)

2. If your ceiling angle is greater than 34°, you will also need an
Angled Mounting Kit. (Sold separately at HunterFan.com)

3

34°

CEILING

1886

You have two options for installation. Pick which one works best for your location. Remove any existing

Installing the Downrod

WARNING

Installing the Ceiling Bracket

bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.

Turn Power

OFF

Do this rst!

Hunter Pro Tip:

The machine screws are the ones
that came with your outlet box.

x2

Washer

Option 1:
Machine Screws

Use machine screws
(provided with outlet box)
and washers when securing
to existing ceiling fan-rated
outlet box. Make sure it is
securely installed and is
acceptable for fan support of

31.8 kg (70 lbs) or less.

ANGLED

For angled ceilings,
point opening
toward peak.

Follow below if you are using the downrod that came pre-assembled in your box. Need to
install a longer or shorter downrod? Check out the guide at the end of this manual.

MOUNTING TIP

2

STEP

Hunter Pro Tip:

The ground wire attached to the
downrod is approximately 8 inches.

Option 2:

Wood Screws

Use wood screws and
washers (included) when
securing to support structure
with approved electrical
outlet box. Drill 9/64” pilot
holes in support structure
to aid in securing ceiling
bracket with hardware found
in the hardware bag.

3

STEP

bag

x2

Wood Screw

T

U

C

3/8”

1

STEP

E

E

P

K

!

Remove the pre-installed
setscrew so that the
downrod can be inserted.

Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Glass Remote Troubleshooting Downrod

8”

(not to scale)

Pass all wires to one side of horizontal
bar in downrod assembly. Hand tighten
the downrod (at least 3–5 full turns)
until it stops. Trim the wires coming
from the fan so that 8-inches remain
coming from the top of the downrod.

P

I

R

T

S

&

Tighten the setscrew
with pliers. DO NOT

HAND TIGHTEN.

FAN FALL HAZARD

To prevent SERIOUS INJURY or DEATH:

• A LWAY S tighten setscrew with pliers.

• DO NOT hand tighten setscrew.

• CHECK the setscrew is tight using pliers

each time you change fan direction.

4

1886

1886

Hanging the Fan

S

NOTICE

Wiring the Fan

l

i

d

e

c

a

n

o

p

y

o

v

e

r

d

o

w

n

r

o

d

a

n

d

w

i

r

e

s

.

To prevent damage to fan,
ALWAYS lift holding either the
fan housing or the downrod.

Place the downrod ball into
the slot in the ceiling bracket.

5

Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Glass Remote Troubleshooting Downrod

1886

We know wiring is hard. Let’s make it easier.

Wiring the Fan

WARNING

Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch
setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualied electrician.

Hunter Pro Tip:

Here is how to connect the wires:

Push the bare metal ends of the wires together and slide a wire
nut over them. Then, twist the wire nut clockwise until tight.

Give it a gentle pull to make sure none of the wires are loose.

Slide the remote
receiver onto the
top of the bracket.

Hunter Pro Tip:

Have extra wiring?

All wiring must be in accordance with
national and local electrical codes ANSI/NFPA

70. If you are unfamiliar with wiring or in
doubt, consult a qualied electrician.

Turn the wires upward and push them carefully back through
the hanger bracket into the outlet box. Make sure that the
wires are still attached to the wire nuts.

Connect the black
(ungrounded) wire from
the ceiling to the black
wire from the receiver.

Connect the white (grounded)
wire from the ceiling to both
the white wire from the
receiver and the white wire
from the fan.

bag

Wire Nut

Black

Grounded

x4

Ungrounded

White

White

Black

Yellow

Blue

Blue

Connect the blue wire
from the receiver to the
blue wire from the fan.

Connect the yellow
wire from the
receiver to the black
wire from the fan.

Grounding

Green/Yellow Stripe

Blue

Blue

G

r

e

e

n

/

Y

e

l

l

o

w

S

t

r

i

p

e

Connect the three
grounding wires (green,
green/yellow stripe, or
bare copper) coming from
the ceiling, downrod, and
hanging bracket.

Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Glass Remote Troubleshooting Downrod

6

1886

1886

Installing the Blades:

Installing the Canopy

Lift the canopy into place so that
the screw holes are aligned.

Insert the two canopy screws
found in the hardware bag.

Canopy Screw

bag

F

i

t
t

h

e

c

a

n

o

p

y

i

n

p

l

a

c

e

a

s

s

h

.

o

n

w

x2

Attach each blade to a blade iron using
three blade washers, found in the

hardware bag, and three blade assembly
screws, found in the hardware bag.

Repeat x4

Note:

Fan style may vary.

bag

bag

x12

Blade Screw

Blade Washer

x12

7

Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Glass Remote Troubleshooting Downrod

1886

Assembling the Light Kit

1

WARNING

STEP

2

STEP

3

STEP

2 of 6

Light Kit Screw

bag

Partially install two light kit screws, found in the
hardware bag, halfway into the motor housing as shown.
It does not matter which two screw holes you choose.

Connect the plugs from the fan and
light xture. Make sure to line up the
colored markings on the connectors.

Light Kit Screw

bag

Align the keyhole slots in the top of the light kit
assembly with the partially installed assembly
screws. Wrap the keyhole slots around the
screws and twist counterclockwise. Install the
third light kit screw. Tighten all screws securely.

1 of 6

4

STEP

bag

Partially install two of the light kit screws
found in the bag. It does not matter
which two screw holes you choose. Connect
the single-pin connectors from the LED
assembly to the connectors from the fan.
Connect the white wires together. Connect
the blue and black wires together.

2 of 6

Light Kit Screw

5

STEP

Align the keyhole slots in the light kit
housing with the two screws. Make
sure all the wires from the fan and the
light kit are snug inside the center of
the light kit, not pinched in between
the upper switch housing and the light
kit or hanging out of the sides.

6

STEP

bag

Turn the light kit counterclockwise until the
light kit screws are rmly situated in the
narrow end of the keyhole slots. Install the third
screw and tighten all three screws securely.

FAN FALL HAZARD

Make sure all screws are tight to secure
the light xture.

1 of 6

Light Kit Screw

Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Glass Remote Troubleshooting Downrod

8

1886

1886

Installing the Glass

WARNING

Position the notches in the outer rim of the globe

Using the Remote Control Cradle

Tunable White

Preparing the Remote Control

NOTICE

so they line up with the three tabs on the inside rim
of the housing. Carefully lift the globe up inside the
housing as far as it will go, then rotate the globe
clockwise until it is held tightly in place by the tabs.

The remote control is already
paired for use.

Tab

Notch

NOTE: Check to ensure
proper engagement.

Turn Power

ON

GLASS FALL HAZARD

To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.

Battery Door

Battery
Screw

9

Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Glass Remote Troubleshooting Downrod

To access the battery compartment, remove the small
Phillips head screw that secures the battery door to
the transmitter assembly. Install one 3-Volt, CR2032
battery, found in the remote control hardware bag, into
the transmitter. Clean the battery contacts and also
those of the device prior to battery installation. The
battery should be installed with the positive (+) side up.
Please contact your local battery recycling center for
proper battery disposal information.

• Always purchase the correct size and grade of battery most suitable for the intended use.

• Replace all batteries of a set at the same time.

• Clean the battery contacts and also those of the device prior to battery installation.

• Ensure the batteries are installed correctly with regard to polarity (+ and -).

• Remove batteries from equipment which is not to be used for an extended period of time.

• Remove used batteries promptly.

1886

Tunable White LED lets you adjust through three color

Using the Remote Control Cradle

Tunable White

temperature settings to create a perfectly tailored space,
whether you are watching TV, reading a good book or completing
school work. Choose between warm white (3,000K), cool white
(4,000K), and daylight (5,000K) with the easy push of a button
on the exclusive handheld remote. Create the perfect ambiance
in your space with your new Hunter fan.

For your convenience, a
remote function card is
packed in with your remote.

Light On/Off

Tunable White

Fan On/Off

Raise Fan
Speed

Lower Fan
Speed

Tunable White

Warm White; 3,000 K
Cool White; 4,000 K
Daylight; 5,000 K

Your remote comes with
a wall plate that has two
posts on which to mount
your remote transmitter
when not in use.

Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Glass Remote Troubleshooting Downrod

10

1886

1886

Troubleshooting

Fan Doesn’t Work

Excessive Wobbling

Noisy Operation

Remote Control of Fan is Erratic

Multiple Remote Issues

Downrod

Reverse

Controlling Your Fan

Switch

Ceiling fans work in two directions: downdraft
(counterclockwise rotation) and updraft
(clockwise rotation). To change the direction
of air ow, turn the fan off and let it come to a
complete stop. The reversing switch is located
inside the light xture. It can only be accessed
when the glass is removed. Slide the reversing
switch to the opposite position. Restart the fan.

Updraft (clockwise rotation)
creates a more indirect airow.
Updraft airow is great for
moving warm air downward.

Downdraft (counterclockwise
rotation) creates a direct breeze
and maximum cooling effect.

• Make sure power switch is on.

• Check the circuit breaker to ensure the power is turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit breaker, then loosen the canopy
and check all the connections according to the wiring diagram.

• Make sure the blades are properly installed on the blade iron
posts.

• Turn the power off, support the fan carefully, and check that the
hanger ball is properly seated.

• Make sure the blades are properly installed.

• Check to see if any of the blades are cracked. If so, replace all of

the blades.

• Make sure the battery is installed correctly.

• Install a fresh battery.

• If you have multiple remotes or multiple remote-controlled fans
installed on the same circuit breaker and you are experiencing
interference or faulty operation of your remote controls, please
go to
www.HunterFan.com/FAQs and click “How do I properly install
multiple remote-controlled fans?” for information on how to
correct this issue.

Hunter Pro Tip:

Cleaning the Fan

Use soft cloths to prevent scratching. Cleaning
products may damage the nishes.

11

Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Glass Remote Troubleshooting Downrod

1886

Hunter Fan Company grants this limited warranty to the original purchaser of this Hunter

Limited Lifetime Warranty

Downrod

WARNING

ceiling fan. This document can be found at www.HunterFan.com.
Thank you for choosing Hunter!

How Can Warranty Service Be Obtained?

Proof of purchase is required when requesting warranty service. The original

purchaser must present a sales receipt or other document that establishes proof of
purchase. Hunter, at its sole discretion, may accept a gift receipt. To obtain service,
contact Hunter Fan Company online or by phone.

www.HunterFan.com/Support/Contact-Us/

1-888-830-1326

Please do not ship your fan or any fan parts to Hunter. Delivery will be refused.

What Does This Warranty Cover?

Motor — Limited Lifetime Warranty

If any part of your ceiling fan motor fails during your ownership of the fan due to a
defect in material or workmanship, as determined solely by Hunter, Hunter will provide
you with a replacement fan free of charge.* The foregoing limited warranty applies only
to the motor itself and does not apply to electronic controls – such as remote control
transmitters, remote control receivers, or capacitors – used in conjunction with the
motor. Such electronic control items are included in the one-year limited warranty below.

Other — One-Year Limited Warranty

Except as otherwise indicated throughout this warranty, if any part of your Hunter ceiling
fan fails at any time within one year of the date of purchase due to a defect in material
or workmanship, as determined solely by Hunter, Hunter will provide a replacement part
free of charge.*

Light Kits — Warranty May Vary

Light kits are included in the one-year limited warranty. However, you may qualify for
additional warranty coverage if your fan includes one of the following:

• LED Light Kits — Three-Year Limited Warranty
If your LED light kit module (not including glass components) or LED bulb
fails at any time within three years of the date of purchase due to a defect
in material or workmanship, as determined solely by Hunter, Hunter will
provide a replacement part free of charge.*

* If no replacement product/part can be provided for your fan, we will provide a comparable or
superior replacement product/part at the sole discretion of Hunter.

Labor Excluded. This warranty does not cover any costs or fees associated with the labor
(including electrician’s fees) required to install, remove, or replace a fan or any fan parts.
There is no warranty for light bulbs (except where otherwise noted); remote control
batteries; fans purchased or installed outside the United States; fans owned by
someone other than the original purchaser; fans for which proof of purchase has not
been established; fans purchased from an unauthorized dealer; ordinary wear and tear;
minor cosmetic blemishes; refurbished fans; and fans that are damaged due to any
of the following: improper installation, misuse, abuse, improper care, failure to follow
Hunter instructions, accidental damage caused by the fan owner or related parties,
modications to the fan, improper or incorrectly performed maintenance or repair,
improper voltage supply or power surge, use of improper parts or accessories, failure to
provide maintenance to the fan, or acts of God (e.g. ood).
ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND
WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
HUNTER FAN COMPANY IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF
WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. Some States do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE APPLICABLE TO THIS PRODUCT ARE LIMITED IN DURATION TO THE PERIOD OF
COVERAGE OF THE APPLICABLE LIMITED WARRANTIES SET FORTH ABOVE. Some States
do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.

This warranty gives you specic legal rights. You may also have other rights which vary
from state to state.

If you need a different downrod length follow these steps:

Follow steps 1-5 to remove standard downrod pipe

What Does This Warranty NOT Cover?

How Does State Law Affect Warranty Coverage?

FAN FALL HAZARD

To prevent SERIOUS INJURY or DEATH:

• A LWAY S tighten setscrew with pliers.

• DO NOT hand tighten setscrew.

• CHECK the setscrew is tight using pliers

each time you change fan direction.

1 2 3 4 5

678910

Follow steps 6-10 to reassemble with new downrod

Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Glass Remote Troubleshooting Downrod

12
