Model: 59452 Fresh White
59453 Matte Black
59454 Brushed Nickel
Fan weight ±2 lbs: 19.3 lbs (8.75 kg)
Minimus
Installation Manual
©2018 Hunter Fan Co.
PG3640 r071618
1886
The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This instruction manual contains
Congratulations on purchasing your new Hunter® ceiling fan!

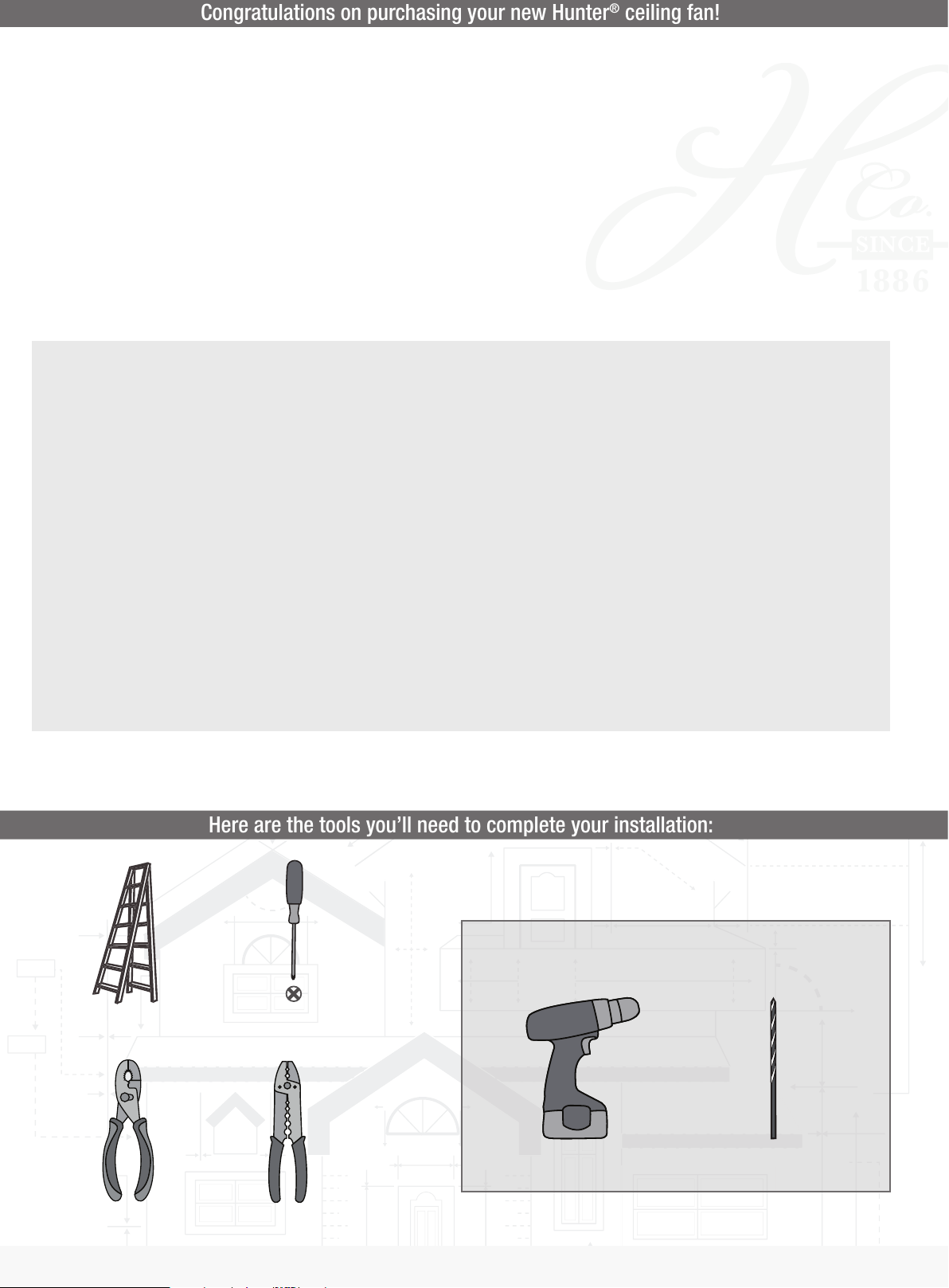

Here are the tools you’ll need to complete your installation:
complete instructions for installing and operating your fan. We are proud of our work and appreciate the opportunity to supply you with the
best ceiling fan available anywhere in the world.
We are here to help!
This Instruction Manual is designed to make installation as simple as possible. While working through this Instruction Manual, keep
your smartphone or tablet nearby. We have added video links to help you through the more technical sections. If you are unfamiliar or
uncomfortable with wiring, contact a qualied electrician. We also provide telephone support at 1.888.830.1326 or visit us at HunterFan.
com.
Read and Save These Instructions
This product conforms to UL Standard 507.
Warning
.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs
(31.8 kg) and use the mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall
switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
Caution
c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and
used in accordance with the instructions may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: modications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
1
Ladder
Pliers
OPTIONAL
If mounting to a support structure, you will also need these tools.
Screwdriver
Wire Strippers
9/64” Drill BitDrill
1886
We recommend that you pull everything out of the box and lay it out. We have

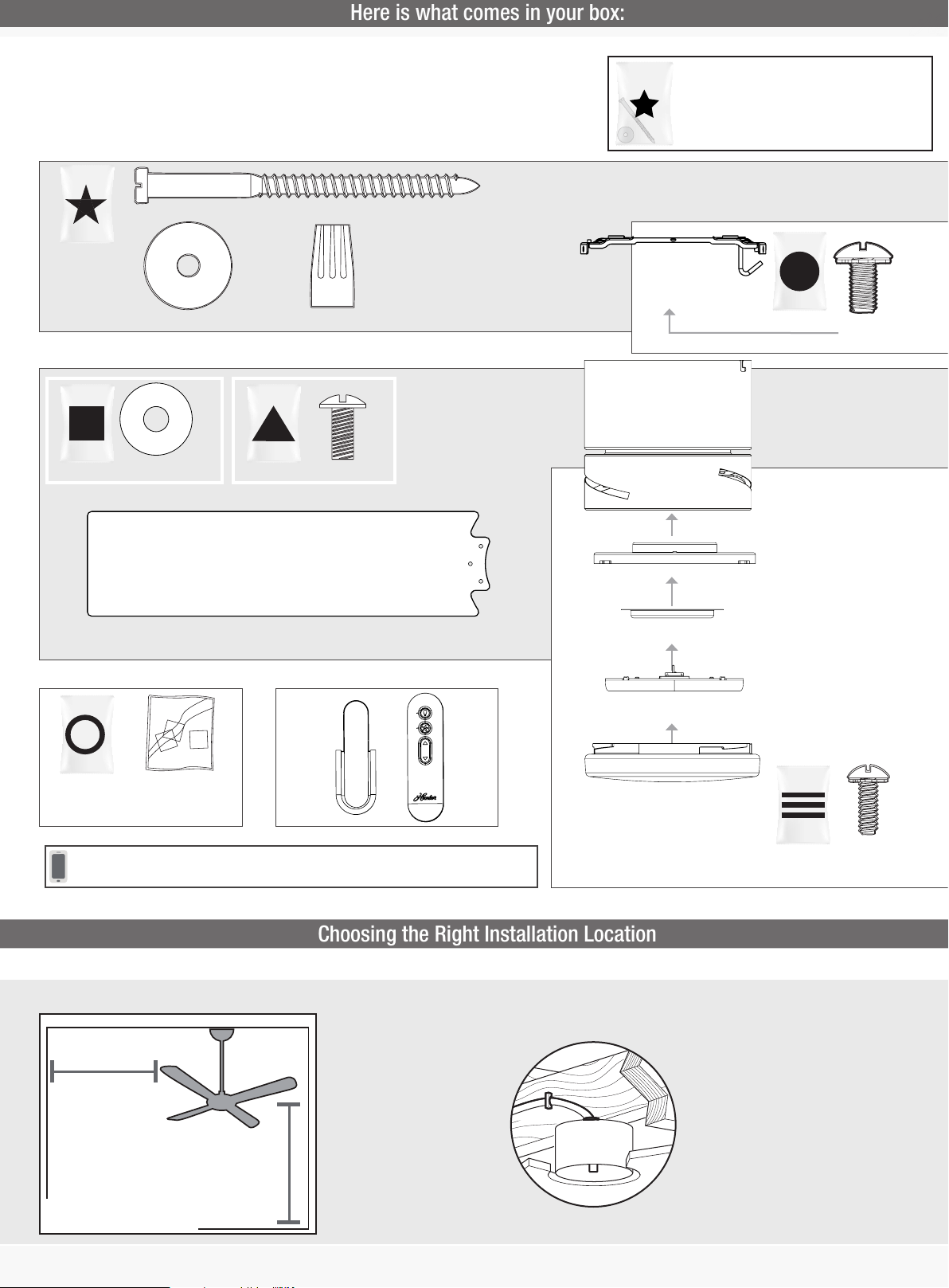

Here is what comes in your box:
Choosing the Right Installation Location
grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.
Hunter Pro Tip:
Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
bag
Washer
x2
For installing the hanger bracket and wiring the fan
x9 x9
bag bag
For installing the blades
Blade
Wood Screw
Wire Nut
x4
Blade ScrewBlade Washer
x2
Ceiling Bracket
bag
For installing the canopy
Upper Housing
Motor
Light Kit Assembly
Lower Switch Housing
Canopy Screw
x4
x3
bag
For your convenience,
you may receive extra fasteners.
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.
Spare Parts
Remote
You probably bought this fan with a location in mind. Let’s check below to make sure it is a good t.
Check the room dimensions: Check the outlet box:
30 inches
from blade tip to
nearest wall or
obstruction
7 feet
from bottom edge
of blade to the
oor
LED Assembly
Glass
bag
For installing the light kit
You must be able to
secure the fan to building
structure or fan-rated
outlet box.
x8Light Kit Screw
M3696-01 r041818
2
1886
1886
You have two options for installation. Pick which one works best for your location. Remove any existing

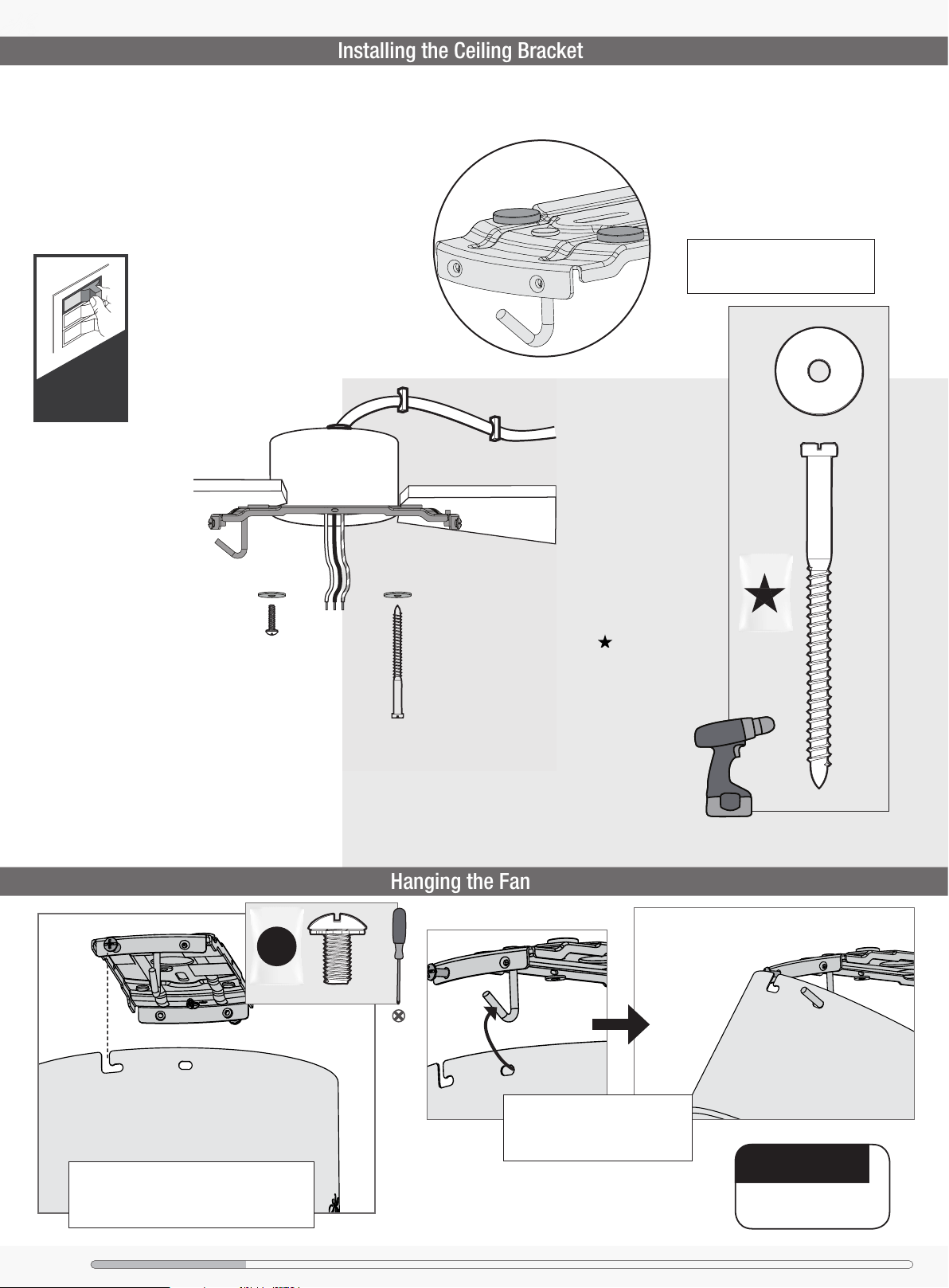

Installing the Ceiling Bracket
Hanging the Fan
NOTICE
bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.
.
d
e
h
c
a
Do this rst!
e
k
a
M
u
b
r
u
o
f
l
l
a
e
r
u
s
Turn Power
OFF
t
t
a
l
l
i
t
Hunter Pro Tip:
s
e
r
a
The machine screws are the ones
s
r
e
that came with your outlet box.
p
m
Washer
x2
Option 1:
Machine Screws
Use machine screws
(provided with outlet box)
and washers when securing
to existing ceiling fan-rated
outlet box. Make sure it is
securely installed and is
acceptable for fan support of
31.8 kg (70 lbs) or less.
Option 2:
Wood Screws
Use wood screws and
washers (included) when
securing to support structure
with approved electrical
outlet box. Drill 9/64” pilot
holes in support structure
to aid in securing ceiling
bracket with hardware found
in the hardware bag.
bag
Wood
Screw
x2
Partially install two of the canopy screws into
screw holes on the left side of the ceiling plate
as shown. Choose the two screw holes that are
aligned with the hanging slots in the fan body.
3
Ceiling Bracket Hanging Fan Wiring Installing Fan Body Blades Light Remote
bag
2 of 4
Canopy Screw
DO NOT PICK THE FAN UP BY THE
WIRES. Use the hanging hole on the
body of the fan to hang the fan on the
hook of the ceiling mounting plate.
To prevent damage to fan,
ALWAYS lift holding the fan
housing.
1886
We know wiring is hard. Let’s make it easier.

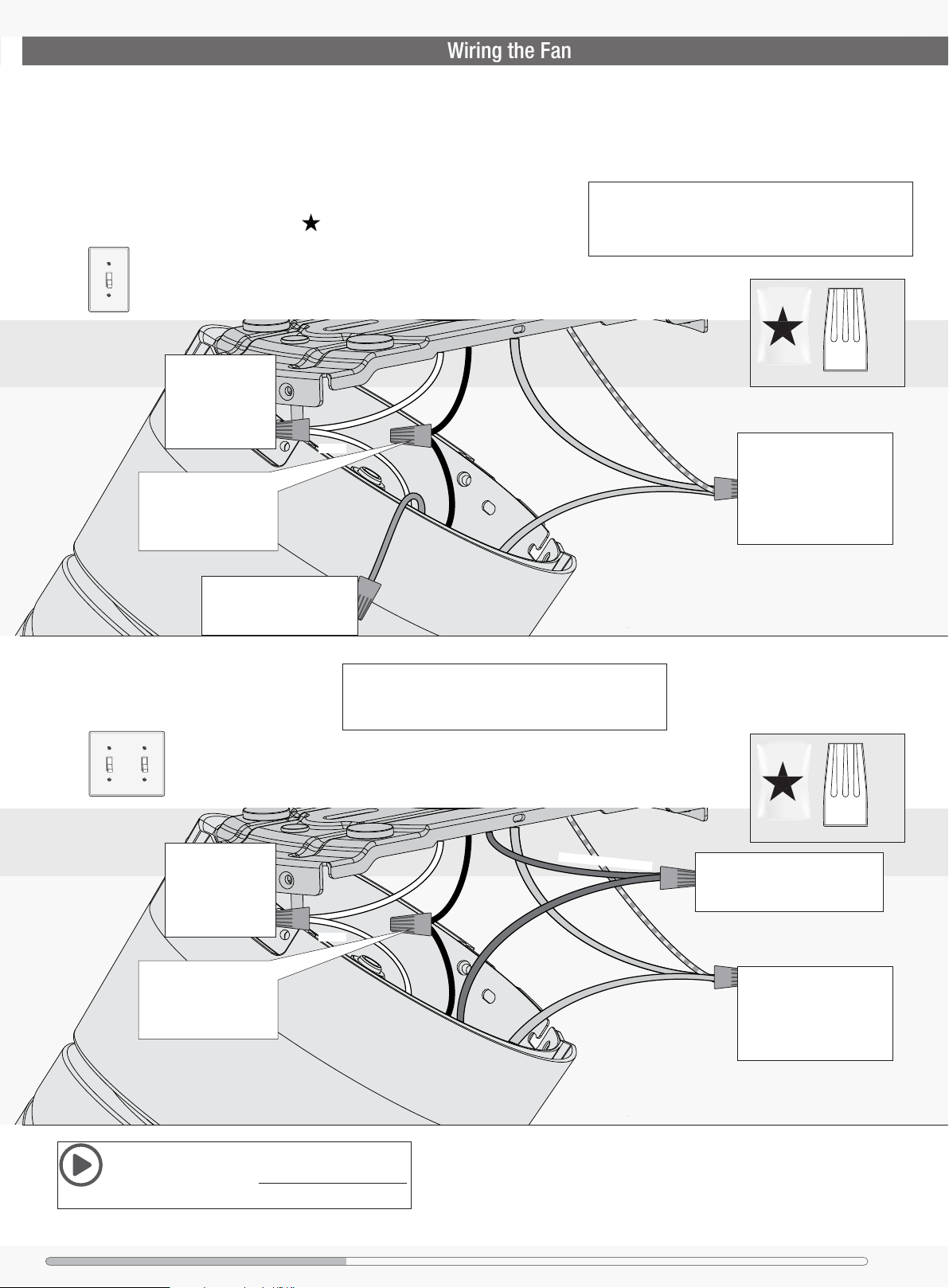

Wiring the Fan
Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch
setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualied electrician.
You are going to need these:
4 Wire Nuts (these are in the bag)
Have a single switch?
Follow these steps:
Connect the white
(grounded) wire
from the ceiling
to the white wire
from the fan.
Connect the black
(ungrounded) wire from
the ceiling to the black
wire from the fan.
Cap the blue wire from the
fan.
You will not need it
for single switch wiring.
Grounded
White
Black
Blue
Ungrounded
Grounding
Grounding
Hunter Pro Tip:
Here is how to connect the wires:
Push the bare metal ends of the wires together and slide a wire
nut over them. Then, twist the wire nut clockwise until tight.
Give it a gentle pull to make sure none of the wires are loose.
Green/Yellow Stripe
bag
Connect the grounding
wires (green, green/yellow
stripe, or bare copper)
coming from the ceiling,
ceiling plate, and the fan.
x4
Wire Nut
Have dual switches?
Follow these steps:
Connect the white
(grounded) wire
from the ceiling
to the white wire
from the fan.
Connect the black
(ungrounded) wire from
the ceiling to the black
wire from the fan.
Hunter Pro Tip:
Have extra wiring?
Turn the wires upward and push them carefully back through
the hanger bracket into the outlet box. Make sure that the
wires are still attached to the wire nuts.
Ungrounded (light)
Grounded
White
Ungrounded
Black
Grounding
Grounding
Green/Yellow Stripe
Blue
bag
Connect the second ungrounded
(light) wire from the ceiling to
the blue wire from the fan.
Connect the grounding
wires (green, green/yellow
stripe, or bare copper)
coming from the ceiling,
ceiling plate, and the fan.
Wire Nut
x4
Need a little more help* with wiring?
Visit our wiring video at: http://bit.ly/WireYourFan
*Fan style and features shown may vary.
Ceiling Bracket Hanging Fan Wiring Installing Fan Body Blades Light Remote
4
1886
1886
Installing the Glass
Assembling the Light Kit
Installing the Blades:

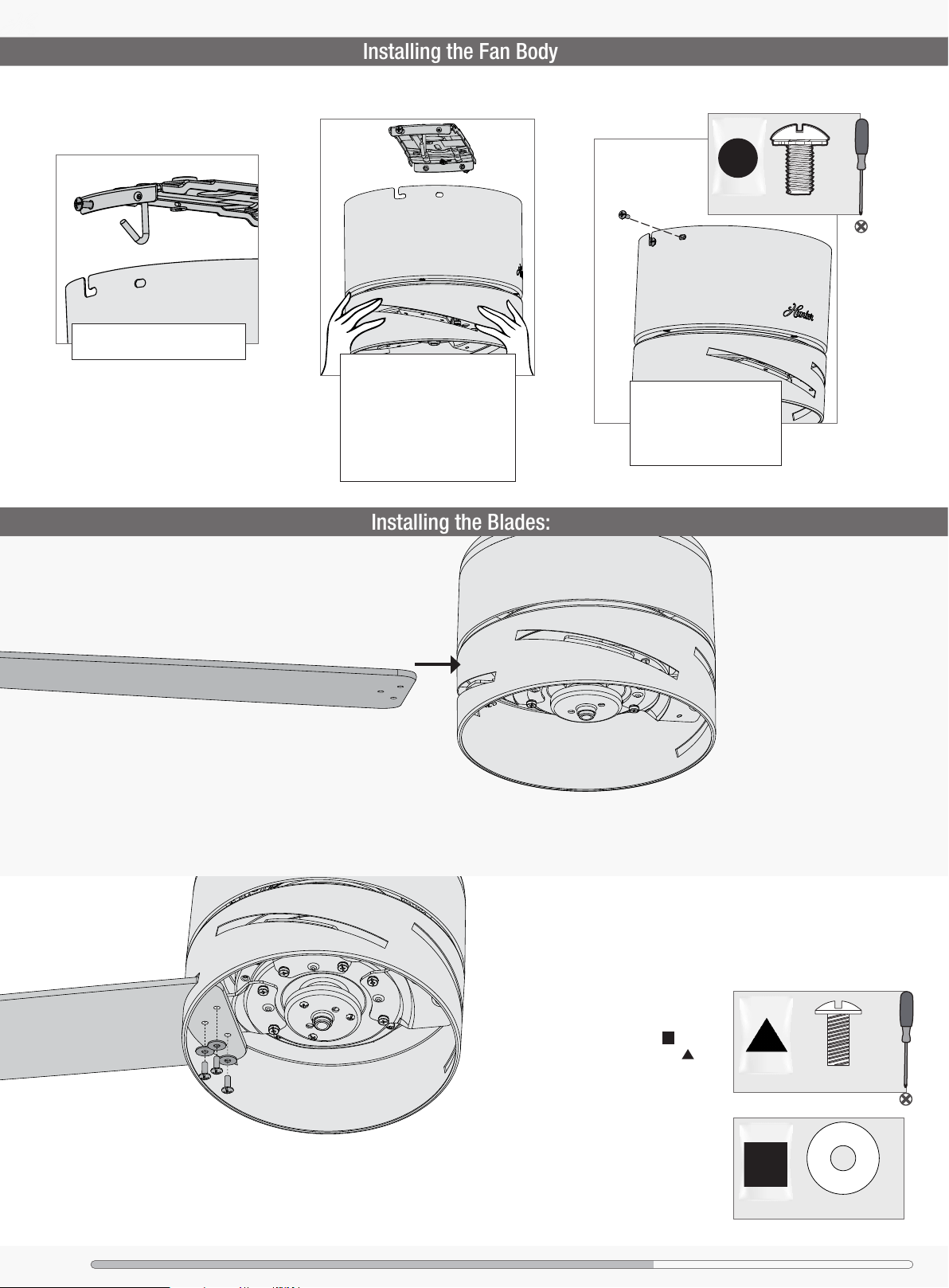

Installing the Fan Body
Using both hands, lift the fan body
from the hook
Insert the blade into the blade slot.
Repeat x3
Align the hanging slots on both
sides of the fan body with the two
partially installed canopy screws.
Slide the two slots on both sides of
the fan body between the head of
the screws and rotate the fan body
counterclockwise so the screws
hold the fan body rmly in place.
bag
Install the remaining two
canopy screws by holding the
fan body cover to the ceiling
mounting plate. Tighten all
four screws securely.
2 of 4
Canopy Screw
5
Put the blade washers found in the hardware
bag onto the blade screws found in the
hardware bag. Then install the blade screws to
secure each blade to the fan.
bag
Blade Screw
x9
Repeat x3
bag
Ceiling Bracket Hanging Fan Wiring Installing Fan Body Blades Light Remote
Blade Washer
x9
1886
Installing the Glass
WARNING

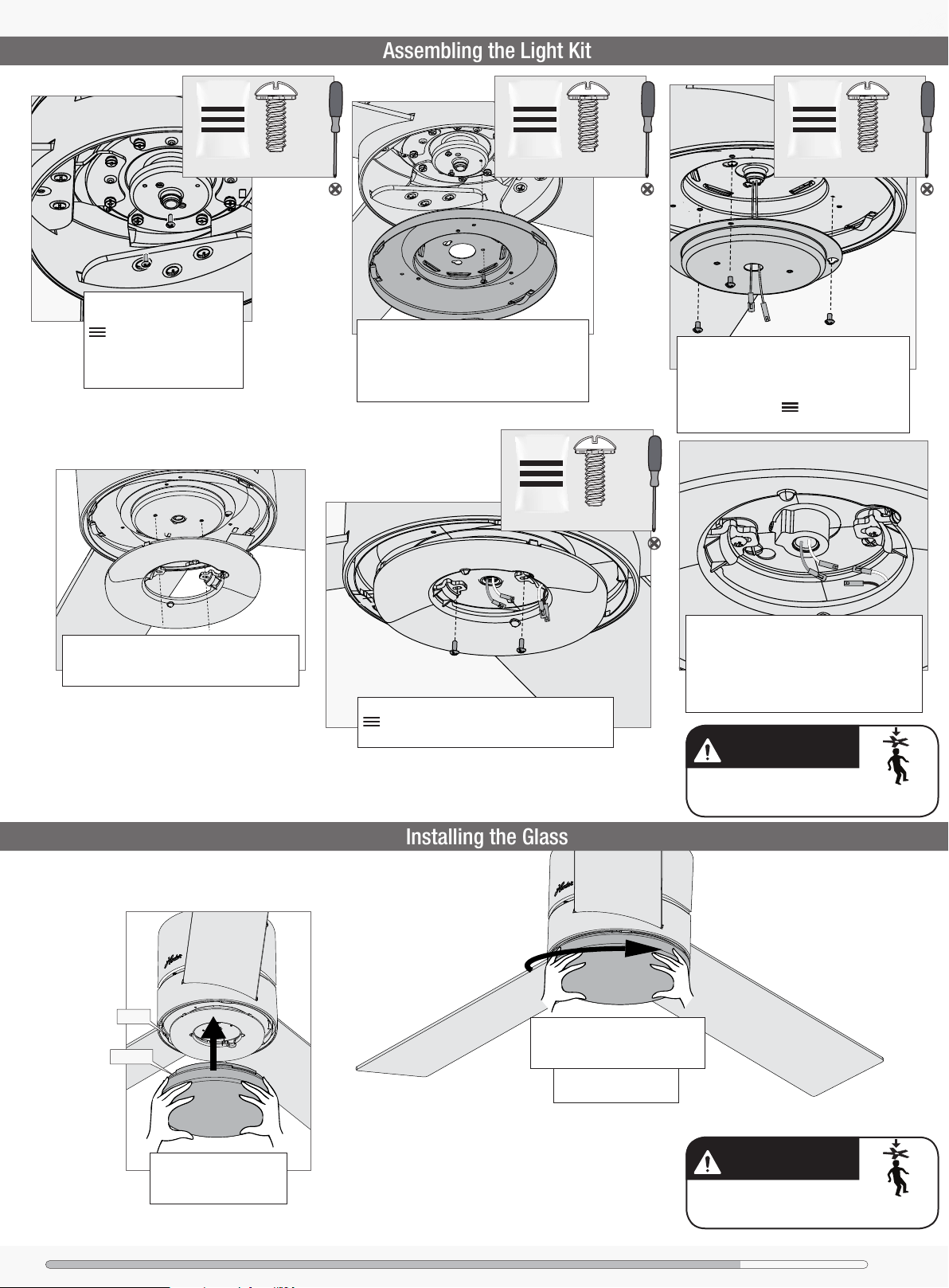

Assembling the Light Kit
WARNING
bag
Partially install two light kit
assembly screws, found in the
hardware bag, halfway into
the motor housing as shown.
It does not matter which two
screw holes you choose.
2 of 8
Light Kit Screw
Light Kit Screw
bag
Align the keyhole slots in the top of the light kit
assembly with the partially installed assembly
screws. Rotate the keyhole slots around the
screws and twist counterclockwise. Tighten all
three screws securely.
Light Kit Screw
bag
1 of 8
2 of 8
3 of 8
Light Kit Screw
bag
Feed the light wires through the hole in the
lower switch housing. Align the lower switch
housing screw holes with the bottom of the
light kit assembly. Using the three light kit
Screws, found in the hardware bag, mount
the lower switch housing to the light kit.
Raise the LED assembly to the trim ring. Align
the screw holes in the LED assembly with the
screw holes in the trim ring.
Tab
Notch
Screw two light kit assembly screws, found in the
hardware bag, through the LED assembly and
into the trim ring.
Attach the globe by lifting and
turning clockwise one third of a
full turn of the glass until it stops.
NOTE: Check to ensure
proper engagement.
Connect the single-pin connectors from the
LED assembly to the connectors from the fan.
Connect the white wires together. Connect the
blue and black wires together. Tuck the excess
wiring above the LED assembly or feed back
into the lower switch housing.
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
Lift the globe and align the
notches in the globe with
the tabs in the light kit.
Ceiling Bracket Hanging Fan Wiring Installing Fan Body Blades Light Remote
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
6
1886
1886

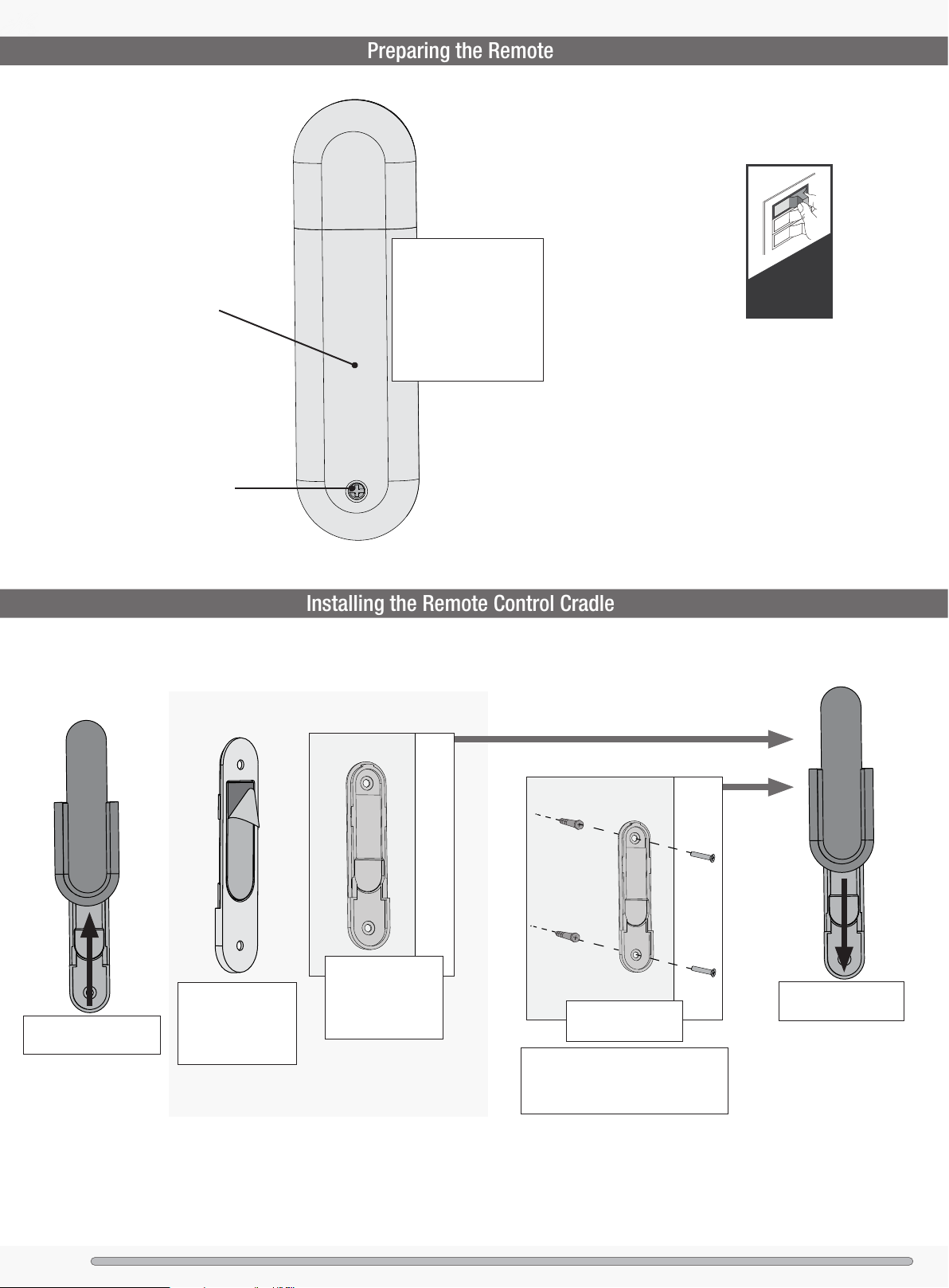

Installing the Remote Control Cradle
Preparing the Remote
To access the battery
compartment, remove the
Battery
Door
small Phillips head screw that
secures the battery door to
the transmitter assembly. The
battery should be installed
with the positive (+) side
up. Replace with a CR2032
battery when necessary.
Phillips
Head
Screw
You have two options for installing the remote cradle.
Choose which path works best for you.
Turn Power
ON
Remove the cradle from
the cradle bracket.
Option 1: Using Adhesive Strip
Press the cradle
Separate the lining
from the back of the
adhesive strip on
the cradle bracket.
bracket against the
wall and hold rmly
for 30 seconds.
Option 2: Using Screws
Choose your cradle
installation location.
If you are installing into drywall, drill two
9/64 width holes using the cradle bracket
as a guide. Gently hammer the included
drywall anchors into the pre-drilled holes.
Slide the cradle onto
the mounted bracket.
7
Ceiling Bracket Hanging Fan Wiring Installing Fan Body Blades Light Remote
1886
Limited Lifetime Warranty
Troubleshooting
Fan Doesn’t Work
• Make sure power switch is on.
Excessive Wobbling
Noisy Operation
Remote Control of Fan is Erratic
Multiple Remote Issues
• Check the circuit breaker to ensure the power is turned on.
• Make sure the blades spin freely.
• Turn off power from the circuit breaker, then loosen the canopy
and check all the connections according to the wiring diagram.
• Make sure the blades are properly installed on the blade iron
posts.
• Turn the power off, support the fan carefully, and check that the
hanger ball is properly seated.
• Use the provided balancing kit and instructions to balance the fan.
• Make sure the blades are properly installed.
• Check to see if any of the blades are cracked. If so, replace all of
the blades.
• Make sure the battery is installed correctly.
• Install a fresh battery.
• If you have multiple remotes or multiple remote-controlled fans
installed on the same circuit breaker and you are experiencing
interference or faulty operation of your remote controls, please
go to
www.HunterFan.com/FAQs and click “How do I properly install
multiple remote-controlled fans?” for information on how to
correct this issue.
Hunter Pro Tip:
Cleaning the Fan
Use soft brushes or cloths to prevent scratching.
Cleaning products may damage the nishes.
Hunter Fan Company grants this limited warranty to the original purchaser of this Hunter
ceiling fan. This document can be found at www.HunterFan.com.
Thank you for choosing Hunter!
How Can Warranty Service Be Obtained?
Proof of purchase is required when requesting warranty service. The original
purchaser must present a sales receipt or other document that establishes proof of
purchase. Hunter, at its sole discretion, may accept a gift receipt. To obtain service,
contact Hunter Fan Company online or by phone.
www.HunterFan.com/Support/Contact-Us/
1-888-830-1326
Please do not ship your fan or any fan parts to Hunter. Delivery will be refused.
What Does This Warranty Cover?
Motor — Limited Lifetime Warranty
If any part of your ceiling fan motor fails during your ownership of the fan due to a
defect in material or workmanship, as determined solely by Hunter, Hunter will provide
you with a replacement fan free of charge.* The foregoing limited warranty applies only
to the motor itself and does not apply to electronic controls – such as remote control
transmitters, remote control receivers, or capacitors – used in conjunction with the
motor. Such electronic control items are included in the one-year limited warranty below.
Other — One-Year Limited Warranty
Except as otherwise indicated throughout this warranty, if any part of your Hunter ceiling
fan fails at any time within one year of the date of purchase due to a defect in material
or workmanship, as determined solely by Hunter, Hunter will provide a replacement part
free of charge.*
Light Kits — Warranty May Vary
Light kits are included in the one-year limited warranty. However, you may qualify for
additional warranty coverage if your fan includes one of the following:
• LED Light Kits — Three-Year Limited Warranty
If your LED light kit module (not including glass components) or LED bulb
fails at any time within three years of the date of purchase due to a defect
in material or workmanship, as determined solely by Hunter, Hunter will
provide a replacement part free of charge.*
* If no replacement product/part can be provided for your fan, we will provide a comparable or
superior replacement product/part at the sole discretion of Hunter.
What Does This Warranty NOT Cover?
Labor Excluded. This warranty does not cover any costs or fees associated with the labor
(including electrician’s fees) required to install, remove, or replace a fan or any fan parts.
There is no warranty for light bulbs (except where otherwise noted); remote control
batteries; fans purchased or installed outside the United States; fans owned by
someone other than the original purchaser; fans for which proof of purchase has not
been established; fans purchased from an unauthorized dealer; ordinary wear and tear;
minor cosmetic blemishes; refurbished fans; and fans that are damaged due to any
of the following: improper installation, misuse, abuse, improper care, failure to follow
Hunter instructions, accidental damage caused by the fan owner or related parties,
modications to the fan, improper or incorrectly performed maintenance or repair,
improper voltage supply or power surge, use of improper parts or accessories, failure to
provide maintenance to the fan, or acts of God (e.g. ood).
ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND
WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
HUNTER FAN COMPANY IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF
WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. Some States do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE APPLICABLE TO THIS PRODUCT ARE LIMITED IN DURATION TO THE PERIOD OF
COVERAGE OF THE APPLICABLE LIMITED WARRANTIES SET FORTH ABOVE. Some States
do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.
How Does State Law Affect Warranty Coverage?
This warranty gives you specic legal rights. You may also have other rights which vary
from state to state.
8
Loading...
