Hunter Fan 90066, 90067 User Manual

Warranty

Hunter Fan Company Bath Exhaust Fan LIMITED WARRANTY

Hunter Fan Company makes the following limited warranty to the original user or consumer purchaser of this Hunter bath exhaust fan:

If any part of your Hunter bath exhaust fan (except for glass ﬁxtures and light bulbs) fails at any time within one year after the date of sale to you due to a defect in material or workmanship, we will repair or, at our option, replace the defective part free of charge for parts and labor performed at our nearest service center or at our Service Department in Memphis, Tennessee. After this one-year period, you will be responsible for all parts and labor costs for repairs on the bath exhaust fan except for motor repairs as provided below.

If your Hunter bath exhaust fan motor fails at any time within ﬁve years after the date of sale to you due to a defect in material or workmanship, labor and materials to repair the defect will be provided free of charge at our nearest service center or our Service Department in Memphis, Tennessee. If no replacement part can be provided, we will, at our option, either refund the actual purchase price of your bath exhaust fan or provide a replacement free of charge. After this ﬁve-year period, you will be responsible for all parts and labor costs for repairs on all parts of the bath exhaust fan.

IF THE ORIGINAL USER OR CONSUMER PURCHASER CEASES TO OWN THE FAN, THIS WARRANTY AND ANY IMPLIED WARRANTY WHICH THEN REMAINS IN EFFECT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE VOIDED. NO WARRANTY, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS MADE IN RESPECT OF GLASS FIXTURES OR LIGHT BULBS OR THE FINISH ON ANY METAL PORTION OF THE BATH EXHAUST FAN.

THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. THE DURATION OF ANY IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IN RESPECT TO ANY HUNTER FAN BATH EXHAUST FAN MOTOR OR OTHER FAN PART, IS EXPRESSLY LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE FOR SUCH MOTORS OR OTHER PARTS.

This warranty is voided if your Hunter bath exhaust fan is not purchased and installed in the U.S.A. This warranty excludes and does not cover defects, malfunctions or failures of any Hunter bath exhaust fan which were caused by repairs by persons not authorized by us, use of parts or accessories not authorized by us, mishandling, improper installation, modiﬁcations or damage to the Hunter bath exhaust fan while in your possession, or unreasonable use, including failure to provide reasonable and necessary maintenance.

To obtain servicing, contact the nearest Hunter authorized service center of the Hunter Fan Company Service Department, 2500 Frisco Avenue, Memphis, Tennessee 38114. Please contact us before shipping your bath exhaust fan to us. If we authorize you to ship it to us, you will be responsible for all insurance and freight or other transportation charges to our factory or service center. We will return your Hunter bath exhaust fan freight prepaid. Your Hunter bath exhaust fan should be properly packed to avoid damage in transit since we will not be responsible for any such damage. Proof of purchase is required when requesting warranty service. The purchaser must present the sales receipt or other document that establishes proof of purchase.

I n s t a l l a t i o n G u i d e

IN NO EVENT SHALL HUNTER FAN COMPANY BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATION OR EXCLUSIONS MAY NOT APPLY TO YOU.

THE WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE

2500 Frisco Avenue, Memphis, Tennessee 38114

Printed in China

90066/90067 Millenium™ Bath Ventilator with Light and Night Light

41723-01 12/25/2004 41723-01 12/25/2004

84724-01-000

75184-01-133

95512-01/02/-000

Pre-assembled

95013-01/02-000

95044-01-000

75190-01-000

03242-07-133

95492-02-000

75016-01-000

95011-01/02/-000

74508-03-133

95022-01-000

3/8" Cable Connector

NOTE:

Strain relief cable connector must be installed. Not Included.

Extra Screws

OFF

W A R N I N G

TO REDUCE THE RISK OF ELECTRIC SHOCK OR INJURY, OBSERVE THE FOLLOWING:

1. Use this unit only in a manner intended by the manufacturer. If you have questions, contact the manufacturer at the phone number or address listed in the warranty.

2. Before installing, servicing, or cleaning the unit, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely attach a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting of gasses through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards,

such as those published by the National Fire Prevention

Association (NFPA), and the American Society for Heating, Refrigeration and Air-Conditioning Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall(s) or ceiling, do not damage electrical wiring or other hidden utilities.

6. Ducted fans must always be vented to the outdoors. Keep ducting as short and as straight as possible.

7. Acceptable for use over a bathtub or shower when connected to a GFCI protected branch circuit.

8. Install fan at least 5 feet (1.52 m) above the floor.

9. Never place a switch where it can be reached from a tub

or shower.

10. This unit must be grounded.

Check all the parts.

If damaged, call

1-888-830-1326

for replacements.

Included.

C A U T I O N

1. For general ventilating use only. Do not use for ventilat-

ing hazardous or explosive materials.

2. To avoid motor bearing damage and noisy/unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.

3. DO NOT install this product in a wall. This product is designed for installation in ceilings up to a 12/12 pitch (45 degrees). Ductwork must point upward.

4. Please read specification label on product for further information and requirements.

PREVENTATIVE MAINTENANCE

A clean fan provides better service. Disconnect the power supply and clean the fan as listed below.

TO CLEAN GRILLE: Use a mild detergent, such as dishwashing liquid, and a soft cloth. DO NOT use abrasive cloths, steel wool pads or scouring powders.

TO CLEAN FAN ASSEMBLY: Unplug motor cord from receptacle. To remove motor plate, find the single tab on the motor plate (located next to the receptacle). Push up rear motor plate tab while pushing out on the side of the housing or insert a screwdriver into the slot in the housing (next to tab) and twist screwdriver. Gently vacuum fan, motor and interior of housing.

METAL AND ELECTRICAL PARTS SHOULD NEVER BE IMMERSED IN WATER.

MAINTENANCE

The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the motor with the exact service motor. You should replace the impeller at the same time.

W A R N I N G

DISCONNECT

ELECTRIC

POWER SUPPLY

AND LOCK OUT

SERVICE PANEL

BEFORE

SERVICING UNIT

Tools Needed.

Estimated assembly time: 30 to 60 minutes.

Before Installation

NOTE: Remove all packing materials before installation.

Turn off the power source.

41723-01 12/25/2004 41723-01 12/25/2004

Loosen screws.

Remove the motor/blower from the housing.

A11

5/8 1/2

A12

Remove packing material.

Pop out the first wiring access slug. Use second if needed. Insert the strain relief into the housing and

secure with the washer.

Choose Installation Option

For New Construction - attaching to joist go to step A11, page 5

For New Construction - suspended between joists go to step B11, page 8

For Existing Construction - accessible from above go to step C11, page 11

For Existing Construction - accessible only from below go to step D11, page 15

Remove the pre-loaded screw tip covers.

Back out the pre-loaded screw tips until flush

with the side of the housing.

New Construction - attaching to joist

Remove the wiring cover screw. Screw pre-loaded screws into joist or framing.

Remove the wiring cover.

Position the correct depth mark at the bottom edge of the

joist based on the thickness of your sheetrock.

41723-01 12/25/2004 41723-01 12/25/2004

Pull wires through the strain relief.

A13

3 Pin

2 Pin

Fan Motor

Light

Green

Black

Red

White

Black

White

Bare Copper

Ground

A14

Night Light

Switch 1 (AC In)

Main Switch 1 (AC In)

Switch 2 (AC In)

*Option Fan & Main Light Together

*Option

A15

•

A16

A17

A18

A20

A19

A21

A22

Connect 4” duct and vent to the outside. Tape joints.

If ducting does not fit securely, an adapter may need

to be purchased.

Connect wiring from the motor to the wiring cover plate.

Install the wiring cover plate. Make sure all

wiring connections are inside the box or under

the wiring cover plate.

Connect wires as shown.

Tighten the wiring cover plate screw.

Reinstall the motor by inserting the tabs and pushing up

into position. Make sure the wires are not pinched

between the motor and the housing.

Turn on the power source.

41723-01 12/25/2004 41723-01 12/25/2004

Secure the motor by tightening the 2 screws.

Test the motor. If the motor does not run, check the plug

connection.

A23

Go to step

on page 18

to attach grille.

B11

5/8 1/2

B12

B13

1/8" Bit

B14

B18

B17

B15

B16

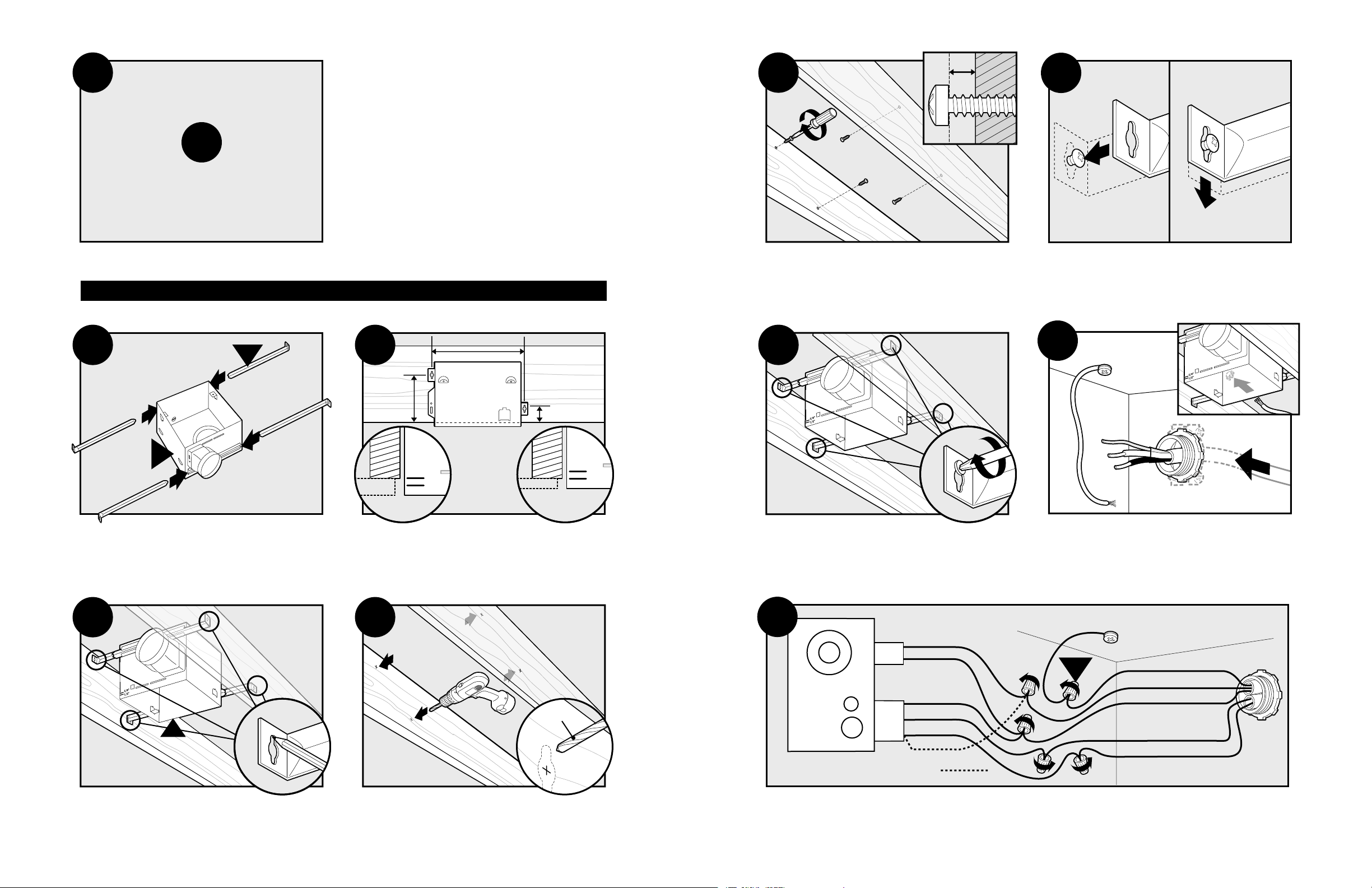

New Construction – suspended between joists

3 Pin

2 Pin

Fan Motor

Light

Green

Black

Red

White

Black

White

Bare Copper

Ground

B19

Night Light

Switch 1 (AC In)

Main Switch 1 (AC In)

Switch 2 (AC In)

*Option Fan & Main Light Together

*Option

Insert screws, leaving space between the screw

head and the joist. Screws are not provided.

Attach the rails onto the screws.

Slide the mounting rails into brackets.

Mark position of screws by using holes as a template.

Position the correct depth mark at the bottom edge of

the joist based on the thickness of your sheetrock.

Drill a hole in the center of each outline.

Tighten screws.

Connect wires as shown.

41723-01 12/25/2004 41723-01 12/25/2004

Pull wires through the strain relief.

B20

•

B21

B22

B23

B24

B25

B26

B27

B28

Go to step

on page 18

to attach grille.

Install the wiring cover plate. Make sure all

EXISTING FAN

C11

NO EXISTING FAN

wiring connections are inside the box or under

the wiring cover plate.

Tighten the wiring cover plate screw.

Turn on the power source.

Test the motor. If the motor does not run, check the plug

connection.

Connect 4” duct and vent to the outside. Tape joints. If ducting does not fit securely, an adapter may need

to be purchased.

Reinstall the motor by inserting the tabs and pushing up

into position. Make sure the wires are not pinched

between the motor and the housing.

Connect wiring from the motor to the wiring cover plate.

Secure the motor by tightening the 2 screws.

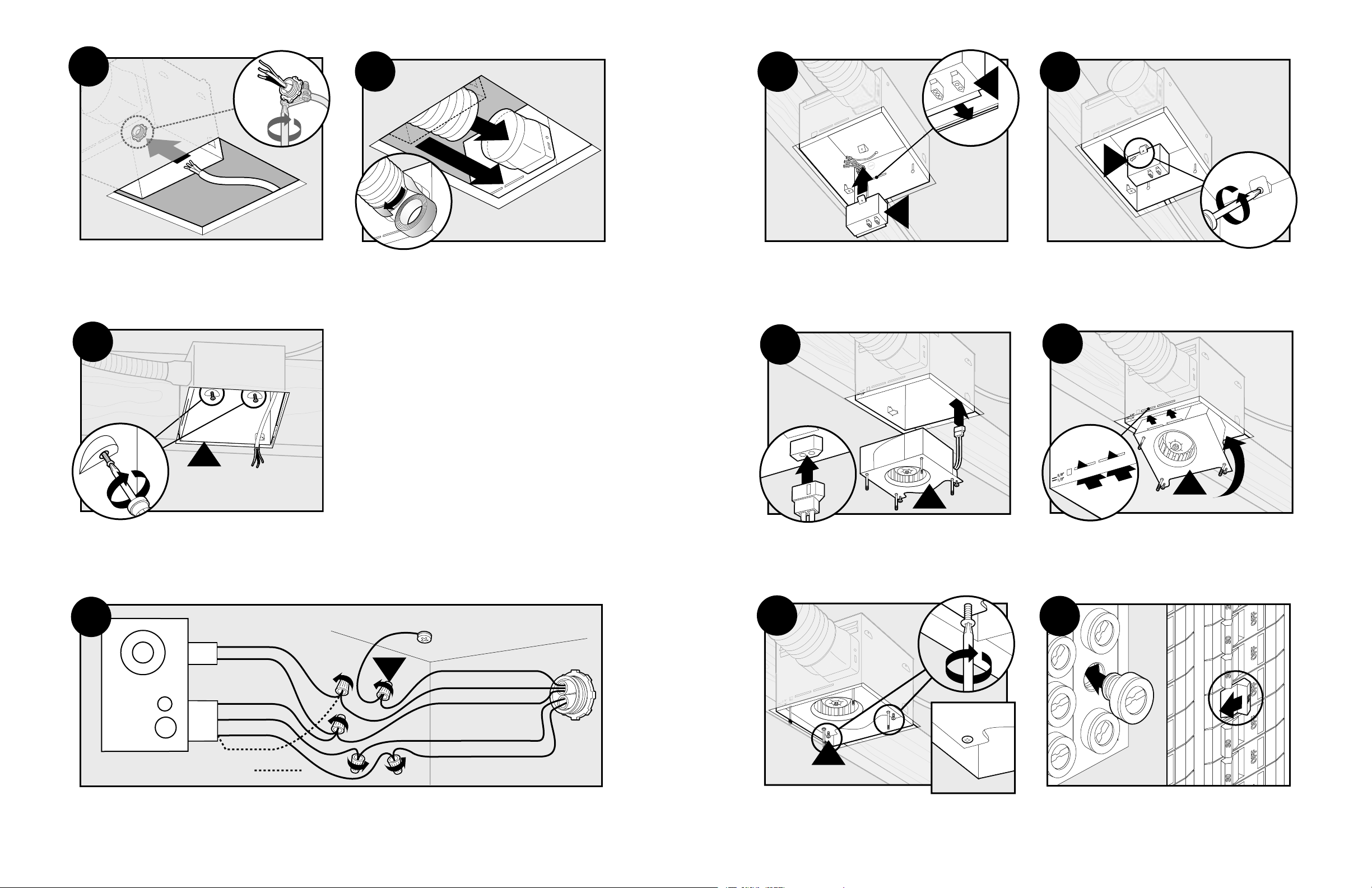

Existing Construction – accessible from above

Remove an existing fan and check to make sure the

opening is large enough to accommodate the new

motor housing (9”x 9.75”).

41723-01 12/25/2004 41723-01 12/25/2004

Use the motor housing as a template to mark position.

9”

5”

Cut out an opening for the housing.

C12

5/8 1/2

C13

C14

C15

C16

C17

C18

C19

C20

C21

Slide the mounting rails into brackets.

Attach the rails onto the screws.

Tighten screws.

Position the correct depth mark at the bottom edge of the

joist based on the thickness of your sheetrock.

Drill a hole in the center of each outline.

Mark position of screws by using holes as a template.

Insert screws, leaving space between the screw head

and the joist. Screws are not provided.

Connect 4” duct and vent to the outside. Tape joints.

If ducting does not fit securely, an adapter may

need to be purchased.

Tighten the strain relief screws.

41723-01 12/25/2004 41723-01 12/25/2004

Pull wires through the strain relief.

3 Pin

2 Pin

Fan Motor

Light

Green

Black

Red

White

Black

White

Bare Copper

Ground

C22

Night Light

Switch 1 (AC In)

Main Switch 1 (AC In)

Switch 2 (AC In)

*Option Fan & Main Light Together

*Option

Connect wires as shown.

C23

•

C24

C25

C26

C27

C28

C29

C30

Go to step

on page 18

to attach grille.

EXISTING FAN

D11

D12

Secure the motor by tightening the 2 screws.

Turn on the power source.

Install the wiring cover plate. Make sure all

wiring connections are inside the box or under

Connect wiring from the motor to the wiring cover plate.

the wiring cover plate.

Tighten the wiring cover plate screw.

Reinstall the motor by inserting the tabs and pushing up

into position. Make sure the wires are not pinched

between the motor and the housing.

Test the motor. If the motor does not run, check the plug

connection.

Existing Construction – accessible only from below

Remove an existing fan and check to make sure the opening is large enough to accommodate the new motor hous-

ing (9”x 9.75”).

41723-01 12/25/2004 41723-01 12/25/2004

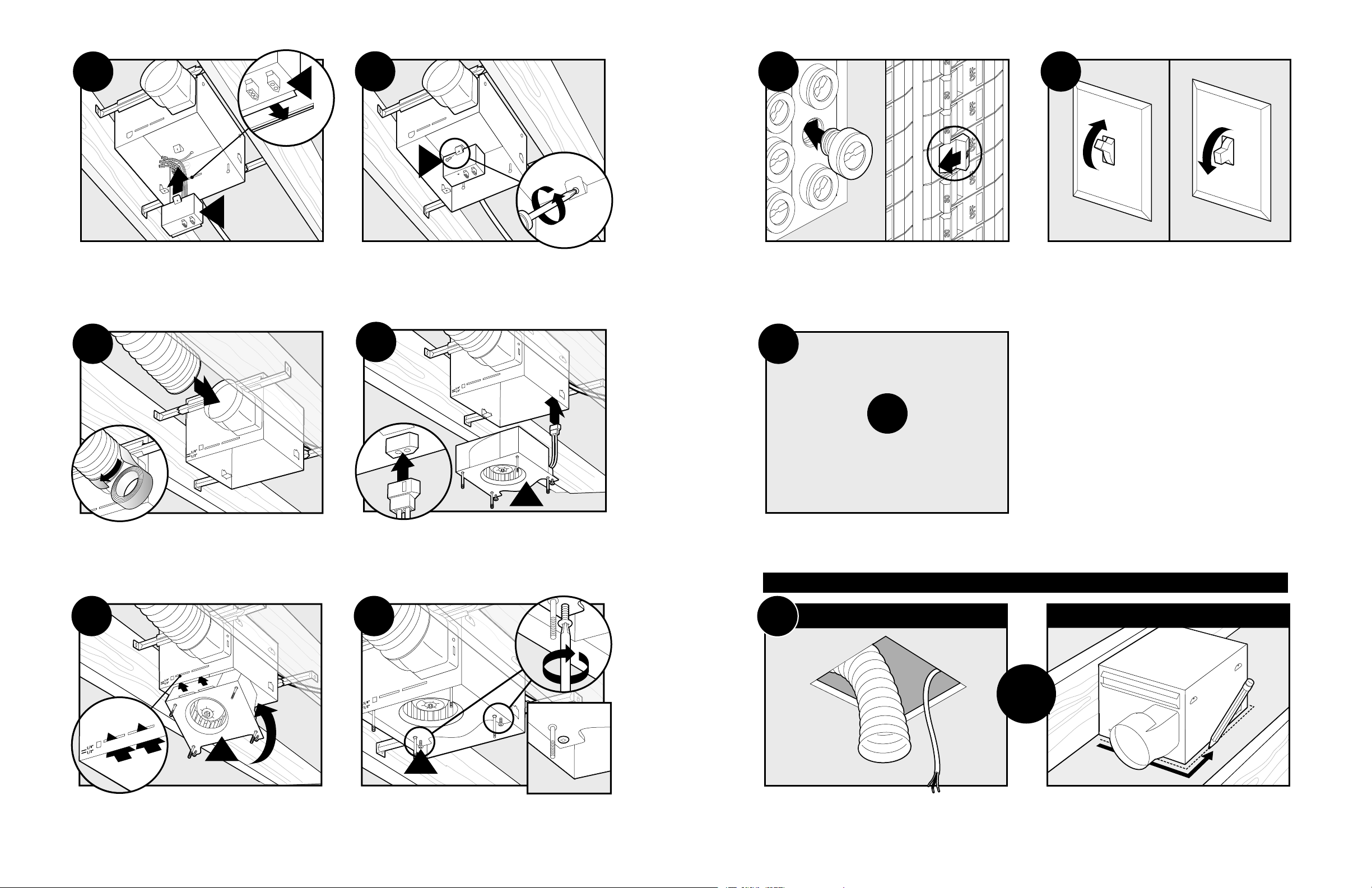

Move the housing into position above the ceiling.

D13

D14

D15

Pull wires through strain relief.

3 Pin

2 Pin

Fan Motor

Light

Green

Black

Red

White

Black

White

Bare Copper

Ground

D16

Night Light

Switch 1 (AC In)

Main Switch 1 (AC In)

Switch 2 (AC In)

*Option Fan & Main Light Together

*Option

D17

•

D18

D19

D20

D21

D22

Attach existing ducting to duct connector. Tape joints.

If ducting does not fit securely,

an adapter may need to be purchased.

Install the wiring cover plate. Make sure all

wiring connections are inside the box or under

the wiring cover plate.

Tighten the wiring cover plate screw.

Screw pre-loaded screws into joist or framing.

Connect wiring from the motor to the wiring cover plate.

Connect wires as shown.

Secure the motor by tightening the 2 screws. Turn on the power source.

41723-01 12/25/2004 41723-01 12/25/2004

Reinstall the motor by inserting the tabs and pushing up

into position. Make sure the wires are not pinched between

the motor and the housing.

D23

D24

Go to step

on page 18

to attach grille.

Test the motor. If the motor does not run, check the plug

E10

connection.

Attaching the Grille

Connect wiring harness.

Slide light base over posts in motor housing.

Remove backs from 4 tape strips found on the trim disk.

Press metal trim disk into glass trim ring.

Tighten screws on metal clamps to secure trim assembly.

Rotate 4 metal clamps over glass trim.

Remove the thumbscrews.

41723-01 12/25/2004 41723-01 12/25/2004

WARNING: To reduce the risk of electrical shock,

all 4 thumbscrews MUST be properly installed.

Attach thumbscrews.

Connect the circline bulb.

Insert 1 Max 30 Watt CFL Pin Based Circline bulb (Included)

into spring clamps.

Screw in 1 Max 7 Watt C-7 bulb (Not Included).

E11

Attach complete trim unit to light base. Rotate until secure.

Trouble Shooting

Problem: Fan does not come on.

Solution:

• Hunter Fan Bath Ventilators are extremely quiet. To conﬁrm that the fan is running, place your hand near the vents to feel the air movement.

• Turn power on, replace fuse, or reset breaker.

• Check all plug connections to be sure they are secure.

• Check the wiring to make sure it matches the wiring diagram.

Problem: Light does not come on.

Solution:

• Replace the light bulb with a new bulb.

• Turn power on, replace fuse, or reset breaker.

• Check all plug connections to be sure they are secure.

• Check the wiring to make sure it matches the wiring diagram.

Problem: Fan is noisy.

Solution:

• Check and tighten all fasteners.

• Check the glass to make sure it is secure.

• Check the ﬂapper to make sure it moves freely.

If you need parts or service assistance, please call 888-830-1326 or visit us at our WEB site at http://www.hunterfan.com.

41723-01 12/25/2004 41723-01 12/25/2004

Hunter Fan 90066, 90067 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
