Hunter Fan 90063, 90064 User Manual

I n s t a l l a t i o n G u i d e

90063/90064 Ellipse

™

Bath Ventilator with Light and Night Light

READ and SAVE THESE INSTRUCTIONS

41722-01 3/29/2006

ENG LISH

See page 2

ESpañoL

Vea la página 21

41722_EngS_3.29.03.indd 1 3/29/06 10:54:38 PM

DISCONNECT

ELECTRIC

POWER SUPPLY

AND LOCK OUT

SERVICE PANEL

BEFORE

SERVICING UNIT

W a r n i n g

TO REDUCE THE RISK OF ELECTRIC SHOCK OR INJURY, OBSERVE THE FOLLOWING:

1. For general ventilating use only. Do not use for ventilating hazardous or explosive materials.

2. To avoid motor bearing damage and noisy/unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.

3. DO NOT install this product in a wall. This product is designed for installation in ceilings up to a 12/12 pitch (45 degrees). Ductwork must point upward.

4. Please read specification label on product for further information and requirements.

PREVENTATIVE MAINTENANCE

A clean fan provides better service. Disconnect the power supply and clean the fan as listed below.

TO CLEAN GRILLE: Use a mild detergent, such as dishwashing liquid, and a soft cloth. DO NOT use abrasive cloths, steel wool pads or scouring powders.

TO CLEAN FAN ASSEMBLY: Unplug motor cord from receptacle. To remove motor plate, find the single tab on the motor plate (located next to the receptacle). Push up rear motor plate tab while pushing out on the side of the housing or insert a screwdriver into the slot in the housing (next to tab) and twist screwdriver. Gently vacuum fan, motor and interior of housing.

METAL AND ELECTRICAL PARTS SHOULD NEVER BE IMMERSED IN WATER.

MAINTENANCE

The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the motor with the exact service motor. You should replace the impeller at the same time.

C a U T i O n

W a r n i n g

1. Use this unit only in a manner intended by the manufacturer. If you have questions, contact the manufacturer at the phone number or address listed in the warranty.

2. Before installing, servicing, or cleaning the unit, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely attach a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting of gasses through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards,

such as those published by the National Fire Prevention

Association (NFPA), and the American Society for Heating, Refrigeration and Air-Conditioning Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall(s) or ceiling, do not damage electrical wiring or other hidden utilities.

6. Ducted fans must always be vented to the outdoors. Keep ducting as short and as straight as possible.

7. Acceptable for use over a bathtub or shower when connected to a GFCI protected branch circuit.

8. Install fan at least 5 feet (1.52 m) above the floor.

9. Never place a switch where it can be reached from a tub

or shower.

10. This unit must be grounded.

41722-01 3/29/2006 41722-01 3/29/2006

41722_EngS_3.29.03.indd 2 3/29/06 10:54:39 PM

95044-01-000

95022-01-000

75190-01-000

03242-07-133

95492-01-000

74508-03-133

95510-01-000

95366-01/02-000

75184-01-133

NOTE:

Strain relief cable connector must be installed. Not Included.

Extra Screws

3/8” Cable Connector

OFF

Turn off the power source.

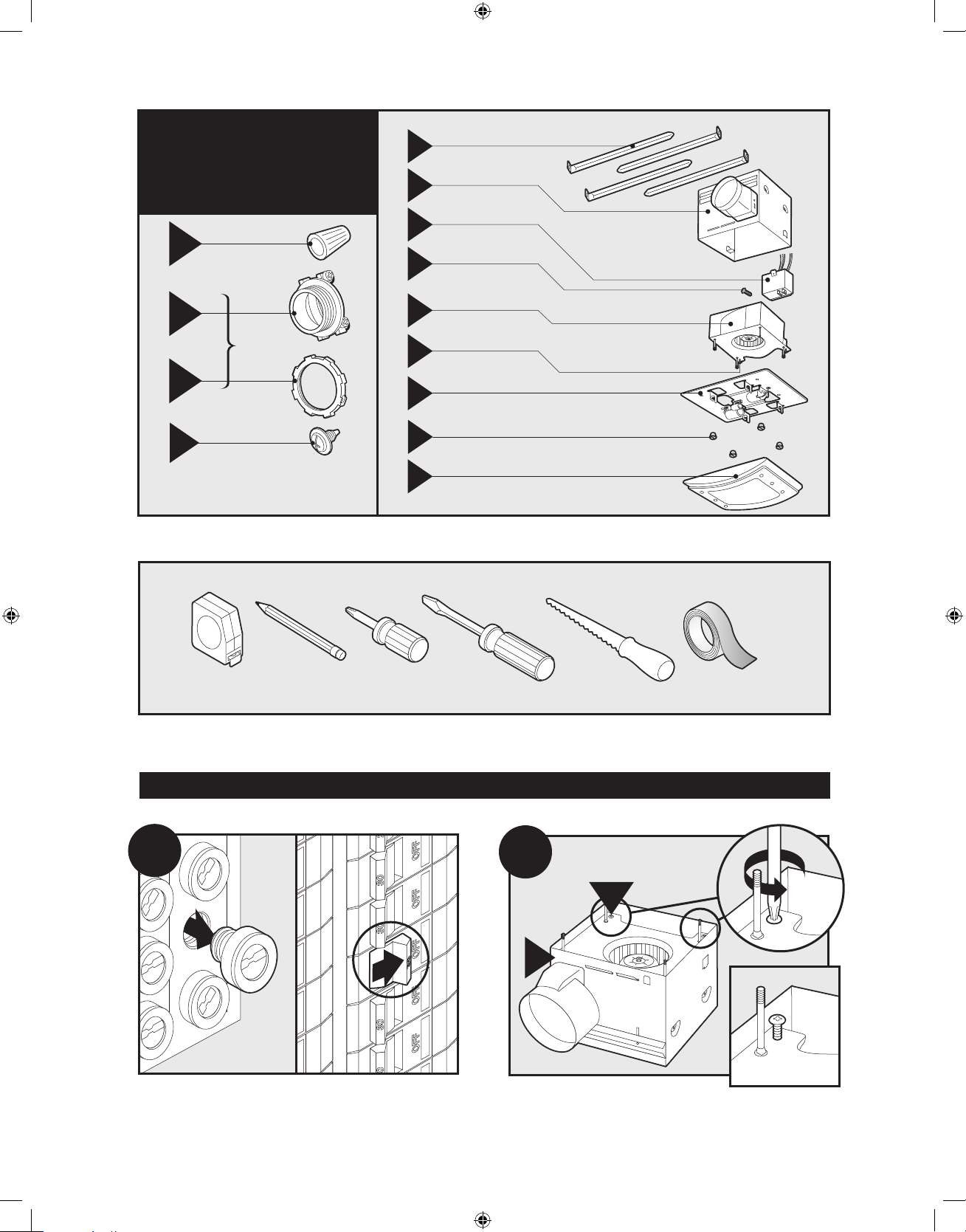

Tools Needed. (Not supplied)

Estimated assembly time: 30 to 60 minutes

Before Installation

Check all the parts.

If damaged, call

1-888-830-1326

for replacements.

Included.

Loosen screws.

41722-01 3/29/2006 41722-01 3/29/2006

NOTE: Remove all packing materials before installation.

41722_EngS_3.29.03.indd 3 3/29/06 10:54:41 PM

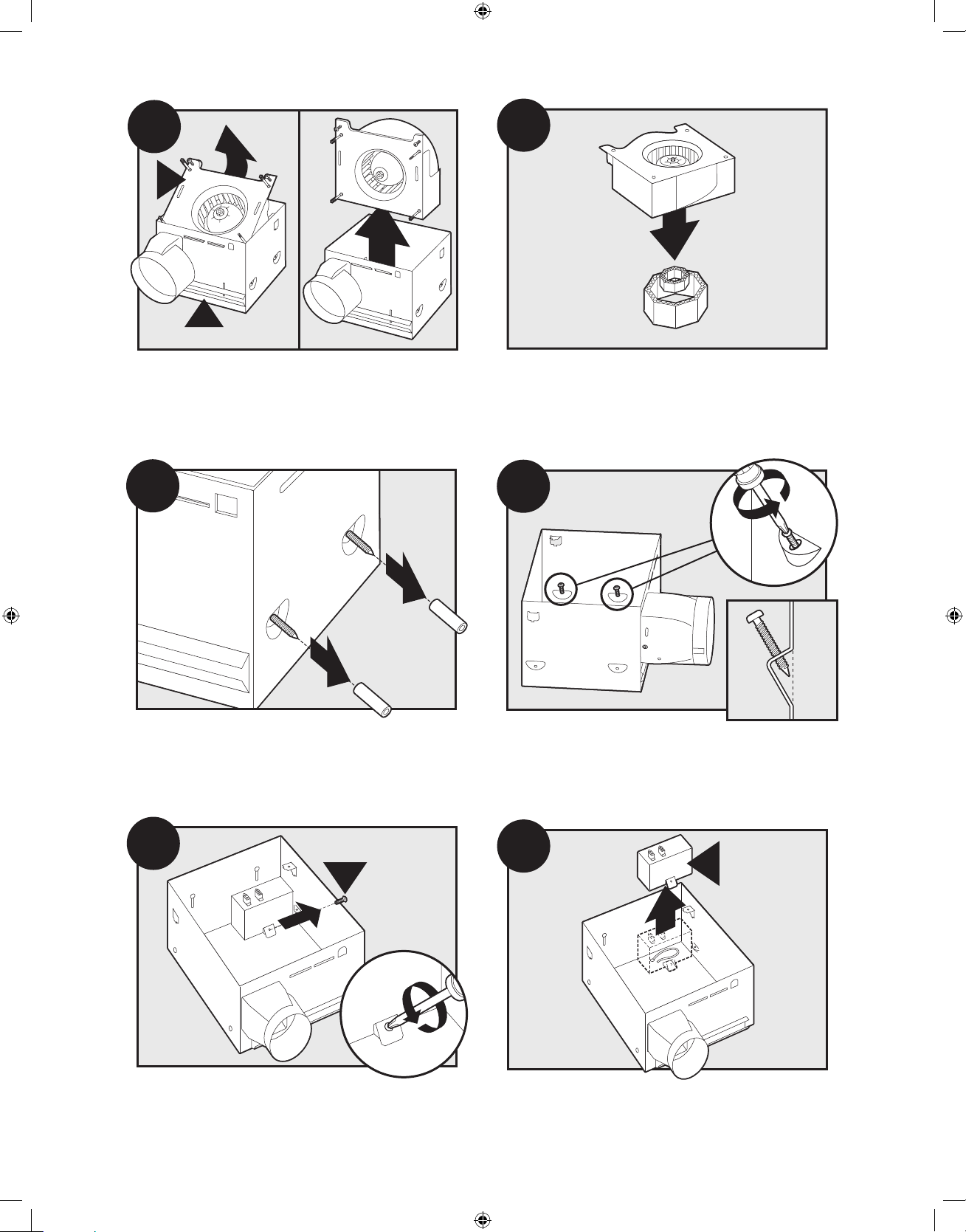

Remove the motor/blower from the housing.

Remove the pre-loaded screw tip covers.

Remove the wiring cover screw.

Back out the pre-loaded screw tips until flush

with the side of the housing.

Remove the wiring cover.

Remove packing material.

41722-01 3/29/2006 41722-01 3/29/2006

41722_EngS_3.29.03.indd 4 3/29/06 10:54:44 PM

A11

5/8 1/2

A12

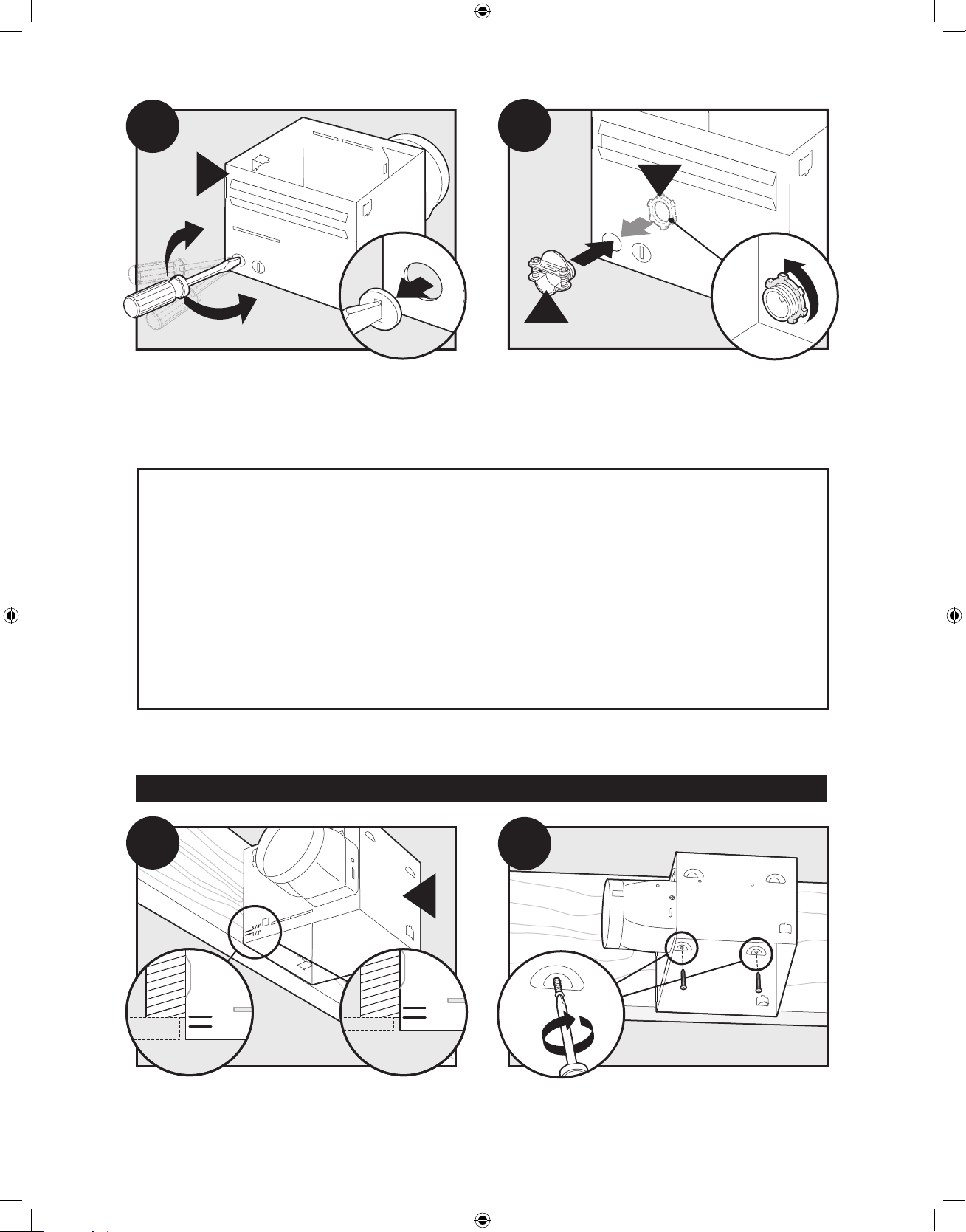

Pop out the first wiring access slug. Use second if needed. Insert the strain relief into the housing and

secure with the washer.

Position the correct depth mark at the bottom edge of the

joist based on the thickness of your sheetrock.

New Construction – attaching to joist

Choose Installation Option

For New Construction - attaching to joist go to step A11, page 5

For New Construction - suspended between joists go to step B11, page 8

For Existing Construction - accessible from above go to step C11, page 11

For Existing Construction - accessible only from below go to step D11, page15

Screw pre-loaded screws into joist or framing.

41722-01 3/29/2006 41722-01 3/29/2006

41722_EngS_3.29.03.indd 5 3/29/06 10:54:46 PM

A13

3 Pin

2 Pin

Fan Motor

Light

Green

Black

Red

White

Black

White

Bare Copper

Ground

A14

Night Light

Switch 1 (AC In)

Main Switch 1 (AC In)

Switch 2 (AC In)

*Option Fan & Main Light Together

*Option

A15

•

A16

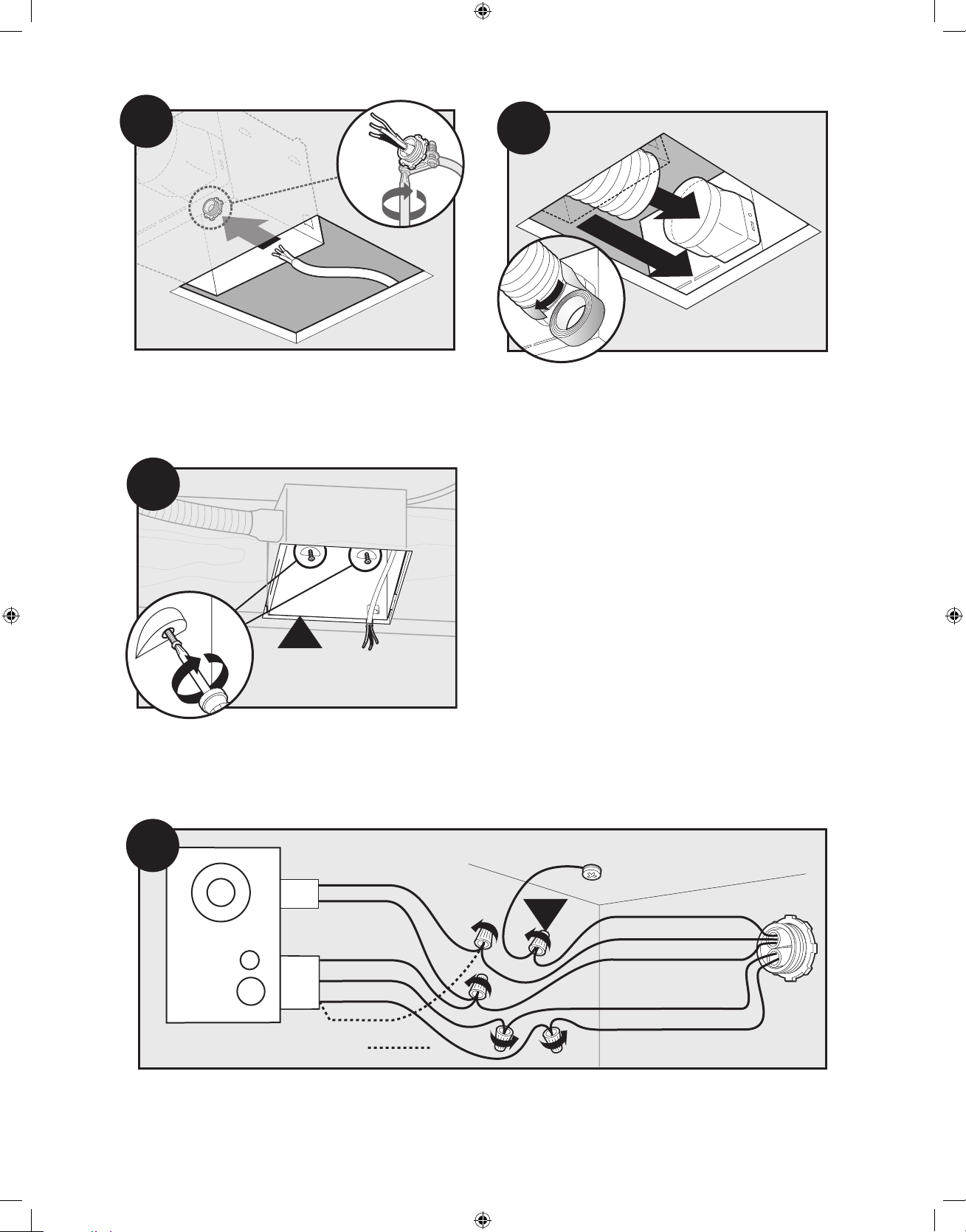

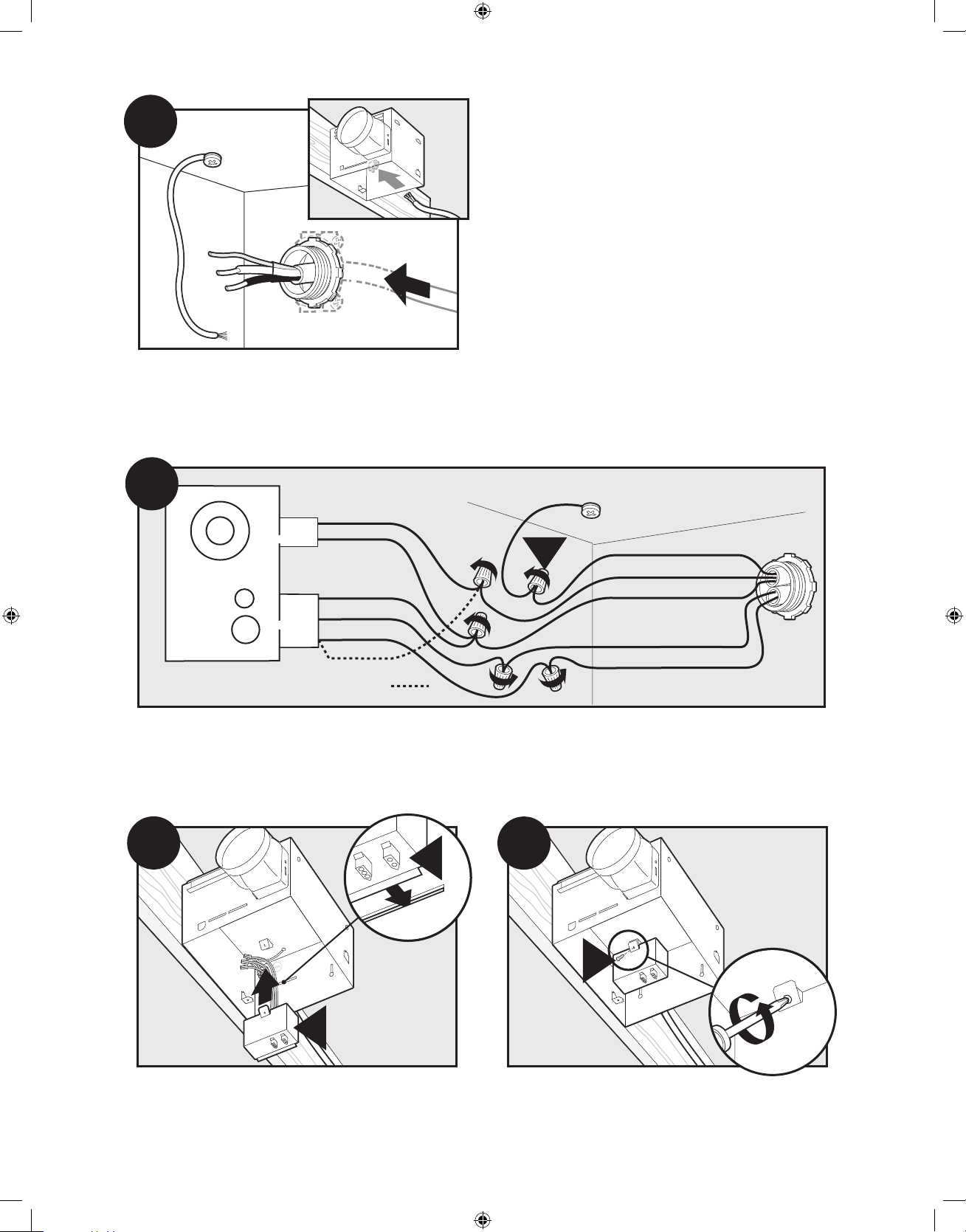

Pull wires through the strain relief.

Connect wires as shown.

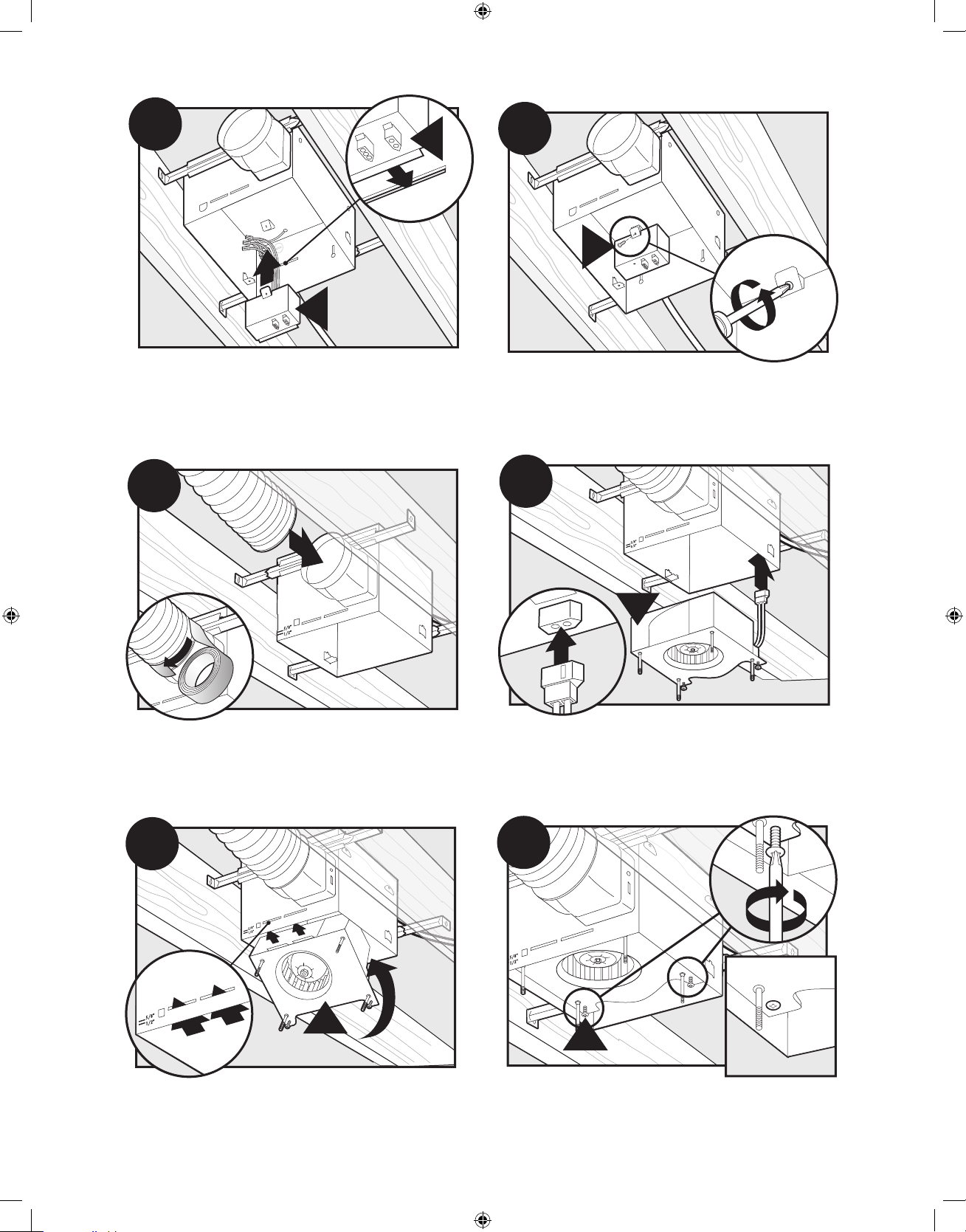

Install the wiring cover plate. Make sure all

wiring connections are inside the box or under

the wiring cover plate.

Tighten the wiring cover plate screw.

41722-01 3/29/2006 41722-01 3/29/2006

41722_EngS_3.29.03.indd 6 3/29/06 10:54:48 PM

A17

A18

A20

A19

A21

A22

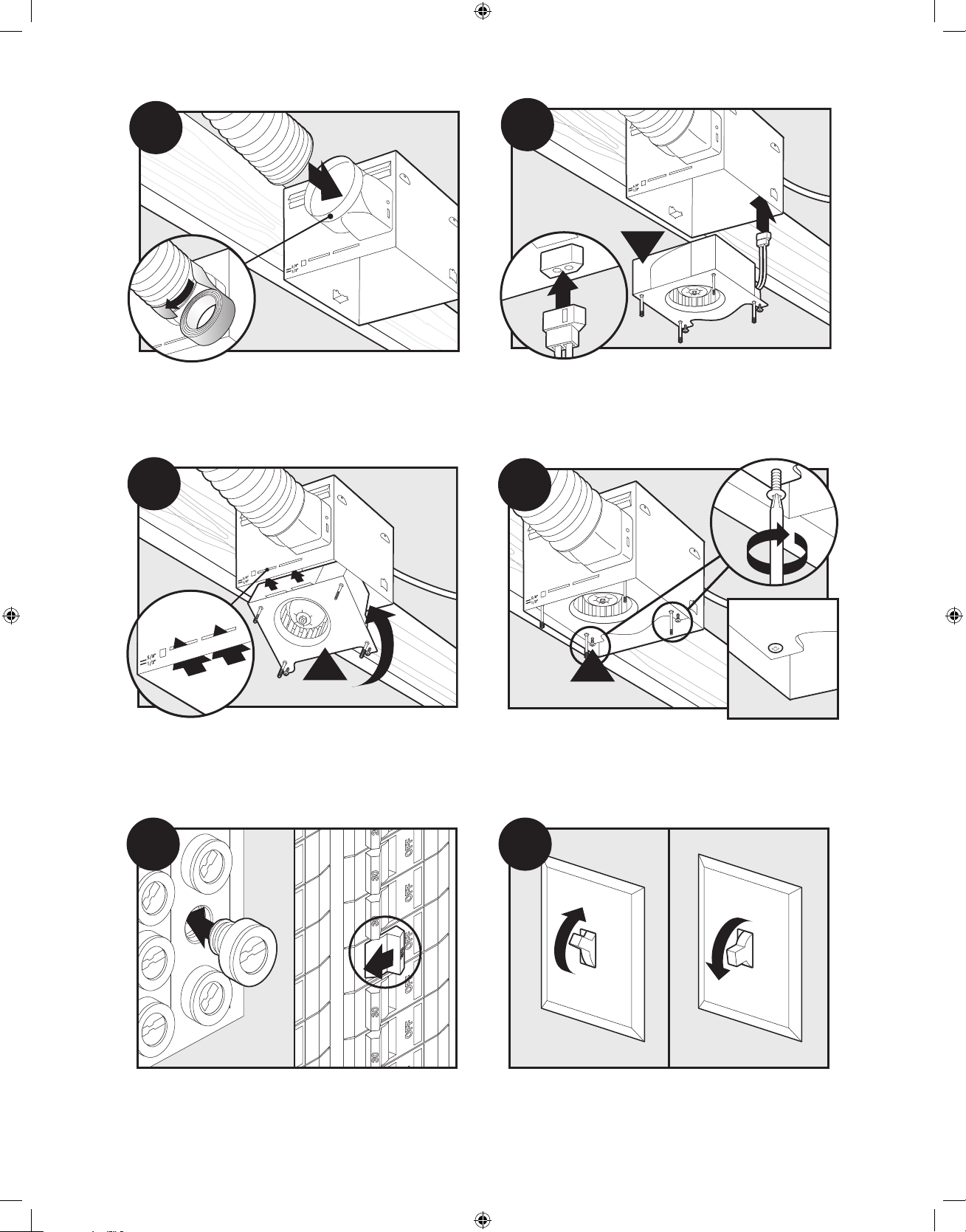

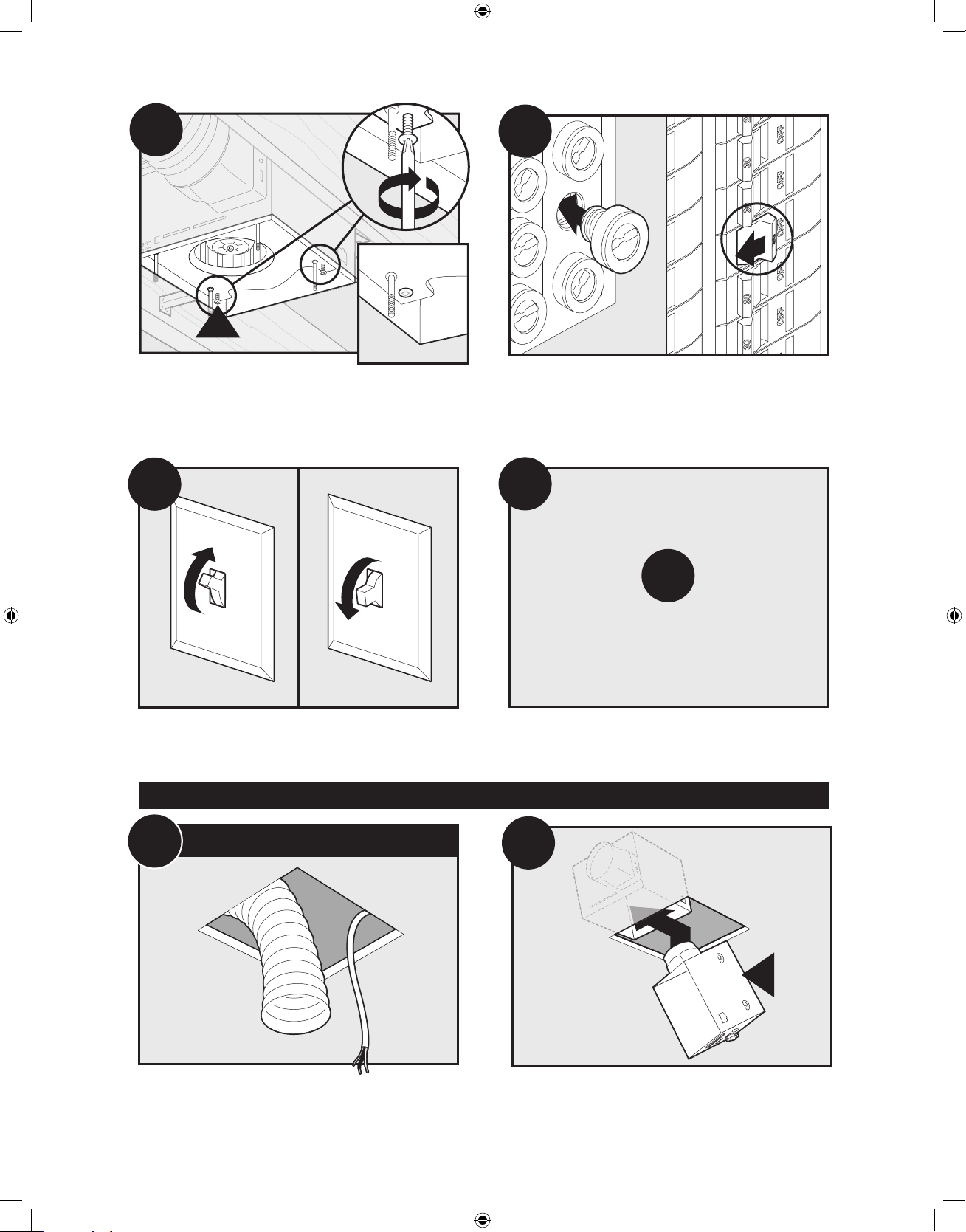

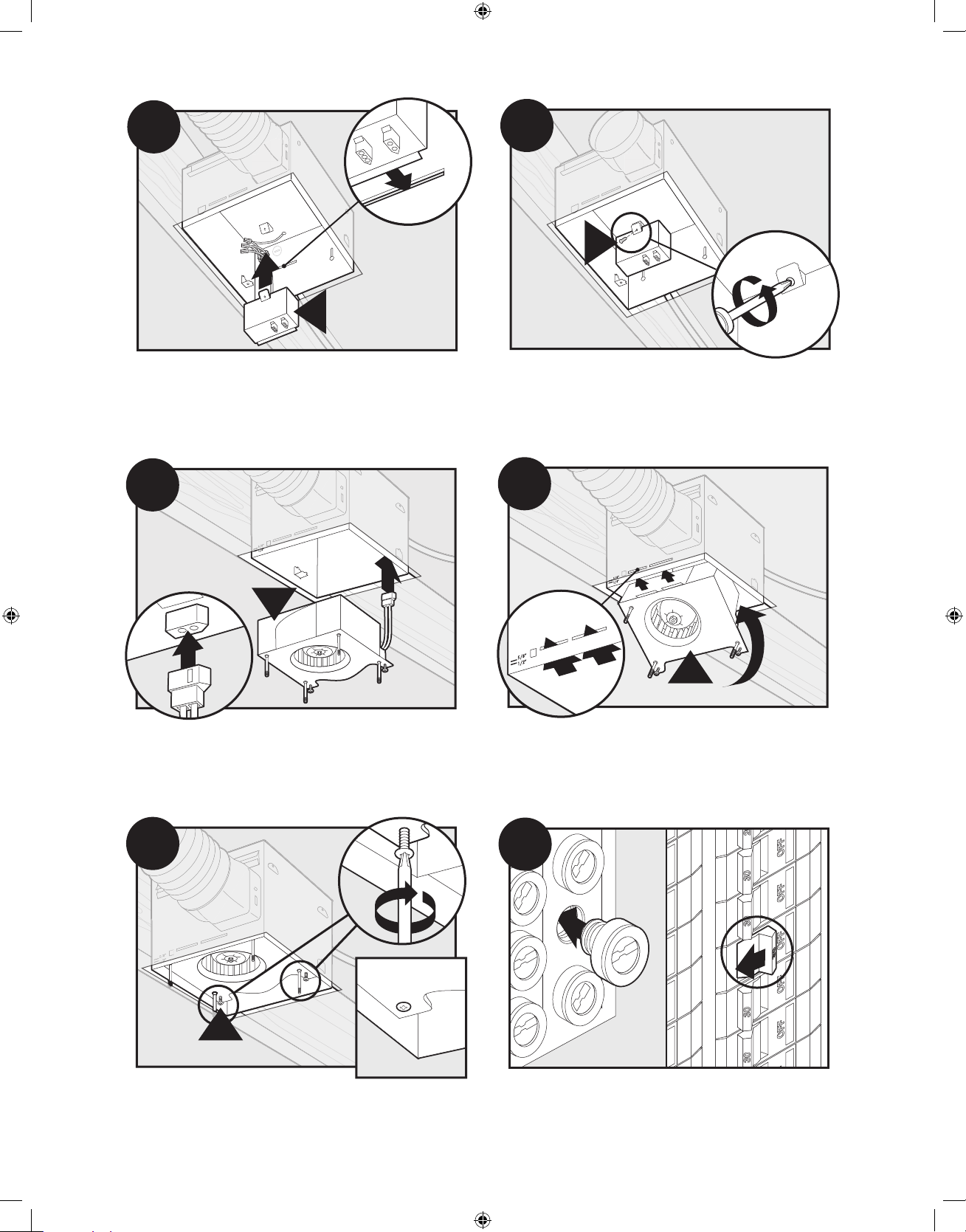

Reinstall the motor by inserting the tabs and pushing up

into position. Make sure the wires are not pinched

between the motor and the housing.

Secure the motor by tightening the 2 screws.

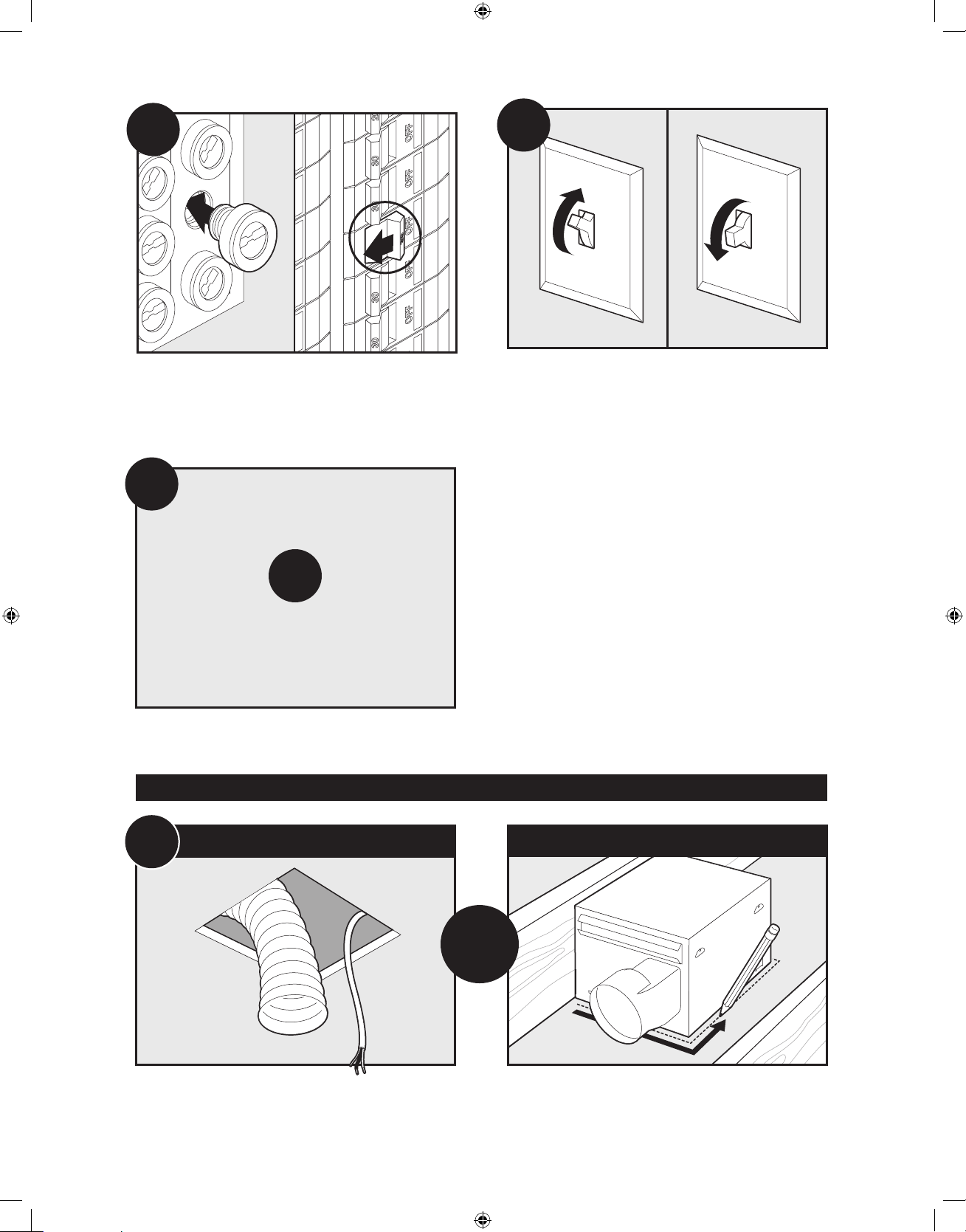

Test the motor. If the motor does not run, check the plug

connection.

Turn on the power source.

Connect 4” duct and vent to the outside. Tape joints.

If ducting does not fit securely, an adapter may need

to be purchased.

Connect wiring from the motor to the wiring cover plate.

41722-01 3/29/2006 41722-01 3/29/2006

41722_EngS_3.29.03.indd 7 3/29/06 10:54:51 PM

A23

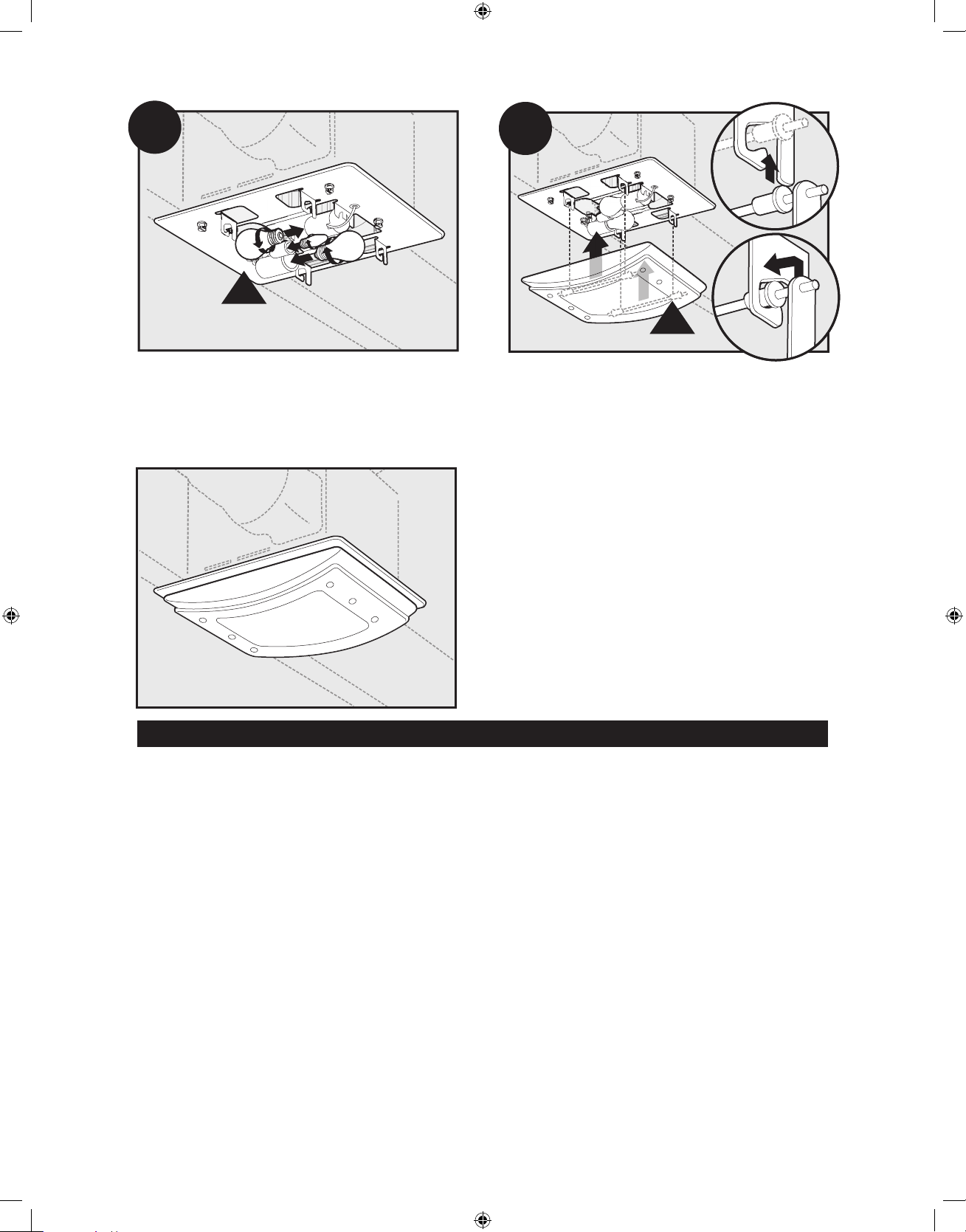

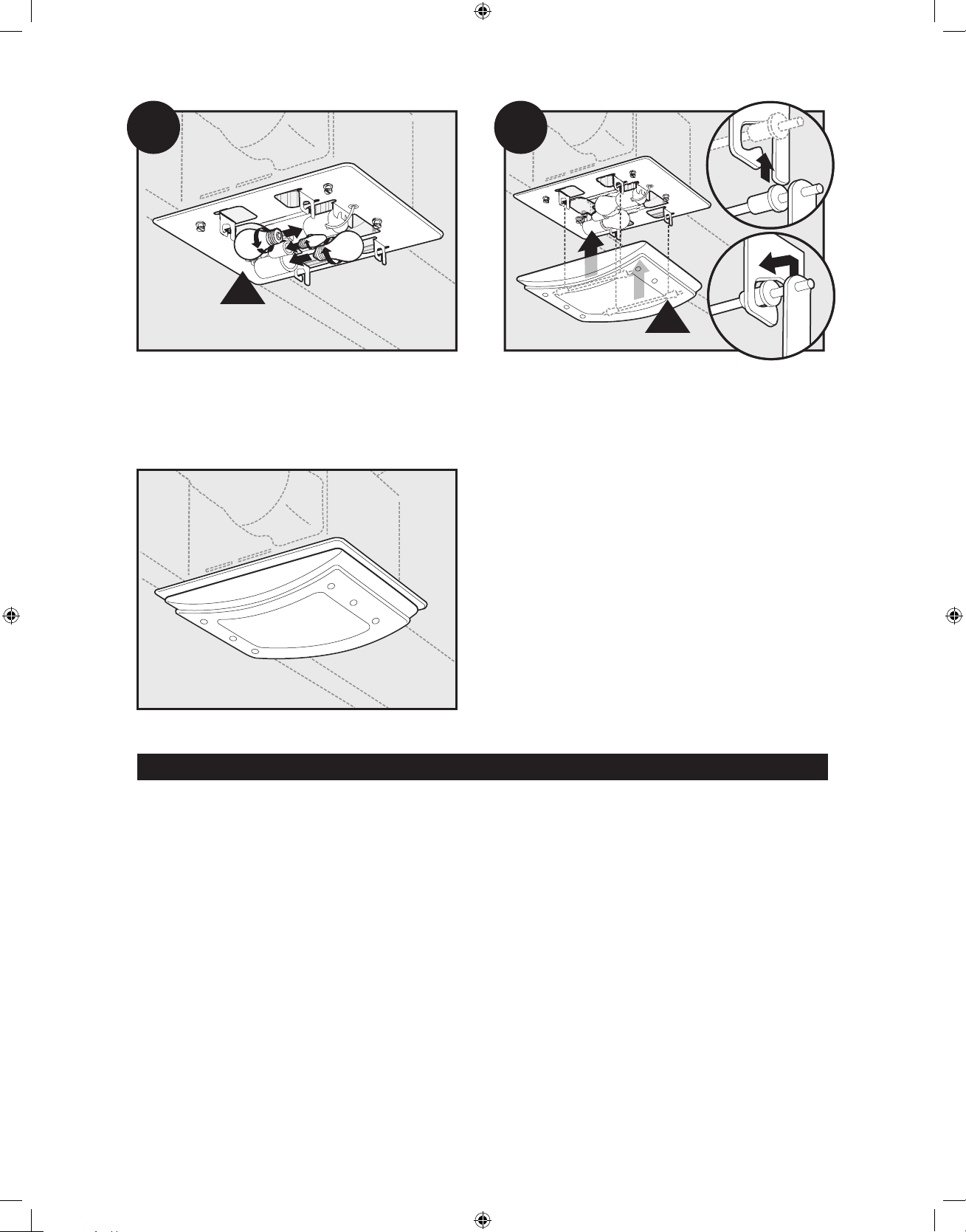

Go to step

on page 18

to attach grille.

B11

5/8 1/2

B12

B13

1/8" Bit

B14

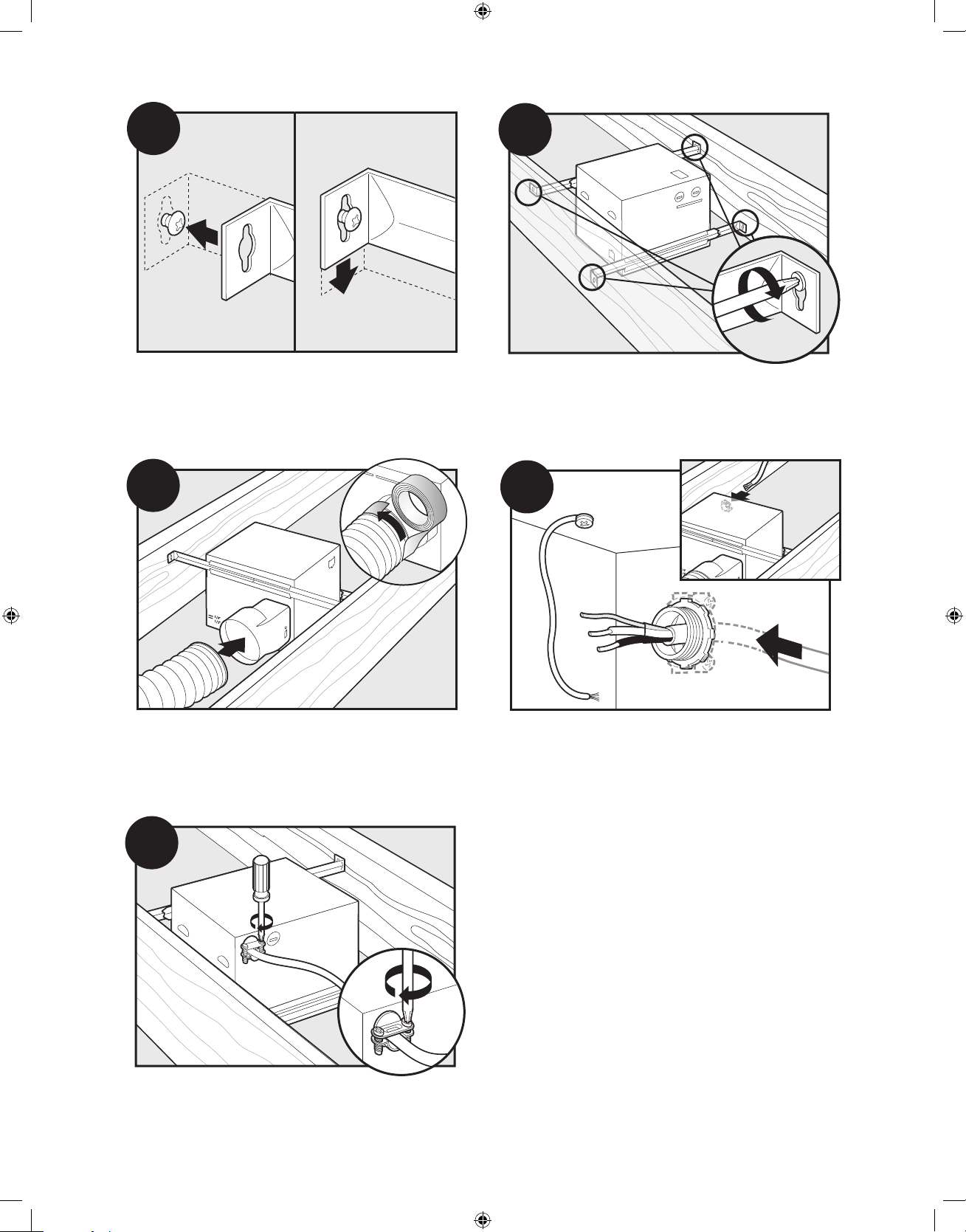

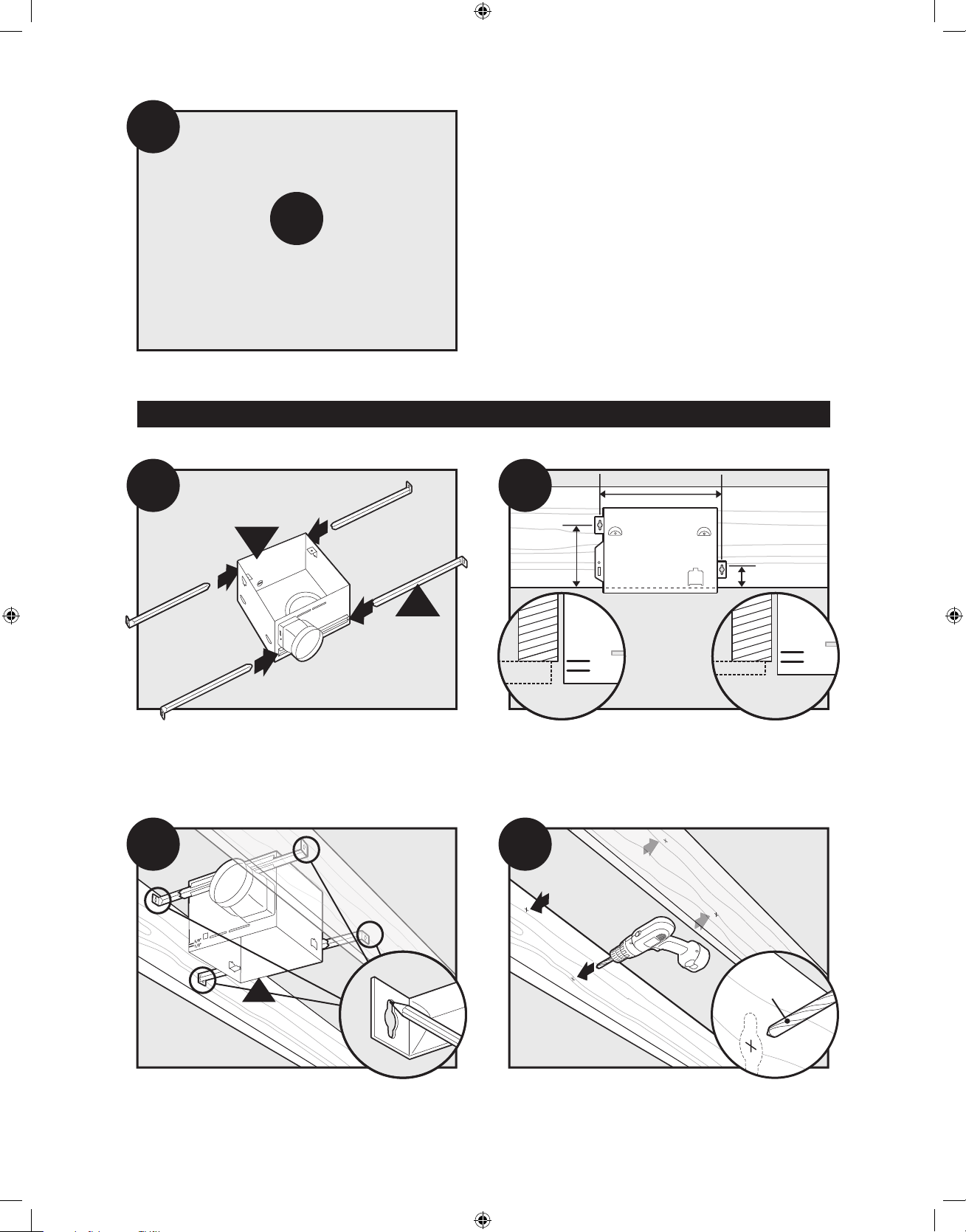

Slide the mounting rails into brackets.

Position the correct depth mark at the bottom edge of

the joist based on the thickness of your sheetrock.

Mark position of screws by using holes as a template.

Drill a hole in the center of each outline.

New Construction – suspended between joists

41722-01 3/29/2006 41722-01 3/29/2006

41722_EngS_3.29.03.indd 8 3/29/06 10:54:53 PM

B17

B15

B16

B18

3 Pin

2 Pin

Fan Motor

Light

Green

Black

Red

White

Black

White

Bare Copper

Ground

B19

Night Light

Switch 1 (AC In)

Main Switch 1 (AC In)

Switch 2 (AC In)

*Option Fan & Main Light Together

*Option

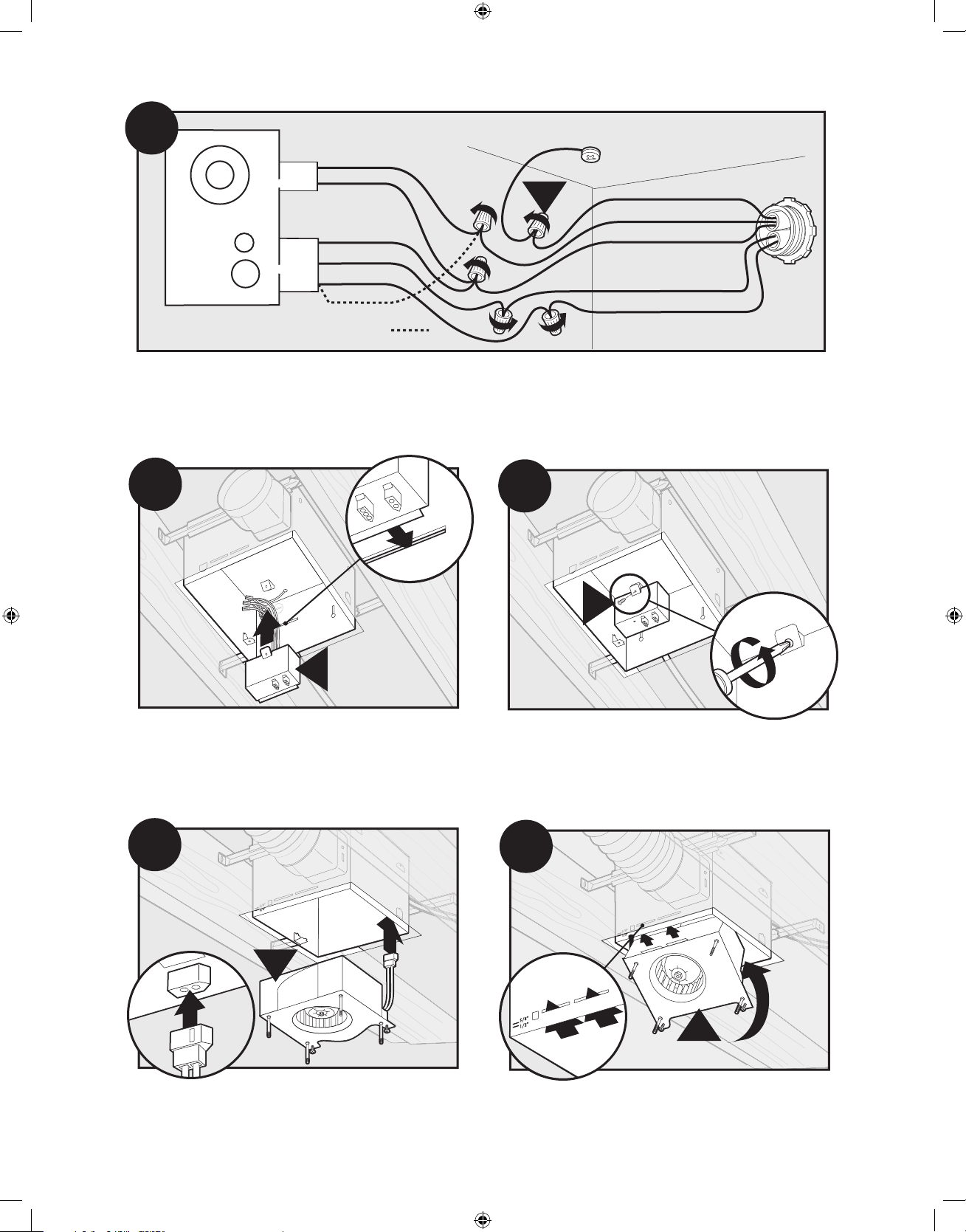

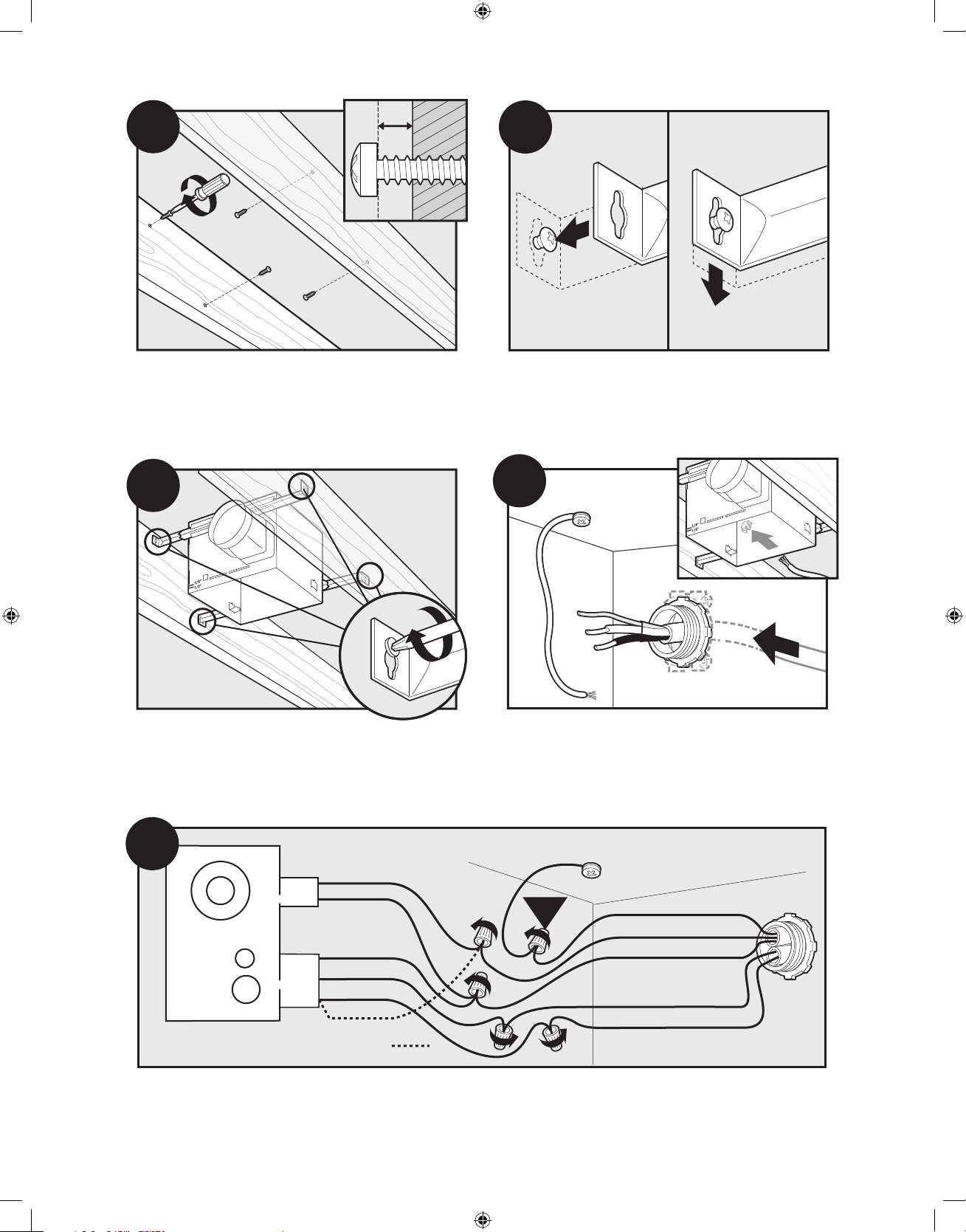

Pull wires through the strain relief.

Tighten screws.

Attach the rails onto the screws.

Insert screws, leaving space between the screw

head and the joist. Screws are not provided.

Connect wires as shown.

41722-01 3/29/2006 41722-01 3/29/2006

41722_EngS_3.29.03.indd 9 3/29/06 10:54:55 PM

B20

•

B21

B22

B23

B24

B25

Install the wiring cover plate. Make sure all

wiring connections are inside the box or under

the wiring cover plate.

Tighten the wiring cover plate screw.

Reinstall the motor by inserting the tabs and pushing up

into position. Make sure the wires are not pinched

between the motor and the housing.

Secure the motor by tightening the 2 screws.

Connect 4” duct and vent to the outside. Tape joints.

If ducting does not fit securely, an adapter may need

to be purchased.

Connect wiring from the motor to the wiring cover plate.

41722-01 3/29/2006 41722-01 3/29/2006

41722_EngS_3.29.03.indd 10 3/29/06 10:54:59 PM

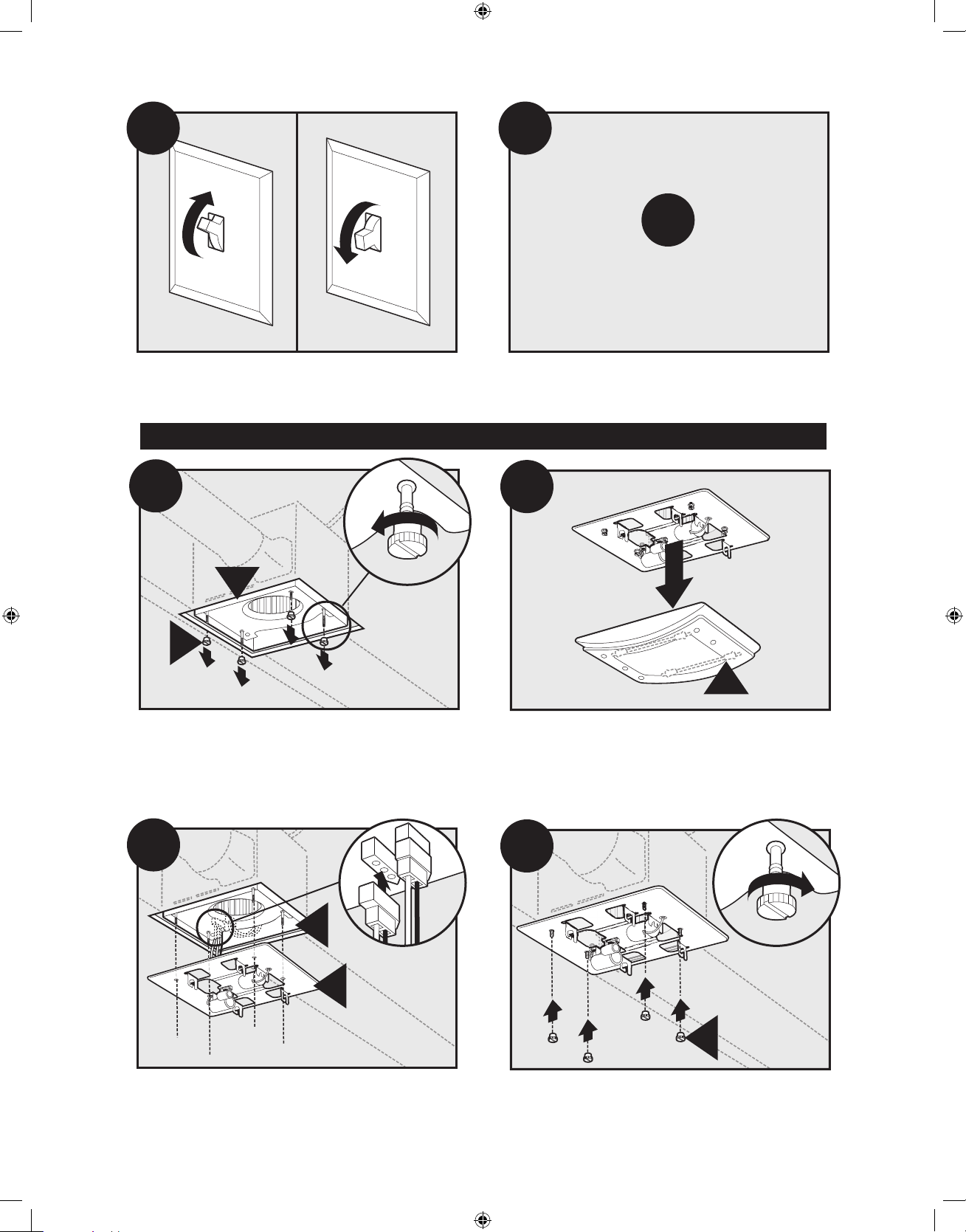

B28

Go to step

on page 18

to attach grille.

B26

B27

EXISTING FAN

C11

NO EXISTING FAN

Test the motor. If the motor does not run, check the plug

connection.

Turn on the power source.

Existing Construction – accessible from above

Remove an existing fan and check to make sure the

opening is large enough to accommodate the new

motor housing (9”x 9.75”).

Use the motor housing as a template to mark position.

41722-01 3/29/2006 41722-01 3/29/2006

41722_EngS_3.29.03.indd 11 3/29/06 10:55:02 PM

9”

5”

C12

5/8 1/2

C13

C14

C15

1/8" Bit

C16

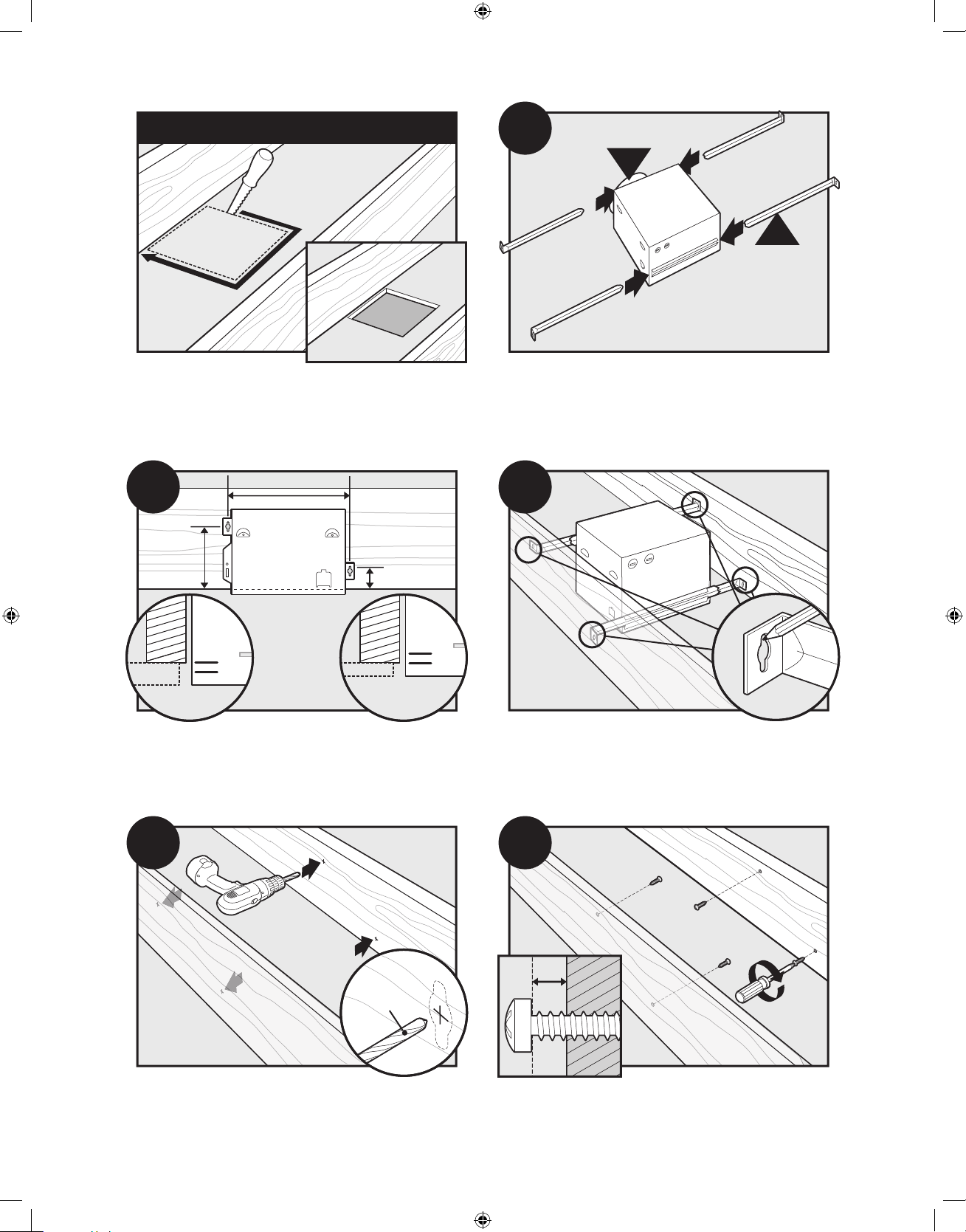

Cut out an opening for the housing. Slide the mounting rails into brackets.

Position the correct depth mark at the bottom edge of the

joist based on the thickness of your sheetrock.

Mark position of screws by using holes as a template.

Drill a hole in the center of each outline. Insert screws, leaving space between the screw head

and the joist. Screws are not provided.

41722-01 3/29/2006 41722-01 3/29/2006

41722_EngS_3.29.03.indd 12 3/29/06 10:55:05 PM
