Hunter Fan 82006 User Manual

I n s t a l l a t i o n G u i d e
82006 Orleans Bath Ventilator with Light
READ and SAVE THESE INSTRUCTIONS
41947-01 3/29/2006
ENG LISH
See page 2
ESpañoL
Vea la página 15
2
DISCONNECT
ELECTRIC
POWER SUPPLY
AND LOCK OUT
SERVICE PANEL
BEFORE
SERVICING UNIT
W a r n i n g
TO REDUCE THE RISK OF ELECTRIC SHOCK OR INJURY, OBSERVE THE FOLLOWING:
1. For general ventilating use only. Do not use for ventilat­ing hazardous or explosive materials.
2. To avoid motor bearing damage and noisy/unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
3. DO NOT install this product in a wall. This product is designed for installation in ceilings up to a 12/12 pitch (45 degrees). Ductwork must point upward.
4. Please read specification label on product for further information and requirements.
PREVENTATIVE MAINTENANCE
A clean fan provides better service. Disconnect the power supply and clean the fan as listed below.
TO CLEAN GRILLE: Use a mild detergent, such as dishwashing liquid, and a soft cloth. DO NOT use abrasive cloths, steel wool pads or scouring powders.
TO CLEAN FAN ASSEMBLY: Unplug motor cord from receptacle. To remove motor plate, find the single tab on the motor plate (located next to the receptacle). Push up rear motor plate tab while pushing out on the side of the housing or insert a screwdriver into the slot in the housing (next to tab) and twist screwdriver. Gently vacuum fan, motor and interior of housing.
METAL AND ELECTRICAL PARTS SHOULD NEVER BE IMMERSED IN WATER.
MAINTENANCE
The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the motor with the exact service motor. You should replace the impeller at the same time.
C a U T i O n
W a r n i n g
1. Use this unit only in a manner intended by the manufacturer. If you have questions, contact the manufacturer at the phone number or address listed in the warranty.
2. Before installing, servicing, or cleaning the unit, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely attach a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhaust­ing of gasses through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards,
such as those published by the National Fire Prevention
Association (NFPA), and the American Society for Heating, Refrigeration and Air-Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall(s) or ceiling, do not damage electrical wiring or other hidden utilities.
6. Ducted fans must always be vented to the outdoors. Keep ducting as short and as straight as possible.
7. Acceptable for use over a bathtub or shower when connected to a GFCI protected branch circuit.
8. Install fan at least 5 feet (1.52 m) above the floor.
9. Never place a switch where it can be reached from a tub
or shower.
10. This unit must be grounded.
41947-01 3/29/2006 41947-01 3/29/2006
E
F
G
H
I
J
M
N
x4
*
*
*
NOTE:
Strain relief cable connector must be installed. Not Included.
A
B
C
95047-07-000
75864-01-000
03242-07-133
95261-01-000
74508-03-133
96641-01-262
x2
75184-01-133
96456-01-444
O
75730-01-444
Extra Screws
x2
D
K
74933-01-000
L
75882-01-000
3/8” Cable Connector

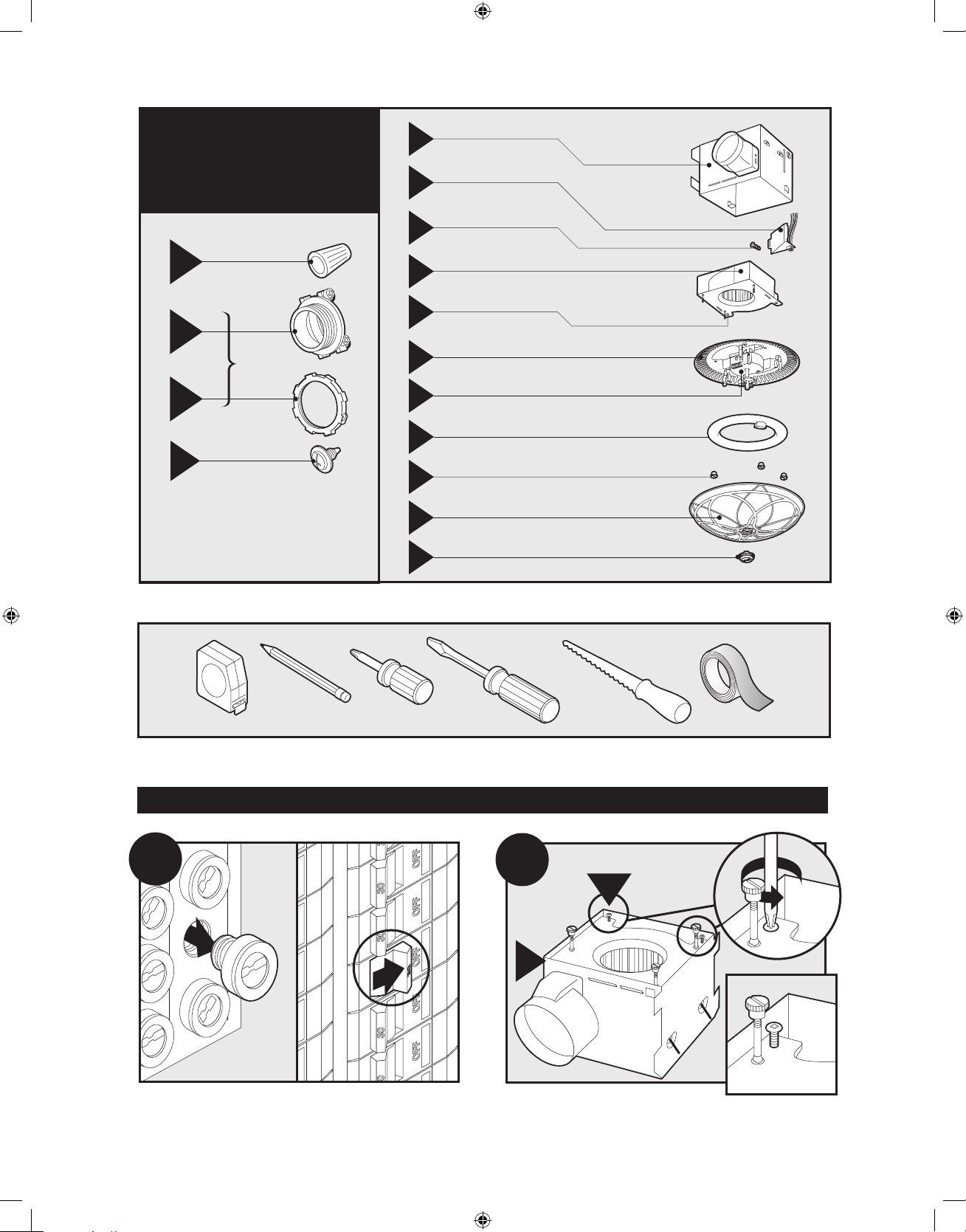

3
1
Turn off the power source.
Tools Needed. (Not supplied.)
Estimated assembly time: 30 to 60 minutes
Before Installation
Check all the parts.
If damaged, call
1-888-830-1326
for replacements.
2
E
I
Loosen screws.
NOTE: Remove all packing materials before installation.
41947-01 3/29/2006 41947-01 3/29/2006
5
4
7
G
8
F

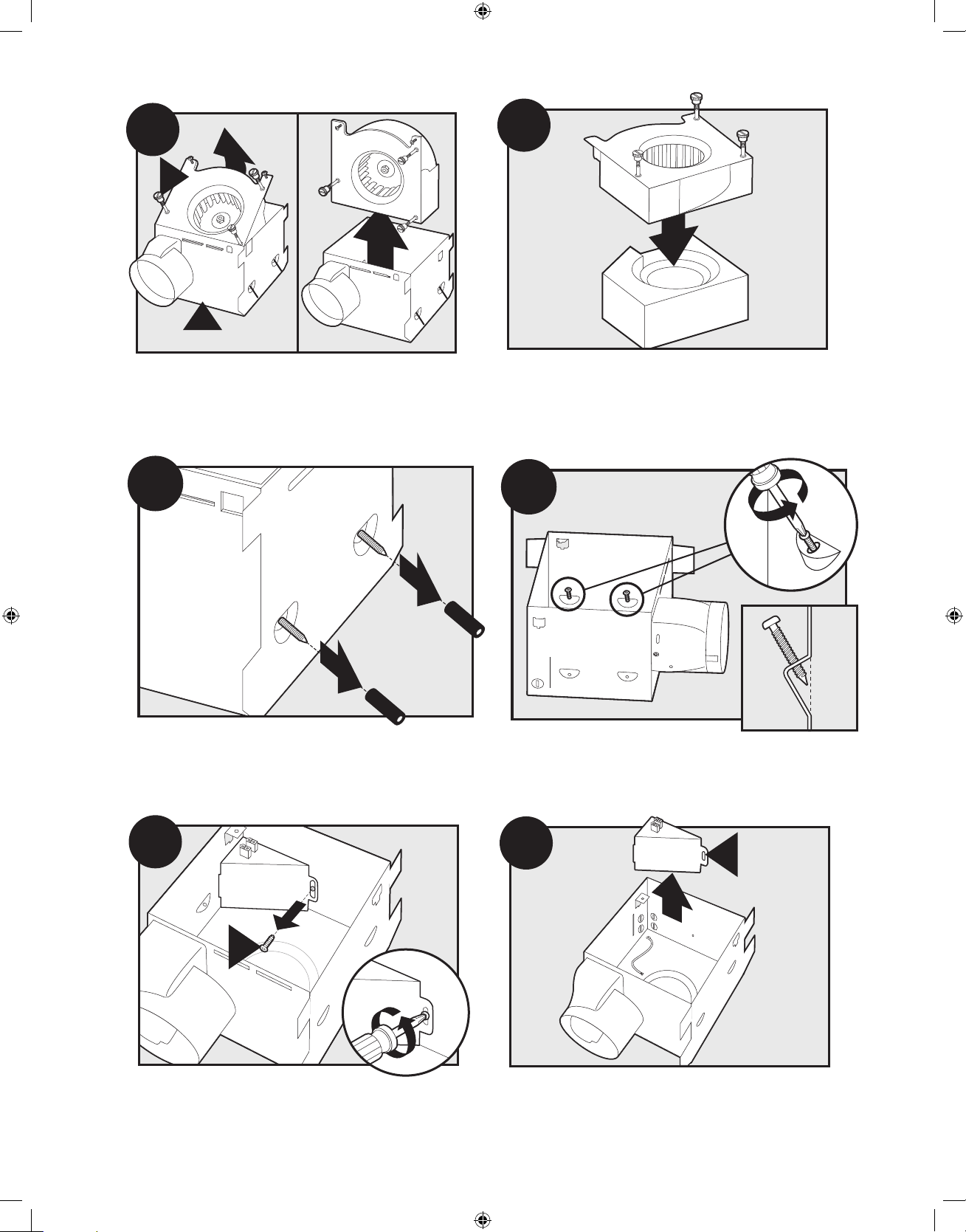

Remove the motor/blower from the housing.
4
H
E
3
Remove the pre-loaded screw tip covers.
Remove the wiring cover screw.
6
Back out the pre-loaded screw tips until flush
with the side of the housing.
Remove the wiring cover.
Remove packing material.
41947-01 3/29/2006 41947-01 3/29/2006

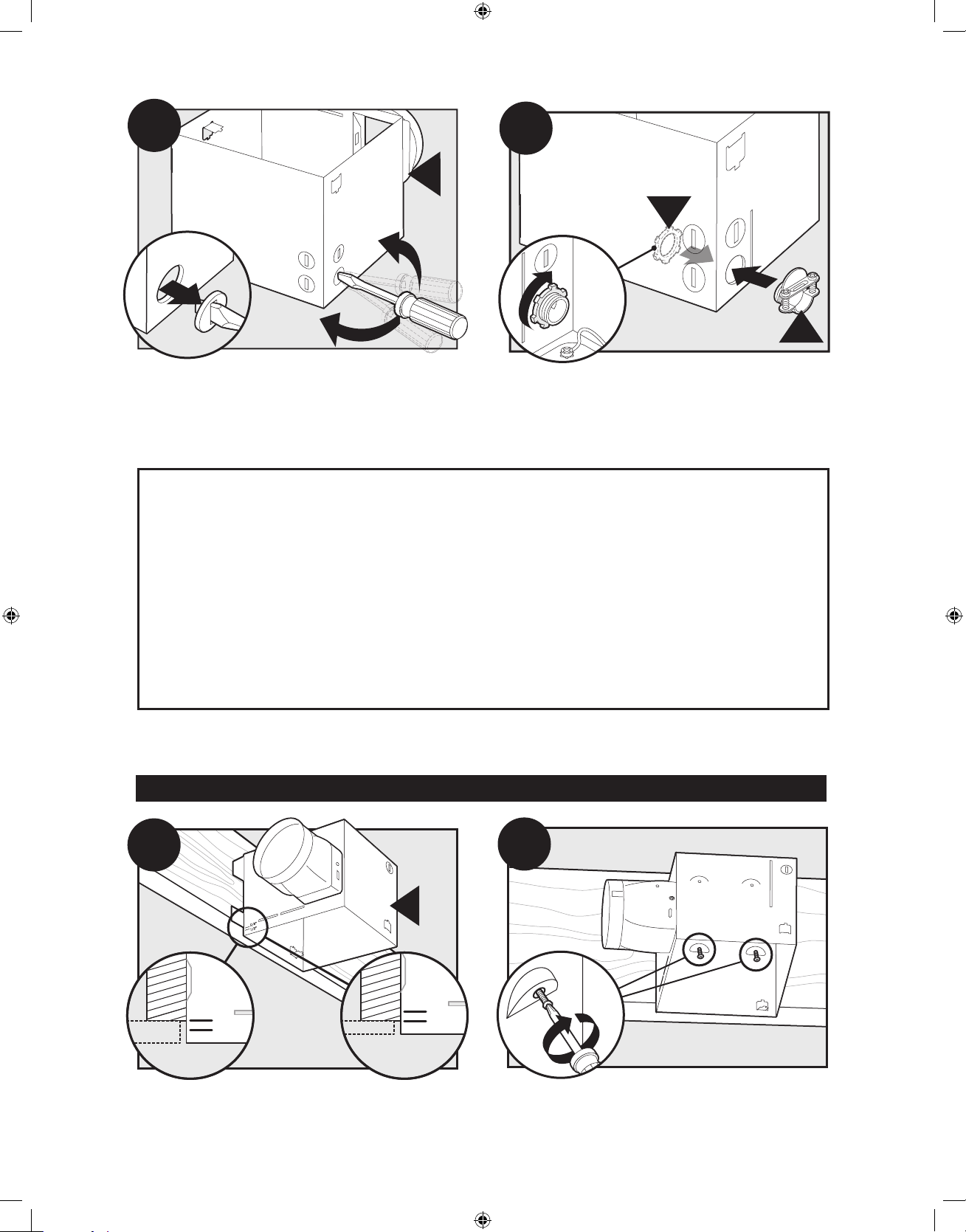

9
E
Pop out the first wiring access slug. Use second if needed. Insert the strain relief (not included) into the housing and
secure with washer.
Position the correct depth mark at the bottom edge of the
joist based on the thickness of your sheetrock.
New Construction
5
10
B
C
A11
E
5/8 1/2
5/8 1/2
A12
Screw pre-loaded screws into joist or framing.
41947-01 3/29/2006 41947-01 3/29/2006
Choose Installation Option
For New Construction - go to step A11, page 5
For Existing Construction - go to step B11, page 8
A
3 Pin
2 Pin
Fan Motor
Light
Light
Green
Black
Black
White
Black
Black
White
White
Bare Copper
Ground

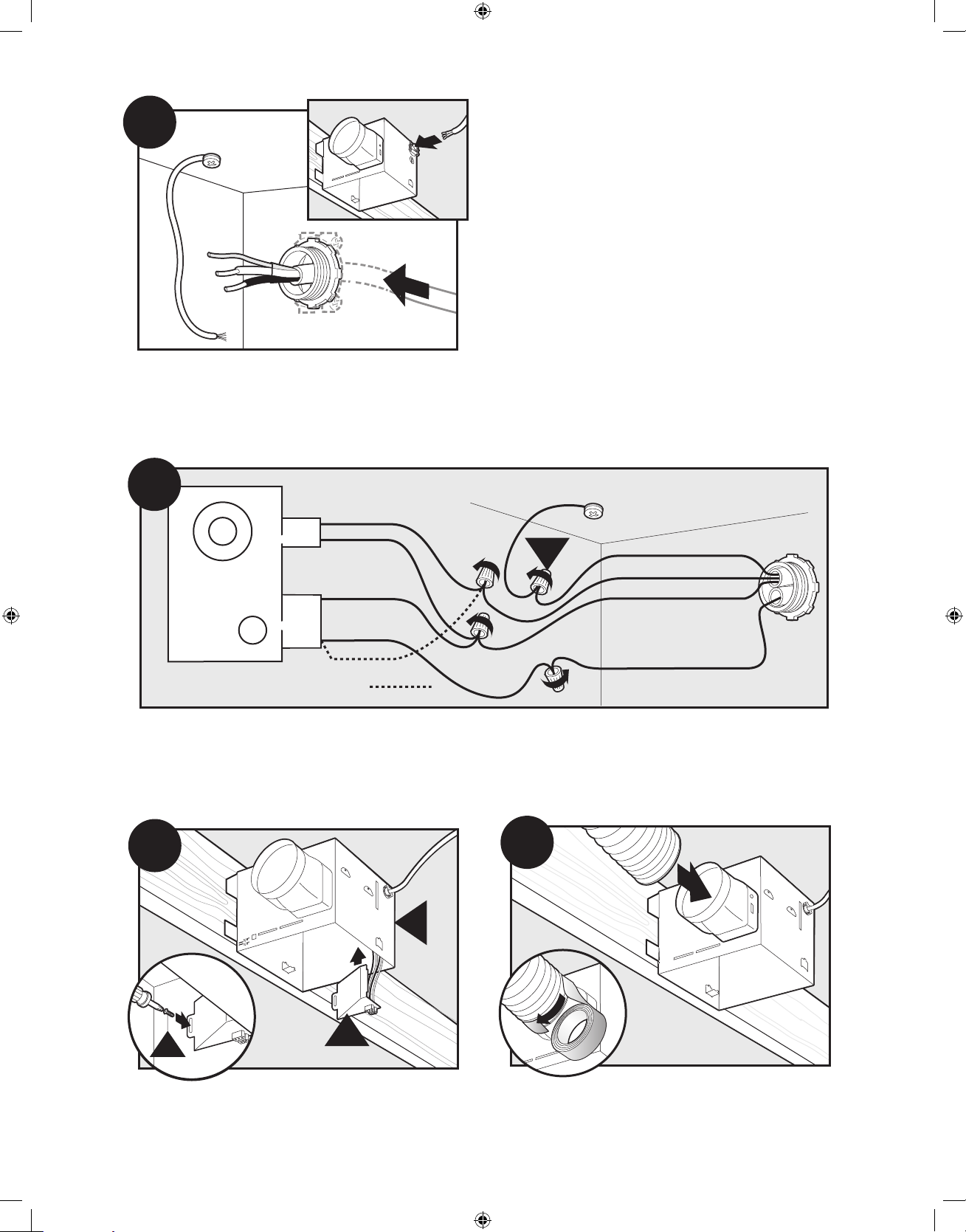

A14
Main Switch 1 (AC In)
Switch 2 (AC In)
*Option Fan & Main Light Together
*Option
A13
Route wires through the strain relief.
Connect wires as shown.
0
0
A16
Connect 4” duct and vent to the outside. Tape joints. If ducting does not fit securely, an adapter may need
to be purchased.
6
A15
E
F
G
Install the wiring cover plate. Make sure all
wiring connections are inside the box or under
the wiring cover plate.
41947-01 3/29/2006 41947-01 3/29/2006

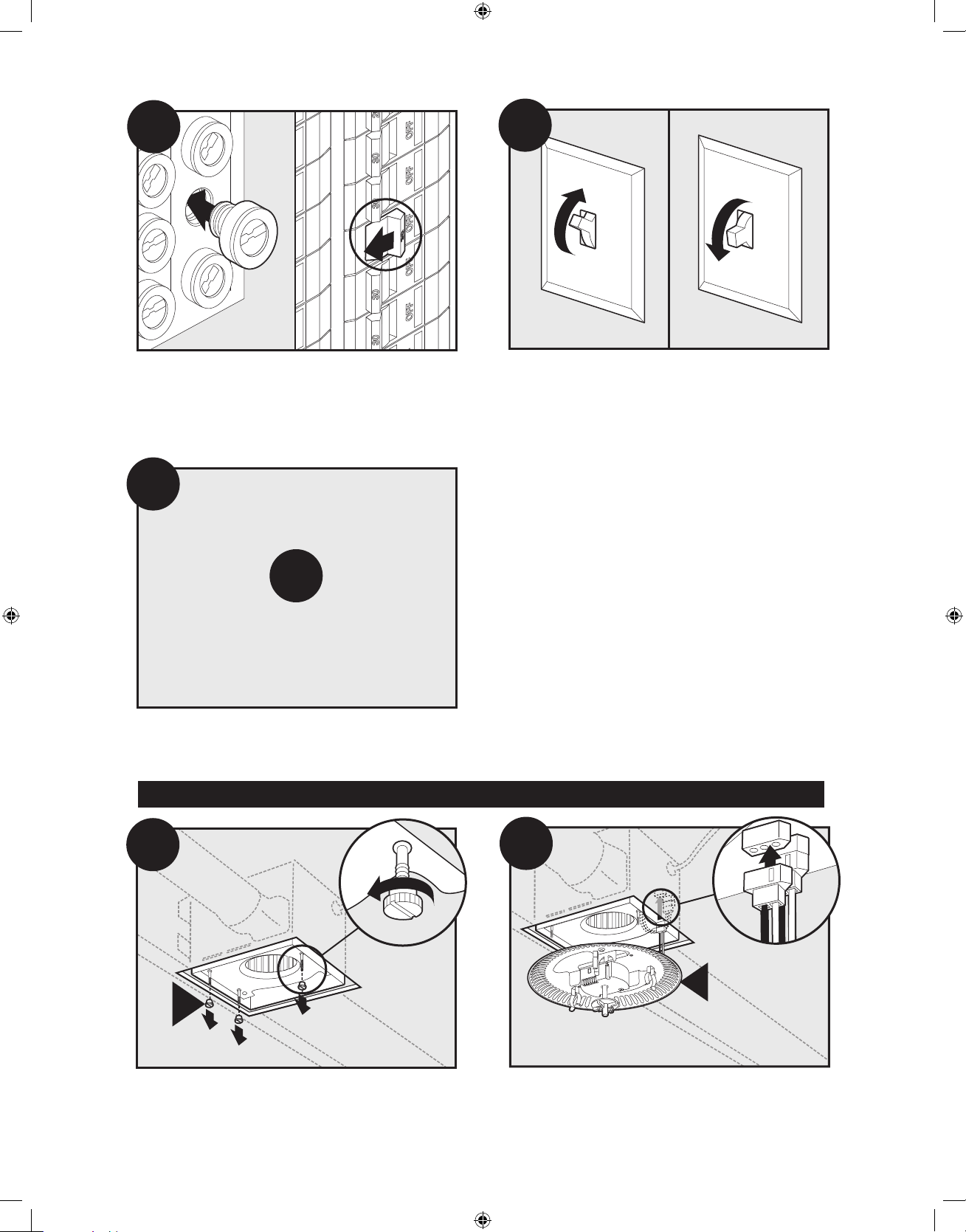

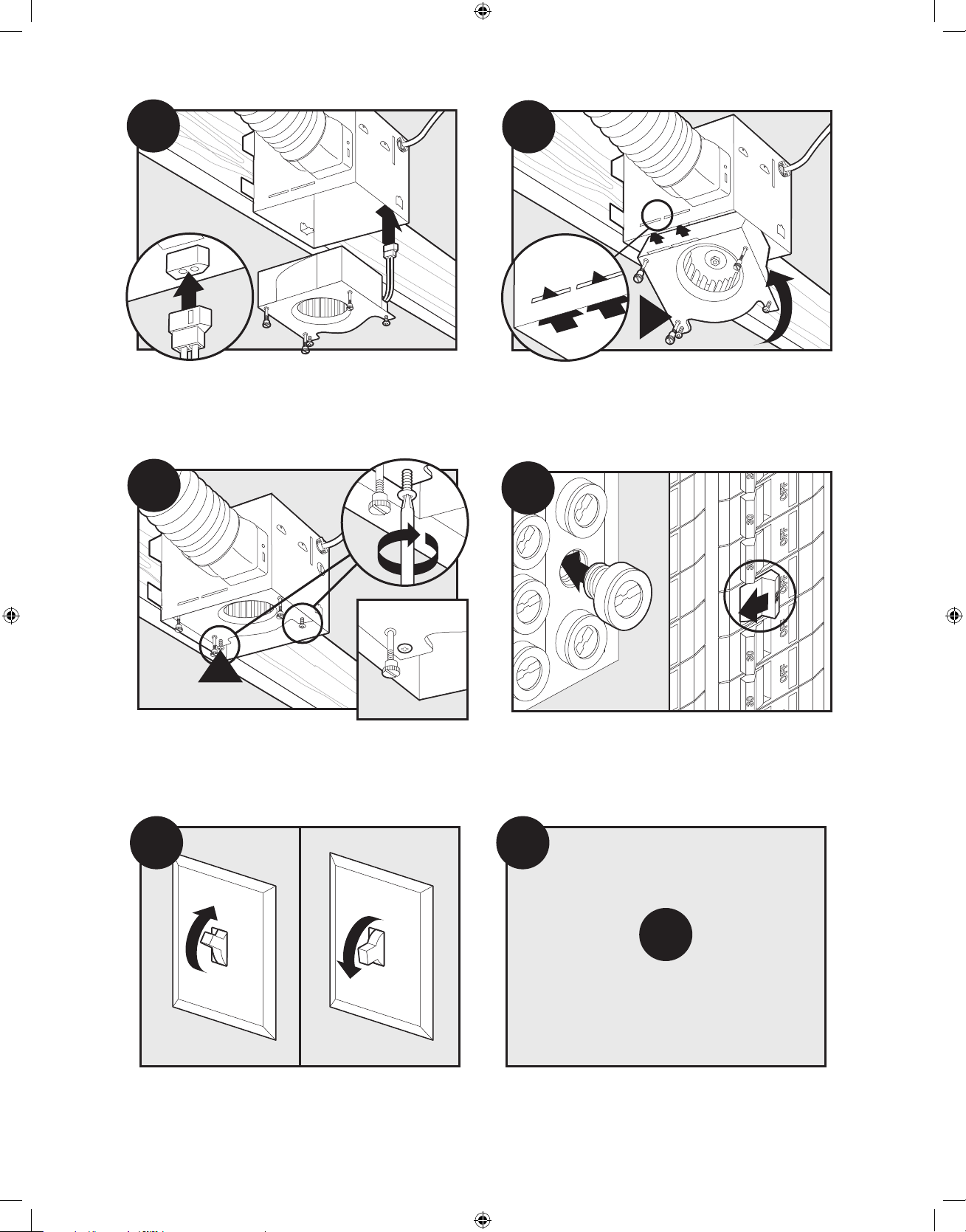

A19
I
Secure the motor by tightening the 2 screws.
A20
Turn on the power source.
7
Connect wiring harness. DO NOT ALLOW THE MOTOR TO
HANG FROM THE WIRING HARNESS.
0000000
0
A17
Reinstall the motor by inserting the tabs and pushing up
into position. Make sure the wires are not pinched
between the motor and the housing.
0000000
0
H
A18
ON
OF
F
A21
Test the motor. If the motor does not run, check the plug
connection.
A22

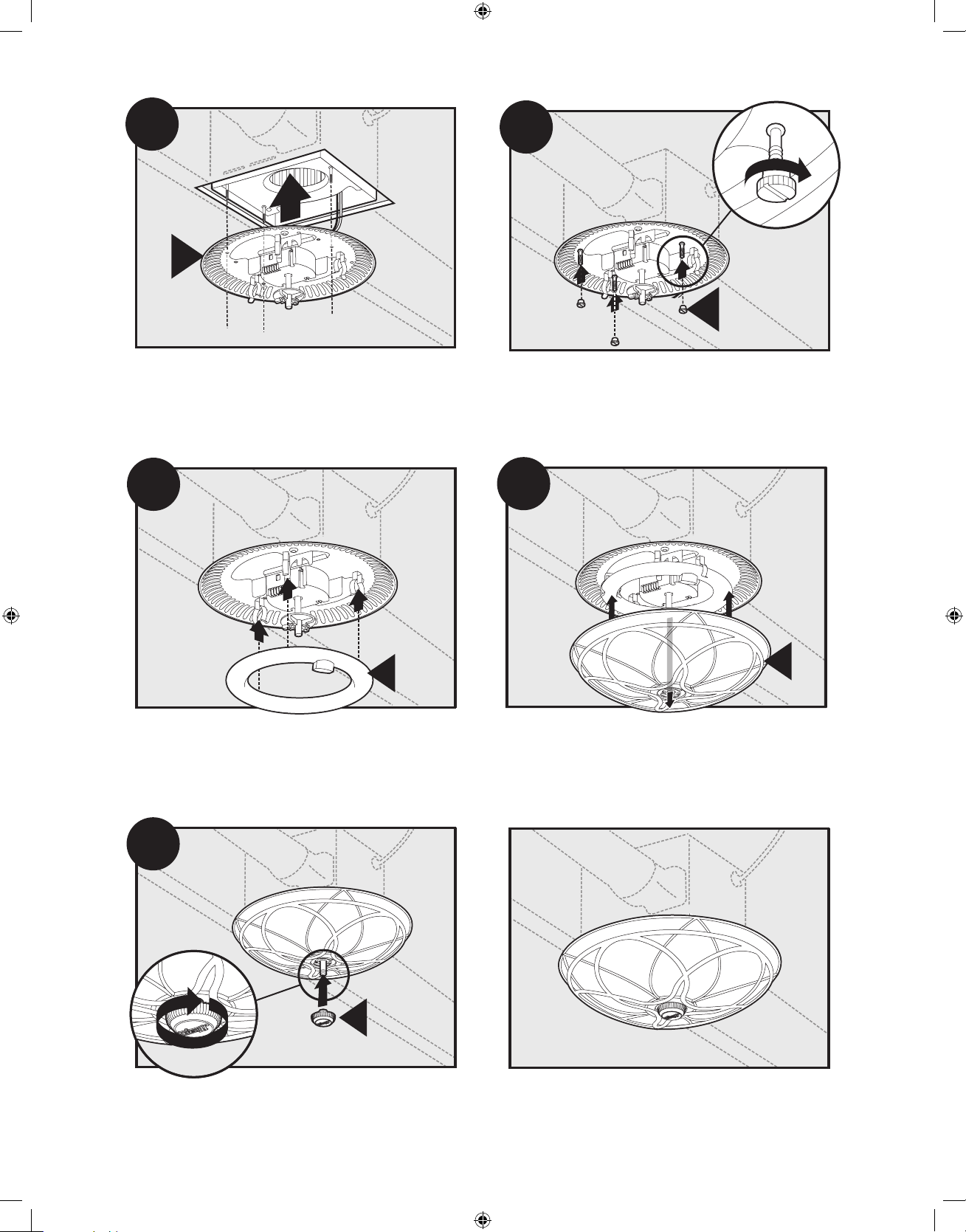

C1
Go to step
on page 10
to attach grille.
41947-01 3/29/2006 41947-01 3/29/2006
8

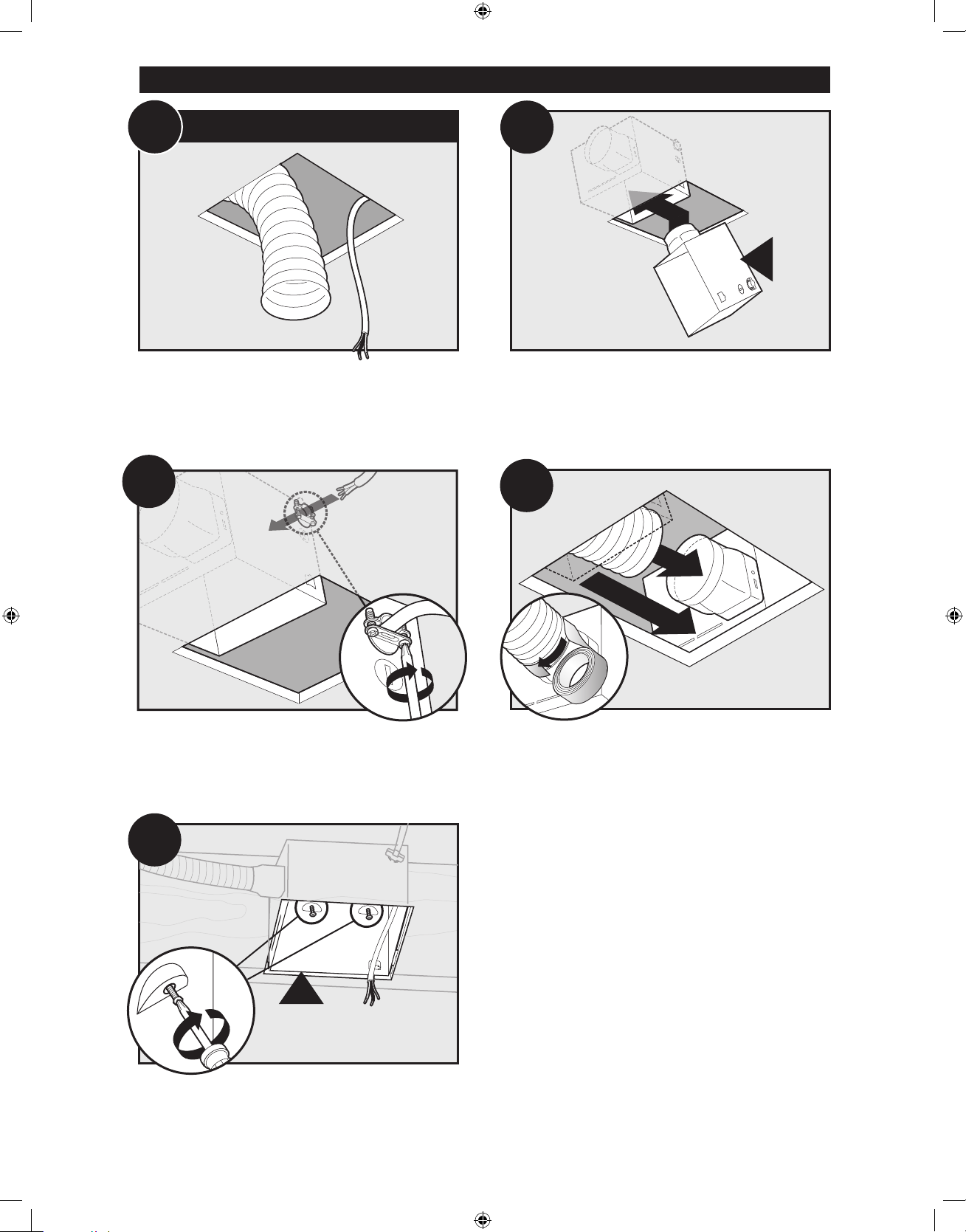

EXISTING FAN
B11
E
B12
Existing Construction
B13
2
1
B14
Route wires through strain relief.
Remove an existing fan and check to make sure the open­ing is large enough to accommodate the new motor hous-
ing (7 1/4”x 7 3/4”).
Move the housing into position above the ceiling
Attach existing ducting to duct connector. Tape joints.
If ducting does not fit securely,
an adapter may need to be purchased.
E
B15
Screw pre-loaded screws into joist or framing.
41947-01 3/29/2006 41947-01 3/29/2006
9
41947-01 3/29/2006 41947-01 3/29/2006
A
3 Pin
2 Pin
Fan Motor
Light
Light
Green
Black
Black
White
Black
Black
White
White
Bare Copper
Ground

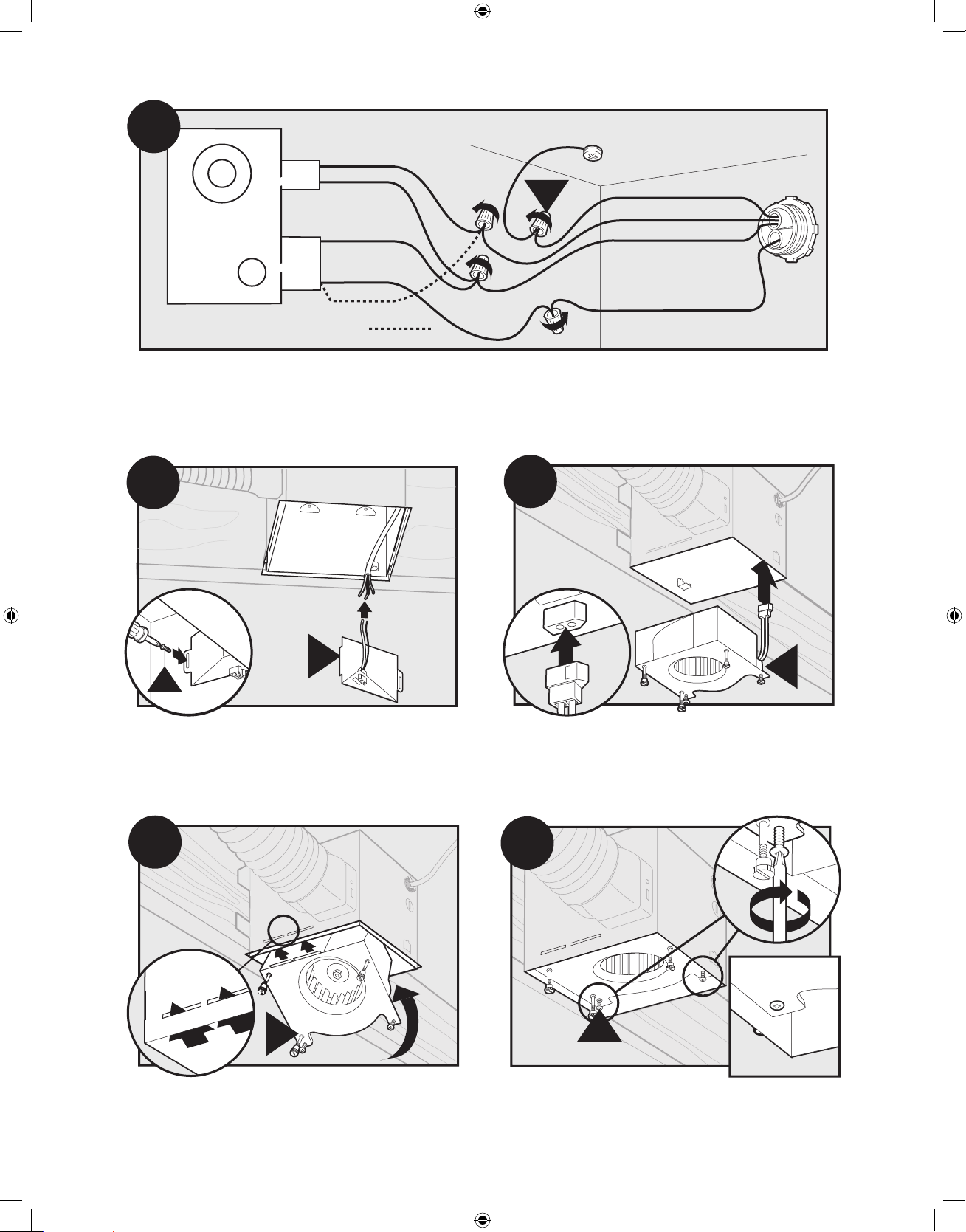

B16
Main Switch 1 (AC In)
Switch 2 (AC In)
*Option Fan & Main Light Together
*Option
H
B18
H
B19
B20
I
Connect wires as shown.
Reinstall the motor by inserting the tabs and pushing up
into position. Make sure the wires are not pinched between
the motor and the housing.
Connect wiring harness. DO NOT ALLOW THE MOTOR TO
HANG FROM THE WIRING HARNESS.
Secure the motor by tightening the 2 screws.
F
B17
G
Install the wiring cover plate. Make sure all wiring
connections are inside the box or under
the wiring cover plate.
