Hunter Fan 82001, 82007 User Manual

I n s t a l l a t i o n G u i d e
82001 & 82007 Wellesley Bath Ventilator with Light
READ and SAVE THESE INSTRUCTIONS
41941-01 3/29/2006
ENG LISH
See page 2
ESpañoL
Vea la página 21
2
41941-01 3/29/2006 41941-01 3/29/2006
DISCONNECT
ELECTRIC
POWER SUPPLY
AND LOCK OUT
SERVICE PANEL
BEFORE
SERVICING UNIT
W a r n i n g
TO REDUCE THE RISK OF ELECTRIC SHOCK OR INJURY, OBSERVE THE FOLLOWING:
1. For general ventilating use only. Do not use for ventilat­ing hazardous or explosive materials.
2. To avoid motor bearing damage and noisy/unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
3. DO NOT install this product in a wall. This product is designed for installation in ceilings up to a 12/12 pitch (45 degrees). Ductwork must point upward.
4. Please read specification label on product for further information and requirements.
PREVENTATIVE MAINTENANCE
A clean fan provides better service. Disconnect the power supply and clean the fan as listed below.
TO CLEAN GRILLE: Use a mild detergent, such as dishwashing liquid, and a soft cloth. DO NOT use abrasive cloths, steel wool pads or scouring powders.
TO CLEAN FAN ASSEMBLY: Unplug motor cord from receptacle. To remove motor plate, find the single tab on the motor plate (located next to the receptacle). Push up rear motor plate tab while pushing out on the side of the housing or insert a screw­driver into the slot in the housing (next to tab) and twist screwdriver. Gently vacuum fan, motor and interior of housing.
METAL AND ELECTRICAL PARTS SHOULD NEVER BE IMMERSED IN WATER.
MAINTENANCE
The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the motor with the exact service motor. You should replace the impeller at the same time.
C a U T i O n
W a r n i n g
1. Use this unit only in a manner intended by the manufacturer. If you have questions, contact the manufacturer at the phone number or address listed in the warranty.
2. Before installing, servicing, or cleaning the unit, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely attach a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhaust­ing of gasses through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards,
such as those published by the National Fire Prevention
Association (NFPA), and the American Society for Heating, Refrigeration and Air-Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall(s) or ceiling, do not damage electrical wiring or other hidden utilities.
6. Ducted fans must always be vented to the outdoors. Keep
ducting as short and as straight as possible.
7. Acceptable for use over a bathtub or shower when connected to a GFCI protected branch circuit.
8. Install fan at least 5 feet (1.52 m) above the floor.
9. Never place a switch where it can be reached from a tub
or shower.
10. This unit must be grounded.
x2
E
F
G
H
I
J
K
N
O
x4
*
*
*
NOTE:
Strain relief cable connector must be installed. Not Included.
A
B
C
95044-01-000
95029-01-000
74869-02-000
03242-07-133
95491-03-000 for model 82001 95491-05-000 for model 82007
74508-03-133
96649-01-214 for model 82001 96649-02-444 for model 82007
75184-01-133
86811-01-000 for model 82001 86811-03-000 for model 82007
P
75733-01-214 for model 82001 75733-01-444 for model 82007
Extra Screws
x2
D
L
74933-01-000
M
75882-01-000
3/8” Cable Connector
3
1
Turn off the power source.

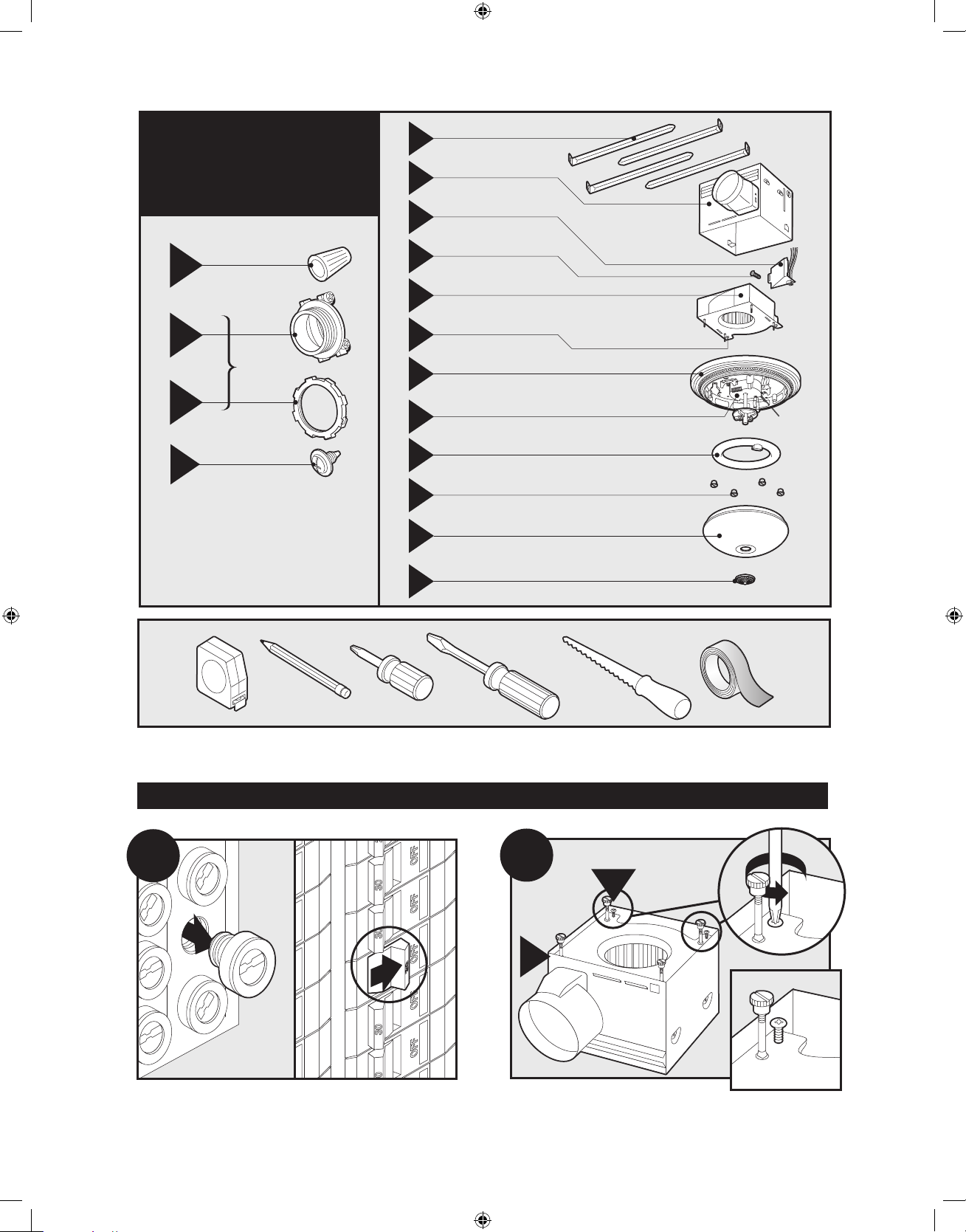

Tools Needed. (Not supplied.)
Estimated assembly time: 30 to 60 minutes
Before Installation
Check all the parts.
If damaged, call
1-888-830-1326
for replacements.
2
F
J
Loosen screws.
NOTE: Remove all packing materials before installation.
41941-01 3/29/2006 41941-01 3/29/2006
5
4
7
H
8
G

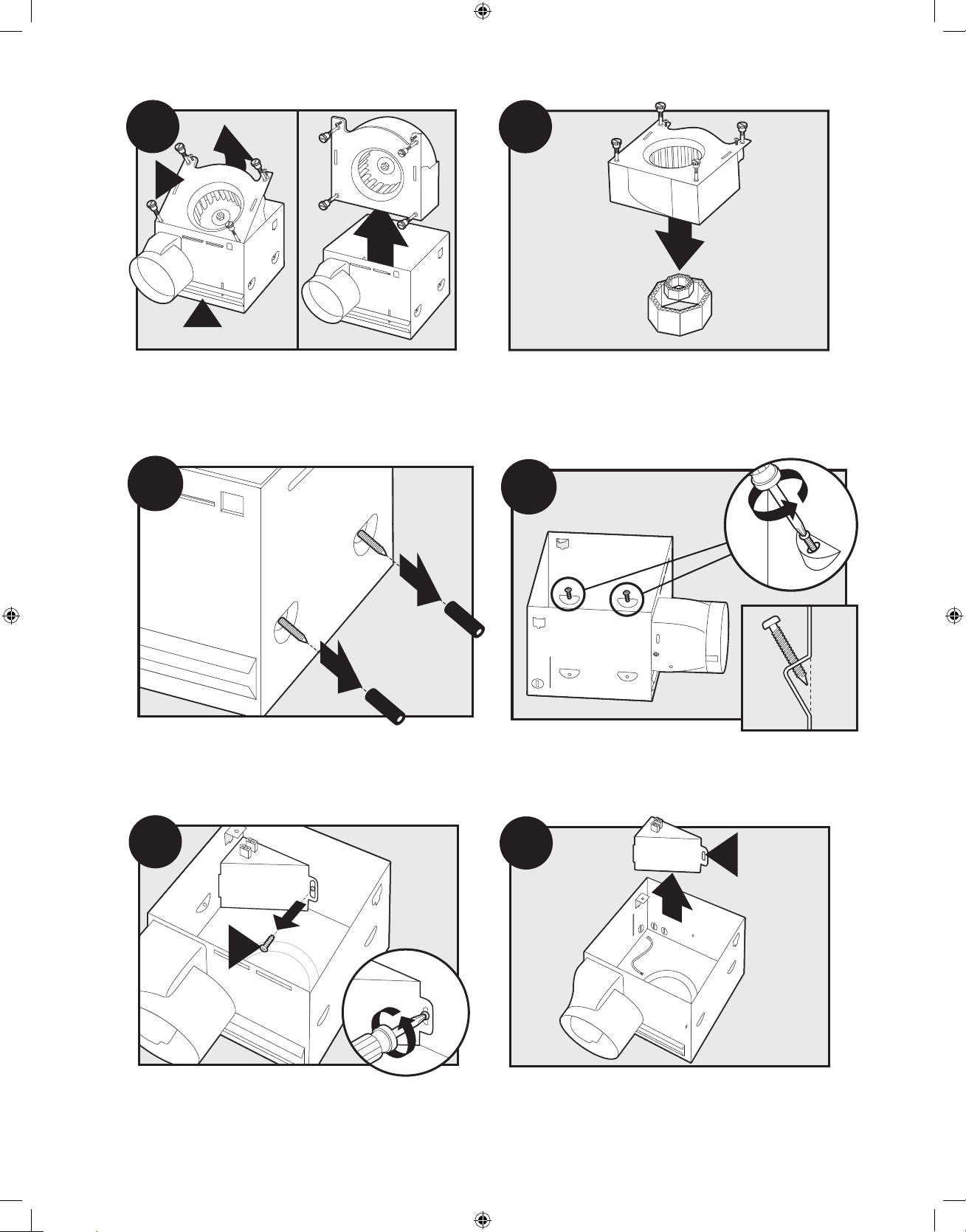

Remove the motor/blower from the housing.
4
3
I
F
Remove the pre-loaded screw tip covers.
Remove the wiring cover screw.
6
Back out the pre-loaded screw tips until flush
with the side of the housing.
Remove the wiring cover.
Remove packing material.
41941-01 3/29/2006 41941-01 3/29/2006
9
F

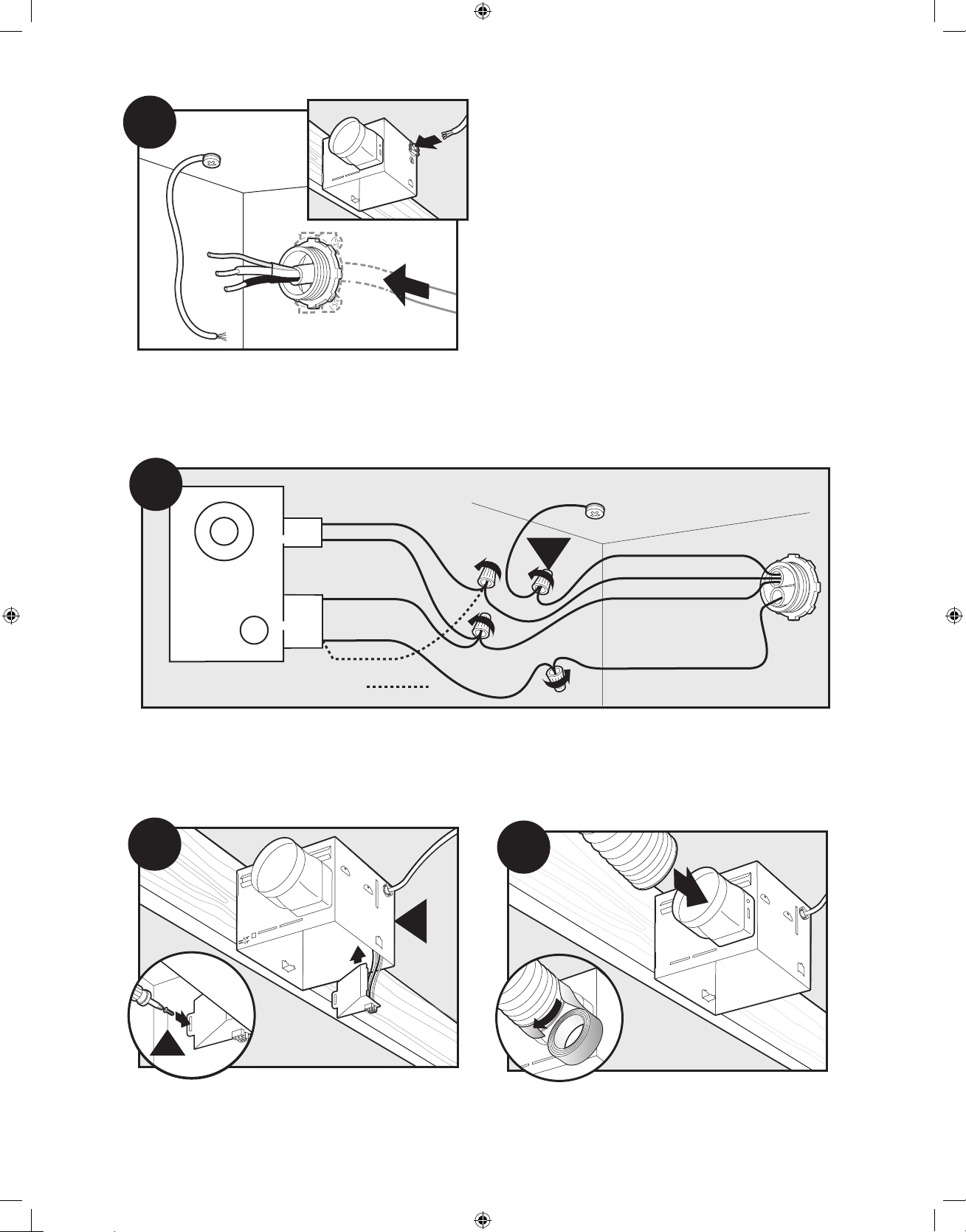

Pop out the first wiring access slug. Use second if needed. Insert the strain relief (not included) into the housing and
secure with washer.
Position the correct depth mark at the bottom edge of the
joist based on the thickness of your sheetrock.
New Construction - attaching to joist
5
10
B
C
Choose Installation Option
For New Construction - attaching to joist go to step A11, page 5
For New Construction - suspended between joists go to step B11, page 8
For Existing Construction - accessible from above go to step C11, page 11
For Existing Construction - accessible only from below go to step D11, page15
A11
F
5/8 1/2
5/8 1/2
A12

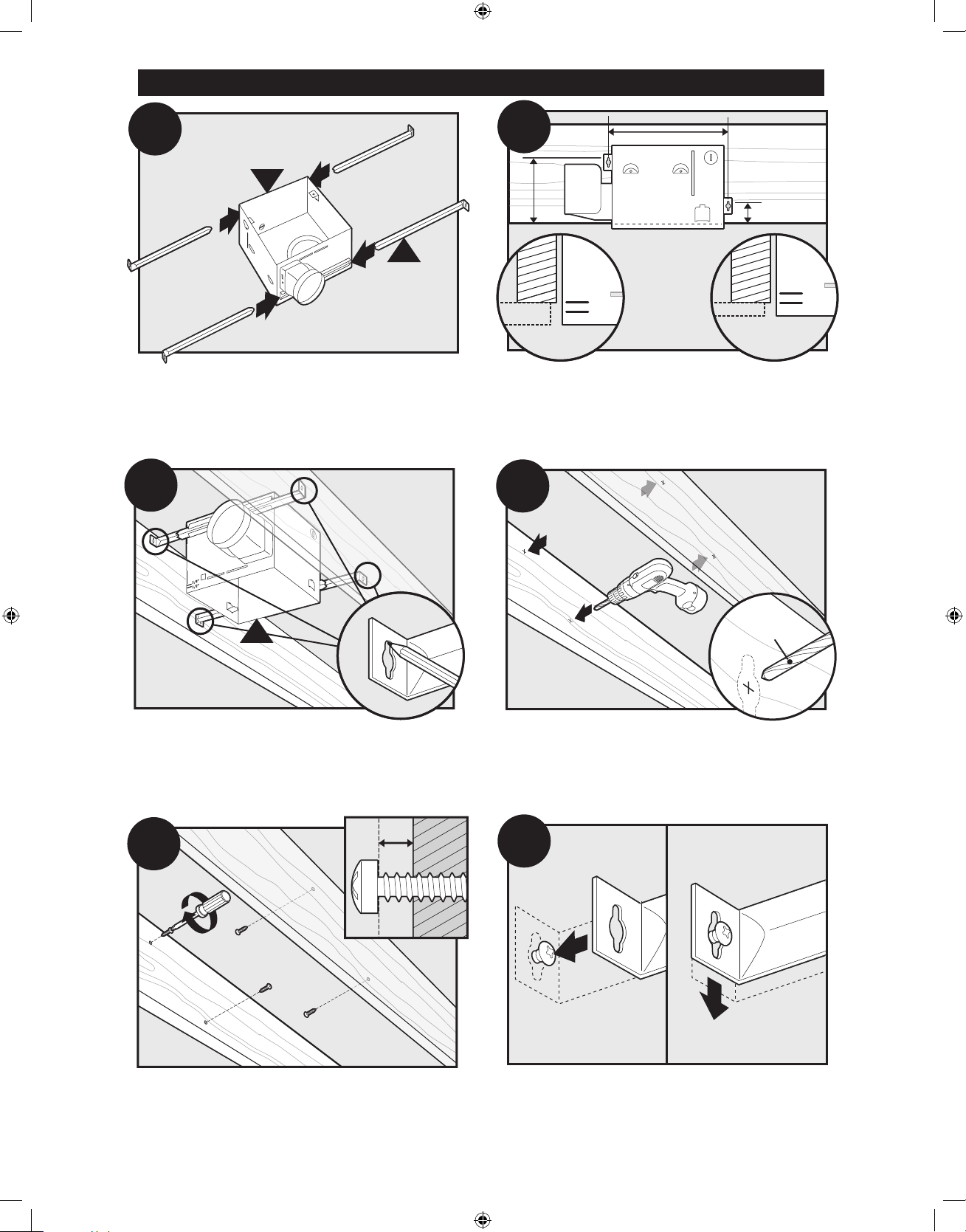

Screw pre-loaded screws into joist or framing.
41941-01 3/29/2006 41941-01 3/29/2006
A
3 Pin
2 Pin
Fan Motor
Light
Light
Green
Black
Black
White
Black
Black
White
White
Bare Copper
Ground
A14
Main Switch 1 (AC In)
Switch 2 (AC In)
*Option Fan & Main Light Together
*Option
A13
Route wires through the strain relief.
Connect wires as shown.
0
A16

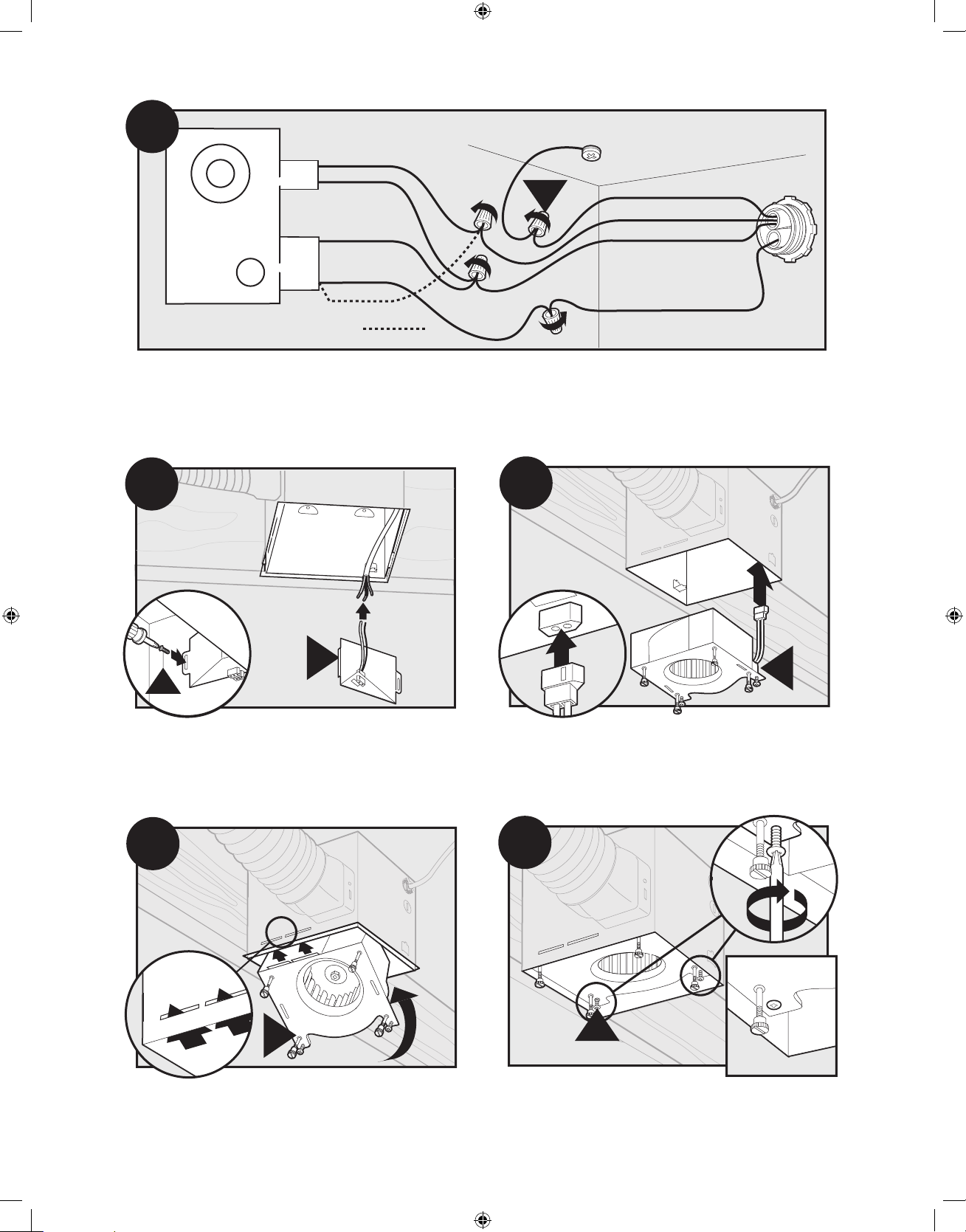

Connect 4” duct and vent to the outside. Tape joints. If ducting does not fit securely, an adapter may need
to be purchased.
6
A15
F
H
Install the wiring cover plate. Make sure all
wiring connections are inside the box or under
the wiring cover plate.
41941-01 3/29/2006 41941-01 3/29/2006
A19
J
Secure the motor by tightening the 2 screws.
A20
Turn on the power source.
7

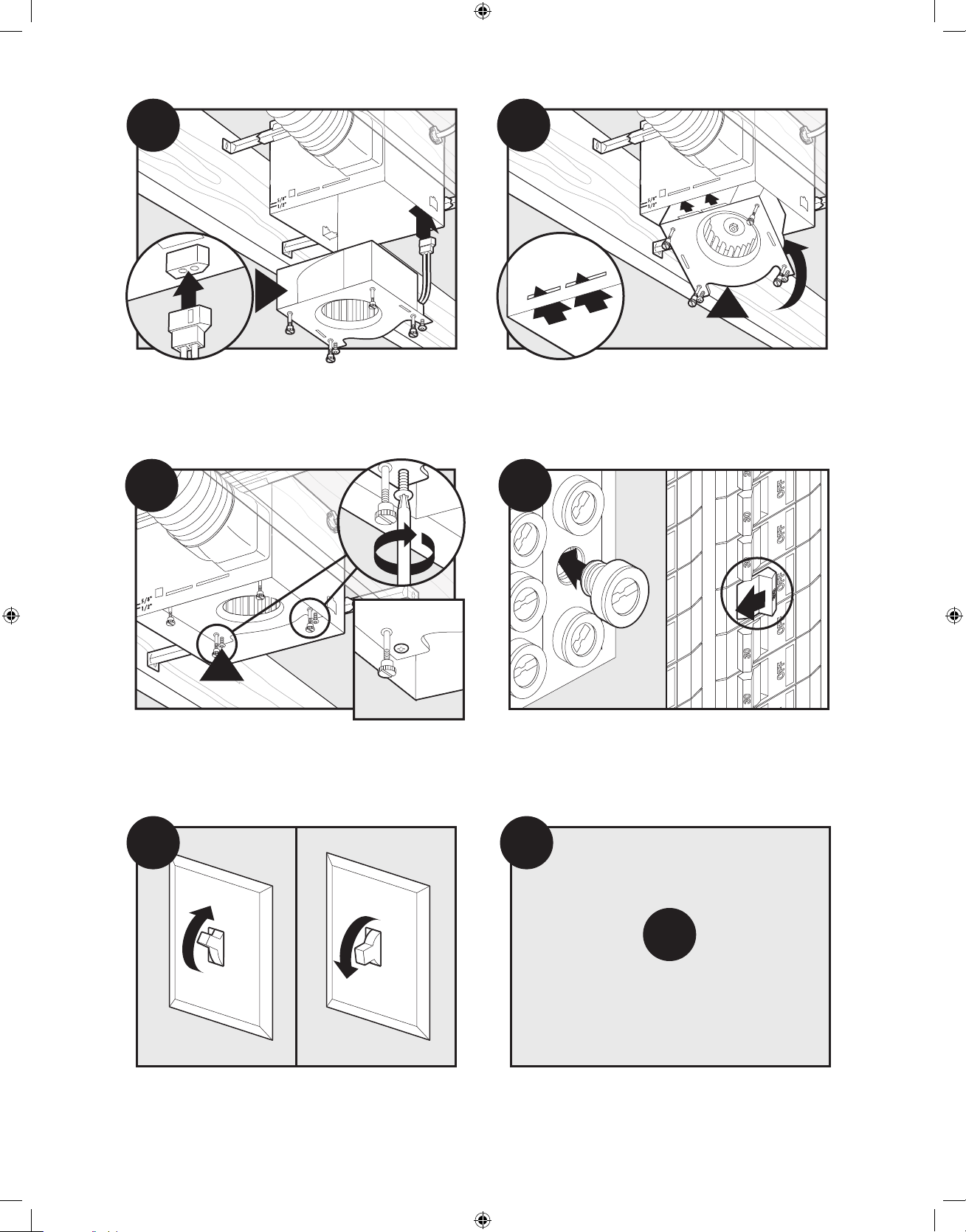

Connect wiring harness. DO NOT ALLOW THE MOTOR TO
HANG FROM THE WIRING HARNESS.
0000
A17

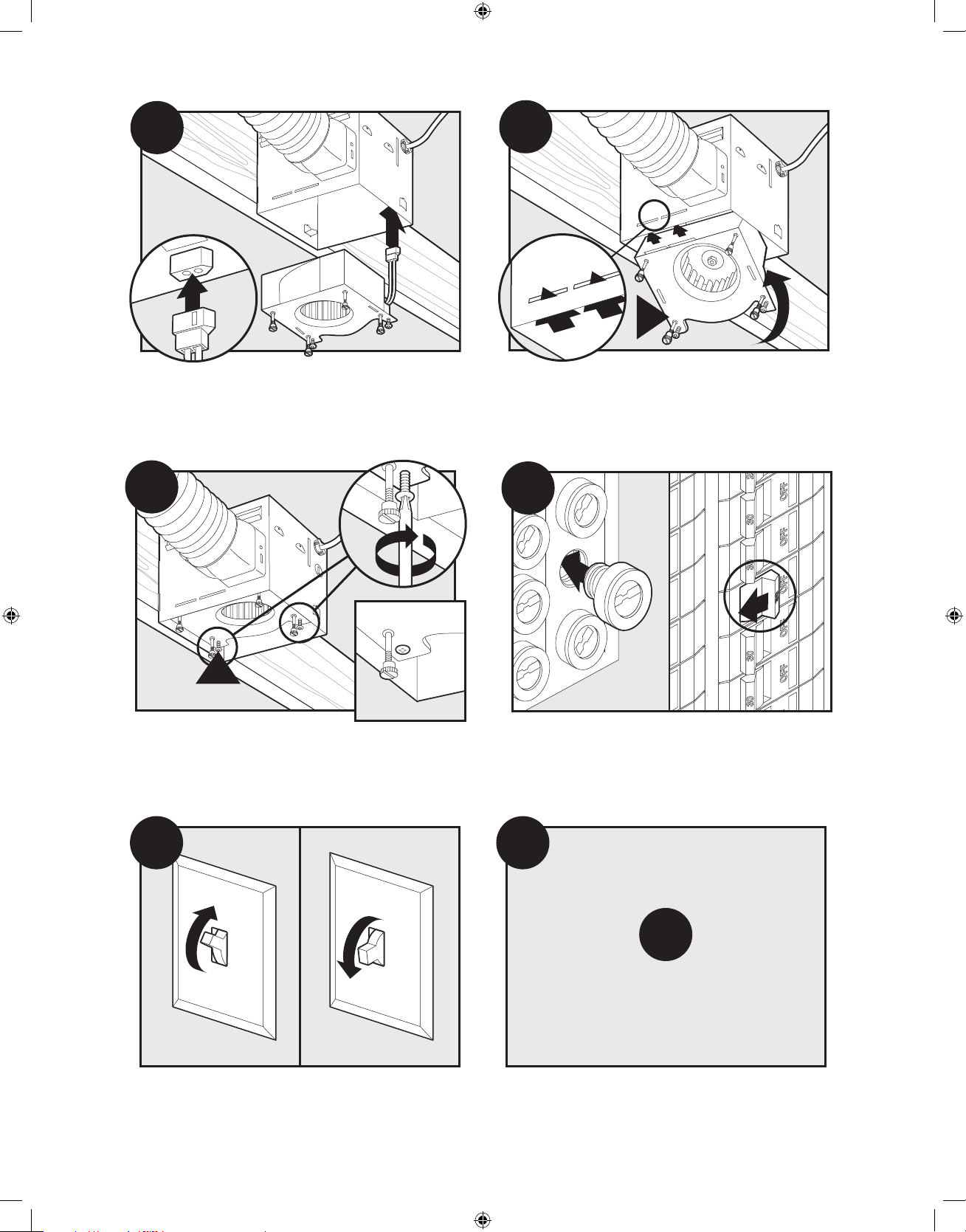

Reinstall the motor by inserting the tabs and pushing up
into position. Make sure the wires are not pinched
between the motor and the housing.
0000
I
A18
ON
OF
F
A21
Test the motor. If the motor does not run, check the plug
connection.
A22
E1
Go to step
on page 17
to attach grille.
41941-01 3/29/2006 41941-01 3/29/2006

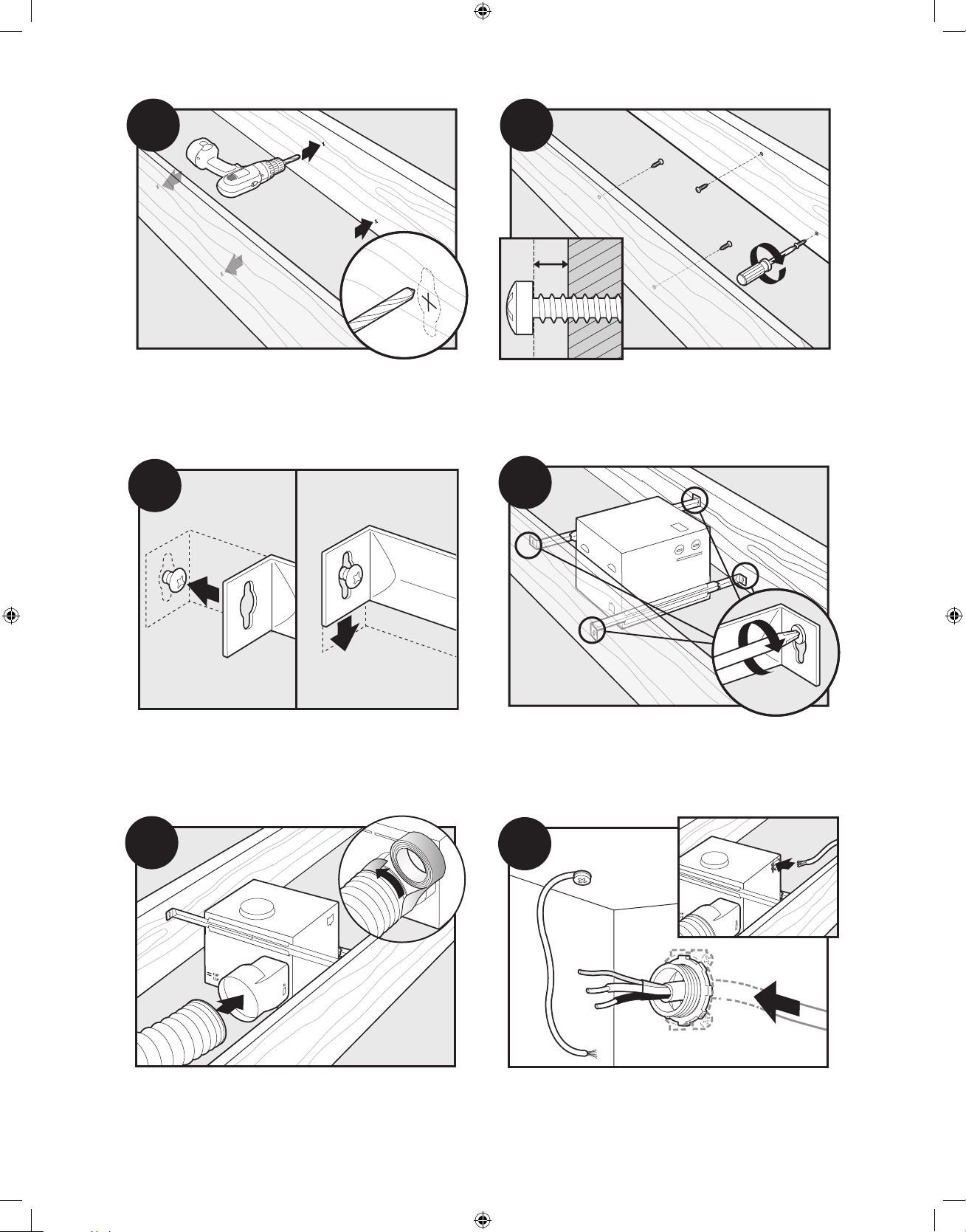

Slide the mounting rails into brackets.
Mark position of screws by using holes as a template.
Insert screws, leaving space between the screw
head and the joist. Screws are not provided.
New Construction – suspended between joists
8
B11
E
F
5/8 1/2
5/8 1/2
B12
1/8” bit
B14
B15
F
B13
Position the correct depth mark at the bottom edge of
the joist based on the thickness of your sheetrock.
Drill a hole in the center of each outline.
Attach the rails onto the screws.
B16
41941-01 3/29/2006 41941-01 3/29/2006

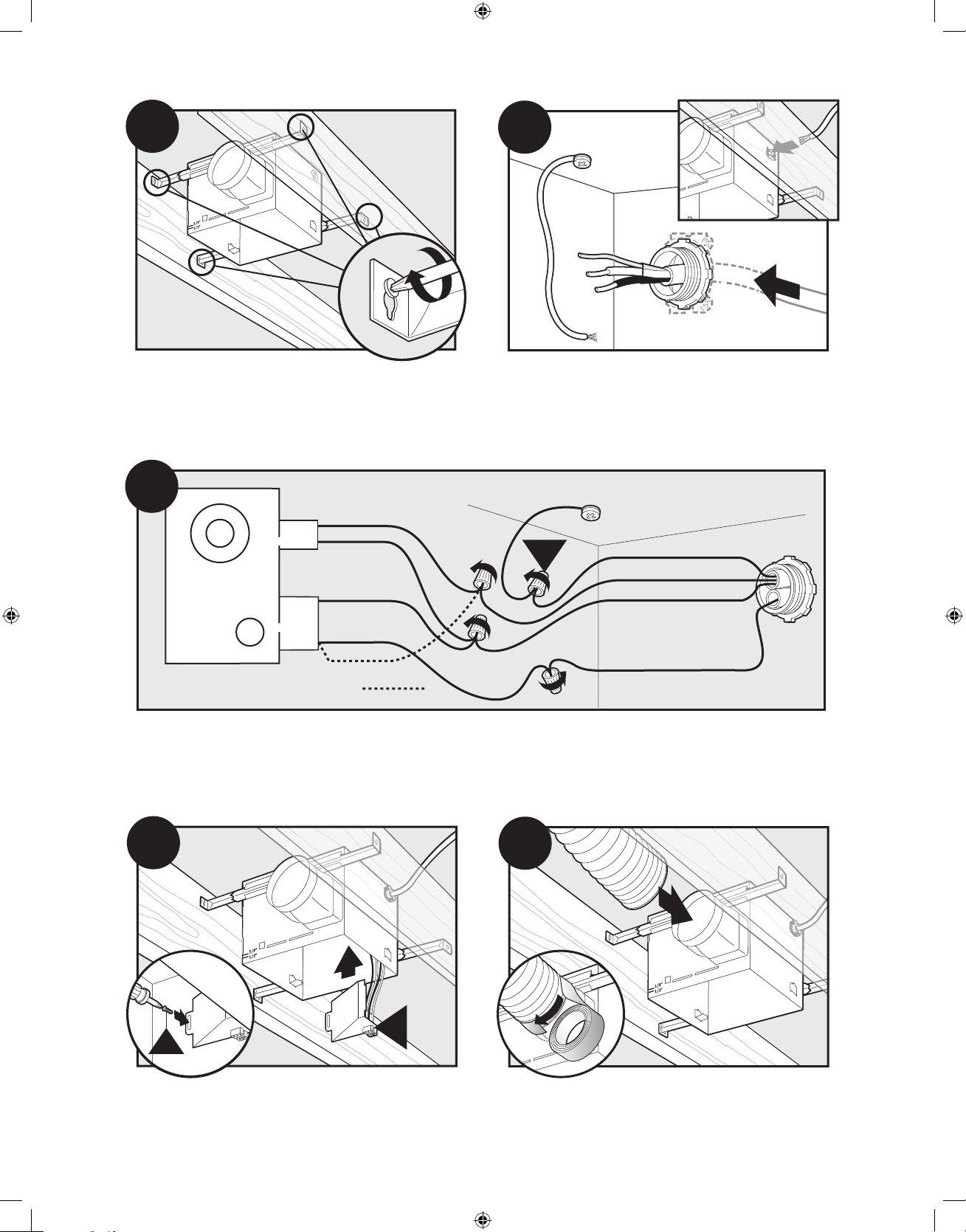

Tighten screws.
Route wires through the strain relief.
Connect wires as shown.
9
B17
B18
A
3 Pin
2 Pin
Fan Motor
Light
Light
Green
Black
Black
White
Black
Black
White
White
Bare Copper
Ground
B19
Main Switch 1 (AC In)
Switch 2 (AC In)
*Option Fan & Main Light Together
*Option
B21
Connect 4” duct and vent to the outside. Tape joints.
If ducting does not fit securely, an adapter may need
to be purchased.
Install the wiring cover plate. Make sure all wiring
connections are inside the box or under the
wiring cover plate.
G
H
B20
41941-01 3/29/2006 41941-01 3/29/2006

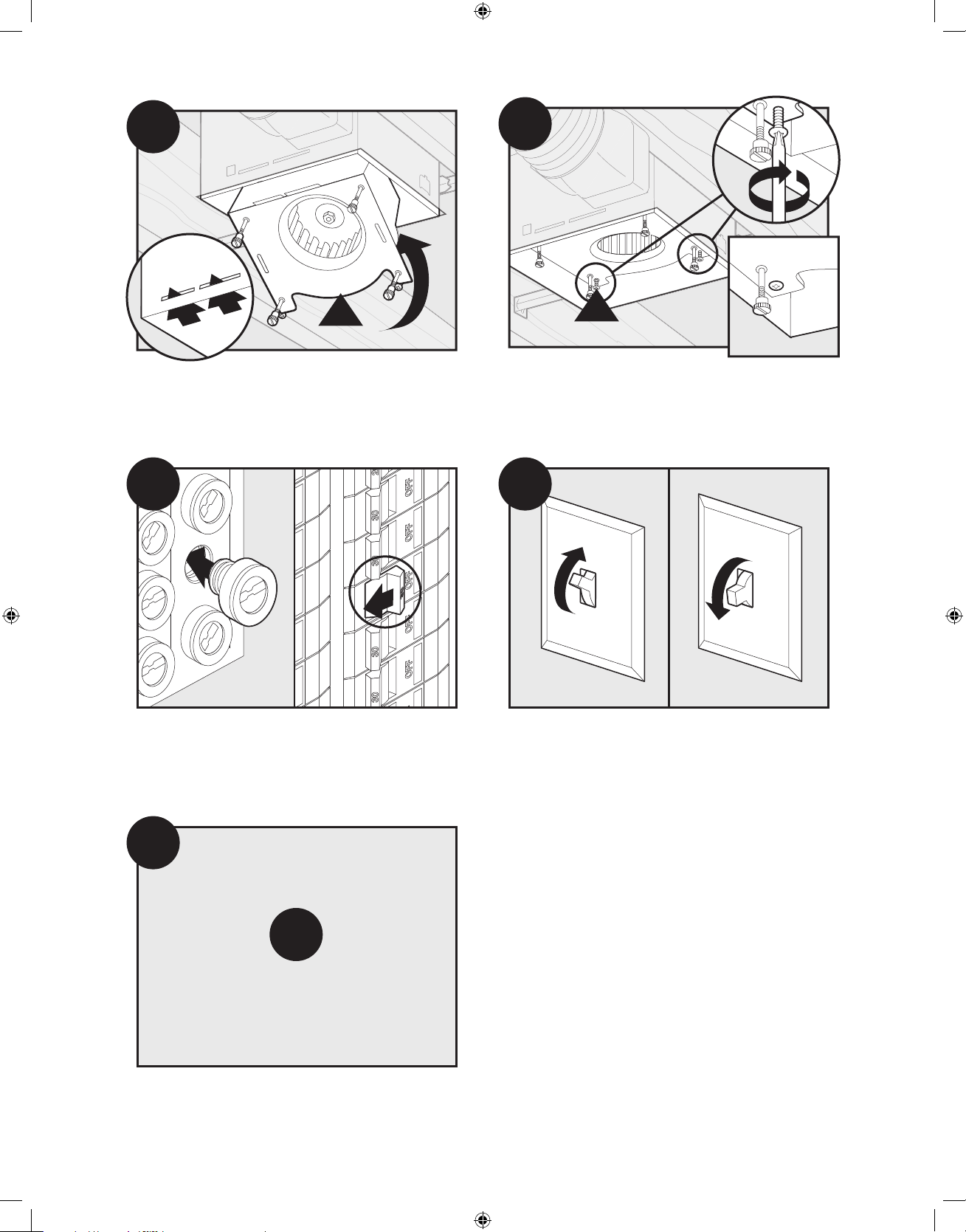

10
B27
E1
Go to step
on page 17
to attach grille.
B22
I
Connect wiring harness. DO NOT ALLOW THE MOTOR TO
HANG FROM THE WIRING HARNESS.
I
B23
Reinstall the motor by inserting the tabs and pushing up
into position. Make sure the wires are not pinched
between the motor and the housing.
B25
Turn on the power source.
ON
OF
F
B26
Test the motor. If the motor does not run,
check the plug connection.
B24
J
Secure the motor by tightening the 2 screws.
41941-01 3/29/2006 41941-01 3/29/2006
EXISTING FAN
C11
C12
E
F
Existing Construction – accessible from above
11
NO EXISTING FAN
8”
8
1
/2
”
OR

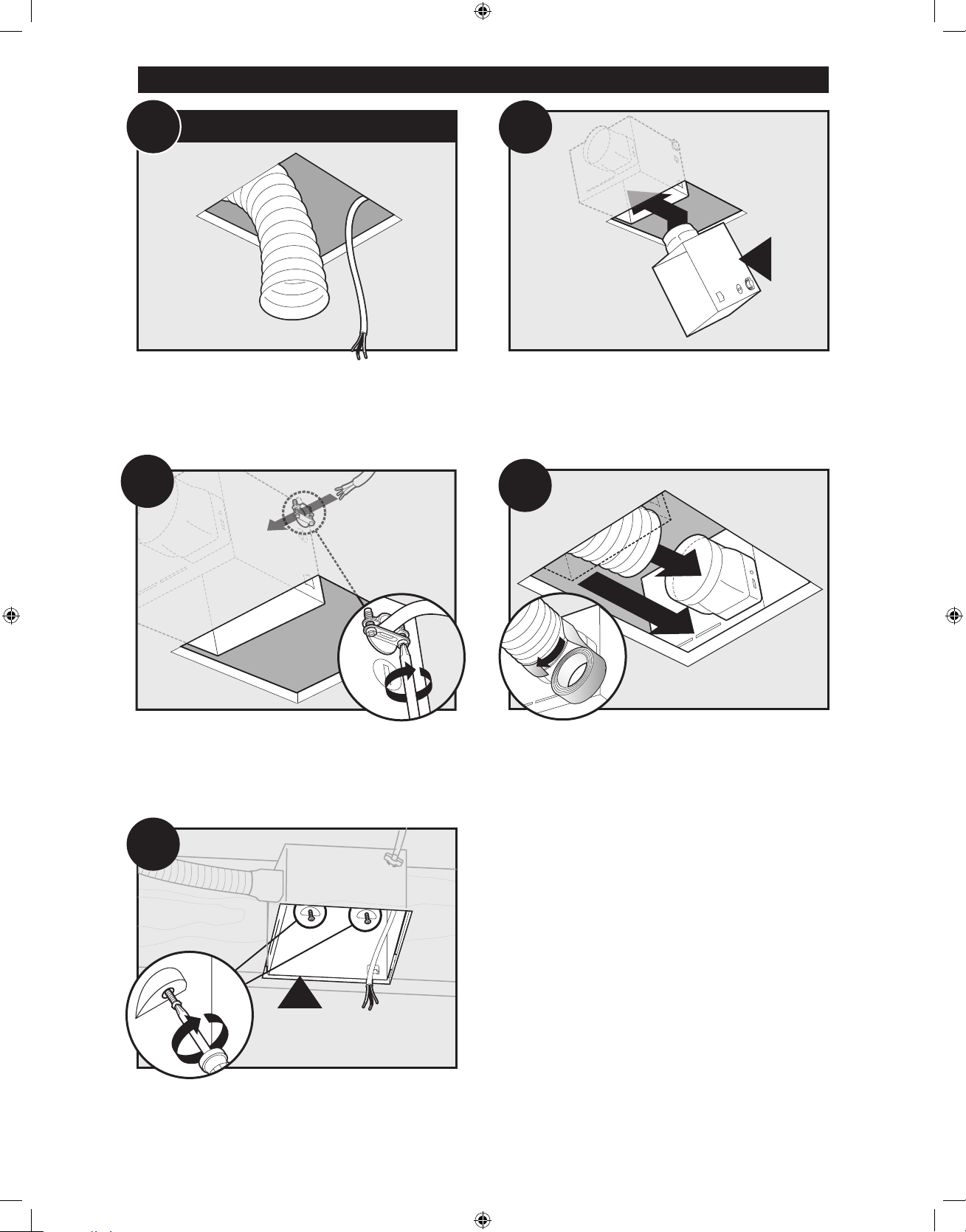

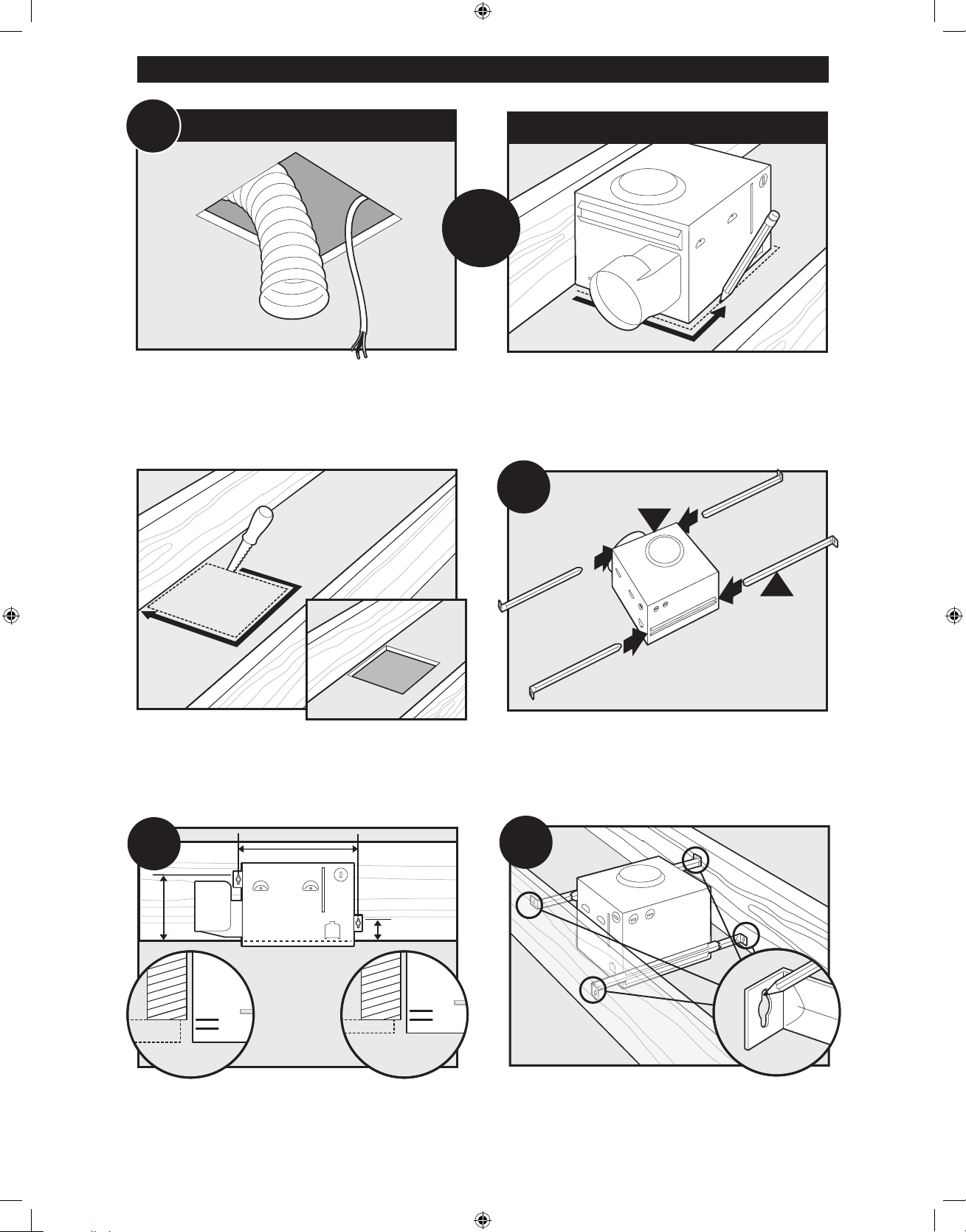

Remove an existing fan and check to make sure the
opening is large enough to accommodate the new
motor housing (8”x 8 1/2”).
Cut out an opening for the housing.
Use the motor housing as a template to mark position.
Slide the mounting rails into brackets.
Position the correct depth mark at the bottom edge of the
joist based on the thickness of your sheetrock.
5/8 1/2
5/8 1/2
C13
C14
Mark position of screws by using holes as a template.
41941-01 3/29/2006 41941-01 3/29/2006
C17
C18
C19
C20
12
C15
C16
Drill a hole in the center of each outline. Insert screws, leaving space between the screw head
and the joist. Screws are not provided.
Attach the rails onto the screws. Tighten screws.
Connect 4” duct and vent to the outside. Tape joints.
If ducting does not fit securely, an adapter may
need to be purchased.

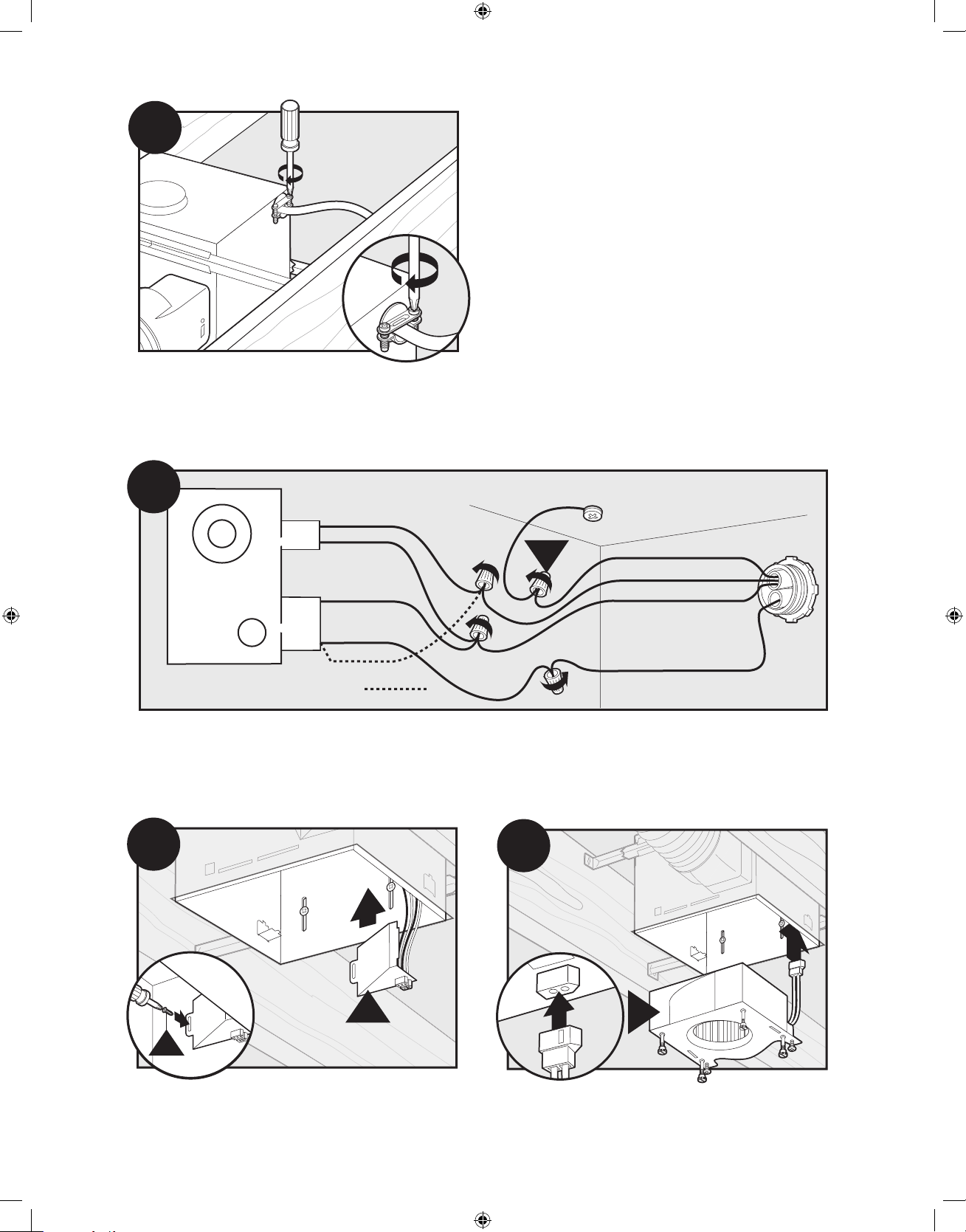

Route wires through the strain relief.
41941-01 3/29/2006 41941-01 3/29/2006
