Hunter Fan 54016, 54014, 54017, 54018, 54015 User Manual

Download

Page 1

30 inches

7 feet

Ladder

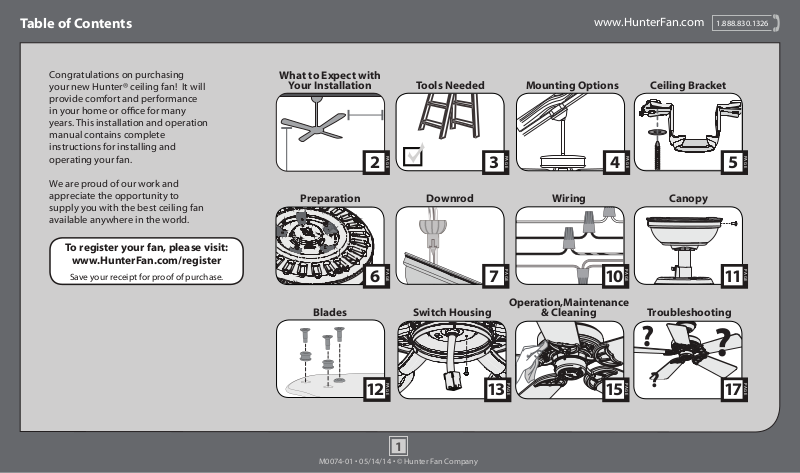

Table of Contents

www.HunterFan.com

1.888.830.1326

Congratulations on purchasing your new Hunter® ceiling fan! It will provide comfort and performance

in your home or ofce for many

years. This installation and operation manual contains complete instructions for installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

To register your fan, please visit:

www.HunterFan.com/register

Save your receipt for proof of purchase.

What to Expect with

Your Installation

Preparation

Blades Troubleshooting

Tools Needed

PAG E

Downrod

PAG E

Switch Housing

Mounting Options

PAG E

Wiring Canopy

PAG E

Operation,Maintenance

& Cleaning

Ceiling Bracket

PAG E

M0074-01 • 05/14/14 • © Hunter Fan Company

PAG E

Page 2

What to Expect with Your Installation

If you are unfamiliar with wiring, use a

qualied electrician.

Must be able to secure the fan to building structure or fan-rated outlet box

You may need a friend to help you.

Know your wiring

30 inches

from blade tip to nearest wall or obstruction

from bottom

edge of blade

Assess location

Standard Downrod

for ceilings 8-10 feet high

7 feet

to the oor

www.HunterFan.com

1.888.830.1326

1.888.830.13261.888.830.1326

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or personal

injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage, use only Hunter Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

CAUTIONS

Check box to see fan weight

Ceiling angles greater than 34° will require an Angled Mounting Kit. See page 4 for details.

Assess ceiling angle

Shorter Downrod

for fans installed close to ceiling

Longer Downrod

for ceilings 10 feet or higher

Select a downrod length

M0074-01 • 05/14/14 • © Hunter Fan Company

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring,

use a qualied electrician.

c.2 - Use only Hunter replacement parts.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications.

Page 3

Tools Needed

www.HunterFan.com

1.888.830.1326

Ladder

Pliers Wire Strippers

Power Drill

(optional)

If mounting to a support structure, you will also need these tools.

9/64” Drill Bit

(optional)

M0074-01 • 05/14/14 • © Hunter Fan Company

Screwdrivers

Page 4

CEILING

Mounting Options

www.HunterFan.com

1.888.830.1326

1.866.268.1936

OPTION

If you have a at ceiling:

WALL

Hang your fan by a standard downrod (included).

Standard Mounting

Support Structure

OPTION

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will also need an Angled Mounting Kit (sold separately).

Use the three steps below to determine if your ceiling angle is greater than 34°

Angled Mounting

Standard Mounting Style

Ceiling

Outlet Box

(required)

Angled Mounting Style

Ceiling

Outlet Box

(required)

FOLD

on dotted line

34°

Guide Touches

BOTH Ceiling & Wall

You need ONLY

a Longer

Downrod

*most common

2 3

PLACE

against wall

Guide Touches

but NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

SLIDE

toward ceiling

Wall

M0074-01 • 05/14/14 • © Hunter Fan Company

Use Standard Mounting

or Low-Prole Mounting

to hang the fan from a at ceiling.

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

Page 5

Ceiling Bracket

Turn Power

OFF

For angled ceilings, point

opening toward peak.

www.HunterFan.com

1.888.830.13261.888.830.1326

Make sure all four bumpers are

still attached.

Refer to warning w.1 on pg. 2

If you are unable to do this,

call Technical Support at

1-888-830-1326.

M0074-01 • 05/14/14 • © Hunter Fan Company

Use wood screws (included) when securing to support structure with approved electrical outlet

box. Drill 9/64” pilot holes in support structure to aid in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet

box associated with the wall switch location.

Page 6

Preparation

Time Saver Tip: Get a helper

to insert grommets, found in

the hardware bag, into the

blades while you’re doing the

next couple of steps.

Remove the shipping blocks from the motor. Save the screws. They will be

needed for blade iron installation.

Note: Some fans will have a shipping

ring instead of shipping blocks. Please

remove the ring and save the screws.

www.HunterFan.com

If you are installing multiple remote-controlled

fans on the same circuit breaker,

you may need to perform a few extra steps to

prevent interference or faulty operation of your

remote controls.

Go to www.HunterFan.com/FAQs and click

“How do I properly install multiple remote-

controlled fans?” for more information.

1.888.830.13261.888.830.1326

M0074-01 • 05/14/14 • © Hunter Fan Company

Page 7

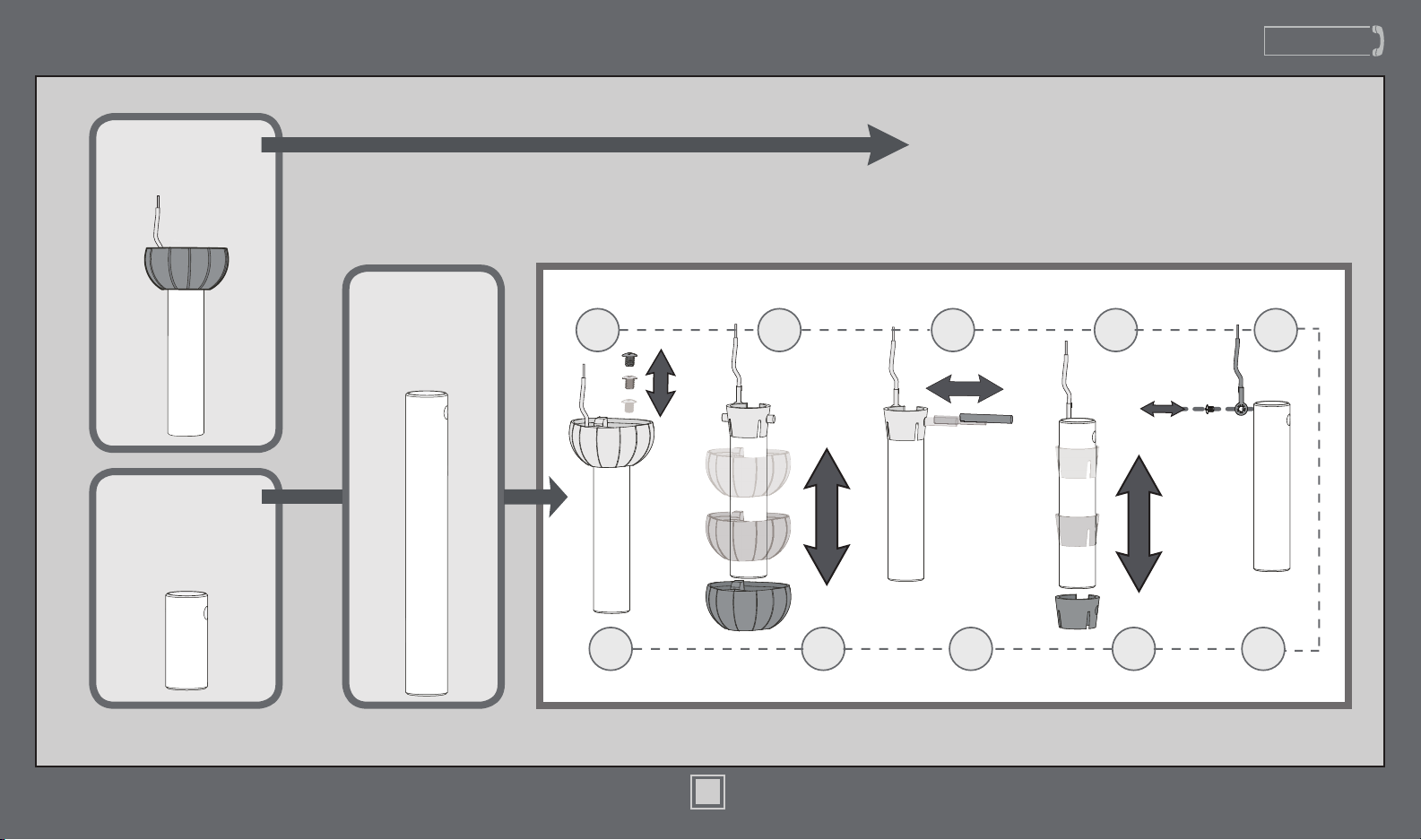

Downrod

www.HunterFan.com

1.888.830.1326

Standard Downrod

for ceilings 8-10’ high

Option 1Option 2

Shorter Downrod

for fans installed close to ceiling

Included

(pre-assembled)

Longer Downrod

for angled ceilings or

Option 3

ceilings 10’ or higher

skip to next page

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

1 2 3 4 5

Slide

678910

Included

Sold Separately

Steps 6-10 to reassemble with new pipe

M0074-01 • 05/14/14 • © Hunter Fan Company

Page 8

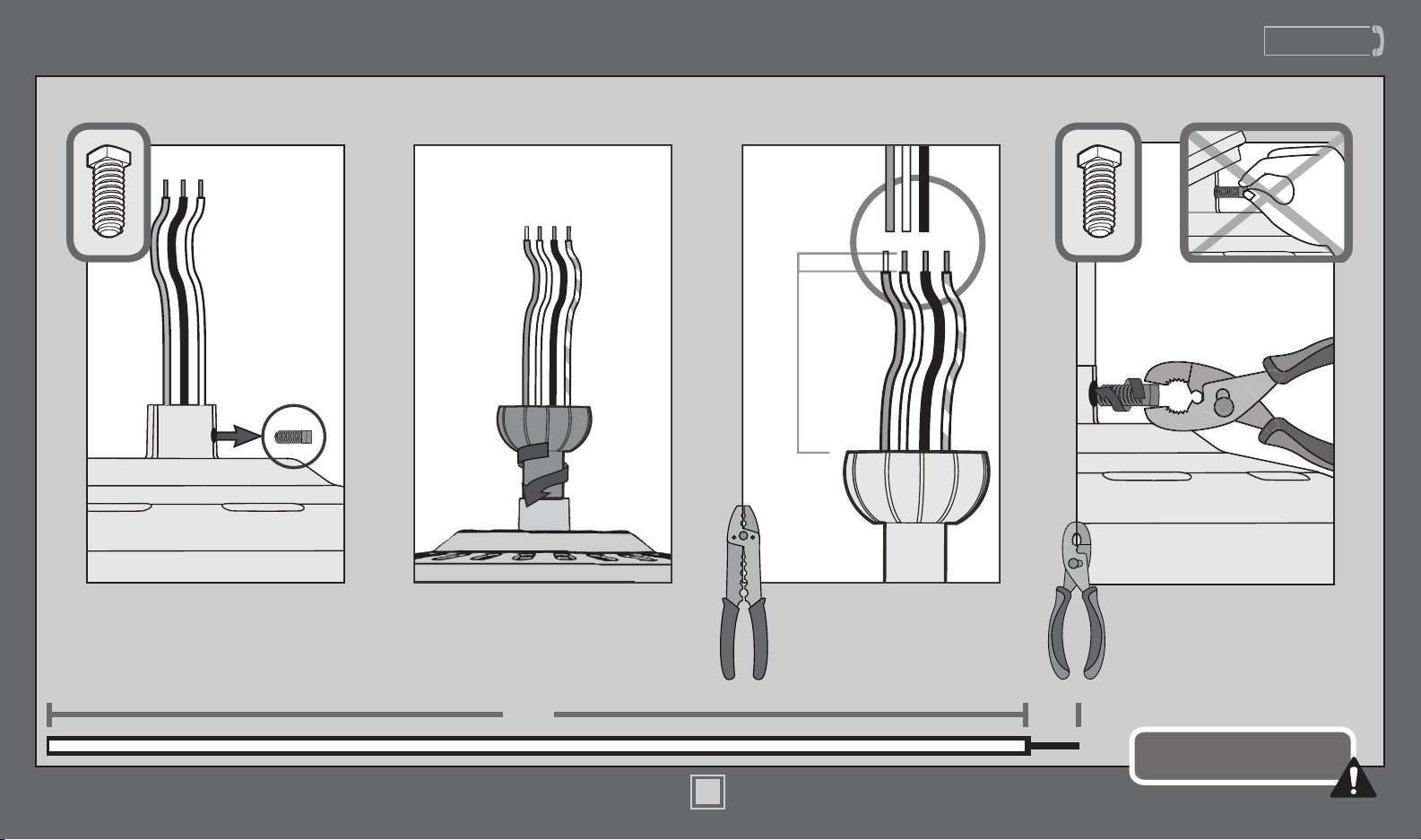

Downrod (continued)

www.HunterFan.com

1.888.830.1326

KEEP!

Remove the pre-installed

setscrew so that the downrod

can be inserted.

Hand tighten the downrod (at

least 4-5 full turns) until it stops.

8”

M0074-01 • 05/14/14 • © Hunter Fan Company

3/8”

8”

(not to scale)

The wires can be cut, but

leave at least 8” extending

from the top of the downrod.

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN.

3/8”

If the setscrew is not tightened securely, the fan may fall.

Page 9

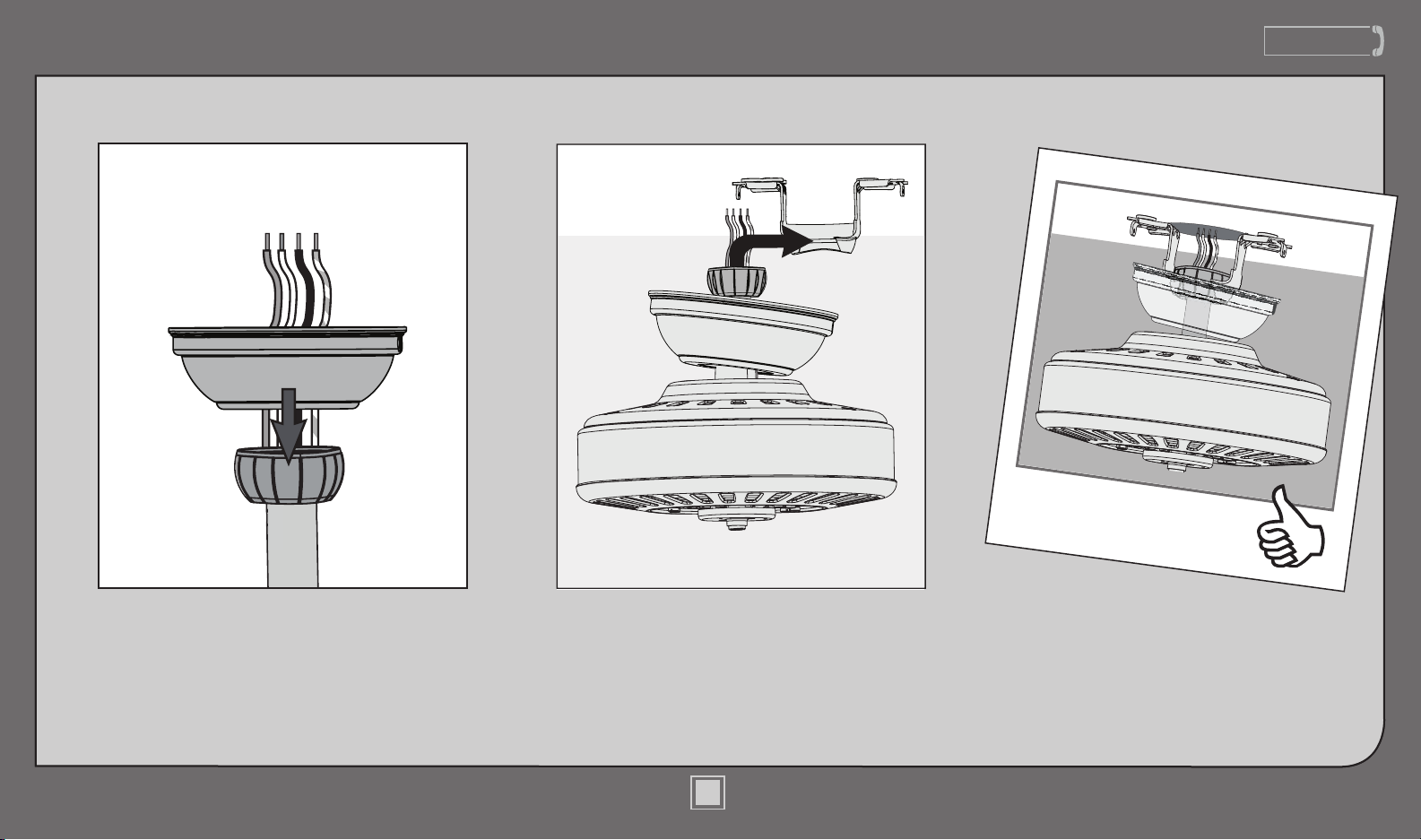

Downrod (continued)

DO NOT PICK THE FAN UP BY THE

Put the wires and downrod through the

canopy. Let the canopy sit loosely on top

www.HunterFan.com

1.888.830.1326

of the fan.

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

M0074-01 • 05/14/14 • © Hunter Fan Company

Page 10

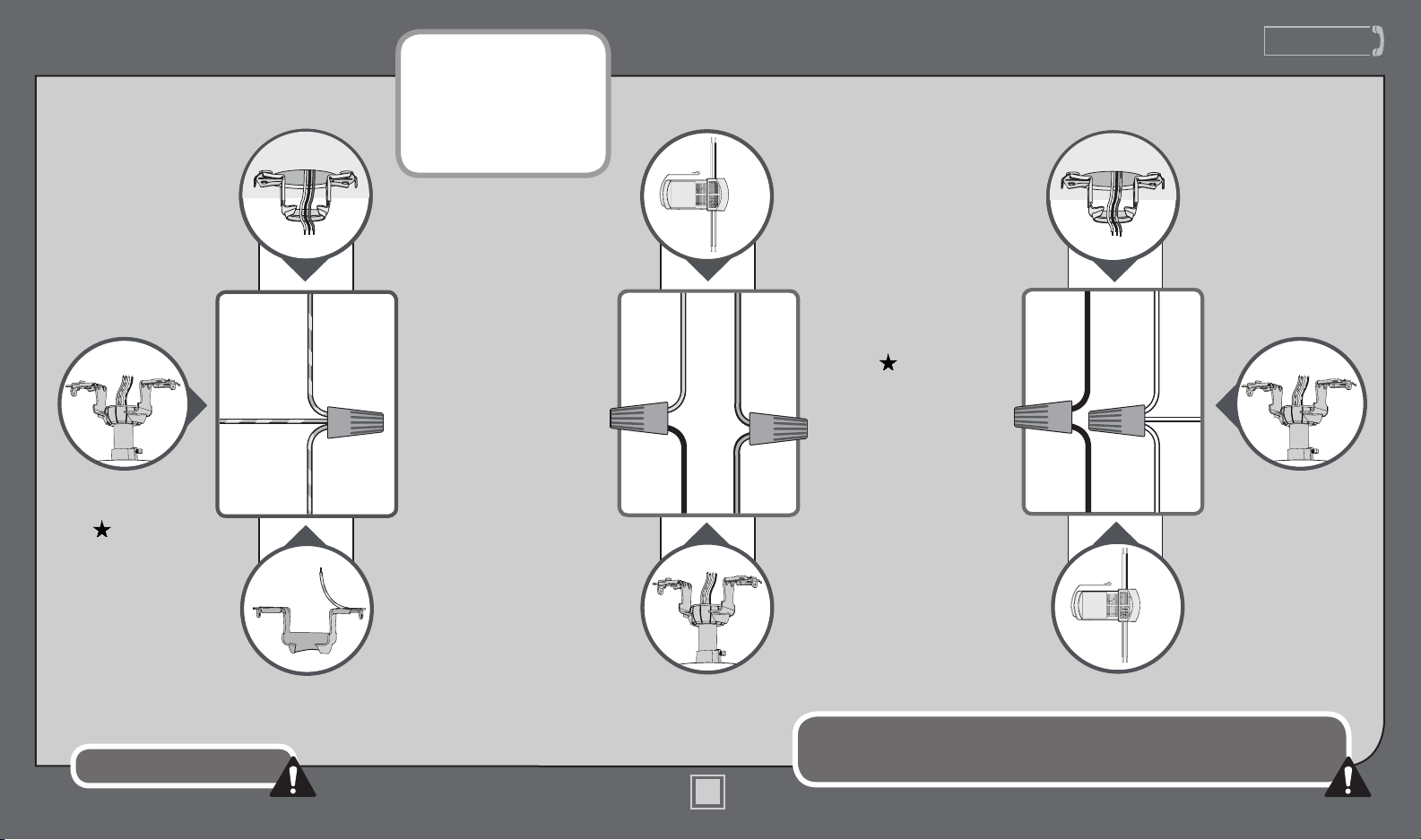

Wiring

Using an orange wire

connector from the hardware bag, connect the

3 grounding wires

(green, green/yellow

stripe, or bare copper)

coming from the

ceiling, downrod, and

hanging bracket.

stripe (grounding)

green/yellow stripe

stripe

Note: To connect the

www.HunterFan.com

1.888.830.1326

wires, hold the bare

metal leads together and

place a wire connector

over them, then twist

clockwise until tight.

green/yellow

Using the orange

wire connectors

from the remote

control hardware bag, connect the blue wire from the receiver

green/yellow

to the blue wire (or possibly black with

white stripe wire) from

the fan. Connect the yellow wire from the receiver to the black

wire from the fan.

yellow

black

blue

Using the orange wire

connectors from

black

(ungrounded)

white (grounded)

the hardware bag,

connect the black wire

(ungrounded) from

white

the ceiling to the black

blue

wire from the receiver.

Connect the white

black

white

wire (grounded) from

the ceiling to both the

white wire from the

receiver and the white

wire from the fan.

Refer to CAUTION c.1 on pg. 2

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

M0074-01 • 05/14/14 • © Hunter Fan Company

Page 11

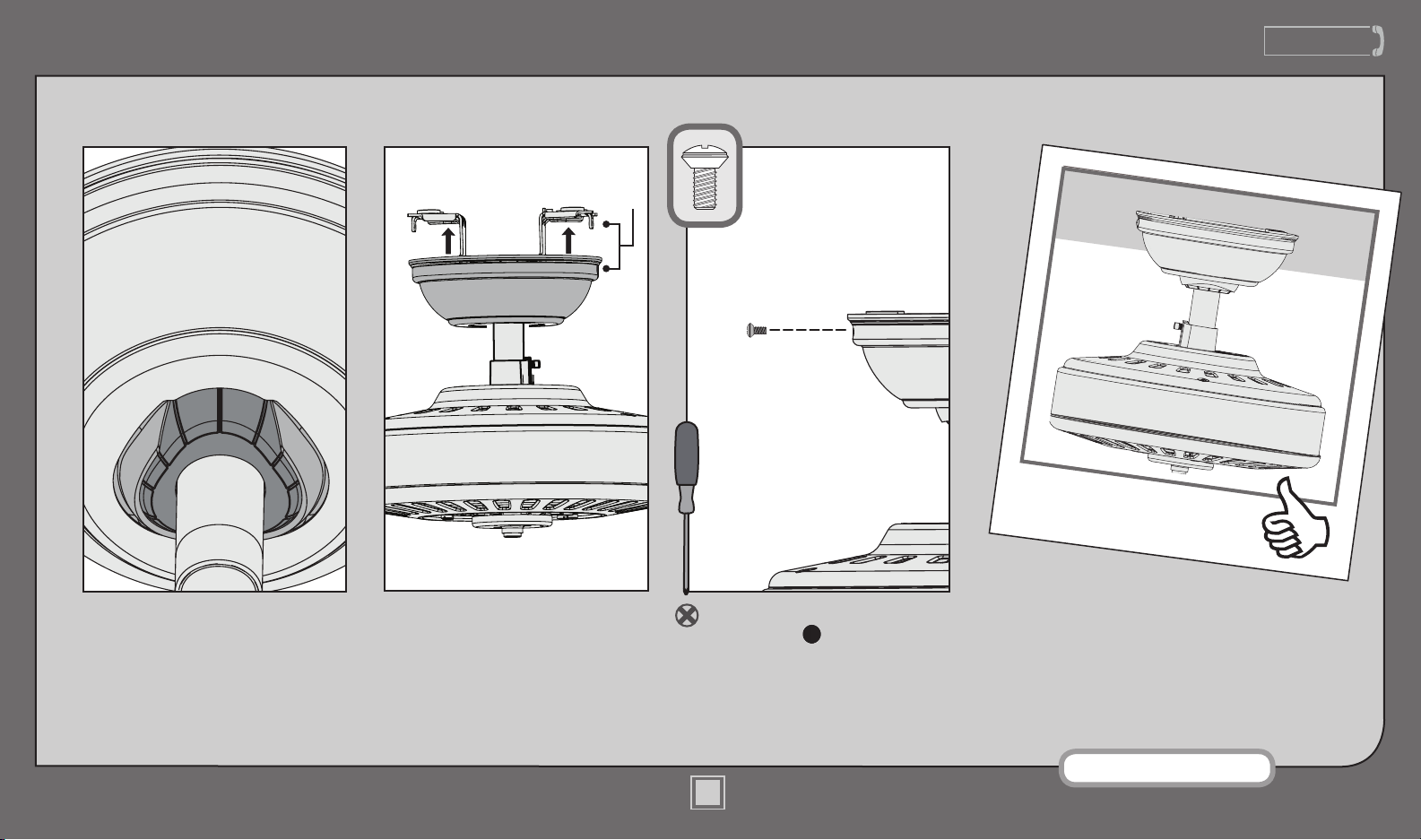

Canopy

Screw

Holes

www.HunterFan.com

1.888.830.1326

Position the canopy so that, when

lifted into place, the canopy ts into

the hanging bracket as shown.

Lift the canopy into place so that

the screw holes are aligned.

M0074-01 • 05/14/14 • © Hunter Fan Company

Insert the two canopy screws

found in the hardware bag.

Note: Fan style may vary.

Page 12

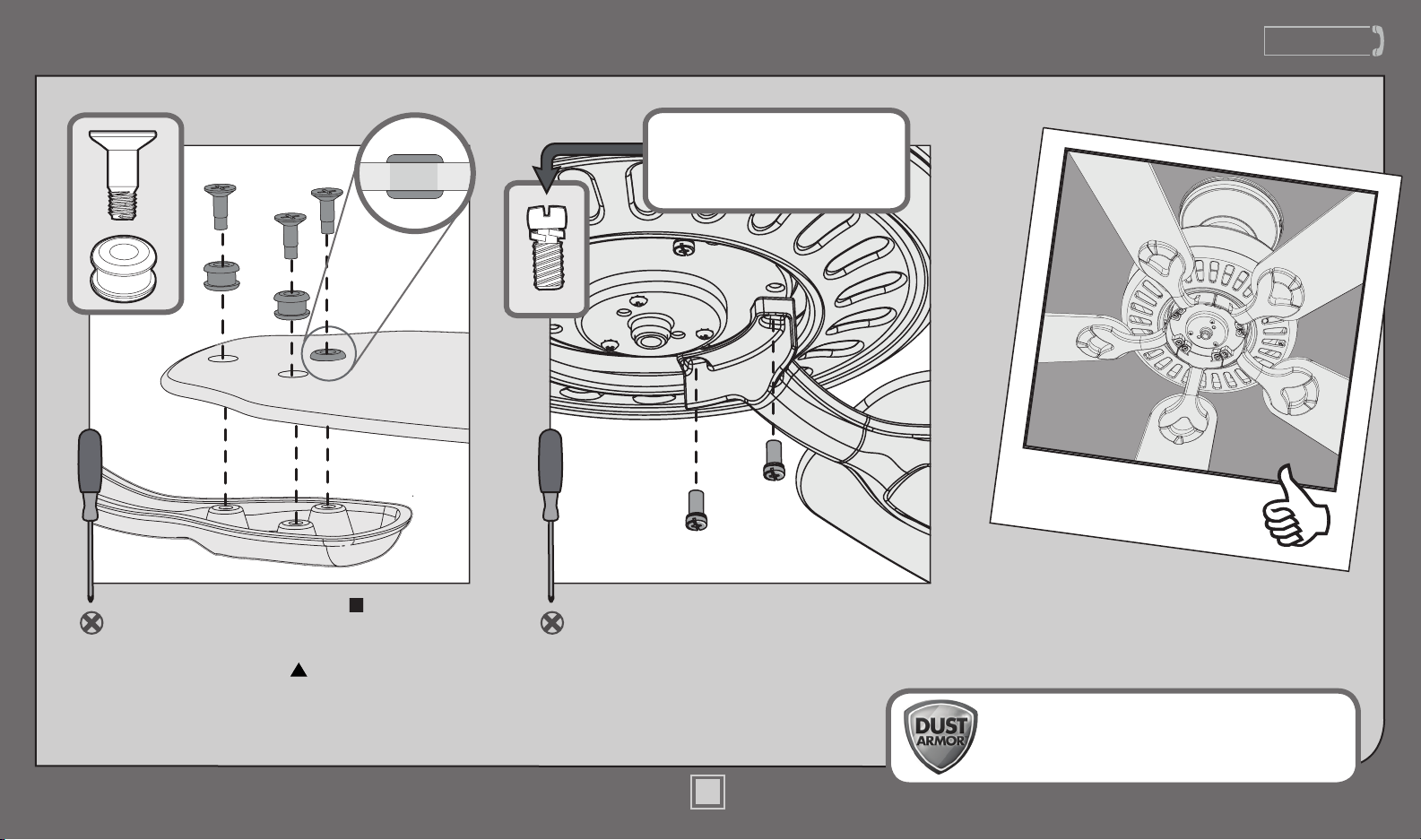

Blades

Insert grommets found in the hardware

Remember the screws that

you kept after removing the

shipping blocks (page 6)? You

need them for this step.

www.HunterFan.com

1.888.830.1326

bag into the holes in the blades, then secure each blade to a blade iron with screws found in the hardware bag.

Lightly attach the blade irons to the motor with the blade iron armature

screws, then securely tighten after both

screws are attached.

Your blades are shielded with Dust Armor® which

is a nanotechnology coating that repels dust. For

cleaning the fan, use soft brushes or cloths to prevent

scratching. Cleaning agents may damage the nishes.

Page 13

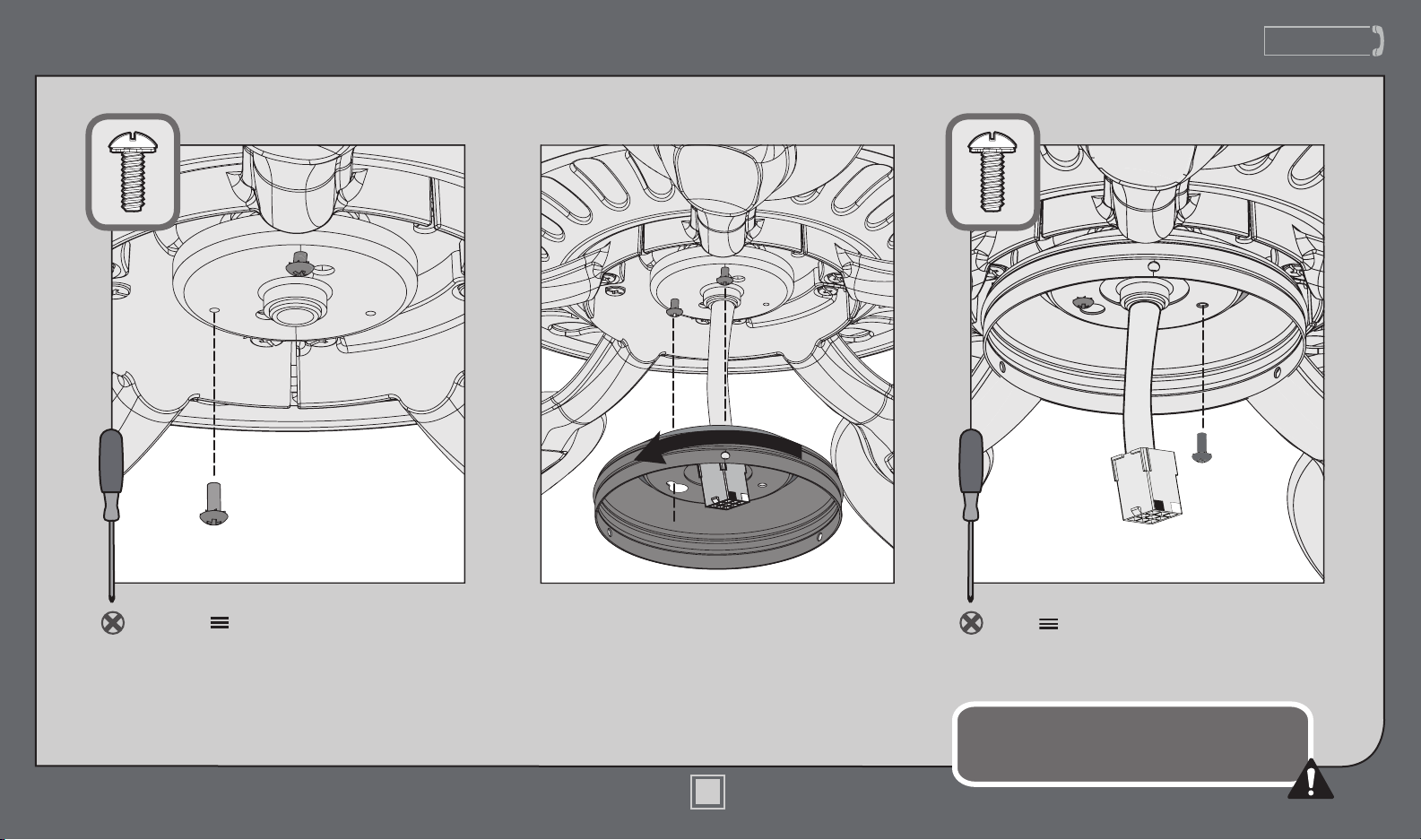

Switch Housing

www.HunterFan.com

1.888.830.1326

Screw two housing assembly screws

from the hardware bag halfway into

the motor housing. It does not matter

which two screw holes you choose.

Feed the wire plug through the center

hole of the upper switch housing, then

wrap keyhole slots around the screws and

twist counterclockwise.

Insert the third screw, found in

the hardware bag, into place and

then tighten all three screws.

Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch

housing xture falling.

Page 14

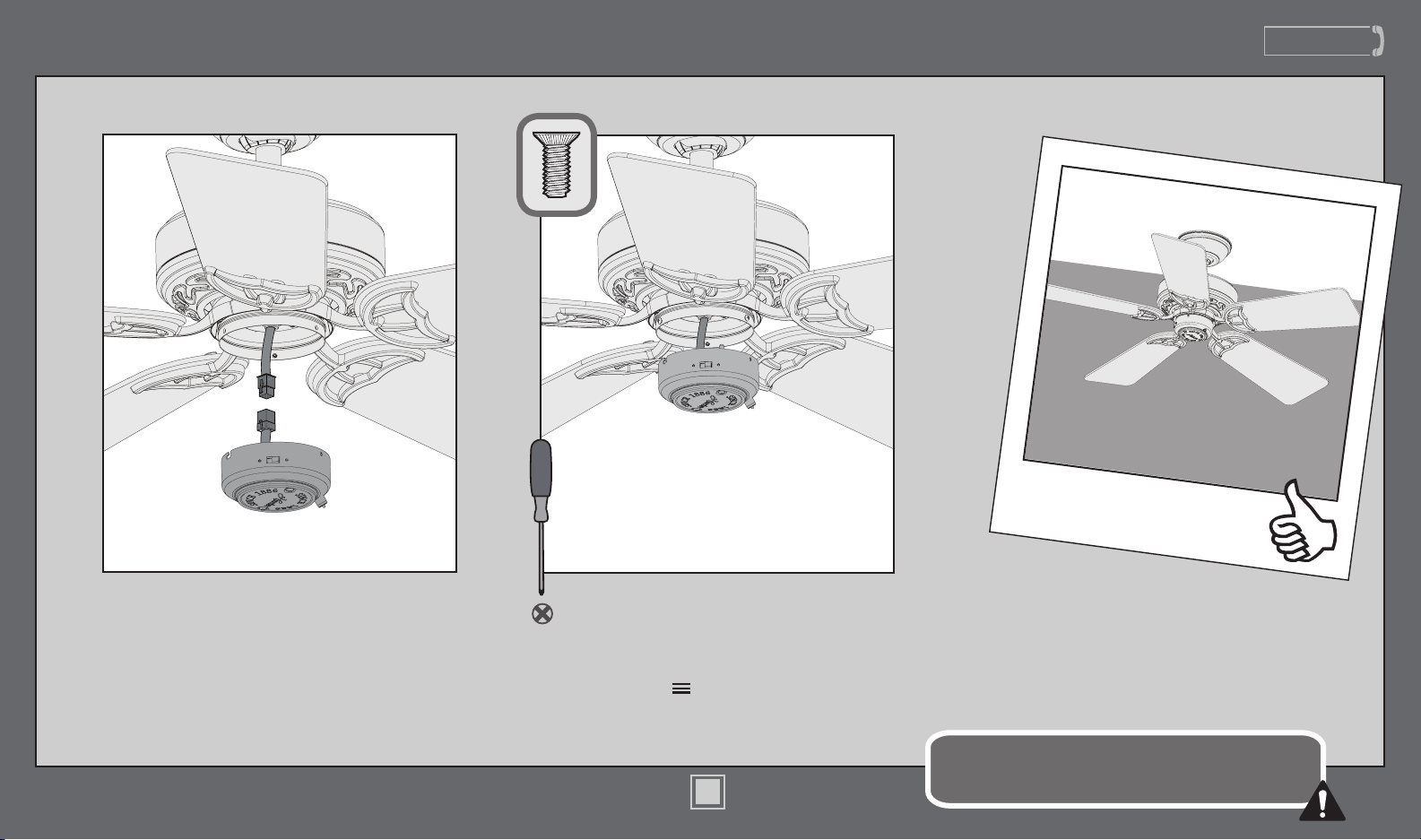

Switch Housing (continued)

www.HunterFan.com

CONGRATUALTIONS!

YOU’RE DONE!

1.888.830.1326

Connect the plugs from the upper and

lower switch housings. Make sure to line up

the colored markings on the connectors.

Lift the lower switch housing until its

screw holes are aligned with the screw

holes in the upper switch housing. Install the three switch housing screws, found in the hardware bag. Tighten

all three screws.

Make sure the lower switch housing is securely attached to the upper switch housing. Failure to properly secure all three assembly screws could result in the switch housing falling.

Page 15

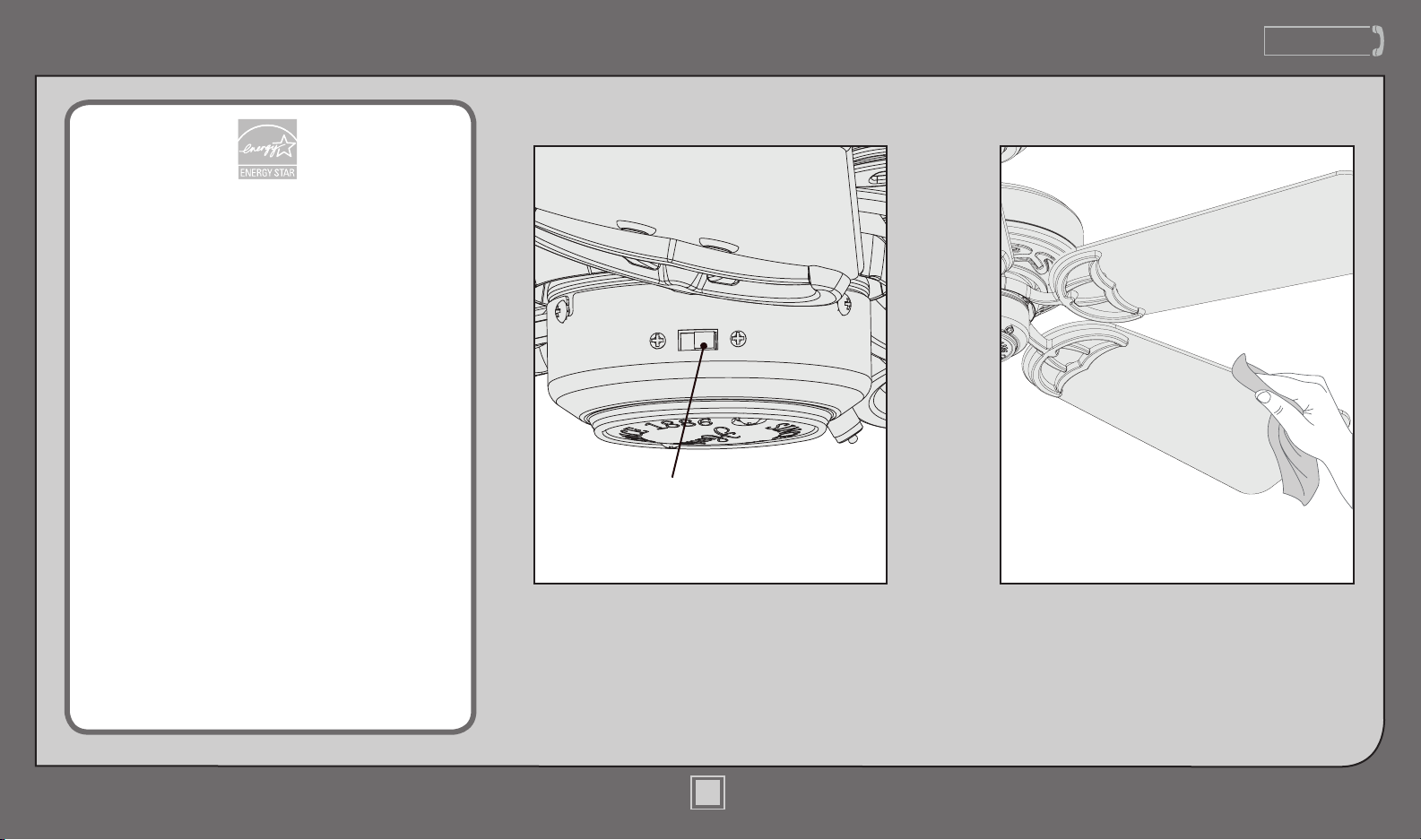

Operation, Maintenance, & Cleaning

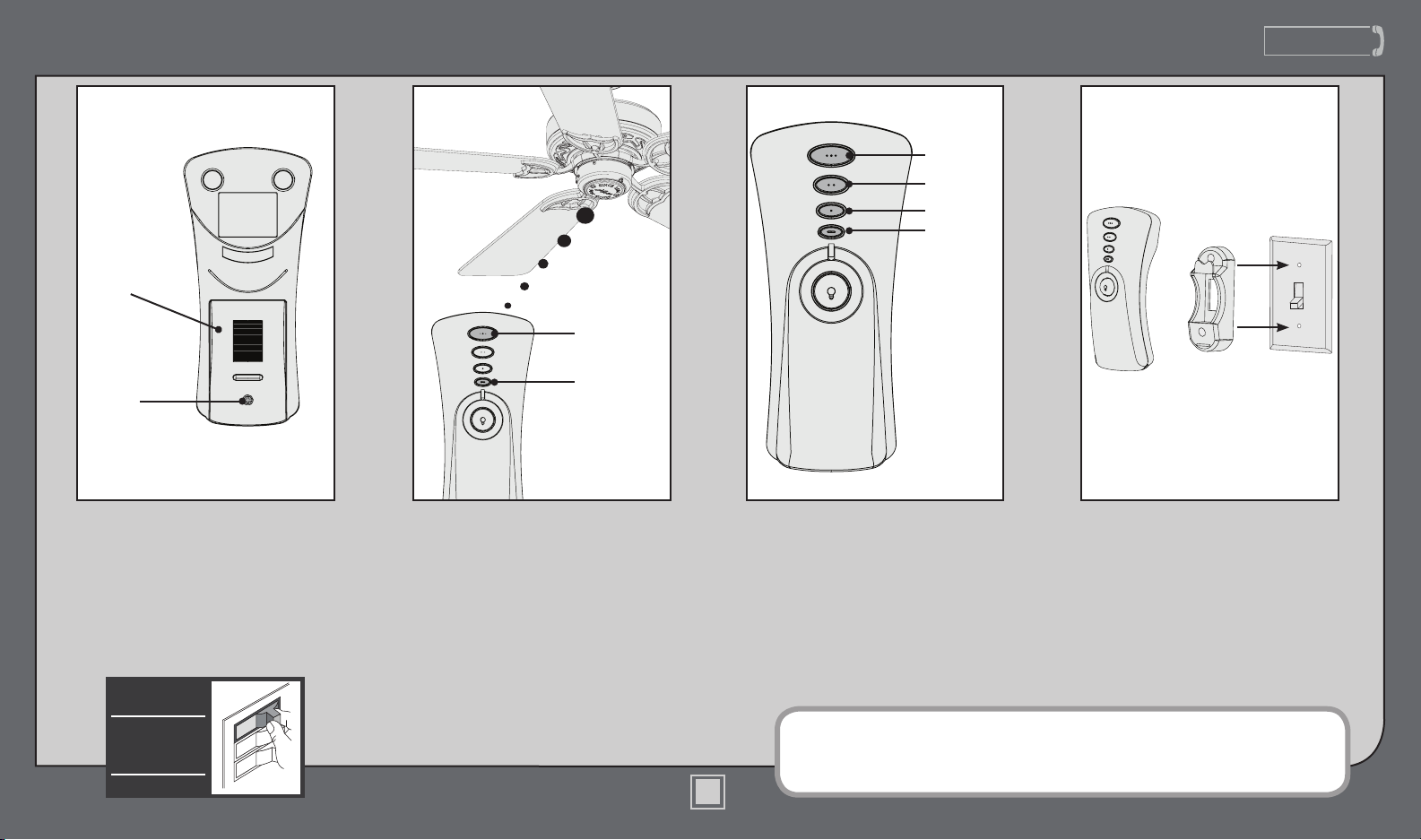

Battery Door

High

High Medium Low Fan Off

www.HunterFan.com

1.888.830.1326

Phillips Head Screw

To access the battery compartment,

remove the small Phillips head screw

that secures the battery door to the

transmitter assembly. The battery

should be installed with the positive

(+) side up. Replace with a CR2032

battery when necessary.

Turn Power

Fan Off

Note: The remote must be paired

before the fan will operate.

Within 3 minutes of restoring power

to the fan, press both the Fan Off

button and the High button for at

least 4 seconds. Your fan will turn on

low to indicate successful syncing.

If it does not, turn off power to your

fan, wait 1 minute then try again. If using the transmitter with multiple

fans, repeat this process for each fan.

The Fan Off button only turns the

fan off. To turn the fan on, press one

of the fan speed buttons.

High

Medium

Low

ooo

If you are installing multiple remote-controlled fans on the same

circuit breaker, go to www.HunterFan.com/FAQs and click “How do I

properly install multiple remote-controlled fans?” for more information.

To install the transmitter cradle, remove the two screws holding

your switch cover plate. Do not

remove the cover plate. Orient the cradle by lining up the two

mounting holes with those on the

cover plate. Insert and tighten the

screws. Do not over tighten.

Page 16

Operation, Maintenance, & Cleaning (continued)

Hunter fans have the power to cut your cooling costs up to 40%.

Beat the High Cost of Cooling

The air movement created by a Hunter ceiling fan lets you set your thermostat higher and still stay comfortable. Every degree you raise the thermostat saves up to 7% on energy costs. So, you can cut back on expensive air conditioning ... and save up to 40%* on cooling. In winter, your Hunter fan recirculates warm air and saves up to 10%* on heating bills. * On average at low speed settings. Your savings may vary based on climate, building type and thermostat setting.

Save Energy and Money While Protecting the Environment

Congratulations! You’re saving energy and money while protecting the environment by purchasing this ENERGY

STAR qualied Hunter ceiling fan! With this purchase, you

are doing your part to protect the environment. Your new ceiling fan has earned the ENERGY STAR label

because it meets high energy efciency specications

set by the Environmental Protection Agency (EPA). ENERGY STAR labeled ceiling fans save energy because

they have more efcient fan motors and air delivery due to more aerodynamic blade congurations. Ceiling fan

models bearing the ENERGY STAR label move air 14 -

20% more efciently than typical ceiling fan models.

For more information on ENERGY STAR visit www.energystar.gov.

To switch the direction of air ow, move

position. You will need to remove the

Reverse Switch

the reverse switch to the opposite

light kit glass to do so.

www.HunterFan.com

1.888.830.1326

For cleaning the fan, use soft brushes or

cloths to prevent scratching. Cleaning

products may damage the nishes.

Page 17

Troubleshooting

www.HunterFan.com

1.888.830.1326

Fan doesn’t work

• Make sure power switch is on.

• Pull the pull chain to make sure it is on.

• Push the motor reversing switch

rmly left or right to ensure that it

is engaged.

• Check the circuit breaker to ensure the power is turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram on page 10.

• Make sure the battery is working.

• Check the plug connection in the switch housing.

Excessive wobbling

• Tighten all of the blade and blade iron screws until they are snug.

• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated.

• Use the provided balancing kit and instructions to balance the fan.

Remote control of fan is erratic

• Make sure the battery is installed correctly.

• Install a fresh battery.

Transmitter only works when held at close range

• Change battery.

Noisy operation

• Tighten the blade and blade iron screws until they are snug.

• Check to see if any of the blades are cracked. If so, replace all of the blades.

If you have multiple remotes or multiple remote-controlled fans installed on the same circuit breaker and you are experiencing

interference or faulty operation of your remote controls, please go to www.HunterFan.com/FAQs and click “How do I properly install multiple remote-controlled fans?” for information on how to correct this issue.
