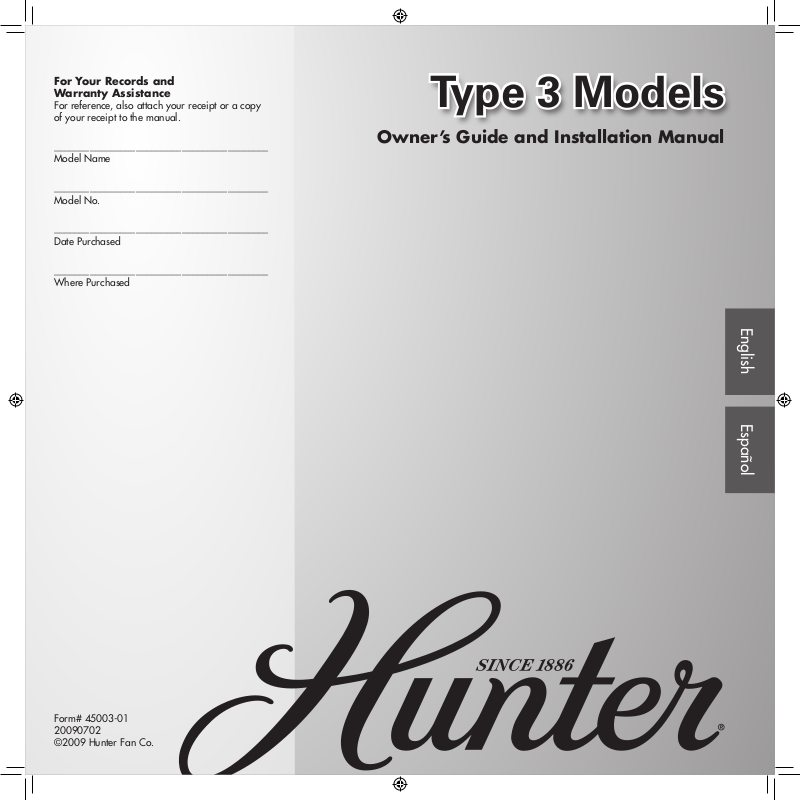

Page 1
For Your Records and
Warranty Assistance
For reference, also attach your receipt or a copy
of your receipt to the manual.
Type 3 ModelsType 3 ModelsType 3 Models
__________________________________________
Model Name
__________________________________________
Model No.
__________________________________________
Date Purchased
__________________________________________
Where Purchased
Owner’s Guide and Installation Manual
English Español
Form# 45003-01
20090702
©2009 Hunter Fan Co.
Page 2
Table of Contents
1 • Getting Ready ................................................... 4
2 • Installing the Hanger Bracket ...................5
3 • Assembling and Hanging the Fan ..........6
4 • Wiring the Fan ..................................................7
5 • Installing the Canopy and Canopy
Trim Ring ..............................................................8
6 • Assembling the Blades ................................. 9
7 • Completing Your Installation With
a Bowl Light Fixture ..................................... 10
8 • Assembling the Remote Control and
Mounting the Cradle .................................. 13
9 • Operating and Cleaning Your Ceiling
Fan ........................................................................15
Welcome
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
• READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
10 • Troubleshooting ......................................... 16
© 2008 Hunter Fan Company
2
45003-01 • 07/02/2009 • Hunter Fan Company
Page 3
Installer’s Choice and Optional Accessories
Support Brace
Standard
Mounting
Style
Standard Mounting hangs from the
ceiling by a downrod (included).
Support Brace
Ceiling
Outlet Box
Angle
Mounting
Style
Ceiling
Outlet Box
12
Understanding Mounting and Installer’s Choice®
Hunter’s patented mounting system provides you maximum
installation exibility and ease. You can install your Hunter fan in one
of two ways, depending on ceiling height and your preference: Standard
or Angled mounting. e steps in this manual include instructions for
both Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
For ceilings higher than 8 feet, you can purchase
Hunter extension downrods. All Hunter fans use
sturdy 3/4” diameter pipe to assure stability and
wobble-free performance.
8
CAUTION: To reduce the risk of personal
injury, attach the fan directly to the support
structure of the building according to these
instructions, and use only the hardware
supplied.
Angled Mounting recommended for a
vaulted or angled ceiling
45003-01 • 07/02/2009 • Hunter Fan Company
3
Page 4
1 • Getting Ready
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326
(In Canada, call 1-866-268-1936).
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum eciency, and energy savings.
4
45003-01 • 07/02/2009 • Hunter Fan Company
Page 5
2 • Installing the Hanger Bracket
2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
Note: Your fan comes with four pre-installed neoprene noise
isolators.
2-2. read the lead wires from the outlet box down through the hole
in the middle of the hanger bracket.
2-3. Align the slotted holes in the hanger bracket with the pilot holes
you drilled in the wood support structure. For proper alignment
use slotted holes directly across from each other. If you are
installing the fan on an ANGLED ceiling, be sure to orient the
hanger bracket as shown in Illustration 2-3 (left or right view).
Note: e isolators should be ush against the ceiling.
2-4. Place a at washer on each of the two 3” screws and pass the
screws through the slotted holes in the hanger bracket into the
pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Isolator
Hanger
Bracket
3” Screw
Flat Washer
Ceiling Peak Ceiling Peak
Large
Opening
LEFT RIGHT
Step 2-3 (Angled Ceiling Only)
5
45003-01 • 07/02/2009 • Hunter Fan Company
OR
Steps 2-2 – 2-4
Large
Opening
Page 6

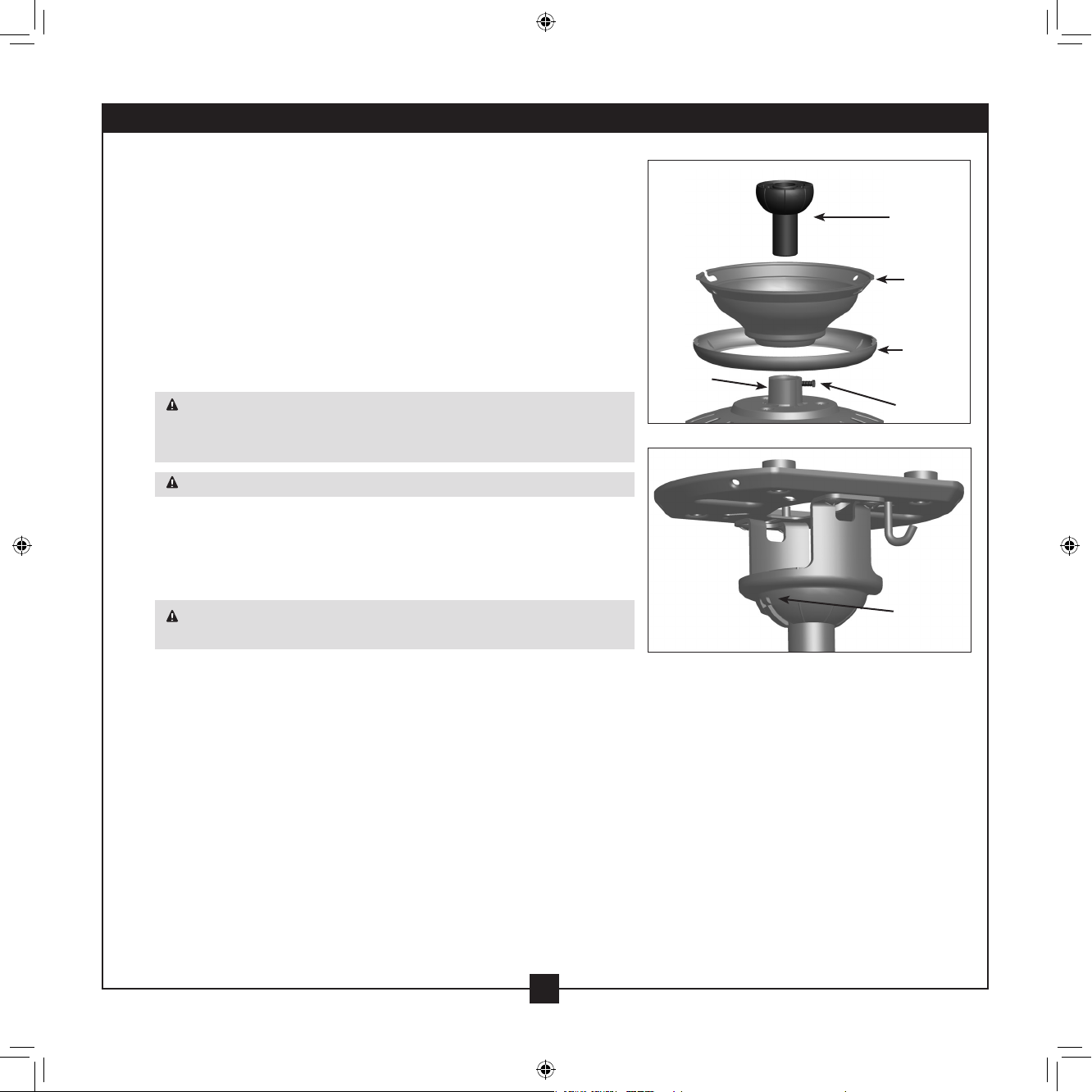

3 • Assembling and Hanging the Fan
3-1. To assemble fan to hang down from a at or angled ceiling, place
the canopy and canopy trim ring around the adapter so that they
rest on the fan assembly.
3-2. Feed the wires from the fan through the downrod.
Note: Make sure all the wires are on the same side of the metal
dowel pin inside the downrod.
3-3. Loosen the square head set screw on the adapter to install the
pipe and ball assembly. Note: When the pipe and ball assembly
is fully installed, 2-3 threads on the pipe will still be visible; this is
normal. Securely retighten the set screw with a wrench or pliers.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
WARNING: Do not carry or lift fan by canopy.
3-4. Raise the fan and place the ball into the hanger bracket.
3-5. Align the notch on the ball with the indent in the hanger bracket.
(Rotate the fan until you hear the notch pop into place.)
Go to 4 • Wiring the Fan.
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
Steps 3-1 – 3-3
Adapter
Steps 3-4 – 3-5
Downrod
Canopy
(with Washer)
Canopy
Trim
Ring
Set Screw
Indent
6
45003-01 • 07/02/2009 • Hunter Fan Company
Page 7

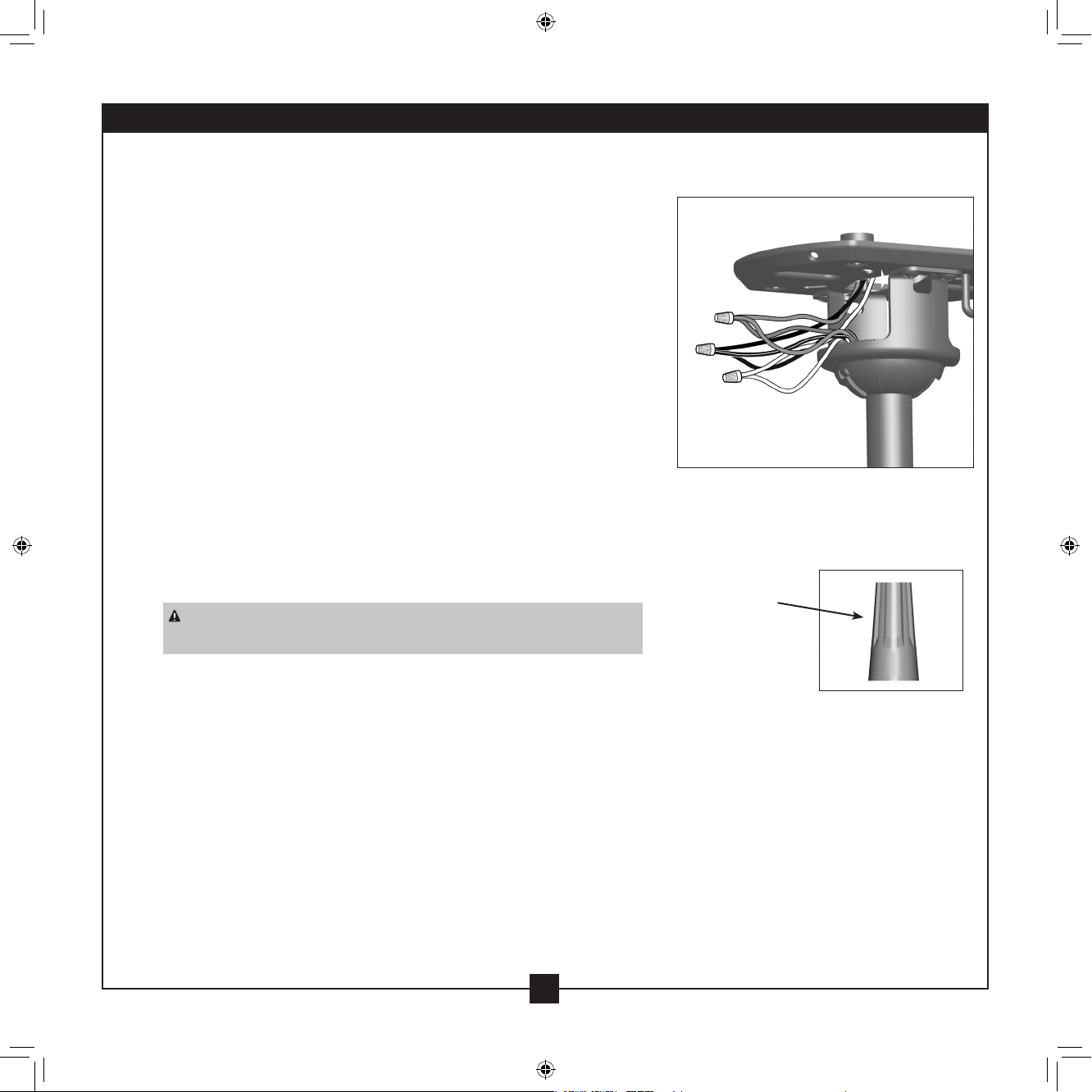

4 •Wiring the Fan
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
4-1. Before attempting installation, make sure the power is still o.
4-2. To connect the wires, hold the bare metal leads together and place
a wire connector over them, then twist clockwise until tight. For
all these connections use the wire connectors provided.
4-3. Connect the bare or green ground wire (grounding) from the
ceiling to the green ground wire (grounding) from the ceiling plate
and the green ground wire from the fan.
4-4. Connect the white wire (grounded) from the ceiling to the white
wire (grounded) from the fan.
4-5. Connect the remaining wires as follows:
• e black wire (ungrounded) from the ceiling to the black
(ungrounded) and the black/white wire (ungrounded) from
the fan
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
Wire
Connector
4-6. Turn the wire connectors upward and push them carefully back
through the ceiling plate into the outlet box.
4-7. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the
outlet box.
7
45003-01 • 07/02/2009 • Hunter Fan Company
Page 8

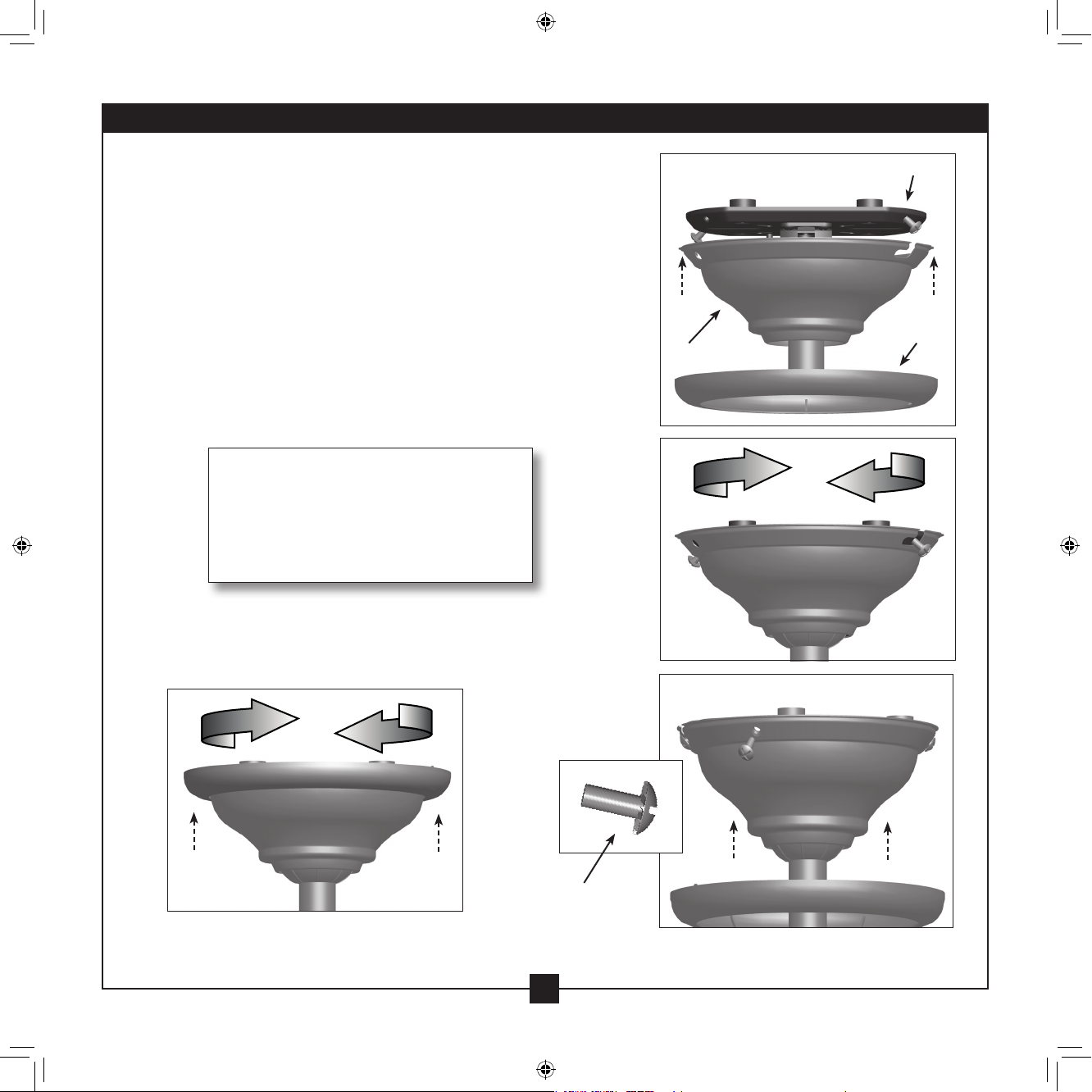

5 • Installing the Canopy and Canopy Trim Ring
5-1. Partially install two canopy screws (about 2 full turns) in the
hanger bracket.
5-2. Raise the canopy over the hanger bracket. Align partially installed
screws with key slots in canopy.
5-3. Twist canopy clockwise to secure.
5-4. Install third & fourth canopy screw in round hole on canopy.
Securely tighten all four screws.
5-5. Using both hands, push the canopy trim ring up to the top of the
canopy.
5-6. Twist canopy trim ring clockwise to secure the canopy.
Should you need to remove the canopy
trim ring, follow these steps:
1. Twist canopy trim ring counter
clockwise until it releases from
canopy.
Steps 5-1 – 5-2
Canopy
Hanger Bracket
Canopy Trim
Ring
Step 5-4
Step 5-5
Canopy
Screw
8
45003-01 • 07/02/2009 • Hunter Fan Company
Step 5-3
Page 9
6 • Assembling the Blades
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
6-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
6-2. Attach each blade to a blade iron using three blade assembly
screws. If you used grommets, the blades may appear slightly loose
after screws are tightened. is is normal.
6-3. Remove the blade mounting screws and rubber shipping bumpers
from the motor. Note: Some blade mounting screws are installed
in the motor to secure shipping blocks.

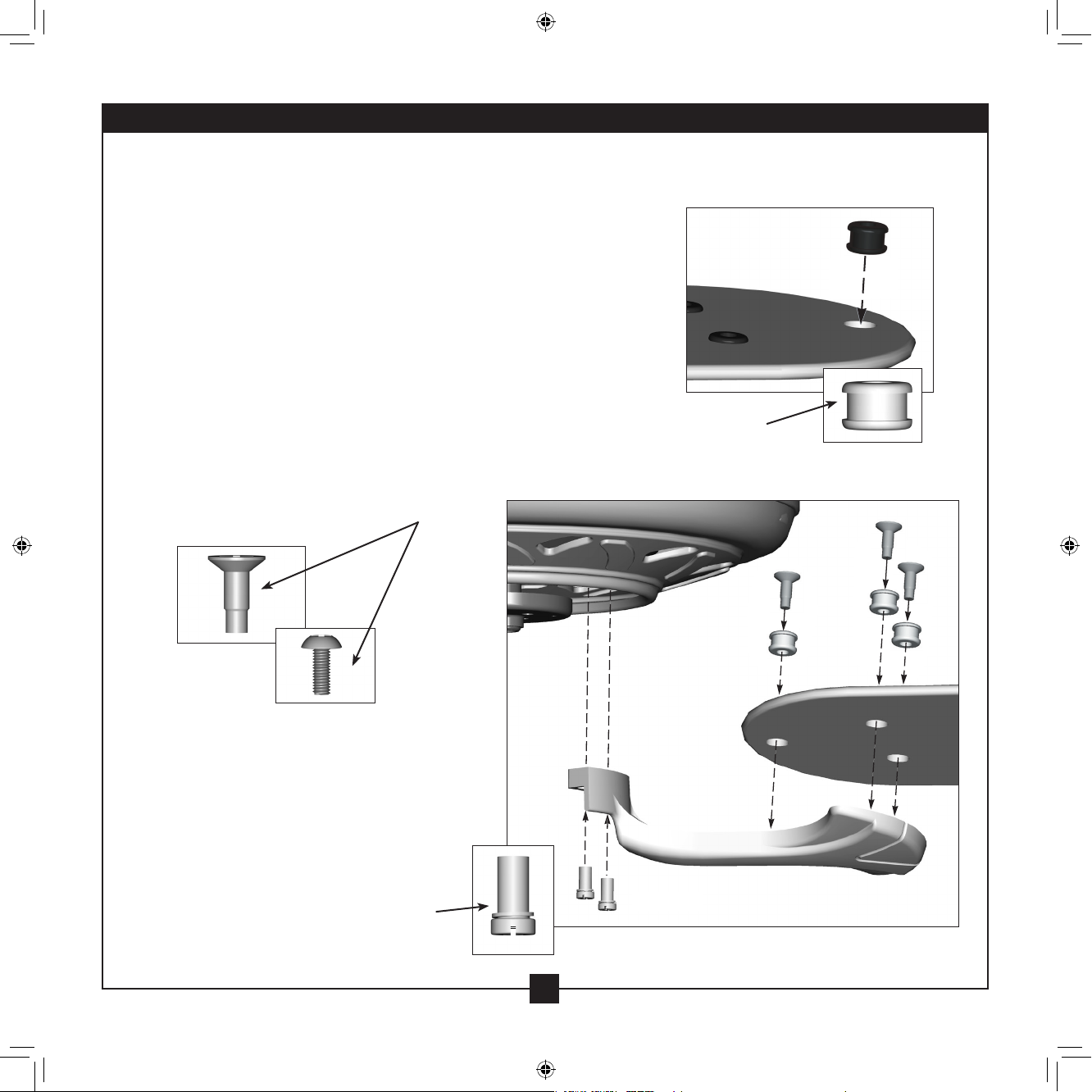

6-4. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Blade Assembly
Use with grommet
Screws
Step 6-1 (Detail)
Grommet
Steps 6-1 – 6-2
Use without grommet
Blade
Mounting
Screw
45003-01 • 07/02/2009 • Hunter Fan Company
Step 6-4
9
Page 10
7 • Completing Your Installation With a Bowl Light Fixture
Your Hunter fan comes with an integrated light xture assembly.
WARNING: Use only the light xture supplied with this fan model.

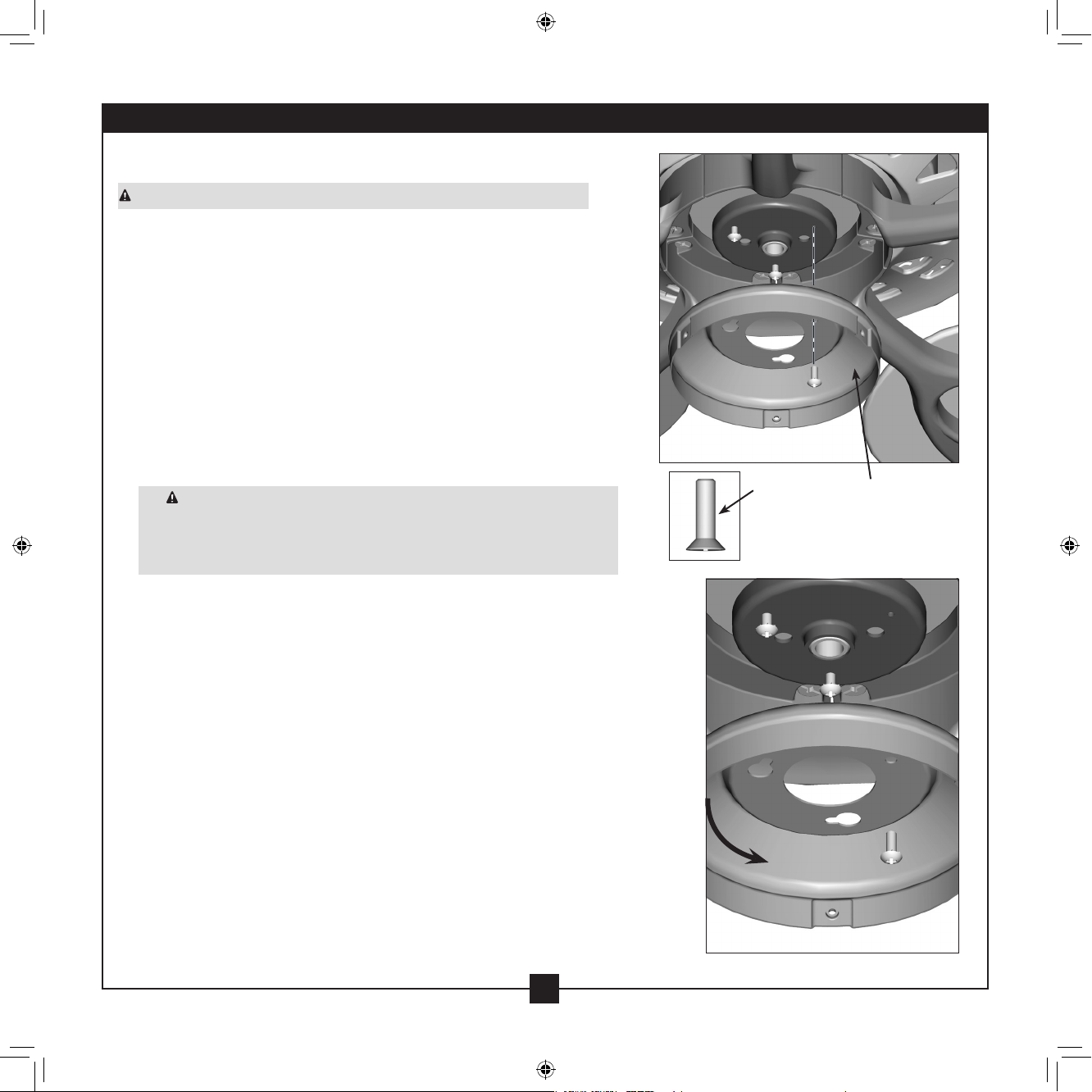

7-1. To attach the upper switch housing, partially install two housing
assembly screws into the switch housing mounting plate.
7-2. Feed the upper plug connector through the center opening of the
housing.
7-3. Align the keyhole slots in the housing with the housing assembly
screws.
7-4. Turn the housing counterclockwise until the housing assembly
screws are rmly situated in the narrow end of the keyhole slots.
Install the remaining screw into the housing. Tighten all three
screws rmly.
CAUTION: Make sure the upper switch housing is securely
attached to the switch housing mounting plate. Failure to properly
attach and tighten all three assembly screws could result in the
switch housing and/or light xture falling.
Steps 7-1 – 7-3
Housing
Assembly
Screw
Upper
Switch
Housing
10
45003-01 • 07/02/2009 • Hunter Fan Company
Page 11
7 • Completing Your Installation With a Bowl Light Fixture (Continued)

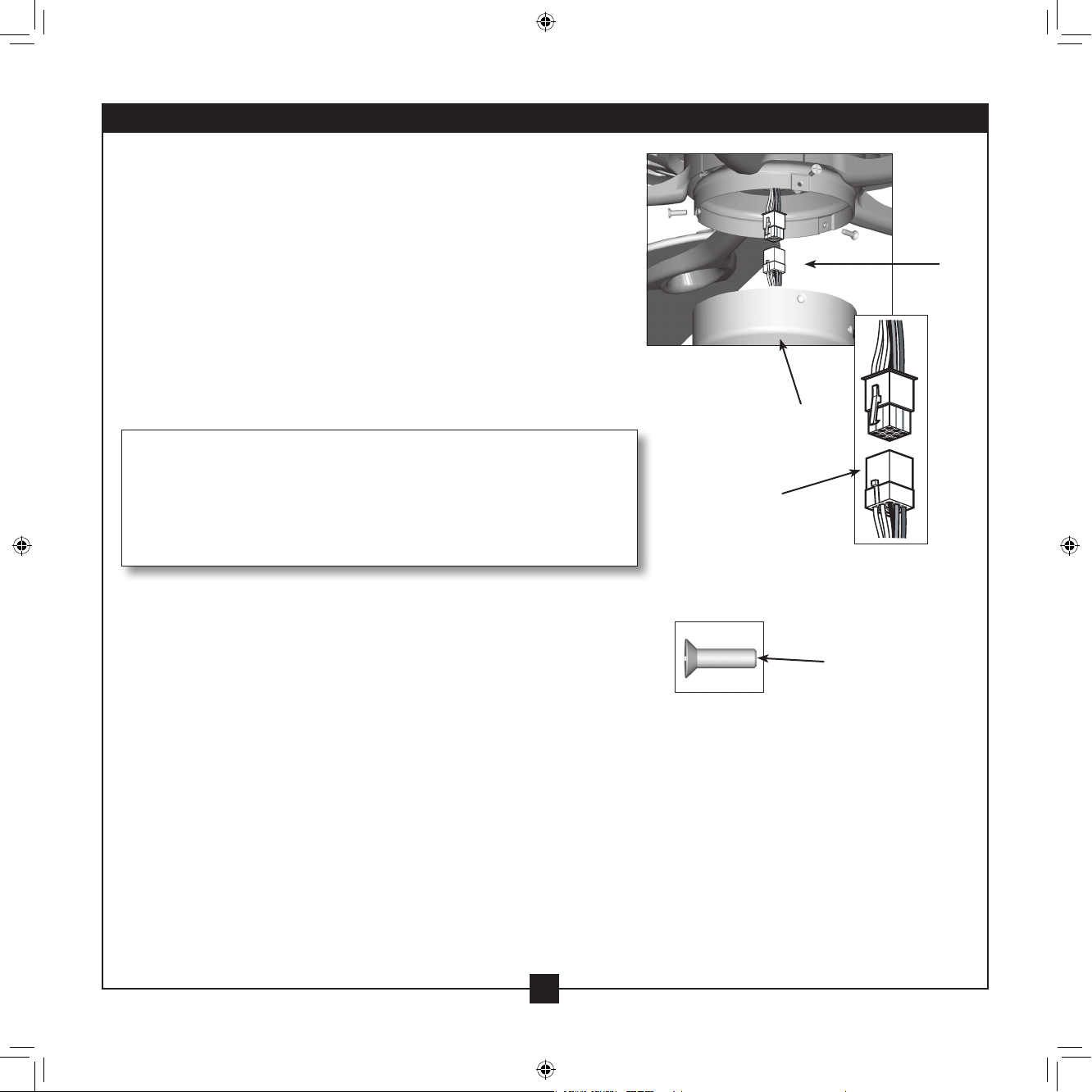

7-5. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
Plug
Connector
7-6. Place the lower switch housing assembly over the upper switch
housing. Align the side screw holes in the upper and lower switch
housings. Attach the lower switch housing to the upper switch
housing with three housing assembly screws.
Note: In compliance with US federal energy regulations, this
ceiling fan contains a device that restricts the light kit to a
maximum of 190 Watts. Exceeding that limit or the marked
limit on this product may result in re hazard or improper
operation.
Steps 7-5 – 7-6
Lower Switch
Housing
Plug
Connector
Detail
Housing
Assembly Screw
11
45003-01 • 07/02/2009 • Hunter Fan Company
Page 12
7 • Completing Your Installation With a Bowl Light Fixture (Continued)

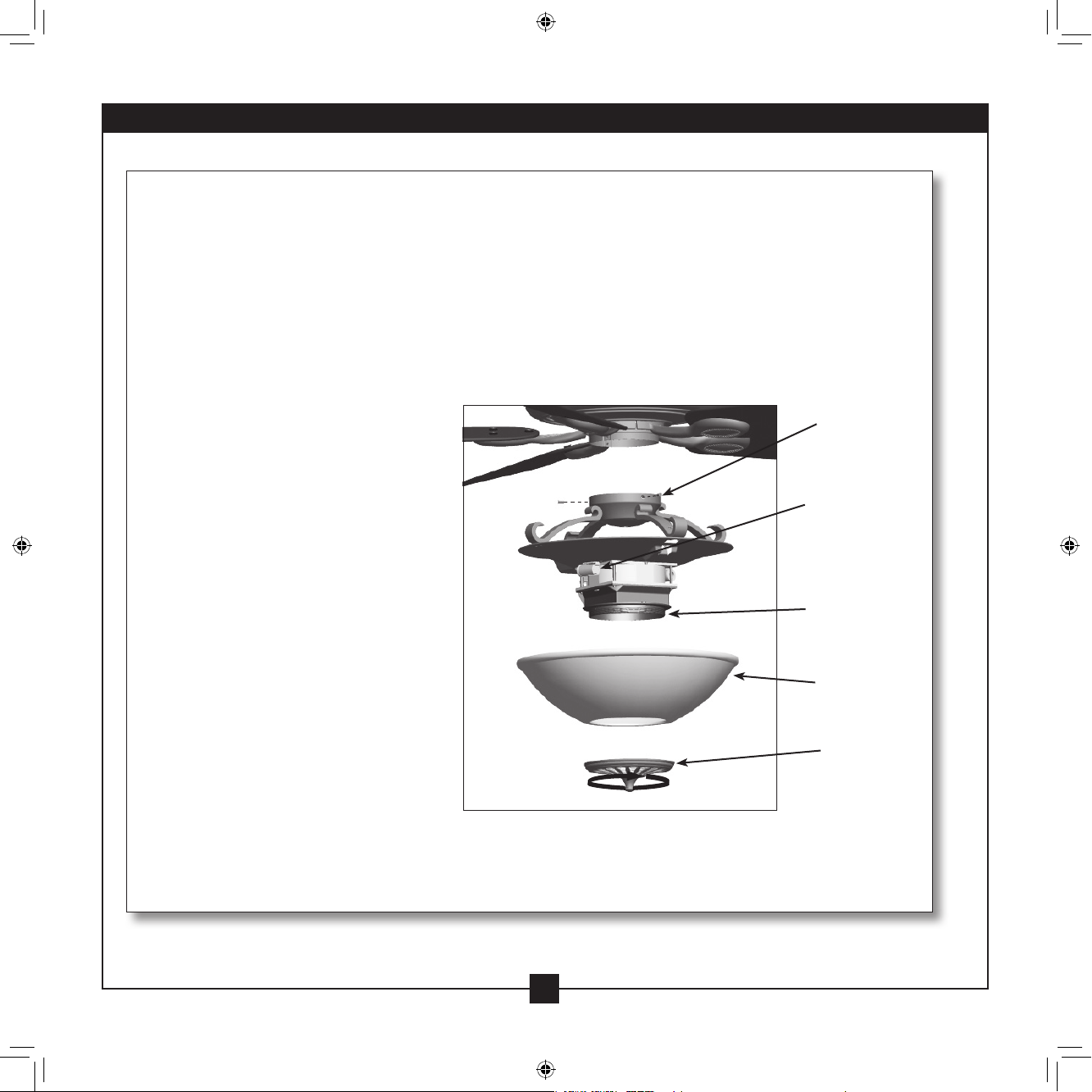

Installing the Glass Bowl
7-7. First install B10 candelabra bulbs (40 Watt Maximum) into the
sockets.
7-8. Place the glass bowl over the heater vent, ensuring the threaded
portion of the heater vent comes out of the bottom of the glass
bowl.
7-9. Place the nial over the threaded portion of the heater vent and
twist it as shown to tighten it against the glass bowl.
Switch
Housing
Screws (3)
Light Bulbs
(B10
Candelabra
Base 40 Watt
Maximum)
12
45003-01 • 07/02/2009 • Hunter Fan Company
readed
Portion of
Heater Vent
Glass Bowl
Finial
Page 13
8 • Assembling the Remote Control and Mounting the Cradle

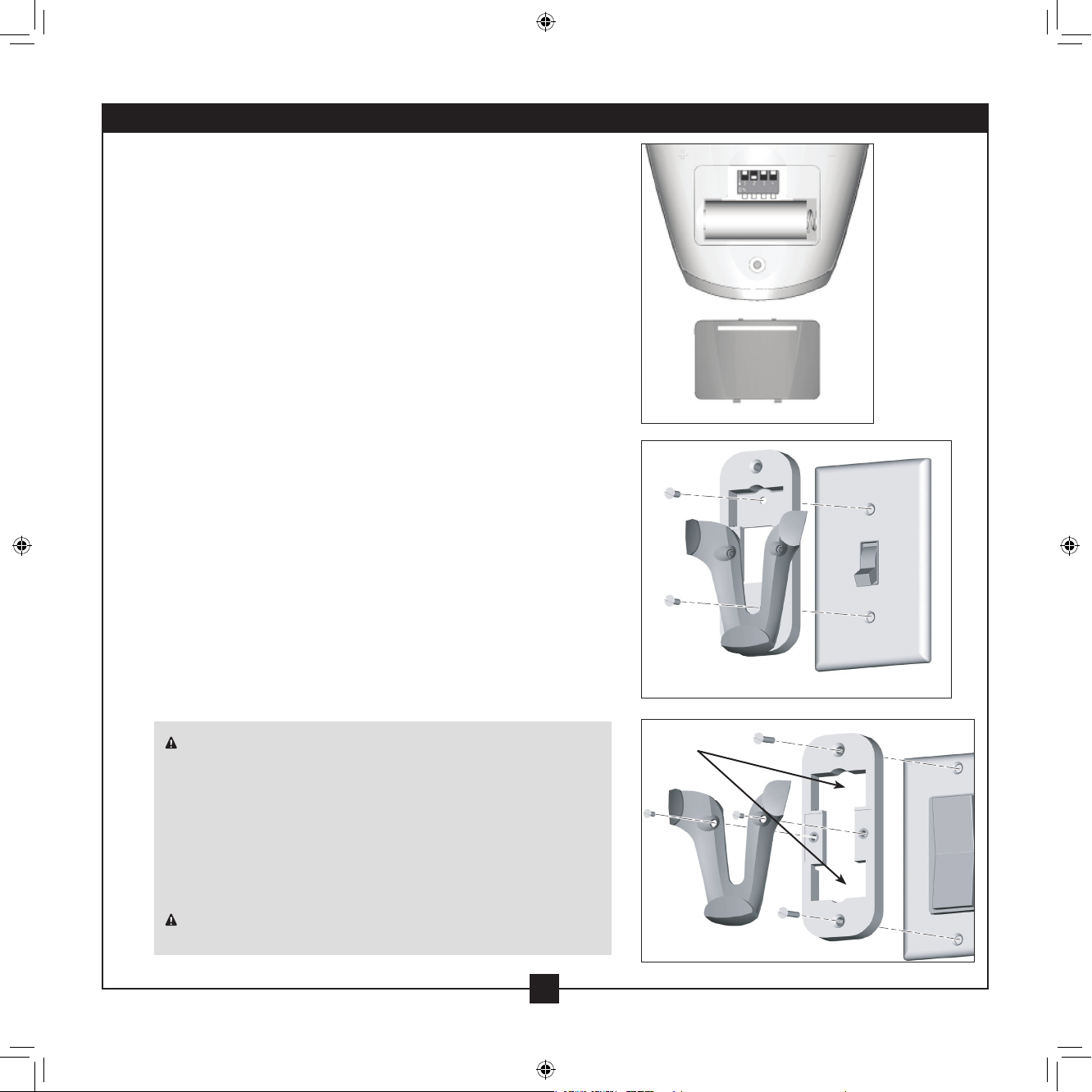

8-1. To install the battery, remove the back cover of the remote.
Insert the included 12-volt alkaline battery (Type 23A, MN-21 or
equivalent) inside the remote, matching polarity on the battery
as indicated by the + and - symbols in the battery compartment.
Replace the cover.
If you are using more than one remote controlled fan in the same
area and want to control them separately, you must change the
DIP switch settings in the remote before you install the battery.
For instructions on setting the DIP switches, read the box on the
next page.
8-2. To install the remote cradle on a switch plate, remove the two
screws holding the switch cover plate. Do not remove the cover
plate.
Note: If you are installing the remote cradle on a rocker light
switch, rst break o the two tabs by pushing outward.
Orient the control cradle by lining up the two mounting holes
with those on the switch. Insert and tighten the screws (do not
over tighten).
8-3. To install the remote cradle on the wall, locate a 2 x 4 wall stud
in a convenient location. Orient the remote cradle over the 2 x 4
stud. Use 1” wood screws in either the inner or outer mounting
holes.
Wall anchors and 6-32 x 1” screws may be used in situations where
mounting to a stud is not possible. Use the inner mounting holes.
Step 8-1
Step 8-2
CAUTION: e remote control device complies with part 15 of the
FCC rules. Changes or modications not expressly approved by Hunter Fan
Company could void your authority to operate this equipment.
Operation is subject to the following two conditions:
1. is device may not cause harmful interference.
2. is device must accept any interference received, including interference
that may cause undesired operation.
Note: Use with a fan that incorporates an air gap switch (normal on-o wall
switch).
WARNING: Maximum fan load is 100 Watts; maximum lamp is 300 Watts.
Do not use any speed control with this product.
13
45003-01 • 07/02/2009 • Hunter Fan Company
Removed
Tabs
Step 8-2 (Rocker Light Switch)
Page 14
8 • Assembling the Remote Control and Mounting the Cradle (Continued)
Setting the DIP switches
You will only have to change the DIP switch settings in the remote if you are using more than
one remote controlled fan in the same area and want to control them separately. You may
want to label your remotes to ensure you do not mix them up.
1. At the circuit breaker or fuse box, turn the power o for the fan you want to change. Do
not turn the power o at the circuit breaker for the previously installed fan, as you may
inadvertently change the DIP switch code settings for it as well.
2. Slide the cover o the back of the remote and remove the battery. e battery must be
removed when changing DIP switch settings. Refer to Step 8-1.
3. Change the DIP switch settings, so that they are dierent from the previously installed
fan.
4. Replace the battery and cover.
5. At the circuit breaker or fuse box, turn the power back on for the fan whose settings you
are changing.
6. Within 20 seconds of restoring power, push the 3 (high), 2 (medium), and 1 (low) buttons
(in that order) on the remote.
Note: e receiver (built into the fan) has a memory function that retains the last DIP
switch code setting. e setting will not change in the event of power failure or if the
power to the fan is inadvertently shut o.
14
45003-01 • 07/02/2009 • Hunter Fan Company
Page 15

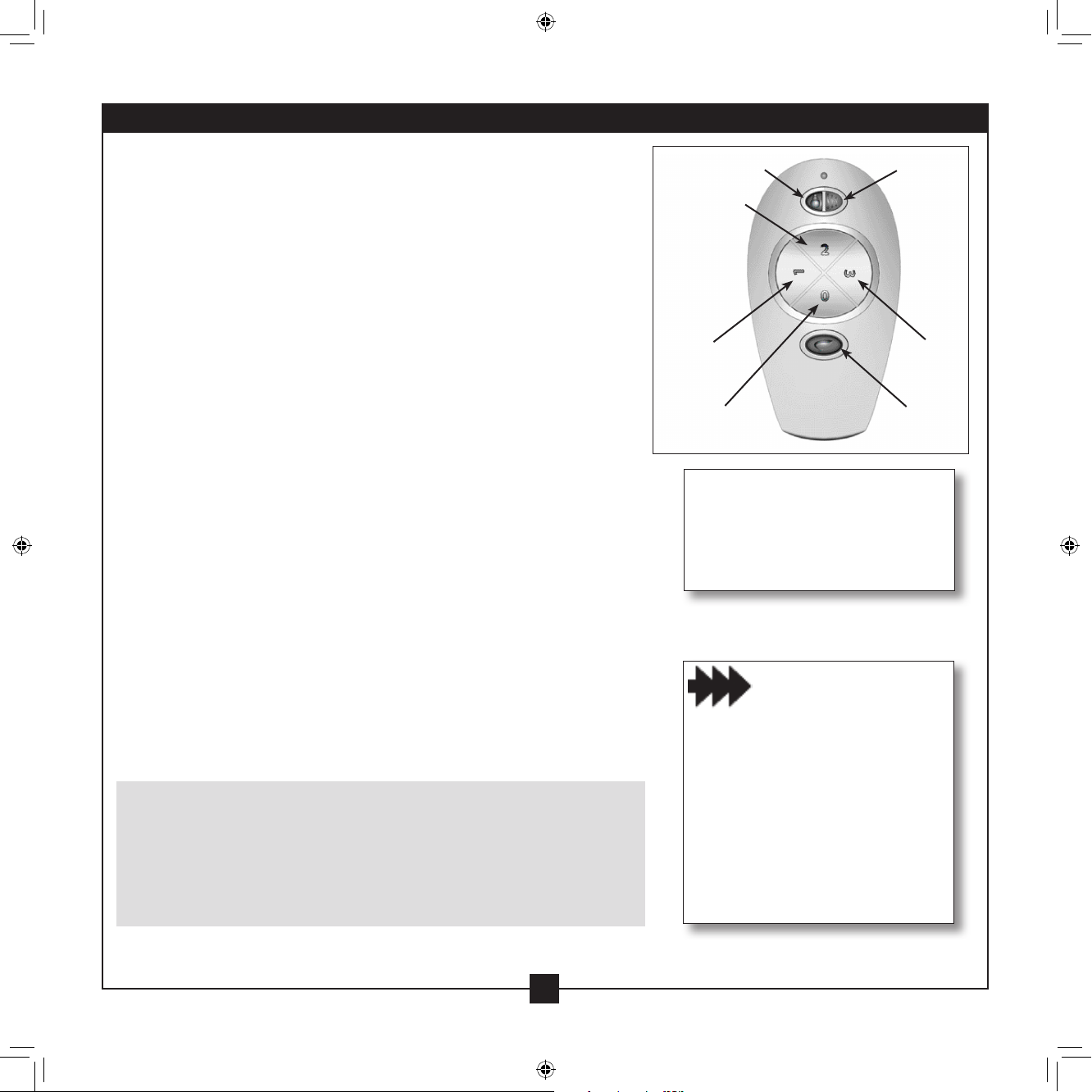

9 • Operating and Cleaning Your Ceiling Fan
Fan Operation: To start the fan, press the speed button on the remote at
the level you desire:
• 3 for high
• 2 for medium
• 1 for low
To turn o the fan, press the “0” button on the remote.
Light Operation: e light button is used to turn on, dim, and turn o
the light.
To Turn the light on:
• Press the light button 1 time and the light will come on to
the previously set level.
To dim the light:
• Press and hold the light button until the light has reached
the desired level. (As you hold the button, the light level
will move throughout its entire range within 16 seconds.)
Release the button at the desired level.
To Turn the light off:
• Press the light button 1 time for gradual o and the light
will dim automatically for approximately 20 seconds until
all the way o to allow for safe exit from the room.
• Press the light button 2 times or 1 time while the light is
dimming for instant o.
Light
Fan
Medium
Fan Low
Fan O
Steps 9-1 – 9-2
Heater
Reversing
Switch
Normal Operation: e heater
must be turned o.
Heater Function: make sure the
ceiling fan is turned o
Fan High
Heater Operation: e heater button is used to turn on, and o the
heater.
• Press the heater button 1 time to turn the heater on.
• Press the heater button again to turn the heater o.
Note: To assure the maximum benet of the heater function.
Regardless of the speed setting on the fan, when the ceiling fan is
operating and the heater function is turned ON, the ceiling fan
automatically switches to low-speed updraft only and will not
accept any commands from the remote until the heater is turned
o.
15
45003-01 • 07/02/2009 • Hunter Fan Company
AUTO RESUME FEATURE
is fan contains a receiver with
an auto resume feature. e
receiver remembers the intensity
of the light, speed and direction of
the fan, and whether the heater is
on or o. When power is restored
to the receiver, the fan, light, and
heater will be at the previous
settings.
Page 16
10 • Troubleshooting
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch rmly left or right to ensure that the
switch is engaged.
5. Pull the pull chain to ensure it is on.
6. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade bracket screws until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade iron screws.
3. Turn power o, support fan very carefully, and check that the
hanger ball is properly seated.
Problem: Lights dim when turned on or do not turn on
1. Check to make sure wattage of light bulbs installed match the
specications on the light socket.
Problem: If the light on this fan shuts o suddenly.
1. Turn the power to the fan o at the wall switch. Wait 30 seconds,
then resume power to the fan.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
2500 Frisco Avenue
Memphis, Tennessee 38114
16
45003-01 • 07/02/2009 • Hunter Fan Company
Loading...
