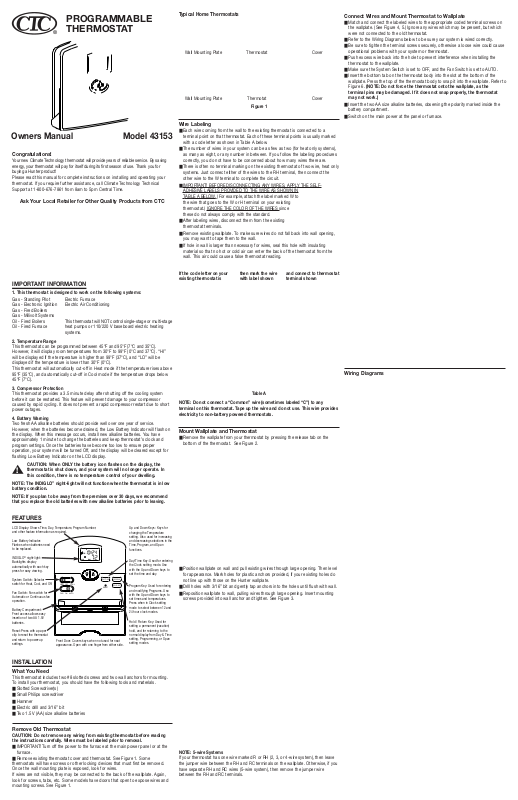

Hunter Fan 43153 User Manual
RESET
PROGRAM
DAY/TIME
HOLD/RET
HEAT
OFF COOL
FAN
ON
AUTO
PM
TH
HEAT TEMP
3
PROGRAMMABLE
Typical Home Thermostats
THERMOSTAT
®
Wire Labeling
■ Each wire coming from the wall to the existing thermostat is connected to a
Owners Manual Model 43153
Congratulations!
Your new Climate Technology thermostat will provide years of reliable service. By saving
energy, your thermostat will pay for itself during its first season of use. Thank you for
buying a Hunter product!
Please read this manual for complete instructions on installing and operating your
thermostat. If you require further assistance, call Climate Technology Technical
Support at 1-800-676-7861 from 8am to 5pm Central Time.
Ask Your Local Retailer for Other Quality Products from CTC
■ The number of wires in your system can be as few as two (for heat only systems),
■ There is often no terminal marking on the existing thermostat of two wire, heat only
■ IMPOR
■ After labeling wires, disconnect them from the existing
■ Remove existing wallplate. To make sure wires do not fall back into wall opening,
■ If hole in wall is larger than necessary for wires, seal this hole with insulating
Connect Wires and Mount Thermostat to Wallplate
■ Match and connect the labeled wires to the appropriate coded terminal screws on
the wallplate. (See Figure 4, 5.) Ignore any wires which may be present, but which
were not connected to the old thermostat.
■ Refer to the Wiring Diagrams below to be sure your system is wired correctly.
■ Be sure to tighten the terminal screws securely, otherwise a loose wire could cause
Wall Mounting Plate Thermostat Cover
Wall Mounting Plate Thermotat Cover
Figure 1
terminal point on that thermostat. Each of these terminal points is usually marked
with a code letter as shown in Table A below.
as many as eight, or any number in between. If you follow the labeling procedures
correctly, you do not have to be concerned about how many wires there are.
systems. Just connect either of the wires to the RH terminal, then connect the
other wire to the W terminal to complete the circuit.
TANT! BEFORE DISCONNECTING ANY WIRES, APPLY THE SELFADHESIVE LABELS PROVIDED TO THE WIRE AS SHOWN IN
TABLE A BELOW. (For example, attach the label marked W to
the wire that goes to the W or H terminal on your existing
thermostat.) IGNORE THE COLOR OF THE WIRES
since
these do not always comply with the standard.
thermostat terminals.
you may want to tape them to the wall.
material so that no hot or cold air can enter the back of the thermostat from the
wall. This air could cause a false thermostat reading.
operational problems with your system or thermostat.
■ Push excess wire back into the hole to prevent interference when installing the
thermostat to the wallplate.
■ Make sure the System Switch is set to OFF, and the Fan Switch is set to AUTO.
■ Insert the bottom tab on the thermostat body into the slot at the bottom of the
wallplate. Press the top of the thermostat body to snap it into the wallplate. Refer to
Figure 6. (NOTE: Do not force the thermostat onto the wallplate, as the
terminal pins may be damaged. If it does not snap properly, the thermostat
may not work.)
■ Insert the two AA size alkaline batteries, observing the polarity marked inside the
battery compartment.
■ Switch on the main power at the panel or furnace.
If the code letter on your
existing thermostat is
IMPORTANT INFORMATION
1. This thermostat is designed to work on the following systems:
Gas - Standing Pilot Electric Furnace
Gas - Electronic Ignition Electric Air Conditioning
Gas - Fired Boilers
Gas - Milivolt Systems
Oil - Fired Boilers This thermostat will NOT control single-stage or multi-stage
Oil - Fired Furnace heat pumps or 110/220 V baseboard electric heating
2. Temperature Range
This thermostat can be programmed between 45°F and 95°F (7°C and 35°C).
However, it will display room temperatures from 30°F to 99°F (0°C and 37°C). “HI”
will be displayed if the temperature is higher than 99°F (37°C), and “LO” will be
displayed if the temperature is lower than 30°F (0°C).
This thermostat will automatically cut-off in Heat mode if the temperature rises above
95°F (35°C), and automatically cut-off in Cool mode if the temperature drops below
45°F (7°C).
3. Compressor Protection
This thermostat provides a 3.5 minute delay after shutting off the cooling system
before it can be restarted. This feature will prevent damage to your compressor
caused by rapid cycling. It does not prevent a rapid compressor restart due to short
power outages.
4. Battery Warning
Two fresh AA alkaline batteries should provide well over one year of service.
However, when the batteries become drained, the Low Battery Indicator will flash on
the display. When this message occurs, install new alkaline batteries. You have
approximately 1 minute to change the batteries and keep thermostat’s clock and
program settings. Once the batteries have become too low to ensure proper
operation, your system will be turned Off, and the display will be cleared except for
flashing Low Battery Indicator on the LCD display.
CAUTION: When ONLY the battery icon flashes on the display, the
thermostat is shut down, and your system will no longer operate. In
!
this condition, there is no temperature control of your dwelling.
NOTE: The INDIGLO
battery condition.
NOTE: If you plan to be away from the premises over 30 days, we recommend
that you replace the old batteries with new alkaline batteries prior to leaving.
systems.
®
night-light will not function when the thermostat is in low
NOTE: Do not connect a “Common” wire (sometimes labeled “C”) to any
terminal on this thermostat. Tape up the wire and do not use. This wire provides
electricity to non-battery powered thermostats.
Mount Wallplate and Thermostat
■ Remove the wallplate from your thermostat by pressing the release tab on the
bottom of the thermostat. See Figure 2.
then mark the wire
with label shown
Table A
and connect to thermostat
terminal shown
Wiring Diagrams
FEATURES
LCD Display: Shows Time, Day, Temperature, Program Number,
and other feature information as required.
Low Battery Indicator:
Flashes when batteries need
to be replaced.
®
INDIGLO
night-light:
Backlights display
automatically with each key
press for easy viewing.
System Switch: Selector
switch for Heat, Cool, and Off.
Fan Switch: Fan switch for
Automatic or Continuous fan
operation.
Battery Compartment:
Front access allows easy
insertion of two AA 1.5V
batteries.
Reset: Press with a paper
clip to reset the thermostat
and return to power-up
settings.
Front Door: Covers keys when not used for neat
appearance. Open with one finger from either side.
Up and Down Keys: Keys for
changing the Temperature
setting. Also used for increasing
and decreasing selections in the
Time, Program, and Span
functions.
Day/Time Key: Used for entering
the Clock setting mode. Use
with the Up and Down keys to
set the time and day.
Program Key: Used for entering
and modifying Programs. Use
with the Up and Down keys to
set times and temperatures.
Press when in Clock setting
mode to select between 12 and
24 hour clock modes.
Hold / Return Key: Used for
setting a permanent (vacation)
hold, and for returning to the
normal display from Day & Time
setting, Programming, or Span
setting modes.
INSTALLATION
What You Need
This thermostat includes two #8 slotted screws and two wall anchors for mounting.
To install your thermostat, you should have the following tools and materials.
■ Slotted Screwdriver(s)
■ Small Philips screwdriver
■ Hammer
■ Electric drill and 3/16” bit
■ Two 1.5 V (AA) size alkaline batteries
Remove Old Thermostat
CAUTION: Do not remove any wiring from existing thermostat before reading
the instructions carefully. Wires must be labeled prior to removal.
■ IMPORTANT! Turn off the power to the furnace at the main power panel or at the
■ Remove existing thermostat cover and thermostat. See Figure 1. Some
thermostats will have screws or other locking devices that must first be removed.
Once the wall mounting plate is exposed, look for wires.
If wires are not visible, they may be connected to the back of the wallplate. Again,
look for screws, tabs, etc. Some models have doors that open to expose wires and
mounting screws. See Figure 1.
furnace.
■ Position wallplate on wall and pull existing wires through large opening. Then level
for appearance. Mark holes for plastic anchors provided, if your existing holes do
not line up with those on the Hunter wallplate.
■ Drill holes with 3/16” bit and gently tap anchors into the holes until flush with wall.
■ Reposition wallplate to wall, pulling wires through large opening. Insert mounting
screws provided into wall anchor and tighten. See Figure 3.
NOTE: 5-wire Systems
If your thermostat has one wire marked R or RH (2, 3, or 4-wire system), then leave
the jumper wire between the RH and RC terminals on the wallplate. Otherwise, if you
have separate RH and RC wires (5-wire system), then remove the jumper wire
between the RH and RC terminals.
Selector Switches
In order for this thermostat to control your system, the system type must be specified
by the selector switches on the printed circuit board inside the thermostat. There is
also a selector switch for your choice of Fahrenheit or Celsius temperature display.
■ Heating System Selector (HG - HE switch)
The factory position for this switch is in the “HG” position. Leave it in this position if
you have a gas furnace or an oil burner. If you have an electric furnace, test to see
whether the Heat and Fan come on as expected after installation. If the Fan
operation is normal, leave it in the “HG” position. If the Fan does not come on
within a minute of the thermostat calling for heat, change the switch position to
“HE”. The system selector has no effect in the cooling mode.
NOTE: “HG” position is for gas and most other systems. “HE” position is for
certain electric systems having a fan relay.
■ F° / C° selector (Fahrenheit / Celsius)
Your thermostat is set for F° mode from the factory. In order to change to C° mode, slide
the switch to C° and press the reset button on front of the thermostat with a paper clip.
NOTE: Unless the reset button is pressed, the thermostat will not change
temperature mode.
Cooling
Monday – Time Time Time Time
Friday
Saturday – Time Time Time Time
Sunday
Revising Programs
■ Familiarize yourself with manually changing programs, so that you can easily
modify the programs as your comfort needs change. Follow the steps below to
change the program times and temperatures.
NOTE: 1) The program time can be set in 10-minute increments.
STEP 1:
STEP 2:
Day Program 1 Program 2 Program 3 Program 4
Temp Temp Temp Temp
Temp Temp Temp Temp
2) The program temperature can be set in increments of 1°F (1°C).
3) After 15 seconds without a key press, the thermostat will return to normal
display mode.
4) When setting the program time, note the AM / PM indicator.
■ Slide the System Switch to the HEAT or
COOL position to program the
corresponding system.
NOTE: If the System Switch is in the OFF
position, the last position used will be
programmed.
■ Press to enter program mode. HEAT or
COOL will be displayed on the LCD.
SPAN Setting Mode
Your thermostat is set at the factory to cycle at 1°F (0.5°C) above and below the set
temperature. (Span = 2) This setting has been designed to provide a comfortable
room temperature under most all conditions. However, if you find your system cycling
too fast or too slow, then the Span can be adjusted to modify the cycle time.
■ Press and hold BOTH for three seconds.
The display will flash, and SPAN will be
displayed on the LCD.
■ Press to raise the Span to 3. This setting
INCREASES the cycle time by allowing
your system to run LONGER.
■ Press to lower the Span to 1. This setting
DECREASES the cycle time by causing
your system to run SHORTER.
The Span settings remain the same for both HEAT and COOL.
The Span can be changed at any time, and is independent of program times or
temperatures.
When batteries are installed in the thermostat, or the Reset key is pressed, the Span
is reset back to setting 2.
Backlighting (INDIGLO®Night-Light)
Your thermostat has an electroluminescent lamp that backlights the display for easy
viewing in the dark.
When any key is pressed or the System Switch is changed, the display is illuminated.
The display will remain illuminated for 5 seconds after the last key is pressed. This
allows the light to stay on if you need to operate several keys.
Note: If the thermostat is in Low Battery warning condition, the backlight will not
operate. Replace with 2 new AA alkaline batteries to restore the Backlight function.
STEP 3:
STEP 4:
OPERATION
Setting Day and Time
STEP 1:
STEP 2:
STEP 3:
STEP 4:
NOTE: You may press the at any time during Day and Time setting to
return to the normal display.
12 Hr. / 24 Hr. Time Format
Your thermostat is set from the factory in normal 12 (AM / PM) time format. To change
to 24 hour (military) time, press at any time while the Hour, Minute,
or Day is flashing to toggle between the 12 hour and 24 hour formats. The AM / PM
indicator will not be displayed in 24 hour mode. Both the current time and all
programs will automatically change to the selected format.
■ The LCD will show this information when
batteries are first installed, or after the
Reset button is pressed. The temperature
will update after a few seconds.
■ During time and day setting mode, the
temperature and program displays will go
blank.
■ Example: Set the Thermostat to the
current time of 2:16 pm on Saturday.
Refer to the Steps below.
■ Press to enter time and day setting
mode. The current hour and the AM / PM
indicator will be flashing.
■ Press to change the Hour up or down to
the current hour.
Note the AM / PM indicator, as the
display will change at 12 AM and 12 PM.
■ Press again to change from hour setting
to minute setting. The current minute will
be flashing.
■ Press to change the Minute up or down
to the current minute.
■ Press again to change from minute
setting to day setting.
The current day will be flashing.
■ Press to change the Day up or down to
the current day.
■ Press again to change back to the
normal display.
STEP 5:
STEP 6:
Reviewing Programs
To review your program settings, press repeatedly to cycle through the
M
PM
M
PM
programs. You can also make changes at any time.
System Selector Switch
The System Selector switch on the front of the thermostat determines
the operating mode of the thermostat. You may select COOL, OFF, HEAT.
NOTE: Anytime you install or remove the thermostat from
the wallplate, slide the System Selector to the OFF position
to prevent the possibility of a rapid system On-Off.
Fan Switch
The Fan switch should normally be located in the AUTO position. The Fan will be turned
on along with normal operation of your system. In a normal gas or oil furnace, the Fan will
be turned on by your furnace after its warm-up delay. For electric heat, air conditioning,
SA
PM
2
TEMP
and heat pump operation, the Fan will turn on with the system.
To run the Fan on continuously, slide the Fan switch to the
ON position.
Temporary Manual Override
To temporarily change the current set temperature without affecting your program:
PROGRAMMING
The following time and temperature settings are pre-programmed into the thermostat:
Temperature in F° (C°)
Program Number Time Heat Cool
1 6:00 am 68°F (20°C) 78°F (26°C)
2 8:00 am 60°F (16°C) 85°F (29°C)
3 4:00 pm 68°F (20°C) 78°F (26°C)
4 10:00 pm 60°F (16°C) 82°F (28°C)
■ All 7 days of the week have the same default programs.
Personal Program Schedule
■ You can revise the factory programs to match your own schedule. Use this
Personal Program Schedule to determine which times and temperature settings
match your comfort and energy saving requirements. Use a pencil so you can
revise your records each time you change your program settings.
Heating
Day Program 1 Program 2 Program 3 Program 4
Monday – Time Time Time Time
Friday
Saturday – Time Time Time Time
Sunday
Temp Temp Temp Temp
Temp Temp Temp Temp
To end the Temporary Manual Override:
Permanent Override
To hold your Manual Override for vacation or just an extended period of time:
To end the Permanent Manual Override:
■ The Program hour and AM or PM
indicator are flashing. Press to change
the hour.
■ Press again to change to the minute
position. The current minute will be flashing.
■ Press to change the minute.
■ Press again to change to the program
temperature. The current temperature
will be flashing.
■ Press to change the temperature.
■ Press again to move to the next program
number.
■ Repeat Steps 3 through 5 to change the
remaining Weekday and Weekend
programs. (There are a total of 8 programs.)
■ After cycling through all 8 programs, press
again to return the display to normal.
■ Press at any time to exit the Program Mode.
■ Press and hold for about 1 second
to enter Manual Override mode. When
display flashes, you can release the key.
■ Press again to change to your desired
Set Temperature. Hold the key for 2
seconds to fast-advance the Set
Temperature.
■
Press to return to normal mode, or wait
15 seconds for it to return automatically.
■
The current program number will flash to
signify the Temporary Override.
■
At the next program change time, the
Temporary Override is cancelled, and the
next program temperature becomes the
setpoint temperature.
■ Press, then press again. This will return
the set temperature to the current
program set temperature.
■ Press to make the current program
temperature the HOLD temperature.
HOLD will be displayed on the LCD, and
the Program number will disappear.
■ Follow the Temporary Manual Override
instructions above to change the
Permanent Manual Override temperature.
■ You can confirm the held set temperature
by pressing for less than 1 second.
■ Press again. The thermostat will return to
the current program, and the HOLD
display will be canceled.
Low Battery Warning
Your thermostat has a two-stage low battery warning
system. When the batteries are first detected to be weak,
the first stage low battery warning is indicated by battery
symbol flashing on the LCD display. At your earliest
convenience, you need to replace the batteries with 2 new
AA alkaline batteries.
When the batteries become too weak for normal
operation, the thermostat enters the second stage low
battery warning which shuts down the thermostat. In this
condition, “BATT” flashes alone on the display, and the
thermostat will turn your system Off. Your system will
remain shut-off until the batteries are replaced.
Note: The thermostat will still keep the current time and your programs in
memory until new batteries are installed. After confirming that new batteries have
been inserted, the thermostat will return to normal operation.
Error Mode
If the thermostat is unable to control your system due to
an unexpected battery problem, the thermostat will enter
Error Mode. In this condition, the thermostat flashes
“Err” on the LCD display, and shuts off your system.
To correct this problem, replace the batteries with 2 new
AA alkaline batteries, even if you have recently replaced
them. Next, use a paper clip to press the RESET button next to the keypad. You will
need to reprogram your thermostat and confirm normal operation.
If Error Mode returns, please call CTC Technical support at 1-800-676-7861 for
further information.
Auto Cut Off
Your thermostat will automatically cut-off in Heat mode if the room temperature rises above
95°F (35°C). It will cut-off in Cool mode if the room temperature drops below 45°F (7°C).
Note that if your system has malfunctioned and no longer responds to thermostat
controls, the Auto Cut-Off will have no effect.
Mechanical Heat Back-up
This thermostat includes a bi-metal switch that will automatically turn on the Heat
when the temperature reaches about 41° F (5° C).
WARNING: This switch only activates the Heating terminal (W). The system
itself must be capable of automatically turning the Fan On. Without normal
Fan operation, severe damage to the heating system could result.
TROUBLESHOOTING
Problem Solution
No Display
Entire Display Dims
Program Does Not Change at your
Desired Setting
Auto Fan Does Not Turn On Properly
Heating or Cooling Does Not Go
On or Off
Erratic Display
If unit continues to operate in the Off
position
Thermostat permanently reads “HI”,
“LO”, or “ERR”
If you experience any other problems, call 1-800-676-7861 from 8 AM to 5 PM
Central Time for technical assistance.
Loading...
