Page 1
For Your Records and
Warranty Assistance
For reference, also attach your receipt or a copy
of your receipt to the manual.
Type 3 ModelsType 3 ModelsType 3 Models
__________________________________________
Model Name
__________________________________________
Model No.
__________________________________________
Date Purchased
__________________________________________
Where Purchased
Owner’s Guide and Installation Manual
English
Francias
Form# 42753-01
20091230
©2009 Hunter Fan Co.
Page 2
Table of Contents
1 • Getting Ready ...................................................4
2 • Installing the Ceiling Plate ..........................5
3 • Assembling and Hanging the Fan ..........6
4 • Securing Fan to Secondary
Support System .............................................. 7
5 • Setting the Remote Transmitter and
Receiver ................................................................. 8

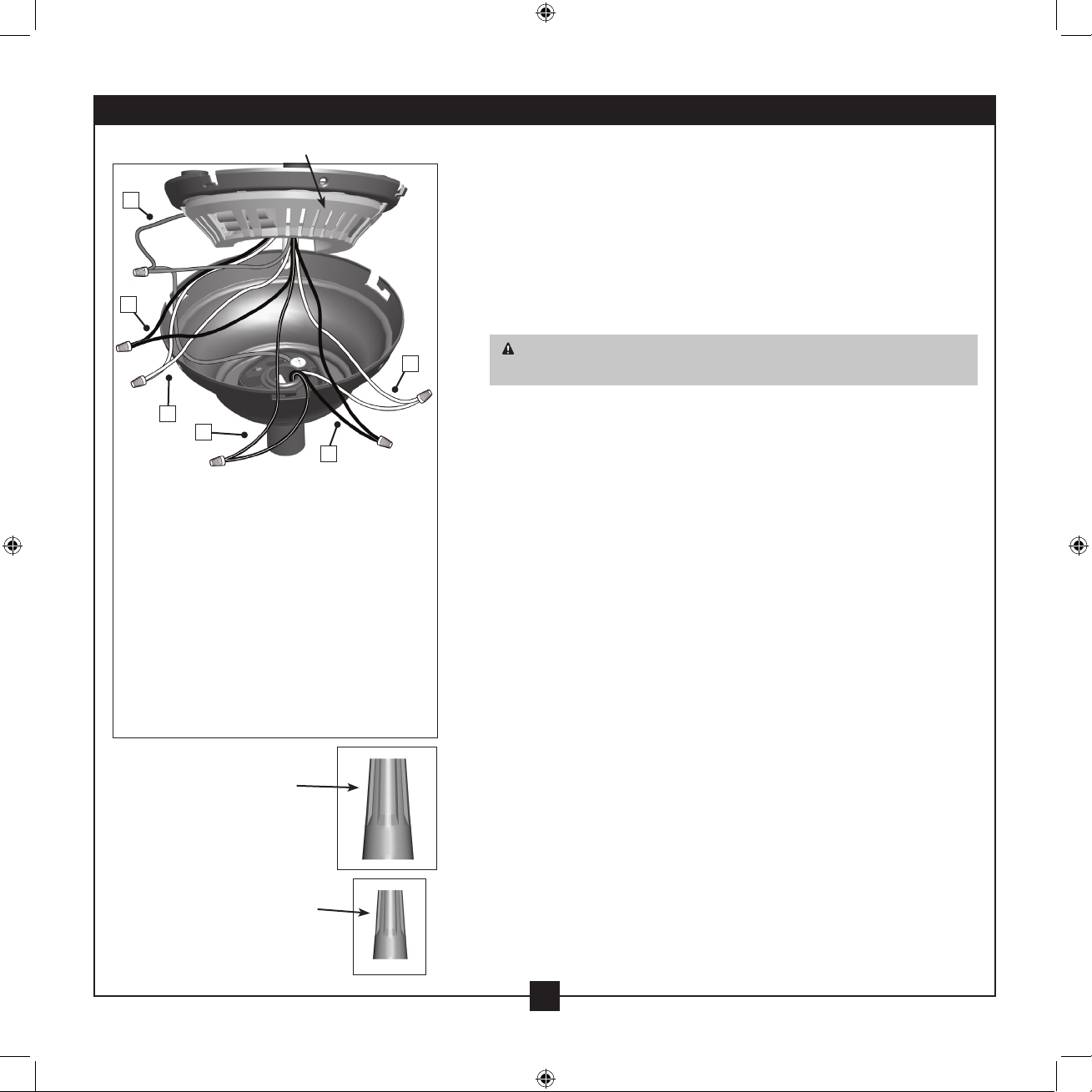

6 • Wiring the Fan ..................................................9
7 • Installing the Canopy and Canopy
Trim Ring ........................................................... 10
8 • Assembling the Blades .............................. 11
9 • Completing Your Installation With or
Without a Light Fixture ................................... 12

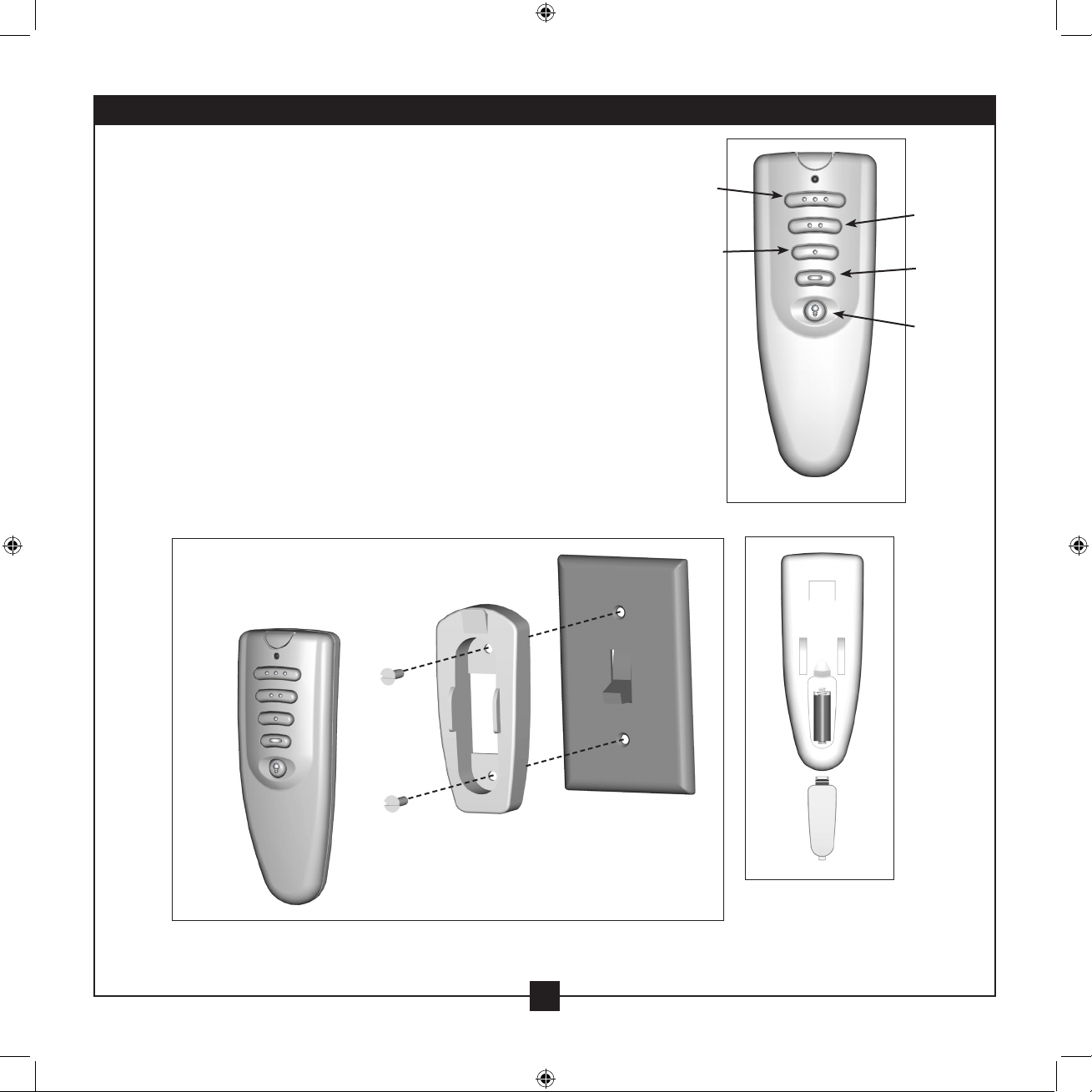

10 • Operating the Remote Control
and Mounting the Holder .................... 16

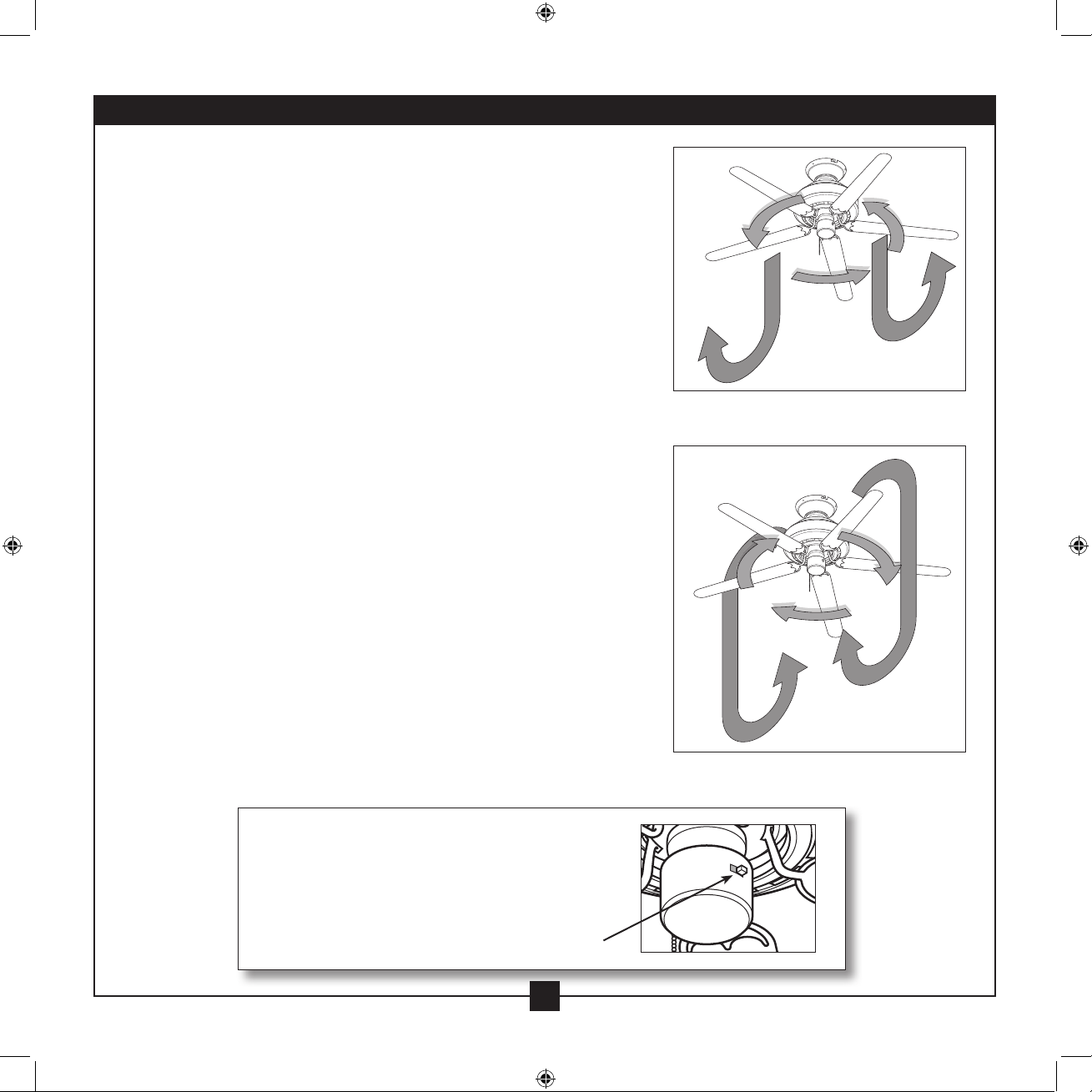

11 • Operating and Cleaning
Your Ceiling Fan ......................................... 17
12 • Troubleshooting ......................................... 18
Welcome
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
• READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
© 2009 Hunter Fan Company
2
42753-01 • 09/12/30 • Hunter Fan Company
Page 3
Installer’s Choice and Optional Accessories
Support Brace
Standard
Mounting
Style
Standard Mounting hangs from the
ceiling by a downrod (included).
Support Brace
Ceiling
Outlet Box
Angle
Mounting
Style
Ceiling
Outlet Box
12
Understanding Mounting and Installer’s Choice®
Hunter’s patented 3-position mounting system provides you maximum
installation exibility and ease. You can install your Hunter fan in one
of three ways, depending on ceiling height and your preference: Low
Prole, Standard, or Angle mounting. e steps in this manual include
instructions for all three Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
For ceilings higher than 8 feet, you can purchase
Hunter extension downrods. All Hunter fans use
sturdy 3/4” diameter pipe to assure stability and
wobble-free performance.
8
Low Prole
Mounting
Style
Support Brace
Ceiling
Outlet Box
CAUTION: To
reduce the risk of
personal injury, attach
the fan directly to the
support structure of
the building according
to these instructions,
and use only the
hardware supplied.
Angle Mounting recommended for a
vaulted or angled ceiling
42753-01 • 09/12/30 • Hunter Fan Company
Low Profile Mounting ts close to the
ceiling, recommended for ceilings less
than 8 feet high
3
Page 4
1 • Getting Ready
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 866-268-1936.
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum eciency, and energy savings.
4
42753-01 • 09/12/30 • Hunter Fan Company
Page 5
2 • Installing the Ceiling Plate
CAUTION: To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the outlet box
and associated wall switch location. If you cannot lock the circuit breakers
in the o position, securely fasten a prominent warning device, such as a
tag, to the service panel.
Isolator
Ceiling
Plate
2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
2-2. Your fan comes with four neoprene noise isolators (“Isolators”).
Position the isolators between the ceiling plate and ceiling by
inserting the raised areas on each isolator into the holes in the
ceiling plate.
2-3. read the lead wires from the outlet box down through the hole
in the middle of the ceiling plate.
2-4. Align the slotted holes in the ceiling plate with the pilot holes you
drilled in the wood support structure. For proper alignment use
slotted holes directly across from each other.
Note: e isolators should be ush against the ceiling.
2-5. Place a at washer on each of the two 3” wood screws and pass
the screws through the slotted holes in the ceiling plate into the
pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Step 2-2
Steps 2-3 – 2-5
Flat Washer
42753-01 • 09/12/30 • Hunter Fan Company
3” Wood Screw
For Angled Ceilings: Be sure to
orient the ceiling plate so that the
arrows printed on the ceiling plate are
pointing towards the ceiling peak.
5
Page 6
3 • Assembling and Hanging the Fan
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
3-1. Unbundle the wires from the fan.
For Standard or Angle mounting:
3-2. To assemble fan to hang down from a at or angled ceiling, insert
the downrod through the canopy and canopy trim ring. Feed the
wires from the fan through the downrod.
3-3. Loosen the square head set screw on the adapter to install the
pipe and ball assembly. Note: When the pipe and ball assembly
is fully installed, 2-3 threads on the pipe will still be visible; this is
normal. Securely retighten the set screw with a wrench or pliers.
Skip to Step 3-7.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
For Low Profile mounting:
Note: For low prole mounting, the downrod is replaced with the low
prole washer.
3-4. Remove the set screw from the adapter.
Steps 3-2 – 3-3
Downrod
Canopy
Canopy
Trim Ring
Set Screw
Steps 3-5 – 3-6
Low Prole Washer
3-5. Place the low prole washer (lip up) into the canopy. Be sure the
green ground wire is pointing up toward the ceiling.
3-6. Align the holes in the washer with the holes in the adapter.
Assemble securely with three low prole screws.
3-7. Raise the fan and place the hook on the ceiling plate through the
U-shaped hole in the rim.
Step 3-7
U-shaped
Hole
6
42753-01 • 09/12/30 • Hunter Fan Company
Low Prole Screw
Page 7

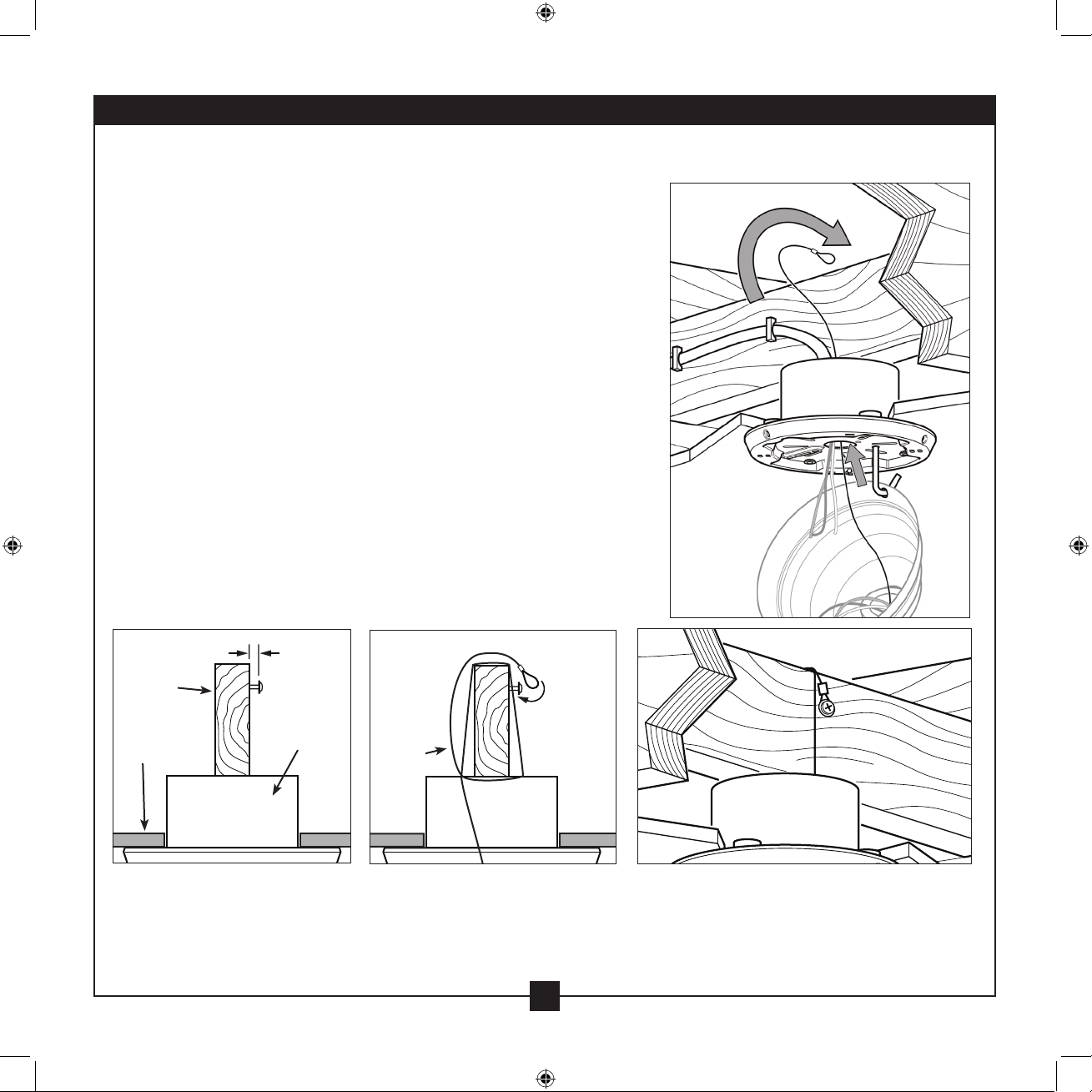

4 • Securing Fan to Secondary Support System
3mm (1/8")
4-1. Find the looped end of the braided cable and insert it through the
ceiling plate and one of the holes in the outlet box into the ceiling.
4-2. Access the support brace in the ceiling. You may not be able to do
this from below the ceiling depending on your installation site.
4-3. Drive a #10 x 38mm (1-1/2”) wood screw and washer into the side
of the brace that holds the outlet box. Leave 3mm (1/8”) of space
between the support brace and the washer.
4-4. Wrap the braided cable around the support brace once creating a
complete circle.
4-5. Hook the looped end of the cable over the wood screw so that the
braided cable lies between the washer and the support brace.
4-6. Tighten the loop and secure the screw and washer all the way
down to the support brace.
4-7. Coil up the excess cable.
4-8. Return to the fan so you can complete the fan wiring.
Steps 4-2 – 4-3
Support
Brace
Ceiling
Outlet Box
Step 4-1
Steps 4-4 – 4-5
Braided
Cable
7
42753-01 • 09/12/30 • Hunter Fan Company
Steps 4-6 – 4-7
Page 8

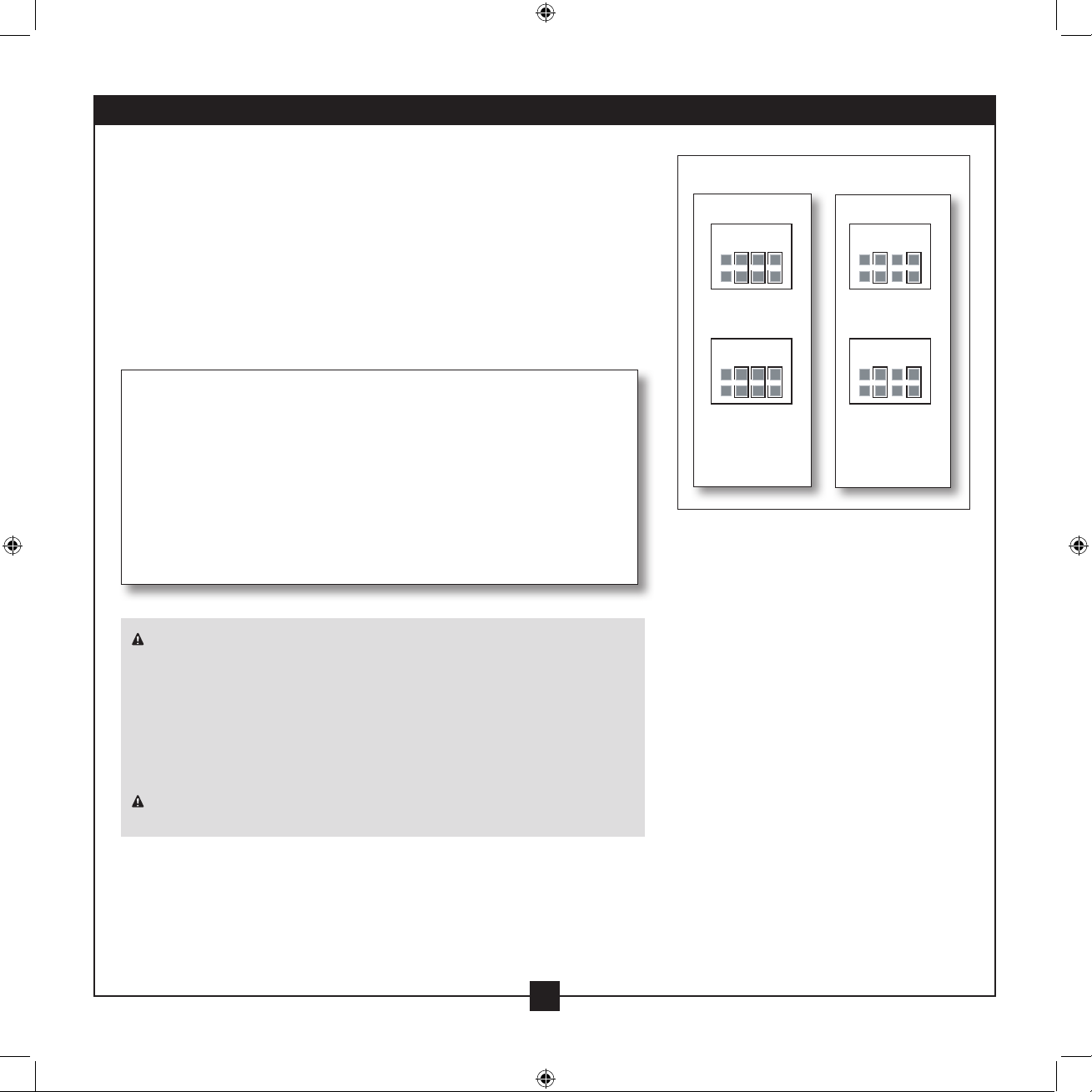

5 • Setting the Remote Transmitter and Receiver
4 3 2 1
4 3 2 1
4 3 2 1
4 3 2 1
4 = off (apagado)
3 = on (encendido)
2 = on (encendido)
1 = on (encendido)
4 = off (apagado)
3 = on (encendido)
2 = off (apagado)
1 = on (encendido)
4 3 2 1
4 3 2 1
You must now set the jumpers in the remote transmitter and receiver
so that they match.
5-1. Change the position of the jumpers in the transmitter and the
receiver. Be sure the position of the jumper in the transmitter
matches the position of the jumper in the receiver. If they don’t
match, the controller will not function. For instructions on how to
set the jumpers, read the box below.
5-2. Install the included 12-volt battery into the transmitter.
Setting Jumpers
When two or more fans are located near each other, you may desire to
have the receiver/transmitter for each fan set to a dierent code, so that
the operation of one fan does not aect the operation of the other fans.
In the transmitter you can access the jumpers from the battery
compartment. e jumpers are very small. You can move them most
easily using a small pair of pliers or tweezers. IMPORTANT! Before
you change a jumper, make sure the battery is not connected to the
transmitter.
CAUTION: e remote control device complies with part 15 of the FCC rules.
Changes or modications not expressly approved by Hunter Fan Company could void
your authority to operate this equipment.
Operation is subject to the following two conditions:
1. is device may not cause harmful interference.
2. is device must accept any interference received, including interference that may
cause undesired operation.
Note: Use with a fan that incorporates an air gap switch (normal on-o wall switch).
WARNING: Maximum fan load is 1 Amp; maximum lamp is 100 Watts. Do not use
any speed control with this product.
Example Jumpers Settings
Receiver 1 Receiver 2
Transmitter 2Transmitter 1
8
42753-01 • 09/12/30 • Hunter Fan Company
Page 9
6 • Wiring the Fan
Receiver
A
B
F
C
D
Step 6-3
A • Ground/Green
Step 6-4
B • Ceiling Black
• Receiver Black: “LIVE IN”
C • Ceiling White
• Receiver White: “NEUTRAL IN”
Step 6-5
D • Fan Black/White
• Receiver Black/White: “LIGHT OUT”
E • Fan Black
• Receiver Black: “FAN”
F • Receiver White: “LIGHT AND FAN COMMON”
• Fan White
Large Wire
Connector
Small Wire
Connector
E
Steps 6-3 – 6-7
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
6-1. Make sure the power is still o.
6-2. To connect the wires, hold the bare metal leads together and place
a wire nut over them, then twist clockwise until tight. For all these
connections use the wire nuts provided.
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
6-3. Connect the ground wire from the ceiling to the green ground
wire from the ceiling plate and the green ground wire from the
downrod or low prole washer.
6-4. Using the large wire connector, connect the white wire and the
black wire from the ceiling as follows:
•
e white (common) power wire from the ceiling to the white
wire from the receiver (marked on red tag “NEUTRAL IN”)
• e black power wire from the ceiling to the black wire from
the receiver (marked on red tag “LIVE IN”)
6-5. Using the small wire connector, connect the wires from the fan as
follows:
• e black wire from the fan to the black wire from the receiver
(marked on white tag “FAN”)
• e white wire from the fan to the white wire from the receiver
(marked on white tag “LIGHT AND FAN COMMON”)
• e black/white wire from the fan to the black/white wire from
the receiver (marked on white tag “LIGHT OUT”)
6-6. Check each connection to make sure no bare wire or wire strands
are visible. Push all wires and wire nuts back through the ceiling
plate hole into the outlet box.
6-7. Run the white antenna wire from the receiver through one of the
slots in the ceiling plate so that it rests between the ceiling plate
and the ceiling. Push it to the edge of the ceiling plate for clear
reception.
9
42753-01 • 09/12/30 • Hunter Fan Company
Page 10

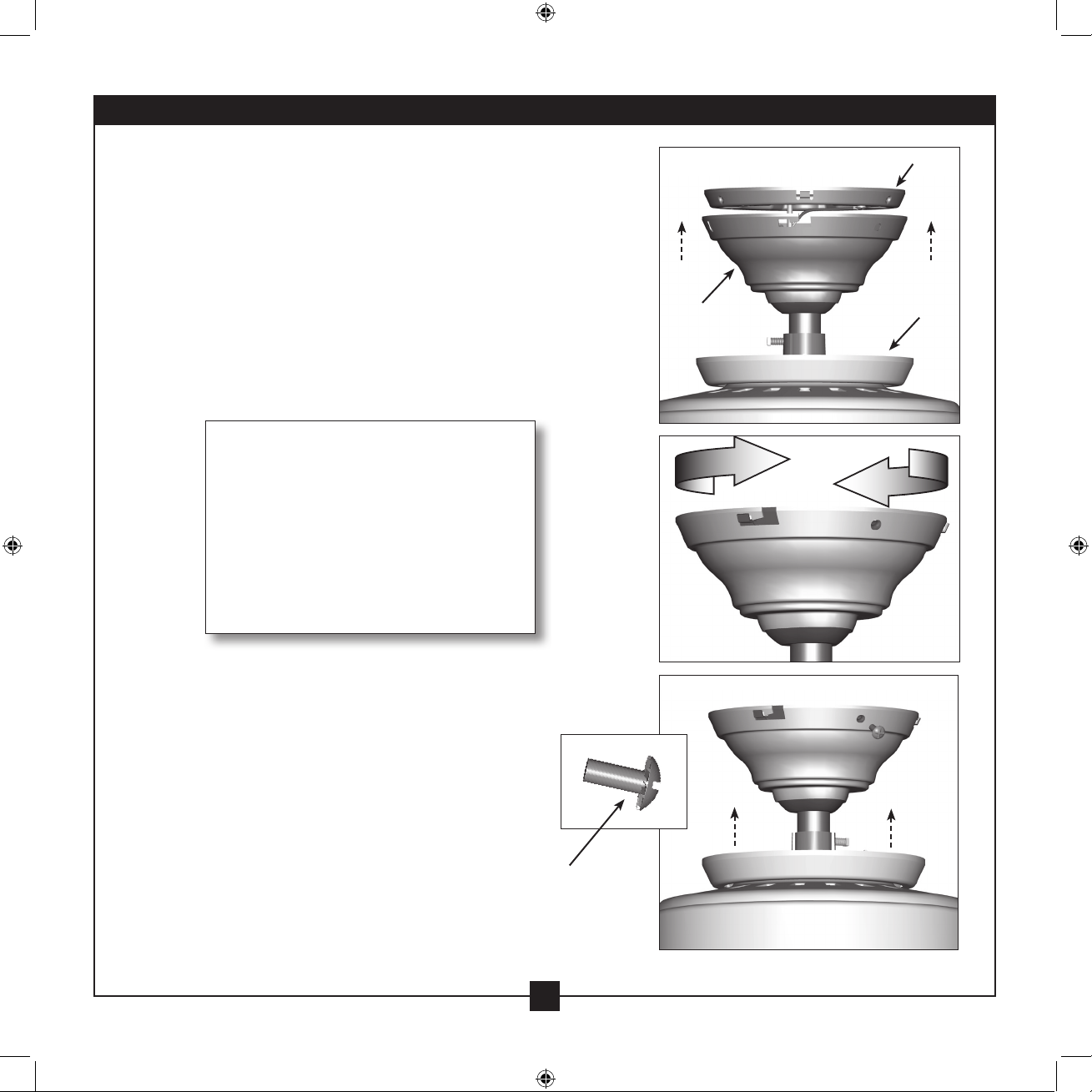

7 • Installing the Canopy and Canopy Trim Ring
7-1. Holding the canopy, raise the fan o the hook.
7-2. Align the slots in the canopy with the tabs on the ceiling plate.
7-3. Raise the canopy over the ceiling plate. Rotate the canopy
clockwise until the tabs on the ceiling plate totally engage with
the slots in the canopy.
7-4. Partially install the three canopy screws into the canopy one at a
time. Once all three screws are in, tighten them.
7-5. Using both hands, push the canopy trim ring up to the top of the
canopy. e canopy trim ring will snap and lock into place.
Should you need to remove the canopy
trim ring, follow these steps:
1. Locate the tab indicators, small
bumps on top of tabs.
2. Press rmly on opposite sides of the
ring towards the canopy. e tabs
will ex out releasing the trim ring
from the canopy.
Step 7-2
Canopy
Ceiling Plate
Canopy Trim
Ring
Steps 7-4 – 7-5
Canopy
Screw
10
42753-01 • 09/12/30 • Hunter Fan Company
Step 7-3
Page 11

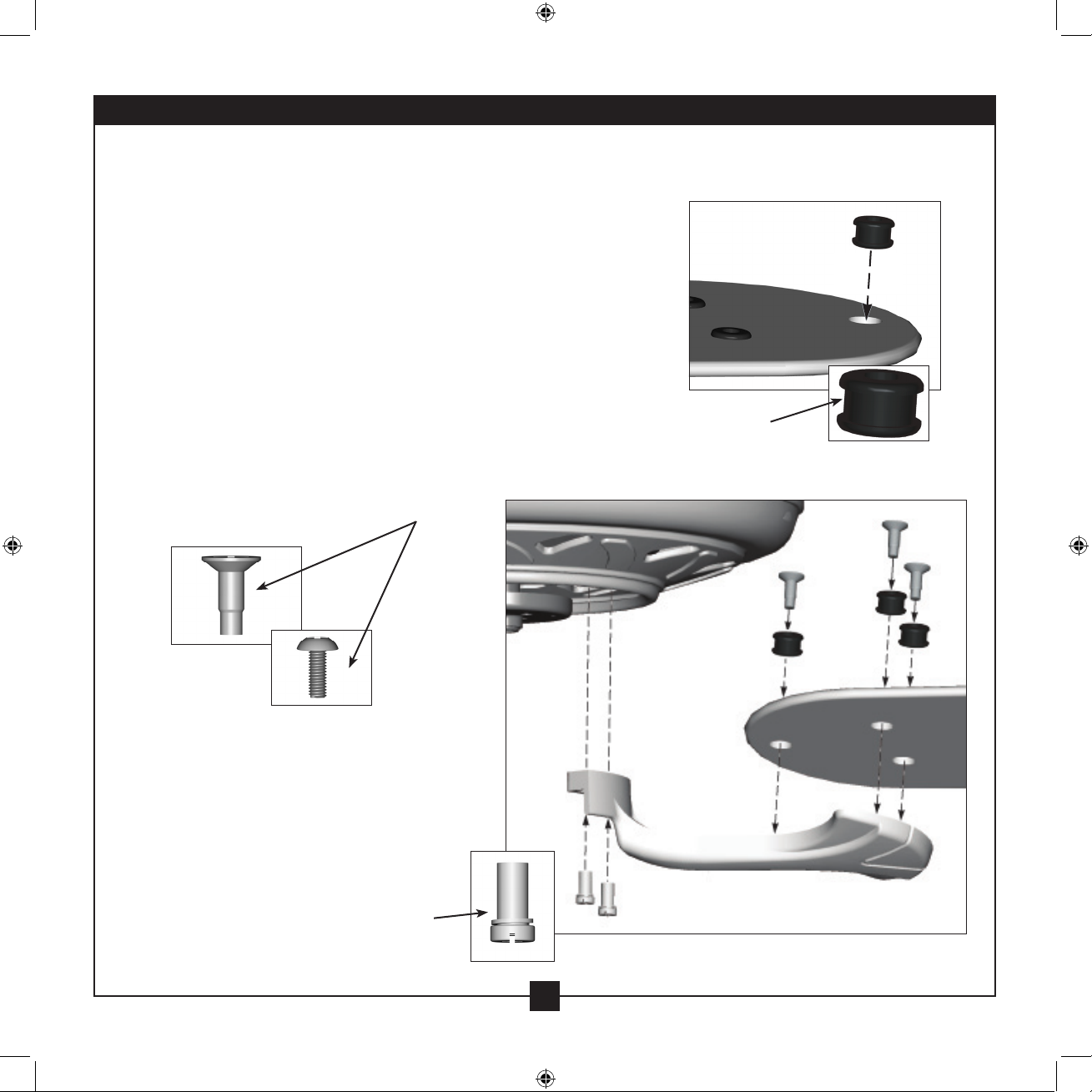

8 • Assembling the Blades
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
8-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
8-2. Attach each blade to a blade iron using three blade assembly
screws. If you used grommets, the blades may appear slightly loose
after screws are tightened. is is normal.
8-3. Remove the blade mounting screws and rubber shipping bumpers
from the motor. Note: Some blade mounting screws are installed
in the motor to secure shipping blocks.
8-4. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Blade Assembly
Use with grommet
Screws
Step 8-1 (Detail)
Grommet
Steps 8-1 – 8-2
Use without grommet
Blade
Mounting
Screw
42753-01 • 09/12/30 • Hunter Fan Company
Step 8-4
11
Page 12
9 • Completing Your Installation With or Without a Bowl Light Fixture
Your Hunter fan comes with an integrated light xture assembly and
an optional switch housing cap and plug button. is feature gives
you the option of installing the fan with OR without the included light
xture. e steps below direct you whether or not you are installing a
light xture.
WARNING: Use only the light xture supplied with this fan model.

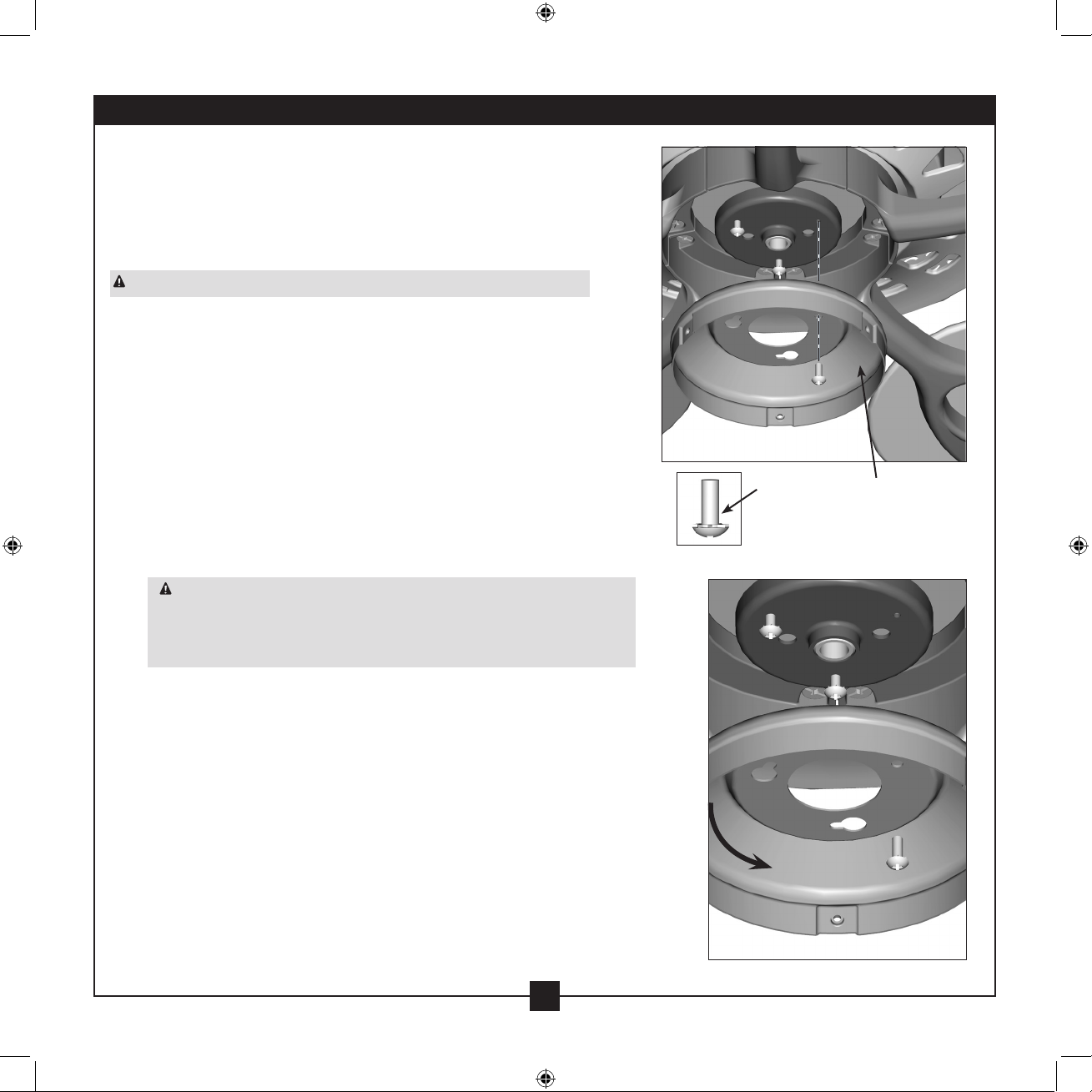

9-1. To attach the upper switch housing, partially install two housing
assembly screws into the switch housing mounting plate.
9-2. Feed the upper plug connector through the center opening of the
housing.
9-3. Align the keyhole slots in the housing with the housing assembly
screws.
9-4. Turn the housing counterclockwise until the housing assembly
screws are rmly situated in the narrow end of the keyhole slots.
Install the remaining screw into the housing. Tighten all three
screws rmly.
CAUTION: Make sure the upper switch housing is securely
attached to the switch housing mounting plate. Failure to properly
attach and tighten all three assembly screws could result in the
switch housing and light xture falling.
Steps 9-1 – 9-3
Housing
Assembly
Screw
Upper
Switch
Housing
9-5. If you want to install the light fixture, proceed with step 9-6
now.
If you do not want to install the light fixture, you need to
uninstall it now. See “Uninstalling the Light Fixture” on step 9-15.
Once you have uninstalled the light xture, continue with step 9-6.
12
42753-01 • 09/12/30 • Hunter Fan Company
Page 13
9 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)

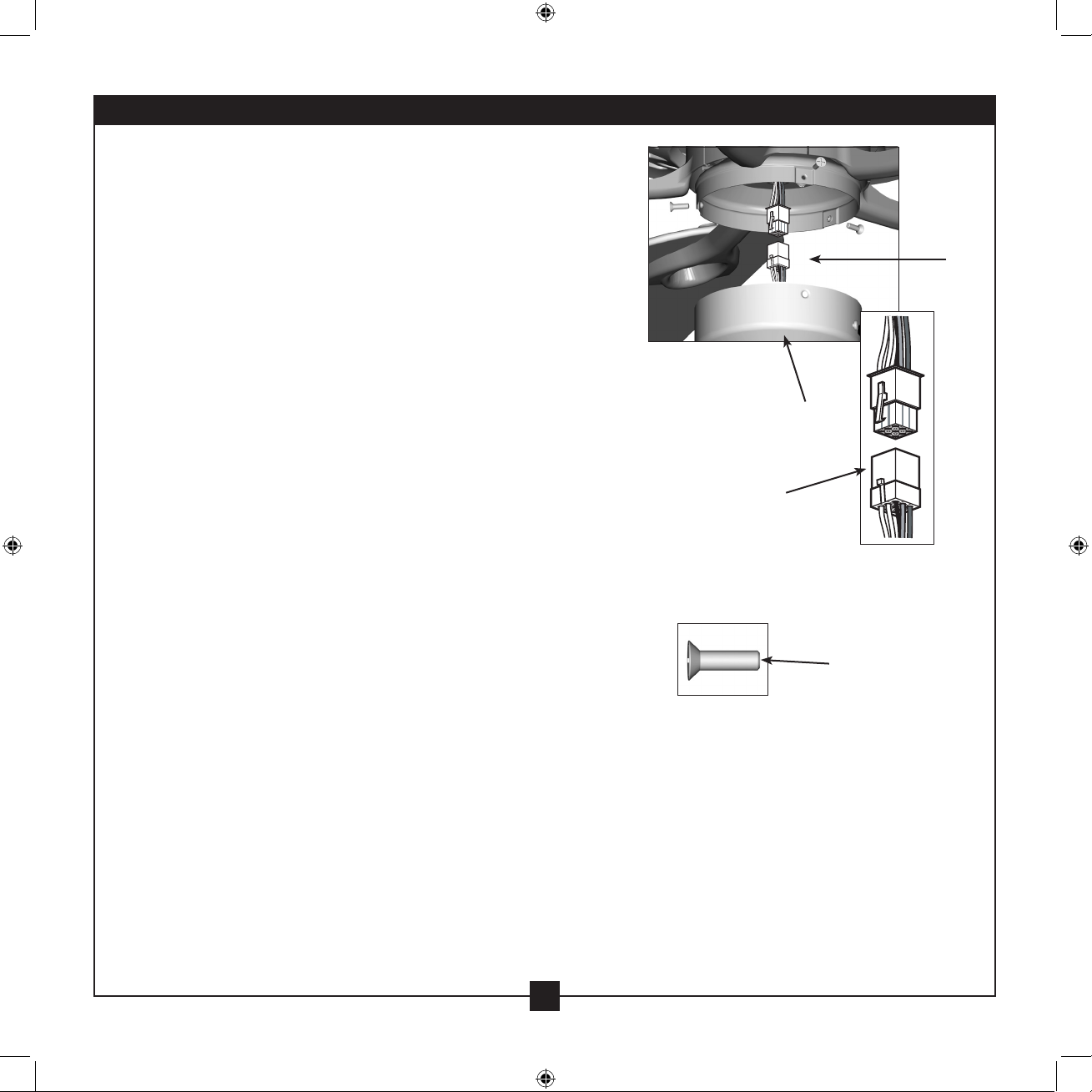

9-6. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
Connector
Plug
9-7. Place the lower switch housing assembly over the upper switch
housing. Align the side screw holes in the upper and lower switch
housings. Attach the lower switch housing to the upper switch
housing with three housing assembly screws.
Steps 9-6 – 9-7
Lower Switch
Housing
Plug
Connector
Detail
Housing
Assembly Screw
13
42753-01 • 09/12/30 • Hunter Fan Company
Page 14
9 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)

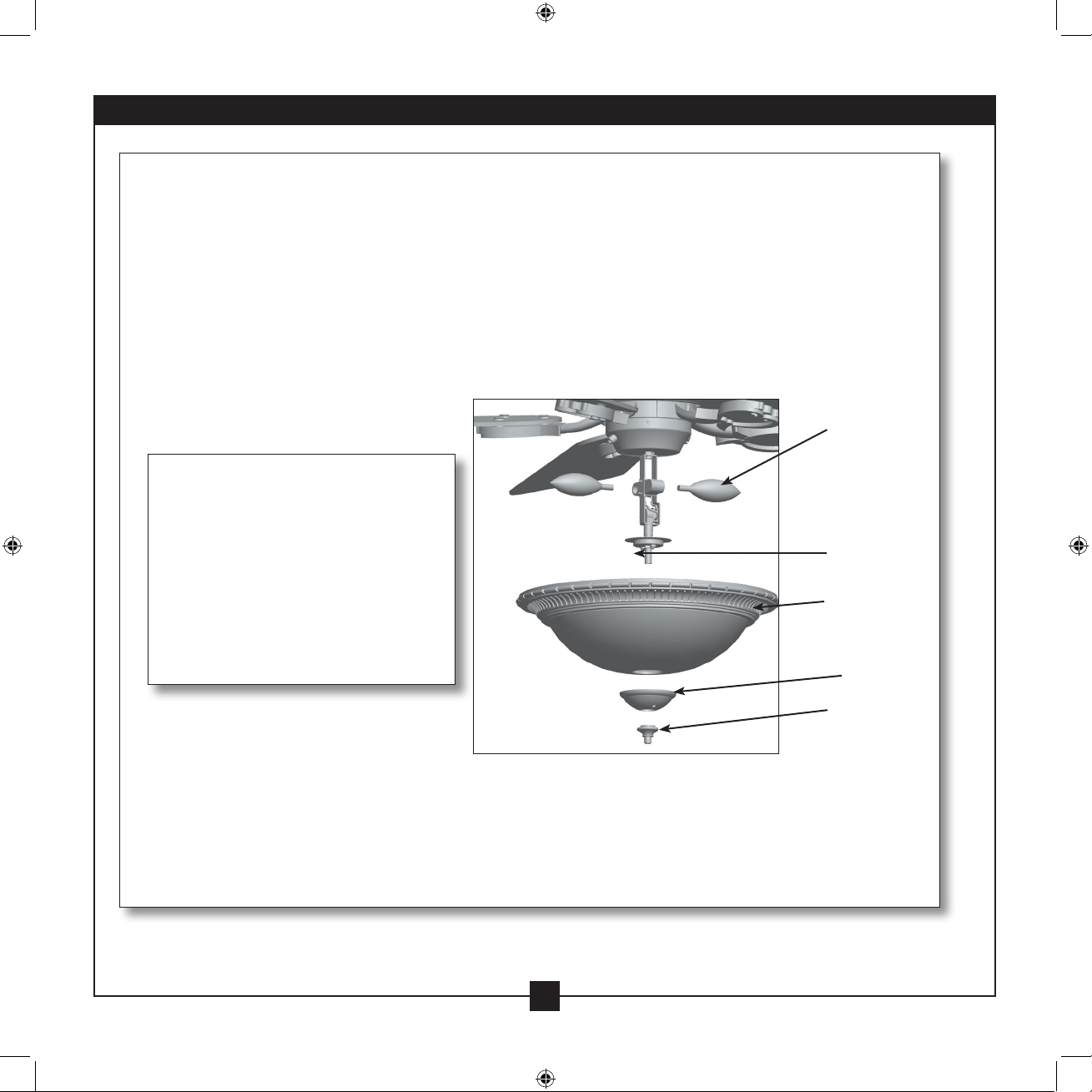

Installing the Glass Bowl
9-8. First install B10 candelabra bulbs (60 Watt Maximum) into the
9-9. Place the cover plate up against the glass bowl. Align the holes in
the cover plate and glass bowl.
9-10. Screw the nial onto the threaded rod end until tight.
Light Bulbs
(B10
Candelabra
Base 60 Watt
Maximum)
Note: In compliance with Canadian
energy regulations, this
ceiling fan contains a device
that restricts the light kit to
a maximum of 190 Watts.
Exceeding that limit or the
marked limit on this product
may result in re hazard or
improper operation.
readed Rod
Glass Bowl
Cover Plate
14
42753-01 • 09/12/30 • Hunter Fan Company
Finial
Page 15
9 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)

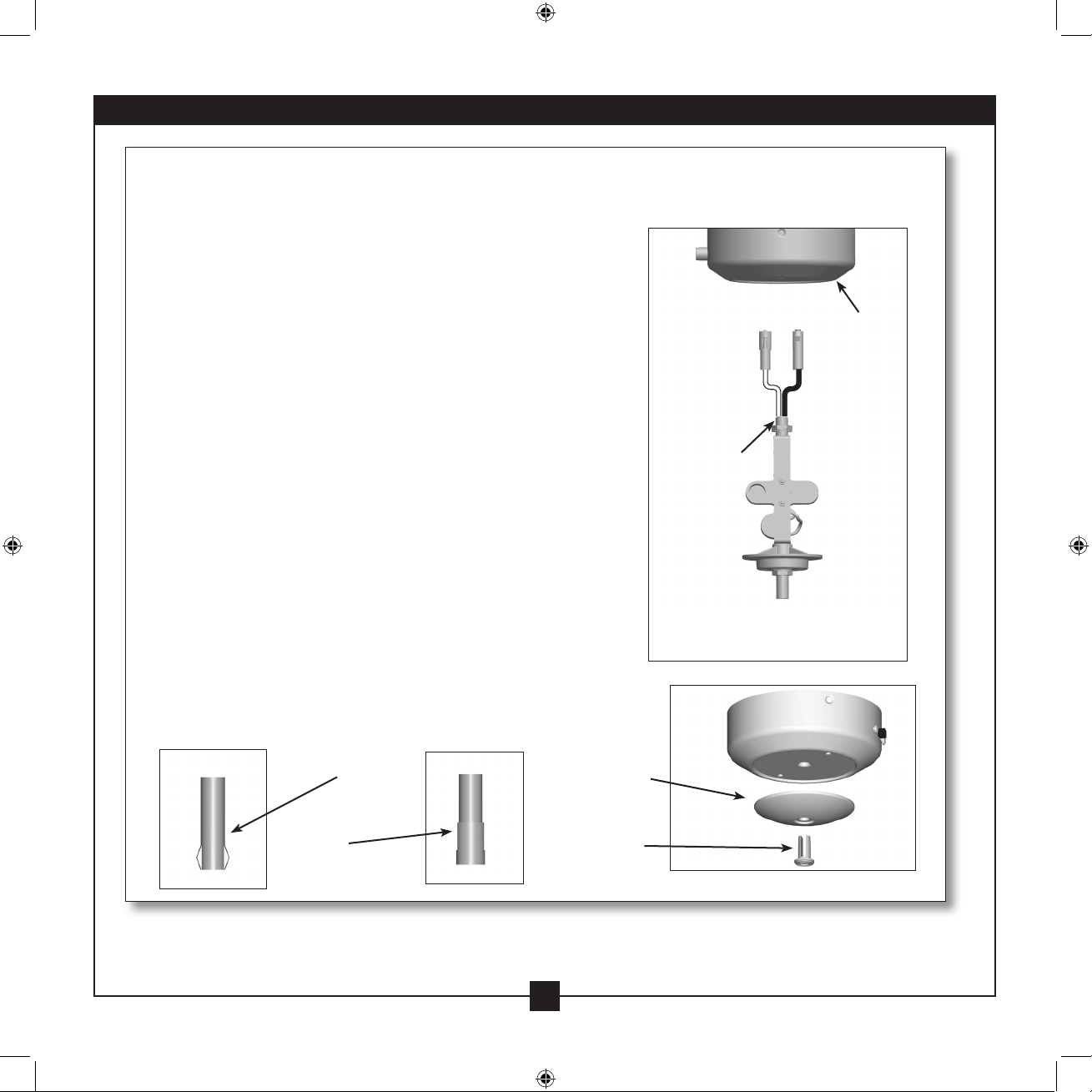

Uninstalling the Light Fixture
9-11. To uninstall the light xture, rst disconnect the plug connectors
between the black wire and the black/white wire.
9-12. Disconnect the plug connectors between the two white
wires.
9-13. Uninstall the connector and washer from the end of the
light xture inside the lower switch housing.
9-14. Unscrew the threaded rod of the light xture from the lower
switch housing.
9-15. Remove the light xture from the lower switch housing
pulling disconnected wires through the hole in the center of
the lower switch housing.
Note: When removing the wires, pull the thin plug
connector (male) through rst, and then pull the other plug
connector (female) through the hole.
9-16. Install the dummy terminals (included in the sack parts) on
the two disconnected wires in the lower switch housing.
9-17. Install the switch housing cap and plug button to the lower
switch housing.
9-18. Once you have uninstalled the light xture, continue
with step 9-6.
readed Rod
Steps 9-13 – 9-15
Lower Switch
Housing
Male Dummy
Terminal
Female Dummy
Terminal
42753-01 • 09/12/30 • Hunter Fan Company
Cap
Plug Button
Step 9-17
15
Page 16
10 • Operating the Remote Control and Mounting the Holder
10-1. e remote transmitter has individual buttons for turning the
fan o and on and controlling the light and fan speed.
10-2. For best operation, start the fan by pressing high, then select
your desired speed.
10-3. e light button turns the light on to full brightness. To dim the
light, hold the light button down until you reach your desired
brightness. Push the light button again to turn o the light.
10-4. Press the OFF button to turn the fan o.
10-5. When necessary, replace the battery with a 12-volt type 23A,
MN-21 battery or equivalent.
10-6. You can mount the remote holder to any toggle switch plate
with the screws already in the switch plate. Or, you can simply
mount the remote holder on the wall.
Fan Speed
High
Fan Speed
Low
Fan Speed
Medium
Fan O
Fan Light
Steps 10-1 – 10-4
Step 10-6
16
42753-01 • 09/12/30 • Hunter Fan Company
Step 10-5
Page 17
11 • Operating and Cleaning Your Ceiling Fan
11-1. Turn on electrical power to the fan.
11-2. e power to the fan is controlled by the remote. e remote
control has four settings in sequence: High, Medium, Low, and
O.
11-3. Ceiling fans work best by blowing air downward
(counterclockwise blade rotation) in warm weather to cool the
room with a direct breeze. In winter, having the fan draw air
upward (clockwise blade rotation) will distribute the warmer air
trapped at the ceiling around the room without causing a draft.
11-4. For cleaning nishes, use a soft brush or lint-free cloth to
prevent scratching. A vacuum cleaner brush nozzle can remove
heavier dust. Remove surface smudges or accumulated dirt and
dust using a mild detergent and a slightly dampened cloth. You
may use an artistic agent, but never abrasive cleaning agents as
they will damage the nish.
11-5. Clean wood nish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in
the same manner as the fan nish.
To Change Airflow Direction
Turn the fan o and let it come to a complete
stop. Slide the reversing switch on the fan to the
opposite position. Restart fan.
Reversing
Switch
In warm weather, use
downward air ow pattern
In cold weather, use upward
air ow pattern
17
42753-01 • 09/12/30 • Hunter Fan Company
Page 18
12 • Troubleshooting
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch rmly left or right to ensure that the
switch is engaged.
5. Push the fan speed buttons on the remote to ensure the fan is on.
6. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade bracket screws until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade iron screws.
3. Turn power o, support fan very carefully, and check that the
hanger ball is properly seated.
Problem: Lights dim when turned on or do not turn on
1. Check to make sure wattage of light bulbs installed match the
specications on the light socket.
Problem: If the light on this fan shuts off suddenly.
1. Turn the power to the fan o at the wall switch.
Wait 30 seconds, then resume power to the fan.
If you need parts or service assistance, please call
866-268-1936 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
7130 Goodlett Farms Pkwy. #400
Memphis, Tennessee 38016
18
42753-01 • 09/12/30 • Hunter Fan Company
Loading...
