Hunter Fan 42695-01 User Manual
For Your Records and
Warranty Assistance
For reference, also attach your receipt or a copy
of your receipt to the manual.
Type 2 ModelsType 2 ModelsType 2 Models
__________________________________________
Model Name
__________________________________________
Model No.
__________________________________________
Date Purchased
__________________________________________
Where Purchased
Owner’s Guide and Installation Manual
English Español
Form# 42695-01
20090908
©2009 Hunter Fan Co.
Table Of Contents
1 • Getting Ready. . . . . . . . . . . . . . . . . . . . . . 4

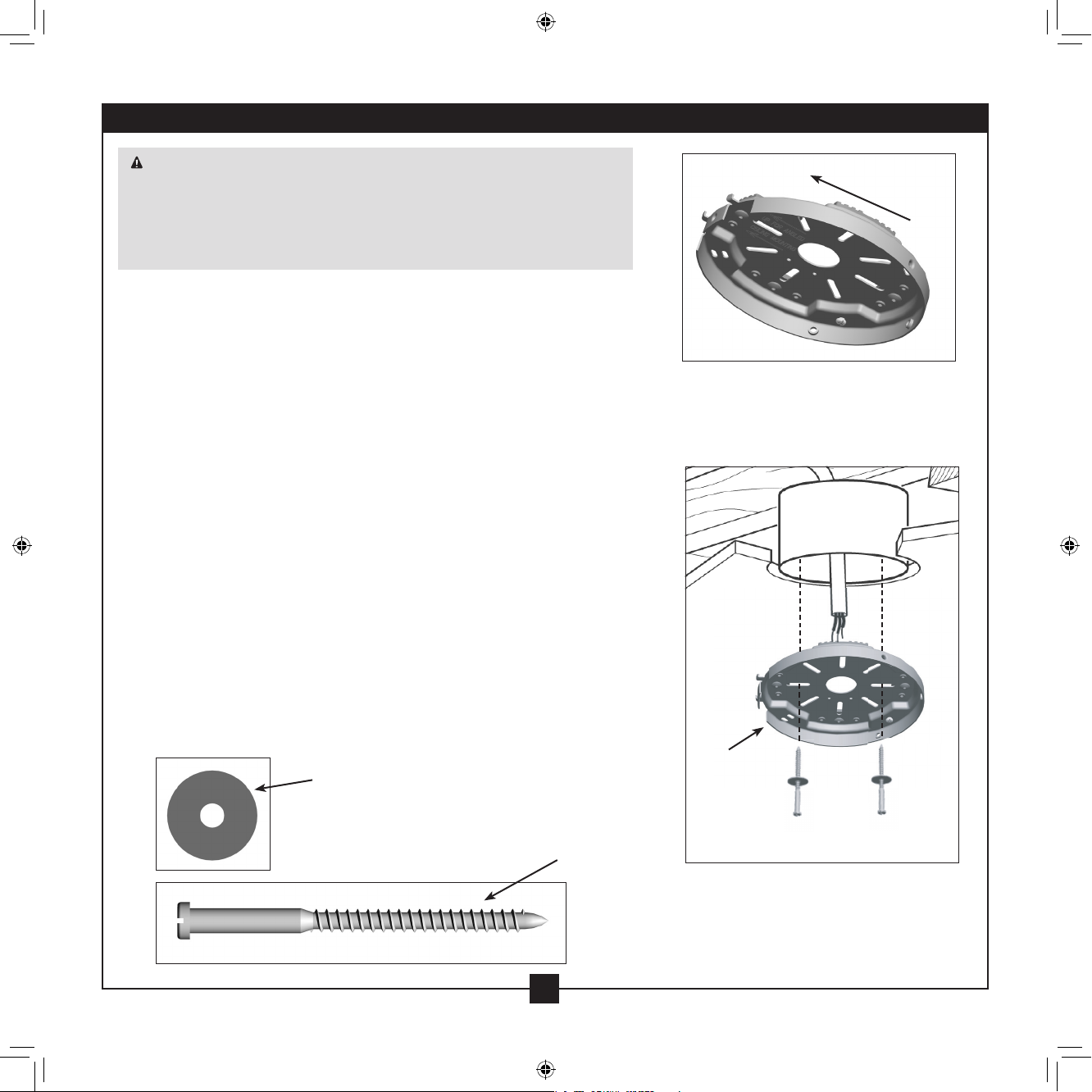

2 • Installing the Ceiling Plate . . . . . . . . . . 5

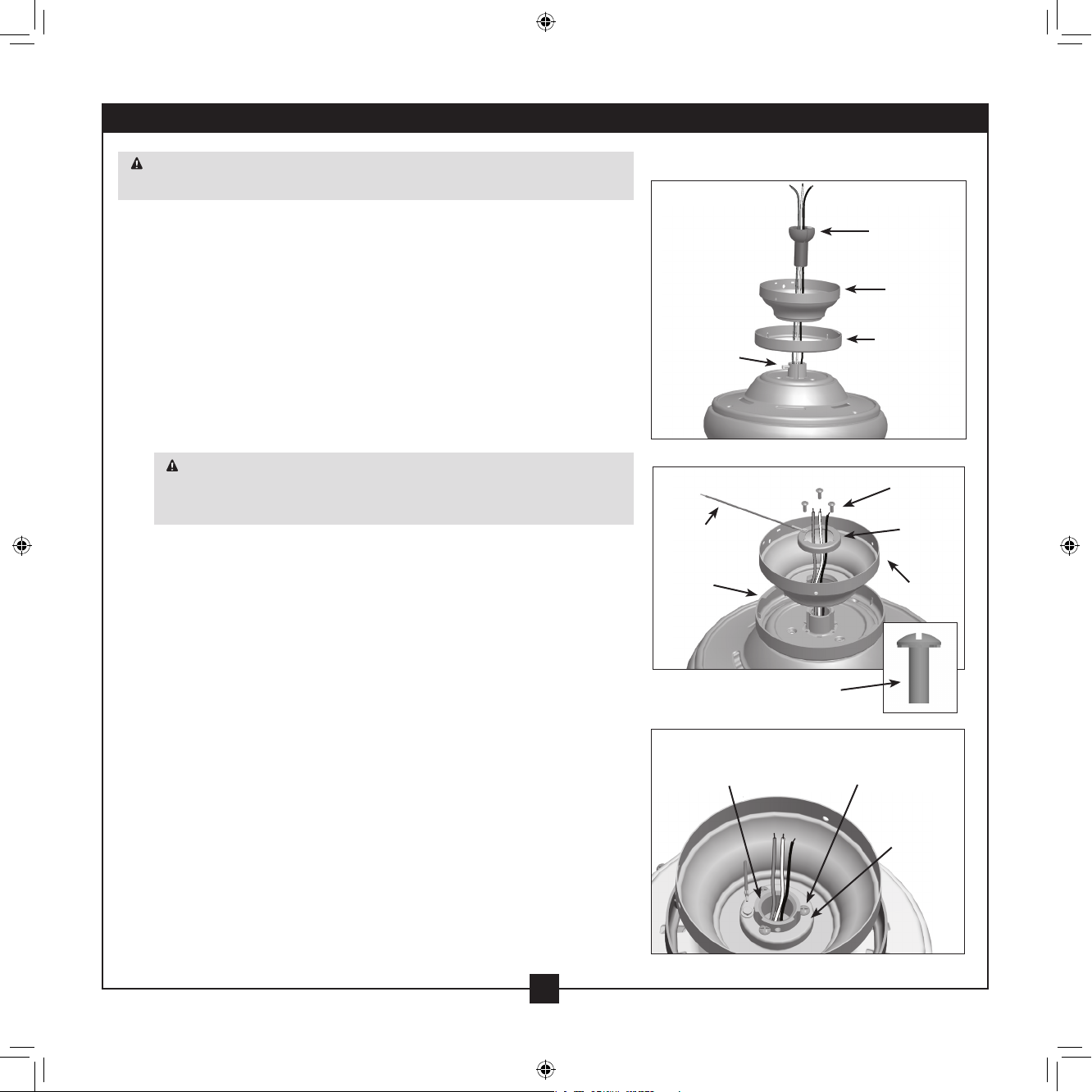

3 • Assembling and Hanging the Fan . . . 6

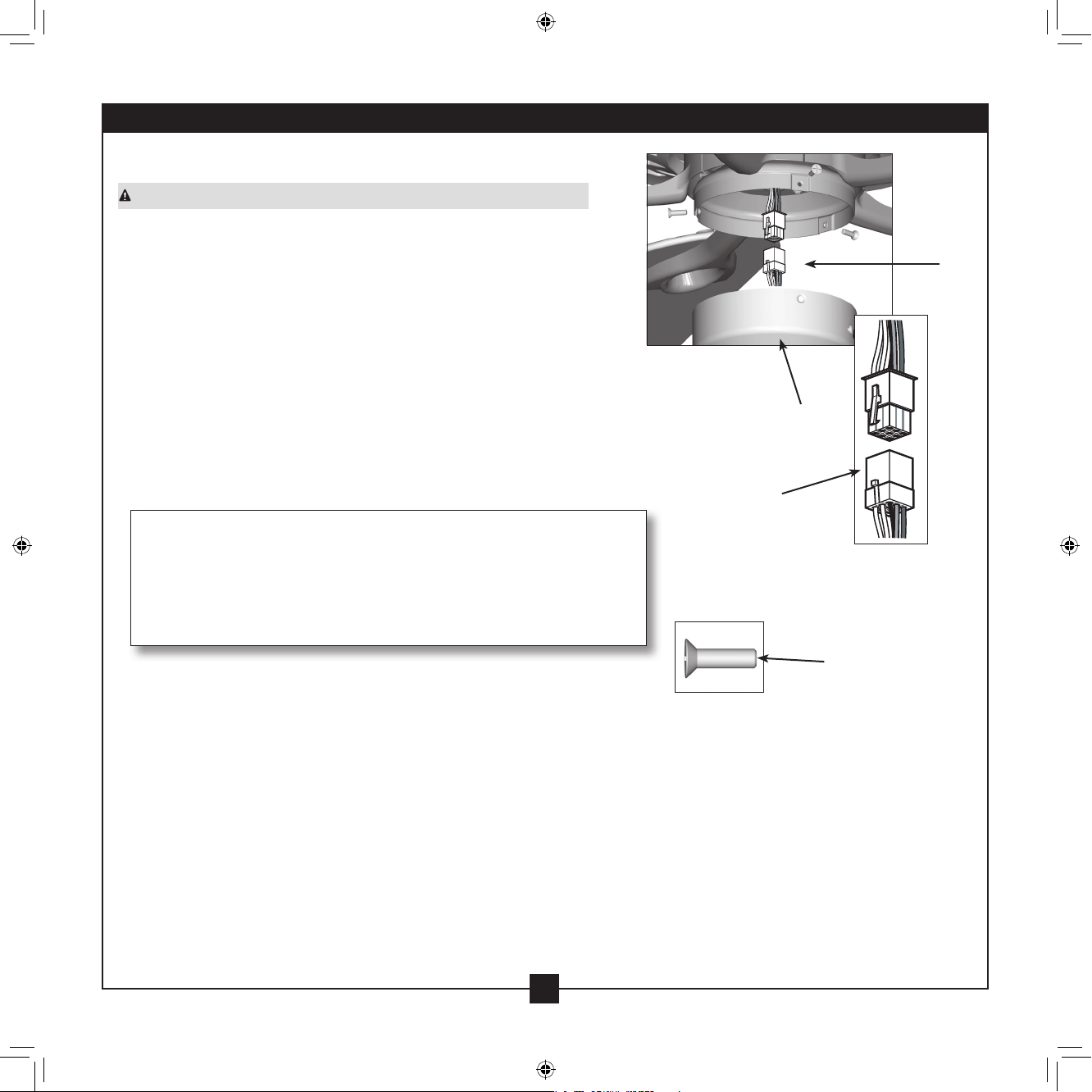

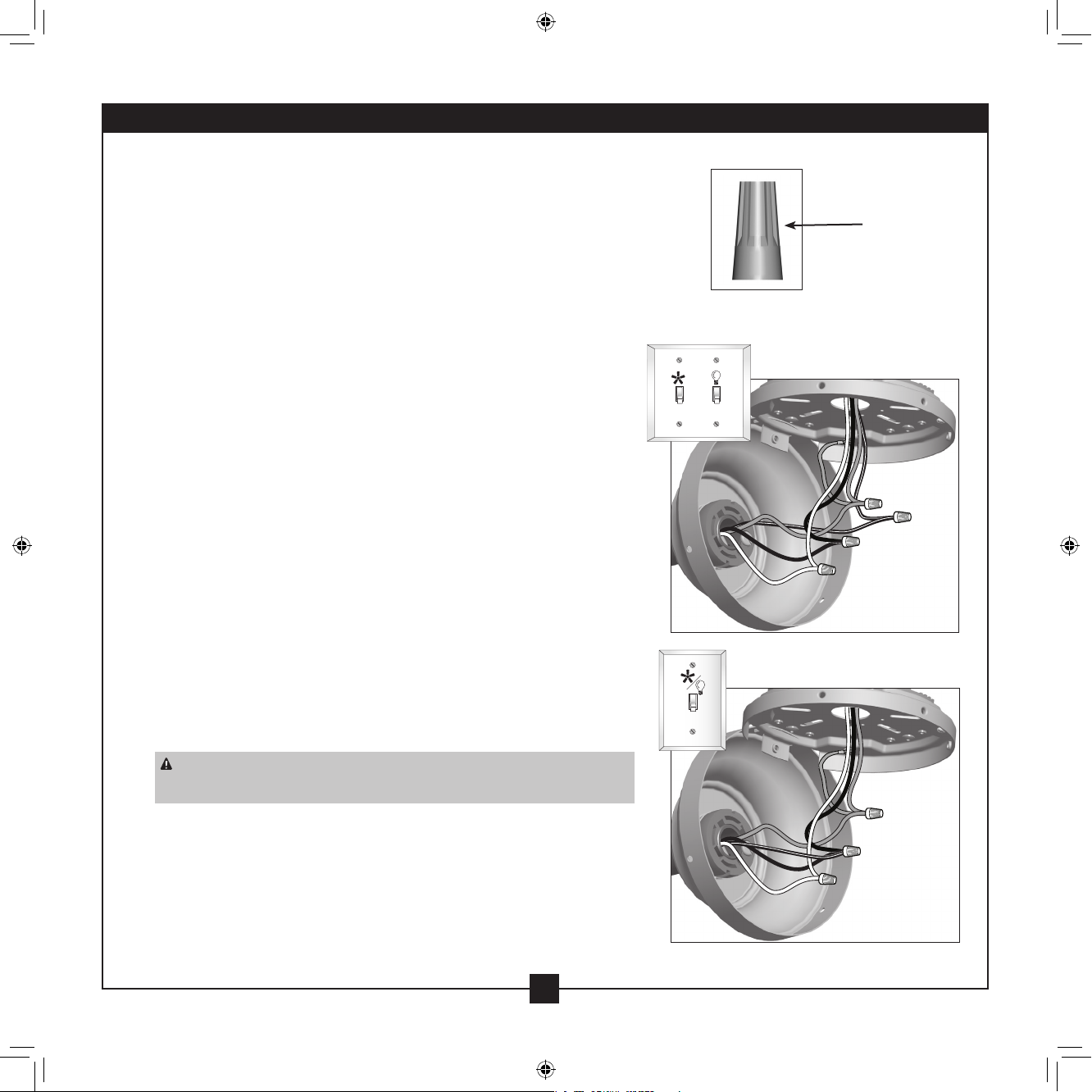

4 • Wiring the Fan . . . . . . . . . . . . . . . . . . . . . 7

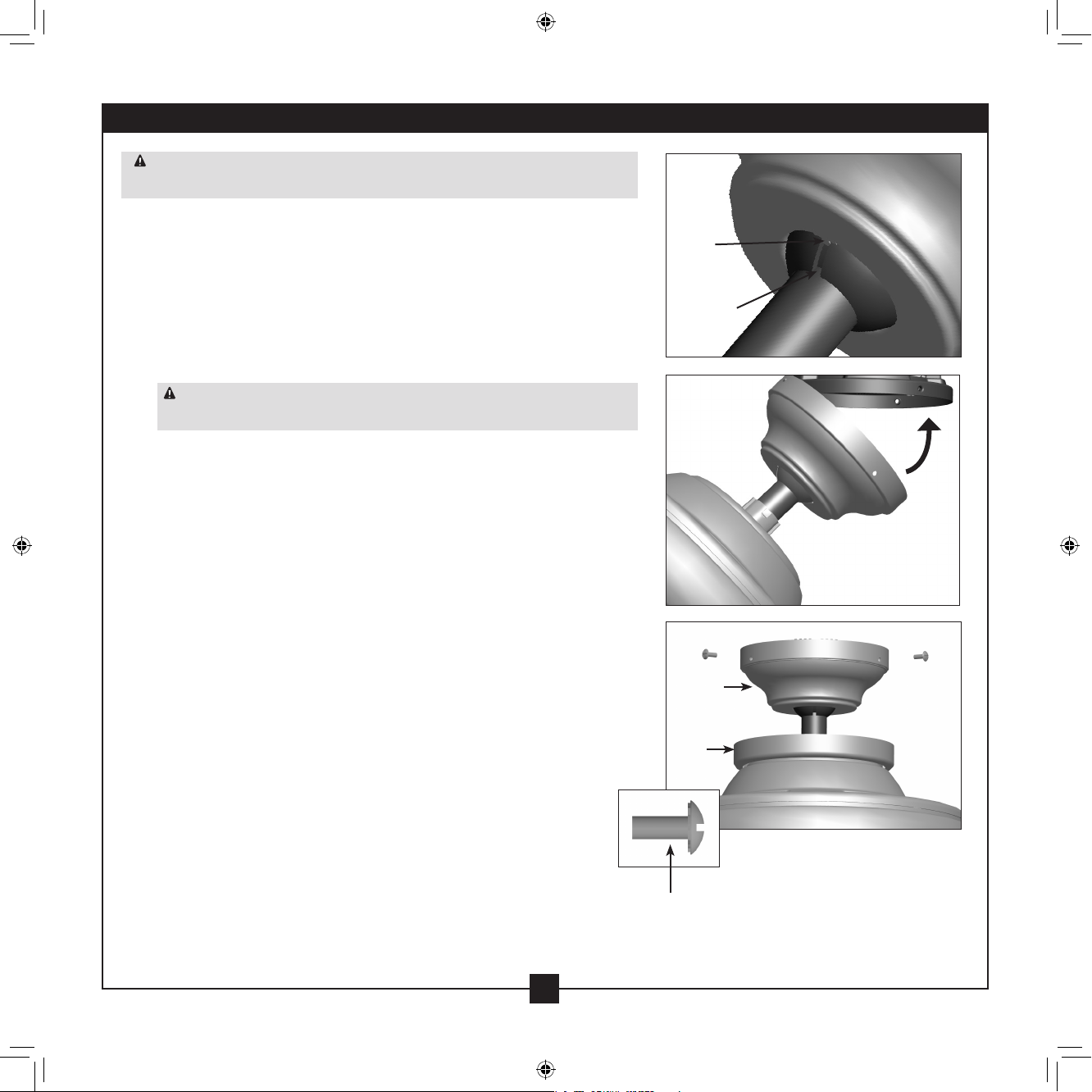

5 • Installing the Canopy and Canopy
Trim Ring . . . . . . . . . . . . . . . . . . . . . . . . . 8

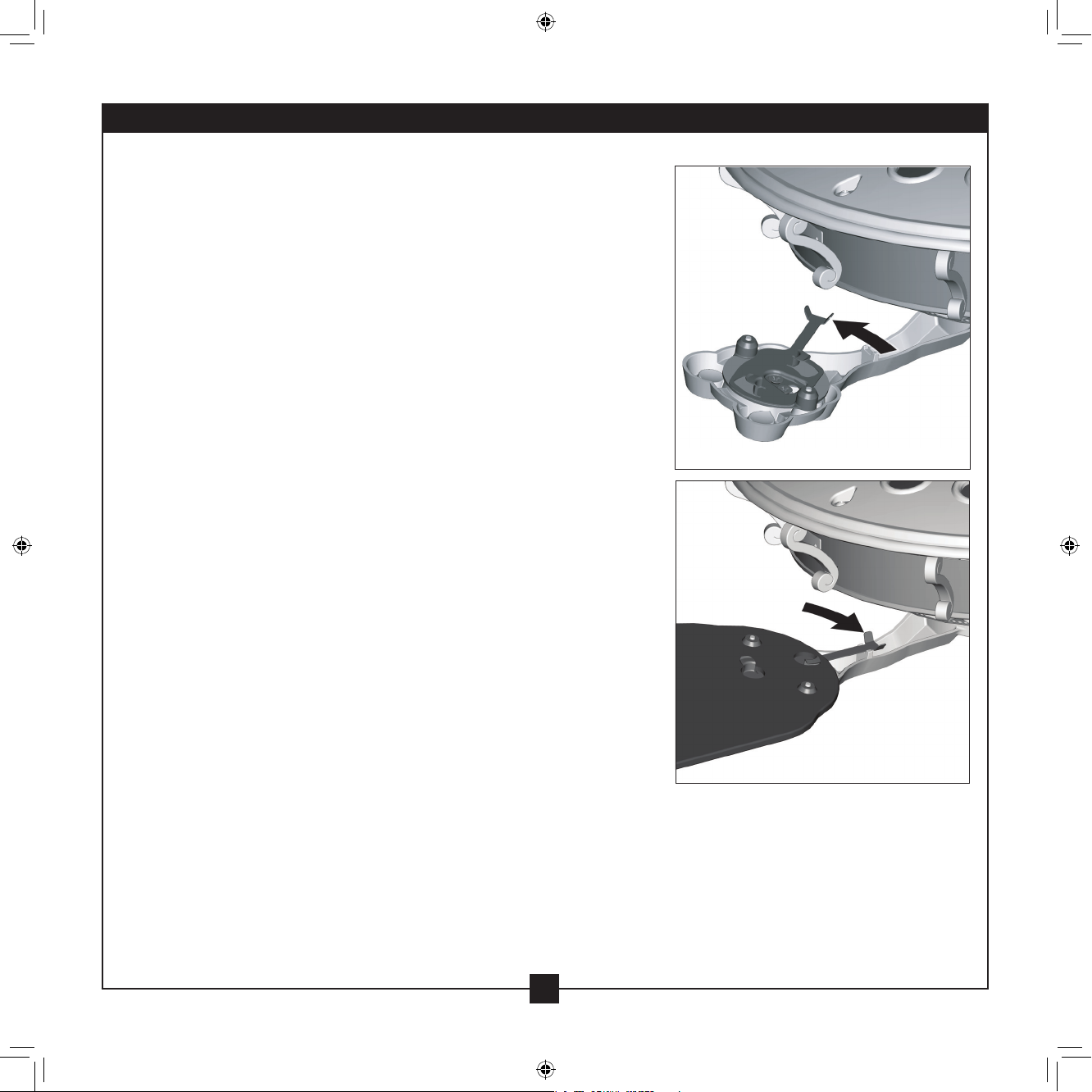

6 • Assembling the Blades . . . . . . . . . . . . . 9

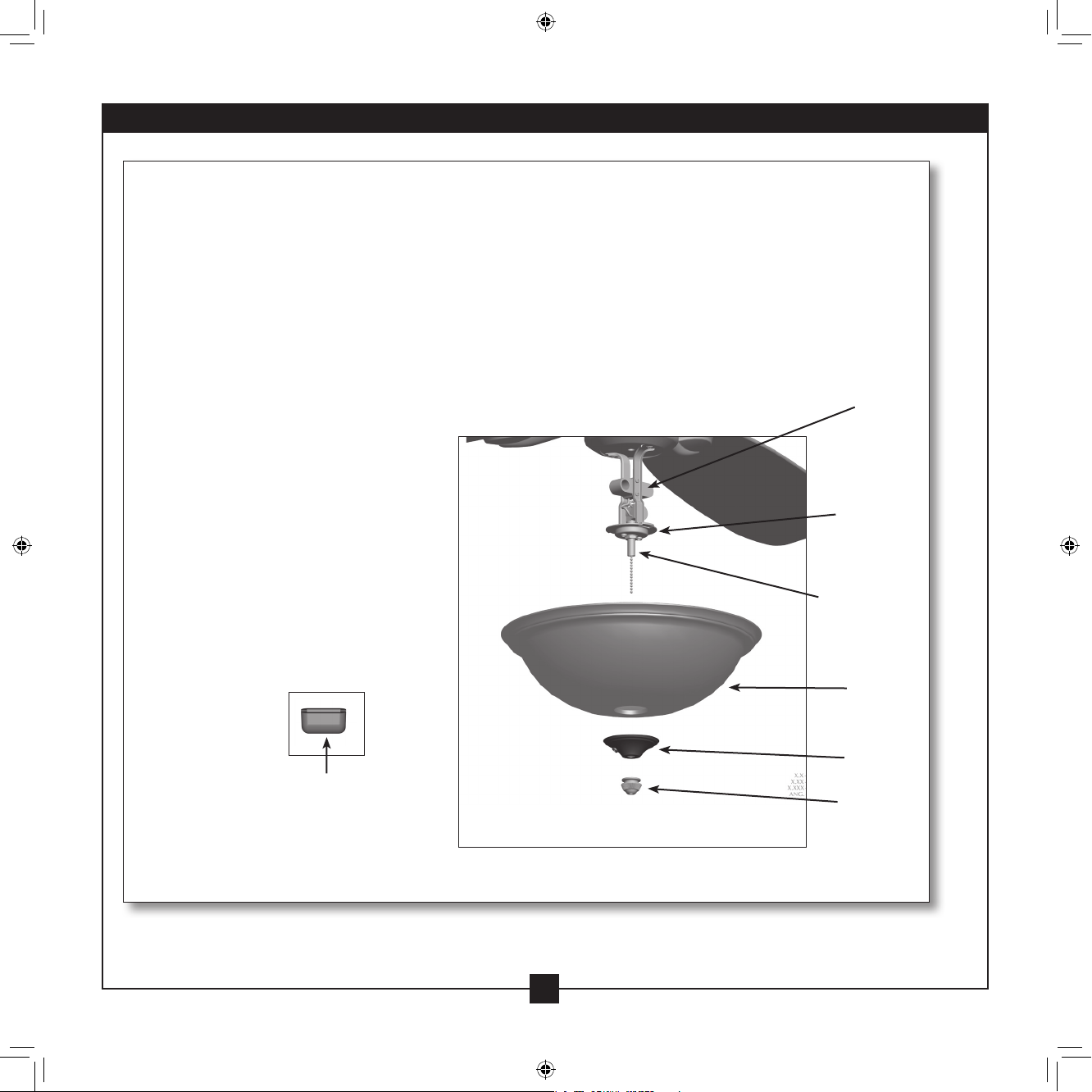

7 • Completing Your Installation With a
Bowl Light Fixture . . . . . . . . . . . . . . . . 10
8 • Operating and Cleaning Your Ceiling
Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
9 • Troubleshooting . . . . . . . . . . . . . . . . . . . 13
Welcome
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
• READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
© 2009 Hunter Fan Company
2
42695-01 • 09/08/09 • Hunter Fan Company
Installer’s Choice and Optional Accessories
Support Brace
Standard
Mounting
Style
Standard Mounting hangs from the
ceiling by a downrod (included).
Support Brace
Ceiling
Outlet Box
Angled
Mounting
Style
Ceiling
Outlet Box
12
Understanding Mounting and Installer’s Choice®
Hunter’s patented 3-position mounting system provides you maximum
installation exibility and ease. You can install your Hunter fan in one
of three ways, depending on ceiling height and your preference: Low
Prole, Standard, or Angled mounting. e steps in this manual include
instructions for all three Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
For ceilings higher than 8 feet, you can purchase
Hunter extension downrods. All Hunter fans use
sturdy 3/4” diameter pipe to assure stability and
wobble-free performance.
8
Low Prole
Mounting
Style
Support Brace
Ceiling
Outlet Box
CAUTION: To
reduce the risk of
personal injury, attach
the fan directly to the
support structure of
the building according
to these instructions,
and use only the
hardware supplied.
Angled Mounting recommended for a
vaulted or angled ceiling
42695-01 • 09/08/09 • Hunter Fan Company
Low Profile Mounting ts close to the
ceiling, recommended for ceilings less
than 8 feet high
3
1 • Getting Ready
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326
(In Canada, call 1-866-268-1936).
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum eciency, and energy savings.
4
42695-01 • 09/08/09 • Hunter Fan Company
