Page 1
For Your Records and Warranty
Assistance
Model Name: _____________________
Catalog/Model No.: ________________
Serial No.: ________________________
Date Purchased: ___________________
Where Purchased: _________________
For reference also attach your receipt or a
copy of your receipt to the manual.
42411-01 • 3/1/07
Page 2
Welcome
2
Table of Contents
1 • Getting Ready ...................................................4
2 • Installing the Ceiling Plate ..........................5
3 • Assembling and Hanging the Fan ..........6
4 • Securing Fan to Secondary
Support System ................................................7
5 • Wiring the Fan ..................................................8
6 • Installing the Canopy .................................... 9

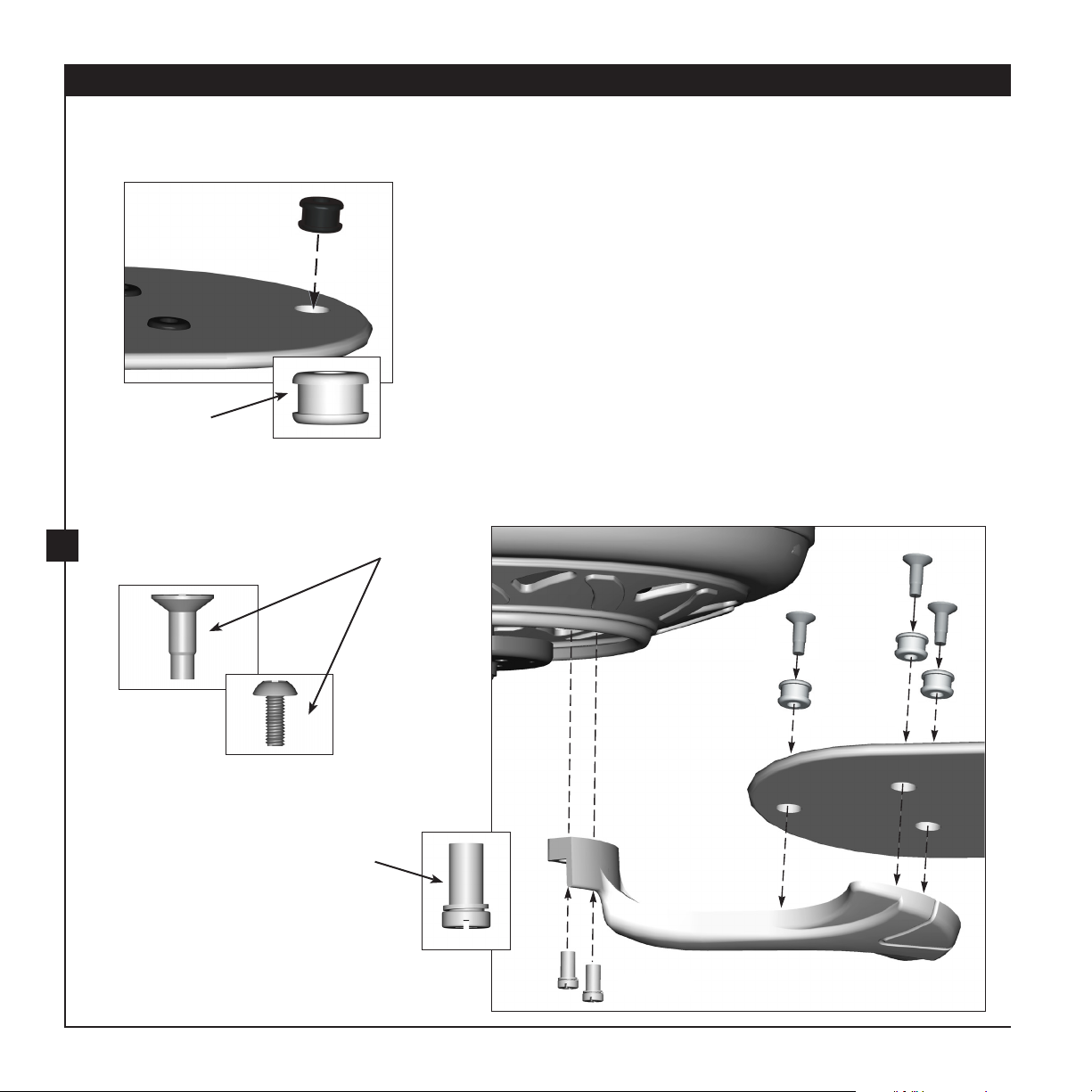

7 • Assembling the Blades .............................. 10

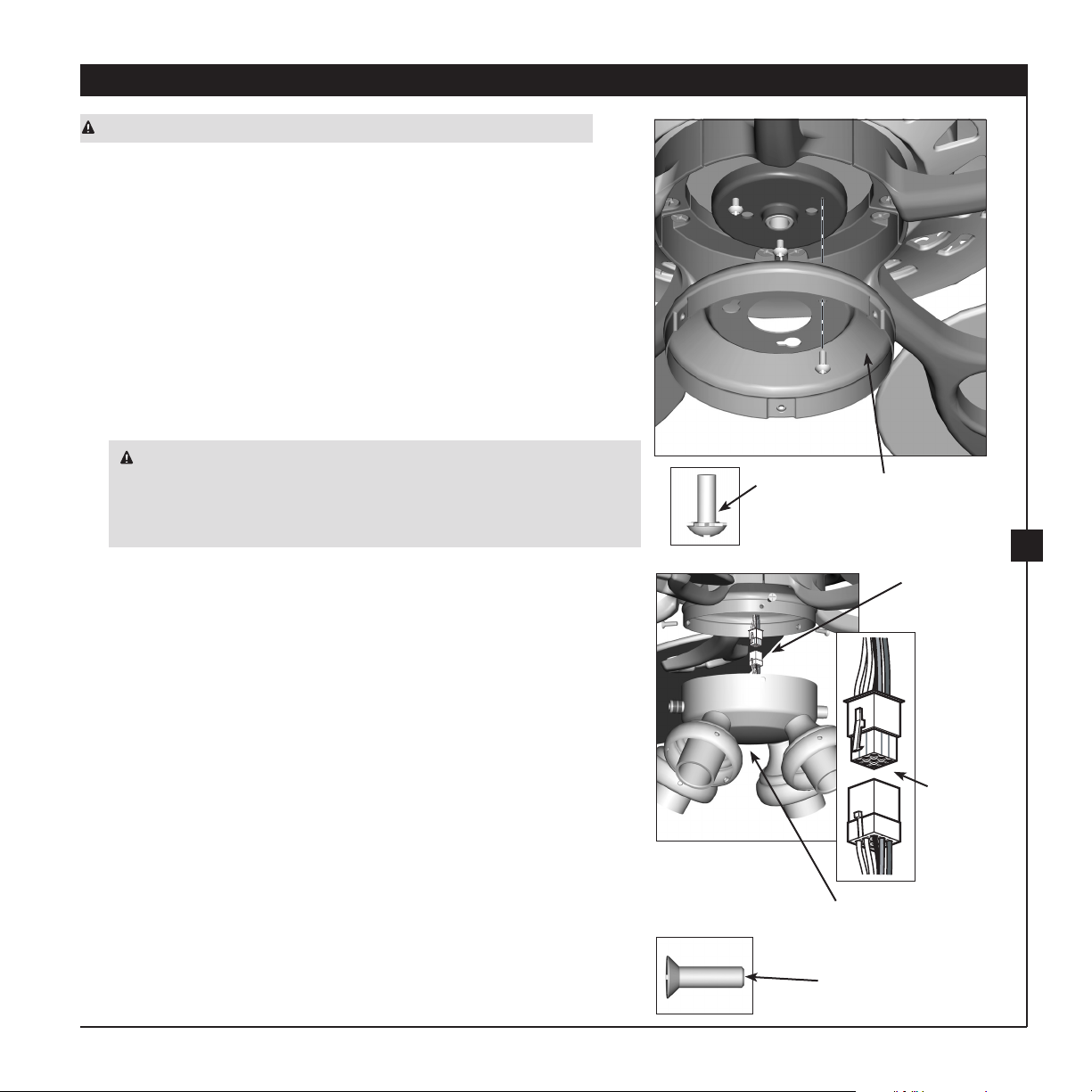

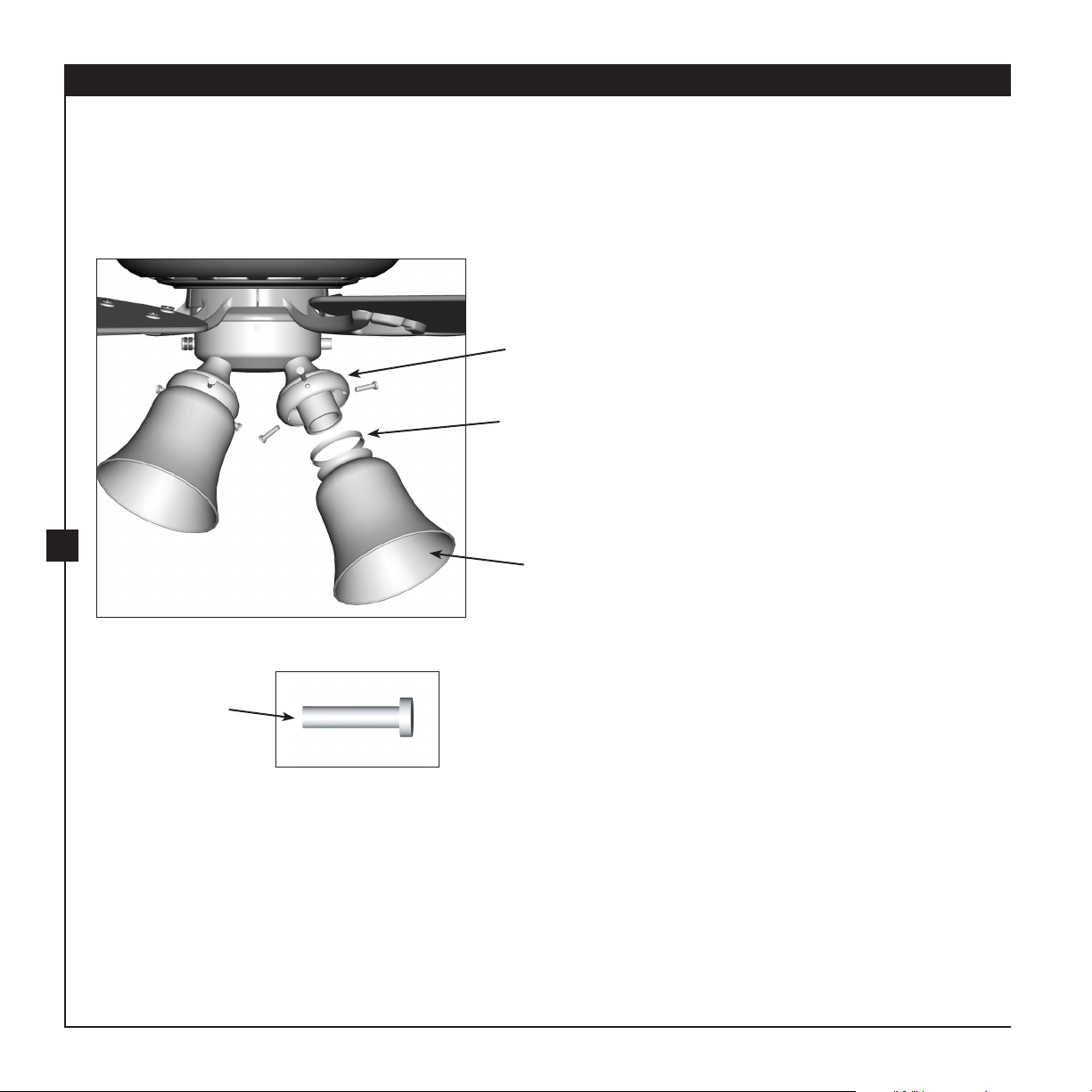

8 • Installing the Light Kit ...............................11
9 • Operating and Cleaning
Your Ceiling Fan.............................................13
Your new Hunter® ceiling fan is an addition to your home or office that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
• Read this entire manual carefully before beginning installation. Save
these instructions.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning off the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the off position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of fire, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
10 • Troubleshooting ......................................... 14
© 2007 Hunter Fan Company
Hunter Fan Company 42411-01 • 3/1/07
Page 3
Installer’s Choice and Optional Accessories
Understanding Mounting and Installer’s Choice®
Hunter’s patented 3-position mounting system provides you maximum
installation flexibility and ease. You can install your Hunter fan in one
of three ways, depending on ceiling height and your preference: Low
Profile, Standard, or Angle mounting. e steps in this manual include
instructions for all three Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
For ceilings higher than 8 feet, you
can purchase Hunter extension
downrods. All Hunter fans use sturdy
3/4” diameter pipe to assure stability
and wobble-free performance.
Low Profile Mounting fits close to the
ceiling, recommended for ceilings less
than 8 feet high
Standard Mounting hangs from
the ceiling by a downrod (included),
recommended for ceilings 8 feet or higher
3
Angle Mounting recommended for a
vaulted or angled ceiling
42411-01 • 3/1/07 Hunter Fan Company
Page 4
1 • Getting Ready
4
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum efficiency, and energy savings.
Hunter Fan Company 42411-01 • 3/1/07
Page 5
2 • Installing the Ceiling Plate
2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
2-2. Your fan comes with two neoprene noise isolators (“Isolators”).
Position the isolators between the ceiling plate and ceiling by
inserting the raised areas on each isolator into the holes in the
ceiling plate.
2-3. read the lead wires from the outlet box down through the hole
in the middle of the ceiling plate.
2-4. Align the slotted holes in the ceiling plate with the pilot holes you
drilled in the wood support structure. For proper alignment use
slotted holes directly across from each other.
Note: e isolators should be flush against the ceiling.
2-5. Place a flat washer on each of the two 3” wood screws and pass
the screws through the slotted holes in the ceiling plate into the
pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Isolator
Ceiling
Plate
Step 2-2
5
Steps 2-3 – 2-5
Towards
Ceiling Peak
Flat Washer
3” Wood Screw
For Angled Ceilings: Be sure to orient
the ceiling plate so that the two tabs
are pointing towards the ceiling peak.
42411-01 • 3/1/07 Hunter Fan Company
Page 6

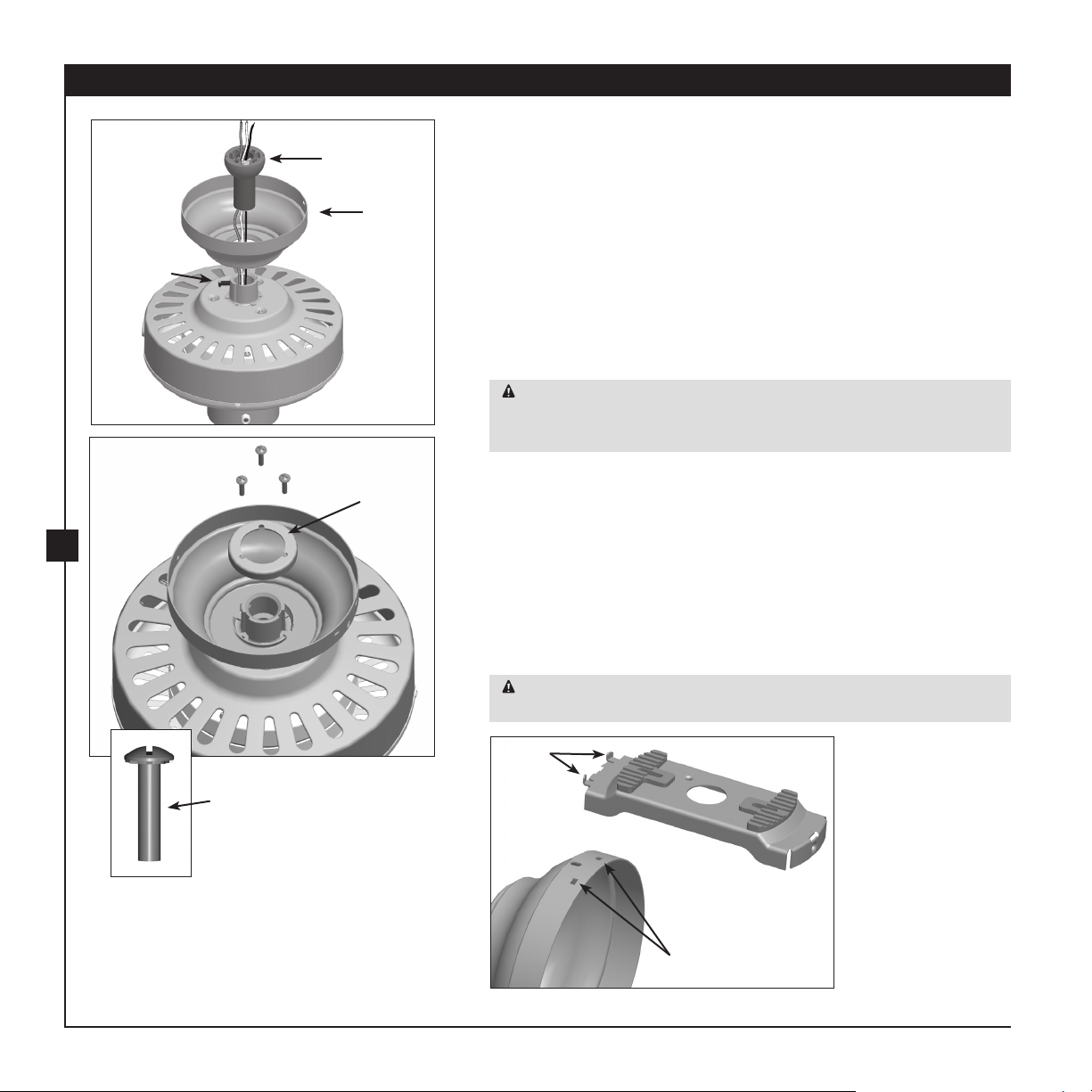

3 • Assembling and Hanging the Fan
Steps 3-1 – 3-2
Set Screw
Steps 3-3 – 3-4
6
Downrod
Canopy
Low Profile
Washer
You can assemble your fan for standard mounting (steps 3-1 – 3-2) or
for low profile mounting (steps 3-3 – 3-4).
3-1. To assemble fan to hang down from a flat or angled ceiling, insert
the downrod through the canopy. Feed the wires from the fan
through the downrod.
3-2. Loosen the square head set screw on the adapter to install the
pipe and ball assembly. Note: When the pipe and ball assembly
is fully installed, 2-3 threads on the pipe will still be visible; this is
normal. Securely retighten the set screw with a wrench or pliers.
Skip to Step 3-5.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
Note: For low profile mounting, the downrod is replaced with the low
profile washer. See Steps 3-3 – 3-4.
3-3. Place the low profile washer into the canopy. Be sure the green
ground wire is pointing up toward the ceiling.
3-4. Align the holes in the washer with the holes in the adapter.
Assemble securely with three #8-32 x 3/4” screws.
3-5. Raise the fan and align the slots in the canopy with the tabs on the
ceiling plate.
#8-32 x 3/4” Screw
Hunter Fan Company 42411-01 • 3/1/07
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
Ceiling
Plate
Tabs
Canopy Slots
Step 3-5
Page 7

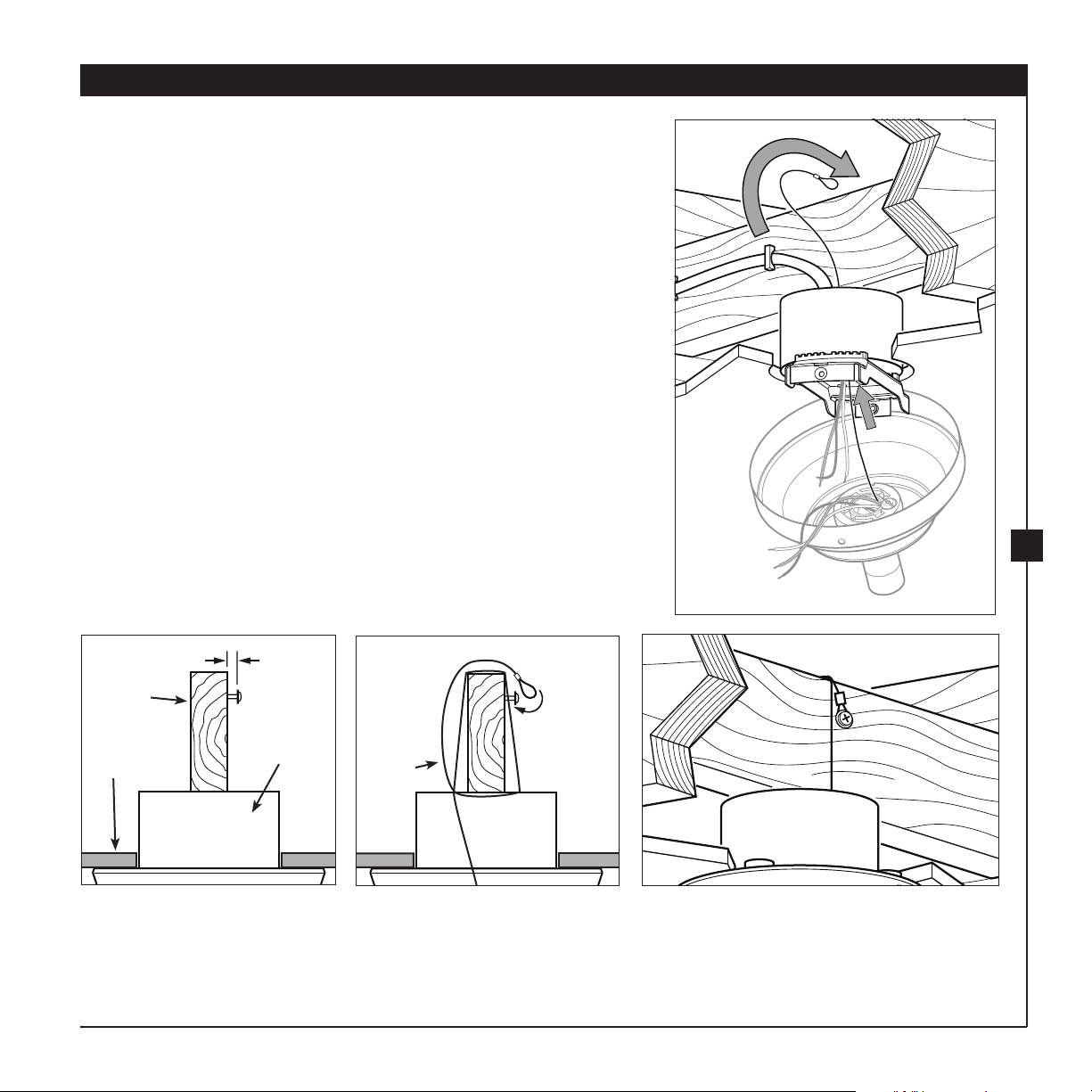

4 • Securing Fan to Secondary Support System
3mm (1/8")
4-1. Find the looped end of the braided cable and insert it through the
ceiling plate and one of the holes in the outlet box into the ceiling.
4-2. Access the support brace in the ceiling. You may not be able to do
this from below the ceiling depending on your installation site.
4-3. Drive a #10 x 38mm (1-1/2”) wood screw and washer into the side
of the brace that holds the outlet box. Leave 3mm (1/8”) of space
between the support brace and the washer.
4-4. Wrap the braided cable around the support brace once creating a
complete circle.
4-5. Hook the looped end of the cable over the wood screw so that the
braided cable lies between the washer and the support brace.
4-6. Tighten the loop and secure the screw and washer all the way
down to the support brace.
4-7. Coil up the excess cable.
4-8. Return to the fan so you can complete the fan wiring.
Step 4-1
Steps 4-2 – 4-3
Support
Brace
Outlet Box
Ceiling
42411-01 • 3/1/07 Hunter Fan Company
Steps 4-4 – 4-5
Braided
Cable
Steps 4-6 – 4-7
7
Page 8

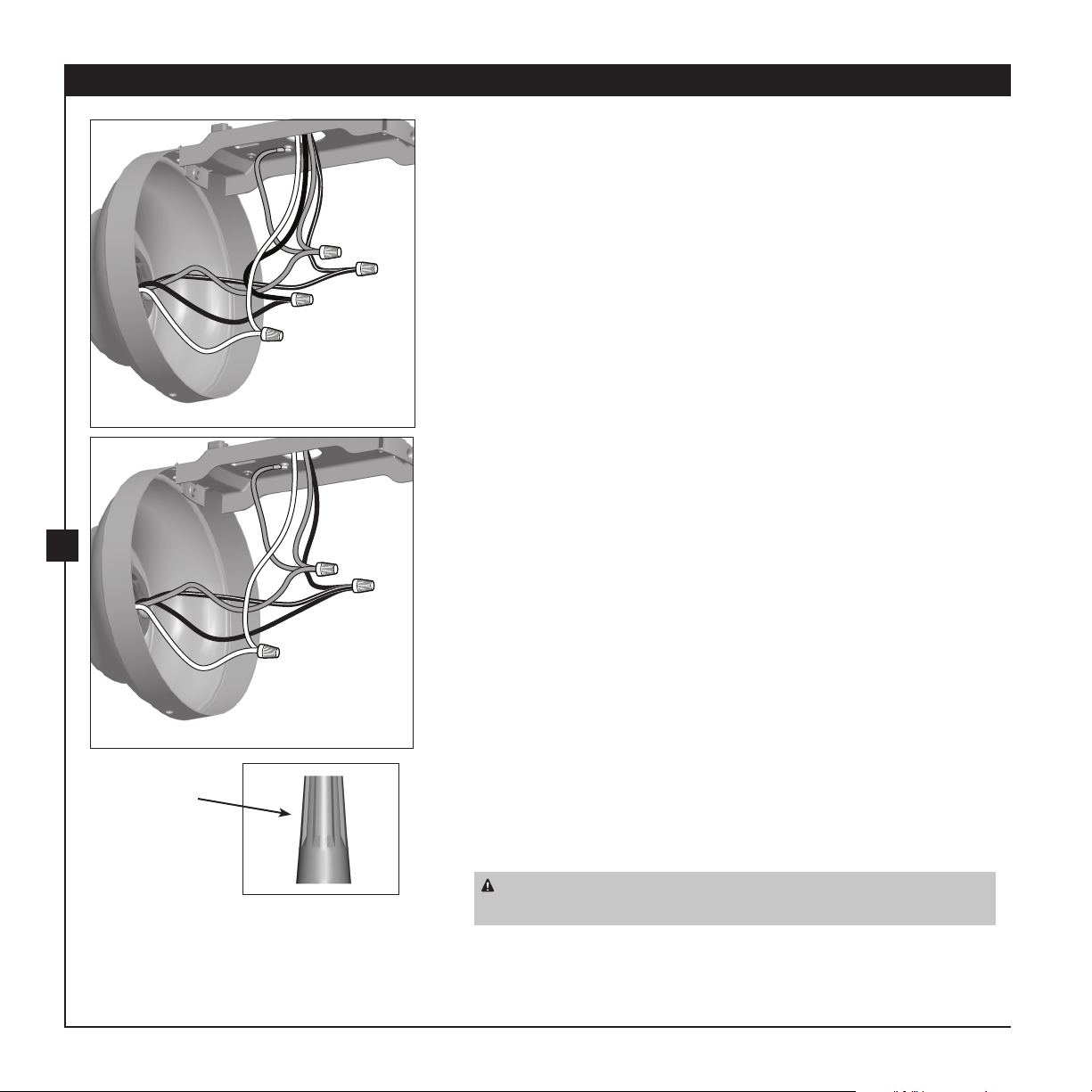

5 • Wiring the Fan
8
Step 5-3
Step 5-4
Wire Nut
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wall switches are not included. Select an acceptable general-use switch in
accordance with national and local electrical codes.
5-1. Disconnect the power by turning off the circuit breakers to the
outlet box and associated wall switch location.
5-2. Decide how you want to set up the fan and light controls. You can
control the fan and/or lights together or separately using one or two
wall switches. Follow Step 5-3 OR Step 5-4, depending on what you
decide.
5-3. If you want to, you can control the fan and light separately using two
wall switches. To do so, connect the wires as follows:
• e bare or green ground wire from the ceiling to the green
ground wire from the ceiling plate and the green ground wire
from the fan
• e white wire from the ceiling to the white wire from the fan
• e black wire from the ceiling to the black wire from the fan
• e black/white wire from the fan to the wire for the wall switch
5-4. Alternatively, you can control both fan and light with one switch. To
do so connect the wires as follows:
• e bare or green ground wire from the ceiling to the green
ground wire from the ceiling plate and the green ground wire
from the fan
• e white wire from the ceiling to the white wire from the fan
• e black wire from the ceiling to the black and the black/white
wire from the fan
5-5. To connect the wires, hold the bare metal leads together and place a
wire nut over them, then twist clockwise until tight.
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
5-6. Push all wires and wire nuts back into the ceiling plate.
Hunter Fan Company 42411-01 • 3/1/07
Page 9

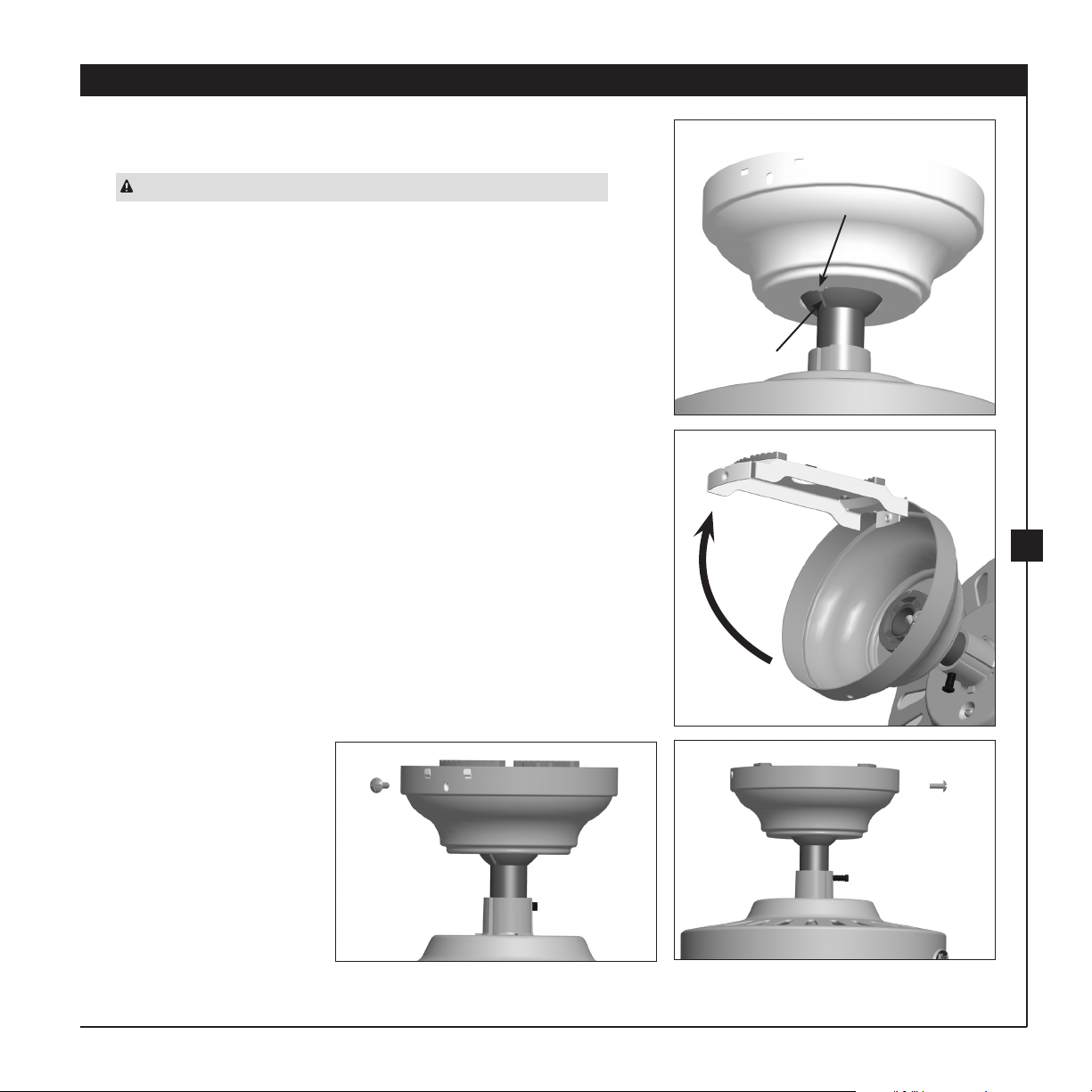

6 • Installing the Canopy
6-1. Rotate the hanger ball so the tab in the canopy is secure in the
groove in the hanger ball.
WARNING: Failure to complete this step could cause fan to fall.
6-2. Lift the fan and align the canopy screw holes with the mounting
holes on the ceiling plate.
6-3. Partially install a canopy screw into the side opposite the ceiling
plate tabs.
6-4. Partially install another canopy screw into the hole between the
two ceiling plate tabs. Securely tighten both screws.
Step 6-1
Tab
Groove
Step 6-2
9
Step 6-4
42411-01 • 3/1/07 Hunter Fan Company
Step 6-3
Page 10
7 • Assembling the Blades
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
10
Step 7-1 (Detail)
Grommet
Use with grommet
Blade Assembly
Screws
7-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
7-2. Attach each blade to a blade iron using three blade assembly
screws. If you used grommets, the blades may appear slightly loose
after screws are tightened. is is normal.
7-3. Some blade mounting screws are installed in the motor to
secure shipping blocks. Remove the blade mounting screws and
rubber bumpers from the motor. Save the screws and discard the
bumpers.
7-4. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Steps 7-1 – 7-2
Use without grommet
Blade Mounting
Screw
Step 7-4
Hunter Fan Company 42411-01 • 3/1/07
Page 11
WARNING: Use only the light fixture supplied with this fan model.
8-1. To attach the upper switch housing, partially install two housing
assembly screws into the switch housing mounting plate.
8-2. Feed the upper plug connector through the center opening of the
housing.
8-3. Align the keyhole slots in the housing with the housing assembly
screws.
8-4. Turn the housing counterclockwise until the housing assembly
screws are firmly situated in the narrow end of the keyhole slots.
Install the remaining housing assembly screw into the housing.
Tighten all three screws firmly.
CAUTION: Make sure the upper switch housing is securely attached
to the switch housing mounting plate. Failure to properly attach and
tighten all three assembly screws could result in the switch housing and
light fixture falling.
8-5. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
8 • Installing the Light Kit
Steps 8-1 – 8-3
Housing
Assembly
Screw
Upper
Switch
Housing
Plug
Connector
11
Note: Both plug connectors are polarized and will only fit together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
8-6. Place the lower switch housing assembly over the upper switch
housing. Align the side screw holes in the upper and lower switch
housings. Attach the lower switch housing to the upper switch
housing with three housing assembly screws.
42411-01 • 3/1/07 Hunter Fan Company
Steps 8-5 – 8-6
Lower Switch
Housing
Housing
Assembly Screw
Plug
Connector
Detail
Page 12
8 • Installing the Light Kit (Continued)
12
8-7. To install the glass shades. Place the silencer band around the neck
of each glass shade. Insert each glass shade in a shade cup.
8-8. Install and tighten the three thumb screws. Do not overtighten.
8-9. Install candelabra light bulbs (60 watt maximum each).
Shade Cup
Silencer Band
Glass Shade
Step 8-7 – 8-8
umb
Screw
Hunter Fan Company 42411-01 • 3/1/07
Page 13
9 • Operating and Cleaning Your Ceiling Fan
9-1. Turn on electrical power to the fan.
9-2. e fan pull chain controls power to the fan. e pull chain has
four settings in sequence: High, Medium, Low and Off.
• Pull the chain slowly to change settings.
• Release slowly to prevent the chain from recoiling into the
blades.
• e chain uses a breakaway connector that separates if the
chain is jerked. If this happens, simply reinsert the chain into
the connector.
9-3. e light pull chain controls power to the light. e pull chain has
two settings: On and Off.
9-4. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In cold weather, having the fan draw air upward (clockwise
blade rotation) will distribute the warmer air trapped at the
ceiling around the room without causing a draft.
9-5. For cleaning finishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust using
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents as they will
damage the finish.
9-6. Clean wood finish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan finish.

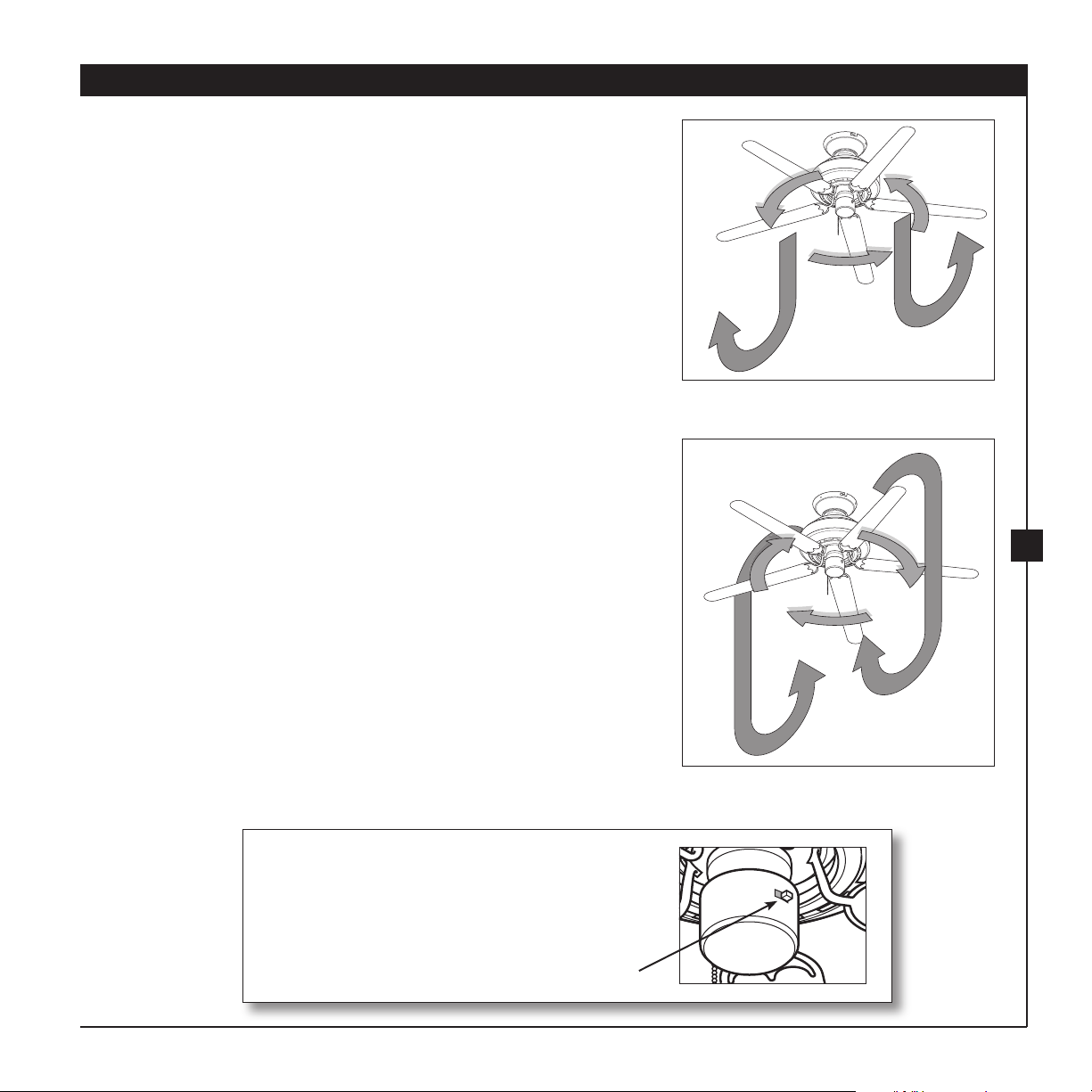

To Change Airflow Direction
Turn the fan off and let it come to a complete
stop. Slide the reversing switch on the fan to the
opposite position. Restart fan.
Reversing
Switch
In warm weather, use
downward air flow pattern
13
In cold weather, use upward
air flow pattern
42411-01 • 3/1/07 Hunter Fan Company
Page 14
10 • Troubleshooting
14
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch firmly left or right to ensure that the
switch is engaged.
5. Pull the pull chain to ensure it is on.
6. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade bracket screws until snug.
2. Tighten the blade screws until snug.
3. Check to see if the blade is cracked. If so, replace all the blades.
4. Change to an approved speed control.
5. Be sure that the glass is secure.
6. Check and tighten the screws in the switch housing mounting
plate and in the upper and lower switch housing.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade and/or blade iron screws.
3. Turn power off, support fan very carefully, and check that the
hanger ball is properly seated.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
2500 Frisco Avenue
Memphis, Tennessee 38114
Hunter Fan Company 42411-01 • 3/1/07
Loading...
