Welcome
© 2004 Hunter Fan Company
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
• Read this entire manual carefully before beginning installation. Save
these instructions.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
For Your Records and Warranty
Assistance
Model Name: _____________________
Catalog/Model No.: ________________
Serial No.: _______________________
Date Purchased: ___________________
Where Purchased: _________________
For reference also attach your receipt or a
copy of your receipt to the manual.
Table of Contents
1 • Getting Ready ................................................... 4
2 • Installing the Hanger Bracket................... 5
3 • Assembling and Hanging the Fan..........6
4 • Wiring the Fan.................................................. 7
5 • Installing the Canopy.................................... 8
6 • Assembling the Blades ................................. 9
7 • Installing the Switch Housing................ 10
8 • Operating and Cleaning
Your Ceiling Fan ........................................... 11
9 • Troubleshooting ........................................... 12
3
42008-01 • 12/07/05 Hunter Fan Company
Mounting and Optional Accessories
Understanding Mounting
Hunter’s patented mounting system provides you maximum
installation exibility and ease. You can install your Hunter fan in
one of two ways, depending on your preference: Standard or Angle
mounting. e steps in this manual include instructions for both
mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
Standard Mounting hangs from
the ceiling by a downrod (included),
recommended for ceilings 8 feet or higher
Angle Mounting recommended for a
vaulted or angled ceiling
For ceilings higher than 8 feet, you
can purchase Hunter extension
downrods. All Hunter fans use sturdy
3/4” diameter pipe to assure stability
and wobble-free performance.
4
Hunter Fan Company 42008-01 • 12/07/05
5
42008-01 • 12/07/05 Hunter Fan Company
1 • Getting Ready
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver
• Phillips-head screwdriver
• Wrench or pliers
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Check
for any shipping damage to the motor or fan blades. If one of the fan
blades was damaged in shipment, return all the blades for replacement.
If any parts are missing or damaged, contact your Hunter dealer or call
Hunter Parts Department at 888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum e ciency, and energy savings.
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades in
sets, as they were shipped.
5
42008-01 • 12/07/05 Hunter Fan Company
2 • Installing the Hanger Bracket
2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
2-2. Align the slotted holes in the hanger bracket with the pilot holes
you drilled in the wood support structure. For proper alignment
use slotted holes directly across from each other. If you are
installing the fan on an angled ceiling, be sure to orient the hanger
bracket with the large opening towards the ceiling peak.
2-3. Use an indelible marker to mark the exact location of the pilot
holes relative to the slots on the hanger bracket. Remove the
hanger bracket.
2-4. Partially install two canopy screws (about 2 full turns) in the
hanger bracket.
2-5. Place the ceiling gasket over the hanger bracket so that the slots
and the raised surfaces on the ceiling gasket align with the slots
and holes on the hanger bracket.
2-6. Use a 3” screw to pierce two holes in the ceiling gasket that match
the pilot holes you drilled in step 2-1. Use the marks on the hanger
bracket from step 2-3 as your guide.
2-7. read the lead wires from the outlet box down through the hole
in the middle of the ceiling gasket and hanger bracket.
Note: e ceiling gasket should be ush against the ceiling.
2-8. Place a at washer on each of the two 3 ” screws and pass the
screws through the ceiling gasket and hanger bracket into the
pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not
use lubricants on the screws. Do not over tighten.
Flat Washer
3” Screw
Steps 2-2 – 2-4
For Angled Ceilings: Be sure to orient
the hanger bracket with the large
opening towards the ceiling peak.
Step 2-3 (Angled Ceiling Only)
Hanger
Bracket
Ceiling
Gasket
Canopy
Screw
6
Hunter Fan Company 42008-01 • 12/07/05
7
42008-01 • 12/07/05 Hunter Fan Company

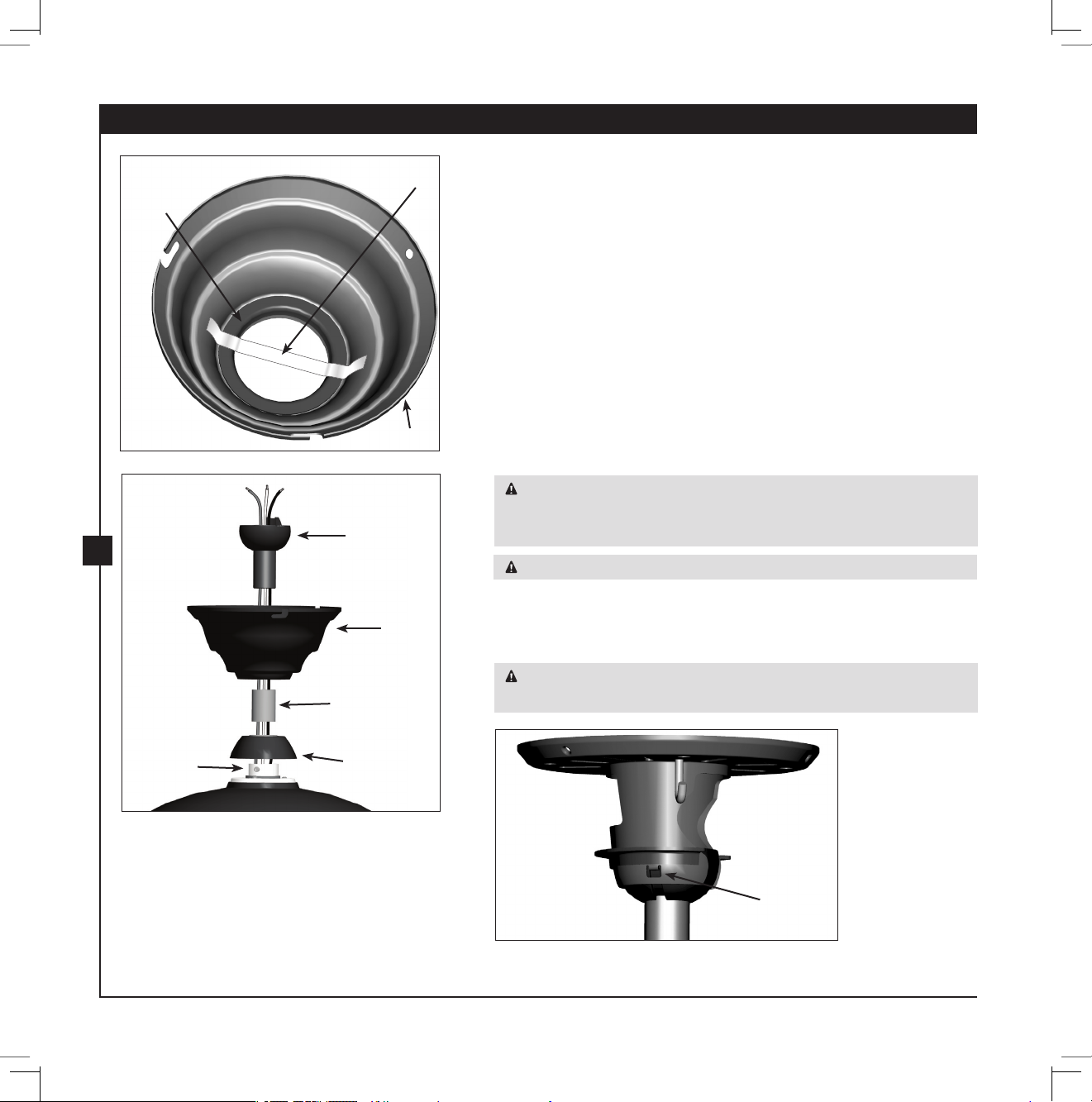

3 • Assembling and Hanging the Fan
You can assemble your fan for standard or angle mounting as shown
in steps 3-1 – 3-7.
3-1. Remove the label from the standard mounting washer inside the
canopy. Leave the washer in place.
3-2. To assemble the fan to hang down from a at or angled ceiling,
insert the downrod through the canopy.
3-3. Feed the wires from the fan through the downrod.
3-4. Screw the downrod into the fan assembly.
3-5. Using the provided allen wrench, loosen the allen head set screw
on the adapter to install the pipe and ball assembly. Note: When
the pipe and ball assembly is fully installed, 2-3 threads on the
pipe will still be visible; this is normal. Securely retighten the set
screw with the allen wrench.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
WARNING: Do not carry or lift fan by canopy.
3-6. Raise the fan and place the ball into the hanger bracket.
3-7. Align the notch on the ball with the indent in the hanger bracket.
(Rotate the fan until you hear the notch pop into place.)
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
Steps 3-2 – 3-5
Downrod
Canopy
(with Washer)
Set Screw
Canopy
Standard
Mounting
Washer
Step 3-1
Label
Steps 3-6 – 3-7
Indent
Adapter
Cover
Hanger Pipe
Sleeve
7
42008-01 • 12/07/05 Hunter Fan Company
4 • Wiring the Fan
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
Wall switches are not included. Select an acceptable general-use switch in
accordance with national and local electrical codes.
4-1. Disconnect the power by turning o the circuit breakers to the outlet
box and associated wall switch location.
4-2. Decide how you want to set up the fan and light controls. You can
control the fan and/or lights together or separately using one or two
wall switches. Follow Step 4-3 OR Step 4-4, depending on what you
decide.
Note: If you are not installing a light kit, follow step 4-4.
4-3. If you want to, you can control the fan and light separately using two
wall switches, connect the wires as follows:
• e bare or green ground wire from the ceiling to the green
ground wire from the hanger bracket and the green ground wire
from the fan
• e white wire from the ceiling to the white wire from the fan
• e black wire from the ceiling to the black wire from the fan
• e black/white wire from the fan to the wire for the wall switch
4-4. Alternatively, you can control both fan and light with one switch. To
do so connect the wires as follows:
• e bare or green ground wire from the ceiling to the green
ground wire from the hanger bracket and the green ground wire
from the fan
• e white wire from the ceiling to the white wire from the fan
• e black wire from the ceiling to the black and the black/white
wire from the fan
4-5. To connect the wires, hold the bare metal leads together and place a
wire nut over them, then twist clockwise until tight.
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
4-6. Push all wires and wire nuts back into the hanger bracket.
Wire Nut
Step 4-3
Step 4-4
8
Hunter Fan Company 42008-01 • 12/07/05
9
42008-01 • 12/07/05 Hunter Fan Company
Note: To adjust the canopy screws in steps 5-1 – 5-3, you will need to
reach under and pull up the rim of the ceiling gasket.
5-1. Raise the canopy over the hanger bracket. Align partially installed
screws with key slots in canopy.
5-2. Twist canopy clockwise to secure.
5-3. Install third canopy screw in round hole on canopy. Securely
tighten all three screws.
Steps 5-1 – 5-2
Canopy
Hanger Bracket
Step 5-3
5 • Installing the Canopy
9
42008-01 • 12/07/05 Hunter Fan Company
6 • Assembling the Blades
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
6-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
6-2. Attach each blade to a blade iron using three blade assembly
screws. If you used grommets, the blades may appear slightly loose
after screws are tightened. is is normal.
6-3. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Step 6-1 (Detail)
Blade Assembly
Screws
Use with grommet
Use without grommet
Grommet
Blade
Mounting
Screw
Steps 6-1 – 6-2
Step 6-3
10
Hunter Fan Company 42008-01 • 12/07/05
11
42008-01 • 12/07/05 Hunter Fan Company
7 • Installing the Switch Housing
7-1. Align the holes on the blade iron cover and gasket and stick two
screws through two of the holes.
7-2. read the plug connector from the mounting plate through
the gasket and cover. Partially install the gasket and cover to the
mounting plate with the two screws.
7-3. Place the upper switch housing over the two screws and turn
counterclockwise so that the screws t securely in the slots.
7-4. Partially install the third screw and then tighten all three screws
securely.
7-5. Connect the upper plug connector from the motor to the lower
plug connector in the switch housing assembly.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
7-6. To attach the lower switch housing, thread the thumb screws
through the side holes of the upper switch housing and tighten
them securely.
Note: You can customize
your Hunter fan with a
number of accessory light
kits.
umbscrew
Steps 7-1 – 7-2
Step 7-3
Step 7-4
Blade
Iron Cover
Gasket
Note: If you are installing a light xture, do NOT install the
switch housing without rst referring to the instructions
included with the light xture.
Steps 7-5 – 7-6
11
42008-01 • 12/07/05 Hunter Fan Company
8 • Operating and Cleaning Your Ceiling Fan
8-1. Turn on electrical power to the fan.
8-2. e fan pull chain controls power to the fan. e pull chain has
four settings in sequence: High, Medium, Low and O.
• Pull the chain slowly to change settings.
• Release slowly to prevent the chain from recoiling into the
blades.
• e chain uses a breakaway connector that separates if the
chain is jerked. If this happens, simply reinsert the chain into
the connector.
8-3. To change airow direction, turn the fan o and let it come to
a complete stop. Pull the reversing pullchain one time and then
restart the fan.
Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In winter, having the fan draw air upward (clockwise blade
rotation) will distribute the warmer air trapped at the ceiling
around the room without causing a draft.
8-4. For cleaning nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust using
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents as they will
damage the nish.
8-5. Clean wood nish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan nish.
In warm weather, use
downward air ow pattern
In cold weather, use upward
air ow pattern
12
Hunter Fan Company 42008-01 • 12/07/05
9 • Troubleshooting
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Pull the pull chain to ensure it is on.
5. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade bracket screws until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade iron screws.
3. Turn power o , support fan very carefully, and check that the
hanger ball is properly seated.
If you need parts or service assistance, please call
888-830-1326 or visit us at our WEB site at
http://www.hunterfan.com.
Hunter Fan Company
2500 Frisco Avenue
Memphis, Tennessee 38114
Loading...
