Yo ur new Hunter® ceiling fan is an addition to your home or office that will provide comfort and performance for many years. This installation and operation manual gives you complete instructions for installing and operating your fan. We are proud of our work. We appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world. Before installing your fan, record the following information for your records and warranty assistance. Please refer to the carton and the Hunter nameplate label (located on the top of the fan motor housing) for the proper information. Model Name: __________________________ Catalog/Model No.: ______________ Serial No.: _____________________ Date Purchased: ___ / ___ / ______ Where Purchased: _______________________________ Please also attach your receipt or a copy of your receipt for reference.

cautions and warnings

• Read entire booklet carefully before beginning installation. Save these instructions.

•Use only Hunter replacement parts.

•To reduce the risk of personal injury, attach the fan directly to the support structure of the building according to these instructions, and use only the hardware supplied.

•To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wallswitch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

•All wiring must be in accordance with national and local electrical codes and ANSI/NFPA 70. If you are unfamiliar with wiring, you should use a qualified electrician.

•To reduce the risk of personal injury, do not bend the blade attachment system when installing, balancing, or cleaning the fan. Never insert foreign objects between rotating fan blades.

•To reduce the risk of fire, electrical shock, or motor damage, do not use a solid-state speed control with this fan. Use only Hunter speed controls.

getting ready

To install a ceiling fan, be sure you can do the following:

•Locate the ceiling joist or other suitable support in ceiling.

•Drill holes for and install wood screws.

•Identify and connect electrical wires.

•Lift 40 pounds. If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician.

gathering the tools

Yo u will need the following tools for installing the fan:

•Electric drill with 9/64" bit

•Standard screwdriver

•Phillips-head screwdriver

•Wrench or pliers

considering optional accessories

Consider using Hunter’s optional accessories, including a wallmounted or remote speed control. To install and use the accessories, follow the instructions included with each product. For quiet and optimum performance of your Hunter fan, use only Hunter speed controls.

checking your fan parts

Carefully unpack your fan to avoid damage to the fan parts. Check for any shipping damage to the motor or fan blades. If one of the fan blades was damaged in shipment, return all the blades for replacement. NOTE: If you are installing more than one fan, keep the fan blades in sets, as they were shipped. If any parts are missing or damaged, contact your Hunter dealer or call Hunter Parts Department at 888-830-1326.

choosing your mounting position

You can install your Hunter fan in one of two ways. The steps in this manual include specific instructions for the fan mounting method of your choice. Standard Mounting (Figure 1) hangs from the ceiling by a downrod (included), for ceilings 8 feet or higher. For ceilings higher than 8 feet, you can purchase Hunter extension downrods. All Hunter fans use sturdy 3/4" diameter pipe to assure stability and wobblefree performance.

12”

Figure 1 - Standard mounting

41892-01_Rev 03.17.05.pmd 3/18/05, 8:44 PM2

Page 3

Angle Mounting (Figure 2) hangs from a vaulted or angled ceiling.

34º Max

Pitch 12

Figure 2 - Angle mounting

preparing the fan site

These guidelines are designed to help you select the best location for your fan and to prepare the site prior to installing the fan. Proper ceiling fan location and attachment to the building structure are essential for safety, reliable operation, maximum efficiency, and energy savings.

choosing the fan site

Within the room where you want to install the fan, choose a fan site where:

•No object can come in contact with the rotating fan blades during normal operation.

•The fan blades are at least 7 feet above the floor and the ceiling is at least 8 feet high.

•The fan blades have no obstructions to air flow, such as walls or posts, within 30 inches of the fan blade tips.

•The fan is directly below a joist or support brace that will hold the outlet box and the full weight of the fan.

See Figure 3 for the minimum mounting distances.

using an existing fan site

If you are preparing a new fan site, go to the preparing a new fan site section.

If you plan to use an existing fan site, complete the following checklist for the support brace, ceiling hole, outlet box, and wiring. If you cannot check off every item, see the preparing a new fan site section for instructions on properly preparing the site for your new fan.

fan support system

•Fan must attach directly to building structure.

•Fan support system must hold full weight of fan and light kit.

ceiling hole

•Outlet box clearance hole directly below the joist or support brace.

outlet box

•UL- approved octagonal 4" x 1-1/2" outlet box (or as specified by the support brace manufacturer).

•Outlet box secured to joist or support brace by wood screws and washers through inner holes of outlet box.

•Outer holes of outlet box aligned with joist or support brace.

•Bottom of outlet box recessed a minimum of 1/16" into ceiling.

wiring

•Electrical cable secured to outlet box by approved connector.

•Six inches of lead wires extend from outlet box.

See Figure 4 for an adequate existing fan site.

Support Brace

Ceiling Joist

Approved Connector

8’ Minimum Ceiling Height

7’ Minimum to Floor

30” From Wall or Nearest Obstruction

If your existing fan site is suitable, go to the installing the ceiling

Wash er

Wood Screw

Figure 4 - Adequate existing fan site

Outlet Box

Ceiling

plate section and begin installing your new Hunter fan.

preparing a new fan site

Figure 3 - Minimum mounting distances

41892-01_Rev 03.17.05.pmd 3/18/05, 8:44 PM3

To pre pare the fan site follow four steps:

•Cutting the Ceiling Hole

•Installing the Support Brace (if necessary)

•Installing the Outlet Box

•Preparing the Wiring

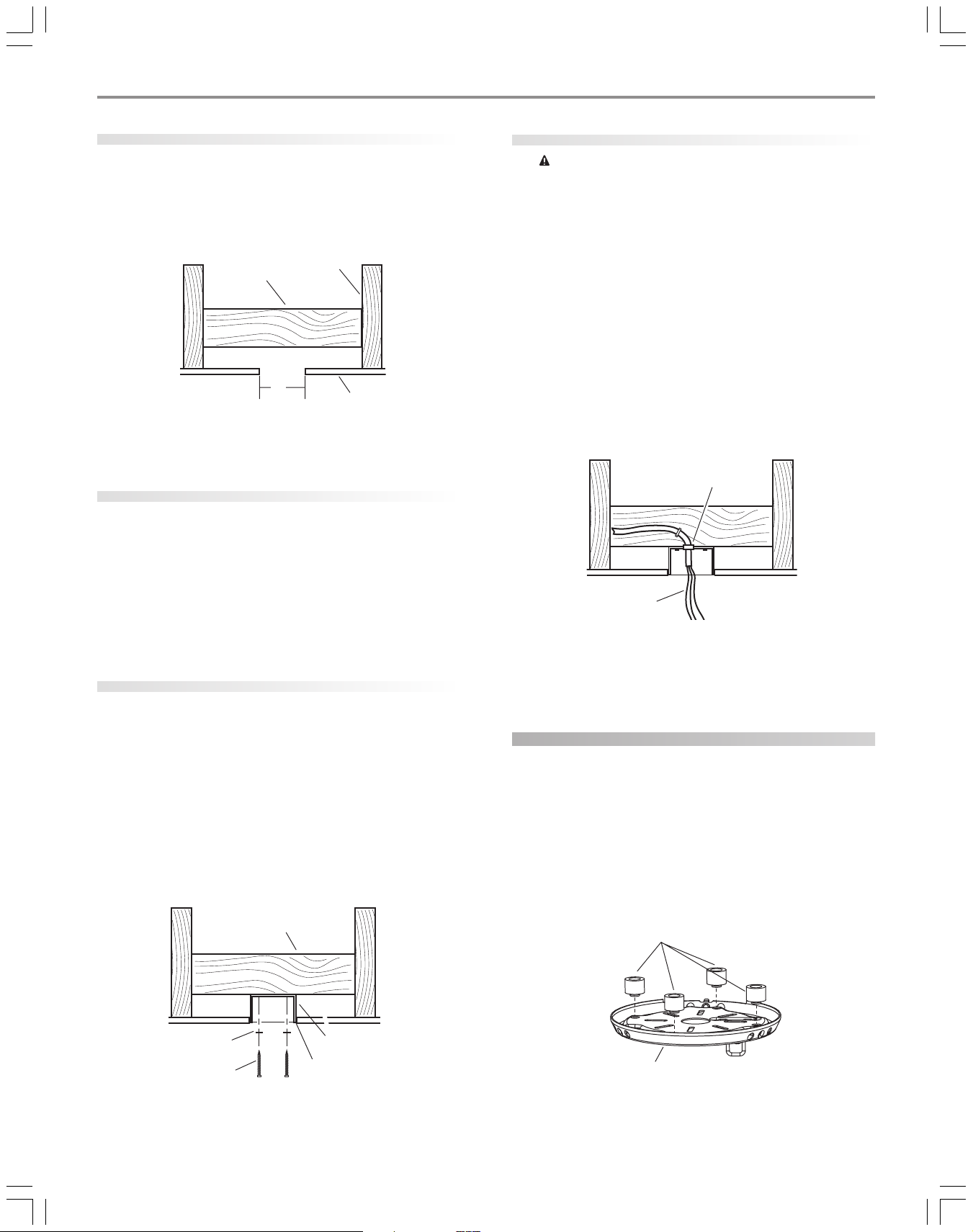

Page 4

cutting the ceiling hole

1. Locate the site for the hole directly below the joist or support brace that will hold the outlet box and fan.

2. Cut a 4" diameter hole through the drywall or plaster of the ceiling as shown in Figure 5. You will use the hole to install the support brace and outlet box.

Support Brace

Figure 5 - Cutting the ceiling hole

Ceiling Joist

4” Diameter Ceiling Hole

Ceiling

installing the support brace

If there is a ceiling joist directly above the hole which will allow the outlet box to be recessed a minimum of 1/16" in the ceiling, go to installing the outlet box section. If there is not an adequate ceiling joist available, do the following:

1. Attach a 2" x 4" support brace between two joists. The support brace must allow the bottom of the outlet box to be recessed a minimum of 1/16" into the ceiling. See Figure 6.

2. Check the support brace to ensure it will support the full weight of the fan and light kit.

installing the outlet box

1. Obtain a UL-approved octagonal 4" x 1-1/2" outlet box, plus two #8 x 1-1/2" wood screws and washers, available from any hardware store or electrical supply house.

2. Orient the outlet box so that both the inner and outer holes in the box align with the joist or support brace.

3. Drill pilot holes no larger than the minor diameter of the wood screws (5/64") through the inner holes of the outlet box.

4. Attach the outlet box directly to the support brace or joist with two #8 x 1-1/2" wood screws and washers. The bottom of the outlet box must be recessed a minimum of 1/16" into the ceiling as shown in Figure 6.

Support Brace

preparing the wiring

CAUTION: All wiring must be in accordance with national and local electrical codes and ANSI/NFPA 70. If you are unfamiliar with wiring, you should use a qualified electrician.

1. Make sure the circuit breakers to the fan supply line leads and associated wall switch location are turned off. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

2. Thread the fan supply line through the outlet box so that the fan supply line extends at least 6" beyond the box as shown in Figure 7.

3. Attach the fan supply line to the outlet box with an approved connector, available at any hardware store or electrical supply house. Refer to Figure 7.

4. Make certain the wiring meets all national and local standards and ANSI/NFPA 70.

Approved Connector

Wire Leads

Figure 7 - Preparing the wiring

Yo u have now successfully prepared your ceiling fan site. For instructions on how to install your ceiling fan, continue with the in- stalling the ceiling plate section.

installing the ceiling plate

1. Drill two pilot holes into the wood support structure through the outermost holes on the outlet box. The pilot holes should be 9/64" in diameter.

2. Thread the lead wires from the outlet box through the hole in the middle of the ceiling plate.

3. Your fan comes with four neoprene noise isolators. Position the isolators between the ceiling plate and ceiling by inserting the raised areas on each isolator into the holes in the ceiling plate. Refer to Figure 8.

Isolators

Washer

Wood Screw

Figure 6 - Installing the outlet box

41892-01_Rev 03.17.05.pmd 3/18/05, 8:44 PM4

Outlet Box

1/16” Recess

Ceiling Plate

Figure 8 - Inserting the isolators into the ceiling plate

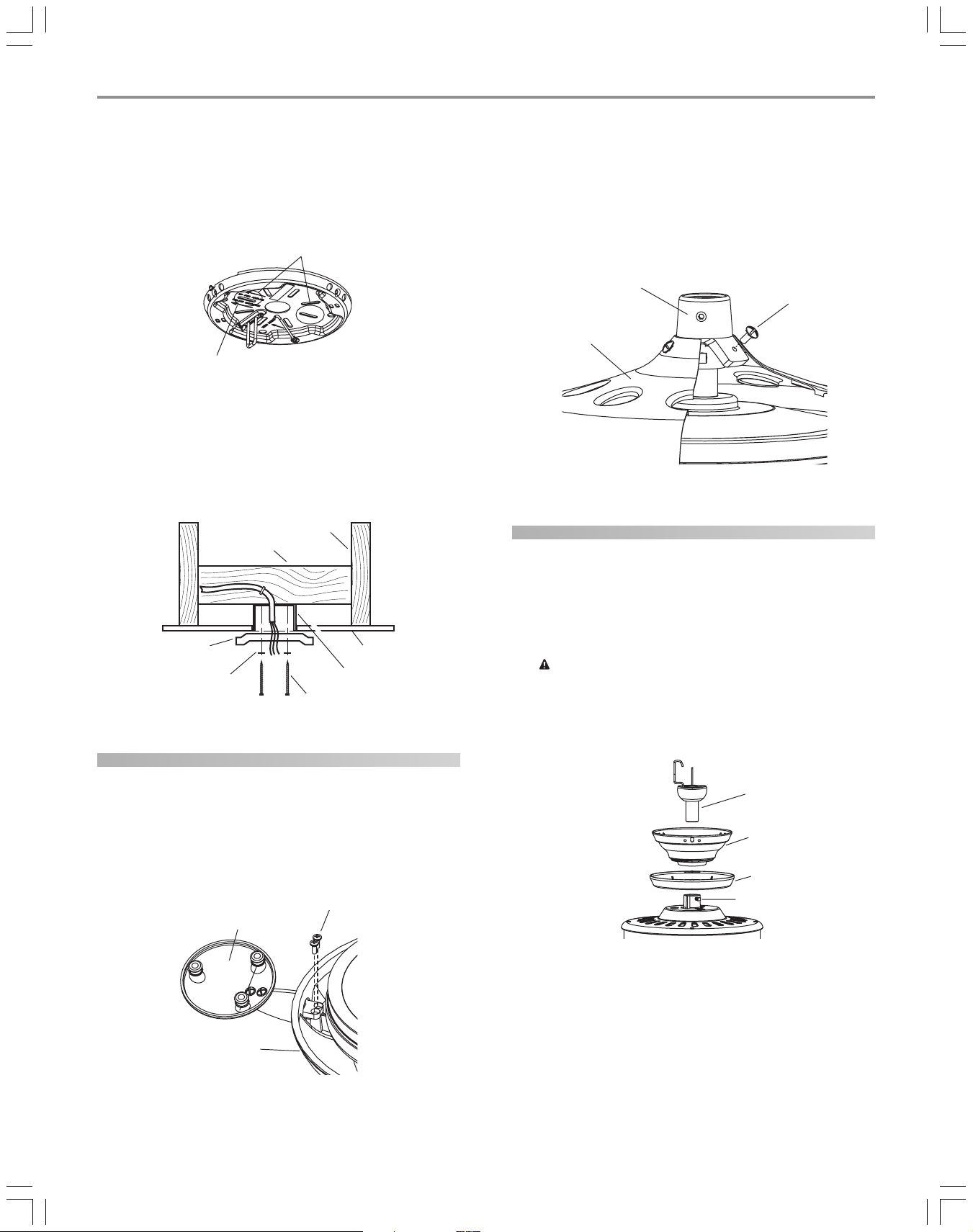

Page 5

4. Align the slotted holes (refer to Figure 9) in the ceiling plate with the pilot holes in the wood support structure. Note: The isolation pads should be flush against the ceiling. For Angled Ceilings: Be sure to orient the ceiling plate so that the arrows on the ceiling plate are pointing towards the ceiling peak. Refer to Figure 9.

Slots

Arrows for Orienting on Angled Ceiling

Figure 9 - Locating the slotted holes to use

5. Place a flat washer on each of the two 3" screws and pass the screws through the slotted holes in the ceiling plate as shown in Figure 10.

6. Tighten the screws into the 9/64" pilot holes; do not use lubricants on the screws. Do not overtighten.

Ceiling Joist

2 x 4 Brace

Ceiling Plate

Flat Washer

Figure 10 - Installing the ceiling plate

Ceiling

Outlet Box

3” Wood Screw

4. Place the upper motor housing over the adapter as shown in Figure 12. Align the holes in the upper motor housing with the holes in the adapter.

5. Partially install the three motor housing screws. NOTE: Make sure the gap between the upper and lower motor housing is even all the way around.

6. Securely tighten all three motor housing screws. Refer to Figure 12.

Adapter

Upper Motor Housing

Figure 12 - Assembling the upper motor housing

Motor Housing Screw

assembling the fan

1. Insert the downrod through the canopy and canopy trim ring as shown in Figure 13. Feed wires from the fan through the downrod.

2. Screw the downrod into the fan assembly until tight. IMPORTANT! Tighten allen head set screw as shown in Figure 13 with the included allen wrench.

CAUTION: The downrod has a special coating on the threads. Do not remove this coating; the coating prevents the downrod from unscrewing. Once assembled, do not remove the downrod.

assembling the blade irons

1. Use the styrofoam packaging to support the motor housing while assembling the blade irons.

2. Place the blade bracket through the hole in the side of the lower motor housing. Refer to Figure 11.

3. Install the two blade bracket screws as shown in Figure 11.

Blade

Blade Bracket

Lower Motor Housing

Figure 11 - Installing the blade brackets

Bracket Screws

Figure 13 - Assembling the downrod

Hanger Ball/ Downrod Assembly

Canopy

Canopy Trim Ring

Allen Head Set Screw

41892-01_Rev 03.17.05.pmd 3/18/05, 8:44 PM5

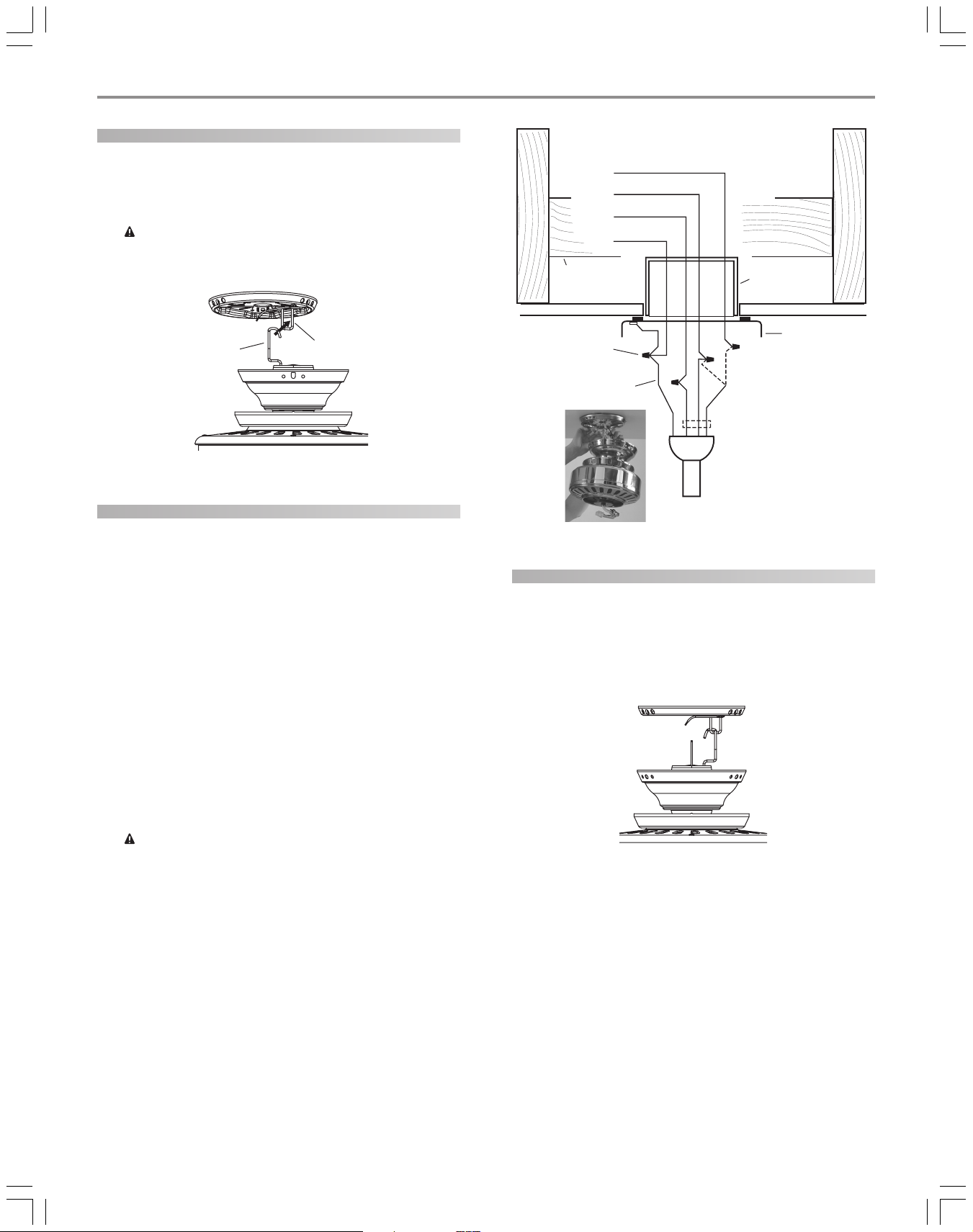

Page 6

hanging the fan

1. Raise the fan and place the hook through the loop on the ceiling plate as shown in Figure 14. Use the note and arrow engraved in the ceiling plate to assist in determining the direction to assemble.

WARNING: Fan may fall if not assembled as directed in

these installation instructions.

Hook

Figure 14 - Hanging the fan

Loop

wiring the fan

1. Disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location.

2. You can use either one or two wall switches to control the fan and/or lights separately. Use connection 1, as described in Figure 15, to

•control the light with a wall switch and the fan with a pull

chain (one wall switch required),

•control the light with a pull chain and the fan with a wall

switch (one wall switch required), or

•control the light with one wall switch and the fan with

another (two wall switches required). Use connection 2, as described in Figure 15, if there is no separate wall switch power wire for the light fixture. NOTE: Wall switches not included.

3. Connect the wires as shown in Figure 15. To connect the wires, twist the bare metal leads together. Place a wire nut over the intertwined length of wire and twist clockwise until tight as.

CAUTION: Be sure no bare wire or wire strands are visible after making connections. All wiring must be in accordance with national and local electrical codes and ANSI/NFPA 70. If you are unfamiliar with wiring, you should use a qualified electrician.

(Note: Wall

Blk/Wht

3 Wires from Fan

switch must be acceptable as a general-use switch.)

Outlet Box

Ceiling Plate

Connections:

1. Connect Blk/Wht wire from the fan to the wall switch for separate control of the light fixture, or

2. Connect Blk/Wht wire from the fan to the ceiling black wire if there is no separate wall switch wire for the light fixture.

Wall Switch Wire for Separate Control of Light Fixture

Power Wires in Ceiling

2 x 4 Brace

Approved Connectors

Green Ground Wire from Hanger Pipe (not present with flush mounting option)

Black

White

Bare or Green

Black

White

Figure 15 - Wiring the fan

installing the canopy

1. Rotate the fan 180º clockwise from the initial position when hanging the fan. The arrows on the hanger ball and on the ceiling plate should be pointing in the same direction and should be pointing towards the tab hole on the canopy. Refer to Figure 16.

Figure 16 - Rotating the fan

41892-01_Rev 03.17.05.pmd 3/18/05, 8:44 PM6

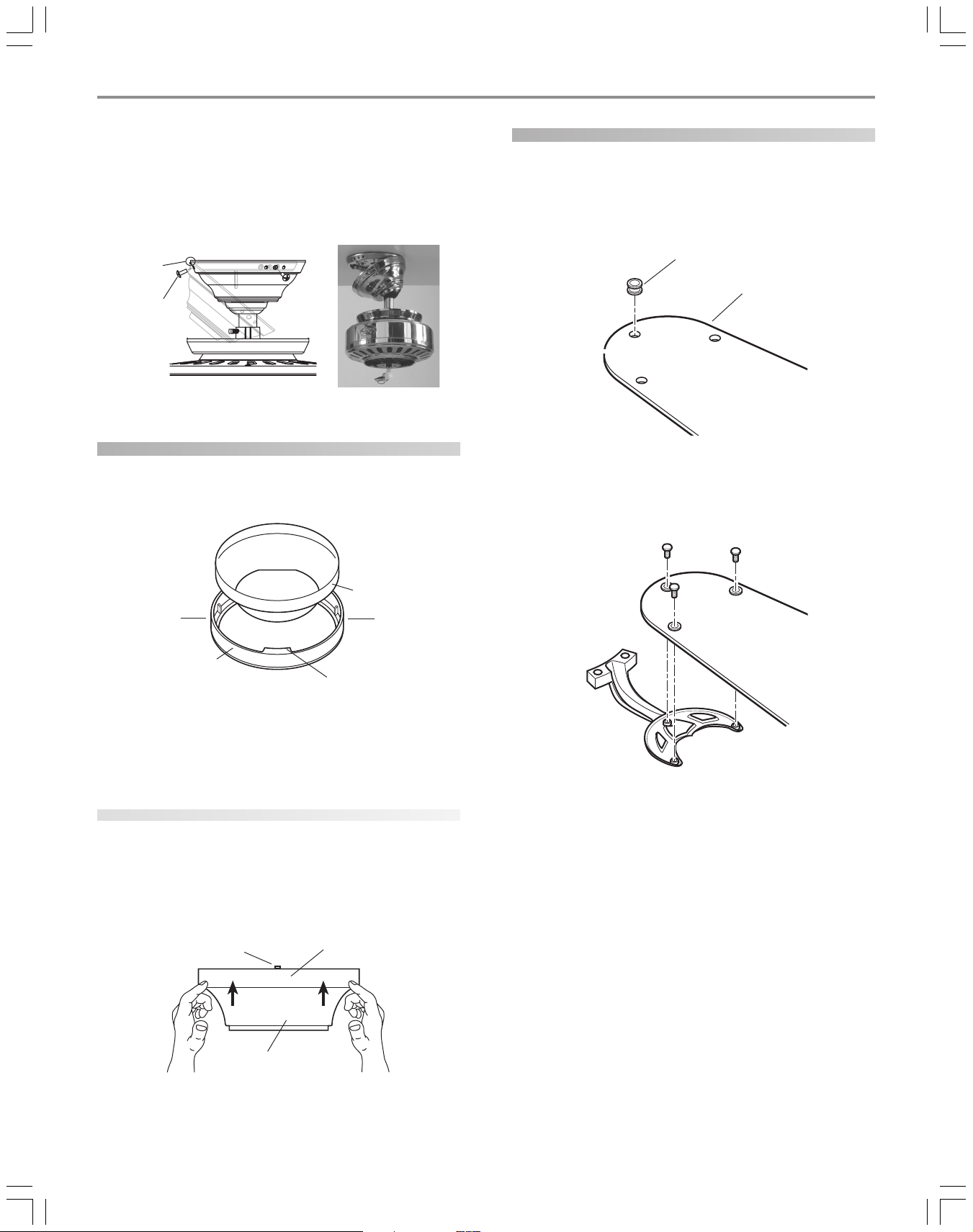

Page 7

2. Hook the tab hole over the tab on the ceiling plate as shown in Figure 17.

3. Raise the canopy, be sure the holes in the canopy and the ceiling plate are aligned, and loosely assemble the canopy screws one at a time. When all three screws are assembled, securely tighten all three canopy screws. Refer to Figure 17.

Tab H ole and Tab

Canopy Screw

Figure 17 - Installing the canopy

installing the canopy trim ring

1. To easily install the canopy trim ring, locate the two tabs on the canopy trim ring. See Figure 18.

assembling the blades

Hunter fans use several styles of fan blade irons (brackets that hold the blade to the fan).

1. Your fan may include blade grommets. If your fan has grommets, insert them by hand into the holes on the blades as shown in Figure 20.

Grommet

Fan Blade

Figure 20 - Inserting the grommets into the fan blades

2. Attach each blade to blade iron using three blade assembly screws as shown in Figure 21.

Canopy

Press Here when Removing

Canopy Trim Ring

Figure 18 - Canopy trim ring

Press Here when Removing

Tab

2. Take both hands and push the canopy trim ring up to the top of the canopy. See Figure 18.

3. The canopy trim ring will snap and lock into place on the canopy.

removing the canopy trim ring

1. Locate the tab indicators, small bumps on top of tabs. Refer to Figure 19.

2. To remove the canopy trim ring, press firmly on opposite sides of the ring towards the canopy as shown in Figure 19. The tabs will flex out releasing the trim ring from the canopy.

Tab I ndicator

Canopy Trim Ring

Figure 21 - Attaching the blade to the blade iron

Canopy

Figure 19 - Removing the canopy trim ring

41892-01_Rev 03.17.05.pmd 3/18/05, 8:44 PM7

Page 8

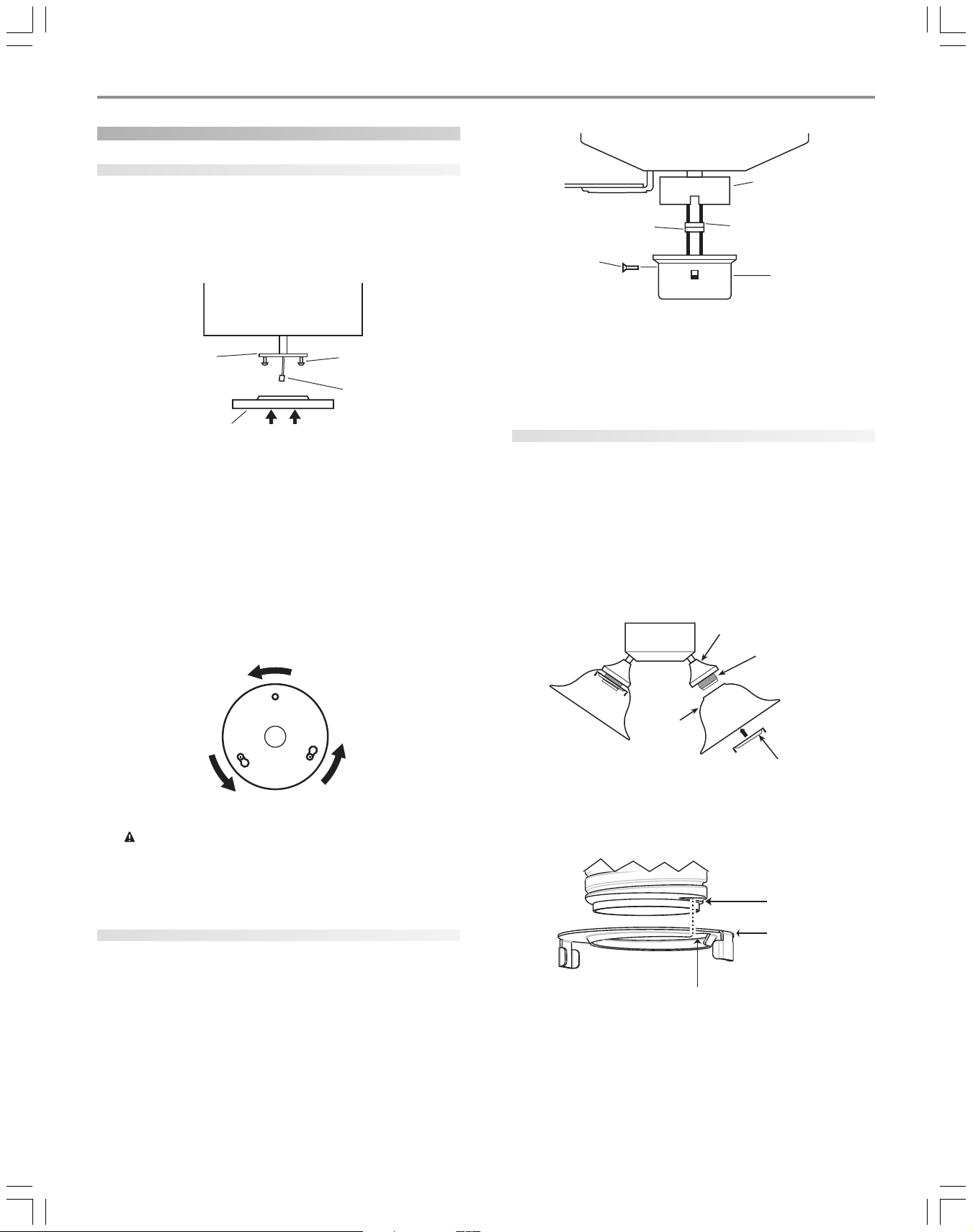

installing the switch housing

attaching the upper switch housing

1. Partially install two #6-32 x 3/8" housing assembly screws into the switch housing mounting plate as shown in Figure 22.

2. Feed the upper plug connector through the center opening of the upper switch housing. See Figure 22.

Switch Housing Mounting Plate

Upper Switch Housing

Figure 22 - Attaching the upper

switch housing to the mounting plate

3. Align the keyhole slots in the upper switch housing with the housing assembly screws installed previously.

4. Turn the upper switch housing counterclockwise until the housing assembly screws are firmly situated in the narrow end of the keyhole slots as shown in Figure 23. Install the one remaining #6-32 x 3/8" housing assembly screw into the third hole in the upper switch housing. Tighten all three screws firmly.

Housing Assembly Screw

Upper Plug Connector

Upper Switch Housing

Lower Plug Connector

Housing Assembly Screw

Figure 24 - Connecting the plug connectors

Upper Plug Connector

Lower Switch Housing

2. Place the lower switch housing assembly over the upper switch housing. Align the side screw holes in the upper and lower switch housings. Attach the lower switch housing to the upper switch housing with three #6-32 x 3/8" housing assembly screws. See Figure 24.

installing the glass shades and bulbs

Refer to Figures 25 and 26.

1. Place globe over threaded lampholder in cup.

2. Install and hand tighten threaded locking ring on lampholder. NOTE: As shown in Figure 1b, line up the beginning of the first thread on the lamp holder and notch on the locking ring to avoid cross threading the ring. If ring becomes hard to turn, turn ring counter-clockwise to loosen. Do not force the ring on.

3. Install A-15 Max 60 Watt bulbs.

Cup

Threaded Lamp Holder

Figure 23 - Mounting the upper switch housing

CAUTION: Make sure the upper switch housing is securely attached to the switch housing mounting plate. Failure to properly attach and tighten all three housing assembly screws could result in the switch housing and light fixture falling.

attaching the lower switch housing

1. Connect the upper plug connector from the motor to the lower plug connector in the lower switch housing assembly. See Figure 24. NOTE: Both plug connectors are polarized and will only fit together one way. Make sure that both connectors are properly aligned before connecting them together. Incorrect connection could cause improper operation and damage to the product.

Globe

Threaded Locking Ring

Figure 25 - Multifixtures

Beginning of First Thread

Threaded Locking Ring

Notch in Ring

Figure 26 - Locking Ring Assembly

41892-01_Rev 03.17.05.pmd 3/18/05, 8:44 PM8

Page 9

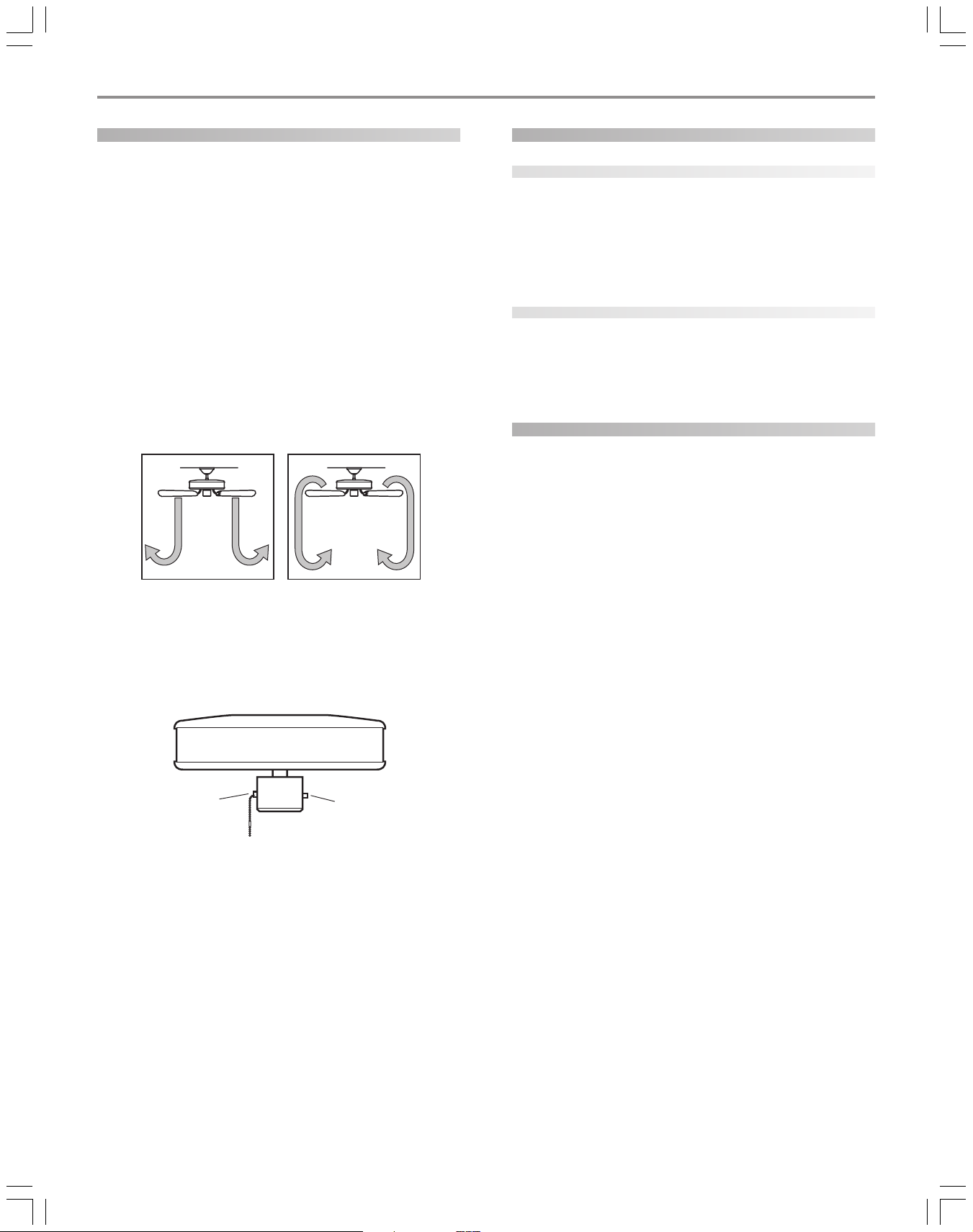

operating your ceiling fan

1. Turn on electrical power to the fan.

2. The fan pull chain controls power to the fan. The pull chain has four settings in sequence: High, Medium, Low and Off.

•Pull the chain slowly to change settings.

•Release slowly to prevent the chain from recoiling into

the blades.

•The chain uses a breakaway connector that separates if

the chain is jerked. If this happens, simply reinsert the chain into the connector.

3. Ceiling fans work best by blowing air downward (counterclockwise blade rotation) in warm weather to cool the room with a direct breeze. In winter, having the fan draw air upward (clockwise blade rotation) will distribute the warmer air trapped at the ceiling around the room without causing a draft. Refer to Figure 27.

Figure 27 - Air flow patterns

To change the direction of air flow, turn the fan off and let it come to a complete stop. Slide the reversing switch on the fan to the opposite position as shown in Figure 28. Restart fan.

Fan Pull Chain

Figure 28 - Pull chain and reversing switch

Reversing Switch

cleaning your ceiling fan

caring for finishes

For cleaning, a soft brush or lint-free cloth should be used to prevent scratching the finish. A vacuum cleaner brush nozzle can remove heavier dust. Surface smudges or an accumulation of dirt and dust can easily be removed by using a mild detergent and a slightly dampened cloth. An artistic agent may be used, but never use abrasive cleaning agents as they will damage the finish.

caring for blades

Wood finish blades should be cleaned with a furniture polishing cloth. Occasionally, a light coat of furniture polish may be applied for added protection and beauty. Painted and high-gloss blades may be cleaned in the same manner as the fan finish.

troubleshooting

Problem: Nothing happens; fan does not move.

1. Turn power on, replace fuse, or reset breaker.

2. Loosen canopy, check all connections according to the

wiring the fan section.

3. Check the plug connection in the switch housing.

4. Push motor reversing switch firmly up or down to ensure that the switch is engaged.

5. Pull the pull chain to ensure it is on.

6. Remove the shipping bumpers.

Problem: Noisy operation.

1. Tighten the blade bracket screws until snug.

2. Tighten the blade screws until snug.

3. Check to see if the blade is cracked. If so, replace all the blades.

4. Change to an approved speed control.

5. Check and tighten the screws in the switch housing mounting plate and in the upper and lower switch housing.

Problem: Excessive wobbling.

1. If your fan wobbles when operating, use the enclosed balancing kit and instructions to balance the fan.

2. Tighten all blade and/or blade iron screws.

3. Turn power off, support fan very carefully, and check that the hanger ball is properly seated.

If you need parts or service assistance, please call 888-830-1326 or visit us at our WEB site at http://www.hunterfan.com.

Hunter Fan Company 2500 Frisco Avenue Memphis, Tennessee 38114

41892-01_Rev 03.17.05.pmd 3/18/05, 8:44 PM9
