Owner’s Guide and Installation Manual

English Español

Page 2

Welcome

Your new Hunter® ceiling fan is an addition to your home or oce that will provide comfort and performance for many years. is installation and operation manual gives you complete instructions for installing and operating your fan.

We are proud of our work. We appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

Before installing your fan, for your records and warranty assistance, record information from the carton and Hunter nameplate label (located on the top of the fan motor housing).

Table Of Contents

Preparing the Fan Site . . . . . . . . . . . . . . . . . 3

1 • Getting Ready. . . . . . . . . . . . . . . . . . . . . . 6

2 • Installing the Ceiling Plate . . . . . . . . . . 7

3 • Assembling the Top Housing . . . . . . . 8

4 • Assembling and Hanging the Fan . . . 9

5 • Wiring the Fan . . . . . . . . . . . . . . . . . . . . . 10

6 • Installing the Canopy . . . . . . . . . . . . . . . 11

7 • Assembling the Blades. . . . . . . . . . . . . . 12

8 • Aligning the Fixture Fitter . . . . . . . . . . 13

9 • Completing Your Installation With a

Bowl Light Fixture . . . . . . . . . . . . . . . . . 15

10 • Operating and Cleaning Your Ceiling

Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

11 • Troubleshooting . . . . . . . . . . . . . . . . . . 17

Cautions and Warnings

• READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING INSTALLATION. SAVE THESE INSTRUCTIONS.

• Use only Hunter replacement parts.

• To reduce the risk of personal injury, attach the fan directly to the support structure of the building according to these instructions, and use only the hardware supplied.

• To avoid possible electrical shock, before installing your fan, disconnect the power by turning o the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the o position, securely fasten a prominent warning device, such as a tag, to the service panel.

• All wiring must be in accordance with national and local electrical codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.

• To reduce the risk of personal injury, do not bend the blade attachment system when installing, balancing, or cleaning the fan. Never insert foreign objects between rotating fan blades.

• To reduce the risk of re, electrical shock, or motor damage, do not use a solid-state speed control with this fan. Use only Hunter speed controls.

41225-01 • 12/04/09 • Hunter Fan Company

Page 3

Preparing the Fan Site

Step 1 - Choose the Fan Site

Proper ceiling fan location and attachment to the building structure are essential for safety, reliable operation, maximum eciency, and energy savings.

Choose a fan site where:

• No object can come in contact with the rotating fan blades during normal operation.

• e fan blades are at least 7 feet above the oor and the ceiling is at least 8 feet high.

• e fan blades have no obstructions to airow, such as walls or posts, within 30 inches of the fan blade tips.

• e fan is directly below a joist or support brace that will hold the outlet box and the full weight of the fan.

30” From Wall or Nearest Obstruction

7’ Minimum Blades to Floor

8’ Minimum

Ceiling Height

Checklist for Existing Fan Site

If you want to use an existing fan site, complete the following checklist to determine if the site is acceptable and safe for your new Hunter fan. If you cannot check o every item, prepare a new fan site as described on this page.

Fan Support System

• Fan attaches directly to building structure.

• Fan support system will hold full weight of the fan and light kit.

Ceiling Hole

• e outlet box clearance hole is directly below the joist or support brace.

Outlet Box

• e outlet box is an UL-approved octagonal 4” x 1-1/2” outlet box (or as

specied by the support brace manufacturer).

• e outlet box is secured to the joist or support brace by wood screws

and washers through the inner holes of outlet box.

• e outer holes of the outlet box are aligned with joist or support brace.

• e bottom of the outlet box is recessed a minimum of 1/16” into

ceiling.

Wiring

• e electrical cable is secured to outlet box by an approved connector.

• Six inches of lead wires extend from outlet box. If your existing fan site is suitable, skip ahead to Section 2 • Installing the

Ceiling Plate.

Fan Support System

Suitable Existing Fan Site

Outlet Box

Wiring

41225-01 • 12/04/09 • Hunter Fan Company

Page 4

Preparing the Fan Site (continued)

Step 2 - Cut the Ceiling Hole

2-1. Locate the site for the ceiling hole directly below the joist or support brace that

will hold the outlet box and fan.

2-2. Cut a 4” diameter hole through the drywall or plaster of the ceiling. You will use

the hole to install the support brace and outlet box.

Step 3 - Install a Support Brace, If Necessary

Determine if there is a ceiling joist directly above the ceiling hole. If the joist is there,

determine if it is positioned to allow you to recess the outlet box a minimum of 1/16” into the ceiling. If NOT, install a support brace as follows:

3-1. Attach a 2” x 4” support brace between two joists. Position it to allow you to

recess the bottom of the outlet box a minimum of 1/16” into the ceiling.

3-2. Check the support brace to ensure it will support the full weight of the fan and

light kit.

Step 4 - Install the Outlet Box

4-1. Obtain a UL-approved octagonal 4” x 1-1/2” outlet box, plus two #8 x 1-1/2”

wood screws and washers, available from any hardware store or electrical supply house.

4-2. Orient the outlet box so that both the inner and outer holes in the box align

with the joist or support brace.

4-3. Drill pilot holes no larger than the minor diameter of the wood screws (5/64”)

through the inner holes of the outlet box.

4-4. Attach the outlet box directly to the support brace or joist with two #8 x 1-1/2”

wood screws and washers.  e bottom of the outlet box must be recessed a minimum of 1/16” into the ceiling.

Step 5 - Prepare the Wiring

5-1. Make sure the circuit breakers to the fan supply line leads and associated wall

switch location are turned o . If you cannot lock the circuit breakers in the o position, securely fasten a prominent warning device, such as a tag, to the service panel.

5-2. read the fan supply line through the outlet box so that the fan supply line

extends at least 6” beyond the box.

5-3. Attach the fan supply line to the outlet box with an approved connector,

available at any hardware store or electrical supply house.

5-4. Make certain the wiring meets all national and local standards and ANSI/NFPA

70.

You have now successfully prepared your ceiling fan site. For instructions to install your ceiling fan, go to your fan manual and continue with Section 2 • Installing the

Ceiling Plate.

Steps 2 – 3

Step 4

Step 5

CAUTION: All wiring must be in

accordance with national and local electrical codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a

qualied electrician.

41225-01 • 12/04/09 • Hunter Fan Company

Page 5

Installer’s Choice and Optional Accessories

Support Brace

Standard Mounting Style

Standard Mounting hangs from the ceiling by a downrod (included).

Support Brace

Ceiling Outlet Box

Angled Mounting Style

Ceiling Outlet Box

Understanding Mounting and Installer’s Choice®

Hunter’s patented 3-position mounting system provides you maximum installation exibility and ease. You can install your Hunter fan in one of three ways, depending on ceiling height and your preference: Low Prole, Standard, or Angled mounting. e steps in this manual include instructions for all three Installer’s Choice mounting methods.

Considering Optional Accessories

Consider using Hunter’s optional accessories, including a wall-mounted or remote speed control. To install and use the accessories, follow the instructions included with each product. For quiet and optimum performance of your Hunter fan, use only Hunter speed controls.

For ceilings higher than 8 feet, you can purchase Hunter extension downrods. All Hunter fans use sturdy 3/4” diameter pipe to assure stability and wobble-free performance.

Low Prole Mounting Style

Support Brace

Ceiling Outlet Box

CAUTION: To

reduce the risk of personal injury, attach the fan directly to the support structure of the building according to these instructions, and use only the hardware supplied.

Angled Mounting recommended for a vaulted or angled ceiling

41225-01 • 12/04/09 • Hunter Fan Company

Low Proﬁle Mounting ts close to the ceiling, recommended for ceilings less than 8 feet high

Page 6

1 • Getting Ready

To install a ceiling fan, be sure you can do the following:

• Locate the ceiling joist or other suitable support in ceiling.

• Drill holes for and install wood screws.

• Identify and connect electrical wires.

• Lift 40 pounds.

If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician.

Gathering the Tools

You will need the following tools for installing the fan:

• Electric drill with 9/64” bit

• Standard screwdriver (magnetic tip recommended)

• Phillips-head screwdriver (magnetic tip recommended)

• Wrench or pliers

• Ladder (height dependent upon installation site)

Checking Your Fan Parts

Carefully unpack your fan to avoid damage to the fan parts. Refer to the included Parts Guide. Check for any shipping damage to the motor or fan blades. If any parts are missing or damaged, contact your Hunter dealer or call Hunter Technical Support Department at 888-830-1326 (In Canada, call 1-866-268-1936).

Installing Multiple Fans?

If you are installing more than one fan, keep the fan blades and blade irons (if applicable) in sets, as they were shipped.

Preparing the Fan Site

Before you begin installing the fan, follow all the instructions in “Preparing the Fan Site.” Proper ceiling fan location and attachment to the building structure are essential for safety, reliable operation, maximum eciency, and energy savings.

41225-01 • 12/04/09 • Hunter Fan Company

Page 7

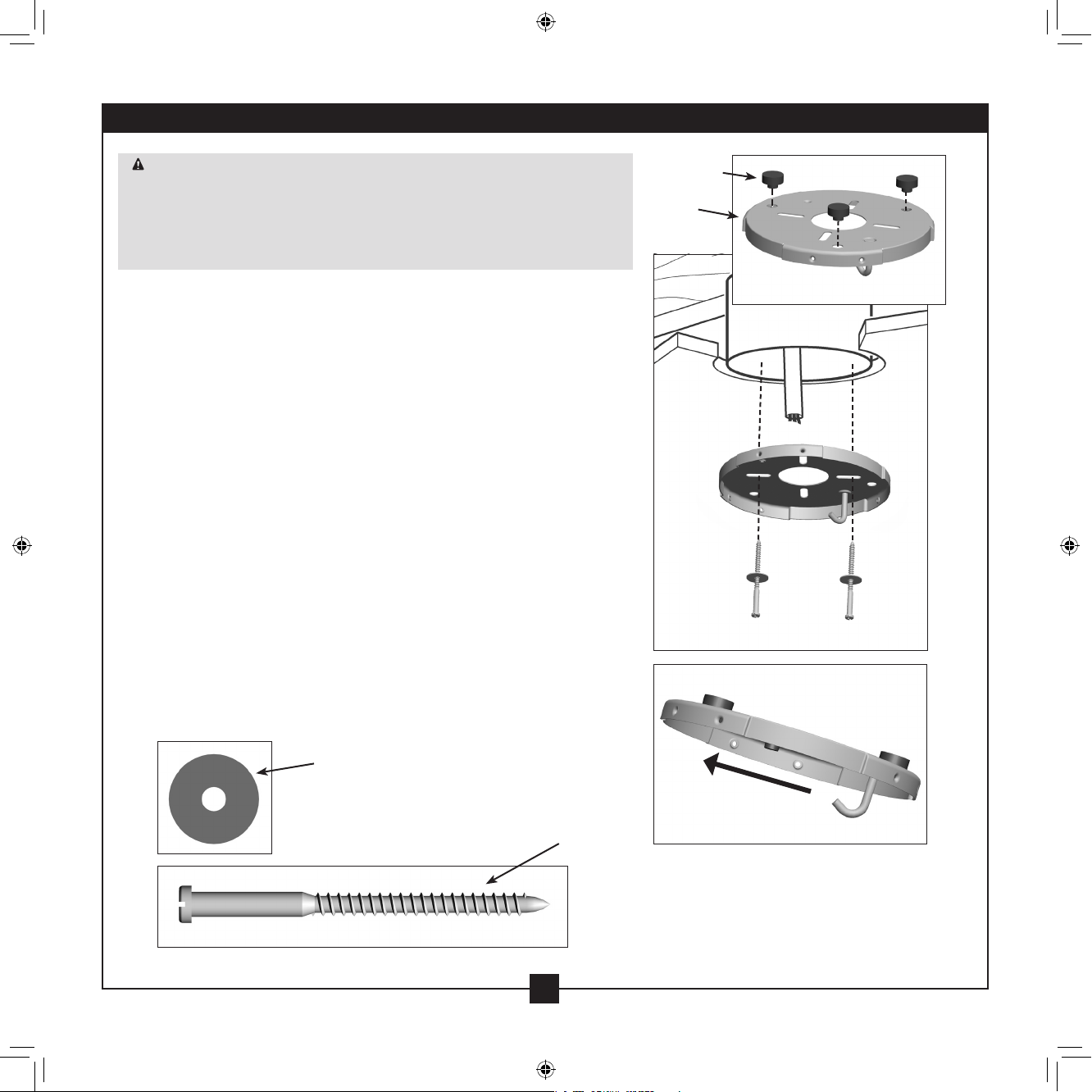

2 • Installing the Ceiling Plate

CAUTION: To avoid possible electrical shock, before installing your fan, disconnect the power by turning o the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the o position, securely fasten a prominent warning device, such as a tag, to the service panel.

Isolator

Ceiling

Plate

2-1. Drill two pilot holes into the wood support structure through the

outermost holes in the outlet box. e pilot holes should be 9/64” in diameter.

2-2. Your fan comes with three neoprene noise isolators (“Isolators”).

Position the isolators between the ceiling plate and ceiling by inserting the raised areas on each isolator into the holes in the ceiling plate.

2-3. read the lead wires from the outlet box down through the hole

in the middle of the ceiling plate.

2-4. Align the slotted holes in the ceiling plate with the pilot holes you

drilled in the wood support structure. For proper alignment use slotted holes directly across from each other.

Note: e isolators should be ush against the ceiling.

2-5. Place a at washer on each of the two 3” wood screws and pass

the screws through the slotted holes in the ceiling plate into the pilot holes you drilled.

Tighten the screws into the 9/64” pilot holes; do not use lubricants

on the screws. Do not over tighten.

Step 2-2

Steps 2-3 – 2-5

Flat Washer

41225-01 • 12/04/09 • Hunter Fan Company

3” Wood Screw

For Angled Ceilings: Be sure to orient the ceiling plate so that the hook and one of the threaded screw holes in the ceiling plate are on the lower side.

Page 8

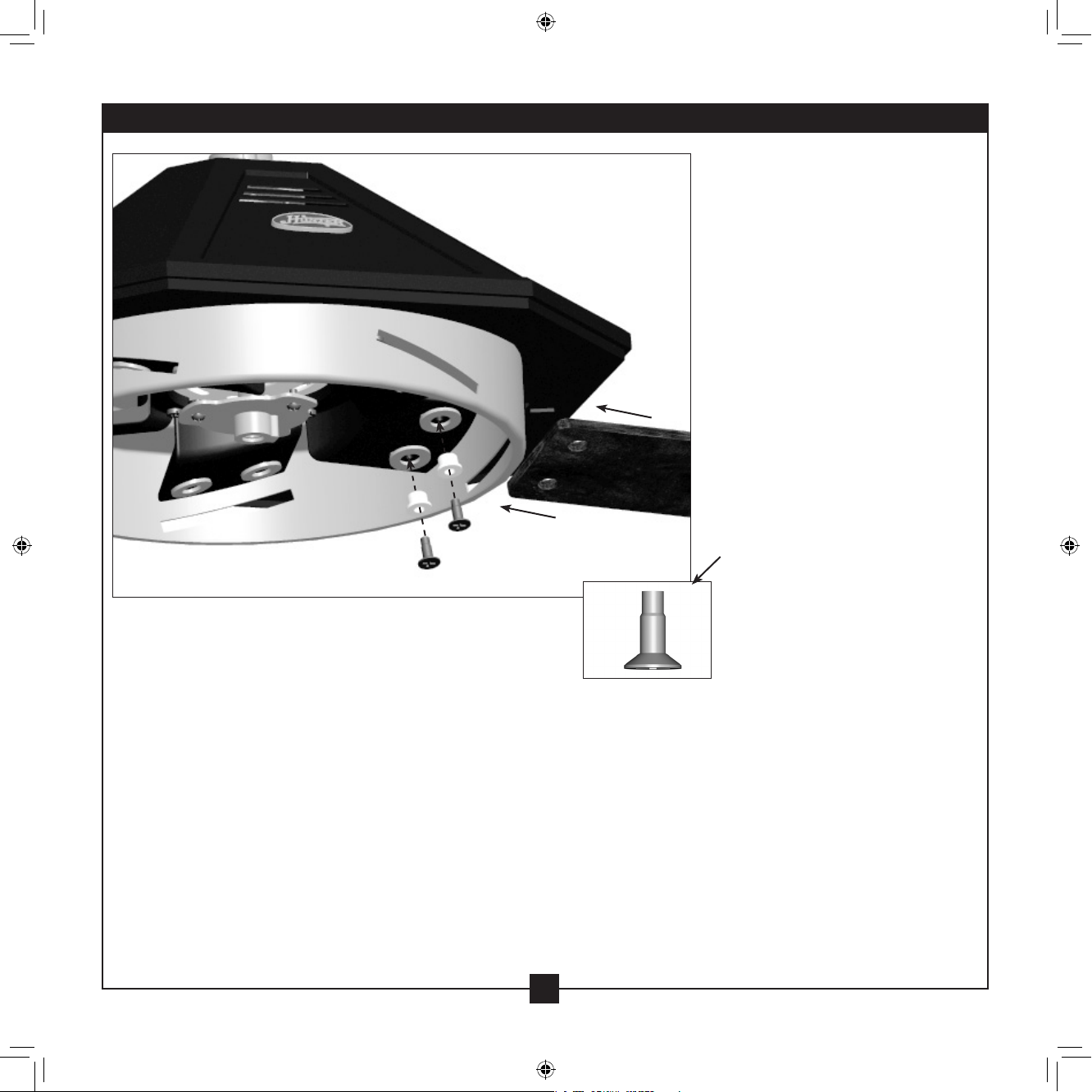

3 • Assembling the Top Housing

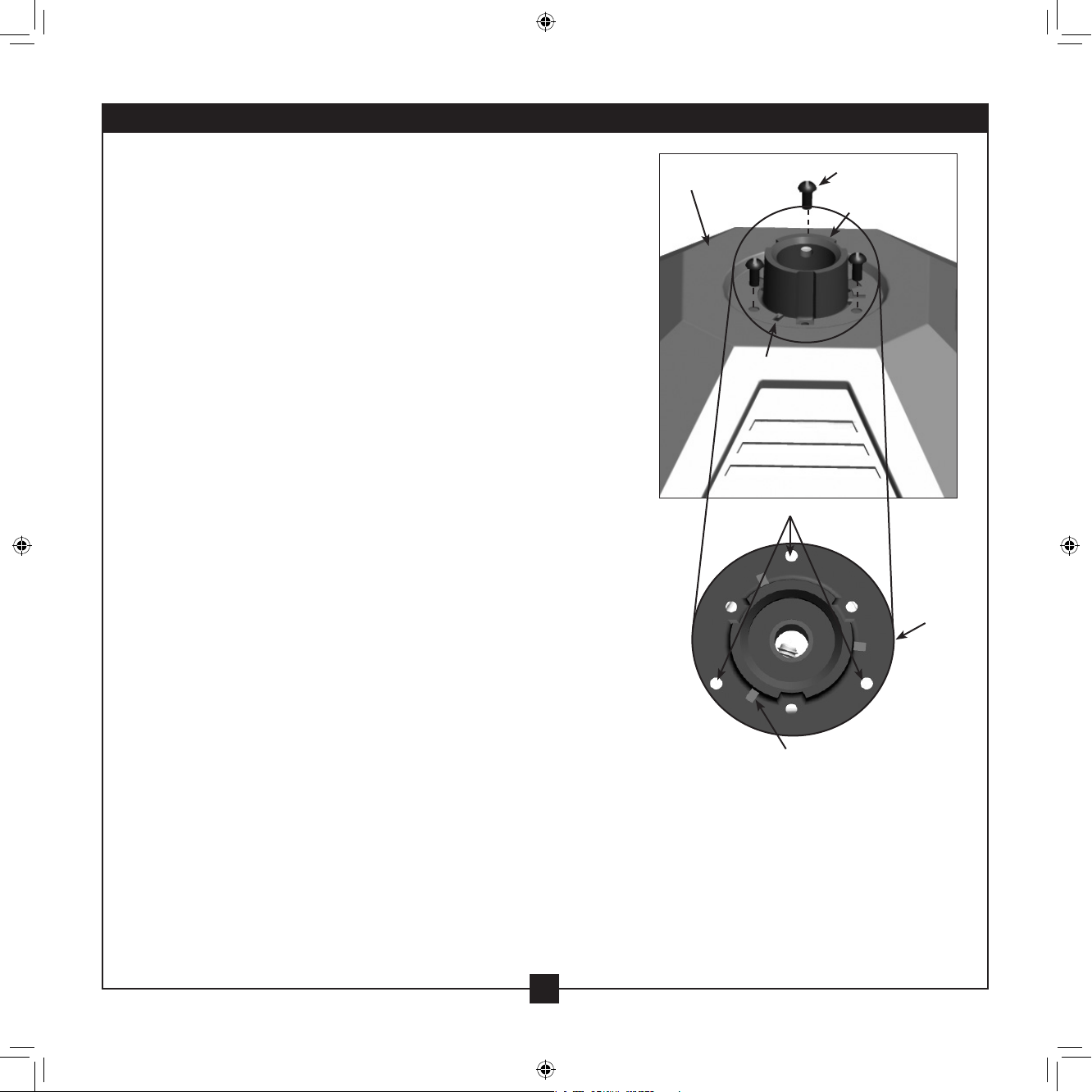

3-1. To assemble the housing to the hanger adapter, align the three

raised tabs on the hanger adapter with the three narrow notches in the top housing. Make certain the housing sits at on the adapter.

3-2. Install three (3) assembly screws and tighten them securely.

Steps 3-1 – 3-2

Top Housing

Raised Tabs

Assembly Screw Locations

Assembly Screw

Hanger Adapter

41225-01 • 12/04/09 • Hunter Fan Company

Raised Tabs

Page 9

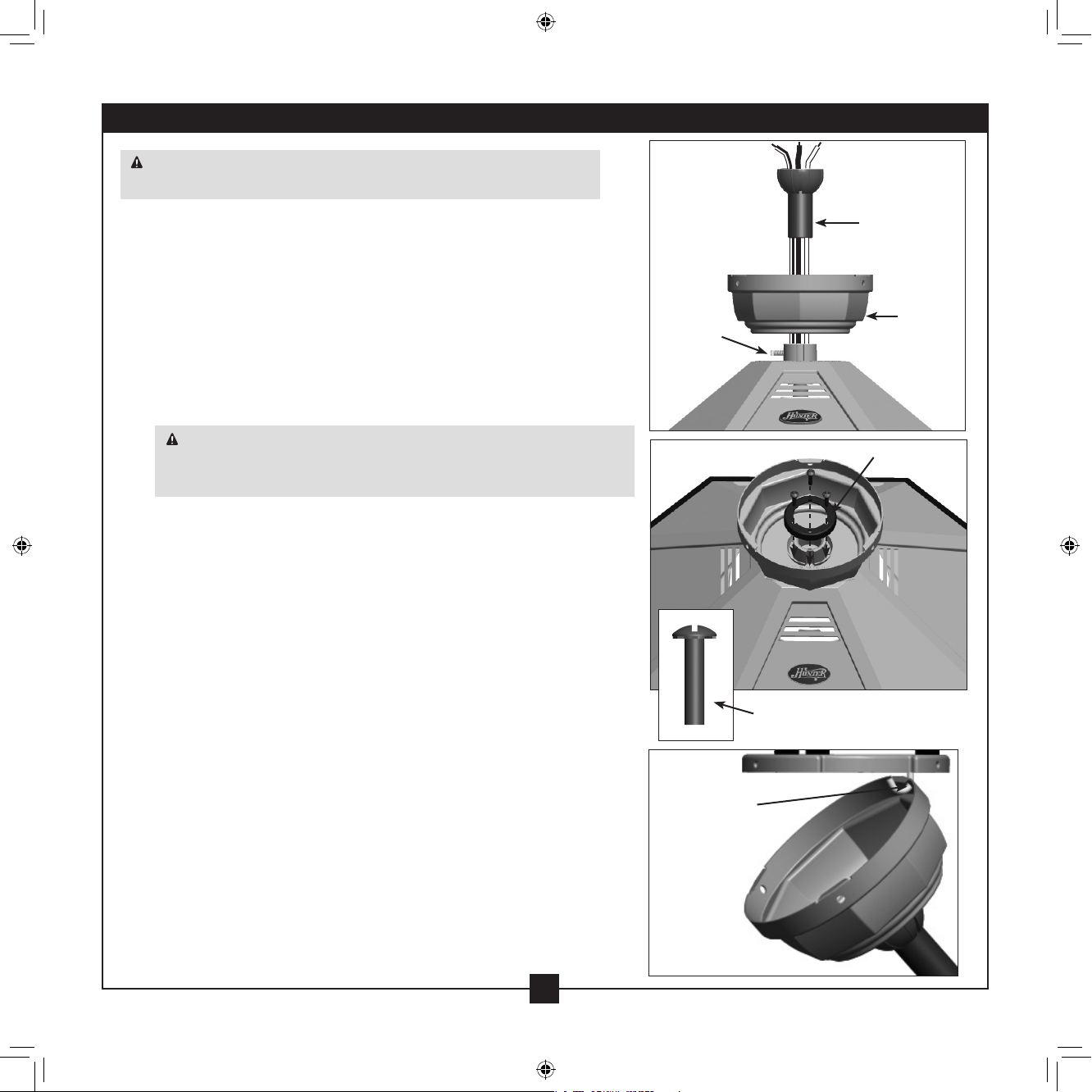

4 • Assembling and Hanging the Fan

WARNING: Fan may fall if not assembled as directed in these

installation instructions.

4-1. Unbundle the wires from the fan.

For Standard or Angled mounting:

4-2. To assemble fan to hang down from a at or angled ceiling, insert

the downrod through the canopy. Feed the wires from the fan through the downrod.

4-3. Loosen the square head setscrew on the adapter to install the

downrod. Note: When the downrod is fully installed, 2-3 threads on the pipe will still be visible; this is normal. Securely retighten

the setscrew with a wrench or pliers. Skip to Step 5-7.

CAUTION: e adapter has a special coating on the threads. Do

not remove this coating; the coating prevents the downrod from unscrewing. Once assembled, do not remove the downrod.

For Low Proﬁle mounting: Note: For low prole mounting, the downrod is replaced with the

low prole washer.

4-4. Remove the setscrew from the adapter.

4-5. Place the low prole washer (lip down) into the canopy. Be sure

the green ground wire is pointing up toward the ceiling.

Steps 4-1 – 4-2

Setscrew

Steps 4-4 – 4-5

Downrod

Canopy

Low Prole Washer

4-6. Align the holes in the washer with the holes in the adapter.

Assemble securely with three low prole screws.

4-7. Raise the fan and place the hook on the ceiling plate through the

round hole in the rim.

41225-01 • 12/04/09 • Hunter Fan Company

Low Prole Screw

Step 4-6

Round

Hole

Page 10

5 • Wiring the Fan

All wiring must be in accordance with national and local electrical codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualiﬁed electrician.

Wall switches are not included. Select an acceptable general-use switch in accordance with national and local electrical codes.

5-1. Before attempting installation, make sure the power is still o.

5-2. To connect the wires, hold the bare metal leads together and place

a wire connector over them, then twist clockwise until tight. For all these connections use the wire connectors provided.

5-3. Connect the bare or green ground wire (grounding) from the

ceiling to the green ground wire (grounding) from the ceiling plate and the green ground wire (grounding) from the fan or the green ground wire present on the low prole washer.

5-4. Connect the white wire (grounded) from the ceiling to the white

wire (grounded) from the fan.

5-5. Connect the remaining wires as follows:

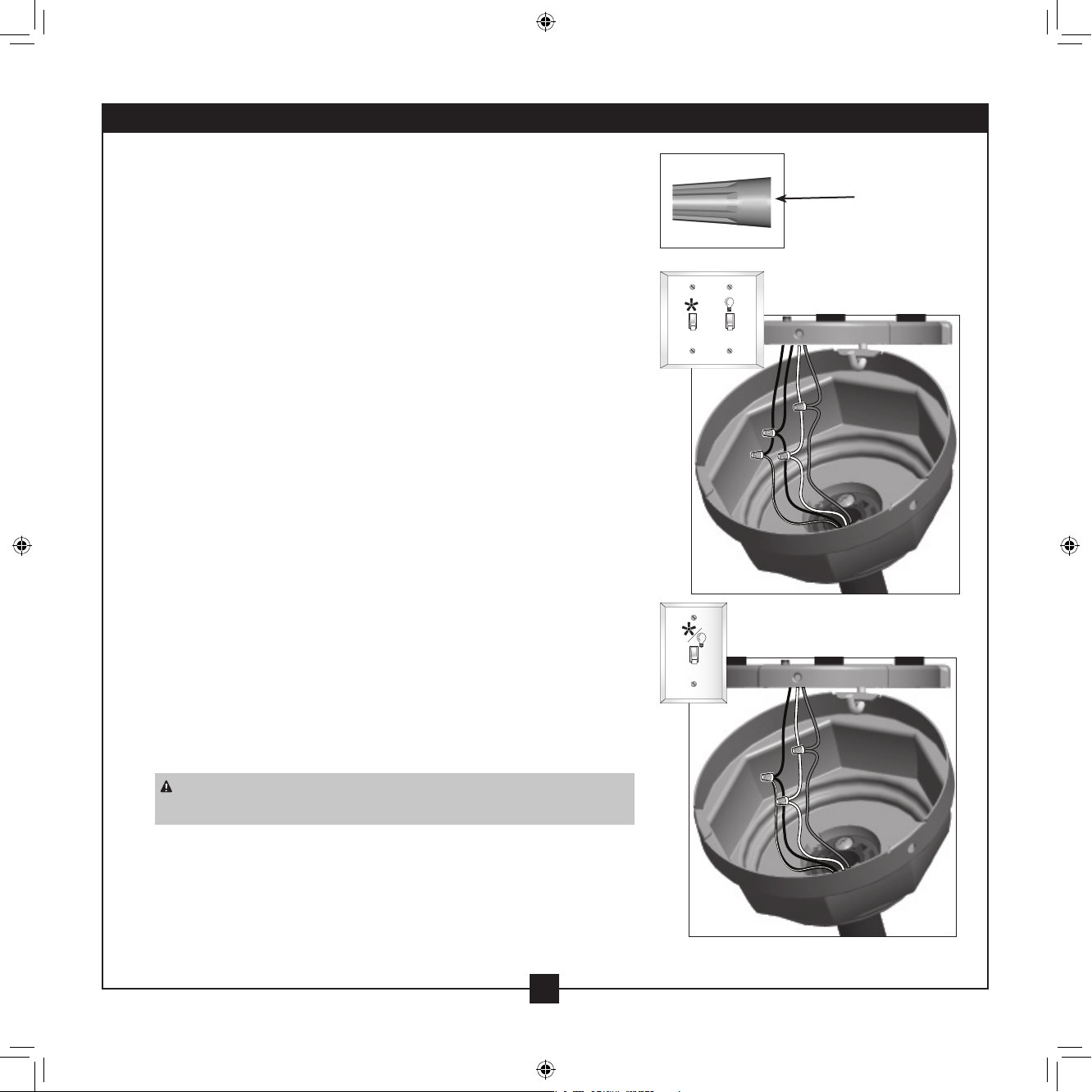

Dual Switch Wiring:

• e black wire (ungrounded) from the ceiling to the black wire (ungrounded) from the fan

• e black/white wire (ungrounded) from the fan to the wire (ungrounded) for the wall switch

Single Switch Wiring:

• e black wire (ungrounded) from the ceiling to the black (ungrounded) and the black/white wire (ungrounded) from the fan

Wire Connector

Dual Switch Wiring

Single Switch Wiring

CAUTION: Be sure no bare wire or wire strands are visible after

making connections.

5-6. Turn the splices upward and push them carefully back through the

ceiling plate into the outlet box.

5-7. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

41225-01 • 12/04/09 • Hunter Fan Company

Page 11

6 • Installing the Canopy

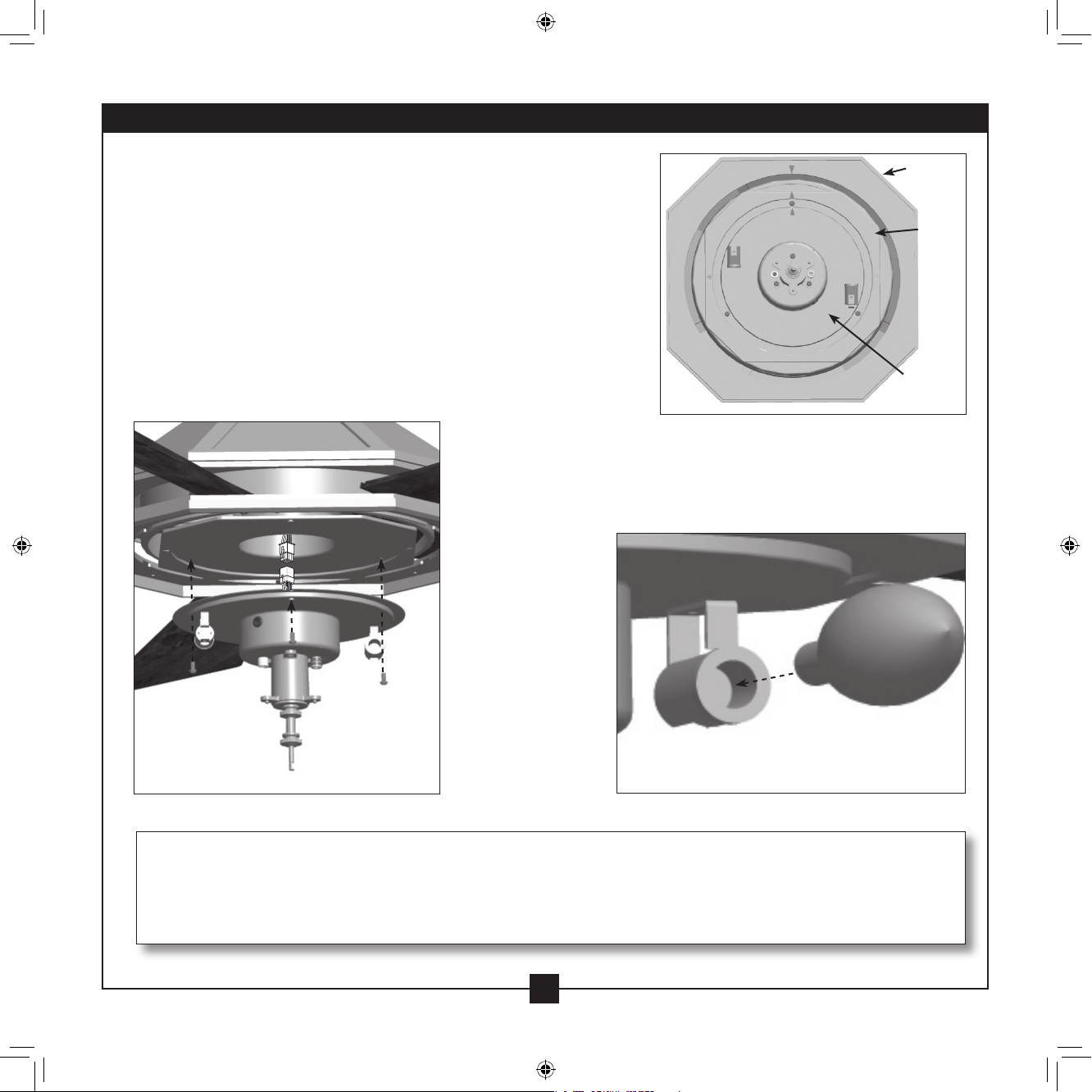

6-1. Holding the canopy, raise the fan o the hook.

6-2. Raise the canopy and align the tabs in the canopy with the slots in

the ceiling plate. Turn the canopy counterclockwise until it locks into place and will not turn any more.

6-3. Insert and tighten the canopy screws securely.

Canopy

Step 6-3

Step 6-2

Canopy Screw

41225-01 • 12/04/09 • Hunter Fan Company

Page 12

3 • Assembling tbe Blades

7 • Assembling the Blades

7-1. Insert blade into slot. Align the

holes on the blade with the holes in the fan motor.

7-2. Slide blade grommets onto the

shafts of the blade assembly screws.

7-3. Attach the blade to the motor

using the blade assembly screws.

7-4. Repeat for each blade.

Note: When the screws are tight the

blades may feel loose. is is normal when using grommets and will not be a problem

Steps 7-1-7-3

Blade Assembly

Screw

41225-01 • 12/04/09 • Hunter Fan Company

Page 13

3 • Assembling tbe Blades

8 • Aligning the Fixture Fitter

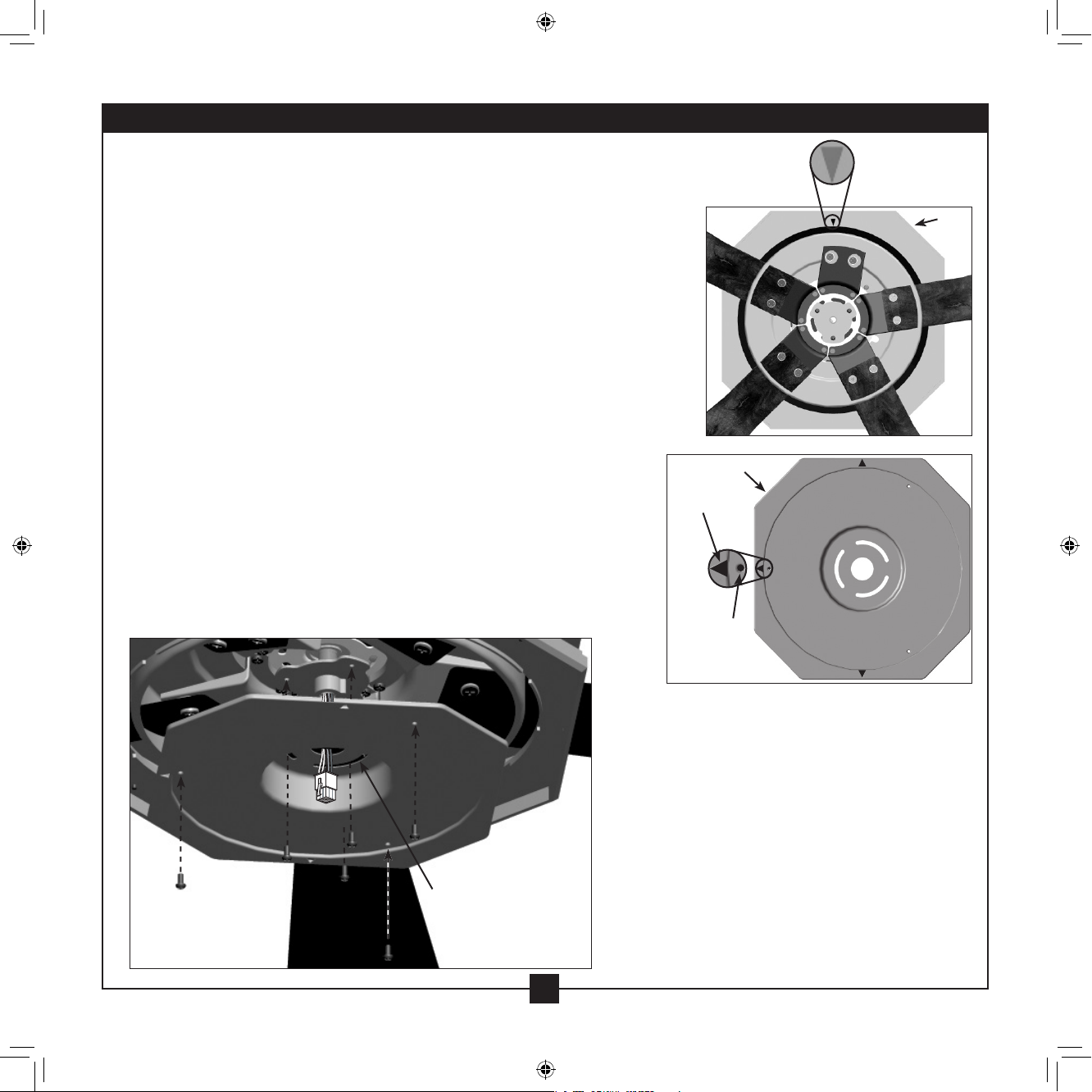

8-1. Looking up at the bottom of the fan trim. Locate the raised arrow on

the bottom of the trim. Before proceeding with the next step make sure you’ve located the arrow.

Note: You may have to rotate the fan blades in order to see the

arrow.

8-2. e (8) sides of the tter must be aligned with the matching (8) sides

of the fan trim. To orient the tter locate the (3) arrow shaped holes near the outer edges of the tter.

8-3. Select the arrow which has a screw hole directly behind it, and align

this arrow with the arrow in the trim.

8-4. read the upper plug connector from the motor through the large

hole in the center of the tter.

8-5. Check the (3) elongated slots in the top of the tter to see if they are

aligned with the (3) mating screw holes in the tter mounting plate. If any of the screw holes in the mounting plate are covered by the tter, rotate the tter ninety degrees either direction to allow access to the (3) mounting holes in the mounting plate. Assemble the tter to the tter mounting plate using (3) 3/8” long Phillips head screws with lock washers. Tighten securely.

Step 8-1

Fan

Trim

Fitter

Arrow Shaped Hole

Screw Hole

Steps 8-4-8-5

Step 8-2

Elongated Slots

41225-01 • 12/04/09 • Hunter Fan Company

Page 14

3 • Assembling tbe Blades

8 • Aligning the Fixture Fitter (Continued)

8-6. Plug the upper and lower plug connectors together. e connectors

are keyed and will only go together one way. Before assembling the light xture to the xture tter locate the arrow shaped hole positioned directly behind one of the (3) screw clearance holes on the outside ange of the light xture.

8-7. Align the arrow in the light xture with the arrows previously used to

align the fan trim and xture tter.

8-8. Attach the light xture to the xture tter using (3) 3/8” long

Phillipsa round head screws with lock washers. Tighten the screws securely.

8-9. Install (2) candelabra base bulbs. Refer to

Fixture Trim

Fixture Fitter

Light Fixture

maximum wattage label on light xture for maximum lamp wattage.

Step 8-6-8-8

Step 8-9

Note: In compliance with U.S. Federal energy regulations, this ceiling fan contains a wattage saver that restricts

the light kit to a maximum of 190 Watts. Exceeding that limit or the specications on the light sockets may result in re hazard or improper operation. If lights do not appear to be operating properly, see the troubleshooting section

41225-01 • 12/04/09 • Hunter Fan Company

Page 15

9 • Completing Your Installation With a Bowl Light Fixture

Installing the Glass Bowl

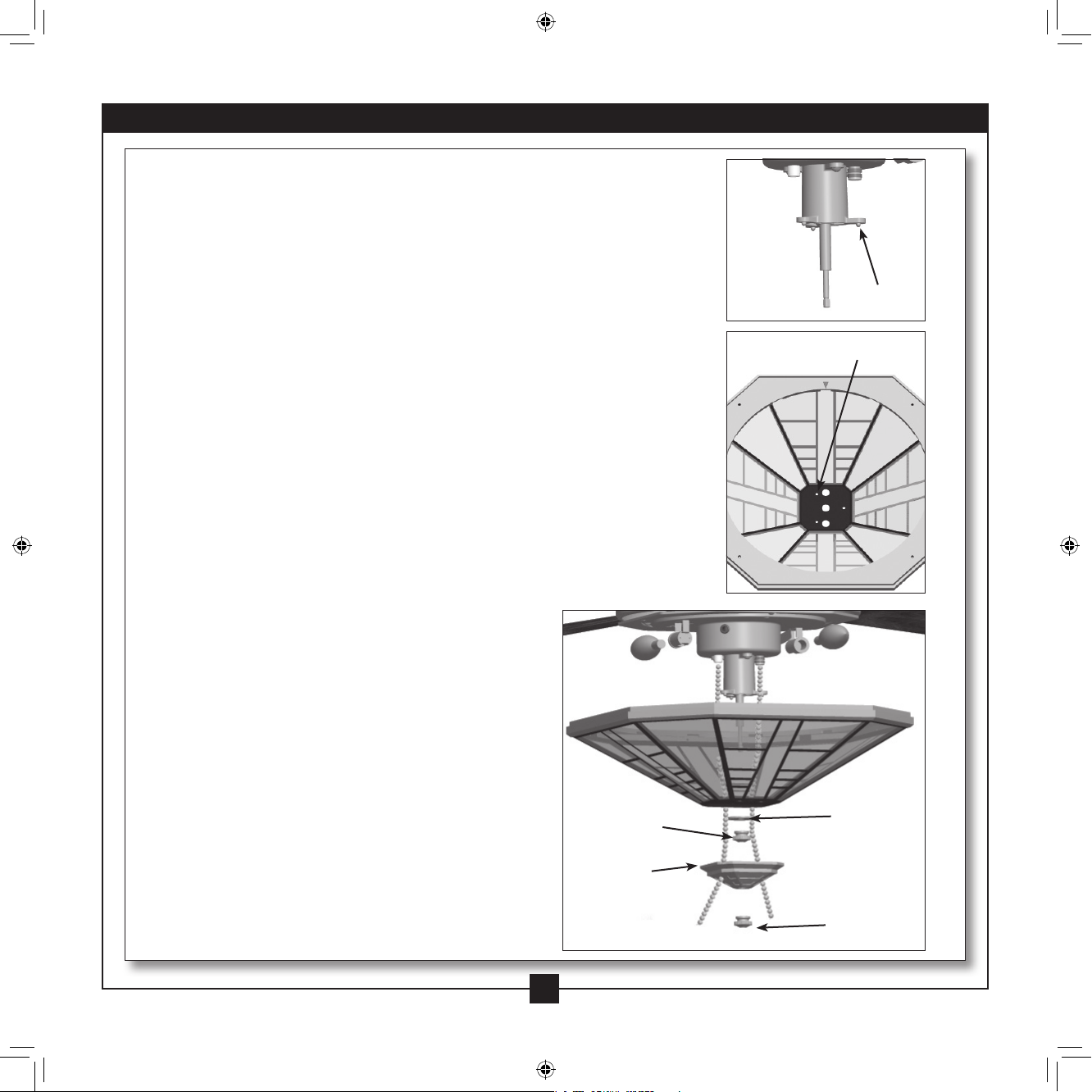

9-1. Locate the (3) pins at the bottom of the (3) anges on the plastic

spacer.

9-2. Align the (3) pins with the (3) small clearance holes in the metal plate

at the bottom of the globe assembly. Make certain the (2) pull chains are alinged with the (2) larger outboard holes in the metal plate.

9-3. Guide the threaded tube and both the chains through the larger holes

in the metal plate. Lift the globe until the metal plate in the bottom of the globe bottoms out against the plastic spacer with the (3) pins sticking through the small holes in the metal plate.

9-4. Keeping the globe in position, place the large at washer over the

threaded tube and against the bottom of the globe. read the assembly nut on the threaded tube, running it up tight against the bottom of the washer. Tighten the nut very securely.

9-5. Assemble the nial to the bottom of the light xture by guiding the (2)

pull chains and threaded tube through the (3) openings in the nial.

Step 9-1

Step 9-2

Pins

Clearance Holes

Assembly Nut

Finial Cap

Steps 9-3-9-5

41225-01 • 12/04/09 • Hunter Fan Company

Metal Disc

Finial

Page 16

10 • Operating and Cleaning Your Ceiling Fan

10-1. Turn on electrical power to the fan.

10-2. e fan pull chain controls power to the fan. e pull chain has

four settings in sequence: High, Medium, Low and O.

• Pull the chain slowly to change settings.

• Release slowly to prevent the chain from recoiling into the blades.

• e chain uses a breakaway connector that separates if the chain is jerked. If this happens, simply reinsert the chain into the connector.

10-3. e light pull chain controls the power to the light xture. e

chain has two settings: ON and OFF.

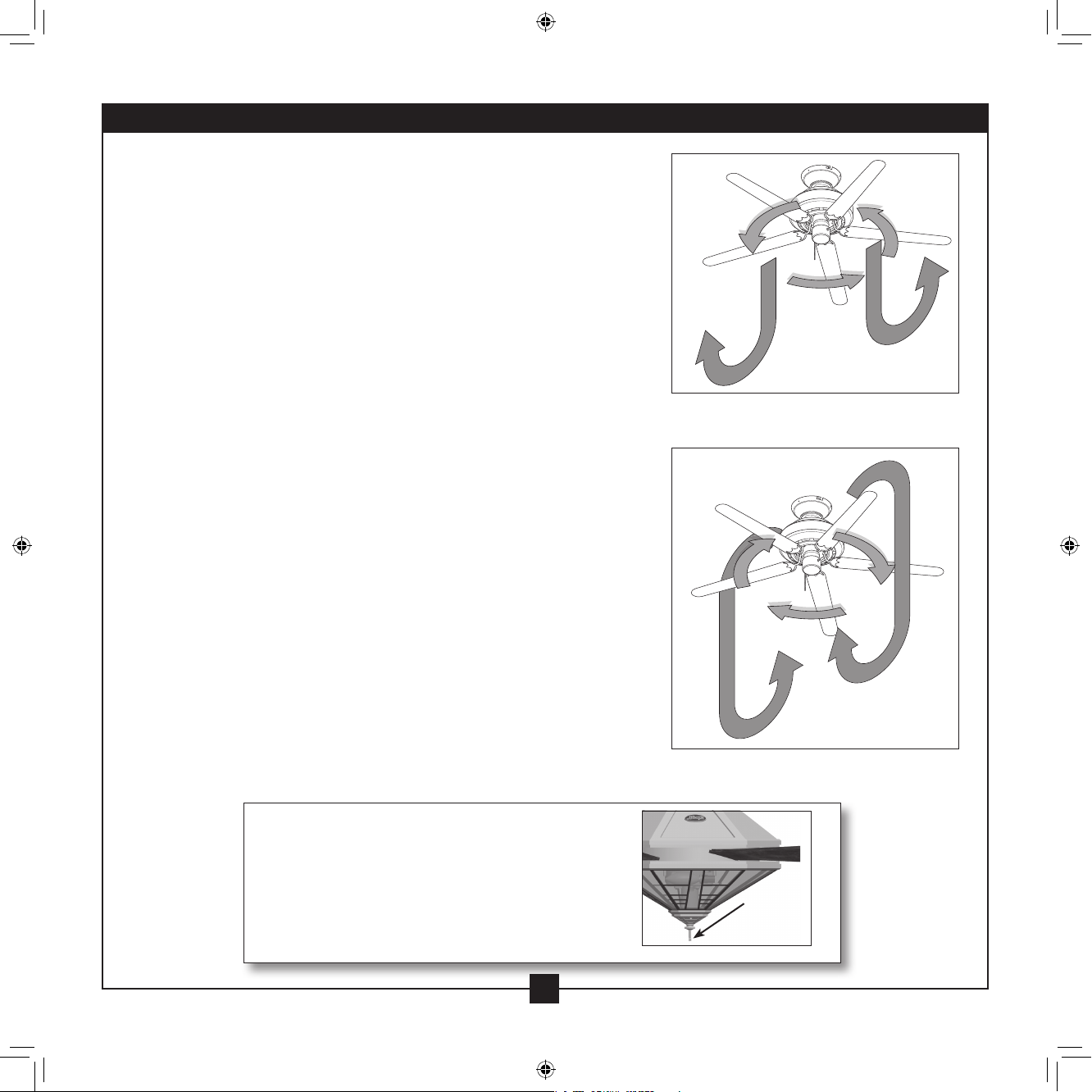

10-4. Ceiling fans work best by blowing air downward (counterclockwise

blade rotation) in warm weather to cool the room with a direct breeze. In winter, having the fan draw air upward (clockwise blade rotation) will distribute the warmer air trapped at the ceiling around the room without causing a draft.

10-5. For cleaning nishes, use a soft brush or lint-free cloth to prevent

scratching. A vacuum cleaner brush nozzle can remove heavier dust. Remove surface smudges or accumulated dirt and dust using a mild detergent and a slightly dampened cloth. You may use an artistic agent, but never abrasive cleaning agents as they will damage the nish.

10-6. Clean wood nish blades with a furniture polishing cloth.

Occasionally, apply a light coat of furniture polish for added protection and beauty. Clean painted and high-gloss blades in the same manner as the fan nish.

To Change Airﬂow Direction

Turn the fan o and let it come to a complete stop. Pull the reversing pullchain one time and then restart the fan.

In warm weather, use downward air ow pattern

In cold weather, use upward air ow pattern

Reversing Pull Chain

41225-01 • 12/04/09 • Hunter Fan Company

Page 17

11 • Troubleshooting

Problem: Nothing happens; fan does not move.

1. Turn power on, replace fuse, or reset breaker.

2. Loosen canopy, check all connections according to the wiring the fan section.

3. Check the plug connection in the switch housing.

4. Push motor reversing switch rmly left or right to ensure that the switch is engaged.

5. Pull the pull chain to ensure it is on.

6. Remove the shipping bumpers.

Problem: Noisy operation.

1. Tighten the blade assembly screws and blade iron armature screws until snug.

2. Check to see if the blade is cracked. If so, replace all the blades.

Problem: Excessive wobbling.

1. If your fan wobbles when operating, use the enclosed balancing kit and instructions to balance the fan.

2. Tighten all blade iron screws.

3. Turn power o, support fan very carefully, and check that the hanger ball is properly seated.

In compliance with U.S. Federal regulations, this ceiling fan contains a wattage saver that limits the light output to 190 Watts. e following issues may arise if total wattage exceeds 190 Watts:

Issue: Lights dim when turned on.

1. It is normal for the lights to dim a couple of seconds after they are turned on. To prevent the lights from dimming, make sure the wattage of light bulbs installed match the specications on the light sockets.

Issue: Light shuts oﬀ suddenly.

1. Turn the power to the fan o at the wall switch. Wait 30 seconds, then resume power to the fan.

2. If lights shut o suddenly again, check to make sure total wattage of bulbs does not exceed 190 Watts.

If you need parts or service assistance, please call 888-830-1326 (In Canada, call 1-866-268-1936) or visit us at our Web site at http://www.hunterfan.com.

Hunter Fan Company

7130 Goodlett Farms Pkwy. #400 Memphis, Tennessee 38016

41225-01 • 12/04/09 • Hunter Fan Company
