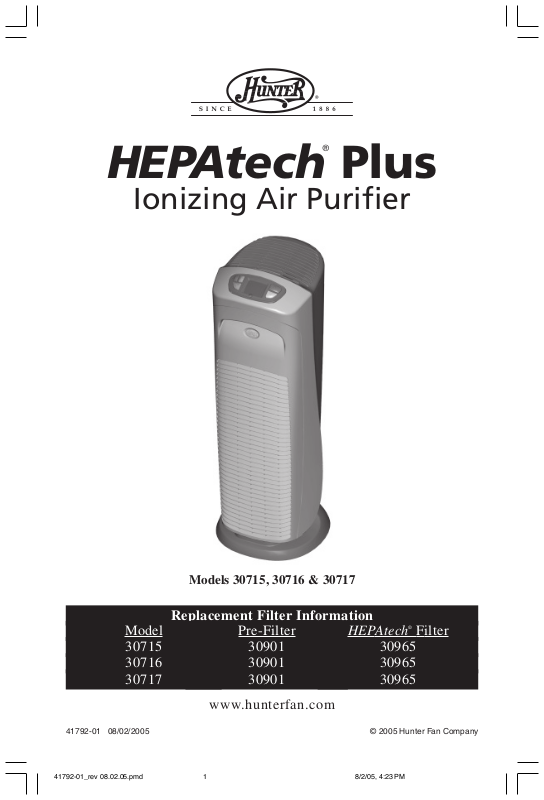

Hunter Fan 30717, 30716, 30715 User Manual

HEPAtech® Plus

Ionizing Air Purifier

Models 30715, 30716 & 30717

Replacement Filter Information

Model
30715
30716
30717

41792-01 08/02/2005 © 2005 Hunter Fan Company

41792-01_rev 08.02.05.pmd 8/2/05, 4:23 PM1

Pre-Filter

30901
30901
30901

www.hunterfan.com

HEPAtech Filter

®

30965
30965
30965

41792-01 2

SAFETY INSTRUCTIONS

IMPORTANT!

READ ALL INSTRUCTIONS BEFORE USING THIS AIR PURIFIER.

1. This air purifier is designed for use on a flat level floor and may not work properly on

an uneven floor. ALWAYS place the air purifier on a firm level floor. ALWAYS place
the air purifier at least six (6) inches away from walls and heat sources such as stoves,
radiators, or heaters.

2. Place the air purifier in an area that is out of the reach of children.

3. Before using the air purifier, extend the cord and inspect for any signs of damage. DO NOT

use the product if the cord has been damaged.

4. This product has a polarized plug (one blade is wider than the other) as a safety feature.
This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the
outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician. DO
NOT attempt to defeat or override this safety feature.

5. ALWAYS UNPLUG the air purifier while it is being cleaned.

6. DO NOT move or tilt the air purifier while it is in operation. Turn off and unplug
before moving.

7. DO NOT immerse the air purifier in water at any time because permanent damage will
occur. To properly clean your air purifier, follow the instructions in the Maintenance section
of this manual (pg. 10).

READ AND SAVE ALL INSTRUCTIONS.

Introduction

Thank you for purchasing the

HEPAtech

You have purchased our latest development in portable air purification which has been designed
to improve the quality of the air that you breathe. The following innovative features are included
in your Hunter Air Purifier.

• High Particulate Efficiency: The HEPAtech

ticles from the air that passes through the filter.

• Odor Removal: The activated carbon pre-filter helps remove odors such as cooking, smoke,

and pet smells from the air. It also traps lint, hair, and other large particles to help extend the
life and performance of the HEPAtech

• Ionizer: The ionizer improves the quality of air in the room by releasing negative ions into

the air that attract positively charged dust, smoke, and pollen particles.

• Quiet: The air purifier has been designed to operate quietly and efficiently. You can choose

among three speeds to best meet your needs at different times.

•Filter Counters: Filter maintenance is critical to the performance of the air purifier. To help

you determine when to change the filters, the pre-filter and HEPAtech
built in life counters that keep track of the life remaining of each filter.

• NiteGlo™ Light: Your air purifier display has a backlight that is continuously lit as long as

there is power to the unit. You can choose to turn the backlight off or on.

41792-01_rev 08.02.05.pmd 8/2/05, 4:23 PM3

®

Plus Ionizing Air Purifier from Hunter Fan Company.

®

filter will remove 99.97% of 0.1 micron par-

®

filter.

®

filter, the unit has

3 41792-01

Description of Air Filtration System

How the

As the air is pulled into the purifier, the activated carbon pre-filter absorbs odors and catches
large particles. Then, the air travels through the HEPAtech

HEPAtech®

Plus Ionizing Air Purifier System Works

®

filter where the smaller particles
are collected. Then, the ionizer releases negative ions into the air that attract positively
charged dust, smoke, and pollen particles. Finally, the clean, purified air is released back
into the room.

Dust & Irritants

Fig. 1 - Illustration of the Air Filtration System

Pollen & Allergens Odors Bacteria Pet Hair & Dander

Carbon

Pre-filter

®

HEPAtech

99.97% – .1 Microns

Filter

Ionizer

Air Purifier Components

®

HEPAtech

BASE

FILTER

PRE-FILTER

Fig. 2 - Air Purifier Components

41792-01 4

41792-01_rev 08.02.05.pmd 8/2/05, 4:23 PM4

FRONT
GRILL

Description of Air Filtration System

Display and Control Keys

The display and control keys allow for easy operation of the air purifier.

OFF/SPEED: Adjusts the blower speed and turns the unit on and off.

PRE-FILTER RESET: Resets the Carbon Pre-Filter Life Counter.

®

FILTER RESET: Resets the HEPAtech

IONIZER KEY: Turns the ionizer on and off.

Filter Life Counter.

PRE-FILTER
RESET KEY

IONIZER KEY

FILTER
RESET KEY

CARBON PRE-FILTER
INDICATOR

PRE-FILTER
LIFE COUNTER

BLOWER
SPEED

KEYPAD
LOCKED
INDICATOR

IONIZER
INDICATOR

Fig. 3 - Air Purifier Control Area and Alpha-numeric Display

ANIMATED
BLOWER

CLEANABLE
FILTER LIFE
COUNTER

CLEANABLE
FILTER
INDICATOR

OFF/SPEED
KEY

TURBO KEY

41792-01_rev 08.02.05.pmd 8/2/05, 4:23 PM5

5 41792-01

Operation

Initial Operation

This section provides basic instructions on the use of your air purifier. After following these
initial directions, please continue reading this booklet to learn how to operate the more
advanced features of your air purifier.

Basic Operation of the Air Purifier:

1. Take the air purifier out of the box and remove the clear plastic protective bag.
Place the unit on a firm level floor.

2. Before turning on the air purifier, you need to confirm that the filters are firmly
in place and have not become loose during shipping. To check the filters, first
open the front grill. Release the front grill by placing your fingers under the
handle on the grill and pull forward, then up. Refer to Figs. 4 and 5.

HANDLE

Fig. 4

3. Next, check the HEPAtech® filter by pressing firmly on all four corners of the
filter to ensure that it is fully inserted into the filter opening.

4. The carbon pre-filter is mounted inside the front grill with hook tape. Confirm
that it properly covers the grill vents. You may notice a few black particles com­ing off the pre-filter. Those particles are part of the odor-removing activated car­bon and will be collected on the filter during use.

41792-01 6

41792-01_rev 08.02.05.pmd 8/2/05, 4:24 PM6

PULL
FORWARD,
THEN UP

Fig. 5

Operation

5. Place the front grill back onto the unit. First, line up the tab on the bottom of
the grill with the recess on the purifier base and then push the top of the grill
forward until it is closed. Refer to Figs. 6 and 7. NOTE: This unit will not
operate unless the grill is in the correct position.

LINE UP TAB WITH
RECESS IN BASE

TA B

RECESS

Fig. 6

Fig. 7

6. Plug the unit into a 120V electrical outlet and press the OFF/SPEED key. The
air purifier will start with a low blower speed.

7. Use the OFF/SPEED and TURBO keys to adjust the blower speed to the desired
level (Off, Sleep, Active, Turbo Clean). Refer to Fig. 8.

8. Use the TURBO key to adjust the blower speed to high. After 1

1

⁄2 hours, the fan

will return to the previous speed setting.

Fig. 8

7 41792-01

Operation

Filter Life Counters

The pre-filter and filter are critical to the proper operation of the air purifier. To help you
know when to change the filters, your Hunter Air Purifier has Filter Life Counters that will
monitor the percentage of life your filter has left. Although the exact life of the filters de­pends on the environment, the table below gives typical usage times of the filters.

Table 2: Typical Usage Times of the Filters

Filter Type Typical Usage

Activated Carbon Pre-Filter 1400 hours

HEPAtech

The display shows the percentage of life left since the counter was reset. NOTE: The per-
centage level drops in 5% increments.

The values of the Pre-Filter and Filter Life Counters are stored in the air purifier’s
memory. The unit may be unplugged and moved or stored without losing the Pre-

Filter and Filter Counter values.

To properly track filter usage, the Pre-Filter and Filter Life Counters should be reset each
time the filters are changed. Refer to Changing the Pre-Filter (pg. 10) or Changing the Filter
(pg. 11) for instructions on how to reset the counters.

®

Filter 2800 hours

Locking/Unlocking the Keypad

Once you enter the desired speed, you may want to lock the keypad to prevent accidental
changing of the speed. When the keypad is locked, all keys will be disabled. If you press a
key, the Keypad Locked Indicator will be displayed on the screen for 1-2 seconds.

To Lock or Unlock the Keypad:

1. To lock the keypad, press and hold the OFF/SPEED and
TURBO keys simultaneously for 2-3 seconds. The Key­pad Locked Indicator will appear on the display. Refer to
Fig. 9. After releasing the keys, the Keypad Locked Indi­cator will disappear.

2. To unlock the key pad, press and hold the OFF/SPEED
and TURBO keys simultaneously for 2-3 seconds. The
Keypad Indicator will disappear and the keypad will be
functional.

41792-01 8

41792-01_rev 08.02.05.pmd 8/2/05, 4:24 PM8

Fig. 9

Operation

Resetting the Air Purifier

In the unusual situation that the unit or the display is exhibiting erratic behavior, you may
want to reset the air purifier. If you still have problems after resetting the air purifier, please
contact Hunter for additional assistance (refer to Technical Assistance, pg. 14).

To Reset the Air Purifier:

1. Unplug the unit for at least 30 seconds.

2. Plug the unit back in.

Using the Ionizer

Using the ionizer improves the quality of air in the room. Negative ions are released into the
air and positively charged dust, smoke, and pollen particles are attracted to the negative
ions. These particles settle out of the air and can be vacuumed up during normal cleaning.
These particles are also more easily captured by the HEPAtech
the HEPAtech

®

Air Purification System. To ensure the best air circulation in the room, we

recommend that you place your air purifier six (6) inches away from any walls.

To turn the ionizer on or off:

1. To turn the ionizer on, press the IONIZER key. The Ion­izer Indicator will appear on the display. Refer to Fig 10.

2. To turn the ionizer off, press the IONIZER key. The Ion­izer Indicator will disappear.

®

filter as they pass through

Fig. 10

Controlling the Backlight

Your air purifier display has a backlight that is continuously lit as long as there is power to
the unit. The backlight may be turned off.

To turn the backlight off or on:

Press the PRE-FILTER RESET and FILTER RESET keys at the same time.
NOTE: Do not hold down the keys for longer than 2 seconds. This may reset a

and

41792-01_rev 08.02.05.pmd 8/2/05, 4:24 PM9

filter counter.

9 41792-01

Air Purifier Maintenance

Cleaning Your Air Purifier

Proper maintenance of your Hunter Air Purifier will help ensure years of trouble free
service.

Follow these steps to properly maintain your air purifier:

1. Approximately every 90 days, the outside of the unit should be cleaned with a soft,
damp cloth.

2. If needed, the front grill can be removed from the unit and cleaned with soapy water.
Simply remove the pre-filter before exposing the grill to water.

3. Follow the instructions in Changing the Pre-Filter and Changing the Filter (pgs. 10 and

11) to determine when and how to replace the filters.

NOTES:

•The air purifier must be unplugged during the cleaning process.

• Be sure the unit is completely dry before plugging in and using.

•Never immerse unit in water.

Changing the Pre-Filter

When the Pre-Filter exceeds 1400 hours (refer to Filter Life Counters for additional infor­mation, pg. 8), the Pre-Filter Life Counter will display 0% life remaining and the Pre-Filter
indicator will flash as a reminder that you should replace the pre-filter. To maintain proper
odor-removing capability and overall filtration performance, the pre-filter should be changed
every 1400 hours (approximately 3 months of use). If necessary, the pre-filter can be
changed more often. Proper maintenance of the pre-filter will help extend the life of the

HEPAtech

ing replacement filters.

®

filter. Refer to Obtaining Replacement Filters (pg. 13) if you need help find-

To change the pre-filter and reset the Pre-Filter Life Counter:

1. First, turn off and unplug the air purifier.

2. Next, remove the front grill. Place your fingers under the handle on the grill and pull
forward, then up. Refer to Figs. 4 and 5 (pg. 6).

3. The pre-filter is attached to the inside of the grill with hook tape. Pull gently on
the pre-filter to remove it. Refer to Fig. 11.

4. If needed, use a soft damp cloth to wipe off the grill.

5. Install the new pre-filter by placing it in the grill and pressing gently on the pre­filter so that it adheres to the hook tape. You may notice a few black particles
coming off the pre-filter. Those particles are part of the odor-removing activated
carbon and will be collected on the filter during regular use.

41792-01 10

41792-01_rev 08.02.05.pmd 8/2/05, 4:24 PM10

Air Purifier Maintenance

PRE-FILTER

HOOK
TAPE

Fig. 11

HOOK
TAPE

6. Place the front grill back onto the unit. First, line up the tab on the bottom of
the grill with the recess on the purifier base and then push the top of the grill
forward until it is closed. Refer to Figs. 6 and 7 (pg. 7). NOTE: This unit will
not operate unless the grill is in the correct position.

7. Plug in the air purifier.

8. Finally, reset the Pre-Filter Counter by pressing the PRE-FILTER RESET
key for 2 seconds. The Pre-Filter Counter will return to 100% and the Pre­Filter indicator will stop flashing.

Changing the Filter

When the filter exceeds 2800 hours (approximately 4 to 6 months of use), the Filter Life
Counter will display 0% life remaining and the Filter indicator will flash (refer to Filter Life
Counters for additional information, pg. 8). This is a reminder that you should check the
filter and replace if necessary. The proper time to change the filter depends on usage and the
environment. Use the following list to help determine if the filter should be changed:

• Compare the color of the filter to the color coded chart on the inside of the housing. If the
filter color matches the darkest color on the chart, you should replace the filter.

• If you notice a decrease in air output or an increase in noise at any time during normal
operation, the filter may be clogged. Replace the filter to return to normal operation.

To change the filter and reset the Filter Life Counter:

1. First, turn off and unplug the air purifier.

2. Next, remove the front grill. Place your fingers under the handle on the grill and pull
forward, then up. Refer to Figs. 4 and 5 (pg. 6).

11 41792-01

41792-01_rev 08.02.05.pmd 8/2/05, 4:24 PM11

Continued

Air Purifier Maintenance

3. Gently pull on the filter to remove it from the unit. While removing the filter,
note the directional arrows printed on the top of the filter. The new filter will be
installed with the same orientation. Refer to Fig. 12. Once removed, the used
filter can be discarded.

4. Remove the new filter from its wrapping and look at the directional arrows
printed on the side of the filter. Install the filter with arrows pointing towards
the unit. Refer to Fig. 12. Press the filter firmly into the air purifier. To avoid
damaging the filter media, you should press on the frame of the filter only.

FILTER

5. Place the front grill back onto the unit. First, line up the tab on the bottom of
the grill with the recess on the purifier base and then push the top of the grill
forward until it is closed. Refer to Figs. 6 and 7, pg. 7. NOTE: This unit will
not operate unless the grill is in the correct position.

6. Plug in the unit.

7. To reset the filter counter, press the FILTER RESET key for 2 seconds. The Filter
Counter will return to 100% and the Filter indicator will stop flashing.

41792-01 12

41792-01_rev 08.02.05.pmd 8/2/05, 4:24 PM12

Fig. 12

Air Purifier Maintenance

Obtaining Replacement Filters

To obtain replacement filters for your air purifier, first determine your model number by
looking at the information label on the back of the air purifier. The model number will be
listed on the label. Then, call 1-800-4HUNTER for your nearest retailer or Hunter Cus­tomer Service at 1-800-313-3326 (CAN 1-888-855-8300) to order directly. To order online,
visit our Website at www.hunterfan.com. To ensure that you obtain the correct filters, please
find your model number below that specifies the correct replacement filters.

Hunter Air Purifier Model No.: 30715 30716 30717
Pre-Filter Replacement Model No.: 30901 30901 30901

HEPAtech

®

Filter Replacement Model No.: 30965 30965 30965

41792-01_rev 08.02.05.pmd 8/2/05, 4:24 PM13

13 41792-01

Troubleshooting

Problem Solutions

1. No display or operation.

2. Keypad does not work.

3. Erratic Display or
Operation.

4. Filter and/or Pre-filter
Indicator is Flashing.

5. HEPAtech
Carbon Pre-Filter Life
Counter is flashing 0%.

6. Unit has reduced air flow
or increased noise.

®

Filter and/or

• Confirm that the unit is plugged in.

• Check the installation of the front grill.

• Reset the air purifier. (See Resetting the Air Purifier
on pg. 9.)

•Key pad has been locked to prevent accidental changes
to the programs. (See Keypad Lock on pg. 8 to unlock
the key pad.)

• Reset the air purifier. (See Resetting the Air Purifier
on pg. 9.)

•The Filter and/or Pre-Filter Life Counters have reached the
estimated usage times. Check and replace filters if needed.
(Refer to Filter and Pre-Filter Counters on pg. 8.)

•The Filter and/or Pre-Filter Life Counters have greatly
exceeded the estimated usage times. Replace the
corresponding filters.

•The filter is clogged and should be changed. (Refer to
Changing the Filter on pg. 11.)

Technical Support

If you have any additional questions or problems with your Hunter air purifier, please call 1­888-830-1326 from 8:00 am to 5:00 pm Central Time or contact us over the Internet at
www.hunterfan.com.

41792-01 14

41792-01_rev 08.02.05.pmd 8/2/05, 4:24 PM14

Warranty

Hunter Fan Company

HEPAtech

5 YEAR LIMITED WARRANTY

®

Plus Ionizing Air Purifier

The Hunter Fan Company makes the following limited warranty to the original residential
user or consumer purchaser of the

If any part of your

HEPAtech

HEPAtech

®

Plus Ionizing Air Purifier motor or control panel fails dur-

®

Plus Ionizing Air Purifier:

ing the first five (5) years from the date of installation due to a defect in material or work­manship, we will provide a replacement Air Purifier free of charge. Installation is deemed to
occur at the date of purchase.

If the Air Purifier cord or front grill fails any time within one (1) year after installation due
to a defect in material or workmanship, we will replace or, at our option, repair the unit free
of charge at our nearest service center or at our Service Department in Memphis, Tennessee.
You will be responsible for all parts and labor costs after this one-year period.

USE OF A NON-HUNTER FILTER WILL INVALIDATE THIS WARRANTY. IF THE
ORIGINAL RESIDENTIAL USER OR CONSUMER PURCHASER CEASES TO OWN
THE AIR PURIFIER, THIS WARRANTY AND ANY IMPLIED WARRANTY WHICH
THEN REMAINS IN EFFECT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
ARE VOIDED.

NO WARRANTY, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS MADE IN
RESPECT TO THE FILTER MATERIAL OR CARBON FILTER.

THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. THE DU­RATION OF ANY IMPLIED WARRANTY INCLUDING BUT NOT LIMITED TO ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, IN RESPECT TO THE MOTOR IS EXPRESSLY LIMITED TO THE PERIOD
OF THE EXPRESS WARRANTY SET FORTH ABOVE.

This warranty is voided if the air purifier is not purchased and used in the USA or Canada.
This warranty excludes and does not cover defects, malfunctions or failures of the Air Puri-

fier which were caused by repairs by persons not authorized by us, use of parts or accesso­ries not authorized by us, mishandling, modifications, or damage to the Air Purifier while in
your possession, or unreasonable use, including failure to provide reasonable and necessary
maintenance. This warranty does not cover Air Purifiers used in commercial applications.
There are no express or implied warranties as to commercial purchasers or users.

To obtain service, contact the nearest Hunter authorized service center or the Hunter Fan
Company Service Department, 2500 Frisco Avenue, Memphis, Tennessee 38114, 1-888­830-1326. For the name of our nearest authorized Hunter Fan Company Service Center,
write to the Hunter Fan Company at the preceding address. You will be responsible for

15 41792-01

41792-01_rev 08.02.05.pmd 8/2/05, 4:24 PM15

Warranty

insurance and freight or other transportation to our factory service center. We will return the
Air Purifier freight prepaid. The Air Purifier should be properly packaged to avoid damage
in transit since we will not be responsible for any such damage. Proof of purchase is re­quired when requesting warranty service. The purchaser must present sales receipt or other
document that establishes proof of purchase.

IN NO EVENT SHALL HUNTER FAN COMPANY BE LIABLE FOR DIRECT, INDI­RECT, SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES IN EXCESS OF
THE PURCHASE PRICE OF THE AIR PURIFIER. YOUR SOLE REMEDY WILL BE
REPAIR OR REPLACEMENT AS PROVIDED ABOVE.

SOME AMERICAN STATES AND CANADIAN PROVINCES DO NOT ALLOW:

• LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS;

• THE EXCLUSION OR LIMITATION OF DIRECT, INDIRECT SPECIAL, INCI­DENTAL OR CONSEQUENTIAL DAMAGES;

SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO

HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO
PROVINCE.

41792-01 16

41792-01_rev 08.02.05.pmd 8/2/05, 4:24 PM16

Other Home Comfort Products from Hunter

The Care-Free

Humidifier

To learn more about Hunter Fan Company products, please see our Web page at:

™

Programmable

Thermostat

www.hunterfan.com
