Page 1

Universal Fan and

Light Remote Control

Hand-Held Remote and Wall Cradle

Owner’s Guide and Installation Manual

Models 27184, 27188

English

Page 2

1 • Welc ome

Table of Contents

1 • Welcome ..............................................................2

2 • Installation Preparation ............................... 3

3 • DIP Switch Settings ........................................ 4

4 • Receiver Installation ......................................5

5 • Transmitter Installation ............................... 8

6 • Operation ............................................................ 9

7 • Troubleshooting ...........................................10

8 • Warranty ........................................................... 11

41797-01 • 07/06/10 • Hunter Fan Company

Read and Save these Instructions

Caution: Risk of Electrical Shock!

All wiring must be performed in accordance with national and local electrical codes. If you are unfamiliar with the wiring codes, you should use a

qualied electrician.

To avoid overheating and possible damage to other equipment, do not install to control a receptacle,

uorescent light xture, motor operated appliance, or

transformer-supplied appliance. Use only to control

one ceiling fan with or without a light xture.

Ratings: 120 VAC, 60 Hz,1.0 Amp Fan Receiver Weight: 6 oz. 300 Watts incandescent light

Page 3

2 • Installation Prep aration

Notes:

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from the one the

receiver is connected to.

• Consult the dealer or an experienced radio/TV technician for help.

3. For use only with electrically reversible ceiling fans rated at 1.0 amp or less,

41797-01 • 07/06/10 • Hunter Fan Company

and fan incandescent light kits rated at 300 watts or less.

4. Not for use with shaded-pole motors, Hunter 42” Low Prole fans, and

Hunter Baseball fans. Not recommended for use with the Hunter Original®. For Hunter Original® series fans, use Hunter control model numbers 27187, 22691, or 27189.

5. Medium and Low fan speeds are determined by the control and thus may vary from the factory settings due to normal motor variations.

6. For use with Hunter Hanging Systems (excludes Hunter Original) on at

ceilings or angled ceilings with a pitch up to 34°.

7. Not for use in applications where the fan does not have a wall switch.

Any changes or modications to this equipment not expressly approved by Hunter Fan Company will void the user’s authority to operate the equipment.

Page 4

3 • S ettin g Jumpers & DIP Switches

BEFORE INSTALLING THE CONTROL:

1. Use the pull chain switch to set the fan speed to the HIGH position before installation.

Do not use the pull chain to change the fan speed after installation, as damage to your ceiling fan or universal control may result. The speed of the fan should only be changed by the Hunter control.

2. Set the ceiling fan light kit to the ON position before installation. The light level should

only be changed by the Hunter control.

Installation Instructions:

1. Disconnect power to the ceiling fan and light kit at the main electrical panel. Remove fuse or move circuit breaker to the OFF position.

2. IMPORTANT! Change the position of the jumpers in the transmitter and the DIP switches in the receiver. Before you change a jumper, make sure the battery is not connected to the transmitter. Be sure the position of the jumpers in the transmitter match the position of the DIP switches on the receiver. If they don’t match, the controller will not function. The DIP switches

for the receiver are located on the at surface of

the receiver. In the transmitter you can access the jumpers from the battery compartment. The jumpers are very small. You can move them most easily using a small pair of pliers or tweezers.

3. When two or more fans are located near each other,

you may want to have the receiver/transmitter

for each fan set to a different code, so that the operation of one fan does not affect the operation of the other fans.

Transmitter Jumnpers

Figure 2

41797-01 • 07/06/10 • Hunter Fan Company

Example Settings

Receiver

Figure 1

Figure 3

Receiver DIP Switches

Jumpers

Set to 0111

Transmitter

1234

DIP Switches

Set to 0111

Page 5

4 • R eceiver Installation

4. Install the ceiling fan according to its instructions, up to the point of making the electrical connections. Connect receiver to ceiling fan according to the

mounting types shown on the next page. Determine your ceiling fan mounting

type from the images on Pages 5-6. Most installations will be one of these

ve types.

5. If the fan is already installed, turn the power OFF at the main electrical panel. Reverse the installation procedure according to the fan instructions, to the point of disconnecting the fan wiring. Connect the receiver to the ceiling fan according to the mounting type as shown on Pages 5-6.

NOTE: Some fans may have considerable excess lead wire. For easier canopy installation, cut the excess wire leaving a minimum of 6 inches remaining. Restrip the fan lead wires 1/2 inch. Place remaining excess wire into the ceiling electrical box as needed.

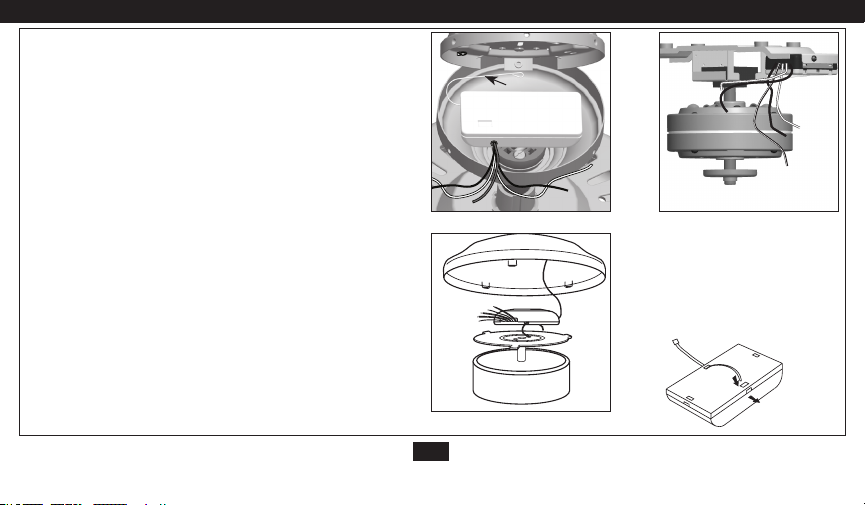

Canopy Hanger (Figure 4): Place receiver in canopy. Connect wiring as

shown in Figure 4. Extend antenna through one of the ceiling plate openings (approximately 3–6˝).

Low Prole Style I (Figure 5): Secure receiver to the fan plate above the motor with UL listed cable ties (not included). Connect wiring as

shown in Figure 5. Extend antenna through one of the ceiling plate openings (approximately 3–6˝).

Low Prole Style II (Figure 6): Secure receiver to the ceiling mounting bracket with UL listed cable ties (not included). Connect wiring as shown in

Figure 6. Extend antenna above the ceiling mounting bracket (approximately 3–6˝).

41797-01 • 07/06/10 • Hunter Fan Company

Low

Prole

Style 2

Antenna

Figure 4

Figure 6

Canopy

Low

Prole

Cable Tie Routing for Low Prole

Fans (Figs.5-6): Insert cable tie through openings as shown. DO NOT insert the cable tie through the inside of the receiver. The cable tie can be placed across the length or width of the receiver to best match your fan installation type.

Figure 5

Style 1

Page 6

Hands Free

Figure 7

4 • R eceiver Installation

NOTE: Some fans may have considerable excess lead wire. For easier canopy installation, cut the excess wire leaving

a minimum of 6 inches remaining. Restrip the fan lead

wires 1/2 inch. Place remaining excess wire into the ceiling electrical box as needed.

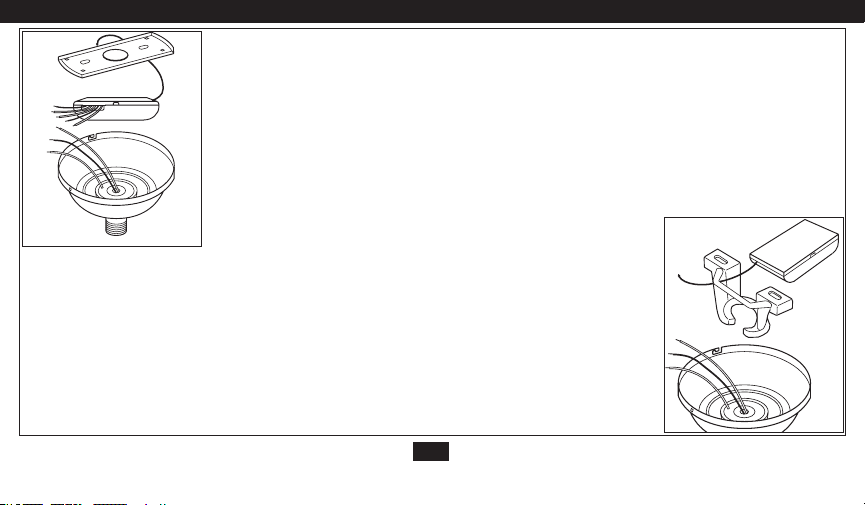

Hunter Hands-Free™ Canopy: Connect wiring as shown in Figure 7. Place receiver inside mounting

bracket. Extend antenna above the ceiling mounting bracket (approximately 3–6˝).

Bracket Hanger: Starting with the antenna wire, slide

receiver inside mounting bracket. If a ground wire mounting

screw prevents the receiver from sliding into the bracket,

move ground wire and screw to an unused hole at the top

of the bracket or secure with a canopy mounting screw. The

bracket must remain properly grounded. Connect wiring

as shown in Figure 8. Extend antenna above the receiver

41797-01 • 07/06/10 • Hunter Fan Company

(approximately 5–8˝).

Bracket Hanger

Figure 8

Page 7

4 • R eceiver Installation

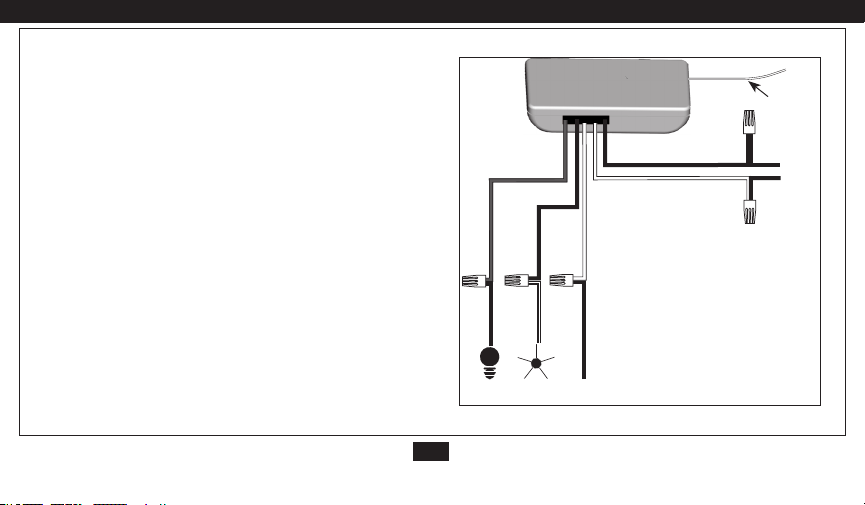

6. Use the 2 large (orange) wire connectors supplied to connect

the receiver and house wiring, then use the 3 small (blue) wire connectors supplied to connect the receiver and ceiling fan wiring. Refer to the Wiring Diagram in Figure 9.

7. Be sure the antenna is positioned securely, so it can not

interfere with the ceiling fan motor. Refer to Figure 9. Do not modify or damage the antenna wire, as control performance may be reduced. After securing the receiver, antenna,

and wiring, nish hanging the ceiling fan according to its

instructions.

8. Restore power at main electrical panel.

41797-01 • 07/06/10 • Hunter Fan Company

Figure 9

Red

Light

Fan

WhiteBlack

Common

Black/Hot (marked “LIVE IN on red label)

White/Neutral (marked “COMMON IN” on red label

Antenna

AC Power In

Page 8

5 • Transmitter Install ation

1. Install the 12 Volt alkaline battery (A23 or equivalent) inside the handheld transmitter, after setting the jumpers to match the dip switches in the receiver. Refer to Figure 11.

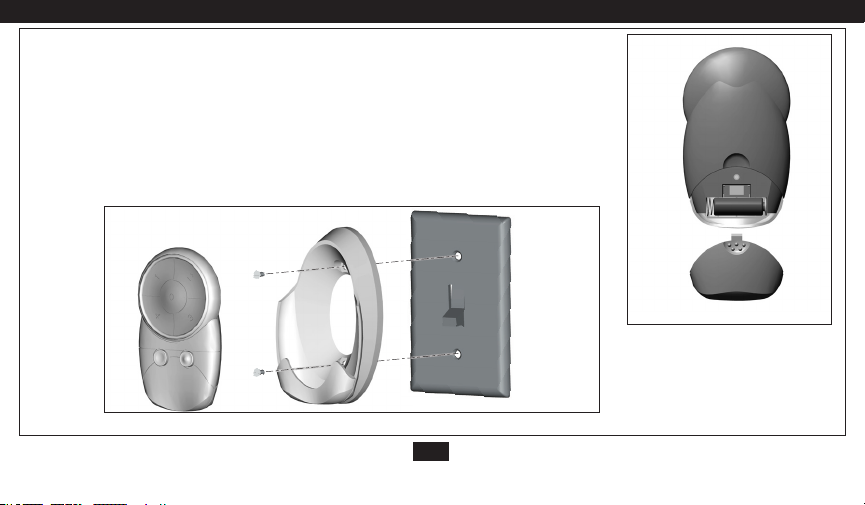

2 Mount the remote holder over the ceiling fan’s wall switch using the existing wall plate screws. Refer to

Figure 12.

3. e transmitter can be placed on the remote holder for convenience or safekeeping.

Select your own unique code, making sure the settings match in the transmitter and receiver.

Figure 12

41797-01 • 07/06/10 • Hunter Fan Company

Figure 11

Page 9

6 • Operation

Light Operation:

• Turn ON wall switch. The light will turn ON at maximum brightness.

• Press and quickly release either light button on the hand held remote to turn the light OFF or ON. The light will come ON at maximum brightness.

• After a power outage, the light will turn ON when power is restored. Press and quickly release one of

the light buttons once to turn the light back off after a power outage.

• Press and hold either light button for more than 1 second to activate the dimming cycle.

• Press to turn the light ON at the maximum level and dim

• Press to turn the light ON at a low level and brighten

• Release the light button when the desired light level is reached.

• Continue to hold the light button to repeat the cycle. (Maximum–light level decrease–OFF)

2. Fan Operation:

• Press the High (3), Medium (2), or Low (1) speed buttons to turn the ceiling fan ON at the desired

speed.

• Press the fan “0” key to turn the ceiling fan OFF.

For best fan operation: Start the fan on High, and then select the desired speed.

41797-01 • 07/06/10 • Hunter Fan Company

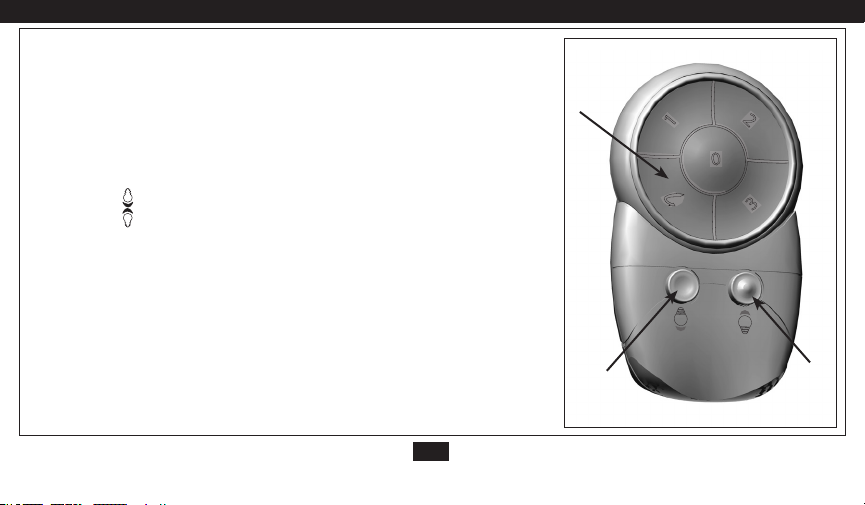

Reversing Switch

Down Dimmer

Dimmer

Figure 13

Page 10

7 • Tro ubl eshooting

Symptom Possible Causes Solution

1.No functions operate. Main Power not restored. Replace fuse. Turn ON circuit breaker. Turn ON wall switch.

Fan pull chain not set to High. Set fan pull chain to High speed.

Light pull chain not set to ON. Set light kit to ON.

Receiver wiring incorrect. Verify wiring connections.

Transmitter and receiver DIP switches do not match.

Battery too weak. Replace with new, 12 Volt alkaline battery. Refer to

2.Operates only at close range. Signal blocked from reaching

receiver.

Battery too weak. Replace with new, 12 Volt alkaline battery. Refer to

Interference Change the DIP switch settings on the remote receiver and

3.Inconsistent operation. Signal partially blocked from

reaching receiver.

RF interference. Turn OFF wall switch for 5 seconds, then turn back ON.

Continuing RF interference. Change jumper settings to a different code in both transmitter

41797-01 • 07/06/10 • Hunter Fan Company

Set transmitter and receiver to same DIP switch setting.

“Transmitter Installation”, Section 6.

Extend antenna into ceiling box, or move it for better reception.

“Transmitter Installation”, Section 6.

transmitter,

Extend antenna into ceiling box, or move it for better reception.

and receiver.

Page 11

8 • Warranty

HUNTER FAN COMPANY CONTROL LIMITED WARRANTY

The Hunter Fan Company makes the following limited warranty to the original purchaser of the Control (“Control”): Your

Control is warranted to be free from defects in material and workmanship for a period of one year from the date of sale. If the Control malfunctions or fails within the warranty period due to a defect in material or workmanship we will replace it free

of charge. IF THE ORIGINAL PURCHASER CEASES TO OWN THE CONTROL, THIS WARRANTY AND ANY IMPLIED WARRANTY, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE VOIDED. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. THE DURATION OF ANY IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IN RESPECT TO ANY CONTROL, IS EXPRESSLY LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE FOR SUCH CONTROL. This warranty excludes malfunctions or failures which were caused by repairs by persons not authorized by us, mishandling, improper installation, modications, or damage to the Control while in your possession, or unreasonable use. This warranty does

not apply to batteries or to deterioration or damage to the product caused by the use of faulty batteries. To obtain a replacement, return your Control postage prepaid along with proof of purchase to Hunter Fan Company Service Department

at 7130 Goodlett Farms Pkwy. #400, Memphis, Tennessee 38016. IN NO EVENT SHALL HUNTER FAN COMPANY BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

41797-01 • 07/06/10 • Hunter Fan Company

If you need parts or service assistance, please call 888-830-1326 or visit us at our website at http://www.hunterfan.com. Hunter Fan Company 7130 Goodlett Farms Parkway #400 Memphis, Tennessee 38016

Printed in China
