Welcome
© 2004 Hunter Fan Company
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
• Read this entire manual carefully before beginning installation. Save
these instructions.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
For Your Records and Warranty
Assistance
Model Name: _____________________
Catalog/Model No.: ________________
Serial No.: _______________________
Date Purchased: ___________________
Where Purchased: _________________
For reference also attach your receipt or a
copy of your receipt to the manual.
Table of Contents
1 • Getting Ready ................................................... 4
2 • Installing the Hanger Bracket................... 5
3 • Assembling and Hanging the Fan..........6
4 • Wiring the Fan.................................................. 8
5 • Installing the Canopy and
Canopy Trim Ring............................................ 9
6 • Assembling the Blades .............................. 10
7 • Installing the Switch Housing................ 11
8 • Installing the Light Fixture...................... 12
9 • Operating and Cleaning
Your Ceiling Fan ............................................13
10 • Troubleshooting......................................... 14
Page 3
3
42012-01 • 03/09/05 Hunter Fan Company
Installer’s Choice and Optional Accessories
Understanding Mounting and Installer’s Choice®
Hunter’s patented 3-position mounting system provides you maximum
installation exibility and ease. You can install your Hunter fan in one
of three ways, depending on ceiling height and your preference: Low
Pro le, Standard, or Angle mounting. e steps in this manual include
instructions for all three Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
Low Pro le Mounting ts close to the
ceiling, recommended for ceilings less
than 8 feet high
Standard Mounting hangs from
the ceiling by a downrod (included),
recommended for ceilings 8 feet or higher
Angle Mounting recommended for a
vaulted or angled ceiling
For ceilings higher than 8 feet, you
can purchase Hunter extension
downrods. All Hunter fans use sturdy
3/4” diameter pipe to assure stability
and wobble-free performance.
Page 4
4
Hunter Fan Company 42012-01 • 03/09/05
5
42012-01 • 03/09/05 Hunter Fan Company
1 • Getting Ready
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver
• Phillips-head screwdriver
• Wrench or pliers
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Check
for any shipping damage to the motor or fan blades. If one of the fan
blades was damaged in shipment, return all the blades for replacement.
If any parts are missing or damaged, contact your Hunter dealer or call
Hunter Parts Department at 888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum e ciency, and energy savings.
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades in
sets, as they were shipped.
Page 5
5
42012-01 • 03/09/05 Hunter Fan Company
2 • Installing the Hanger Bracket
2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
Note: Your fan comes with four pre-installed neoprene noise
isolators.
2-2. read the lead wires from the outlet box down through the hole
in the middle of the hanger bracket.
2-3. Align the slotted holes in the hanger bracket with the pilot holes
you drilled in the wood support structure. For proper alignment
use slotted holes directly across from each other. If you are
installing the fan on an angled ceiling, be sure to orient the hanger
bracket with the large opening towards the ceiling peak.
Note: e isolators should be ush against the ceiling.
2-4. Place a at washer on each of the two 3” screws and pass the
screws through the slotted holes in the hanger bracket into the
pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Flat Washer
3” Screw
Steps 2-2 – 2-4
For Angled Ceilings: Be sure to orient
the hanger bracket with the large
opening towards the ceiling peak.
Hanger
Bracket
Step 2-3 (Angled Ceiling Only)
Isolator
Page 6
6
Hunter Fan Company 42012-01 • 03/09/05
7
42012-01 • 03/09/05 Hunter Fan Company

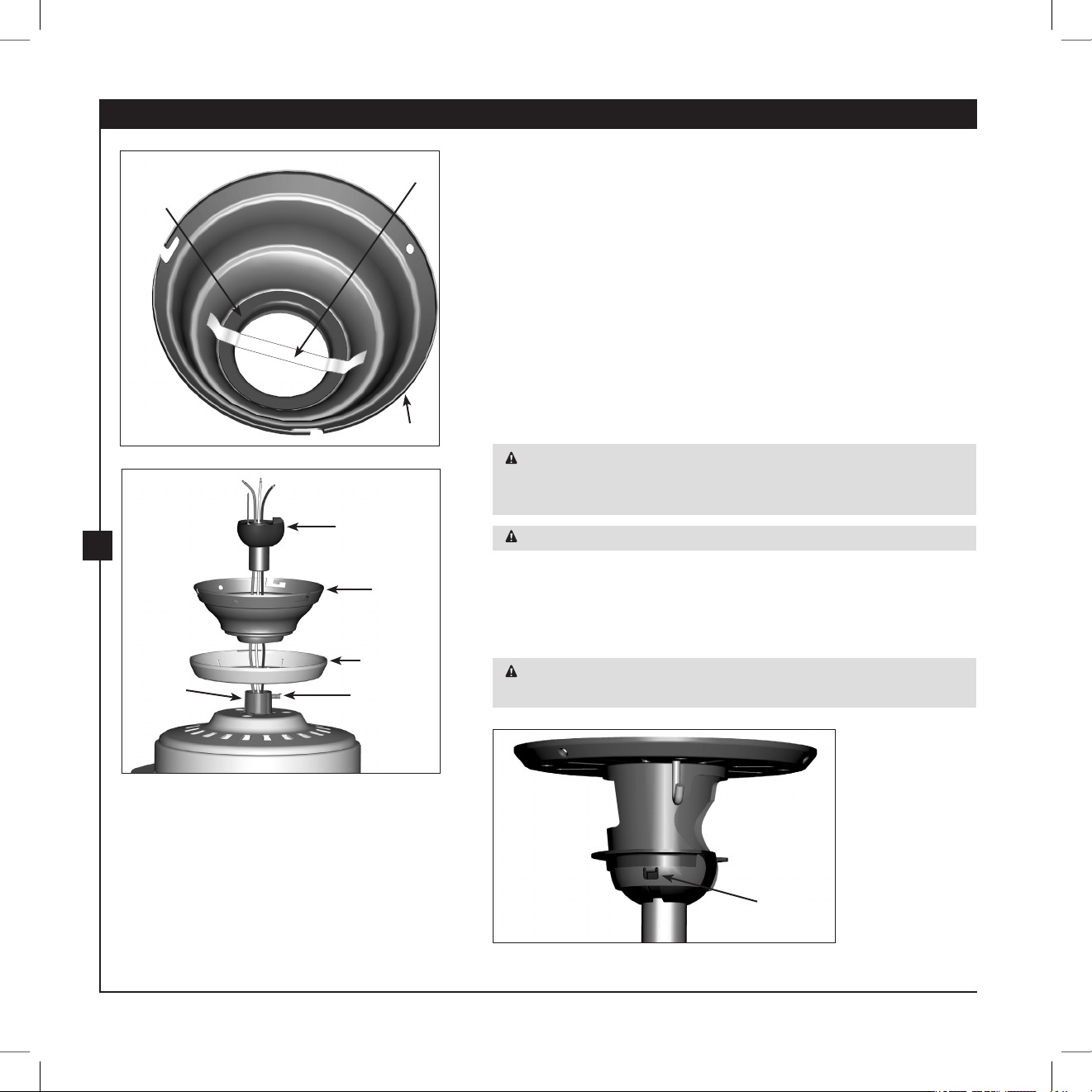

3 • Assembling and Hanging the Fan
You can assemble your fan for standard or angle mounting as shown
in steps 3-1 – 3-6. For low prole mounting (ceilings less than 8 feet
high), go to steps 3-7 – 3-11 on the next page.
3-1. Remove the label from the standard mounting washer inside the
canopy. Leave the washer in place. (Note: You will not use the
washer included in the parts sack.)
3-2. To assemble fan to hang down from a at or angled ceiling, place
the canopy with washer, and canopy trim ring around the adapter
so that they rest on the fan assembly.
3-3. Feed the wires from the fan through the downrod.
3-4. Screw the downrod into the fan assembly. Tighten the square
head set screw.
CAUTION: e downrod has a special coating on the threads.
Do not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
WARNING: Do not carry or lift fan by canopy.
3-5. Raise the fan and place the ball into the hanger bracket.
3-6. Align the notch on the ball with the indent in the hanger bracket.
(Rotate the fan until you hear the notch pop into place.)
Go to 4 • Wiring the Fan.
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
Steps 3-2 – 3-4
Downrod
Canopy
(with Washer)
Canopy
Trim Ring
Set Screw
Canopy
Standard
Mounting
Washer
Step 3-1
Adapter
Label
Steps 3-5 – 3-6
Indent
Page 7
7
42012-01 • 03/09/05 Hunter Fan Company

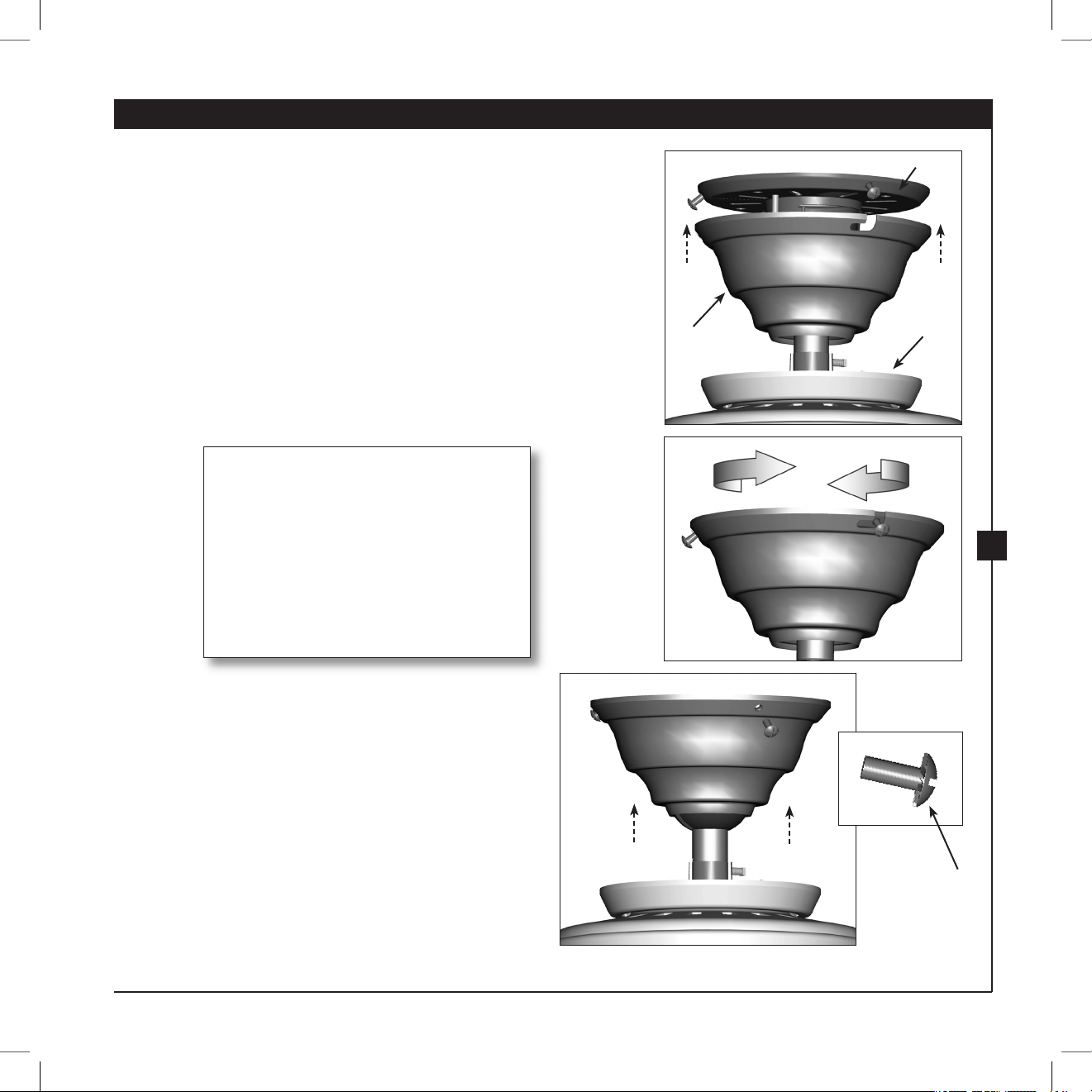

3 • Assembling and Hanging the Fan (Low Profile Only)
You can assemble your fan for standard or angle mounting as shown
in steps 3-1 – 3-6 on the previous page. For low prole mounting
(ceilings less than 8 feet high), see steps 3-7 – 3-11 on this page.
3-7. Locate the washer that comes preassembled in the canopy.
Remove the label and discard the washer and label. Locate the set
screw preassembled in the adapter. Remove and discard the set
screw. (Refer to images on previous page.)
3-8. Place the low prole washer from the parts sack into the canopy.
3-9. Place the canopy trim ring and canopy with washer on top of the
fan assembly.
3-10. Align the screw holes in the washer with the holes in the adapter.
Assemble securely with three #8-32 x 1/2” screws.
3-11. Raise the fan and place the hook on the hanger bracket through
the round hole in the rim of the canopy.
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
Steps 3-8 – 3-10
#8-32 x 1/2” Screw
Low Prole Washer
Step 3-11
Step 3-10 (Detail)
Low Prole Washer
(Not Actual Size)
Canopy
Trim Ring
Adapter
Page 8
8
Hunter Fan Company 42012-01 • 03/09/05
9
42012-01 • 03/09/05 Hunter Fan Company
Wire Nut
Step 4-3
Step 4-4

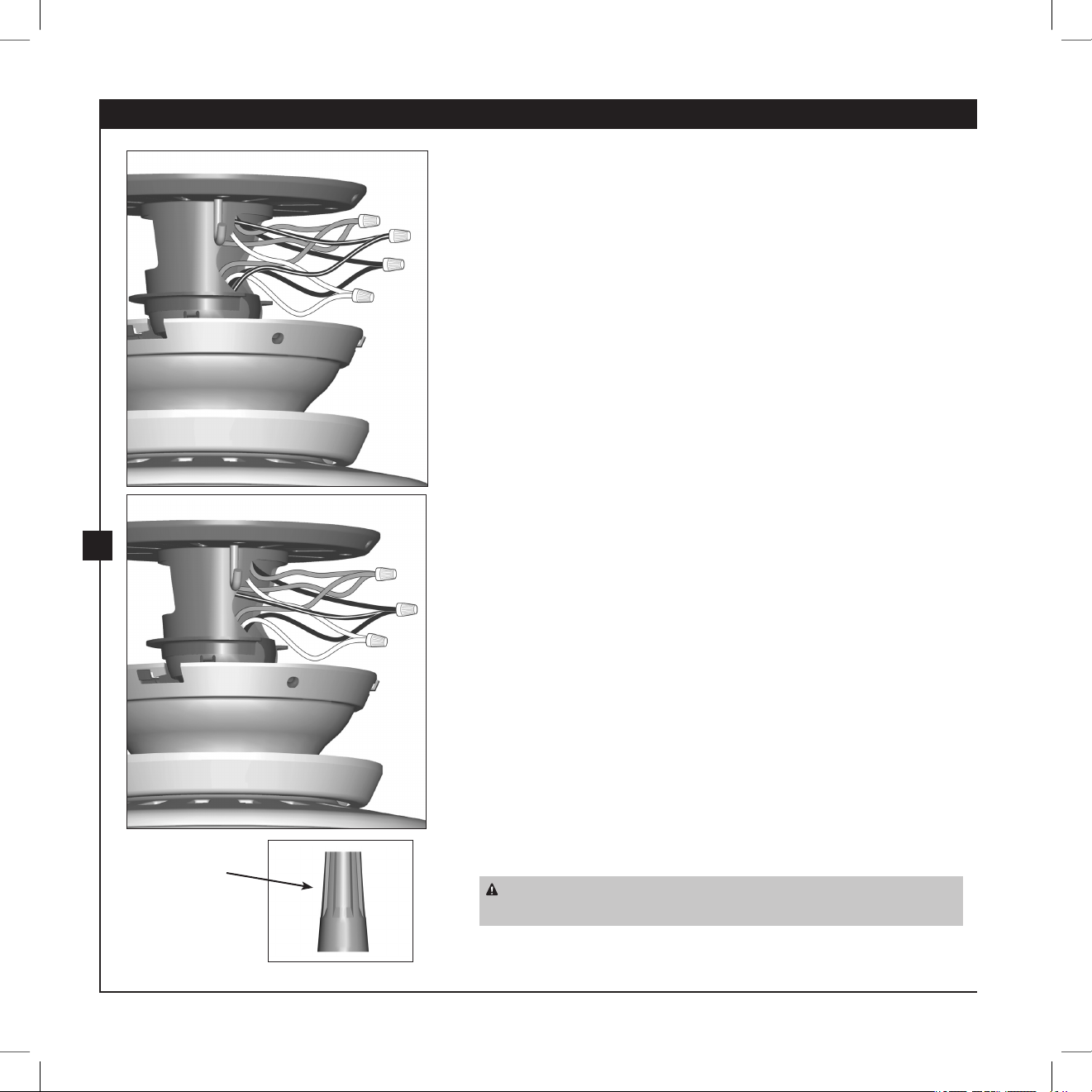

4 • Wiring the Fan
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
Wall switches are not included. Select an acceptable general-use switch in
accordance with national and local electrical codes.
4-1. Disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location.
4-2. Decide how you want to set up the fan and light controls. You can
control the fan and/or lights together or separately using one or two
wall switches. Follow Step 4-3 OR Step 4-4, depending on what you
decide.
Note: If you are not installing a light kit, follow step 4-4.
4-3. If you want to, you can control the fan and light separately using two
wall switches, connect the wires as follows:
• e bare or green ground wire from the ceiling to the green
ground wire from the hanger bracket and the green ground wire
from the fan
• e white wire from the ceiling to the white wire from the fan
• e black wire from the ceiling to the black wire from the fan
• e black/white wire from the fan to the wire for the wall switch
4-4. Alternatively, you can control both fan and light with one switch. To
do so connect the wires as follows:
• e bare or green ground wire from the ceiling to the green
ground wire from the hanger bracket and the green ground wire
from the fan
• e white wire from the ceiling to the white wire from the fan
• e black wire from the ceiling to the black and the black/white
wire from the fan
4-5. To connect the wires, hold the bare metal leads together and place a
wire nut over them, then twist clockwise until tight.
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
4-6. Push all wires and wire nuts back into the hanger bracket.
Page 9
9
42012-01 • 03/09/05 Hunter Fan Company

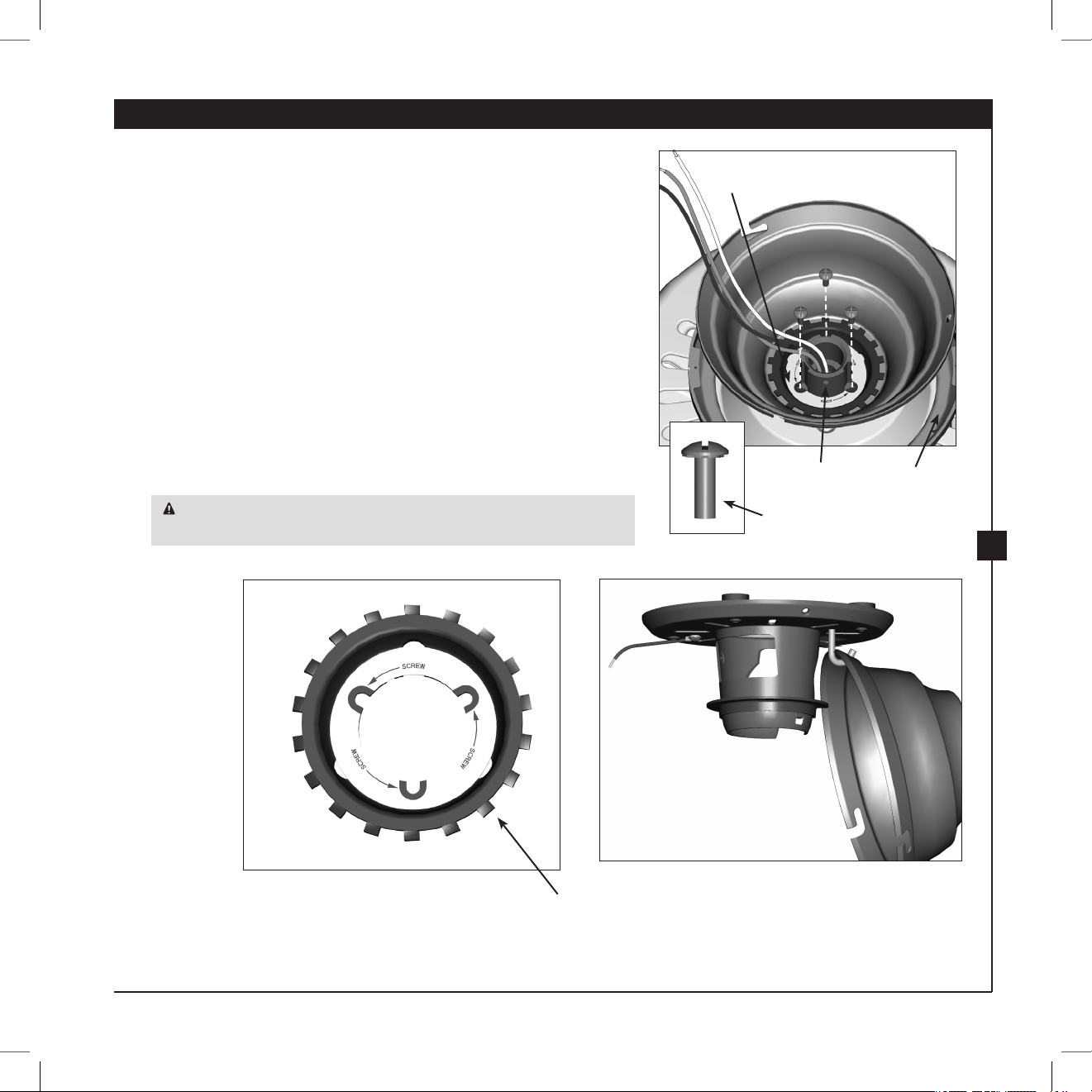

5 • Installing the Canopy and Canopy Trim Ring
5-1. Partially install two canopy screws (about 2 full turns) in the
hanger bracket.
5-2. Raise the canopy over the hanger bracket (For low pro le
installations, you will need to remove the canopy from the hook
rst). Align partially installed screws with key slots in canopy.
5-3. Twist canopy clockwise to secure.
5-4. Install third canopy screw in round hole on canopy. Securely
tighten all three screws.
5-5. Using both hands, push the canopy trim ring up to the top of the
canopy. e canopy trim ring will snap and lock into place.
Should you need to remove the canopy
trim ring, follow these steps:
1. Locate the tab indicators, small
bumps on top of tabs.
2. Press rmly on opposite sides of the
ring towards the canopy. e tabs
will ex out releasing the trim ring
from the canopy
Steps 5-1 – 5-2
Canopy Trim
Ring
Canopy
Hanger Bracket
Step 5-3
Canopy
Screw
Steps 5-4 – 5-5
Page 10
10
Hunter Fan Company 42012-01 • 03/09/05
11
42012-01 • 03/09/05 Hunter Fan Company

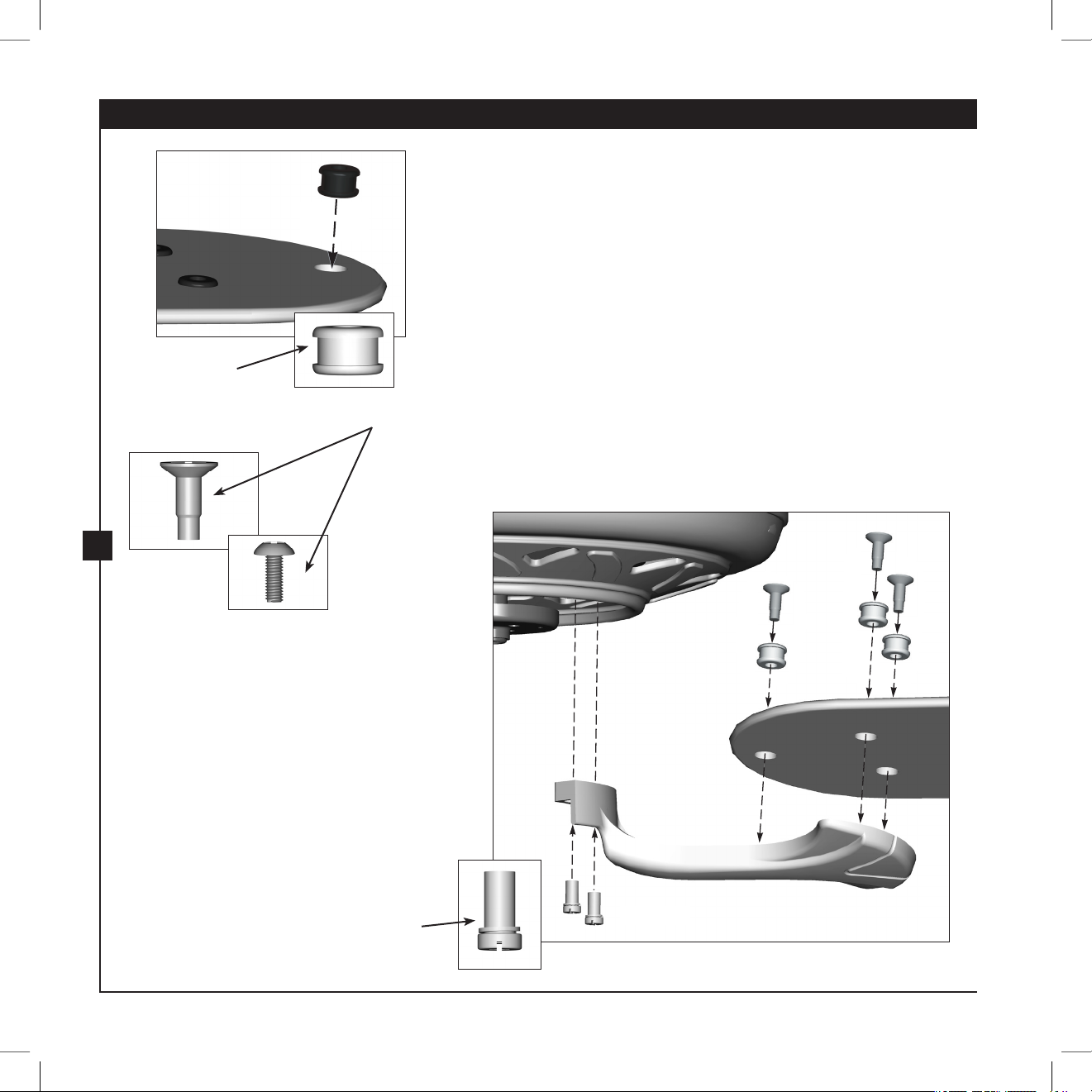

6 • Assembling the Blades
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
6-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
6-2. Attach each blade to a blade iron using three blade assembly
screws. If you used grommets, the blades may appear slightly loose
after screws are tightened. is is normal.
6-3. Remove the blade mounting screws and rubber shipping bumpers
from the motor.
Note: In order to attach each blade, you will need to rotate the motor
until the two screw holes for the blade are visible through the cutaway.
6-4. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Step 6-1 (Detail)
Blade Assembly
Screws
Use with grommet
Use without grommet
Grommet
Blade
Mounting
Screw
Steps 6-1 – 6-2
Step 6-4
Page 11
11
42012-01 • 03/09/05 Hunter Fan Company

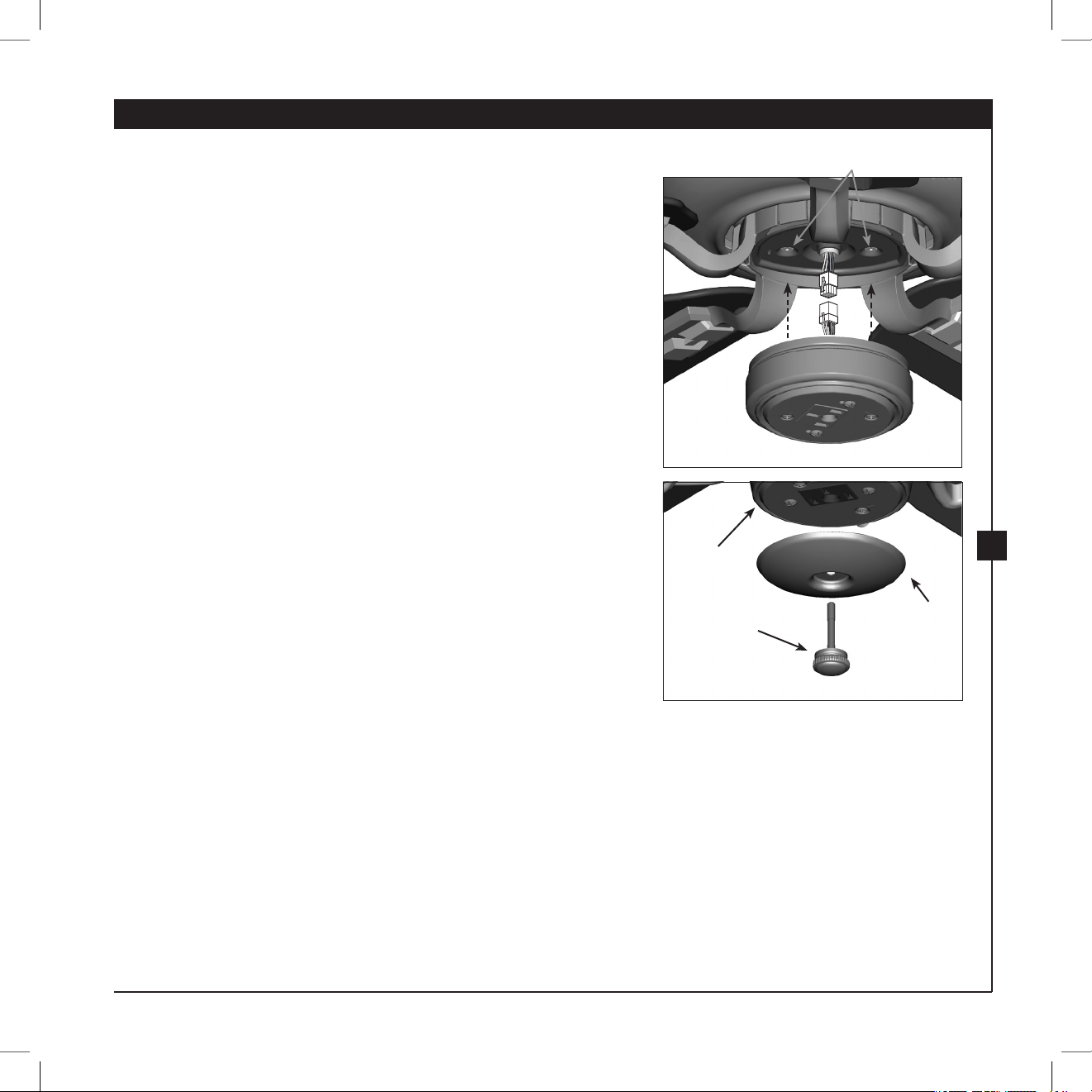

7 • Installing the Switch Housing
7-1. Connect the upper plug connector from the motor to the lower
plug connector in the switch housing assembly.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
7-2. To attach the switch housing, thread the screws through the side
holes of the mounting plate and tighten them securely.
Note: If you are installing the light xture, proceed to 8 • Installing the
Light Fixture. If you are not installing the light xture, proceed with
steps 7-3 – 7-4 to complete the installation.
7-3. read the nial with rod (from the sack parts) through the switch
housing cap and into the switch housing.
7-4. Tighten the nial.
Steps 7-1 – 7-2
Side Holes
Switch
Housing
Switch
Housing
Cap
Finial
Steps 7-3 – 7-4
Page 12
12
Hunter Fan Company 42012-01 • 03/09/05
13
42012-01 • 03/09/05 Hunter Fan Company

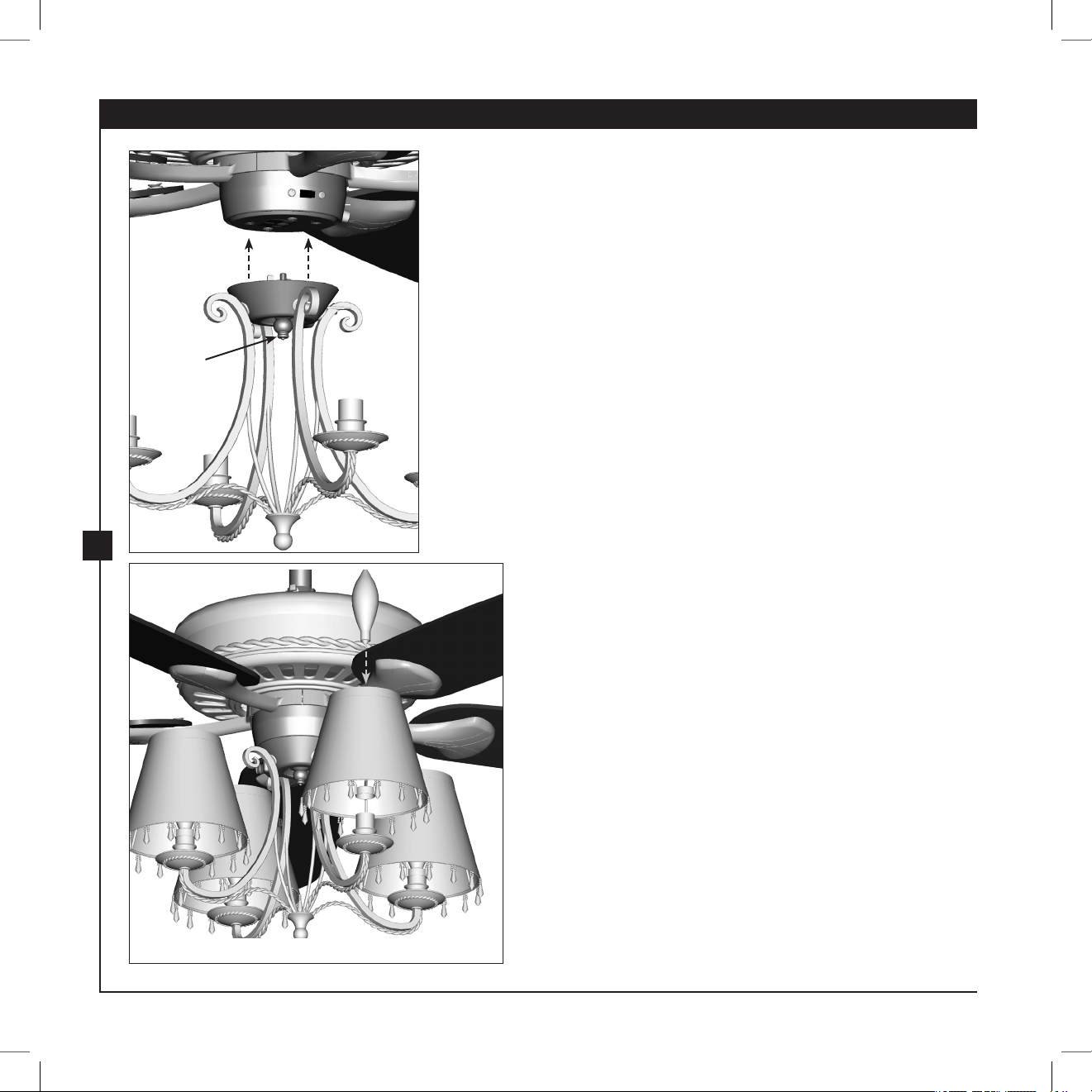

8 • Installing the Light Fixture
8-1. Plug in the light xture and turn the nial until it is tight.
8-2. Place each shade on a socket.
8-3. Install 4 candelabra bulbs (40W max).
Step 8-1
Steps 8-2 – 8-3
Finial
Page 13
13
42012-01 • 03/09/05 Hunter Fan Company

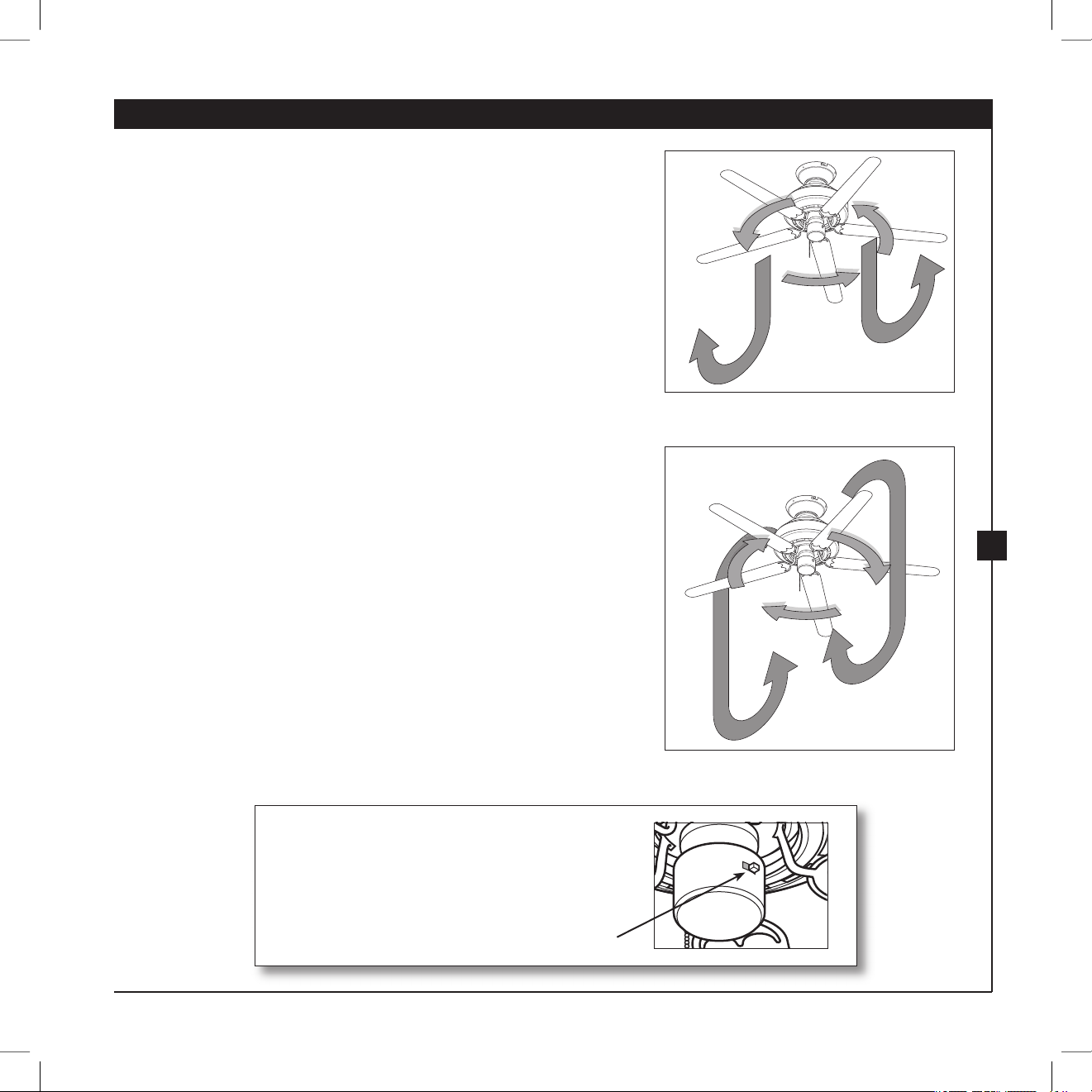

9 • Operating and Cleaning Your Ceiling Fan
9-1. Turn on electrical power to the fan.
9-2. e fan pull chain controls power to the fan. e pull chain has
four settings in sequence: High, Medium, Low and O .
• Pull the chain slowly to change settings.
• Release slowly to prevent the chain from recoiling into the
blades.
• e chain uses a breakaway connector that separates if the
chain is jerked. If this happens, simply reinsert the chain into
the connector.
9-3. e light pull chain controls power to the light. e pull chain has
two settings: On and O .
9-4. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In winter, having the fan draw air upward (clockwise blade
rotation) will distribute the warmer air trapped at the ceiling
around the room without causing a draft.
9-5. For cleaning nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust using
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents as they will
damage the nish.
9-6. Clean wood nish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan nish.
In warm weather, use
downward air ow pattern
In cold weather, use upward
air ow pattern
To Change Air ow Direction
Turn the fan o and let it come to a complete
stop. Slide the reversing switch on the fan to the
opposite position. Restart fan.
Reversing
Switch
Page 14
14
Hunter Fan Company 42012-01 • 03/09/05
10 • Troubleshooting
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch rmly up or down to ensure that the
switch is engaged.
5. Pull the pull chain to ensure it is on.
6. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade bracket screws until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
3. Be sure that the shades are secure.
4. Check and tighten the screws in the switch housing mounting
plate and in the upper and lower switch housing.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade iron screws.
3. Turn power o , support fan very carefully, and check that the
hanger ball is properly seated.
If you need parts or service assistance, please call
888-830-1326 or visit us at our WEB site at
http://www.hunterfan.com.
Hunter Fan Company
2500 Frisco Avenue
Memphis, Tennessee 38114
Loading...
