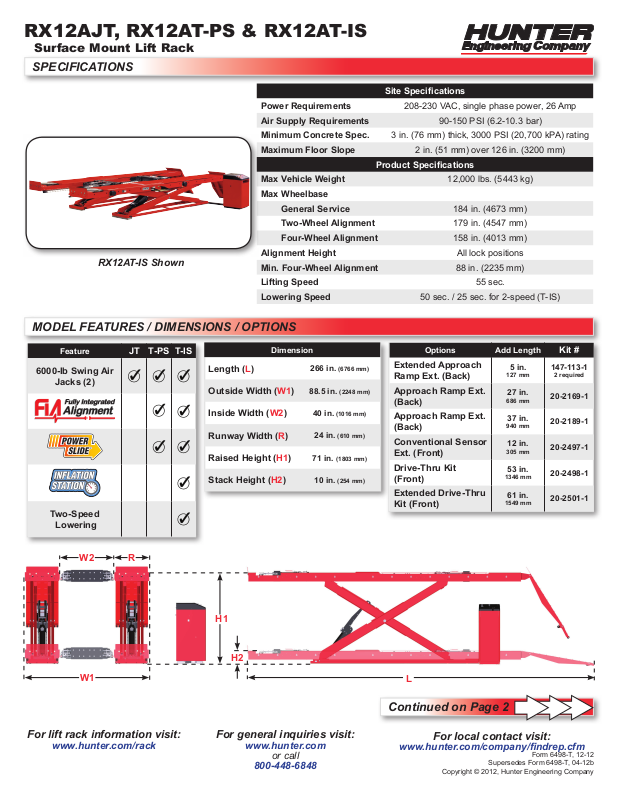

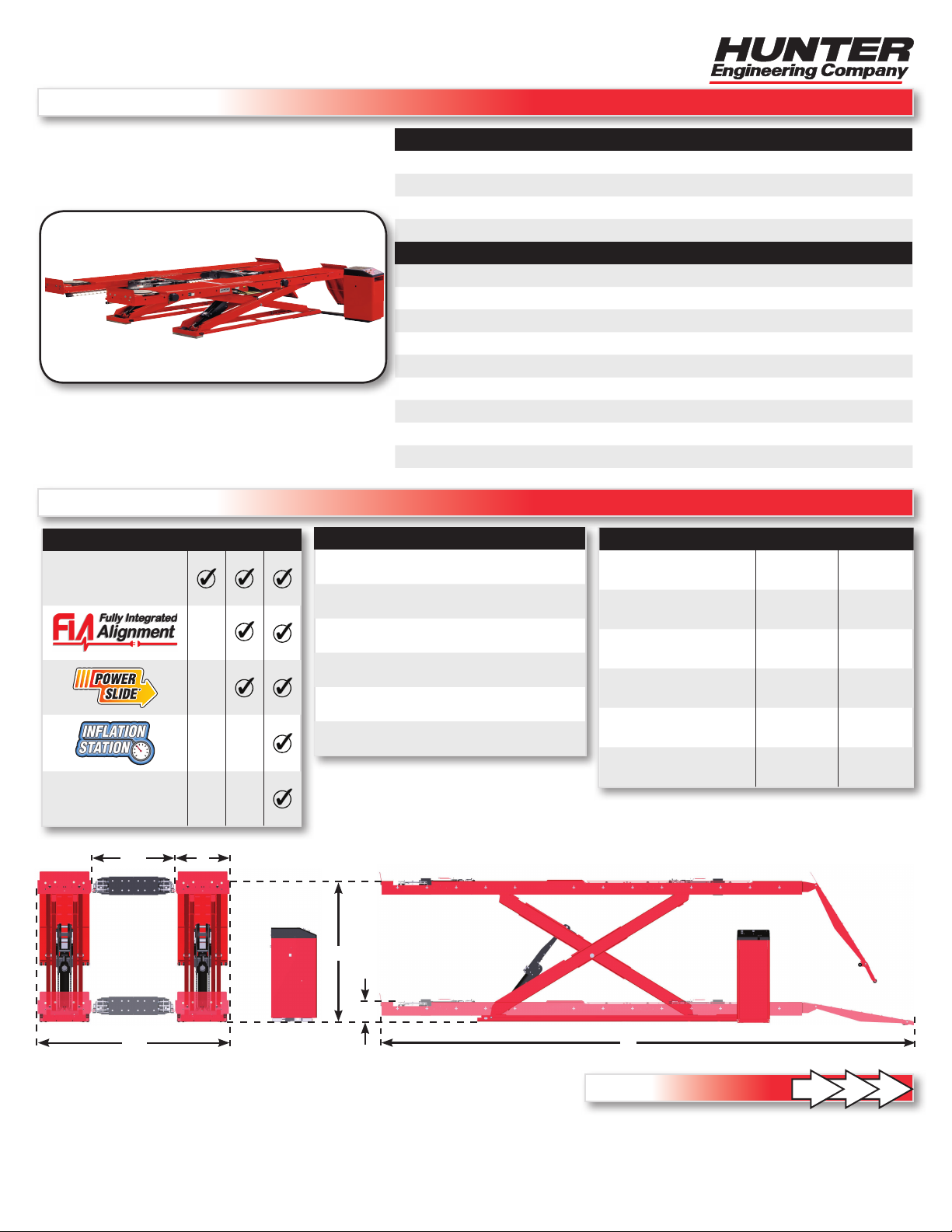

Page 1
RX12AJT, RX12AT-PS & RX12AT-IS
Surface Mount Lift Rack
SPECIFICATIONS
Power Requirements 208-230 VAC, single phase power, 26 Amp
Air Supply Requirements 90-150 PSI (6.2-10.3 bar)
Minimum Concrete Spec. 3 in. (76 mm) thick, 3000 PSI (20,700 kPA) rating
Maximum Floor Slope 2 in. (51 mm) over 126 in. (3200 mm)
Max Vehicle Weight 12,000 lbs. (5443 kg)
Max Wheelbase
General Service 184 in. (4673 mm)
Two-Wheel Alignment 179 in. (4547 mm)
Four-Wheel Alignment 158 in. (4013 mm)
RX12AT-IS Shown
Alignment Height All lock positions
Min. Four-Wheel Alignment 88 in. (2235 mm)
Lifting Speed 55 sec.
Lowering Speed 50 sec. / 25 sec. for 2-speed (T-IS)
Site Specications
Product Specications
MODEL FEATURES / DIMENSIONS / OPTIONS
Feature
6000-lb Swing Air
Jacks (2)
Two-Speed
Lowering
JT T-PS T-IS
Length (L)
Outside Width (W1)
Inside Width (W2)
Runway Width (R)
Raised Height (H1)
Stack Height (H2)
RW2
H1
Dimension
266 in.
88.5 in.
40 in.
24 in.
71 in.
10 in.
(6766 mm)
(2248 mm)
(1016 mm)
(610 mm)
(1803 mm)
(254 mm)
Options Add Length
Extended Approach
Ramp Ext. (Back)
Approach Ramp Ext.
(Back)
Approach Ramp Ext.
(Back)
Conventional Sensor
Ext. (Front)
Drive-Thru Kit
(Front)
Extended Drive-Thru
Kit (Front)
5 in.
127 mm
27 in.
686 mm
37 in.
940 mm
12 in.
305 mm
53 in.
1346 mm
61 in.
1549 mm
Kit #
147-113-1
2 required
20-2169-1
20-2189-1
20-2497-1
20-2498-1
20-2501-1
W1
For lift rack information visit:
www.hunter.com/rack
H2
For general inquiries visit:
www.hunter.com
or call
800-448-6848
L
Continued on Page 2
For local contact visit:
www.hunter.com/company/ndrep.cfm
Supersedes Form 6498-T, 04-12b
Copyright © 2012, Hunter Engineering Company
Form 6498-T, 12-12

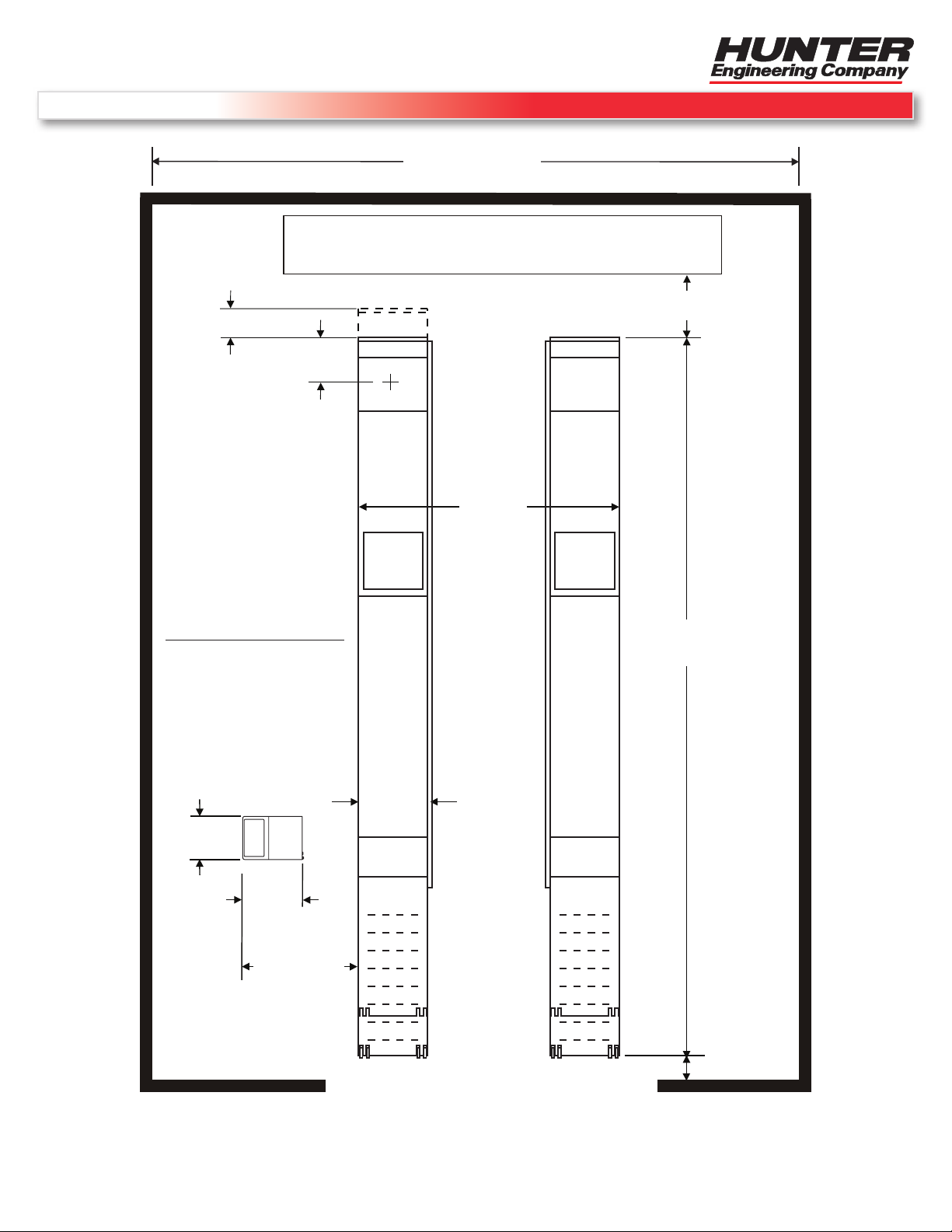

Page 2
RX12AJT, RX12AT-PS & RX12AT-IS
16
(406 mm)
IN.
RECOMMENDED MIN. 4 (101 mm)IN.
22
(559 mm)
IN.
24 IN.
(610 mm)
LEAVE AMPLE WORKSPACE BETWEEN
EQUIPMENT AND LIFT RACK
ALIGNMENT EQUIPMENT
7 FT. - 4 1/2 IN.
(2248 mm)
IN.22 FT. - 2
(6766 mm)
39 - 54
(991 - 1372 mm)
IN.
PRIOR TO LIFT INSTALLATION:
INSTALL 208-230 VAC, 1 PHASE,
60 HZ FOR 26 AMP DRAW NEAR
CONTROL CONSOLE LOCATION.
90-150 PSI (6.2-10.3 BAR) SHOP
AIR MUST ALSO BE SUPPLIED.
13 FT. (3962 mm)
RECOMMENDED
BAY WIDTH
16
(406 mm)
IN.
11 5/8 IN.
(295 mm)
OPTIONAL
EXTENDED
WHEEL STOP
Surface Mount Lift Rack
SPECIFICATIONS
*Non-standard positioning of control console is limited to a maximum space between console and rack of 6 feet
(1829 mm) at the approach ramp end and 18 feet (5486 mm) at the turnplate end. Additional threshold and perhaps
hydraulic hoses will be required (refer to Installation Instruction for details).
Copyright © 2012, Hunter Engineering Company
Supersedes Form 6498-T, 04-12b
Form 6498-T, 12-12
