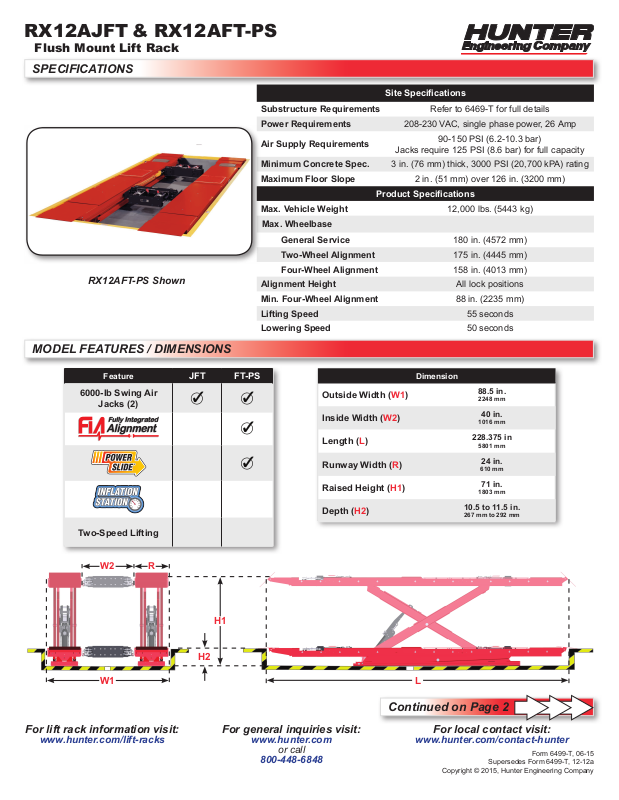

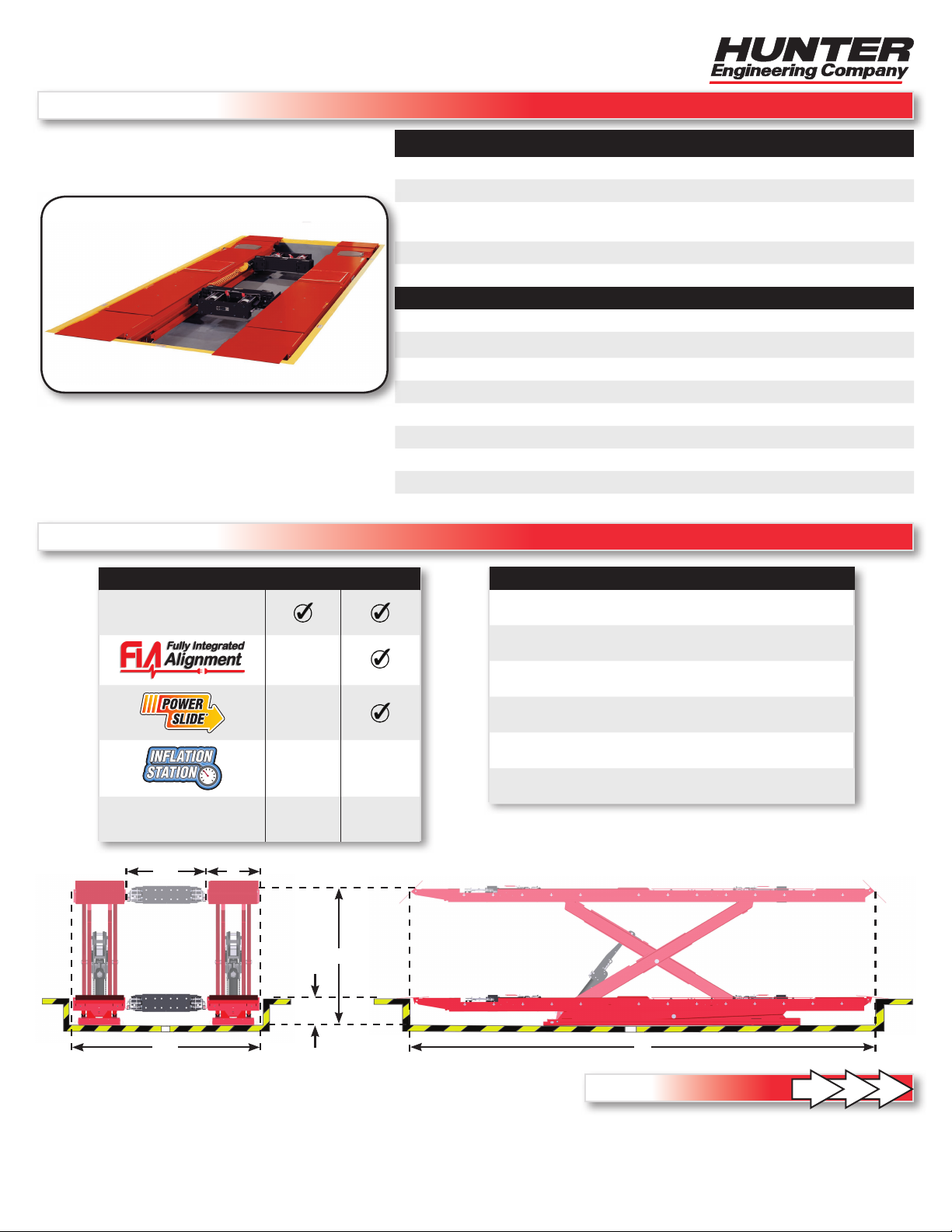

RX12AJFT & RX12AFT-PS

Flush Mount Lift Rack

SPECIFICATIONS

Substructure Requirements Refer to 6469-T for full details

Power Requirements 208-230 VAC, single phase power, 26 Amp

Air Supply Requirements

Minimum Concrete Spec. 3 in. (76 mm) thick, 3000 PSI (20,700 kPA) rating

Maximum Floor Slope 2 in. (51 mm) over 126 in. (3200 mm)

Max. Vehicle Weight 12,000 lbs. (5443 kg)

Max. Wheelbase

General Service 180 in. (4572 mm)

Two-Wheel Alignment 175 in. (4445 mm)

Four-Wheel Alignment 158 in. (4013 mm)

RX12AFT-PS Shown

Alignment Height All lock positions

Min. Four-Wheel Alignment 88 in. (2235 mm)

Lifting Speed 55 seconds

Lowering Speed 50 seconds

Site Specications

90-150 PSI (6.2-10.3 bar)

Jacks require 125 PSI (8.6 bar) for full capacity

Product Specications

MODEL FEATURES / DIMENSIONS

Feature

6000-lb Swing Air

Jacks (2)

Two-Speed Lifting

W2 R

JFT FT-PS

Outside Width (W1)

Inside Width (W2)

Length (L)

Runway Width (R)

Raised Height (H1)

Depth (H2)

Dimension

88.5 in.

2248 mm

40 in.

1016 mm

228.375 in

5801 mm

24 in.

610 mm

71 in.

1803 mm

10.5 to 11.5 in.

267 mm to 292 mm

For lift rack information visit:

www.hunter.com/lift-racks

For general inquiries visit:

www.hunter.com

or call

800-448-6848

Continued on Page 2

For local contact visit:

www.hunter.com/contact-hunter

Form 6499-T, 06-15

Supersedes Form 6499-T, 12-12a

Page 2

RX12AJFT & RX12AFT-PS

WARNING

STAY BEHIND YELLOW LINE

WHEN THE

LIFT MOVES.

128-978-2

DECAL 128-978-2

PLACED ON EACH

PERIMETER ANGLE

(4 PLACES)

AND EACH SIDE OF

LIFT (2 PLACES)

WARNING

APPROX. 2"

(51 mm)

TYPICAL

30 3/4"

(781 mm)

DRAIN

LOCATED

CENTER

OF PIT

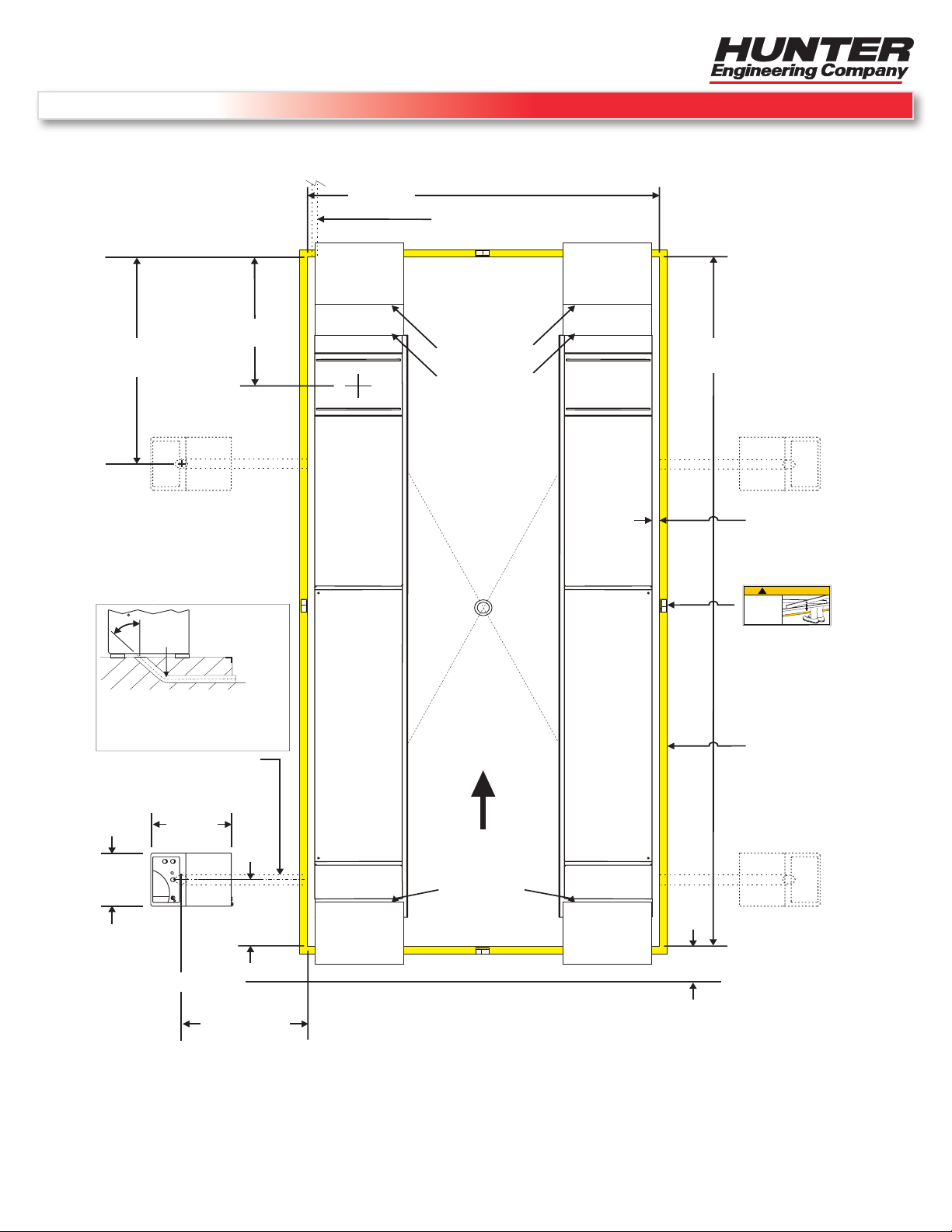

ANGLE AROUND PIT

PERIMETER

PAINTED SAFETY

YELLOW

(NOT SUPPLIED BY

HUNTER)

SLOPE

PIT

FLOOR

TOWARD

DRAIN

(1/2")

CONSOLE CONDUIT

DETAIL

RAMPS

147-141-1-PPP

EXTENDER

PLATES

51-2464-1-PPP

AND

RAMPS

147-141-1-PPP

228 3/8"

(5801 mm)

92 1/2"

(2350 mm)

34 3/4"

(883 mm)

OPTIONAL CONSOLE

LOCATION

66 3/4"

(1695 mm)

6" MIN.* 152 mm()

16" (406 mm)

22"

(559 mm)

OPTIONAL 1 1/2" IN. DIA. CONDUIT

FOR COMMUNICATION CABLE

TO ALIGNMENT CONSOLE

HAWKEYE SERIES SENSORS

AND PRONTO SYSTEMS HAVE

SPACE REQUIREMENTS IN FRONT OF LIFT THAT MUST BE MET, REFER TO APPROPRIATE

SITE REQUIREMENTS.

ENTIRE PIT

(BOTTOM AND WALLS)

MUST BE HARD

TROWEL FINISH

BAY DOOR BAY DOOR

LONGER VEHICLES WILL NEED TO BE SERVICED WITH BAY DOOR OPEN. TO ACCOMMODATE MOST VEHICLES, INCREASE SPACE BEHIND PIT TO () OR GREATER.

39" 991 mm

SITES WITH D.R.W. TRUCK TRAFFIC SHOULD USE 20" MIN. CONSOLE TO PIT DISTANCE.

15" TO 41"

(381 TO 1041 mm)

6" MIN.

RADIUS

CONDUIT

EXIT FLUSH

WITH

PIT FLOOR

ROUTE 4" MIN DIAMETER

CONDUIT OR EQUIVALENT

CLOSED CHANNEL FROM

PIT FLOOR TO BASE OF

CONSOLE

VEHICLE APPROACH

Flush Mount Lift Rack

SPECIFICATIONS (Refer to 6469-T for substructure construction requirements)

Dimensions shown are for nished pit. Tile thickness (if applicable) must be considered before pouring pit.

*Non-standard positioning of control console is limited to a maximum space between console and rack of 6 feet (1829 mm) at the approach ramp end and 18 feet (5486 mm) at the turnplate end. Additional threshold and perhaps hydraulic hoses will be required (refer to Installation Instruction for details).
