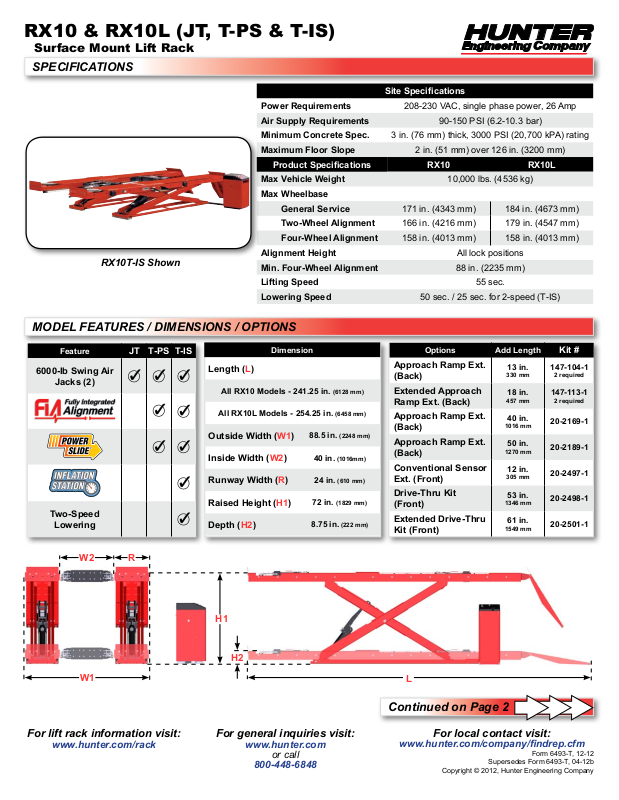

RX10 & RX10L (JT, T-PS & T-IS)
Surface Mount Lift Rack
SPECIFICATIONS
Power Requirements 208-230 VAC, single phase power, 26 Amp
Air Supply Requirements 90-150 PSI (6.2-10.3 bar)
Minimum Concrete Spec. 3 in. (76 mm) thick, 3000 PSI (20,700 kPA) rating
Maximum Floor Slope 2 in. (51 mm) over 126 in. (3200 mm)
Product Specications RX10 RX10L
Max Vehicle Weight 10,000 lbs. (4536 kg)
Max Wheelbase
General Service 171 in. (4343 mm) 184 in. (4673 mm)
Two-Wheel Alignment 166 in. (4216 mm) 179 in. (4547 mm)
Four-Wheel Alignment 158 in. (4013 mm) 158 in. (4013 mm)
RX10T-IS Shown
Alignment Height All lock positions
Min. Four-Wheel Alignment 88 in. (2235 mm)
Lifting Speed 55 sec.
Lowering Speed 50 sec. / 25 sec. for 2-speed (T-IS)
Site Specications
MODEL FEATURES / DIMENSIONS / OPTIONS
Feature
6000-lb Swing Air
Jacks (2)
Two-Speed
Lowering
JT T-PS T-IS
Length (L)
All RX10 Models - 241.25 in.
All RX10L Models - 254.25 in.
Outside Width (W1)
Inside Width (W2)
Runway Width (R)
Raised Height (H1)
Depth (H2)
RW2
H1
Dimension
88.5 in.
40 in.
24 in.
72 in.
8.75 in.
(6128 mm)
(6458 mm)
(2248 mm)
(1016mm)
(610 mm)
(1829 mm)
(222 mm)
Options Add Length
Approach Ramp Ext.
(Back)
Extended Approach
Ramp Ext. (Back)
Approach Ramp Ext.
(Back)
Approach Ramp Ext.
(Back)
Conventional Sensor
Ext. (Front)
Drive-Thru Kit
(Front)
Extended Drive-Thru
Kit (Front)
13 in.
330 mm
18 in.
457 mm
40 in.
1016 mm
50 in.
1270 mm
12 in.
305 mm
53 in.
1346 mm
61 in.
1549 mm
Kit #
147-104-1
2 required
147-113-1
2 required
20-2169-1
20-2189-1
20-2497-1
20-2498-1
20-2501-1
W1
For lift rack information visit:
www.hunter.com/rack
H2
For general inquiries visit:
www.hunter.com
or call
800-448-6848
L
Continued on Page 2
For local contact visit:
www.hunter.com/company/ndrep.cfm
Form 6493-T, 12-12
Supersedes Form 6493-T, 04-12b
Copyright © 2012, Hunter Engineering Company
Page 2
RX10 & RX10L (JT, T-PS & T-IS)
16
(406 mm)
IN.
4 (101 mm) RECOMMENDED MIN.IN.
22
(559 mm)
IN.
24 IN.
(610 mm)
LEAVE AMPLE WORKSPACE BETWEEN
EQUIPMENT AND LIFT RACK
ALIGNMENT EQUIPMENT
7 FT. - 4 1/2 IN.
(2248 mm)
FOR RX10JT
20 FT. - 1 1/4
(6128 mm)
LIFT
LENGTH
FOR RX10LJT,
RX10LT-PS
RX10LT-IS
21 FT. - 2 1/4
(6458 mm)
LIFT
LENGTH
,
RX10T-PS AND
RX10T-IS
IN.
AND
IN.
39 - 54
(991 - 1372 mm)
IN.
PRIOR TO LIFT INSTALLATION:
INSTALL 230VAC, 1 PHASE,
60 HZ FOR 26 AMP DRAW NEAR
CONTROL CONSOLE LOCATION.
90-150 PSI (6.2-10.3 BAR) SHOP
AIR MUST ALSO BE SUPPLIED.
13’ (3962 mm)
RECOMMENDED
BAY WIDTH
16
(406 mm)
IN.
11 5/8 IN.
(295 mm)
OPTIONAL
EXTENDED
WHEEL STOP
Surface Mount Lift Rack
SPECIFICATIONS
*Non-standard positioning of control console is limited to a maximum space between console and rack of 6 feet
