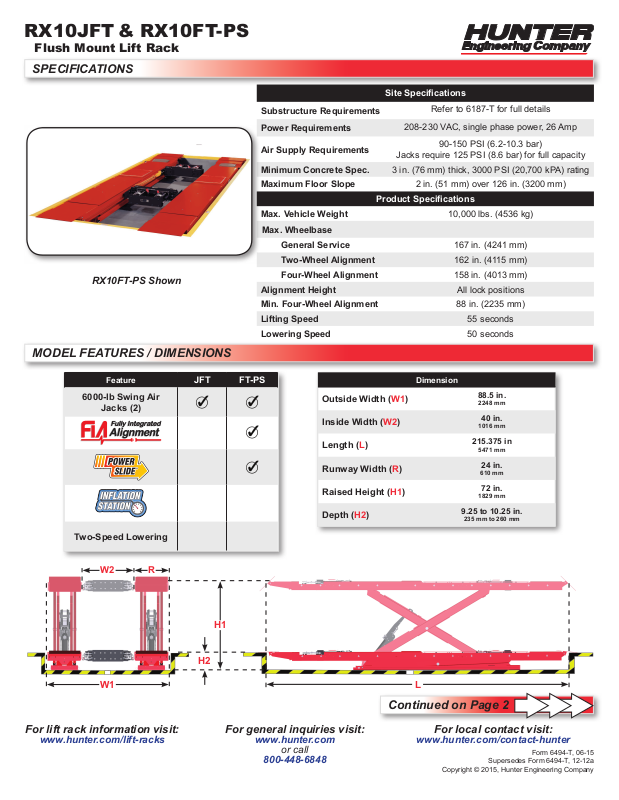

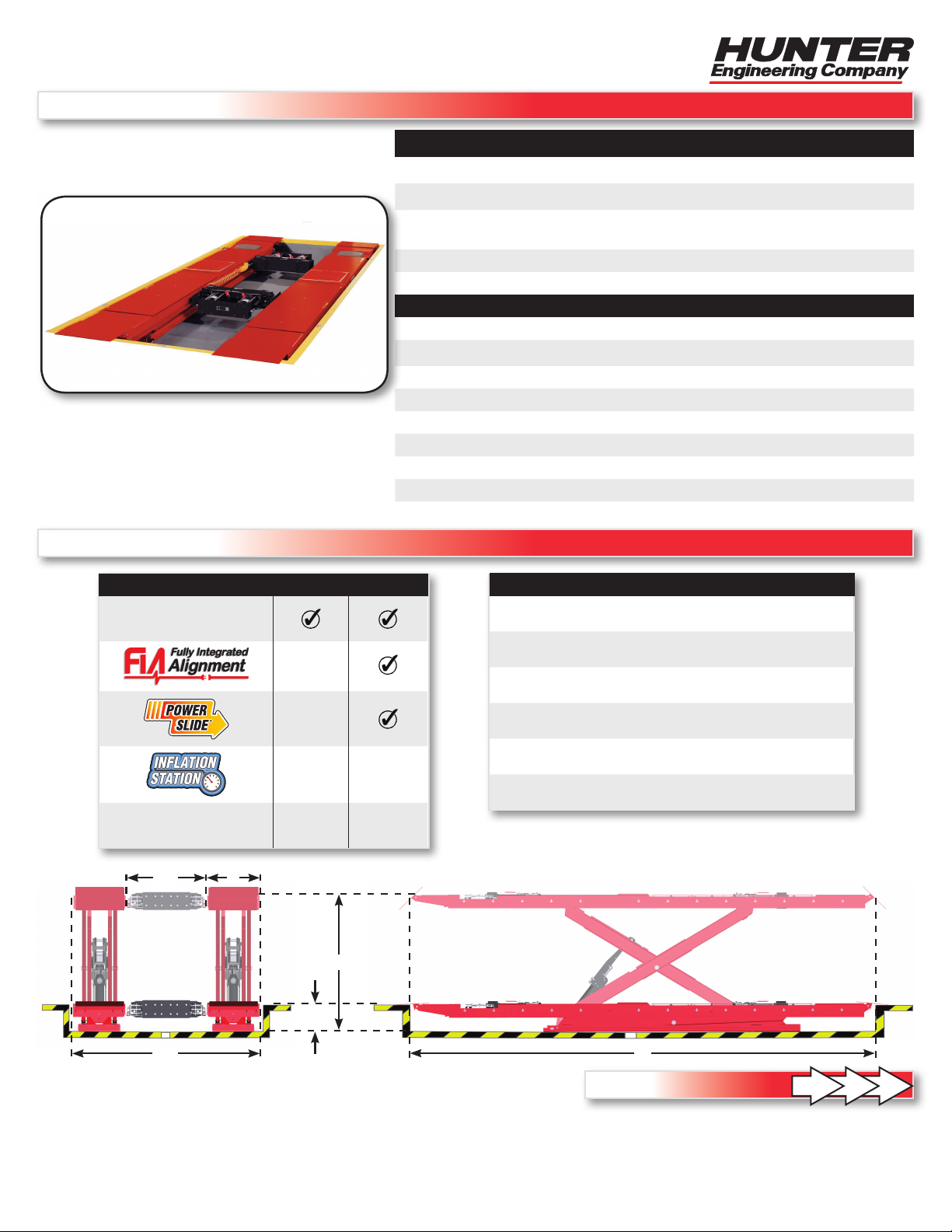

RX10JFT & RX10FT-PS
Flush Mount Lift Rack
SPECIFICATIONS
RX10FT-PS Shown
Site Specications
Substructure Requirements
Power Requirements
Air Supply Requirements
Minimum Concrete Spec. 3 in. (76 mm) thick, 3000 PSI (20,700 kPA) rating
Maximum Floor Slope 2 in. (51 mm) over 126 in. (3200 mm)
Max. Vehicle Weight 10,000 lbs. (4536 kg)
Max. Wheelbase
General Service 167 in. (4241 mm)
Two-Wheel Alignment 162 in. (4115 mm)
Four-Wheel Alignment 158 in. (4013 mm)
Alignment Height All lock positions
Min. Four-Wheel Alignment 88 in. (2235 mm)
Lifting Speed 55 seconds
Lowering Speed 50 seconds
Jacks require 125 PSI (8.6 bar) for full capacity
Product Specications
Refer to 6187-T for full details
208-230 VAC, single phase power, 26 Amp
90-150 PSI (6.2-10.3 bar)
MODEL FEATURES / DIMENSIONS
Feature
6000-lb Swing Air
Jacks (2)
Two-Speed Lowering
W2 R
JFT FT-PS
H1
Outside Width (W1)
Inside Width (W2)
Length (L)
Runway Width (R)
Raised Height (H1)
Depth (H2)
Dimension
88.5 in.
2248 mm
40 in.
1016 mm
215.375 in
5471 mm
24 in.
610 mm
72 in.
1829 mm
9.25 to 10.25 in.
235 mm to 260 mm
W1
For lift rack information visit:
www.hunter.com/lift-racks
H2
For general inquiries visit:
www.hunter.com
or call
800-448-6848
L
Continued on Page 2
For local contact visit:
www.hunter.com/contact-hunter
Form 6494-T, 06-15
Supersedes Form 6494-T, 12-12a
Copyright © 2015, Hunter Engineering Company
Page 2
RX10JFT & RX10FT-PS
Flush Mount Lift Rack

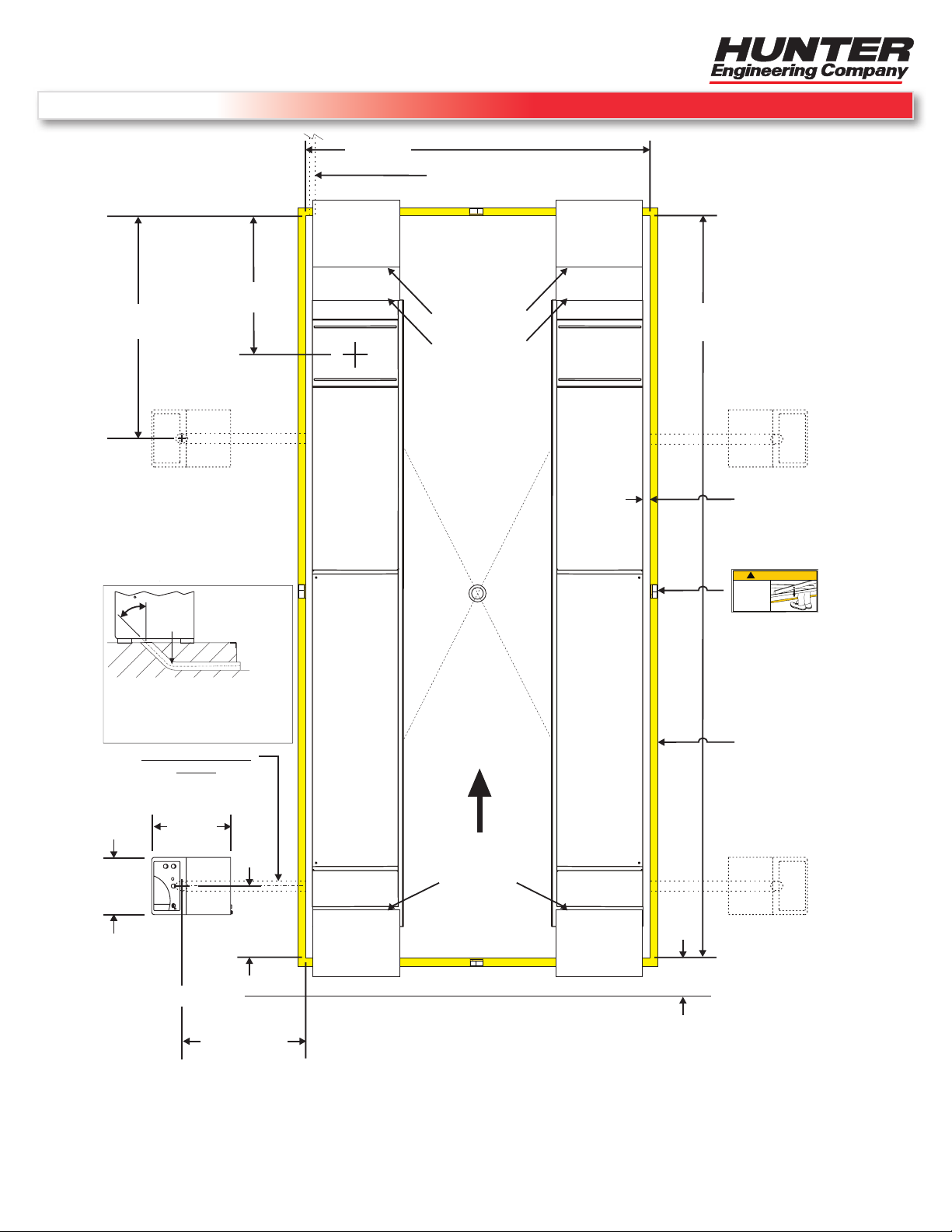

SPECIFICATIONS (Refer to 6187-T for substructure construction requirements)
34 3/4"
60 1/4"
(883 mm)
(1530 mm)
OPTIONAL CONSOLE
LOCATION
45
6" MIN.
RADIUS
EXIT FLUSH
PIT FLOOR
ROUTE 4" MIN DIAMETER
CONDUIT OR EQUIVALENT
CLOSED CHANNEL FROM
PIT FLOOR TO BASE OF
CONSOLE
CONSOLE CONDUIT
DETAIL
CONDUIT
WITH
92 1/2"
(2350 mm)
OPTIONAL 1 1/2" DIA. CONDUIT
FOR COMMUNICATION CABLE
TO ALIGNMENT CONSOLE
WARNING
!
HAWKEYE SERIES SENSORS
AND PRONTO SYSTEMS HAVE
SPACE REQUIREMENTS IN
FRONT OF LIFT THAT MUST BE
MET, REFER TO APPROPRIATE
SITE REQUIREMENTS.
EXTENDER
PLATES
51-2464-1-PPP
AND
215 3/8"
(5471 mm)
RAMPS
147-141-1-PPP
SLOPE
PIT
FLOOR
TOWARD
APPROX. 2"
(51 mm)
TYPICAL
DRAIN
(1/2")
DECAL 128-978-2
!
!
WARNING
WARNING
!
STAY BEHIND
YELLOW LINE
WHEN THE
LIFT MOVES.
WARNING
128-978-2
PLACED ON EACH
DRAIN
LOCATED
IN
CENTER
PERIMETER ANGLE
(4 PLACES)
AND EACH SIDE OF
LIFT (2 PLACES)
OF PIT
ENTIRE PIT
(BOTTOM AND WALLS)
MUST BE HARD
TROWEL FINISH
ANGLE AROUND PIT
PERIMETER
PAINTED SAFETY
YELLOW
(NOT SUPPLIED BY
HUNTER)
22"
(559 mm)
16"
(406
VEHICLE APPROACH
RAMPS
147-141-1-PPP
mm)
24 1/4"
(616 mm)
!
WARNING
6" MIN.*
152 mm()
BAY DOOR
15" TO 41"
(381 TO 1041 mm)
**
** SITES WITH D.R.W. TRUCK
TRAFFIC SHOULD USE 20" MIN.
CONSOLE TO PIT DISTANCE.
*
LONGER VEHICLES WILL NEED TO BE SERVICED WITH BAY DOOR OPEN. TO
ACCOMMODATE MOST VEHICLES, INCREASE SPACE BEHIND PIT TO () OR
GREATER.
BAY DOOR
39" 991 mm
Dimensions shown are for nished pit. Tile thickness (if applicable) must be considered before pouring pit.
*Non-standard positioning of control console is limited to a maximum space between console and rack of 6 feet
(1829 mm) at the approach ramp end and 18 feet (5486 mm) at the turnplate end. Additional threshold and perhaps
hydraulic hoses will be required (refer to Installation Instruction for details).
