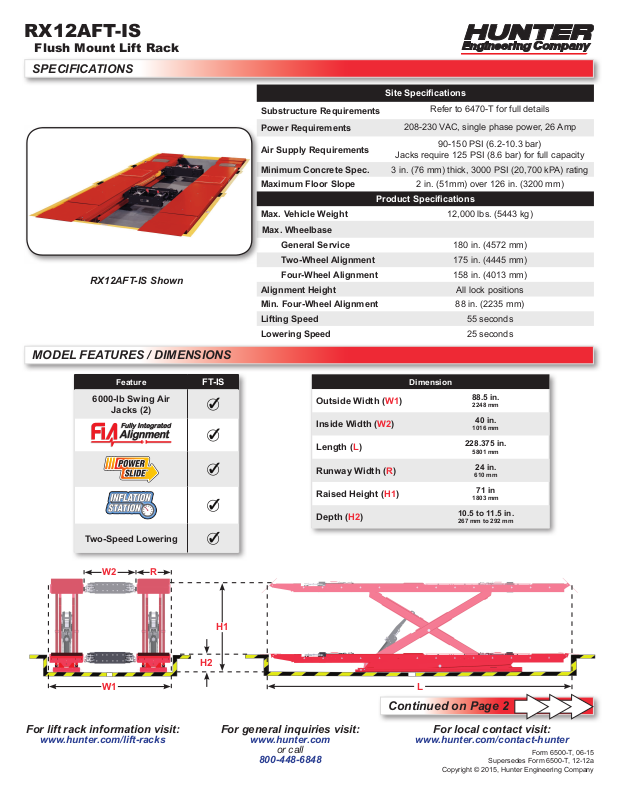

Hunter Engineering RX10, RX15 Specification Sheet

Download

Page 1

RX12AFT-IS

Flush Mount Lift Rack

SPECIFICATIONS

RX12AFT-IS Shown

Site Specications

Substructure Requirements

Power Requirements

Air Supply Requirements

Minimum Concrete Spec. 3 in. (76 mm) thick, 3000 PSI (20,700 kPA) rating

Maximum Floor Slope 2 in. (51mm) over 126 in. (3200 mm)

Max. Vehicle Weight 12,000 lbs. (5443 kg)

Max. Wheelbase

General Service 180 in. (4572 mm)

Two-Wheel Alignment 175 in. (4445 mm)

Four-Wheel Alignment 158 in. (4013 mm)

Alignment Height All lock positions

Min. Four-Wheel Alignment 88 in. (2235 mm)

Lifting Speed 55 seconds

Lowering Speed 25 seconds

Jacks require 125 PSI (8.6 bar) for full capacity

Product Specications

Refer to 6470-T for full details

208-230 VAC, single phase power, 26 Amp

90-150 PSI (6.2-10.3 bar)

MODEL FEATURES / DIMENSIONS

Feature

6000-lb Swing Air

Jacks (2)

Two-Speed Lowering

W2 R

FT-IS

Outside Width (W1)

Inside Width (W2)

Length (L)

Runway Width (R)

Raised Height (H1)

Depth (H2)

Dimension

88.5 in.

2248 mm

40 in.

1016 mm

228.375 in.

5801 mm

24 in.

610 mm

71 in

1803 mm

10.5 to 11.5 in.

267 mm to 292 mm

For lift rack information visit:

www.hunter.com/lift-racks

For general inquiries visit:

www.hunter.com

or call

800-448-6848

Continued on Page 2

For local contact visit:

www.hunter.com/contact-hunter

Form 6500-T, 06-15

Supersedes Form 6500-T, 12-12a

Page 2

RX12AFT-IS

WARNING

DRAIN

LOCATED

CENTER

OF PIT

SLOPE

PIT

FLOOR

TOWARD

DRAIN

(1/2)

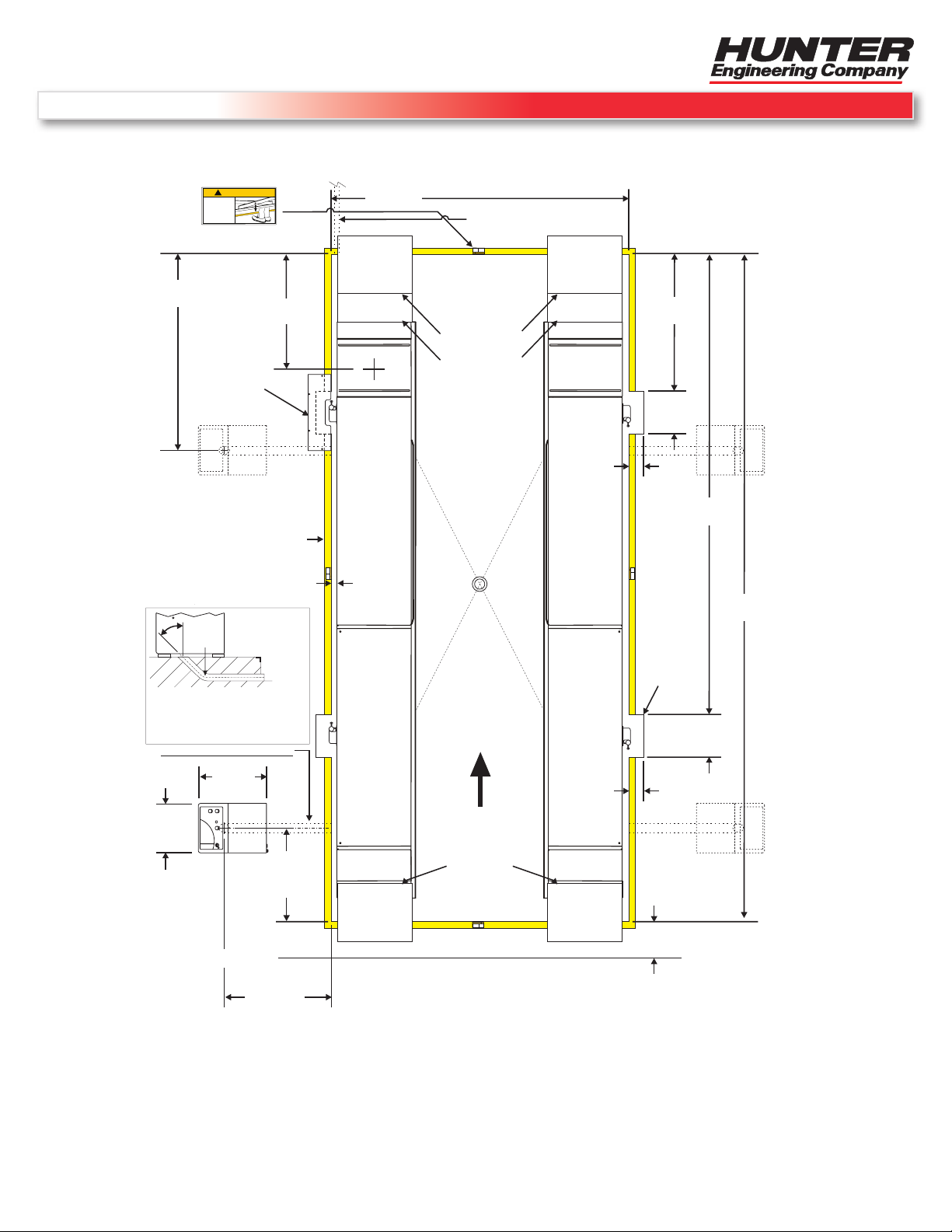

CONSOLE CONDUIT DETAIL

92 1/2"

(2350 mm)

WARNING

STAYBEHIND YELLOW LINE

WHEN THE

LIFT MOVES.

128-978-2

DECAL 128-978-2

OPTIONAL CONSOLE LOCATION

(4 places on edging and 2 places on lift)

41 3/8"

(1051 mm)

141 3/4"

(3600 mm)

14"

(356 mm)

APPROX. 2" (51 mm) TYPICAL

14"

(356 mm)

(127 mm)

14"X 5"

CUTOUT

(4 places)

ANGLE AROUND PIT PERIMETER:

- not around

- painted safety yellow

- not supplied by Hunter

14"X 5"cutouts

16" (406 mm)

22"

(559 mm)

6" MIN.* 152 mm()

OPTIONAL 1 ½ IN. DIA. CONDUIT

FOR COMMUNICATION CABLE

TO ALIGNMENT CONSOLE

HAWKEYE SERIES SENSORS

AND PRONTO SYSTEMS HAVE

SPACE REQUIREMENTS IN FRONT OF LIFT THAT MUST BE MET, REFER TO APPROPRIATE

SITE REQUIREMENTS.

ENTIRE PIT

(BOTTOM AND WALLS)

MUST BE HARD TROWEL FINISH

FILLER PLATE

51-2308-1 (4 places)

(placed over

14"X 5"

cutout)

34 3/4"

(883 mm)

EXTENDER

PLATES

51-2464-1-PPP

AND

RAMPS

147-141-1-PPP

RAMPS

147-141-1-PPP

66 3/4"

(1695 mm)

228 3/8"

(5801 mm)

30 3/4"

(781 mm)

VEHICLE APPROACH

* LONGER VEHICLES WILL NEED TO BE SERVICED WITH BAY DOOR OPEN. TO

ACCOMMODATE MOST VEHICLES, INCREASE SPACE BEHIND PIT TO () OR GREATER.

39" 991 mm

** SITES WITH D.R.W. TRUCK

TRAFFIC SHOULD USE 20" MIN. CONSOLE TO PIT DISTANCE.

15" TO 41"

(381 TO 1041 mm)

6" MIN. RADIUS

CONDUIT

EXIT FLUSH

WITH

PIT FLOOR

ROUTE 4" MIN DIAMETER

CONDUIT OR EQUIVALENT

CLOSED CHANNEL FROM

PIT FLOOR TO BASE OF

CONSOLE

BAY DOOR BAY DOOR

Flush Mount Lift Rack

SPECIFICATIONS (Refer to 6470-T for substructure construction requirements)

Dimensions shown are for nished pit. Tile thickness (if applicable) must be considered before pouring pit.

*Non-standard positioning of control console is limited to a maximum space between console and rack of 6 feet (1829 mm) at the approach ramp end and 18 feet (5486 mm) at the turnplate end. Additional threshold and perhaps hydraulic hoses will be required (refer to Installation Instruction for details).

Supersedes Form 6500-T, 12-12a

Form 6500-T, 06-15
