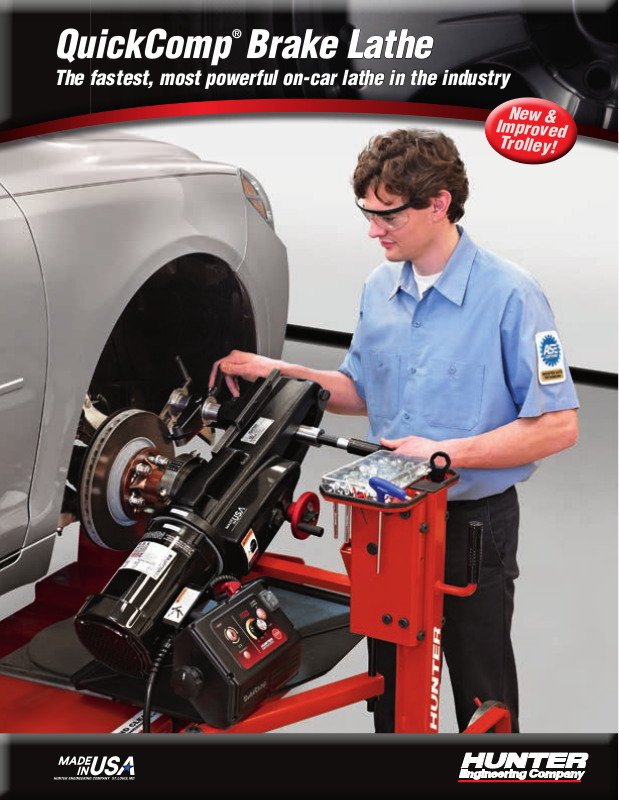

QuickComp® Brake Lathe
The fastest, most powerful on-car lathe in the industry
New &
Improved
Trolley!
Page 2
Hunter’s QuickComp® lathe keeps your
brake service “a cut above the rest”
Pro-Comp® Compensation
4 Simple runout compensation
4 Quick setup
Pivoting Control Module
4 Operates upright on either
side of the vehicle
4 Easily accessible adjustments
QuickComp® Adaptor Powerful Motor and Drive
4 Fast runout compensation
4 Easy two-way adjustment
Reverse Rotation
4 Easily service vehicles
with excess driveline drag
4 1.5-hp motor provides
unmatched speed and torque
Page 3

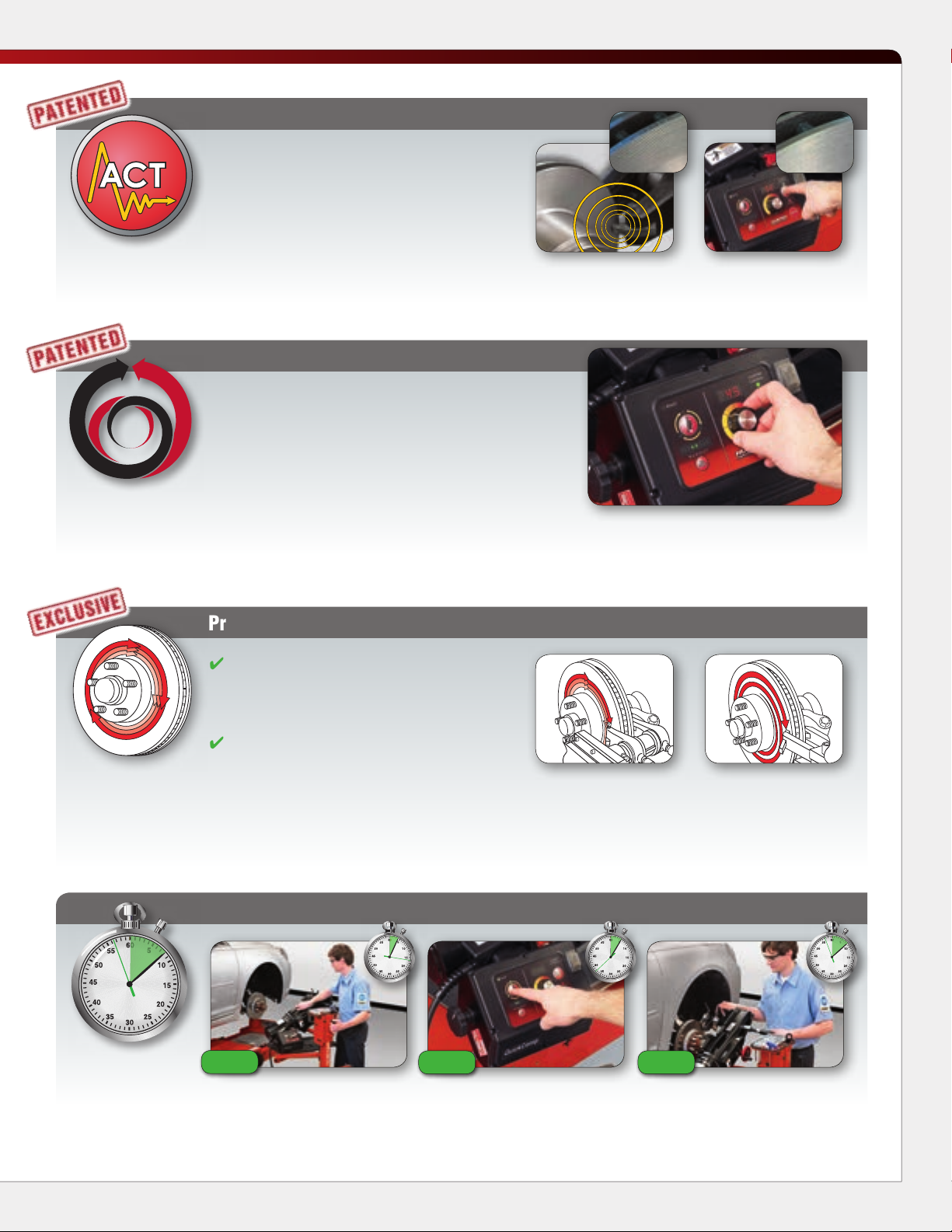

Anti-Chatter Technology
4 Oscillates machining speed to prevent
buildup of vibration (chatter)
4 Provides smoother surface finish
4 Eliminates use of chatter bands
Variable-Speed Drive System
4 Change speeds during machining
4 Resurface rotors at fastest possible speed
4 Service rotors on rear locking differentials
without disconnecting the driveline
Precise Machining
4 Unique, staggered cutting pattern
prevents radial “push-out” effect
of typical spiral pattern
Fixed speed
No decrease in quality of surface finish
when speed is adjusted on the fly!
Oscillating speed
4 Finished surface meets or
exceeds OEM specifications
Hunter staggered
4 Quality remains consistent
cutting pattern
regardless of cutting speed
Service Each Rotor in Less Than 9 Minutes
step
1
Attach adaptor and lathe.
step
2
Compensate lateral runout
with single-point adjustment.
Typical spiral
cutting pattern
step
3
Set cut depth and go.
Page 4

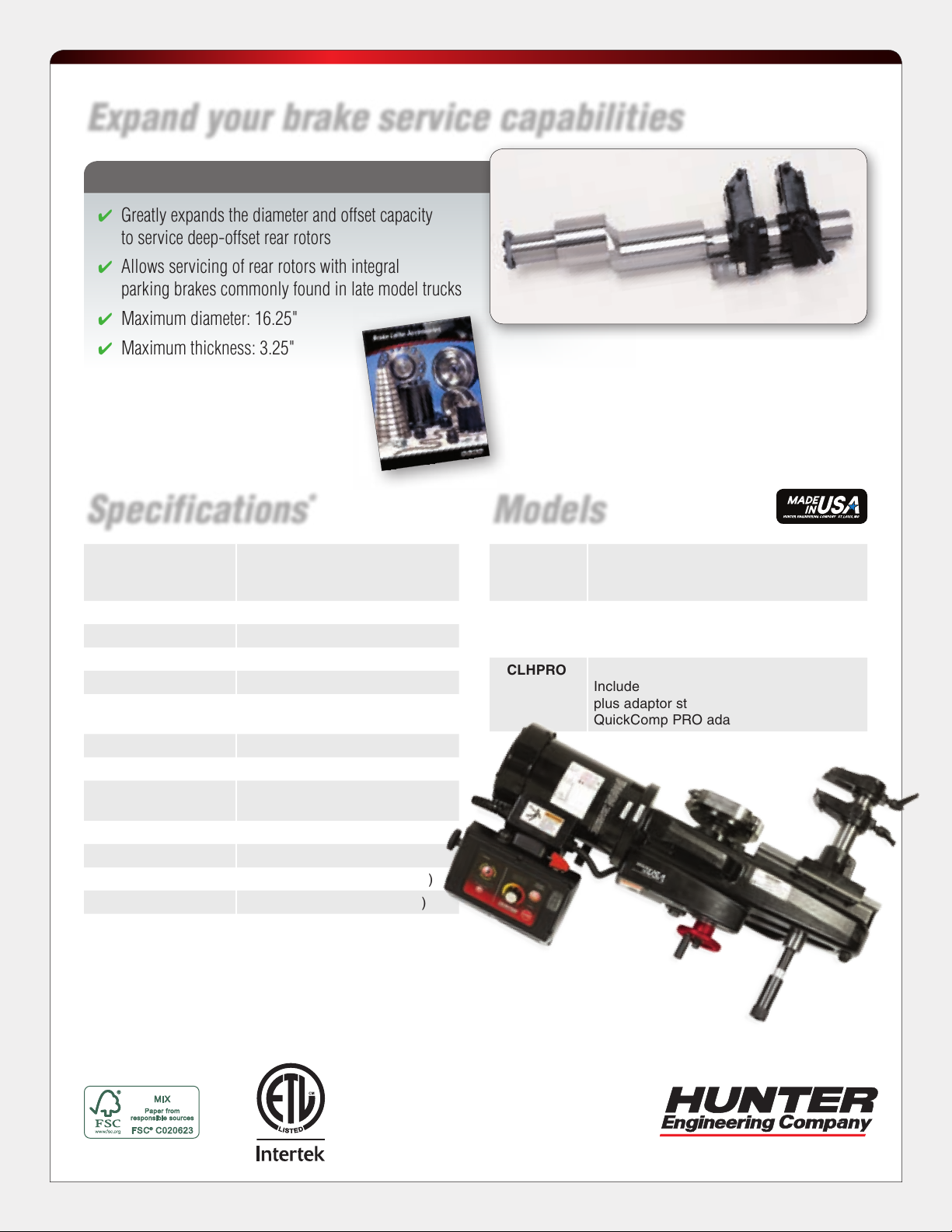

Expand your brake service capabilities
Greatly expands the diameter and offset capacity
to service deep-offset rear
rotors
Allows servicing of rear rotors with integral
parking brakes commonly found in late model trucks
Maximum diameter: 16.25"
Maximum thickness: 3.25"
Extended Twin Cutter Tool Assembly
20-3092-1
See Form 3947-T for a complete selection
of options and accessories to
fit your brake service needs.
Specifications
Power requirements
Rotor maximum...
Diameter 15.75 in. (400 mm)
Width 2.75 in. (70 mm)
Feed distance
Spindle speed
Motor
Overall dimensions
Lathe 27 in. (L) x 20 in. (W) x 15 in. (H)
Trol ley 30 in. (L) x 27.375 in. (W)
Trolley height range
High-position 24.25 -40.5 in. (616-1029 mm)
Low-position** 20.25 -36.5 in. (514-927 mm)
Shipping weight
115VAC, single phase 60 Hz,
15 amp, NEMA L5-15P
(230V, 50-60 Hz optional)
4.3 in. (109 mm)
Adjustable and automatically
variable (ACT), 0-120 rpm
1.5 hp (1.12 kw) @ 3450 rpm
(686 mm x 508 mm x 381 mm)
302 lbs. (137 kg)
*
Models
QCLH
QCLHPAS
QCLHPRO
QuickComp Lathe
Includes compensation adaptor,
speed wrench and standard accessories
QuickComp Lathe: Passenger
Includes same items as QCLH,
plus Level I QuickComp adaptor kit
QuickComp Lathe: Pro
Includes same items as QCLH,
plus adaptor storage, chip tray and
QuickComp PRO adaptor kit
* Some specifications may vary depending on options chosen and application fitment.
** Requires optional trolley bracket.
0615HAP5M.26
Copyright © 2015, Hunter Engineering Company
Because of continuing technological
advancements, specifications, models and
options are subject to change without notice.
www.hunter.com
Form 6474-T, 06/15
Supersedes Form 6474-T, 02/15
