3 CFL Bowl Light Kit3 CFL Bowl Light Kit
Installation Manual
Model 99098, 99099
Compatible with:
2xxxx Types A - Z
51000-58999 fan series
59500-59999 fan series
Select Casablanca Fans
MA009-01 • 08/02/13
Page 2
1.888.830.1326
BEFORE YOU BEGIN
Read entire installation instructions carefully before
beginning installation and save these instructions.
Switch
Housing
Your light kit is compatible with most ceiling fans. The light kit will attach to the fan’s
switch housing. Begin on page 3 where you will choose the type of switch housing that
most closely resembles the one on your fan. From there, you will be directed to the set of
assembly instructions that are appropriate for installing the light kit to your fan.
READ AND SAVE THESE INSTRUCTIONS
This product conforms to UL Standard 507.
WARNINGS
w.1 - To reduce the risk of re, electrical shock, or personal injury,
mount fan directly from building structure and/or an outlet box marked
acceptable for fan support of 70 lbs. (31.8 kg) and use the mounting screws
provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or servicing your
fan, disconnect the power by turning off the circuit breakers to the outlet
box and associated wall switch location. If you cannot lock the circuit
breakers in the off position, securely fasten a prominent warning device,
such as a tag, to the service panel.
CAUTIONS
c.1 - All wiring must be in accordance with national and local electrical codes
ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
2
MA009-01 • 08/02/13
Turn Power
OFF
Page 3
1.888.830.1326
WHICH ASSEMBLY METHOD WILL I USE?
Choose one of the four images below that most closely resembles the switch
housing on your fan; then follow the instructions under the image.
Switch
Housing
Screw
Switch
Housing
Cap
Screw
Switch
Housing
Cap
If your fan’s switch housing cap resembles
this one, remove the whole switch
housing by removing the switch housing
screws with a Phillips head screwdriver.
Remove the cap screws from inside the
switch housing and remove the switch
housing cap. Then, follow the TYPE-A
ASSEMBLY INSTRUCTIONS on pages 4-5.
Switch
Housing
Switch
Housing
Screw
Plug
Button
Switch
Housing
Screw
Switch
Housing
Cap
If your fan’s switch housing cap resembles
this one, remove the whole switch
housing by removing the switch housing
screws with a Phillips head screwdriver.
Remove the cap screws from inside the
switch housing and remove the switch
housing cap. Then, follow the TYPE-A
ASSEMBLY INSTRUCTIONS on pages 4-5.
Plug
Button
Switch
Housing
Screw
If your fan’s switch housing cap resembles
this one, remove the whole switch
housing by removing the switch housing
screws with a Phillips head screwdriver.
Remove the cap screws from inside the
switch housing and remove the switch
housing cap. Then, follow the TYPE-A
ASSEMBLY INSTRUCTIONS on pages 4-5.
MA009-01 • 08/02/13
If your fan’s switch housing cap resembles
this one, remove the whole switch
housing by removing the switch housing
screws with a Phillips head screwdriver.
Remove the plug button using a standard
screwdriver. Then, follow the TYPE-B
ASSEMBLY INSTRUCTIONS on pages 8-9.
3
Page 4
TYPE-A ASSEMBLY INSTRUCTIONS
1.888.830.1326

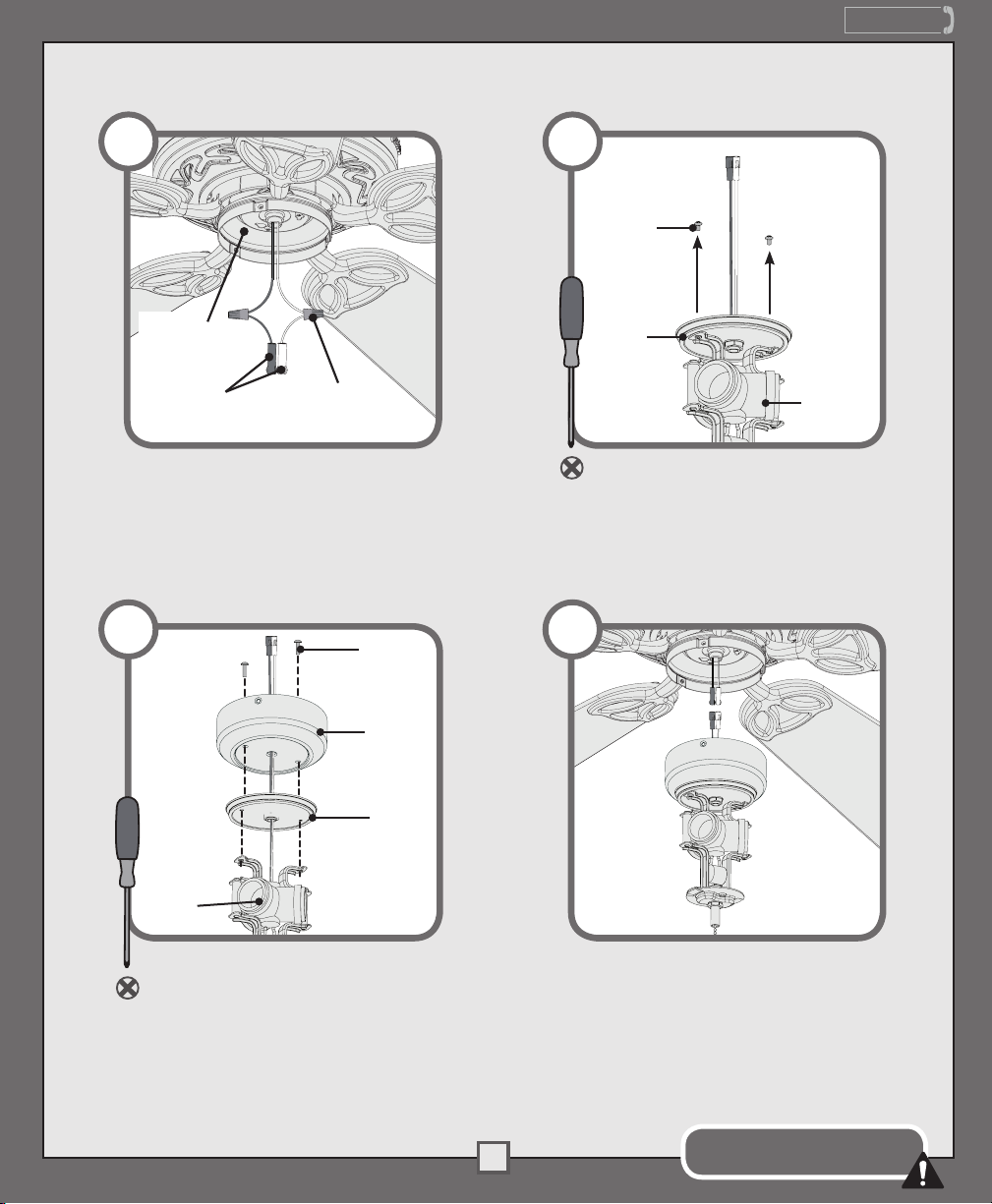

1
Switch
Housing
Wiring
Harness
If your fan does not have pin connectors on
the wires coming from the switch housing,
install the wiring harness provided. Using
the provided wire connectors connect the
white wire from the fan to the white wire
from the wire harness and connect the
black or blue wire from the fan to the black
wire from the wire harness.
3
Wire
Connector
Light Kit
Screw
2
Light Kit
Screw
Light
Kit Cap
Light
Fixture
Remove the screws attaching the light
kit cap to the light xture.
4
Switch
Housing
Light
Kit Cap
Light
Fixture
Feed the light kit wires through the
center hole in the switch housing. Then,
attach the switch housing to the light kit
by installing the longer light kit screws,
found in the hardware bag, through the
top of the switch housing, through the
light kit cap, and into the light xture.
4
MA009-01 • 08/02/13
Using the single pin connectors, connect
the black or blue wire from the fan to the
black wire from the light kit. Connect the
white wire from the fan to the white wire
from the light kit.
Do not allow the light kit to hang
only by the wire connections!
Page 5
TYPE-A ASSEMBLY INSTRUCTIONS (CONTINUED)
1.888.830.1326

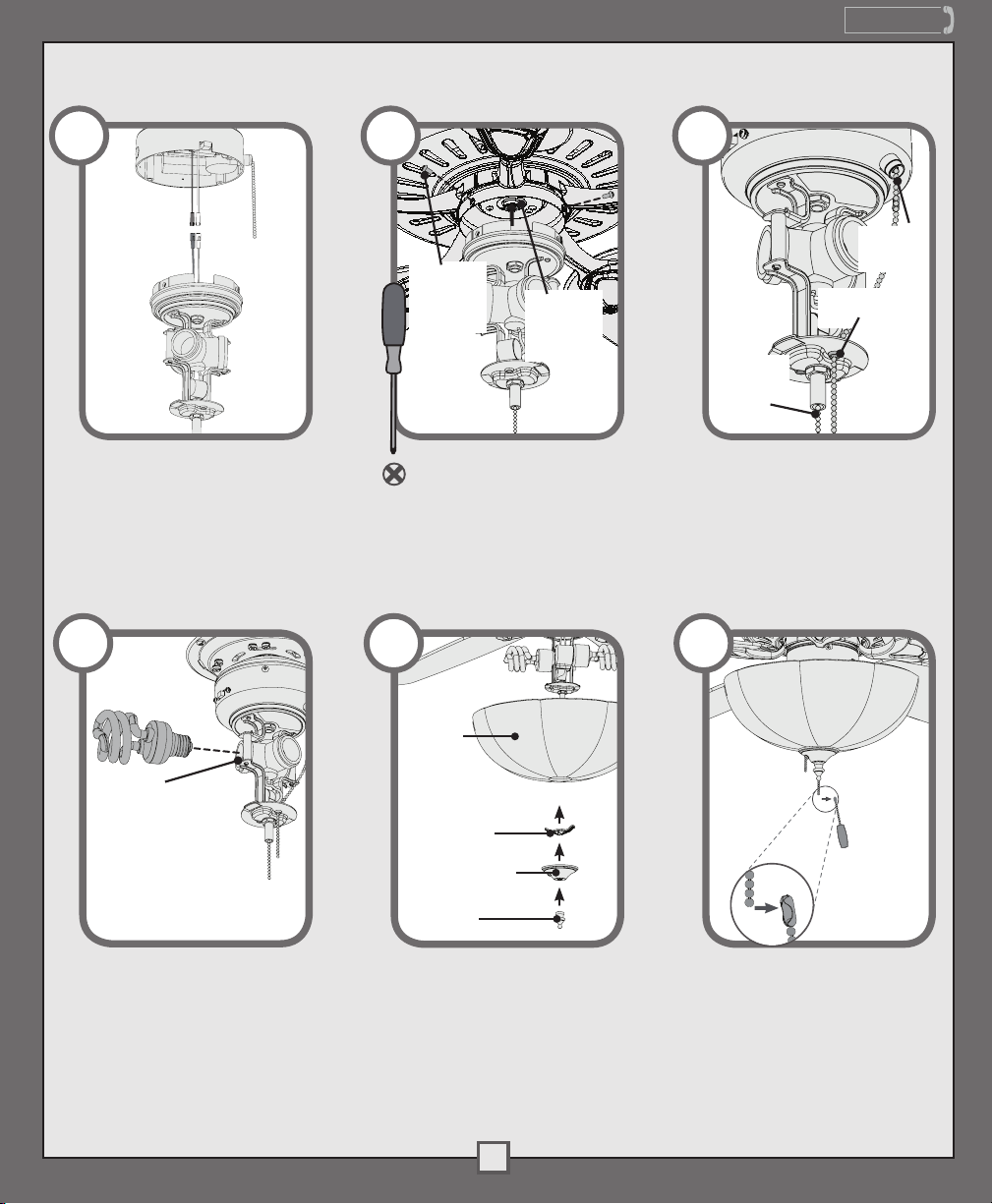

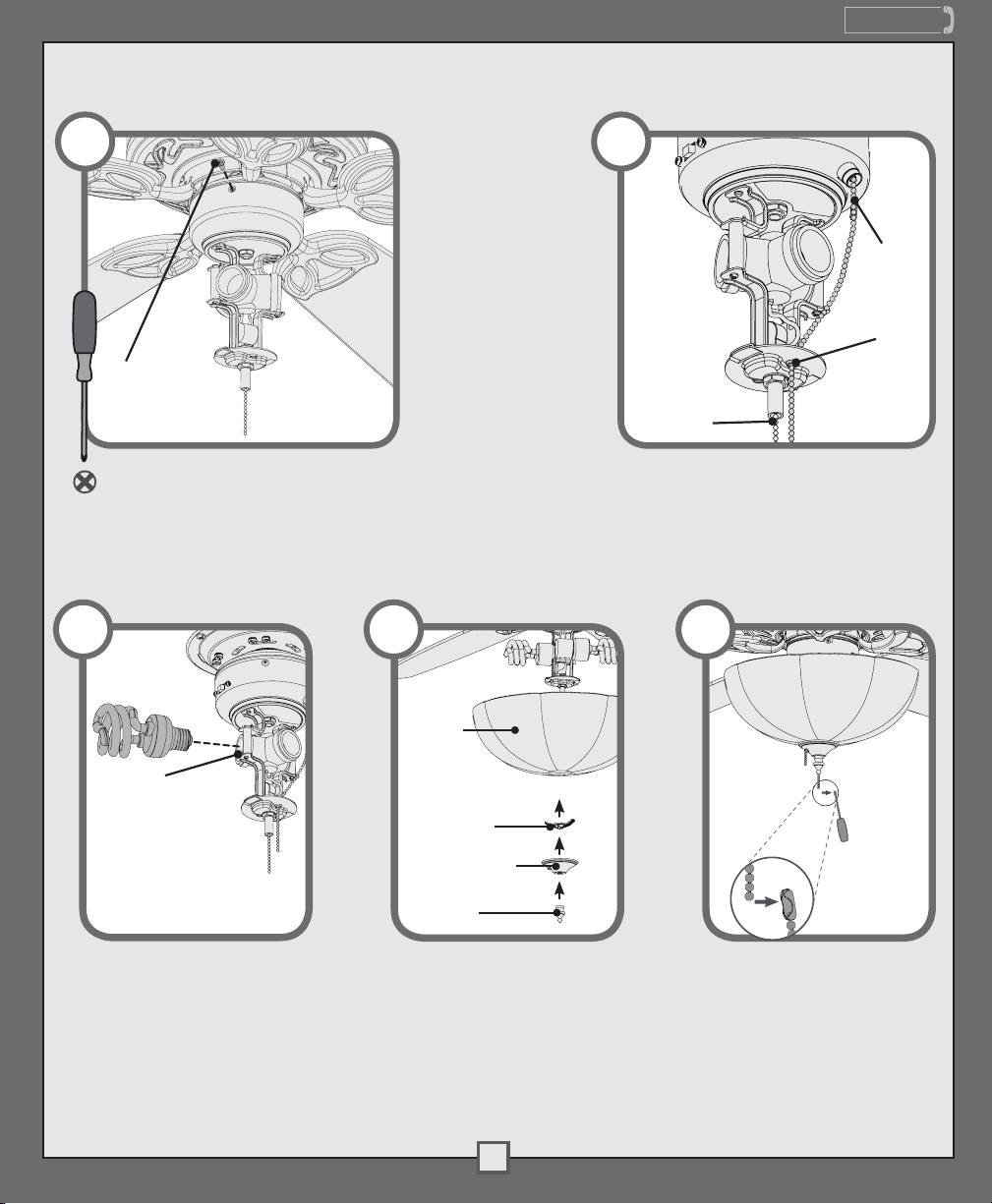

5
Switch
Housing
Screw
Lift the light kit assembly up so that
the screw holes in the lower switch
housing line up with the holes in the
upper switch housing. Install the switch
housing screws and tighten securely.
7
8
6
Fan Pull
Chain
Grommeted
Hole
Light Pull
Chain
If necessary, attach the extension chain
provided to the fan pull chain coming
from the switch housing. Then feed the
end of the extension chain through the
grommeted hole in the light kit.
9
Socket
Installing the bulb - Install
a bulb into each socket.
When necessary, replace
bulbs with bulbs of same
type and wattage.
Globe
Globe
Keeper
Finial Cap
Finial
Installing the globe - Press the globe and
globe keeper ush against the metal plate.
Thread the light pull chain through the hole
in the center of the nial cap and thread
the fan pull chain through the hole in the
side of the cap. Finally, thread only the light
pull chain through the hole in the nial and
screw the nial onto the threaded rod.
5
MA009-01 • 08/02/13
Installing the Pull chain
pendant - Attach the pull
chain pendants to the end
of the short chains coming
from the switch housing and
the light kit. Turn on power.
Your installation is complete!
Page 6
TYPE-B ASSEMBLY INSTRUCTIONS

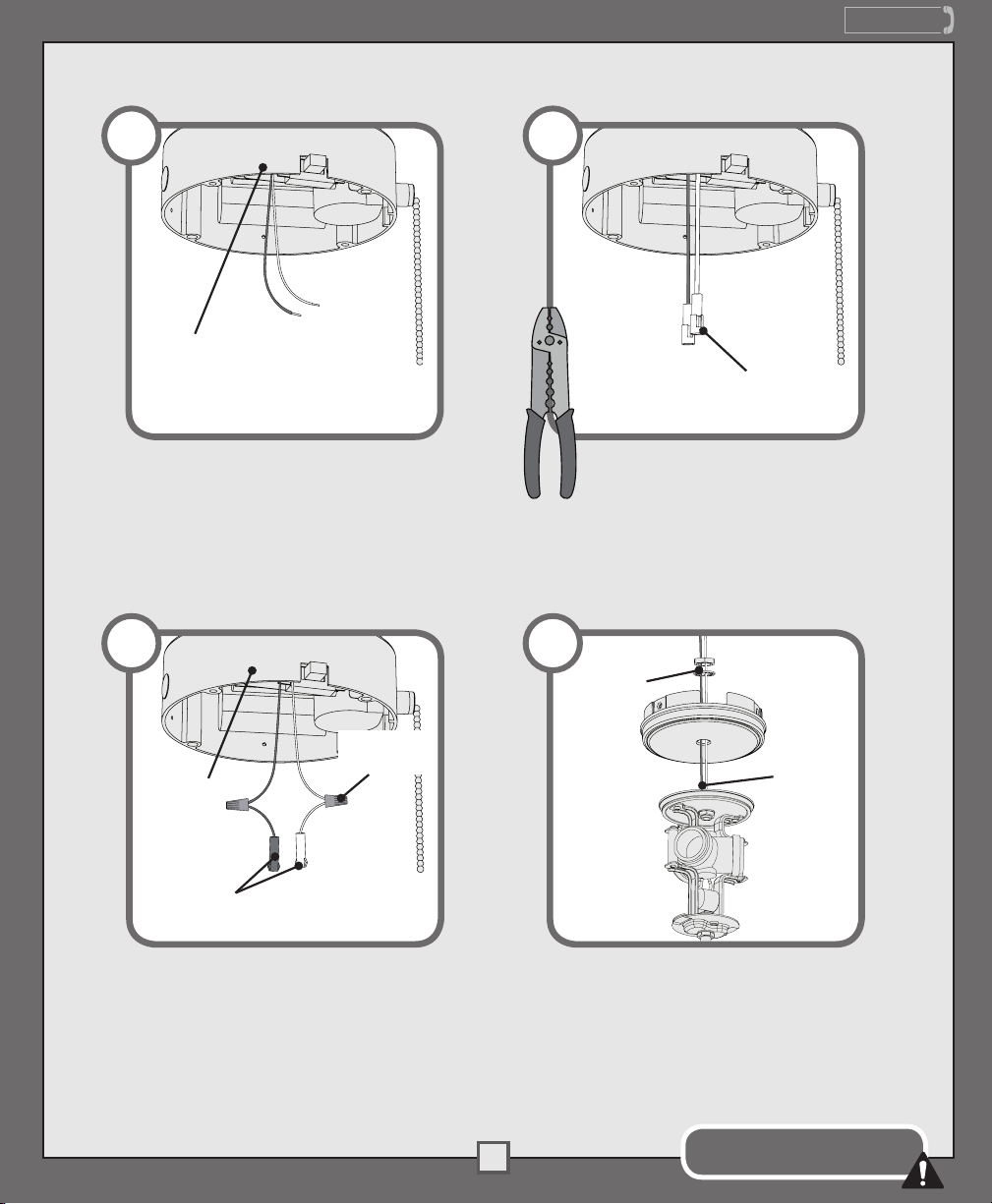

1a 1b
OR
Switch
Housing
1.888.830.1326
Pin
Connectors
If your fan does not have pin connectors on
the wires coming from the switch housing,
go to step 2.
2
Wire
Connector
Switch
Housing
Wiring
Harness
Using the provided wire connectors, found in
the hardware bag, connect the white wire from
the fan to the white wire from the wire harness
and connect the black or blue wire from the fan
to the black wire from the wire harness.
If the fan has pin connectors,
cut the wires just above the fan
pin connectors with wire cutters.
Discard the pin connectors. Go
to step 2.
3
Washer
and Nut
Threaded
Rod
Feed the wires through the switch
housing cap, washer, and nut. Then
install the switch housing cap by twisting
clockwise onto the threaded rod. Install
the washer and nut onto threaded rod
and tighten securely.
6
MA009-01 • 08/02/13
Do not allow the light kit to hang
only by the wire connections!
Page 7
TYPE-B ASSEMBLY INSTRUCTIONS (CONTINUED)
Bad Wolf
1.888.830.1326
4
Using the single pin connectors,
connect the black or blue wire
from the fan to the black wire
from the light kit. Connect the
white wire from the fan to the
white wire from the light kit.
7
5
Switch
Housing
Screw
Lift the light kit assembly
up so that the screw holes
in the lower switch housing
line up with the holes in the
upper switch housing. Install
the switch housing screws
and tighten securely.
Upper
Switch
Housing
8
6
Fan Pull
Chain
Grommeted
Hole
Light Pull
Chain
If necessary, attach the
extension chain provided to
the fan pull chain coming from
the switch housing. Then feed
the end of the extension chain
through the grommeted hole
in the light kit.
9
Socket
Installing the bulb - Install
a bulb into each socket.
When necessary, replace
bulbs with bulbs of same
type and wattage.
Globe
Globe
Keeper
Finial Cap
Finial
Installing the globe - Press the globe and
globe keeper ush against the metal plate.
Thread the light pull chain through the hole
in the center of the nial cap and thread
the fan pull chain through the hole in the
side of the cap. Finally, thread only the light
pull chain through the hole in the nial and
screw the nial onto the threaded rod.
7
MA009-01 • 08/02/13
Installing the Pull chain
pendant - Attach the pull
chain pendants to the end
of the short chains coming
from the switch housing and
the light kit. Turn on power.
Your installation is complete!
Page 8
TROUBLESHOOTING
Lights don’t come on.
• Make sure that the bulbs are properly installed.
• Make sure power switch is on.
• Pull the pull chain to make sure it is on.
• Check the circuit breaker to ensure the power is turned on.
• Check the pin connections in the light kit.
• Refer to the fan manual for locating the fan’s wiring. Verify that the light and power
wires are correctly connected to the ceiling and the light kit.
ONE YEAR WARRANTY
1.888.830.1326
This product is warranted to the original purchaser by Casablanca Fan Company/
Hunter Fan Company against defects in material and workmanship for one (1)
year from date of purchase. During the warranty period, we will repair or, at our
option, replace a defective product at no charge. For information on how to obtain
service, contact the Casablanca/Hunter Service Department by calling our toll-
free number at 888-830-1326. Damage to the product caused by mishandling,
improper installation or modication is not covered by this warranty. This warranty
is given in lieu of all other warranties expressed or implied. Some states do not allow
limitations of time on an implied warranty, therefore the above limitations may not
apply in every case. This warranty states specic legal rights which may vary from
state to state.
If you have problems installing or operating your light kit, do not return this product
to the dealer. Call our Consumer Affairs Hotline.
888-830-1326
8
MA009-01 • 08/02/13
