I n s t a l l a t i o n G u i d e

82500 Infiniti™ Bath Ventilator Fan

41788-01 6/1/2005

Page 3

W A R N I N G

TO REDUCE THE RISK OF ELECTRIC SHOCK OR INJURY, OBSERVE THE FOLLOWING:

1. Use this unit only in a manner intended by the manufacturer. If you have questions, contact the manufacturer at the phone number or address listed in the warranty.

2. Before installing, servicing, or cleaning the unit, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, attach a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting of gasses through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards,

securely

such as those published by the National Fire Prevention

Association (NFPA), and the American Society for Heating, Refrigeration and Air-Conditioning Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall(s) or ceiling, do not damage electrical wiring or other hidden utilities.

6. Ducted fans must always be vented to the outdoors. Keep ducting as short and as straight as possible.

7. Acceptable for use over a bathtub or shower when connected to a GFCI protected branch circuit.

8. Install fan at least 5 feet (1.52 m) above the floor.

9. Never place a switch where it can be reached from a tub

or shower.

10. This unit must be grounded.

C A U T I O N

1. For general ventilating use only. Do not use for ventilating hazardous or explosive materials.

2. To avoid motor bearing damage and noisy/unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.

3. DO NOT install this product in a wall. This product is designed for installation in ceilings up to a 12/12 pitch (45 degrees). Ductwork must point upward.

4. Please read specification label on product for further information and requirements.

W A R N I N G

DISCONNECT

ELECTRIC

POWER SUPPLY

AND LOCK OUT

SERVICE PANEL

BEFORE

SERVICING UNIT

PREVENTATIVE MAINTENANCE

A clean fan provides better service. Disconnect the power supply and clean the fan as listed below.

TO CLEAN GRILLE: Use a mild detergent, such as dishwashing liquid, and a soft cloth. DO NOT use abrasive cloths, steel wool pads or scouring powders.

TO CLEAN FAN ASSEMBLY

plate (located next to the receptacle). Push up rear motor plate tab while pushing out on the side of the housing or insert a screwdriver into the slot in the housing (next to tab) and twist screwdriver. Gently vacuum fan, motor and interior of housing.

METAL AND ELECTRICAL PARTS SHOULD NEVER BE IMMERSED IN WATER.

: Unplug motor cord from receptacle. To remove motor plate, find the single tab on the motor

MAINTENANCE

The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the motor with the exact service motor. You should replace the impeller at the same time.

41788-01 6/1/2005

Page 4

3/8" Cable Connector

NOTE:

Strain relief cable connector must be installed. Not Included.

Extra Screws

77864-02

03242-07-133

96261-01-000

95047-02-000

74508-03-133

95776-01-000

75184-01-133

96258-01/02/03-008

75171-01/02/03-000

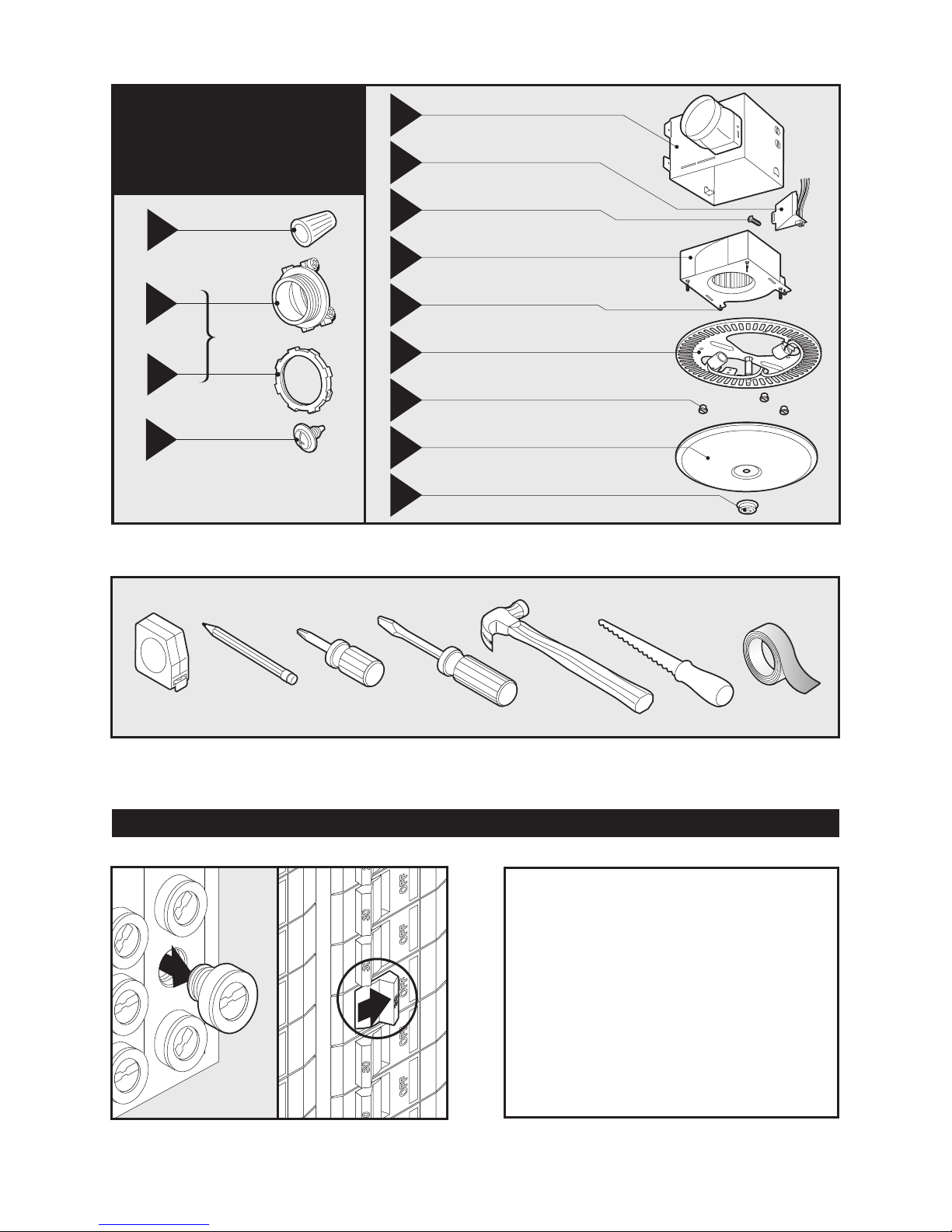

Check all the parts.

3/8" Cable Connector

NOTE:

Strain relief cable connector must be installed. Not Included.

Extra Screws

77864-02

03242-07-133

96261-01-000

95047-02-000

74508-03-133

95776.01.000

75184-01-133

96258-01/02/03-008

75171-01/02/03-000

If damaged, call

1-888-830-1326

for replacements.

Included.

Before Installation

Estimated assembly time: 30 to 60 minutes

NOTE: Remove all packing materials before installation

Tools Needed.

New construction installation

Go to Existing Construction Installation,

Go to Step A1, page 4

Existing construction

page 8

41788-01 6/1/2005

Turn off the power source.

Page 5

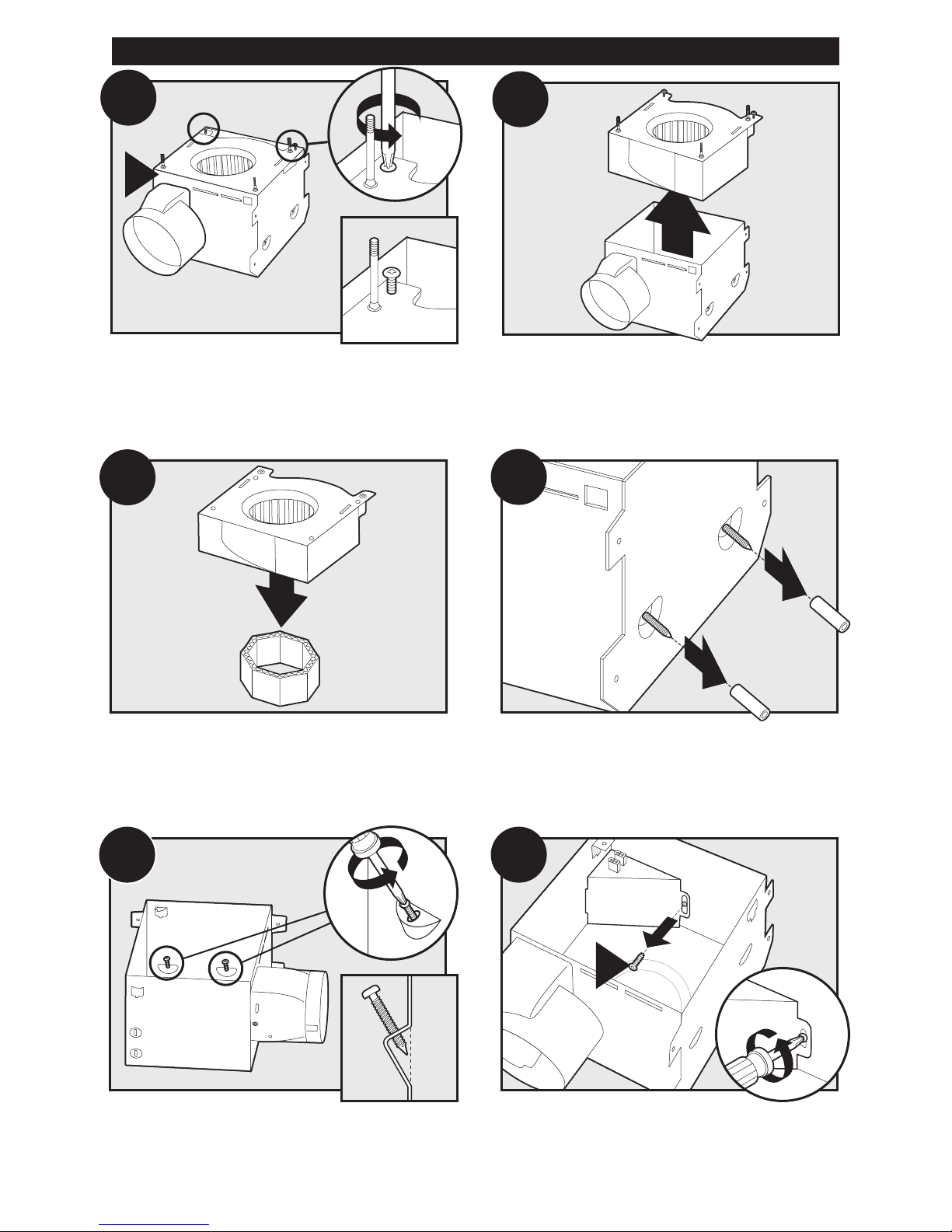

New Construction Installation

Loosen screw securing motor.

Remove packing material.

Remove the motor/blower from the housing.

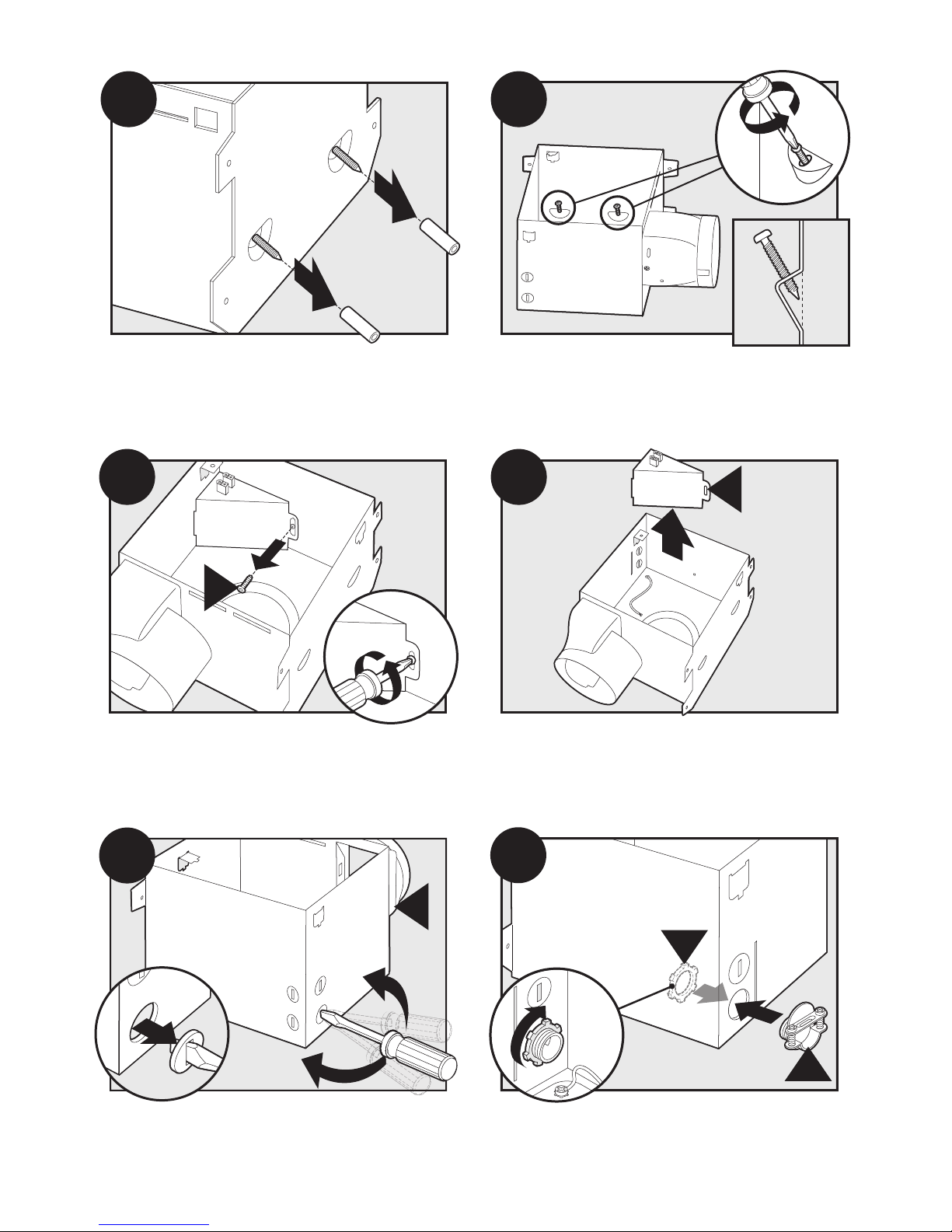

Remove the pre-loaded screw tip covers.

Back out the pre-loaded screw tips until flush with the

side of the housing.

Remove the wiring cover screw

41788-01 6/1/2005

Page 6

A10

5/8 1/2

A11

OPTION

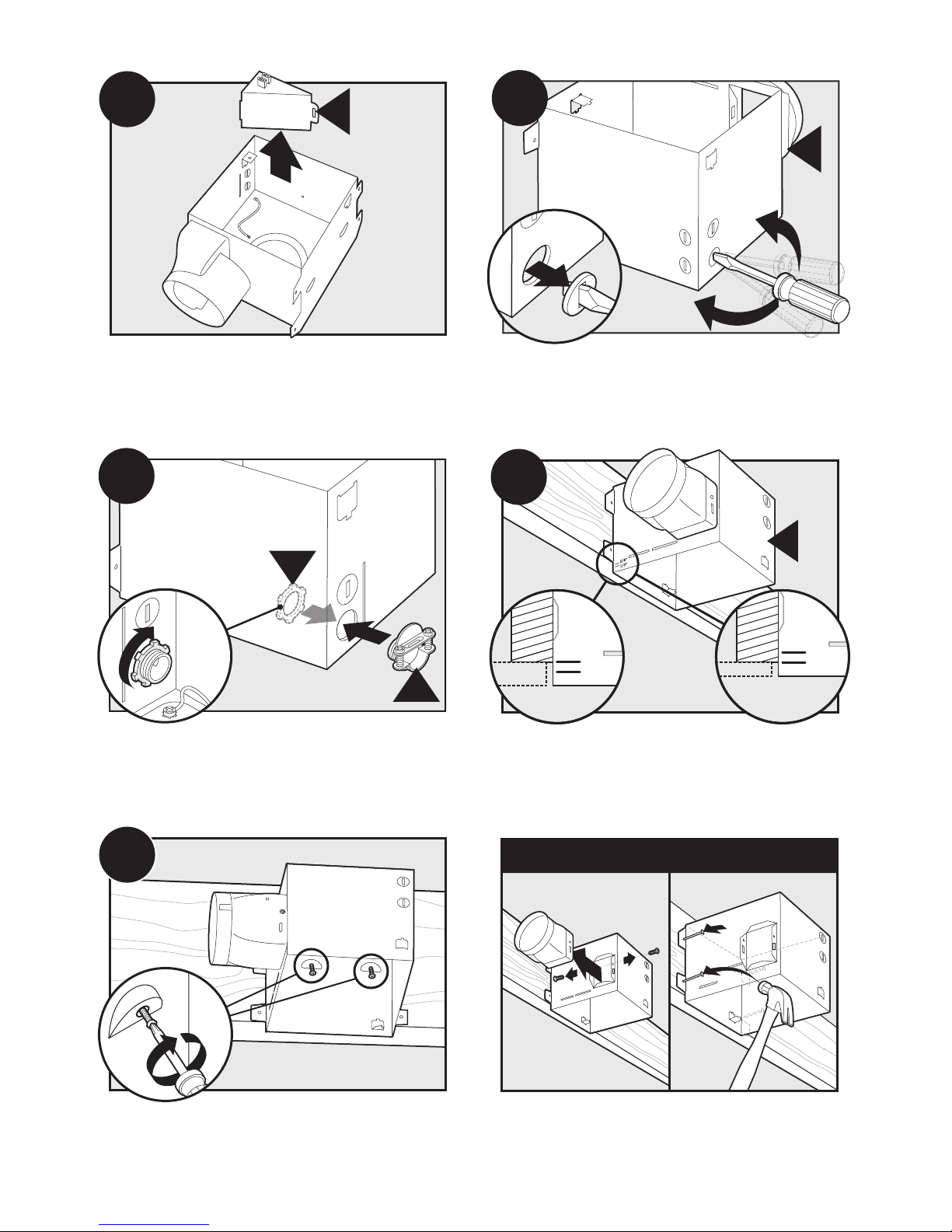

Remove the wiring cover. Pop out the first wiring access slug. Use second if needed.

Insert the strain relief into the housing and secure

with the washer.

Screw pre-loaded screws into joist or framing. Nail the tabs on both sides to joist or framing so that the

41788-01 6/1/2005

Position the correct depth mark at the bottom edge

of the joist–based on the thickness of your sheet rock.

housing will be flush with the finished ceiling.

(Nails are not provided.)

Page 7

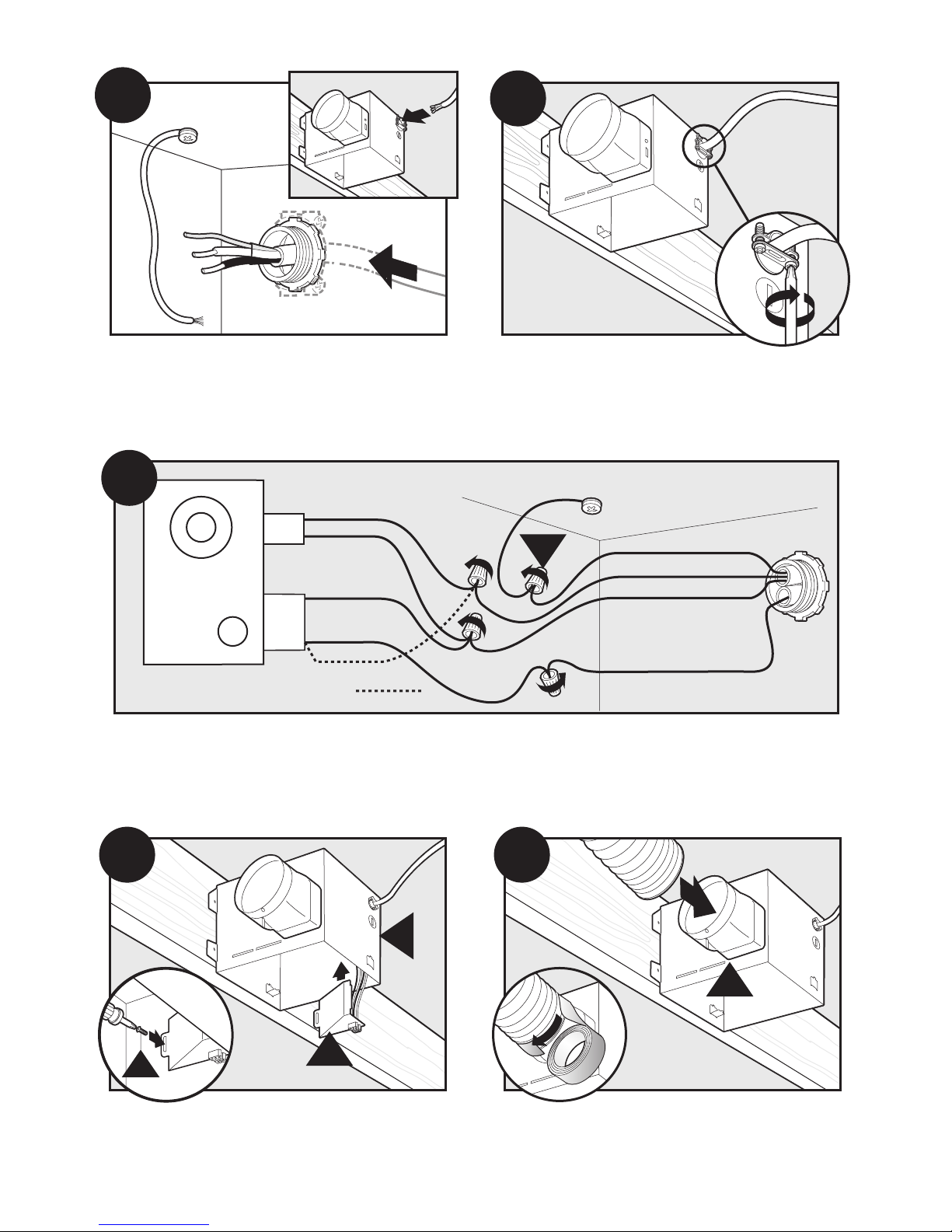

A16

A12

A13

3 Pin

2 Pin

Fan Motor

Light

Green

Black

White

Black

White

Bare Copper

Ground

A14

Main Switch 1 (AC In)

Switch 2 (AC In)

*Option Fan & Main Light Together

*Option

A15

Pull the wires through the strain relief.

Tighten the strain relief screws.

Connect wires as shown.

Install the wiring cover plate. Make sure all wiring

connections are inside the box or under the wiring cover plate.

Connect a 4” duct and vent to the outside. Tape joints.

If ducting does not fit securely, an adapter may need

to be purchased.

41788-01 6/1/2005

Page 8

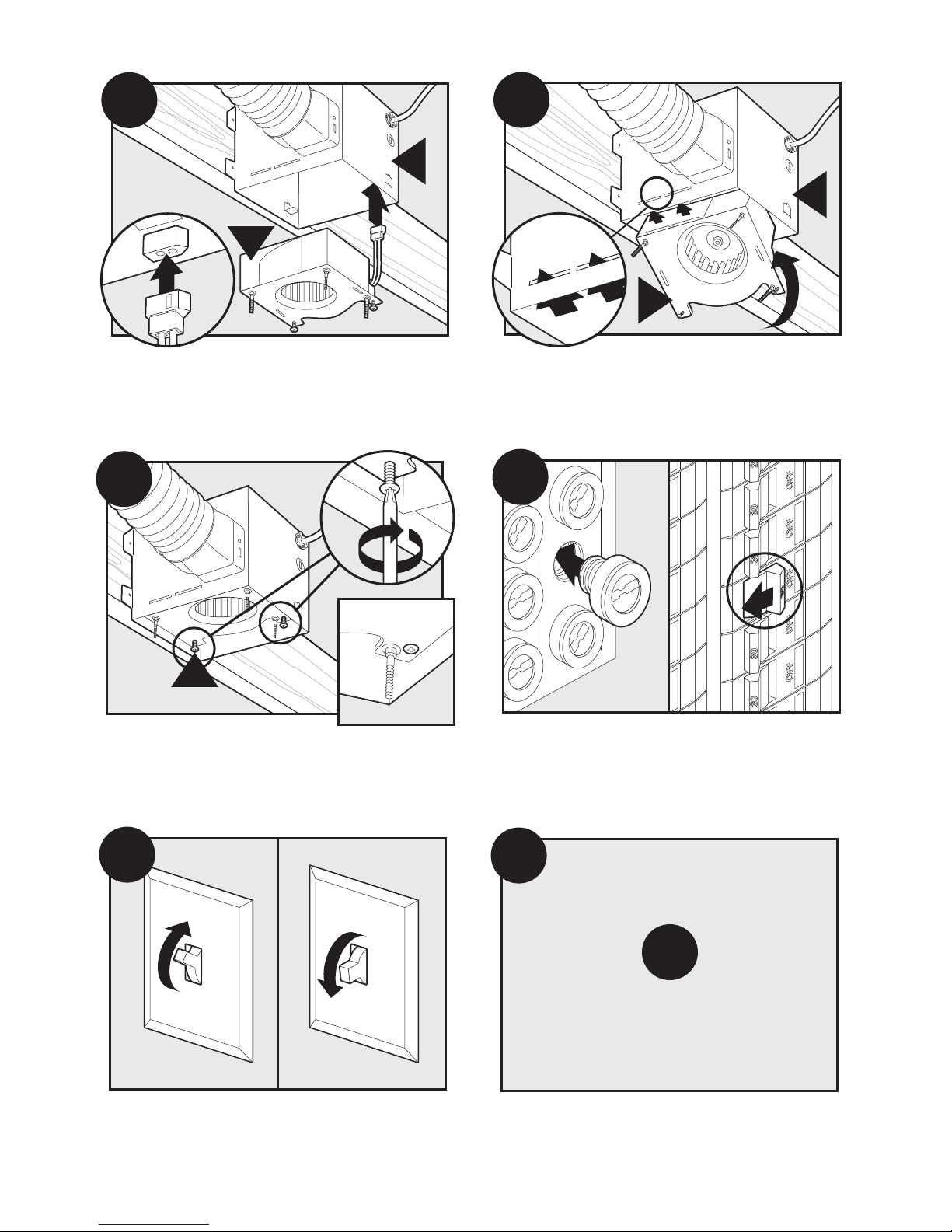

A22

Go to step

on page 12

to attach grille.

0000

A17

0000

A18

A20

A21

Connect wiring from the motor to the wiring cover plate.

A19

Reinstall the motor by inserting the tabs and pushing up

into position. Make sure the wires are not pinched between

the motor and the housing.

Secure the motor by tightening the 2 screws.

Test the motor. If the motor does not run,

41788-01 6/1/2005

check the plug connection.

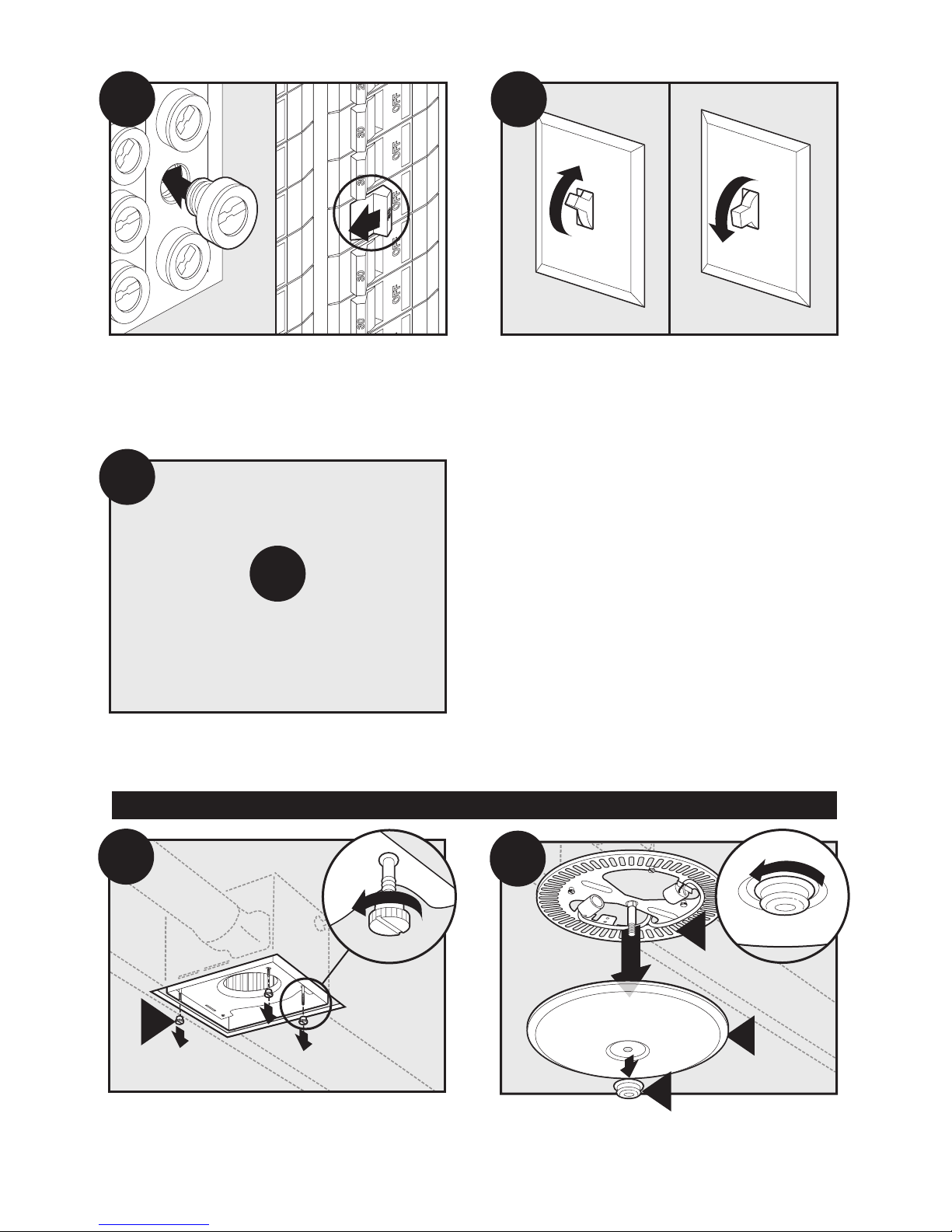

Turn on the power source.

Page 9

7.25 ”

7.75

”

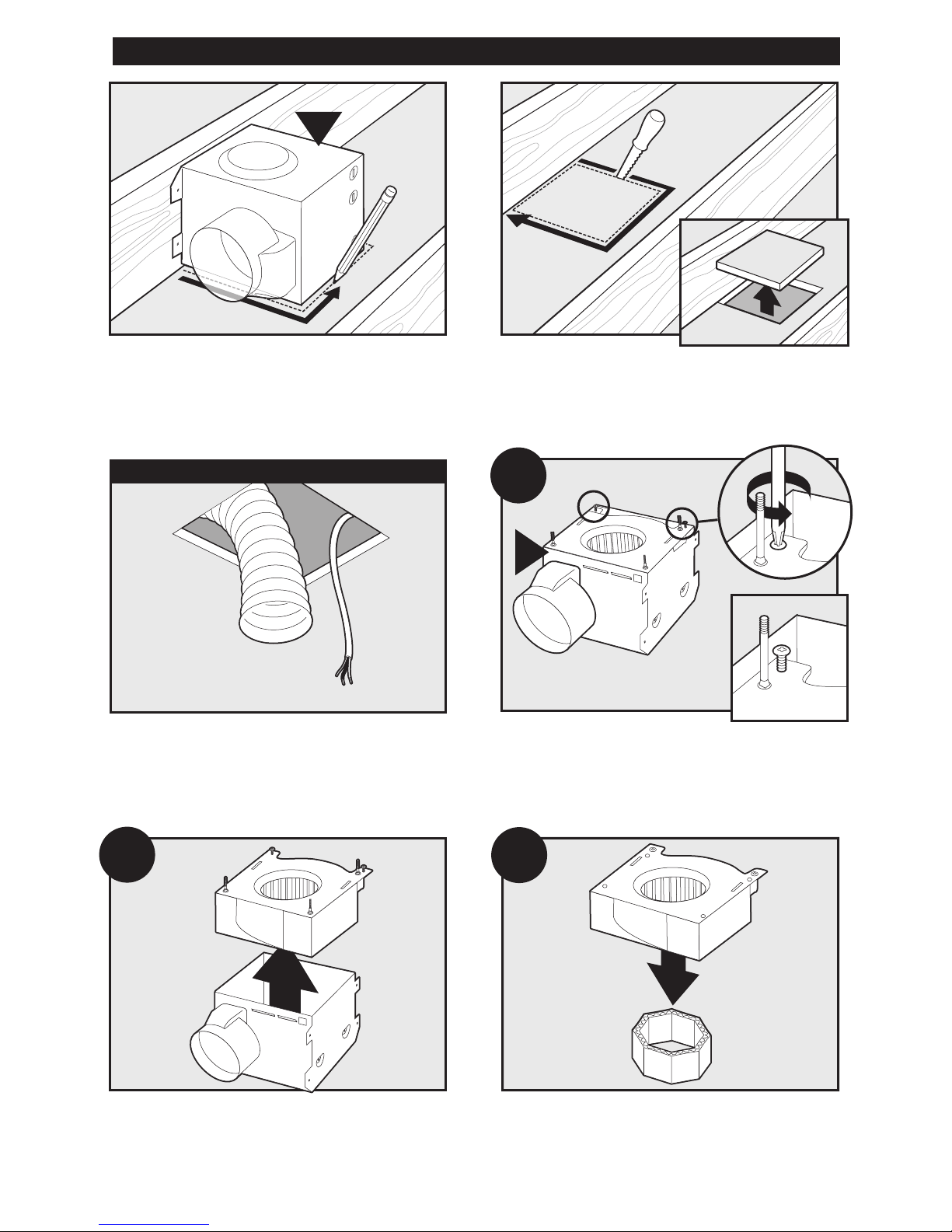

Existing Construction Installation

Use the motor housing as a template to mark position.

Existing Fan

Remove the existing fan and check to make sure the

opening is large enough to accommodate the new motor

housing (7.25” x 7.75”).

Cut out an opening for the housing.

Loosen screw securing motor.

Remove the motor/blower from the housing.

Remove packing material.

41788-01 6/1/2005

Page 10

Remove the pre-loaded screw tip covers.

Back out the pre-loaded screw tips until flush with the

side of the housing.

Pop out the first wiring access slug. Use second if needed

41788-01 6/1/2005

Insert the strain relief into the housing and secure

Remove the wiring cover.Remove the wiring cover screw

with the washer.

Page 11

B10

B11

B12

B13

B14

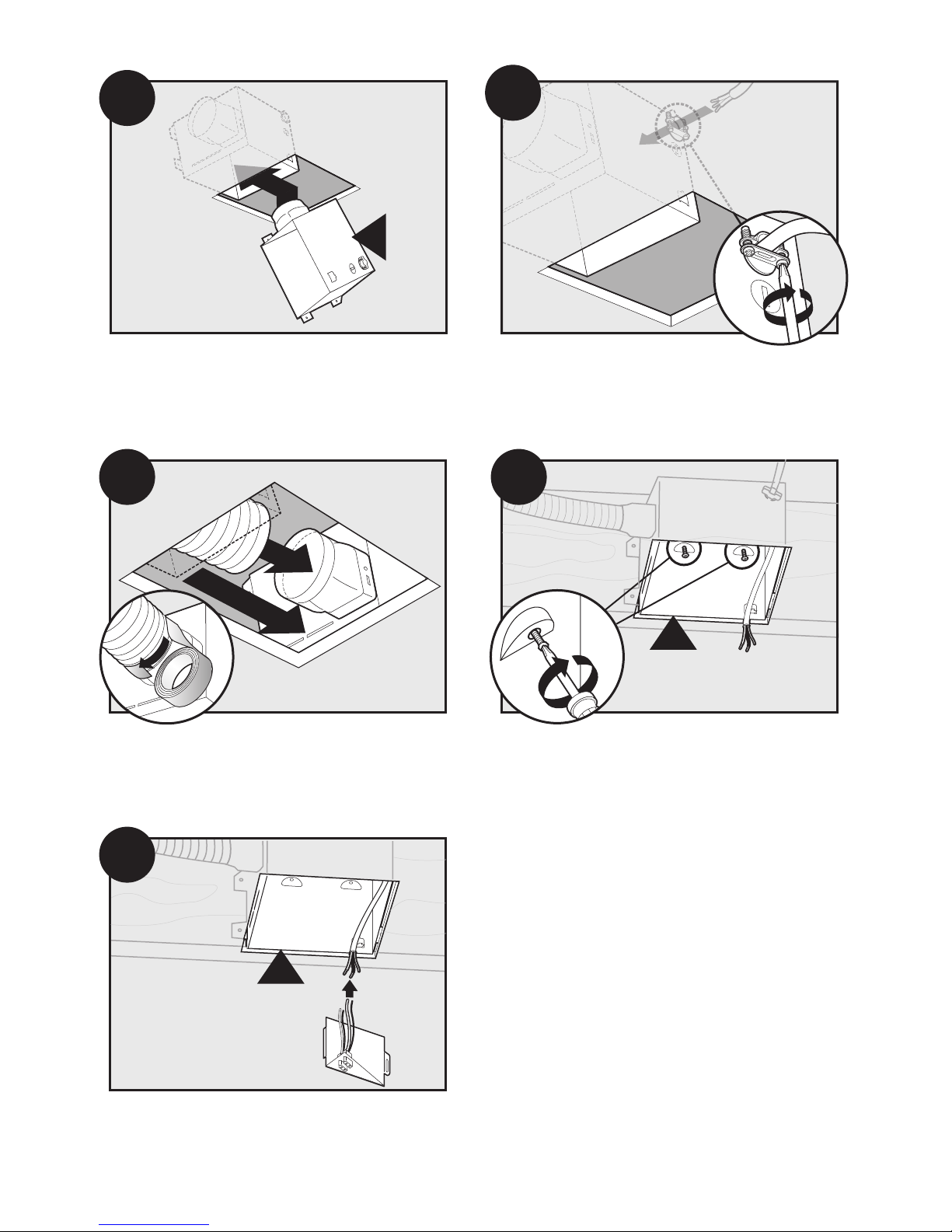

Move the housing into position above the ceiling.

Pull the wires through the strain relief and tighten the

strain relief screws.

Attach existing ducting to duct connector. Tape joints.

If ducting does not fit securely,

an adapter may need to be purchased.

Connect the wiring.

Fit housing into the opening and secure by tightening the

pre-loaded screws into the joist.

Note: Install the box flush with the sheetrock (ceiling).

41788-01 6/1/2005

Page 12

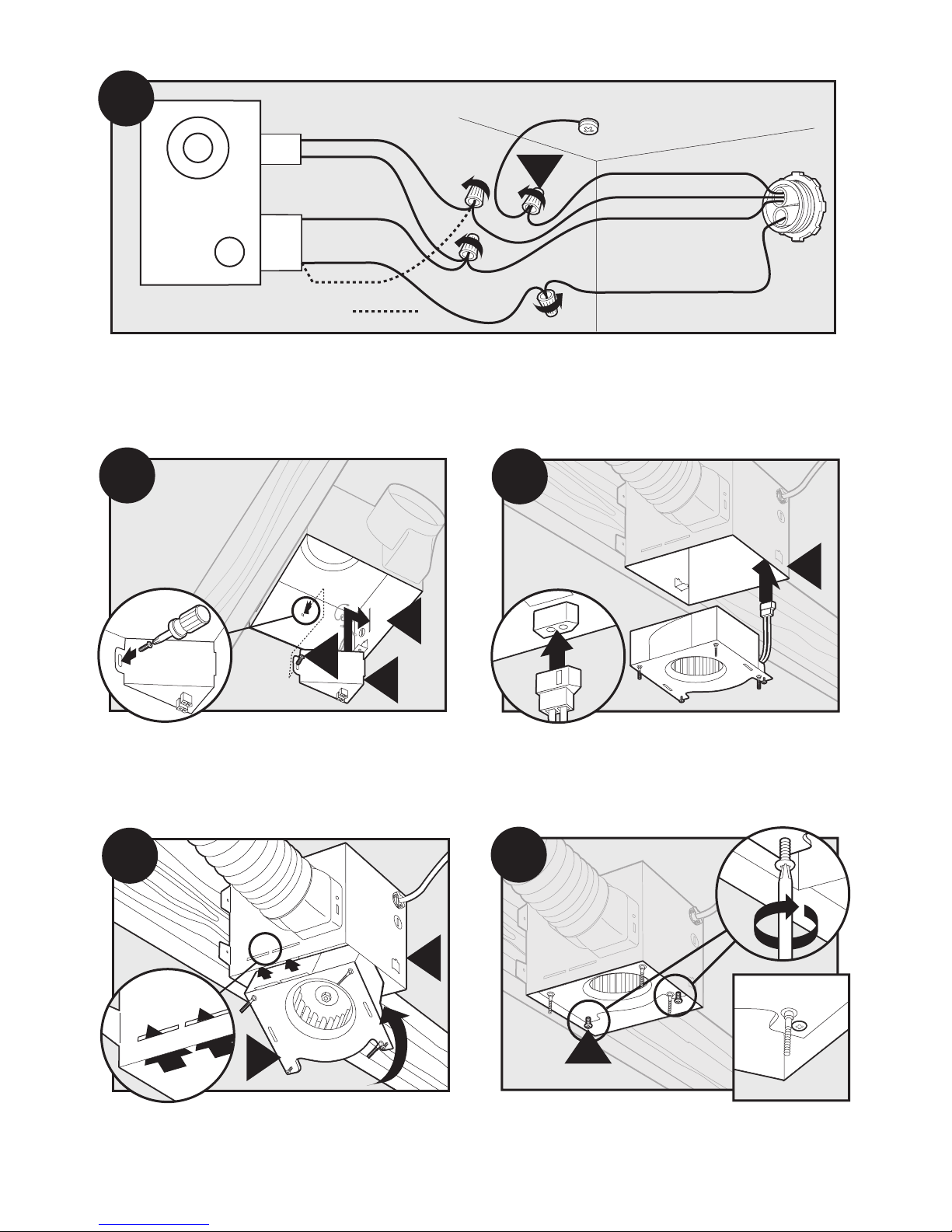

B16

3 Pin

2 Pin

Fan Motor

Light

Green

Black

White

Black

White

Bare Copper

Ground

B15

Main Switch 1 (AC In)

Switch 2 (AC In)

*Option Fan & Main Light Together

*Option

B17

0000

B18

B19

Connect wires as shown.

Install the wiring cover plate. Make sure all wiring

connections are inside the box or under the wiring

cover plate.

41788-01 6/1/2005

Reinstall the motor by inserting the tabs and pushing up

into position. Make sure the wires are not pinched between

the motor and the housing.

Connect wiring from the motor to the wiring cover plate.

Secure the motor by tightening the 2 screws.

Page 13

B20

B21

B22

Go to step

to attach grille.

Turn on the power source.

Attaching the Grille

Test the motor. If the motor does not run,

check the plug connection.

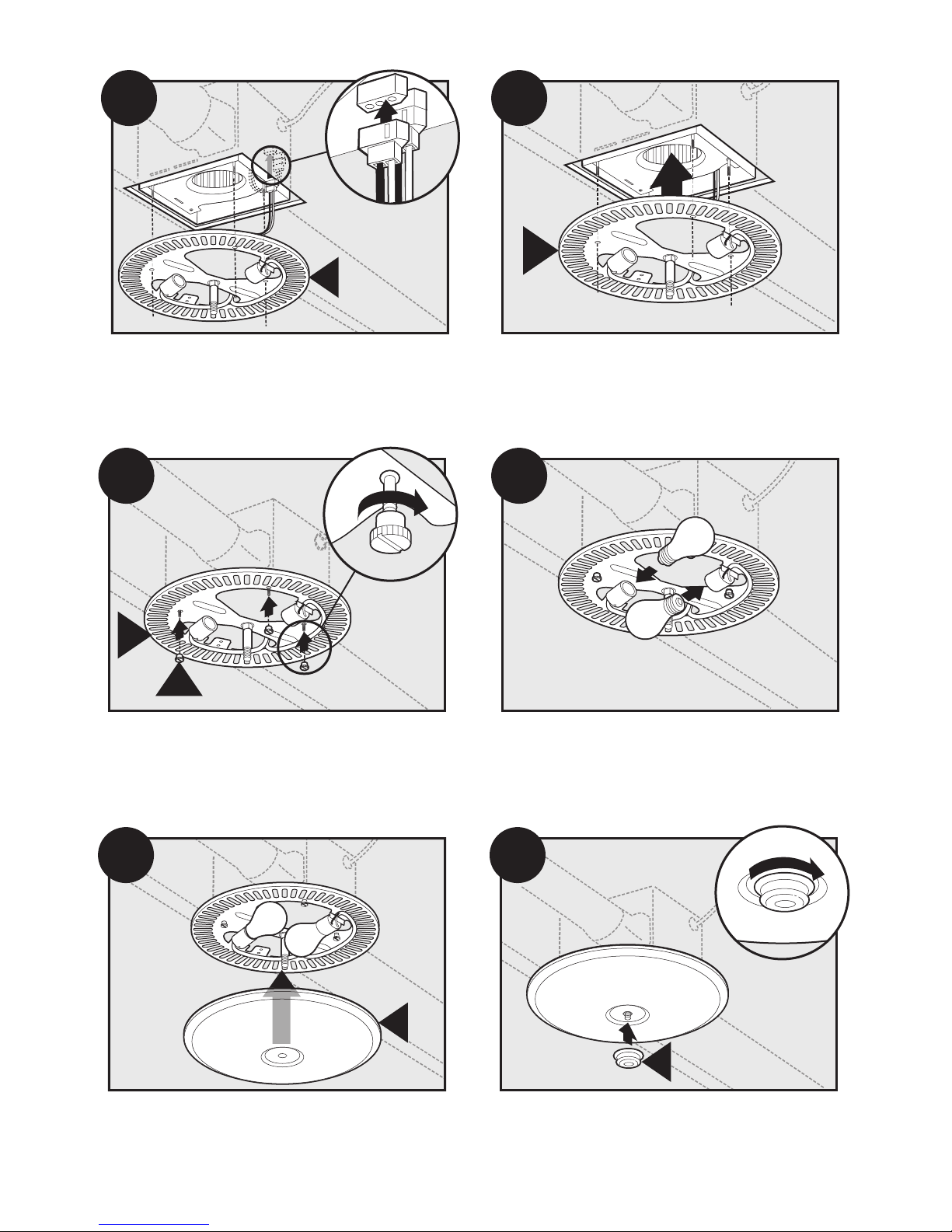

Remove the thumbscrews.

Remove glass dome.

41788-01 6/1/2005

Page 14

Connect wiring harness.

Slide light mount over posts.

WARNING: To reduce the risk of electrical shock,

all 3 thumbscrews MUST be properly installed.

41788-01 6/1/2005

Attach thumbscrews.

Install 2 Max 60 Watt A15 bulbs (Not Included).

Screw glass dome into position.Align glass dome and push up.

Page 15

Trouble Shooting

Problem: Fan does not come on.

Solution:

• Hunter Fan Bath Ventilators are extremely quiet. To conﬁrm that the fan is running, place your hand near the vents to feel the air movement.

• Turn power on, replace fuse, or reset breaker.

• Check all plug connections to be sure they are secure.

• Check the wiring to make sure it matches the wiring diagram.

Problem: Light does not come on.

Solution:

• Replace the light bulb with a new bulb.

• Turn power on, replace fuse, or reset breaker.

• Check all plug connections to be sure they are secure.

• Check the wiring to make sure it matches the wiring diagram.

Problem: Fan is noisy.

Solution:

• Check and tighten all fasteners.

• Check the glass to make sure it is secure.

• Check the ﬂapper to make sure it moves freely.

If you need parts or service assistance, please call 888-830-1326 or visit us at our WEB site at http://www.hunterfan.com.

41788-01 6/1/2005
