Hunter 59141 Instructions Manual

Download

Page 1

www.HunterFan.com

1.888.830.1326

30 inches

7 feet

PAG E

What to Expect with

Your Installation

Ceiling Plate

Ladder

PAG E

Tools Needed

Hanging the Fan

PAG E

Canopy

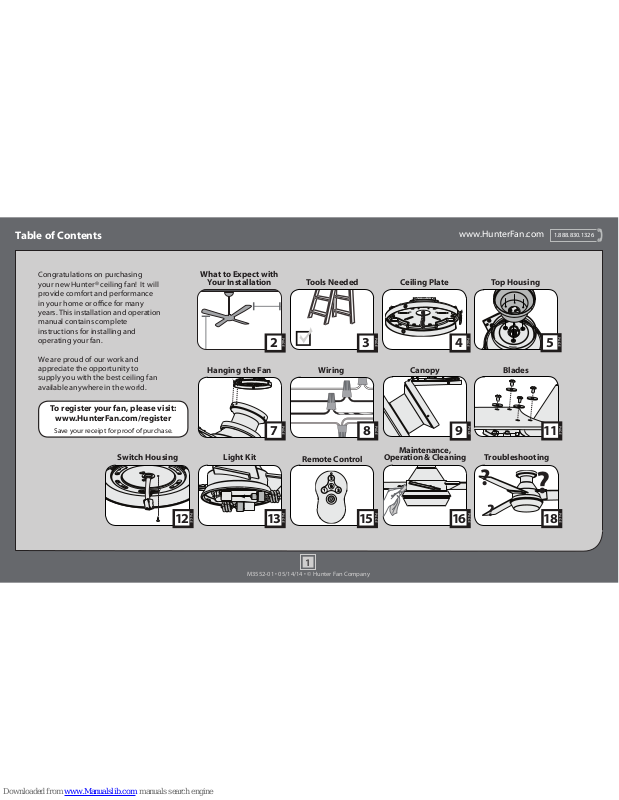

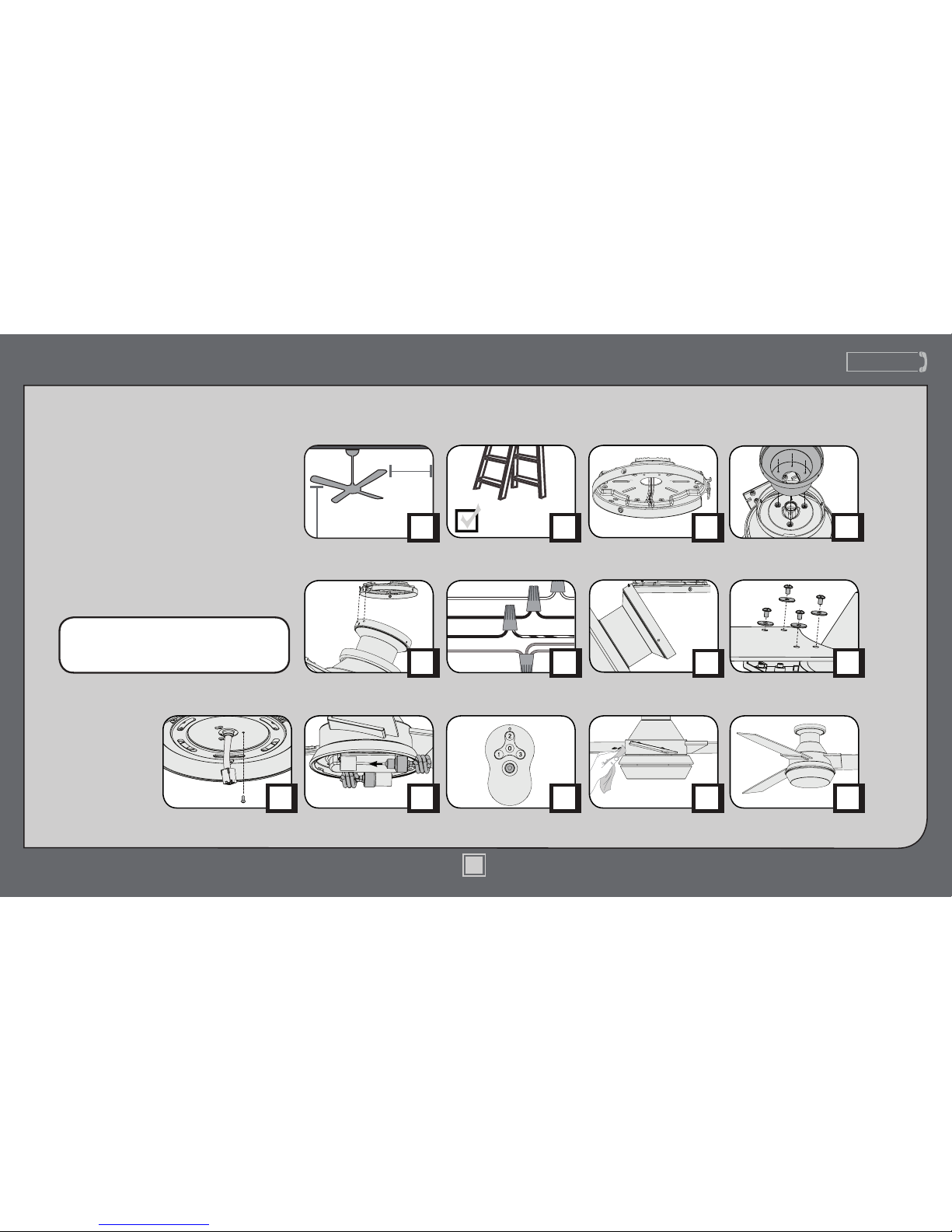

Table of Contents

PAG E

Maintenance,

Operation & Cleaning

Troubleshooting

PAG E

Top Housing

PAG E

Wiring

PAG E

Light Kit

PAG E

Switch Housing

Blades

Congratulations on purchasing your new Hunter® ceiling fan! It will provide comfort and performance

in your home or ofce for many

years. This installation and operation manual contains complete instructions for installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

To register your fan, please visit:

www.HunterFan.com/register

Save your receipt for proof of purchase.

Remote Control

PAG E

M3552-01 • 05/14/14 • © Hunter Fan Company

PAG E

Page 2

www.HunterFan.com

1.888.830.1326

If you are installing multiple remote-controlled fans on the same circuit breaker, you may need to perform a few

extra steps to prevent interference or faulty operation of

your remote controls.

Go to www.HunterFan.com/FAQs and click

“How do I properly install multiple remote-controlled fans?”

for more information.

M3552-01 • 05/14/14 • © Hunter Fan Company

1.888.830.13261.888.830.1326

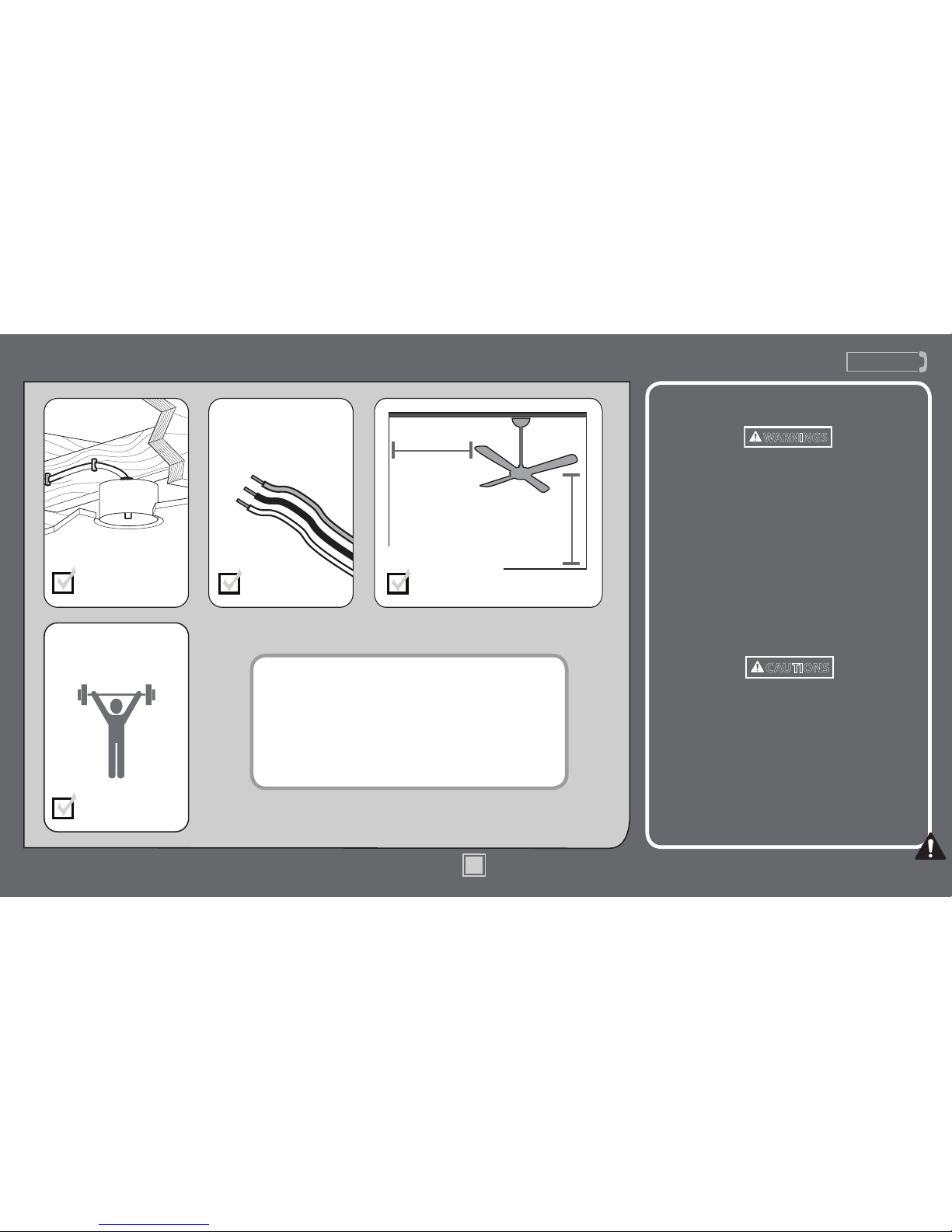

What to Expect with Your Installation

Know your wiring

If you are unfamiliar with wiring, use a

qualied electrician.

Assess location

30 inches

from blade tip to nearest wall or obstruction

7 feet

from bottom

edge of blade

to the oor

You may need a friend to help you.

Check box to see fan weight

Must be able to secure the fan to building structure or fan-rated outlet box

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

CAUTIONS

w.1 - To reduce the risk of re, electrical shock, or personal

injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage, use only Hunter Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring,

use a qualied electrician.

c.2 - Use only Hunter replacement parts.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications.

Page 3

www.HunterFan.com

1.888.830.1326

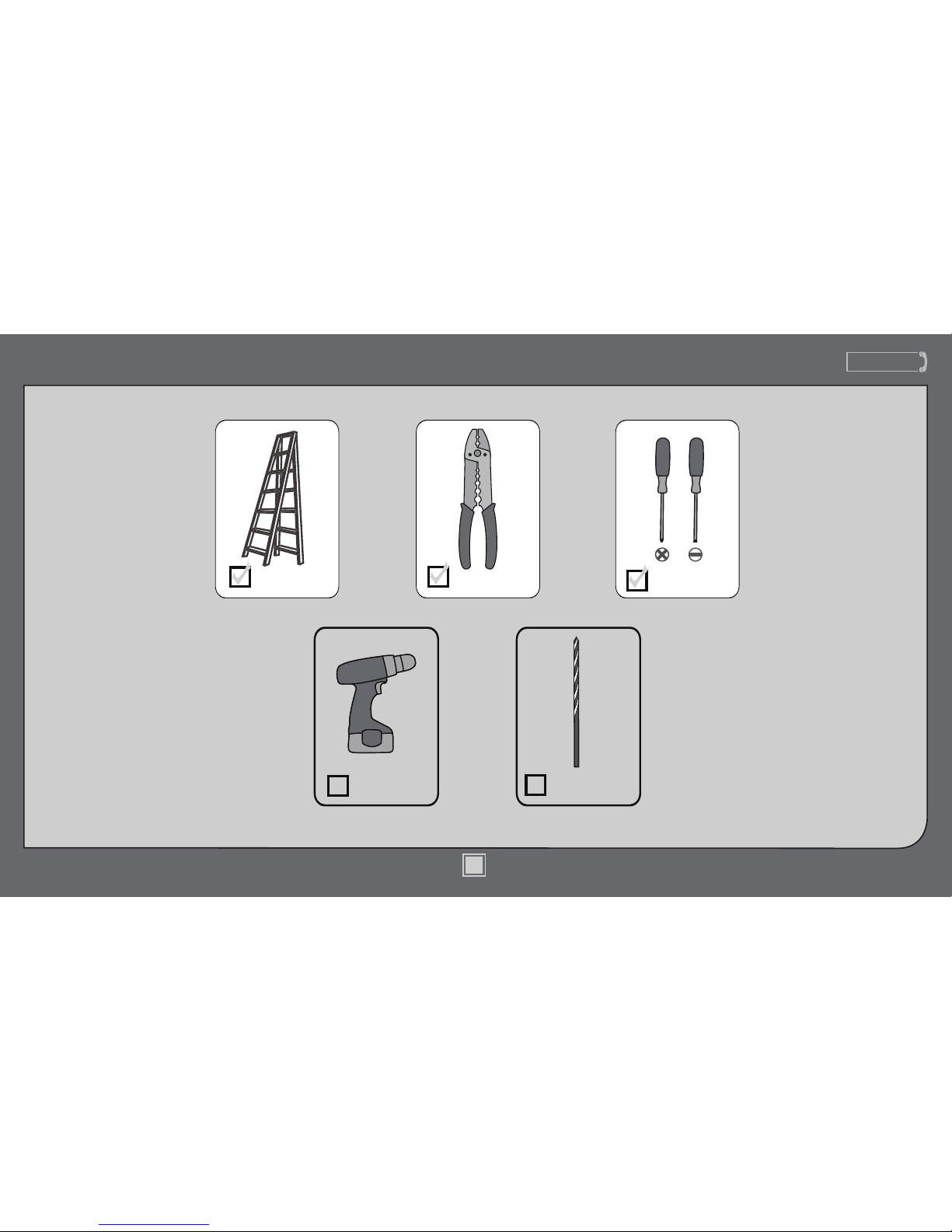

Tools Needed

Power Drill

(optional)

9/64” Drill Bit

(optional)

Ladder

Screwdrivers

Wire Strippers

If mounting to a support structure, you will also need these tools.

M3552-01 • 05/14/14 • © Hunter Fan Company

Page 4

www.HunterFan.com

1.888.830.1326

M3552-01 • 05/14/14 • © Hunter Fan Company

1.888.830.1326

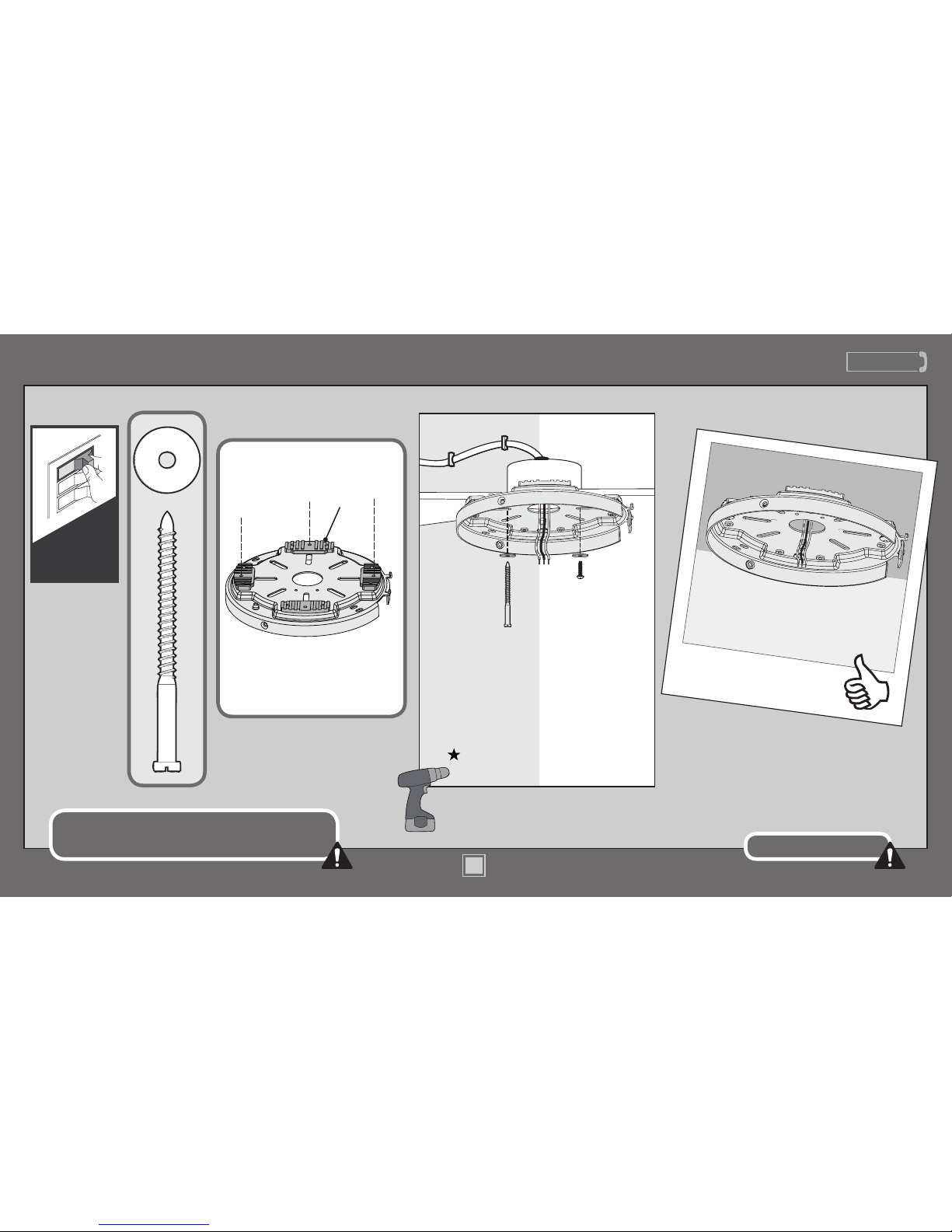

Ceiling Plate

Refer to warning w.1 on pg. 2

To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet box associated with the wall switch location.

OFF

Turn Power

Use wood screws (included) when securing to support structure with approved electrical outlet box. Drill 9/64” pilot holes

in support structure to aid

in securing ceiling plate with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

Make sure all four (4) bumpers are

still attached.

Bumper

Page 5

www.HunterFan.com

1.888.830.1326

M3552-01 • 05/14/14 • © Hunter Fan Company

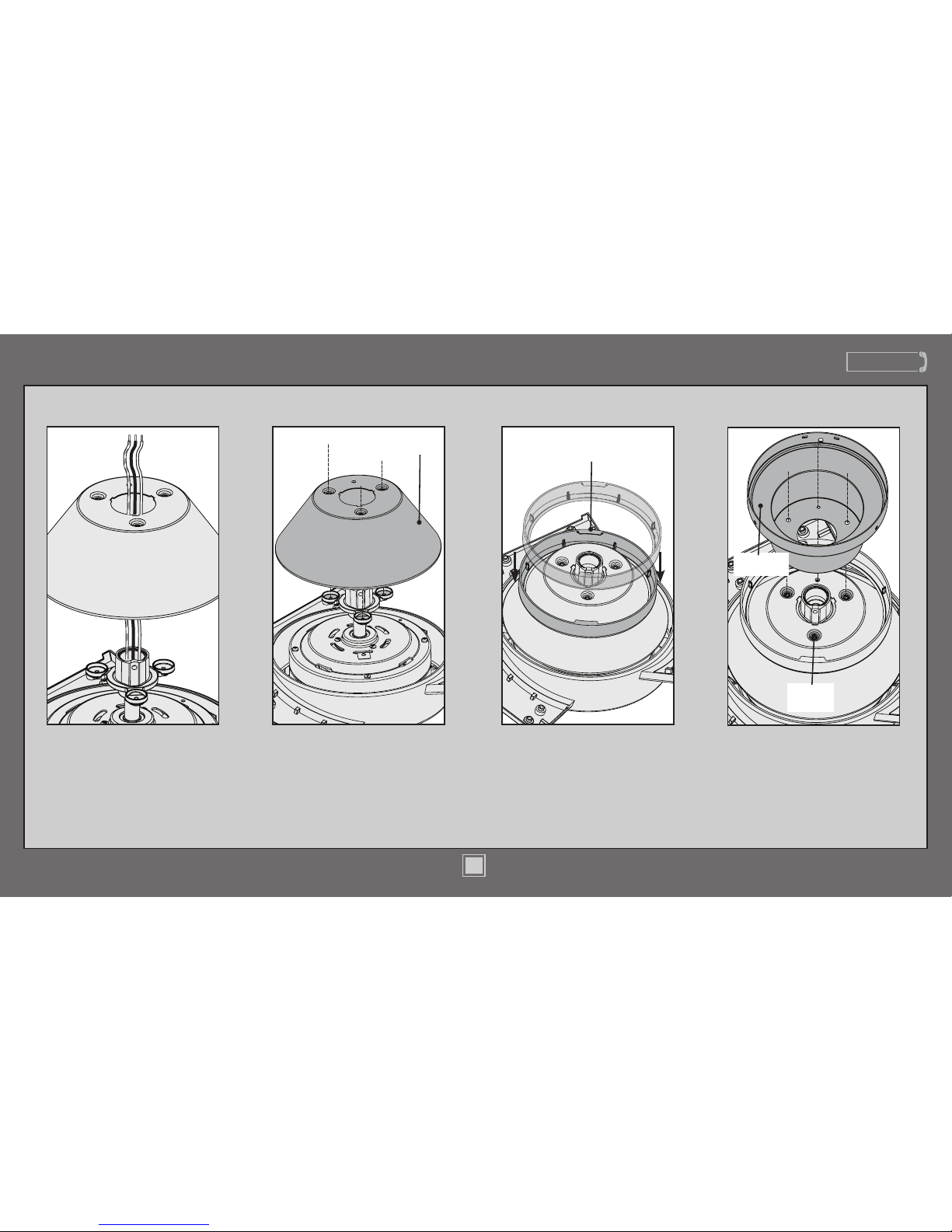

Top Housing

Rest the trim ring on the top

housing.

Trim Ring

Place the top housing onto the

motor housing so that the holes

in the top housing lineup with

the holes in the motor housing.

Top Housing

Thread the wires through the

top housing.

Place the canopy on the top

housing. Ensure all four screw

holes line up with the screw

holes in both the top housing

and the adapter.

Canopy

Adapter

Page 6

www.HunterFan.com

1.888.830.1326

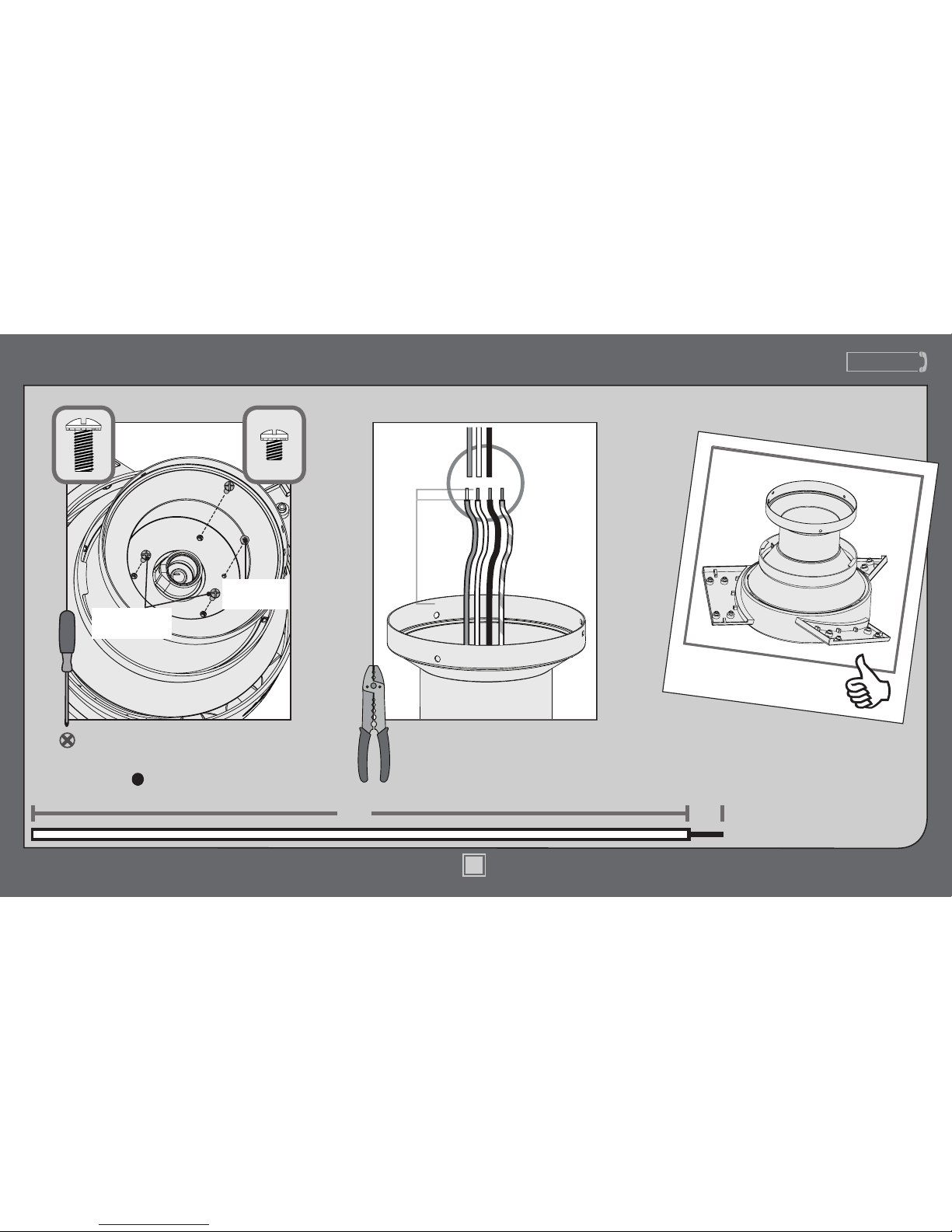

Install the top housing screws. Install the

grounding screw in the smaller screw

hole. These screws can be found in the

hardware bag.

Grounding

Screw

Top Housing

Screws

Top Housing (continued)

8”

3/8”

8”

3/8”

(not to scale)

The wires can be cut, but leave at

least 8” extending from the top of

the canopy.

M3552-01 • 05/14/14 • © Hunter Fan Company

Page 7

www.HunterFan.com

1.888.830.1326

M3552-01 • 05/14/14 • © Hunter Fan Company

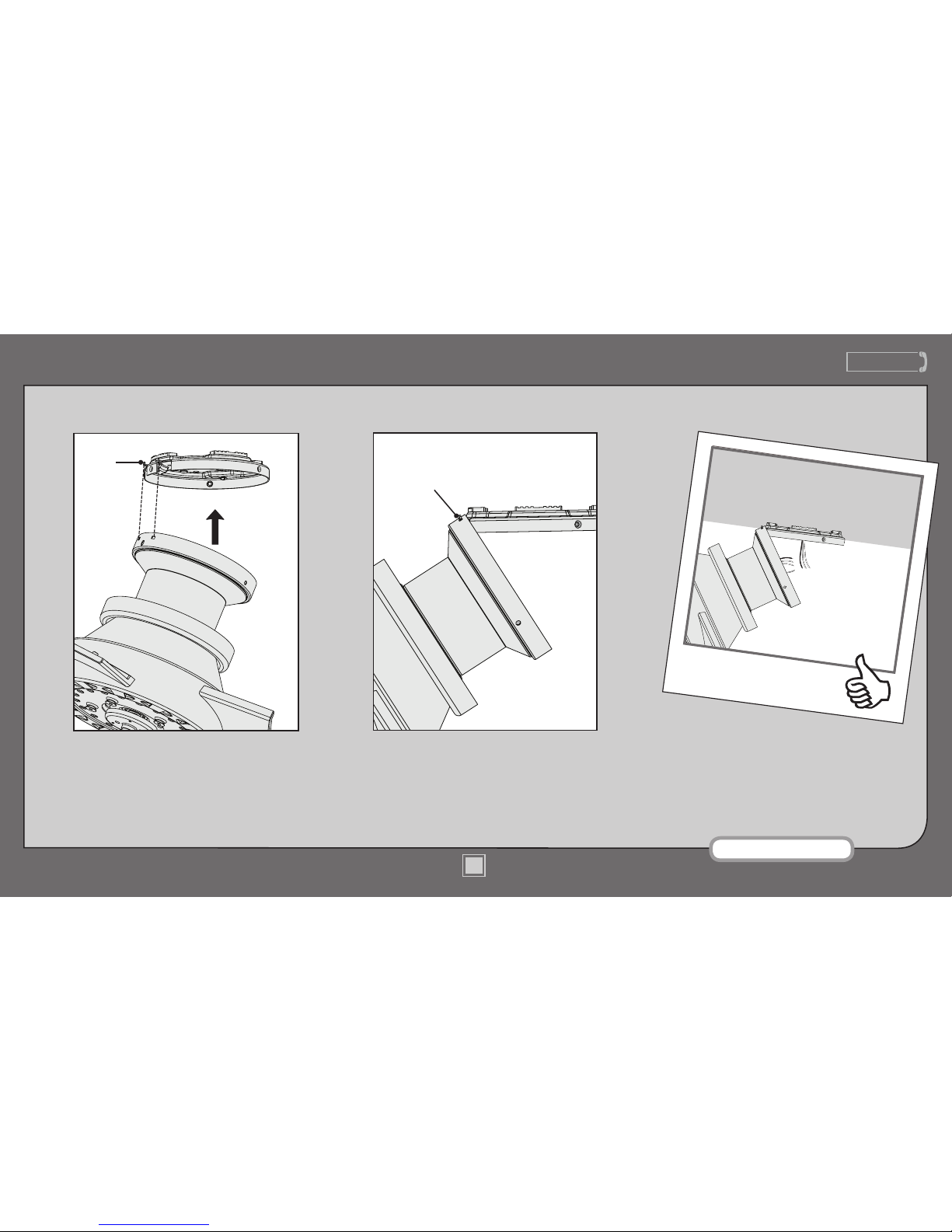

Hanging the Fan

Raise the fan and align the slots in the

canopy with the hooks on the ceiling plate.

Note: Fan style may vary.

Place the slots over the ceiling plate

hooks to hang the fan.

Ceiling Plate Hook

Note: To hang the fan, you must tilt the

canopy to an almost vertical position so that

the canopy slots sit on the ceiling plate hooks.

Page 8

www.HunterFan.com

1.888.830.1326

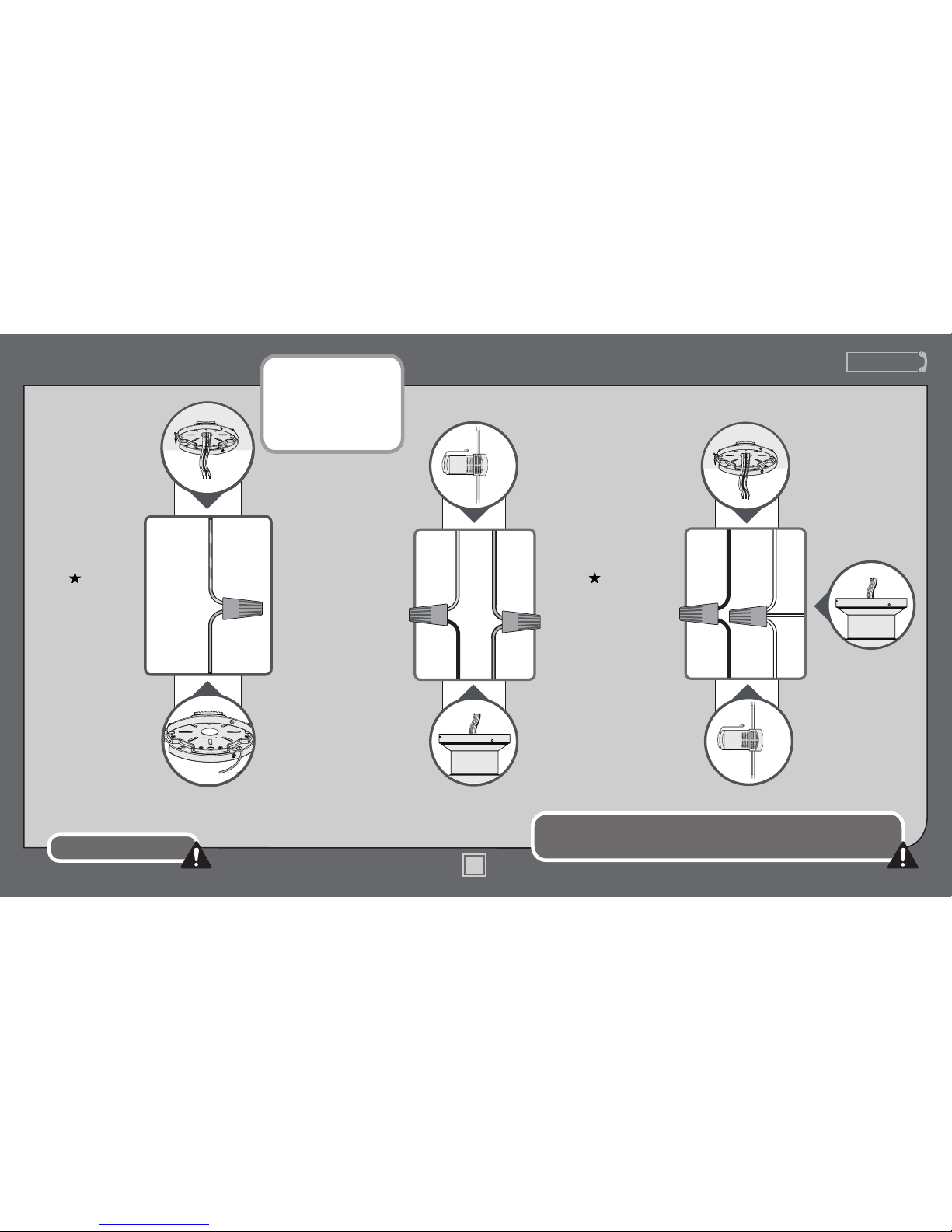

Wiring

Turn the splices upward and push them carefully back through the ceiling plate into

the outlet box. Spread the wires apart, with the grounded wires on one side of the

outlet box and the ungrounded wires on the other side of the outlet box.

Refer to CAUTION c.1 on pg. 2

green/yellow stripe

(grounding)

green

Using an orange

wire connector from

the hardware bag, connect the

3 grounding wires

(green, green/

yellow stripe, or bare

copper) coming

from the ceiling and

ceiling plate.

black

blue

yellow

blue

Note: To connect the

wires, hold the bare

metal leads together and

place a wire connector

over them, then twist

clockwise until tight.

Using the orange

wire connectors

from the remote

control hardware bag, connect the blue wire from the receiver

to the blue wire (or possibly black with

white stripe wire) from

the fan. Connect the yellow wire from the receiver to the black

wire from the fan.

Using the orange wire

connectors from

the hardware bag,

connect the black wire

(ungrounded) from the ceiling to the black wire from the receiver.

Connect the white

wire (grounded) from

the ceiling to both the

white wire from the receiver and the white

wire from the fan.

black

(ungrounded)

white (grounded)

black

white

M3552-01 • 05/14/14 • © Hunter Fan Company

Page 9

www.HunterFan.com

1.888.830.1326

M3552-01 • 05/14/14 • © Hunter Fan Company

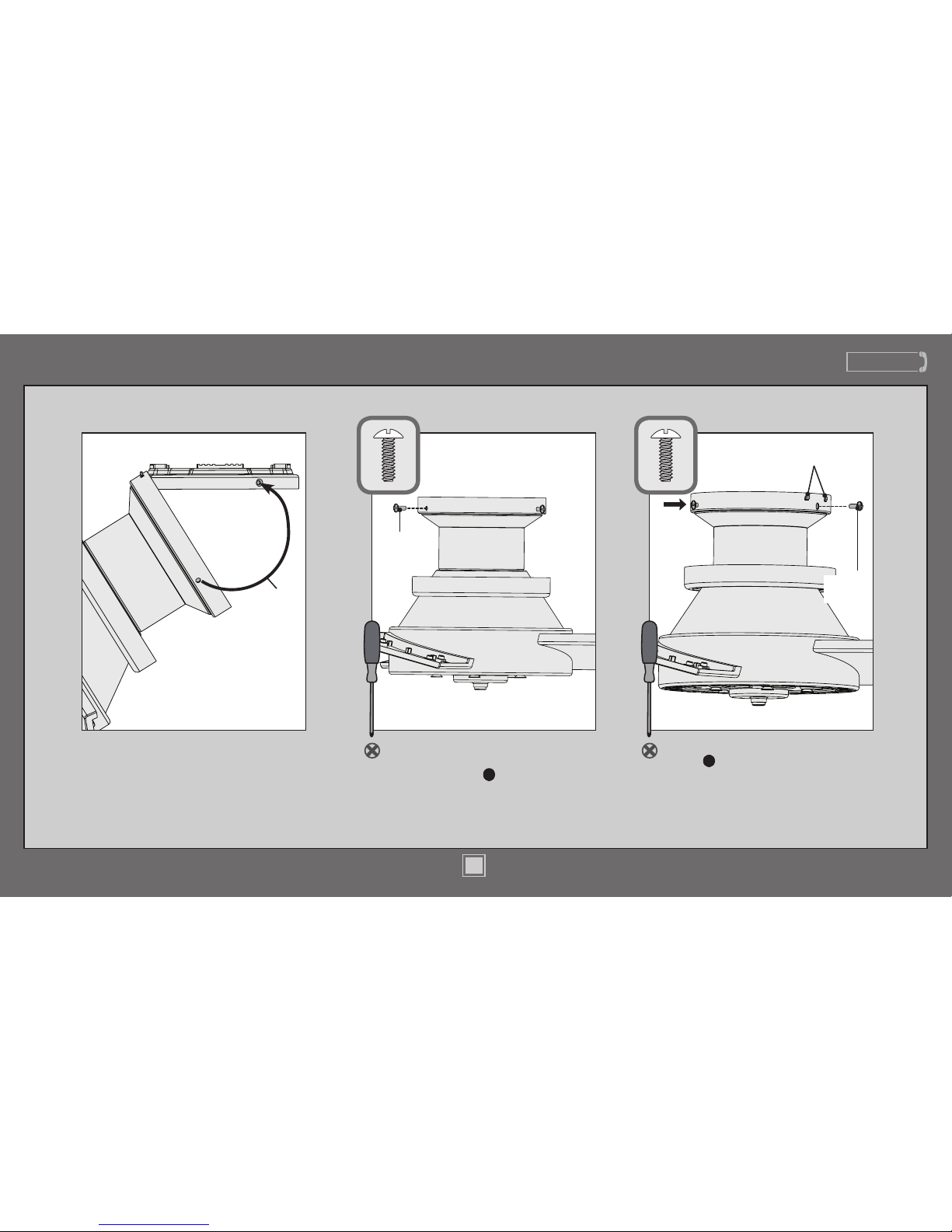

Canopy

Hold the canopy up with the screw holes

aligned. Partially install two canopy

screws, found in the hardware bag, into

the holes opposite the ceiling plate hooks.

Partially install a canopy screw, found in the hardware bag, between the

ceiling plate hooks. When all the holes

are properly aligned, securely tighten all

three canopy screws.

Screw

Holes

Canopy

Screw

Canopy

Screw

Swing the fan up to align the canopy

screw holes with the mounting holes on

the ceiling plate.

Ceiling

Plate Hooks

Note: The slots in the canopy must

remain engaged while swinging the

canopy for alignment.

Page 10

www.HunterFan.com

1.888.830.1326

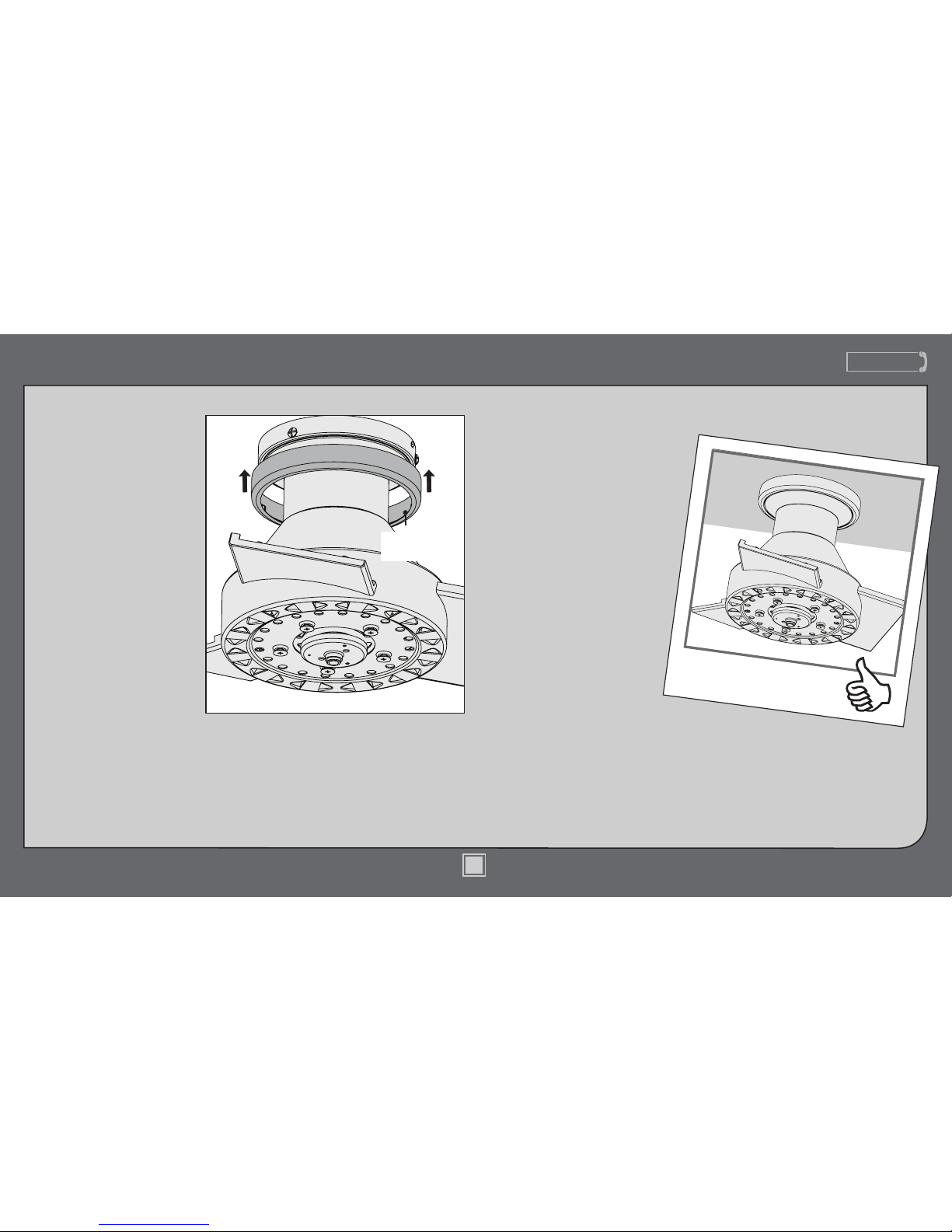

Using both hands, push the canopy trim ring up to the top of the canopy. The canopy trim

ring will snap and lock into place.

Note: Should you need to remove the trim

ring, press rmly on opposite sides of the trim

ring. The tabs will ex out releasing the

canopy trim ring.

Canopy

Trim Ring

Canopy (continued)

M3552-01 • 05/14/14 • © Hunter Fan Company

Page 11

www.HunterFan.com

1.888.830.1326

M3552-01 • 05/14/14 • © Hunter Fan Company

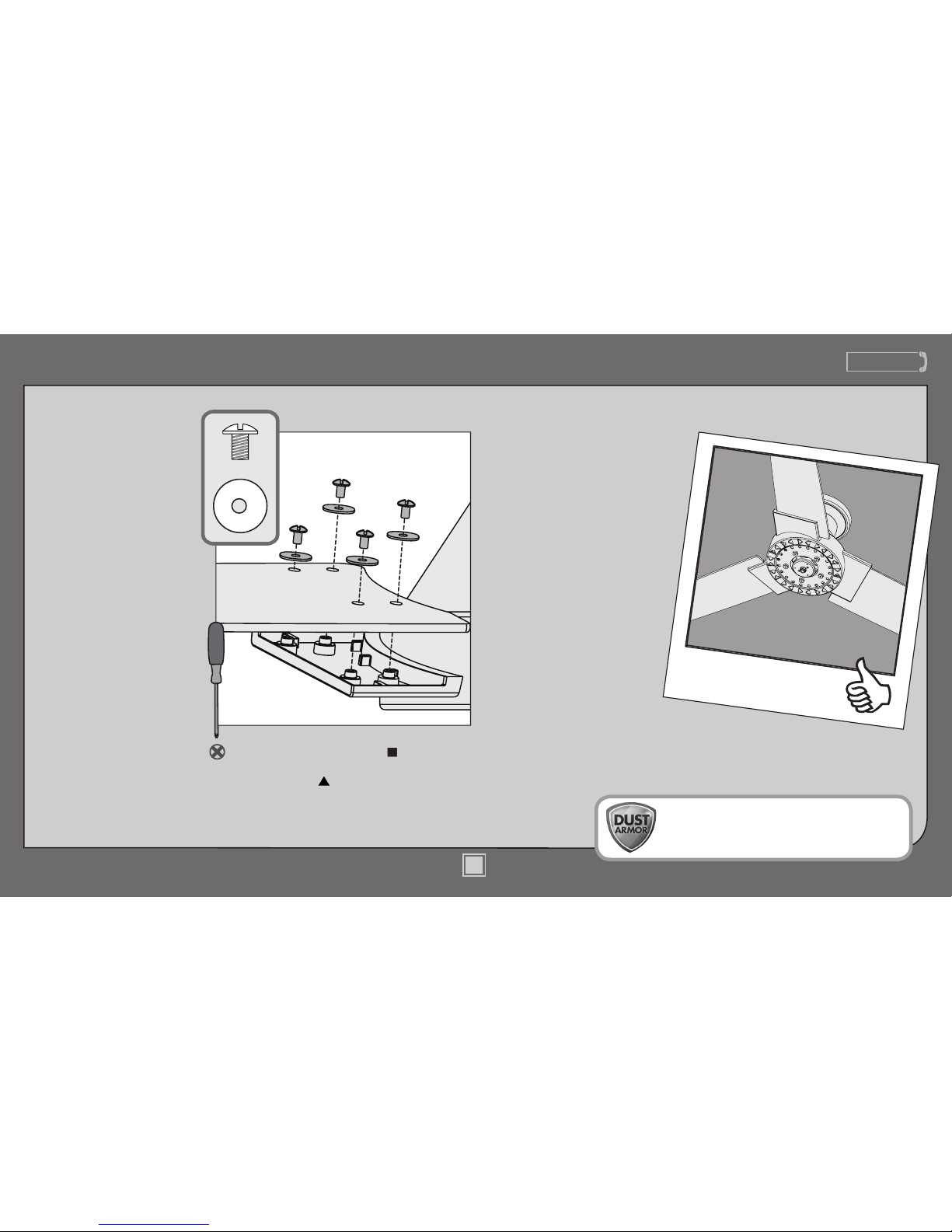

Blades

Your blades are shielded with Dust Armor® which

is a nanotechnology coating that repels dust. For

cleaning the fan, use soft brushes or cloths to prevent

scratching. Cleaning agents may damage the nishes.

Attach each blade to a blade iron using four

blade washers, found in the hardware

bag, and four blade assembly screws, found

in the hardware bag.

Page 12

www.HunterFan.com

1.888.830.1326

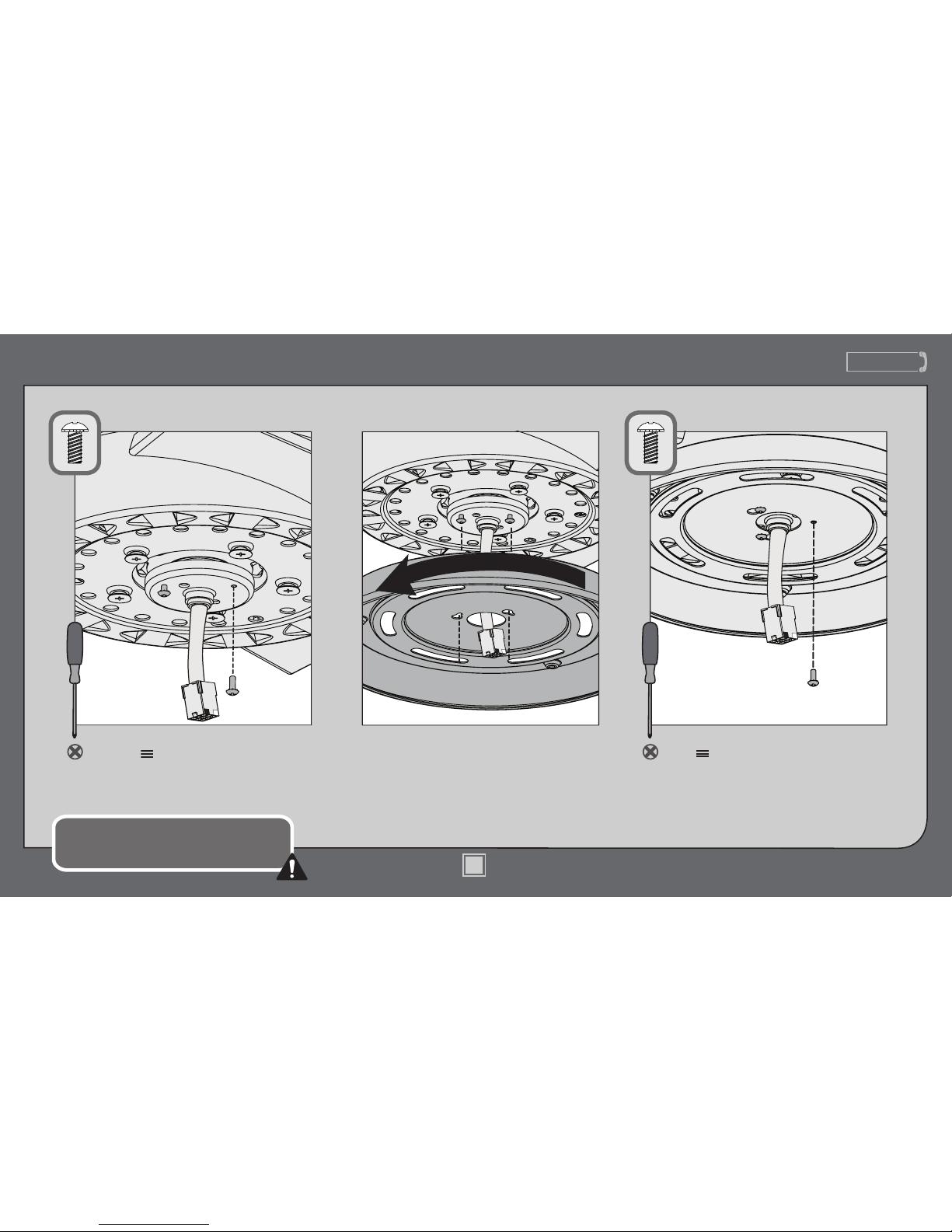

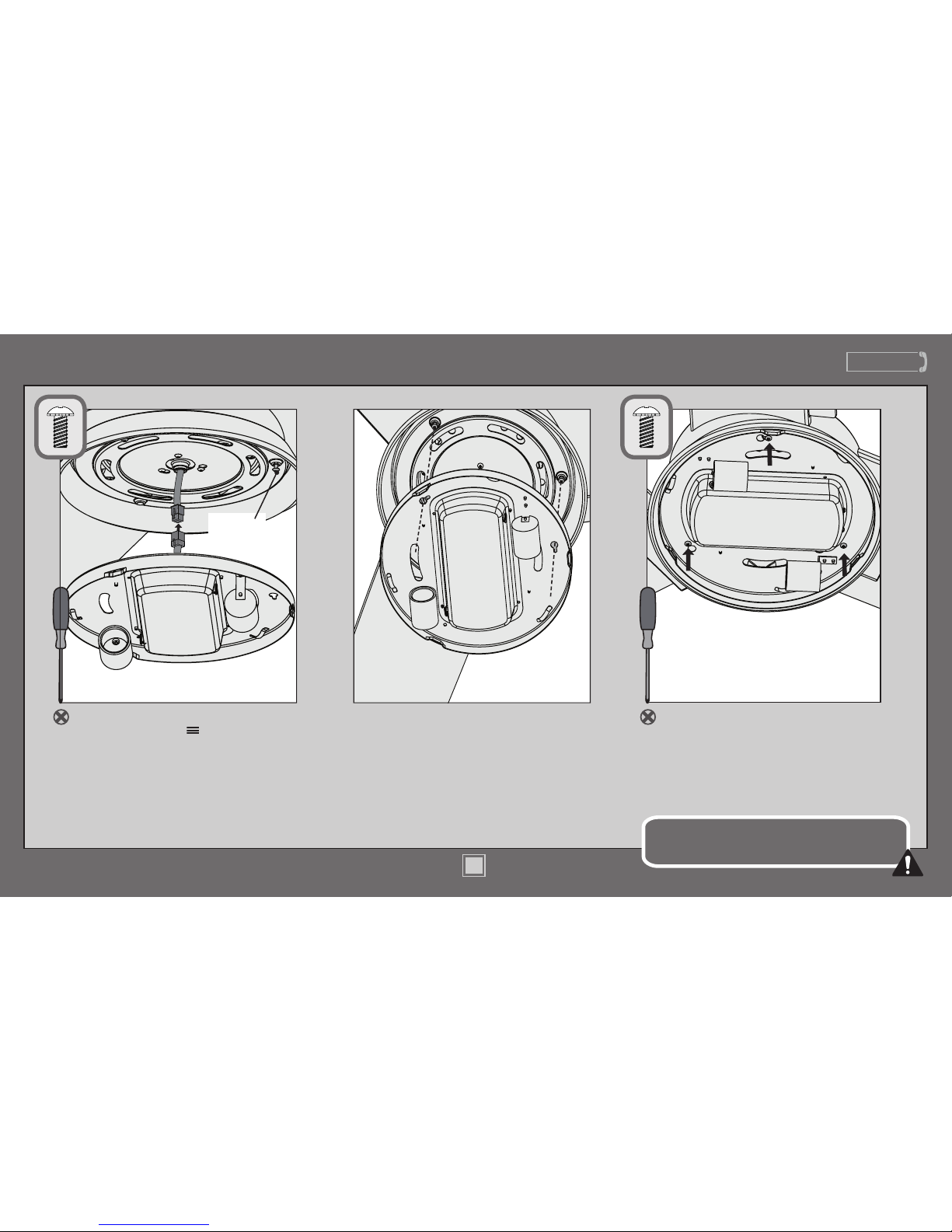

Switch Housing

Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch

housing xture falling.

Feed the wire plug through the center

hole of the upper switch housing, then

wrap keyhole slots around the screws and

twist counterclockwise.

Screw two housing assembly screws

from the hardware bag halfway into

the motor housing. It does not matter

which two screw holes you choose.

Insert the third screw, found in

the hardware bag, into place and

then tighten all three screws.

M3552-01 • 05/14/14 • © Hunter Fan Company

Page 13

www.HunterFan.com

1.888.830.1326

M3552-01 • 05/14/14 • © Hunter Fan Company

Light Kit

Partially install two of the switch housing

screws found in the bag. Connect

the plugs from the upper and lower

switch housings. Make sure to line up the

colored markings on the connectors.

Align the keyhole slots in the light kit

housing with the switch housing screws.

Make sure all the wires from the fan and the light kit are snug inside the center of the light kit, not pinched in between the upper switch housing and the light kit or

hanging out of the sides.

Turn the light kit counterclockwise until

the switch housing screws are rmly

situated in the narrow end of the keyhole

slots. Install the remaining screw into the

housing. Tighten all three screws securely.

Switch Housing Screw

Make sure the light kit is securely attached to the upper switch housing. Failure to properly secure all three assembly

screws could result in the light xture falling.

Page 14

www.HunterFan.com

1.888.830.1326

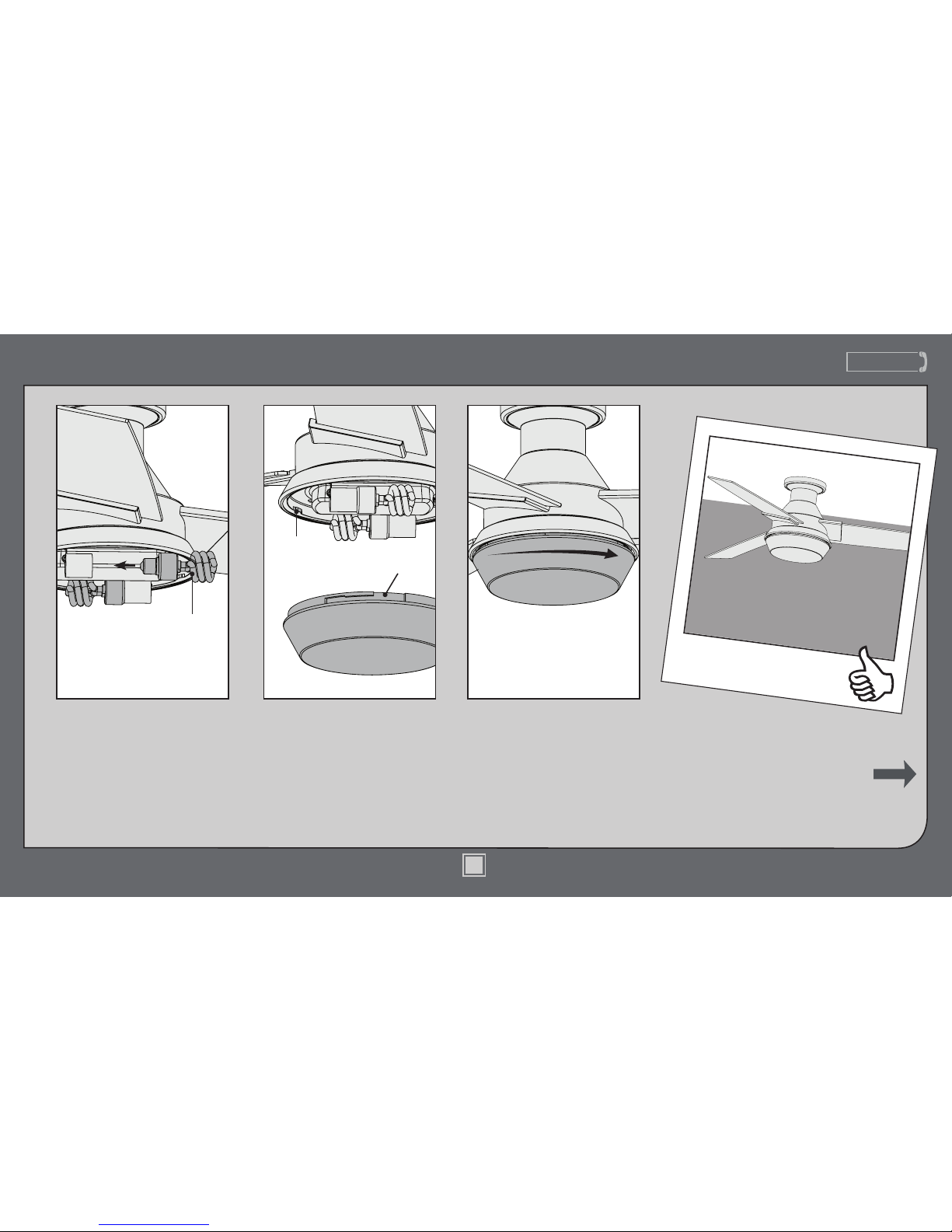

Light Kit (continued)

CONGRATULATIONS!

YOU’RE DONE!

See next page for fan operation instructions.

Position the notches in the outer

rim of the globe so they line

up with the tabs on the inside

surface of the light xture rim.

Install a light bulb in each socket.

When necessary, replace with

bulbs of the same wattage.

Bulb

Notch

Tab

Carefully lift the globe up inside

the light xture as far as it will go.

Rotate the globe in a clockwise

direction until it is held tightly in

place by the three tabs.

Page 15

www.HunterFan.com

1.888.830.1326

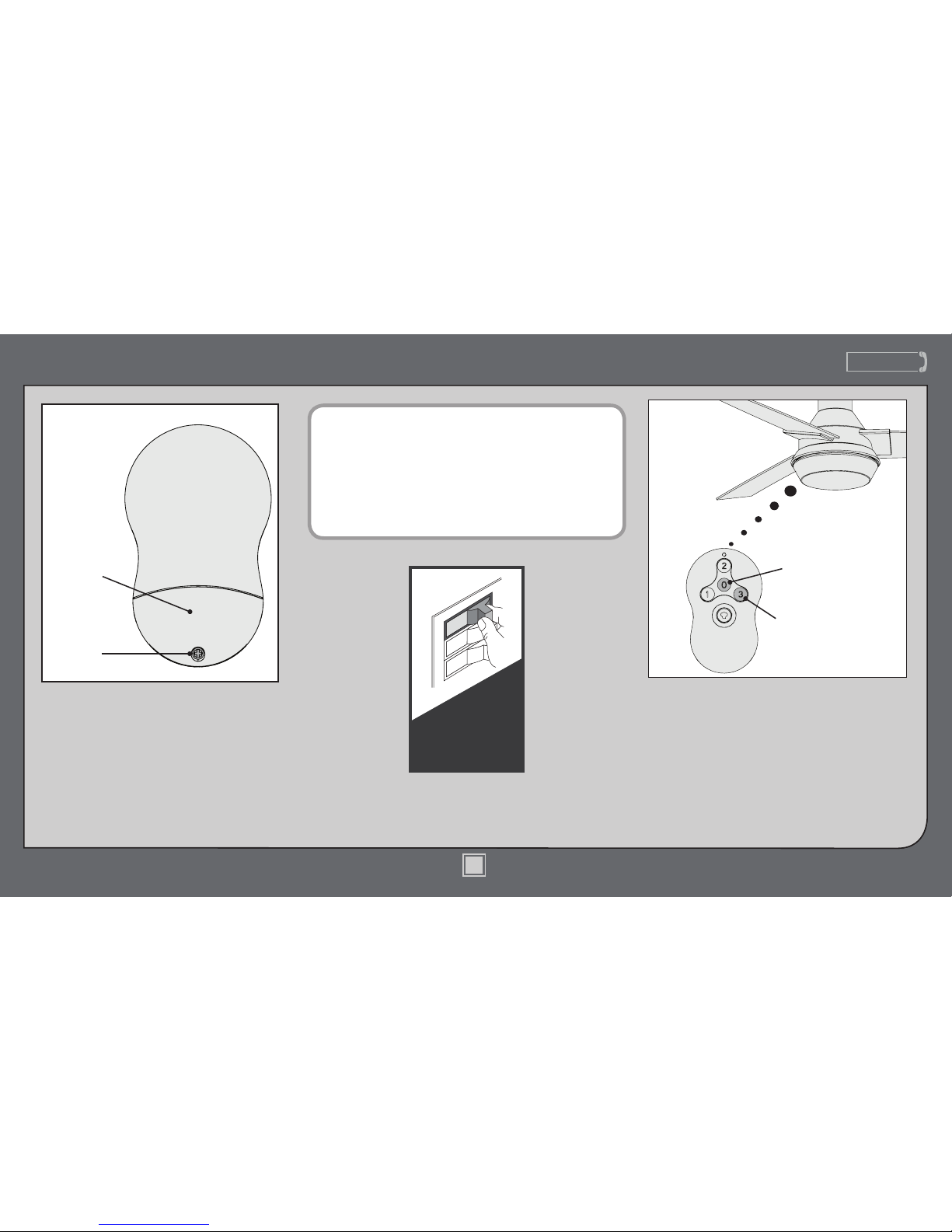

Remote Control

Note: The remote must be paired before the

fan will operate.

Within 3 minutes of restoring power to the

fan, press both the Fan Off button and the High

button for at least 4 seconds. Your fan will turn on

low to indicate successful syncing. If it does not, turn off power to your fan, wait 1 minute then try again. If using the transmitter with multiple fans,

repeat this process for each fan.

Fan Off

High

To access the battery compartment, remove the small Phillips head screw that secures the battery door to the transmitter assembly. The

battery should be installed with the positive

(+) side up. Replace with a CR2032 battery

when necessary.

Phillips Head Screw

Battery Door

Turn Power

If you are installing multiple remote-controlled fans on the same circuit breaker, you may need to perform a few

extra steps to prevent interference or faulty operation of

your remote controls.

Go to www.HunterFan.com/FAQs and click

“How do I properly install multiple remote-controlled fans?”

for more information.

Page 16

www.HunterFan.com

1.888.830.1326

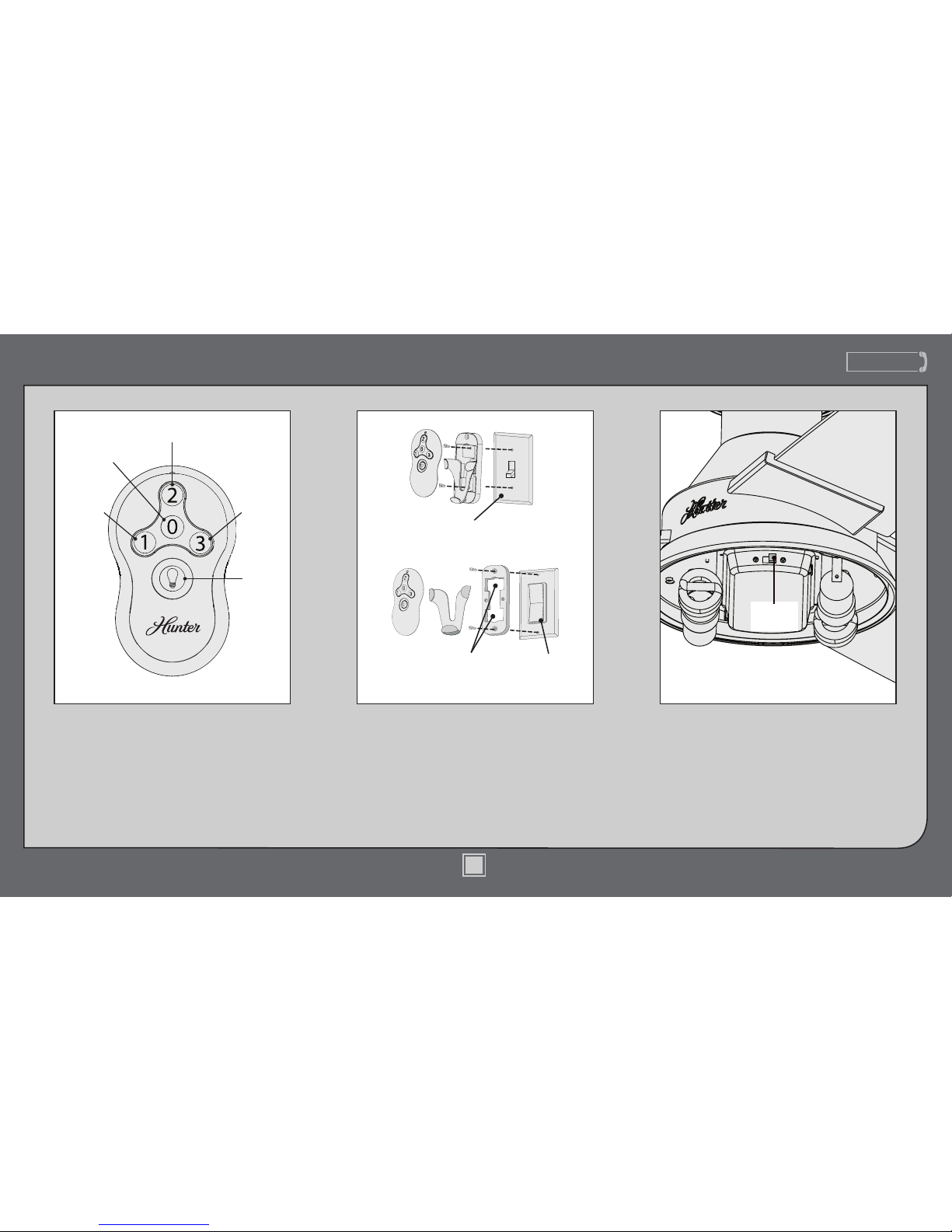

Rocker- Style

Plate

Switch Cover Plate

Removed Tabs

To install the transmitter cradle, remove the

two screws holding the switch cover plate. Do

not remove the cover plate. Orient the cradle

by lining up the two mounting holes with

those on the cover plate. Insert and tighten

the screws. Do not over tighten.

Note: For rocker-style cover plates, break off

the tabs by pushing outward.

To turn on fan, press a fan speed button. Speeds

range from off (0) to high (3). Quickly press the

Light button to turn the lights off and on.

Medium

Speed

Light

High

Speed

Fan Off

Low Speed

To switch the direction of air ow, move the

reverse switch to the opposite position.

Reverse

Switch

Maintenance, Operation & Cleaning (continued)

Page 17

www.HunterFan.com

1.888.830.1326

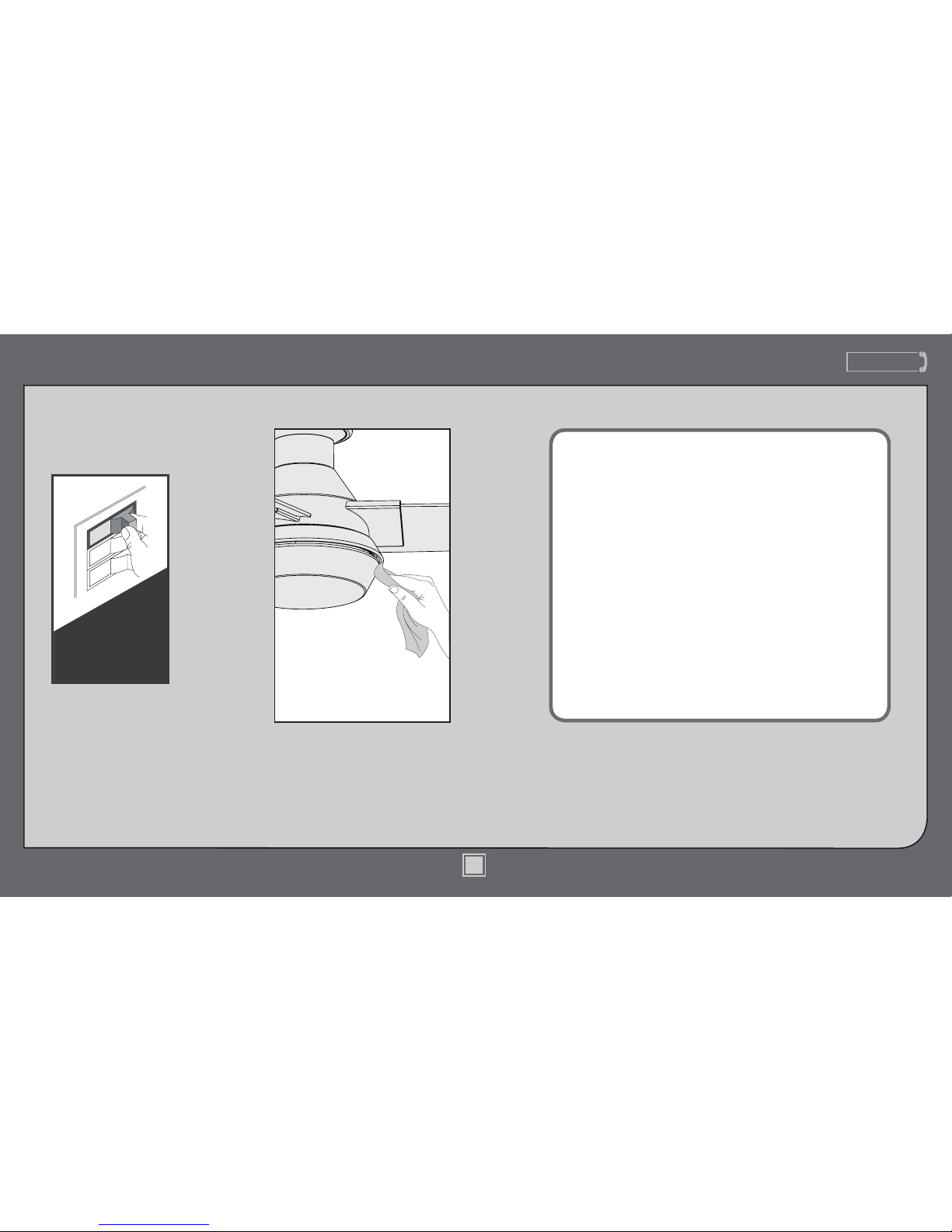

Maintenance, Operation & Cleaning (continued)

Cleaning the fan - Use soft

brushes or cloths to prevent

scratching. Cleaning products

may damage the nishes.

Turn Power

Safe-Exit

• Press the Fan Off button for at least three seconds to initiate the Safe-Exit Mode.

• The lights will ash for visual conrmation.

• The lights will stay on 50% brightness for 15 seconds and then begin to dim. After a total of 30 seconds, the lights will be completely off.

The Safe-Exit Program gives you about thirty seconds of light when you turn the lights off to exit the room before the lights go out. To use Safe-Exit:

Note: For CFL lighting, the lights will stay on 100% brightness for 30 seconds. After a total of 30 seconds, the lights will be completely off.

Page 18

www.HunterFan.com

1.888.830.1326

Troubleshooting

Lights dim when turned on or do not turn on at all.

• Make sure the wattage of the light bulbs installed matches

the specications on the light

sockets.

Fan doesn’t work

• Make sure power switch is on.

• Push the motor reversing switch

rmly left or right to ensure that

it is engaged.

• Check the circuit breaker to ensure the power is turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram on page 8.

• Check the plug connection in the switch housing.

Excessive wobbling

• Make sure the blades are securely attached to the blade irons according to the blade assembly instructions provided.

• Use the provided balancing kit and instructions to balance the fan.

Remote control of fan is erratic

• Make sure the battery is installed correctly.

• Install a fresh battery.

Transmitter only works when held at close range

• Change battery.

Noisy operation

• Check to see if any of the blades are cracked. If so, replace all of the blades.

If you have multiple remotes or multiple remote-controlled fans installed on the same circuit breaker and you are experiencing

interference or faulty operation of your remote controls, please go to www.HunterFan.com/FAQs and click “How do I properly install multiple remote-controlled fans?” for information on how to correct this issue.
