30 inches
7 feet
Ladder

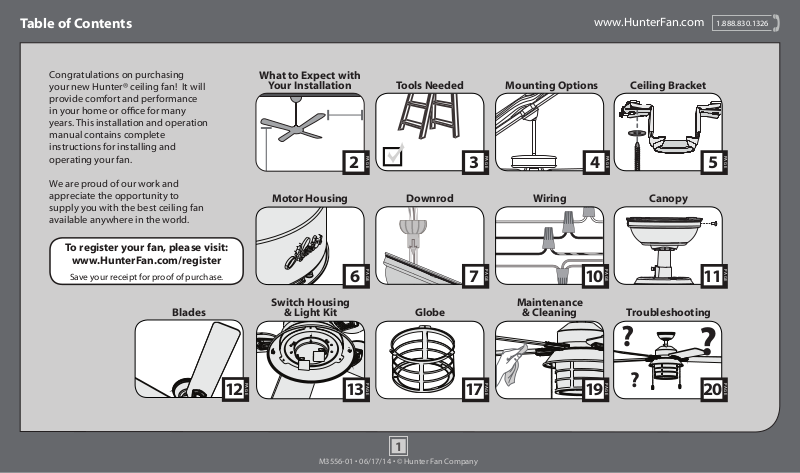

Table of Contents
www.HunterFan.com
1.888.830.1326
Congratulations on purchasing
your new Hunter® ceiling fan! It will
provide comfort and performance
in your home or ofce for many
years. This installation and operation
manual contains complete
instructions for installing and
operating your fan.
We are proud of our work and
appreciate the opportunity to
supply you with the best ceiling fan
available anywhere in the world.
To register your fan, please visit:
www.HunterFan.com/register
Save your receipt for proof of purchase.
Blades Troubleshooting
What to Expect with
Your Installation
2
Motor Housing
6
Switch Housing
& Light Kit
Tools Needed
PAG E
PAG E
Downrod
Globe
3
7
Mounting Options
PAG E
Wiring Canopy
PAG E
Maintenance
& Cleaning
4
10
Ceiling Bracket
PAG E
PAG E
?
PAG E
5
PAG E
11
?
12
PAG E
13
PAG E
17
PAG E
19
PAG E
?
PAG E
20
1
M3556-01 • 06/17/14 • © Hunter Fan Company
Page 2
What to Expect with Your Installation
www.HunterFan.com
1.888.830.1326
1.888.830.13261.888.830.1326
Must be able to
secure the fan to
building structure or
fan-rated outlet box
You may need a
friend to help you.
Check box to see
fan weight
If you are unfamiliar
with wiring, use a
qualied electrician.
Know your wiring
Ceiling angles greater
than 34° will require an
Angled Mounting Kit.
See page 4 for details.
Assess ceiling angle
30 inches
from blade tip
to nearest wall
or obstruction
Assess location
Standard Downrod
1
for ceilings 8-10 feet high
Shorter Downrod
2
for fans installed close to ceiling
Longer Downrod
3
for ceilings 10 feet or higher
Select a downrod length
7 feet
from bottom
edge of blade
to the oor
Read and Save These Instructions
This product conforms to UL Standard 507.
WARNINGS
w.1 - To reduce the risk of re, electrical shock, or
personal injury, mount fan directly from building
structure and/or an outlet box marked acceptable for
fan support of 70 lbs (31.8 kg) and use the mounting
screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing
or servicing your fan, disconnect the power by turning
off the circuit breakers to the outlet box and associated
wall switch location. If you cannot lock the circuit
breakers in the off position, securely fasten a prominent
warning device, such as a tag, to the service panel.
w.3 - To reduce the risk of re, electrical shock, or motor
damage, use only Hunter Solid State Speed Controls.
w.4 - To reduce the risk of personal injury, do not bend the
blade brackets when installing the blade brackets, balancing
the blades, or cleaning the fan. Do not insert foreign objects
in between rotating fan blades.
CAUTIONS
c.1 - All wiring must be in accordance with national and
local electrical codes ANSI/NFPA 70. If you are unfamiliar
with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
2
M3556-01 • 06/17/14 • © Hunter Fan Company
Page 3
Tools Needed
www.HunterFan.com
1.888.830.1326
Ladder
Pliers Wire Strippers
Power Drill
(optional)
If mounting to a support structure, you will also need these tools.
9/64” Drill Bit
(optional)
3
M3556-01 • 06/17/14 • © Hunter Fan Company
Screwdrivers
Page 4
O
34
CEILING
Mounting Options
www.HunterFan.com
www.HunterFan.com
1.888.830.1326
1.866.268.1936
OPTION
If you have a at ceiling:
WALL
Hang your fan by a standard downrod (included).
Standard
Mounting
1
Support
Structure
Support
Structure
OPTION
If you have an angled ceiling:
1. You will need a longer downrod (sold separately).
2. If your ceiling angle is greater than 34°, you will
also need an Angled Mounting Kit (sold separately).
Use the three steps below to determine if your ceiling angle is greater than 34°
Angled
Mounting
2
Standard
Mounting
Style
Ceiling
Outlet Box
(required)
Angled
Mounting
Style
Ceiling
Outlet Box
(required)
FOLD
on dotted line
1
N
O
I
T
A
U
T
I
S
1
34°
Guide Touches
BOTH Ceiling & Wall
You need ONLY
a Longer
Downrod
*most common
2 3
PLACE
against wall
2
N
O
I
T
A
U
T
I
S
Guide Touches
but NOT Ceiling
You need BOTH
a Longer
Downrod &
an Angled
Mounting Kit
SLIDE
toward ceiling
Wall
4
4
M3556-01 • 06/17/14 • © Hunter Fan Company
M3556-01 • 06/17/14 • © Hunter Fan Company
Use Standard Mounting
or Low-Prole Mounting
to hang the fan from a at ceiling.
Use Angled Mounting
to hang the fan from a
vaulted or angled ceiling.
Page 5
Ceiling Bracket
Turn Power
OFF
For angled ceilings, point
opening toward peak.
www.HunterFan.com
1.888.830.1326
Make sure all four bumpers are
still attached.
Refer to warning w.1 on pg. 2
If you are unable to do this,
call Technical Support at
1-888-830-1326.
M3556-01 • 06/17/14 • © Hunter Fan Company
Use wood screws
(included) when securing
to support structure with
approved electrical outlet
box. Drill 9/64” pilot holes
in support structure to aid
in securing ceiling bracket
with hardware found in
the hardware bag.
5
Use machine screws
(provided with outlet
box) when securing to
existing ceiling fan-rated
outlet box. Make sure
it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
Page 6
Motor Housing
Gently lower the motor housing so it rests
www.HunterFan.com
1.888.830.1326
in place on the motor assembly.
Align the screw holes in the top of the motor
housing with the screw holes in the motor
assembly. Install the three motor housing
screws, found in the hardware bag.
6
M3556-01 • 06/17/14 • © Hunter Fan Company
Page 7
Downrod
www.HunterFan.com
1.888.830.1326
Standard
Downrod
for ceilings 8-10’ high
Option 1Option 2
Shorter
Downrod
for fans installed
close to ceiling
Included
(pre-assembled)
Longer
Downrod
for angled
ceilings or
Option 3
ceilings 10’ or
higher
skip to next page
If you need a different downrod length follow these steps:
Steps 1-5 to remove standard downrod pipe
1 2 3 4 5
Slide
Slide
678910
Included
Sold Separately
Steps 6-10 to reassemble with new pipe
7
M3556-01 • 06/17/14 • © Hunter Fan Company
Page 8
Downrod (continued)
www.HunterFan.com
1.888.830.1326
KEEP!
E
E
P
K
!
Remove the pre-installed
setscrew so that the downrod
can be inserted.
Hand tighten the downrod (at
least 4-5 full turns) until it stops.
8”
M3556-01 • 06/17/14 • © Hunter Fan Company
3/8”
T
U
C
P
I
R
T
S
&
8”
(not to scale)
The wires can be cut, but
leave at least 8” extending
from the top of the downrod.
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
3/8”
If the setscrew is not tightened
securely, the fan may fall.
8
Page 9
Downrod (continued)

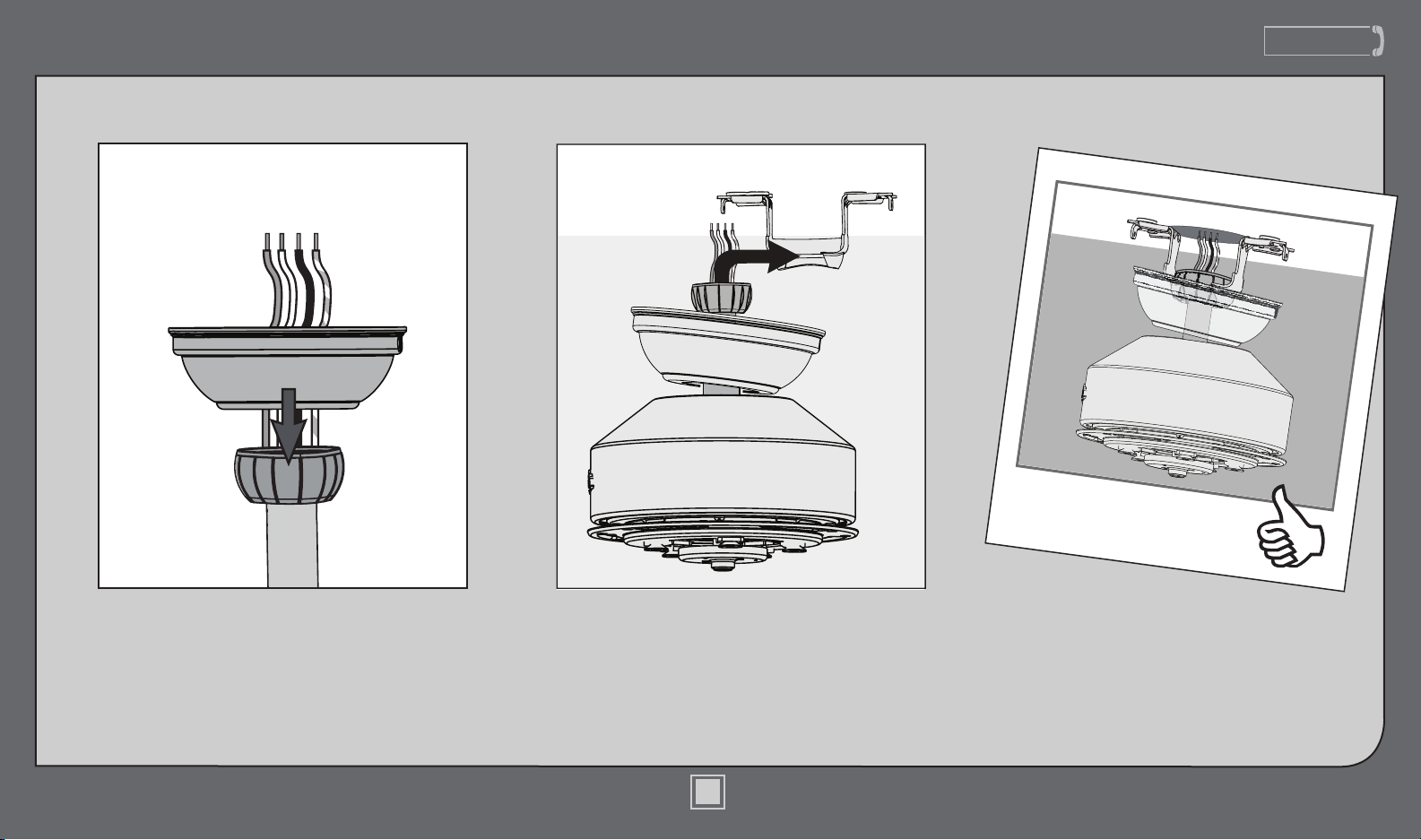

DO NOT PICK THE FAN UP BY THE
Put the wires and downrod through the
canopy. Let the canopy sit loosely on top
www.HunterFan.com
1.888.830.1326
of the fan.
CANOPY OR WIRES. Place the downrod
ball into the slot in the ceiling bracket.
9
M3556-01 • 06/17/14 • © Hunter Fan Company
Page 10
Wiring
F
R
O
M
F
A
N
White
(Ungrounded)
Black
Blue
(Grounded)
F
R
O
M
C
E
I
L
I
N
G
(Ungrounded)
Using an orange wire
connector from
the hardware bag,
connect the 3 grounding
wires (green, green/
yellow stripe, or bare
copper) coming from the
ceiling, downrod, and
hanging bracket.
O
R
F
F
A
M
N
O
R
F
Green/Yellow
Stripe
F
R
O
M
C
E
C
M
(Grounding)
Green/Yellow
Stripe
I
L
I
Note: To connect the wires,
www.HunterFan.com
1.888.830.1326
hold the bare metal leads
E
I
L
I
N
G
together and place a wire
connector over them, then twist
E
C
I
L
I
M
N
O
R
F
G
clockwise until tight.
(Grounded)
(Ungrounded)
For Dual Switches
Using the orange wire
connectors from
the hardware bag,
For a Single Switch
Using the orange wire
White
Blue
Black
connectors from
the hardware bag, connect
the black wire (ungrounded)
from the ceiling to the black
and the blue wires from the
fan. Connect the white wire
(grounded) from the ceiling to
T
E
K
C
A
R
B
G
N
the white wire from the fan.
F
R
O
N
A
F
M
connect the white wire
(grounded) from the
ceiling to the white wire
from the fan.
Connect the black wire
(ungrounded) from the
ceiling to the black wire
from the fan. Connect the
second (ungrounded) wire
from the ceiling to the blue
wire from the fan.
Refer to CAUTION c.1 on pg. 2
Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the outlet box.
10
M3556-01 • 06/17/14 • © Hunter Fan Company
Page 11
Canopy
Screw
Holes
www.HunterFan.com
1.888.830.1326
Position the canopy so that, when
lifted into place, the canopy ts into
the hanging bracket as shown.
Lift the canopy into place so that
the screw holes are aligned.
M3556-01 • 06/17/14 • © Hunter Fan Company
Insert the two canopy screws
found in the hardware bag.
Note: Fan style may vary.
11
Page 12
Blades
Lightly attach the blade irons to the
www.HunterFan.com
1.888.830.1326
Place each blade between a blade iron
and medallion. Install three blade screws,
found in the hardware bag, to attach
the medallion to the blade iron.
motor with screws found in
the hardware bag, then securely
tighten after both screws are attached.
Your blades are shielded with Dust Armor® which
is a nanotechnology coating that repels dust. For
cleaning the fan, use soft brushes or cloths to prevent
scratching. Cleaning agents may damage the nishes.
12
M3556-01 • 06/17/14 • © Hunter Fan Company
Page 13
Switch Housing & Light Kit
Red Flag
www.HunterFan.com
1.888.830.1326
Remove the pre-installed light kit
assembly screw and red ag from the
light kit assembly. Save the screw. It will
be needed for light kit installation.
Note: The screw was installed for
shipping purposes only.

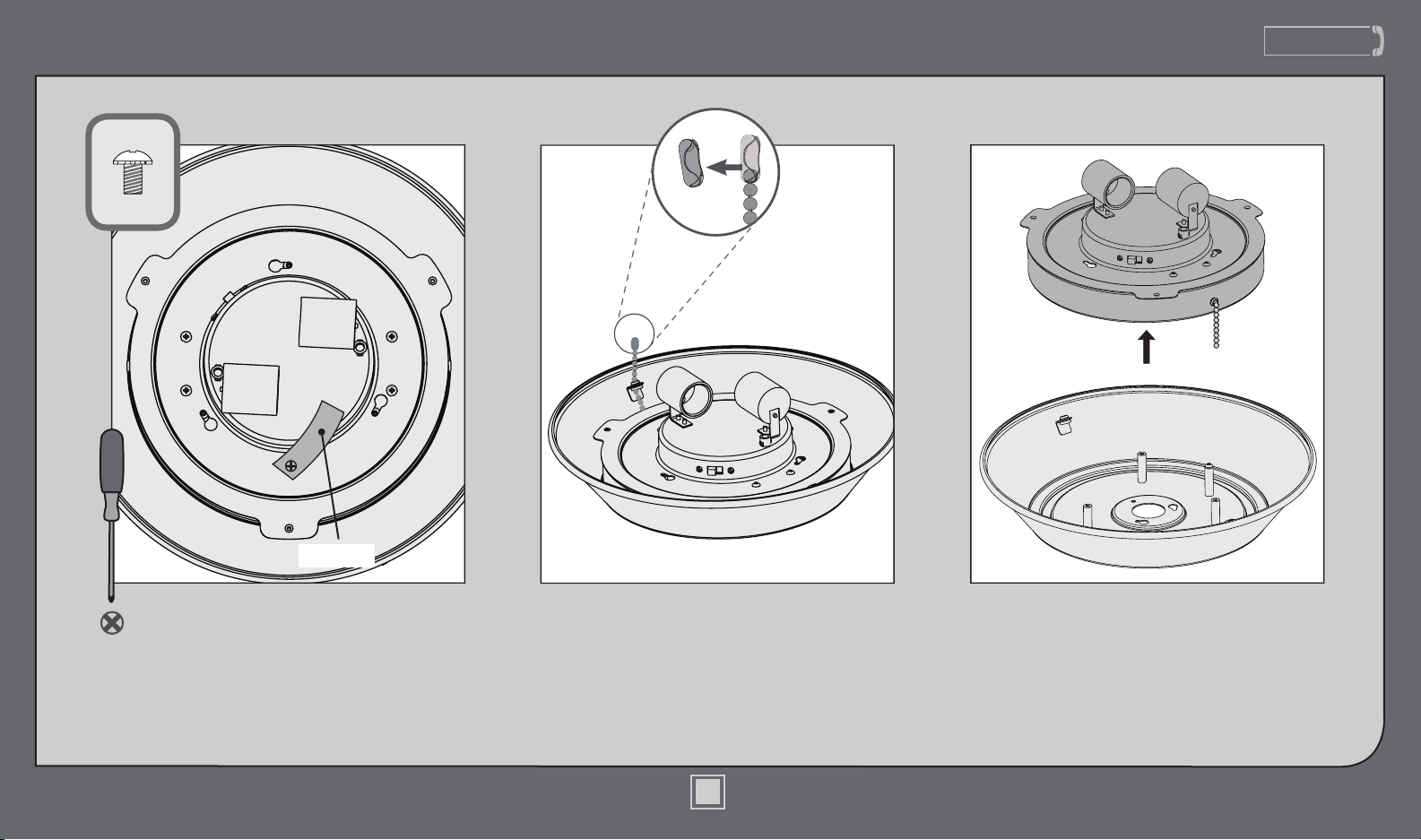

Remove and discard the plastic
connectors from the ends of the
two pull chains.
13
M3556-01 • 06/17/14 • © Hunter Fan Company
Carefully remove the light kit from the
upper switch housing and set the light
kit aside.
Page 14
Switch Housing & Light Kit (continued)
Switch
Housing
Assembly
Screw
www.HunterFan.com
1.888.830.1326
Partially install two switch housing
assembly screws ,found in
the hardware bag, into the motor
housing as shown. It does not matter
which two screw holes you choose.
Feed the wire plug through the center
hole of the upper switch housing, then
wrap keyhole slots around the two screws
and twist counterclockwise to lock the
upper switch housing into place.
14
M3556-01 • 06/17/14 • © Hunter Fan Company
Insert the third screw, found in
the hardware bag, into place and
then tighten all three screws.
Make sure the upper switch housing is securely
attached to the mounting plate. Failure to properly
secure all 3 assembly screws could result in the switch
housing xture falling.
Page 15
Switch Housing & Light Kit (continued)
Empty
Post
www.HunterFan.com
1.888.830.1326
Light Kit
Assembly
Screw
Partially install three light kit assembly
screws, found in the hardware bag,
into the posts as shown, leaving the
circled post empty.
Use only the light kit supplied with
this fan model.
Connect the plugs from the upper and lower
switch housings. Make sure to line up the
colored markings on the connectors.
15
M3556-01 • 06/17/14 • © Hunter Fan Company
Keyhole
Slot
Align the three keyhole slots in the
light kit with the three assembly screws
in the posts. Lift the light kit and twist
clockwise to lock it into place. Be sure
that both pull chains are hanging freely.
Make sure the lower switch housing is securely attached to
the upper switch housing. Failure to properly secure all three
assembly screws could result in the light xture falling.
Page 16
Switch Housing & Light Kit (continued)
Remember the screw you
kept after removing the
red ag (page 13)? You
need it for this step.
www.HunterFan.com
1.888.830.1326
Install the fourth light kit assembly screw
and tighten all four screws securely.
Install a bulb into each of the sockets.
When necessary, replace with bulbs of
the same wattage.
16
M3556-01 • 06/17/14 • © Hunter Fan Company
Page 17
Globe
Globe
Assembly
Screws
www.HunterFan.com
1.888.830.1326
Feed the pull chains from the fan switch
and the light switch down through the
holes in the upper switch housing as
shown. Attach the pull chain pendants
to the light and fan pull chains. The fan
pull chain controls the speed: from high
to off. The light pull chain controls
the light xture: on and off.
Partially install two globe assembly
screws, found in the hardware bag,
halfway into the light kit assembly as
shown. It does not matter which two
screw holes you choose.
17
M3556-01 • 06/17/14 • © Hunter Fan Company
Carefully lower the globe into the globe
retainer until it rests in place.
Page 18
Globe (continued)
www.HunterFan.com
CONGRATULATIONS!
YOU’RE DONE!
1.888.830.1326
Align the keyhole slots in the globe
assembly with the partially installed
screws in the light kit assembly.
Lift the globe assembly and twist
counterclockwise to lock it into place.
Make sure the globe assembly is securely attached to the
switch housing. Failure to properly secure all three assembly
screws could result in the light xture falling.
Install the third globe assembly screw
and tighten all three screws securely.
18
M3556-01 • 06/17/14 • © Hunter Fan Company
Page 19
Maintenance & Cleaning
Turn Power
ON
Reverse
Switch
www.HunterFan.com
1.888.830.1326
Changing the bulbs - carefully
remove the globe assembly.
Unscrew the bulbs and replace
with bulbs of the same wattage.
Reinstall the globe assembly.
Changing the direction of air
ow - move the reverse switch
to the opposite position.
Note: The reversing switch is
located on the switch housing.
It can only be accessed when
globe is removed.
19
M3556-01 • 06/17/14 • © Hunter Fan Company
Cleaning the fan - use soft
brushes or cloths to prevent
scratching. Cleaning products
may damage the nishes.
Page 20
Troubleshooting
www.HunterFan.com
1.888.830.1326
Fan doesn’t work
• Make sure power switch is on.
• Pull the pull chain to make sure
it is on.
• Push the motor reversing switch
rmly left or right to ensure that
it is engaged.
• Check the circuit breaker to
ensure the power is turned on.
• Make sure the blades spin freely.
• Turn off power from the circuit
breaker, then loosen the canopy
and check all the connections
according to the wiring diagram
on page 10.
• Check the plug connection in
the switch housing.
Excessive wobbling
• Tighten all of the blade and
blade iron screws until they
are snug.
• Turn the power off, support
the fan carefully, and check
that the hanger ball is
properly seated.
• Use the provided balancing
kit and instructions to balance
the fan.
Noisy Operation
• Tighten the blade and blade
iron screws until they are snug.
• Check to see if any of the
blades are cracked. If so, replace
all of the blades.
Lights dim when turned on or
do not turn on at all.
• Make sure the wattage of the
light bulbs installed matches
the specications on the light
sockets.
20
M3556-01 • 06/17/14 • © Hunter Fan Company
Loading...
