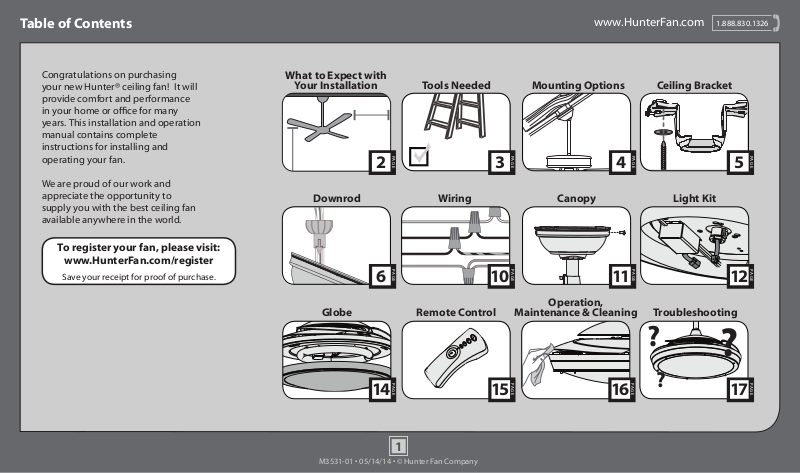

Table of Contents

www.HunterFan.com

1.888.830.1326

Congratulations on purchasing your new Hunter® ceiling fan! It will provide comfort and performance

in your home or ofce for many

years. This installation and operation manual contains complete instructions for installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

To register your fan, please visit:

www.HunterFan.com/register

Save your receipt for proof of purchase.

What to Expect with

Your Installation

Downrod

Globe

Tools Needed

PAG E

Wiring

PAG E

Remote Control

Mounting Options

PAG E

Canopy

PAG E

Operation,

Maintenance & Cleaning

Ceiling Bracket

PAG E

Light Kit

PAG E

Troubleshooting

PAG E

M3531-01 • 05/14/14 • © Hunter Fan Company

PAG E

Page 2

What to Expect with Your Installation

If you are unfamiliar with wiring, use a

qualied electrician.

Must be able to secure the fan to building structure or fan-rated outlet box

You may need a friend to help you.

Check box to see fan weight

Know your wiring

Ceiling angles greater than 34° will require an Angled Mounting Kit. See page 4 for details.

Assess ceiling angle

30 inches

from blade tip to nearest wall or obstruction

from bottom

edge of blade

Assess location

Standard Downrod

for ceilings 8-10 feet high

Longer Downrod

for ceilings 10 feet or higher

Select a downrod length

7 feet

to the oor

www.HunterFan.com

1.888.830.1326

1.888.830.13261.888.830.1326

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or personal

injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage, use only Hunter Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

CAUTIONS

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring,

use a qualied electrician.

c.2 - Use only Hunter replacement parts.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications.

M3531-01 • 05/14/14 • © Hunter Fan Company

Page 3

Tools Needed

www.HunterFan.com

1.888.830.1326

Ladder

Power Drill

(optional)

If mounting to a support structure, you will also need these tools.

Pliers Wire Strippers

9/64” Drill Bit

(optional)

M3531-01 • 05/14/14 • © Hunter Fan Company

Screwdrivers

If you are installing multiple remote-controlled

fans on the same circuit breaker,

you may need to perform a few extra steps to

prevent interference or faulty operation of your

remote controls.

Go to www.HunterFan.com/FAQs and click “How do I properly install multiple remote-

controlled fans?” for more information.

Page 4

CEILING

Mounting Options

www.HunterFan.com

1.888.830.1326

1.866.268.1936

OPTION

If you have a at ceiling:

WALL

Hang your fan by a standard downrod (included).

Standard Mounting

Support Structure

OPTION

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will also need an Angled Mounting Kit (sold separately).

Use the three steps below to determine if your ceiling angle is greater than 34°

Angled Mounting

Standard Mounting Style

Ceiling

Outlet Box

(required)

Angled Mounting Style

Ceiling

Outlet Box

(required)

FOLD

on dotted line

34°

Guide Touches

BOTH Ceiling & Wall

You need ONLY

a Longer

Downrod

*most common

2 3

PLACE

against wall

Guide Touches

but NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

SLIDE

toward ceiling

Wall

M3531-01 • 05/14/14 • © Hunter Fan Company

Use Standard Mounting

to hang the fan from a at ceiling.

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

Page 5

Ceiling Bracket

Turn Power

OFF

For angled ceilings, point

opening toward peak.

www.HunterFan.com

1.888.830.1326

Make sure all four bumpers are

still attached.

Refer to warning w.1 on pg. 2

If you are unable to do this,

call Technical Support at

1-888-830-1326.

M3531-01 • 05/14/14 • © Hunter Fan Company

Use wood screws (included) when securing to support structure with approved electrical outlet

box. Drill 9/64” pilot holes in support structure to aid in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet

box associated with the wall switch location.

Page 6

Downrod

www.HunterFan.com

1.888.830.1326

Standard Downrod

for ceilings 8-10’ high

Option 1

Included

(pre-assembled)

Longer Downrod

for angled ceilings or

Option 2

ceilings 10’ or higher

skip to next page

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

1 2 3 4 5

Slide

678910

Sold Separately

Steps 6-10 to reassemble with new pipe

M3531-01 • 05/14/14 • © Hunter Fan Company

Page 7

Downrod (continued)

Hanger Ball

Adapter Cover

www.HunterFan.com

1.888.830.1326

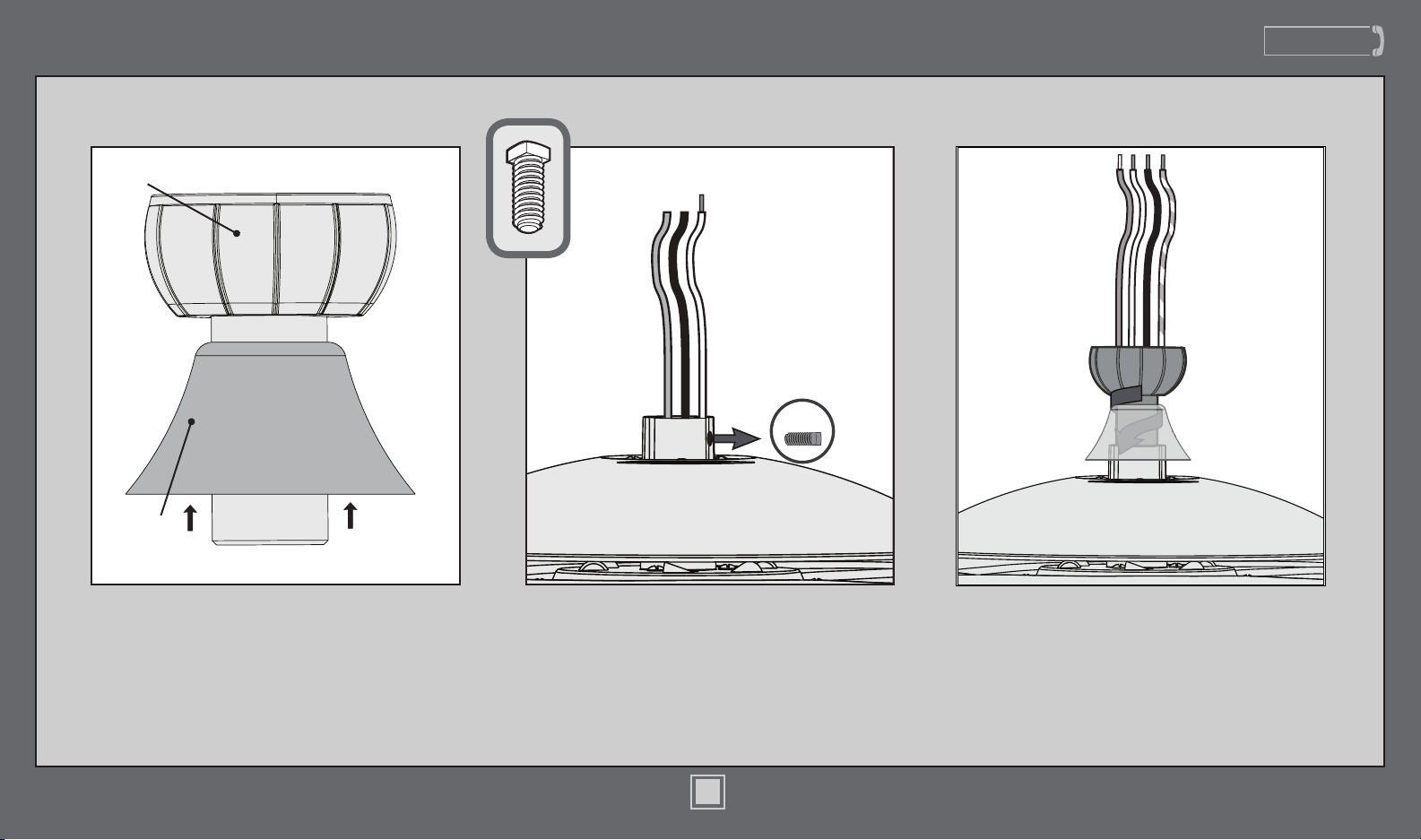

Slide the adapter cover onto the downrod

until it rests against the hanger ball.

Remove the pre-installed setscrew so that

the downrod can be inserted.

M3531-01 • 05/14/14 • © Hunter Fan Company

Hand tighten the downrod (at least 4-5

full turns) until it stops.

Page 8

Downrod (continued)

www.HunterFan.com

1.888.830.1326

3/8”

8”

(not to scale)

The wires can be cut, but leave at least 8”

extending from the top of the downrod.

8”

M3531-01 • 05/14/14 • © Hunter Fan Company

Tighten the setscrew with pliers.

DO NOT HAND TIGHTEN.

3/8”

If the setscrew is not tightened securely, the fan may fall.

Page 9

Downrod (continued)

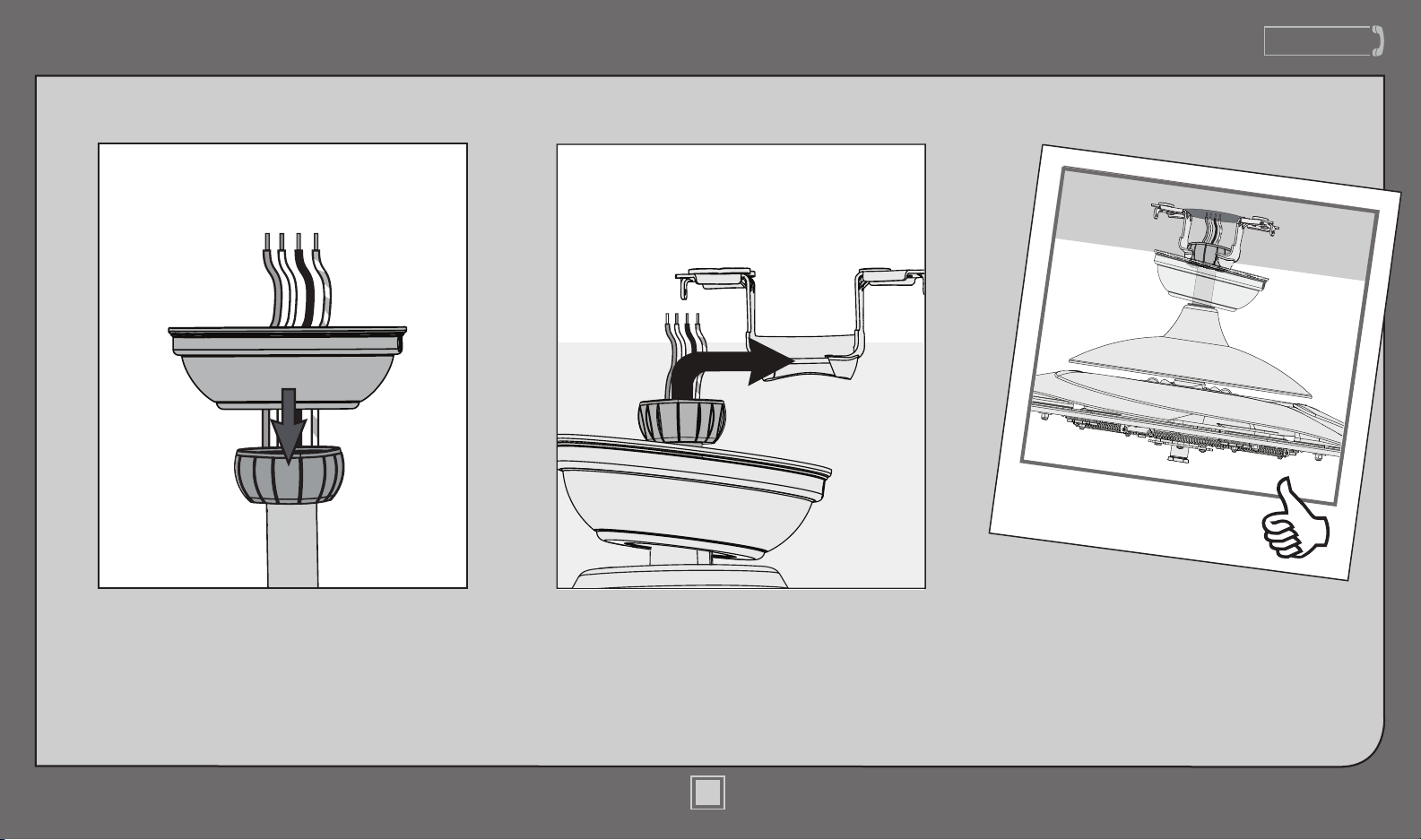

DO NOT PICK THE FAN UP BY THE

Put the wires and downrod through the

canopy. Let the canopy sit loosely on top

www.HunterFan.com

1.888.830.1326

of the fan.

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

M3531-01 • 05/14/14 • © Hunter Fan Company

Page 10

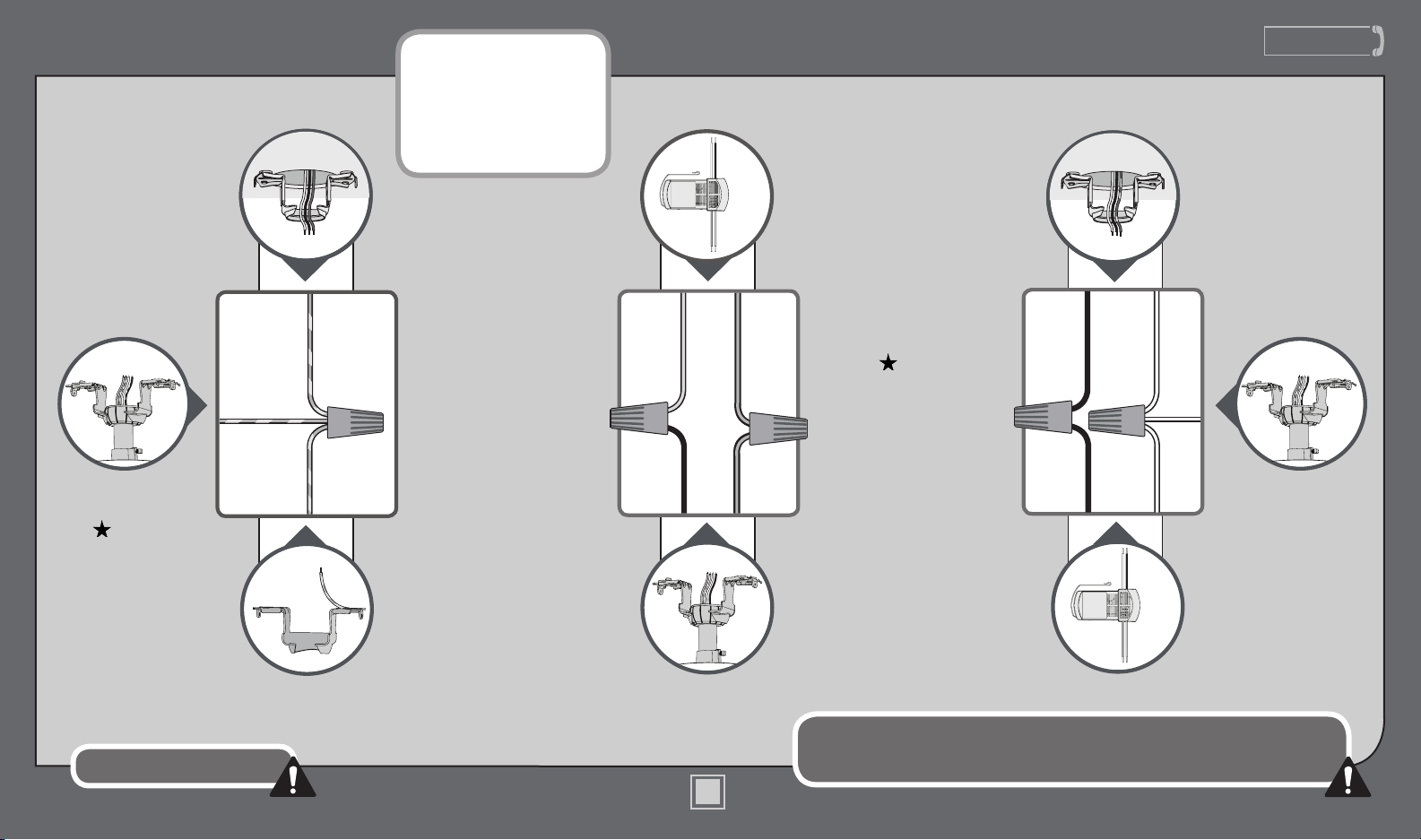

Wiring

Using an orange wire

connector from the hardware bag, connect the

3 grounding wires

(green, green/yellow

stripe, or bare copper)

coming from the

ceiling, downrod, and

hanging bracket.

stripe (grounding)

green/yellow stripe

stripe

Note: To connect the

www.HunterFan.com

1.888.830.1326

wires, hold the bare

metal leads together and

place a wire connector

over them, then twist

clockwise until tight.

green/yellow

Using the orange

wire connectors

from the remote

control hardware bag, connect the blue wire from the receiver

green/yellow

to the blue wire (or possibly black with

white stripe wire) from

the fan. Connect the yellow wire from the receiver to the black

wire from the fan.

yellow

black

blue

Using the orange wire

connectors from

black

(ungrounded)

white (grounded)

the hardware bag,

connect the black wire

(ungrounded) from

white

the ceiling to the black

blue

wire from the receiver.

Connect the white

black

white

wire (grounded) from

the ceiling to both the

white wire from the

receiver and the white

wire from the fan.

Refer to CAUTION c.1 on pg. 2

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

M3531-01 • 05/14/14 • © Hunter Fan Company

Page 11

Canopy

Screw

Holes

www.HunterFan.com

1.888.830.1326

Position the canopy so that, when

lifted into place, the canopy ts into

the hanging bracket as shown.

Lift the canopy into place so that

the screw holes are aligned.

Insert the two canopy screws

found in the hardware bag.

Note: Fan style may vary.

Page 12

Light Kit

www.HunterFan.com

1.888.830.1326

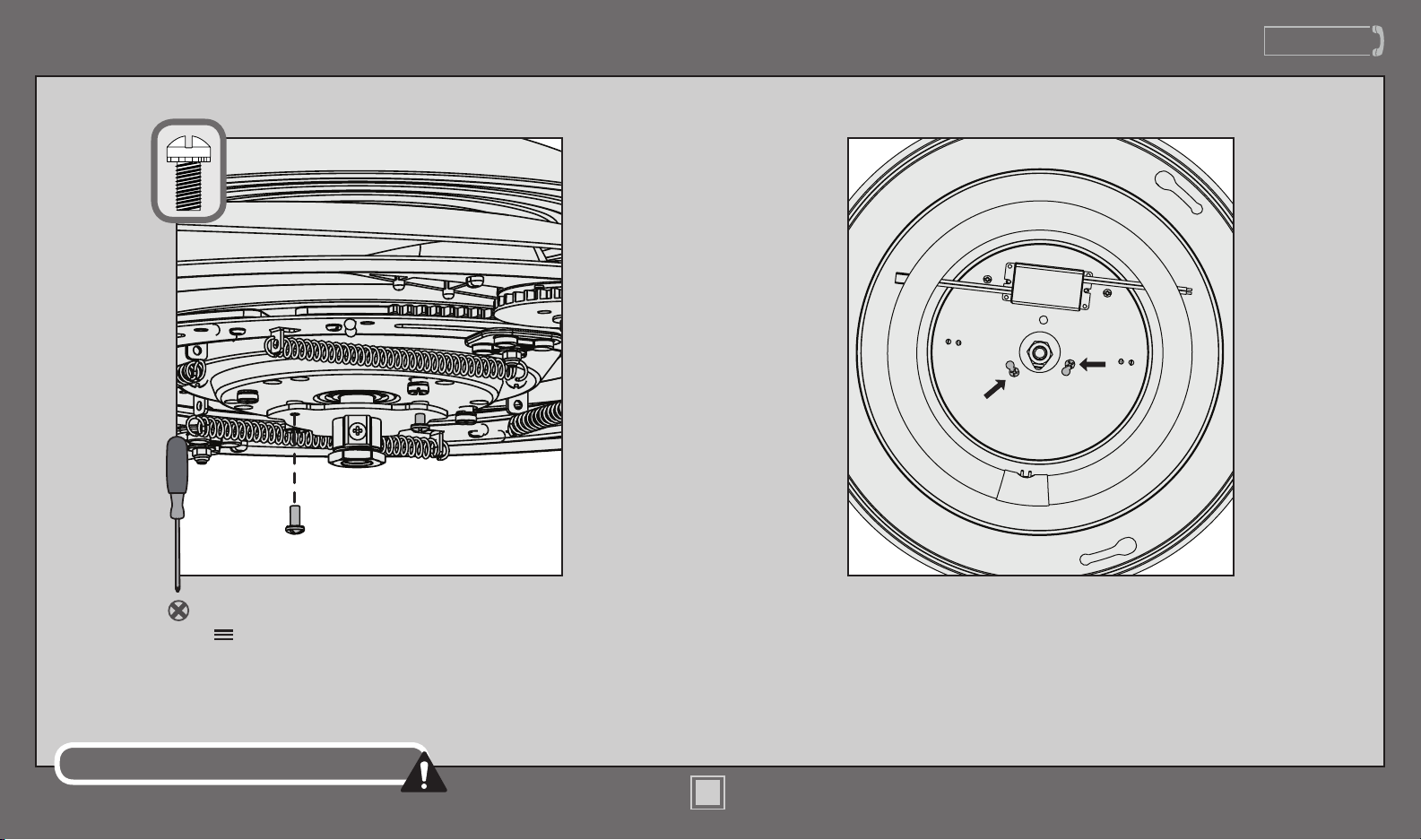

To attach the light kit top housing, partially

install two housing assembly screws, found in

the hardware bag, into the light kit mounting

plate.

Use only the light xture supplied with this fan model.

Align the keyhole slots in the housing with the

housing assembly screws.

Page 13

Light Kit (continued)

Screw

Holes

www.HunterFan.com

1.888.830.1326

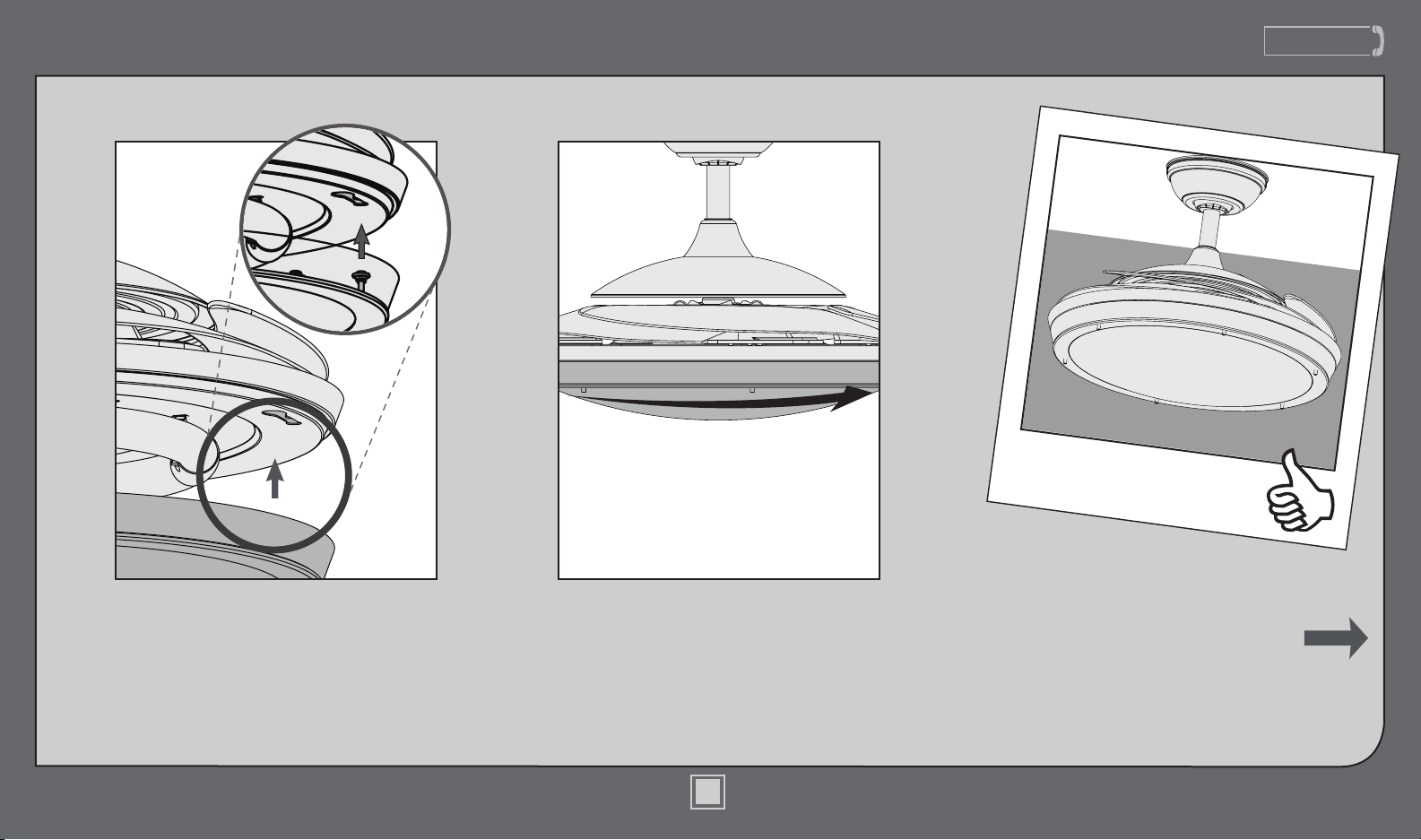

Turn the light kit top housing counterclockwise

until the housing assembly screws are rmly

situated in the narrow ends of the keyhole slots. Install the remaining screw into the

housing. Tighten all three screws rmly.

Connect the upper plug connector from the

motor to the lower plug connector in the light kit.

Note: Both plug connectors are polarized and

will only t together one way. Make sure the

connectors are properly aligned before connecting

them. Incorrect connection could cause improper

operation and damage to the product.

Make sure the light kit top housing is securely attached to the light kit mounting

plate. Failure to properly attach and tighten all three assembly screws could result in

the light kit top housing and light xture falling.

Page 14

Globe

www.HunterFan.com

CONGRATULATIONS!

YOU’RE DONE!

1.888.830.1326

Lift the globe up to the light kit top housing. Align the three bolts on the globe with the three slots in the light

kit top housing.

Rotate the globe clockwise until tight.

See next page for fan operation instructions.

Page 15

Remote Control

Battery Door

High

www.HunterFan.com

High Medium Low Fan Off

Light

1.888.830.1326

Phillips Head Screw

To access the battery compartment,

remove the small Phillips head screw that

secures the battery door to the transmitter

assembly. The battery should be installed with the positive (+) side up. Replace with

a CR2032 battery when necessary.

Turn Power

Fan Off

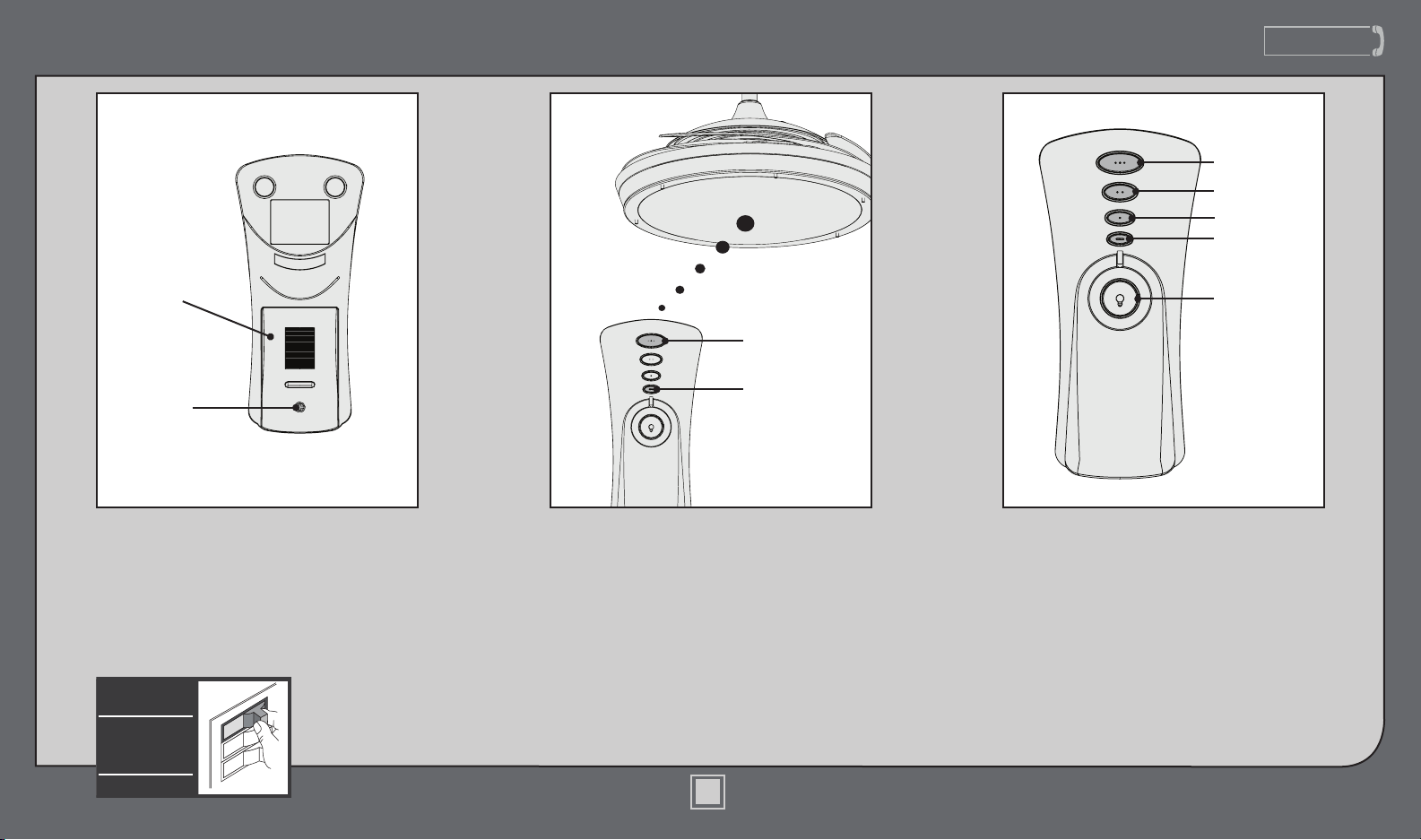

Note: The remote must be paired before

the fan will operate.

Within 3 minutes of restoring power to

the fan, press both the Fan Off button and

the High button for at least 4 seconds. Your

fan will turn on low to indicate successful

syncing. If it does not, turn off power to

your fan, wait 1 minute then try again. If

using the transmitter with multiple fans,

repeat this process for each fan.

The Fan Off button only turns the fan off.

To turn the fan on, press one of the fan

speed buttons.

ooo

High

Medium

Low

Quickly press the Light button to turn the

lights off and on.

Page 16

Operation, Maintenance, & Cleaning

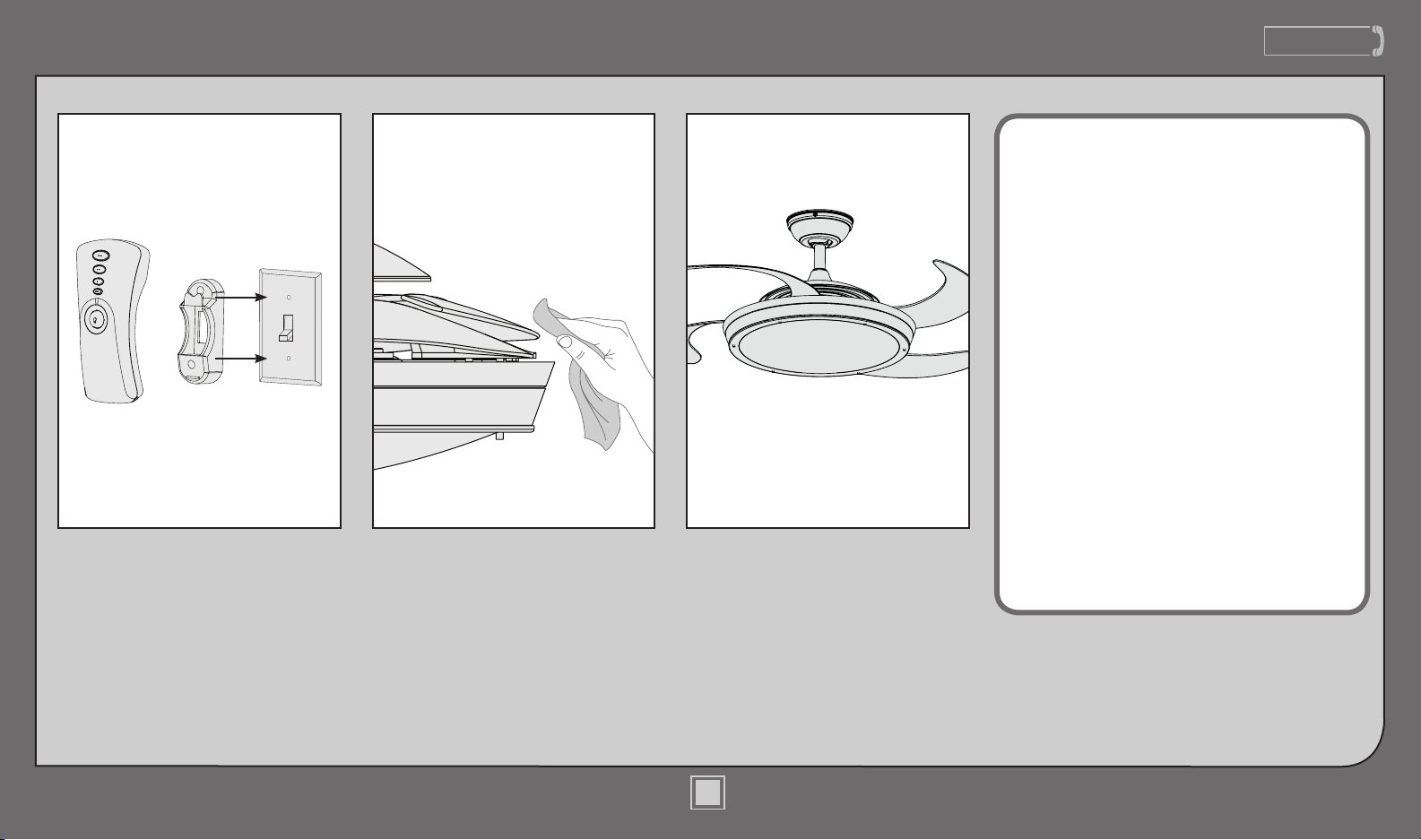

To install the transmitter cradle, remove the two screws holding

your switch cover plate. Do not

remove the cover plate. Orient

the cradle by lining up the two mounting holes with those on the cover plate. Insert and tighten the

screws. Do not over tighten.

When cleaning the fan, use

soft brushes or cloths to prevent

scratching. Cleaning products

may damage the nishes.

When the fan is turned on,

centrigual force will cause the

blades to emerge from the center of the fan, spinning. Keep the area around the fan clear so nothing is

hit or knocked over by the blades

when they swing out. When the fan

is turned off, the blades will slowly

retract back into the center of the fan.

www.HunterFan.com

1.888.830.1326

Safe-Exit

The Safe-Exit Program gives you about thirty seconds of light when you turn the lights off to exit the room before the lights go out. To use Safe-Exit:

• Press the Fan Off button for at least three seconds to initiate the Safe-Exit Mode.

• The lights will ash for visual

conrmation.

• The lights will stay on 50% brightness for 15 seconds and then begin to dim. After a total of 30 seconds, the lights will be completely off.

Note: For CFL lighting, the lights will stay on 100% brightness for 30 seconds. After a total of 30 seconds, the lights will be completely off.

Page 17

Troubleshooting

www.HunterFan.com

1.888.830.1326

Fan doesn’t work

• Make sure power switch is on.

• Check the circuit breaker to ensure the power is turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram on page 10.

If you have multiple remotes or multiple remote-controlled fans installed on the same circuit breaker and you are experiencing

interference or faulty operation of your remote controls, please go to www.HunterFan.com/FAQs and click “How do I properly install multiple remote-controlled fans?” for information on how to correct this issue.

Excessive wobbling

• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated.

Noisy operation

• Check to see if any of the blades are cracked. If so, replace all of the blades.

Remote control of fan is erratic

• Make sure the battery is installed correctly.

• Install a fresh battery.

Transmitter only works when held at close range

• Change battery.

Hunter 59085 48 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
