Hunter 59035 52 User Manual

Download

Page 1

30 inches

7 feet

Ladder

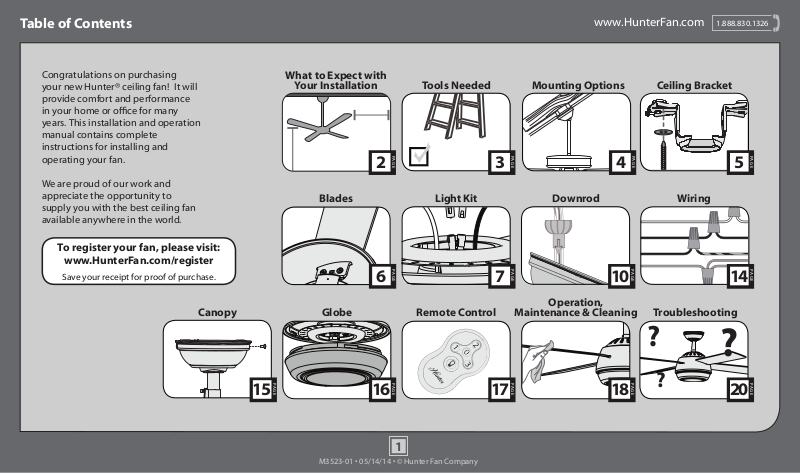

Table of Contents

www.HunterFan.com

1.888.830.1326

Congratulations on purchasing your new Hunter® ceiling fan! It will provide comfort and performance

in your home or ofce for many

years. This installation and operation manual contains complete instructions for installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

To register your fan, please visit:

www.HunterFan.com/register

Save your receipt for proof of purchase.

Canopy

What to Expect with

Your Installation

Globe

Tools Needed

PAG E

Light KitBlades

PAG E

Remote Control

Mounting Options

PAG E

Downrod

PAG E

Operation,

Maintenance & Cleaning

Ceiling Bracket

PAG E

Wiring

PAG E

Troubleshooting

PAG E

M3523-01 • 05/14/14 • © Hunter Fan Company

Page 2

What to Expect with Your Installation

If you are unfamiliar with wiring, use a

qualied electrician.

Must be able to secure the fan to building structure or fan-rated outlet box

You may need a friend to help you.

Check box to see fan weight

Know your wiring

Ceiling angles greater than 34° will require an Angled Mounting Kit. See page 4 for details.

Assess ceiling angle

30 inches

from blade tip to nearest wall or obstruction

from bottom

edge of blade

Assess location

Standard Downrod

for ceilings 8-10 feet high

Longer Downrod

for ceilings 10 feet or higher

Select a downrod length

7 feet

to the oor

www.HunterFan.com

1.888.830.1326

1.888.830.13261.888.830.1326

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or personal

injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage, use only Hunter Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

CAUTIONS

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring,

use a qualied electrician.

c.2 - Use only Hunter replacement parts.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications.

M3523-01 • 05/14/14 • © Hunter Fan Company

Page 3

Tools Needed

www.HunterFan.com

1.888.830.1326

Ladder

Power Drill

(optional)

If mounting to a support structure, you will also need these tools.

Pliers Wire Strippers

9/64” Drill Bit

(optional)

M3523-01 • 05/14/14 • © Hunter Fan Company

Screwdrivers

If you are installing multiple remote-controlled

fans on the same circuit breaker,

you may need to perform a few extra steps to

prevent interference or faulty operation of your

remote controls.

Go to www.HunterFan.com/FAQs and click “How do I properly install multiple remote-

controlled fans?” for more information.

Page 4

CEILING

Mounting Options

www.HunterFan.com

1.888.830.1326

OPTION

If you have a at ceiling:

WALL

Hang your fan by a standard downrod (included).

Standard Mounting

Support Structure

OPTION

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will also need an Angled Mounting Kit (sold separately).

Use the three steps below to determine if your ceiling angle is greater than 34°

Angled Mounting

Standard Mounting Style

Ceiling

Outlet Box

(required)

Angled Mounting Style

Ceiling

Outlet Box

(required)

FOLD

on dotted line

34°

Guide Touches

BOTH Ceiling & Wall

You need ONLY

a Longer

Downrod

*most common

2 3

PLACE

against wall

Guide Touches

but NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

SLIDE

toward ceiling

Wall

M3523-01 • 05/14/14 • © Hunter Fan Company

Use Standard Mounting

to hang the fan from a at ceiling.

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

Page 5

Ceiling Bracket

Turn Power

OFF

For angled ceilings, point

opening toward peak.

www.HunterFan.com

1.888.830.1326

Make sure all four bumpers are

still attached.

Refer to warning w.1 on pg. 2

If you are unable to do this,

call Technical Support at

1-888-830-1326.

M3523-01 • 05/14/14 • © Hunter Fan Company

Use wood screws (included) when securing to support structure with approved electrical outlet

box. Drill 9/64” pilot holes in support structure to aid in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet

box associated with the wall switch location.

Page 6

Blades

www.HunterFan.com

1.888.830.1326

Turn the fan motor upside-down and place

it in one of the holes in the packaging.

Your blades are shielded with Dust Armor® which

is a nanotechnology coating that repels dust. For

cleaning the fan, use soft brushes or cloths to prevent

scratching. Cleaning agents may damage the nishes.

Insert a blade into the motor housing.

Attach each blade to the fan using two

blade grommets, found in the hardware

bag, and two blade assembly screws, found

in the hardware bag.

Note: Each blade will only install one way

and will have a red dot on the bottom of

the blade. It should face you during blade

installation or downward once fan is hung.

M3523-01 • 05/14/14 • © Hunter Fan Company

Page 7

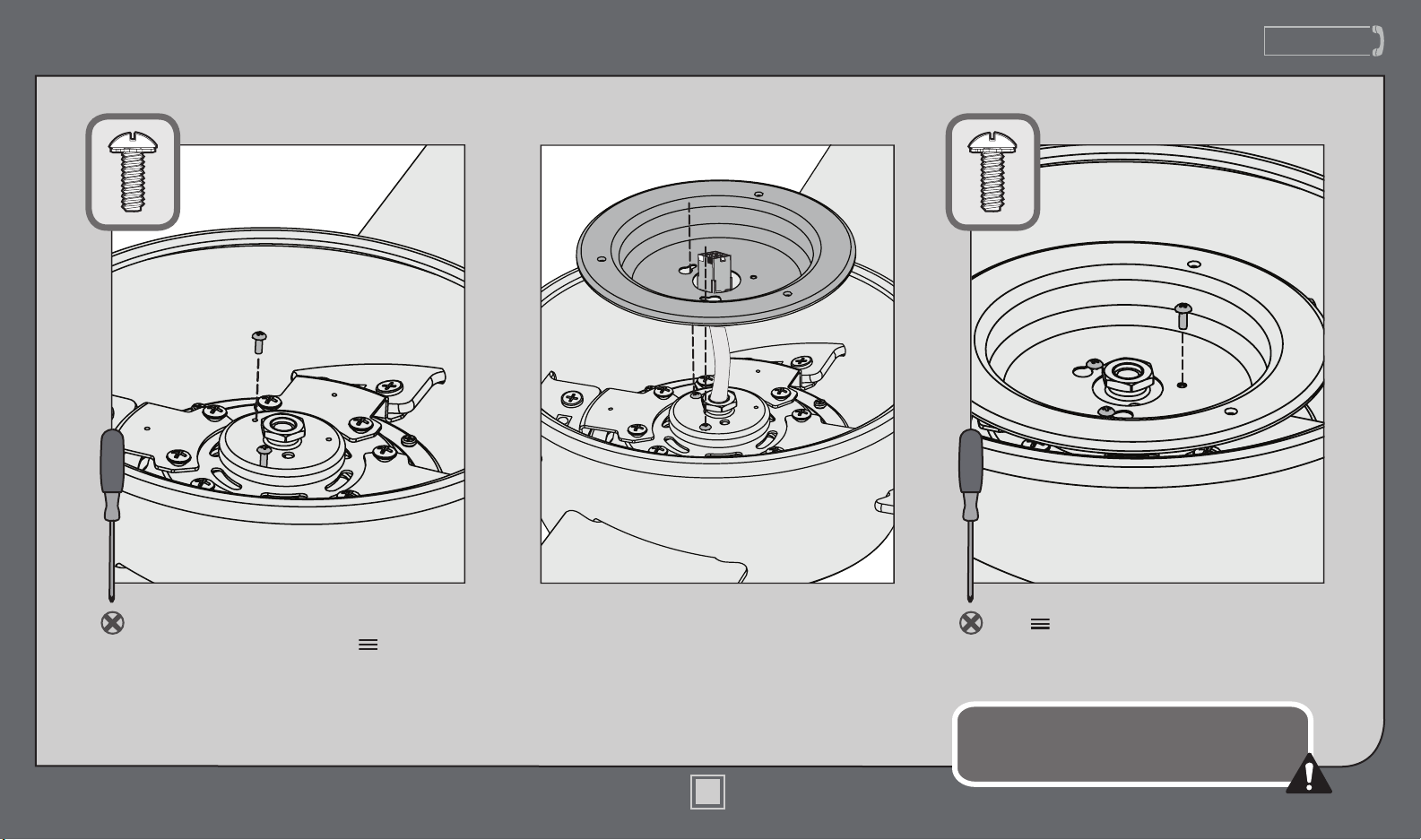

Light Kit

www.HunterFan.com

1.888.830.1326

To attach the upper switch housing,

partially install two switch housing

assembly screws, found in the hardware

bag, into the switch housing mounting plate.

Feed the wire plug through the center

hole of the upper switch housing, then

wrap keyhole slots around the screws and

twist counterclockwise.

M3523-01 • 05/14/14 • © Hunter Fan Company

Insert the third screw, found in

the hardware bag, into place and then

tighten all three (3) screws.

Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch

housing xture falling.

Page 8

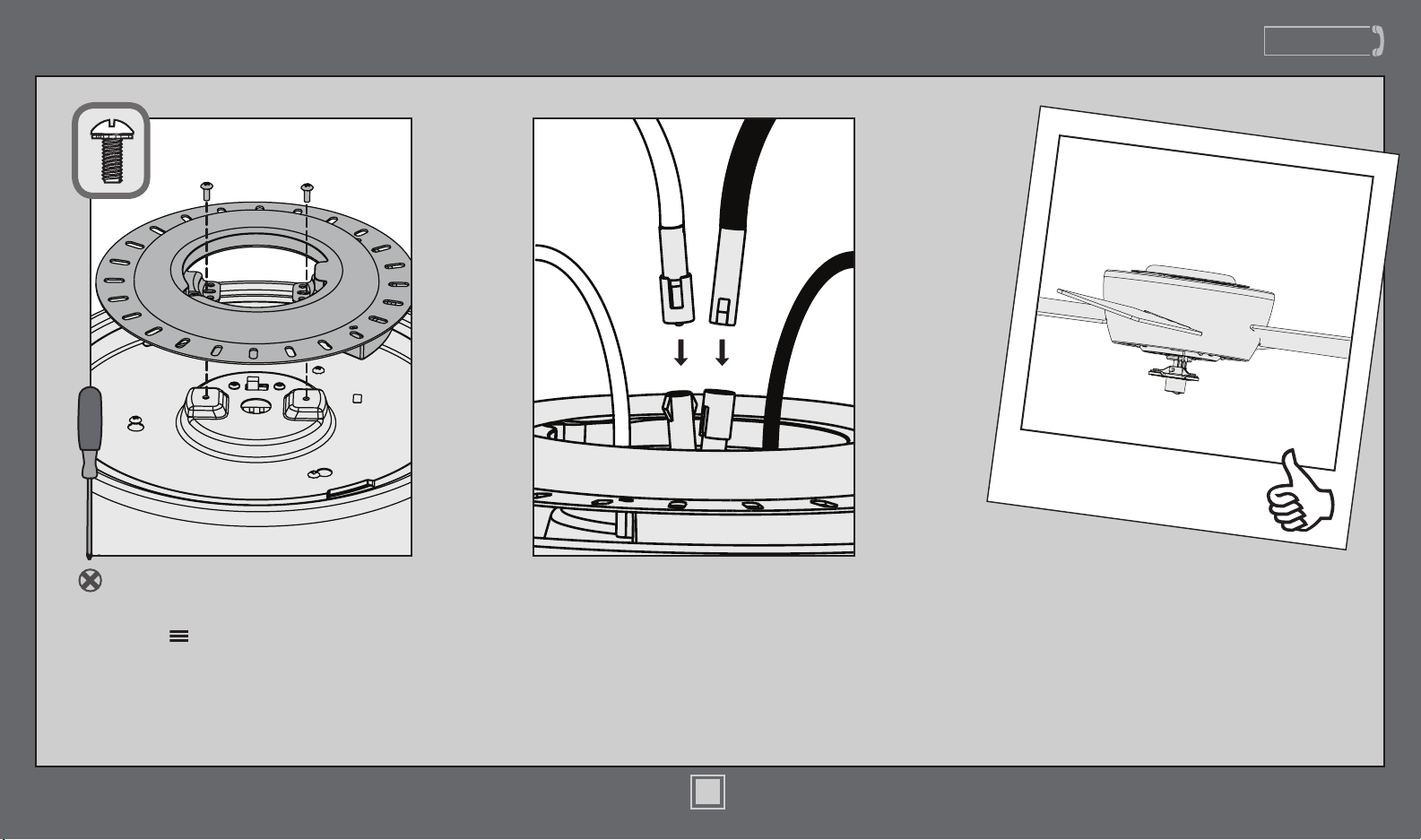

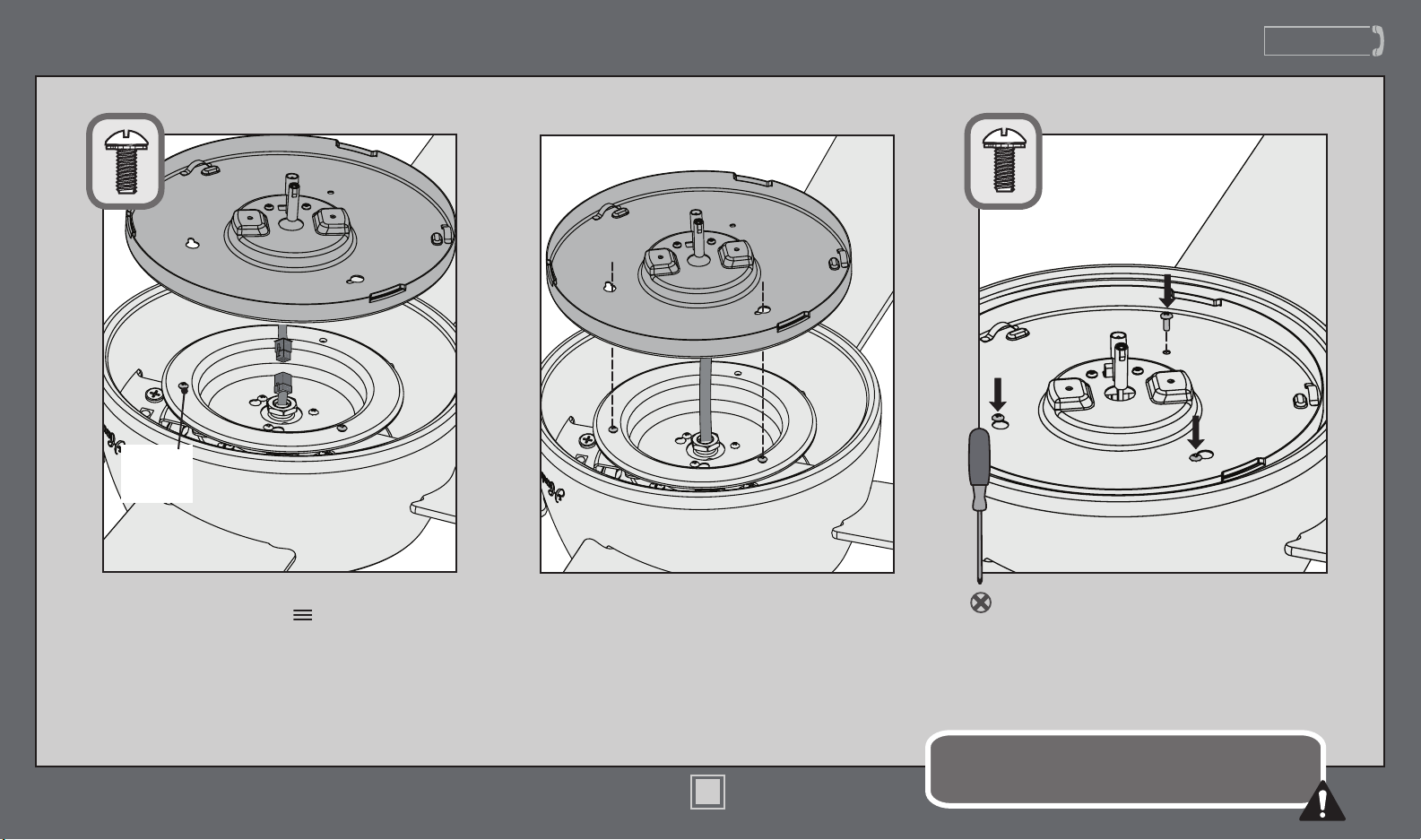

Light Kit (continued)

Switch Housing Screw

www.HunterFan.com

1.888.830.1326

Partially install two of the switch housing

screws found in the bag. Connect

the plugs from the upper and lower

switch housings. Make sure to line up the

colored markings on the connectors.

Align the keyhole slots in the lower switch

housing with the switch housing screws.

Place the lower switch housing, then twist

the lower switch housing counterclockwise

to lock into place.

M3523-01 • 05/14/14 • © Hunter Fan Company

Install the third switch housing screw.

Tighten all three screws securely.

Make sure the lower switch housing is securely attached to the upper switch housing. Failure to properly secure all three

assembly screws could result in the light xture falling.

Page 9

Light Kit (continued)

www.HunterFan.com

1.888.830.1326

Attach the LED assembly to the

lower switch housing by installing

two light kit assembly screws, found

in the hardware bag. Insert the

screws through the slots, not the

screw holes, in the LED assembly.

Connect the plug connectors between

the black wire and the black wire with a

white stripe. Connect the plug connectors

between the two white wires.

M3523-01 • 05/14/14 • © Hunter Fan Company

Page 10

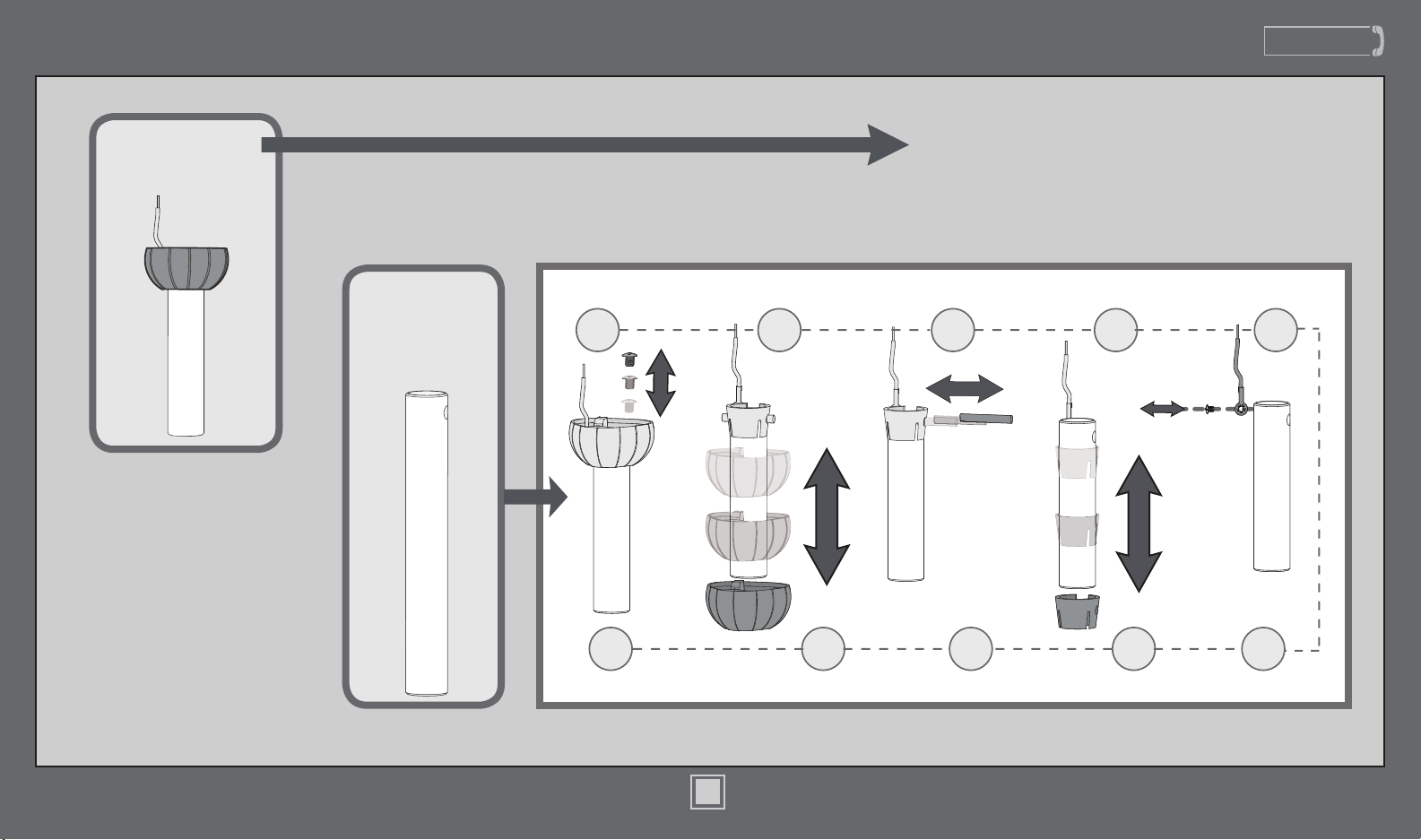

Downrod

www.HunterFan.com

1.888.830.1326

Standard Downrod

for ceilings 8-10’ high

Option 1

Included

(pre-assembled)

Longer Downrod

for angled ceilings or

Option 2

ceilings 10’ or higher

skip to next page

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

1 2 3 4 5

Slide

678910

Sold Separately

Steps 6-10 to reassemble with new pipe

M3523-01 • 05/14/14 • © Hunter Fan Company

Page 11

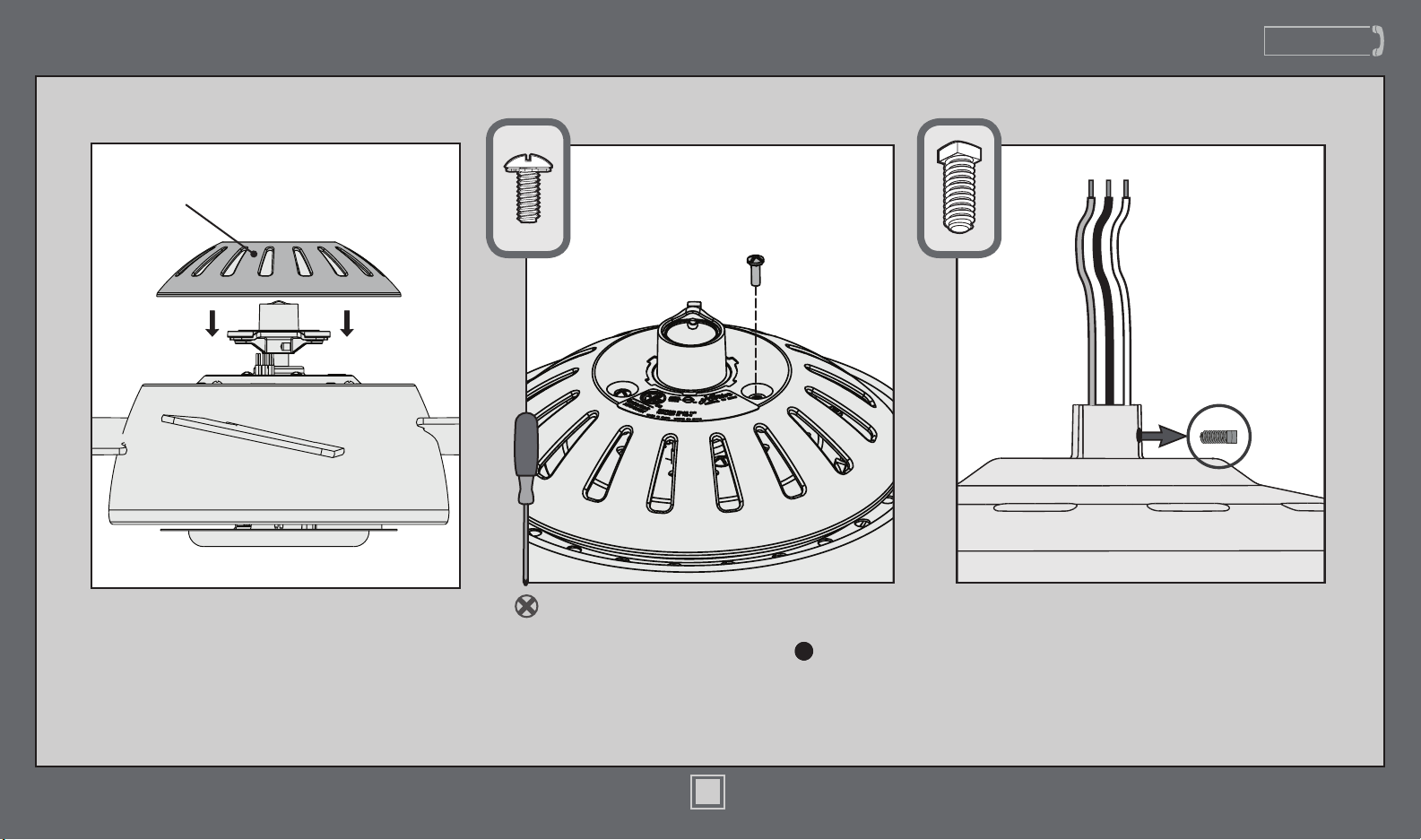

Downrod (continued)

Upper Motor Cover

www.HunterFan.com

KEEP!

1.888.830.1326

Place the upper motor cover on the top of the fan.

Align the notches in the upper motor cover

with the tabs on the motor adapter. Insert the

upper motor screws, found in the hardware

bag, and tighten them securely.

M3523-01 • 05/14/14 • © Hunter Fan Company

Remove the pre-installed setscrew so that

the downrod can be inserted.

Page 12

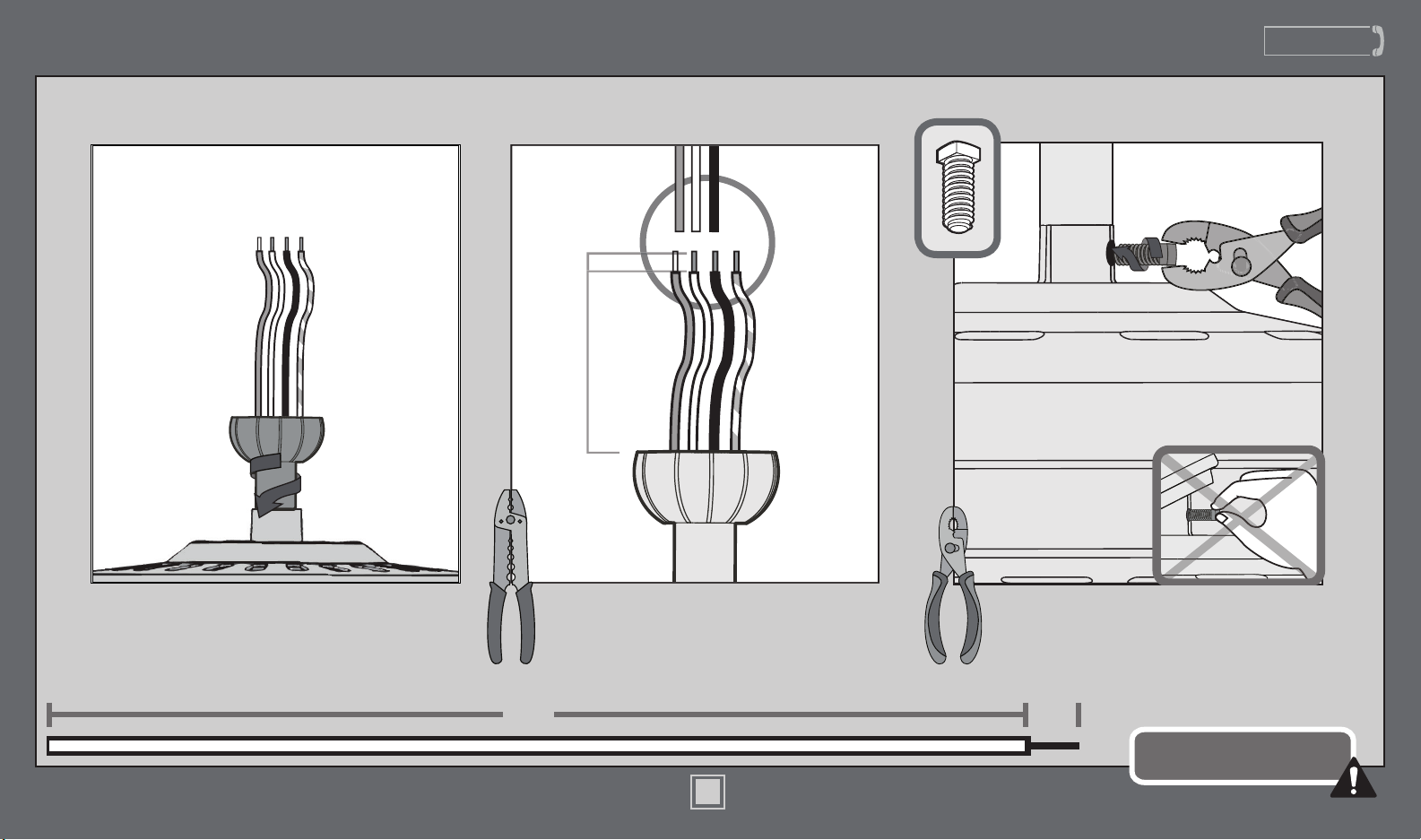

Downrod (continued)

www.HunterFan.com

1.888.830.1326

Hand tighten the downrod (at

least 4-5 full turns) until it stops.

3/8”

8”

(not to scale)

The wires can be cut, but leave at least 8”

extending from the top of the downrod.

8”

M3523-01 • 05/14/14 • © Hunter Fan Company

Tighten the setscrew with pliers.

DO NOT HAND TIGHTEN.

3/8”

If the setscrew is not tightened securely, the fan may fall.

Page 13

Downrod (continued)

DO NOT PICK THE FAN UP BY THE

Put the wires and downrod through the

canopy. Let the canopy sit loosely on top

www.HunterFan.com

1.888.830.1326

of the fan.

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

M3523-01 • 05/14/14 • © Hunter Fan Company

Page 14

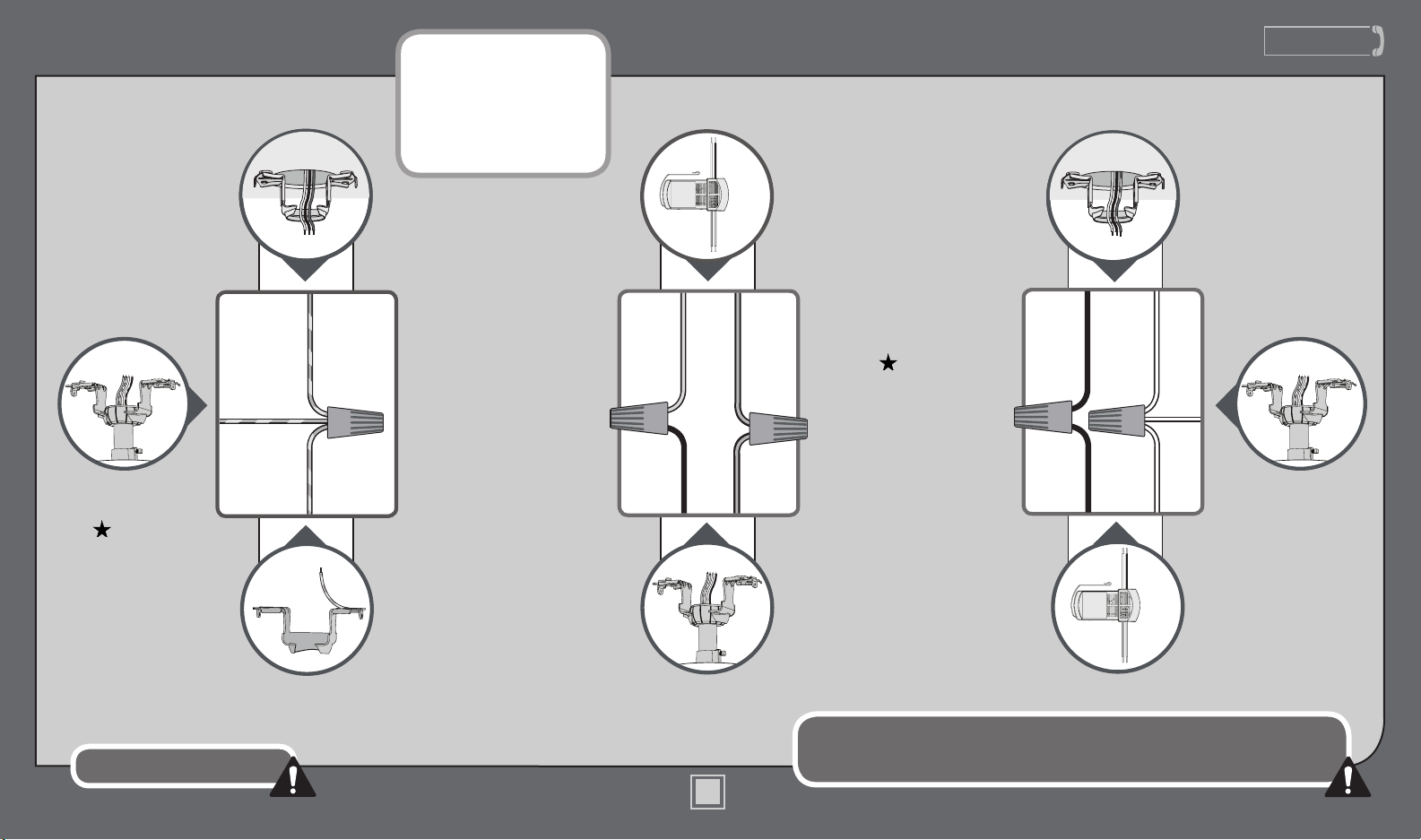

Wiring

Using an orange wire

connector from the hardware bag, connect the

3 grounding wires

(green, green/yellow

stripe, or bare copper)

coming from the

ceiling, downrod, and

hanging bracket.

stripe (grounding)

green/yellow stripe

stripe

Note: To connect the

www.HunterFan.com

1.888.830.1326

wires, hold the bare

metal leads together and

place a wire connector

over them, then twist

clockwise until tight.

green/yellow

Using the orange

wire connectors

from the remote

control hardware bag, connect the blue wire from the receiver

green/yellow

to the blue wire (or possibly black with

white stripe wire) from

the fan. Connect the yellow wire from the receiver to the black

wire from the fan.

yellow

black

blue

Using the orange wire

connectors from

black

(ungrounded)

white (grounded)

the hardware bag,

connect the black wire

(ungrounded) from

white

the ceiling to the black

blue

wire from the receiver.

Connect the white

black

white

wire (grounded) from

the ceiling to both the

white wire from the

receiver and the white

wire from the fan.

Refer to CAUTION c.1 on pg. 2

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

Page 15

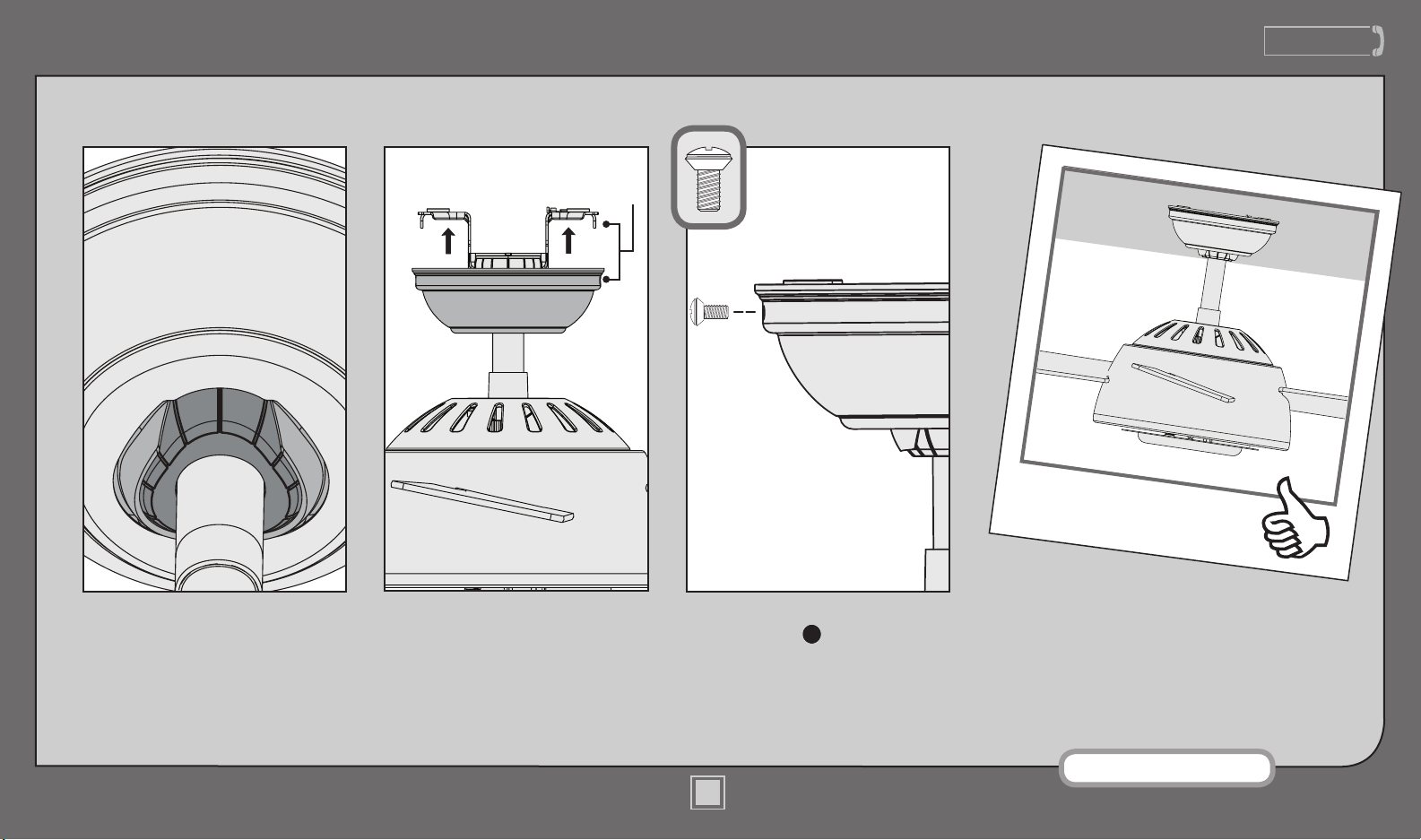

Canopy

Screw

Holes

www.HunterFan.com

1.888.830.1326

Position the canopy so that, when

lifted into place, the canopy ts into

the hanging bracket as shown.

Lift the canopy into place so that

the screw holes are aligned.

Insert the two canopy screws

found in the hardware bag.

Note: Fan style may vary.

Page 16

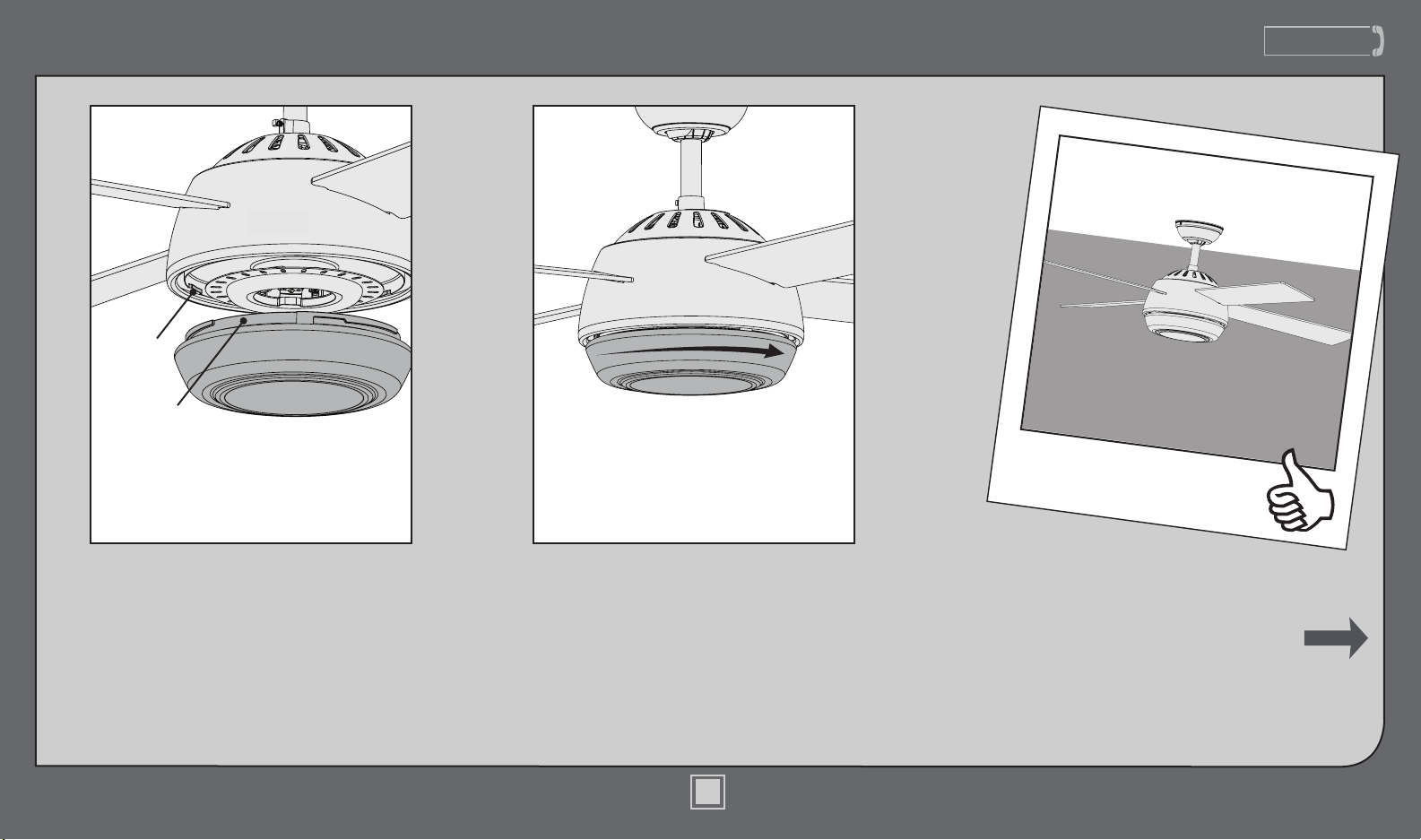

Globe

Tab

Notch

www.HunterFan.com

CONGRATULATIONS!

YOU’RE DONE!

1.888.830.1326

Position the notches in the outer rim of the globe so they line up with the tabs on the inside surface of the

light xture rim.

Carefully lift the globe up inside the

light xture as far as it will go. Rotate

the globe in a clockwise direction

until it is held tightly in place by the

three tabs.

See next page for fan operation instructions.

Page 17

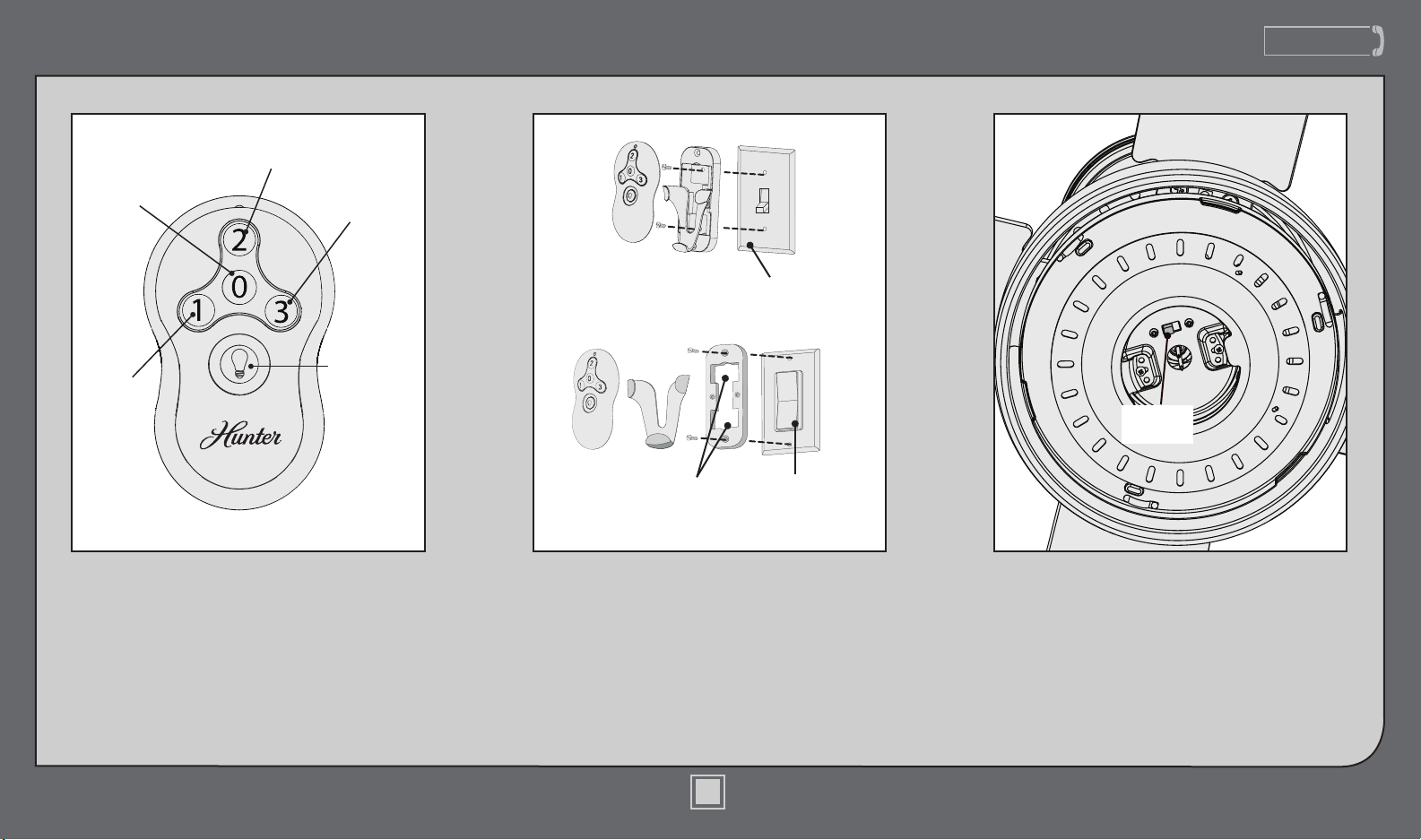

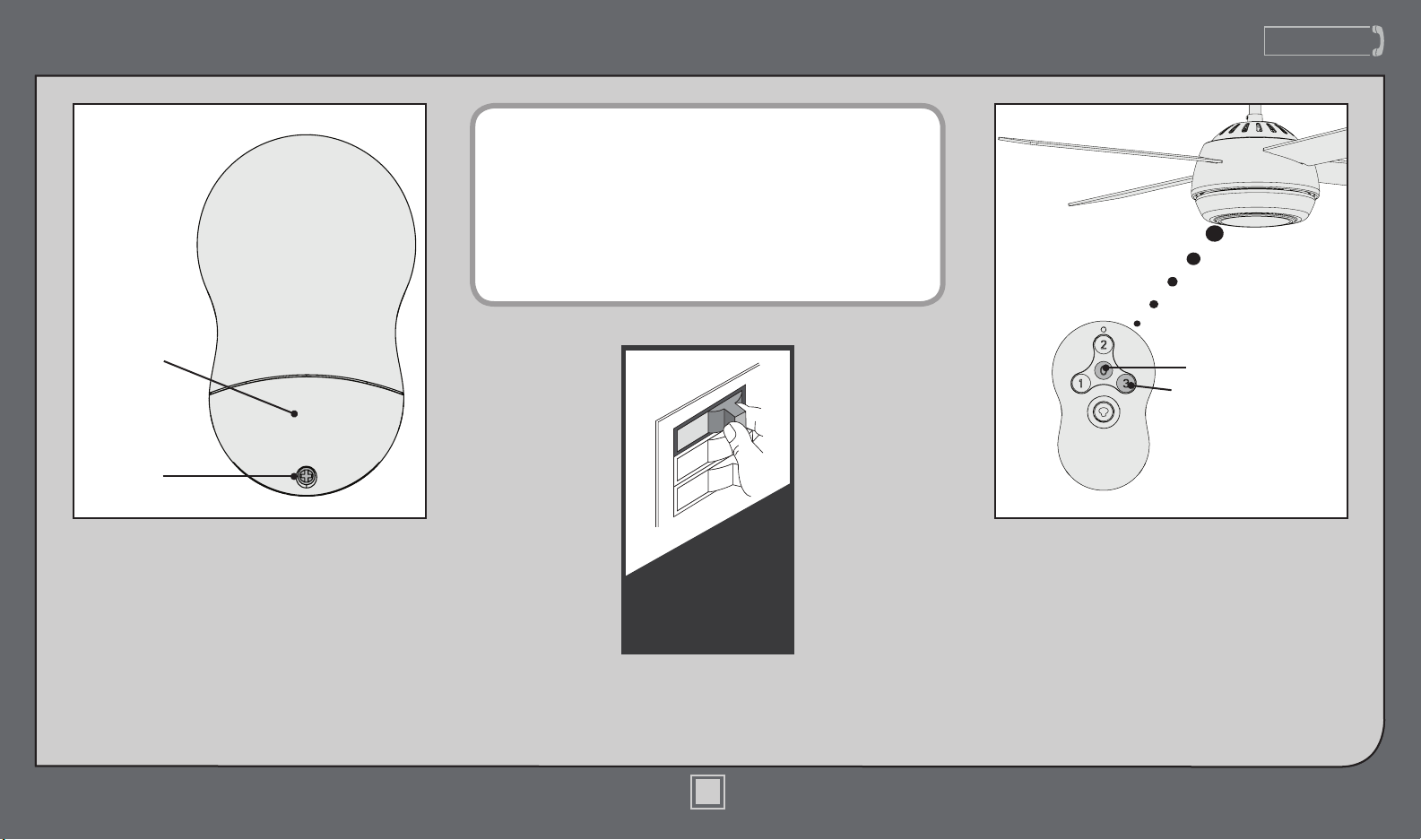

Remote Control

If you are installing multiple remote-controlled fans on the same circuit breaker, you may need to perform a few

extra steps to prevent interference or faulty operation of

your remote controls.

Go to www.HunterFan.com/FAQs and click

“How do I properly install multiple remote-controlled fans?”

for more information.

www.HunterFan.com

1.888.830.1326

Battery Door

Phillips Head Screw

To access the battery compartment, remove the small Phillips head screw that secures the battery door to the transmitter assembly. The

battery should be installed with the positive

(+) side up. Replace with a CR2032 battery

when necessary.

Turn Power

Fan Off

High

Note: The remote must be paired before

the fan will operate.

Within 3 minutes of restoring power to

the fan, press both the Fan Off button and

the High button for at least 4 seconds. Your

fan will turn on low to indicate successful

syncing. If it does not, turn off power to your

fan, wait 1 minute then try again. If using the

transmitter with multiple fans, repeat this

process for each fan.

Page 18

Operation, Maintenance, & Cleaning

Medium

Speed

Fan Off

High

Speed

Switch Cover Plate

www.HunterFan.com

1.888.830.1326

Low

Light

Speed

To turn on fan, press a fan speed button. Speeds

range from off (0) to high (3). Quickly press the

Light button to turn the lights off and on.

Hold the Light button to raise and dim the

light level.

Removed Tabs

To install the transmitter cradle, remove the

two screws holding the switch cover plate. Do

not remove the cover plate. Orient the cradle

by lining up the two mounting holes with

those on the cover plate. Insert and tighten

the screws. Do not over tighten.

Note: For rocker-style cover plates, break off

the tabs by pushing outward.

Rocker- Style

Plate

Reverse Switch

To switch the direction of air ow, remove

the glass on the fan by pushing up on the glass and rotating the shade in a counterclockwise direction until the glass unlocks

from the fan. Flip the black switch to

change the direction.

Page 19

Operation, Maintenance, & Cleaning (continued)

Screw

www.HunterFan.com

1.888.830.1326

Safe-Exit

The Safe-Exit Program gives you about thirty seconds of light when you turn the lights off to exit the room before the lights go out. To use Safe-Exit:

• Press the Fan Off button for at least three seconds to initiate the Safe-Exit Mode.

• The lights will ash for visual

conrmation.

• The lights will stay on 50% brightness for 15 seconds and then begin to dim. After a total of 30 seconds, the lights will be completely off.

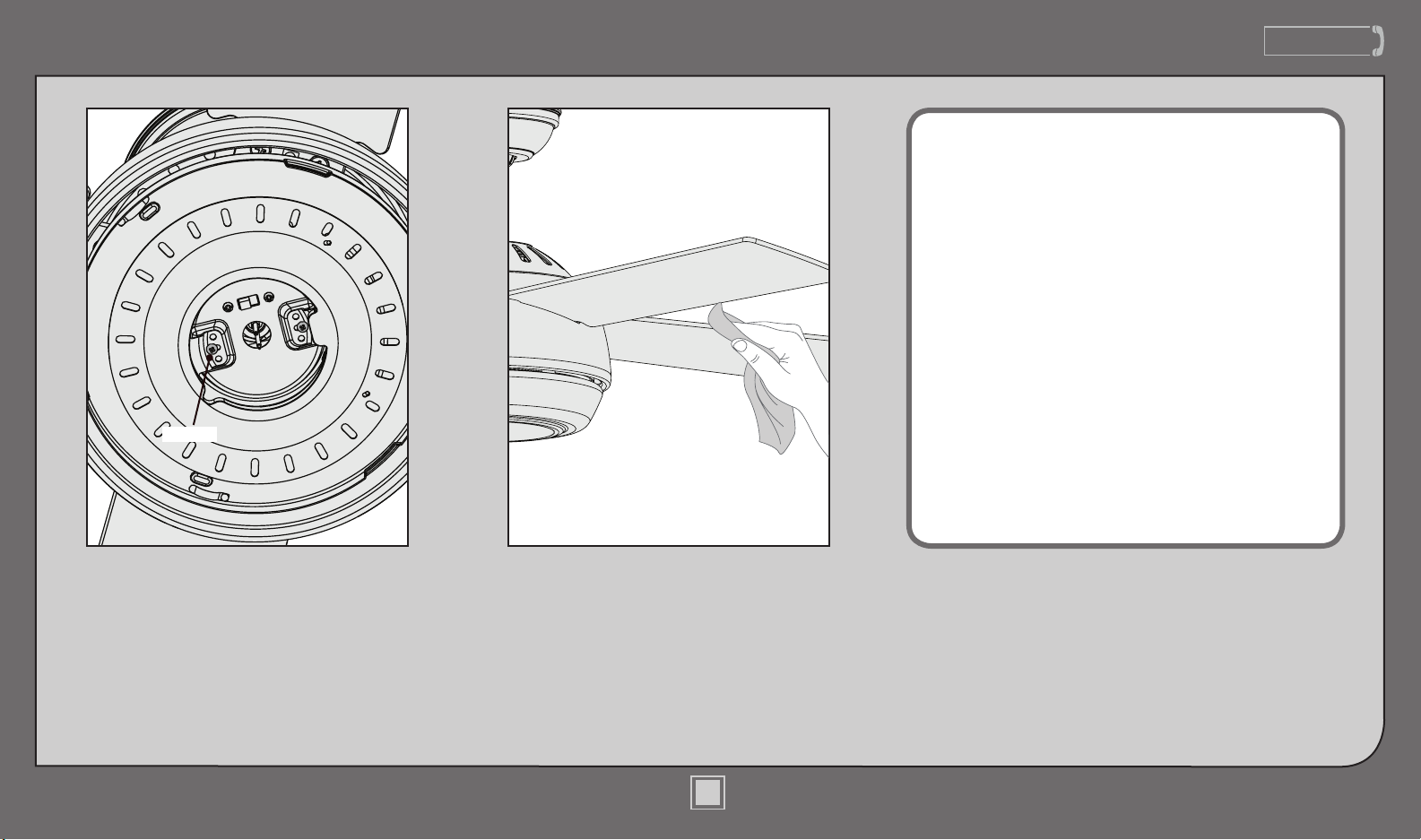

To change the bulbs, use a Phillips Head

screwdriver to remove the screws that

secure the LED light ring to the lower

switch housing. Replace with a Hunter

approved replacement LED light ring.

Reinstall the globe assembly.

When cleaning the fan, use soft brushes

or cloths to prevent scratching. Cleaning

products may damage the nishes.

Page 20

Troubleshooting

www.HunterFan.com

1.888.830.1326

Fan doesn’t work

• Make sure power switch is on.

• Push the motor reversing switch

rmly left or right to ensure that

it is engaged.

• Check the circuit breaker to ensure the power is turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram on page 14.

• Check the plug connection in the switch housing.

Remote control of fan is erratic

• Make sure the battery is installed correctly.

• Install a fresh battery.

Transmitter only works when held at close range

• Install a fresh battery.

Excessive wobbling

• Tighten all of the blade and blade iron screws until they are snug.

• Use the provided balancing kit and instructions to balance the fan.

Noisy Operation

• Tighten the blade and blade

iron screws until they are snug.

• Check to see if any of the

blades are cracked. If so, replace all of the blades.

If you have multiple remotes or multiple remote-controlled fans installed on the same circuit breaker and you are experiencing

interference or faulty operation of your remote controls, please go to www.HunterFan.com/FAQs and click “How do I properly install multiple remote-controlled fans?” for information on how to correct this issue.

Hunter fans have the power to cut your cooling costs up to 40%.

Beat the High Cost of Cooling

The air movement created by a Hunter ceiling fan lets you set your thermostat higher and still stay comfortable. Every degree you raise the thermostat saves up to 7% on energy costs. So, you can cut back on expensive air conditioning ... and save up to 40%* on cooling. In winter, your Hunter fan recirculates warm air and saves up to 10%* on heating bills. * On average at low speed settings. Your savings may vary based on climate, building type and thermostat setting.

Save Energy and Money While Protecting the Environment

Congratulations! You’re saving energy and money while protecting the environment by purchasing this ENERGY

STAR qualied Hunter ceiling fan! With this purchase, you

are doing your part to protect the environment. Your new ceiling fan has earned the ENERGY STAR label

because it meets high energy efciency specications

set by the Environmental Protection Agency (EPA). ENERGY STAR labeled ceiling fans save energy because

they have more efcient fan motors and air delivery due to more aerodynamic blade congurations. Ceiling fan

models bearing the ENERGY STAR label move air 14 -

20% more efciently than typical ceiling fan models.

For more information on ENERGY STAR visit www.energystar.gov.
