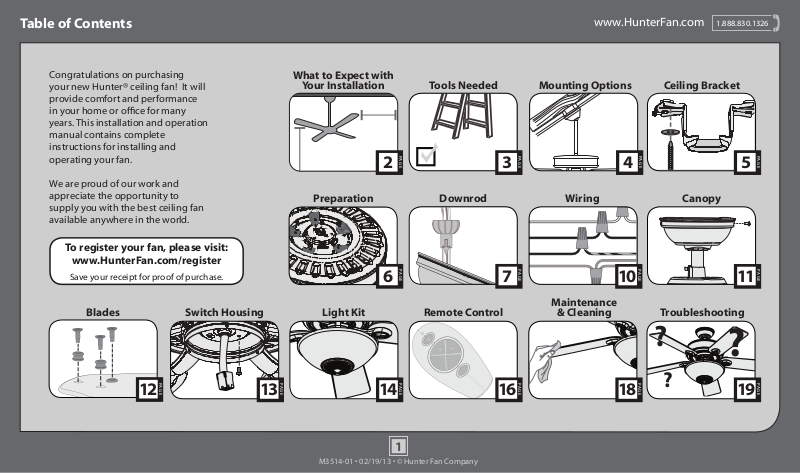

Table of Contents

www.HunterFan.com

1.888.830.1326

Congratulations on purchasing your new Hunter® ceiling fan! It will provide comfort and performance

in your home or ofce for many

years. This installation and operation manual contains complete instructions for installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

To register your fan, please visit:

www.HunterFan.com/register

Save your receipt for proof of purchase.

Blades Switch Housing

What to Expect with

Your Installation

Light Kit

Tools Needed

PAG E

DownrodPreparation

PAG E

Remote Control

Mounting Options

PAG E

Wiring Canopy

PAG E

Maintenance

& Cleaning

Ceiling Bracket

PAG E

Troubleshooting

PAG E

M3514-01 • 02/19/13 • © Hunter Fan Company

Page 2

What to Expect with Your Installation

If you are unfamiliar with wiring, use a

qualied electrician.

Must be able to secure the fan to building structure or fan-rated outlet box

You may need a friend to help you.

Check box to see fan weight

Know your wiring

Ceiling angles greater than 34° will require an Angled Mounting Kit. See page 4 for details.

Assess ceiling angle

30 inches

from blade tip to nearest wall or obstruction

7 feet

from bottom

edge of blade

to the oor

Assess location

Standard Downrod

for ceilings 8-10 feet high

Shorter Downrod

for fans installed close to ceiling

Longer Downrod

for ceilings 10 feet or higher

Select a downrod length

M3514-01 • 02/19/13 • © Hunter Fan Company

www.HunterFan.com

1.888.830.1326

1.888.830.13261.888.830.1326

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an

outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage, use only Hunter Solid State Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

CAUTIONS

c.1 - All wiring must be in accordance with national and local

electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.

c.2 - Use only Hunter replacement parts.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications.

This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment, ships at sea, or other critical navigation or communications equipment operating between 0.45-30 MHz.

This device complies with Part 18 of the FCC Rules.

Page 3

Tools Needed

www.HunterFan.com

1.888.830.1326

Ladder

Pliers Wire Strippers

Power Drill

(optional)

If mounting to a support structure, you will also need these tools.

9/64” Drill Bit

(optional)

M3514-01 • 02/19/13 • © Hunter Fan Company

Screwdrivers

Page 4

CEILING

Mounting Options

www.HunterFan.com

1.888.830.1326

1.866.268.1936

OPTION

If you have a at ceiling:

WALL

Hang your fan by a standard downrod (included).

Standard Mounting

Support Structure

OPTION

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will also need an Angled Mounting Kit (sold separately).

Use the three steps below to determine if your ceiling angle is greater than 34°

Angled Mounting

Standard Mounting Style

Ceiling

Outlet Box

(required)

Angled Mounting Style

Ceiling

Outlet Box

(required)

FOLD

on dotted line

34°

Guide Touches

BOTH Ceiling & Wall

You need ONLY

a Longer

Downrod

*most common

2 3

PLACE

against wall

Guide Touches

but NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

SLIDE

toward ceiling

Wall

M3514-01 • 02/19/13 • © Hunter Fan Company

Use Standard Mounting

or Low-Prole Mounting

to hang the fan from a at ceiling.

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

Page 5

Ceiling Bracket

Turn Power

OFF

www.HunterFan.com

For angled ceilings, point

opening toward peak.

1.888.830.1326

Make sure all four (4) bumpers

are still attached.

To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet

box associated with the wall switch location.

Use wood screws (included) when securing to support structure with approved electrical outlet

box. Drill 9/64” pilot holes

in support structure to aid in securing ceiling bracket

with hardware found in

the hardware bag.

M3514-01 • 02/19/13 • © Hunter Fan Company

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

If you are unable to do this,

call Technical Support at

1-888-830-1326.

Refer to warning w.1 on pg. 2

Page 6

Ceiling Bracket (continued)

Preparation

www.HunterFan.com

1.888.830.1326

Time Saver Tip: Get a helper

to insert grommets, found in

the hardware bag, into the

blades while you’re doing the

next couple of steps.

M3514-01 • 02/19/13 • © Hunter Fan Company

Remove the shipping blocks from the motor. Save the screws. They will be

needed for blade iron installation.

Note: Some fans will have a shipping

ring instead of shipping blocks. Please

remove the ring and save the screws.

Page 7

Downrod

www.HunterFan.com

1.888.830.1326

Standard Downrod

for ceilings 8-10’ high

Option 1Option 2

Shorter Downrod

for fans installed close to ceiling

Included

(pre-assembled)

Longer Downrod

for angled ceilings or

Option 3

ceilings 10’ or higher

skip to next page

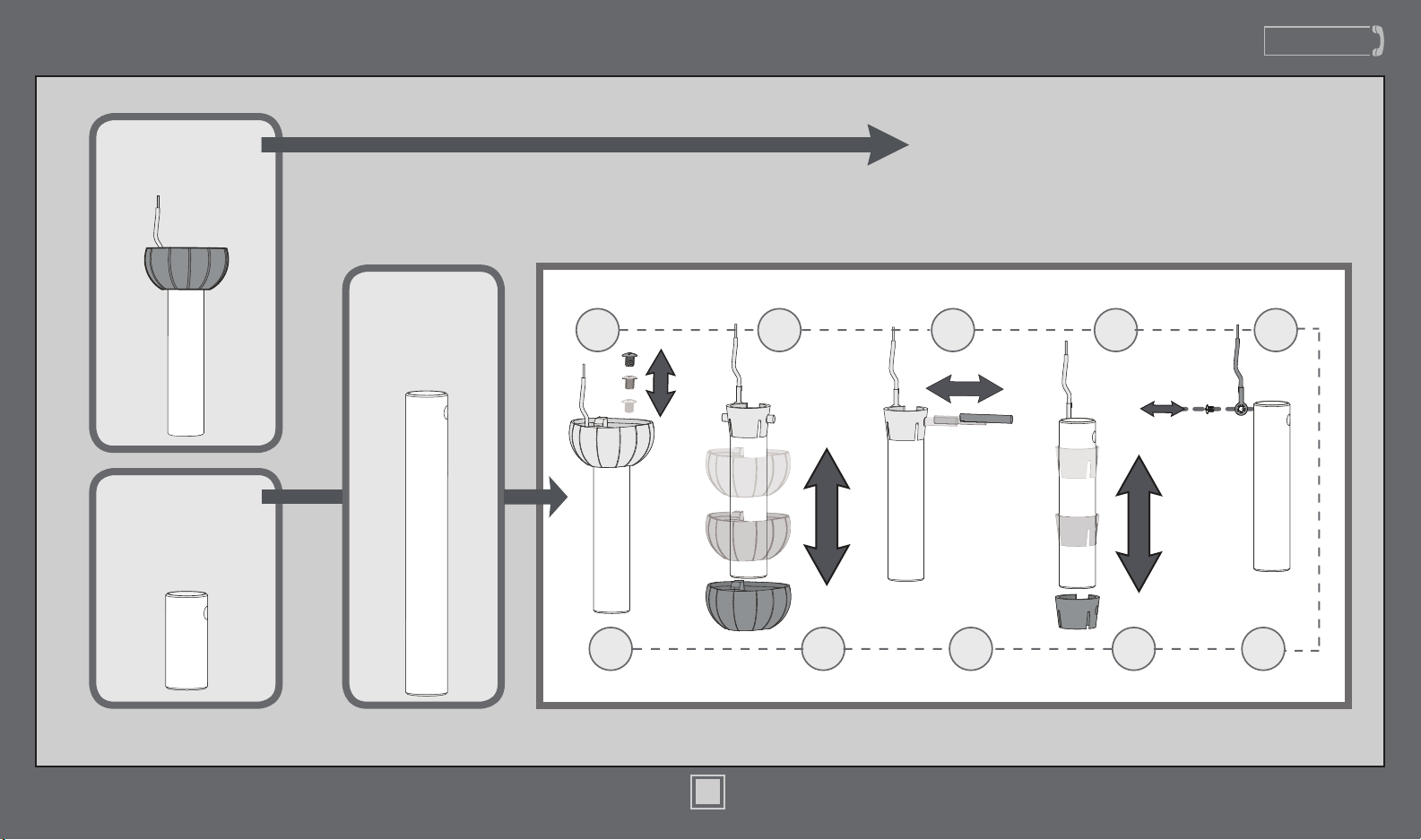

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

1 2 3 4 5

Slide

678910

Included

Sold Separately

Steps 6-10 to reassemble with new pipe

M3514-01 • 02/19/13 • © Hunter Fan Company

Page 8

Downrod (continued)

www.HunterFan.com

1.888.830.1326

KEEP!

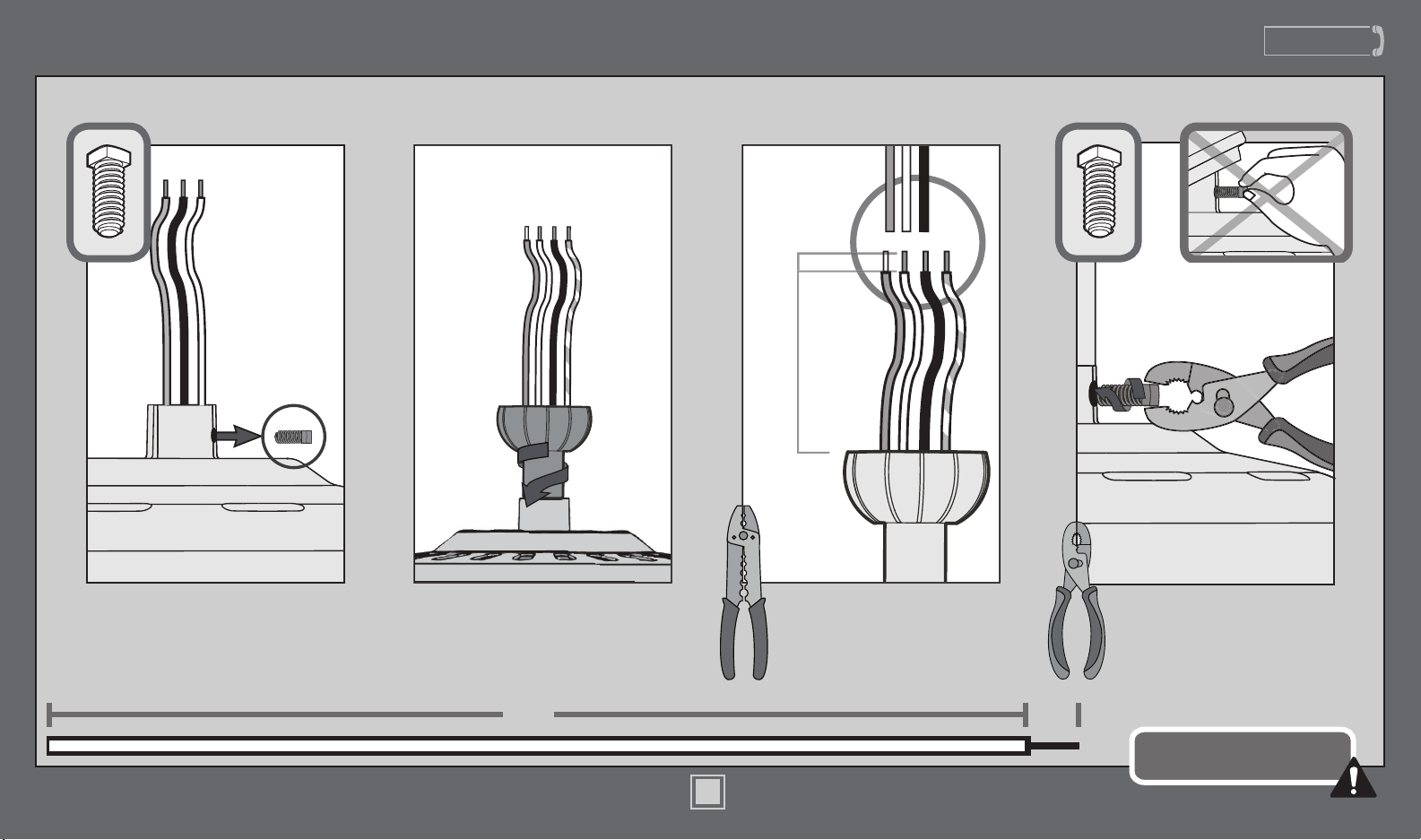

Remove the pre-installed

setscrew so that the downrod

can be inserted.

Hand tighten the downrod (at

least 4-5 full turns) until it stops.

8”

M3514-01 • 02/19/13 • © Hunter Fan Company

3/8”

8”

(not to scale)

The wires can be cut, but

leave at least 8” extending

from the top of the downrod.

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN.

3/8”

If the setscrew is not tightened securely, the fan may fall.

Page 9

Downrod (continued)

DO NOT PICK THE FAN UP BY THE

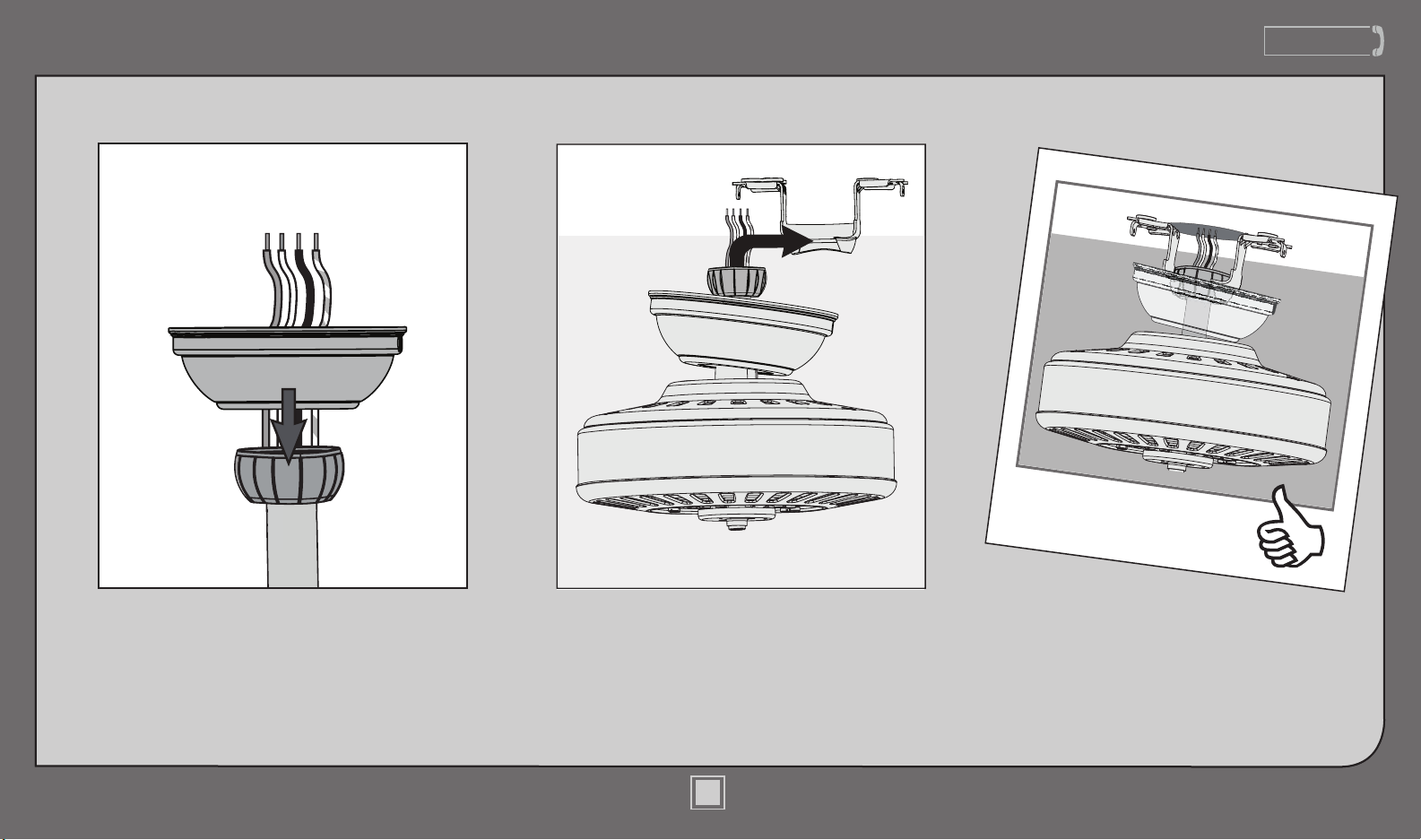

Put the wires and downrod through the

canopy. Let the canopy sit loosely on top

www.HunterFan.com

1.888.830.1326

of the fan.

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

M3514-01 • 02/19/13 • © Hunter Fan Company

Page 10

Wiring

Note: To connect the wires,

www.HunterFan.com

1.888.830.1326

hold the bare metal leads

together and place a wire

connector over them, then twist

clockwise until tight.

black (ungrounded)

green/yellow stripe

(grounding)

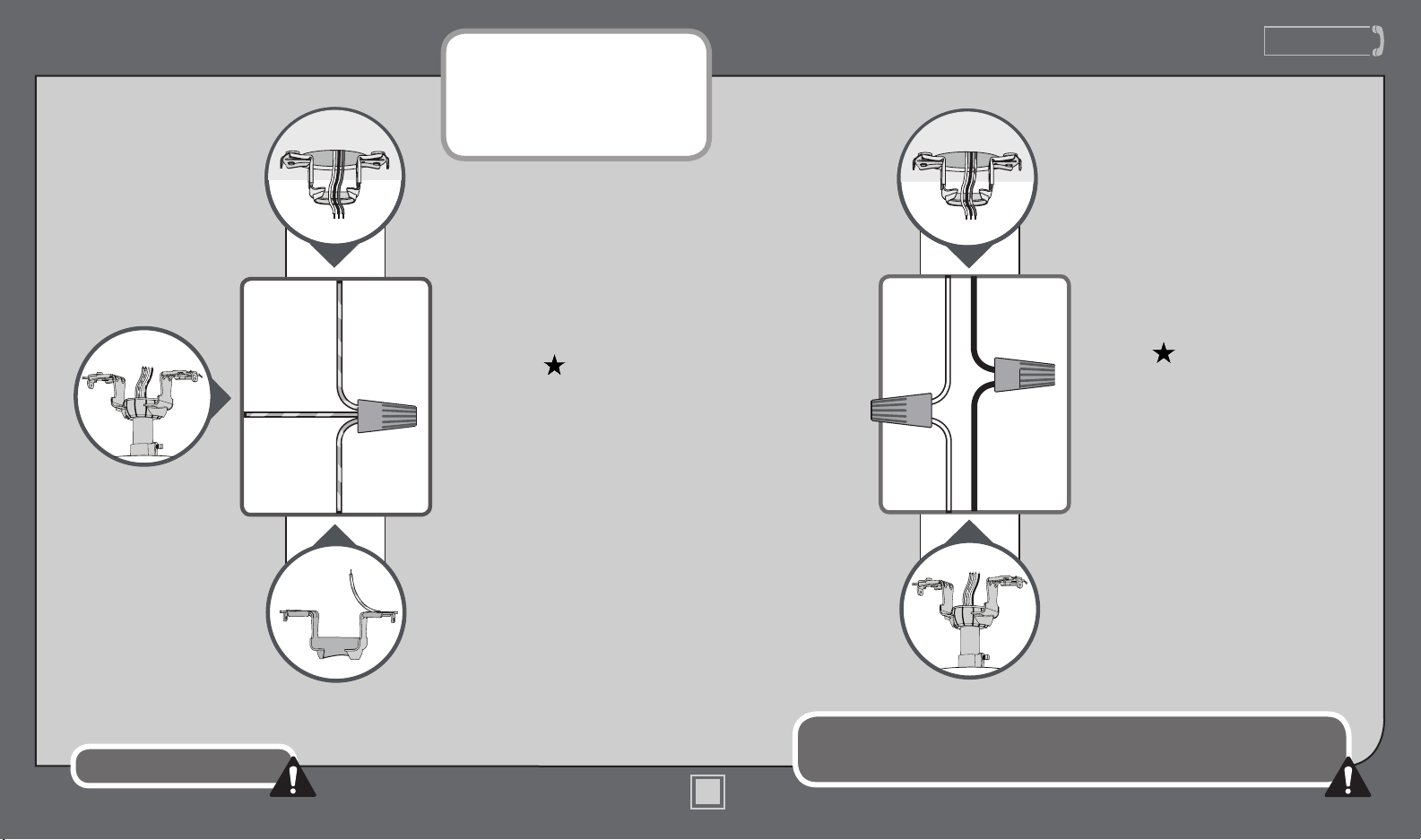

Using an orange wire connector

from the hardware bag,

green/yellow stripe

connect the 3 grounding wires

(green, green/yellow stripe, or bare

copper) coming from the ceiling,

downrod, and hanging bracket.

white (grounded) white

Using an orange wire connector

from the hardware bag, connect

the black wire (ungrounded) from

the ceiling to the black wire from

the receiver. Connect the white wire

black

(grounded) from the ceiling to

the white wire from the receiver.

Refer to CAUTION c.1 on pg. 2

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

M3514-01 • 02/19/13 • © Hunter Fan Company

Page 11

Canopy

Screw

Holes

www.HunterFan.com

1.888.830.1326

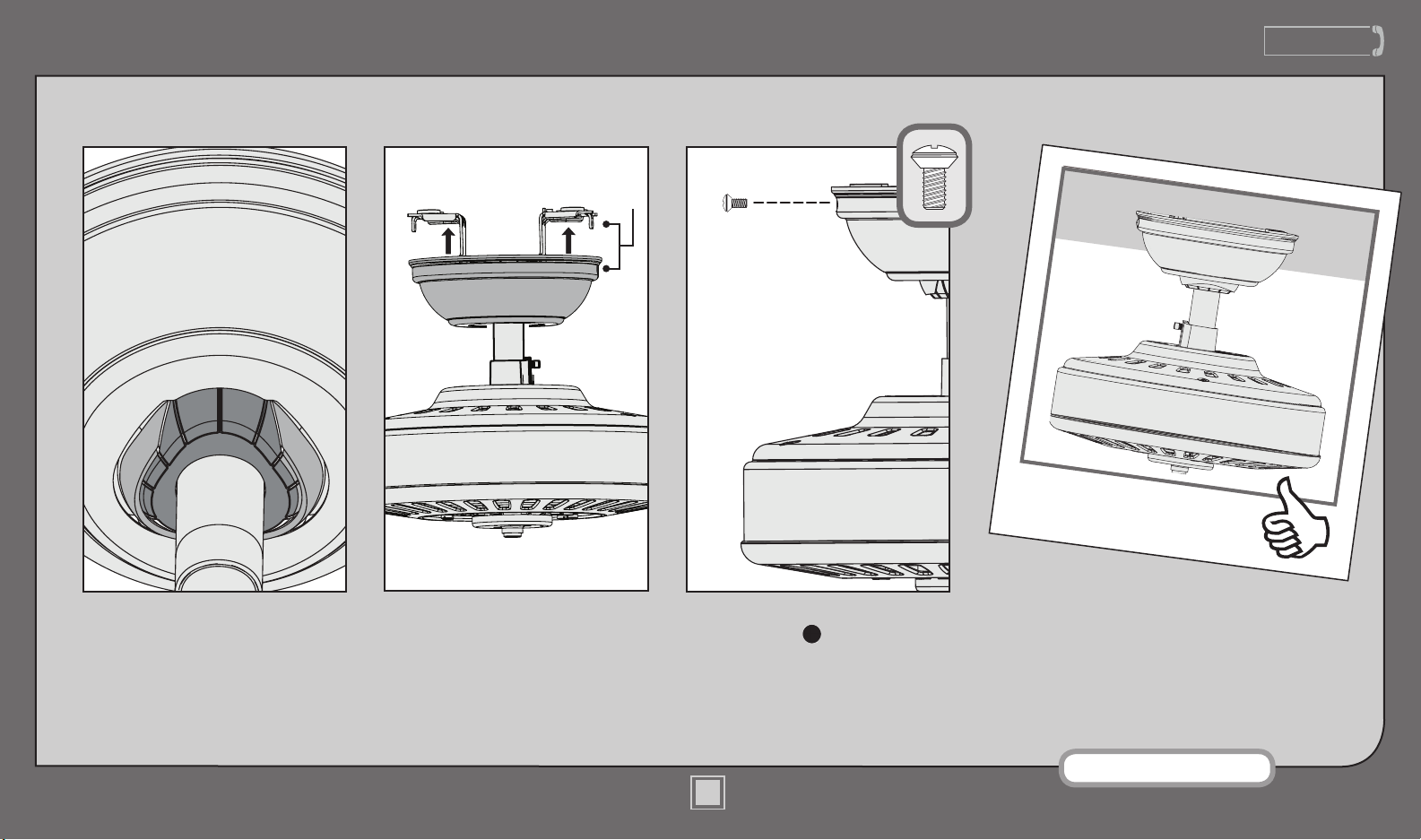

Position the canopy so that, when

lifted into place, the canopy ts into

the hanging bracket as shown.

Lift the canopy into place so that

the screw holes are aligned.

M3514-01 • 02/19/13 • © Hunter Fan Company

Insert the two canopy screws

found in the hardware bag.

Note: Fan style may vary.

Page 12

Blades

Insert grommets found in the hardware

Remember the screws that

you kept after removing the

shipping blocks (page 6)? You

need them for this step.

www.HunterFan.com

1.888.830.1326

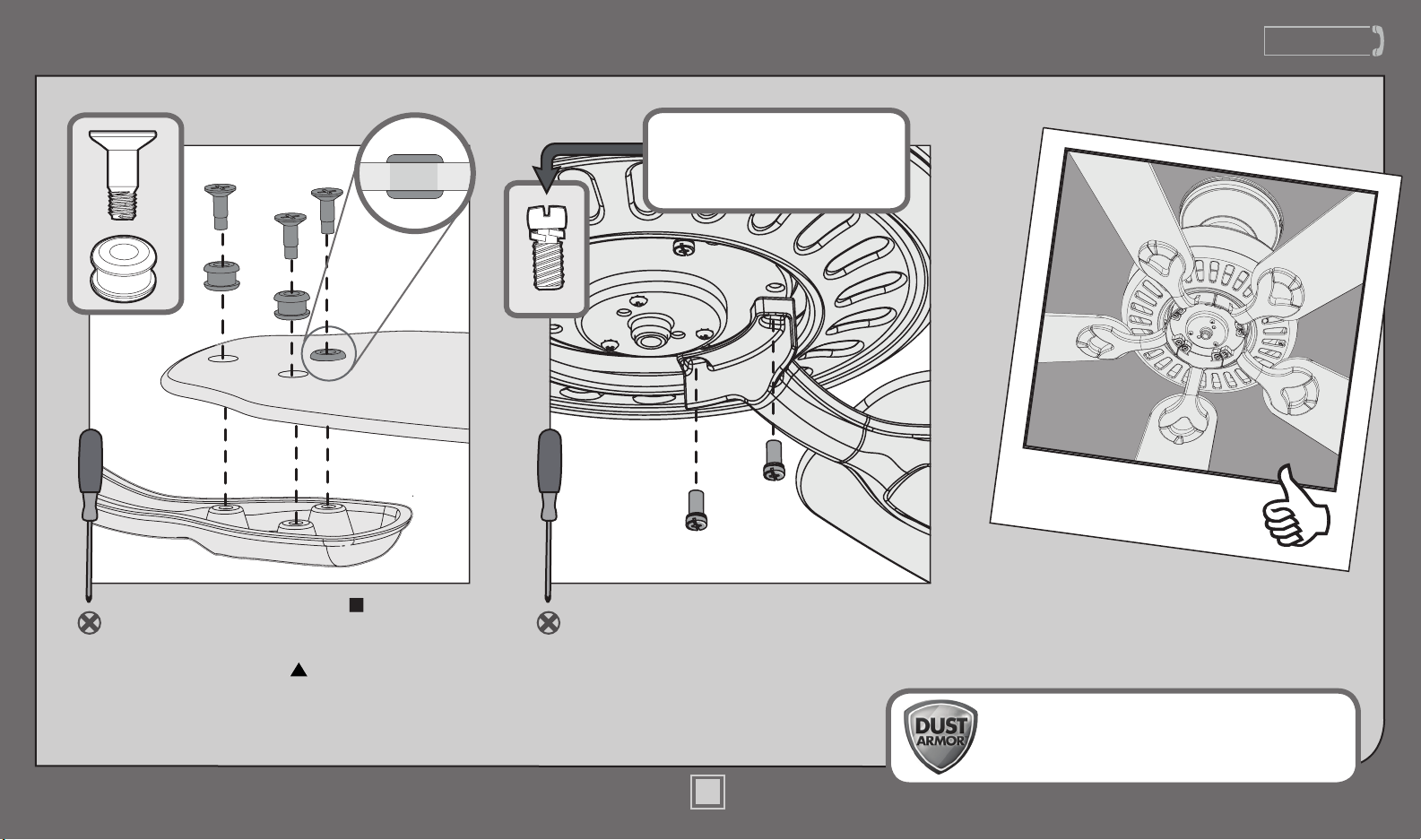

bag into the holes in the blades, then secure each blade to a blade iron with screws found in the hardware bag.

Lightly attach the blade irons to the motor with the blade iron armature

screws, then securely tighten after both

screws are attached.

Your blades are shielded with Dust Armor® which

is a nanotechnology coating that repels dust. For

cleaning the fan, use soft brushes or cloths to prevent

scratching. Cleaning agents may damage the nishes.

M3514-01 • 02/19/13 • © Hunter Fan Company

Page 13

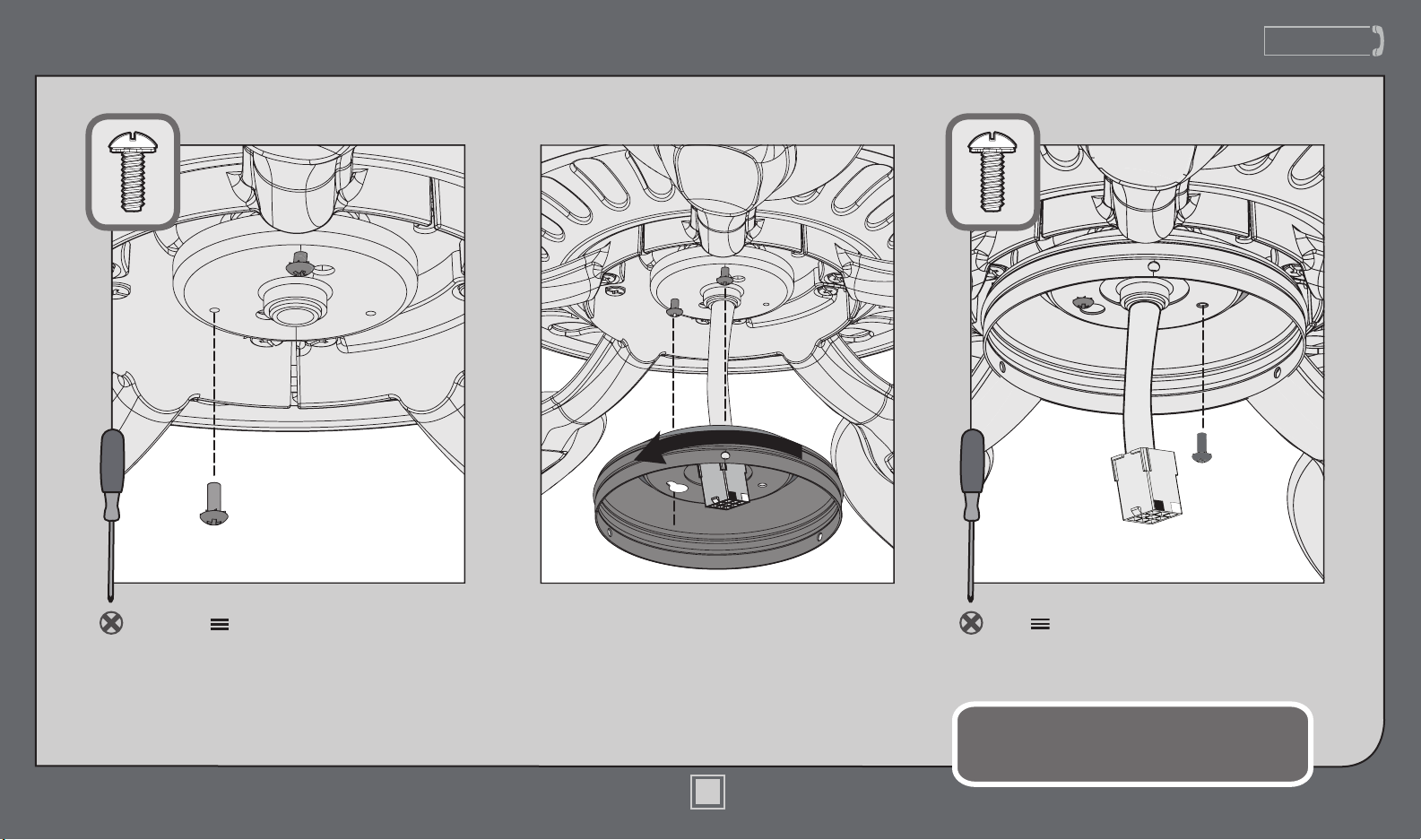

Switch Housing

www.HunterFan.com

1.888.830.1326

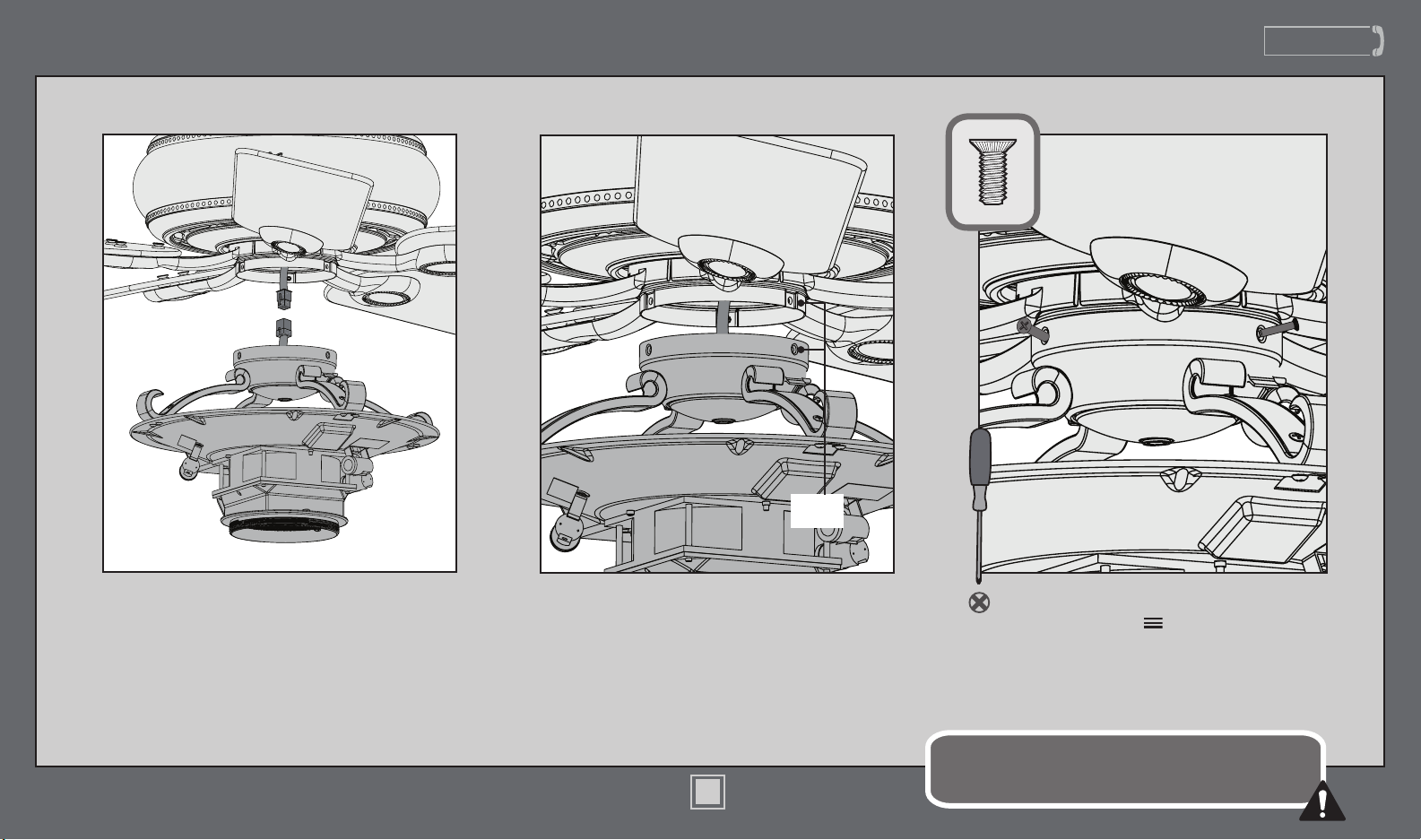

Screw two (2) housing assembly screws from the hardware bag halfway into

the motor housing. It does not matter

which two screw holes you choose.

Feed the wire plug through the center

hole of the upper switch housing, then

wrap keyhole slots around the screws and

twist counterclockwise.

M3514-01 • 02/19/13 • © Hunter Fan Company

Insert the third screw, found in

the hardware bag, into place and then

tighten all three (3) screws.

Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch

housing xture falling.

Page 14

Light Kit

Connect the plugs from the upper and

Screw Holes

www.HunterFan.com

1.888.830.1326

lower switch housings. Make sure to line up

the colored markings on the connectors.

Lift the lower switch housing up until its

screw holes are aligned with the screw holes

in the upper switch housing.

M3514-01 • 02/19/13 • © Hunter Fan Company

Install the three switch housing screws

found in the hardware bag.

Make sure the lower switch housing is securely attached to the upper switch housing. Failure to properly secure all three

assembly screws could result in the light xture falling.

Page 15

Light Kit (continued)

Threaded Portion of Heater Vent

Glass Bowl

Finial

www.HunterFan.com

CONGRATULATIONS!

YOU’RE DONE!

1.888.830.1326

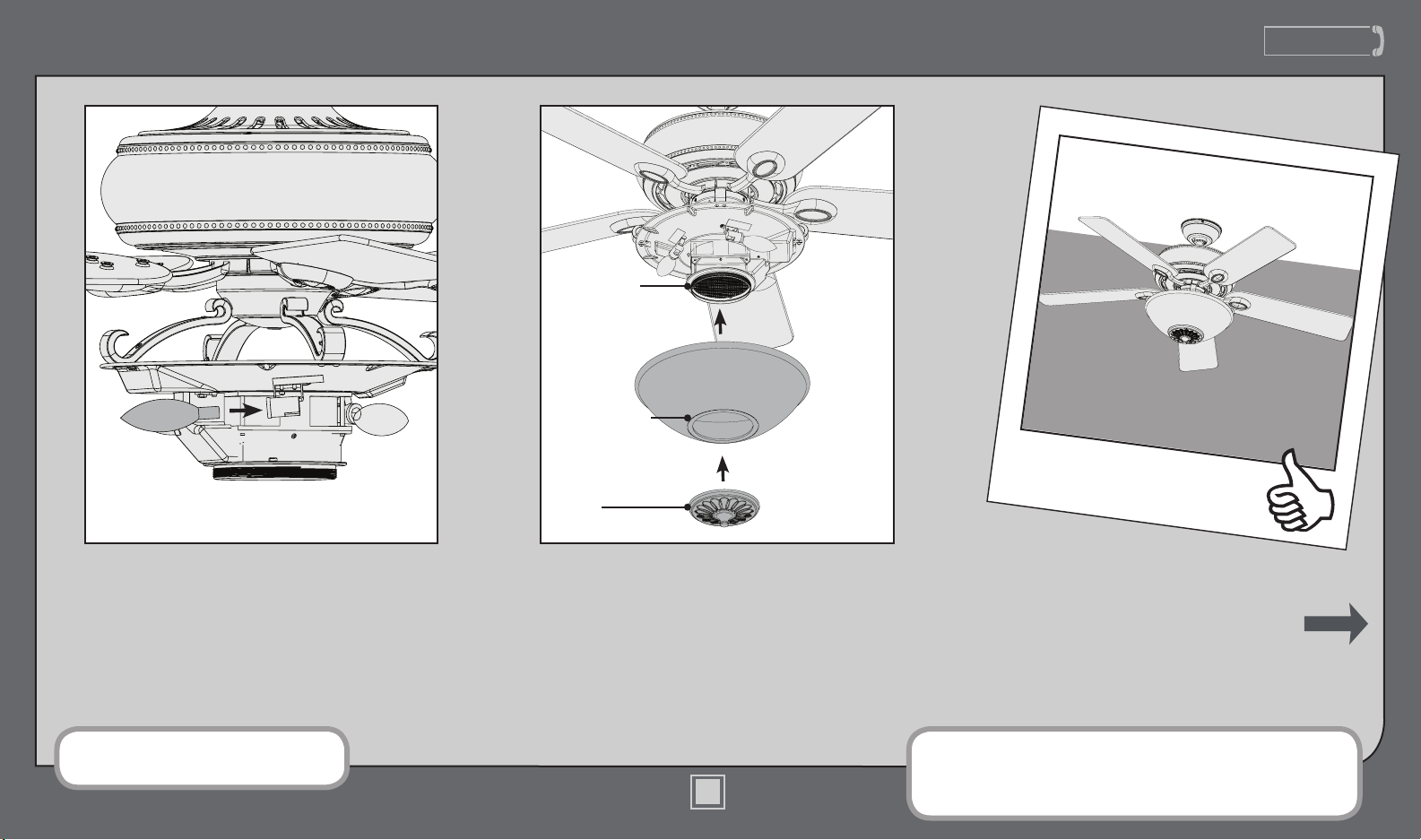

Install a light bulb in each socket.

Note: Do not use CFL bulbs to replace your light

bulbs. Your lights may icker or fail to work.

Note: Globe style and number of

lights may vary.

Place the glass bowl over the heater vent,

ensuring the threaded portion of the heater

vent comes out of the bottom of the glass

bowl. Place the nial over the threaded

portion of the heater vent and twist it to

tighten it against the glass bowl.

See next page for fan operation instructions.

Note: In compliance with US federal energy regulations, this ceiling fan

contains a device that restricts its light output. Exceeding the wattage

limit marked on the MAX wattage sticker afxed to the light socket(s)

may result in re hazard or improper operation.

Page 16

Remote Control

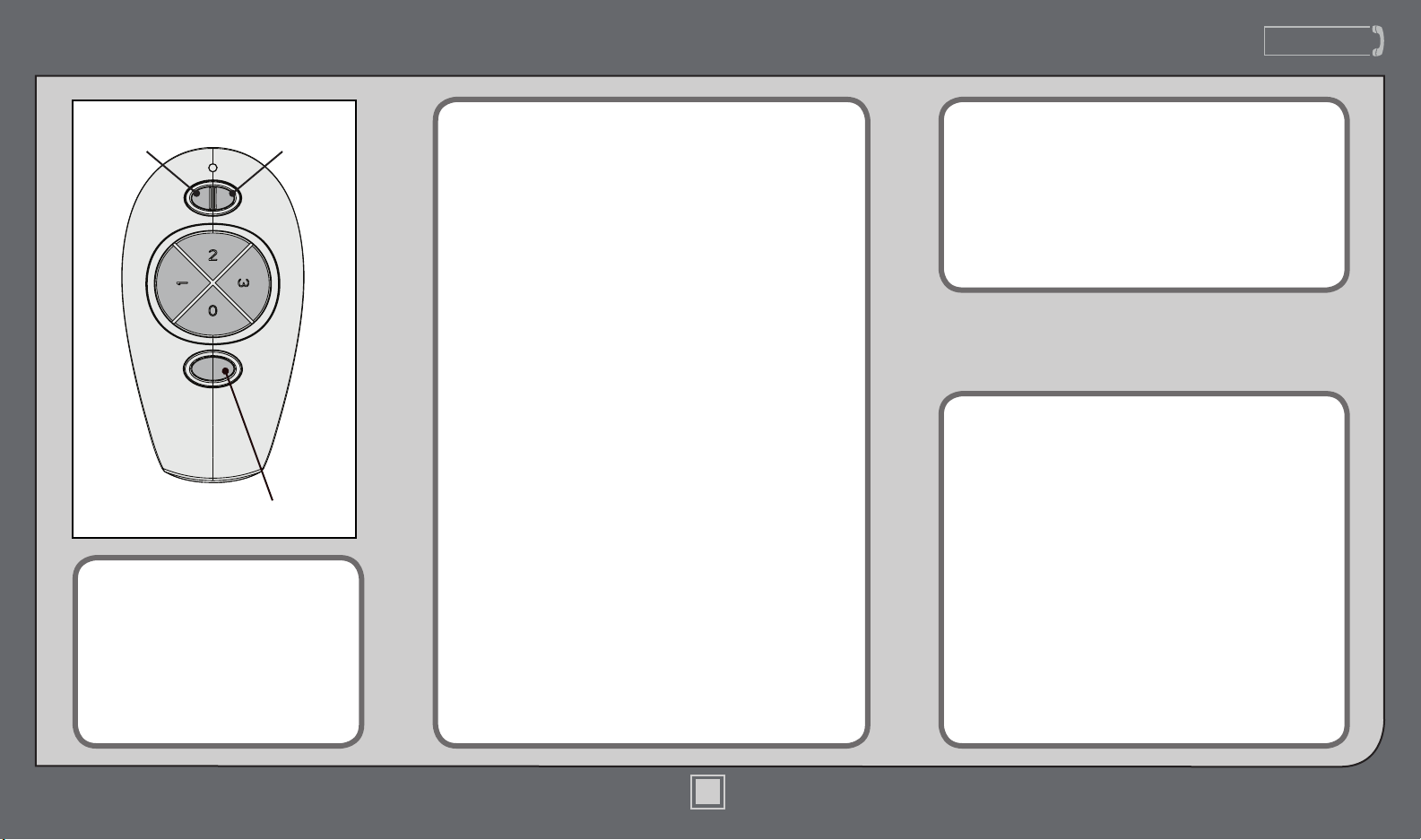

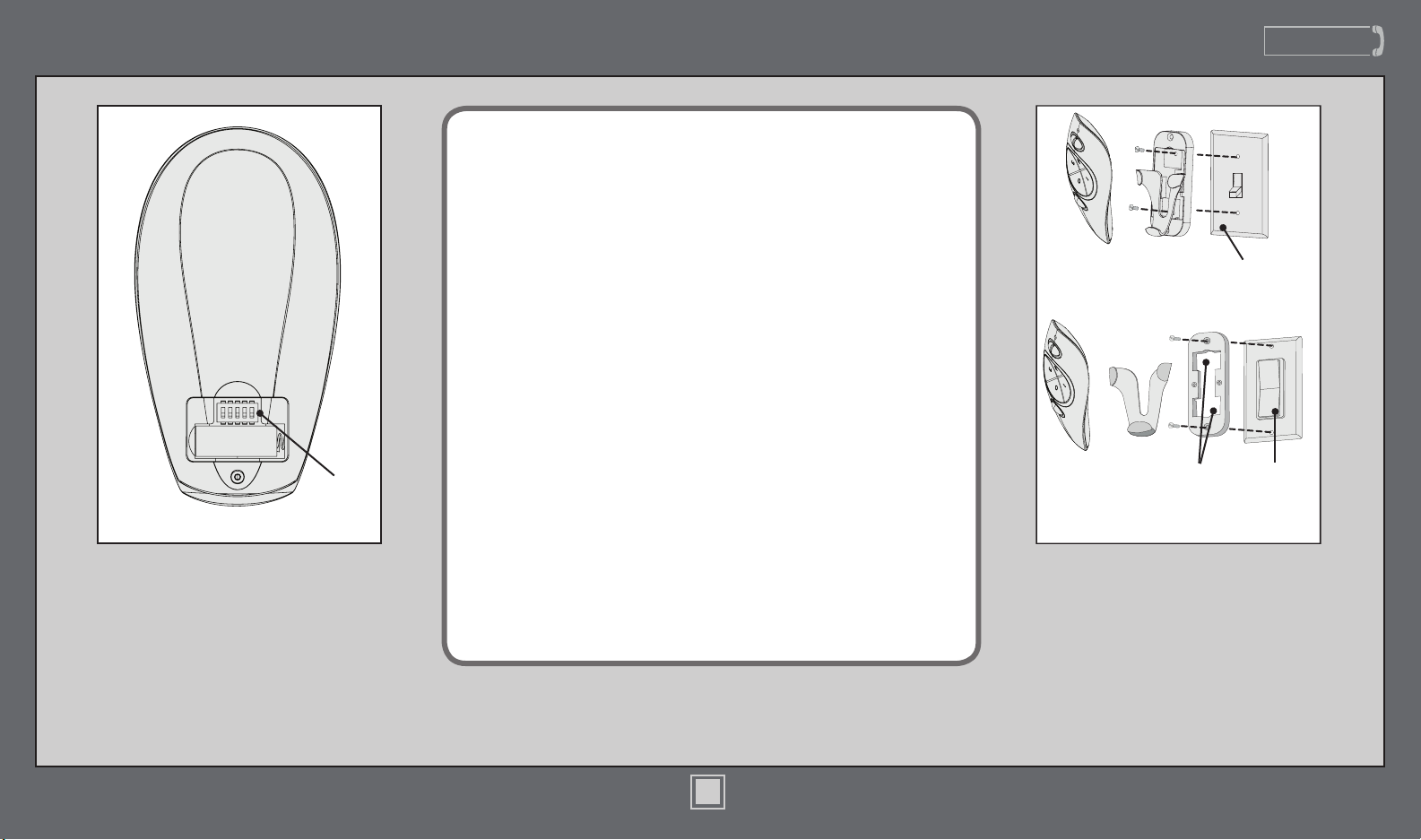

Setting the DIP switches:

You will only have to change the DIP switch settings in the remote if you are using more than one remote controlled fan in the same area and want to control them separately. You may

want to label your remotes to ensure you do not mix them up.

www.HunterFan.com

1.888.830.1326

+ –

DIP

switches

Install one (1) 12-Volt, type 23A, MN-21

battery (included) into the transmitter.

Clean the battery contacts and also

those of the device prior to battery

installation. Ensure the battery is installed correctly with regard to

polarity (+ and -). Please contact your

local battery recycling center for proper

battery disposal information.

1. At the circuit breaker or fuse box, turn the power off for the fan you want to change. Do not turn the power off at the circuit breaker for the previously installed fan, as you may inadvertently change the DIP switch code settings for it as well.

2. Slide the cover off the back of the remote and remove the battery. The battery must be removed when changing DIP switch settings.

3. Change the DIP switch settings, so that they are different from the previously installed fan.

4. Replace the battery and cover.

5. At the circuit breaker or fuse box, turn the power back on for the fan whose settings you are changing.

6. Within 20 seconds of restoring power, push the 3 (high), 2 (medium), and 1 (low) buttons (in that order) on the remote.

Note: The receiver (built into the fan) has a memory function that retains the last DIP switch code setting. The setting will not change in the event of power failure or if the power to the fan is

inadvertently shut off.

Switch

Cover

Plate

Removed Tabs

Rocker-

Style Plate

To install the transmitter cradle, remove

the two screws holding the switch

cover plate. Do not remove the cover

plate. Orient the cradle by lining up

the two mounting holes with those on

the cover plate. Insert and tighten the screws. Do not over tighten. Note: For rocker-style cover plates, break off the

tabs by pushing outward.

Page 17

Remote Control (continued)

www.HunterFan.com

1.888.830.1326

HeaterLight

Reverse Switch

CAUTION:

• Always purchase the correct size and

grade of battery most suitable for the intended use.

• Clean the battery contacts and also those

of the device prior to battery installation.

• Ensure the batteries are installed

correctly with regard to polarity (+ and -).

• Remove batteries from equipment which is

not to be used for an extended period of time.

• Remove used batteries promptly.

Fan Operation:

To start the fan, press the speed button on the remote at the level you desire:

• 3 for high

• 2 for medium

• 1 for low

To turn off the fan, press 0.

Light Operation:

The light button is used to turn on, dim, and turn off the light.

To Turn the light on:

• Press the light button 1 time and the light will come on to the previously set level.

To dim the light:

• Press and hold the light button until the light has reached the desired level. (As you hold the button, the light level will move throughout its entire range within 16 seconds.) Release the button at the desired level.

To Turn the light off:

• Press the light button 1 time for gradual off and the light will dim automatically for approximately 20 seconds until all the way off to allow for safe exit from the room.

• Press the light button 2 times or 1 time while the

light is dimming for instant off.

Auto Resume Feature

This fan contains a receiver with an auto resume feature. The receiver remembers the intensity of the light, speed and direction of the fan, and whether the heater is on or off. When power is restored to the receiver, the fan, light, and heater will be at the previous settings.

Heater Operation:

The heater button is used to turn on, and off the heater.

• Press the heater button 1 time to turn the

heater on.

• Press the heater button again to turn the

heater off.

Note: Regardless of the speed setting on the fan, when the ceiling fan is operating and the heater function is turned ON, the ceiling fan automatically switches to low-speed updraft only and will not accept any commands from the remote until the heater is turned off.

Page 18

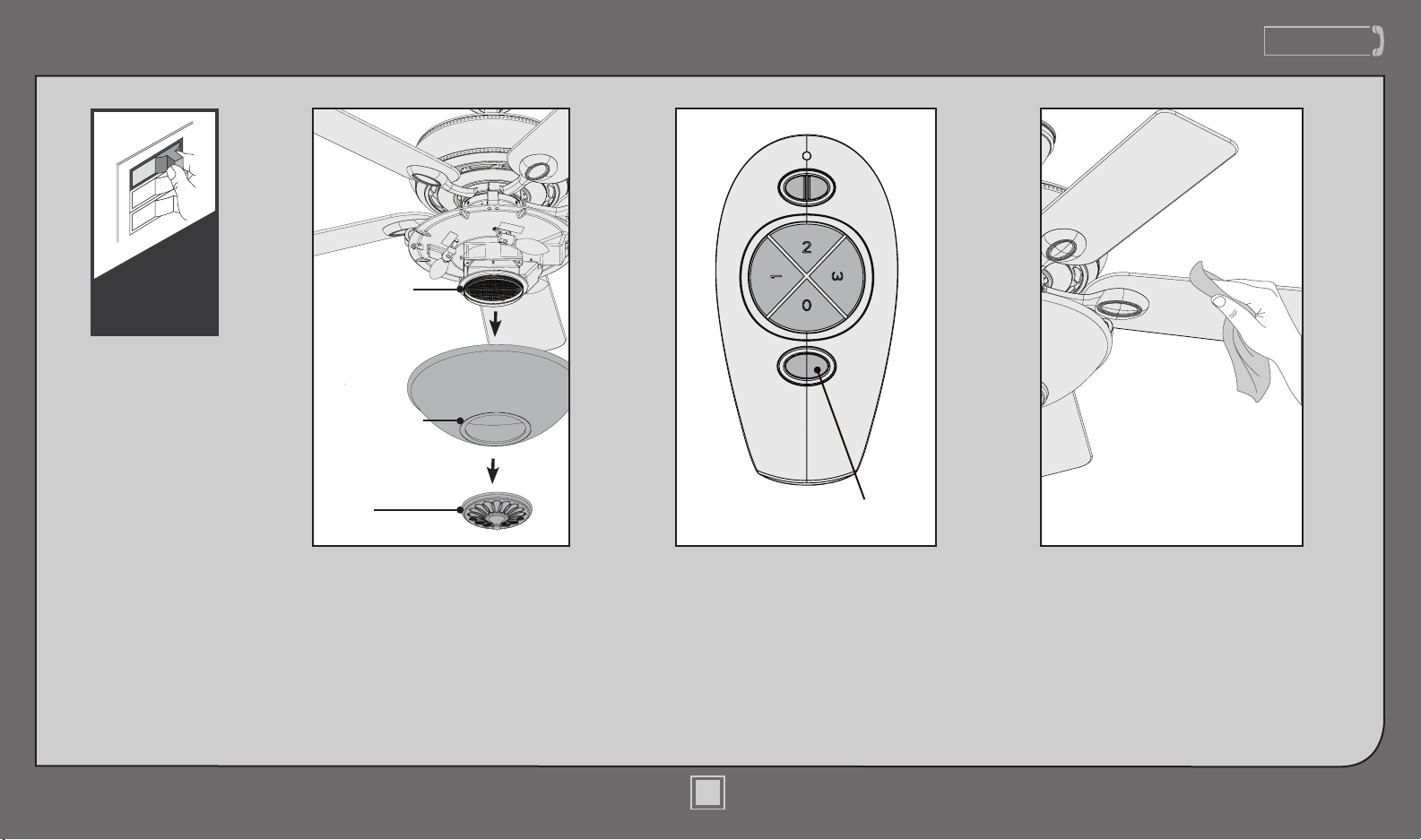

Maintenance & Cleaning

www.HunterFan.com

1.888.830.1326

Turn Power

Threaded Portion of Heater Vent

Glass Bowl

Finial

Changing the bulbs - unscrew the

nial and remove it from the heater

vent while supporting the glass

bowl with your other hand. Carefully

remove the glass bowl. Unscrew

bulbs and replace with bulbs of same

type and wattage. Reinstall the glass

bowl assembly.

Reverse Switch

Changing the direction of air

ow - press the reverse switch.

Cleaning the fan - use soft

brushes or cloths to prevent

scratching. Cleaning products

may damage the nishes.

Page 19

Troubleshooting

www.HunterFan.com

1.888.830.1326

Fan doesn’t work

• Make sure power switch is on.

• Pull the pull chain to make sure

it is on.

• Push the motor reversing switch rmly left or right to ensure that

it is engaged.

• Check the circuit breaker to ensure the power is turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit

breaker, then loosen the canopy and check all the connections according to the wiring diagram on page 10.

• Check the plug connection in the switch housing.

Excessive wobbling

• Tighten all of the blade and blade iron screws until they are snug.

• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated.

• Use the provided balancing kit and instructions to balance the fan.

Noisy Operation

• Tighten the blade and blade iron screws until they are snug.

• Check to see if any of the blades are cracked. If so, replace all of the blades.

Lights dim when turned on or do not turn on at all.

• Make sure the wattage of the light bulbs installed matches

the specications on the light

sockets.

Hunter 59033 52 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
