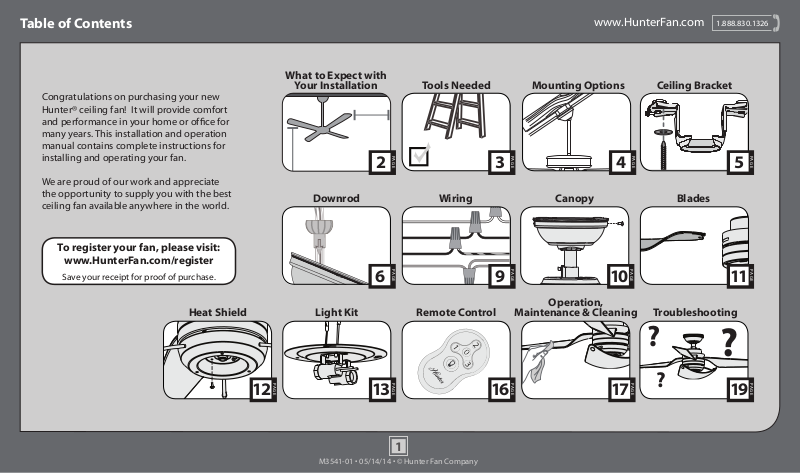

Table of Contents
www.HunterFan.com
1.888.830.1326
Congratulations on purchasing your new
Hunter® ceiling fan! It will provide comfort
and performance in your home or ofce for
many years. This installation and operation
manual contains complete instructions for
installing and operating your fan.
We are proud of our work and appreciate
the opportunity to supply you with the best
ceiling fan available anywhere in the world.
To register your fan, please visit:
www.HunterFan.com/register
Save your receipt for proof of purchase.
Heat Shield Light Kit
What to Expect with
Your Installation
2
6
Tools Needed
PAG E
PAG E
Remote Control
Mounting Options
PAG E
3
Wiring CanopyDownrod
PAG E
9
Operation,
Maintenance & Cleaning
4
10
Ceiling Bracket
PAG E
Blades
PAG E
Troubleshooting
PAG E
5
PAG E
11
?
?
12
PAG E
13
PAG E
PAG E
16
17
PAG E
?
PAG E
19
1
M3541-01 • 05/14/14 • © Hunter Fan Company
Page 2
What to Expect with Your Installation
If you are unfamiliar
with wiring, use a
qualied electrician.
Must be able to
secure the fan to
building structure or
fan-rated outlet box
You may need a
friend to help you.
Check box to see
fan weight
Know your wiring
Ceiling angles greater
than 34° will require an
Angled Mounting Kit.
See page 4 for details.
Assess ceiling angle
30 inches
from blade tip
to nearest wall
or obstruction
from bottom
edge of blade
Assess location
Standard Downrod
1
for ceilings 8-10 feet high
Longer Downrod
2
for ceilings 10 feet or higher
Select a downrod length
7 feet
to the oor
www.HunterFan.com
1.888.830.1326
Read and Save These Instructions
This product conforms to UL Standard 507.
WARNINGS
w.1 - To reduce the risk of re, electrical shock, or personal
injury, mount fan directly from building structure and/or an
outlet box marked acceptable for fan support of 70 lbs (31.8 kg)
and use the mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or
servicing your fan, disconnect the power by turning off the
circuit breakers to the outlet box and associated wall switch
location. If you cannot lock the circuit breakers in the off
position, securely fasten a prominent warning device, such as a
tag, to the service panel.
w.3 - To reduce the risk of re, electrical shock, or motor damage,
use only Hunter Speed Controls.
w.4 - To reduce the risk of personal injury, do not bend the blade
brackets when installing the blade brackets, balancing the blades,
or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
CAUTIONS
c.1 - All wiring must be in accordance with national and local
electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring,
use a qualied electrician.
c.2 - Use only Hunter replacement parts.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and if not
installed and used in accordance with the instructions may cause
harmful interference to radio communications.
2
M3541-01 • 05/14/14 • © Hunter Fan Company
Page 3
Tools Needed
www.HunterFan.com
1.888.830.1326
Ladder
Pliers Wire Strippers
Power Drill
(optional)
If mounting to a support structure, you will also need these tools.
9/64” Drill Bit
(optional)
3
M3541-01 • 05/14/14 • © Hunter Fan Company
Screwdrivers
Page 4
O
34
CEILING
Mounting Options
www.HunterFan.com
www.HunterFan.com
1.888.830.1326
1.888.830.1326
OPTION
If you have a at ceiling:
WALL
Hang your fan by a standard downrod (included).
Standard
Mounting
1
Support
Structure
Support
Structure
OPTION
If you have an angled ceiling:
1. You will need a longer downrod (sold separately).
2. If your ceiling angle is greater than 34°, you will
also need an Angled Mounting Kit (sold separately).
Use the three steps below to determine if your ceiling angle is greater than 34°
Angled
Mounting
2
Standard
Mounting
Style
Ceiling
Outlet Box
(required)
Angled
Mounting
Style
Ceiling
Outlet Box
(required)
FOLD
on dotted line
1
N
O
I
T
A
U
T
I
S
1
34°
Guide Touches
BOTH Ceiling & Wall
You need ONLY
a Longer
Downrod
*most common
2 3
PLACE
against wall
2
N
O
I
T
A
U
T
I
S
Guide Touches
but NOT Ceiling
You need BOTH
a Longer
Downrod &
an Angled
Mounting Kit
SLIDE
toward ceiling
Wall
4
4
M3541-01 • 05/14/14 • © Hunter Fan Company
M3541-01 • 05/14/14 • © Hunter Fan Company
Use Standard Mounting
to hang the fan from a at ceiling.
Use Angled Mounting
to hang the fan from a
vaulted or angled ceiling.
Page 5
Ceiling Bracket
Turn Power
OFF
For angled ceilings, point
opening toward peak.
www.HunterFan.com
1.888.830.1326
Make sure all four bumpers are
still attached.
Refer to warning w.1 on pg. 2
If you are unable to do this,
call Technical Support at
1-888-830-1326.
M3541-01 • 05/14/14 • © Hunter Fan Company
Use wood screws
(included) when securing
to support structure with
approved electrical outlet
box. Drill 9/64” pilot holes
in support structure to aid
in securing ceiling bracket
with hardware found in
the hardware bag.
5
Use machine screws
(provided with outlet
box) when securing to
existing ceiling fan-rated
outlet box. Make sure
it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
Page 6
Downrod
www.HunterFan.com
1.888.830.1326
Standard
Downrod
for ceilings 8-10’ high
Option 1
Included
(pre-assembled)
Longer
Downrod
for angled
ceilings or
Option 2
ceilings 10’ or
higher
skip to next page
If you need a different downrod length follow these steps:
Steps 1-5 to remove standard downrod pipe
1 2 3 4 5
Slide
Slide
678910
Sold Separately
Steps 6-10 to reassemble with new pipe
6
M3541-01 • 05/14/14 • © Hunter Fan Company
Page 7
Downrod (continued)
www.HunterFan.com
1.888.830.1326
KEEP!
E
E
P
K
!

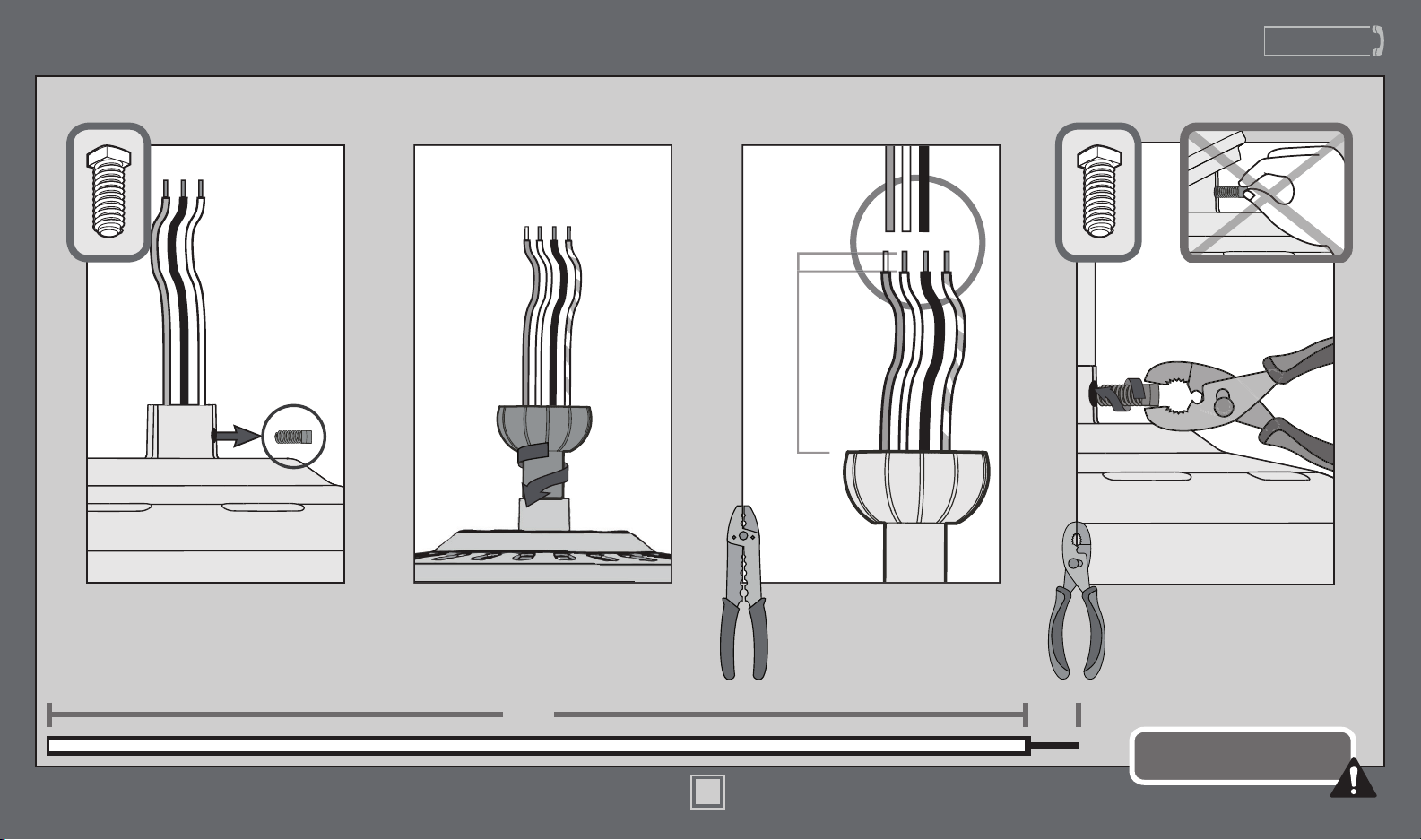

Remove the pre-installed
setscrew so that the downrod
can be inserted.
Hand tighten the downrod (at
least 4-5 full turns) until it stops.
8”
M3541-01 • 05/14/14 • © Hunter Fan Company
3/8”
T
U
C
P
I
R
T
S
&
8”
(not to scale)
The wires can be cut, but
leave at least 8” extending
from the top of the downrod.
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
3/8”
If the setscrew is not tightened
securely, the fan may fall.
7
Page 8
Downrod (continued)
DO NOT PICK THE FAN UP BY THE

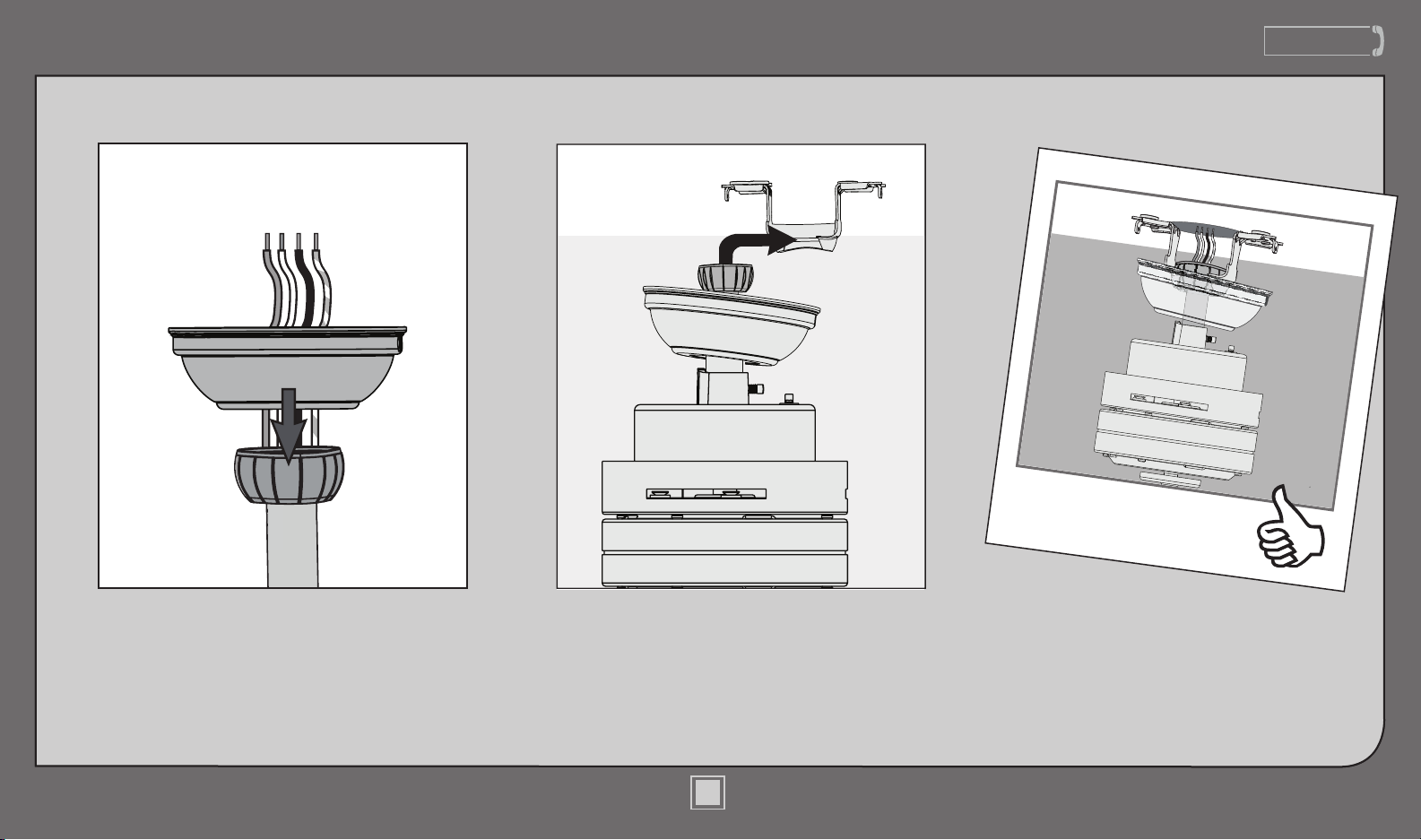

Put the wires and downrod through the
canopy. Let the canopy sit loosely on top
www.HunterFan.com
1.888.830.1326
of the fan.
CANOPY OR WIRES. Place the downrod
ball into the slot in the ceiling bracket.
8
M3541-01 • 05/14/14 • © Hunter Fan Company
Page 9
Wiring
F
A
M
N
O
R
F

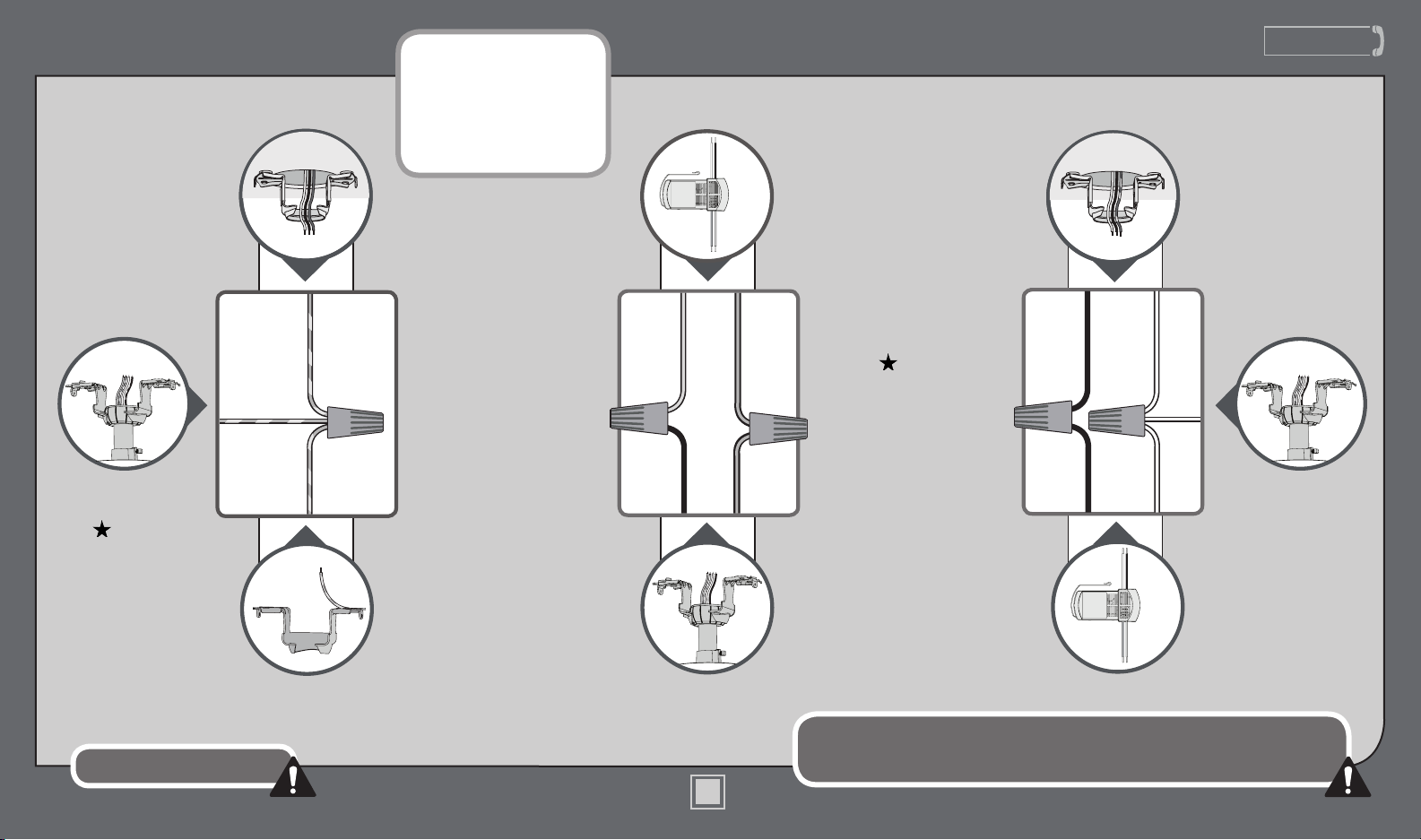

Using an orange wire
connector from
the hardware
bag, connect the
3 grounding wires
(green, green/yellow
stripe, or bare copper)
coming from the
ceiling, downrod, and
hanging bracket.
M
O
R
F
stripe (grounding)
green/yellow stripe
stripe
F
R
O
M
C
E
I
L
Note: To connect the
www.HunterFan.com
1.888.830.1326
wires, hold the bare
metal leads together and
E
C
I
L
I
N
G
place a wire connector
over them, then twist
E
C
R
E
I
M
O
R
F
V
E
R
E
C
I
L
M
I
O
R
F
N
G
clockwise until tight.
green/yellow
Using the orange
wire connectors
from the remote
control hardware
bag, connect the blue
wire from the receiver
green/yellow
to the blue wire (or
possibly black with
white stripe wire) from
the fan. Connect the
yellow wire from the
receiver to the black
wire from the fan.
T
E
K
C
A
R
B
I
G
N
yellow
black
F
blue
Using the orange wire
connectors from
black
(ungrounded)
white (grounded)
F
A
M
N
O
R
F
the hardware bag,
connect the black wire
(ungrounded) from
white
the ceiling to the black
blue
wire from the receiver.
Connect the white
black
white
wire (grounded) from
the ceiling to both the
white wire from the
receiver and the white
wire from the fan.
F
R
R
N
O
A
F
M
O
M
R
R
E
V
I
E
C
E
Refer to CAUTION c.1 on pg. 2
Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the outlet box.
9
M3541-01 • 05/14/14 • © Hunter Fan Company
Page 10
Canopy
Screw
Holes
www.HunterFan.com
1.888.830.1326

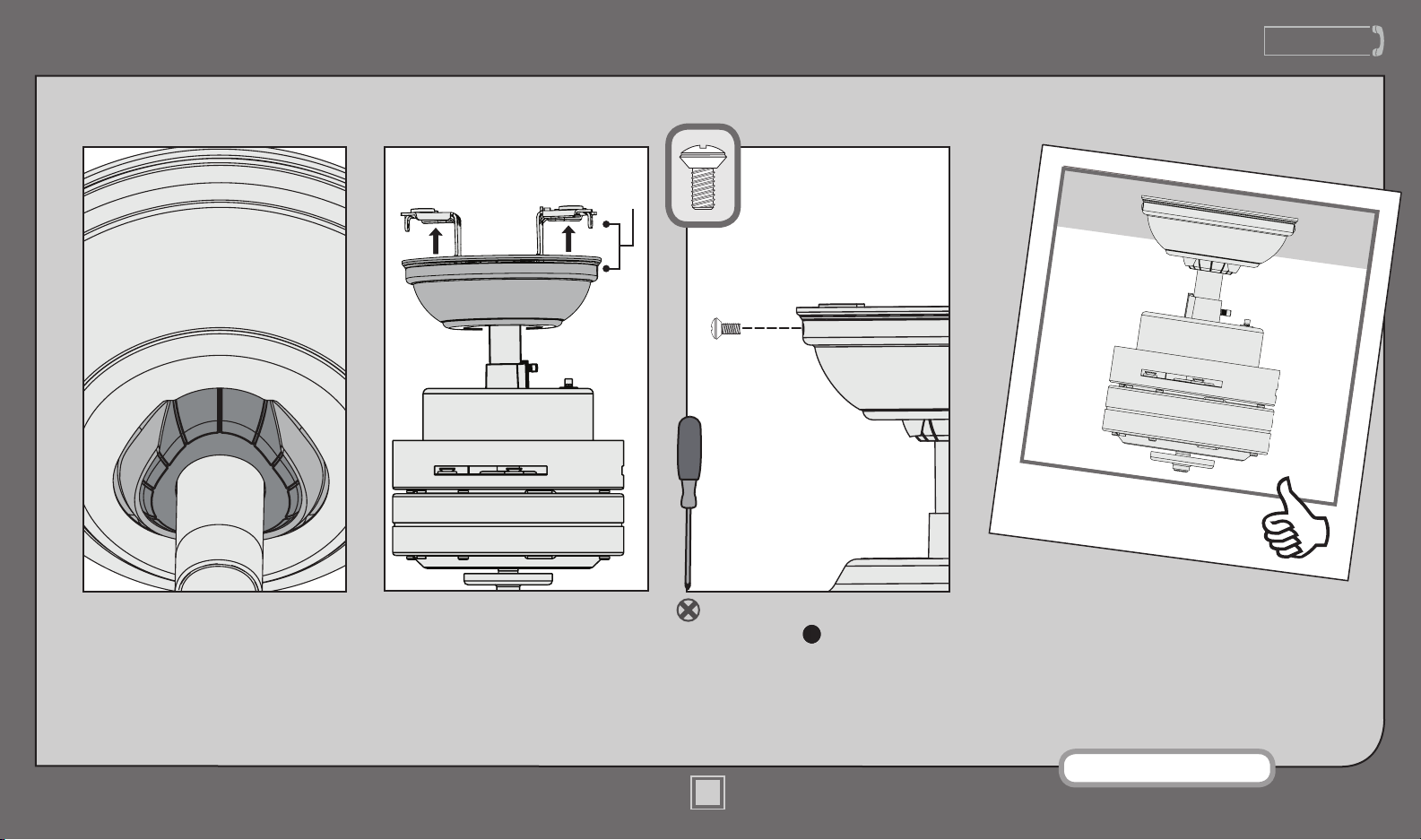

Position the canopy so that, when
lifted into place, the canopy ts into
the hanging bracket as shown.
Lift the canopy into place so that
the screw holes are aligned.
M3541-01 • 05/14/14 • © Hunter Fan Company
Install the two canopy screws,
found in the hardware bag.
Note: Fan style may vary.
10
Page 11
Blades
www.HunterFan.com
1.888.830.1326

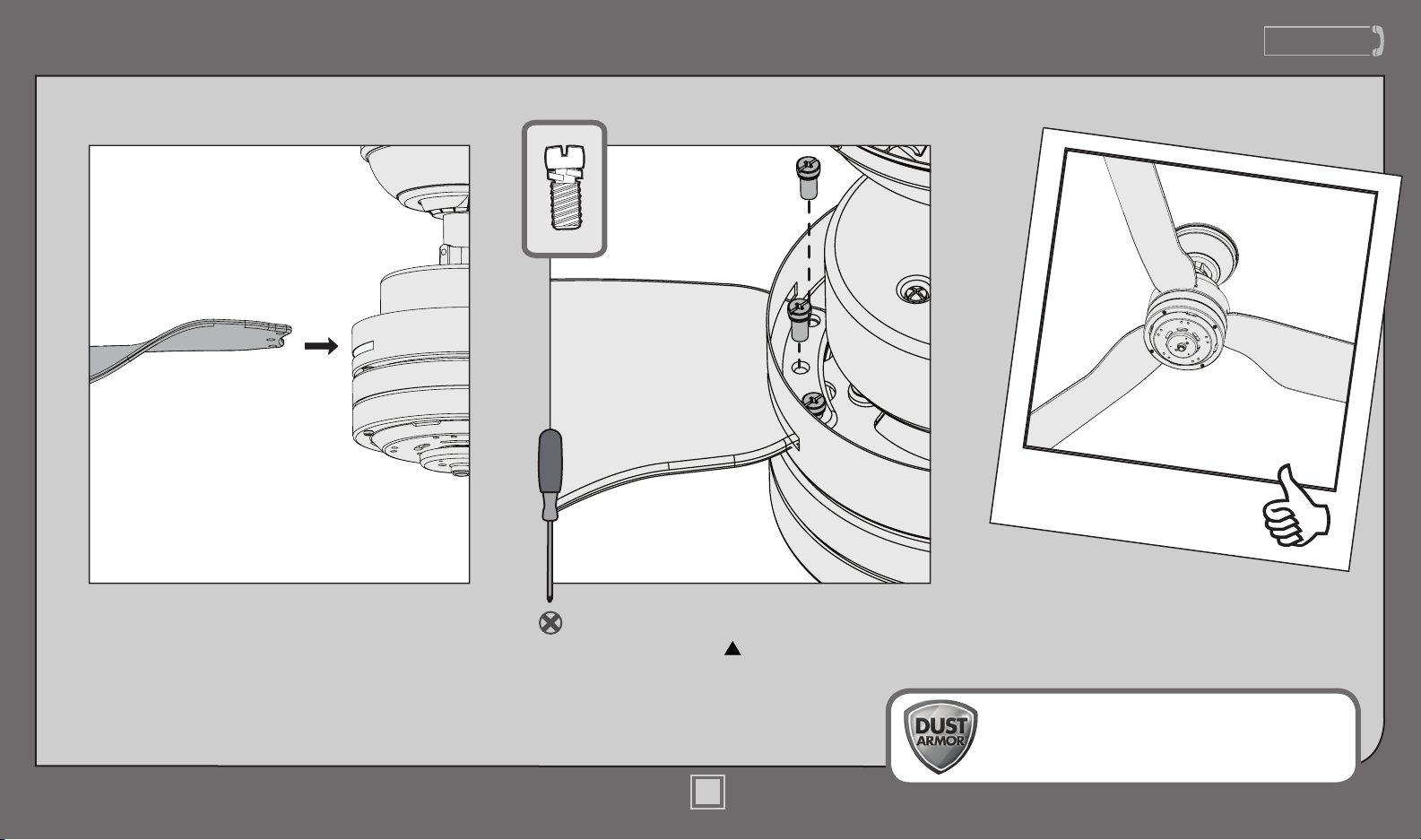

Insert each blade into a slot. Align the holes on
the blade with the holes on the blade ring.
Attach the blade to the blade ring
using the blade assembly screws,
found in the hardware bag.
Your blades are shielded with Dust Armor® which
is a nanotechnology coating that repels dust. For
cleaning the fan, use soft brushes or cloths to prevent
scratching. Cleaning agents may damage the nishes.
11
M3541-01 • 05/14/14 • © Hunter Fan Company
Page 12
Heat Shield
Machine Screw
www.HunterFan.com
1.888.830.1326

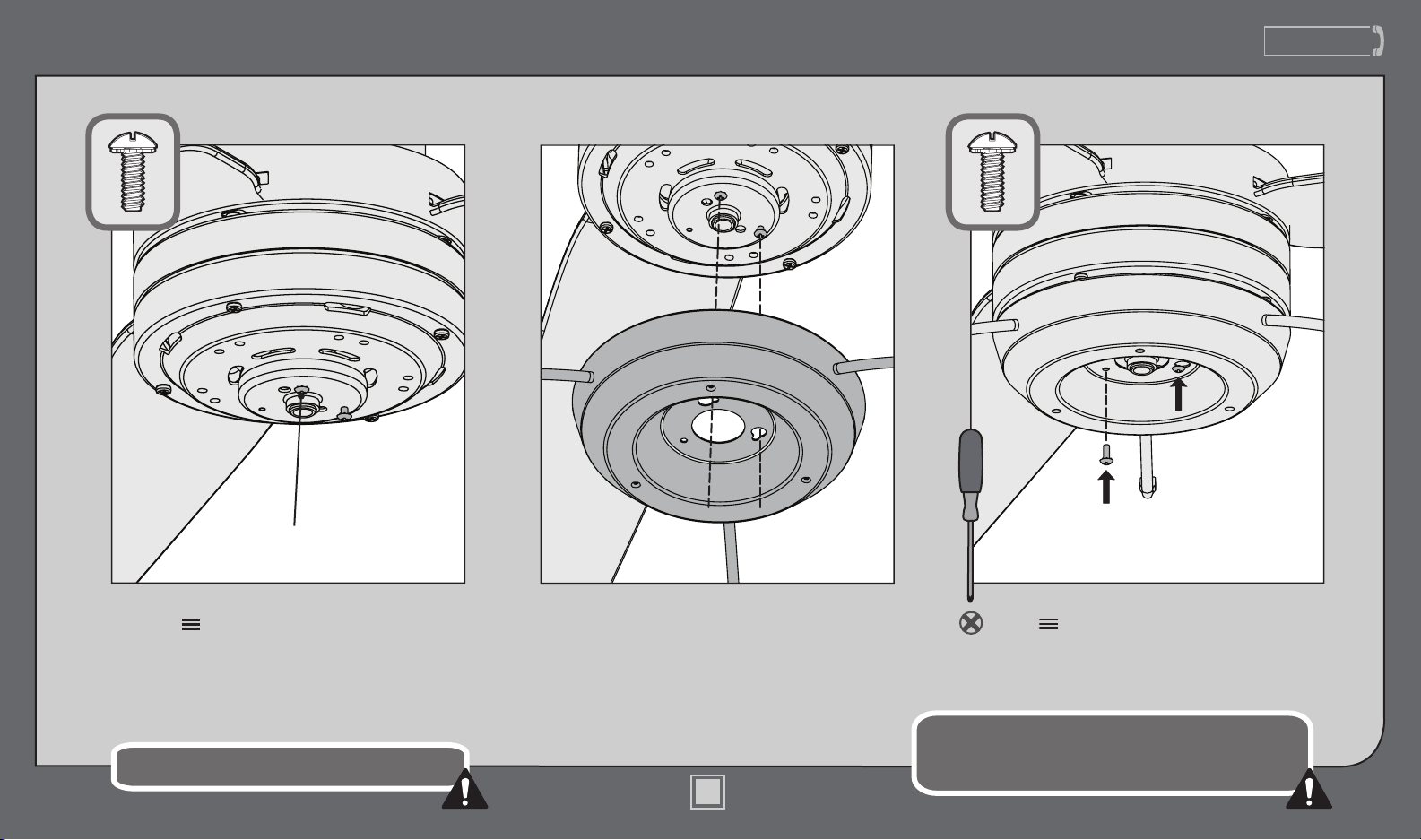

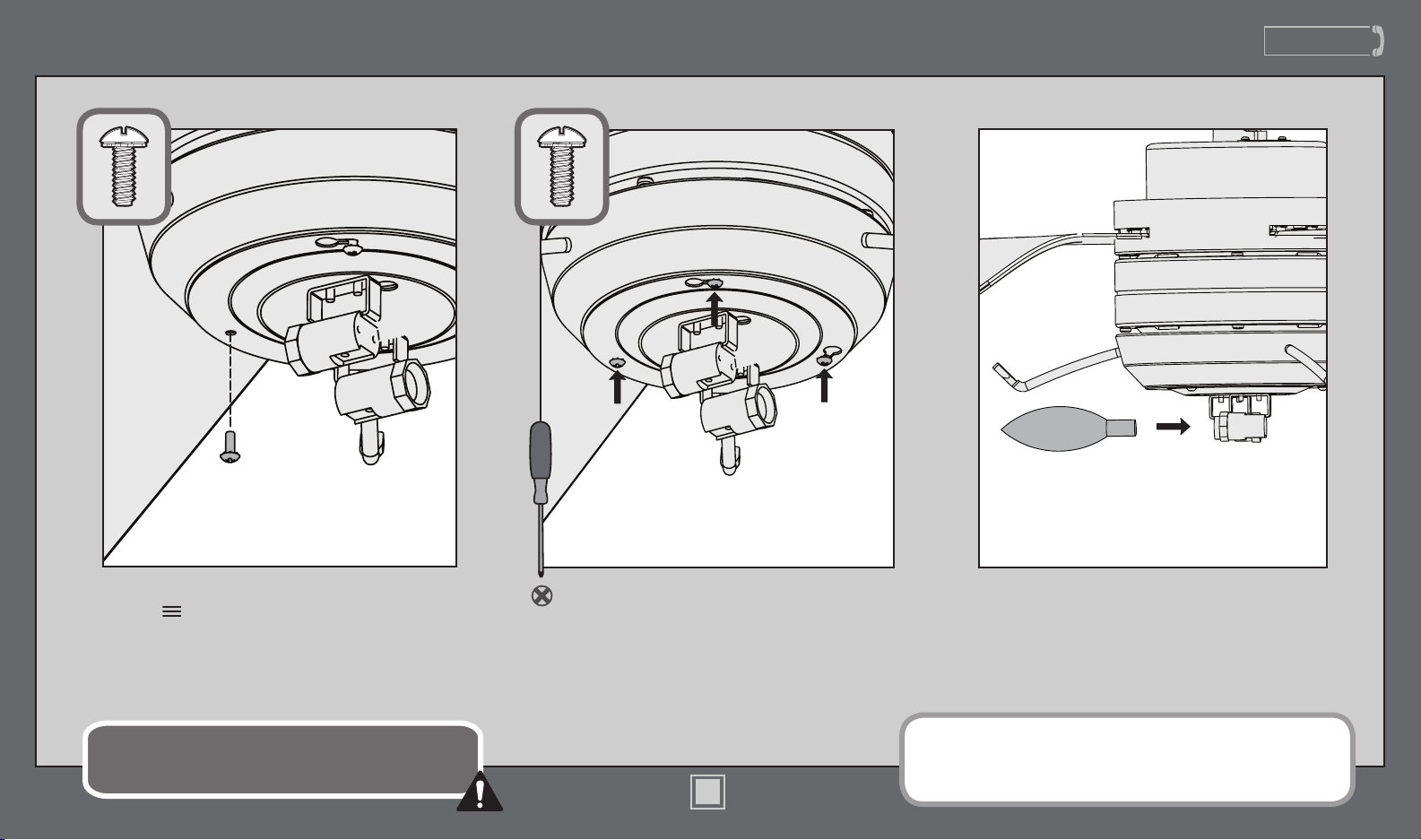

Partially install two machine screws, found
in the hardware bag, halfway into the
motor housing. It does not matter which
two screw holes you choose.
Use only the light xture supplied with this fan model.
Feed the wires through the center
hole of the heat shield, then wrap the
keyhole slots around the screws and
twist counterclockwise.
12
M3541-01 • 05/14/14 • © Hunter Fan Company
Insert the third screw, found in
the hardware bag, into place and
then tighten all three screws.
Make sure the heat shield assembly is securely attached to
the housing mounting plate. Failure to properly attach and
tighten all three assembly screws could result in the heat
shield assembly and light xture falling.
Page 13

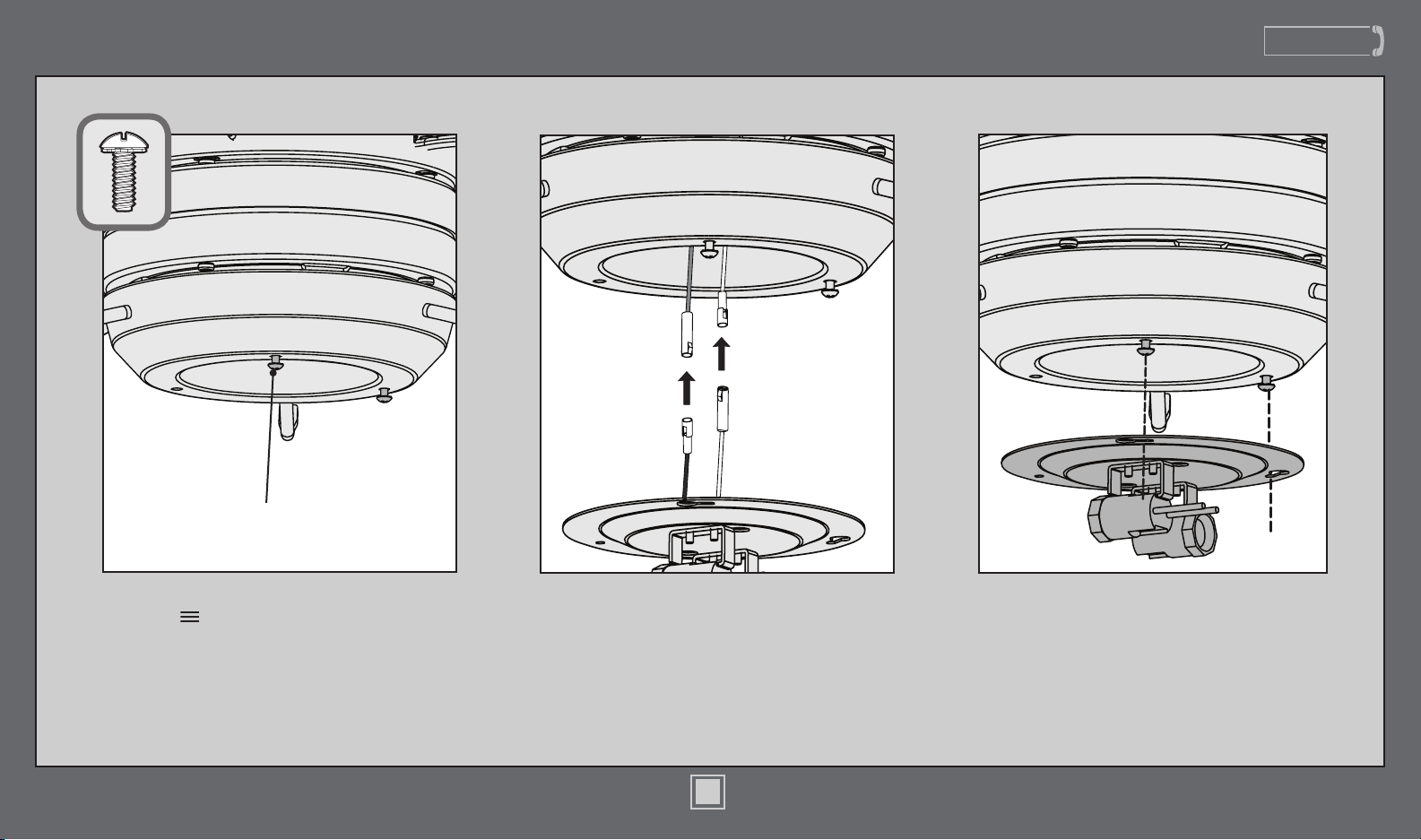

Light Kit
Machine Screw
www.HunterFan.com
1.888.830.1326
Partially install two machine screws, found
in the hardware bag, into the screw
holes in the heat shield.
Connect the plug connectors between
the black wire coming from the light kit
and the blue wire coming from the motor
housing. Connect the plug connectors
between the white wire coming from the
light kit and the white wire coming from
the motor housing.
13
M3541-01 • 05/14/14 • © Hunter Fan Company
Align the keyholes in the light kit assembly
with the two machine screws. Lift the light
kit assembly and turn it counter clockwise
until the screws are resting in the narrow
end of the keyhole slots.
Page 14
Light Kit (continued)
www.HunterFan.com
1.888.830.1326
Install the third machine screw, found in
the hardware bag, into the light kit.
Make sure the light kit is securely attached to the heat shield.
Failure to properly secure all three assembly screws could
result in the light xture falling.
Tighten all three screws securely. Install a light bulb in each socket.
Note: Do not use CFL bulbs to replace
your light bulbs. Your lights may icker
or fail to work.
Note: In compliance with US federal energy regulations, this ceiling fan
contains a device that restricts its light output. Exceeding the wattage
limit marked on the MAX wattage sticker afxed to the light socket(s)
14
M3541-01 • 05/14/14 • © Hunter Fan Company
may result in re hazard or improper operation.
Page 15

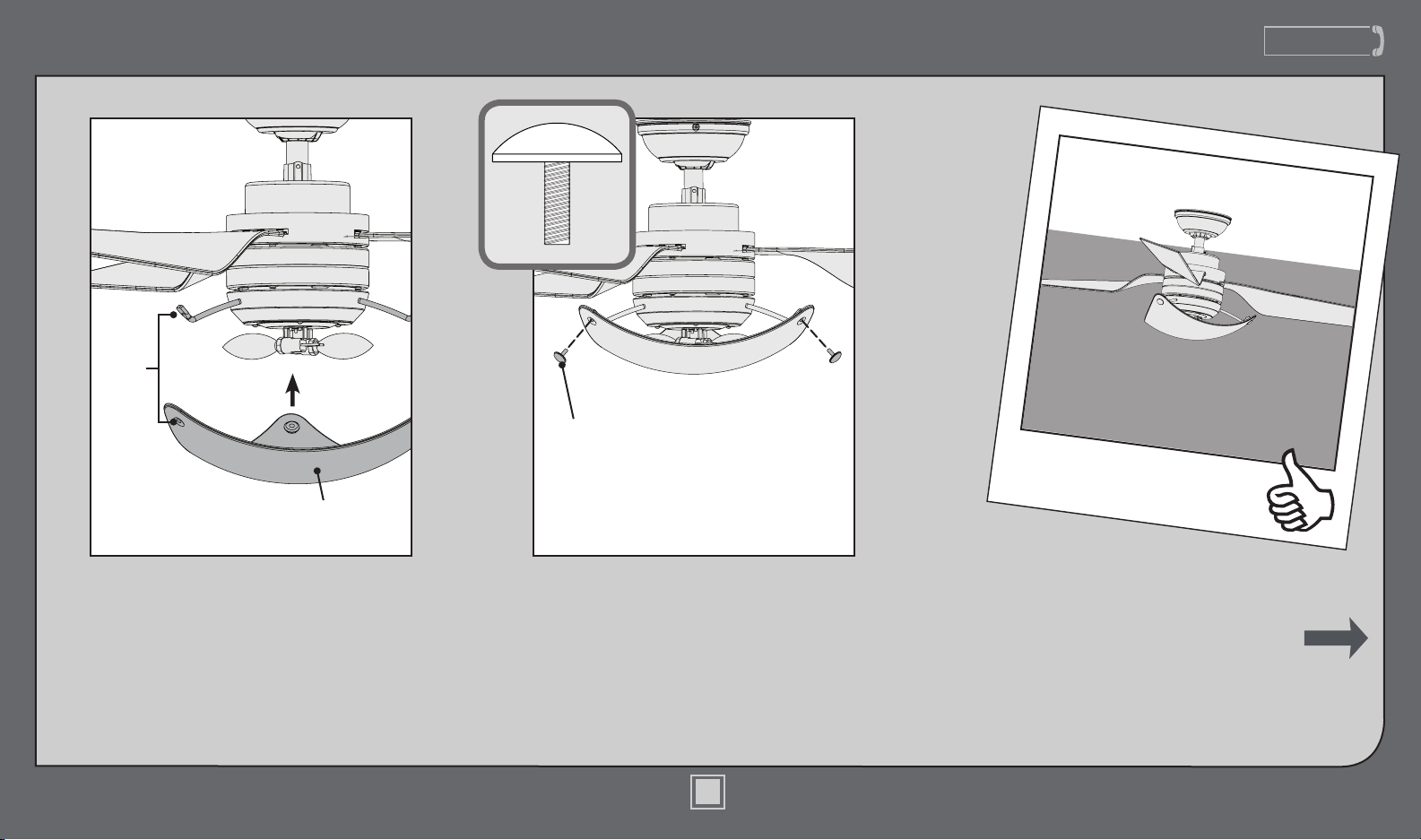

Light Kit (continued)
Screw
Holes
Glass Bowl
Decorative
Screw
www.HunterFan.com
CONGRATULATIONS!
YOU’RE DONE!
1.888.830.1326
Lift the glass bowl and align the screw
holes in the glass bowl with the screw
holes in the metal rods coming from
the heat shield.
Install the decorative screws into the metal
rods to secure the glass bowl in place.
15
M3541-01 • 05/14/14 • © Hunter Fan Company
See next page for remote
operation instructions.
Page 16

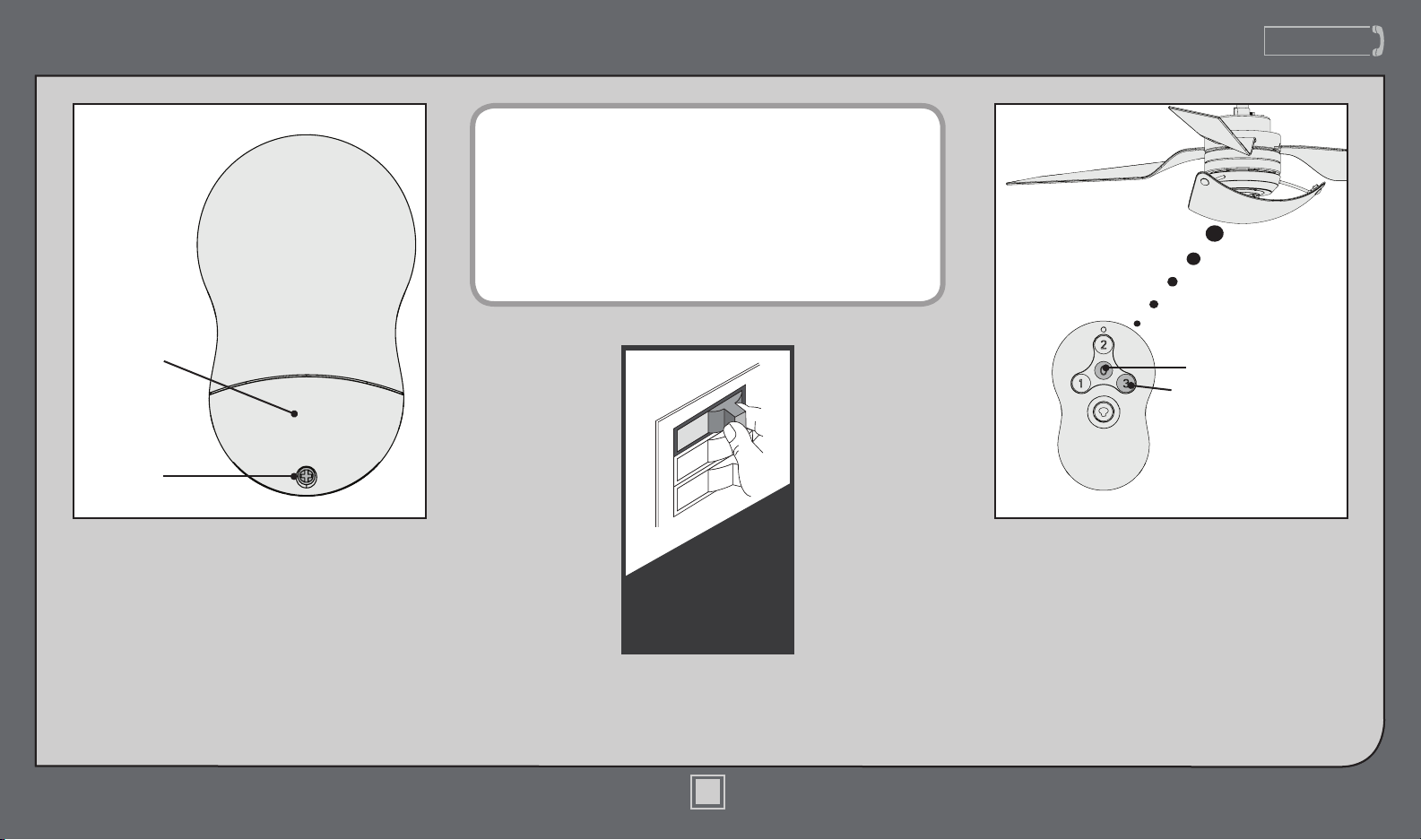

Remote Control
If you are installing multiple remote-controlled fans on
the same circuit breaker, you may need to perform a few
extra steps to prevent interference or faulty operation of
your remote controls.
Go to www.HunterFan.com/FAQs and click
“How do I properly install multiple remote-controlled fans?”
for more information.
www.HunterFan.com
1.888.830.1326
Battery
Door
Phillips
Head
Screw
To access the battery compartment, remove
the small Phillips head screw that secures the
battery door to the transmitter assembly. The
battery should be installed with the positive
(+) side up. Replace with a CR2032 battery
when necessary.
Turn Power
ON
16
16
M3541-01 • 05/14/14 • © Hunter Fan Company
Fan Off
High
Note: The remote must be paired before
the fan will operate.
Within 3 minutes of restoring power to
the fan, press both the Fan Off button and
the High button for at least 4 seconds. Your
fan will turn on low to indicate successful
syncing. If it does not, turn off power to your
fan, wait 1 minute then try again. If using the
transmitter with multiple fans, repeat this
process for each fan.
Page 17

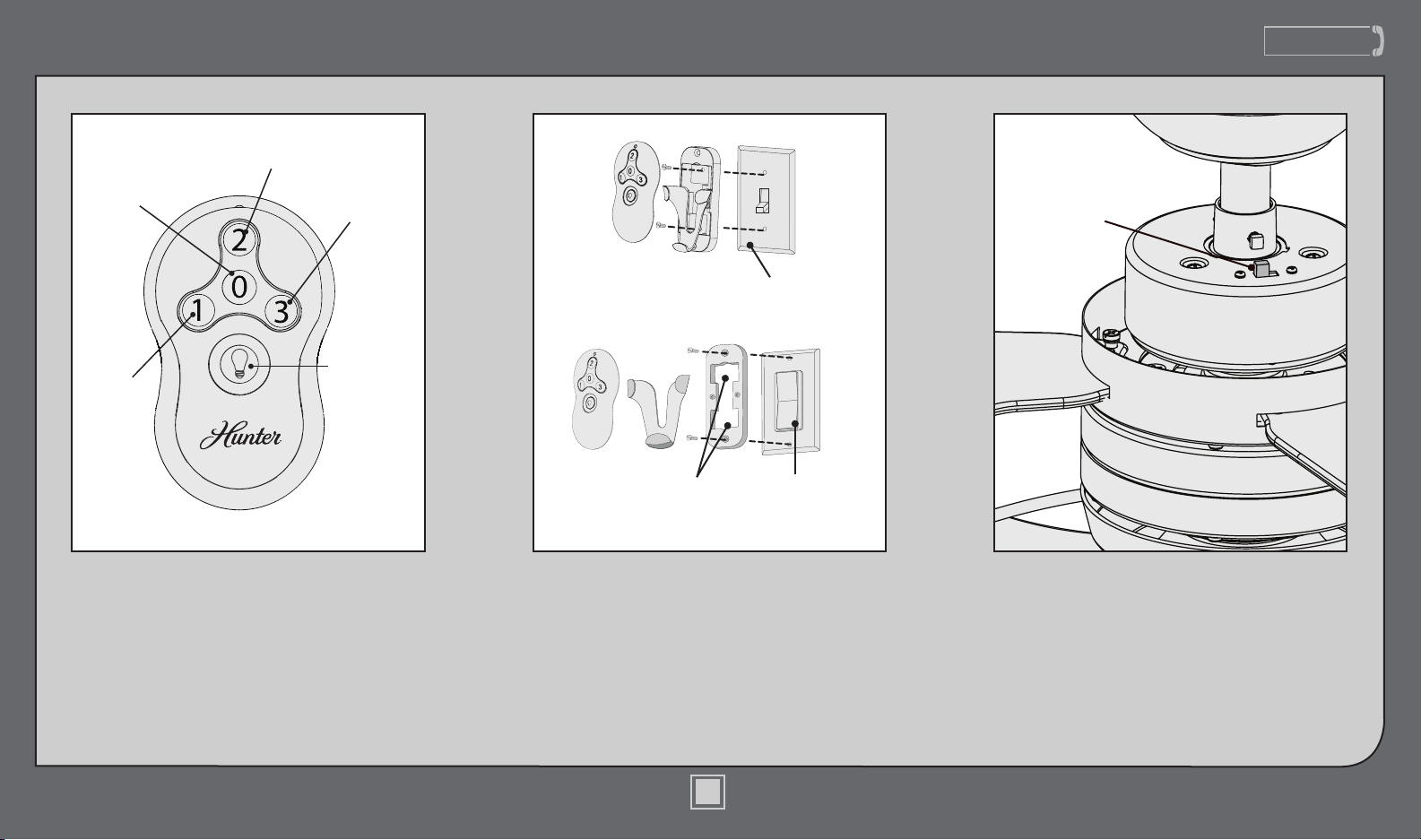

Operation, Maintenance, & Cleaning
Medium
Speed
Fan
Off
High
Speed
Switch Cover Plate
www.HunterFan.com
Reverse
Switch
1.888.830.1326
Low
Light
Speed
To turn on fan, press a fan speed button.
Speeds range from off (0) to high (3). Quickly
press the Light button to turn the lights off
and on. Hold the Light button to raise and
dim the light level.
Removed
Tabs
To install the transmitter cradle, remove the
two screws holding the switch cover plate. Do
not remove the cover plate. Orient the cradle
by lining up the two mounting holes with
those on the cover plate. Insert and tighten
the screws. Do not over tighten.
Note: For rocker-style cover plates, break off
the tabs by pushing outward.
Rocker- Style
Plate
17
M3541-01 • 05/14/14 • © Hunter Fan Company
To switch the direction of air ow, move the
reverse switch to the opposite position.
Page 18

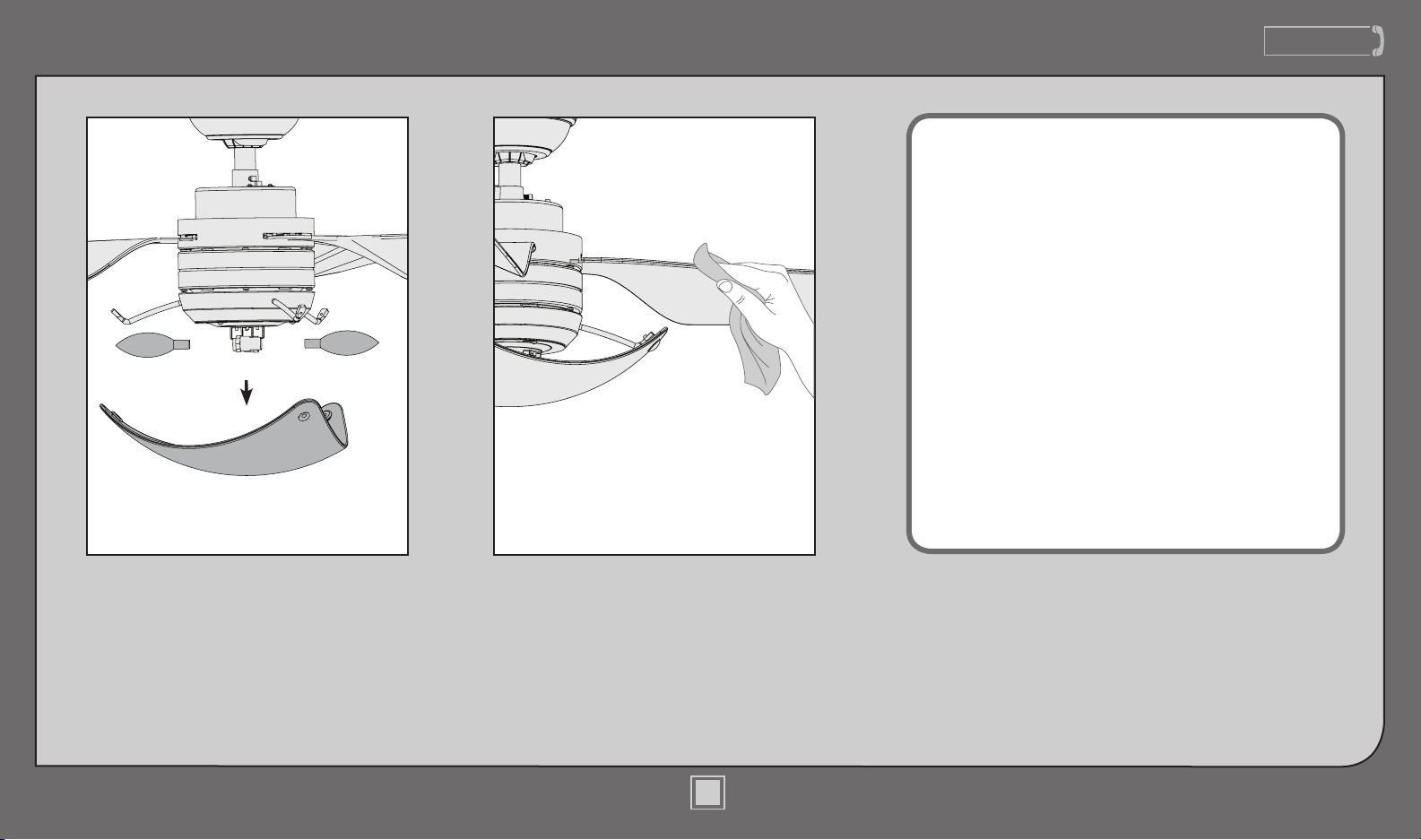

Operation, Maintenance, & Cleaning (continued)
www.HunterFan.com
1.888.830.1326
Safe-Exit
The Safe-Exit Program gives you about thirty
seconds of light when you turn the lights off
to exit the room before the lights go out. To
use Safe-Exit:
• Press the Fan Off button for at least three
seconds to initiate the Safe-Exit Mode.
• The lights will ash for visual
conrmation.
• The lights will stay on 50% brightness for
15 seconds and then begin to dim. After
a total of 30 seconds, the lights will be
completely off.
To replace the bulbs, remove the
decorative screws while supporting the
glass bowl with one hand. Carefully
remove the glass bowl. Unscrew the
bulbs and replace them with bulbs of
the same type and wattage. Reinstall the
glass bowl assembly.
When cleaning the fan, use soft brushes
or cloths to prevent scratching. Cleaning
products may damage the nishes.
18
18
M3541-01 • 05/14/14 • © Hunter Fan Company
Page 19
Troubleshooting
www.HunterFan.com
1.888.830.1326
Fan doesn’t work
• Make sure power switch is on.
• Pull the pull chain to make sure
it is on.
• Push the motor reversing switch
rmly left or right to ensure that
it is engaged.
• Check the circuit breaker to
ensure the power is turned on.
• Make sure the blades spin freely.
• Turn off power from the circuit
breaker, then loosen the canopy
and check all the connections
according to the wiring diagram
on page 9.
• Check the plug connection in
the switch housing.
Excessive wobbling
• Tighten all of the blade and
blade iron screws until they
are snug.
• Turn the power off, support
the fan carefully, and check
that the hanger ball is
properly seated.
• Use the provided balancing
kit and instructions to balance
the fan.
Remote control of fan is erratic
• Make sure the battery is
installed correctly.
• Install a fresh battery.
Transmitter only works when
held at close range
• Change battery.
Noisy operation
• Tighten the blade and blade
iron screws until they are snug.
• Check to see if any of the
blades are cracked. If so, replace
all of the blades.
If you have multiple remotes or
multiple remote-controlled fans
installed on the same circuit
breaker and you are experiencing
interference or faulty operation of
your remote controls, please go to
www.HunterFan.com/FAQs
and click “How do I properly install
multiple remote-controlled fans?”
for information on how to correct
this issue.
Lights dim when turned on or
do not turn on at all.
• Make sure the wattage of the
light bulbs installed matches
the specications on the light
sockets.
19
M3541-01 • 05/14/14 • © Hunter Fan Company
Loading...
