Hunter 53116 52 User Manual

30 inches

7 feet

Ladder

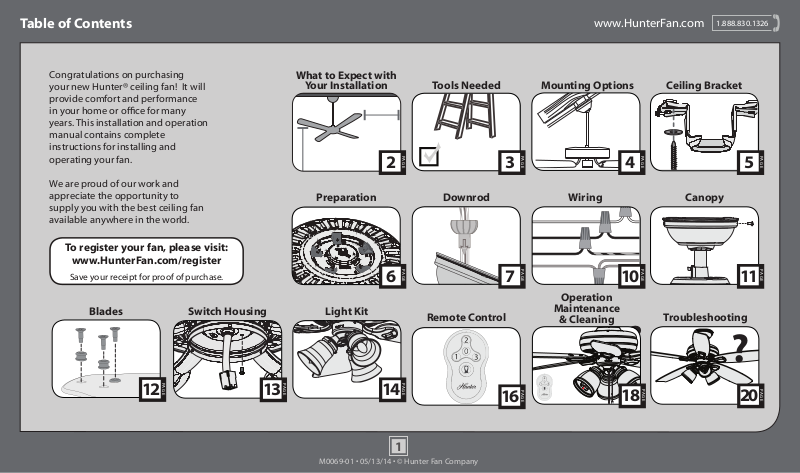

Table of Contents

www.HunterFan.com

1.888.830.1326

Congratulations on purchasing
your new Hunter® ceiling fan! It will
provide comfort and performance

in your home or ofce for many

years. This installation and operation
manual contains complete
instructions for installing and
operating your fan.

We are proud of our work and
appreciate the opportunity to
supply you with the best ceiling fan
available anywhere in the world.

To register your fan, please visit:

www.HunterFan.com/register

Save your receipt for proof of purchase.

Blades Switch Housing Light Kit

What to Expect with

Your Installation

2

Preparation

6

Tools Needed

PAG E

PAG E

Remote Control

3

7

Mounting Options

PAG E

Wiring CanopyDownrod

PAG E

Operation

Maintenance

& Cleaning

4

10

?

Ceiling Bracket

PAG E

PAG E

Troubleshooting

PAG E

5

PAG E

11

?

12

PAG E

13

PAG E

14

PAG E

PAG E

16

18

PAG E

?

PAG E

20

1

M0069-01 • 05/13/14 • © Hunter Fan Company

What to Expect with Your Installation

If you are unfamiliar
with wiring, use a

qualied electrician.

Must be able to
secure the fan to
building structure or
fan-rated outlet box

You may need a
friend to help you.

Know your wiring

30 inches

from blade tip
to nearest wall
or obstruction

from bottom

edge of blade

Assess location

Standard Downrod

1

for ceilings 8-10 feet high

7 feet

to the oor

www.HunterFan.com

1.888.830.1326

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or personal

injury, mount fan directly from building structure and/or an
outlet box marked acceptable for fan support of 70 lbs (31.8 kg)
and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or
servicing your fan, disconnect the power by turning off the
circuit breakers to the outlet box and associated wall switch
location. If you cannot lock the circuit breakers in the off
position, securely fasten a prominent warning device, such as a
tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage,
use only Hunter Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade
brackets when installing the blade brackets, balancing the blades,
or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.

CAUTIONS

Check box to see
fan weight

Ceiling angles greater
than 34° will require an
Angled Mounting Kit.
See page 4 for details.

Assess ceiling angle

Shorter Downrod

2

for fans installed close to ceiling

Longer Downrod

3

for ceilings 10 feet or higher

Select a downrod length

2

M0069-01 • 05/13/14 • © Hunter Fan Company

c.1 - All wiring must be in accordance with national and local
electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring,

use a qualied electrician.

c.2 - Use only Hunter replacement parts.

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and if not
installed and used in accordance with the instructions may cause
harmful interference to radio communications.

Tools Needed

www.HunterFan.com

1.888.830.1326

Ladder

Pliers Wire Strippers

Power Drill

(optional)

If mounting to a support structure, you will also need these tools.

9/64” Drill Bit

(optional)

3

M0069-01 • 05/13/14 • © Hunter Fan Company

Screwdrivers

O

34

CEILING

Mounting Options

www.HunterFan.com

1.888.830.1326

OPTION

If you have a at ceiling:

WALL

Hang your fan by a standard downrod (included).

Standard
Mounting

1

Support
Structure

Support
Structure

OPTION

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will
also need an Angled Mounting Kit (sold separately).

Use the three steps below to determine if your ceiling angle is greater than 34°

Angled
Mounting

2

Standard
Mounting
Style

Ceiling

Outlet Box

(required)

Angled
Mounting
Style

Ceiling

Outlet Box

(required)

FOLD

on dotted line

1

N

O

I

T

A

U

T

I

S

1

34°

Guide Touches

BOTH Ceiling & Wall

You need ONLY

a Longer

Downrod

*most common

2 3

PLACE

against wall

2

N

O

I

T

A

U

T

I

S

Guide Touches

but NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

SLIDE

toward ceiling

Wall

4

M0069-01 • 05/13/14 • © Hunter Fan Company

Use Standard Mounting

or Low-Prole Mounting

to hang the fan from a at ceiling.

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

Ceiling Bracket

Turn Power

OFF

For angled ceilings, point

opening toward peak.

www.HunterFan.com

1.888.830.1326

Make sure all four bumpers are

still attached.

Refer to warning w.1 on pg. 2

If you are unable to do this,

call Technical Support at

1-888-830-1326.

M0069-01 • 05/13/14 • © Hunter Fan Company

Use wood screws
(included) when securing
to support structure with
approved electrical outlet

box. Drill 9/64” pilot holes
in support structure to aid
in securing ceiling bracket

with hardware found in

the hardware bag.

5

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet

box associated with the wall switch location.

Preparation

Time Saver Tip: Get a helper

to insert grommets, found in

the hardware bag, into the

blades while you’re doing the

next couple of steps.

E

E

P

K

!

D

I

S

C

A

R

D

Remove the shipping blocks from the
motor. Save the screws. They will be

needed for blade iron installation.

Note: Some fans will have a shipping

ring instead of shipping blocks. Please

remove the ring and save the screws.

www.HunterFan.com

If you are installing multiple remote-controlled

fans on the same circuit breaker,

you may need to perform a few extra steps to

prevent interference or faulty operation of your

remote controls.

Go to www.HunterFan.com/FAQs and click

“How do I properly install multiple remote-

controlled fans?” for more information.

1.888.830.1326

6

M0069-01 • 05/13/14 • © Hunter Fan Company

Downrod

www.HunterFan.com

1.888.830.1326

Standard
Downrod

for ceilings 8-10’ high

Option 1Option 2

Shorter
Downrod

for fans installed
close to ceiling

Included

(pre-assembled)

Longer
Downrod

for angled
ceilings or

Option 3

ceilings 10’ or
higher

skip to next page

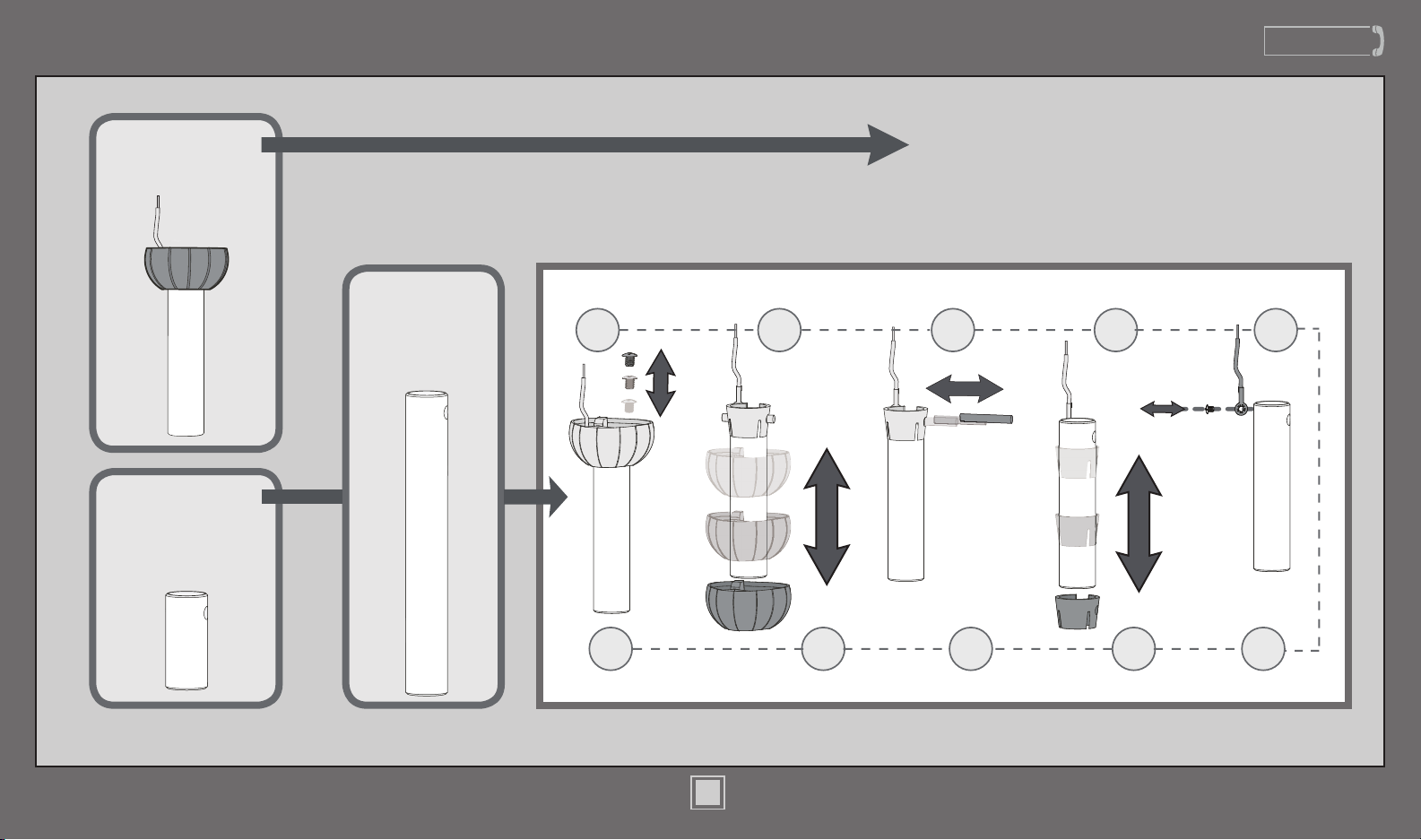

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

1 2 3 4 5

Slide

Slide

678910

Included

Sold Separately

Steps 6-10 to reassemble with new pipe

7

M0069-01 • 05/13/14 • © Hunter Fan Company

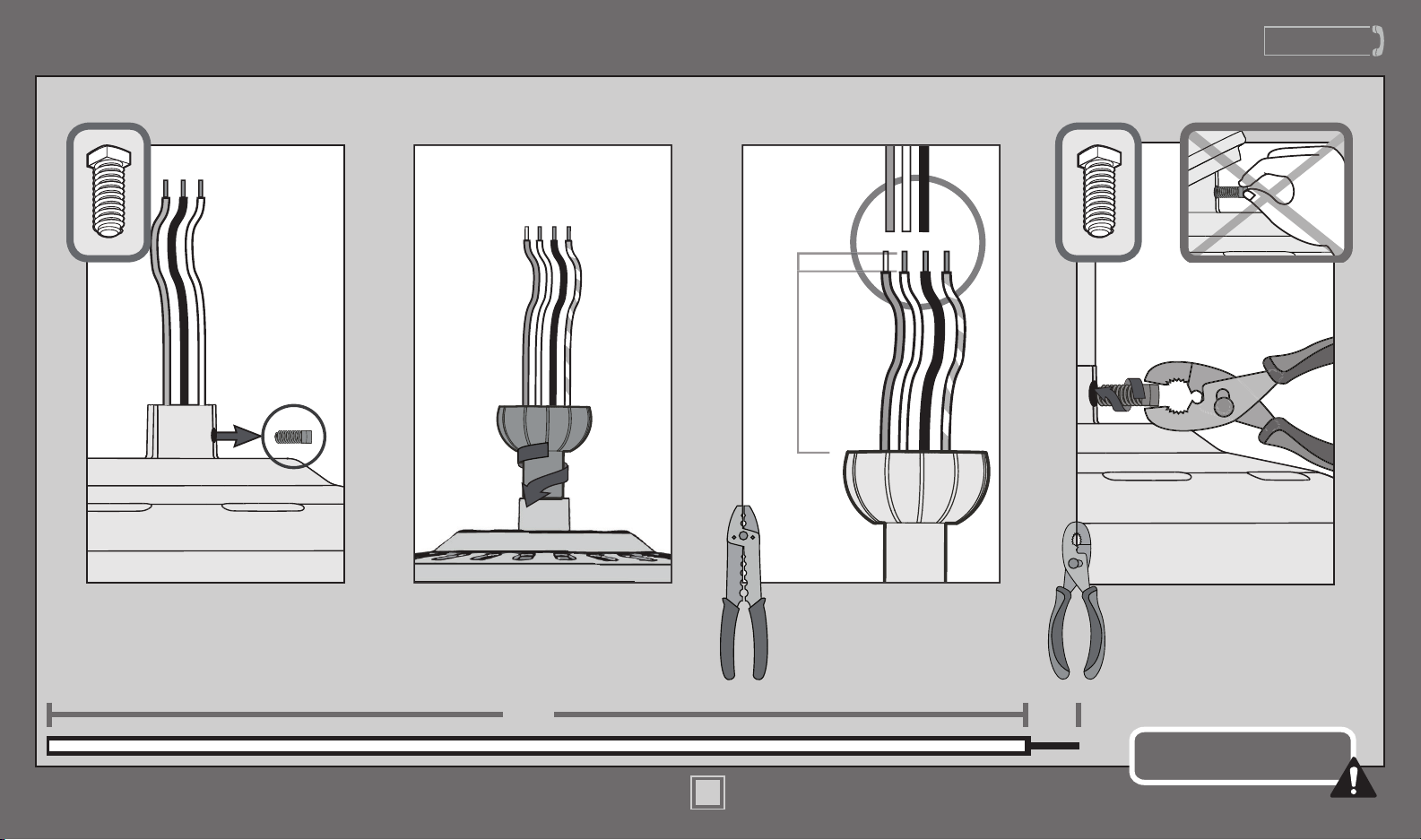

Downrod (continued)

www.HunterFan.com

1.888.830.1326

KEEP!

E

E

P

K

!

Remove the pre-installed

setscrew so that the downrod

can be inserted.

Hand tighten the downrod (at

least 4-5 full turns) until it stops.

8”

M0069-01 • 05/13/14 • © Hunter Fan Company

3/8”

T

U

C

P

I

R

T

S

&

8”

(not to scale)

The wires can be cut, but

leave at least 8” extending

from the top of the downrod.

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN.

3/8”

If the setscrew is not tightened
securely, the fan may fall.

8

Downrod (continued)

DO NOT PICK THE FAN UP BY THE

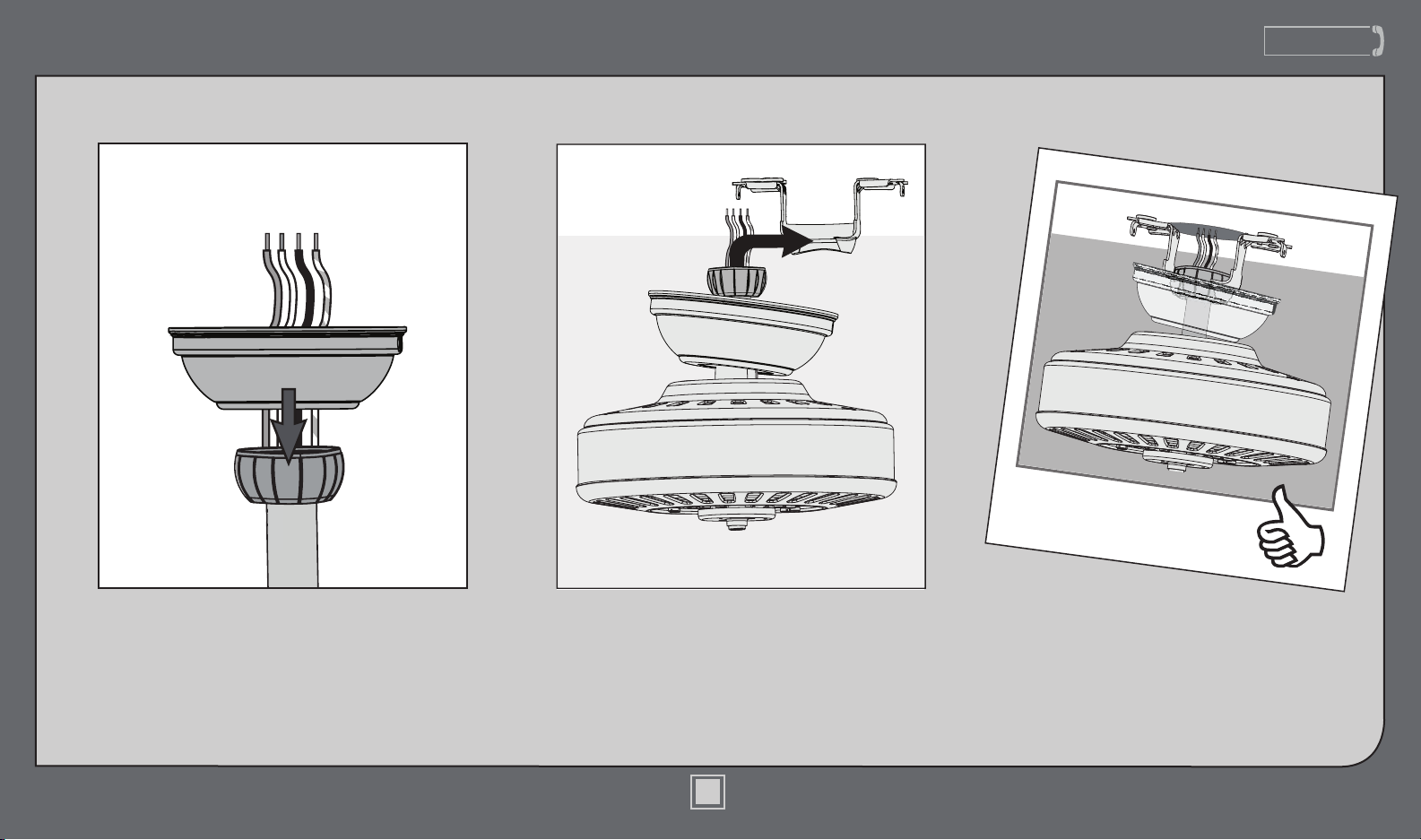

Put the wires and downrod through

www.HunterFan.com

1.888.830.1326

the canopy. Let the canopy sit loosely

on top of the fan.

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

9

M0069-01 • 05/13/14 • © Hunter Fan Company

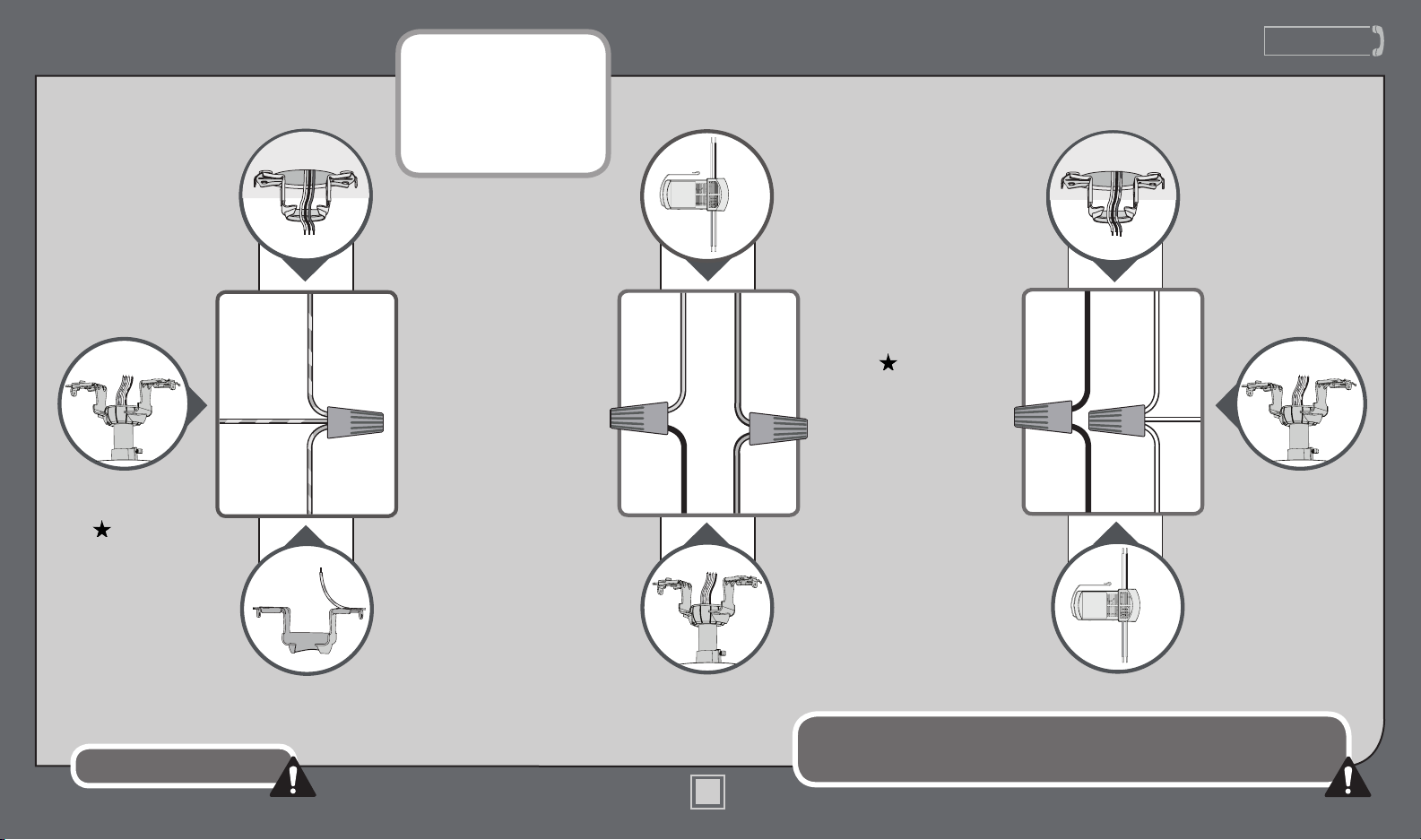

Wiring

F

A

M

N

O

R

F

Using an orange wire

connector from
the hardware
bag, connect the

3 grounding wires

(green, green/yellow

stripe, or bare copper)

coming from the

ceiling, downrod, and

hanging bracket.

M

O

R

F

stripe (grounding)

green/yellow stripe

stripe

F

R

O

M

C

E

I

L

Note: To connect the

www.HunterFan.com

1.888.830.1326

wires, hold the bare

metal leads together and

E

C

I

L

I

N

G

place a wire connector

over them, then twist

E

C

R

E

I

M

O

R

F

V

E

R

E

C

I

L

M

I

O

R

F

N

G

clockwise until tight.

green/yellow

Using the orange

wire connectors

from the remote

control hardware
bag, connect the blue
wire from the receiver

green/yellow

to the blue wire (or
possibly black with

white stripe wire) from

the fan. Connect the
yellow wire from the
receiver to the black

wire from the fan.

T

E

K

C

A

R

B

I

G

N

yellow

black

F

blue

Using the orange wire

connectors from

black

(ungrounded)

white (grounded)

F

A

M

N

O

R

F

the hardware bag,

connect the black wire

(ungrounded) from

white

the ceiling to the black

blue

wire from the receiver.

Connect the white

black

white

wire (grounded) from

the ceiling to both the

white wire from the

receiver and the white

wire from the fan.

F

R

R

N

O

A

F

M

O

M

R

R

E

V

I

E

C

E

Refer to CAUTION c.1 on pg. 2

Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

10

M0069-01 • 05/13/14 • © Hunter Fan Company

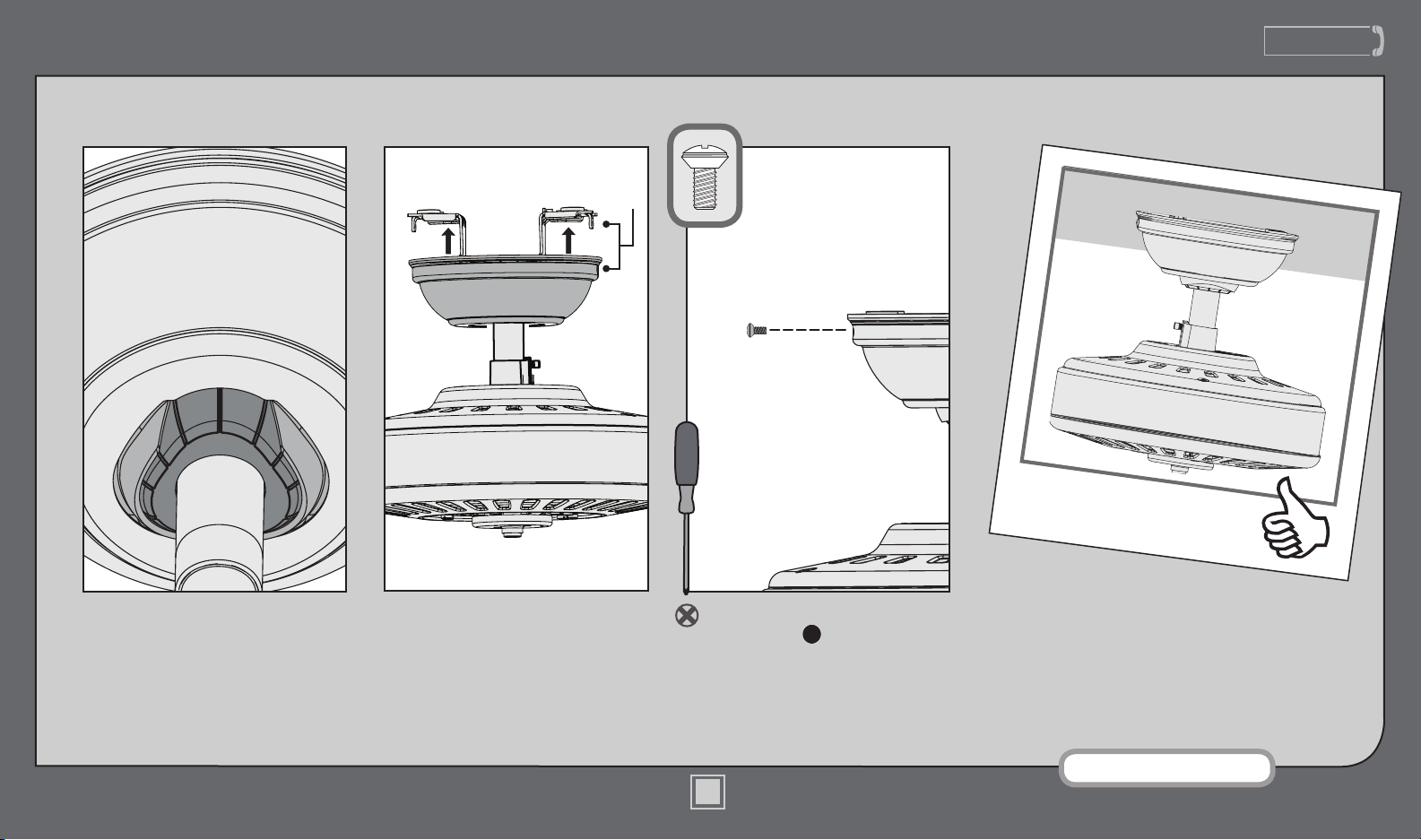

Canopy

Screw

Holes

www.HunterFan.com

1.888.830.1326

Position the canopy so that, when

lifted into place, the canopy ts into

the hanging bracket as shown.

Lift the canopy into place so that

the screw holes are aligned.

M0069-01 • 05/13/14 • © Hunter Fan Company

Insert the two canopy screws

found in the hardware bag.

Note: Fan style may vary.

11

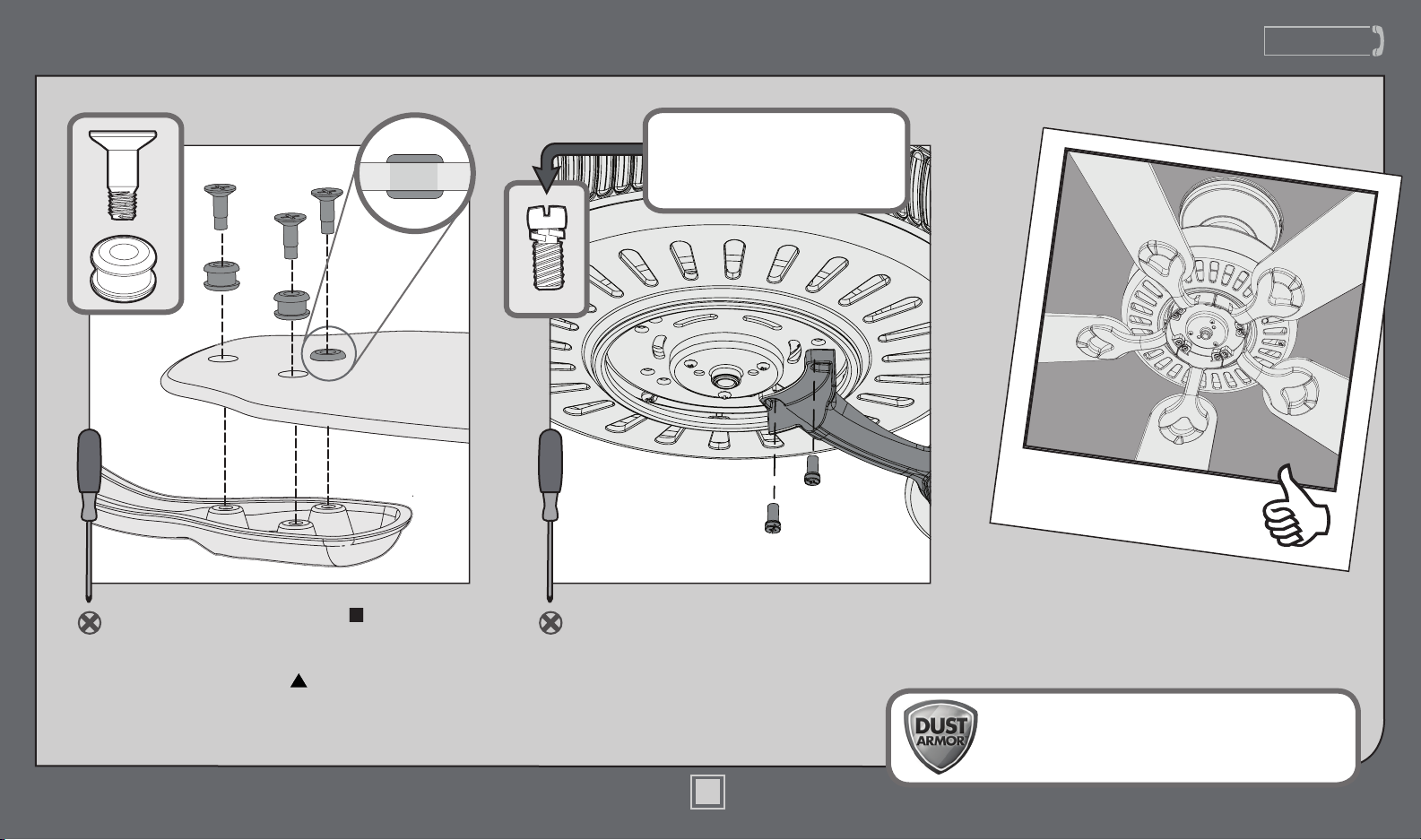

Blades

Insert grommets found in the hardware

Remember the screws that

you kept after removing the

shipping blocks (page 6)? You

need them for this step.

www.HunterFan.com

1.888.830.1326

bag into the holes in the blades, then
secure each blade to a blade iron with
screws found in the hardware bag.

Lightly attach the blade irons to the
motor with the blade iron armature

screws, then securely tighten after both

screws are attached.

Your blades are shielded with Dust Armor® which

is a nanotechnology coating that repels dust. For

cleaning the fan, use soft brushes or cloths to prevent

scratching. Cleaning agents may damage the nishes.

12

M0069-01 • 05/13/14 • © Hunter Fan Company

Switch Housing

www.HunterFan.com

1.888.830.1326

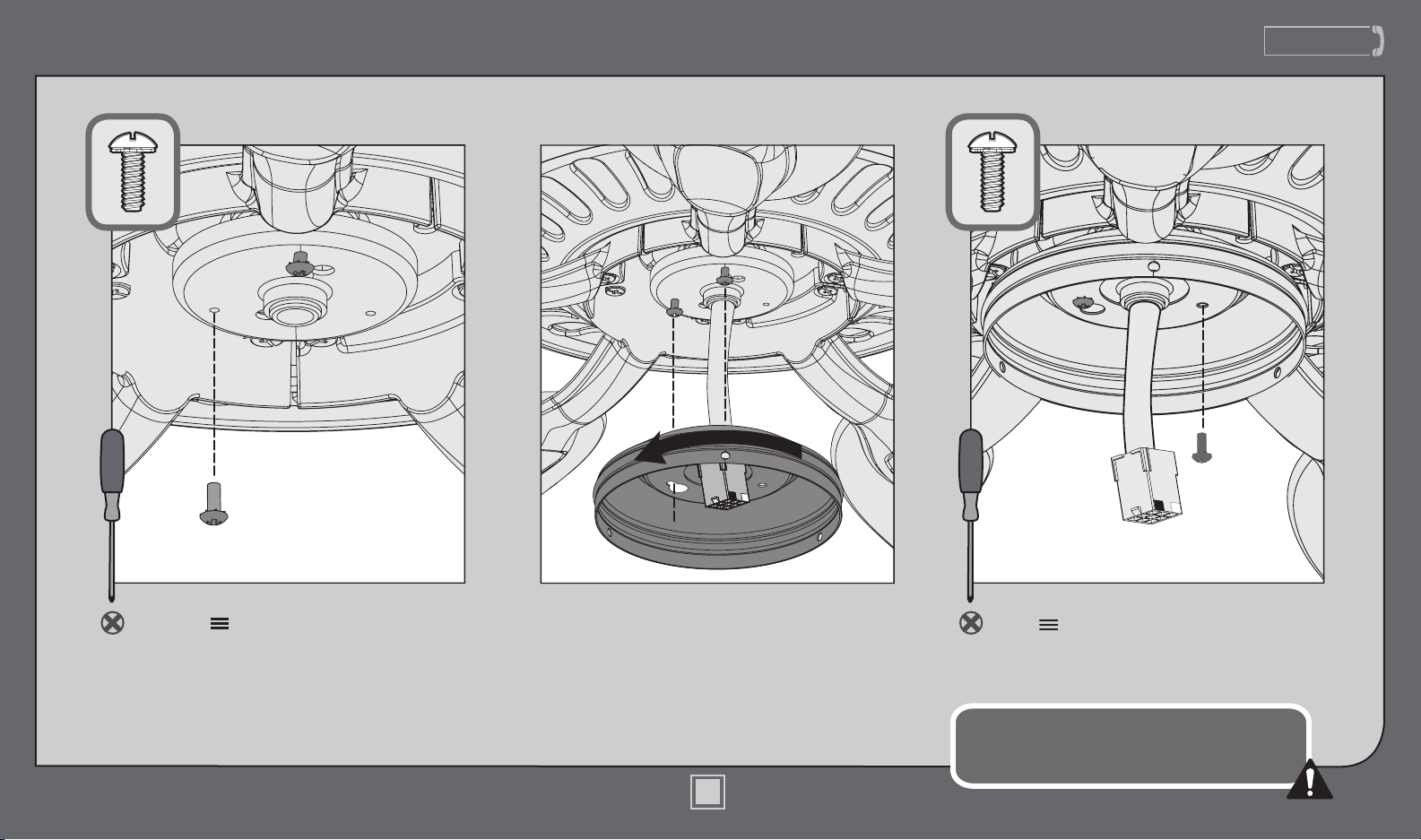

Screw two housing assembly screws

from the hardware bag halfway into

the motor housing. It does not matter

which two screw holes you choose.

Feed the wire plug through the center

hole of the upper switch housing, then

wrap keyhole slots around the screws and

twist counterclockwise.

13

M0069-01 • 05/13/14 • © Hunter Fan Company

Insert the third screw, found in

the hardware bag, into place and

then tighten all three screws.

Make sure the upper switch housing is securely
attached to the mounting plate. Failure to properly
secure all 3 assembly screws could result in the switch

housing xture falling.

Light Kit

Switch
Housing
Screw

Notch

www.HunterFan.com

1.888.830.1326

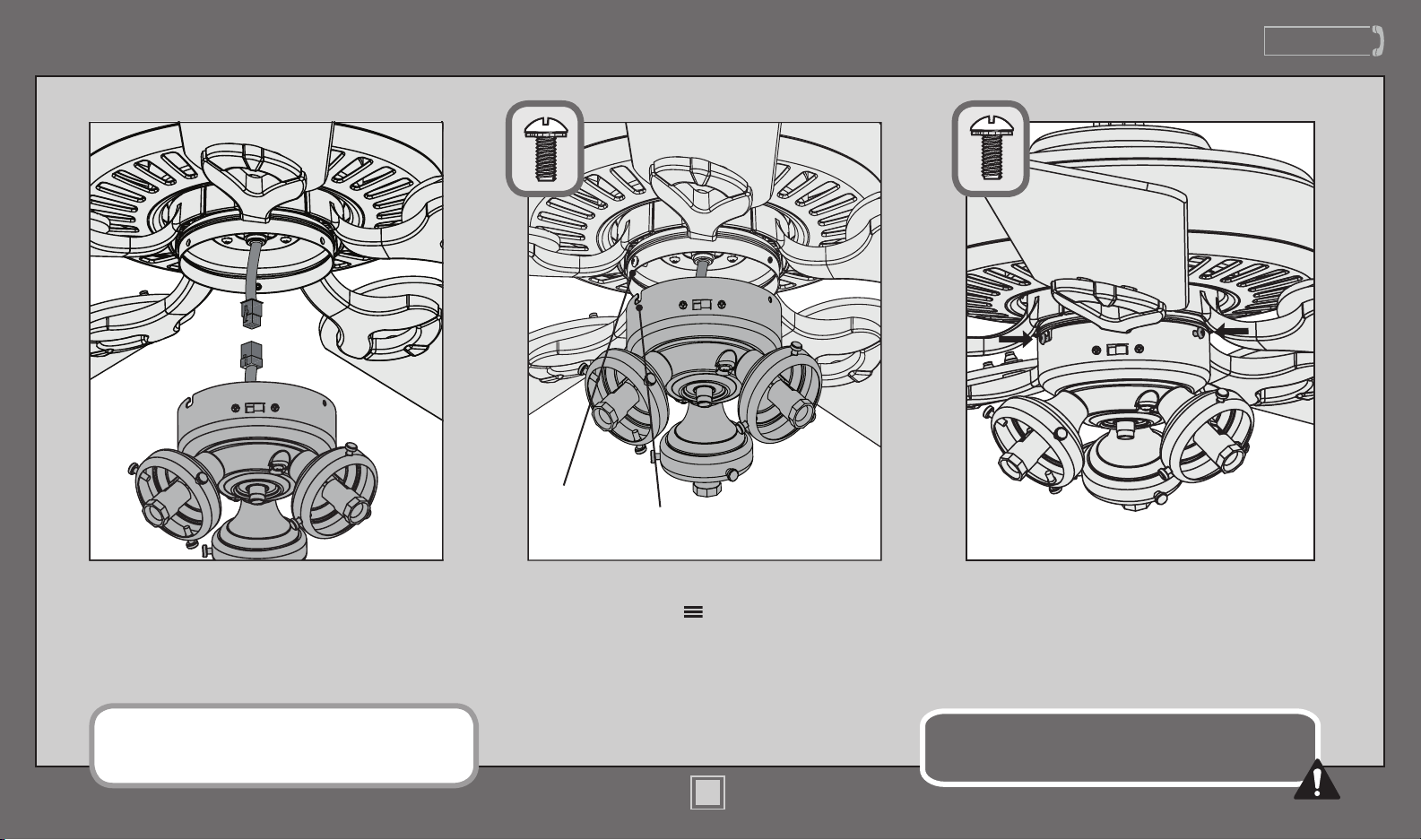

Connect the plugs from the upper and

lower switch housings. Make sure to line

up the colored markings on

the connectors.

Want to install your fan without a light kit?

Go to www.HunterFan.com/FAQs and click

“How do I install my fan without the light kit?”

Partially install two of the switch housing

screws found in the bag. Align the notches

in the sides of the lower switch housing with

the screws on the upper switch housing. Twist

the lower switch housing clockwise to lock

into place.

14

M0069-01 • 05/13/14 • © Hunter Fan Company

Install the third switch housing screw.

Tighten all three screws securely.

Make sure the lower switch housing is securely attached to
the upper switch housing. Failure to properly secure all three

assembly screws could result in the light xture falling.

Light Kit (continued)

Thumb Screw

Light
Pull
Chain

Fan
Pull

Chain

www.HunterFan.com

1.888.830.1326

Shade

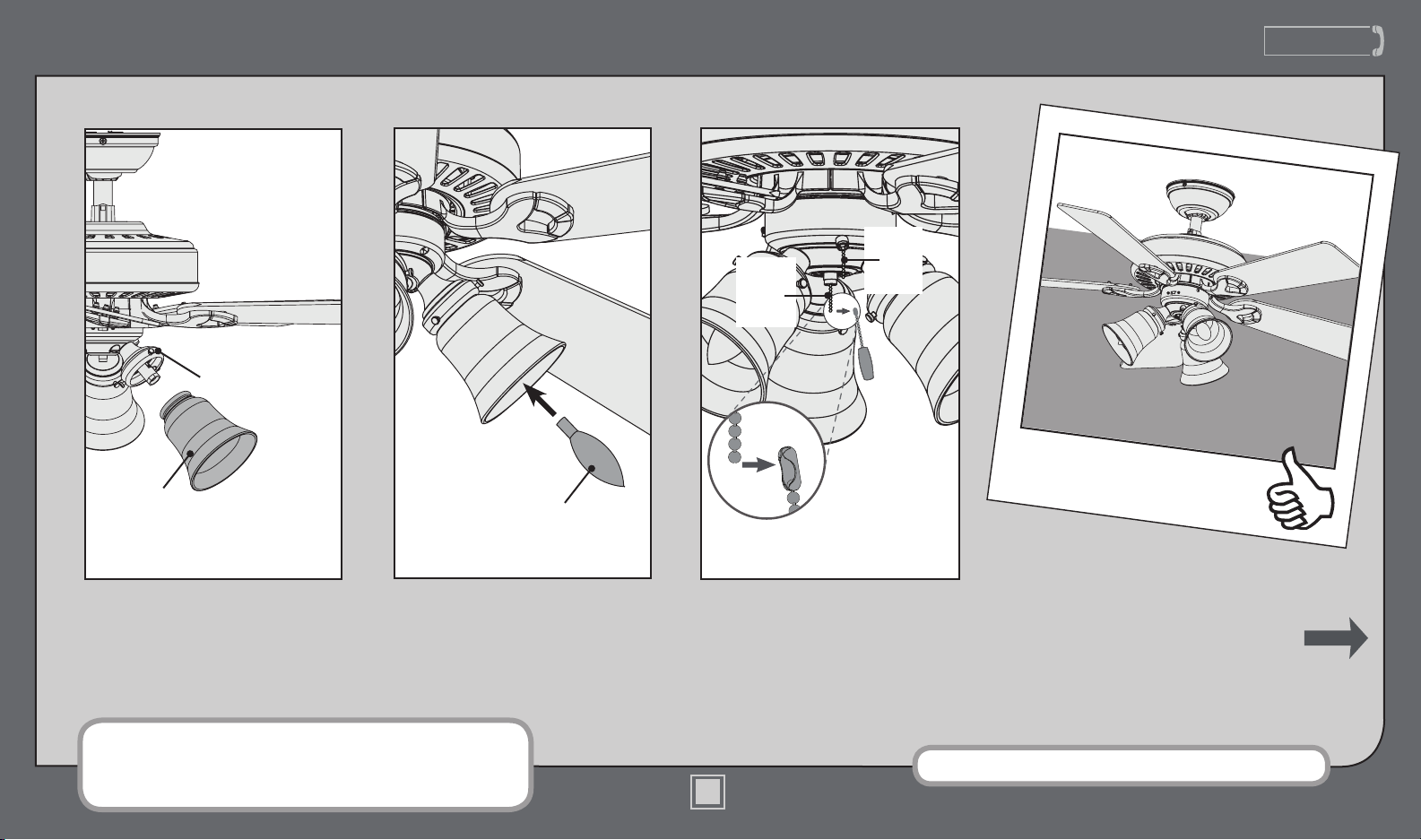

To install the shade, rst loosen

the thumb screws. Raise the

shade to the light xture. Tighten

all thumbscrews securely.

Note: In compliance with US federal energy regulations, this ceiling fan

contains a device that restricts its light output. Exceeding the wattage

limit marked on the MAX wattage sticker afxed to the light socket(s)

may result in re hazard or improper operation.

Install a bulb into each of

the sockets. When necessary,

replace with bulbs of the same

type and wattage.

Bulb

Connect the appropriate pull
chain pendant to each of the

short chains coming from the

15

M0069-01 • 05/13/14 • © Hunter Fan Company

switch housing.

See next page for fan
operation instructions.

Note: Glass shade style and number of lights may vary.

Remote Control

If you are installing multiple remote-controlled fans on
the same circuit breaker, you may need to perform a few

extra steps to prevent interference or faulty operation of

your remote controls.

Go to www.HunterFan.com/FAQs and click

“How do I properly install multiple remote-controlled fans?”

for more information.

www.HunterFan.com

1.888.830.1326

Battery
Door

Phillips
Head
Screw

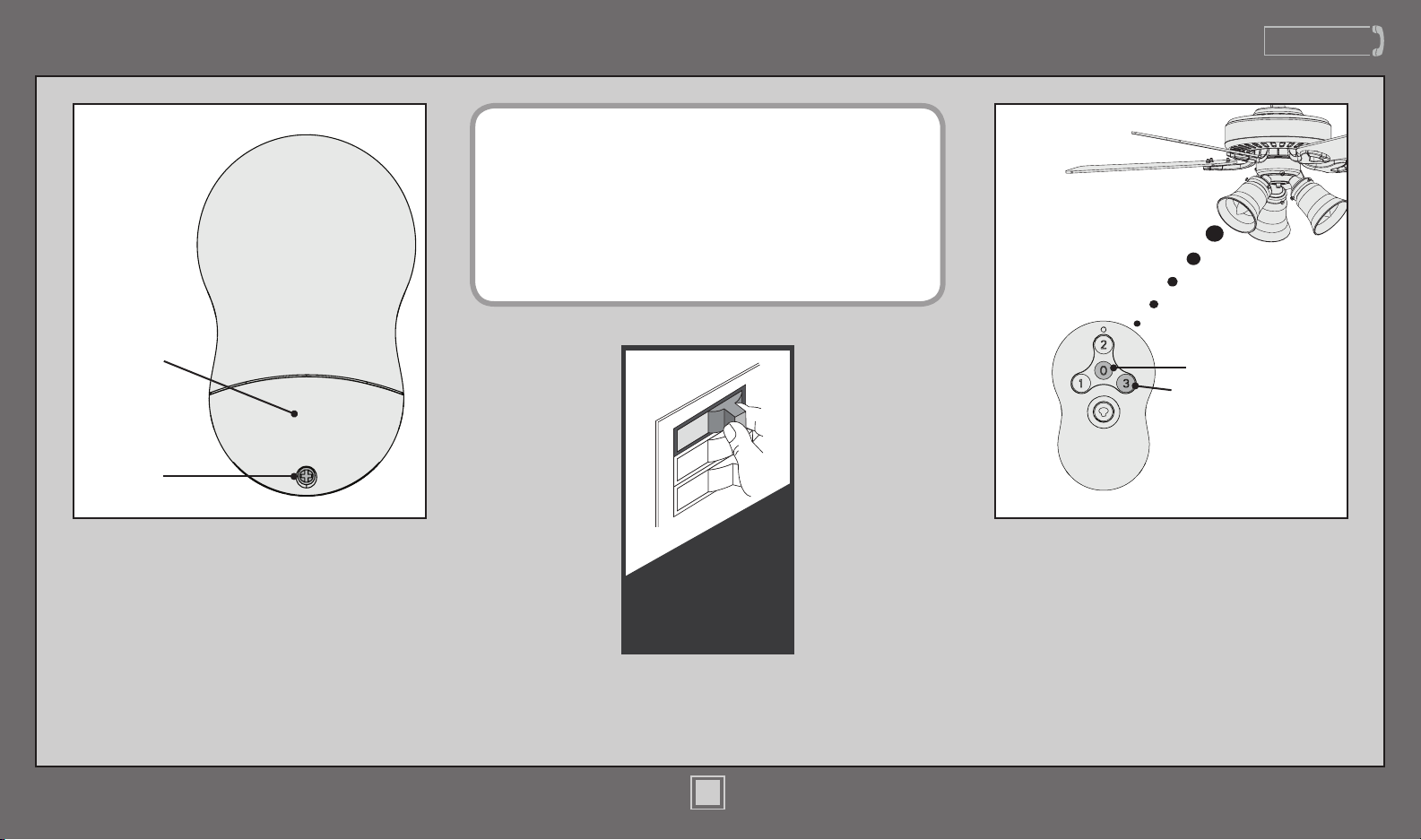

To access the battery compartment, remove
the small Phillips head screw that secures the
battery door to the transmitter assembly. The

battery should be installed with the positive

(+) side up. Replace with a CR2032 battery

when necessary.

Turn Power

ON

16

M0069-01 • 05/13/14 • © Hunter Fan Company

Fan Off

High

Note: The remote must be paired before the

fan will operate.

Within 3 minutes of restoring power to

the fan, press both the Fan Off button and

the High button for at least 4 seconds. Your

fan will turn on low to indicate successful
syncing. If it does not, turn off power to your
fan, wait 1 minute then try again. If using the

transmitter with multiple fans, repeat this

process for each fan.

Remote Control (continued)

Fan Speed Chain

www.HunterFan.com

1.888.830.1326

Light Chain

Light Button

Light Button

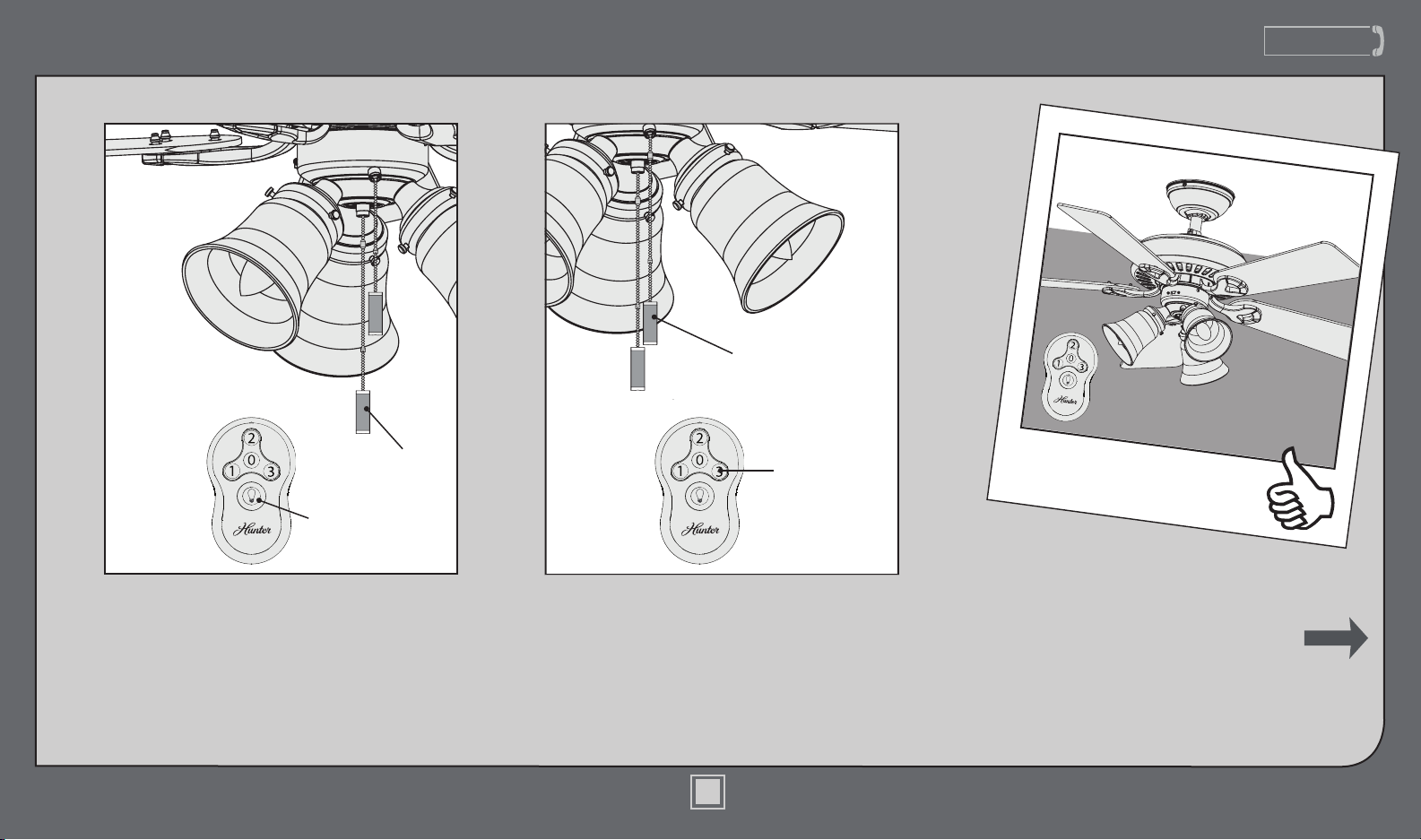

Push the light button on the remote transmitter.

Pull the light chain once. If the light does not

turn on, repeat step.

3 Button

Push the 3 button on the remote transmitter for

high fan speed. Pull the fan speed chain until

the fan is on the highest speed.

17

M0069-01 • 05/13/14 • © Hunter Fan Company

CONGRATULATIONS!

YOU’RE DONE!

See next page for fan
operation instructions.

Operation, Maintenance, & Cleaning

Medium

Speed

www.HunterFan.com

1.888.830.1326

Fan
Off

Low
Speed

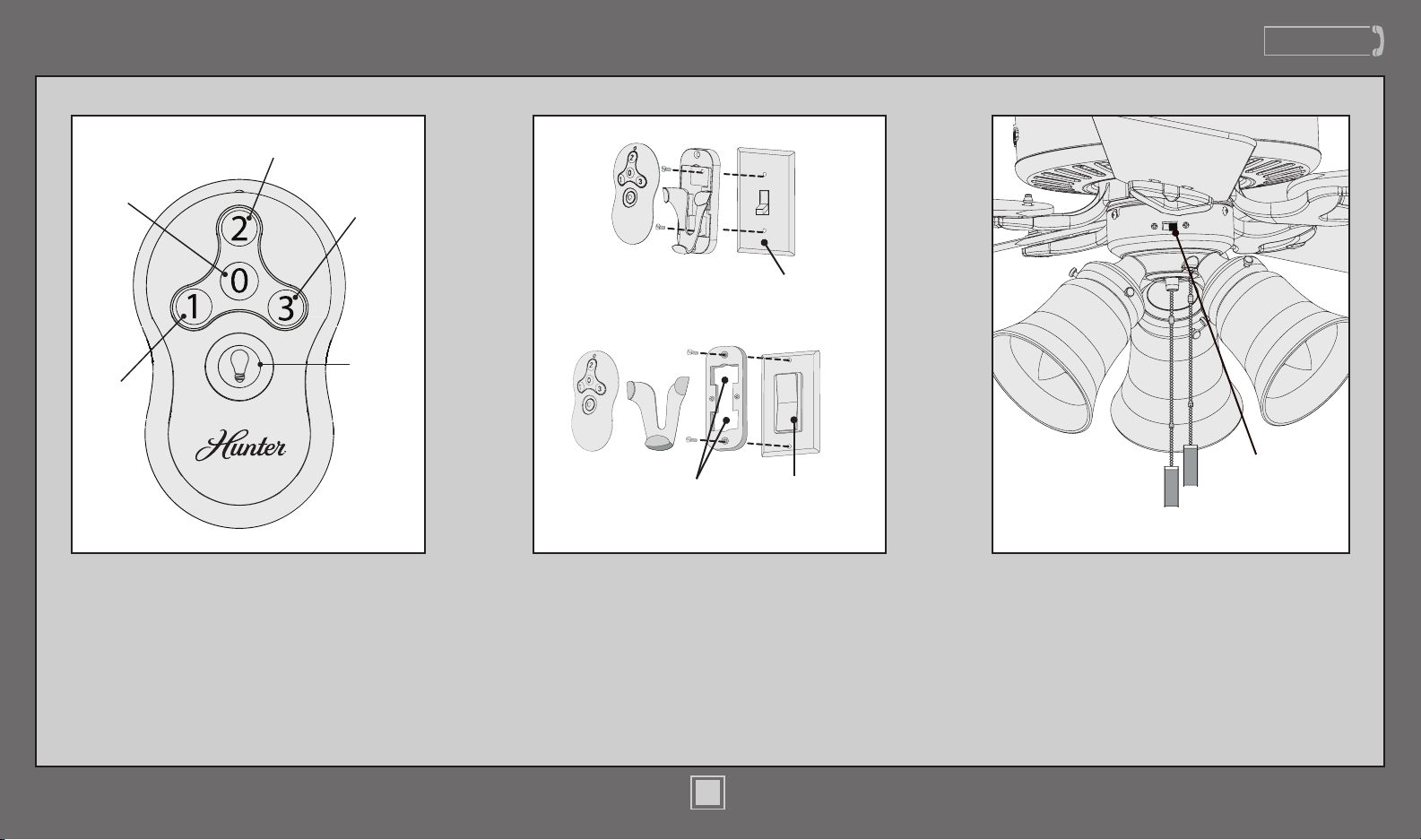

To turn on fan, press a fan speed button.

Speeds range from off (0) to high (3). Quickly

press the Light button to turn the lights off

and on. Hold the Light button to raise and dim

the light level.

High

Speed

Light

Switch Cover

Plate

Removed Tabs

To install the transmitter cradle, remove the

two screws holding the switch cover plate. Do

not remove the cover plate. Orient the cradle

by lining up the two mounting holes with

those on the cover plate. Insert and tighten

the screws. Do not over tighten.

Note: For rocker-style cover plates, break off

the tabs by pushing outward.

Rocker- Style

Plate

Reverse

Switch

To switch the direction of air ow, move the

reverse switch to the opposite position.

18

M0069-01 • 05/13/14 • © Hunter Fan Company

Operation, Maintenance, & Cleaning (continued)

www.HunterFan.com

Safe-Exit

The Safe-Exit Program gives you about thirty seconds
of light when you turn the lights off to exit the room
before the lights go out. To use Safe-Exit:

• Press the Fan Off button for at least three seconds to
initiate the Safe-Exit Mode.

• The lights will ash for visual conrmation.

• The lights will stay on 50% brightness for 15 seconds and
then begin to dim. After a total of 30 seconds, the lights
will be completely off.

1.888.830.1326

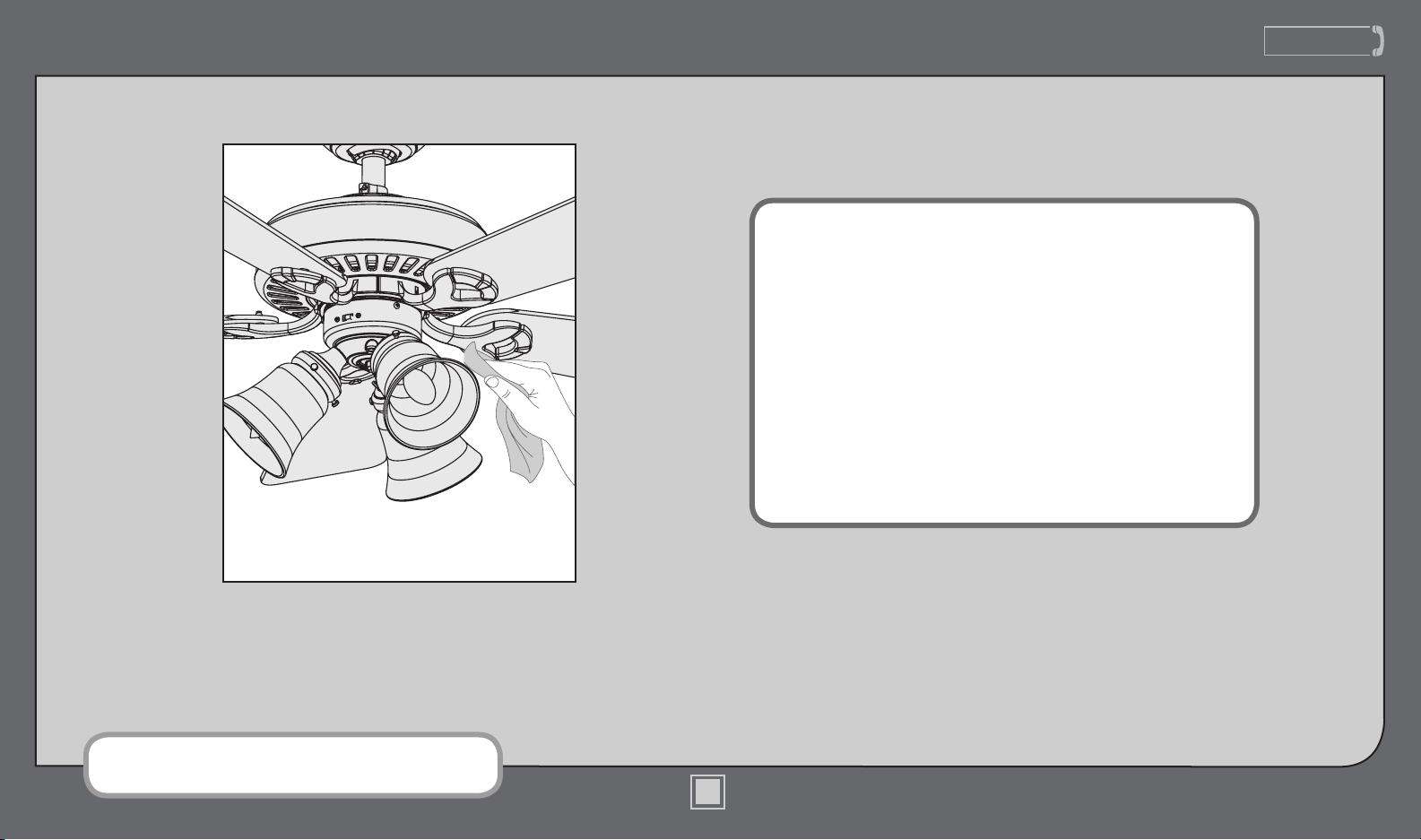

For cleaning the fan, use soft brushes or

cloths to prevent scratching. Cleaning

products may damage the nishes.

For questions regarding removing a light kit, call

customer service 1-888-830-1326.

19

M0069-01 • 05/13/14 • © Hunter Fan Company

Troubleshooting

www.HunterFan.com

1.888.830.1326

Fan doesn’t work

• Make sure power switch is on.

• Pull the pull chain to make sure it
is on.

• Push the motor reversing switch

rmly left or right to ensure that it

is engaged.

• Check the circuit breaker to
ensure the power is turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit
breaker, then loosen the canopy
and check all the connections
according to the wiring diagram
on page 10.

• Make sure the battery is working.

• Check the plug connection in the
switch housing.

Excessive wobbling

• Tighten all of the blade and
blade iron screws until they
are snug.

• Turn the power off, support
the fan carefully, and check
that the hanger ball is properly
seated.

• Use the provided balancing
kit and instructions to balance
the fan.

Remote control of fan is erratic

• Make sure the battery is
installed correctly.

• Install a fresh battery.

Transmitter only works when held
at close range

• Change battery.

Noisy operation

• Tighten the blade and blade iron
screws until they are snug.

• Check to see if any of the blades
are cracked. If so, replace all of
the blades.

Fan Runs Slowly

• Turn the power to the fan off at
the wall switch. Then, turn it on
again. Push the 3 button on the
remote transmitter for high fan
speed. Then, pull the fan speed
chain until the fan is on the
highest speed.

Lights dim when turned on or
do not turn on at all.

• Make sure the wattage of the
light bulbs installed matches

the specications on the light

sockets.

If you have multiple remotes or
multiple remote-controlled fans
installed on the same circuit
breaker and you are experiencing

interference or faulty operation of
your remote controls, please go to
www.HunterFan.com/FAQs
and click “How do I properly install
multiple remote-controlled fans?”
for information on how to correct
this issue.

20
