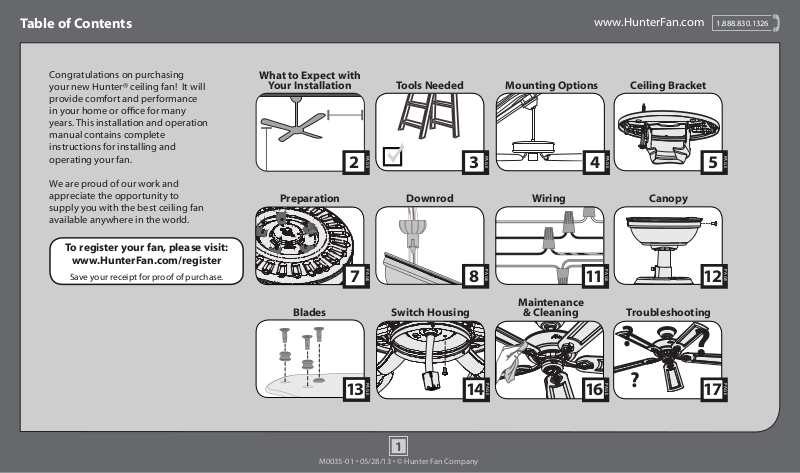

Table of Contents

www.HunterFan.com

1.888.830.1326

Congratulations on purchasing your new Hunter® ceiling fan! It will provide comfort and performance

in your home or ofce for many

years. This installation and operation manual contains complete instructions for installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

To register your fan, please visit:

www.HunterFan.com/register

Save your receipt for proof of purchase.

What to Expect with

Your Installation

Preparation

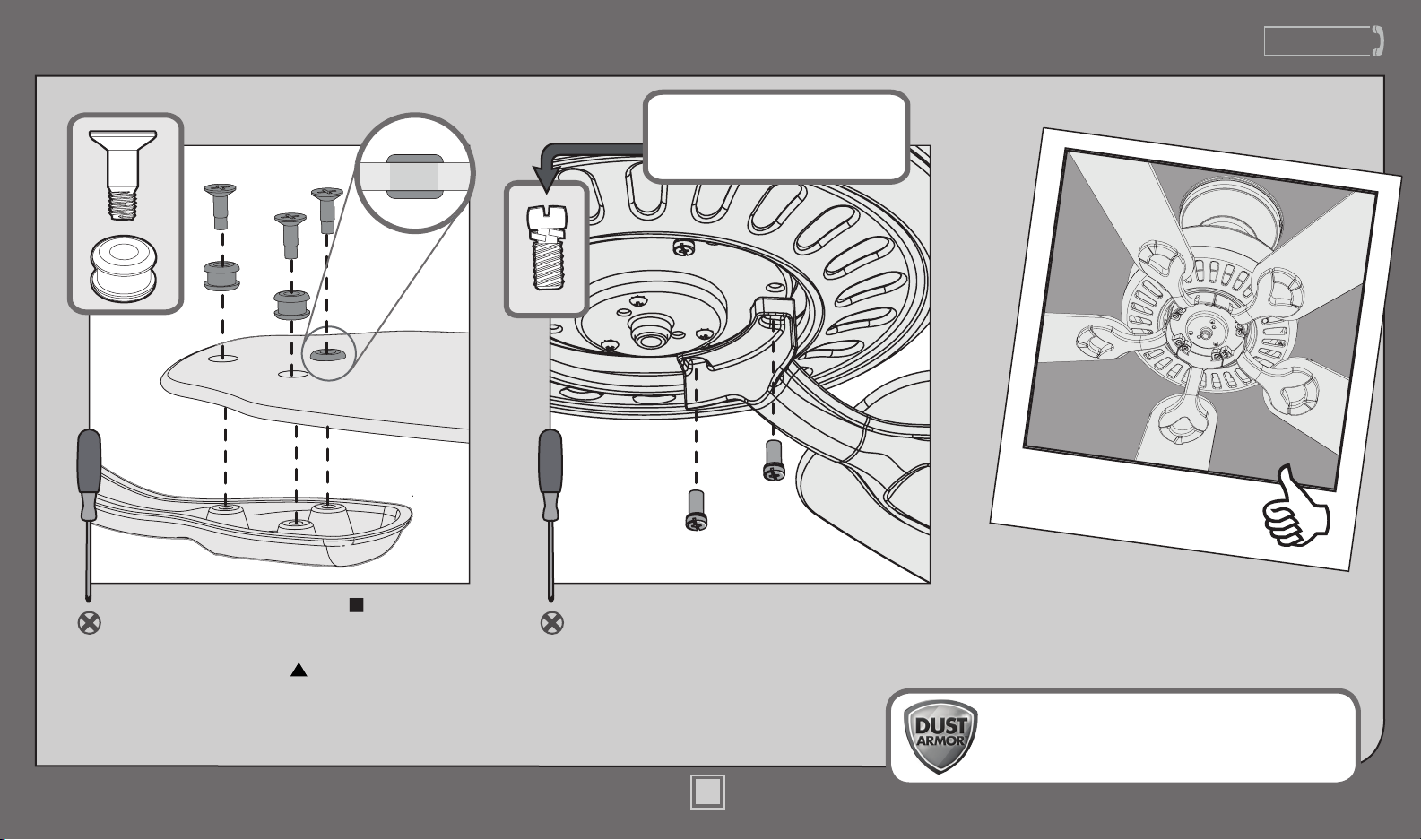

Blades Troubleshooting

Tools Needed

PAG E

Downrod

PAG E

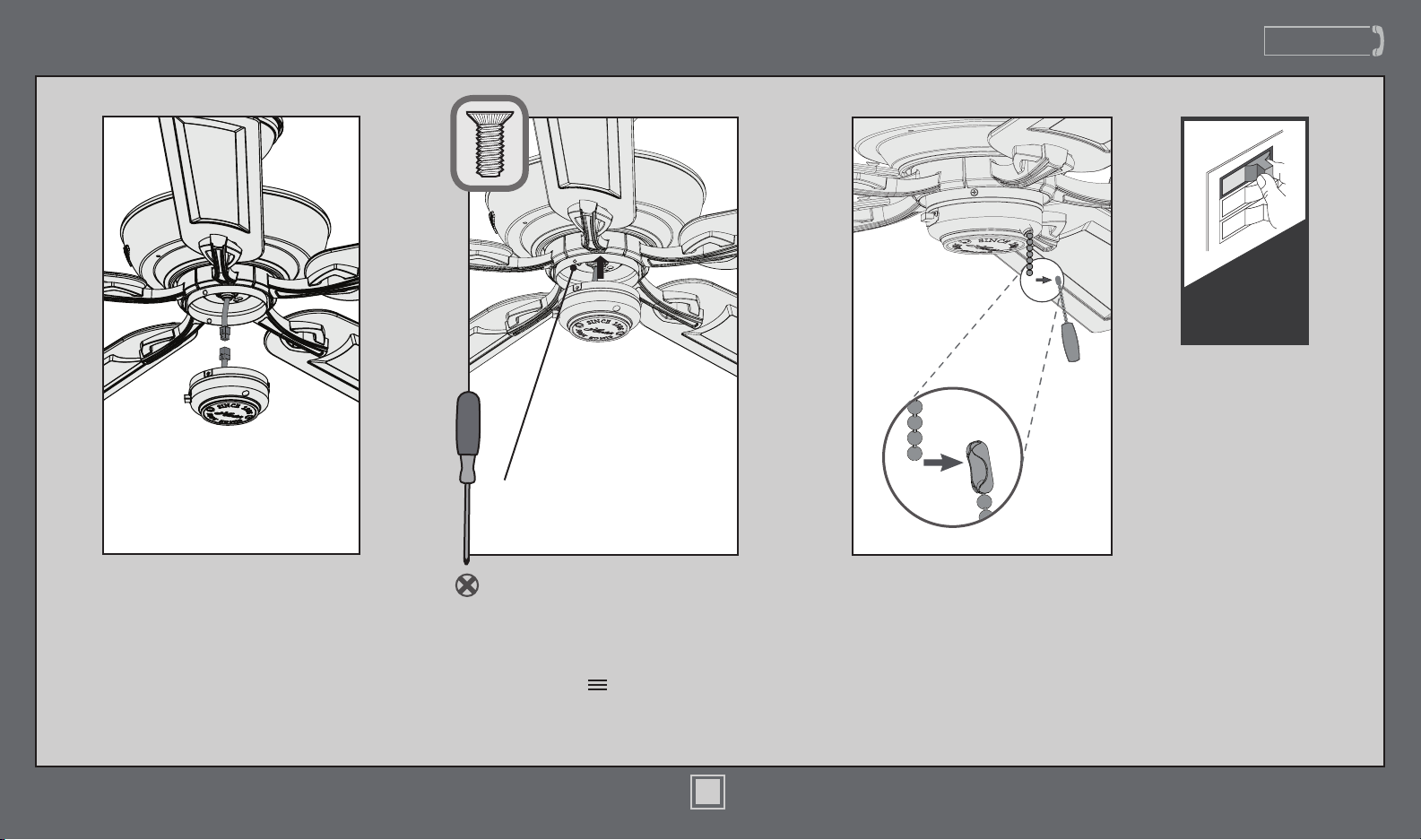

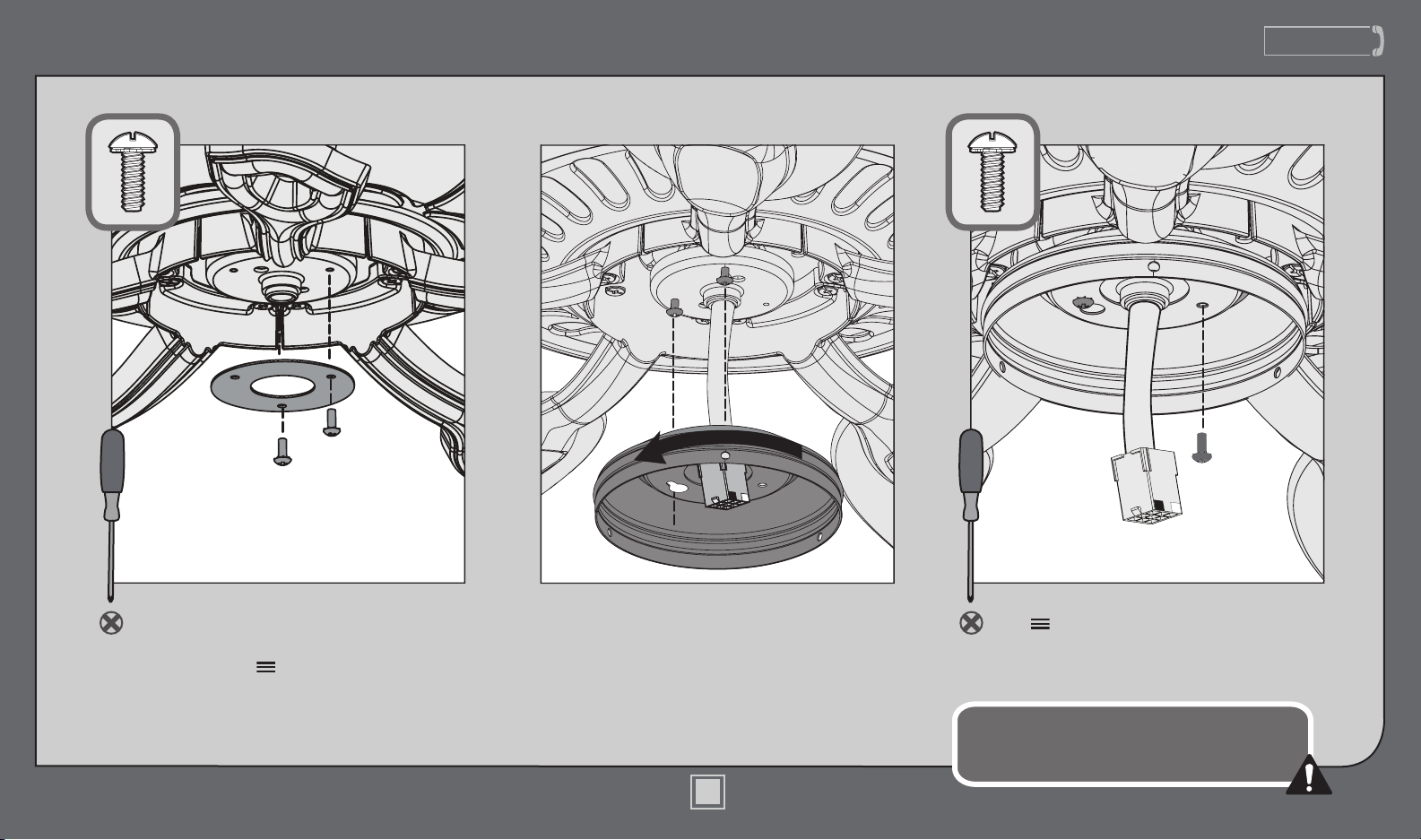

Switch Housing

Mounting Options

PAG E

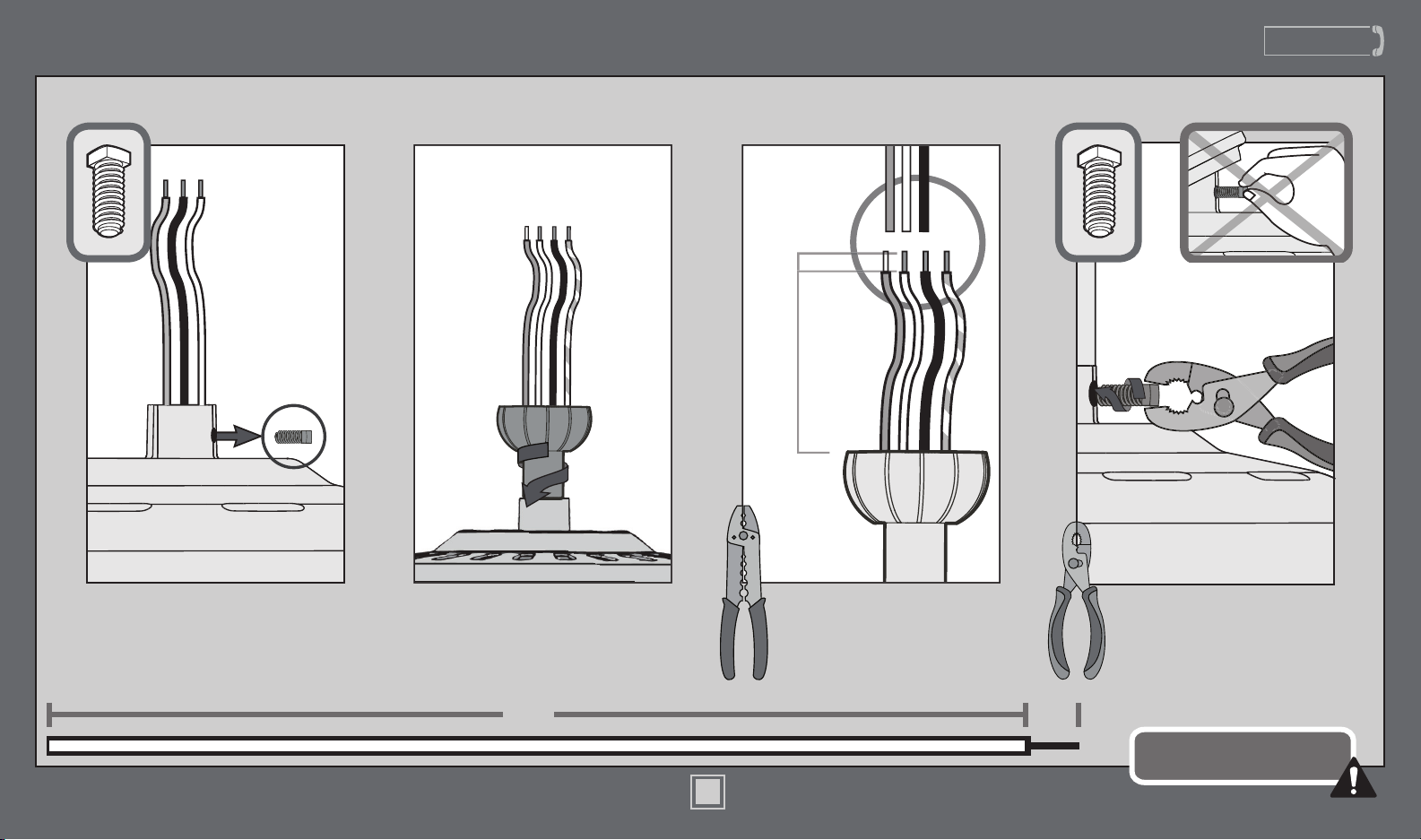

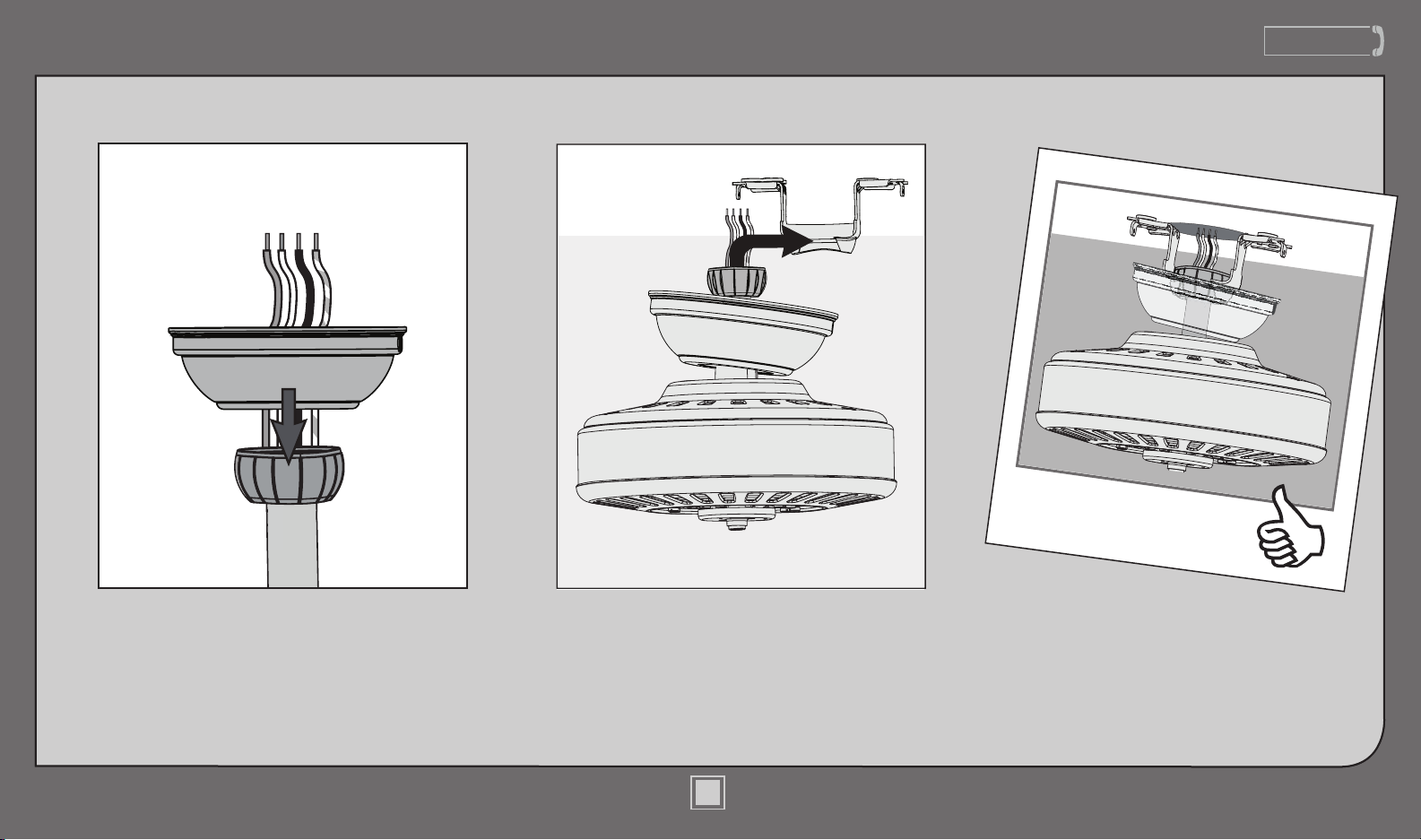

Wiring Canopy

PAG E

Maintenance

& Cleaning

Ceiling Bracket

PAG E

M0035-01 • 05/28/13 • © Hunter Fan Company

PAG E

What to Expect with Your Installation

www.HunterFan.com

1.888.830.1326

1.888.830.13261.888.830.1326

Must be able to secure the fan to building structure or fan-rated outlet box

You may need a friend to help you.

Check box to see fan weight

If you are unfamiliar with wiring, use a

qualied electrician.

Know your wiring

Ceiling angles greater than 34° will require an Angled Mounting Kit. See page 4 for details.

Assess ceiling angle

30 inches

from blade tip to nearest wall or obstruction

Assess location

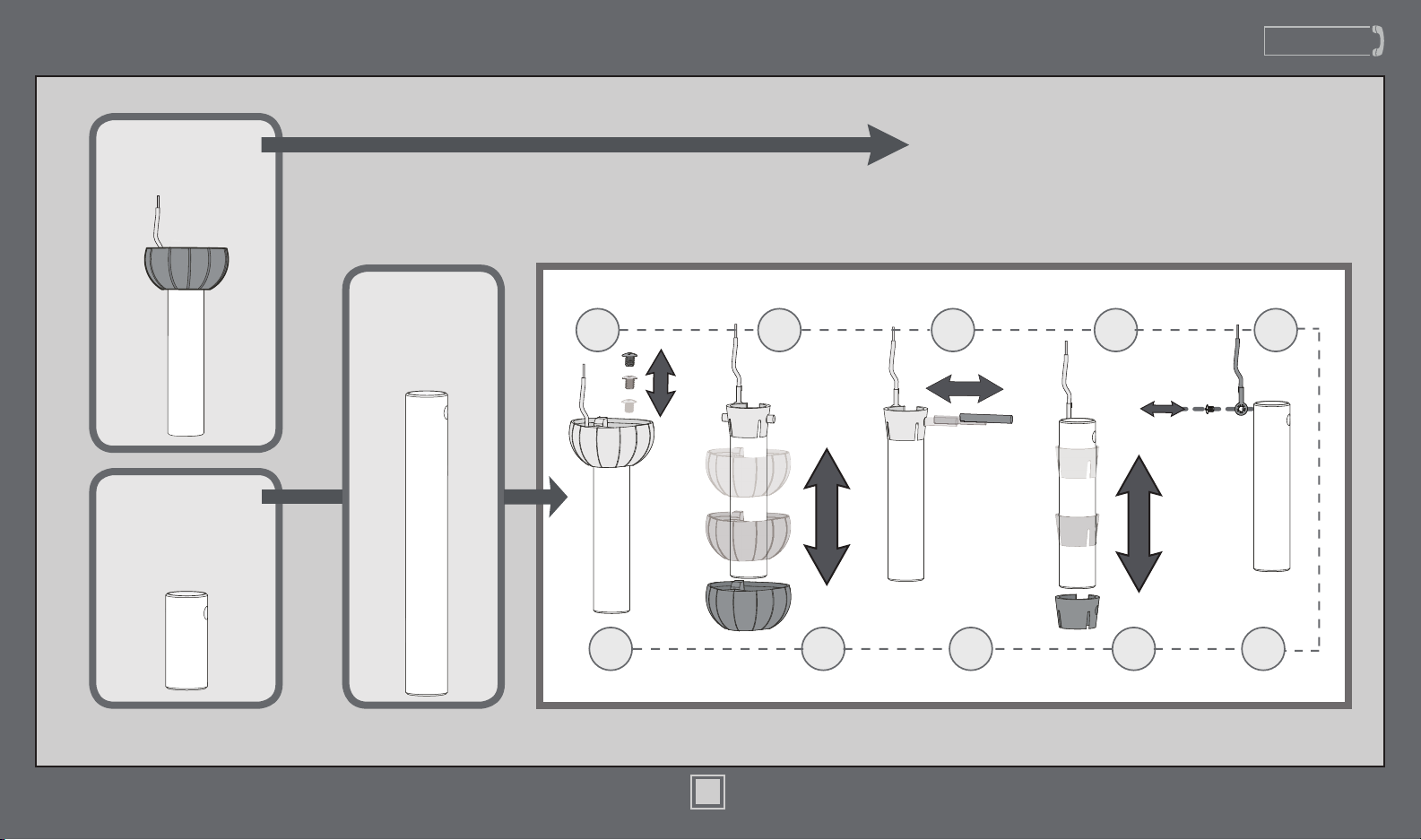

Standard Downrod

for ceilings 8-10 feet high

Shorter Downrod

for fans installed close to ceiling

Longer Downrod

for ceilings 10 feet or higher

Select a downrod length

7 feet

from bottom

edge of blade

to the oor

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or

personal injury, mount fan directly from building

structure and/or an outlet box marked acceptable for

fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage, use only Hunter Solid State Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

CAUTIONS

c.1 - All wiring must be in accordance with national and

local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.

c.2 - Use only Hunter replacement parts.

M0035-01 • 05/28/13 • © Hunter Fan Company

Tools Needed

www.HunterFan.com

1.888.830.1326

Ladder

Screwdrivers

Pliers Wire Strippers

Power Drill

(optional)

If mounting to a support structure, you will also need these tools.

M0035-01 • 05/28/13 • © Hunter Fan Company

11/32” Wrench

9/64” Drill Bit

(optional)

CEILING

Mounting Options

www.HunterFan.com

1.888.830.1326

1.866.268.1936

OPTION

If you have a at ceiling:

WALL

Hang your fan by a standard downrod (included).

Standard Mounting

Support Structure

OPTION

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will also need an Angled Mounting Kit (sold separately).

Use the three steps below to determine if your ceiling angle is greater than 34°

Angled Mounting

Standard Mounting Style

Ceiling

Outlet Box

(required)

Angled Mounting Style

Ceiling

Outlet Box

(required)

FOLD

on dotted line

34°

Guide Touches

BOTH Ceiling & Wall

You need ONLY

a Longer

Downrod

*most common

2 3

PLACE

against wall

Guide Touches

but NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

SLIDE

toward ceiling

Wall

M0035-01 • 05/28/13 • © Hunter Fan Company

Use Standard Mounting

or Low-Prole Mounting

to hang the fan from a at ceiling.

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

Ceiling Bracket

www.HunterFan.com

1.888.830.1326

Turn Power

OFF

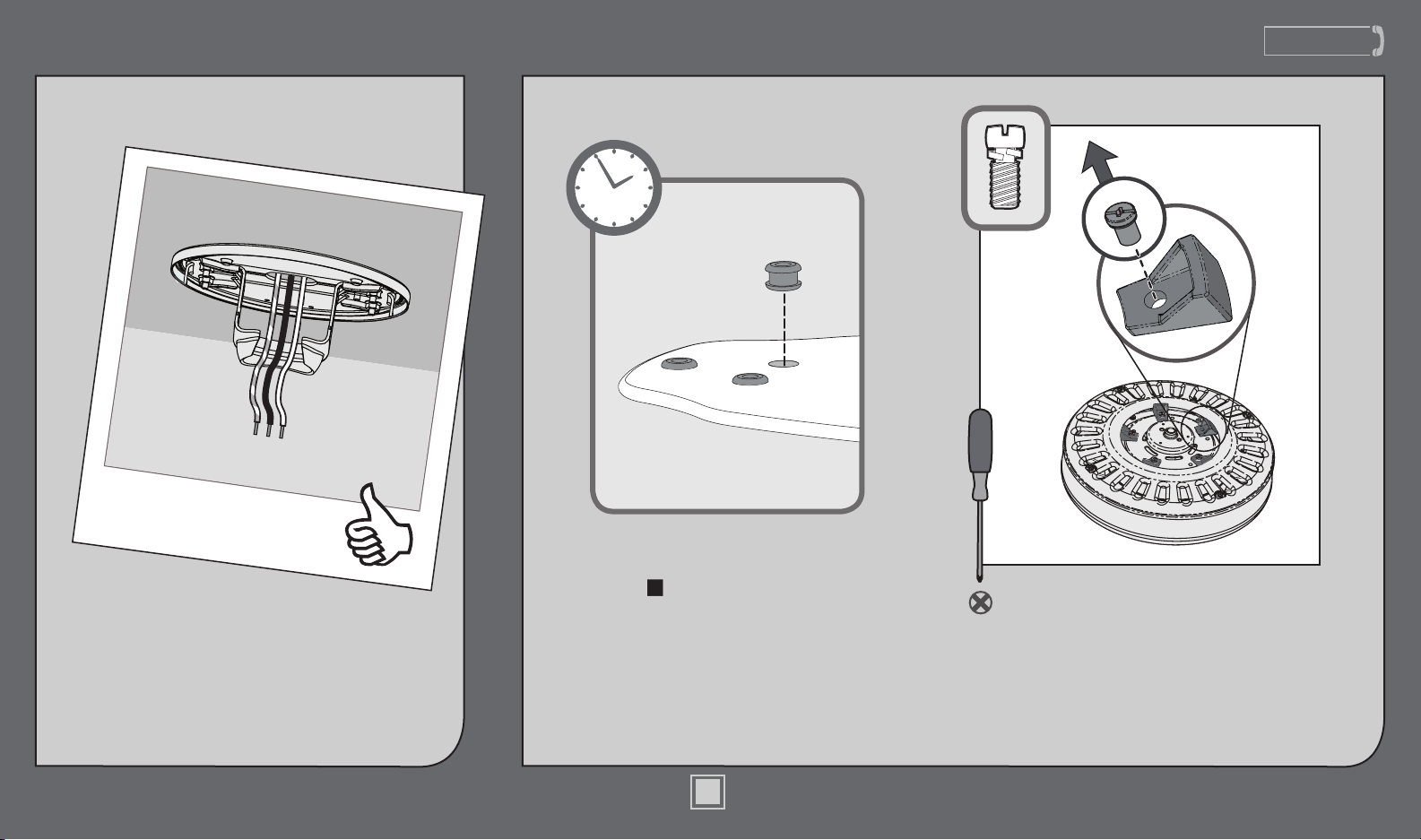

Remove all four mounting isolators.

To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet

box associated with the wall switch location.

Mounting Isolator

Ceiling Plate Screws

Tapered Mounting Holes

Align the tapered mounting holes in the ceiling plate with the holes in the ceiling

bracket. Install the four ceiling plate

screws found in the hardware bag and

secure with the ange nuts using an 11/32”

wrench. Hold the ceiling bracket assembly

up to the outlet box and mark the screw

locations. To mount to support structure,

also mark the ceiling for drilling pilot holes.

Ceiling Plate

Flange Nuts

Ceiling

Bracket

Ceiling Plate Gasket

Ceiling Plate

Install the ceiling plate gasket onto the ceiling plate. The four holes in the ceiling plate should lineup with the four posts in

the gasket.

Refer to warning w.1 on pg. 2

Post

Ceiling Bracket (continued)

Use the wood screw to poke holes through

the rubber gasket in order to install the

ceiling bracket assembly to your support

structure or ceiling fan-rated outlet box.

To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet

box associated with the wall switch location.

Use wood screws (included)

and washers when securing

to support structure with

approved electrical outlet

box. Drill 9/64” pilot holes in

support structure to aid in

securing ceiling bracket with

hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) and washers when

securing to existing ceiling

fan-rated outlet box. Make

sure it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

www.HunterFan.com

For angled ceilings, point

opening toward peak.

If you are unable to do this,

call Technical Support at

1-888-830-1326.

Refer to warning w.1 on pg. 2

1.888.830.1326
