Page 1
30 inches
7 feet
Ladder

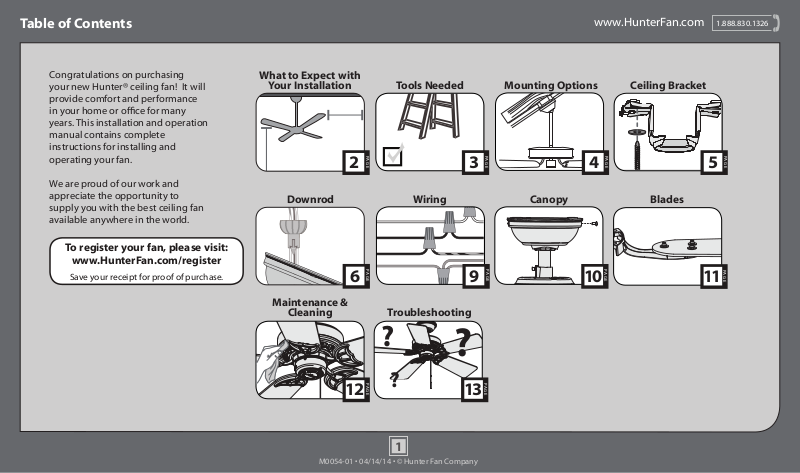

Table of Contents
www.HunterFan.com
1.888.830.1326
Congratulations on purchasing
your new Hunter® ceiling fan! It will
provide comfort and performance
in your home or ofce for many
years. This installation and operation
manual contains complete
instructions for installing and
operating your fan.
We are proud of our work and
appreciate the opportunity to
supply you with the best ceiling fan
available anywhere in the world.
To register your fan, please visit:
www.HunterFan.com/register
Save your receipt for proof of purchase.
What to Expect with
Your Installation
2
6
Maintenance &
Cleaning
Tools Needed
PAG E
Wiring Canopy BladesDownrod
PAG E
Troubleshooting
?
?
3
9
Mounting Options
PAG E
PAG E
4
10
Ceiling Bracket
PAG E
PAG E
PAG E
5
PAG E
11
PAG E
12
?
13
1
M0054-01 • 04/14/14 • © Hunter Fan Company
PAG E
Page 2
What to Expect with Your Installation
www.HunterFan.com
1.888.830.1326
Must be able to
secure the fan to
building structure or
fan-rated outlet box
You may need a
friend to help you.
Check box to see
fan weight
If you are unfamiliar
with wiring, use a
qualied electrician.
Know your wiring
Ceiling angles greater
than 34° will require an
Angled Mounting Kit.
See page 4 for details.
Assess ceiling angle
30 inches
from blade tip
to nearest wall
or obstruction
Assess location
Standard Downrod
1
for ceilings 8-10 feet high
Shorter Downrod
2
for fans installed close to ceiling
Longer Downrod
3
for ceilings 10 feet or higher
Select a downrod length
7 feet
from bottom
edge of blade
to the oor
Read and Save These Instructions
This product conforms to UL Standard 507.
WARNINGS
w.1 - To reduce the risk of re, electrical shock, or
personal injury, mount fan directly from building
structure and/or an outlet box marked acceptable for
fan support of 70 lbs (31.8 kg) and use the mounting
screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing
or servicing your fan, disconnect the power by turning
off the circuit breakers to the outlet box and associated
wall switch location. If you cannot lock the circuit
breakers in the off position, securely fasten a prominent
warning device, such as a tag, to the service panel.
w.3 - To reduce the risk of re, electrical shock, or motor
damage, use only Hunter Solid State Speed Controls.
w.4 - To reduce the risk of personal injury, do not bend the
blade brackets when installing the blade brackets, balancing
the blades, or cleaning the fan. Do not insert foreign objects
in between rotating fan blades.
CAUTIONS
c.1 - All wiring must be in accordance with national and
local electrical codes ANSI/NFPA 70. If you are unfamiliar
with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
2
M0054-01 • 04/14/14 • © Hunter Fan Company
Page 3
Tools Needed
www.HunterFan.com
1.888.830.1326
Ladder
Pliers Wire Strippers
Power Drill
(optional)
If mounting to a support structure, you will also need these tools.
9/64” Drill Bit
(optional)
3
M0054-01 • 04/14/14 • © Hunter Fan Company
Screwdrivers
Page 4
O
34
CEILING
Mounting Options
www.HunterFan.com
www.HunterFan.com
1.888.830.1326
1.888.830.1326
OPTION
If you have a at ceiling:
WALL
Hang your fan by a standard downrod (included).
Standard
Mounting
1
Support
Structure
Support
Structure
OPTION
If you have an angled ceiling:
1. You will need a longer downrod (sold separately).
2. If your ceiling angle is greater than 34°, you will
also need an Angled Mounting Kit (sold separately).
Use the three steps below to determine if your ceiling angle is greater than 34°
Angled
Mounting
2
Standard
Mounting
Style
Ceiling
Outlet Box
(required)
Angled
Mounting
Style
Ceiling
Outlet Box
(required)
FOLD
on dotted line
1
N
O
I
T
A
U
T
I
S
1
34°
Guide Touches
BOTH Ceiling & Wall
You need ONLY
a Longer
Downrod
*most common
2 3
PLACE
against wall
2
N
O
I
T
A
U
T
I
S
Guide Touches
but NOT Ceiling
You need BOTH
a Longer
Downrod &
an Angled
Mounting Kit
SLIDE
toward ceiling
Wall
4
4
M0054-01 • 04/14/14 • © Hunter Fan Company
Use Standard Mounting
or Low-Prole Mounting
to hang the fan from a at ceiling.
Use Angled Mounting
to hang the fan from a
vaulted or angled ceiling.
Page 5
Ceiling Bracket
Turn Power
OFF
Make sure all four (4)
bumpers are still attached.
For angled ceilings, point
opening toward peak.
Use wood screws
(included) when securing
to support structure with
approved electrical outlet
box. Drill 9/64” pilot holes
in support structure to aid
in securing ceiling bracket
with hardware found in
the hardware bag.
Use machine screws
(provided with outlet
box) when securing to
existing ceiling fan-rated
outlet box. Make sure
it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.
www.HunterFan.com
1.888.830.1326
If you are unable to do this,
call Technical Support at
Refer to warning w.1 on pg. 2
1-888-830-1326.
To avoid possible electrical shock, before installing your fan,
disconnect the power by turning off the circuit breakers to
the outlet box associated with the wall switch location.
5
M0054-01 • 04/14/14 • © Hunter Fan Company
Page 6
Downrod
www.HunterFan.com
1.888.830.1326
Standard
Downrod
for ceilings 8-10’ high
Option 1Option 2
Shorter
Downrod
for fans installed
close to ceiling
Included
(pre-assembled)
Longer
Downrod
for angled
ceilings or
Option 3
ceilings 10’ or
higher
skip to next page
If you need a different downrod length follow these steps:
Steps 1-5 to remove standard downrod pipe
1 2 3 4 5
Slide
Slide
678910
Included
Sold Separately
Steps 6-10 to reassemble with new pipe
6
M0054-01 • 04/14/14 • © Hunter Fan Company
Page 7
Downrod (continued)
www.HunterFan.com
1.888.830.1326
KEEP!
E
E
P
K
!
Remove the pre-installed
setscrew so that the downrod
can be inserted.
Hand tighten the downrod (at
least 4-5 full turns) until it stops.
8”
M0054-01 • 04/14/14 • © Hunter Fan Company
3/8”
T
U
C
P
I
R
T
S
&
8”
(not to scale)
The wires can be cut, but
leave at least 8” extending
from the top of the downrod.
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
3/8”
If the setscrew is not tightened
securely, the fan may fall.
7
Page 8

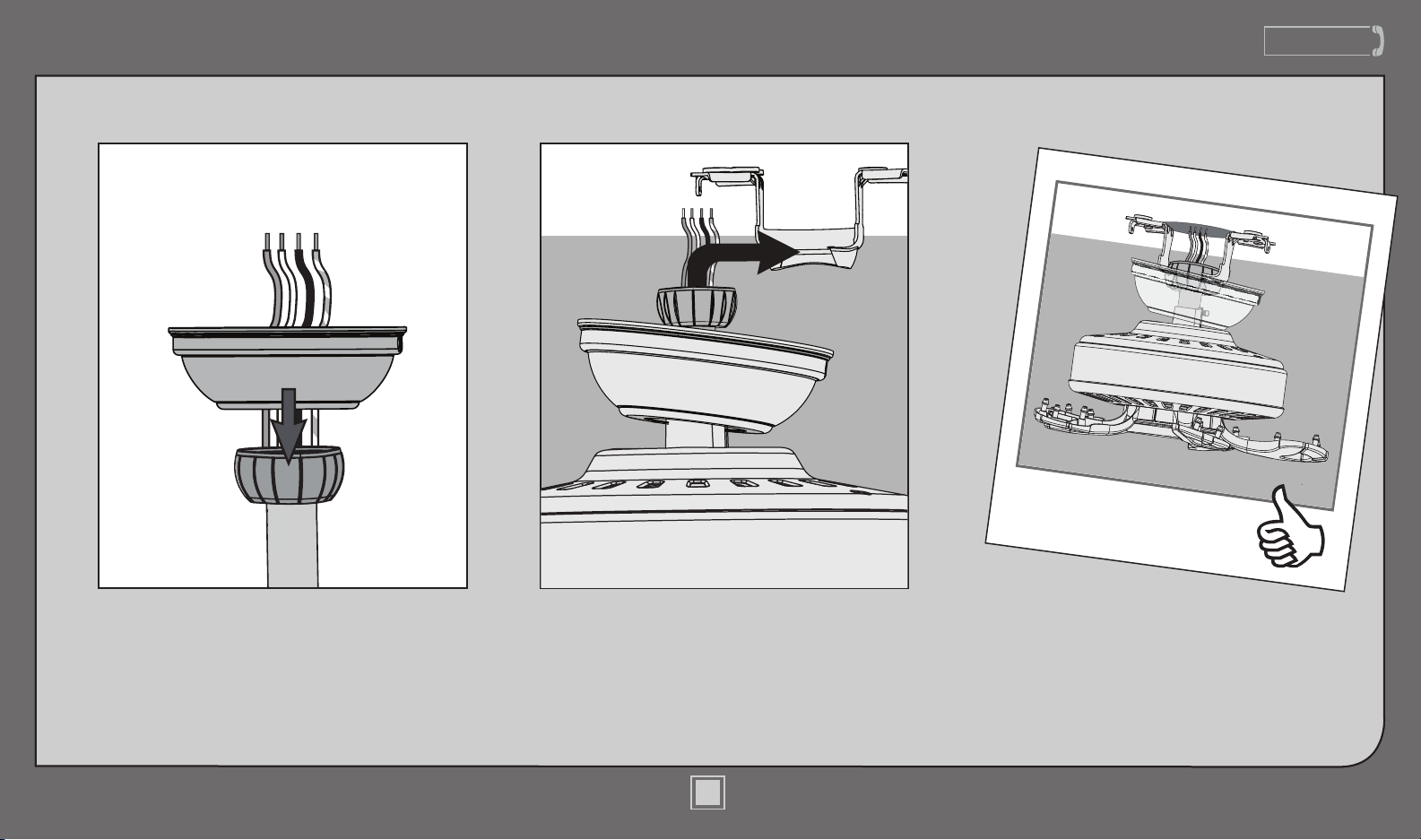

Downrod (continued)
DO NOT PICK THE FAN UP BY THE
www.HunterFan.com
1.888.830.1326
Put the wires and downrod through
the canopy. Let the canopy sit loosely
on top of the fan.
CANOPY OR WIRES. Place the downrod
ball into the slot in the ceiling bracket.
8
M0054-01 • 04/14/14 • © Hunter Fan Company
Page 9
Wiring
Note: To connect the wires, hold the bare metal
www.HunterFan.com
1.888.830.1326
leads together and place a wire connector over
E
C
I
L
I
M
N
O
R
F
G
them, then twist clockwise until tight.
E
C
I
L
I
M
N
O
R
F
G
F
A
M
N
O
R
F
Refer to CAUTION c.1 on pg. 2
Green/Yellow
Stripe
F
R
O
M
C
E
(Grounding)
Green/Yellow
Stripe
I
L
I
(Grounded)
White
Using an orange wire
connector from
the hardware bag,
connect the 3 grounding
wires (green, green/
yellow stripe, or bare
copper) coming from the
T
E
K
C
A
R
B
G
N
ceiling, downrod, and
hanging bracket.
F
Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the outlet box.
(Ungrounded)
Black
Blue
Using the orange wire
connectors from
the hardware bag, connect
the black wire (ungrounded)
from the ceiling to the black
and the blue wires from the
fan. Connect the white wire
(grounded) from the ceiling to
the white wire from the fan.
R
N
O
A
F
M
9
M0054-01 • 04/14/14 • © Hunter Fan Company
Page 10
Canopy
Screw
Holes
www.HunterFan.com
1.888.830.1326
Position the canopy so that, when
lifted into place, the canopy ts into
the hanging bracket as shown.
Lift the canopy into place so that
the screw holes are aligned.
M0054-01 • 04/14/14 • © Hunter Fan Company
Insert the two canopy screws
found in the hardware bag.
Note: Fan style may vary.
10
Page 11
Blades
www.HunterFan.com
1.888.830.1326
Blade
Holes
Blade
Iron Post
Align the three blade holes with the three
blade iron posts. Squeeze the blade and the
blade iron post together.
Flared
Tops
CONGRATULATIONS!
YOU’RE DONE!
The ared tops of the blade iron posts
will be fully visible above the blade when
properly assembled.
Your blades are shielded with Dust Armor® which
is a nanotechnology coating that repels dust. For
cleaning the fan, use soft brushes or cloths to prevent
scratching. Cleaning agents may damage the nishes.
11
M0054-01 • 04/14/14 • © Hunter Fan Company
Page 12
Maintenance & Cleaning
Turn Power
ON
Reverse
Switch
www.HunterFan.com
1.888.830.1326
Installing the pull chain pendant -
Attach the pull chain pendant to the
short chain coming from
the switch housing.
Changing the direction of air
ow - move the reverse switch to
the opposite position.
12
M0054-01 • 04/14/14 • © Hunter Fan Company
Cleaning the fan - use soft
brushes or cloths to prevent
scratching. Cleaning products
may damage the nishes.
Page 13
Troubleshooting
www.HunterFan.com
1.888.830.1326
Fan doesn’t work
• Make sure power switch is on.
• Pull the pull chain to make sure
it is on.
• Push the motor reversing switch
rmly left or right to ensure that
it is engaged.
• Check the circuit breaker to
ensure the power is turned on.
• Make sure the blades spin freely.
• Turn off power from the circuit
breaker, then loosen the canopy
and check all the connections
according to the wiring diagram
on page 9.
• Check the plug connection in
the switch housing.
Excessive wobbling
• Make sure that the blades
are properly installed on the
blade iron posts.
• Turn the power off, support
the fan carefully, and check
that the hanger ball is
properly seated.
• Use the provided balancing
kit and instructions to balance
the fan.
Noisy Operation
• Make sure that the blades are
properly installed on the blade
iron posts.
• Check to see if any of the blades
are cracked. If so, replace all of
the blades.
13
M0054-01 • 04/14/14 • © Hunter Fan Company
M0054-01 • 04/14/14 • © Hunter Fan Company
