Page 1

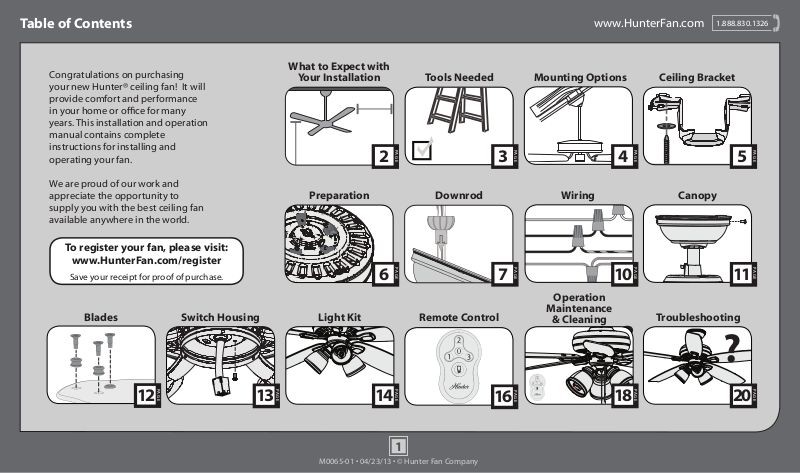

Table of Contents
30 inches
7 feet
Ladder
www.HunterFan.com
1.888.830.1326
Congratulations on purchasing
your new Hunter® ceiling fan! It will
provide comfort and performance
in your home or ofce for many
years. This installation and operation
manual contains complete
instructions for installing and
operating your fan.
We are proud of our work and
appreciate the opportunity to
supply you with the best ceiling fan
available anywhere in the world.
To register your fan, please visit:
www.HunterFan.com/register
Save your receipt for proof of purchase.
Switch HousingBlades
What to Expect with
Your Installation
2
Preparation Canopy
6

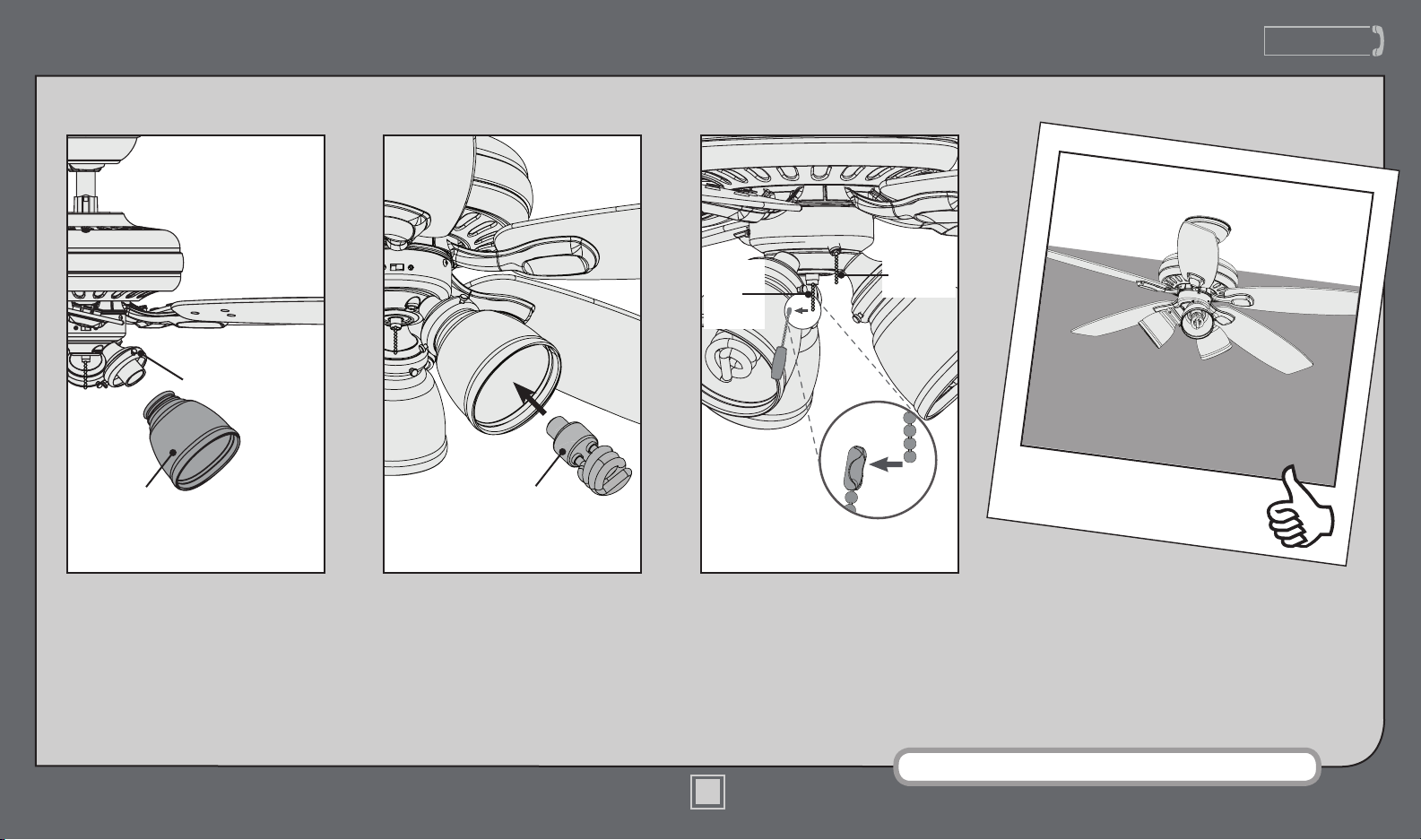

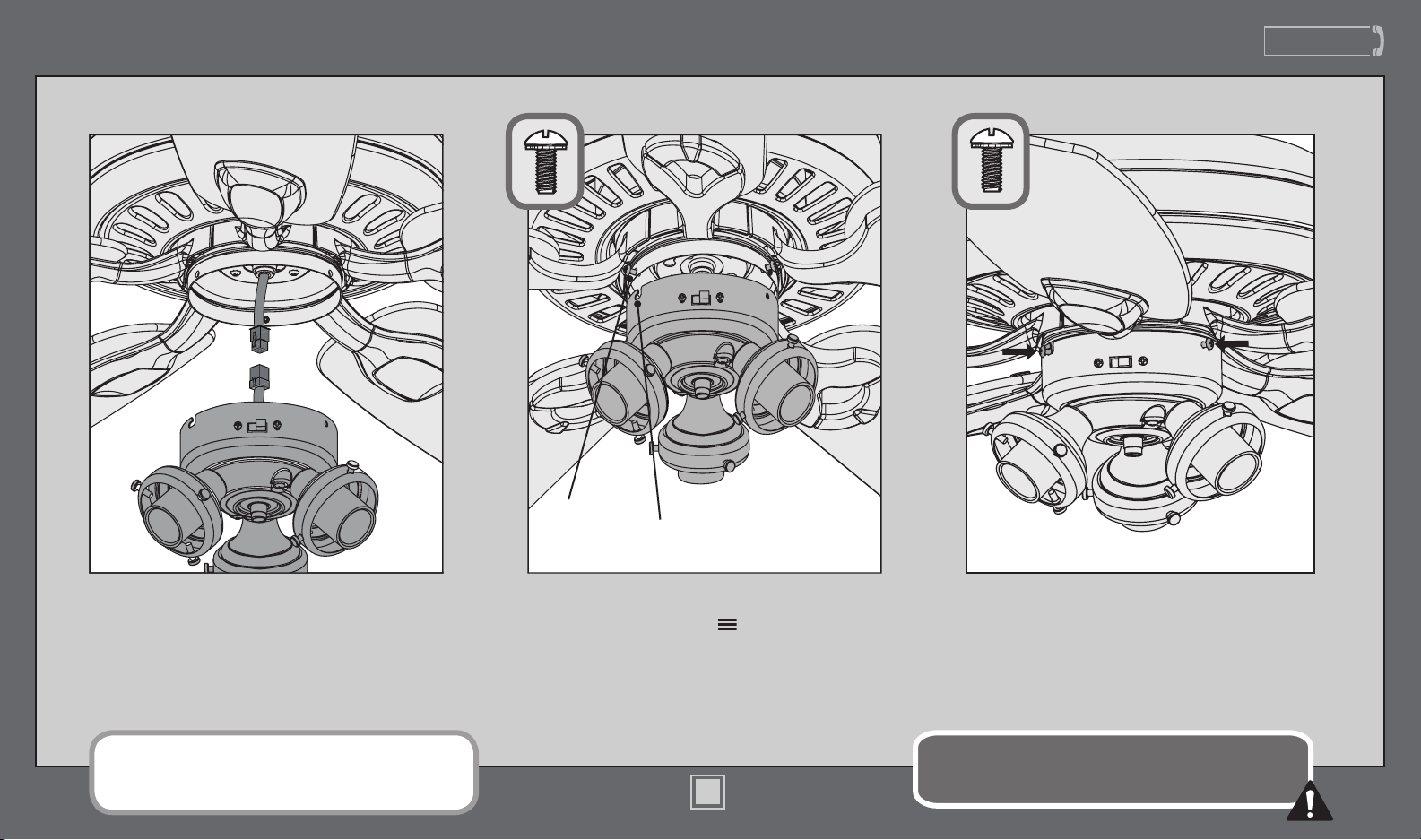

Light Kit
Tools Needed
PAG E
3
Downrod
PAG E
7

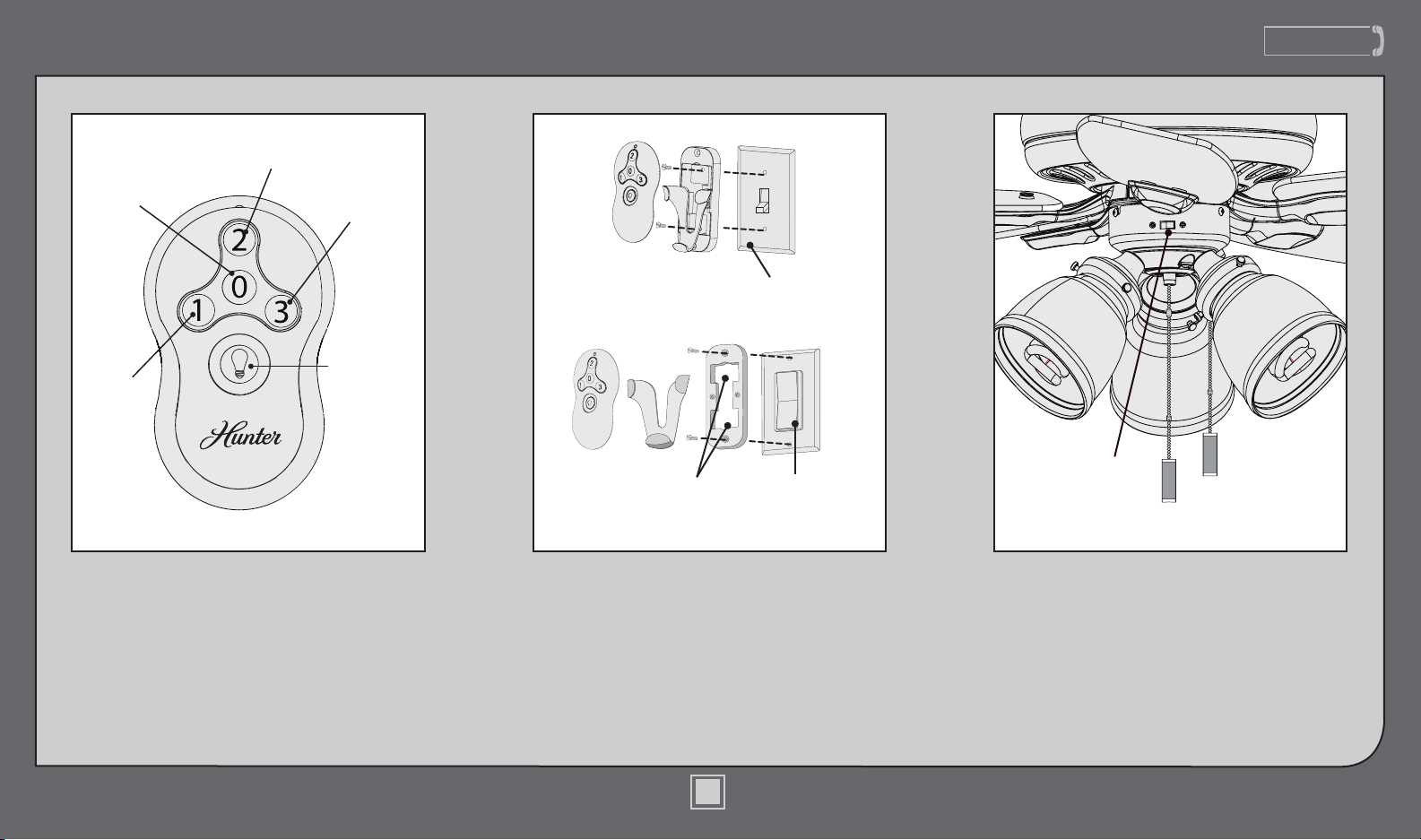

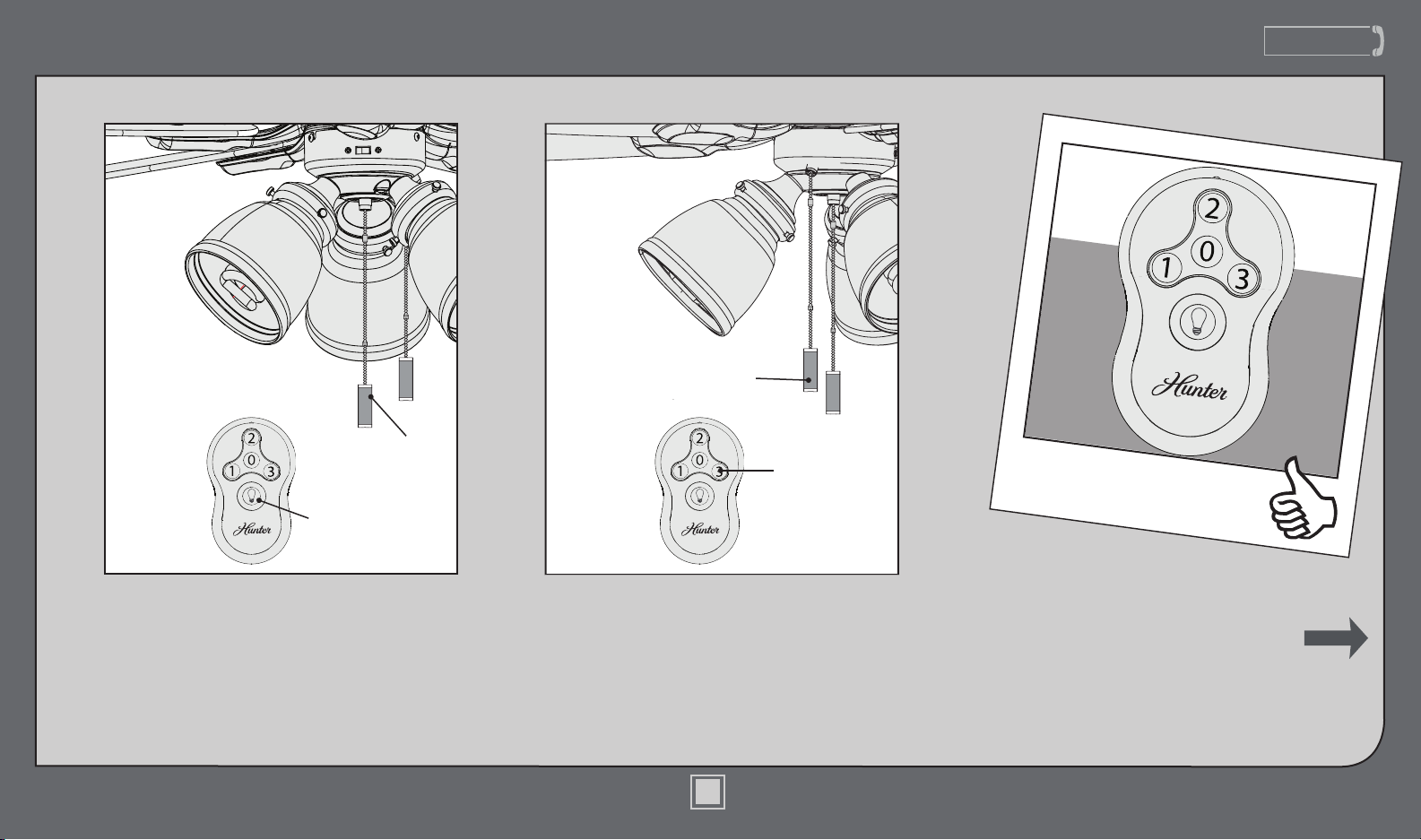

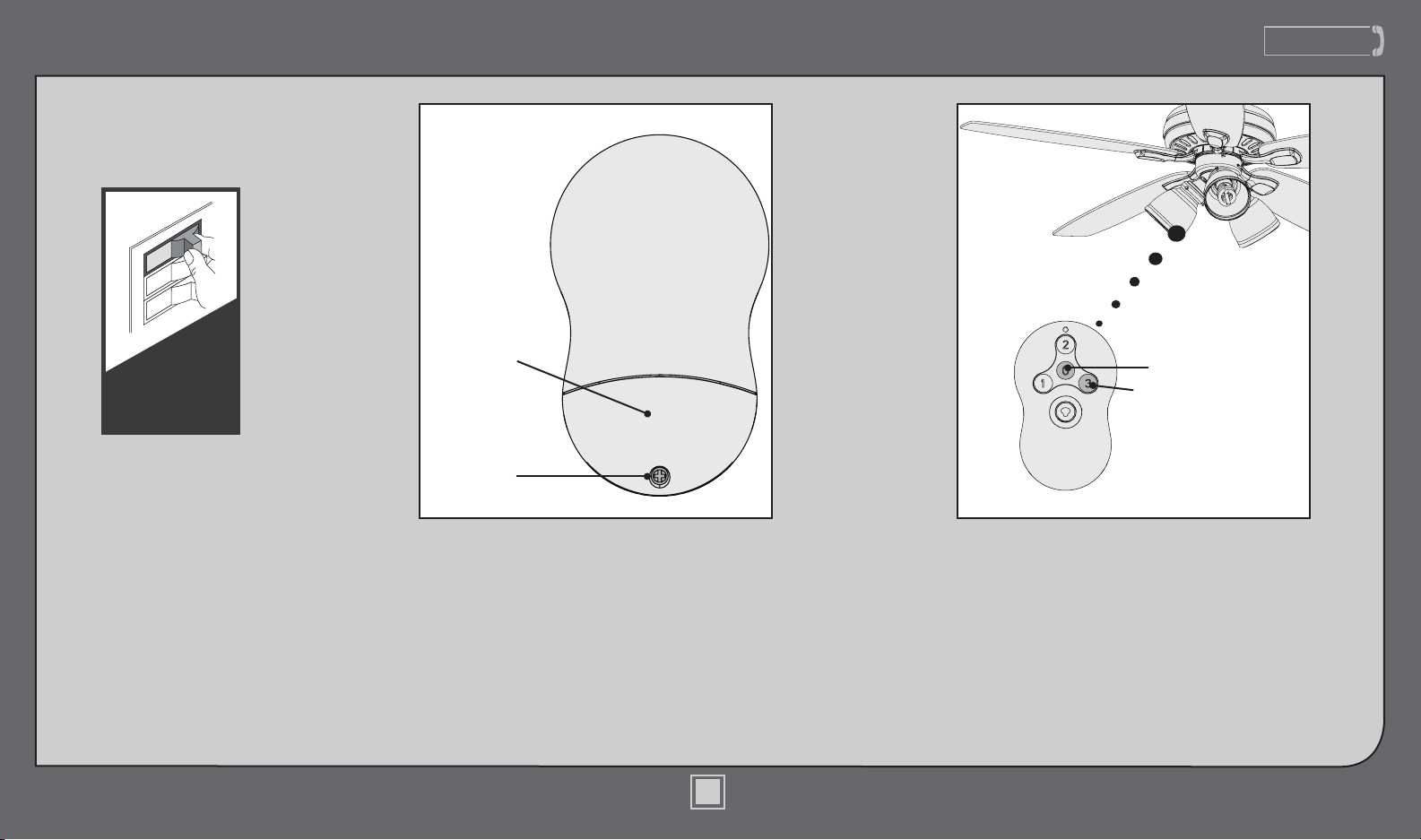

Remote Control
Mounting Options
PAG E
Wiring
PAG E
Operation

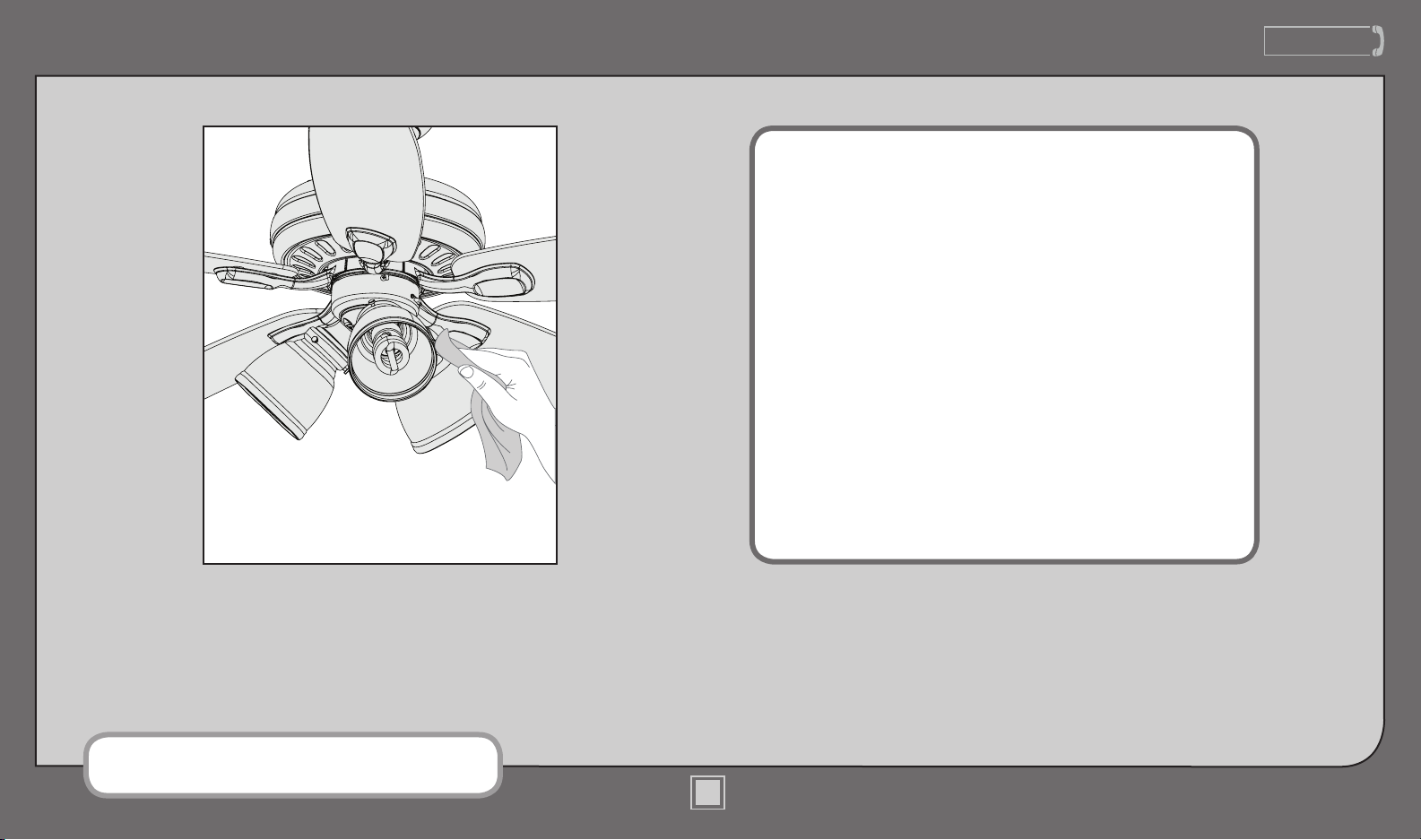

Maintenance
& Cleaning
Ceiling Bracket
PAG E
4
PAG E
10
Troubleshooting
?
PAG E
5
PAG E
11
?
12
PAG E
PAG E
13
14
PAG E
PAG E
16
18
PAG E
?
PAG E
20
1
M0065-01 • 04/23/13 • © Hunter Fan Company
Page 2
What to Expect with Your Installation
If you are unfamiliar
with wiring, use a
qualied electrician.
Must be able to
secure the fan to
building structure or
fan-rated outlet box
You may need a
friend to help you.
Know your wiring
30 inches
from blade tip
to nearest wall
or obstruction
from bottom
edge of blade
Assess location
Standard Downrod
1
for ceilings 8-10 feet high
7 feet
to the oor
1.888.830.1326
www.HunterFan.com
1.888.830.13261.888.830.1326
Read and Save These Instructions
This product conforms to UL Standard 507.
WARNINGS
w.1 - To reduce the risk of re, electrical shock, or personal
injury, mount fan directly from building structure and/or an
outlet box marked acceptable for fan support of 70 lbs (31.8 kg)
and use the mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or
servicing your fan, disconnect the power by turning off the
circuit breakers to the outlet box and associated wall switch
location. If you cannot lock the circuit breakers in the off
position, securely fasten a prominent warning device, such as a
tag, to the service panel.
w.3 - To reduce the risk of re, electrical shock, or motor damage,
use only Hunter Speed Controls.
w.4 - To reduce the risk of personal injury, do not bend the blade
brackets when installing the blade brackets, balancing the blades,
or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
CAUTIONS
Check box to see
fan weight
Ceiling angles greater
than 34° will require an
Angled Mounting Kit.
See page 4 for details.
Assess ceiling angle
Shorter Downrod
2
for fans installed close to ceiling
Longer Downrod
3
for ceilings 10 feet or higher
Select a downrod length
2
M0065-01 • 04/23/13 • © Hunter Fan Company
c.1 - All wiring must be in accordance with national and local
electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring,
use a qualied electrician.
c.2 - Use only Hunter replacement parts.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and if not
installed and used in accordance with the instructions may cause
harmful interference to radio communications.
Page 3
Tools Needed
www.HunterFan.com
1.888.830.1326
Ladder
Pliers Wire Strippers
Power Drill
(optional)
If mounting to a support structure, you will also need these tools.
9/64” Drill Bit
(optional)
3
M0065-01 • 04/23/13 • © Hunter Fan Company
Screwdrivers
Page 4
O
34
CEILING
Mounting Options (continued)
If you have a at ceiling:
WALL
Hang your fan by a standard downrod (included).
If you have an angled ceiling:
1. You will need a longer downrod (sold separately).
2. If your ceiling angle is greater than 34°, you will
also need an Angled Mounting Kit (sold separately).
Use the three steps below to determine if your ceiling angle is greater than 34°
Standard
Mounting
Angled
Mounting
OPTION
1
OPTION
2
Mounting Options
Support
Structure
Standard
Mounting
Style
Ceiling
Outlet Box
(required)
www.HunterFan.com
Support
Structure
Angled
Mounting
Style
1.888.830.1326
Ceiling
Outlet Box
(required)
FOLD
on dotted line
1
N
O
I
T
A
U
T
I
S
1
34°
Guide Touches
BOTH Ceiling & Wall
You need ONLY
a Longer
Downrod
*most common
2 3
PLACE
against wall
2
N
O
I
T
A
U
T
I
S
Guide Touches
but NOT Ceiling
You need BOTH
a Longer
Downrod &
an Angled
Mounting Kit
SLIDE
toward ceiling
Wall
4
4
M0065-01 • 04/23/13 • © Hunter Fan Company
Use Standard Mounting
or Low-Prole Mounting
to hang the fan from a at ceiling.
Use Angled Mounting
to hang the fan from a
vaulted or angled ceiling.
Page 5
Ceiling Bracket
Turn Power
OFF
www.HunterFan.com
For angled ceilings, point
opening toward peak.
1.888.830.1326
Make sure all four (4) bumpers
are still attached.
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
Use wood screws
(included) when securing
to support structure with
approved electrical outlet
box. Drill 9/64” pilot holes
in support structure to aid
in securing ceiling bracket
with hardware found in
the hardware bag.
5
M0065-01 • 04/23/13 • © Hunter Fan Company
Use machine screws
(provided with outlet
box) when securing to
existing ceiling fan-rated
outlet box. Make sure
it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.
If you are unable to do this,
call Technical Support at
1-888-830-1326.
Refer to warning w.1 on pg. 2
Page 6
Ceiling Bracket (continued)
Preparation
www.HunterFan.com
www.HunterFan.com
E
E
P
K
!
D
I
S
C
A
R
D
1.888.830.1326
1.888.830.1326
Time Saver Tip: Get a helper
to insert grommets, found in
the hardware bag, into the
blades while you’re doing the
next couple of steps.
6
M0065-01 • 04/23/13 • © Hunter Fan Company
Remove the shipping blocks from the
motor. Save the screws. They will be
needed for blade iron installation.
Note: Some fans will have a shipping
ring instead of shipping blocks. Please
remove the ring and save the screws.
Page 7
Downrod
www.HunterFan.com
1.888.830.1326
Standard
Downrod
for ceilings 8-10’ high
Option 1Option 2
Shorter
Downrod
for fans installed
close to ceiling
Included
(pre-assembled)
Longer
Downrod
for angled
ceilings or
Option 3
ceilings 10’ or
higher
skip to next page

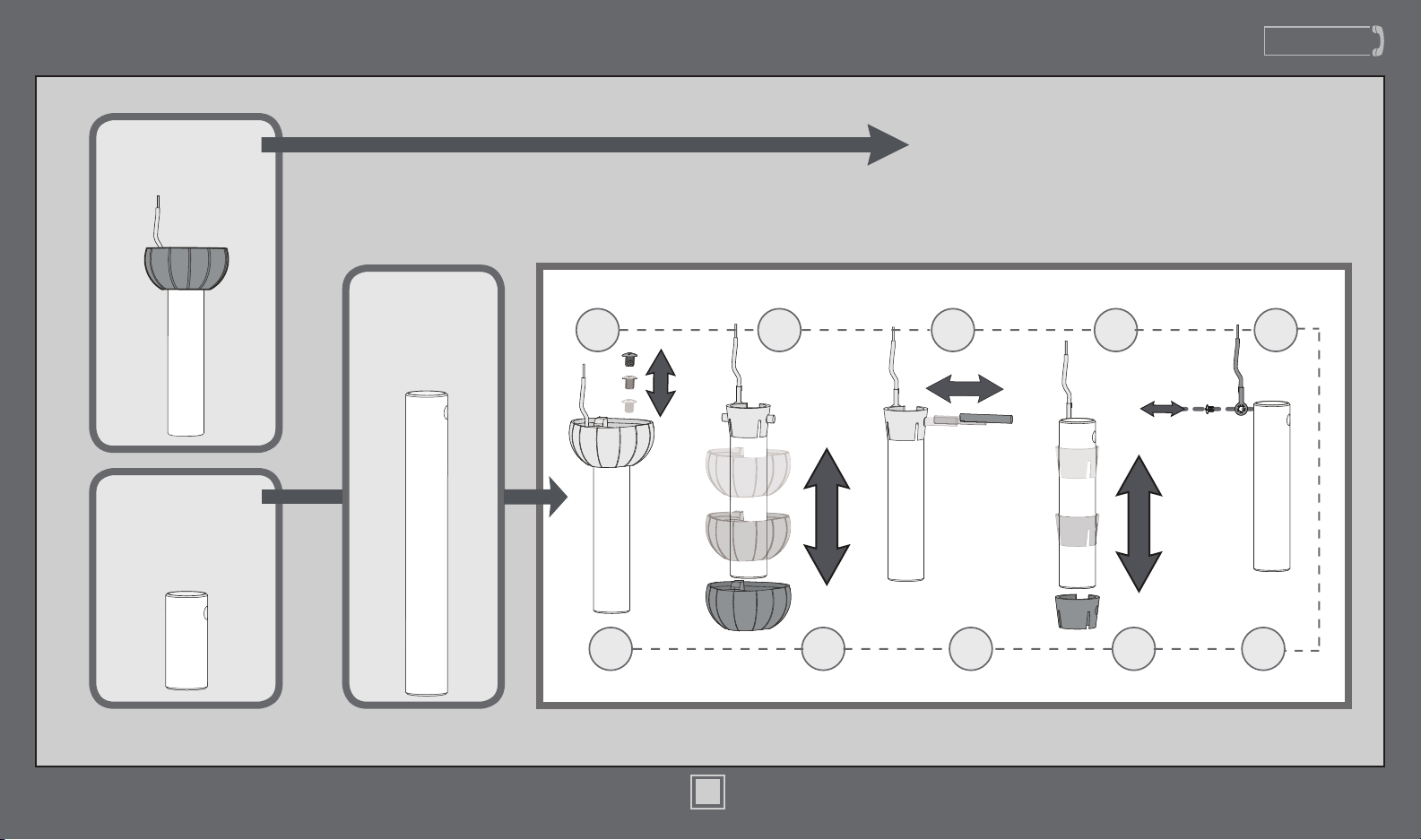

If you need a different downrod length follow these steps:
Steps 1-5 to remove standard downrod pipe
1 2 3 4 5
Slide
Slide
678910
Included
Sold Separately
Steps 6-10 to reassemble with new pipe
7
M0065-01 • 04/23/13 • © Hunter Fan Company
Page 8

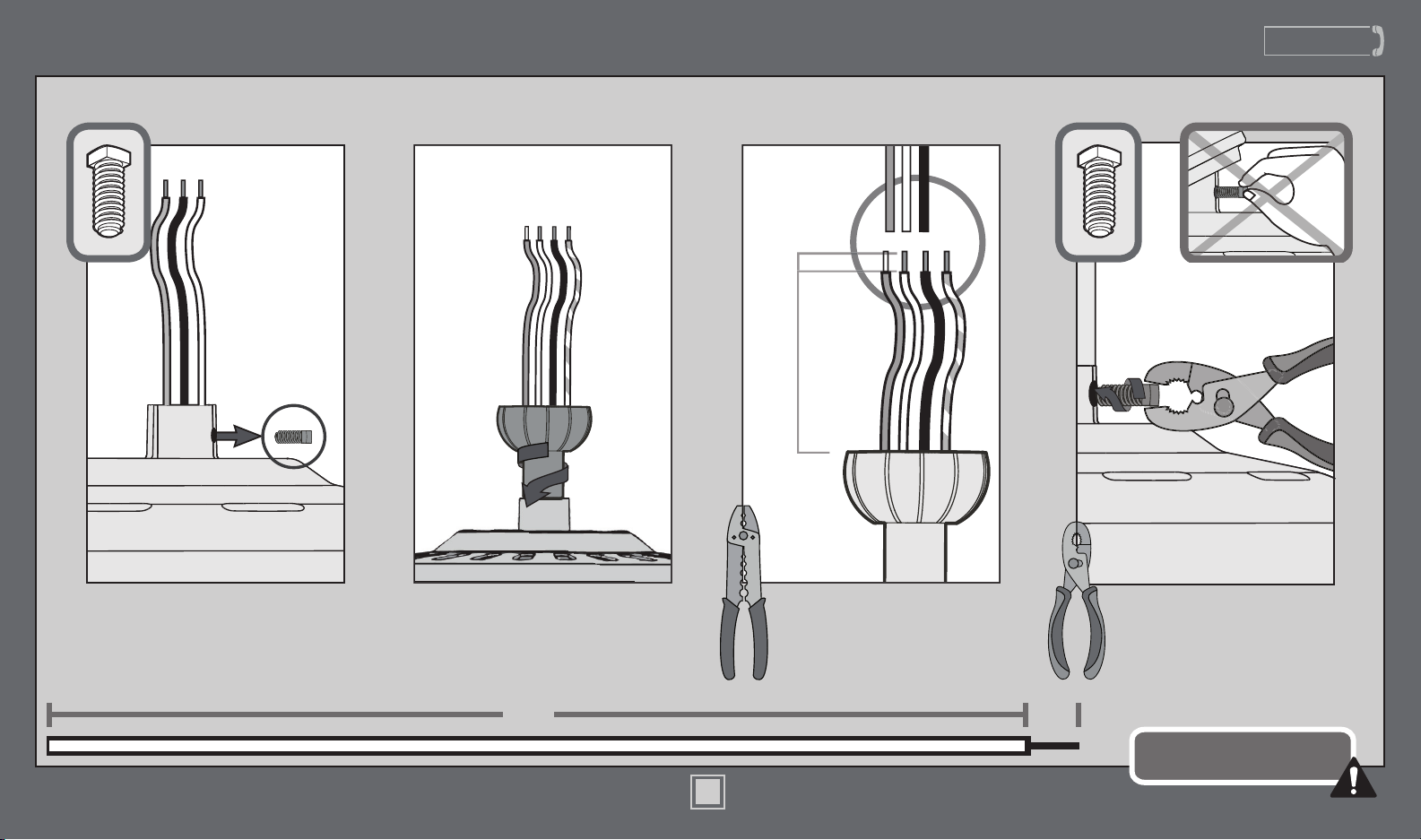

Downrod (continued)
www.HunterFan.com
1.888.830.1326
KEEP!
E
E
P
K
!
Remove the pre-installed
setscrew so that the downrod
can be inserted.
Hand tighten the downrod (at
least 4-5 full turns) until it stops.
8”
M0065-01 • 04/23/13 • © Hunter Fan Company
3/8”
T
U
C
P
I
R
T
S
&
8”
(not to scale)
The wires can be cut, but
leave at least 8” extending
from the top of the downrod.
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
3/8”
If the setscrew is not tightened
securely, the fan may fall.
8
Page 9

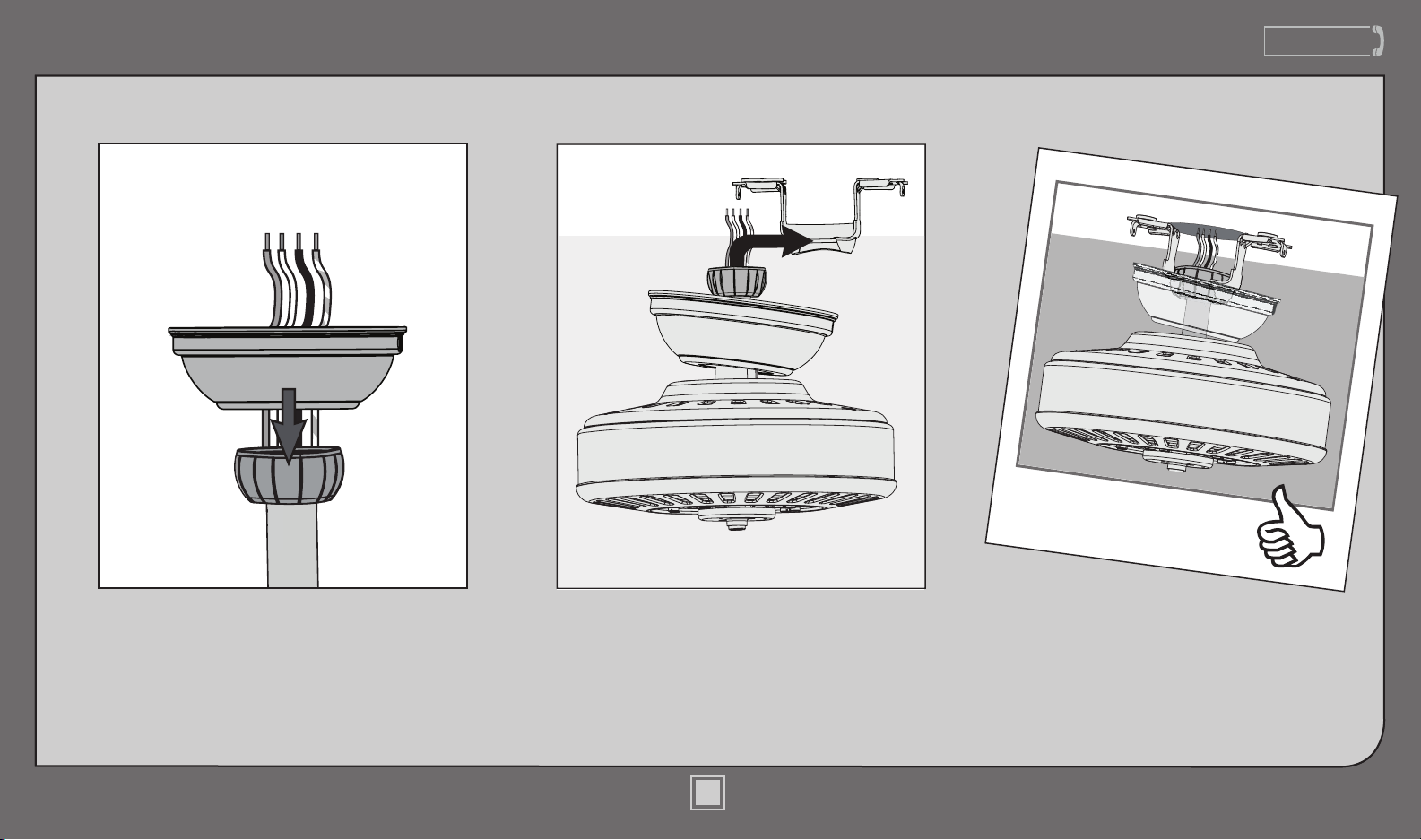

Downrod (continued)
DO NOT PICK THE FAN UP BY THE
Put the wires and downrod through
www.HunterFan.com
1.888.830.1326
the canopy. Let the canopy sit loosely
on top of the fan.
CANOPY OR WIRES. Place the downrod
ball into the slot in the ceiling bracket.
9
M0065-01 • 04/23/13 • © Hunter Fan Company
Page 10

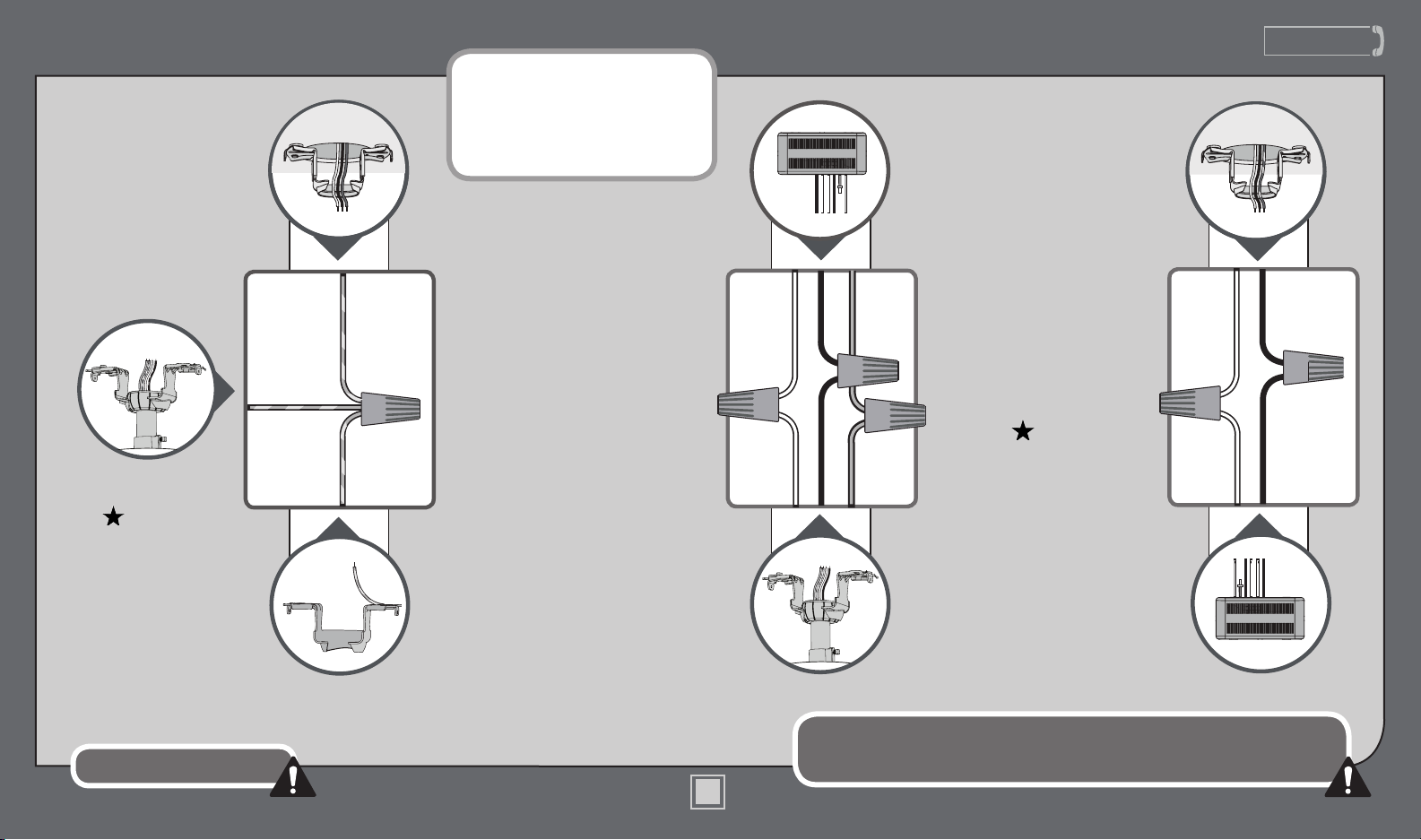

Wiring
Using an orange wire
connect the 3 grounding
copper) coming from the
www.HunterFan.com
1.888.830.1326
F
A
M
N
O
R
F
connector from
the hardware bag,
wires (green, green/
yellow stripe, or bare
ceiling, downrod, and
hanging bracket.
Refer to CAUTION c.1 on pg. 2
M
O
R
F
green/yellow stripe
F
R
O
M
C
E
C
green/yellow stripe
(grounding)
green/yellow stripe
I
L
I
N
E
I
L
I
N
G
hold the bare metal leads
together and place a wire
F
C
E
E
I
R
V
M
O
R
E
R
E
I
C
L
I
N
M
O
R
F
G
connector over them, then twist
clockwise until tight.
Note: To connect the wires,
white (common out)
black (fan out)
blue (light out)
white (grounded) white (neutral in)
black (ungrounded)
Using the blue wire
connectors from the remote
control hardware bag,
connect the white wire
from the receiver (marked
“common out”) to the white
wire from fan. Connect the
white
black
black wire from the receiver
blue
(marked “fan out”) to the
black wire from the fan.
Connect the blue wire from
the receiver (marked ”light
out”) to the blue wire from
the fan. The red wire from
the receiver will not be used,
it has a pre-installed wire
T
E
K
C
A
R
B
G
terminator.
F
R
O
N
A
F
M
Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the outlet box.
Using an orange wire
connector from
the hardware bag,
connect the black wire
(ungrounded) from the
ceiling to the black wire
from the receiver (marked
“live in”). Connect the
white wire (grounded)
from the ceiling to
the white wire from
the receiver (marked
“neutral in” or
“common in”).
black (live in)
F
R
O
M
R
R
E
V
I
E
C
E
10
M0065-01 • 04/23/13 • © Hunter Fan Company
Page 11

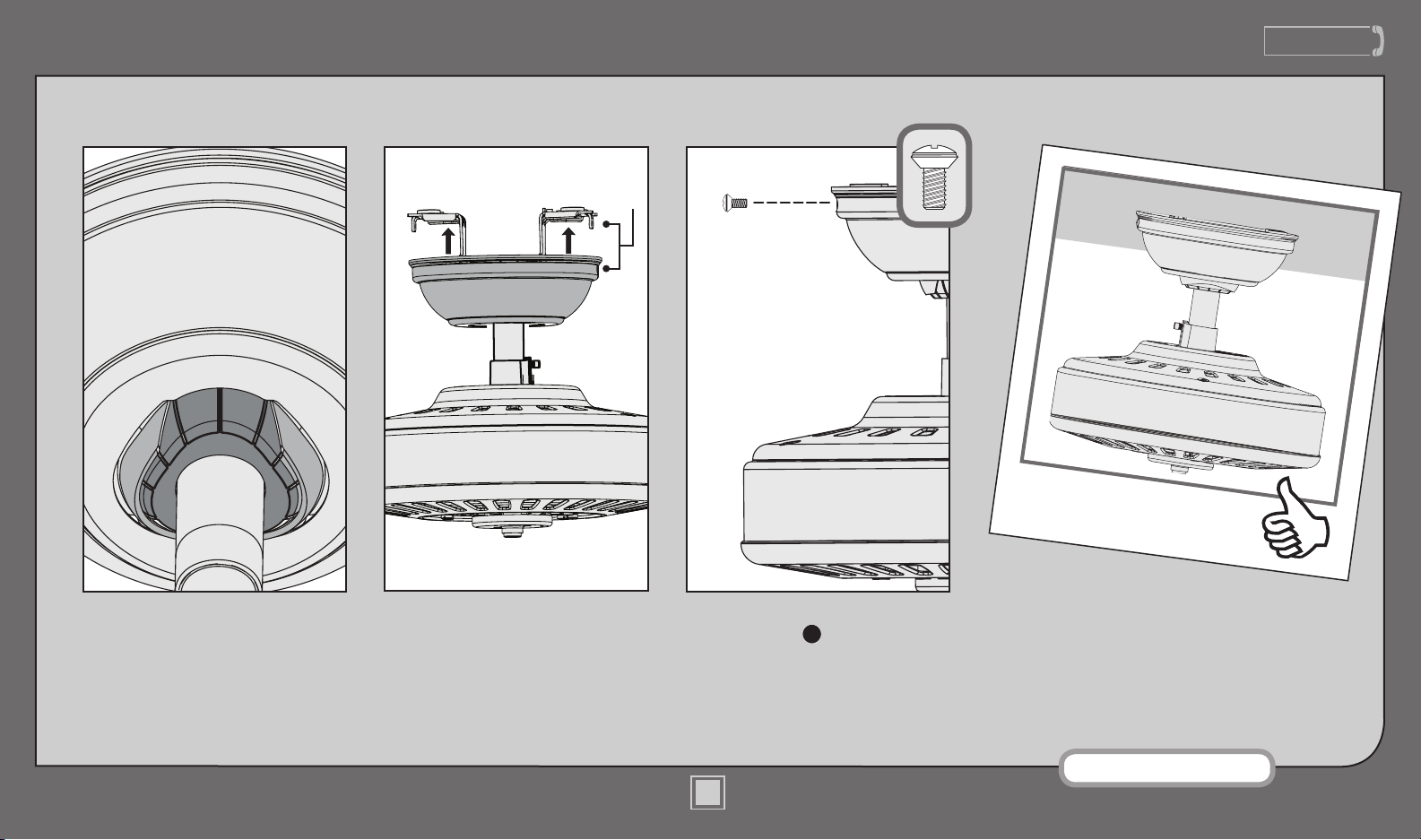

Canopy
Screw
Holes
www.HunterFan.com
1.888.830.1326
Position the canopy so that, when
lifted into place, the canopy ts into
the hanging bracket as shown.
Lift the canopy into place so that
the screw holes are aligned.
M0065-01 • 04/23/13 • © Hunter Fan Company
Insert the two canopy screws
found in the hardware bag.
Note: Fan style may vary.
11
Page 12

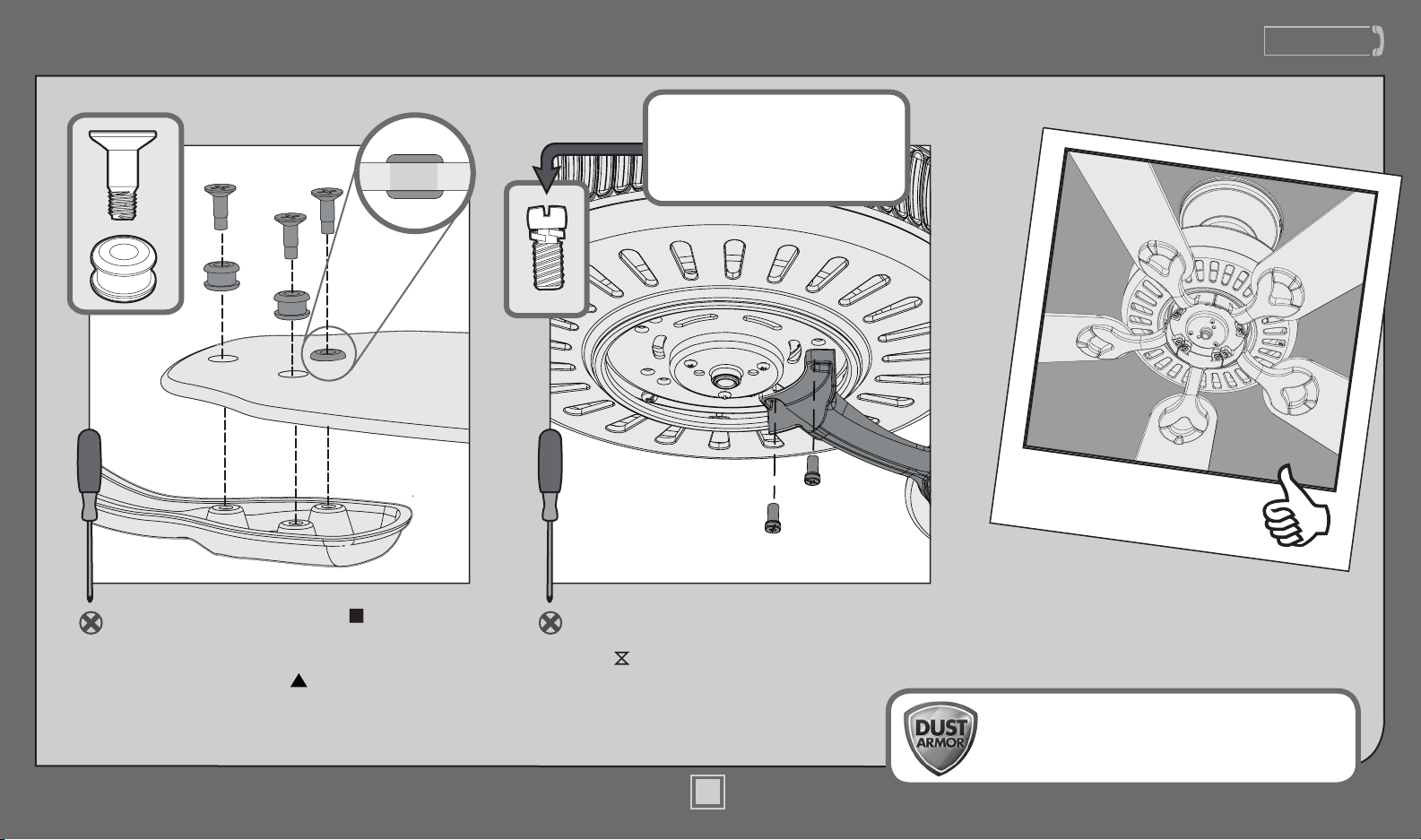

Blades
Insert grommets found in the hardware
Lightly attach the blade irons to the
Remember the screws that
you kept after removing the
shipping blocks (page 6)? You
need them plus ve more from
the hardware bag for this step.
www.HunterFan.com
1.888.830.1326
bag into the holes in the blades, then
secure each blade to a blade iron with
screws found in the hardware bag.
motor with screws found in
the hardware bag, then securely
tighten after both screws are attached.
Your blades are shielded with Dust Armor® which
is a nanotechnology coating that repels dust. For
cleaning the fan, use soft brushes or cloths to prevent
scratching. Cleaning agents may damage the nishes.
12
M0065-01 • 04/23/13 • © Hunter Fan Company
Page 13
Switch Housing
www.HunterFan.com
1.888.830.1326

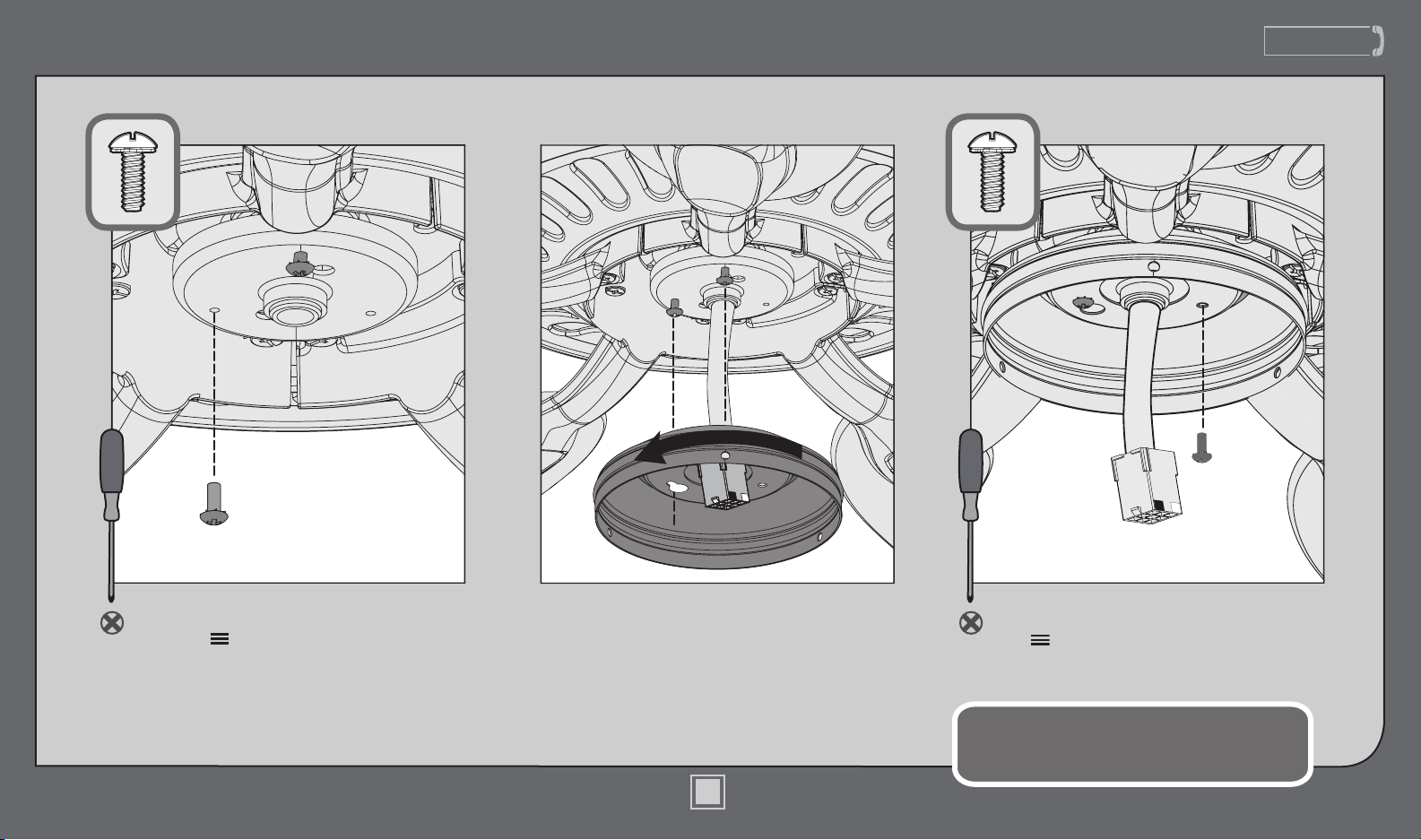

Screw two (2) housing assembly screws
from the hardware bag halfway into
the motor housing. It does not matter
which two screw holes you choose.
Feed the wire plug through the center
hole of the upper switch housing, then
wrap keyhole slots around the screws and
twist counterclockwise.
13
M0065-01 • 04/23/13 • © Hunter Fan Company
Insert the third screw, found in
the hardware bag, into place and then
tighten all three (3) screws.
Make sure the upper switch housing is securely
attached to the mounting plate. Failure to properly
secure all 3 assembly screws could result in the switch
housing xture falling.
Page 14
Light Kit
Switch
Housing
Screw
Notch
www.HunterFan.com
1.888.830.1326
Connect the plugs from the upper and
lower switch housings. Make sure to line
up the colored markings on
the connectors.
Want to install your fan without a light kit?
Go to www.HunterFan.com/FAQs and click
“How do I install my fan without the light kit?”
Partially install two of the switch housing
screws found in the bag. Align the
notches in the sides of the lower switch
housing with the upper switch housing
screws. Twist the lower switch housing
clockwise to lock into place.
14
M0065-01 • 04/23/13 • © Hunter Fan Company
Install the third switch housing screw.
Tighten all three screws securely.
Make sure the lower switch housing is securely attached to
the upper switch housing. Failure to properly secure all three
assembly screws could result in the light xture falling.
Page 15
Light Kit (continued)
www.HunterFan.com
1.888.830.1326
Thumb Screw
Shade
To install the shade, rst loosen
the thumb screws. Raise the
shade to the light xture. Tighten
all thumbscrews securely.
Bulb
Install a bulb into each of the
sockets. When necessary, replace
with bulbs of same wattage.
M0065-01 • 04/23/13 • © Hunter Fan Company
Light
Pull
Fan Pull
Chain
Chain
Connect the appropriate pull chain
pendant to each of the short chains
coming from the switch housing.
Note: Glass shade style and number of lights may vary.
15
Page 16
Remote Control
www.HunterFan.com
1.888.830.1326
Turn Power
ON
Battery
Door
Phillips
Head
Screw
To access the battery compartment, remove
the small Phillips head screw that secures the
battery door to the transmitter assembly. The
battery should be installed with the positive
(+) side up. Replace with a CR2032 battery
when necessary.
16
M0065-01 • 04/23/13 • © Hunter Fan Company
Fan Off
High
Note: The remote must be paired before
the fan will operate.
Within 3 minutes of restoring power to
the fan, press both the Fan Off button and
the High button for at least 4 seconds. Your
fan will turn on low to indicate successful
syncing. If it does not, turn off power to your
fan, wait 1 minute then try again. If using the
transmitter with multiple fans, repeat this
process for each fan.
Page 17
Remote Control (continued)
Fan Speed Chain
www.HunterFan.com
1.888.830.1326
Light Chain
Light Button
Light Button
Push the light button on the remote transmitter.
Pull the light chain once. If the light does not
turn on, repeat step.
3 Button
Push the 3 button on the remote transmitter for
high fan speed. Pull the fan speed chain until
the fan is on the highest speed.
17
M0065-01 • 04/23/13 • © Hunter Fan Company
CONGRATULATIONS!
YOU’RE DONE!
See next page for fan
operation instructions.
Page 18
Operation, Maintenance, & Cleaning
Medium
Speed
Fan
Off
High
Speed
Switch Cover Plate
www.HunterFan.com
1.888.830.1326
Low
Speed
Light
To turn on fan, press a fan speed button. Speeds
range from off (0) to high (3). Quickly press the
Light button to turn the lights off and on.
Removed Tabs
Rocker- Style Plate
To install the transmitter cradle, remove the
two screws holding the switch cover plate. Do
not remove the cover plate. Orient the cradle
by lining up the two mounting holes with
those on the cover plate. Insert and tighten
the screws. Do not over tighten.
Note: For rocker-style cover plates, break off
the tabs by pushing outward.
18
M0065-01 • 04/23/13 • © Hunter Fan Company
Reverse
Switch
To switch the direction of air ow, move the
reverse switch to the opposite position.
Page 19
Operation, Maintenance, & Cleaning (continued)
www.HunterFan.com
Safe-Exit
The Safe-Exit Program gives you about thirty seconds
of light when you turn the lights off to exit the room
before the lights go out. To use Safe-Exit:
• Press the Fan Off button for at least three seconds to
initiate the Safe-Exit Mode.
• The lights will ash for visual conrmation.
• The lights will stay on 50% brightness for 15 seconds and
then begin to dim. After a total of 30 seconds, the lights
will be completely off.
Note: For CFL lighting, the lights will stay on 100%
brightness for 30 seconds. After a total of 30 seconds, the
lights will be completely off.
1.888.830.1326
For cleaning the fan, use soft brushes or
cloths to prevent scratching. Cleaning
products may damage the nishes.
For questions regarding removing a light kit, call
customer service 1-888-830-1326.
19
M0065-01 • 04/23/13 • © Hunter Fan Company
Page 20
Troubleshooting
www.HunterFan.com
1.888.830.1326
Fan doesn’t work
• Make sure power switch is on.
• Pull the pull chain to make sure it
is on.
• Push the motor reversing switch
rmly left or right to ensure that it
is engaged.
• Check the circuit breaker to
ensure the power is turned on.
• Make sure the blades spin freely.
• Turn off power from the circuit
breaker, then loosen the canopy
and check all the connections
according to the wiring diagram
on page 10.
• Make sure the battery is working.
• Check the plug connection in the
switch housing.
Excessive wobbling
• Tighten all of the blade and
blade iron screws until they
are snug.
• Turn the power off, support
the fan carefully, and check
that the hanger ball is properly
seated.
• Use the provided balancing
kit and instructions to balance
the fan.
Remote control of fan is erratic
• Make sure the battery is
installed correctly.
• Install a fresh battery.
Transmitter only works when held
at close range
• Change battery.
Noisy operation
• Tighten the blade and blade iron
screws until they are snug.
• Check to see if any of the blades
are cracked. If so, replace all of
the blades.
Fan Runs Slowly
• Turn the power to the fan off at
the wall switch. Then, turn it on
again. Push the 3 button on the
remote transmitter for high fan
speed. Then, pull the fan speed
chain until the fan is on the
highest speed.
CFL bulbs flicker
• Turn the light switch off and
back on. Within three minutes,
hold down the Fan Off button
while pressing the Light button
twice. If the problem is not
corrected, repeat the process
up to three times.
20
M0065-01 • 04/23/13 • © Hunter Fan Company
