Hunter 44100A Owner's Manual

OwnerÕs Manual

44100

SINCE 1 8 8 6

Other Quality Products from Hunter

Fans

Air Purifiers

Humidifiers

We are pleased you have selected one of our broad line of home comfort products. Our products are manufactured to high quality standards and are designed for years of service.

We hope you will be satisfied and thank you for buying a Hunter product.

Table Of Contents

Installation

Operation

Features 6 Remove Old Thermostat 8 Labeling Wires 10 System Selector Switches 14 Connecting Wires and Mounting Thermostat 14

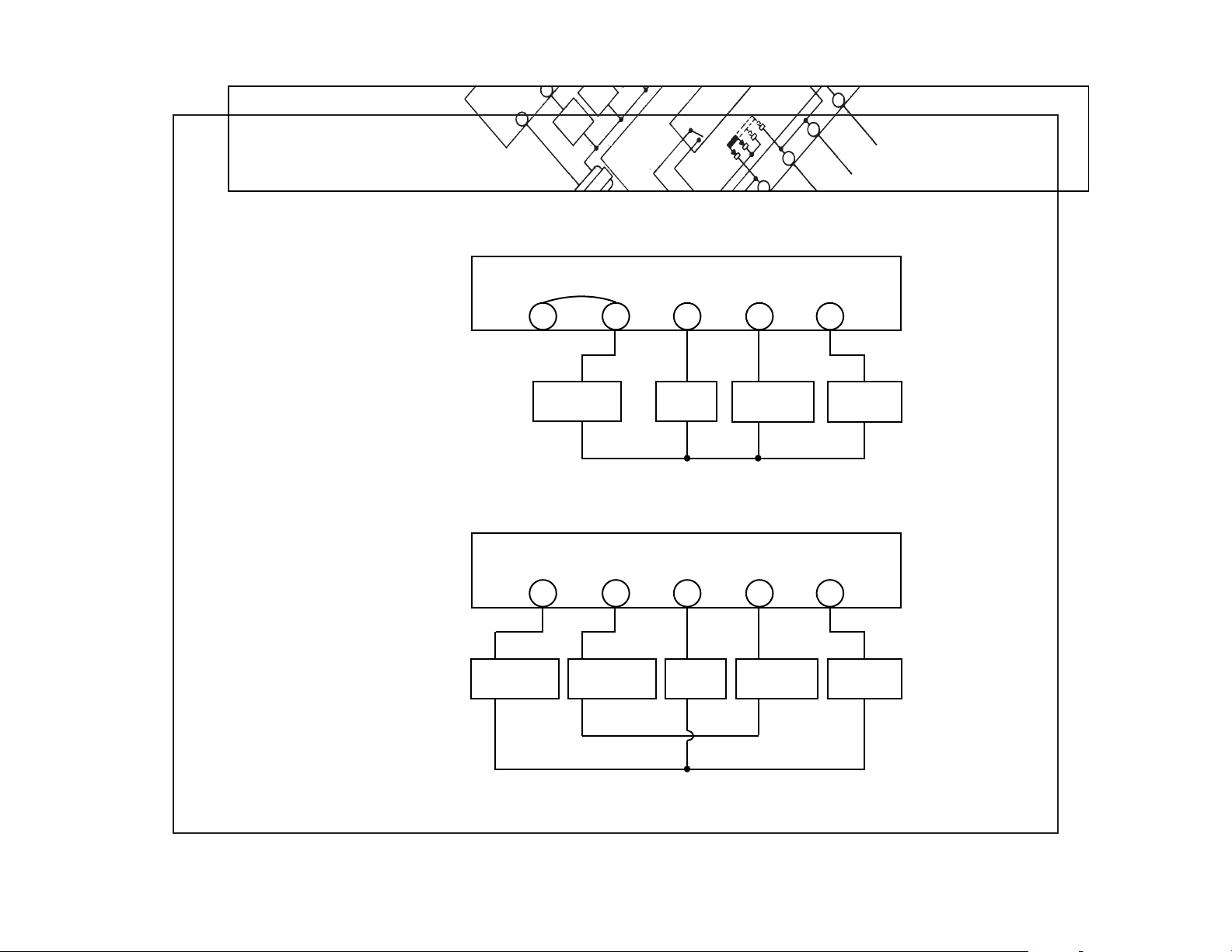

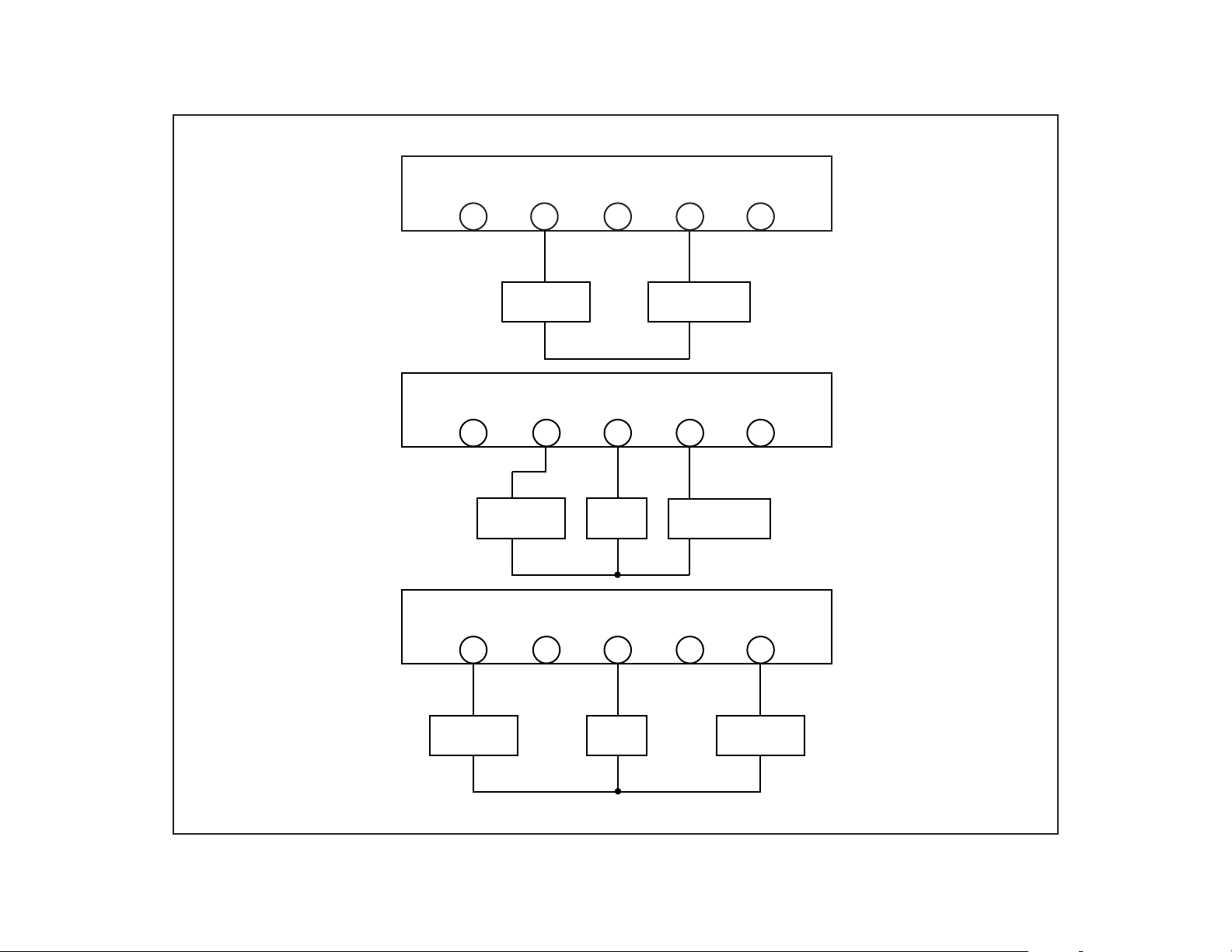

Programming/Setting Clock 16 Personal Program Schedule 20 Reviewing Program Settings 24 Manual Overide 25 Filter Monitor 28 Temperature Span 29 Trouble Shooting Guide 30 Typical Wiring Diagrams 32

Read This Before Installing Thermostat

IMPORTANT

Read the entire installation section of this Owner’s Manual thoroughly before you begin to

install or operate your Hunter Thermostat.

• Remove the mylar label from the display window.

INSTALLATION

All installation is normally performed at your thermostat.

PROGRAMMING

You can practice programming before

installing your thermostat by inserting and connecting the batteries and following the instructions on page 14. This can be done while you relax in your favorite chair and is a very good way to familiarize yourself with all the functions of your Hunter Thermostat.

OPERATION

Your Hunter Thermostat is designed to

operate with most gas, oil, electric or 2-wire hot water heating, and air conditioning systems

that have 24-volt or millivolt control. This Hunter Thermostat will not control multi-

stage heating or cooling systems, 110/220 V systems, or 3 wire zone systems.

COMPRESSOR PROTECTION

The thermostat provides a 4-minute delay

after shutting off the compressor before it can be restarted. This feature will prevent damage to your air conditioner compressor caused by rapid cycling. It does not provide a delay when there are power outages.

TEMPERATURE RANGE

Your thermostat can be programmed between

40°F and 95°F (5°C and 35°C). However, it will display room temperatures from 32°F to 99°F (0°C to 37°C).

POWER FAILURE

Whenever the main power is interrupted or

fails, the battery power retains the programs and current time.

This thermostat is designed to optimize the use of your heating and cooling equipment. It does this by matching your comfort (the temperatures in your home) to your schedule.

An example:

6am – You wake up. Program 1 has the heat set to 70° (21°C).

7:30am – You leave for work. The second program turns the heat back to 62° (17°C)

while you are away.

5:00pm – You come home. The third program has already warmed your house back

to 70° (21°C).

10:00pm – You go to bed. A half hour later, program 4 turns the heat back to 64° (18°C)

to save energy while you are under the blankets.

How This Thermostat Works…And Saves You Money

BATTERY WARNING

When the batteries are low, “LOW BATT”

indicator on the display will flash. When this happens, install new batteries immediately. Once the “LOW BATT” indicator appears, the thermostat will continue to operate for approximately 30 days. (Only alkaline batteries should be used in your thermostat. Rechargeable batteries have different properties which may cause the thermostat to not operate properly. Do not use old batteries.) The batteries should last one year.

CAUTION: The batteries are the only source of power used to operate your system. If you do not replace the batteries, the display will dim and your heating and cooling system will stop operation.

NOTE: If you plan to be away from the premises

over 30 days, we recommend that you replace the old batteries with new alkaline batteries prior to leaving.

6-7

Features

Manual switch for turning on heating and cooling system.

Manual switch for automatic or continuous fan operation.

Battery door for easy access

Soft touch programming buttons (see below)

Display shows time, day, temperature, program number, hold, usage and low battery indicator.

Reset button for resetting computer back to 12:00 A.M. and clearing all programs.

Individual pushbuttons for raising or lowering temperature settings.

M T W TH F SA SU

SET TEMP HOLD TEMP

88:88 88

AM PM

HEAT COOL

1234

FILTER

LO BAT

Changes the clock into 12 or 24 hour (military) mode.

For entering minute of day.

For revising and changing weekday or weekend programs

To reset filter counter back to zero.

Returns display to current time and temperature.

Automatically programs the thermostat for weekday and weekend program settings.

For entering day of week.

Provides permanent temperature setting by overriding stored programs. Also, clears manual override and returns to current program settings.

For entering hour of day.

MIN

AUTO

PROGRAM

HOUR

PROG

DAY

HOLD

CLEAR

12/24 HRS RETURN

FILTER

RESET

This thermostat comes with two #8 slotted screws and two wall anchors for mounting. To install your unit, you should have the following tools and materials.

■ Slotted screwdriver ■ Electric drill and 3/16" bit

■ Hammer ■ Two 1.5 V (AA) Size Alkaline batteries

CAUTION: Do not remove any wiring from existing thermostat before reading the instructions carefully. Wires must be labeled prior to removal.

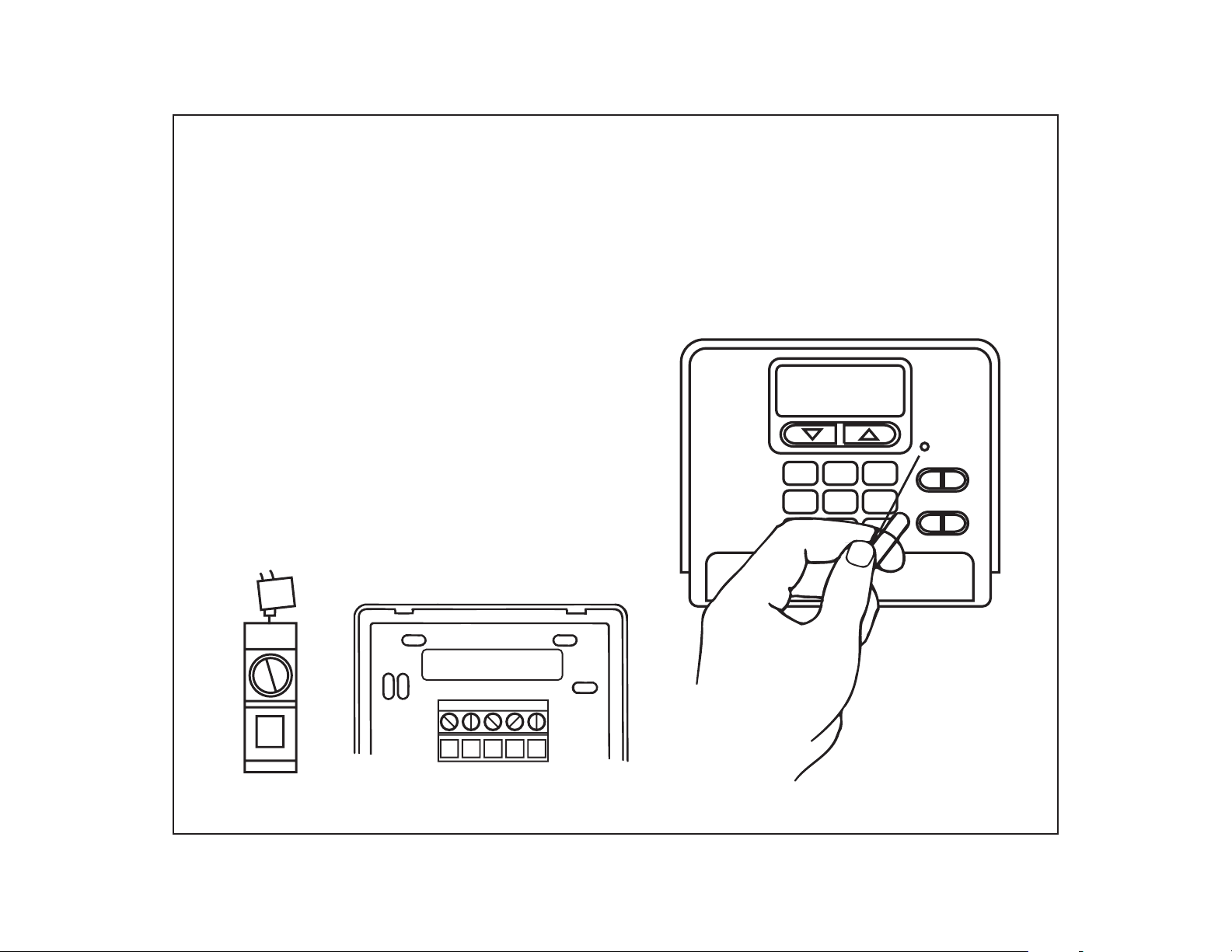

■ IMPORTANT! Turn off the power to the furnace at the main power panel or at the furnace.

■ Remove existing thermostat cover and thermostat. See Figure 1. Some thermostats will have

screws or other locking devices that must first be removed. Once wall mounting plate is exposed, look for wires.

■ If wires are not visible, they may be connected to the back of the wallplate. Again, look for

screws, tabs, etc. Some models have doors that open to expose wires and mounting screws. (See Figure 1).

8-9

Installation

What You Need

Remove Old Thermostat

TYPICAL HOME THERMOSTATS

FIGURE 1

Wall Mounting Plate Thermostat Cover

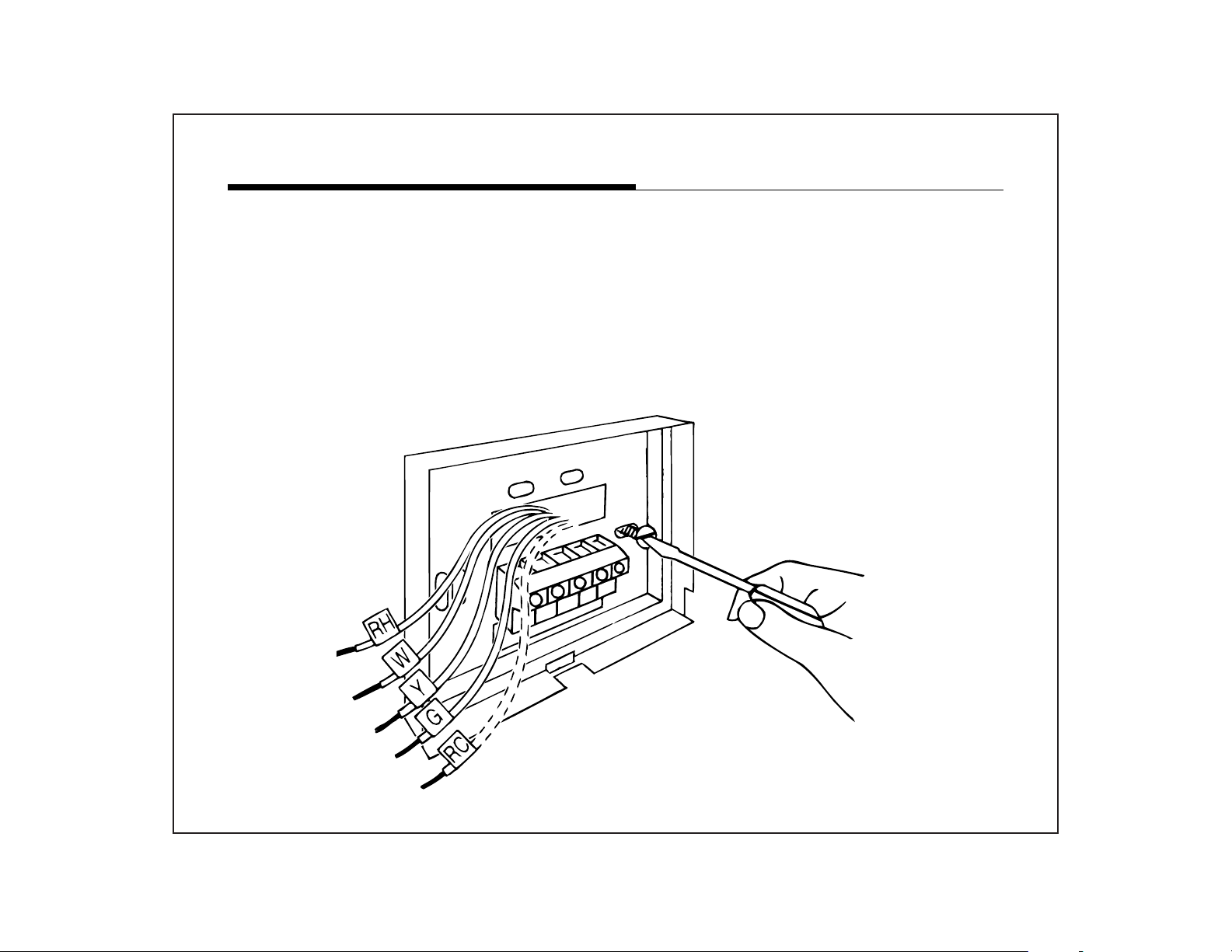

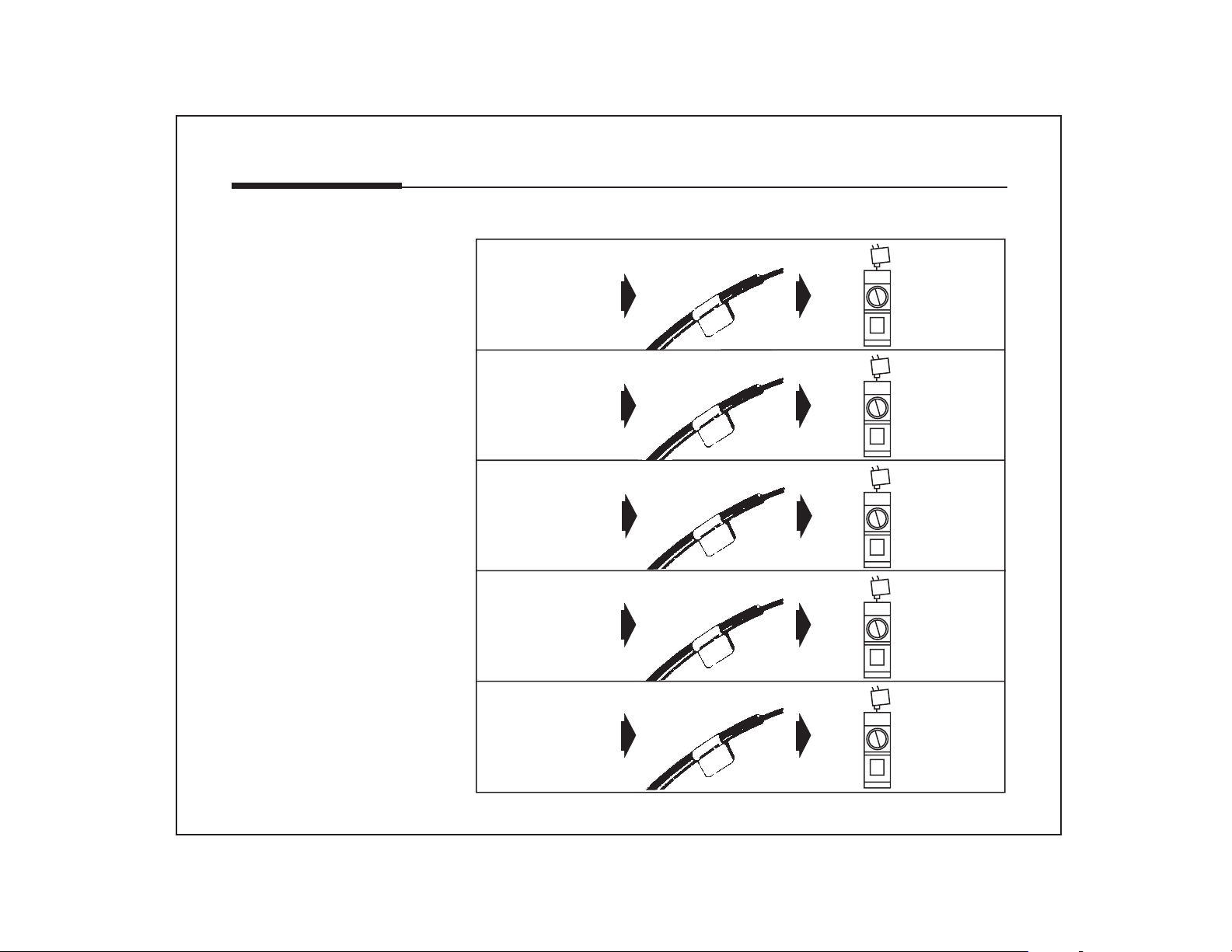

■ Each wire coming from the wall to the existing thermostat is connected to a terminal point on that thermostat. Each of these terminal points is usually marked with a code letter as shown in Table A on page 11.

■ The number of wires in your system can be as few as two (for heat only systems), as many as

eight, or any number in between. If you follow the labeling procedures correctly, you do not have to be concerned about how many wires there are.

■ There is often no terminal marking on the existing thermostat of two wire, heat only systems.

Do not worry, just connect either of the wires to the RH terminal, then connect the other wire to the W terminal to complete the circuit.

■ IMPORTANT! BEFORE DISCONNECTING

ANY WIRES, APPLYTHE SELF-ADHESIVE LABELS PROVIDED TO THE WIRE AS SHOWN IN TABLE A ON PAGE 11. (For example, attach the label marked W to the wire which goes to the W or H terminal on your existing thermostat.) IGNORE

THE COLOR OF

THE WIRES since

these do not always comply with the standard.

■After labeling wires, disconnect them from the existing thermostat terminals.

■ Remove existing wallplate. To make sure wires do not fall back into wall opening, you may want to tape them to the wall.

■ If hole in wall is larger than necessary for wires, seal this hole so that no hot or cold air can enter the back of the thermostat from the wall. This air could cause a false thermostat reading.

10-11

Installation

Label Wires
