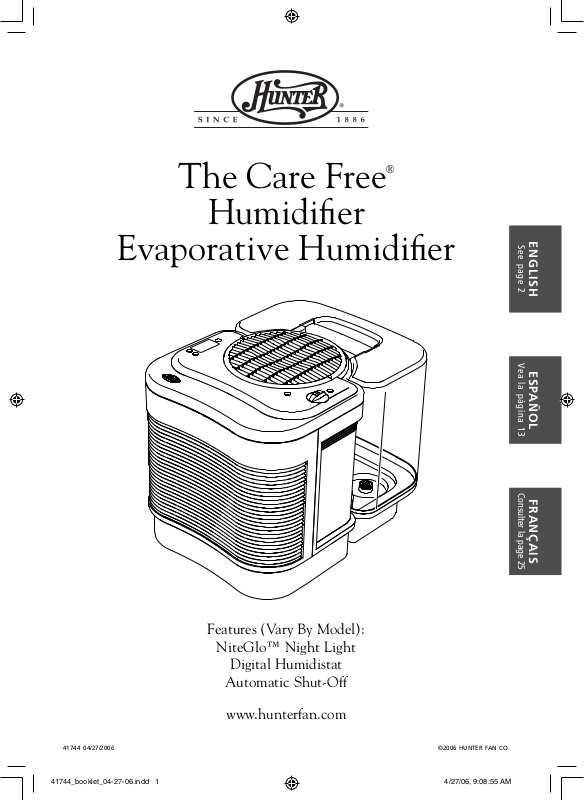

Page 1
The Care Free®
Humidifi er
Evaporative Humidifi er
ENGLISH
See page 2
Vea la página 13
ESPAÑOL
Consulter la page 25
FRANÇAIS
Features (Vary By Model):
NiteGlo™ Night Light
Digital Humidistat
Automatic Shut-Off
www.hunterfan.com
41744 04/27/2006 1 ©2006 HUNTER FAN CO.
41744_booklet_04-27-06.indd 1 4/27/06, 9:08:55 AM
Page 2
READ AND SAVE THESE INSTRUCTIONS
Important Safety Instructions:
Read all instructions before
using this humidifi er.
1. This humidifier may not work prop-
erly on an uneven surface. ALWAYS
place this humidifi er on a fi rm, level,
and water resistant surface. ALWAYS
place the humidifi er at least six (6) inches
away from walls and heat sources such
as stoves, radiators, or heaters.
2. ALWAYS place the humidifier in an
area that is out of the reach of children.
3. Before using the humidifier, extend
the cord and inspect for any signs of
damage. DO NOT use the product if
the cord has been damaged.
4. This product has a polarized plug
(one blade is wider than the other) as
a safety feature. This plug will fi t into a
polarized outlet only one way. If the plug
does not fi t fully into the outlet, reverse
the plug. If it still does not fi t, contact a
qualifi ed electrician. DO NOT attempt to
defeat or override this safety feature.
5. ALWAYS UNPLUG AND EMPTY
the humidifi er when it is not in operation or while it is being cleaned.
6. DO NOT tilt or move the humidifi er
while it is in operation. Never move the
humidifi er while there is water in the
tank. Empty the water tank, turn off,
and unplug the unit before moving.
7. In addition to routine maintenance
which may be required, this humidifi er
requires seasonal cleaning. Refer to and
follow CLEANING THE HUMIDIFIER
AND THE WATER TANK instructions.
8. This unit is designed to be used with
distilled and/or tap water. DO NOT add
scented oils, perfumes, or fragrance additives to the water.
Thank you for purchasing The Care
®
Humidifi er Evaporative Humidi-
Free
fi er by Hunter Fan Company. Please read
and save these instructions to receive
the maximum benefi t and performance
from your humidifi er.
How the Care Free® Humidifi er
Evaporative Humidifi er Works
The Care Free® Humidifier Evaporative
Humidifi er has a unique patented design with
several innovative features:
• Exclusive Long Life Paper Wick – The
patented self-pumping paper wick has an
outer layer which disperses water to the
upper and outer areas of the wick to ensure consistent moisture distribution. This
helps to reduce buildup of mineral residue
on the lower part of the wick and retain
performance for signifi cantly longer than
traditional paper wicks.
41744-01 04/27/2006 2 ©2006 HUNTER FAN CO.
41744_booklet_04-27-06.indd 2 4/27/06, 9:08:58 AM
• Built-in Antimicrobial Properties – The
plastic parts and the fi lter have built-in antimicrobial properties to inhibit the growth
of bacteria, mold and fungi that may affect
these parts.
NOTE: This product contains antimicrobial
properties which are built-in to inhibit the
growth of bacteria which may affect the
plastic and fi lter in the humidifi er. These
properties do not extend to the water,
humidifi ed air or users. Conduct routine
cleaning and maintenance based upon use
and individual conditions.
Page 3
• No White Dust – The Care Free® Hu-
midifi er Evaporative Humidifi er produces
no white dust that can settle on furniture
or be inhaled.
NOTE: You may notice mineral deposits
accumulating in the tank base or on the
Humidifi er Parts
fi lter. This is normal and does not affect
performance. If you would like to clean
these deposits away, please see CLEANING
THE HUMIDIFIER AND WATER TANK.
ENGLISH
Easy Tote Handle
Water Tank
Filter Frame
Hooks
Push
Lift Up
Filter
Filter Frame
Insert Guides
Into Base
Humidistat Display
and Controls
Power/
Speed
Control
MainHousing
Base
Tank Cap
Figure 1
41744-01 04/27/2006 3 ©2006 HUNTER FAN CO.
41744_booklet_04-27-06.indd 3 4/27/06, 9:08:59 AM
Page 4
Humidifi er Features
For Models 32509, 32512A & 32517
Power/Speed Control: Tu rns the humidifi er
‘ON’ and ‘OFF’. The power should always be
off before unplugging the humidifi er, moving
the humidifi er, or refi lling the water tank.
Refi ll Light: The red light will be illuminated to
signal you that the humidifi er has automatically
turned off and the water tank needs to be
refi lled.
Humidistat Display and Controls: Enables you
to set desired maximum humidity level. Once this
level is exceeded, the unit will shut off until the
humidity level drops.
NOTE: The humidifier may not be running because
the humidistat setting may need to be adjusted.
Humidistat Light: The green light will go off
when the humidity in the room exceeds the level
that you selected with the digital humidistat.
NiteGlo™ Night Light Control: Tu r n s t h e
night light ‘ON’ and ‘OFF’. The night light
can be turned on even if the humidifi er fan is
turned off.
Humidistat
Light
Humidistat
Display
and
Controls
Figure 2
Refi ll
Light
Power/
Speed
Control
NiteGlo™
Night
Light
Control
41744-01 04/27/2006 4 ©2006 HUNTER FAN CO.
41744_booklet_04-27-06.indd 4 4/27/06, 9:08:59 AM
Page 5
Using Your Humidifi er
1. Remove The Care Free® Humidifier
Evaporative Humidifi er from its packaging.
Read and Save the Instructions.
2. Place the humidifier on a hard, flat,
water resistant surface. Always place the
humidifi er at least six (6) inches away from
walls and sources of heat.
3. Lift the main housing to confirm that
the fi lters are placed upright in the slots.
Replace the main housing. (See Figure 1.)
4. Remove the water tank and take it
to the sink or tub to fi ll.
5. Turn the tank upside down and
unscrew the tank cap by turning it counterclockwise. Fill the water tank with cool
water and replace the tank cap (Never use
hot water). Be sure not to overfi ll the tank
as water damage may occur to furniture
or fl ooring due to spillage.
HUNTER WILL NOT ACCEPT RESPONSIBIL-
ITY FOR DAMAGE TO PROPERTY CAUSED
BY WATER SPILLAGE.
6. Carry the tank back to the humidifi er. Turn the tank upright and place it on
the humidifi er. Be sure that the tank is
seated properly in the base. If the tank is
properly located on the base, you will see
air bubbles fl owing up into the tank.
8. Place the full tank on the unit and
allow the water to fi ll the bottom tray. The
water is at the proper level in the bottom
tray when the tank stops bubbling. Set the
unit to the desired speed.
9. Use the power/speed control knob
to turn the humidifi er ‘ON’ by selecting a
speed setting.
Only for models with Automatic Shut-off
10. When the water tank is empty, the humidifi er will automatically shut itself off. The
red light will be illuminated, indicating that
the water tank needs to be refi lled.
11. Follow REFILLING THE WATER TANK
directions. Once the water tank is refi lled,
the Refi ll Light will not be illuminated.
Only for models with a
NiteGlo™ Night Light
12. Use the control to turn the night light off
and on. The night light can be operated
even if the humidifi er fan is turned ‘OFF’.
ENGLISH
7. With the power control knob in the
‘OFF’ position, plug the humidifi er into the
wall.
CAUTION: Never plug in the Humidifi er
while your hands are wet as Electric
Shock could occur.
41744-01 04/27/2006 5 ©2006 HUNTER FAN CO.
41744_booklet_04-27-06.indd 5 4/27/06, 9:08:59 AM
Page 6
Using Your Digital Humidistat
Setting the Desired Humidity
NOTE: After unplugging the humidifier to
move the humidifi er, to refi ll the water tank
or to clean the humidifi er, you must reset the
digital humidistat.
Refer to Figure 4.
1. Use the power/speed control knob to
turn the humidifi er ‘ON’ by selecting a speed
setting.
NOTE: A speed setting must be chosen be-
fore the humidistat will operate the humidifi er.
2. In normal mode use the humidistat
control buttons to set the desired humidity
level. The settings range from 30% to 80%
in 5% increments.
3. When the humidity exceeds the level
you have set, the humidistat light will go
off. The humidifi er will not output humidity while the humidity in the room is at the
selected humidity level. The humidistat light
will stay off until the humidity changes.
When the humidity in the room drops below the selected level, the humidifi er will
cycle on again and the humidistat light will
come on.
Setting the Span
Refer to Figure 5.
Your humidistat is set at the factory to cycle at
setting 2. If you fi nd your system cycling too fast
or too slow, then the span can be adjusted to
modify the cycle time.
4. Press and hold both humidistat control
buttons for two seconds to enter span setting mode.
5. In span mode, use the humidistat
control buttons to adjust the span. Raise
the span to 3 to increase the cycle time and
allow your system to run longer. Lower the
span to 1 to decrease the cycle time and
allow your system to run shorter.
6. The humidistat display will return to normal mode after keys are idle for 5 seconds.
Humidistat
Light
Humidistat Control
Buttons
Figure 4
Humidistat Control
Buttons
Figure 3
41744-01 04/27/2006 6 ©2006 HUNTER FAN CO.
41744_booklet_04-27-06.indd 6 4/27/06, 9:09:00 AM
Page 7
Refi lling the Water Tank
1. When the water tank level is low, turn
the humidifi er ‘OFF’, and unplug.
2. Remove the tank and take it to the
sink or tub to refi ll.
3. Turn the tank upside down and
unscrew the tank cap by turning it counterclockwise. Empty the tank, refi ll with
fresh cool water (never use hot water), and
replace the tank cap. Be sure not to overfi ll
the tank as water damage may occur to
furniture or fl ooring due to spillage.
HUNTER WILL NOT ACCEPT RESPONSIBIL-
ITY FOR DAMAGE TO PROPERTY CAUSED
BY WATER SPILLAGE.
4. Carry the tank back to the humidifi er. Turn the tank upright and place it on
the humidifi er. Be sure that the tank is
seated properly in the base. If the tank is
properly located on the base, you will see
air bubbles fl owing up into the tank.
5. Place the full tank on the unit and
allow the water to fi ll the bottom tray. The
water is at the proper level in the bottom
tray when the tank stops bubbling. Set the
unit to the desired speed.
Cleaning the Humidifi er and the Water Tank
Many regions have hard water with high
concentrations of minerals. When water
evaporates from The Care Free
Evaporative Humidifi er, minerals may be left
behind. These minerals can form a hard white
scale which can be removed by following
the cleaning instructions. The frequency of
cleaning due to mineral build up can vary
depending upon the quality of water you
may have.
Refer to Figure 1 for part names.
1. Turn the humidifier ‘OFF’ and unplug
the unit.
2. Lift the main housing and remove the
fi lters. The motor is attached to the main
housing. Do not place the motor near
water. Do not use a wet towel on the
motor or motor housing as electrical
shock may occur.
3. At the end of the season, discard the paper wick and order Hunter replacement
wicks. Call customer service at 1-800313-3326 or see our Web page at http:
//www.hunterfan.com.
®
Humidifi er
4. Remove the water tank from the base
and empty any water that is left in the tank.
Soak the base in a mixture of one (1) gallon
of water and eight (8) ounces of vinegar
for 20 minutes.
5. After soaking, wipe the base with a soft
cloth or sponge to remove any mineral build
up. Rinse with clean water several times. If
you are planning on storing the humidifi er,
be sure the base is completely dry.
6. Fill the water tank with one (1) gallon
of water and eight ounces of undiluted
white vinegar. Replace the tank cap and
shake the tank vigorously until all interior
surfaces of the tank have been exposed to
the water/vinegar mixture.
7. Empty the tank of the water/vinegar
mixture. Rinse it several times with clean
water and then replace the tank cap. If you
are planning on storing the humidifi er, dry
it inside and out, leaving the cap off to allow the tank to completely dry. Continue to
clean the other parts of your humidifi er.
ENGLISH
41744-01 04/27/2006 7 ©2006 HUNTER FAN CO.
41744_booklet_04-27-06.indd 7 4/27/06, 9:09:00 AM
Page 8
8. Wipe the surfaces of the main housing
with a soft cloth.
9. Once all the parts are clean, reassemble
the humidifi er, and follow the USING YOUR
HUMIDIFIER to continue use. If you are
storing the humidifi er, make sure the
parts are completely dry, reassemble,
and store in a dry location.
Service Parts
To obtain a service part for your humidifi er, call customer service at 1-888-830-1326 or e-mail us
at [email protected]. Please be prepared to tell the operator the model number of
your humidifi er and the name of the part you need to replace and the part number. Refer to Figure
1 for part names.
Model
No.
32505
32507
32509
32517
Filter Frame Base Water Tank
95485-01-000 95401-01-325 95182-01-326 65115-01-325 86113-01-325
Power/Speed
Control
Tank Cap Filter
31915
3192032512A
41744-01 04/27/2006 8 ©2006 HUNTER FAN CO.
41744_booklet_04-27-06.indd 8 4/27/06, 9:09:00 AM
Page 9
Troubleshooting
Problem:
Excessive Noise
Solution:
1. Check the water tank and main hous-
ing to make sure it is seated properly on
the base.
2. Check the water tank to make sure
there are no bubbles when the water
tank is full and running. If there are
bubbles, stop the unit and leave off until
bubbling stops. Then, set the unit to the
desired speed.
Problem:
Mineral Build-up on the Filter,
Base, or Water Tank
Solution:
Follow the cleaning instructions in the
Cleaning the Humidifi er and the Water
Tank section.
Problem:
Humidity Output and
Water Usage Decreased
Solution:
1. Check your humidistat to make sure
it is set on the desired humidity level.
2. Check the water tank and main housing to make sure it is seated properly on
the base.
3. Check the water tank to make sure
there are no bubbles when the water
tank is full and running. If there are
bubbles, stop the unit and leave off until
bubbling stops. Then, set the unit to the
desired speed.
4. Follow the cleaning instructions in
the Cleaning the Humidifi er and the
Water Tank section.
If you have questions or problems, please
call 1-888-830-1326 for assistance before
returning to retailer.
ENGLISH
41744-01 04/27/2006 9 ©2006 HUNTER FAN CO.
41744_booklet_04-27-06.indd 9 4/27/06, 9:09:01 AM
Page 10
The Care Free
5 YEAR LIMITED WARRANTY
Hunter Fan Company
®
Hu mid i fi er Evaporative Humidifi er
The Hunter Fan Company, Inc. makes the following warranty to the original residential user or
consumer purchaser of The Care Free
fi er Evaporative Humidifi er:
If any part of The Care Free
tive Humidifi er (“Humidifi er”) motor fails during
the fi rst 5 (fi ve) years from the date of installation
due to a defect in material or workmanship, we
will provide a replacement part free of charge.
If no replacement part can be provided for such
motor, we will replace your humidifi er.
If your Humidifi er motor fails any time within 1
(one) year after the date of installation due to
a defect in material or workmanship, labor to
repair the defect will be provided free of charge
at our nearest service centre or at our Service
Department in Memphis, Tennessee. You will be
responsible for all parts and labor costs after this
one-year period.
If your Humidifi er water tank, fi lter frame, base,
knobs, or tank cap fail any time within 1 (one)
year after the date of sale to you due to a defect
in material or workmanship, we will repair or, at
our option, replace the water tank, fi lter frame,
base, knobs, or tank cap free of charge for
parts or labor performed at our nearest service
centre or our Service Department in Memphis,
Tennessee.
IF THE ORIGINAL RESIDENTIAL USER OR CONSUMER PURCHASER CEASES TO OWN THE HUMIDIFIER, THIS WARRANTY AND ANY IMPLIED
WARRANTY WHICH THEN REMAINS IN EFFECT,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, ARE VOIDED.
NO WARRANTY, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
IS MADE IN RESPECT TO THE FILTER.
®
Humidifi er Evapora-
®
Humidi-
THIS WARRANTY IS IN LIEU OF ALL OTHER
EXPRESS WARRANTIES. THE DURATION OF
ANY IMPLIED WARRANTY, INCLUDING BUT
NOT LIMITED TO ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IN RESPECT TO THE MOTOR
IS EXPRESSLY LIMITED TO THE PERIOD OF THE
EXPRESS WARRANTY SET FORTH ABOVE.
This warranty is voided if your Humidifi er is not
purchased and used in the USA or Canada.
This warranty excludes and does not cover defects, malfunctions, or failures of the Humidifi er
which were caused by repairs by persons not
authorized by us, use of parts, or accessories not
authorized by us, mishandling, modifi cations, or
damage to the Humidifi er while in your possession, or unreasonable use, including failure to
provide reasonable and necessary maintenance.
This warranty does not cover humidifi ers used in
commercial applications. There are no express or
implied warranties as to commercial purchasers
or users.
To obtain service, contact the nearest Hunter authorized service centre or the Hunter Fan Company Service Department, 2500 Frisco Avenue,
Memphis, Tennessee 38114, 901-248-2222. You
will be responsible for insurance and freight or
other transportation to our factory service center.
We will return the Humidifi er freight prepaid to
you. The Humidifi er should be properly packaged to avoid damage in transit since we will
not be responsible for any such damage. Proof
of purchase is required when requesting warranty service. The purchaser must present the
sales receipt or other document that establishes
proof of purchase.
IN NO EVENT SHALL HUNTER FAN COMPANY BE
LIABLE FOR DIRECT, INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES IN EXCESS
OF THE PURCHASE PRICE OF THE HUMIDIFIER.
41744-01 04/27/2006 10 ©2006 HUNTER FAN CO.
41744_booklet_04-27-06.indd 10 4/27/06, 9:09:01 AM
Page 11
YOUR SOLE REMEDY WILL BE REPAIR OR REPLACEMENT AS PROVIDED ABOVE.
SOME AMERICAN STATES AND CANADIAN
PROVINCES DO NOT ALLOW:
• LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS;
• THE EXCLUSION OR LIMITATION OF DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES;
• THE EXCLUSION OR INVALIDITY OF EXPRESS OR IMPLIED WARRANTIES IF THE
USER CEASES TO OWN THE HUMIDIFIER;
• THE LIMITATION OF THE REMEDIES AND
RECOURSES AVAILABLE TO THE PURCHASER; OR
• THE INVALIDITY OF AN EXPRESS WARRANTY WHEN A PRODUCT IDENTIFIED
BY BRAND NAME IS NOT USED (UNLESS
SPECIFIC CONDITIONS ARE FULFILLED);
SO THE ABOVE LIMITATIONS OR EXCLUSIONS
MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS AND YOU MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM STATE TO STATE
OR PROVINCE TO PROVINCE.
ENGLISH
41744-01 04/27/2006 11 ©2006 HUNTER FAN CO.
41744_booklet_04-27-06.indd 11 4/27/06, 9:09:01 AM
Page 12
Other Home Comfort Products from Hunter
Hunter Original
®
QuietFlo™
True HEPA Air
Programmable
Thermostat
Purifi er
To learn more about Hunter Fan Company products, please see our web page at:
www.hunterfan.com
HUNTER FAN COMPANY
2500 FRISCO AVENUE
MEMPHIS, TN 38114, USA
41744-01 04/27/2006 12 ©2006 HUNTER FAN CO.
41744_booklet_04-27-06.indd 12 4/27/06, 9:09:02 AM
Printed in China
Loading...
