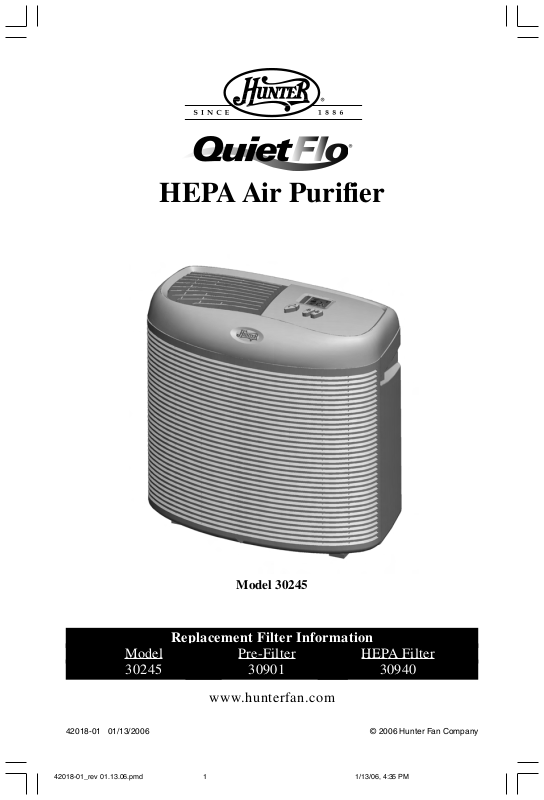

Hunter 30245 Owner's Manual
HEPA Air Purifier
Model 30245
Replacement Filter Information
Model
30245
42018-01 01/13/2006 © 2006 Hunter Fan Company
42018-01_rev 01.13.06.pmd 1/13/06, 4:35 PM1
Pre-Filter
30901
www.hunterfan.com
HEPA Filter
30940
Table of Contents
Safety Instructions ..................................................................................................3
Introduction ............................................................................................................3
Description of Air Filtration System
How theAir Purifier Wo rks............................................................................. 4
Air Purifier Components ................................................................................4
Display and Control Keys ..............................................................................5
Operation
Initial Operation .............................................................................................6
Filter Life Counters ........................................................................................7
Programming
Locking/Unlocking the Keypad .....................................................................8
Resetting the Air Purifier ............................................................................... 8
Air Purifier Maintenance
Cleaning Your Air Purifier..............................................................................9
Changing the Pre-Filter ..................................................................................9
Changing the Filter ....................................................................................... 10
Obtaining Replacement Filters.....................................................................11
Troubleshooting
Problems and Solutions ................................................................................ 12
Technical Support .........................................................................................12
Warranty Information ......................................................................................... 13
42018-01 2
42018-01_rev 01.13.06.pmd 1/13/06, 4:35 PM2
SAFETY INSTRUCTIONS
IMPORTANT!
READ ALL INSTRUCTIONS BEFORE USING THIS AIR PURIFIER.
1. This air purifier is designed for use on a flat level floor and may not work properly on
an uneven floor. ALWAYS place the air purifier on a firm level floor. ALWAYS place
the air purifier at least six (6) inches away from walls and heat sources such as stoves,
radiators, or heaters.
2. Place the air purifier in an area that is out of the reach of children.
3. Before using the air purifier, extend the cord and inspect for any signs of damage. DO NOT
use the product if the cord has been damaged.
4. This product has a polarized plug (one blade is wider than the other) as a safety feature.
This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the
outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician. DO
NOT attempt to defeat or override this safety feature.
5. ALWAYS UNPLUG the air purifier while it is being cleaned.
6. DO NOT move or tilt the air purifier while it is in operation. Turn off and unplug
before moving.
7. DO NOT immerse the air purifier in water at any time because permanent damage will
occur. To properly clean your air purifier, follow the instructions in the Maintenance section
of this manual (pg. 9).
READ AND SAVE ALL INSTRUCTIONS.
Introduction
Thank you for purchasing the
have purchased our latest development in portable air purification which has been designed to
improve the quality of the air that you breathe. The following innovative features are included in
your Hunter Air Purifier.
• High Particulate Efficiency: The HEPA filter will remove 99.97% of 0.3 micron particles
from the air that passes through the filter.
• Odor Removal: The activated carbon pre-filter helps remove odors such as cooking, smoke,
and pet smells from the air. It also traps lint, hair, and other large particles to help extend the
life and performance of the HEPA filter.
• Quiet: The air purifier has been designed to operate quietly and efficiently. You can choose
among three speeds to best meet your needs at different times.
•Filter Counters: Filter maintenance is critical to the performance of the air purifier. To help
you determine when to change the filters, the pre-filter and HEPA filter, the unit has built in
life counters that keep track of the life remaining of each filter.
42018-01_rev 01.13.06.pmd 1/13/06, 4:35 PM3
QuietFlo
®
HEPA Air Purifier from Hunter Fan Company. You
3 42018-01
Description of Air Filtration System
;
;
;
;
;
;
;
;
;
@
@
@
@
@
@
@
@
@
How the
QuietFlo
®
HEPA Air Purifier System Works
As the air is pulled into the purifier, the activated carbon pre-filter absorbs odors and catches
large particles. Then, the air travels through the HEPA filter where the smaller particles are
collected. Finally, the clean purified air is released back into the room.
Dust & Irritants Pollen & Allergens
Carbon
Pre-Filter
Fig. 1 - Illustration of the Air Filtration System
Odors Bacteria Pet Hair & Dander
Tr ue HEPA Filter
99.97% – .3 Microns
Air Purifier Components
HEPA FILTER
PRE-FILTER
HOOK
TAPE
FRONT
GRILL
TABS FOR
OPENING THE
FRONT GRILL
Fig. 2 - Air Purifier Components
42018-01 4
42018-01_rev 01.13.06.pmd 1/13/06, 4:35 PM4
Fig. 3 - Inside Surface
of Front Grill
GRILL
VENTS
HOOK
TAPE
Description of Air Filtration System
Display and Control Keys
The display and control keys allow for easy operation of the air purifier.
UP/DOWN KEYS: Adjusts the blower speed and turns the unit on and off.
PRE-FILTER RESET: Resets the Carbon Pre-Filter Life Counter.
FILTER RESET: Resets the HEPA Filter Life Counter.
HEPA FILTER LIFE COUNTER
HEPA FILTER
INDICATOR
CARBON
PRE-FILTER
INDICATOR
PRE-FILTER LIFE COUNTER
42018-01_rev 01.13.06.pmd 1/13/06, 4:35 PM5
Fig. 4 - Air Purifier Control Area
BLOWER SPEED
Fig. 5 - Alpha-numeric Display
5 42018-01
KEYPAD LOCKED
INDICATOR
ANIMATED
BLOWER
