Hunter 28822 52 User Manual

For Your Records and
Warranty Assistance

For reference, also attach your receipt or a copy
of your receipt to the manual.

Type 5 ModelsType 5 ModelsType 5 Models

__________________________________________
Model Name

__________________________________________
Model No.

__________________________________________
Date Purchased

__________________________________________
Where Purchased

Owner’s Guide and Installation Manual

English Español

Form# 42216-01
20120502
©2012 Hunter Fan Co.

Table of Contents

1 • Getting Ready ...................................................6

2 • Installing the Ceiling Plate ..........................7

3 • Assembling and Hanging the Fan .........8

4 • Setting the Remote Transmitter and .....

Receiver .......................................................................9

5 • Wiring the Fan ...............................................10

6 • Installing the Canopy ................................. 11

7 • Assembling the Blades .............................. 12

8 • Completing Your Installation With

or Without a Light Fixture ....................... 13

9 • Operating the Remote Control and

Mounting the Holder ....................................... 17

10 • Operating and Cleaning Your Ceiling

Fan .......................................................................... 18

11 • Troubleshooting ......................................... 19

Welcome

Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.

We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.

Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).

Cautions and Warnings

• READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.

• Use only Hunter replacement parts.

• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.

• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.

• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.

• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.

• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls, which are solid state.

• is product conforms to UL STD 507 and is certied to STD C22.2
No.113

• Wash your hands after your fan installation is complete.

© 2012 Hunter Fan Company

2

42216-01 • 05/02/12 • Hunter Fan Company

Preparing the Fan Site

Step 1 - Choose the Fan Site

Proper ceiling fan location and attachment to the building
structure are essential for safety, reliable operation, maximum
eciency, and energy savings.

Choose a fan site where:

• No object can come in contact with the rotating fan blades during
normal operation.

• e fan blades are at least 7 feet above the oor and the ceiling is
at least 8 feet high.

• e fan blades have no obstructions to airow, such as walls or
posts, within 30 inches of the fan blade tips.

• e fan is directly below a joist or support brace that will hold the
outlet box and the full weight of the fan.

30” From
Wall or
Nearest
Obstruction

7’ Minimum
Blades to
Floor

8’ Minimum

Ceiling
Height

Checklist for Existing Fan Site

If you want to use an existing fan site, complete the following checklist
to determine if the site is acceptable and safe for your new Hunter fan. If
you cannot check o every item, prepare a new fan site as described on
this page.

Fan Support System

• Fan attaches directly to building structure.

• Fan support system will hold full weight of the fan and light kit.

Ceiling Hole

• e outlet box clearance hole is directly below the joist or support brace.

Outlet Box

• e outlet box is an UL-approved octagonal 4” x 1-1/2” outlet box (or as

specied by the support brace manufacturer).

• e outlet box is secured to the joist or support brace by wood screws

and washers through the inner holes of outlet box.

• e outer holes of the outlet box are aligned with joist or support brace.

• e bottom of the outlet box is recessed a minimum of 1/16” into ceiling.

Wiring

• e electrical cable is secured to outlet box by an approved connector.

• Six inches of lead wires extend from outlet box.
If your existing fan site is suitable, skip ahead to Section 2 • Installing the

Ceiling Plate.

3

Fan Support
System

Fan Support
System

Suitable Existing Fan Site

Outlet Box

Wiring

42216-01 • 05/02/12 • Hunter Fan Company

Preparing the Fan Site (continued)

Step 2 - Cut the Ceiling Hole

2-1. Locate the site for the ceiling hole directly below the joist or support brace

that will hold the outlet box and fan.

2-2. Cut a 4” diameter hole through the drywall or plaster of the ceiling. You will

use the hole to install the support brace and outlet box.

Step 3 - Install a Support Brace, If Necessary

Determine if there is a ceiling joist directly above the ceiling hole. If the joist

is there, determine if it is positioned to allow you to recess the outlet box a
minimum of 1/16” into the ceiling. If NOT, install a support brace as follows:

3-1. Attach a 2” x 4” support brace between two joists. Position it to allow you to

recess the bottom of the outlet box a minimum of 1/16” into the ceiling.

3-2. Check the support brace to ensure it will support the full weight of the fan

and light kit.

Step 4 - Install the Outlet Box

4-1. Obtain a UL-approved octagonal 4” x 1-1/2” outlet box, plus two #8 x

1-1/2” wood screws and washers, available from any hardware store or
electrical supply house.

4-2. Orient the outlet box so that both the inner and outer holes in the box align

with the joist or support brace.

4-3. Drill pilot holes no larger than the minor diameter of the wood screws

(5/64”) through the inner holes of the outlet box.

4-4. Attach the outlet box directly to the support brace or joist with two #8 x

1-1/2” wood screws and washers. e bottom of the outlet box must be
recessed a minimum of 1/16” into the ceiling.

Step 5 - Prepare the Wiring

5-1. Make sure the circuit breakers to the fan supply line leads and associated

wall switch location are turned o . If you cannot lock the circuit breakers in
the o position, securely fasten a prominent warning device, such as a tag,
to the service panel.

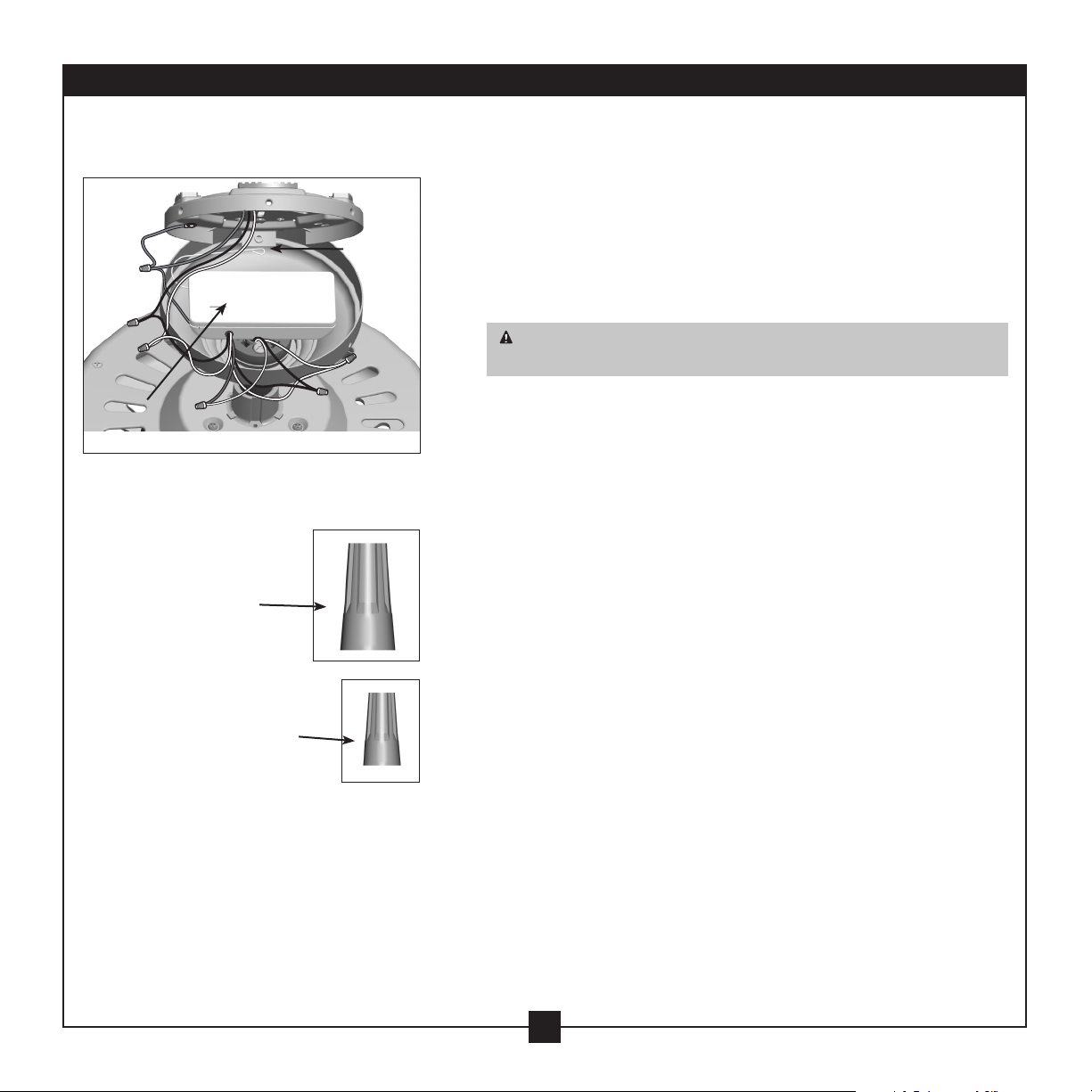

5-2. read the fan supply line through the outlet box so that the fan supply line

extends at least 6” beyond the box.

5-3. Attach the fan supply line to the outlet box with an approved connector,

available at any hardware store or electrical supply house.

5-4. Make certain the wiring meets all national and local standards and ANSI/

NFPA 70.

You have now successfully prepared your ceiling fan site. For instructions to
install your ceiling fan, go to your fan manual and continue with Section 2 •

Installing the Ceiling Plate.

4

Steps 2 – 3

Step 4

Step 5

CAUTION: All wiring must be in
accordance with national and local
electrical codes and ANSI/NFPA 70. If
you are unfamiliar with wiring, use a

qualied electrician.

42216-01 • 05/02/12 • Hunter Fan Company

Installer’s Choice and Optional Accessories

Support Brace

Standard
Mounting
Style

Standard Mounting hangs from the
ceiling by a downrod (included).

Support Brace

Ceiling
Outlet Box

Angled
Mounting
Style

Ceiling
Outlet Box

12

Understanding Mounting and Installer’s Choice®

Hunter’s patented 2-position mounting system provides you
maximum installation exibility and ease. You can install your
Hunter fan in one of two ways, depending on ceiling height and
your preference: Standard or Angled mounting. e steps in this
manual include instructions for both Installer’s Choice mounting
methods.

Considering Optional Accessories

Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.

For ceilings higher than 8 feet, you can purchase
Hunter extension downrods. All Hunter fans use
sturdy 3/4” diameter pipe to assure stability and
wobble-free performance.

CAUTION: To reduce the risk of

8

personal injury, attach the fan directly
to the support structure of the building
according to these instructions, and use
only the hardware supplied.

Angled Mounting recommended for a
vaulted or angled ceiling.

42216-01 • 05/02/12 • Hunter Fan Company

5

1 • Getting Ready

To install a ceiling fan, be sure you can do the following:

• Locate the ceiling joist or other suitable support in ceiling.

• Drill holes for and install wood screws.

• Identify and connect electrical wires.

• Lift 40 pounds.

If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.

Gathering the Tools

You will need the following tools for installing the fan:

• Electric drill with 9/64” bit

• Keyhole saw

• 2’ x 4’ support brace

• UL-approved octagonal 4” x 1-1/2” outlet box

• Two #8 x 1-1/2” wood screws and washers

• Approved connector for electrical wire

• Standard screwdriver (magnetic tip recommended)

• Phillips-head screwdriver (magnetic tip recommended)

• Wrench or pliers

• Ladder (height dependent upon installation site)

Installing Multiple Fans?

If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.

Checking Your Fan Parts

Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326
(In Canada, call 866-268-1936).

6

42216-01 • 05/02/12 • Hunter Fan Company

2 • Installing the Ceiling Plate

CAUTION: To avoid possible electrical shock, before installing your fan,

disconnect the power by turning o the circuit breakers to the outlet box
and associated wall switch location. If you cannot lock the circuit breakers
in the o position, securely fasten a prominent warning device, such as a
tag, to the service panel.

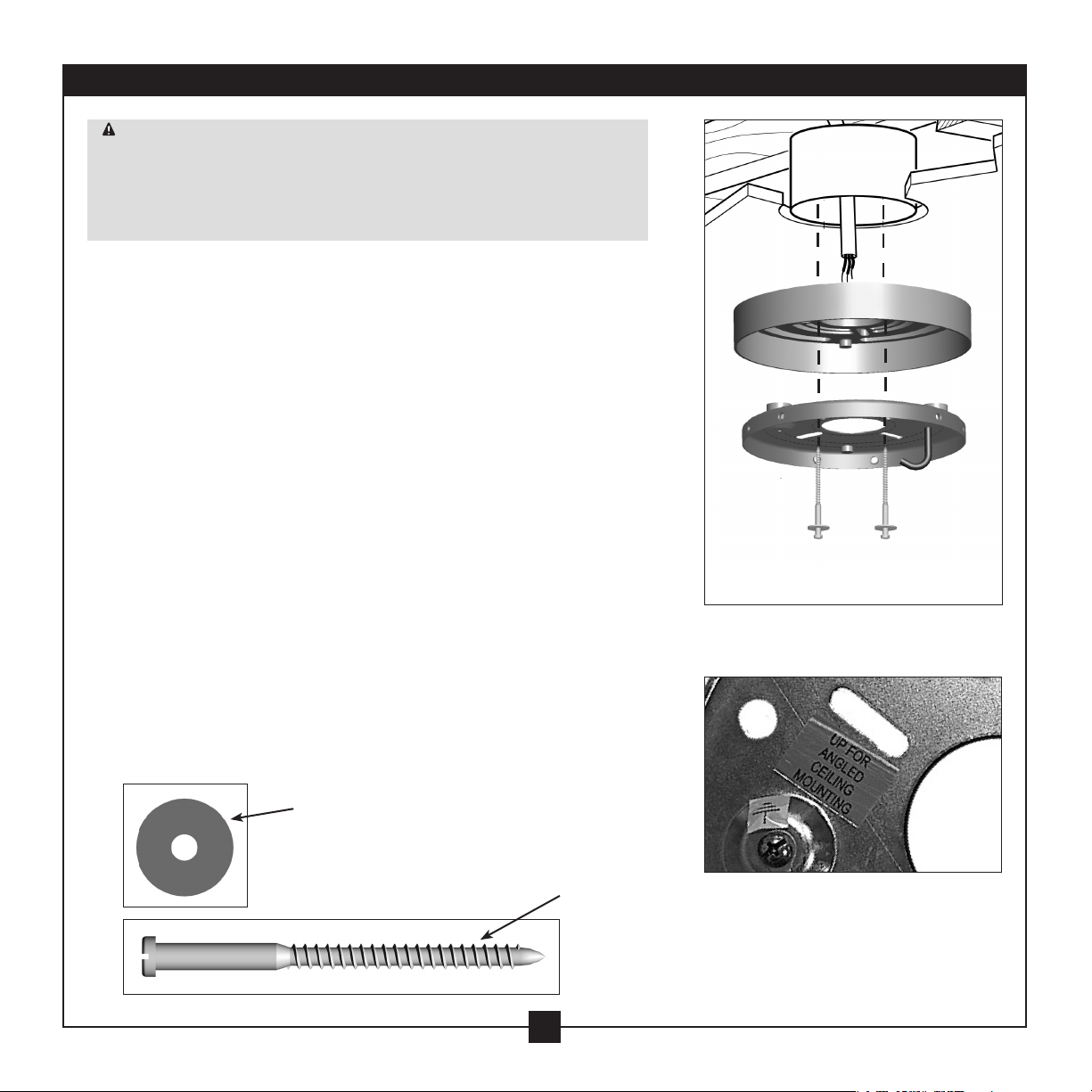

2-1. Drill two pilot holes into the wood support structure through the

outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.

2-2. Align the slotted holes in the ceiling plate with the pilot holes you

drilled in the wood support structure. For proper alignment use
slotted holes directly across from each other.

2-3. Place the ceiling gasket over the ceiling plate so that the slots and

the raised surfaces on the ceiling gasket align with the slots and
holes on the ceiling plate.

2-4. Use a 3” wood screw to pierce two holes in the ceiling gasket that

match the pilot holes you drilled in step 2-1.

2-5. read the lead wires from the outlet box down through the hole

in the middle of the ceiling gasket and ceiling plate. Note: e
ceiling gasket should be ush against the ceiling.

2-6. Place a at washer on each of the two 3” wood screws and pass the

screws through the slotted holes in the ceiling plate into the pilot
holes you drilled.

Tighten the screws into the 9/64” pilot holes; do not use lubricants

on the screws. Do not over tighten.

Steps 2-2

Steps 2-2 – 2-4

Flat Washer

42216-01 • 05/02/12 • Hunter Fan Company

3” Wood Screw

7

For Angled Ceilings: Be sure to orient
the ceiling plate so that the label
adhered to the ceiling plate is closest
to the ceiling peak.

3 • Assembling and Hanging the Fan3 • Assembling and Hanging the Fan

WARNING: Fan may fall if not assembled as directed in these

installation instructions.

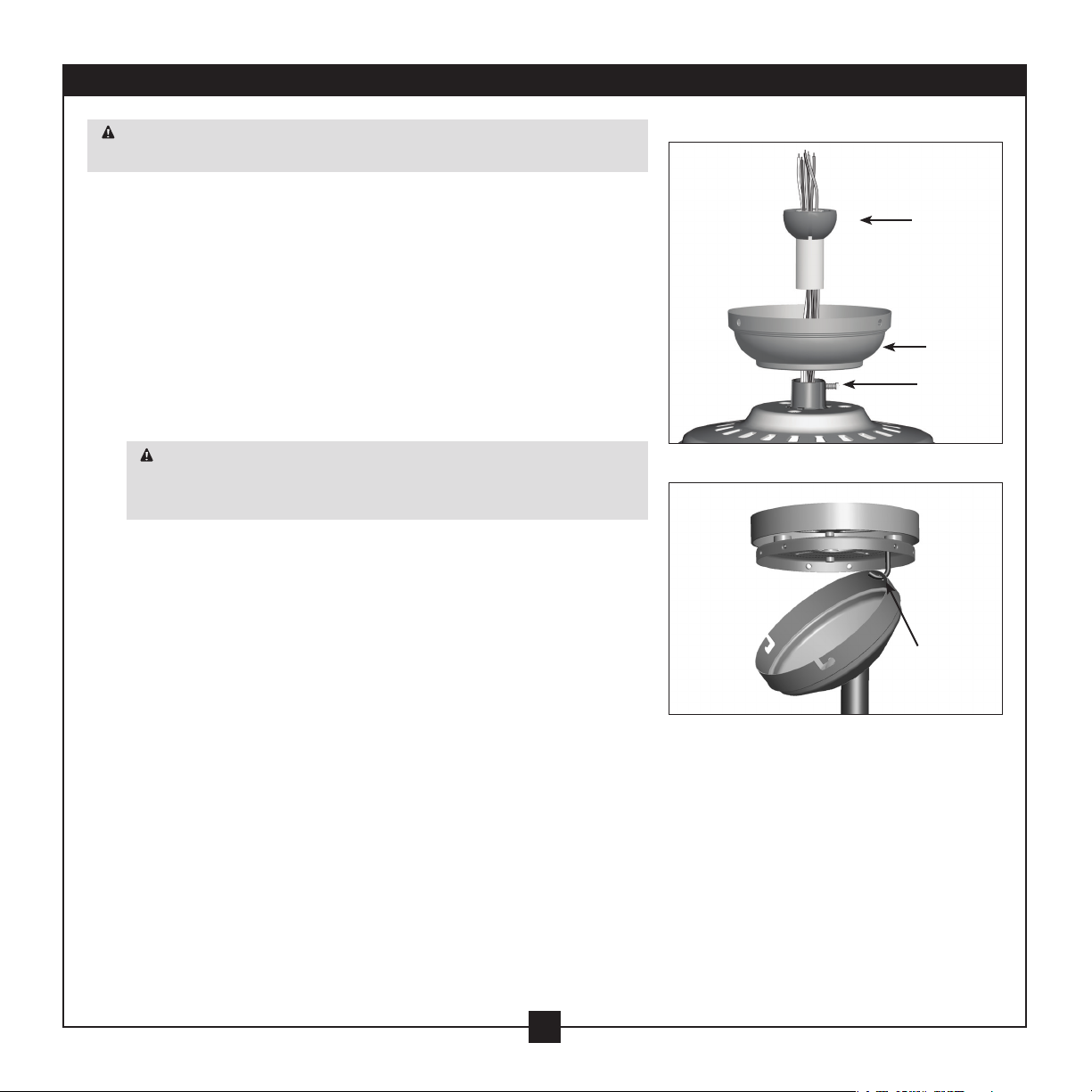

3.1 Unbundle the wires from the fan.

For Standard or Angled mounting:

3.2 Insert the downrod through the canopy and canopy trim ring.
Feed the wires from the fan through the downrod on one side of
the pin in the ball.

3.3 Loosen the square head setscrew on the adapter to install the pipe
and ball assembly. Note: When the pipe and ball assembly is fully
installed, 2-3 threads on the pipe will still be visible; this is normal.
Securely retighten the setscrew with a wrench or pliers. Skip to
step 3.7.

CAUTION: e adapter has a special coating on the threads. Do

not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.

Hanging the Fan:

3.4 Raise the fan and place the hook on the ceiling plate through the
round hole in the canopy.

Standard or Angled Mounting

Downrod

Canopy

Setscrew

Steps 3-2 – 3-3

Step 3-4

8

42216-01 • 05/02/12 • Hunter Fan Company

Round Hole

4 • Setting the Remote Transmitter and Receiver

Setting DIP switches and Jumpers

When two or more fans are located near each other, you may desire
to have the receiver/transmitter for each fan set to a dierent code,
so that the operation of one fan does not aect the operation of
the other fans.

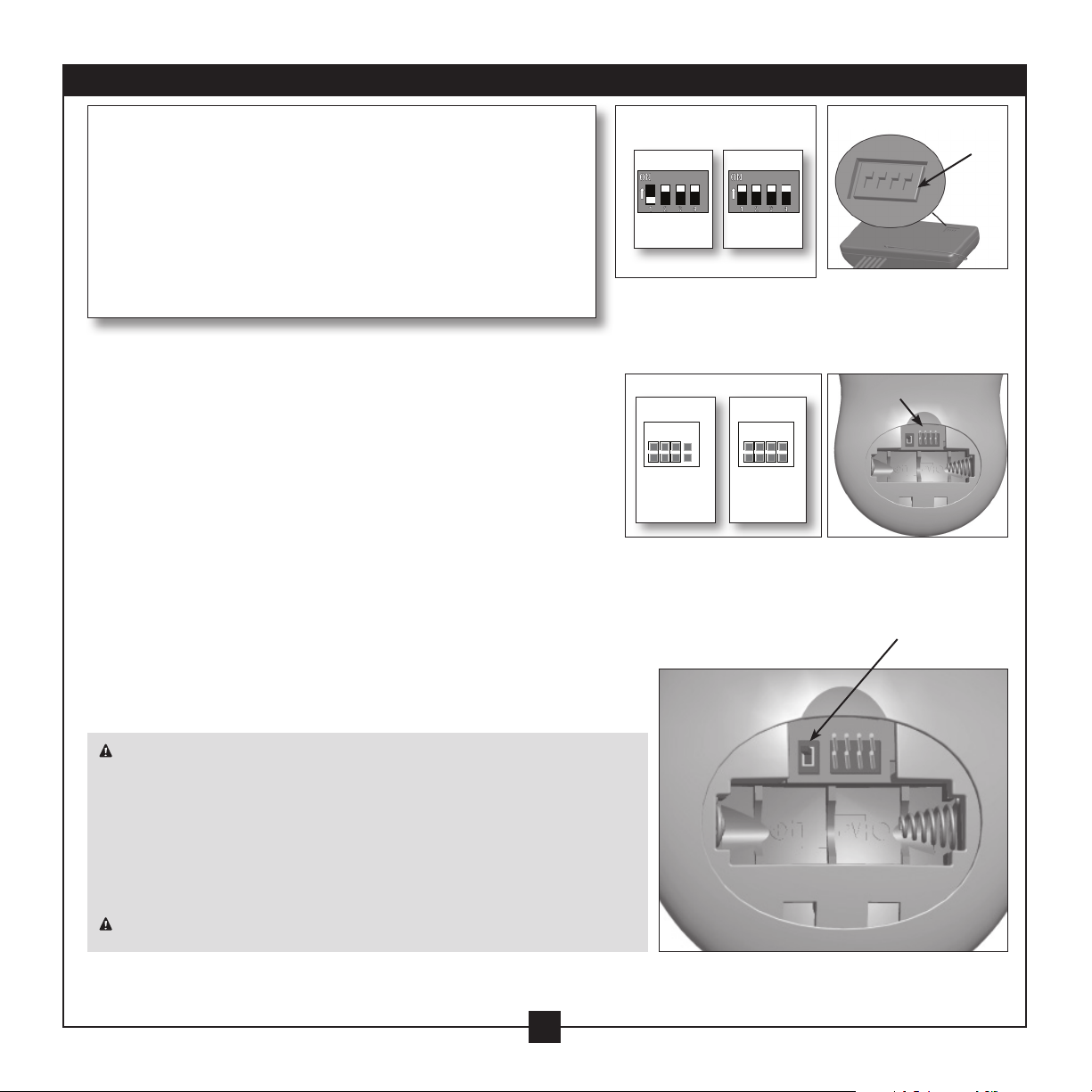

The DIP switches for the receiver are located on the flat surface
of the receiver. The Jumpers for the transmitter are in the
battery compartment.

4-1. IMPORTANT! B e f o r e y o u c h a n g e t h e J u m p e r s e t t i n g s , m a k e

sure the battery is not connected to the transmitter.

Change the position of the jumpers in the transmitter and

the DIP switches in the receiver. Be sure the position of the
jumper in the transmitter matches the position of the DIP
switches in the receiver. If they don’t match, the controller
will not function. For instructions on how to set the
jumpers, read the box below.

4-2. ere is a toggle switch beside the jumpers on the

transmitter. Move the toggle switch toward the side that
reads “CFL”.

4-3. Install the 12-volt battery into the transmitter.

Example DIP Switch Settings

Receiver 1

DIP Switches

Set to 0111

Example Jumpers Settings

4321 4321

4 = on (fermé)
3 = on (fermé)
2 = on (fermé)
1 = off (ouvert)

Receiver 2

DIP Switches

Set to 1111

Transmitter 2Transmitter 1

4 = on (fermé)

3 = on (fermé)
2 = on (fermé)
1 = on (fermé)

Receiver DIP

switches

Transmitter
Jumpers

CFL Toggle Switch

CAUTION: e remote control device complies with part 15 of the FCC rules.

Changes or modications not expressly approved by Hunter Fan Company could void
your authority to operate this equipment.

Operation is subject to the following two conditions:

1. is device may not cause harmful interference.

2. is device must accept any interference received, including interference that may
cause undesired operation.

Note: Use with a fan that incorporates an air gap switch (normal on-o wall switch).

WARNING: Maximum fan load is 1 Amp; maximum lamp is 300 Watts.

9

9

42216-01 • 05/02/12 • Hunter Fan Company

5 • Wiring the Fan

All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.

5-1. Make sure the power is still o.

Receiver

Steps 5-3 – 5-7

Large Wire
Connector

Small Wire
Connector

Antenna

5-2. To connect the wires, hold the bare metal leads together and place

a wire connector over them, then twist clockwise until tight. For
all these connections use the wire connectors provided.

CAUTION: Be sure no bare wire or wire strands are visible after

making connections.

5-3. Using a large wire connector, connect the ground wire from the

ceiling to the green ground wire from the ceiling plate and the
green ground wire from the downrod.

5-4. Using the large wire connectors, connect the white wire and the

black wire from the ceiling as follows:

•

e white (common) power wire from the ceiling to the white
wire from the receiver (marked on red tag “NEUTRAL IN”)

• e black power wire from the ceiling to the black wire from
the receiver (marked on red tag “LIVE IN”)

5-5. Using the small wire connectors, connect the wires from the fan

as follows:

• e black wire with a white stripe from the fan to the red wire
from the receiver (marked on white tag “LIGHT OUT”)

• e black wire from the fan to the black wire from the receiver
(marked on white tag “FAN OUT”)

• e white wire from the fan to the white wire from the receiver
(marked on white tag “COMMON OUT”)

5-6. Check each connection to make sure no bare wire or wire strands

are visible. Push all wires and wire connectors, except for the white
antenna wire from the receiver, back through the ceiling plate into
the outlet box.

5-7. Position the receiver in the canopy so that the antenna is close to

the edge of the ceiling plate for clear reception.

10

42216-01 • 05/02/12 • Hunter Fan Company

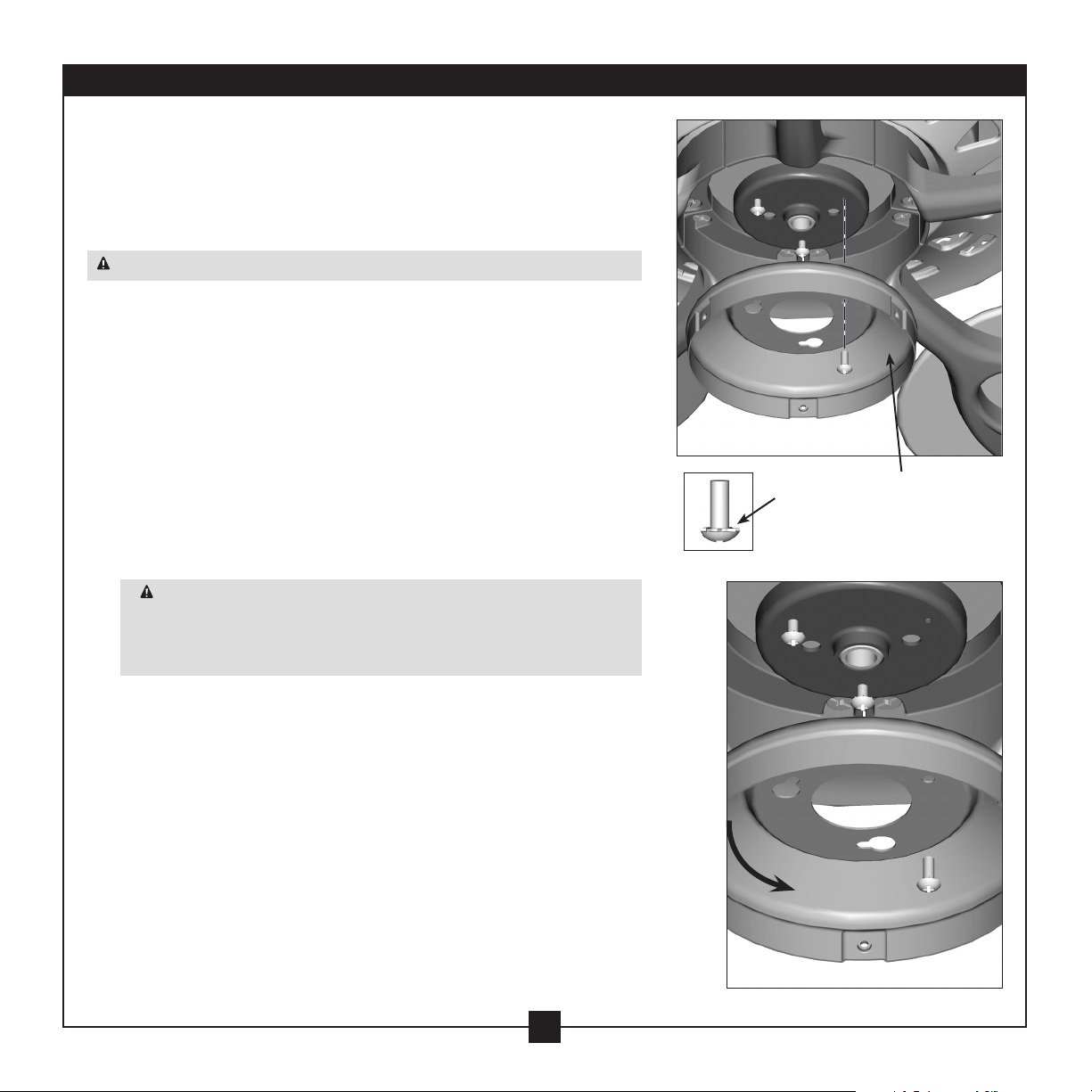

6 • Installing the Canopy

6-1. Partially install two canopy screws (about 2 full turns) in

the hanger bracket.

6-2. Raise the canopy over the hanger bracket. Align partially

installed screws with key slots in canopy.

6-3. Twist canopy counterclockwise to secure.

6-4. Install third canopy screw in round hole on canopy.

Securely tighten all three screws.

Canopy

Screw

Step 6-1

Canopy

Step 6-3

Canopy

Screw

11

42216-01 • 05/02/12 • Hunter Fan Company

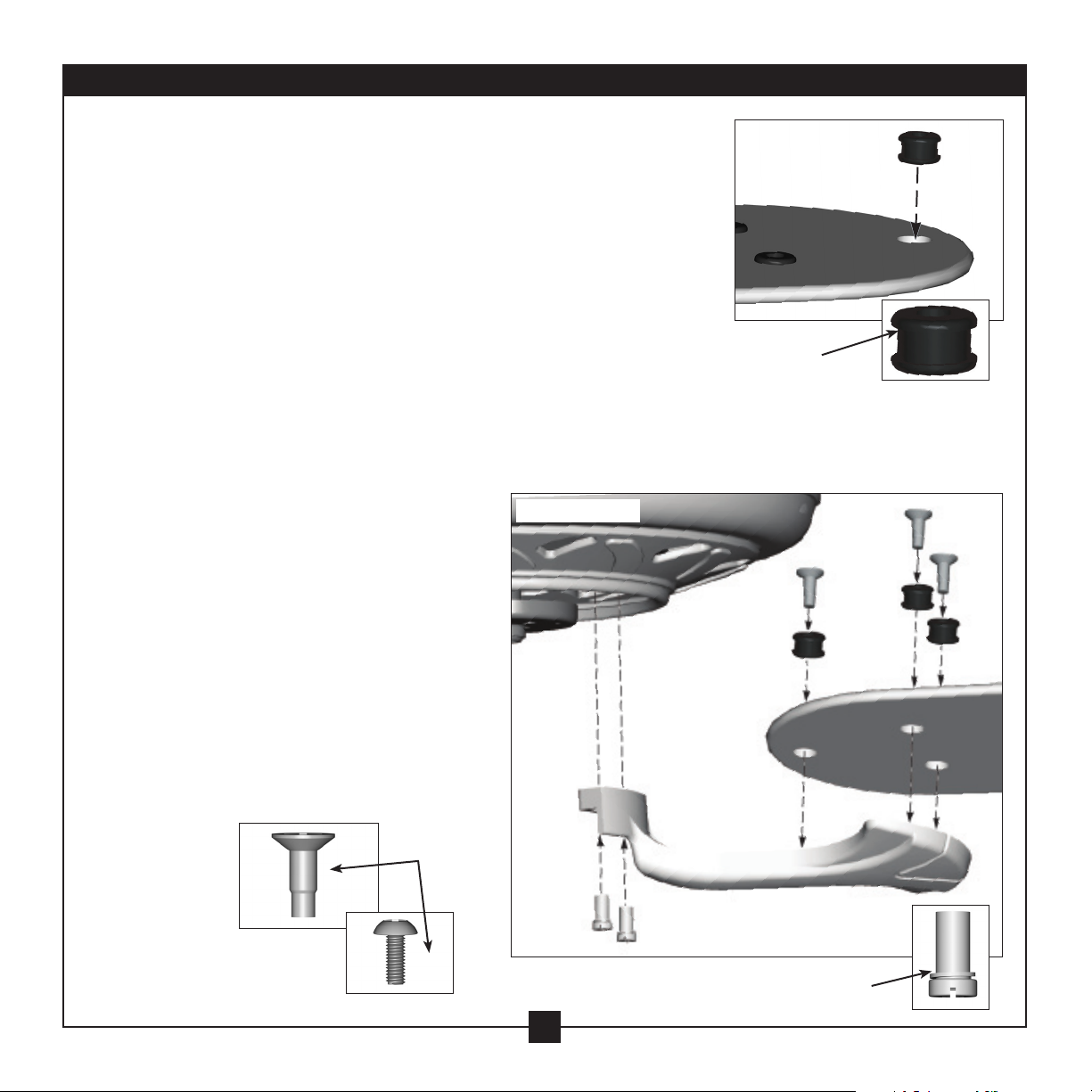

7 • Assembling the Blades

Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).

7-1. Your fan may include blade grommets. If your fan has grommets,

insert them by hand into the holes on the blades.

7-2. Attach each blade to a blade iron using three blade assembly

screws. If you used grommets, the blades may appear slightly loose
after screws are tightened. is is normal.

7-3. Remove the blade mounting screws and rubber shipping bumpers

from the motor. Note: Some blade mounting screws are installed
in the motor to secure shipping blocks.

7-4. For each blade, insert one blade mounting screw through the

blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.

Note: e blades on this fan have been treated

Steps 7-1 – 7-2

with Hunter’s Dust Armor protection, making
the blades less likely to attract dust and dirt.
Use a dry or slightly damp lint free cloth to
clean the blades. Do not use a furniture polish
or any other cleaners that leave any residue, as
they will damage the protective Dust Armor
on the blades.

Step 7-1 (Detail)

Grommet

Use with grommet

Use without grommet

Blade Assembly

Screws

Step 7-4

12

12

42216-01 • 05/02/12 • Hunter Fan Company

Blade

Mounting

Screw

8 • Completing Your Installation With or Without a Bowl Light Fixture

Your Hunter fan comes with an integrated light xture assembly and an
optional switch housing cap and plug button. is feature gives you the
option of installing the fan with OR without the included light xture.
e steps below direct you whether or not you are installing a light
xture.

WARNING: Use only the light xture supplied with this fan model.

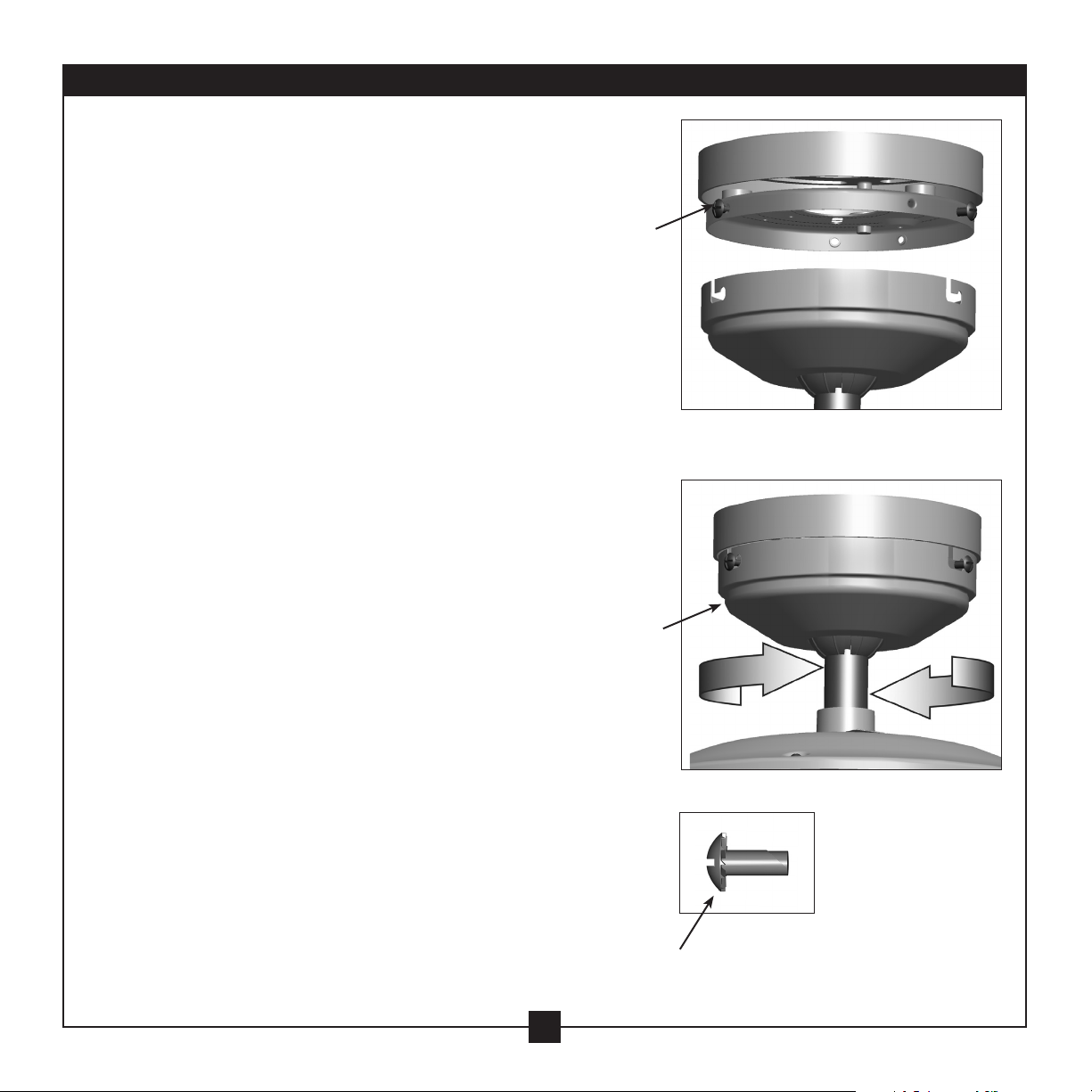

8-1. To attach the upper switch housing, partially install two housing

assembly screws into the switch housing mounting plate.

8-2. Feed the upper plug connector through the center opening of

the housing.

8-3. Align the keyhole slots in the housing with the housing

assembly screws.

8-4. Turn the housing counterclockwise until the housing assembly

screws are rmly situated in the narrow end of the keyhole slots.
Install the remaining screw into the housing. Tighten all three
screws rmly.

CAUTION: Make sure the upper switch housing is securely

attached to the switch housing mounting plate. Failure to properly
attach and tighten all three assembly screws could result in the

switch housing and light xture falling.

Steps 8-1 – 8-3

Housing
Assembly
Screw

Upper
Switch
Housing

8-5. If you want to install the light fixture, proceed with step 8-6 now.

If you do not want to install the light fixture, you need to

uninstall it now. See “Uninstalling the Light Fixture” on step 8-14.
Once you have uninstalled the light xture, continue with step 8-6.

13

42216-01 • 05/02/12 • Hunter Fan Company

8 • Completing Your Installation With a Bowl Light Fixture (continued)

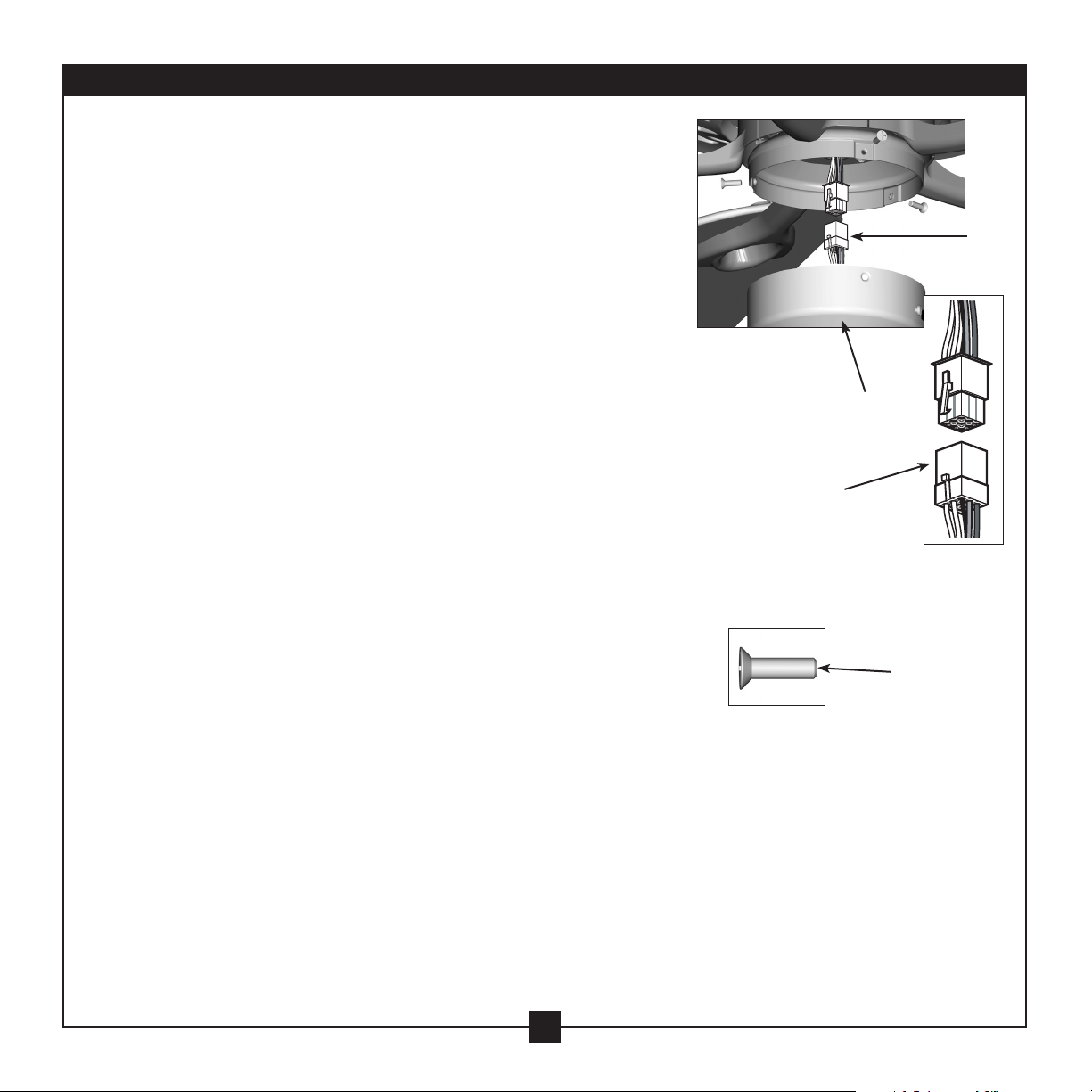

8-6. To attach the lower switch housing, connect the upper plug

connector from the motor to the lower plug connector in the
lower switch housing assembly.

Note: Both plug connectors are polarized and will only t together

one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.

8-7. Place the lower switch housing with attached light kit assembly

over the upper switch housing. Align the side screw holes in the
upper and lower switch housings. Attach the lower switch housing
to the upper switch housing with three housing assembly screws.

Plug

Connector

Steps 8-6 – 8-7

Lower Switch
Housing

Plug
Connector
Detail

14

42216-01 • 05/02/12 • Hunter Fan Company

Housing
Assembly Screw

8 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)

Installing the Glass Bowl

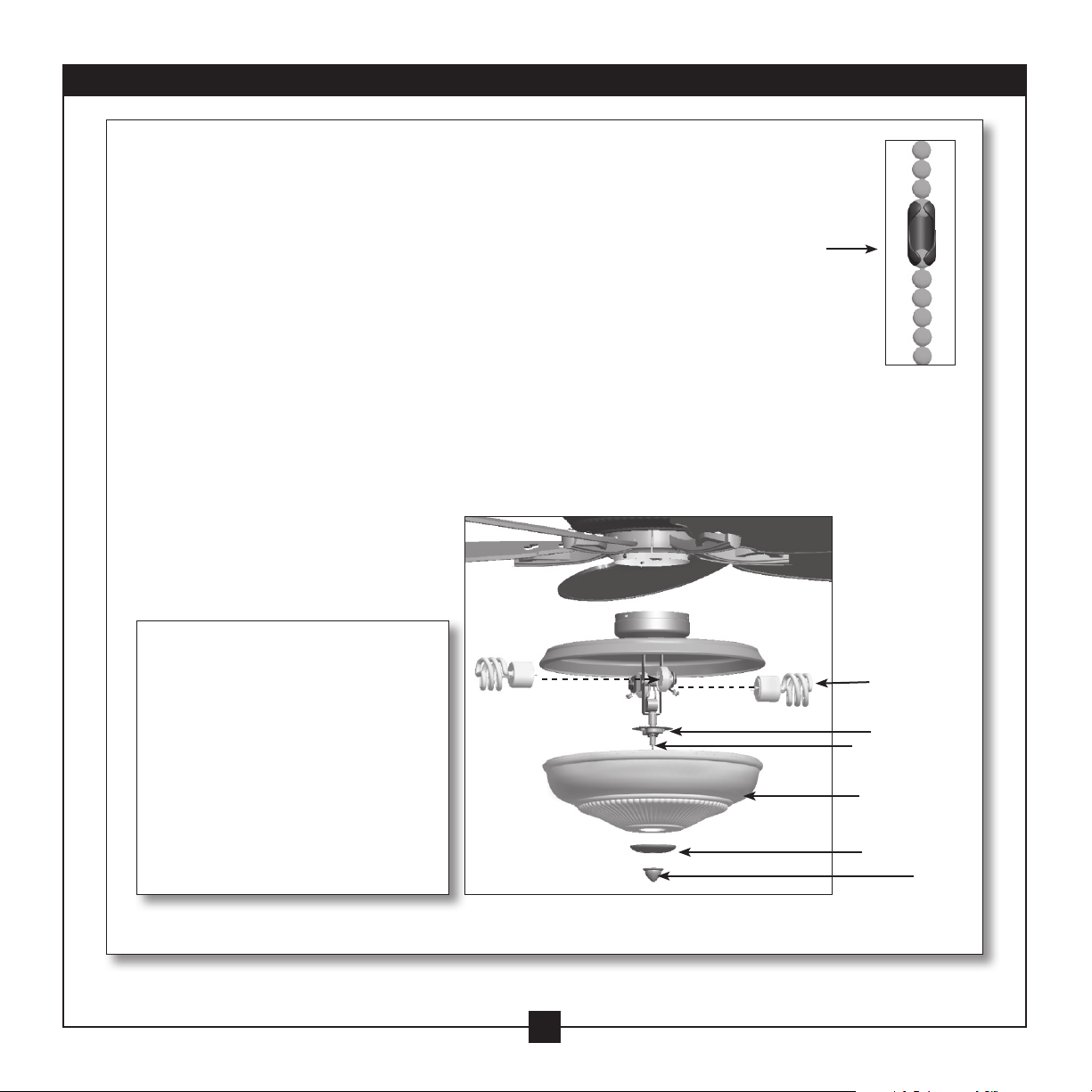

8-8. First install the two GU24 CFL Bulbs into the sockets.
8-9. read the light and fan pull chains through the hole in the center

of the glass bowl. en, thread the light pull chain through the hole
in the center of the cover plate.

8-10. read the fan pull chain through the grommet hole in the side of

the cover plate.

8-11. Place the nial cap up against the glass bowl. Align the holes in the

nial cap and glass bowl.

8-12. read the light pull chain through the nial and screw the nial

onto the threaded rod end until tight.

8-13. Attach the extra pull chains (included) to the light and fan

pull chains using the breakaway connector. (You may nd the
breakaway connector on the end of the extra chain.)

Breakaway

Connector

Note: In compliance with US

federal energy regulations,
this ceiling fan contains
a device that restricts its
light output. Exceeding the
wattage limit marked on
the MAX wattage sticker
axed to the light socket(s)
may result in re hazard or
improper operation.

42216-01 • 05/02/12 • Hunter Fan Company

CFL Bulb

Metal Disc

readed Rod

Glass Bowl

Finial Cap

Finial

15

8 • Completing Your Installation With or Without a Bowl Light Fixture (continued)

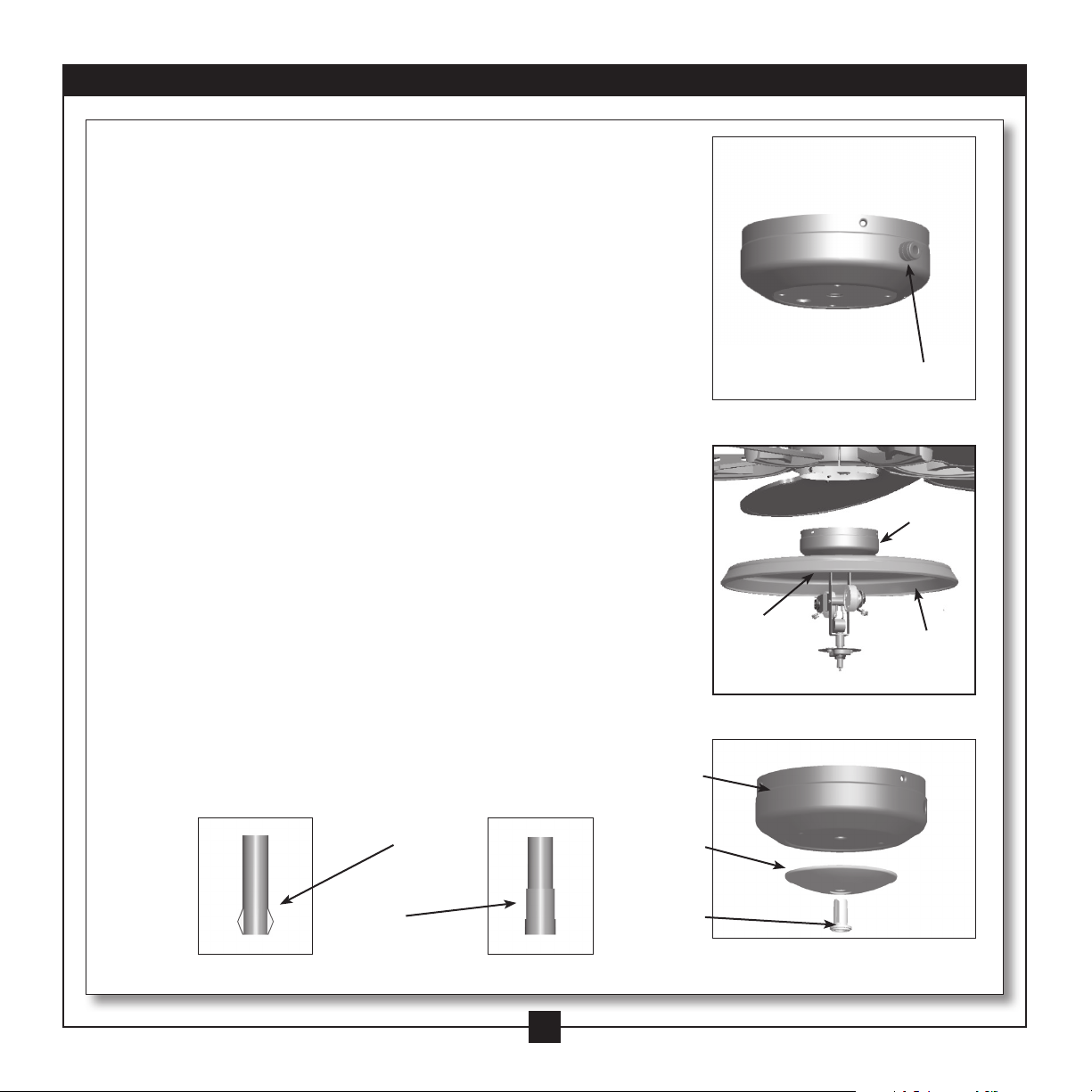

Uninstalling the Light Fixture

8-14. To uninstall the light xture, rst disconnect the plug connectors

between the two black wires and the two white wires located in the
existing switch housing.

8-15. Remove the reverse switch by unscrewing the switch nut on the

outside of the lower switch housing.

8-16. Remove the fan switch by unscrewing the switch nut located under

the light kit shroud.

8-17. Install the reverse switch assembly into the optional lower switch

housing by feeding the pull chain and then the threaded barrel of the
reverse switch through one of the holes in the side of the optional
switch housing. Secure the switch by installing the switch nut on the
outside of the switch housing. Hand tighten the nut in a clockwise
direction until snug.

8-18. Install the fan switch the same way that the reverse switch was

installed in the previous step (8-20).

8-19. Once both switches have been installed in the optional switch

housing, install the dummy terminals (included in the sack parts)
on the two disconnected wires in the lower switch housing.

8-20. e switch housing cap and the plug button should already be

installed in the optional switch housing. If not, install them now.

8-21. Once you have uninstalled the light fixture and installed the

wiring in the optional switch housing, continue with step 8-6.

Step 8-15

Switch

Nut

Step 8-16

Switch Nut

Lower Switch

Housing

Shroud

Optional

Switch

Housing

Male Dummy

Term i nal

Female Dummy
Term i nal

Plug Button

16

42216-01 • 05/02/12 • Hunter Fan Company

Cap

Step 8-20

9 • Operating the Remote Control and Mounting the Holder

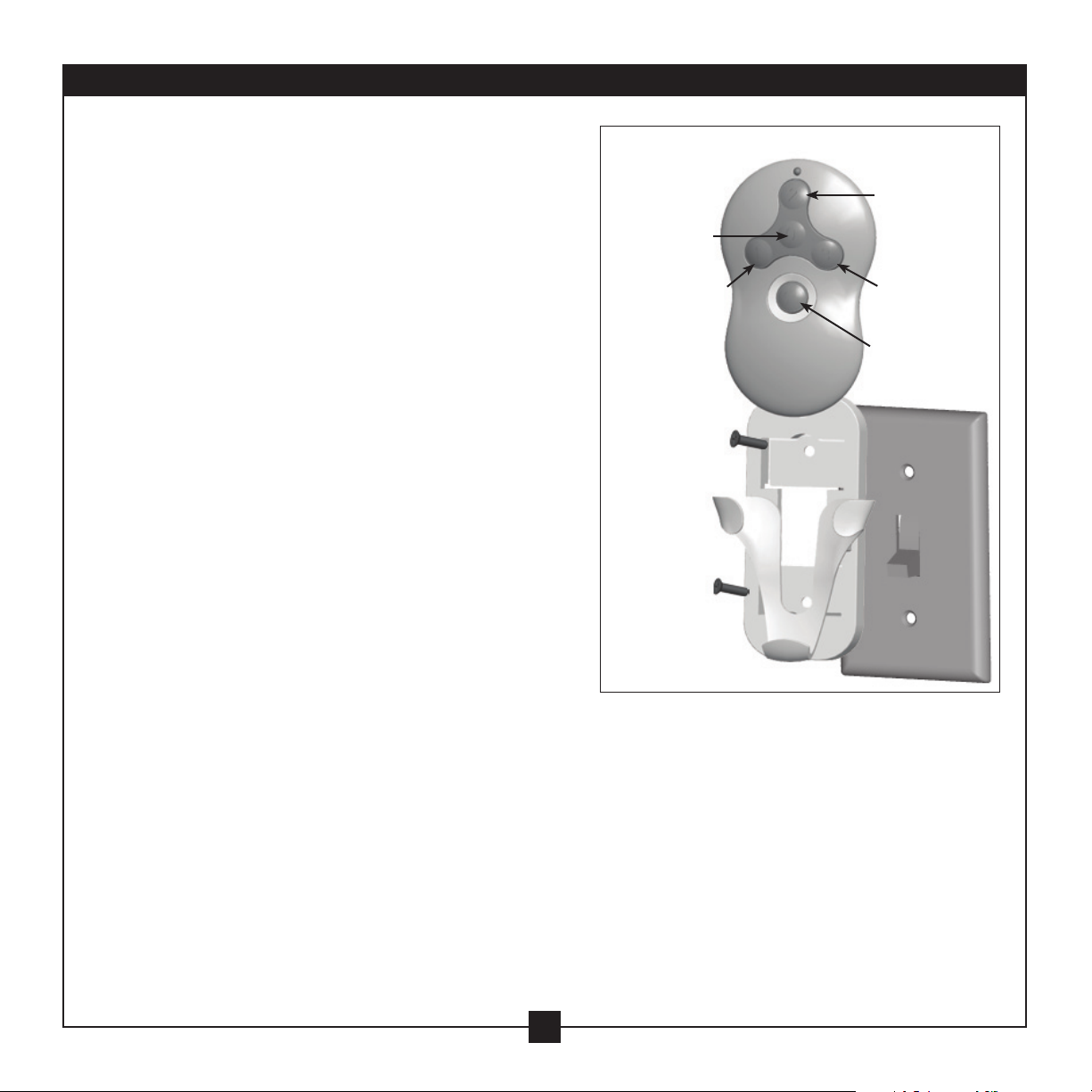

9-1. e remote has individual buttons for setting the fan

speed and light. Refer to the gure on the right.

Note: For best operation, start the fan by pressing high,

then select your desired speed.

9-2. e light button turns the light. Push the light button

again to turn o the light.

9-3. When necessary, replace the battery with a 12-volt

alkaline battery.

9-4. You can mount the remote holder to any toggle switch

plate with the screws already in the switch plate. Or, you
can simply mount the remote holder on the wall.

Step 9-4

Fan O

Fan Speed

Low

Fan Speed
Medium

Fan Speed
High

Fan Light

17

17

42216-01 • 05/02/12 • Hunter Fan Company

10 • Operating and Cleaning Your Ceiling Fan

10-1. Turn on electrical power to the fan.

10-2. e fan pull chain controls power to the fan. e pull chain has

four settings in sequence: High, Medium, Low and O.

• Pull the chain slowly to change settings.

• Release it slowly to prevent the chain from recoiling into
the blades.

• e chain uses a breakaway connector that separates if the
chain is jerked. If this happens, simply reinsert the chain into
the connector.

10-3. e light pull chain controls power to the light. e pull chain

has two settings: On and O.

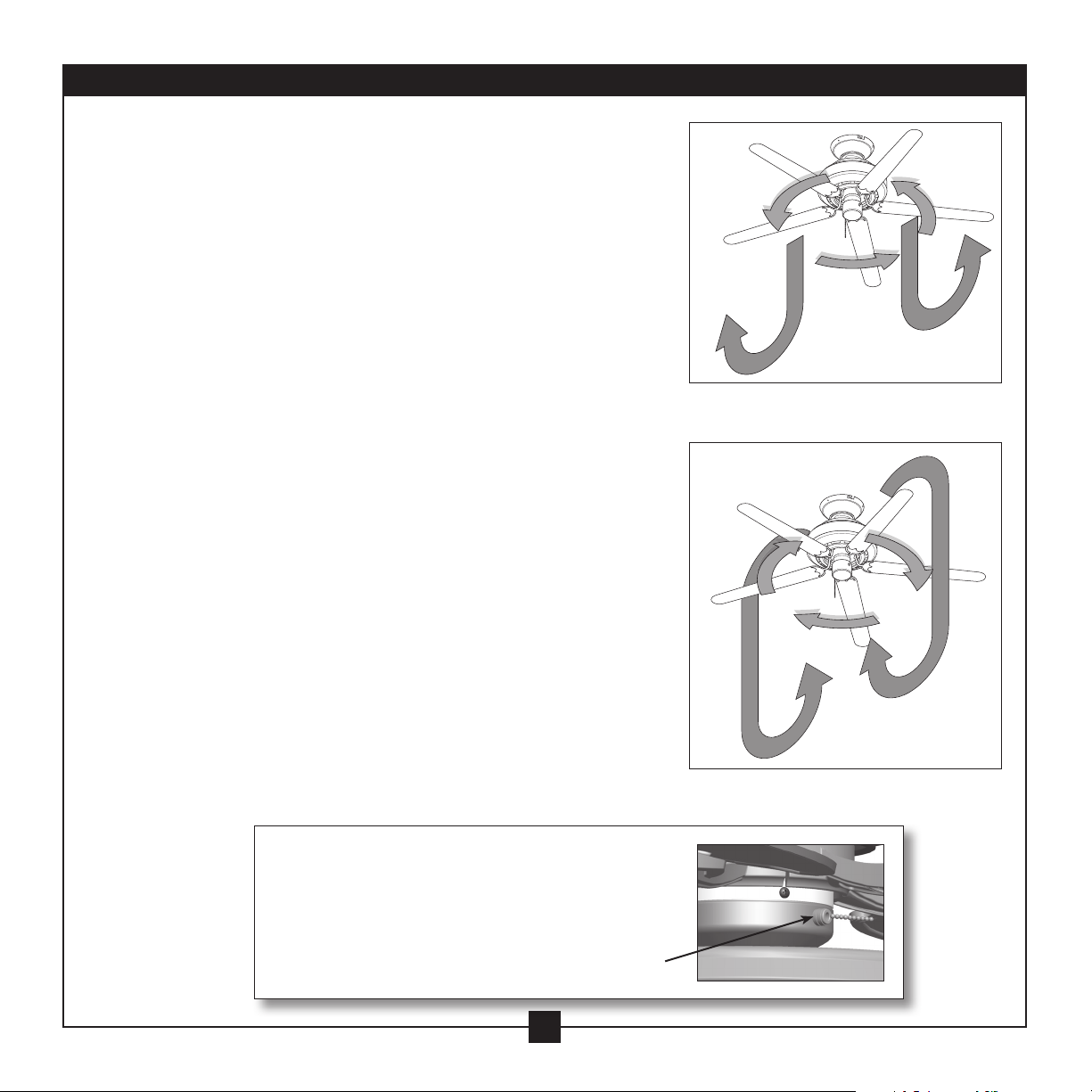

10-4. Ceiling fans work best by blowing air downward

(counterclockwise blade rotation) in warm weather to cool the
room with a direct breeze. In winter, having the fan draw air
upward (clockwise blade rotation) will distribute the warmer air
trapped at the ceiling around the room without causing a draft.

10-5. e blades on this fan have been treated with Hunter’s Dust

Armor protection, making the blades less likely to attract dust
and dirt. Use a dry or slightly damp lint free cloth to clean the
blades. Do not use a furniture polish or any other cleaners that
leave any residue, as they will damage the protective Dust Armor
on the blades.

10-6. For cleaning nishes, use a soft brush or lint-free cloth to prevent

scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust
using a mild detergent and a slightly dampened cloth. You may
use an artistic
agent, but
never abrasive
cleaning
agents as they
will damage
the nish.

To Change Airflow Direction

Turn the fan o and let it come to a complete
stop. Pull the chain on the reversing switch in
order to change the airow direction. Restart fan.

Reversing
Switch

In warm weather, use
downward air ow pattern

In cold weather, use upward
air ow pattern

18

42216-01 • 05/02/12 • Hunter Fan Company

11 • Troubleshooting

Problem: Nothing happens; fan does not move

1. Turn power on, replace fuse, or reset breaker.

2. Loosen canopy, check all connections according to the wiring the fan section.

3. Check the plug connection in the switch housing.

4. Push motor reversing switch rmly left or right to ensure that the switch is engaged.

5. Pull the pull chain to ensure it is on.

6. Remove the shipping bumpers.

Problem: Noisy operation

1. Tighten the blade assembly screws and blade iron armature screws until snug.

2. Check to see if the blade is cracked. If so, replace all the blades.

Problem: Excessive wobbling

1. Make sure the blades are securely attached to the blade irons according to the blade assembly instructions
provided.

2. After thoroughly verifying the blades are securely attached to the blade irons, follow the instructions in the
enclosed balancing kit to balance the fan.

3. Turn power o, support fan very carefully, and check that the hanger ball is properly seated.

Problem: Lights shut off suddenly, but fan is still operating

1. Check to make sure the wattage and type of the light bulbs that are installed meet the specications on the
light socket.

2. Turn the power to the fan o at the wall switch. Wait 5 minutes, then resume power to the fan.

Problem: CFL bulbs flicker when controlled by a dimming remote or wall control

1. CFL light bulbs are not usually made for dimming. Replace the CFL bulbs with dimmable light bulbs, or install
the fan in a location without a dimming control.

If you need parts or service assistance, please call
888-830-1326 (In Canada, call 866-268-1936) or
visit us at our website at
http://www.HunterFan.com.

Hunter Fan Company
7130 Goodlett Farms Parkway #400
Memphis, Tennessee 38016

19

42216-01 • 05/02/12 • Hunter Fan Company
