Page 1
For Your Records and
Warranty Assistance
For reference, also attach your receipt or a copy
of your receipt to the manual.
Type 2 ModelsType 2 ModelsType 2 Models
__________________________________________
Model Name
__________________________________________
Model No.
__________________________________________
Date Purchased
__________________________________________
Where Purchased
Owner’s Guide and Installation Manual
English Español
Form# 42490-01
20120202
©2012 Hunter Fan Co.
Page 2
Table Of Contents
1 • Getting Ready......................6
2 • Installing the Ceiling Plate ..........7

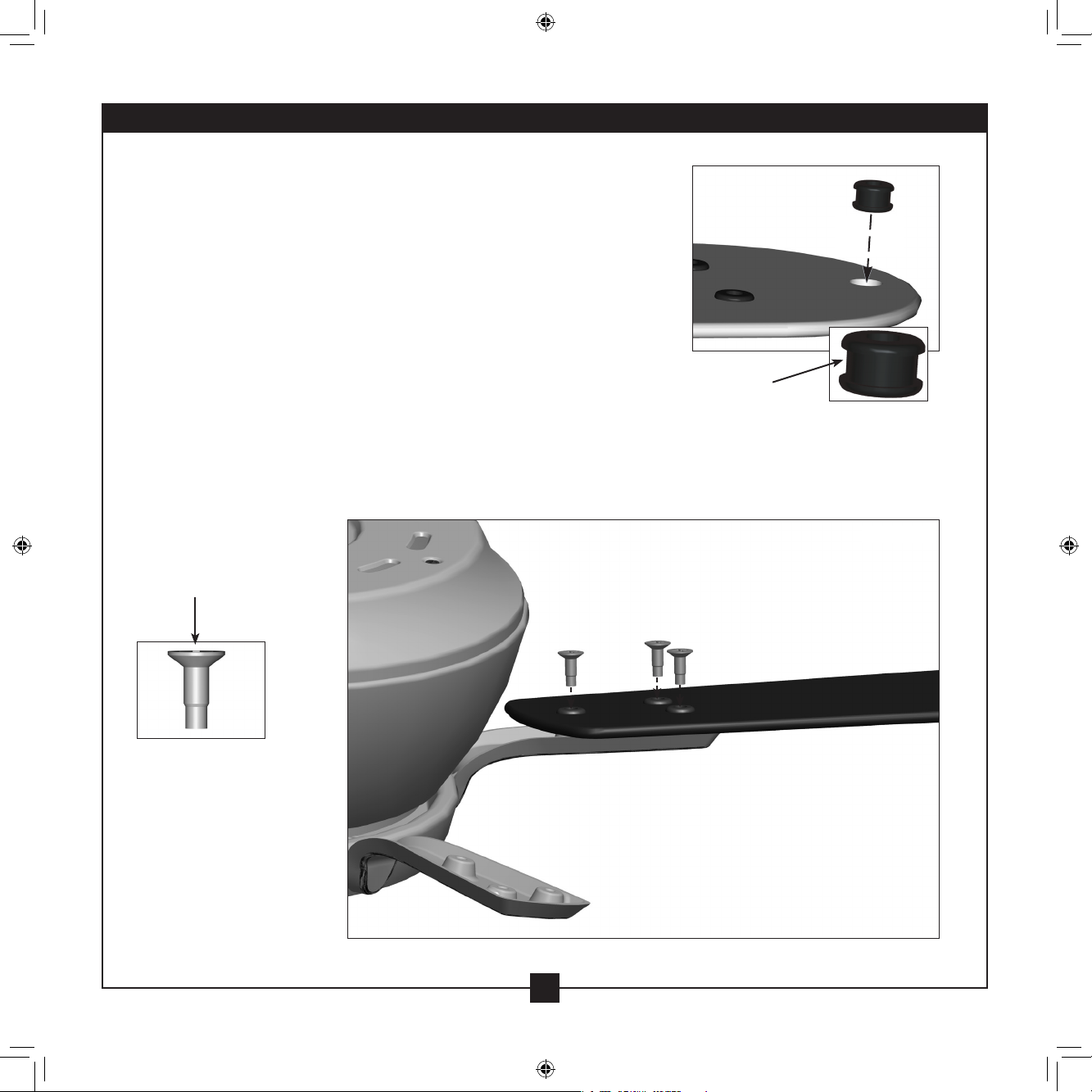

3 • Assembling the Blades..............8
4 • Assembling and Hanging the Fan ...9

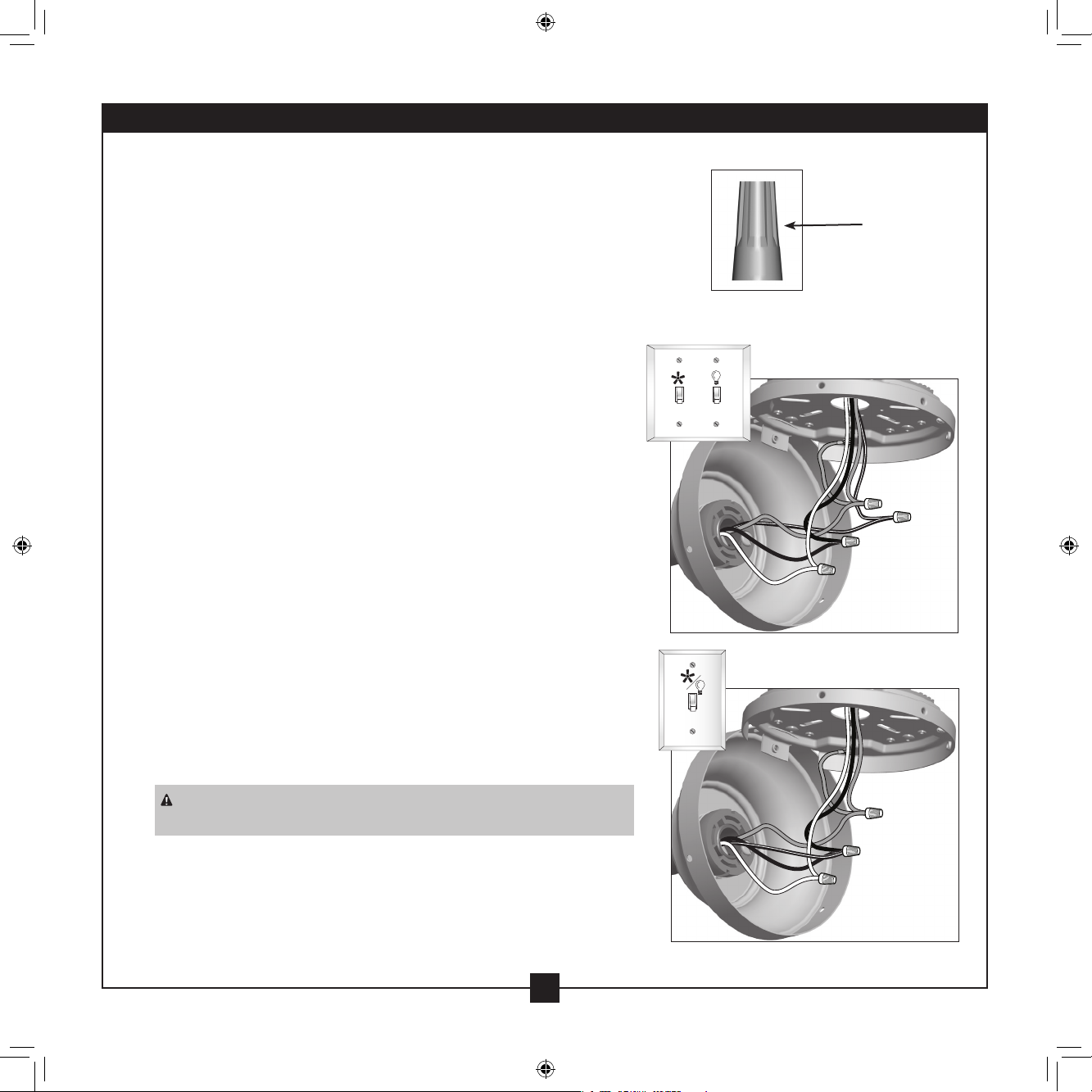

5 • Wiring the Fan .....................10

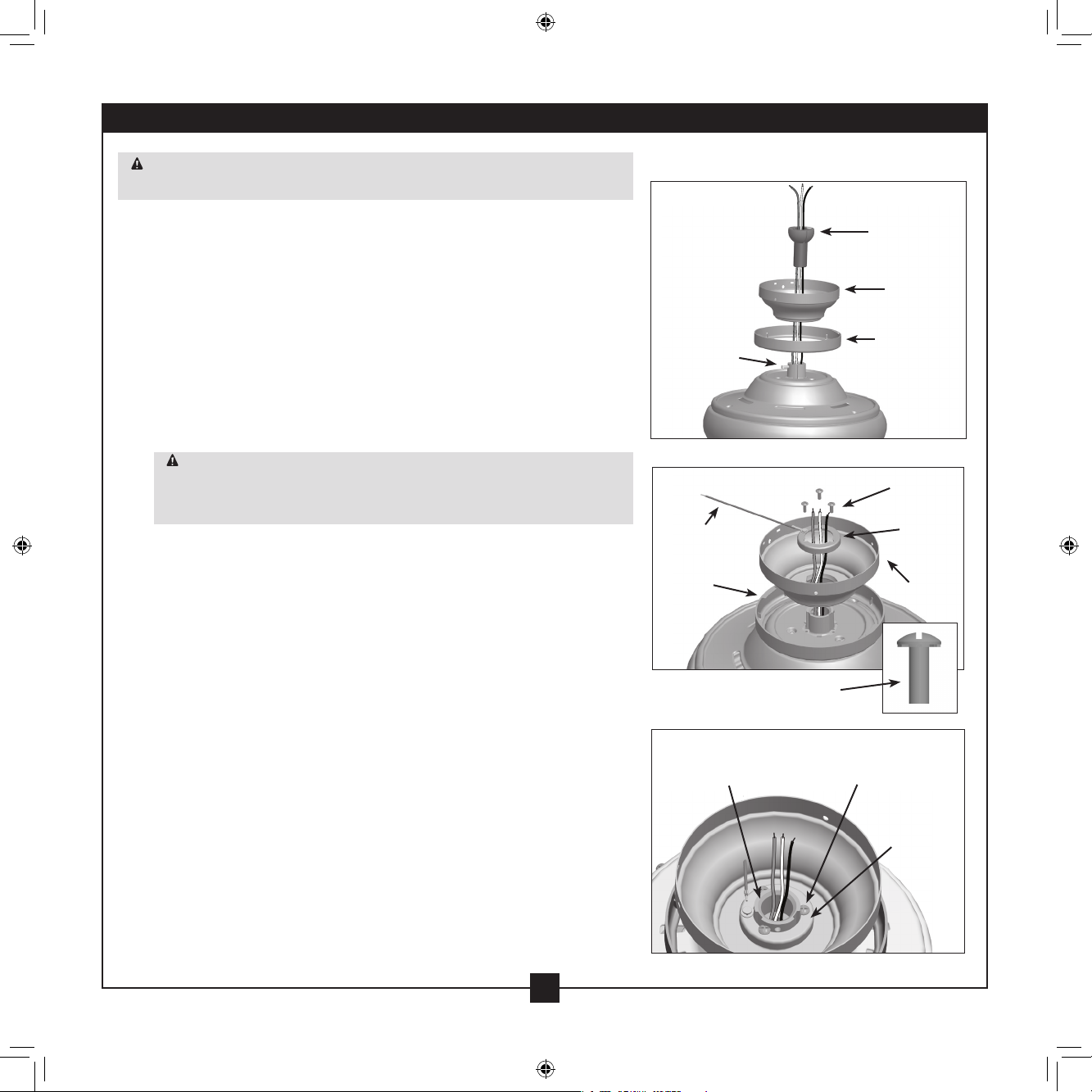

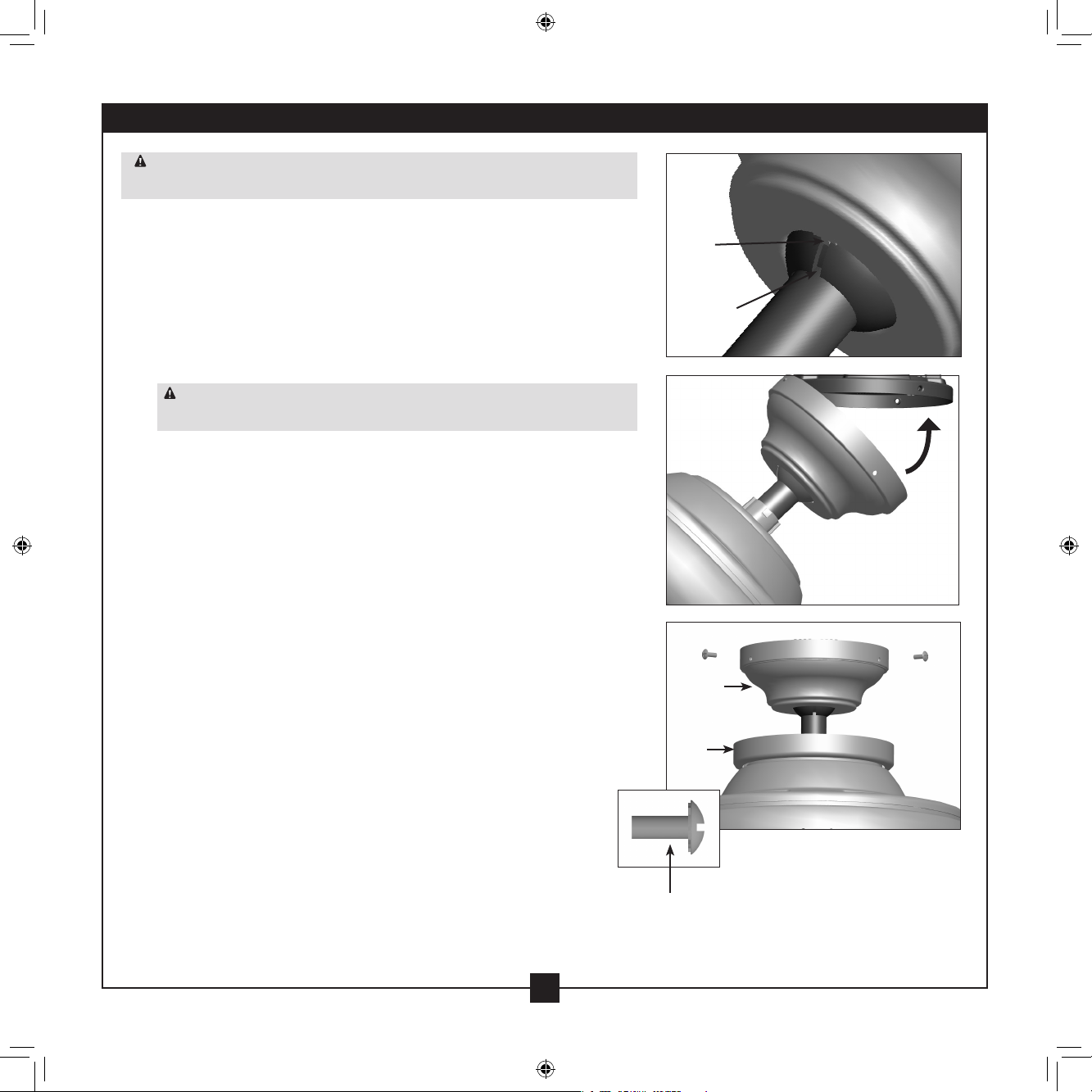

6 • Installing the Canopy and Canopy Trim
Ring ..............................11
7 • Assembling the Blades..............12

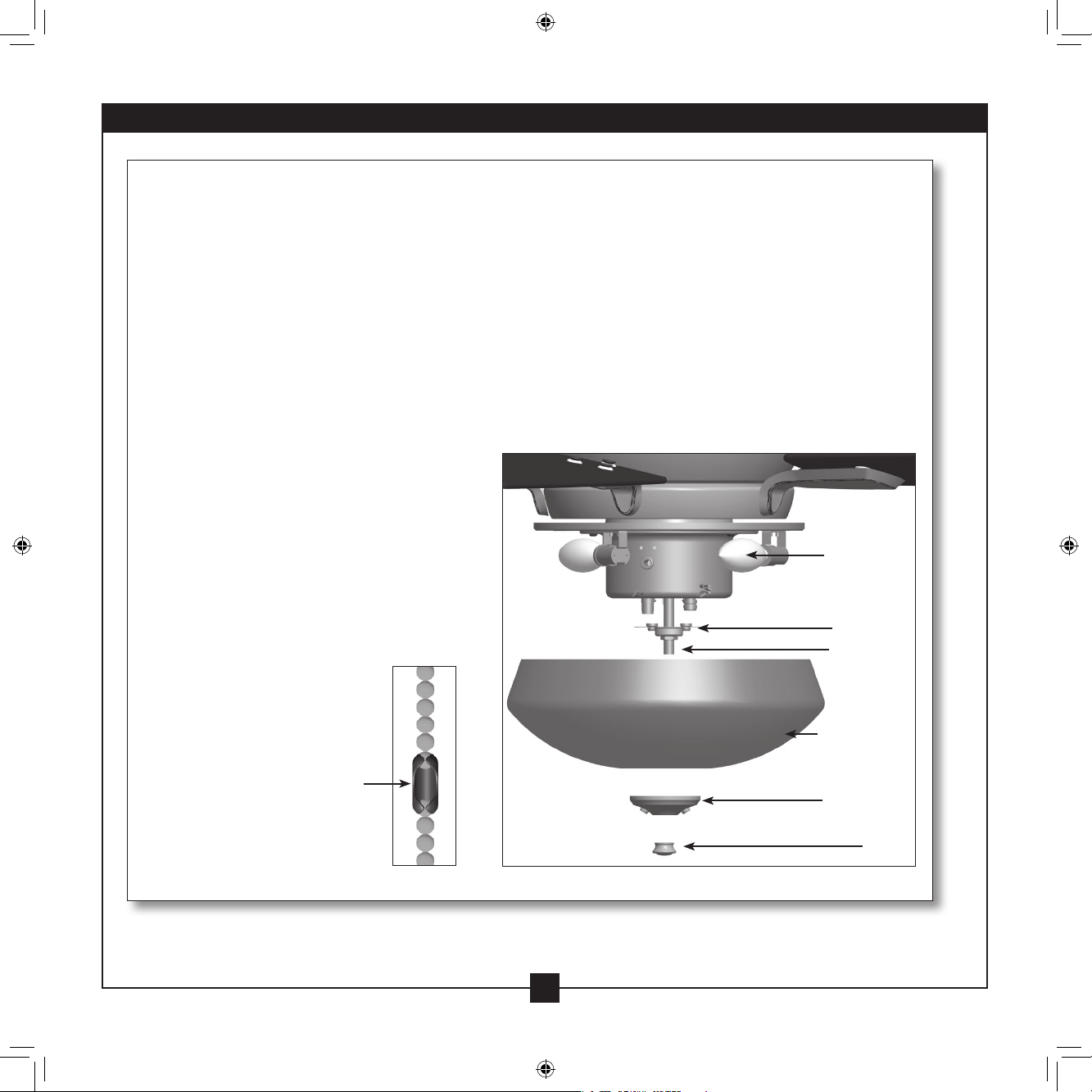

8 • Completing Your Installation With a
Bowl Light Fixture .................13

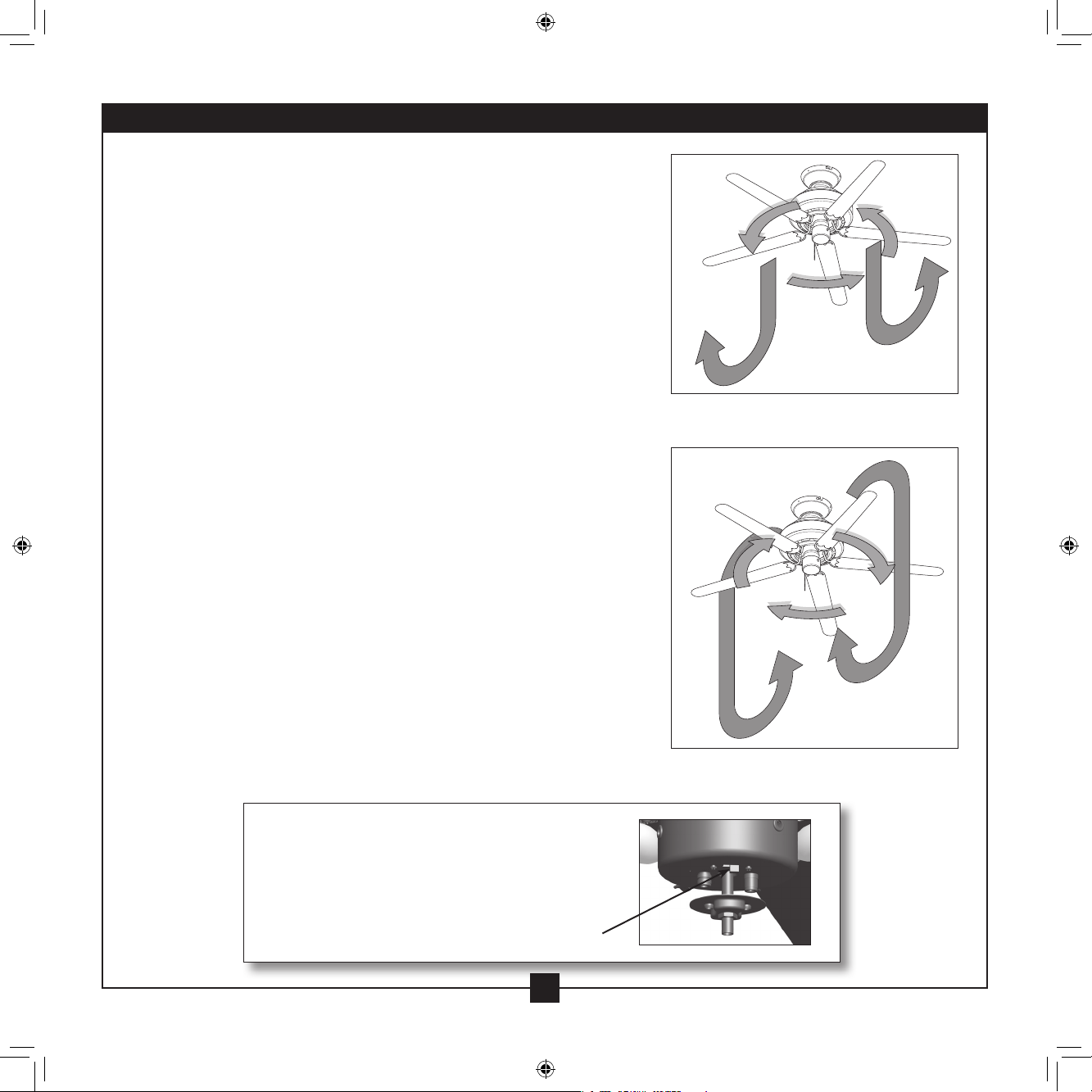

9 • Operating and Cleaning Your Ceiling
Fan ...............................15
10 • Troubleshooting ..................16
Welcome
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
• READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls, which are solid state.
• is product conforms to UL STD 507 and is certied to STD C22.2
No.113
• Wash your hands after your fan installation is complete.
© 2012 Hunter Fan Company
2
42490-01 • 02/02/12 • Hunter Fan Company
Page 3
Preparing the Fan Site
Step 1 - Choose the Fan Site
Proper ceiling fan location and attachment to the building
structure are essential for safety, reliable operation, maximum
eciency, and energy savings.
Choose a fan site where:
• No object can come in contact with the rotating fan blades during
normal operation.
• e fan blades are at least 7 feet above the oor and the ceiling is
at least 8 feet high.
• e fan blades have no obstructions to airow, such as walls or
posts, within 30 inches of the fan blade tips.
• e fan is directly below a joist or support brace that will hold the
outlet box and the full weight of the fan.
30” From
Wall or
Nearest
Obstruction
7’ Minimum
Blades to
Floor
8’ Minimum
Ceiling
Height
Checklist for Existing Fan Site
If you want to use an existing fan site, complete the following checklist to
determine if the site is acceptable and safe for your new Hunter fan. If you
cannot check o every item, prepare a new fan site as described on this
page.
Fan Support System
• Fan attaches directly to building structure.
• Fan support system will hold full weight of the fan and light kit.
Ceiling Hole
• e outlet box clearance hole is directly below the joist or support brace.
Outlet Box
• e outlet box is an UL-approved octagonal 4” x 1-1/2” outlet box (or as
specied by the support brace manufacturer).
• e outlet box is secured to the joist or support brace by wood screws
and washers through the inner holes of outlet box.
• e outer holes of the outlet box are aligned with joist or support brace.
• e bottom of the outlet box is recessed a minimum of 1/16” into
ceiling.
Wiring
• e electrical cable is secured to outlet box by an approved connector.
• Six inches of lead wires extend from outlet box.
If your existing fan site is suitable, skip ahead to Section 2 • Installing the
Ceiling Plate.
3
Fan Support
System
Fan Support
System
Suitable Existing Fan Site
Outlet Box
Wiring
42490-01 • 02/02/12 • Hunter Fan Company
Page 4
Preparing the Fan Site (continued)
Step 2 - Cut the Ceiling Hole
2-1. Locate the site for the ceiling hole directly below the joist or support brace that
will hold the outlet box and fan.
2-2. Cut a 4” diameter hole through the drywall or plaster of the ceiling. You will use
the hole to install the support brace and outlet box.
Step 3 - Install a Support Brace, If Necessary
Determine if there is a ceiling joist directly above the ceiling hole. If the joist is there,
determine if it is positioned to allow you to recess the outlet box a minimum of
1/16” into the ceiling. If NOT, install a support brace as follows:
3-1. Attach a 2” x 4” support brace between two joists. Position it to allow you to
recess the bottom of the outlet box a minimum of 1/16” into the ceiling.
3-2. Check the support brace to ensure it will support the full weight of the fan and
light kit.
Step 4 - Install the Outlet Box
4-1. Obtain a UL-approved octagonal 4” x 1-1/2” outlet box, plus two #8 x 1-1/2”
wood screws and washers, available from any hardware store or electrical supply
house.
4-2. Orient the outlet box so that both the inner and outer holes in the box align
with the joist or support brace.
4-3. Drill pilot holes no larger than the minor diameter of the wood screws (5/64”)
through the inner holes of the outlet box.
4-4. Attach the outlet box directly to the support brace or joist with two #8 x 1-1/2”
wood screws and washers. e bottom of the outlet box must be recessed a
minimum of 1/16” into the ceiling.
Step 5 - Prepare the Wiring
5-1. Make sure the circuit breakers to the fan supply line leads and associated wall
switch location are turned o . If you cannot lock the circuit breakers in the
o position, securely fasten a prominent warning device, such as a tag, to the
service panel.
5-2. read the fan supply line through the outlet box so that the fan supply line
extends at least 6” beyond the box.
5-3. Attach the fan supply line to the outlet box with an approved connector,
available at any hardware store or electrical supply house.
5-4. Make certain the wiring meets all national and local standards and ANSI/NFPA
70.
You have now successfully prepared your ceiling fan site. For instructions to install
your ceiling fan, go to your fan manual and continue with Section 2 • Installing the
Ceiling Plate.
Steps 2 – 3
Step 4
Step 5
CAUTION: All wiring must be in
accordance with national and local
electrical codes and ANSI/NFPA 70. If
you are unfamiliar with wiring, use a
qualied electrician.
4
42490-01 • 02/02/12 • Hunter Fan Company
Page 5
Installer’s Choice and Optional Accessories
Support Brace
Standard
Mounting
Style
Standard Mounting hangs from the
ceiling by a downrod (included).
Support Brace
Ceiling
Outlet Box
Angled
Mounting
Style
Ceiling
Outlet Box
12
Understanding Mounting and Installer’s Choice®
Hunter’s patented 3-position mounting system provides you maximum
installation exibility and ease. You can install your Hunter fan in one
of three ways, depending on ceiling height and your preference: Low
Prole, Standard, or Angled mounting. e steps in this manual include
instructions for all three Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
For ceilings higher than 8 feet, you can purchase
Hunter extension downrods. All Hunter fans use
sturdy 3/4” diameter pipe to assure stability and
wobble-free performance.
8
Low Prole
Mounting
Style
Support Brace
Ceiling
Outlet Box
CAUTION: To
reduce the risk of
personal injury, attach
the fan directly to the
support structure of
the building according
to these instructions,
and use only the
hardware supplied.
Angled Mounting recommended for a
vaulted or angled ceiling
42490-01 • 02/02/12 • Hunter Fan Company
Low Profile Mounting ts close to the
ceiling, recommended for ceilings less
than 8 feet high
5
Page 6
1 • Getting Ready
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Keyhole saw
• 2’ x 4’ support brace
• UL-approved octagonal 4” x 1-1/2” outlet box
• Two #8 x 1-1/2” wood screws and washers
• Approved connector for electrical wire
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326
(In Canada, call 866-268-1936).
6
42490-01 • 02/02/12 • Hunter Fan Company
Page 7

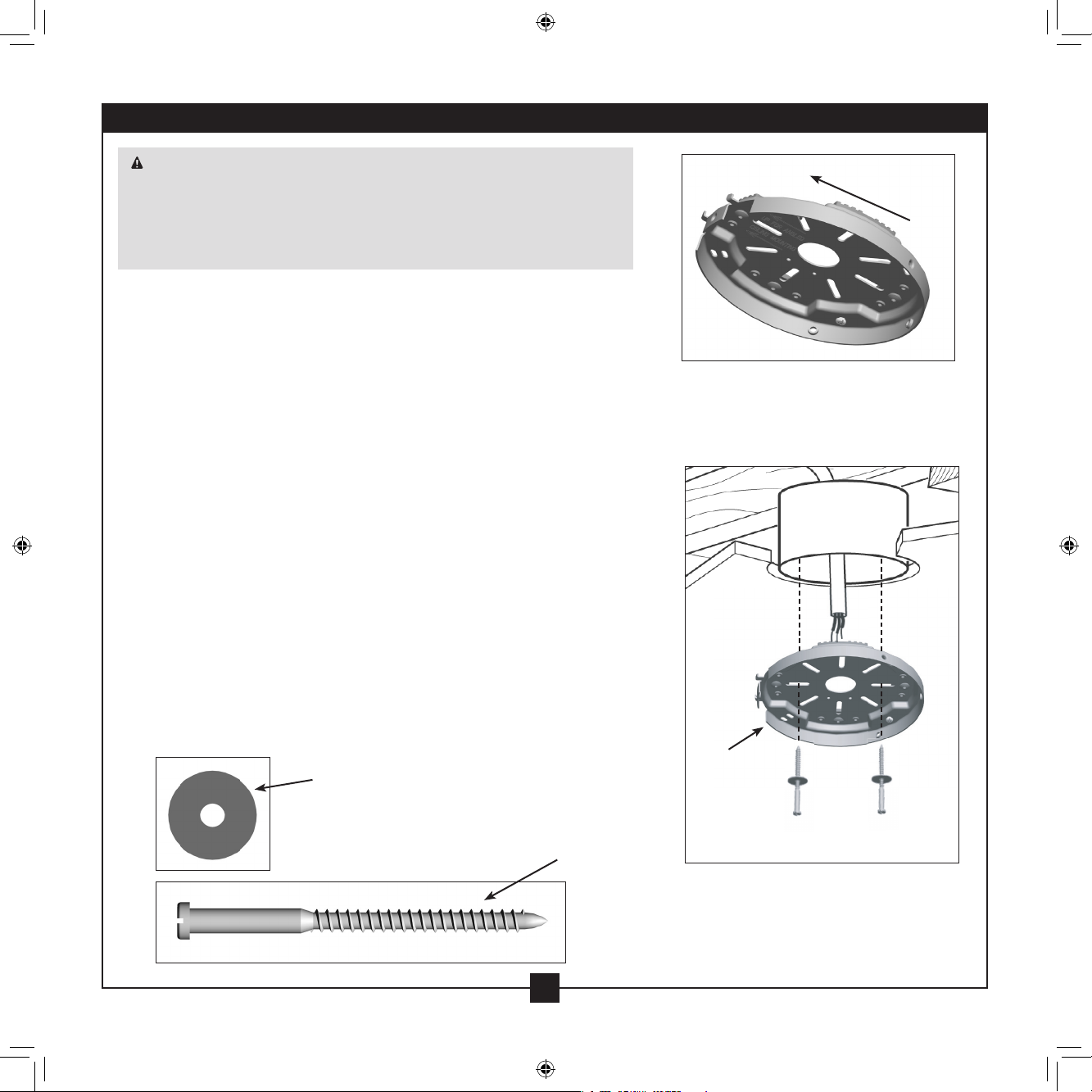

2 • Installing the Ceiling Plate
CAUTION: To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the outlet box
and associated wall switch location. If you cannot lock the circuit breakers
in the o position, securely fasten a prominent warning device, such as a
tag, to the service panel.
2-1. Drill two pilot holes into the wood support structure through
the outermost holes in the outlet box. e pilot holes should be
9/64” in diameter.
Toward
Ceiling Peak
For Angled Ceilings: Be sure to orient the ceiling plate so that the
two tabs are pointing toward the ceiling peak.
2-2. Your fan comes with four preinstalled noise isolators. Check to
make sure all four isolators are in place and were not removed
during shipment.
2-3. Place a at washer on each of the two 3” wood screws.
2-4. read the supply wires from the outlet box in the ceiling through
the hole in the center of the ceiling plate.
2-5. Align the slotted holes in the ceiling plate with the pilot holes you
drilled in the wood support structure. For proper alignment use
slotted holes directly across from each other.
Note: e isolators should be ush against the ceiling.
2-6. Pass the screws through the slotted holes in the ceiling plate into
the pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Flat Washer
For Angled Ceilings: Be sure to orient
the ceiling plate so that the two tabs
are pointing toward the ceiling peak.
Ceiling
Plate
3” Wood
Screw
7
42490-01 • 02/02/12 • Hunter Fan Company
Steps 2-3 – 2-6
Page 8

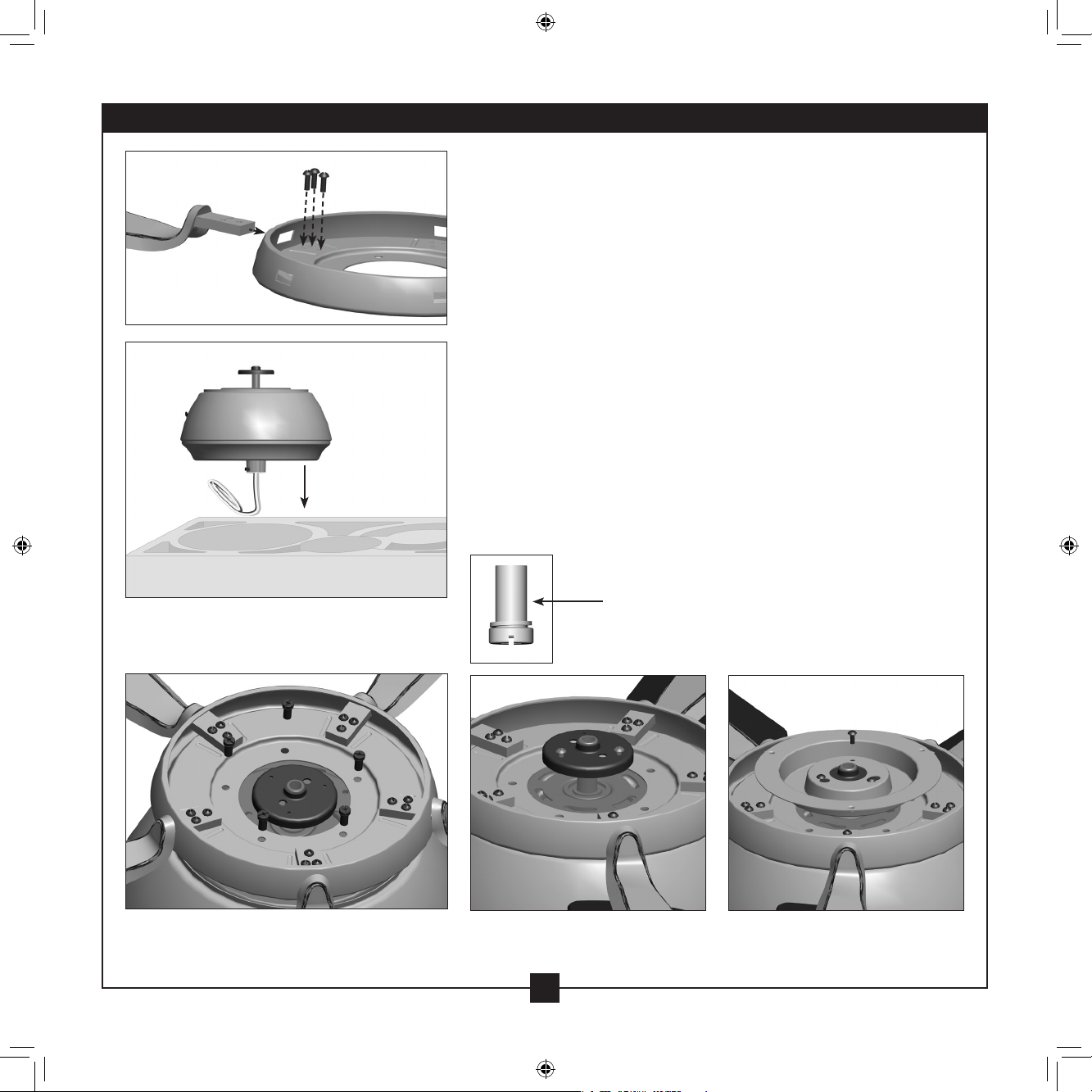

3 • Assembling the Blades
Step 3-1
Step 3-2
3-1. Insert each blade iron into a hole in the blade ring. Attach
each blade iron to the blade ring using three blade iron
screws.
3-2. Turn the fan over and place it into one of the holes in the
upper packaging.
3-3. Remove the blade ring screws and rubber shipping bumpers
from the motor.
3-4. Attach the blade ring to the bottom of the fan using the ve
blade ring screws.
3-5. Partially install two housing assembly screws into holes in
the black disc in the center of the fan.
3-6. Attach the light kit mounting plate to the black disc in
the center of the fan by sliding the keyholes onto the
preinstalled screws.
3-7. Install another housing assembly screw into the third hole in
the mounting plate. Securely tighten all three screws.
Blade Ring
Screw
Step 3-4
Step 3-5
8
42490-01 • 02/02/12 • Hunter Fan Company
Step 3-7
Page 9
4 • Assembling and Hanging the Fan
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
4-1. Unbundle the wires from the fan.
For Standard or Angled mounting:
4-2. Insert the downrod through the canopy and canopy trim ring.
Feed the wires from the fan through the downrod on one side of
the pin in the ball.
4-3. Loosen the square head setscrew on the adapter to install the pipe
and ball assembly. Note: When the pipe and ball assembly is fully
installed, 2-3 threads on the pipe will still be visible; this is normal.
Securely retighten the setscrew with a wrench or pliers. Skip to
step 4-7.
For Low Profile mounting:
Note: For low prole mounting, the downrod is replaced with the
4-4. Remove the setscrew from the adapter.
4-5. Place the low prole washer into the canopy with the lip down.
4-6. Align the holes in the washer with the holes in the adapter.
Hanging the Fan:
Note: To hang the fan, you must tilt the canopy to an almost vertical
position so that the canopy slots sit on the ceiling plate hooks.
4-7. Raise the fan and align the slots in the canopy with the hooks on
4-8. Place the slots over the hooks to hang the fan.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
low prole washer.
Assemble securely with three low prole screws.
the ceiling plate.
Standard or Angled Mounting
Steps 4-2 – 4-3
Setscrew
Low Profile Mounting
Steps 4-5 – 4-6
Green
Ground
Wire
Canopy
Trim Ring
Low Prole Screw
Step 4-6 (Detail)
Adapter
Downrod
Canopy
Canopy
Trim Ring
Low Prole Screws
Low Prole
Washer
Canopy
Low Prole Screw
Low Prole
Washer
9
42490-01 • 02/02/12 • Hunter Fan Company
Page 10
5 • Wiring the Fan
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
5-1. Before attempting installation, make sure the power is still o.
5-2. To connect the wires, hold the bare metal leads together and place
a wire connector over them, then twist clockwise until tight. For
all these connections use the wire connectors provided.
5-3. Connect the bare or green ground wire (grounding) from the
ceiling to the green ground wire (grounding) from the ceiling plate
and the green ground wire (grounding) from the fan. If you chose
the low prole option, the green ground wire from the fan can be
found on the low prole washer.
5-4. Connect the white wire (grounded) from the ceiling to the white
wire (grounded) from the fan.
5-5. Connect the remaining wires as follows:
Dual Switch Wiring:
• e black wire (ungrounded) from the ceiling to the black wire
(ungrounded) from the fan
• e black wire with a white stripe (ungrounded) from the fan
to the wire (ungrounded) for the wall switch
Single Switch Wiring:
• e black wire (ungrounded) from the ceiling to the black
(ungrounded) and the black wire with a white stripe
(ungrounded) from the fan
Wire
Connector
Dual Switch Wiring
Single Switch Wiring
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
5-6. Turn the splices upward and push them carefully back through the
ceiling plate into the outlet box.
5-7. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the
outlet box.
10
42490-01 • 02/02/12 • Hunter Fan Company
Page 11
6 • Installing the Canopy and Canopy Trim Ring
WARNING: Failure to complete the following steps could cause the fan
to fall.
Note: It is recommended you use a magnetic tip screwdriver for the
following steps.
6-1. Rotate the hanger ball so the tab in the canopy is secure in the
hanger ball groove. Note: Your fan may have multiple tabs and
grooves that must be aligned.
6-2. Swing the fan up to align the canopy screw holes with the
mounting holes on the ceiling plate.
WARNING: e slots in the canopy must remain engaged while
swinging the canopy for alignment.
6-3. Holding the canopy up with the screw holes aligned, partially
install two canopy screws into the holes opposite the ceiling plate
tabs.
6-4. Partially install a canopy screw between the slots in the canopy.
When all the holes are properly aligned, securely tighten all three
canopy screws.
6-5. Verify that the tabs in the canopy are still in the grooves of the
hanger ball.
6-6. Align the tabs on the trim ring opposite the grooves in the hanger
ball. Using both hands, push the canopy trim ring up to the top of
the canopy. e canopy trim ring will snap and lock into place.
Note: Should you need to remove the trim ring, press rmly on
opposite sides of the trim ring directly above the groove in the
hanger ball. e tabs will ex out releasing the canopy trim ring.
Step 6-1
Tab
Groove
Step 6-2
Step 6-3
Canopy
Canopy
Trim
Ring
Canopy Screw
11
42490-01 • 02/02/12 • Hunter Fan Company
Page 12
7 • Assembling the Blades
7-1. Insert the blade grommets into the holes in the blades.
7-2. Attach each blade to a blade iron using three blade assembly
screws.
Note: e blades on this fan have been treated with Hunter’s Dust Armor
protection, making the blades less likely to attract dust and dirt. Use a dry
or slightly damp lint free cloth to clean the blades. Do not use a furniture
polish or any other cleaners that leave any residue, as they will damage the
protective Dust Armor on the blades.
Blade Assembly
Screw
Step 7-1
Grommet
Step 7-2
12
42490-01 • 02/02/12 • Hunter Fan Company
Page 13

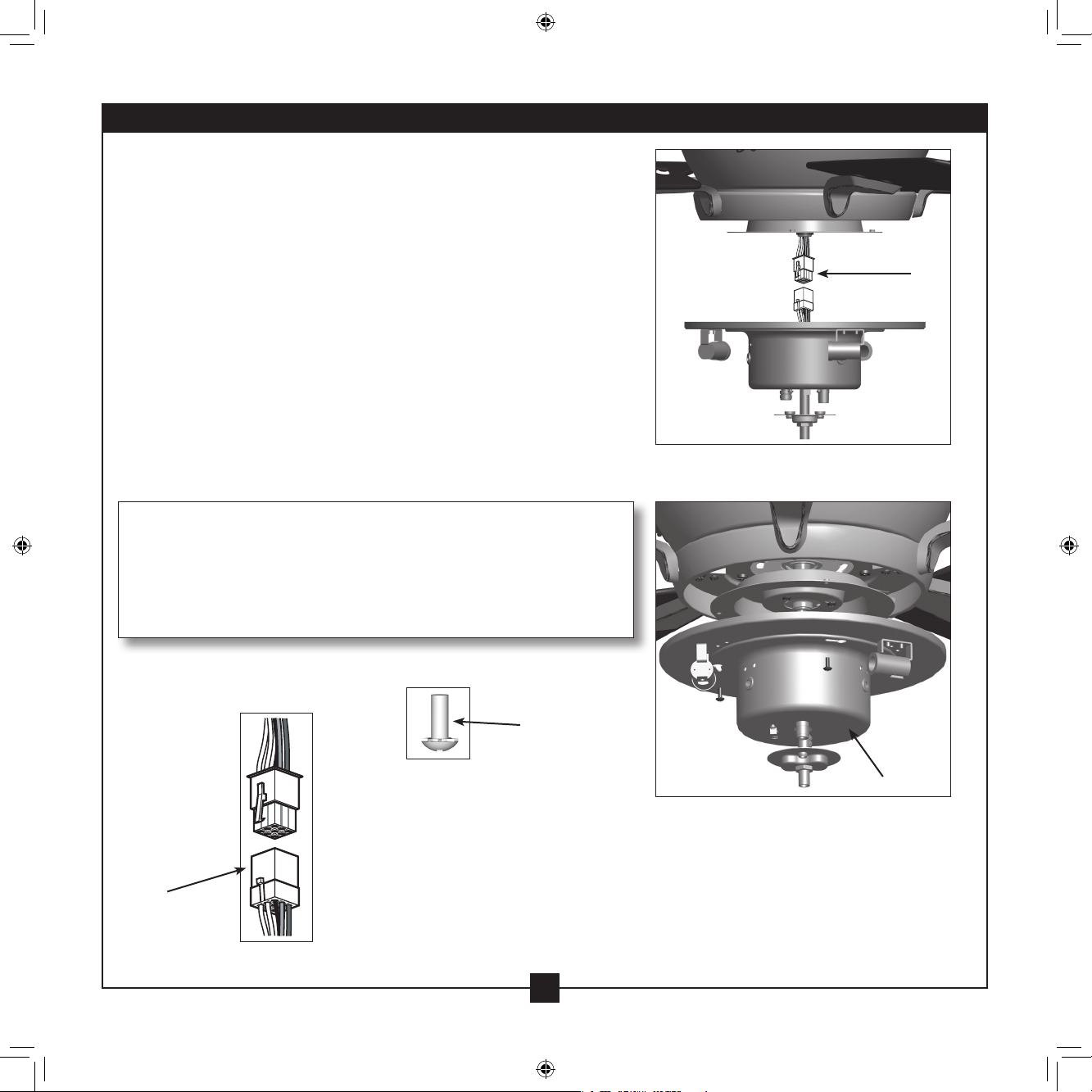

8 • Completing Your Installation With a Bowl Light Fixture
8-1. Connect the upper plug connector from the fan to the lower plug
connector in the light kit.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
8-2. Align the keyhole slots in the light kit with the partially installed
screws in the mounting plate. Turn the light kit clockwise until the
screws are nestled into the small ends of the keyhole slots.
8-3. Install a housing assembly screw into the third hole in the light kit.
Securely tighten all three screws.
Note: In compliance with US federal energy regulations, this
ceiling fan contains a device that restricts its light output.
Exceeding the wattage limit marked on the MAX wattage
sticker axed to the light socket(s) may result in re hazard
or improper operation.
Plug
Connector
Step 8-1
Plug
Connector
Detail
Housing
Assembly Screw
Step 8-2
13
42490-01 • 02/02/12 • Hunter Fan Company
Light Kit
Page 14
8 • Completing Your Installation With a Bowl Light Fixture (Continued)
Installing the Glass Bowl
8-4. First install B10 candelabra bulbs (40 Watt Maximum) into the
sockets.
8-5. read the pull chains through the holes in the metal disc. en,
thread the pull chains through the hole in the center of the glass
bowl.
8-6. read the pull chains through the grommet holes on the sides of the cover plate.
8-7. Place the cover plate up against the glass bowl. Align the holes in the cover plate and glass bowl.
8-8. Screw the nial onto the threaded rod end until tight.
8-9. Attach the extra pull chains with pendants (included) to the light and fan pull chains using the
breakaway connector. (You may nd the breakaway connector on the end of the extra chain.)
Light Bulbs
Candelabra
Base 40 Watt
Maximum)
(B10
Breakaway
Connector
Metal Disc
Metal Rod
Glass Bowl
Cover Plate
Finial
14
42490-01 • 02/02/12 • Hunter Fan Company
Page 15
9 • Operating and Cleaning Your Ceiling Fan
9-1. Turn on electrical power to the fan.
9-2. e fan pull chain controls power to the fan. e pull chain has
four settings in sequence: High, Medium, Low and O.
• Pull the chain slowly to change settings.
• Release slowly to prevent the chain from recoiling into the
blades.
• e chain uses a breakaway connector that separates if the
chain is jerked. If this happens, simply reinsert the chain into
the connector.
9-3. e light pull chain controls the power to the light xture. e
chain has two settings: ON and OFF.
9-4. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In winter, having the fan draw air upward (clockwise blade
rotation) will distribute the warmer air trapped at the ceiling
around the room without causing a draft.
9-5. For cleaning nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust using
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents as they will
damage the nish.
9-6. Clean wood nish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan nish.
To Change Airflow Direction
Turn the fan o and let it come to a complete
stop. Slide the reversing switch on the fan to the
opposite position. Restart fan.
Reversing
Switch
In warm weather, use
downward air ow pattern
In cold weather, use upward
air ow pattern
15
42490-01 • 02/02/12 • Hunter Fan Company
Page 16
10 • Troubleshooting
Problem: Nothing happens; fan does not move
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch rmly left or right to ensure that the switch is engaged.
5. Pull the pull chain to ensure it is on.
6. Remove the shipping bumpers.
Problem: Noisy operation
1. Tighten the blade assembly screws and blade iron armature screws until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling
1. Make sure the blades are securely attached to the blade irons according to the blade assembly instructions
provided.
2. After thoroughly verifying the blades are securely attached to the blade irons, follow the instructions in the
enclosed balancing kit to balance the fan.
3. Turn power o, support fan very carefully, and check that the hanger ball is properly seated.
Problem: Lights shut off suddenly, but fan is still operating
1. Check to make sure the wattage and type of the light bulbs that are installed meet the specications on the
light socket.
2. Turn the power to the fan o at the wall switch. Wait 5 minutes, then resume power to the fan.
Problem: CFL bulbs flicker when controlled by a dimming remote or wall control
1. CFL light bulbs are not usually made for dimming. Replace the CFL bulbs with dimmable light bulbs, or install
the fan in a location without a dimming control.
If you need parts or service assistance, please call
888-830-1326 (In Canada, call 866-268-1936) or
visit us at our website at
http://www.hunterfan.com.
Hunter Fan Company
7130 Goodlett Farms Parkway #400
Memphis, Tennessee 38016
16
42490-01 • 02/02/12 • Hunter Fan Company
Loading...
