Page 1
Type F ModelsType F ModelsType F Models
Form# 45045-01
20090119
©2009 Hunter Fan Co.
For Your Records and
Warranty Assistance
For reference, also attach your receipt or a copy
of your receipt to the manual.
__________________________________________
Model Name
__________________________________________
Model No.
__________________________________________
Date Purchased
__________________________________________
Where Purchased
English Español
Owner’s Guide and Installation Manual
Page 2
2
42501-01 • 01/19/09 • Hunter Fan Company
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
• READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
Welcome
© 2009 Hunter Fan Company
Table of Contents
1 • Getting Ready ...................................................4
2 • Installing the Ceiling Plate ..........................5
3 • Assembling and Hanging the Fan ..........6
4 • Wiring the Fan ..................................................8
5 • Installing the Canopy and
Canopy Trim Ring ............................................9

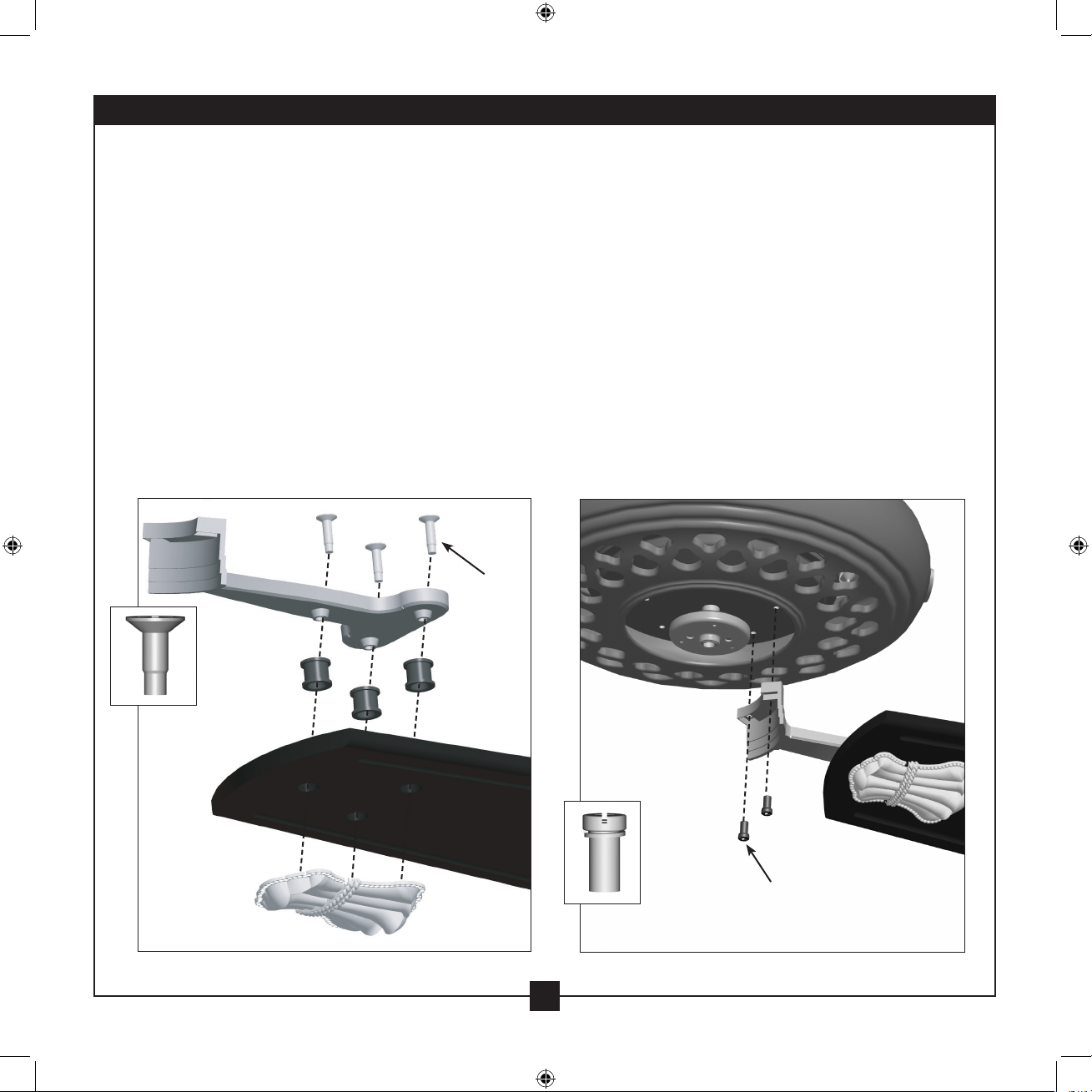

6 • Assembling the Blades .............................. 10

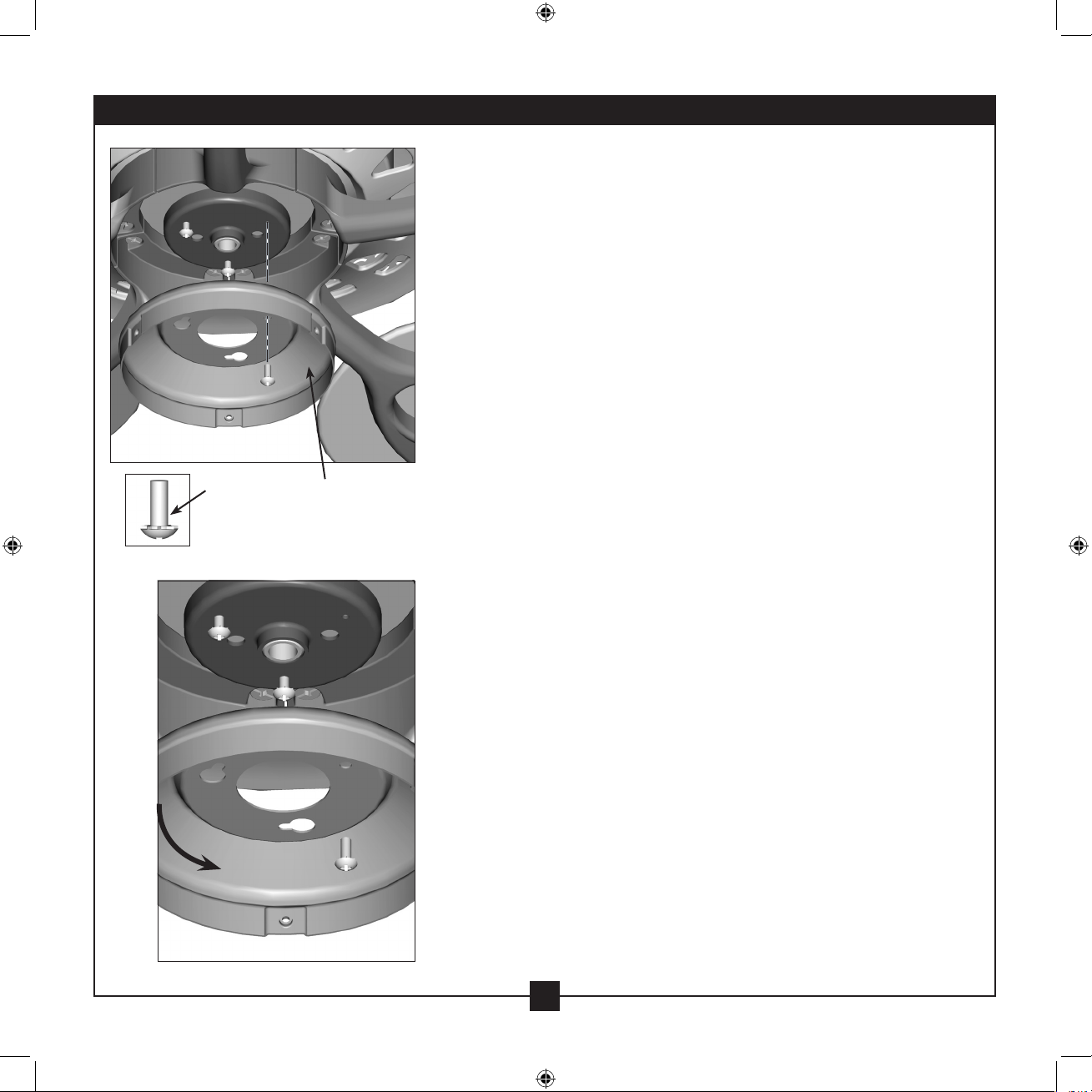

7 • Installing the Switch Housing ................ 11
8 • Setting the Remote Transmitter and
Receiver ..............................................................12
9 • Completing Your Installation ............... 13

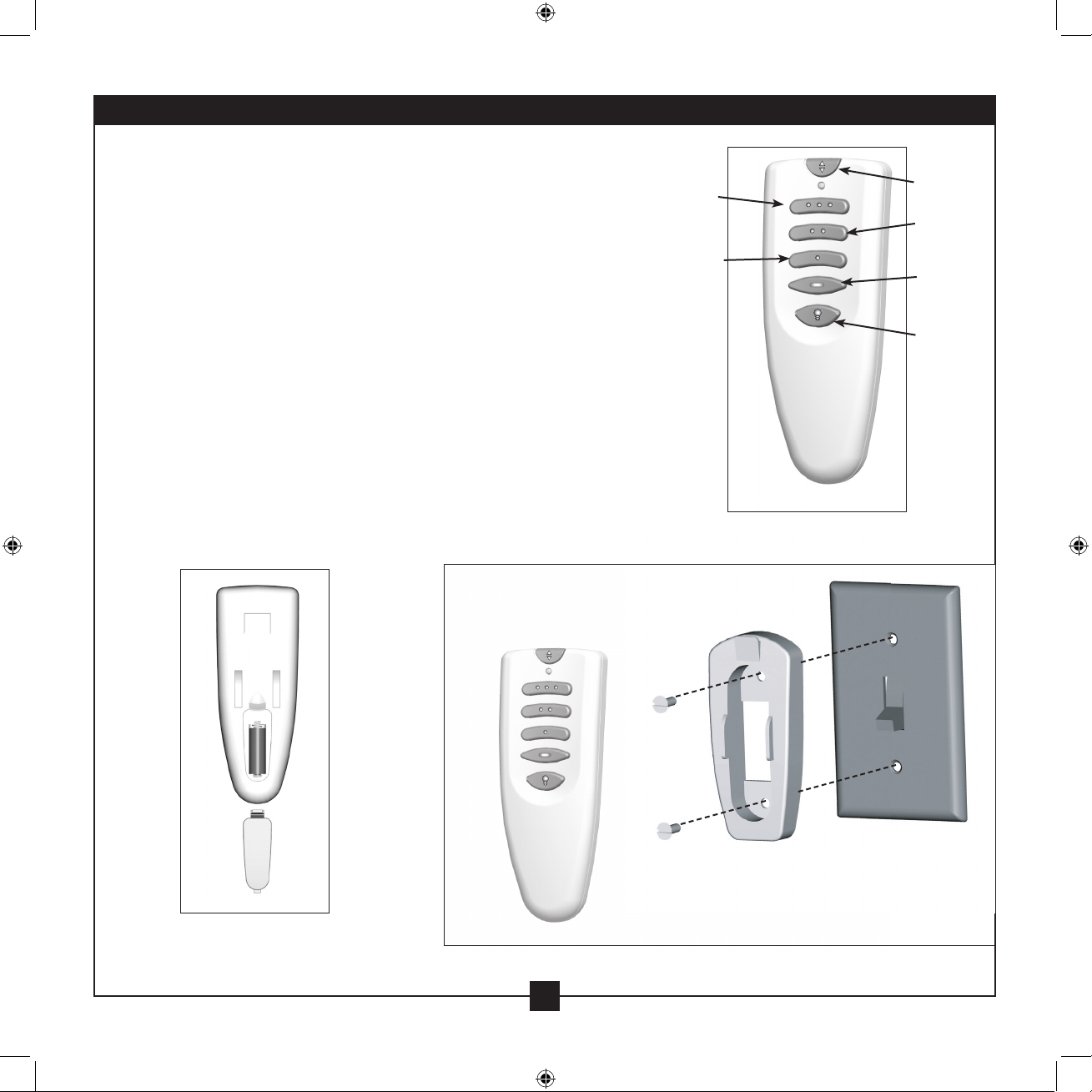

10 • Operating the Remote Control and
Mounting the Holder ............................... 14
11 • Operating and Cleaning Your Fan.... 15
12 • Troubleshooting ......................................... 16
Page 3
3
42501-01 • 01/19/09 • Hunter Fan Company
Installer’s Choice and Optional Accessories
Understanding Mounting and Installer’s Choice®
Hunter’s patented 3-position mounting system provides you maximum
installation exibility and ease. You can install your Hunter fan in one
of three ways, depending on ceiling height and your preference: Low
Prole, Standard, or Angle mounting. e steps in this manual include
instructions for all three Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
Low Profile Mounting ts close to the
ceiling, recommended for ceilings less
than 8 feet high
Standard Mounting hangs from
the ceiling by a downrod (included),
recommended for ceilings 8 feet or higher
Angle Mounting recommended for a
vaulted or angled ceiling
For ceilings higher than 8 feet, you
can purchase Hunter extension
downrods. All Hunter fans use sturdy
3/4” diameter pipe to assure stability
and wobble-free performance.
Page 4
4
42501-01 • 01/19/09 • Hunter Fan Company
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver
• Phillips-head screwdriver
• Wrench or pliers
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Check
for any shipping damage to the motor or fan blades. If one of the fan
blades was damaged in shipment, return all the blades for replacement.
If any parts are missing or damaged, contact your Hunter dealer or call
Hunter Parts Department at 888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum eciency, and energy savings.
1 • Getting Ready
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades in
sets, as they were shipped.
Page 5
5
42501-01 • 01/19/09 • Hunter Fan Company
2 • Installing the Hanger Bracket
2-1. Drill two pilot holes into the wood support structure through
the outermost holes in the outlet box. e pilot holes should be
9/64” in diameter.
Note: Your fan comes with four pre-installed neoprene noise
isolators.
2-2. read the lead wires from the outlet box down through the hole
in the middle of the hanger bracket.
2-3. Align the slotted holes in the hanger bracket with the pilot holes
you drilled in the wood support structure. For proper alignment
use slotted holes directly across from each other. If you are
installing the fan on an ANGLED ceiling, be sure to orient the
hanger bracket as shown in Illustration 2-3 (left or right view).
Note: e isolators should be ush against the ceiling.
2-4. Place a at washer on each of the two 3” screws and pass the
screws through the slotted holes in the hanger bracket into the
pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use
lubricants on the screws. Do not over tighten.
Flat Washer
3” Screw
Steps 2-2 – 2-4
Hanger
Bracket
Isolator
Step 2-3 (Angled Ceiling Only)
OR
Ceiling Peak Ceiling Peak
Large
Opening
Large
Opening
LEFT RIGHT
Page 6
6
42501-01 • 01/19/09 • Hunter Fan Company

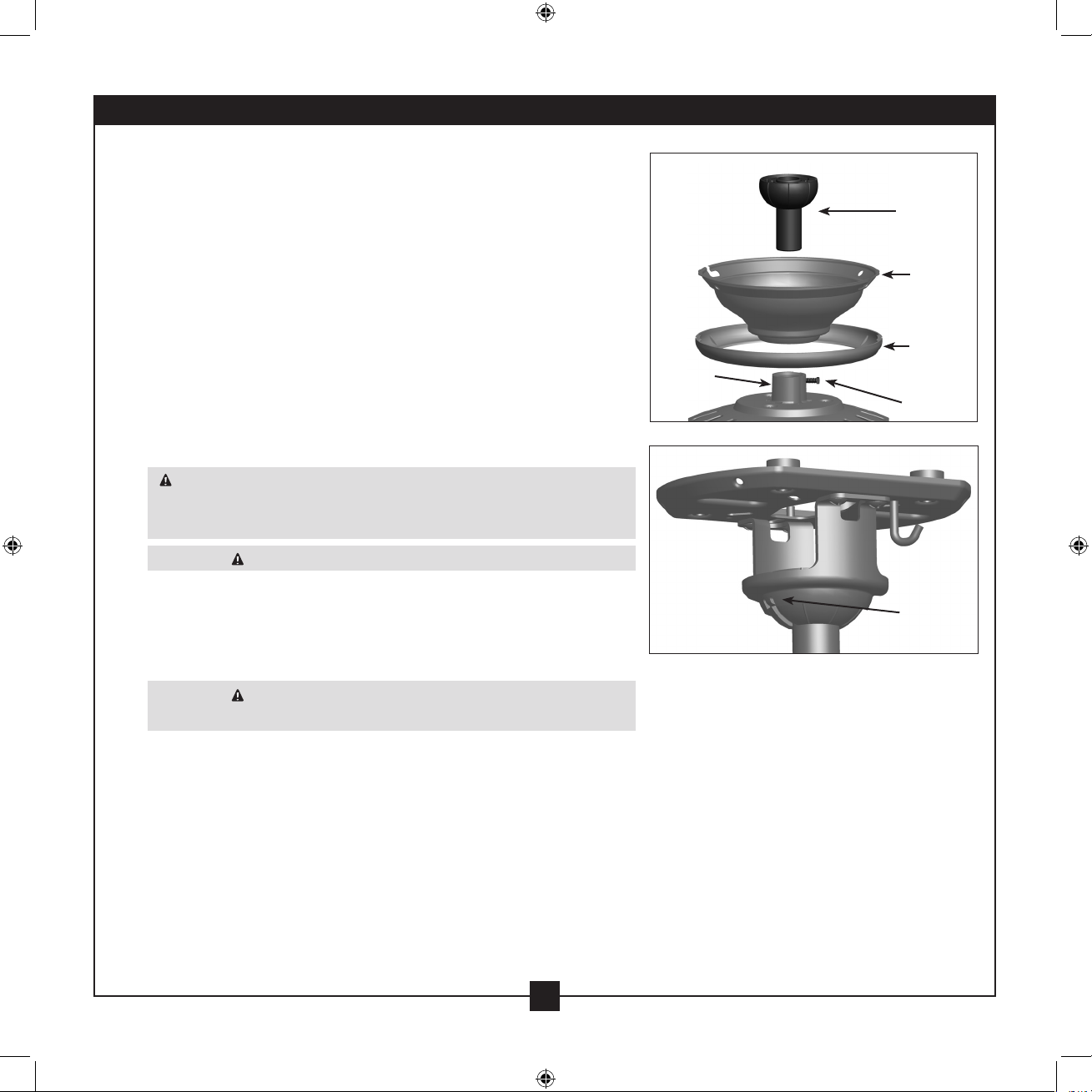

3 • Assembling and Hanging the Fan
You can assemble your fan for standard or angled mounting as shown
in steps 3-1 – 3-3. For low profile mounting (ceilings less than 8 feet
high), go to steps 3-6 – 3-9 on the next page.
3-1. To assemble fan to hang down from a at or angled ceiling, place
the canopy and canopy trim ring around the adapter so that they
rest on the fan assembly.
3-2. Feed the wires from the fan through the downrod.
Note: Make sure all the wires are on the same side of the metal
dowel pin inside the dowrod.
3-3. Loosen the square head setscrew on the adapter to install the
pipe and ball assembly. Note: When the pipe and ball assembly
is fully installed, 2-3 threads on the pipe will still be visible; this is
normal. Securely retighten the setscrew with a wrench or pliers.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
WARNING: Do not carry or lift fan by canopy.
3-4. Raise the fan and place the ball into the hanger bracket.
3-5. Align the notch on the ball with the indent in the hanger bracket.
(Rotate the fan until you hear the notch pop into place.)
Go to 4 • Wiring the Fan.
WARNING: Fan may fall if not assembled as directed in
these installation instructions.
Steps 3-4 – 3-5
Indent
Steps 3-1 – 3-3
Downrod
Canopy
Canopy
Trim
Ring
Setscrew
Adapter
Page 7
7
42501-01 • 01/19/09 • Hunter Fan Company
You can assemble your fan for standard or angled mounting as shown
in steps 3-1 – 3-3 on the previous page. For low profile mounting
(ceilings less than 8 feet high), see steps 3-6 – 3-10 on this page.
3-6. Remove the screws from the hanger ball bracket.
3-7. Place the low prole washer from the parts sack into the canopy.
3-8. Place the canopy trim ring and canopy with washer on top of
the fan assembly.
3-9. Align the screw holes in the washer with the holes in the adapter.
Assemble securely with three #8-32 x 3/4” screws.
3-10. Raise the fan and place the hook on the hanger bracket through
the round hole in the rim of the canopy.
WARNING: Fan may fall if not assembled as directed in these
installation instructions.

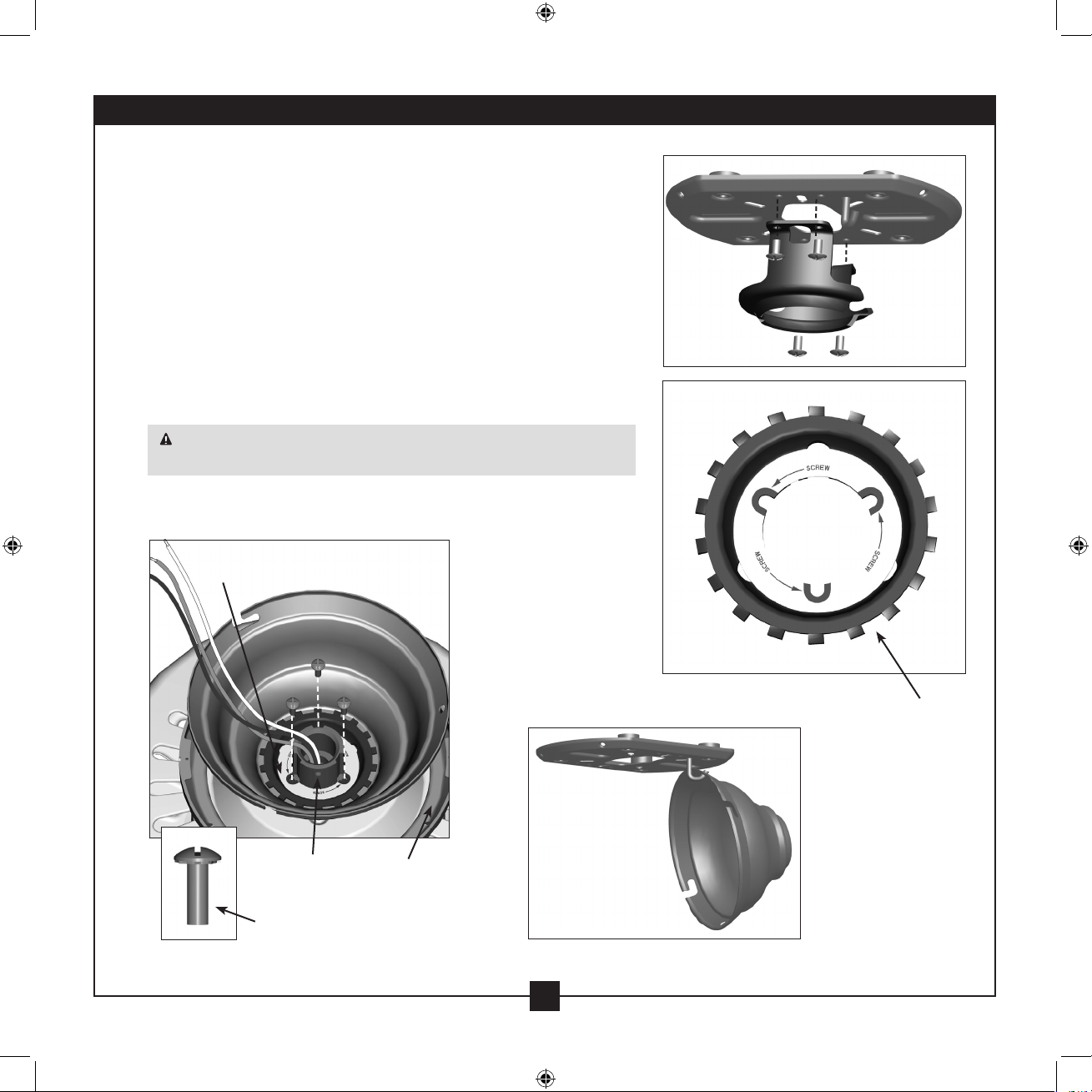

3 • Assembling and Hanging the Fan (Low Profile Only)
Step 3-10
Step 3-7 (Detail)
Low Prole Washer
(Not Actual Size)
Steps 3-8 – 3-9
Low Prole Washer
Canopy
Trim Ring
Adapter
#8-32 x 3/4” Screw
Step 3-6
Page 8
8
42501-01 • 01/19/09 • Hunter Fan Company

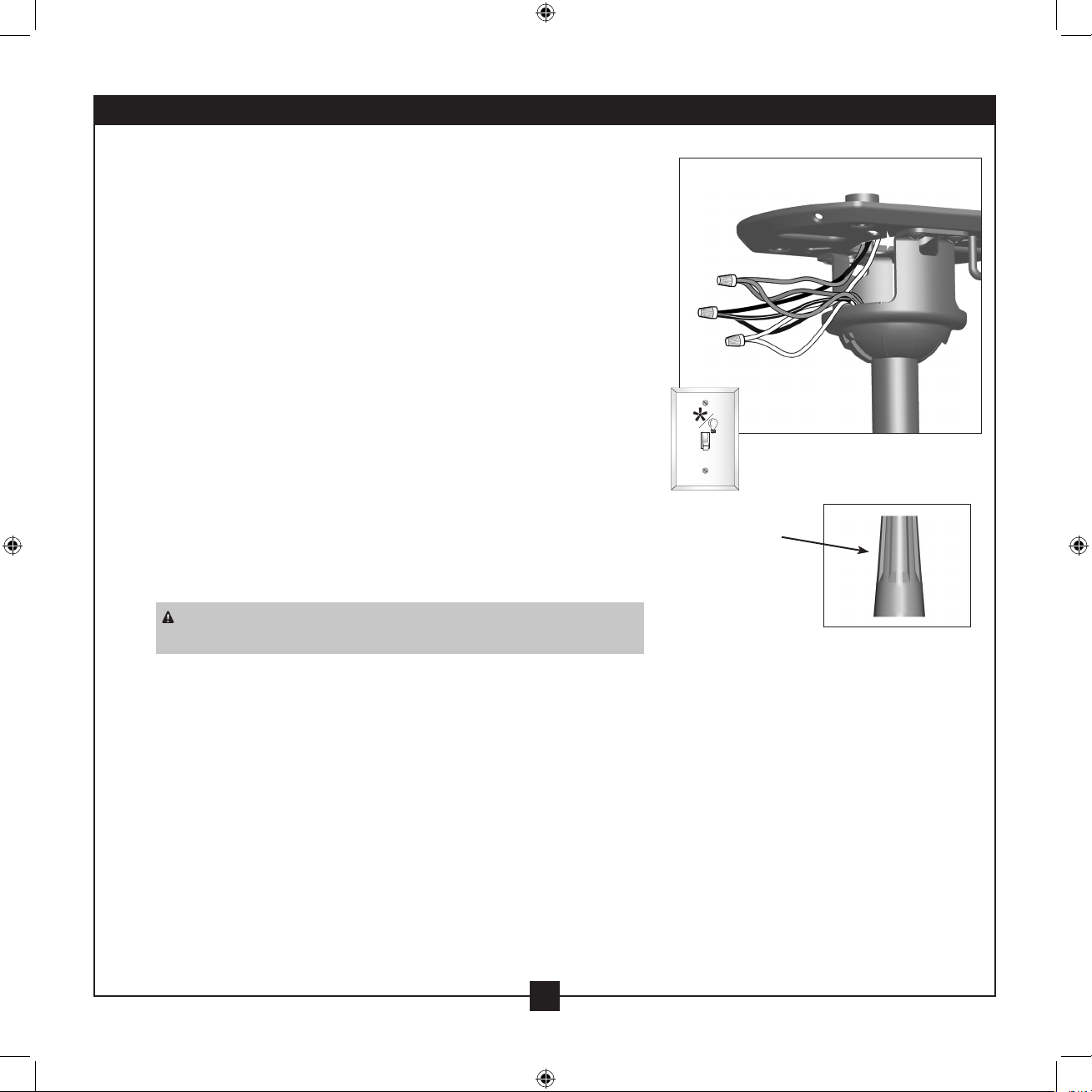

4 •Wiring the Fan
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
4-1. Before attempting installation, make sure the power is still o.
4-2. To connect the wires, hold the bare metal leads together and
place a wire connector over them, then twist clockwise until
tight. For all these connections use the wire connectors provided.
4-3. Connect the bare or green ground wire (grounded) from the
ceiling to the green ground wire (grounded) from the ceiling
plate and the green ground wire from the fan.
4-4. Connect the white wire (ungrounded) from the ceiling to the
white wire (ungrounded) from the fan.
4-5. Connect the remaining wires as follows:
• e black wire (ungrounded) from the ceiling to the black
(ungrounded) and the black/white wire (ungrounded) from
the fan
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
4-6. Turn the wire connectors upward and push them carefully back
through the ceiling plate into the outlet box.
4-7. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the
outlet box.
Wire
Connector
Page 9
9
42501-01 • 01/19/09 • Hunter Fan Company

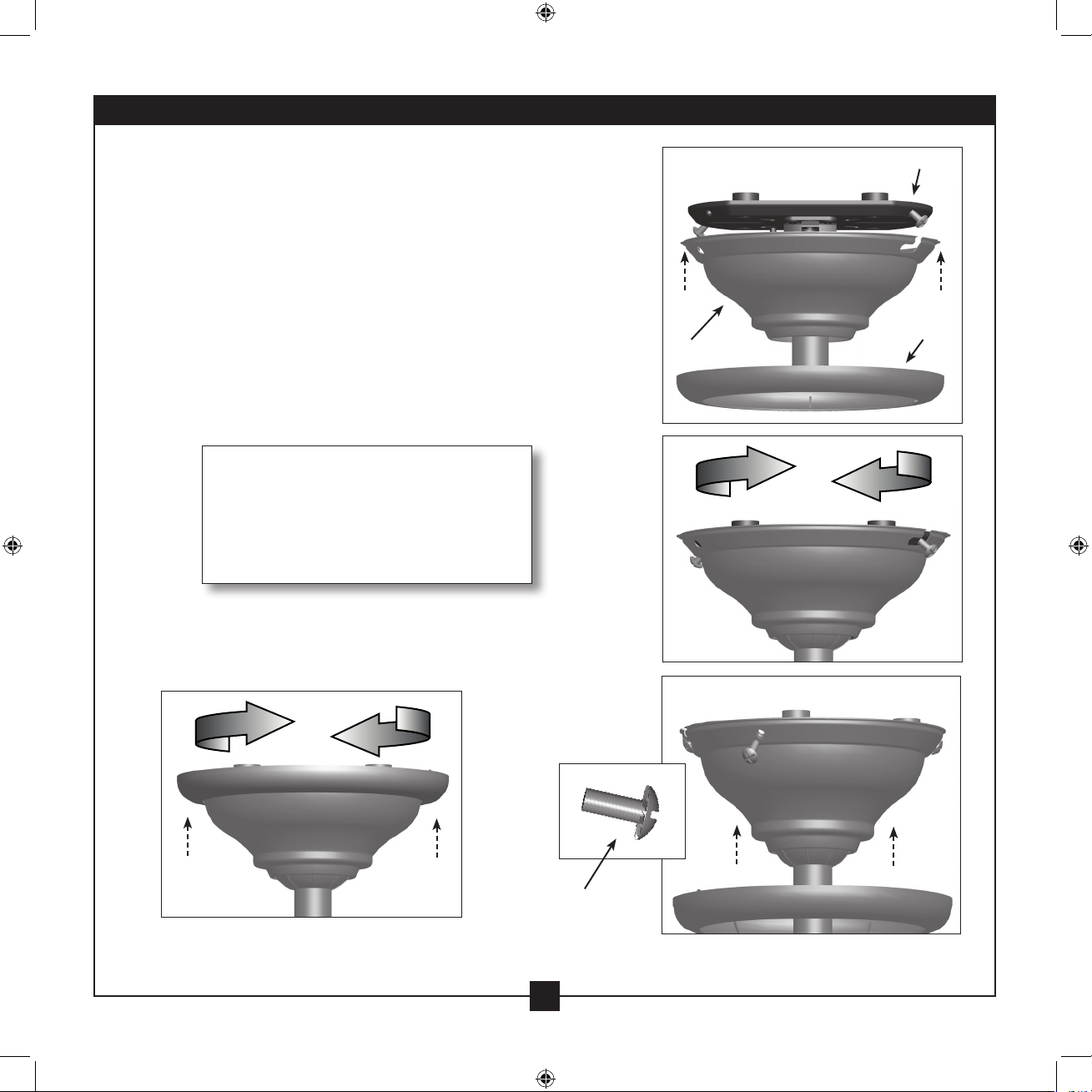

5 • Installing the Canopy and Canopy Trim Ring
5-1. Partially install two canopy screws (about 2 full turns) in the
hanger bracket.
5-2. Raise the canopy over the hanger bracket. Align partially installed
screws with key slots in canopy.
5-3. Twist canopy clockwise to secure.
5-4. Install third & fourth canopy screw in round hole on canopy.
Securely tighten all four screws.
5-5. Using both hands, push the canopy trim ring up to the top of the
canopy.
5-6. Twist canopy trim ring clockwise to secure the canopy.
Should you need to remove the canopy
trim ring, follow these steps:
1. Twist canopy trim ring counter
clockwise until it releases from
canopy.
Steps 5-1 – 5-2
Canopy Trim
Ring
Canopy
Hanger Bracket
Step 5-3
Canopy
Screw
Step 5-4
Step 5-5
Page 10
10
42501-01 • 01/19/09 • Hunter Fan Company
6 • Assembling the Blades
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
6-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
6-2. Install three blade assembly screws through the the blade iron
and blade, into the medallion. If you used grommets, the blades
may appear slightly loose after screws are tightened. is is
normal.
6-3. Remove the blade armature screws and rubber shipping bumpers
from the motor. Save the screws for the following step and
discard the shipping bumpers.
6-4. For each blade, insert one blade armature screw through the
blade iron, and attach loosely to the fan. Insert the second blade
armature screw, then securely tighten both armature screws.
Blade
Armature
Screw
Step 6-4Steps 6-1 – 6-2
Blade
Assembly
Screws
Page 11
11
42501-01 • 01/19/09 • Hunter Fan Company
7 • Installing the Switch Housing
7-1. To attach the upper switch housing, partially install two #6-32 x
3/8” housing assembly screws into the switch housing mounting
plate.
7-2. Feed the upper plug connector through the center opening of
the housing.
7-3. Align the keyhole slots in the housing with the housing assembly
screws.
7-4. Turn the housing counterclockwise until the housing assembly
screws are rmly situated in the narrow end of the keyhole slots.
Install the remaining #6-32 x 3/8” screw into the housing. Tighten
all three screws rmly.
Steps 7-1 – 7-3
Housing
Assembly
Screw
Upper
Switch
Housing
Step 7-4
Page 12
12
42501-01 • 01/19/09 • Hunter Fan Company
8 • Setting the Remote Transmitter and Receiver
CAUTION: e remote control device complies with part 15 of the FCC rules.
Changes or modications not expressly approved by Hunter Fan Company could void
your authority to operate this equipment.
Operation is subject to the following two conditions:
1. is device may not cause harmful interference.
2. is device must accept any interference received, including interference that may
cause undesired operation.
Note: Use with a fan that incorporates an air gap switch (normal on-o wall switch).
WARNING: Maximum fan load is 1 Amp; maximum lamp is 100 Watts. Do not use
any speed control with this product.
You must now set the jumpers in the remote transmitter and receiver
so that they match.
8-1. Change the position of the jumpers in the transmitter and the
receiver. Be sure the position of the jumper in the transmitter
matches the position of the jumper in the receiver. If they don’t
match, the controller will not function. For instructions on how
to set the jumpers, read the box below.
8-2. Install the included 12-volt battery into the transmitter.
Setting Jumpers
When two or more fans are located near each other, you may desire to
have the receiver/transmitter for each fan set to a dierent code, so that
the operation of one fan does not aect the operation of the other fans.
In the transmitter you can access the jumpers from the battery
compartment. e jumpers are very small. You can move them most
easily using a small pair of pliers or tweezers. IMPORTANT! Before
you change a jumper, make sure the battery is not connected to the
transmitter.
4321
4321
4321
4321
4 = off (apa gado)
3 = on (ence ndido)
2 = on (ence ndido)
1 = on (ence ndido)
4 = off (apa gado)
3 = on (encendid o)
2 = off (apagado )
1 = on (encendid o)
Example Jumpers Settings
Receiver 1 Receiver 2
Transmitter 2Transmitter 1
4321
4321
Page 13
13
42501-01 • 01/19/09 • Hunter Fan Company

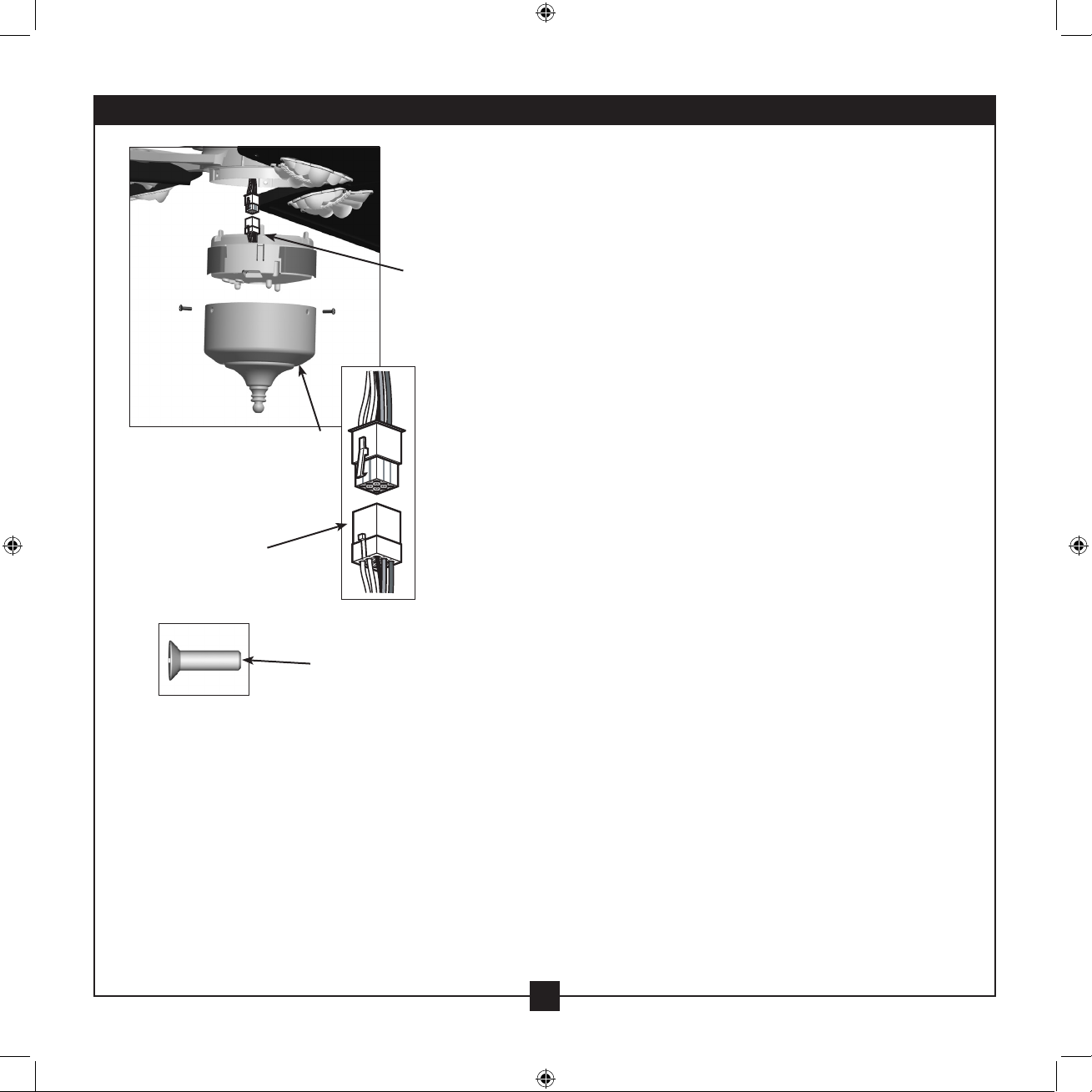

9-1. To attach the lower switch housing, connect the plug connector
from the motor to the plug connector from the receiver in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only t
together one way. Make sure the connectors are properly aligned
before connecting them. Incorrect connection could cause
improper operation and damage to the product.
9-2. Place the lower switch housing assembly over the upper switch
housing. Align the side screw holes in the upper and lower switch
housings. Attach the lower switch housing to the upper switch
housing with three #6-32 x 1/2” housing assembly screws.
Lower Switch
Housing
Plug
Connector
Plug
Connector
Detail
Steps 9-1 – 9-2
Housing
Assembly Screw
9 • Completing Your Installation
Page 14
14
42501-01 • 01/19/09 • Hunter Fan Company
10-1. e remote transmitter has individual buttons for turning the fan
o and on and controlling the light and fan speed.
10-2. For best operation, start the fan by pressing high, then select your
desired speed.
10-3. e light button turns the light on to full brightness. To dim the
light, hold the light button down until you reach your desired
brightness. Push the light button again to turn o the light.
10-4. Press the OFF button to turn the fan o.
10-5. When necessary, replace the battery with a 12-volt type 23A,
MN-21 battery or equivalent.
10-6. You can mount the remote holder to any toggle switch plate with
the screws already in the switch plate. Or, you can simply mount
the remote holder on the wall.
Fan Light
Steps 10-1 – 10-4
Step 10-6
Step 10-5
Fan Speed
High
Fan Speed
Medium
Fan Speed
Low
Fan O
10 • Operating the Remote Control and Mounting the Holder
Fan Reverse
Page 15
15
42501-01 • 01/19/09 • Hunter Fan Company
11-1. Turn on electrical power to the fan.

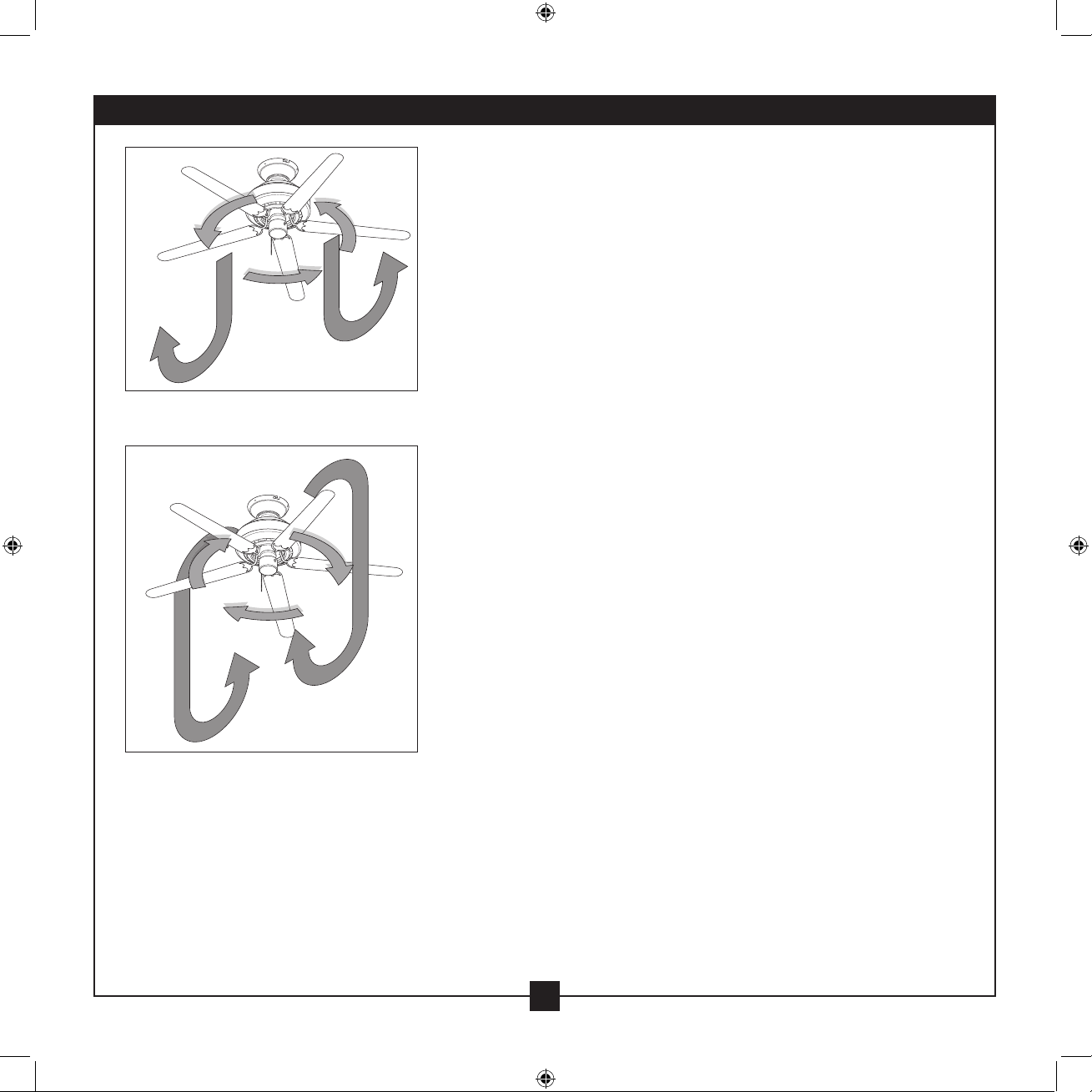

11-2. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In winter, having the fan draw air upward (clockwise blade
rotation) will distribute the warmer air trapped at the ceiling
around the room without causing a draft.
11-3. For cleaning nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust using
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents as they will
damage the nish.
11-4. Clean wood nish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan nish.
In warm weather, use
downward air ow pattern
In cold weather, use upward
air ow pattern
11 • Operating and Cleaning Your Ceiling Fan
Page 16
16
42501-01 • 01/19/09 • Hunter Fan Company
12 • Troubleshooting
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Pull the pull chain to ensure it is on.
5. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade bracket screws until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade iron screws.
3. Turn power o, support fan very carefully, and check that the
hanger ball is properly seated.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
7130 Goodlett Farms Pkwy.
Memphis, Tennessee 38016
Loading...
