Hunt Electronic HLC-85ED User Manual

User Manual

CUBE IP CAMERA

2

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MISTURE.

DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.

CAUTION

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

COPYRIGHT

THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED
TO THEIR RESPECTIVE COMPANIES.

3

Content

I. PREFACE ................................................................................................................ 4

II. PRODUCT SPECIFICATIONS ................................................................................ 4

III. PRODUCT INSTALLATION ................................................................................... 7

A. MONITOR SETTINGS ............................................................................................... 7

B. HARDWARE INSTALLATION ....................................................................................... 8

C. IP ASSIGNMENT ................................................................................................... 12

D. INSTALL ACTIVEX CONTROL ................................................................................... 15

IV. LIVE VIDEO ......................................................................................................... 23

V. CAMERA CONFIGURATION ................................................................................ 26

A. SYSTEM .............................................................................................................. 27

B. NETWORK ........................................................................................................... 31

C. A/V SETTING ....................................................................................................... 57

D. EVENT LIST ......................................................................................................... 67

VI. NETWORK CONFIGURATION ........................................................................... 79

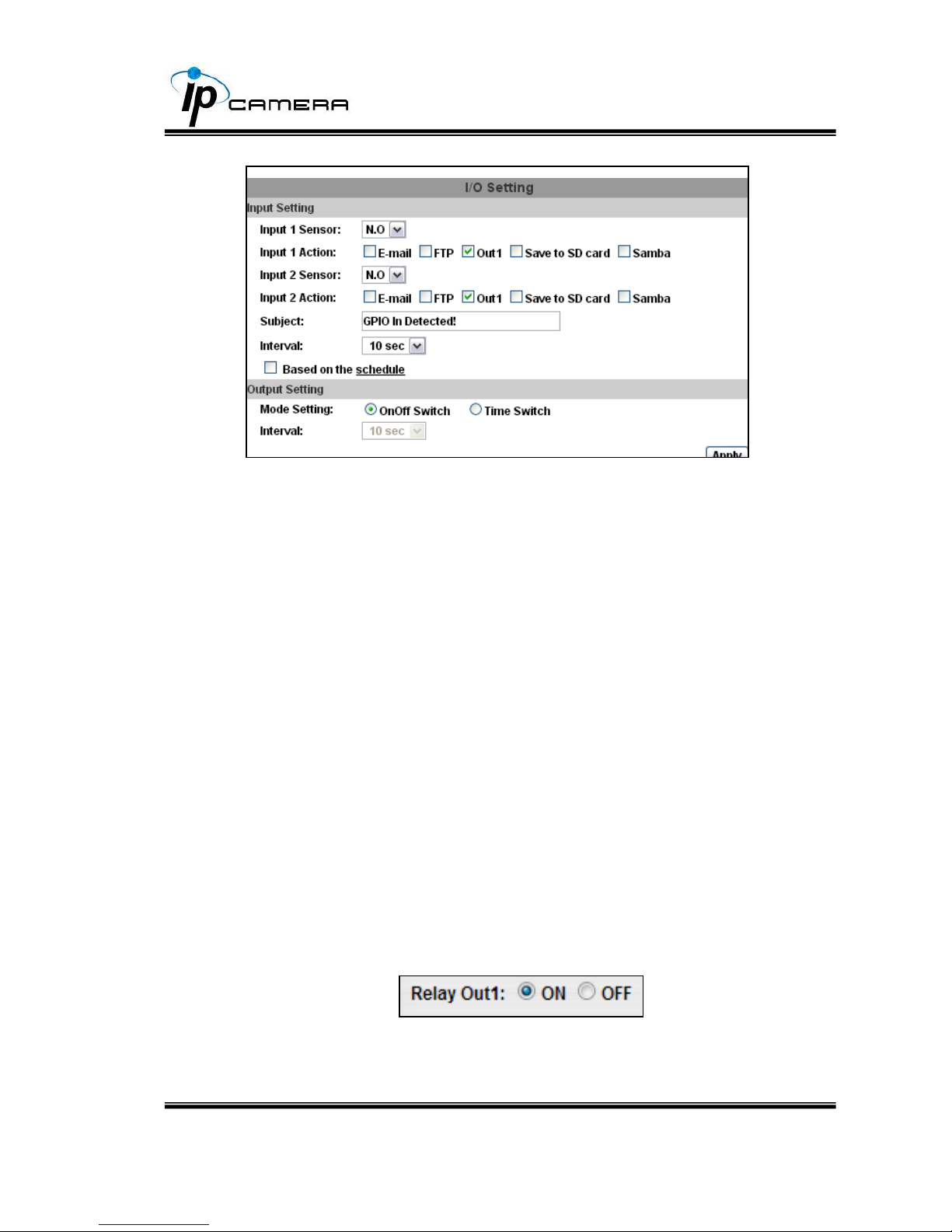

VII. I/O CONFIGURATION ........................................................................................ 81

VIII. FACTORY DEFAULT

......................................................................................... 84

IX. UNIVERSAL PASSWORD

.................................................................................. 85

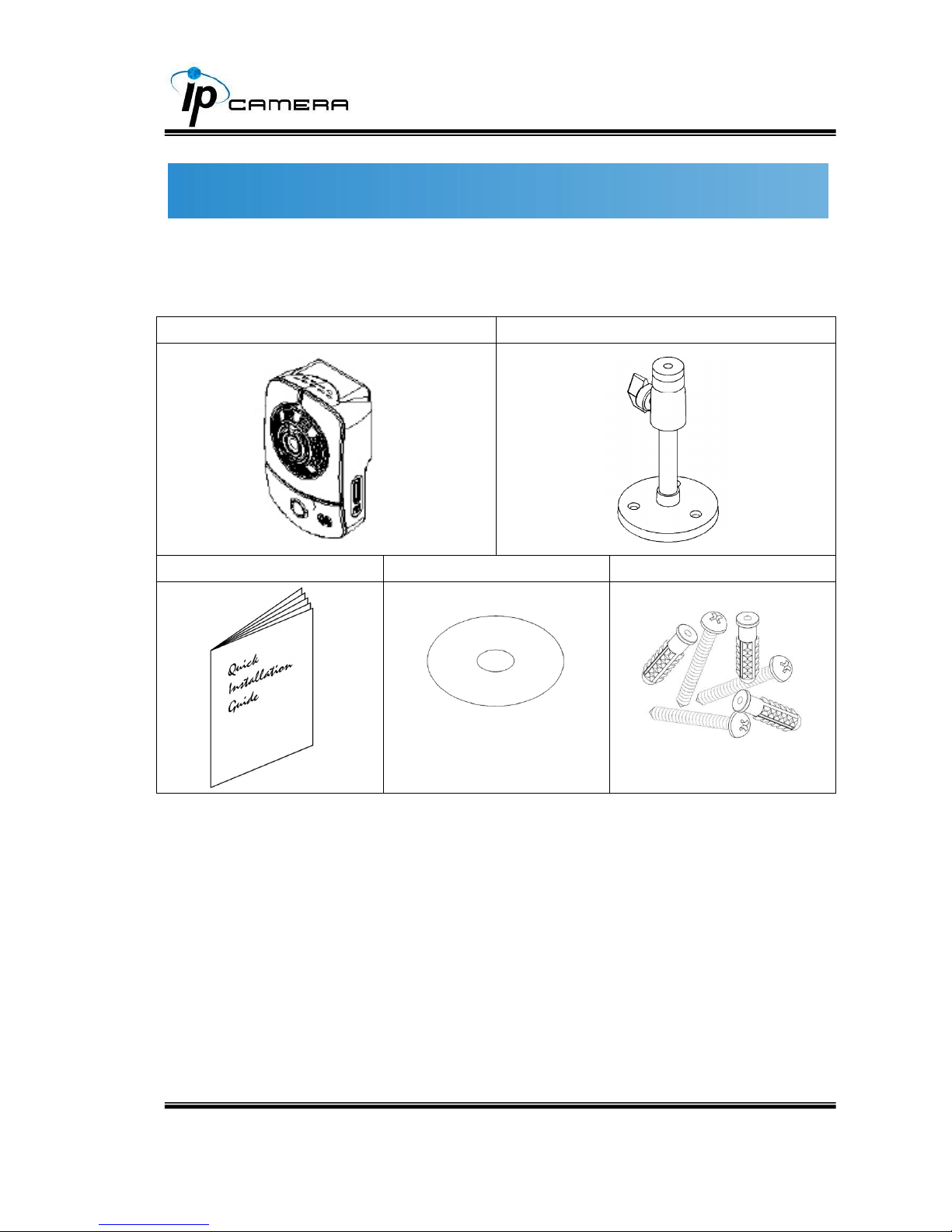

X. PACKAGE CONTENTS

........................................................................................ 88

XI. MICRO SD CARD COMPATIBILITY

.................................................................. 89

V1.0_20140401

4

I. Preface

This is a 1 / 2.7” Mega-Pixel CMOS sensor IP camera with a built-in web server.
The user can view real-time video via IE browser. It supports H.264, and M-JPEG
video compression, providing smooth and high video quality. The video can be
stored in Micro SD card and playback remotely.

With a user friendly interface, it is an easy-to-use IP camera for security
applications.

II. Product Specifications

 Full HD 1080P
 3D+2D Digital Noise Reduction
 Digital Wide Dynamic Range
 Adjustable Shutter Speed
 Adjustable Sense Up
 Manual Day & Night Switch Time Control
 PIR supported
 WPS supported
 Built-in IR, 8 Meters
 Power over Ethernet
 2-way Audio
 H.264/ M-JPEG Compression
 Micro SD Card Backup (Optional)
 iPhone/Android/Mac supported
 SDK for Software Integration
 Free Bundle 36 ch Recording Software

5

Hardware

CPU

Multimedia SoC

RAM

256MB

Flash

16MB

Image sensor

1 / 2.7” Mega-Pixel CMOS sensor

Sensitivity

Color : 0.1 Lux (AGC ON)
B / W: 0.05 Lux (AGC ON)

Lens Type

2.8mm @ F2.0

View Angle

111.10°(H), 65.10°(V)

I/O

1 DI / 1 DO

Video Output

N/A

ICR

IR cut filter mechanism

Audio

G.711(64K) and G.726(32K,24K)

Input : Mic built-in
Output : 3.5mm phone jack, or Speaker

Support 2-way audio

PIR

Yes

Power over Ethernet

Yes

Power Consumption

DC 12V Max: 3.6W (IR ON); 2.76W (IR Off)
PoE Max: 4.3W (IR ON); 3.3W (IR Off)

Operating Temperature

0°C ~ 45°C

Dimensions

62mm x 100(mm)x 44(mm)

Weight

230g

IR LEDs

LEDs

4 LEDs, 850nM,

IR distance

8M

Network

Ethernet

10/ 100 Base-T

Network Protocol

IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list,
IEEE 802.1X, RTSP, TCP/ IP, UDP, SMTP, FTP, PPPoE,
DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour

Wireless (Optional)

Wireless

802.11b/g/n

WPS

Yes

Security

WEP,WPA-PSK,WPA2-PSK

6

Power Consumption

DC 12V Max: 3.72W (IR ON); 2.76W (IR Off)

System

Video Resolution

1920x1080@30fps, 1280x720@30fps, 640x480@30fps,
320x240@30fps, 176x144@30fps

Video Adjust

Brightness, Contrast, Hue, Saturation, Sharpness, AGC,
Shutter Time, Sense-Up, D-WDR, Anti Fog, Lens
Distortion Correction, Flip, Mirror, Day & Night Adjustable,
Red Gain and Blue Gain, Denoise

Triple Streaming

Yes

Image Snapshot

Yes

Full Screen Monitoring

Yes

Privacy Mask

Yes, 3 different areas

Compression Format

H.264/ M-JPEG

Video Bitrates Adjust

CBR, VBR

Motion Detection

Yes, 3 Different Areas

Triggered Action

Mail, FTP, Save to SD card, Samba, DO

Pre/ Post Alarm

Yes, configurable

Security

Password protection, IP address filtering, HTTPS
encrypted data transmission, 802.1X port-based
authentication for network protection, QoS/DSCP

Firmware Upgrade

HTTP mode, can be upgraded remotely

Simultaneous Connection

Up to 10

Micro SD card management

Recording Trigger

Motion Detection, IP check, Network break down (wire
only),Schedule, DI

Video Format

AVI, JPEG

Video Playback

Yes

Delete Files

Yes

Web browsing requirement

OS

Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or above,
Chrome, Safari, Firefox.

Mobile Support

iOS 4.3 or above, Android 1.6 or above.

Hardware Suggested

Intel Dual Core 2.53G,RAM: 1024MB, Graphic card:
128MB

*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION.

7

III. Product Installation

A. Monitor Settings

1. Right-Click on the desktop. Select Properties

2. Change color quality to highest (32bit).

8

B. Hardware Installation

9

1. Using bracket

Please refer to the picture for camera installation. Use the screws to lock
the bracket to the wall or ceiling, and then connect the camera to the
bracket. There’s a knob on the back of the bracket, after the knob is
loosened you can adjust the angle of camera; tighten it to fix the angle.

2. Connector Instruction

The camera connectors are as below. Connect the power and the
Ethernet cable to the camera and set it according to your network
environment.

10

3. Adjust focus

Use the rotary dial to adjust focus until the image is clear.

11

4. PoE (Power Over Ethernet) (Optional) 802.3af, 15.4W PoE Switch is

recommended

Power over Ethernet (PoE) is a technology that integrates power into a
standard LAN infrastructure. It allows providing power to a network device,
such as an IP phone or a network camera, using the same cable as that
used for network connection. It eliminates the need for power outlets at the
camera locations and enables easier application of uninterruptible power
supplies (UPS) to ensure an operation of 24 hours a day, 7 days a week.

12

C. IP Assignment

1. Use the software IP Installer to assign the IP address of the IP Camera.
The software is in the software CD attached to the product’s package.

2. IP installer supports two languages:

a. IPInstallerCht.exe：Chinese version
b. IPInstallerEng.exe：English version

3. There are 3 kinds of IP configuration.

a. Fixed IP (Public IP or Virtual IP)
b. DHCP (Dynamic IP)
c. Dial-up (PPPoE)

4. Execute IP Installer

5. For Windows XP SP2 users, it may popup the following message box.
Click Unblock.

13

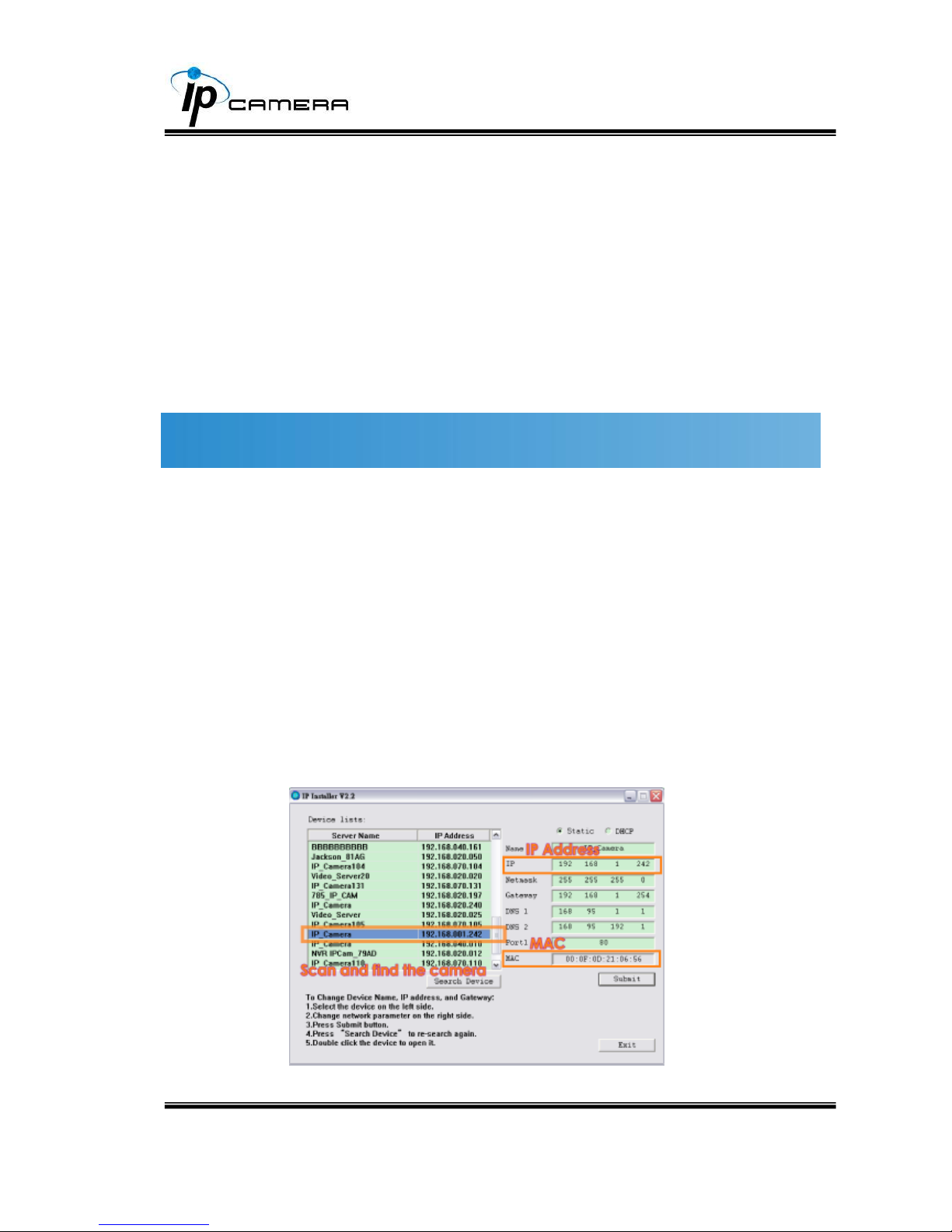

6. IP Installer configuration:

7. IP Installer will search for all the IP Cameras connected on the LAN.
The user can click Search Device to search again.

8. Click one of the IP Cameras listed on the left side. The network
configuration of this IP camera will be shown on the right side. You can
change the name of the IP Camera to your preference (e.g.: Office,
warehouse). Change the parameters and click Submit, then click OK, it
will apply the changes and reboot the device.

9. Please make sure the subnet of the PC IP address and the IP Camera
IP address are the same.

14

The same Subnet:

IP Camera IP address: 192.168.1.200
PC IP address: 192.168.1.100

Different Subnets:

IP Camera IP address: 192.168.2.200
PC IP address: 192.168.1.100

To Change the PC IP address:

Control PanelNetwork ConnectionsLocal Area Connection
PropertiesInternet Protocol (TCP/IP) Properties

Make sure your IP Camera and PC are int the same Subnet. If not, change the
IP Camera subnet or the PC IP subnet accordingly.

10. A quick way to access remote monitoring is to left-click the mouse twice,
on a selected IP Camera, listed on Device list of IP Installer. An IE
browser will be opened.

15

11. Then, key-in the default user name: admin and password: admin.

D. Install ActiveX control

1. For users of IE 6.0 or above:

When viewing the camera video for the first time via IE, the browser will ask
you to install the ActiveX component.

16

1. If the installation failed, please check the security settings in the IE browser.

a. IE  Tools  Internet Options…  Security Tab  Custom Level… 

Security Settings  Download unsigned ActiveX controls Select
Enable or Prompt.

b. IE  Tools  Internet Options…  Security Tab  Custom Level…

Initialize and script ActiveX controls not marked as safe  Select

Enable or Prompt.

1

2

17

3

4

5

When popup the following dialogue box, click “Yes”.

2. You can choose another way:

Go to: IE→Tools → Internet Options… → Security Tab → Trusted sites → Add the
IP address and click OK.

In the site list you can key one single IP address or a LAN address. For example,
if you add 192.168.21.*, all the IP address under 21.* on the LAN will be regarded
as trusted sites.

18

2. To Non-IE Web Browser Users

If you use Firefox or Google chrome to access the IP camera but fails to watch
the live video, please follow the steps to install necessary tools:

(The following pictures are based on chrome.)

a. You may see the prompt message as the picture below. Click the link:

Firstly, please install Microsoft Visual C++ 2010 Redistributable Package
(x86).

19

The link will conduct you to the Microsoft official site where you can download
the tools. Please select the language and click download.

In the pop-up window, please tick the first and the third file as the picture below.
Click Next to download both Microsoft .NET Framework 4 Client Profile (Web
Installer) and Microsoft Visual C++ 2010 Redistributable Package (x64).

20

After finishing downloading, execute the two files respectively to install them.
The windows may ask you to reboot the PC when the installation is finished.

b. Then, click the second link Please click here to download the installation
program which does not support IE browser to download Setup ActiveX.

After finishing downloading, execute the files to install ActiveX. Then restart the
browser.

21

c. If you execute the steps above but still cannot see live video normally, please
try the following solution:

Search for the file np_hoem_x.dll in your system disk. For Windows XP users,
please go to Start → Search → Search for All files and folders and key-in
np_hoem_x.dll. For Windows 7 users, please use the search bar on the
top-right of the Windows Explorer.

Delete all the files named np_hoem_x.dll. They're the ActiveX control tools
installed in your computer, but the old version of ActiveX might not be
compatible with the new version of the browser. Therefore, they need to be
deleted in order to install the latest ActiveX control.

22

Start your web browser, and repeat the step 2-b: Download the installation
program which does not support IE browser to download and install
ActiveX.

23

IV. Live Video

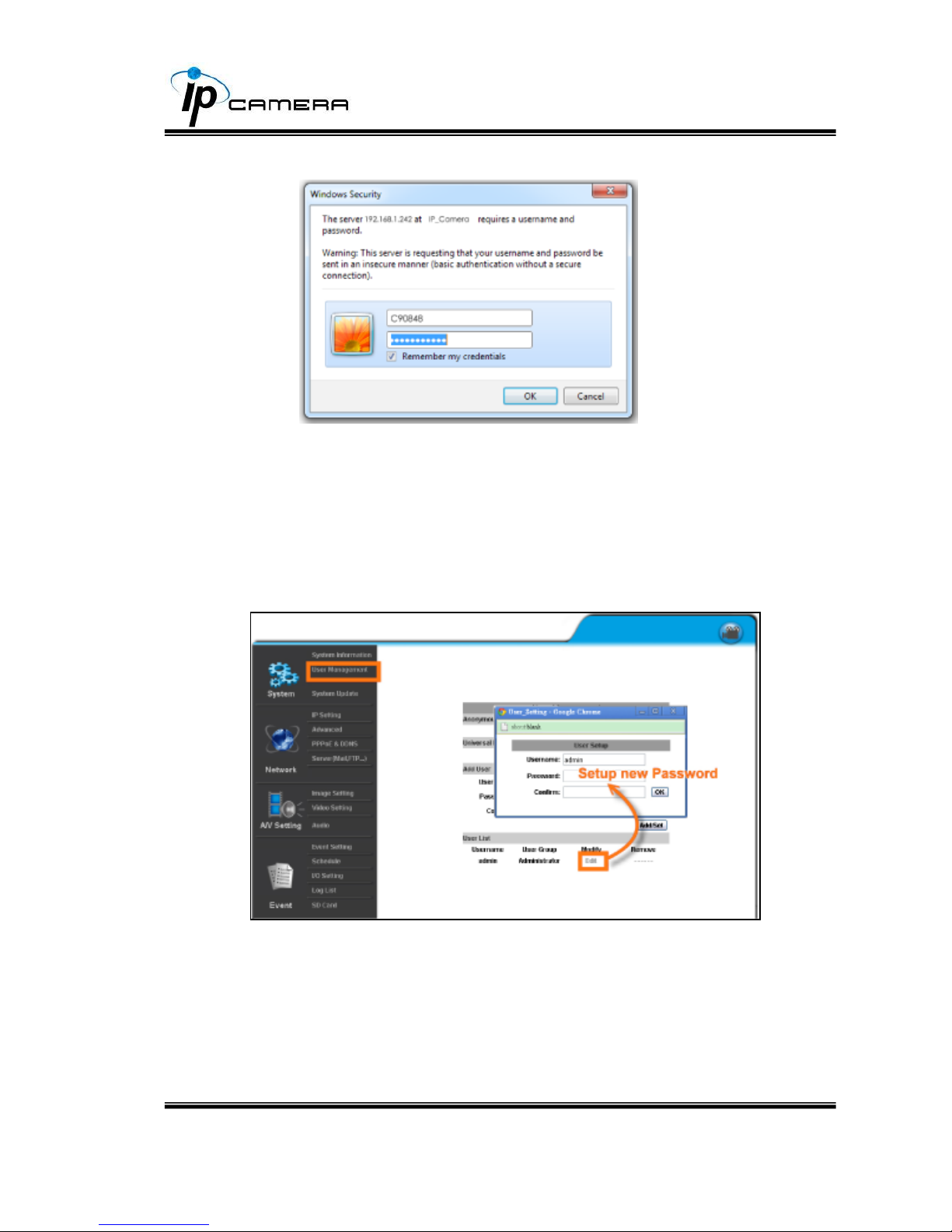

Start an IE browser, type the IP address of the IP camera in the address field. It will
show the following dialogue box. Key-in the user name: admin and password: admin.

When the IP Camera is successfully connected it shows the following interface.

24

1. Get into the administration page.

2. Video Snapshot.

3. Show the system time, video resolution, and video refreshing rate.

4. Adjust image: 1/2x, 1x, 2x.

5. Streaming source: If the streaming 2 is closed, this function will not be
displayed.

6. Tick on Chatting for enabling two-way audio.

7. Shows how many people are connected to this IP camera.

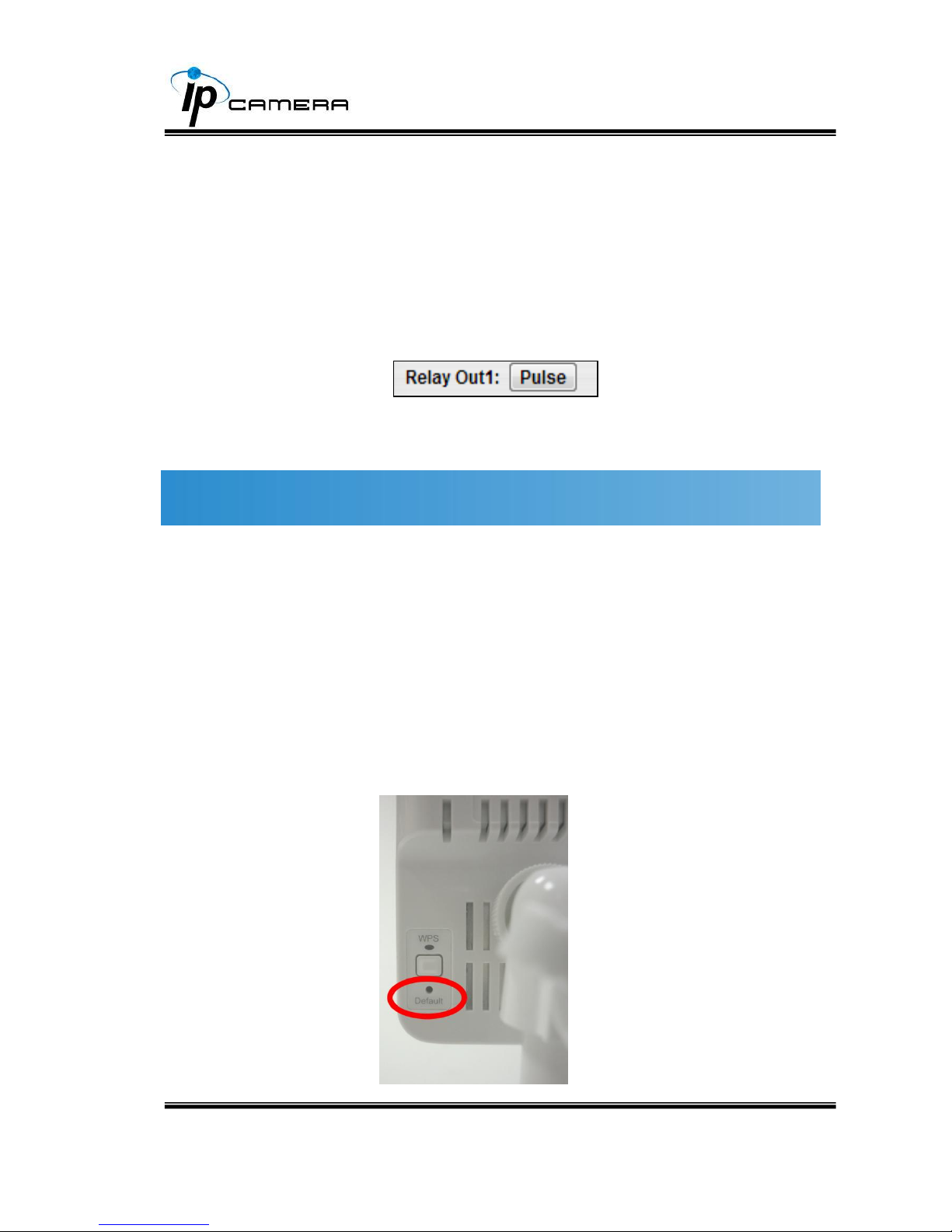

8. Control the relay output connected to this camera.

9. Focus bar: It will display a focus bar in the top-left corner, on the live video
image for 3 minutes. The bar will be displayed as full if the camera is totally
focused towards the objective.

Double-clicking on the video will change the view to full screen mode. Press Esc
or double-click the video again for changing back to normal mode.

Right-Click the mouse on the video, it will show a pop-up menu.

25

1. Snapshot: Save a JPEG picture.

2. Record Start: Record the video in the local PC. It will ask where to save the
video. To stop recording, right-click again and Select Record Stop.

The video format is AVI. Use Microsoft Media Player to play the recorded file.

3. Mute: Turn-off the audio. Click again to turn on it.

4. Full Screen: Full-screen mode.

5. Zoom: Enable the zoom-in and zoom-out functions. First, select Enable
digital zoom option within the pop-up dialogue box and then drag and drop
the bar to adjust the zoom factors.

6. Frame Buffm Sec: This function builds a temporary buffm to accumulate
several video frames. This function can make video smooth-going when the
Network speed is slow and lag. If you select 100, the camera plays video
100 mSec after receiving images from camera. The slower the Network is
the bigger value should be selected. The available values are: NULL, 100,
200, 300, 400, and 500. The default value is null.

26

V. Camera Configuration

Click to get into the administration page. Click to go back to the live
video page.

27

A. System

I. System Information

a. Server Information: Set up the camera name, select language, and

set up the camera time.

1. Server Name: This is the Camera name. This name will be
shown on the IP Installer.

2. Select language: English, Traditional Chinese, and Simplified
Chinese can be selected. When it changes, it will show the
following dialogue box to confirm the language changing.

b. OSD Setting: Select a position where the date & time stamp / text

are shown on the screen.

Moreover, click Text Edit for changing the OSD content, including
text size and alpha. Finally, click the Upgrade button to keep the
settings.
