License Plate Capture Camera
Instruction Manual
Before attempting to connect or operate this product, please read these
instructions carefully and save this manual for future use.
CONTENTS
SAFETY INFORMATION...
..................................................
PAR T DESCRIPTION & DIMENSION.....................................
INST ALLATION..................................................................
SPECIFICA TION................................................................
1
3
4
9
ZEIM-4000188G A.8 510_515
1. Read this Instruction Manual:
Before using the product, please carefully read through the
safety information and operation instructions.
2. Keep this Instruction Manual:
Safely store the Instruction Manual for future reference.
3. Follow instructions:
When operating the unit, please follow instructions on the
Instruction Manual.
4. Cleaning:
Before cleaning the unit, please fi rst unplug the power.
5. Peripheral/accessories:
Do not place the unit on an unstable cart, tripod, or on a
tabletop as personal injury and damage to the unit may occur
due to a fall. Please use offi cially certifi ed support, frames, and
accessories included with the product. Follow the instructions in
this Instruction Manual during installation to ensure the quality
and maintain safety.
6. Power:
Please follow the labeled specifi cations on the unit and
supply with the correct power. If unsure of the actual power
requirements, please contact the distributor and do not connect
the power at will.
7. Power cable:
The power cable must be properly secured as improper
connections may cause a short circuit, fi re hazards, or serious
damage and hazards.
8. Lightning strike:
During prolonged inactivity, please unplug the power cable and
the video cable to avoid damage from lightning strike and power
surges.
9. Foreign objects and fl uids:
Please do not insert any objects into the unit or spill liquids to
avoid short circuits.
10. Warning:
High voltage circuitry contained within the unit. Do not
disassemble to avoid electric shock. All maintenance operations
must be handled by qualifi ed maintenance staff.
SAFETY INFORMATION
Safety Information:
1
11. Maintenance:
When the following occurs, please fi rst power off the unit and
then perform maintenance by qualifi ed maintenance staff:
(a). Damaged power cable or socket
(b). Liquid spills or foreign objects in the unit
(c). Inoperable unit when proper instructions are followed
(d). Dropped unit or damaged shell
(e). Other anomalies
12. Component replacement:
Replaced components by the maintenance staff must be offi cial
certifi ed parts of identical specifi cations. Using unauthorized
components can cause fi re hazards and electric shock damage.
13. Safety inspection:
After the unit maintenance has been completed, the maintenance
staff must perform safety inspection to ensure proper operation.
SAFETY INFORMATION
The triangle symbol with lightning arrow indicates
that ungrounded “Hazardous Voltage” exists within
the unit. The voltage level may cause personal
electric shock hazards.
The triangle symbol with exclamation mark
indicates that there are important operation and
maintenance instructions in the Instruction Manual.
2
PART DESCRIPTION & DIMENSION
1. Structure Illustration:
2. Dimension and Accessory
3
Accessory Pack
(1) 3 Glands
(2) Hexagon screw driver
(3) Spacer
The fi gure above is the illustration of KIT, which consists of License
Plate Capture BW camera with IR lamp and color overview camera
with IR lamp, these two cameras can be used separately.
INSTALLATION
3. How to install the camera and bracket:
First of all, take out the bracket from the box and put the power
cable and video cable through the bracket then fi x the bracket
to the wall (Fig 3). (Loose the screws of the bracket for easy
assembly if necessary.)
4

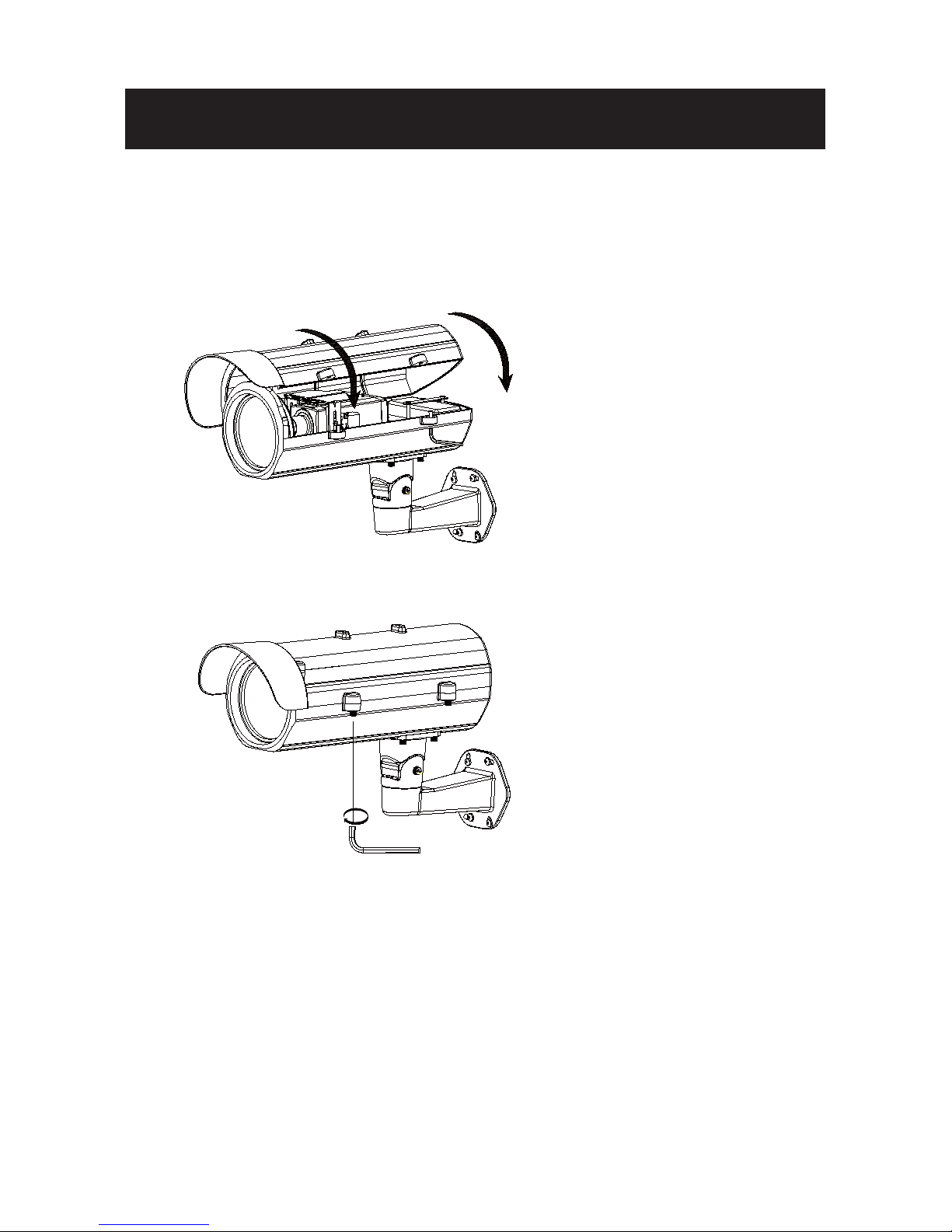

Secondly, take out the housing and open the side cover with
hexagon screw driver (Fig 4).
3.1
3.2
Fig. 3
Fig. 4
INSTALLATION
Put the power cable and video cable through the bottom of the
housing and let them pass from the hole. (Fig 5)
5
Attention: Two solutions are available for waterproof: (1)
User can take out the spacer from the accessory pack
and stick it right by the outlet (Fig 6) or (2) use the three
glands cover and let the power cable and video cable
pass through the hole of glands cover (Fig7).
3.3
Fig. 5
Fig. 7
Fig. 6
INSTALLATION
Plug and fi x the power cable to the terminal and plug the video
cable to video output of the camera (Fig 8).
6
Lock the three glands tightly for waterproof
3.4
3.5
Connect the BNC cable to Pin 202 for LED driver board. (Fig 9)3.6
Fig. 8
Fig. 9
Video sync function
RS 485 control
AC24V input
AC 90-260V
Power board Connection
(Hi voltage AC90-260V model only)
Connector board Connection
Switch Position Defi nition
Left: IR always ON(default by B&W
camera)
Middle: IR will automatically turn ON
under 10lux(default by color
camera)
Right: reserved
S203
INSTALLATION
Next, use the provided screws to fi x the housing on the bracket
with hexagon screw driver (Fig 10) .
7
Loosen the pan and tilt adjustment screw of the bracket to
modify the angle of the hosing and then tighten the screw (Fig
11) .
3.7
3.8
Fig. 10
Fig. 11
INSTALLATION
8
Replace the side cover and tighten the screws (Fig 12, 13).
3.9
Fig. 12
Fig. 13
SPECIFICATION
9
INFRARED ILLUMINATOR HOUSING
Model No SLI070HB-2 SLI070HB-7
Power Input Voltage AC 24 V AC 90-260 V
Radiant Distance 70 m(230ft)
Glass Thickness 6 mm tempered glass
IR LED Wave Length 850 nm
Quantity 96 Units
Minimum illumination IR on 0 lux
Suitable camera dimension (HxDxW) Less than 210x70x90 mm
Diameter of lens suggested Less than 45mm
IP Rating IP66
View angle of camera suggested Less than 50°
Material Die-cast aluminum
Power consumption 35W 40W
Dimension 173 mm (W) x 450(D) x 154 mm (H)
Weight Approx 3500 g
Operating temperature -30
o
C ~ 50 oC
Operating humidity 30% ~ 90% RH
Storage temperature -40
o
C ~ 60 oC
Camera Sync Input Yes (V-sync)
NOTE:The specifi cation is subject to change without notice.
70M (230ft)
0 lux with IR on
174 x 422 x 145 mm (6.9" x 16.6" x 5.7")
LICENSE PLATE CAPTURE CAMERA
Model T ype
45W Approx.
45W Approx.
-30°C~50C° (-22°F~122°F)
-40°C~60C° (-40°F~140°F)
IP 66/IP 67
< 210 x 70 x 90 mm (8.3" x 2.7" x 3.5")
< 45 mm (1.8")
6kg (13.22 lb)
