Hunt HBR-09EE User Manual

USER MANUAL

09 CHANNELS

HYBRID DIGITAL VIDEO

RECORDER

2

INSTRUCTION MANUAL

To obtain the best performance and ensure device function correctly, please read this instruction manual carefully and
completely.

FCC Compliance

USER-INSTALLER CAUTION: YOUR AUTHORITY TO OPERATE THIS FCC VERIFIED EQUIPMENT

COULD BE VOIDED IF YOU MAKE CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE
PARTY RESPONSIBLE FOR COMPLIANCE TO PART 15 OF THE FCC RULES.

NOTE: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A
CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE
DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE
EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES,
AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL
INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT
HIS OWN EXPENSE.

THIS CLASS A DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.

WARNINGS, CAUTIONS & COPYRIGHT

WARINGS

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR
MISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.

CAUTION

Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the
user to the presence of insinuated "dangerous voltage" within the products enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral rhombus is intended to alert the user to the presence of
important operating and maintenance (servicing) instruction in the literature accompanying the
product.

USERS OF THE SYSTEM ARE RESPONSIBLE FOR CHECKING AND COMPLYING WITH ALL FEDERAL,
STATE, AND LOCAL LAWS AND STATUTES COIPCERNING THE MONITORING AND RECORDING OF
VIDEO AND AUDIO SIGNALS. ULTRAK SHALL NOT BE HELD RESPONSIBLE FOR THE USE OF THIS
SYSTEM IN VIOLATION OF CURRENT LAWS AND STATUTES.

COPYRIGHT

THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED TO THEIR RESPECTIVE
COMPANIES.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

3

TABLE OF CONTENTS

1 INTRODUCTION...................................................................................................................... 4

1.1 FEATURE.......................................................................................................................4

1.2 SPECIFICATION.......................................................................................................... 4

2 HARDWARE OVERVIEW......................................................................................................8

2.1 FRONT PANEL .............................................................................................................8

2.2 CAMERA & MONITOR LOOPING......................................................................... 10

2.3 ALARM TRIGGER..................................................................................................... 10

2.4 IR REMOTE CONTROL ........................................................................................... 12

2.5 PTZ (PAN, TILT AND ZOOM) CAMERA ...............................................................13

3 SYSTEM SETUP .....................................................................................................................14

3.1 MENU SETUP INTERFACE(GUI)...........................................................................14

3.2 LIVE VIEWING AND POP-UP MENU.................................................................... 16

3.3 CAMERA SETUP ........................................................................................................20

3.4 RECORD SETUP ........................................................................................................29

3.5 ALARM SETUP........................................................................................................... 30

3.6 NETWORK SETUP ....................................................................................................32

3.7 AUTHORITY SETUP .................................................................................................37

3.8 DISK MANAGEMENT............................................................................................... 39

3.9 SYSTEM SETUP .........................................................................................................41

4 HYBRID DVR PLAYBACK ...................................................................................................46

4.1 TIME SEARCH ...........................................................................................................48

4.2 EVENT SEARCH ........................................................................................................ 48

4.3 BACKUP.......................................................................................................................49

4.4 SYSTEM LOG .............................................................................................................50

5 BACKUP PLAYBACK ...........................................................................................................51

5.1 MAIN SCREEN SETTING.........................................................................................51

5.2 PLAYBACK OPERATION ........................................................................................54

6 NETWORK VIEWING & PLAYBACK............................................................................... 57

6.1 IP ADDRESS SETUP ON PC SITE........................................................................... 57

6.2 OPTIONAL MICROSOFT INTERNET EXPLORER SETUP.............................. 59

6.3 LOGIN ..........................................................................................................................61

6.4 REMOTE CONTROL................................................................................................. 62

6.5 CONFIGURE ............................................................................................................... 65

APPENDIX A: RECORDING TIME LAPSE (HOURS)............................................................. 78

APPENDIX B: HDD COMPATIBLE TABLE .............................................................................. 79

APPENDIX C: ERROR MESSAGE LIST.................................................................................... 81

4

1 INTRODUCTION

1.1 FEATURE

 Support H.264 / MPEG4 / MJPEG decoding & H.264 encoding.

 Support up to 9-channel IP cameras input.

 Support up to 8-channel analog cameras input.

 Analog camera recording rate up to 120 PPS @ D1.

 Real-time Display & Playback.

 Support 5 Megapixel IP Camera for each channel.
 Audio：4 in & 1out.

 Support HDDs x4.

 HDD damaged block detection & temperature alarm system (HDD

S.M.A.R.T).

 Support Pre-alarm recording.

 Support Privacy Mask.

 Support e-SATA interface.

 Support HDMI Video interface .

 Support CMS (Central Management System) control.

 Graphic User Interface ( GUI ).

 Support time-point backup function under Ethernet remote control mode. User

can select any time period to process backup from remote side.

 Support time-search & event-search function under Ethernet remote control

mode.

 Up to four online clients for independent remote control; individual live-time,

play-back & time-search function available

 Support PPPoE/ Static/ DHCP IP & DDNS.

 Powerful mobile surveillance function, support i-Phone & Android



1.2 SPECIFICATION

MODEL

HBR-09EE

System

OS

Embedded Linux

connector

Ethernet

RJ-45, 10/100/1000 Mbps x1

VGA
output

D-SUB output

HDMI
output

HDMI output

USB 2.0

Front : 2 ports

6

Power

DC-12V, 5A

Video and Audio

Video input (IP cam, Max)

9 channels

Video input (Analog, Max)

8 channels

Audio input

4 channels

Audio output

1 channel

Hybrid DVR Functions

Camera Name

Max. 20 characters

Screen Split Control

1, 4, 9

Image Control

Contrast / Brightness / Saturation / Hue

Recording mode

Manual / Schedule / Alarm

Pre Recording

1~5 sec

Watermark

Support

Searching and Playback

Search Method

Date / Time / Event

Date/ Time / Event Search

Selectable on the calendar

Log Search

Through the log data to find the video event / time

Backup Type

USB

Remote Client Software

Monitoring Environment

Hunt CMS, Iprosecu M.V2 for I phone / I pad , Iprosecu

A.M.V2 for Android phone / Android pad, Web site

IP / Analog cam Live View

9 Channels

Remote Search

Web site remote time / event search

System Monitoring and Recovery

Monitoring

Watchdog

Alarm

Alarm Input

8 inputs

Alarm output

1 outputs

Peripheral Devices

Audio in

3.5 Ø Earphone stereo jack / RCA x4

Audio out

3.5 Ø Earphone stereo jack

RS 485

2- pin terminal

STORAGE & BACKUP DEVICE

INTERNAL HDD

SUPPORT

SATA HDD x 4

EXTERNAL USB

USB x2

7

BACKUP DEVICE (PAN

DRIVE, HDD, BURNER)

E-SATA

x1

RAID

N/A

Networking

Type

Static/ DHCP/ PPPoE/DDNS

Environment

Operating Temp.

0 - 45 ℃ / 32~113 F

Humidity

0~80% RH (non-condensing)

Language

Type

English / Traditional Chinese / Simple Chinese / Russian /

Italian / Japanese / Czech / France / Germany / Spanish /

Physical

Color

Black

Dimensions (W x H x D)

360 x 60 x 311 mm

Weight

4 KG

* SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

8

2 HARDWARE OVERVIEW

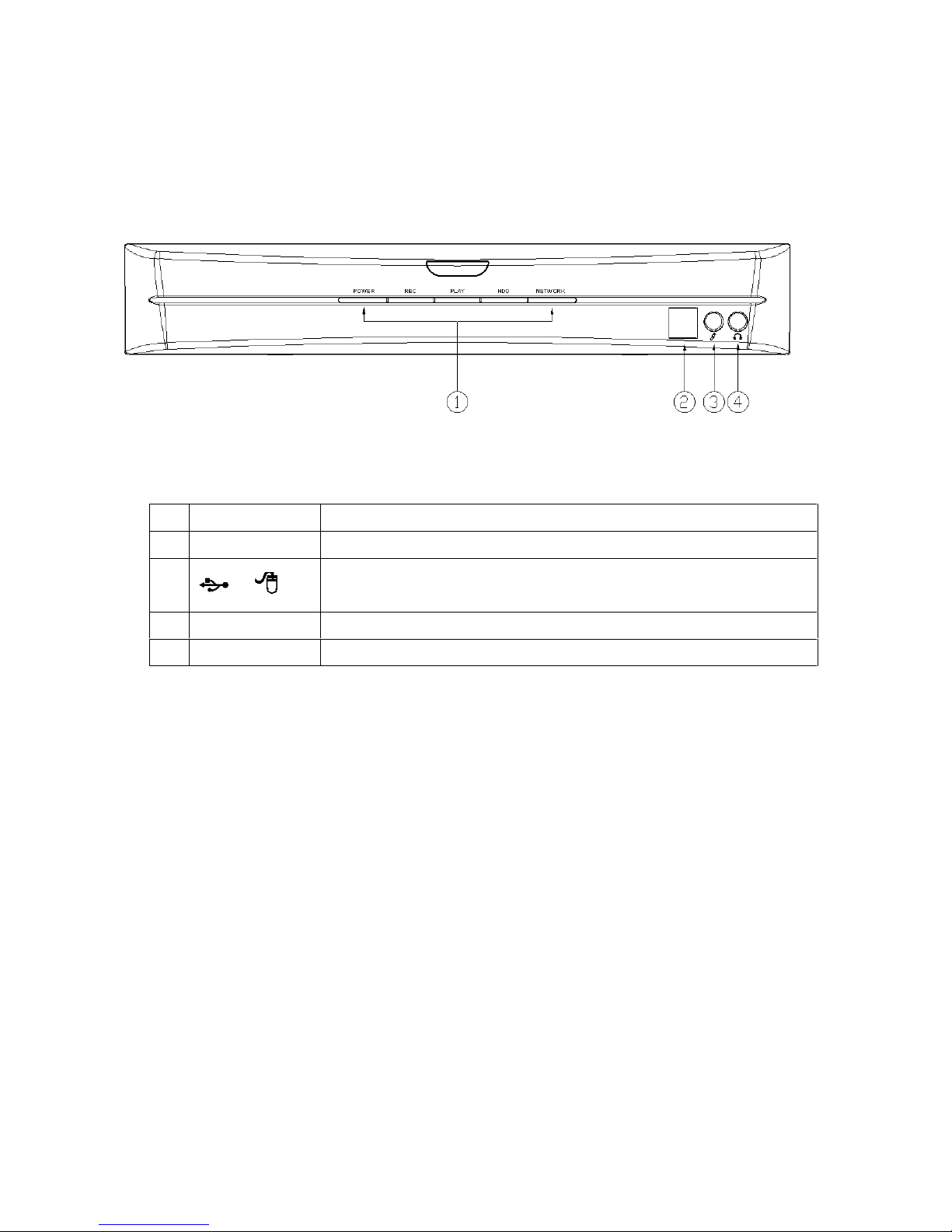

2.1 FRONT PANEL

Hybrid DVR OPERATION

NO.

LABEL

OPERATION

1

LED

Led Indicator

2

4321

76 8

10 11 12

22

/

USB Connector/ USB Mouse Connector

3

MIC IN

Microphone input(Phone Jack)

4

AUDIO OUT

Earphone output(Phone Jack)

9

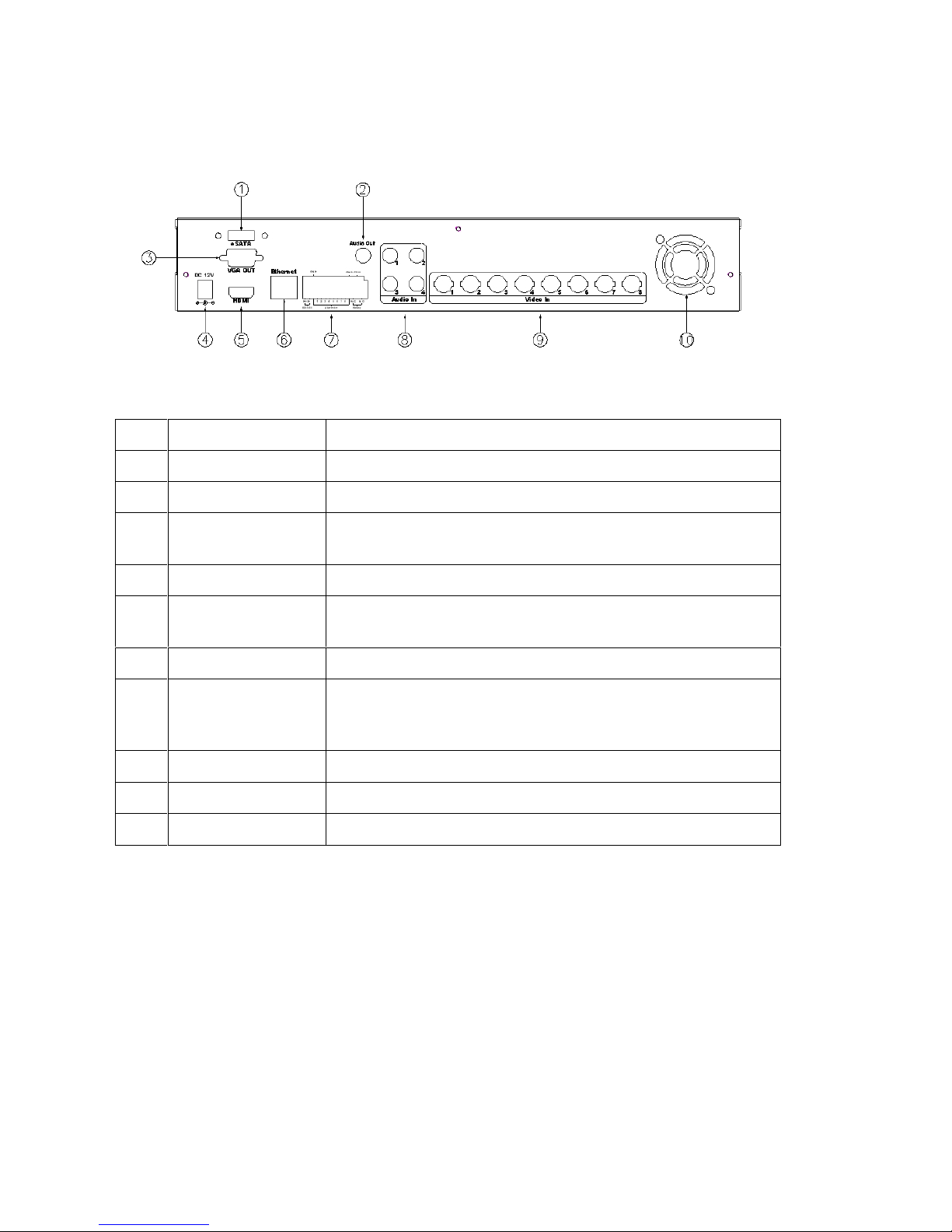

BACK PANEL

NO.

LABEL

OPERATION

1

E-SATA

E-SATA interface

2

AUDIO OUT

Audio Output

3

VIDEO OUT
(VGA)

Connect to LCD monitor

4

POWER

Connect to power adapter (AC 12V/5A)

5

VIDEO OUT
(HDMI)

HDMI video output

6

ETHERNET

RJ-45 connector

7

ALARM IN/
RELAY OUT/
RS-485

8 alarm in/ 1 relay out/ RS485

8

AUDIO IN

Audio input

9

VIDEO IN

BNC video input

10

FAN

The fan louvers

10

2.2 CAMERA & MONITOR LOOPING

Here recommend link cameras by sequence to avoid unexpected image broken, from CH1,
CH2, CH3, CH4…….

2.3 ALARM TRIGGER

There are three types of alarms: Motion detection, Video Loss Alarm, and External Alarm.

Following are the possible action when alarm is triggered. Every action is configurable

(Ex. the screen display pattern, the relay triggered time.etc) and will be explained in the

later chapter.

A. When Motion detection happens:

a. The live screen pattern can be switch to single channel screen or split screen.

b. External relay/ built-in buzzer can be triggered.

c. Alarm timepoint can be recorded in the event list, and you can search for the event

in playback.

d. On the channel which the alarm triggered, the icon pops up to remind the user.

e. The pre/ post-alarm recording video can be sent to e-mail/ uploaded to FTP.

f. CGI can be sent to an http server.

B. When External Alarm happens:

a. External relay/ built-in buzzer can be triggered.

b. Alarm timepoint can be recorded in the event list, and you can search for the event

in playback.

c. On the channel which the alarm triggered, the icon pops up to remind the user.

d. The pre/ post-alarm recording video can be sent to e-mail/ uploaded to FTP.

e. CGI can be sent to an http server.

C. When Video Loss Alarm happens:

a. External relay/ built-in buzzer can be triggered.

b. Alarm timepoint can be recorded in the event list, and you can search for the event

in playback.

c. On the channel which the alarm triggered, the icon pops up to remind the user.

CGI can be sent to an http server.

11

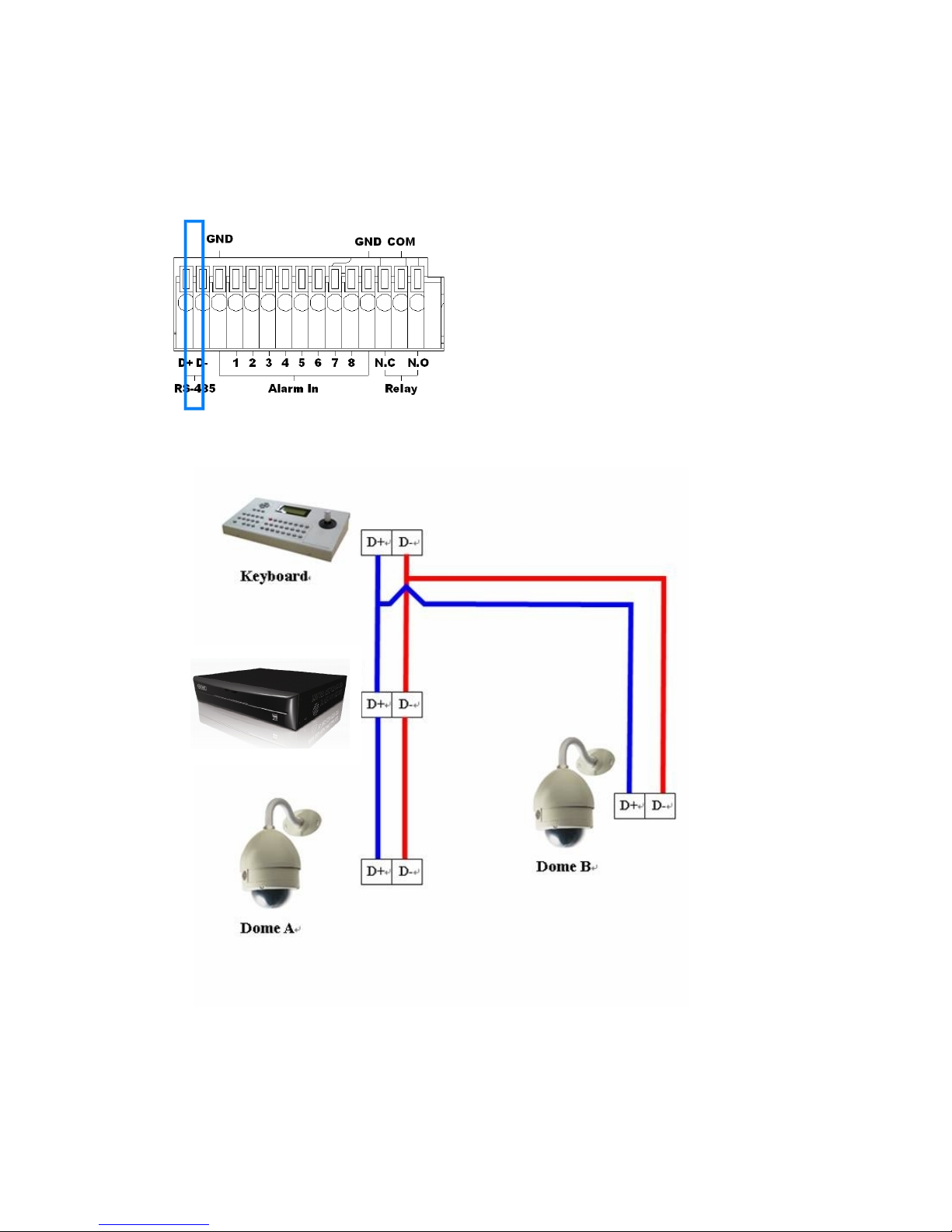

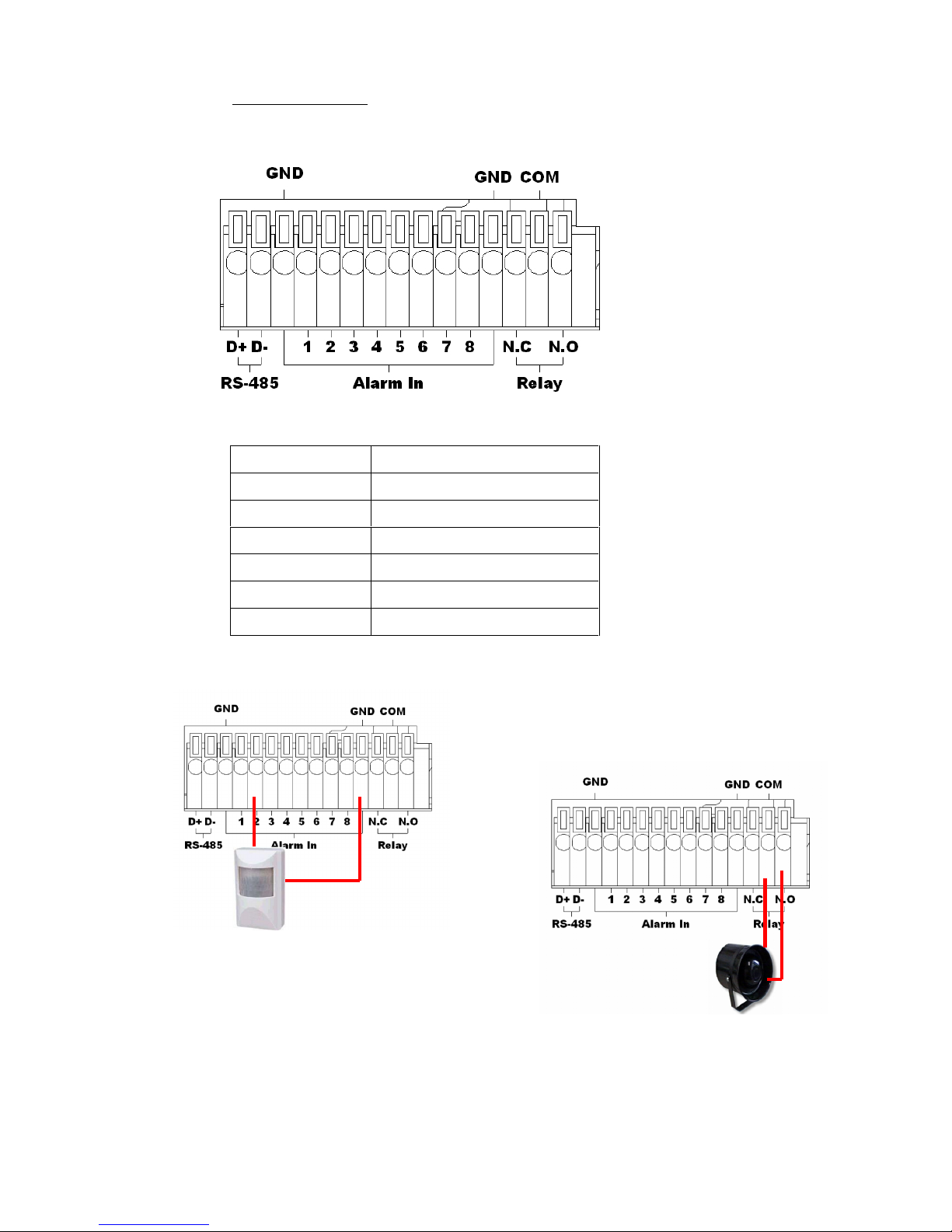

D. Alarm in connecter

EX1：Connect GND & Alarm to external IR detector.

EX2：Connect N.O & COM to external siren.

Depending on the external device type,

You may connect N.C & COM to external device.

D+

RS-485: sends +/ receives +

D -

RS-485: sends -/ receives -

GND

Ground

ALARM IN 1-8

Alarm input

N.C

Relay: Normally close

N.O

Relay: Normally open

COM

Relay: Common

12

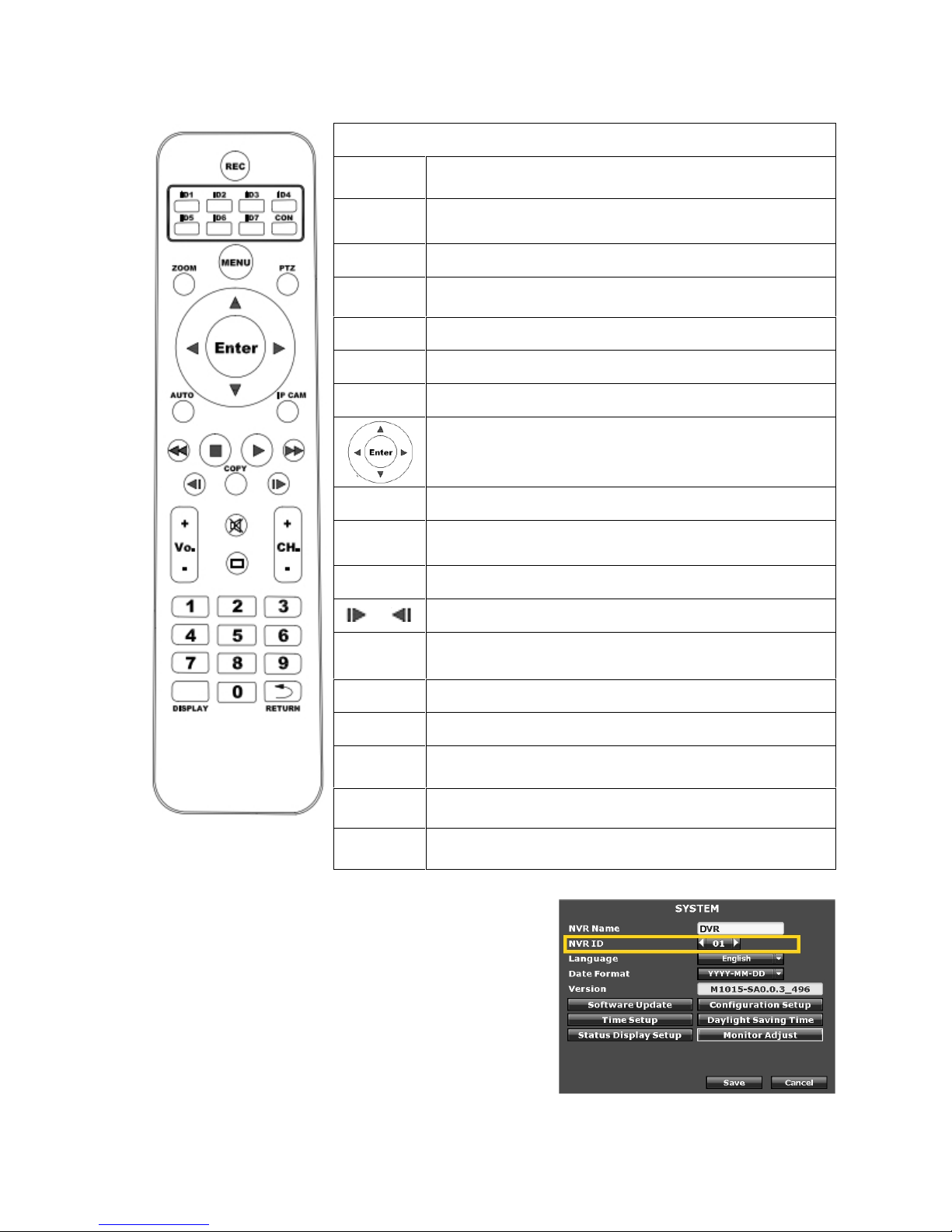

2.4 IR REMOTE CONTROL

ITEM

REC

Start recording on live view.

ID1~8

ID (corresponding with DVR ID)**

MENU

Call out/ close main menu.

ZOOM

2X Zoom in/ back to original size on single channel
view.

PTZ

Call out/ close PTZ panel.

AUTO

Start/ end auto swap.

IPCAM

Call out/ close quick setup menu.

In any menu, use▲►▼◄ to switch the selected item
or adjust value, and use “enter” to enter.

►

Call out/ close playback menu on live view.



Stop playback and call out playback panel under
playback mode.

►►/◄◄

Fast forward/ Fast backward under playback mode.

/

Play/Playback frame by frame under playback mode.

COPY

Start recording the playback video to USB under
playback mode.

Vol +/-

Adjust the audio volume.

CH +/-

Jump to next channel/ previous channel.

0~9

Press the number to jump to corresponding channel.
(Ex. Press 1 and 6 to jump to CH.16)

DISPLAY

Display/ hide the channel number and IP address on
live view.



RETURN

Jump to the channel users view before the current
channel.

**Each DVR can setup its own ID number. The user can

control DVR via remote controller by pressing ID button
to change to the same ID mode with DVR.

For example, if DVR ID is set as 1, users are only
allowed to execute operations via remote controller after
he press “ID1” button. Remote controller stays on
current mode until users change it, so It’s no need to
press the ID button every time users do operations. If the
user press different ID number button from DVR, the
remote controller cannot control DVR.

If you own several DVRs of the same model, use ID to make a distinction.

13

2.5 PTZ (PAN, TILT AND ZOOM) CAMERA

Following diagram for HYBRID DVR connect between PTZ camera & joystick controller, for
HYBRID DVR to control PTZ camera please make sure the CAMERA ID, BANDRATE
(default at 9600 bps) and RS-485 cable.

2 CORE

Under “Two Core” connection, controller can control speed dome without integrated protocol
into HYBRID DVR. Moreover, one keyboard can connect MAX 256 units of speed dome.

14

3 SYSTEM SETUP

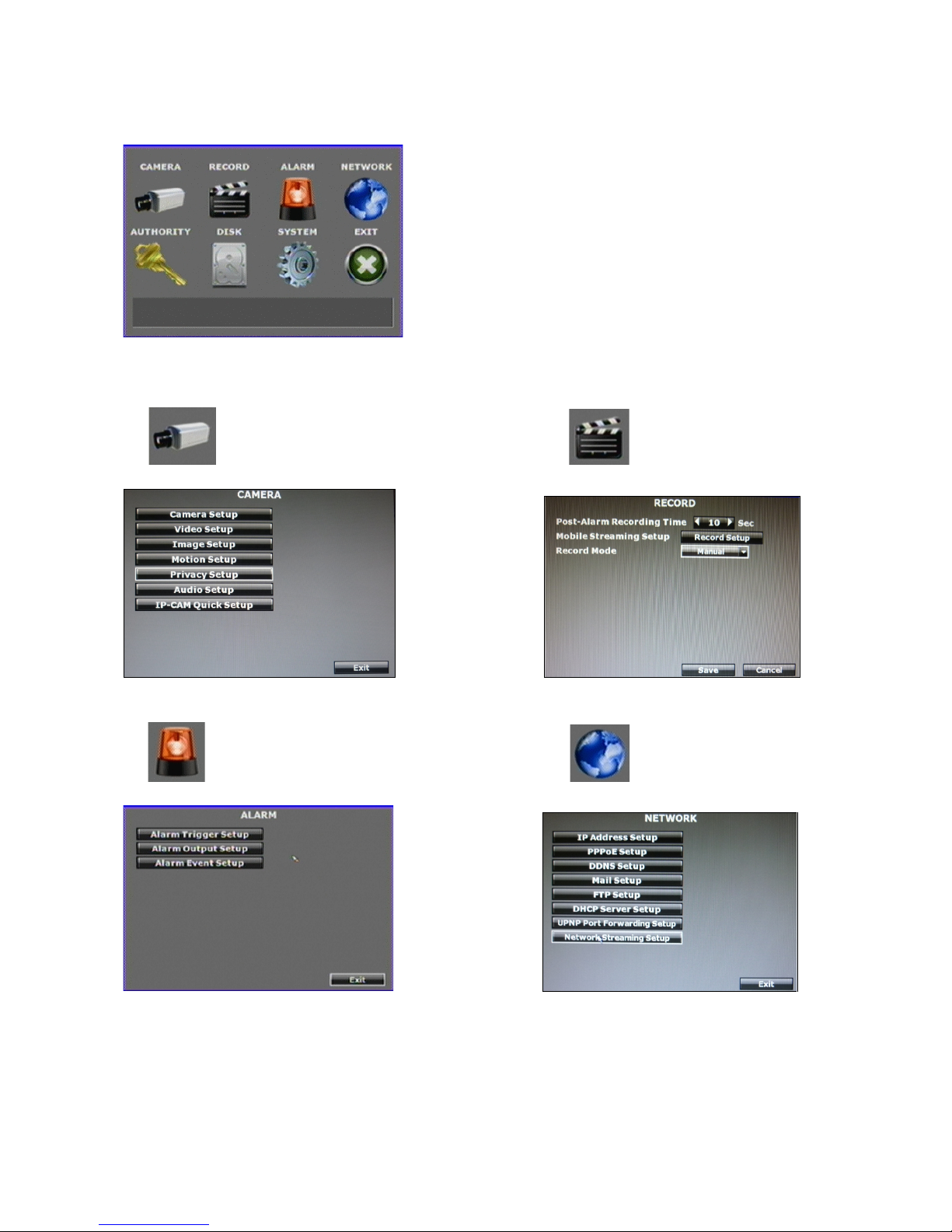

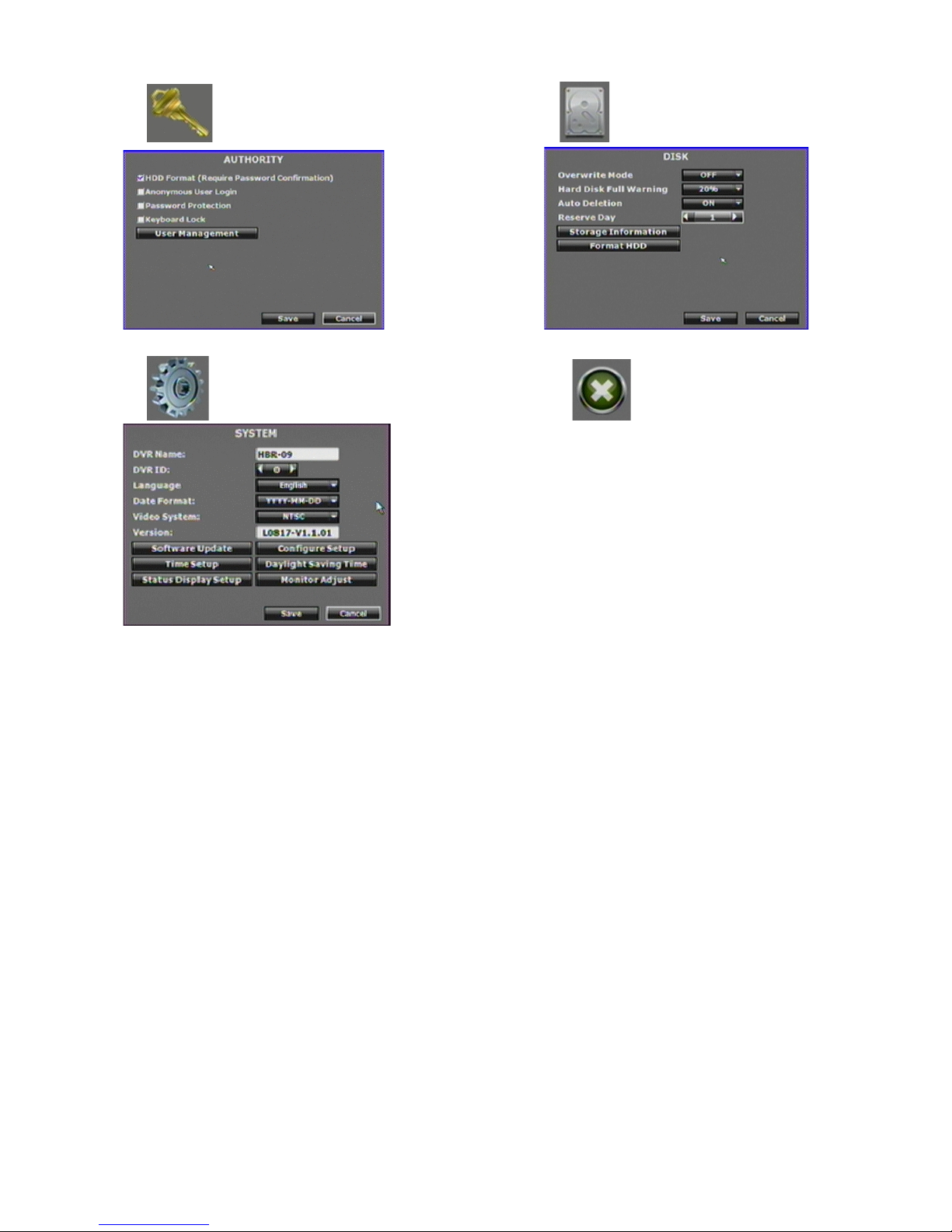

3.1 MENU SETUP INTERFACE(GUI)

A. CAMERA SETUP B. RECORD SETUP

C. ALARM SETUP D. NETWORK SETUP

15

E. AUTHORITY SETUP F. DISK MANAGEMENT

G. SYSTEM SETUP H. EXIT

16

3.2 LIVE VIEWING AND POP-UP MENU

Tick the box to fix the function panel on right side. Untick it, then the function
panel will be hidden when the mouse moves away.

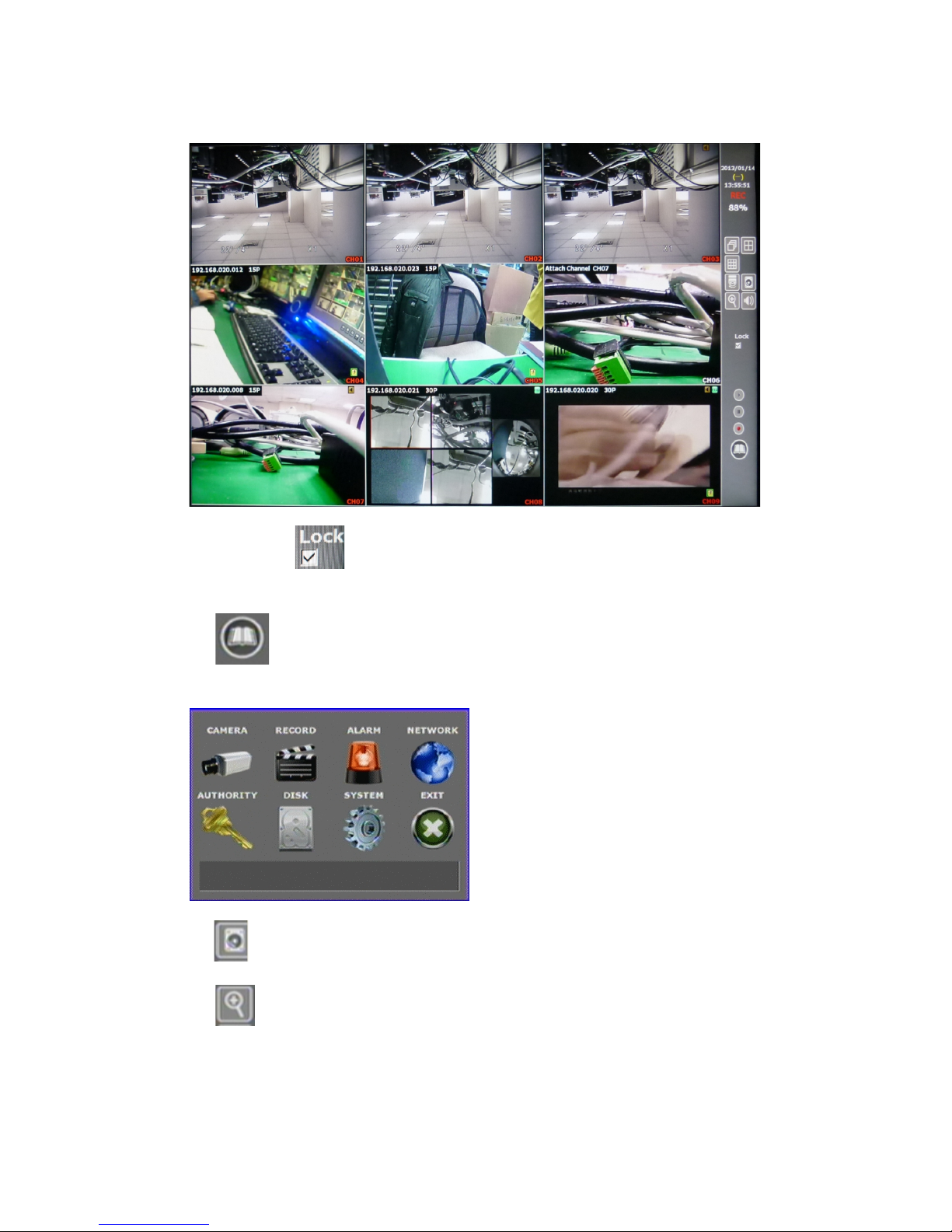

A. GUI MENU BAR

With live viewing mode, press this button to get into the GUI menu.

B. DISK INFORMATION

With live viewing mode, press this button to display disk information.

C. DIGITAL ZOOM

In the live full screen mode, left-click the button of the mouse to pull a range to zoom
in or zoom out the image. User can right-click the button of the mouse to disable this
function. (NOTE: Using the mouse to operate digital zoom can zoom in to max. 16
times.) Moreover, user can also use ZOOM key on the front panel to perform this
function. (First, click ZOOM Key and then click ▲▼◄► key to select zoom in or

17

zoom out position. Finally, click ENTER key to complete the setting. Moreover, click
ZOOM Key again can disable digital zoom function. Using the panel key to perform
zoom in function is fixed at 2 times.)

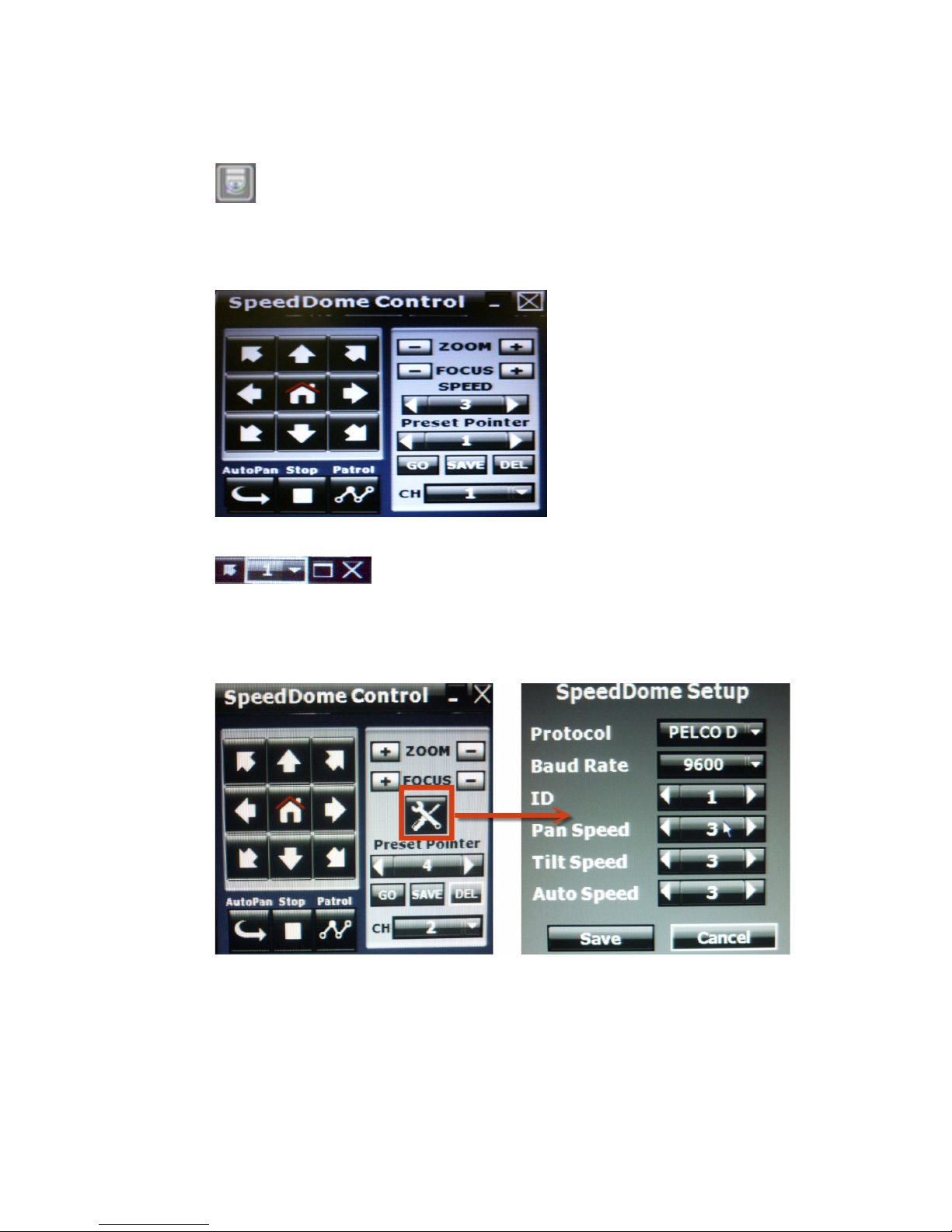

D. PTZ CONTROLLER

Within live-viewing mode, Clicks this button to get into the PTZ setup menu. User can
right-click the button of the mouse to exit PTZ Setup.

NOTE： Only for the camera supported PTZ function.

PTZ CONTROL

Press the minimization icon then the control panel becomes smaller:

Move the mouse and the arrow will follow the mouse and change direction. In this
mode user can click on the live view to control direction instead of the direction
key on control panel.

When a analog camera is connected, you can set up by clicking the tools icon:

18

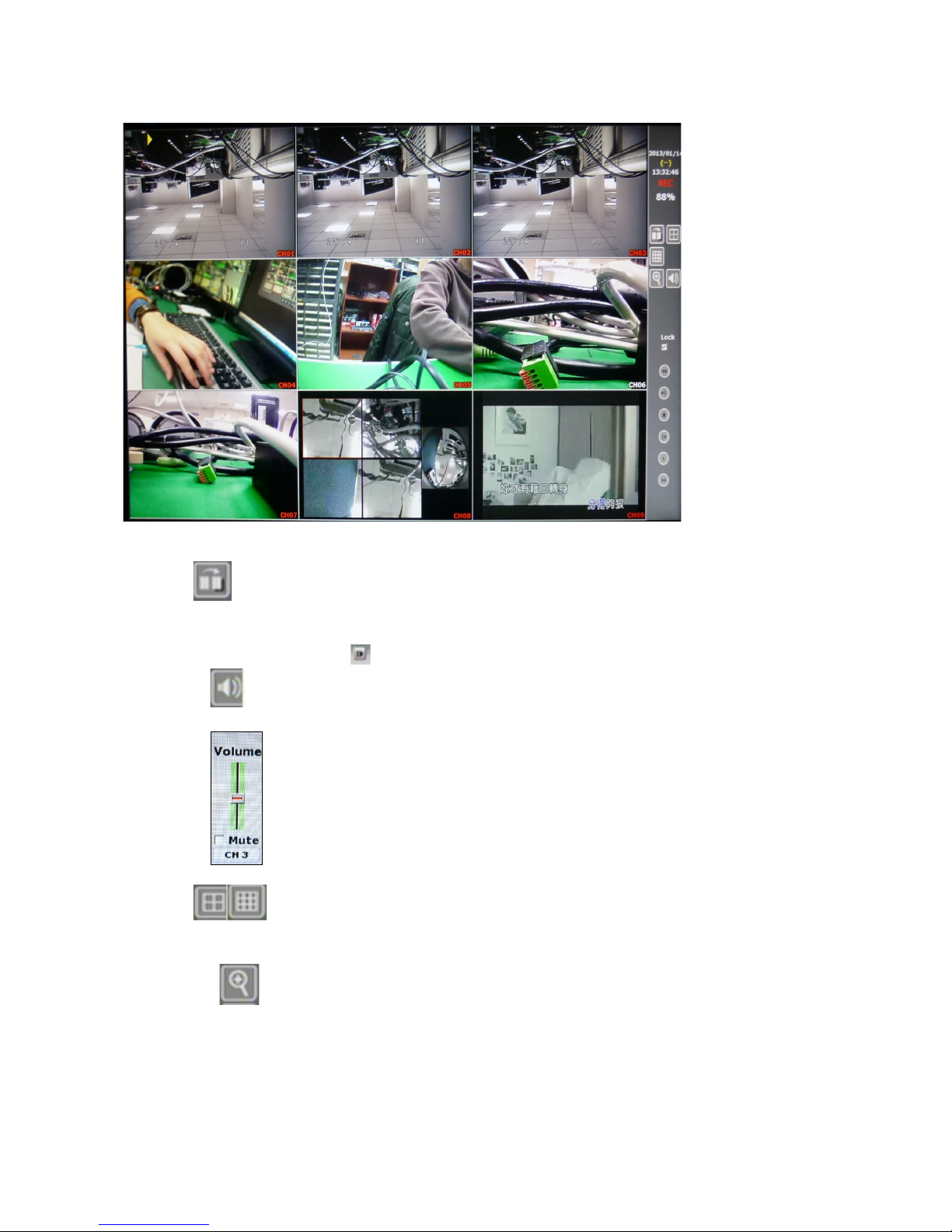

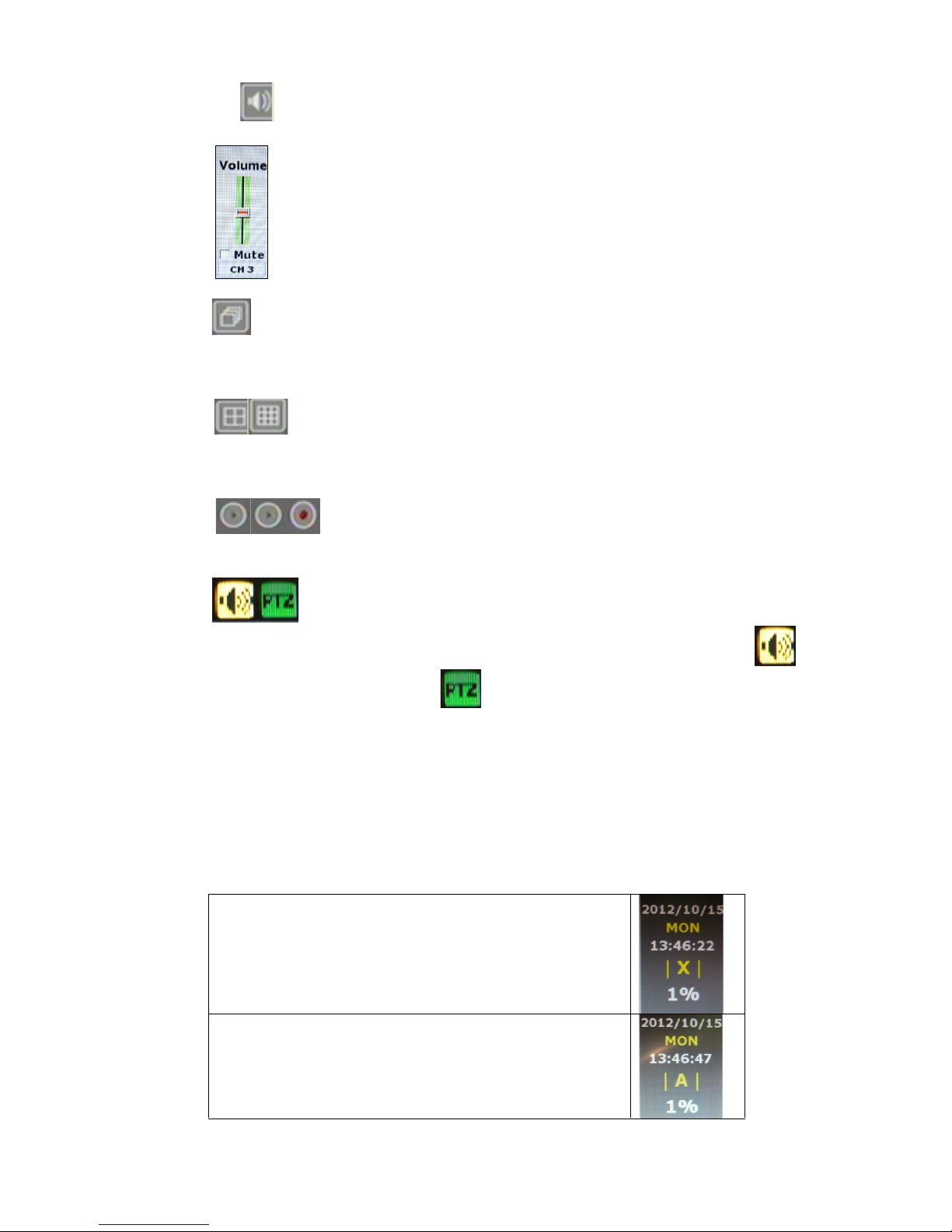

E. AUDIO VOLUME

Press this button, and the audio volume control board will pop up.

F. AUTO SWAP

Press it to start auto swap. The interval depends on the setting in IPCam Image Setup
when it’s on single channel view. For split screen the switch dwell interval is 5 sec

G. DISPLAY CONTROL

Within live-viewing or playback mode, use display control to switch the camera
channel.

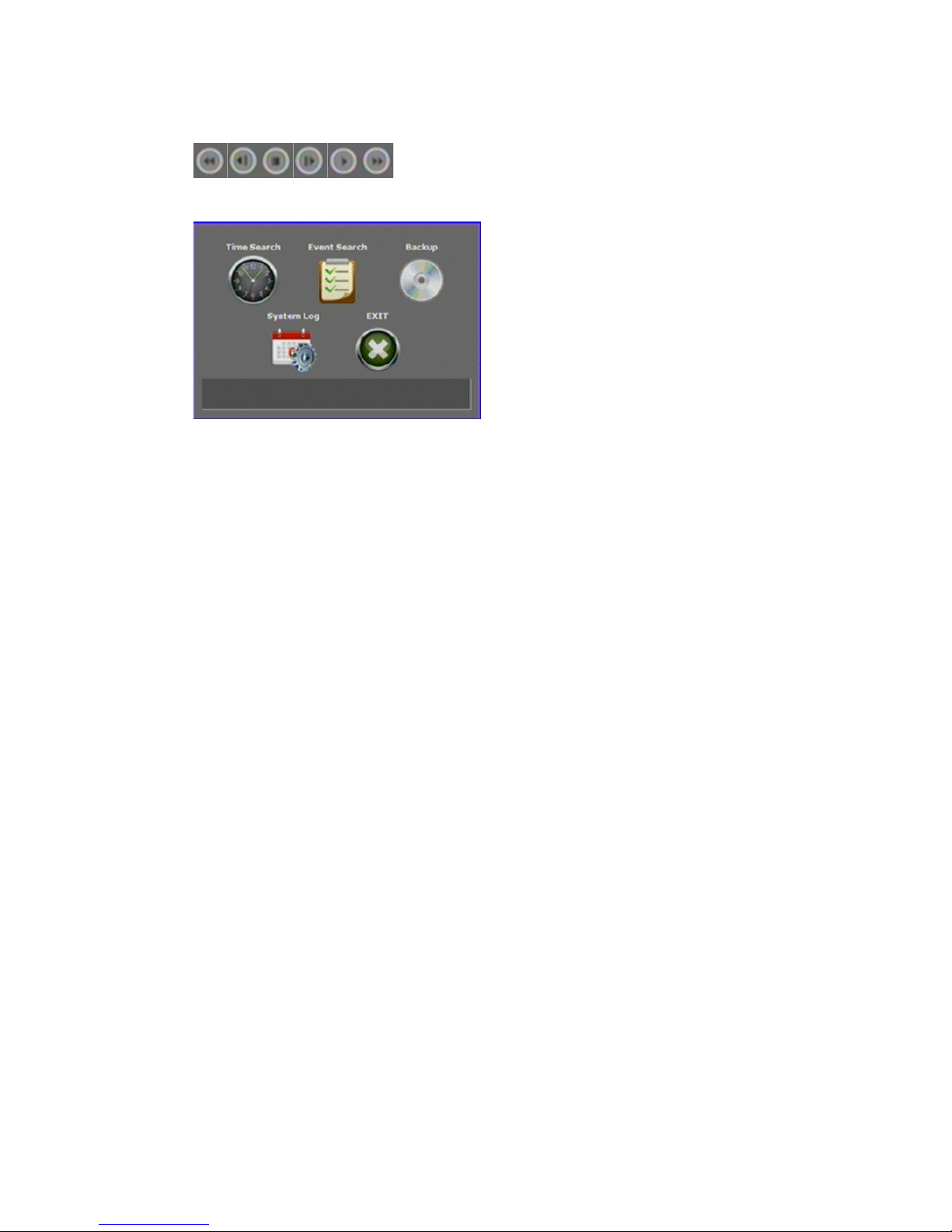

H. RECORD AND PLAYBACK CONTROL

Same as front panel controller and remote controller.

I. SOUND OUTPUT / PTZ CONTROL

There are little icon on the right top of the live vide of every channel. Click to

enable the sound output. Click to PTZ call out the control board. Note that if
those functions are not support by the camera linked, you will not see the
corresponding icons.

The sound options do not affect the audio recorded into playback video. As long as the
audio setup is enabled, the playback video includes audio even the sound output here
is turned off.

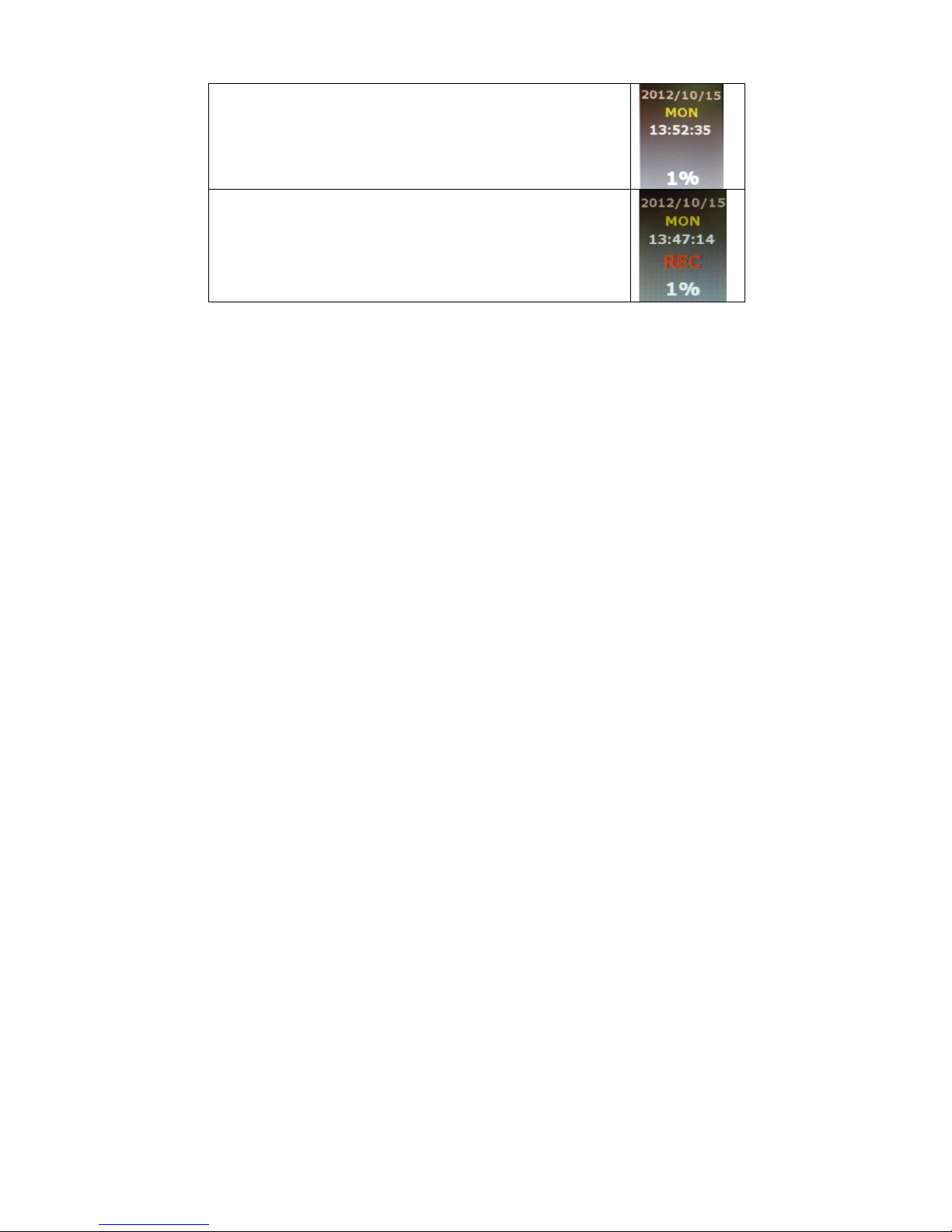

J. RECORDING STATUS

Beneath the date and time, it displays the current recording type:

Record mode: Schedule – NO REC period
Record mode: Schedule – ALARM REC period

Record mode: Alarm trigger

19

Record mode: Manual – Stop Recording

Record mode: Schedule – FULL REC period
Record mode: Manual – Recording

20

3.3 CAMERA SETUP

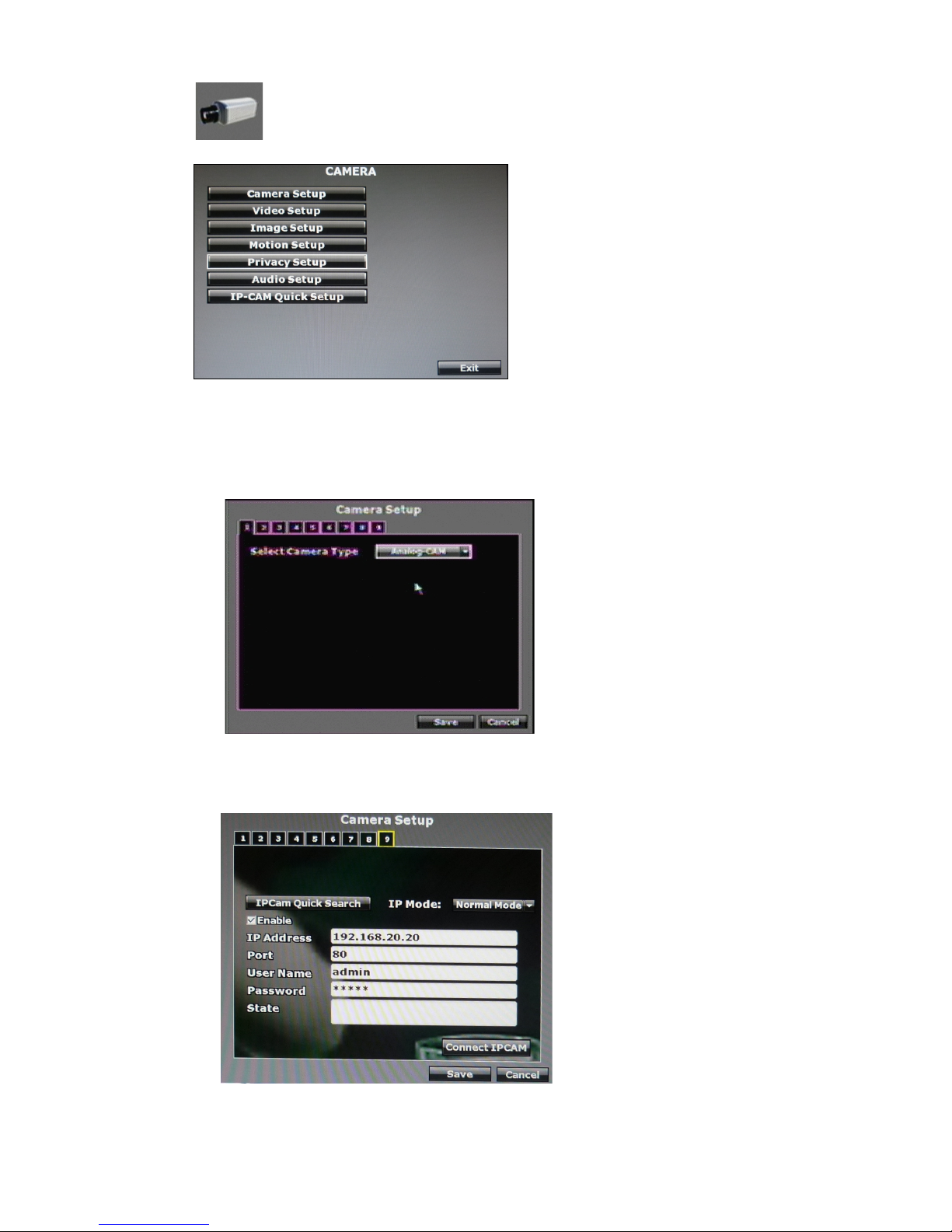

A. Camera Setup

Hybrid DVR can connect two various cameras, analog camera or IP-Cam.

Camera Type in Analog-CAM

Camera Type in IP-CAM

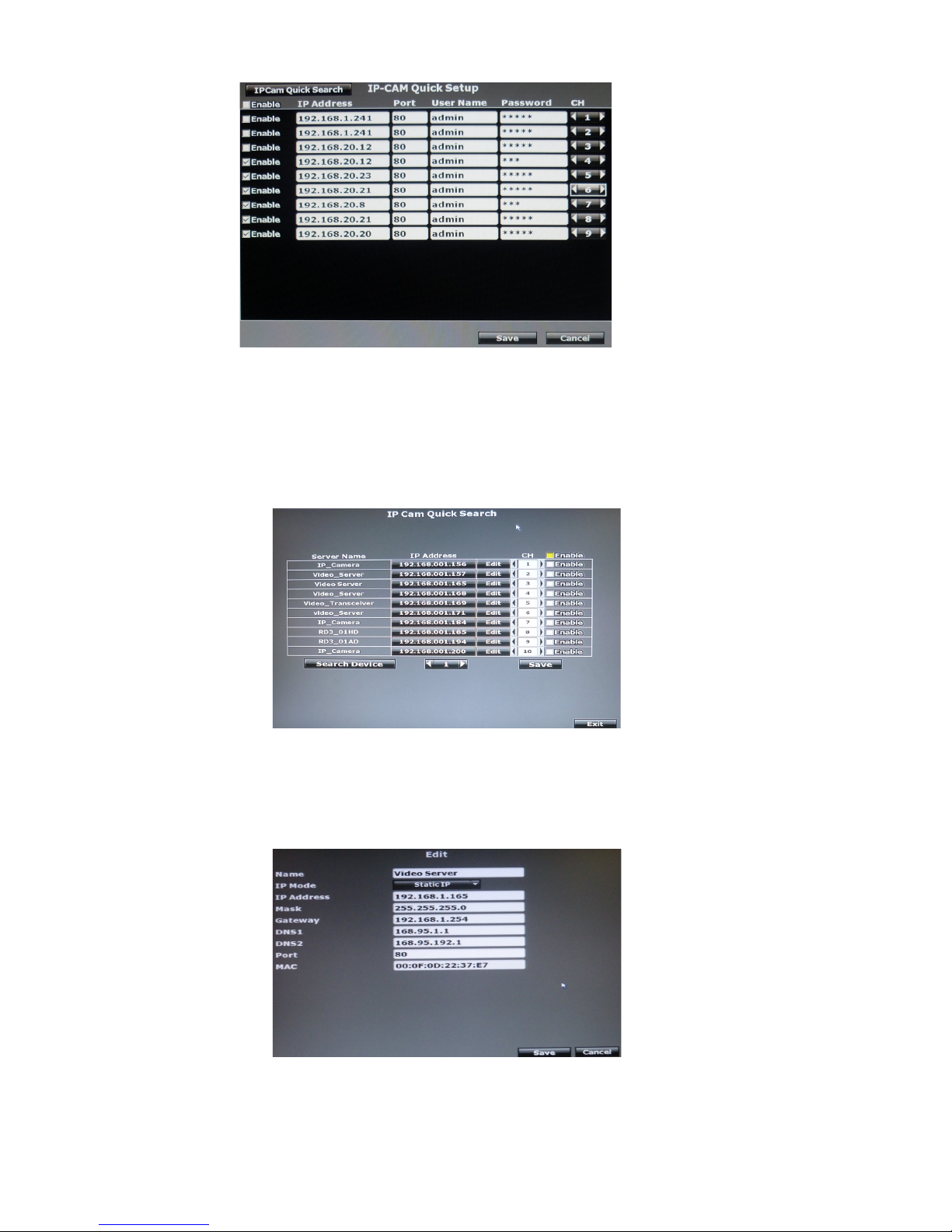

A-1. IPCam Quick Search

21

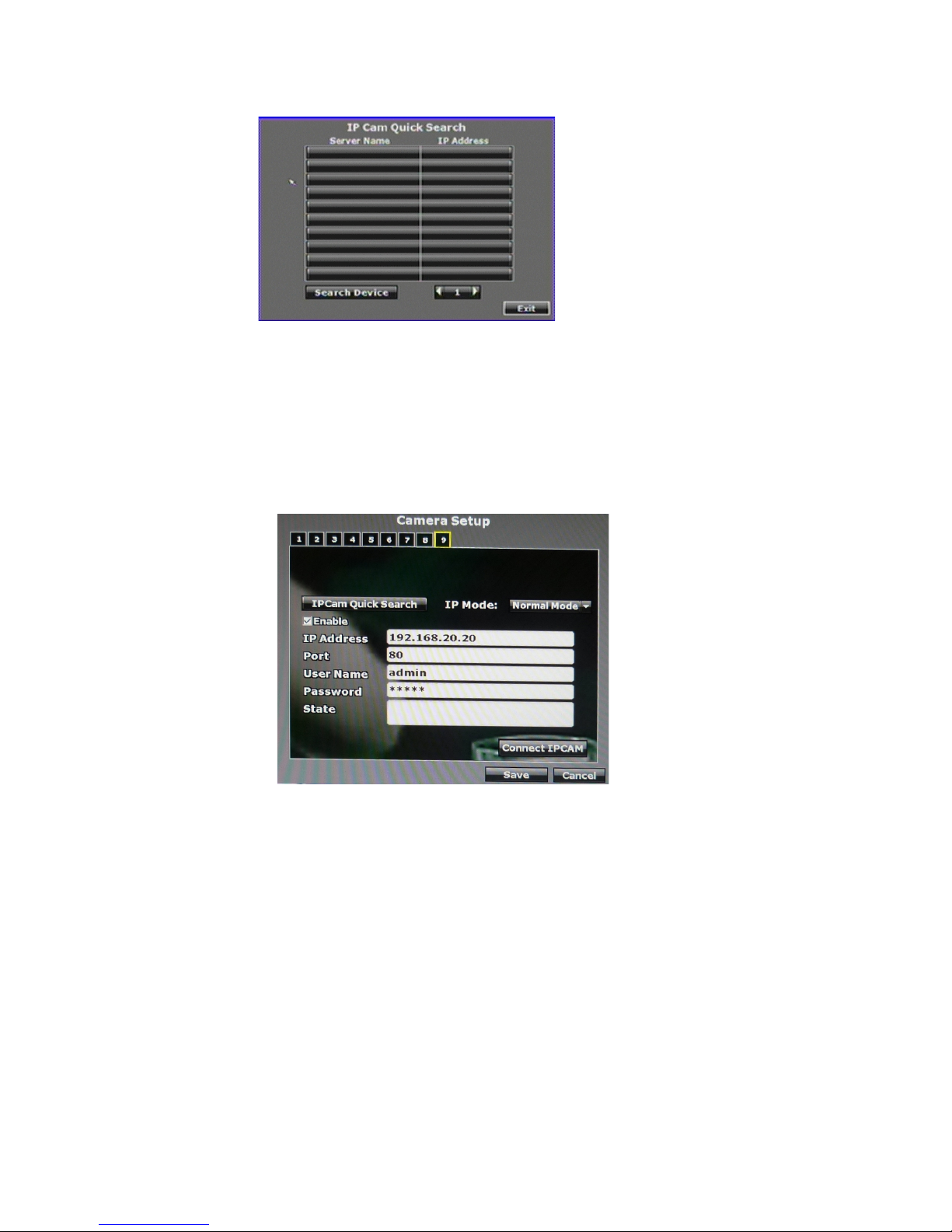

Press the “IPCam Quick Search” button and click “Search Device” button in the
following, DVR will search the IPCAM devices which IP address are setup as
the same domain as DVR IP address. Moreover, click the IPCam device which
from the list can import the device information to the channel automatically
without any manual key-in step.
The IPCam has to be under the same LAN with DVR in order to connect
successfully. Ex. If DVR IP address is 192.168.10.33, IP Cam IP address should
be 192.168.10.X. You can edit IP Cam IP address here or on the IP Cam.

a. Normal Mode

Enable this channel. Key in the IP address, port, username, and password of

the device you prepare to connect. You can find the information on the IP
Cam.

Click the “connect IPCAM” button, the message will show in “State” column

to tell you whether connection succeeds or not.

Note: To the camera connected via ONVIF protocol, the PTZ control function

is not supported. Note: To the camera connected via ONVIF protocol,
the PTZ control function is not supported.

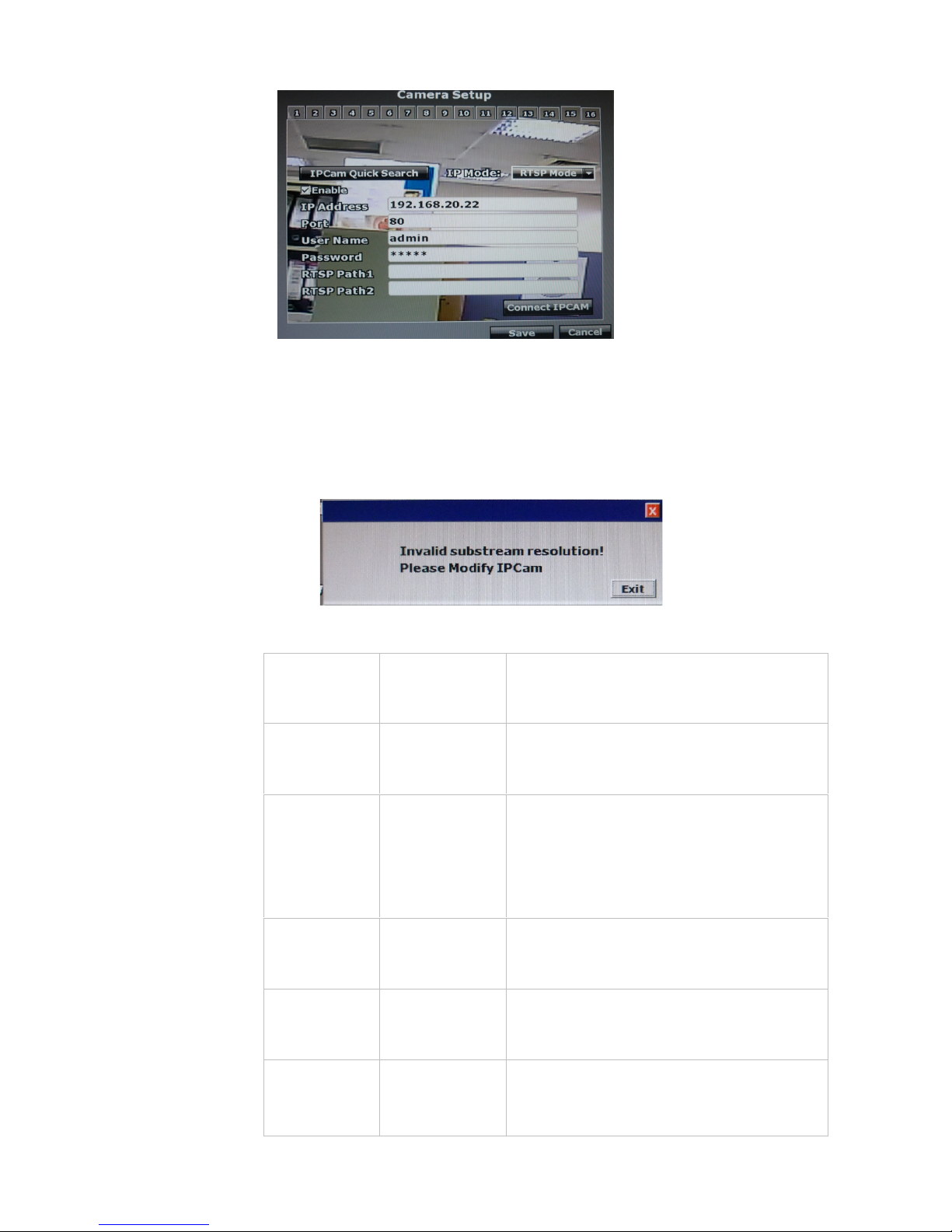

b. RSTP Mode

Under RTSP Mode, the DVR only support the IP address indication, the live
video, and video recording. Other functions like motion detection are not
supported.

22

Key in the IP address, port, username, and password of the device you

prepare to connect. You can find the information on the IP Cam.

To link to the IP camera, check the RTSP Path settings of your IP camera,
and key in the corresponding values of two streams in “RTSP Path 1” and
“RTSP Path 2”.

Note: When you select RTSP mode, make sure the substream resolution of

camera is VGA(640x480). Or you will receive the warning message
when you try to connect with the camera:

Here we lists some RTSP setting for sample:

RTSP Path 1
(IPCam Main
stream)

RTSP Path 2
(IPCam Sub
stream)

Result

1920 x 1080

640 x 480

OK.
DVR takes 1920x1080 streaming for single
channel view, and 640x480 streaming for
split screen.

1920 x 1080

N/A
(Fill in nothing
on "RTSP Path
2")

Error Message: ”Invalid Substream
Resolution! Please modify IPCam.”
DVR takes 1920x1080 streaming for both
single channel view and split screen.
However, it can only allow 640x480
resolution for split screen, so it shows error
in return.

640 x 480

N/A
(Fill in nothing
on "RTSP Path
2")

OK.
DVR takes 640x480 streaming for both
single channel view and split screen.

N/A
(Fill in nothing
on "RTSP Path
1")

640 x 480

OK.
DVR takes 640x480 streaming for both
single channel view and split screen.

640 X480

1920 x 1080

OK.
DVR takes 1920x1080 streaming for single
channel view, and 640x480 streaming for
split screen.

23

1920 x 1080

1920 x 1080

Error Message: ”Invalid Substream
Resolution! Please modify IPCam.”
DVR takes 1920x1080 streaming for both
single channel view and split screen.
However, it can only allow 640x480
resolution for split screen, so it shows error
in return.

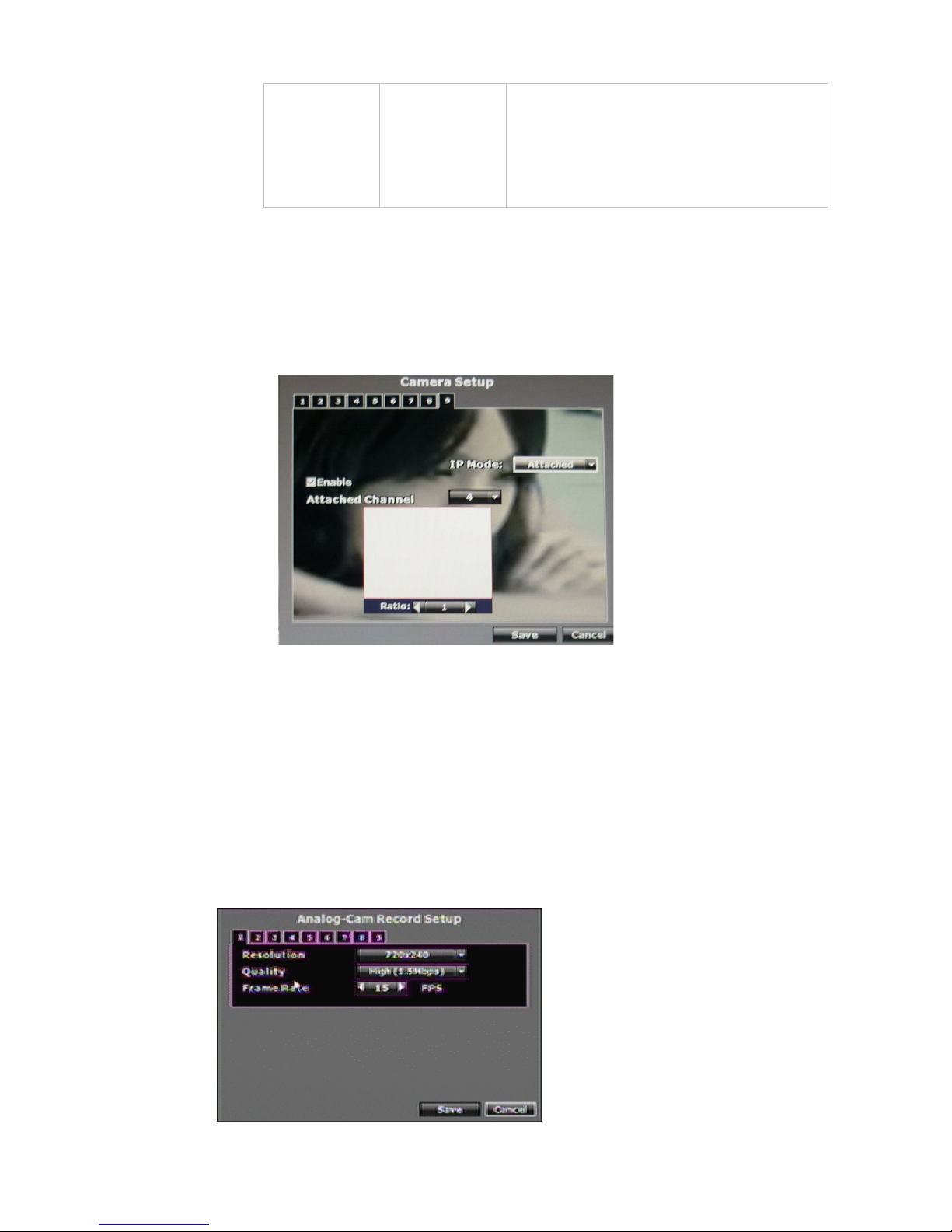

c. ROI

This function allows users to set up the channel as an attached channel. An
attached channel is based on a normal/ RTSP channel has been set up, and
can display the same live view as the normal/ RTSP channel. The attached
channel is not physically linked to any camera, so it doesn't increase the
bandwidth loading. Users cannot do camera setup (like motion detection or
image adjustment) on attached channel.

1. Enable: Choose “Attached”.

2. Attached Channel: Select a connected normal/ RTSP channel in the
drop-down menu.

Ratio: Use the arrows to adjust the zoom ratio, and press the red frame to drag it

to the area that you want it to show on the live view screen.

A-2. Connect IPCAM：After insert the IPCAM related information, click this button

to test the connection circumstances.

Note: To the camera connected via ONVIF protocol, the PTZ control function is

not supported.

B. Video Setup

Camera Type in Analog-CAM

24

Camera Type in IP-CAM

B-1. Resolution

Click drop down list to change the resolution of connecting device.

B-2. Quality

Click drop down list to change the image quality. For this 9ch model, the total
bits per second should not be over 36Mbps.

B-3. FrameRate

Click drop down list to change the frame rate of connecting device.

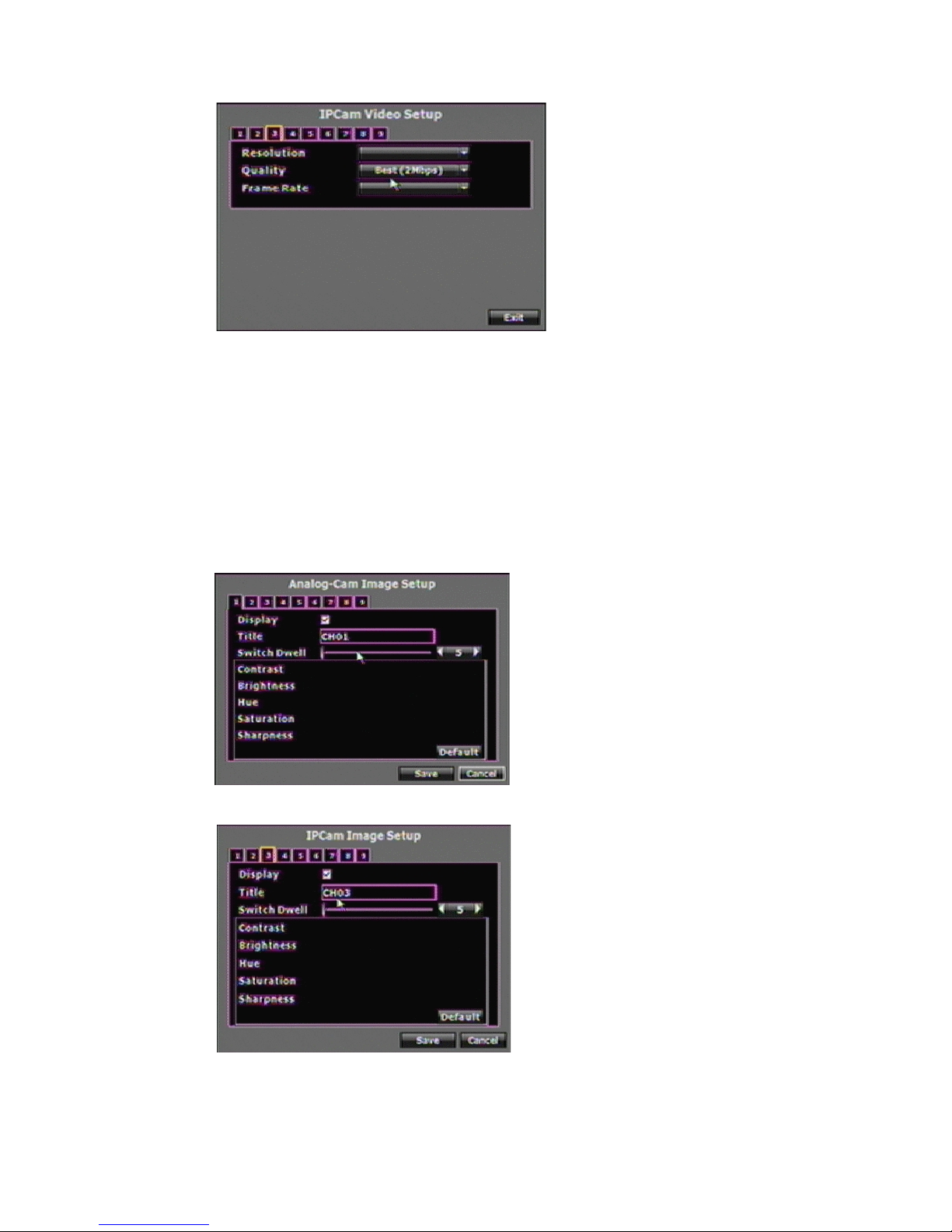

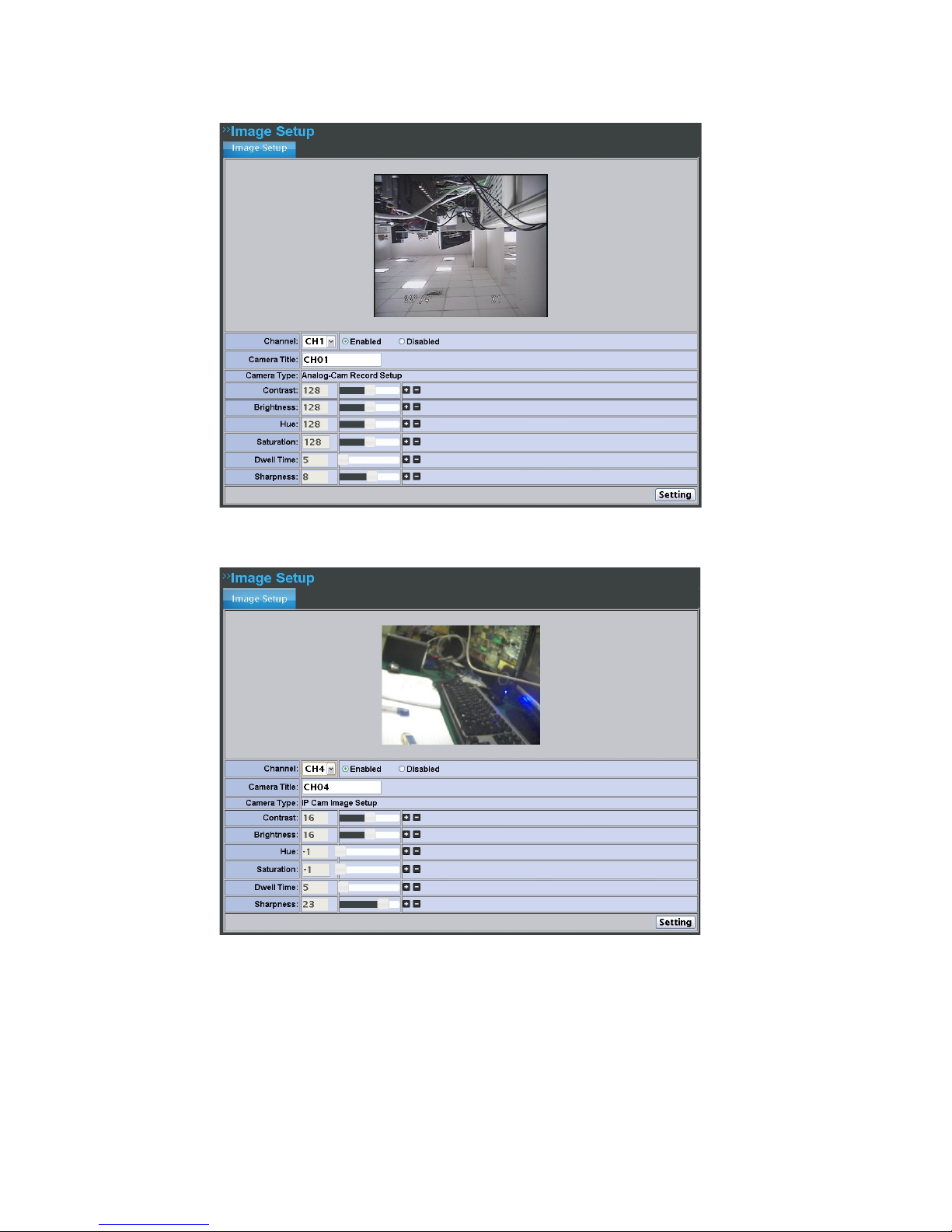

C. IPCam Image Setup

Camera Type in Analog-CAM

Camera Type in IP-CAM

C-1. Display

Use the mouse to enable or disable the camera display on the screen or not.

C-2. Switch Dwell

Press ◄ or ► to change auto switch second. The value is between 0~99 sec.

25

C-3. Title

Use the mouse to setup the title of connecting IP device.

C-4. Contrast

Press ◄ or ► to change contrast level. The adjustment value is between 0~255

C-5. Brightness

Press ◄ or ► to change brightness level. The adjustment value is between
0~255

C-6. Hue

Press ◄ or ► to change hue level. The adjustment value is between 0~255

C-7. Saturation

Press ◄ or ► to change saturation level. The adjustment value is between
0~255

C-8. Sharpness

Press ◄ or ►/ mouse wheel to change sharpness level. The adjustment value is
between 0~15

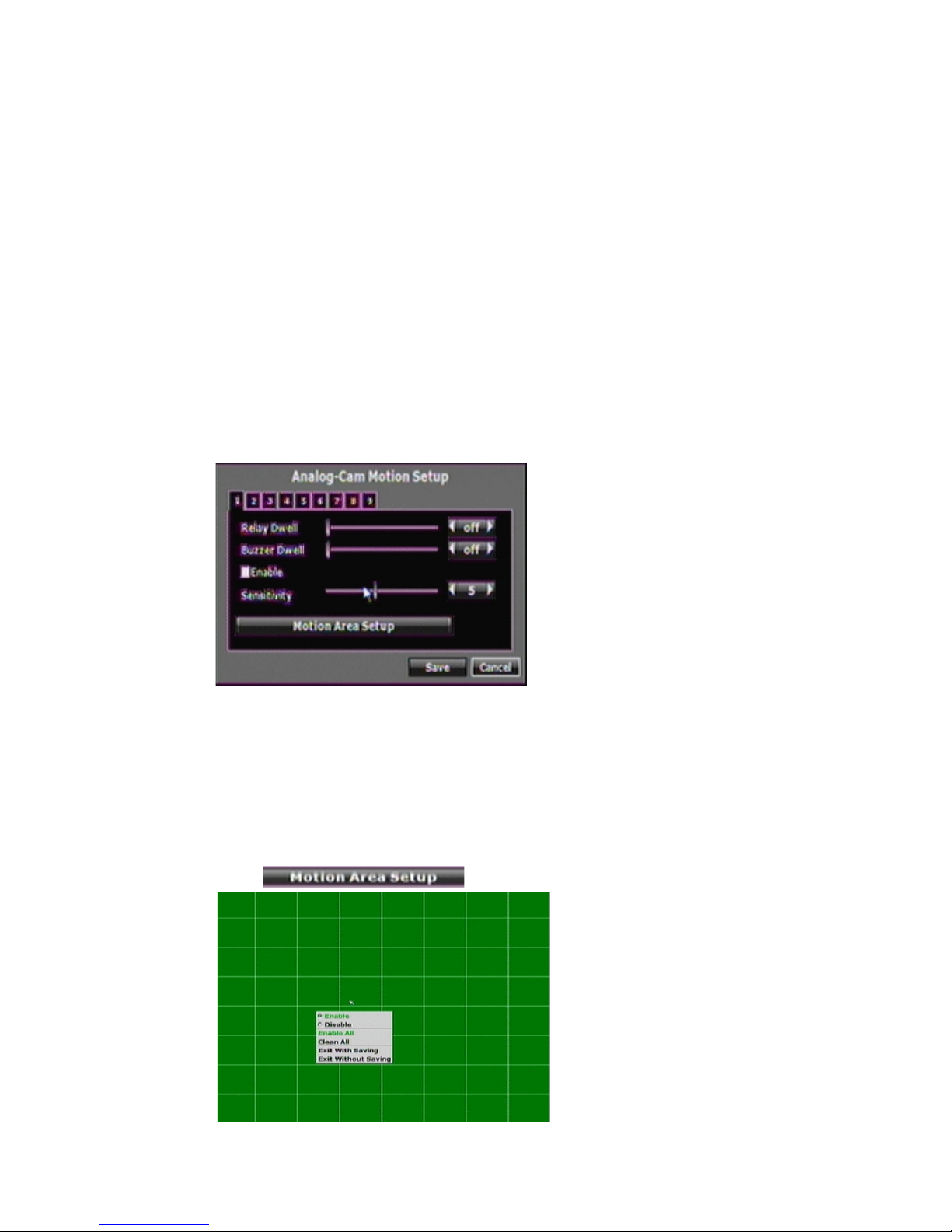

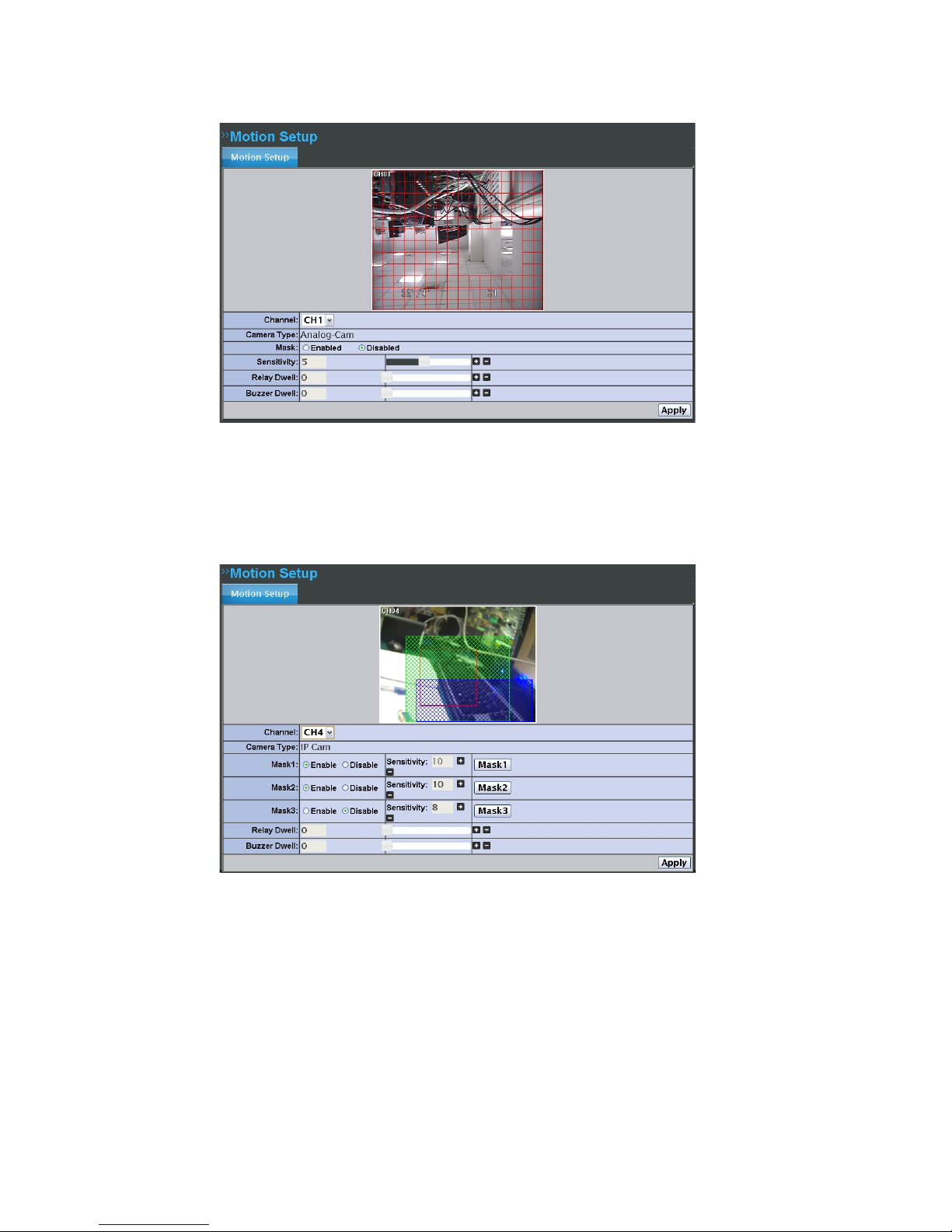

D. Motion Setup

Camera Type in Analog-CAM

D-1. Relay Dwell

Press ◄ or ► to change the relay time or disable relay function.

D-2. Buzzer Dwell

Press ◄ or ► to change the buzzer time or disable buzzer function.

D-3. Motion Detection

Click the checkbox to decide enable or disable motion detection.

D-4. Sensitivity

Press ◄ or ► to change sensitivity level.

D-5. Motion Area Setup

Press to setup motion area.

26

Camera Type in IP-CAM

D-6. Relay Dwell

Press ◄ or ► to change the relay time or disable relay function.

D-7. Buzzer Dwell

Press ◄ or ► to change the buzzer time or disable buzzer function.

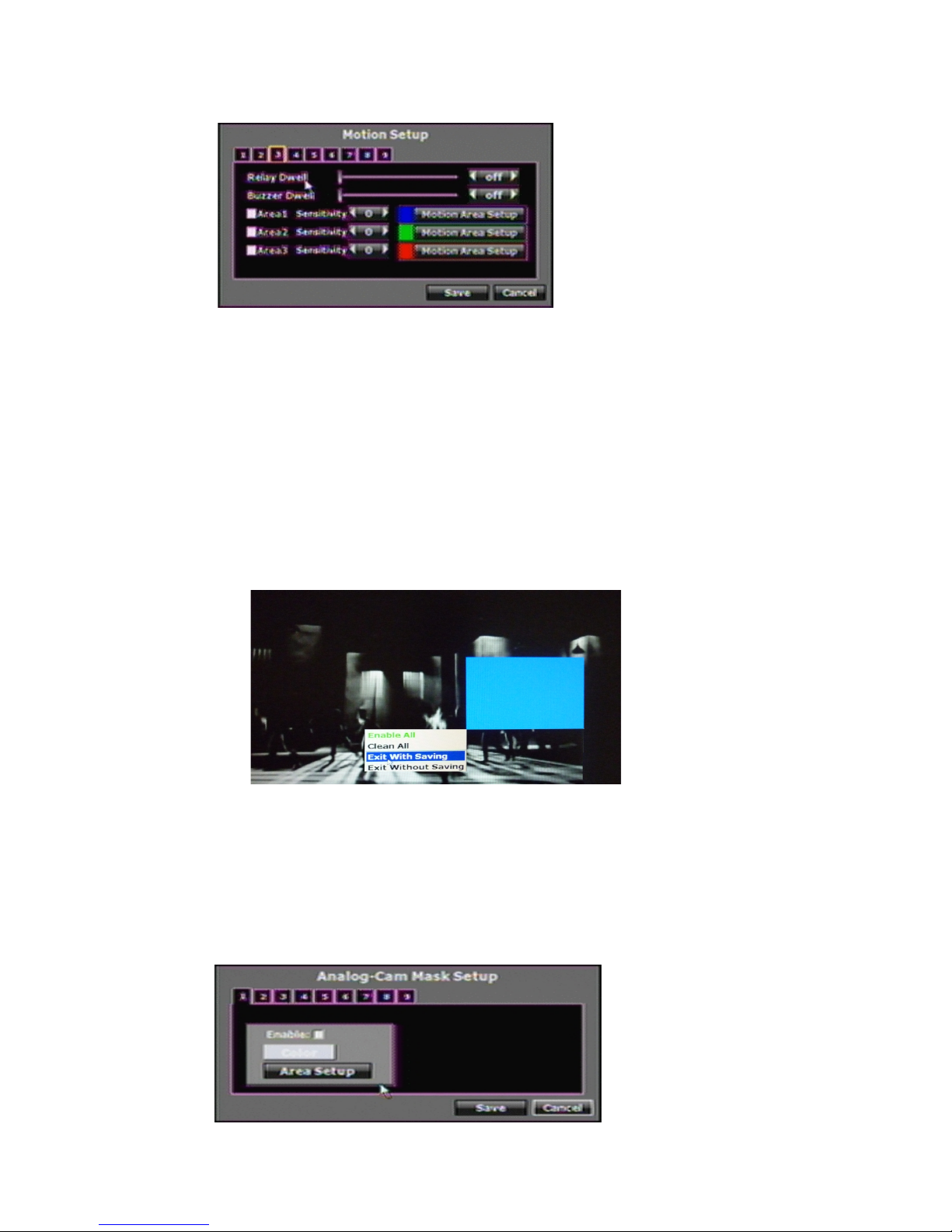

D-8. Area1 Sensitivity

Press ◄ or ► to change the sensitivity of setup motion area in Area1. Click
“Motion Area Setup” and drag a blue area for motion detection.

D-9. Area2 Sensitivity

Press ◄ or ► to change the sensitivity of setup motion area in Area2. Click
“Motion Area Setup” and drag a green area for motion detection.

D-10. Area3 Sensitivity

Press ◄ or ► to change the sensitivity of setup motion area in Area3. Click
“Motion Area Setup” and drag a red area for motion detection.

After dragging an area, right-click the mouse, select “Exit with saving” to
complete the area setup.
Select “Enable All” to set up global motion detection.
Select “Clean All” to clean the area of the current color in the view.

Select “Exit Without Saving” to go back to motion setup menu and the setting

you just changed will not be saved.

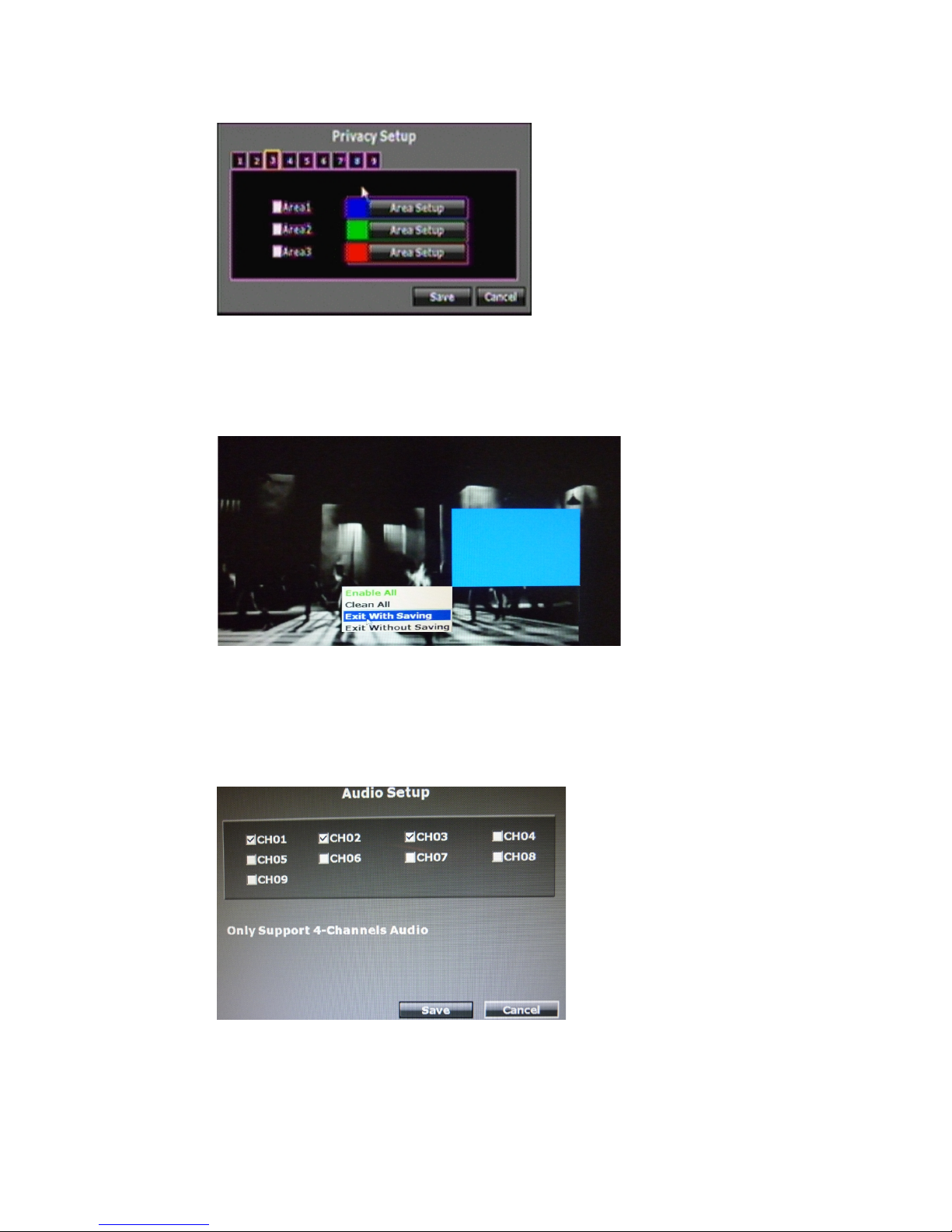

E. Privacy Setup

Camera Type in Analog-CAM

27

Camera Type in IP-CAM

E-1. Area1

Tick the “Area1” box and click “Area Setup” to drag a blue area for masking.

E-2. Area2

Tick the “Area1” box and click “Area Setup” to drag a green area for masking.

E-3. Area3

Tick the “Area1” box and click “Area Setup” to drag a red area for masking.

F. Audio Setup

The channel ticked means the sound from camera will be recorded into the playback
video. Vise versa. No sound will be recorded in the playback video of the channel
which is not ticked. It supports at most 4CH audio record.

G. Quick Setup

Other than “IPCAM Setup”, you can choose another way to complete the IP camera
connection job: using Quick Setup.

28

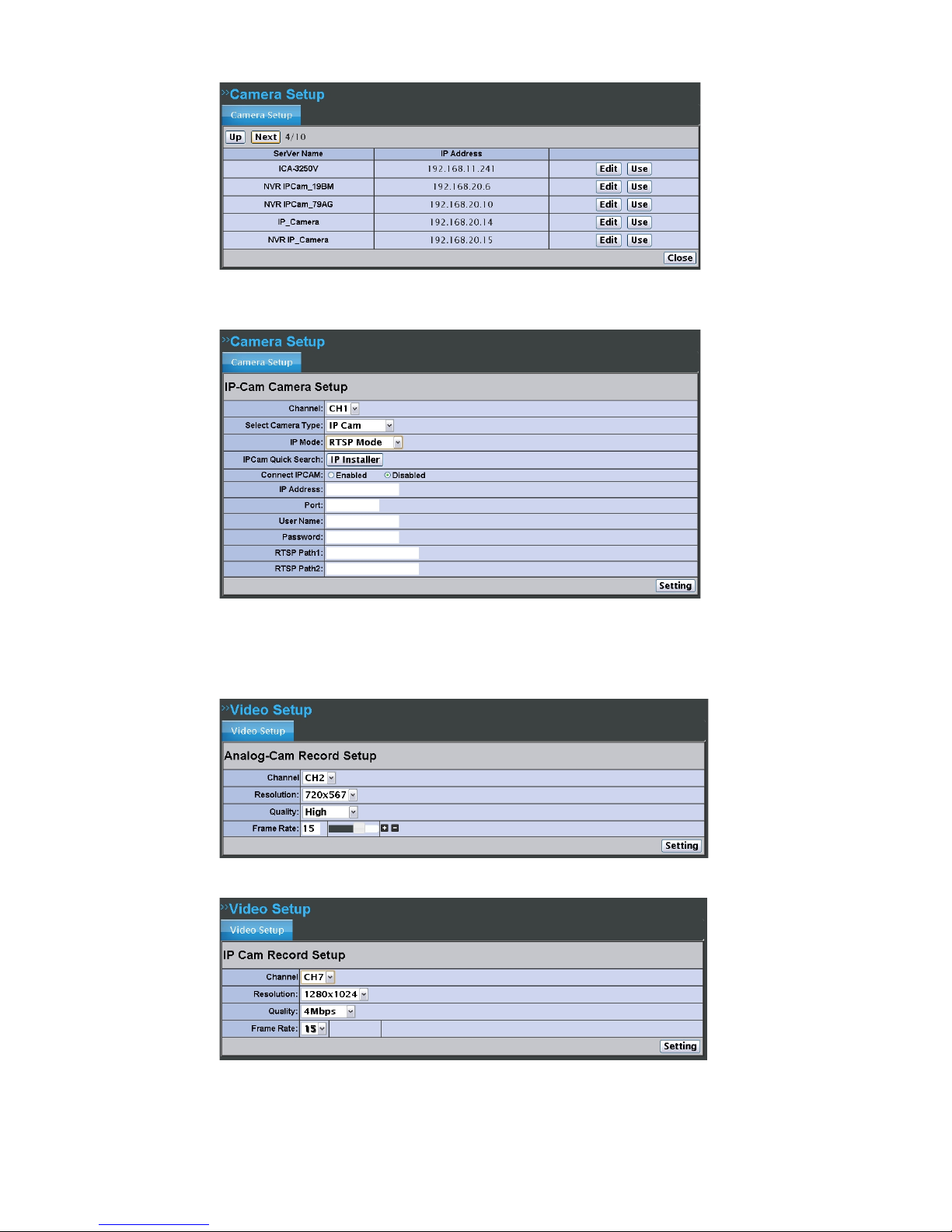

G-1 Key in information manually

Here is the all-channel list. You can key in the IP address, port, and user name
& password of the IP camera, and then assign the channel number. Tick
“Enable” to connect with the IP camera.

G-2 IPCAM Quick Search

With Quick Search, you need not type the IP address. Click “IPCAM Quick
Search” to enter the search menu.

The machine searches for all the IP devices under the LAN and list here. Find
the IP camera you want to connect with, assign a channel number for it, and
tick “Enable” so that this IP camera will be added to the all-channel list.
Back to the all-channel list, you can key in the user name and password, and
tuck “Enable” to connect with the camera.
If you want to revise the IP setting of a camera, click “Edit”:

The IPCam has to be under the same LAN with DVR in order to connect
successfully. Ex. If DVR IP address is 192.168.10.33, IP Cam IP address
should be 192.168.10.X. You can edit IP Cam IP address here or on the IP
Cam.

29

3.4 RECORD SETUP

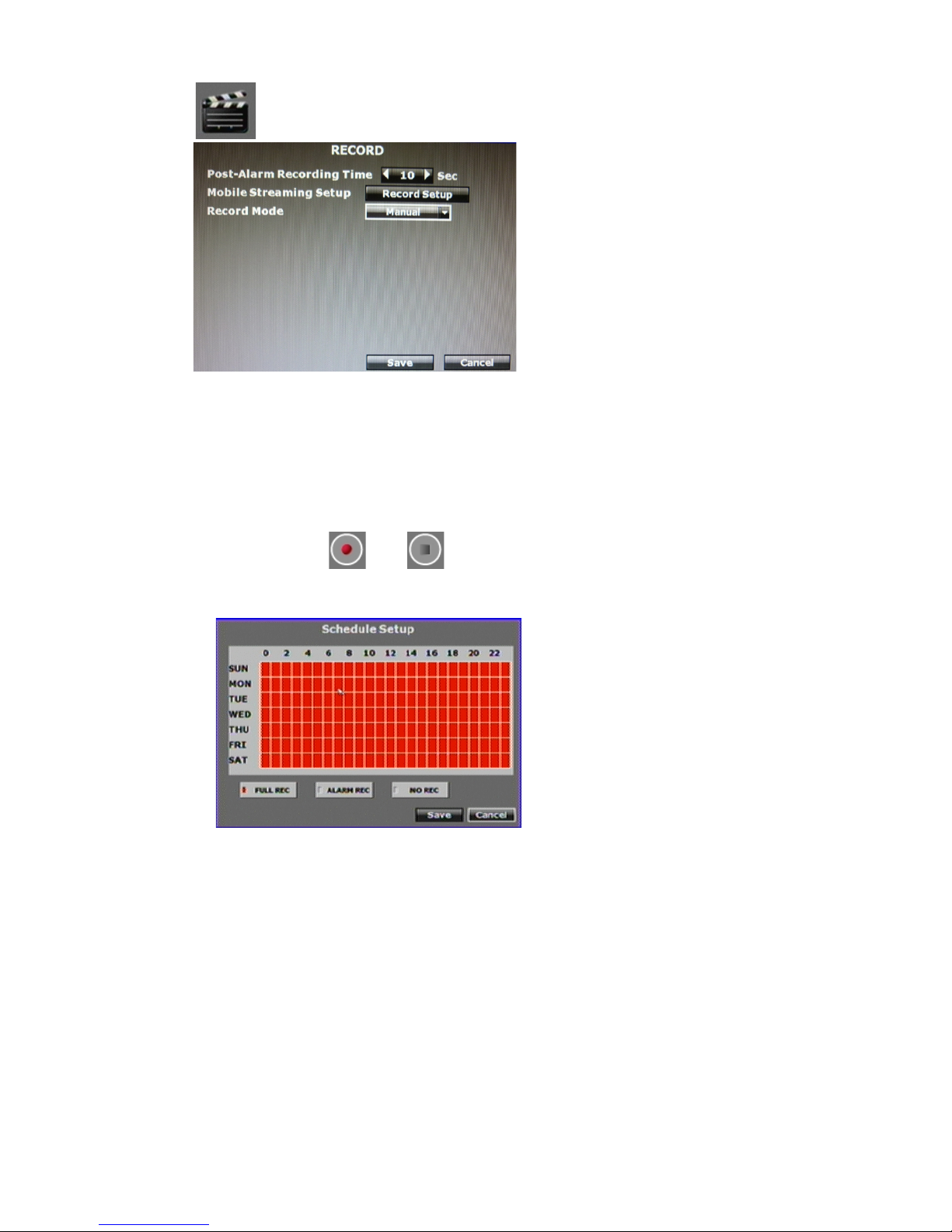

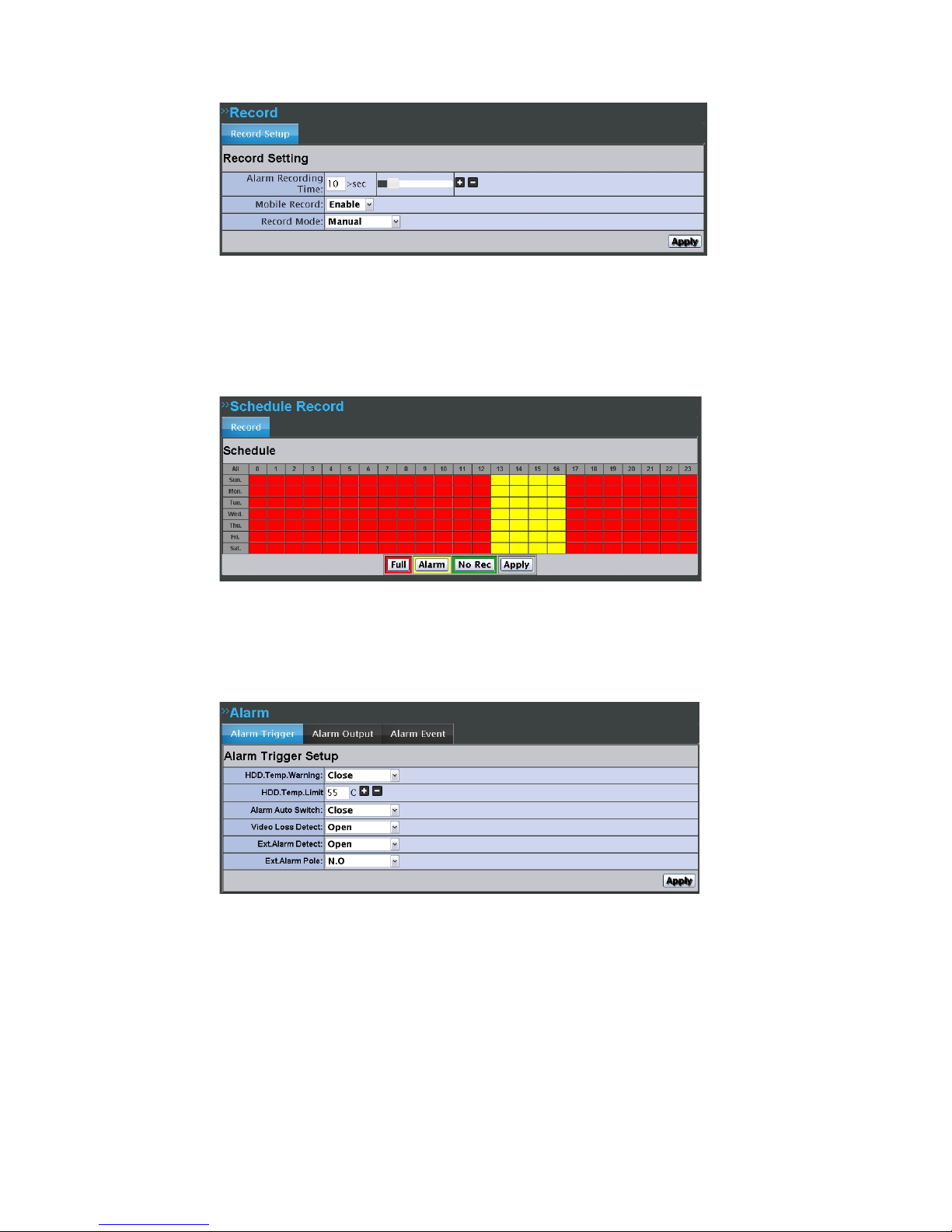

A. Post-Alarm Record Time

Press ◄ or ► to switch the recording time of post-alarm. That’s the recording length
when alarm is triggered.

B. Mobile Streaming Setup

Press on to record the streaming for mobile viewing.

C. Record Mode

Use the drop down list to switch the recording mode. There are manual, schedule and
alarm trigger three varieties of mode.

Manual: C lick and button on the right bottom of live view ing to start and

stop the m anual record.

Schedule: Click the “Schedule Setup” button to set the schedule recording time.

Alarm trigger: When the alarm trigger is detected, it start recording as the alarm

setting.

30

3.5 ALARM SETUP

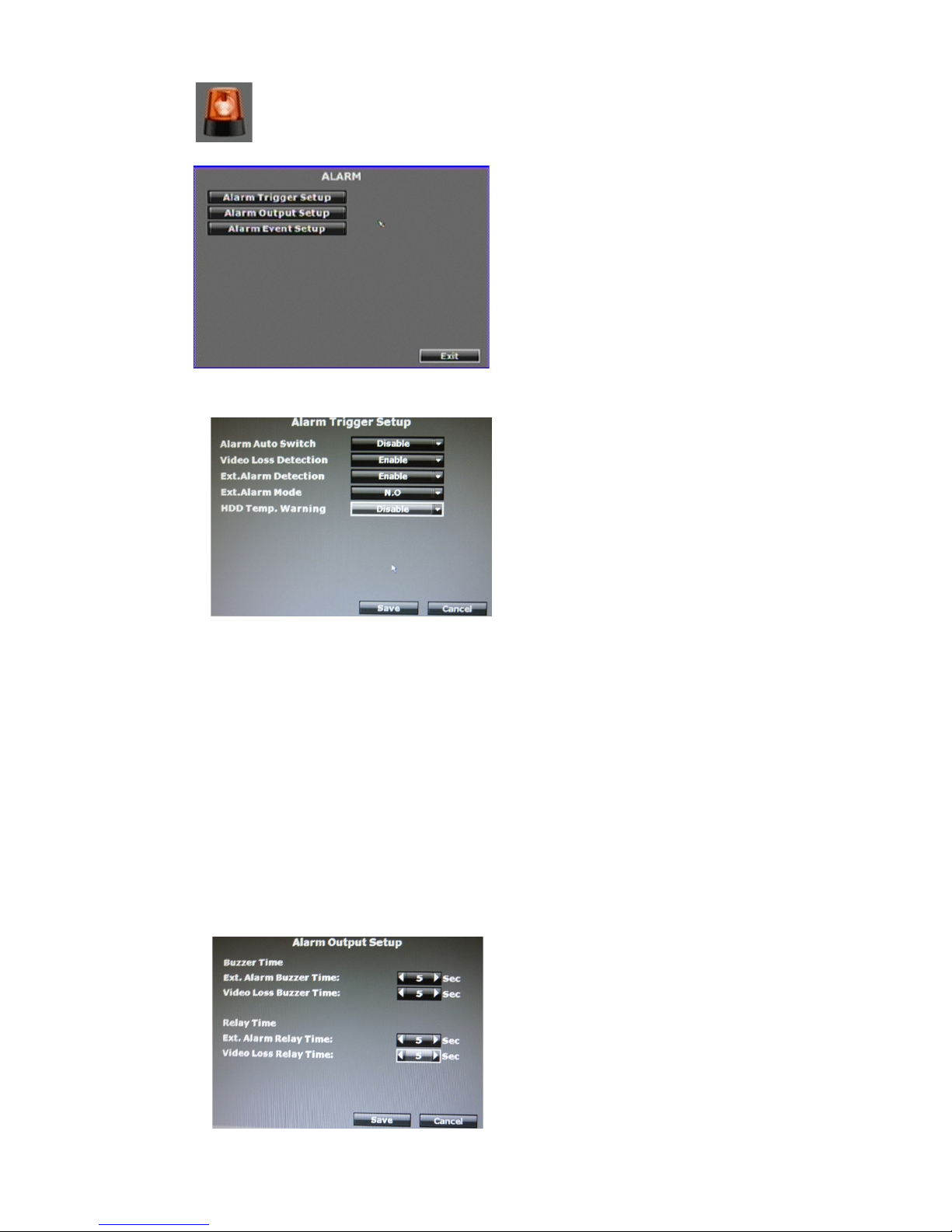

A. Alarm Trigger Setup

A-1. Alarm Auto Switch

Use the drop down list to switch the alarm auto switch. When the alarm is
triggered, the screen will switch to full screen, split screen (9CH split screen) or
disable.

A-2. Video Loss Detection

Use the drop down list to switch the video loss detection. When the video loss is
detected, the alarm will trigger.

A-3. Ext Alarm Detection

Use the drop down list to switch the Ext Alarm Detection. When the external

alarm is detected, the alarm will trigger.

A-4. Ext Alarm Mode

Choose normally open or normally close according to the external devise type.

A-5. HDD Temp. Warning

Use the drop down list to turn on or off the HDD Temp. Warning. When the HDD
temperature is too high, the alarm will trigger.

B. Alarm Output Setup

31

This control item separates into two parts, “Buzzer Time” and “Relay Time”. User can

press ◄ or ► to switch ext. alarm buzzer time and video loss buzzer time in “Buzzer
Time” option. The adjustment value is from 5 to 99 seconds. Moreover, among “Relay
Time” option, the user can press ◄ or ► to switch ext. alarm relay time and video loss
relay time. The adjustment value is from 5 to 99 seconds as well.

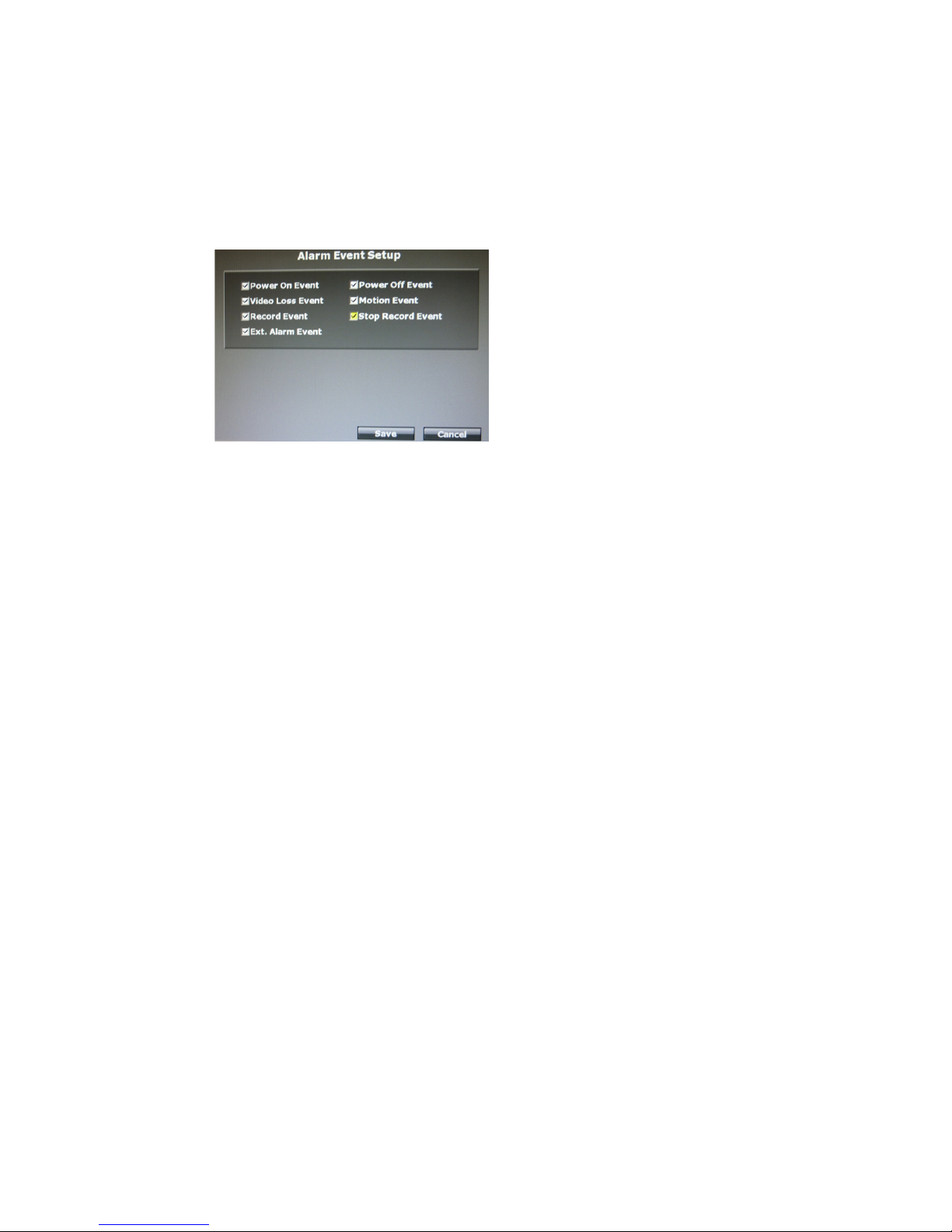

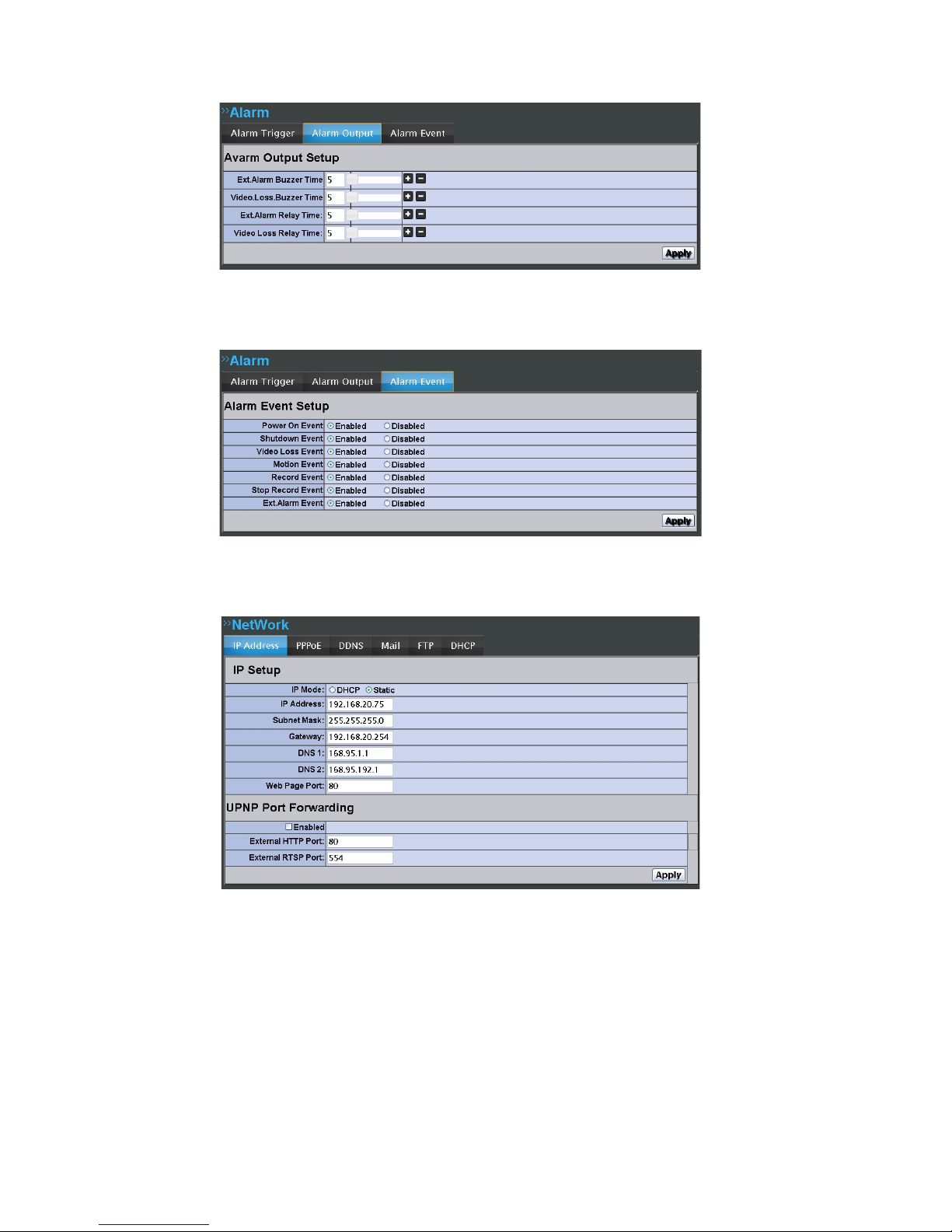

C. Alarm Event Setup

There are seven sort of events can be selected. When the selected items are happened
and triggered, the event will be recorded in the event list.

32

3.6 NETWORK SETUP

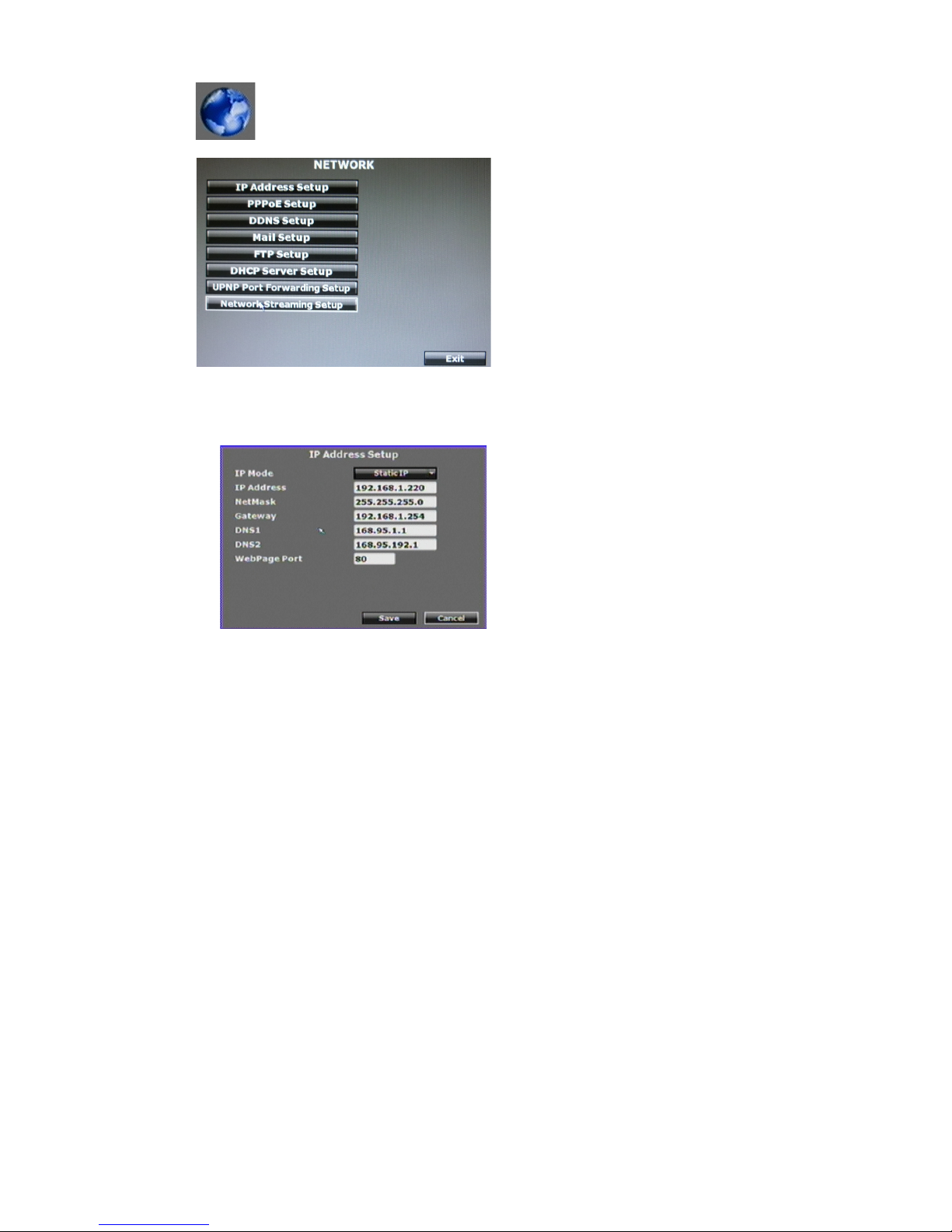

A. IP ADDRESS SETUP

Press ◄ or ► to setup HYBRID DVR IP address.

A-1. IP Mode

Press drop down list to change IP mode to STATIC IP or DHCP.

A-2. IP Address

Use the virtual keypad to setup the HYBRID DVR IP ADDRESS.

A-3. Network

Use the virtual keypad to change SUBNET MASK.

A-4. Gateway

Use the virtual keypad to change Default GATEWAY.

A-5. DNS1

Use the virtual keypad to change DNS.

A-6. DNS2

Use the virtual keypad to change OTHER DNS.

A-7. WebPage Port

Use the virtual keypad to change the IE browser port.

33

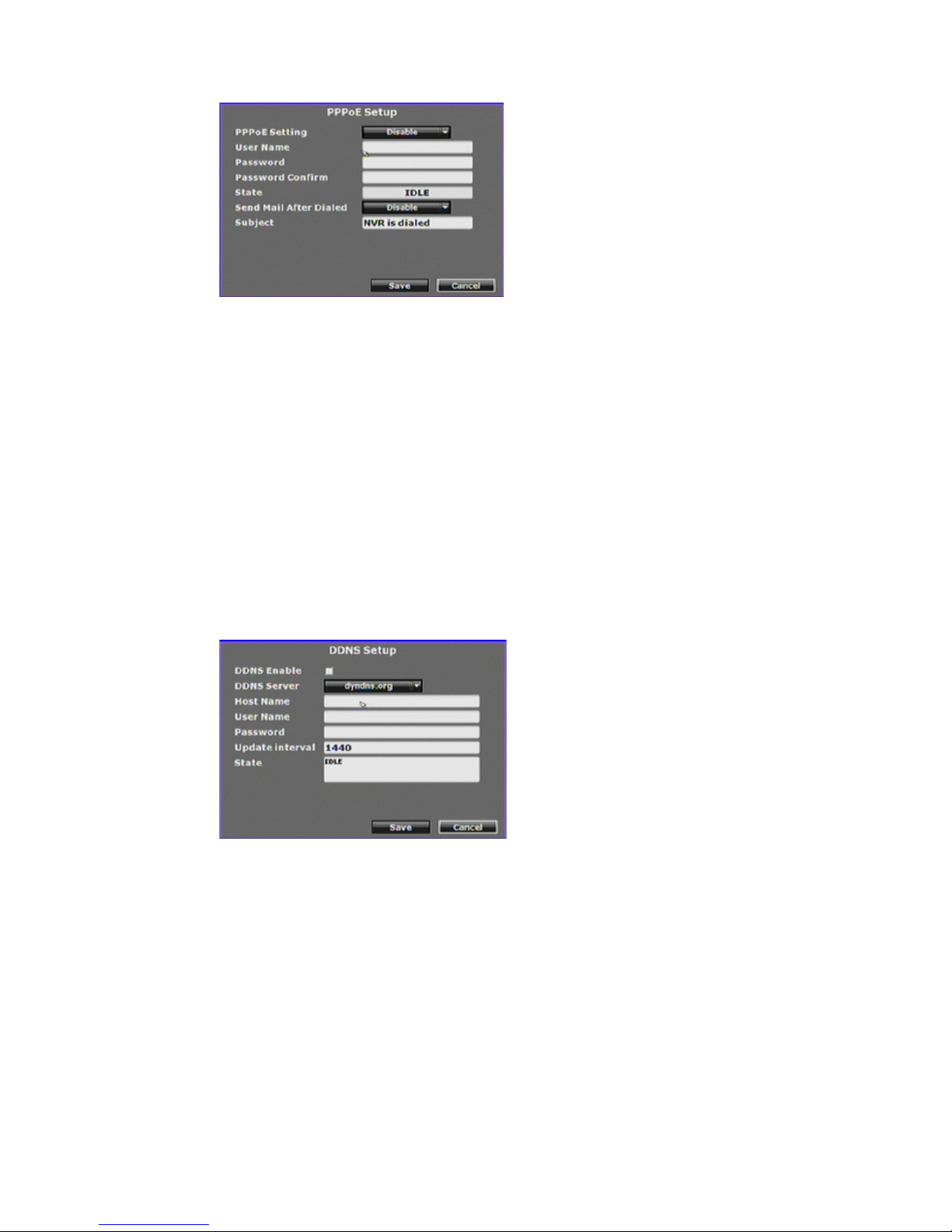

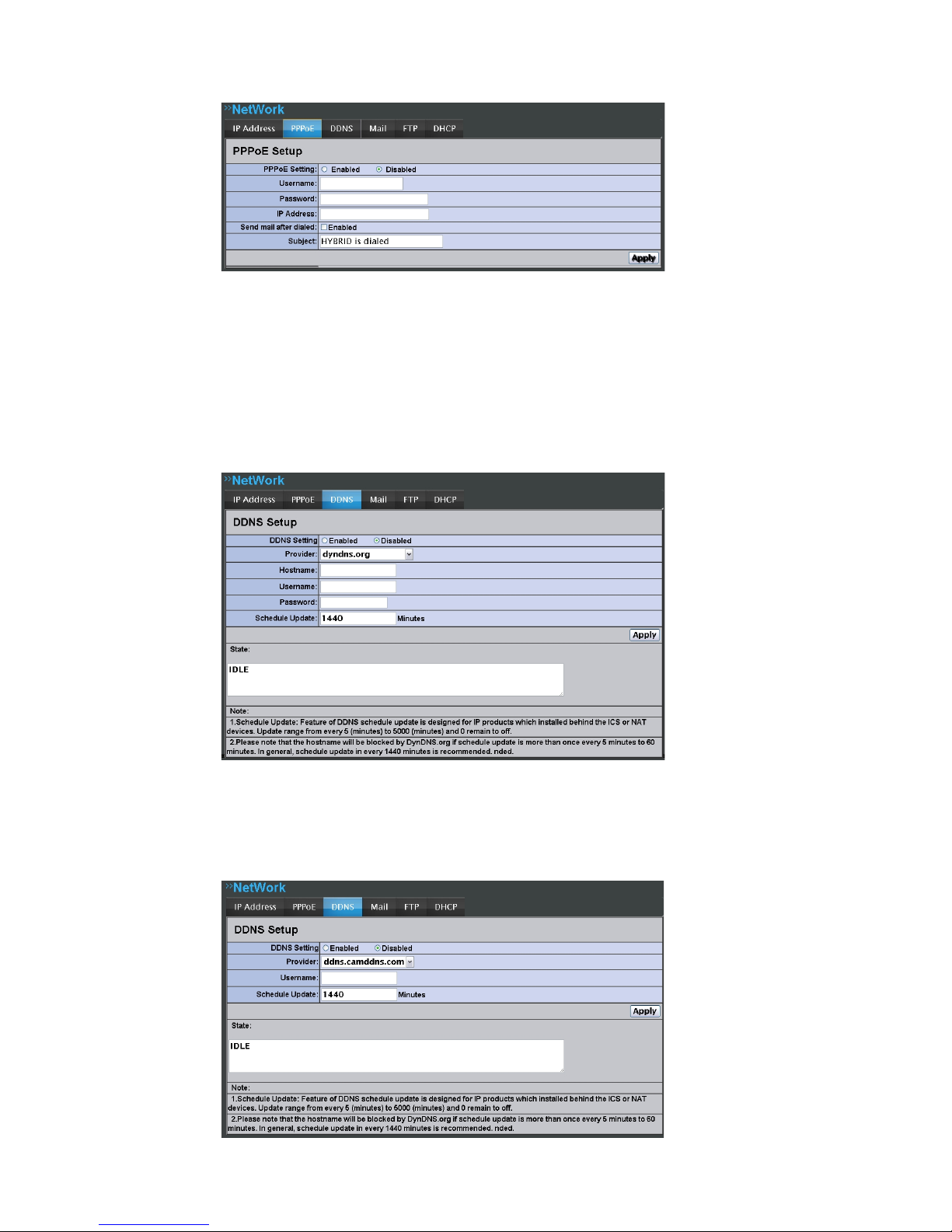

B. PPPoE SETUP

B-1. PPPoE Setting

Press the drop down list to enable or disable PPPoE.

B-2. User Name

Insert the user name (ADSL account) which provided from local ISP.

B-3. Password

Insert the password which provided from local ISP.

B-4. Password Confirm

Insert the password again to confirm the password.

B-5. State

Present the current status of PPPoE function.

B-6. Send Mail After Dialed

Click the drop down list to enable or disable the function.

B-7. Subject

Insert the mail subject when dialed successfully.

C. DDNS SETUP

C-1. DDNS Enable

Click the checkbox to enable or disable DDNS function.

C-2. Provider

Click the drop down list to select DDNS provider.

C-3. Host Name

Insert the registered host name in the selected provider.

C-4. User Name

Insert the registered user name in the selected provider.

C-5. Password

Insert the registered password in the selected provider.

C-6. Update Interval

A period of time to update IP address.

C-7. State

The state after apply for DDNS.
Updating: Information update.

34

Idle: Stop service.
DDNS registered successfully, now log by
http://<username>.ddns.camddns.com: Registered successfully.
Updating Failed, the name is already registered.

Updating Failed, please check your internet connection.

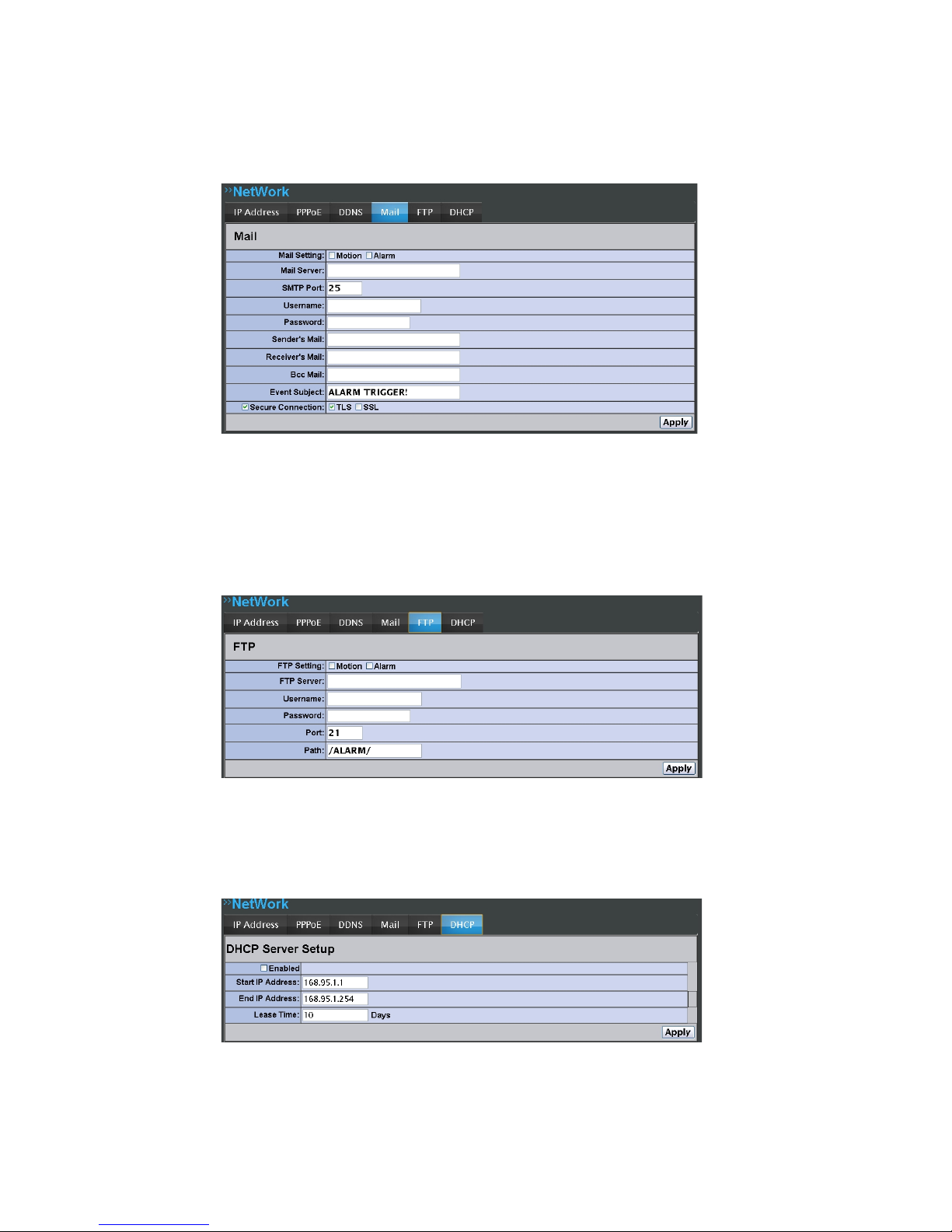

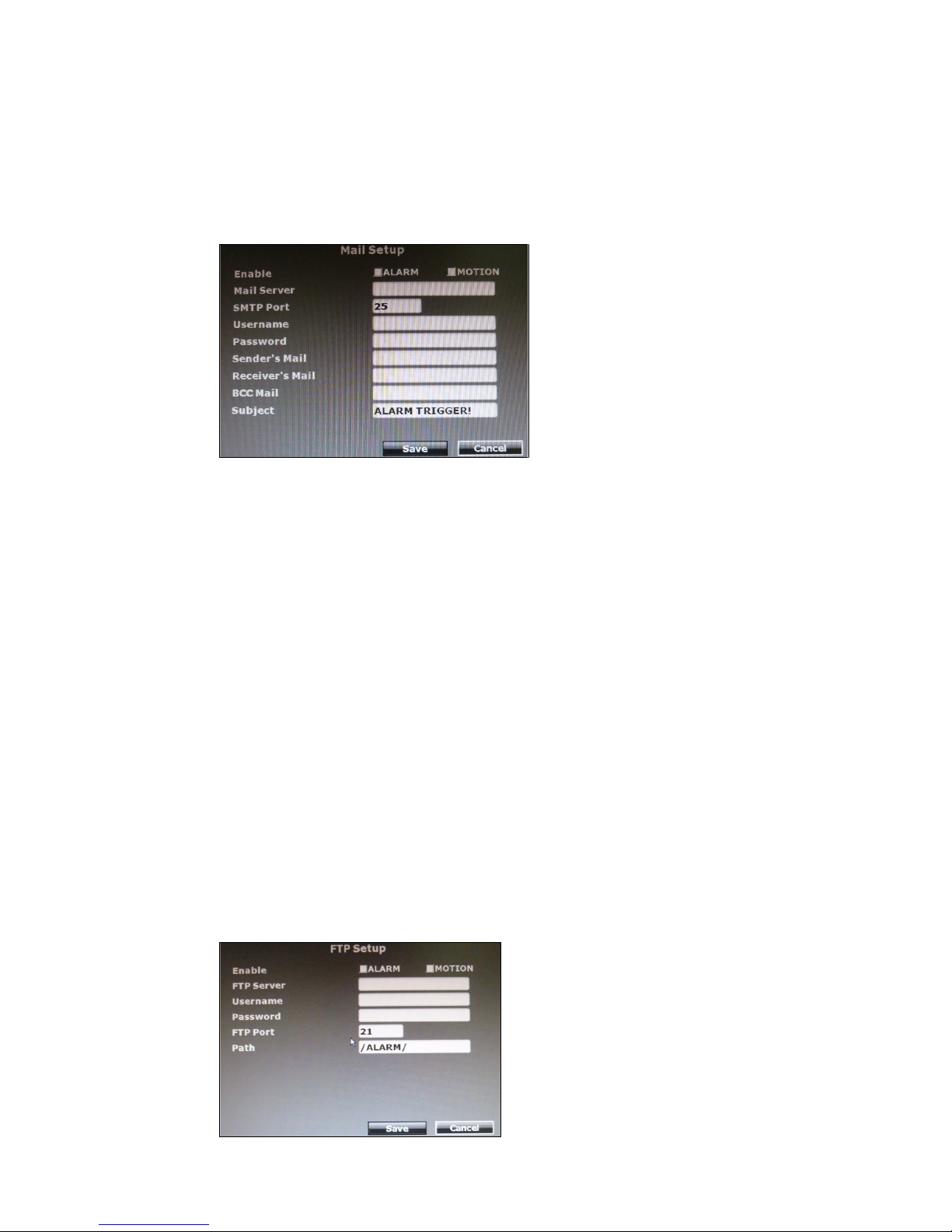

D. MAIL SETUP

D-1. Enable

Tick “Alarm” to send video to the mail address when external alarm is triggered.
Tick “Motion” to send video to the mail address when motion detection is
triggered.

D-2. Mail Server

The IP address of Mail Server

D-3. SMTP Port

The port of SMTP (known as Simple Mail Transfer Protocol). (Default value is

25)

D-4. User Name

The user name while log in to the mail server.

D-5. Password

The password while log in to the mail server.

D-6. Sender’s Mail

The sender’s account when send the mail via this mail server.

D-7. Receiver’s Mail

The receiver’s mail address.

D-8. BCC Mail

The receiver’s mail address for Bcc Mail.

D-9. Subject

The subject while sending the mail.

E. FTP SETUP

35

E-1. Enable

Use the checkbox to enable or disable FTP Server.

E-2. FTP Server

The IP address of FTP Server.

E-3. User Name

The username while log in to the ftp server.

E-4. Password

The password while log in to the ftp server.

E-5. FTP Port

The port number of file transmission. (Default value is 21)

E-6. Path

The ftp path where the user wants to reserve the information.

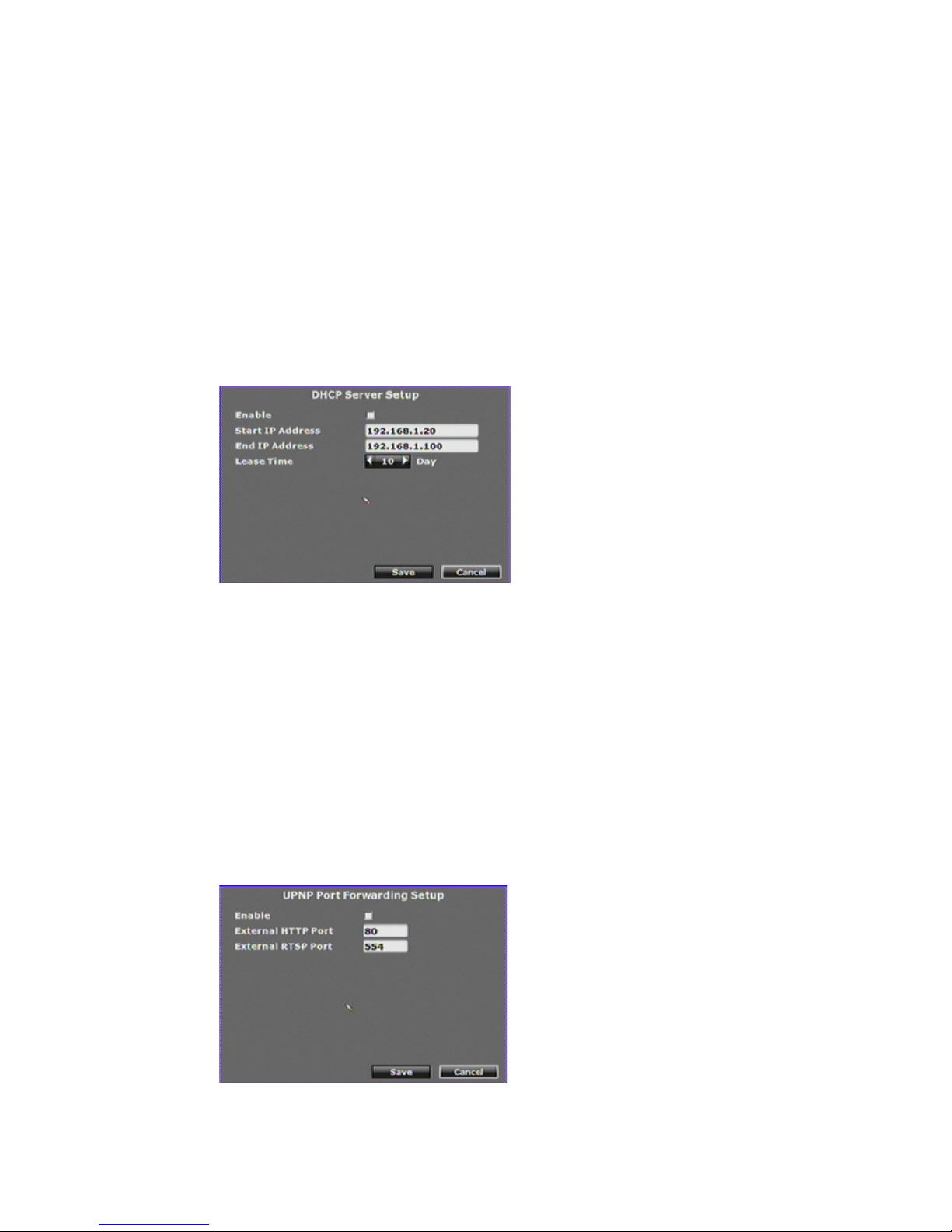

F. DHCP Server Setup

F-1. Enable

Use the checkbox to enable or disable DHCP Server function. When the function
is activated, the HYBRID DVR can be treated as the DHCP server. The
HYBRID DVR will assign or distribute one of the IP address which is according
to the setup IP address range (start and end IP Address.) to the connecting
IPCAM (setup DHCP function as well).

F-2. Start IP Address

Use the virtual keypad to insert the start IP Address of DHCP server.

F-3. End IP Address

Use the virtual keypad to insert the end IP Address of DHCP server.

F-4. Lease Time

Press ◄ or ► to change the lease time of DHCP server.

G. UPNP Port Forwarding Setup

G-1. Enable

Use the checkbox to enable or disable UPNP port setup.

36

G-2. External HTTP Port

Use the virtual keypad to insert the external http port.

G-3. External RTSP Port

Use the virtual keypad to insert the external rtsp port.

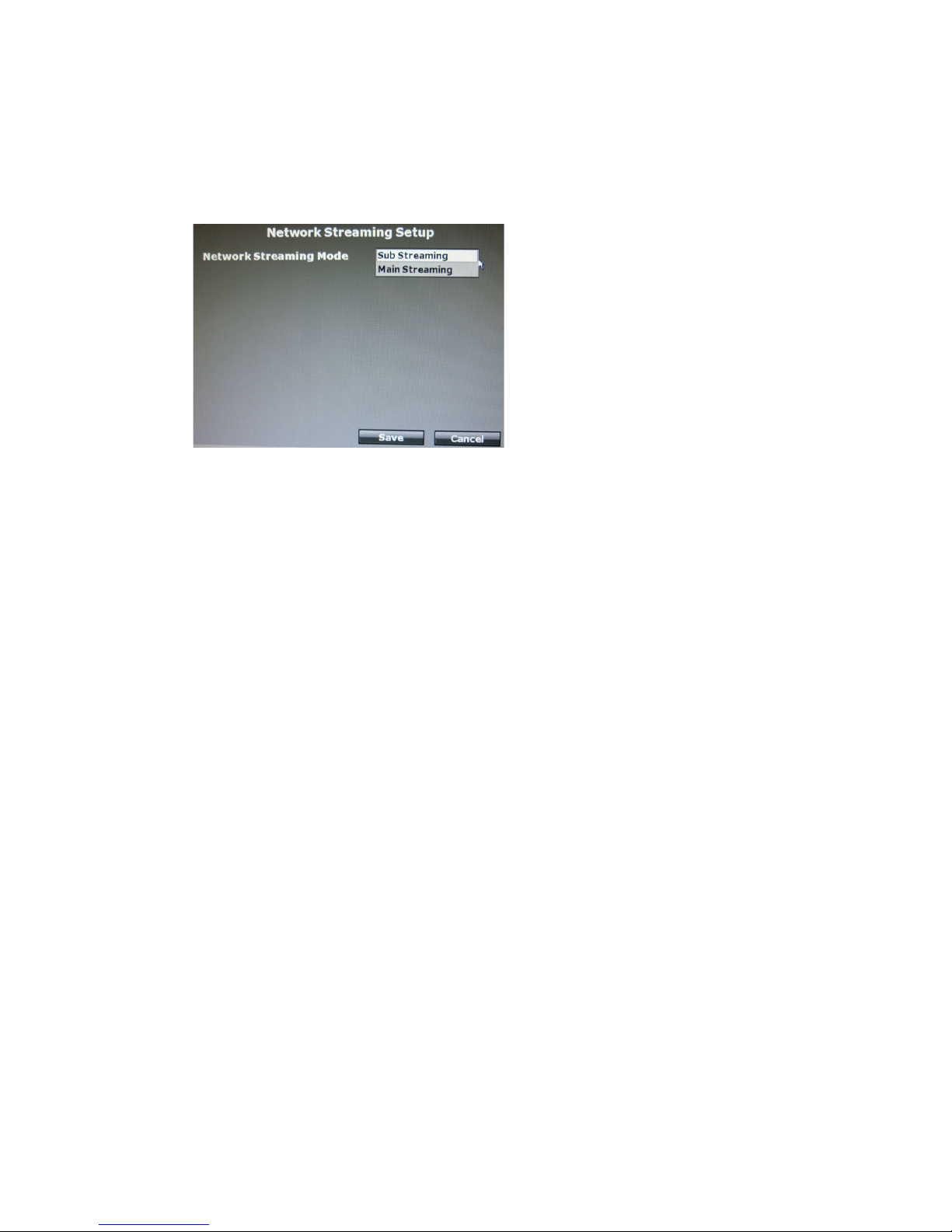

H. Network Streaming Setup

For Network Viewing, the Hybrid DVR provides two compression formats.

H-1. Main Streaming

Users view the H.264 video playback via Internet browser. Selecting the option can
save the disk space while spend more time when loading the video.

H-2. Sub Streaming

Other than the original H.264 video, the Hybrid DVR saves a copy of M-JPEG video
used for Network Viewing. If it takes long time when loading the video on the web,
selecting sub streaming here may make it faster. However, to store both the H.264
and M-JPEG video, more disk space must be consumed.

37

3.7 AUTHORITY SETUP

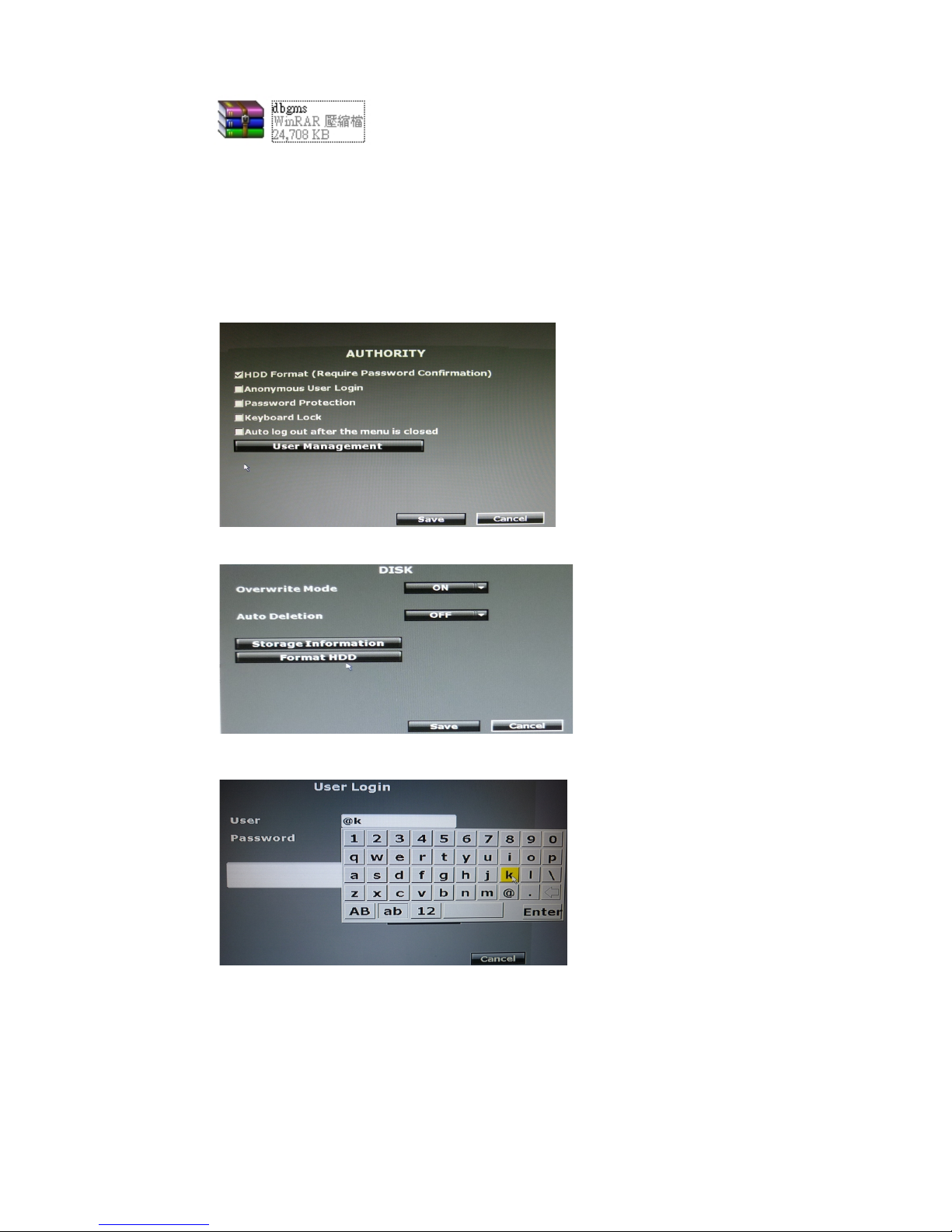

A. HDD Format

Use the checkbox to enable or disable the authority of HDD Format function. If
enable this function, the user has to insert password while performing HDD format.

B. Anonymous User Login

Use the checkbox to enable or disable the authority of anonymous user login. If enable
this function, the user does not have to insert the username/ password and can view
the live image via IE browser.

C. Password Protection

Use the checkbox to enable or disable the authority of password protection.

D. Keyboard Lock

Use the checkbox to enable or disable the operation of control bar which is in the right
hand side of live view. The control bar can not work when keyboard lock is activated.

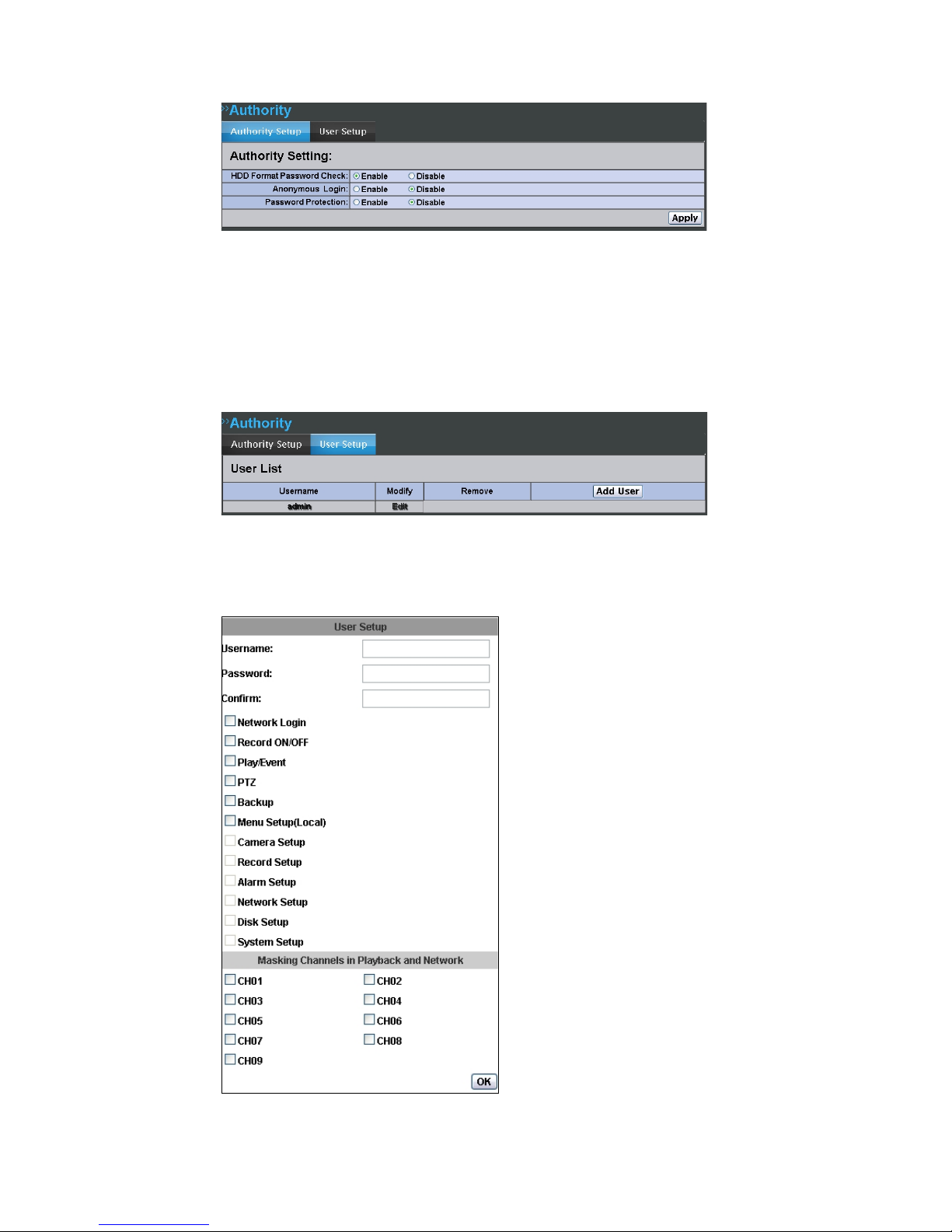

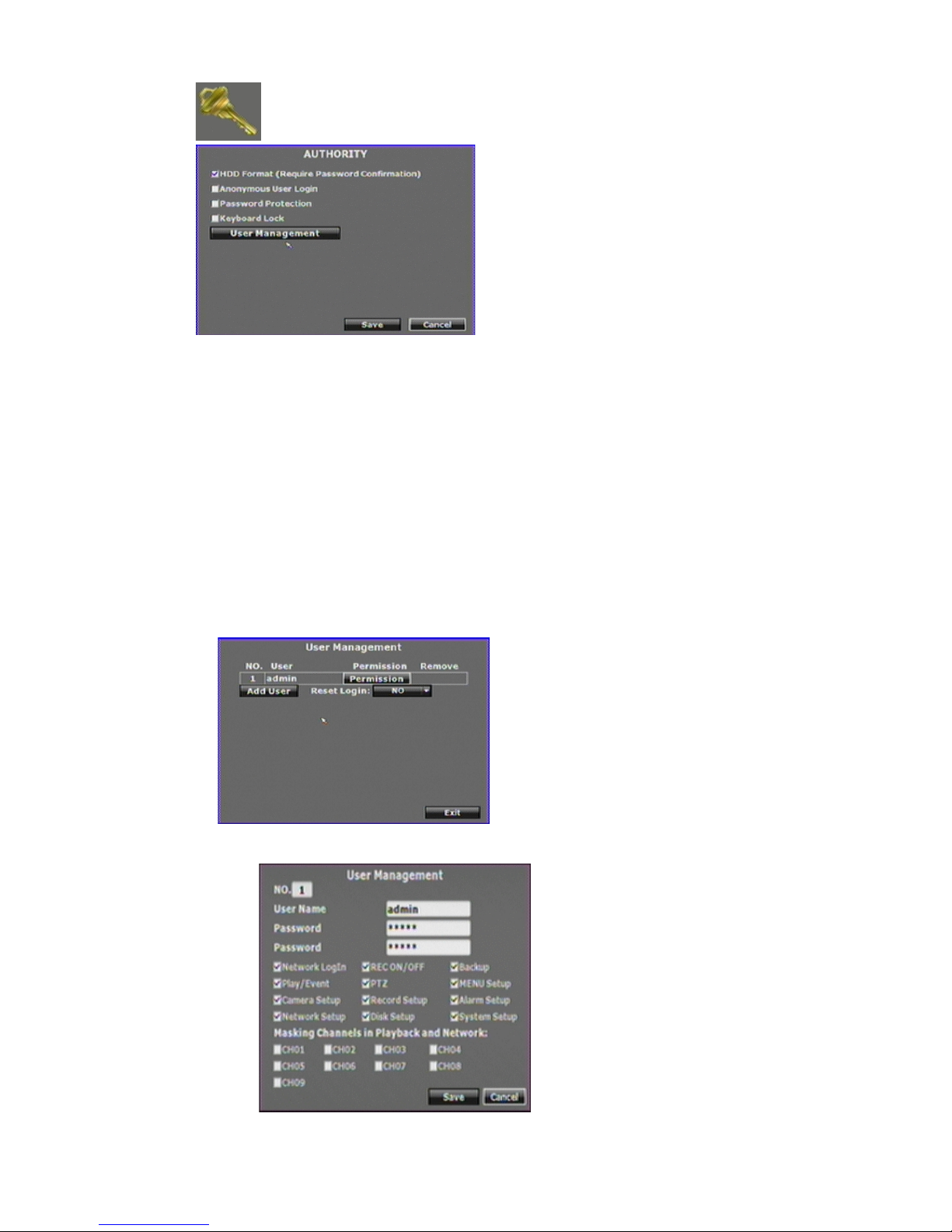

E. User Management

Among this item, user can setup the user management permission and the user
authority management.

E-1. Permission

Use the mouse to click the checkbox to modify and alter the user authority.

38

E-2. Add User

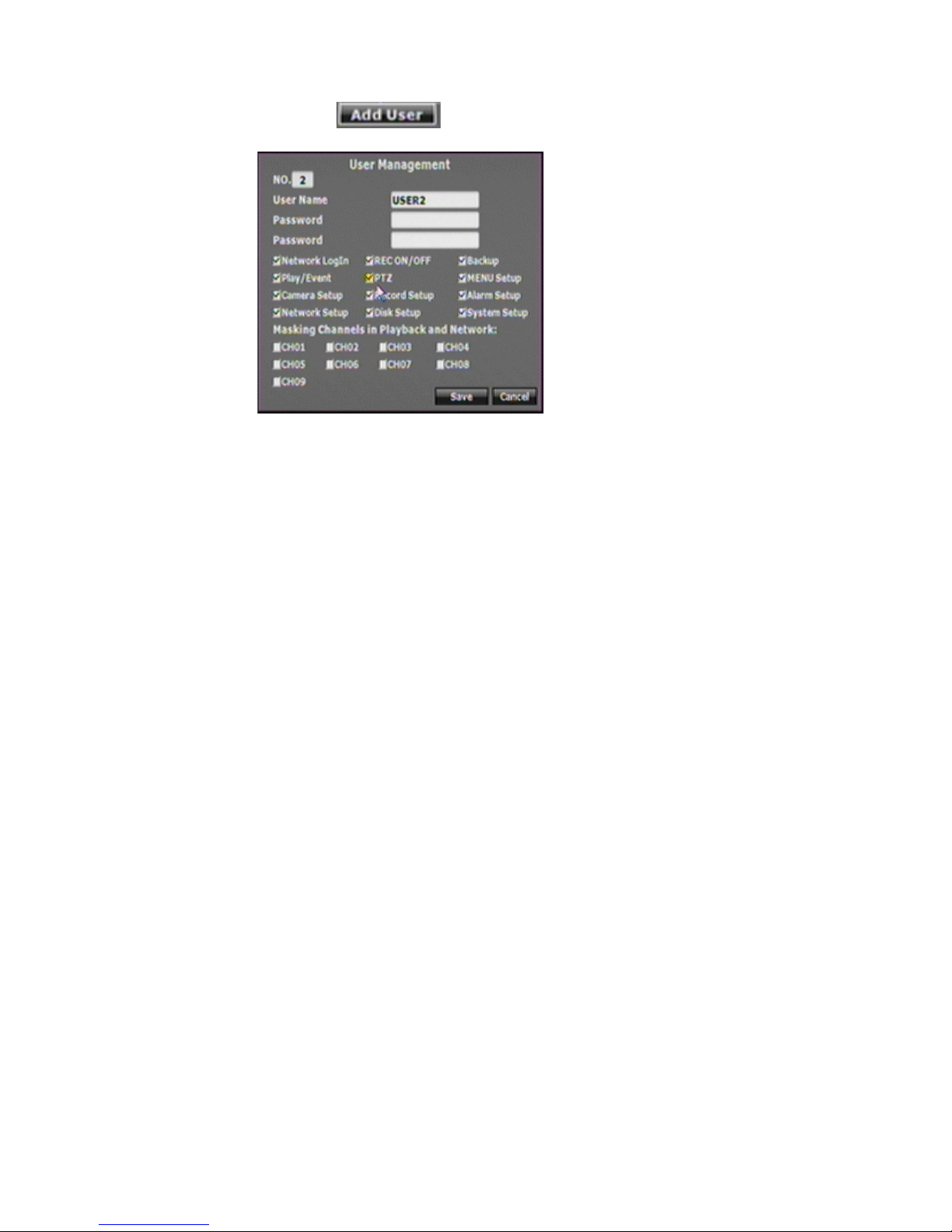

After click button, the setup page will present in the following.

The user can distribute the authority and the permission for the new user.

39

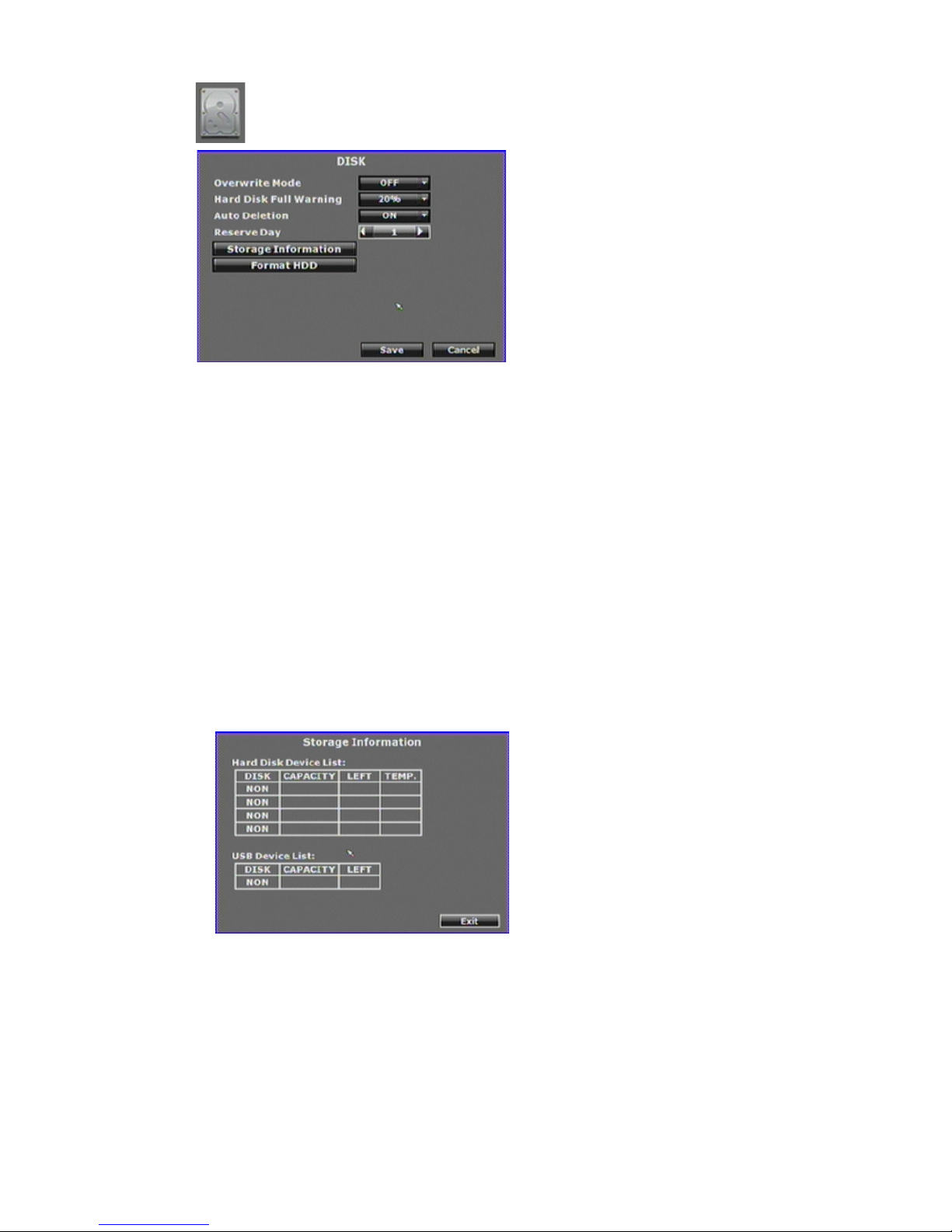

3.8 DISK MANAGEMENT

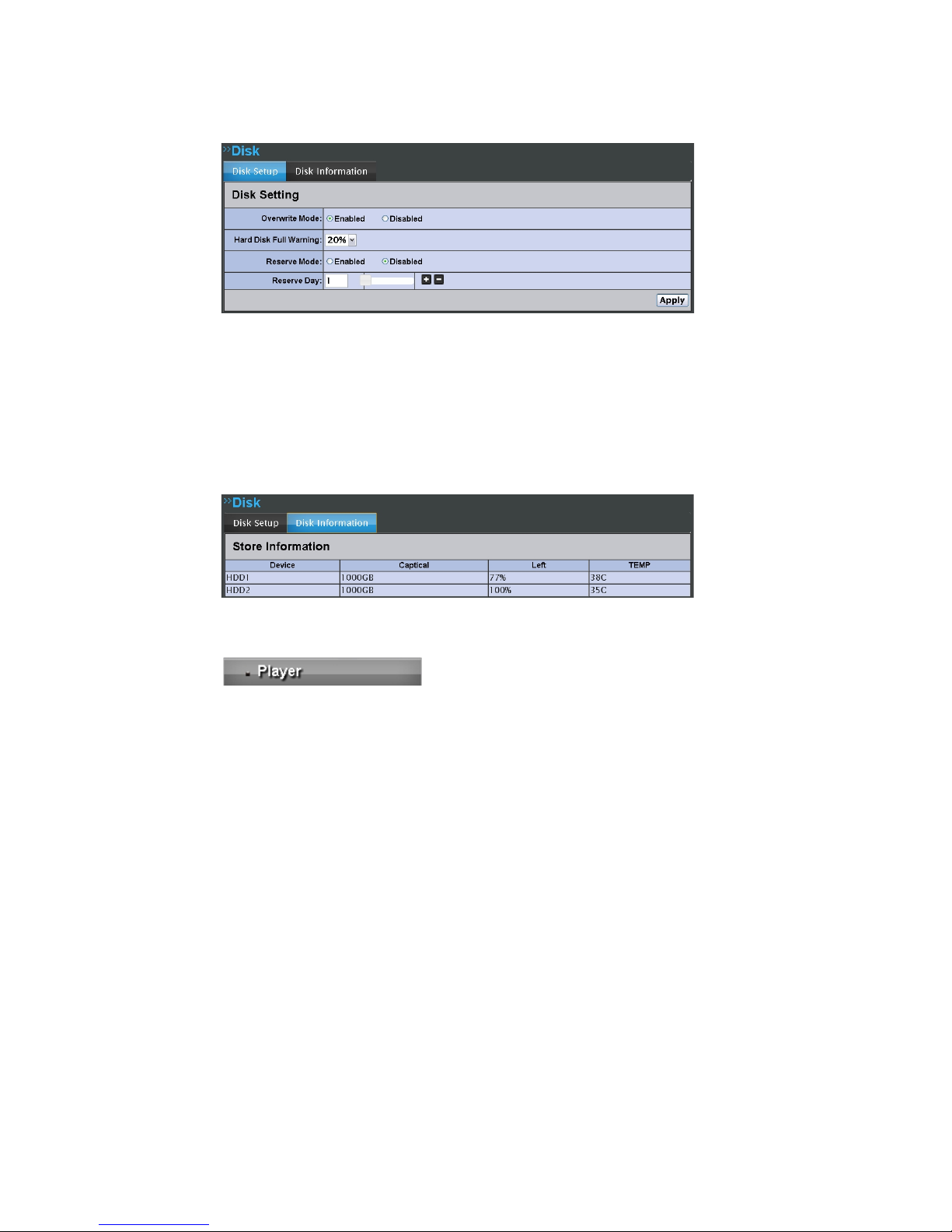

A. Overwrite Mode

Click the drop down list to enable or disable overwrite function.

B. Hard Disk Full Warning

Click the drop down list to change value to 20/ 15/ 10 or 5% with non-overwrite mode.
When LEFT RATIO is below the setting, it will enable AUDIBLE ALARM (If
AUDIBLE ALARM of BUZZER of ALARM SETUP is ON).

C. C. Auto Deletion

Select “ON”, then on the playback list, users cannot find the recording data that is

older than the reserve day.
For example, it’s 2012/10/19 17:40 now. Auto deletion is set as on, and reserve day is
set as 3. The recording data which recording time is order than 2012/10/16 17:40 will
not be indicated on the playback menu.

D. Reserve Day

Use ◄ or ► to setup the reserve day between 1~30 days.

Note: If the “Overwrite Mode” is set OFF and DVR keeps recording, the HDD will
finally get full regardless that “Auto Deletion” is ON.

E. Storage Information

The information of storage device will present in this page.

40

F. Format HDD

Insert the user name and password while performing HDD format function.

41

3.9 SYSTEM SETUP

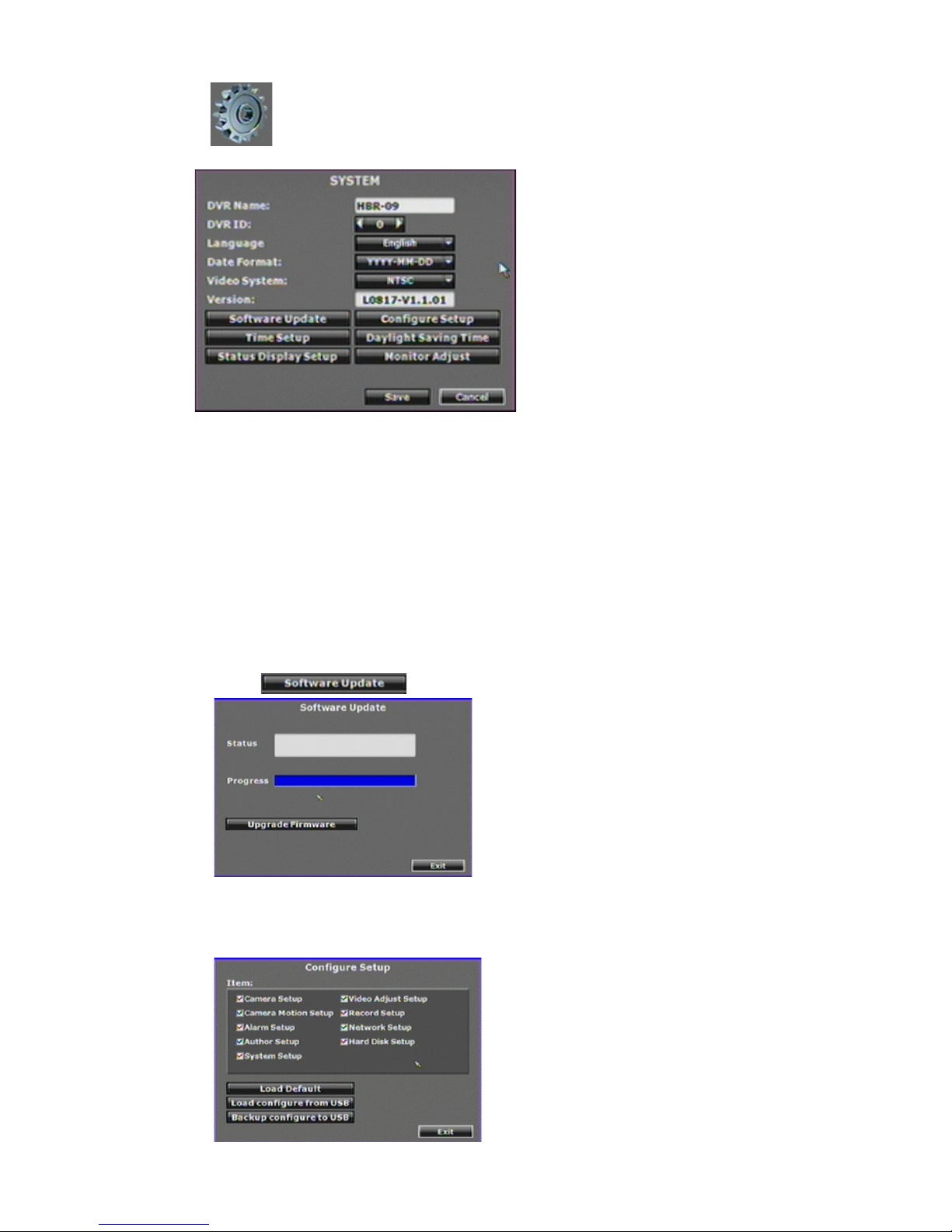

A. System Name

Use the virtual keypad to insert the name of the HYBRID DVR.

B. System ID

Use ◄ or ► to setup the HYBRID DVR ID. The adjustment value is between 0~32

C. Language

Use the drop down list to change the HYBRID DVR language. Currently, there are
English, Traditional Chinese and Simplified Chinese three options.

D. Date Format

Use the drop down list to change DATE. There are DD/MM/YYYY, YYYY/MM/DD
and MM/DD/YYYY three modes.

E. Version

The firmware version of the HYBRID DVR will show in this column.

F. Software Update

Click button to perform firmware updating.

G. Configure Setup

Click the checkbox to select which item can be setup by the user. The user can also
load the setting to factory default, load the configure from USB and backup configure
to USB.

42

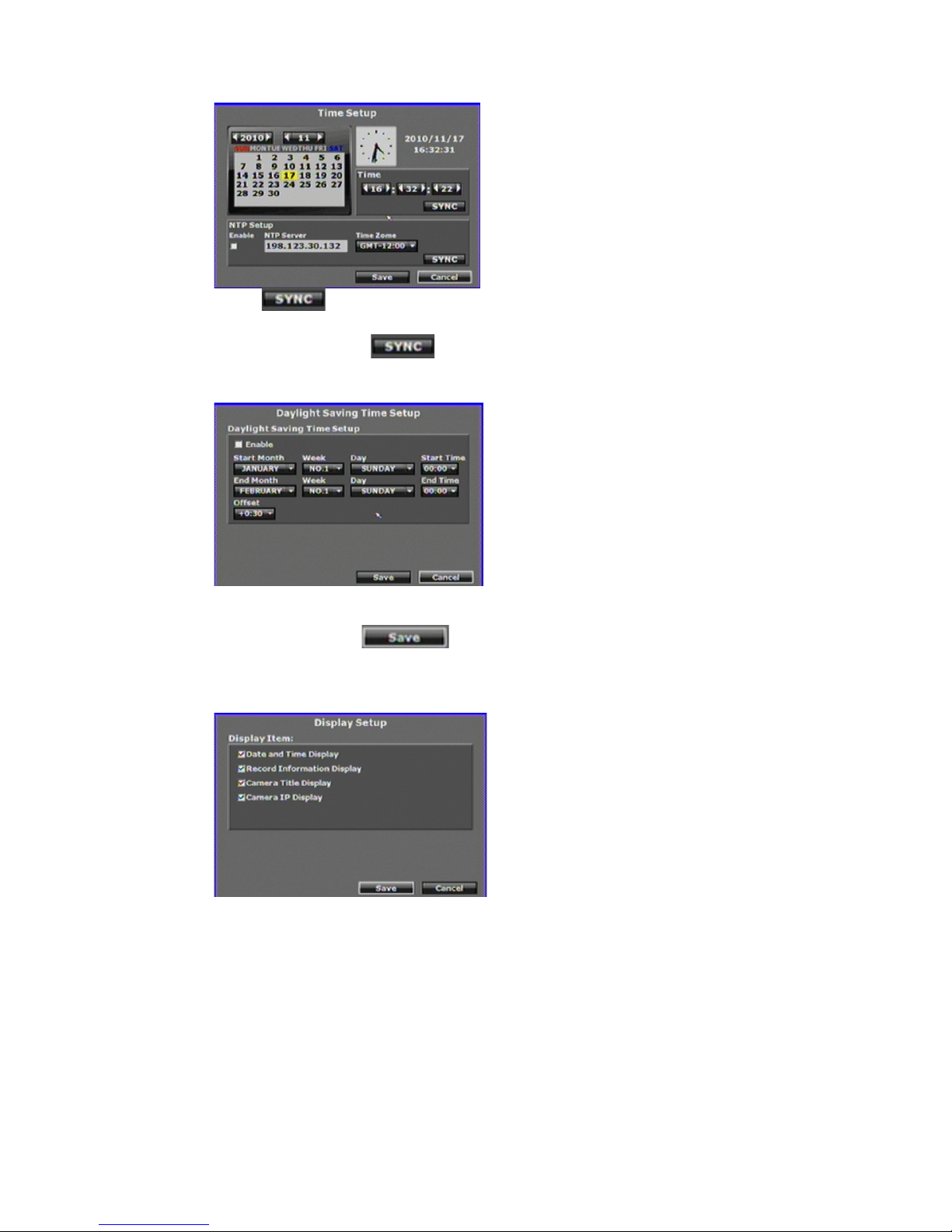

H. Time Setup

Click button within “Time” block can adjust and synchronize the time of
the HYBRID DVR as the system time of the PC. Moreover, if the user clicks the

enable checkbox and button within the NTP Setup block, the time of the
HYBRID DVR will synchronize as the NTP Server.

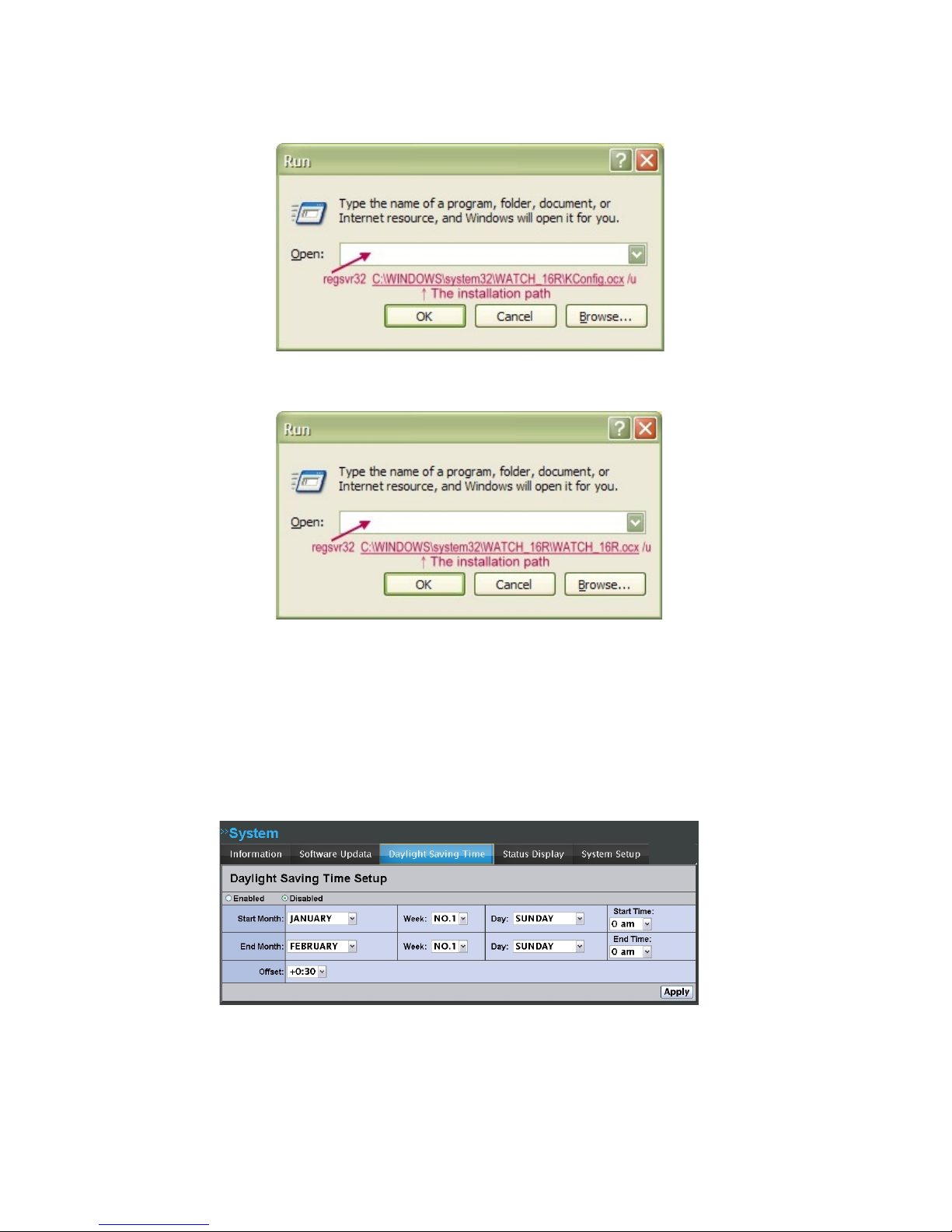

I. Day Light Saving Time

After enable the daylight saving time function, the user can use the drop down list to
select the start time and the end time of daylight saving time. After complete the

setting, please click button to reserve the setting.

J. Status Display Setup

Use the mouse to click the options, which is including “Date and Time Display”,
“Record Information Display”, “Camera Title Display” , and “Camera IP Display”.

43

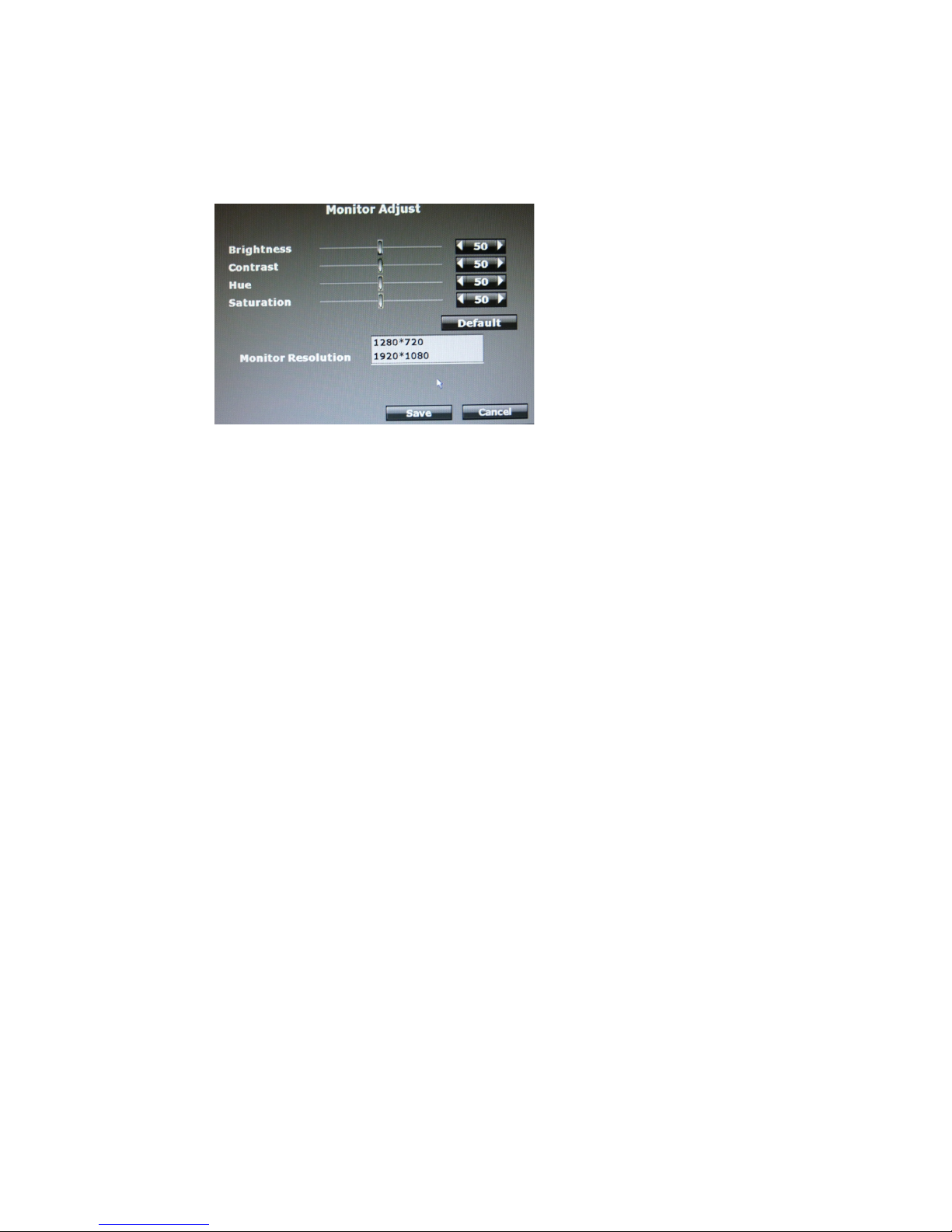

K. Monitor Adjust

User can use ◄ or ► to adjust the monitor related setting within this page, there are
“Brightness”, “Contrast”, “Hue” and “Saturation” four options can be set. You can also
adjust Resolution here by selecting “1280*720”, or “1920*1080(HDMI) /
1280*1024(VGA).” The video output interface, HDMI or VGA, affects the resolution
options.

44

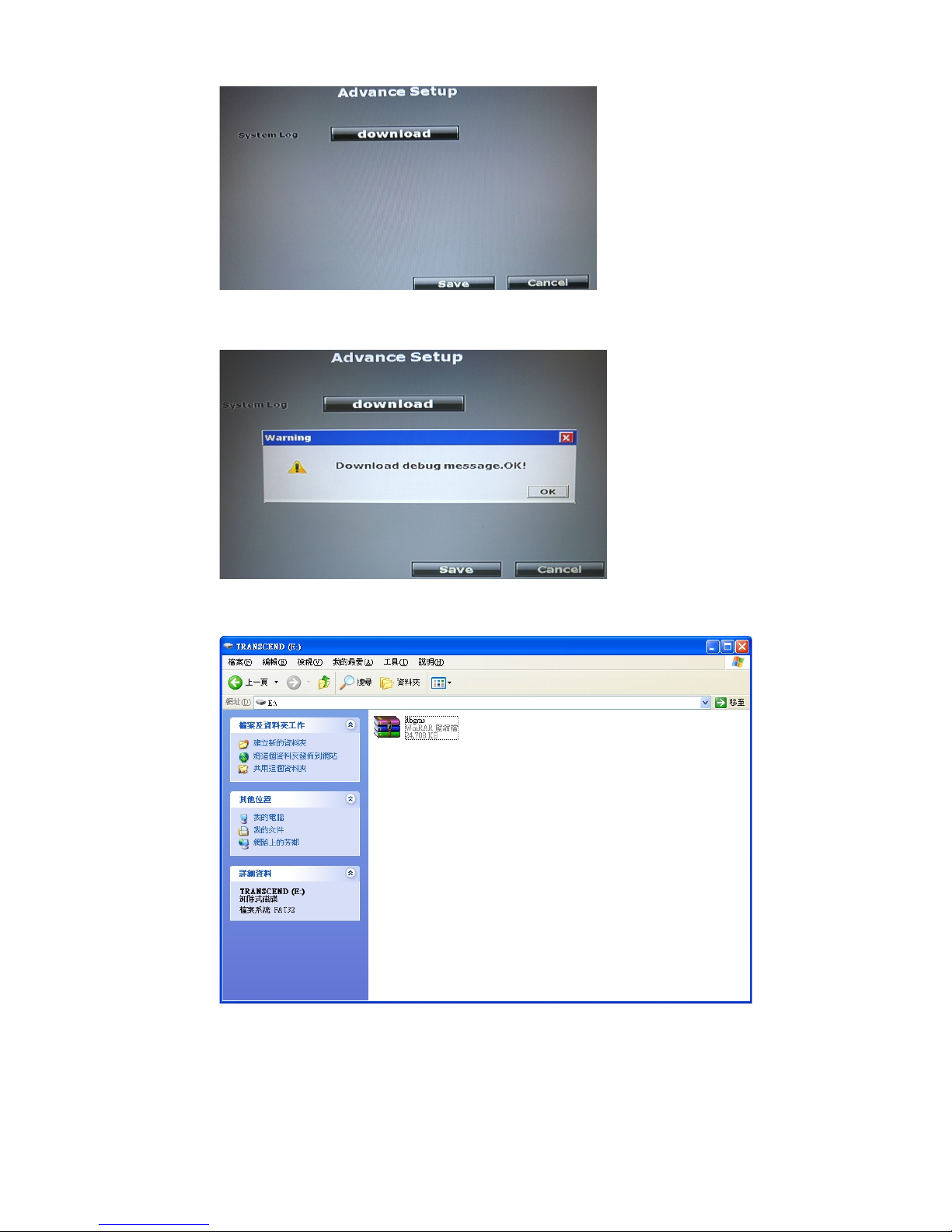

3.EX DEBUG MESSAGE

The purpose of the following procedure is to export a HDD debug message file. If user has

problems with the DVR, the technical person can analysis the file and might find the cause

of problem.

 Plug in a USB disk.

 Enter the Authority Setup page and make sure the option “HDD Format (Require

Password Confirmation)” is ticked.

 Enter the Disk Setup page. Click “Format HDD”.

 Key in “@k” in the user name column to login. No password is required.

 The screen turns to Advance Setup page. Click download. It takes about 10 seconds to

export the file.

45

 When the downloading is complete, a message pops up to remind the user. Click”

OK”.

 Now the debug message file should have been in your USB disk. Please turn the file”

dbgms.tar” to HUNT’s technical person.

46

4 HYBRID DVR PLAYBACK

Note: Under playback mode, it will output sound when switch to full screen mode.

A. RECORD BACKUP

With playback mode, press this button to backup record (.ha0 video backup) and press
this button again to finish backup. For performing the single image backup (.jpg single

image backup), press first and then click this button to backup the necessary image.

B. AUDIO VOLUME

Press this button, and the audio volume control board will pop up.

C. DISPLAY CONTROL

Within playback mode, use display control to switch the camera channel.

E. DIGITAL ZOOM

In the live full screen mode, left-click the button of the mouse to pull a range to zoom
in or zoom out the image. User can right-click the button of the mouse to disable this
function. (NOTE: Using the mouse to operate digital zoom can zoom in to max. 16
times.) Moreover, user can also use ZOOM key on the front panel to perform this
function. (First, click ZOOM Key and then click ▲▼◄► key to select zoom in or
zoom out position. Finally, click ENTER key to complete the setting. Moreover, click

47

ZOOM Key again can disable digital zoom function. Using the panel key to perform
zoom in function is fixed at 2 times.)

F.

E. RECORD AND PLAYBACK CONTROL

Same as front panel controller and remote controller.

48

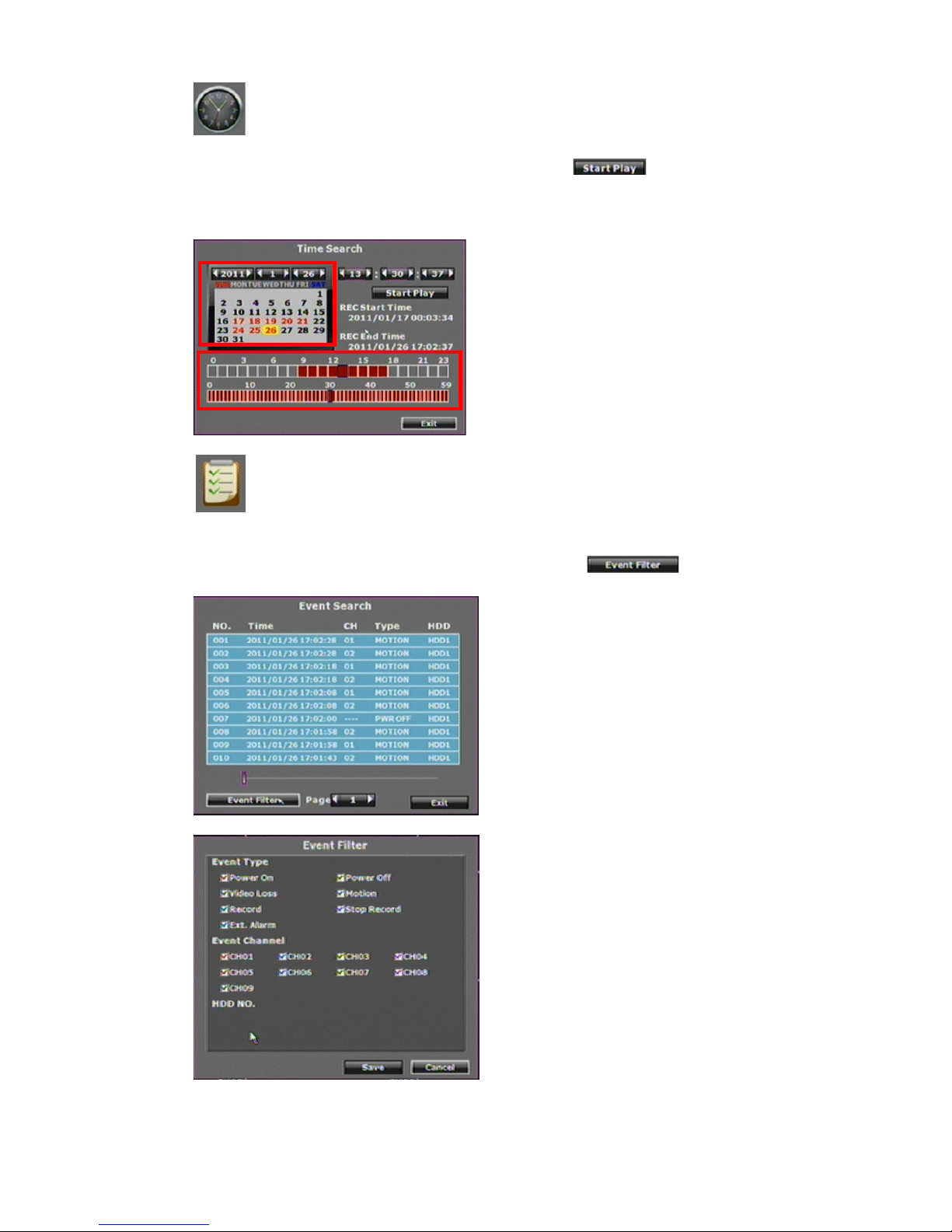

4.1 TIME SEARCH

Select the start of playback time and then click button to playback the
recorded data. If the time contains the recorded data, the time point within this page will
become red.

4.2 EVENT SEARCH

After entry to the event search page, user can click the event log item which shown on the

list to start playback. Moreover, the user could click button to select the
specific event option to filter the event option that shown on the list.

49

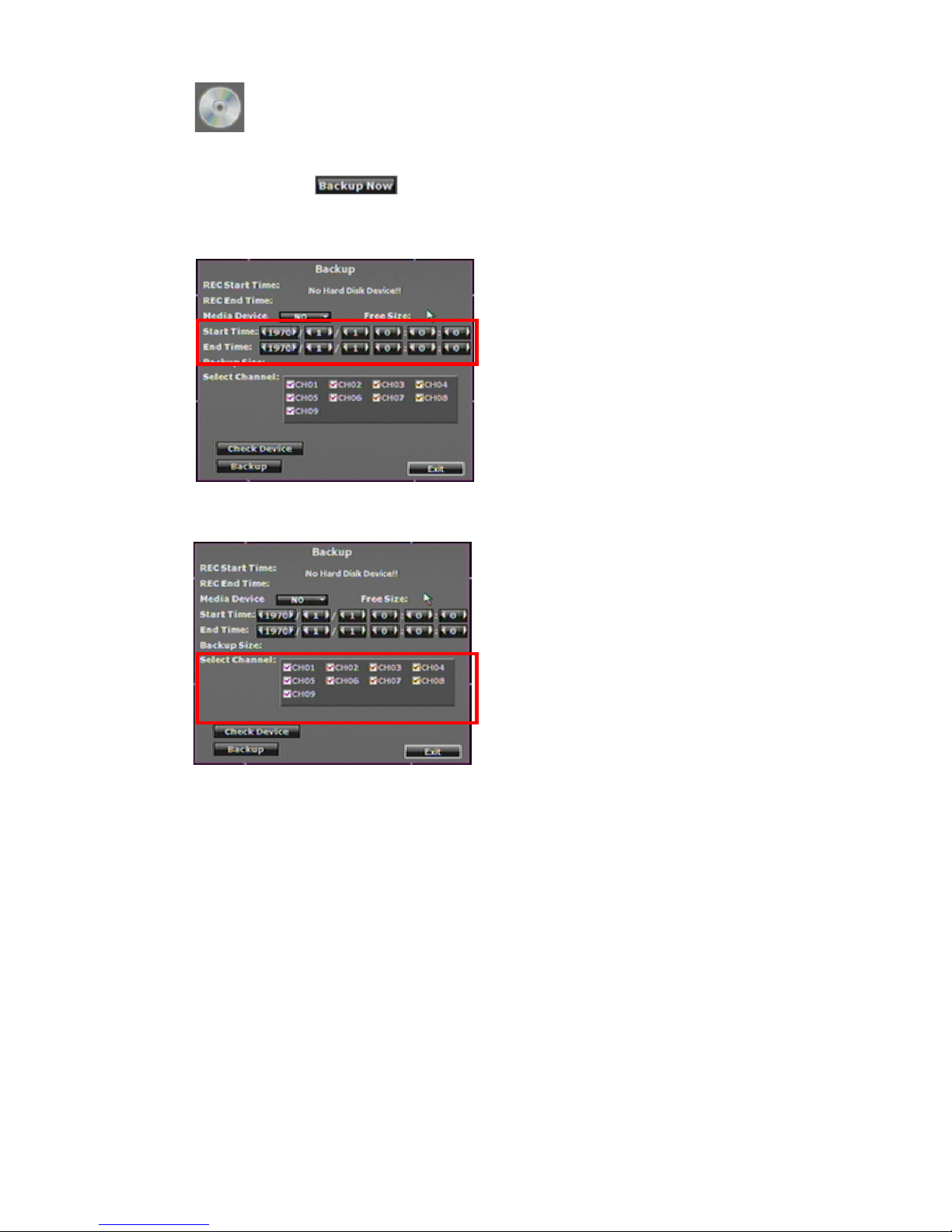

4.3 BACKUP

After click the backup button, the user could use drop down list to select the storage
device, USB/ DVD-RW and the backup time selection mode, Time Mode/ Hours Mode.

After that, click button to start backup.

TIME MODE

Click ◄ or ► to select the start and end backup time.

Moreover, among “Select Channel” option, use the mouse to select the channel which is
going to backup.

50

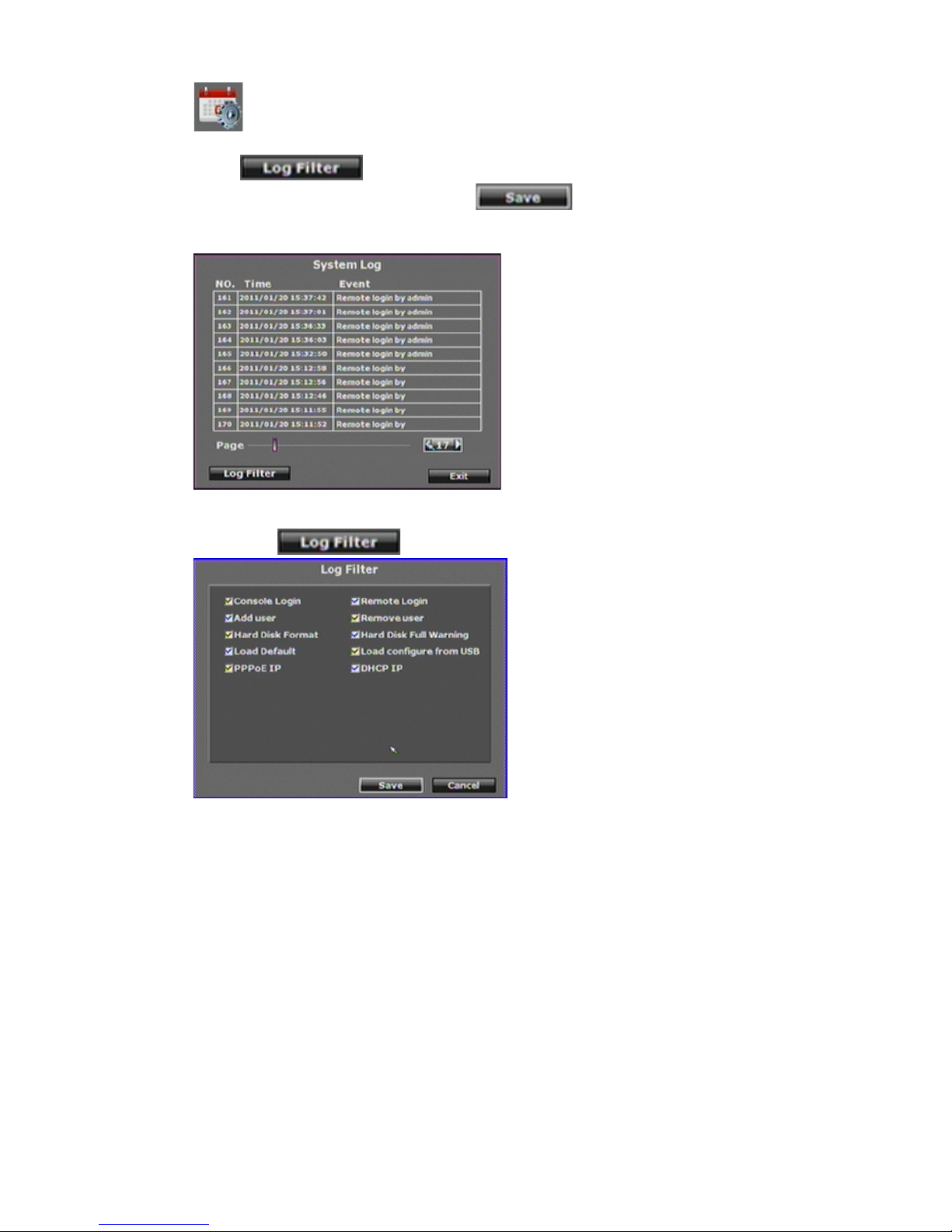

4.4 SYSTEM LOG

System log is reserved all of the system record. The maximum storage quantity is 2000.

Click button to perform the further data filter action. After complete

the specific item selection, please click button to reserve the setting. While
return to the system log page, it will only reveal the specific selection items.

After click button

51

5 BACKUP PLAYBACK

SYSTEM REQUIREMENT

CPU: Intel Celeron 1.6G
MEMORY: 256MB.
VGA: 32MB
VGA RESOLUTION: 1024 x 768.
OS: Windows XP / 2000 or above

SUGGESTED REQUIREMENT

CPU: Intel P4 2.8G
MEMORY:512MB or above
VGA:64MB or above
VGA RESOLUTION:1024 x 768
OS: Windows XP / 2000 or above
NETWORK BANDWIDTH: Upload Speed is 256kbps or above

5.1 MAIN SCREEN SETTING

The player (D6Viewer.exe) is used to play the DVR backup
video. D6Viewer.exe can be obtained via the Internet; moreover, while performing
USB backup and DVD-RW backup, the software will be built automatically as well.

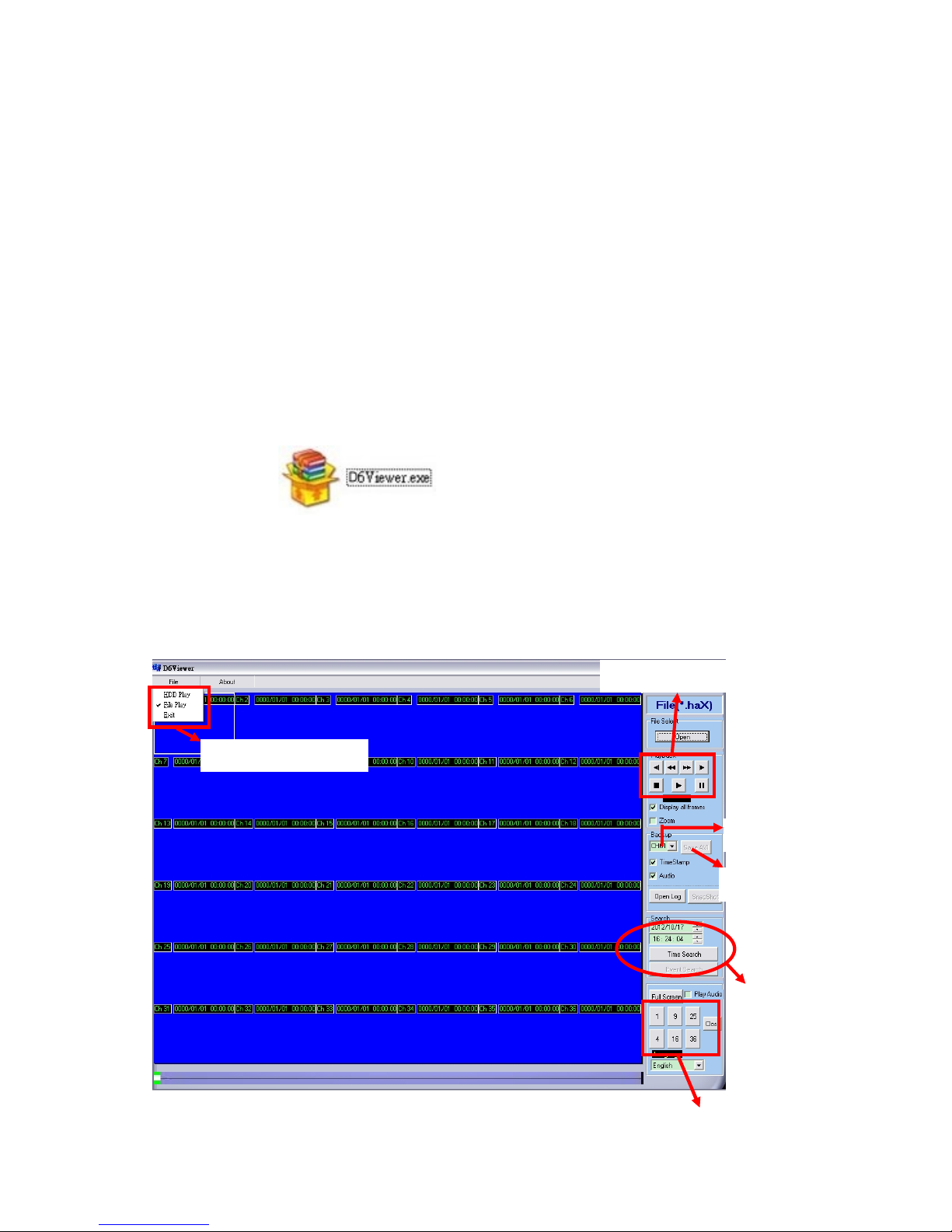

A. MAIN SCREEN

Open the D6Viewer. Use Overlay mode can improve the system resource
performance.

Select video source

Playback Control

Save as AVI

Time & Event

Search
Channels Divide Screen

Channel Selected

52

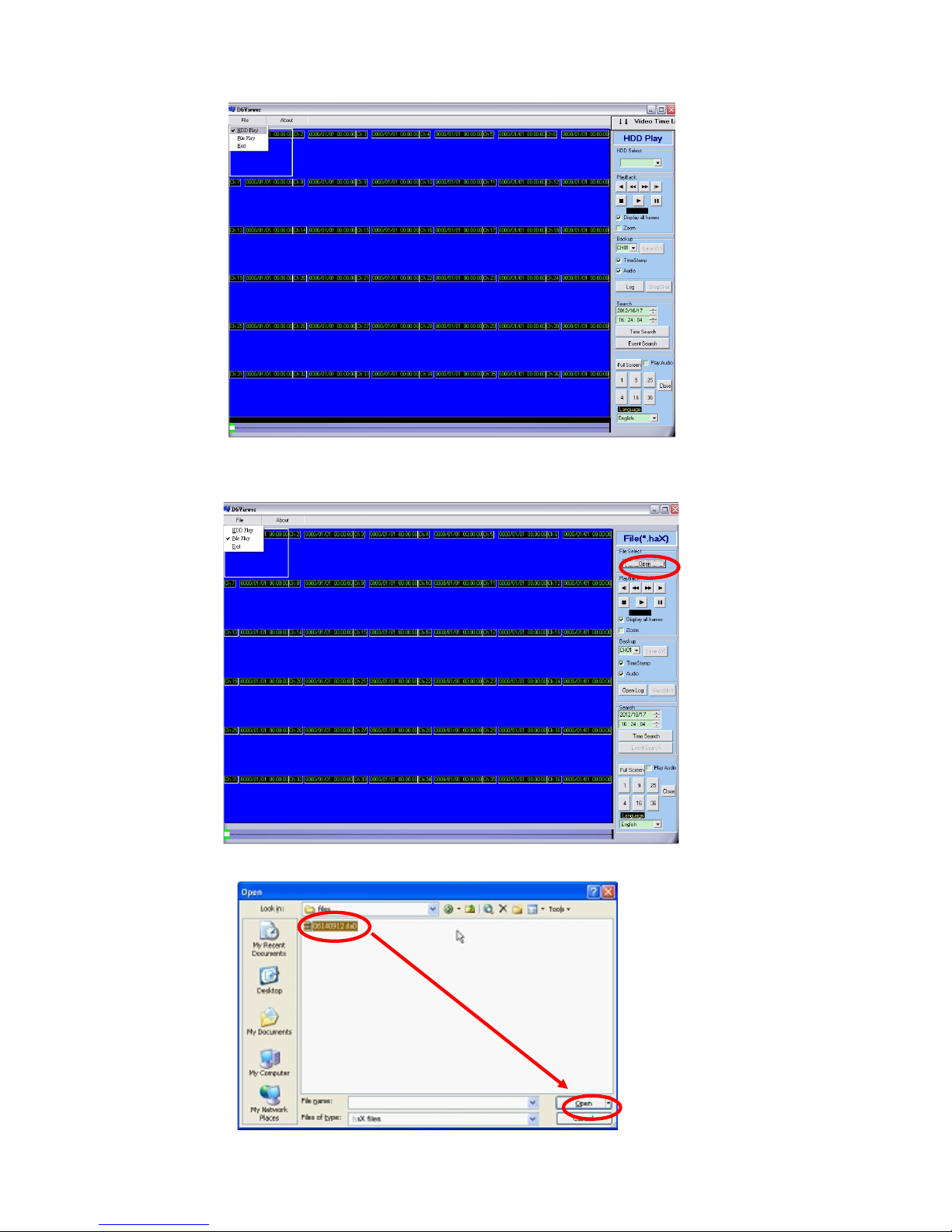

B. HDD PLAY

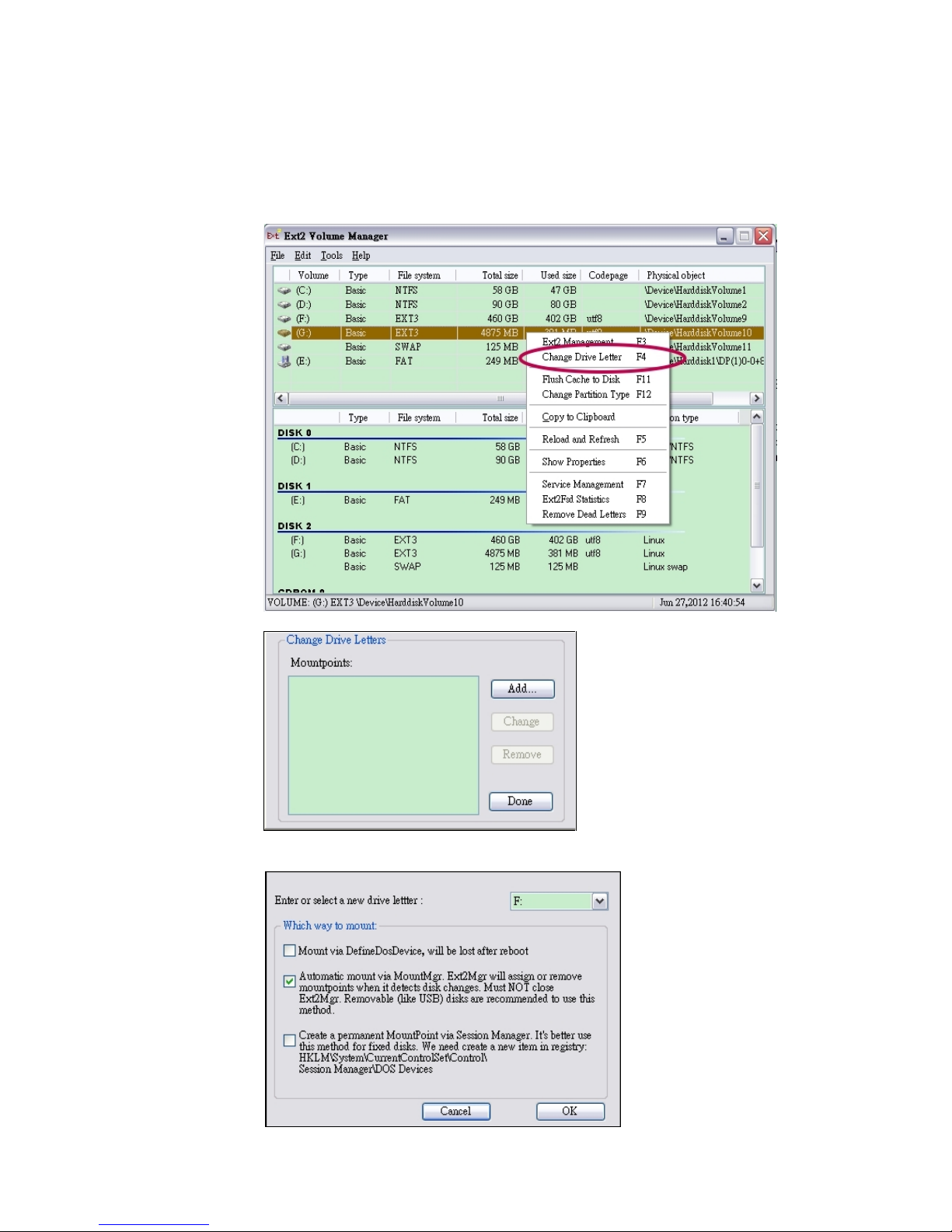

1. Remove the DVR HDD and connect it to the PC. The DVR HDD is Linux format,
so the Windows system may not know it. Please use the software “Ext2Fsd” to assign
a drive letter to the HDD. “Ext2Fsd” is in the attached CD or can be downloaded from
the Internet.
 Start the Ext2Fsd, and it will detects all the disks connected with your PC.

Right-click on the DVR HDD and choose “Change Drive Letter”.

 Click “Add”

 Assign a letter to the HDD, then click OK so that the HDD get the letter and

can be recognized by the Windows.

53

2. Under HDD play mode, select the DVR HDD to load the video file in the HDD.

C. File Play

1. You can use D6Viewer to open a single video backup file. Under file play mode,
select "Open".

2. Choose the path that the .haX file is reserved and pick the file to playback.

54

3. Press the play icon to play the video or still picture.

5.2 PLAYBACK OPERATION

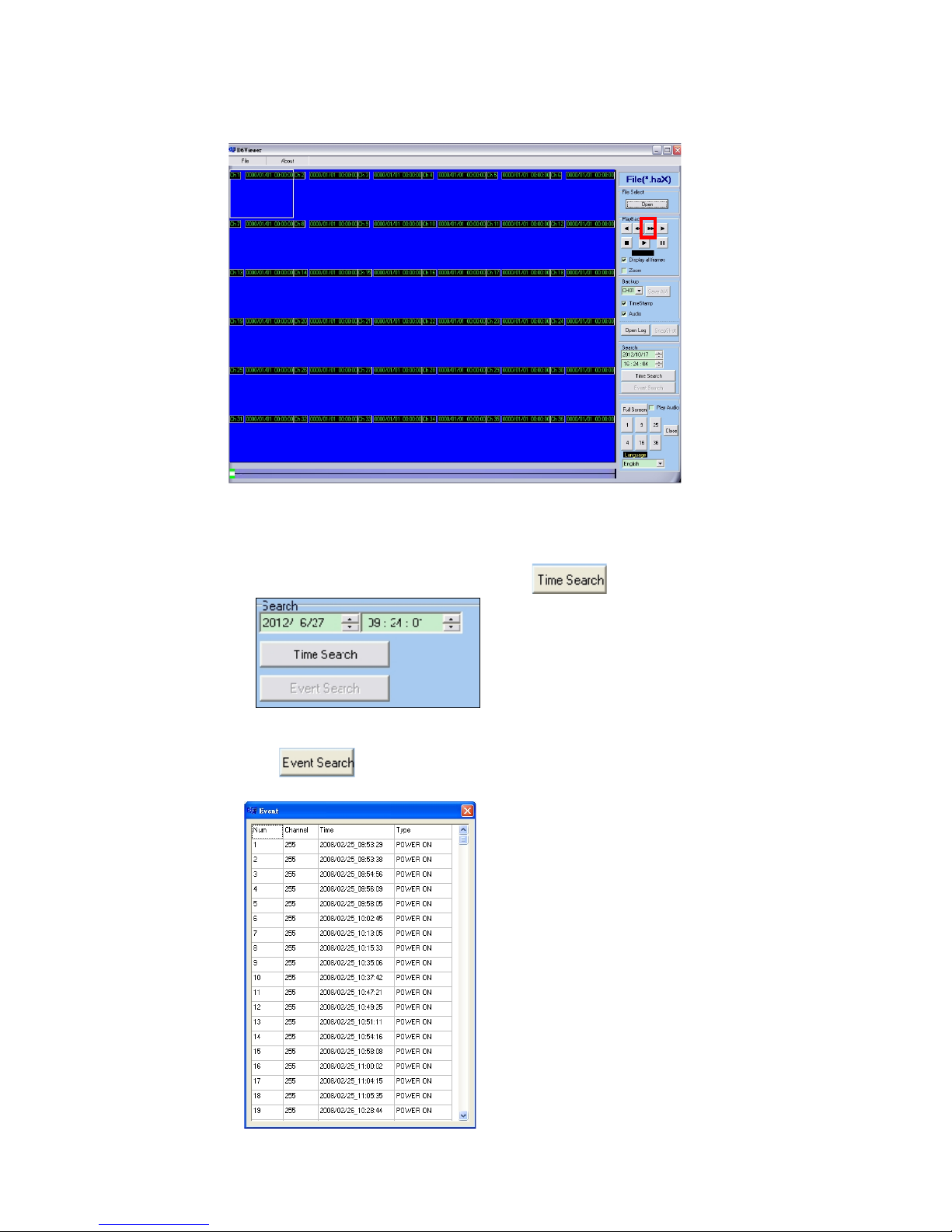

A. TIME SEARCH

Select the Date and Time and then click to play the film.

B. EVENT SEARCH

It will display all the events which are reserved within the DVR HDD after

press (Shown in the following) and double click left button of mouse to
trigger event.

55

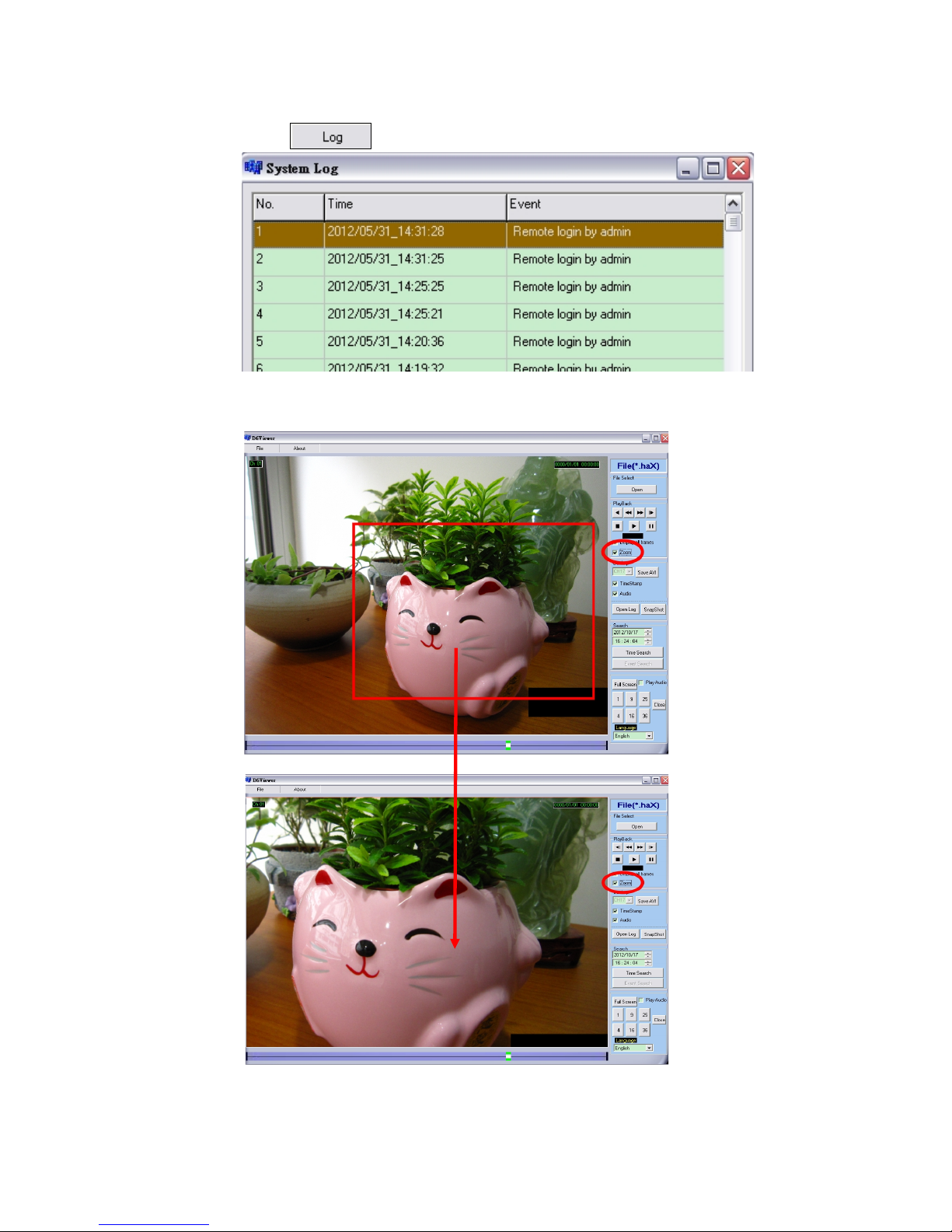

C. LOG

Click to check the log records.

D. ZOOM

Tick the “Zoom” box and drag an area on the screen. Click the area to zoom in.

56

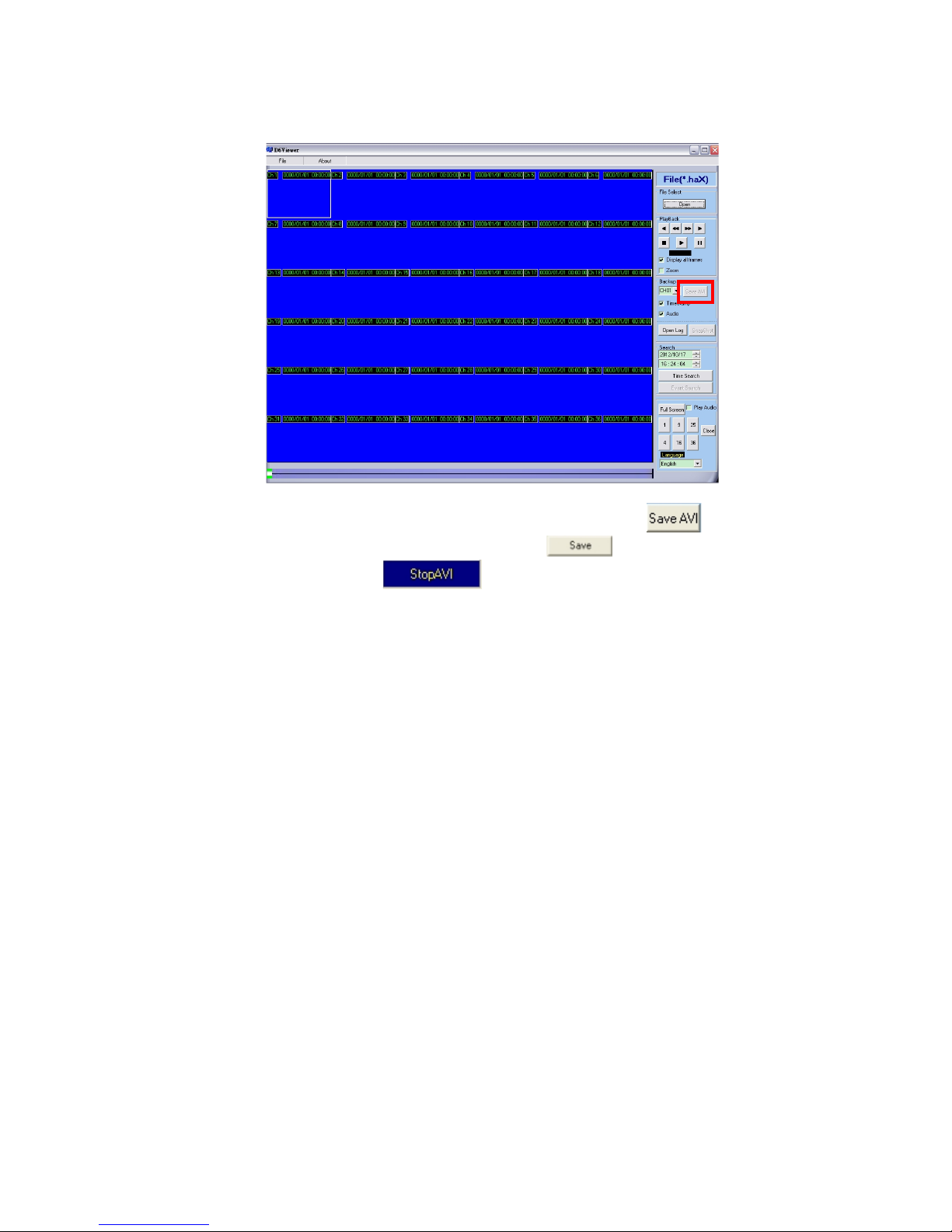

E. BACKUP FILE TO AVI

1. Please select specific channel to backup.

2. During video playback mode please press AVI bottom to start.

3. Make up a filename and path than press bottom to start AVI backup.

4. Press AVI bottom to finish backup.

57

6 NETWORK VIEWING & PLAYBACK

SYSTEM REQUIREMENT

CPU: Intel Celeron 1.6G
MEMORY: 256MB.
VGA: 32MB
VGA RESOLUTION: 1024 x 768.
OS: Windows XP / 2000

SUGGESTED REQUIREMENT

CPU: Intel P4 2.8G
MEMORY:512MB or above
VGA:64MB or above
VGA RESOLUTION:1024 x 768
OS: Windows XP / 2000

NETWORK BANDWIDTH: Upload Speed is 256kbps or above

6.1 IP ADDRESS SETUP ON PC SITE

Install cameras inside in LAN or use network cable to connect with PC. This is for

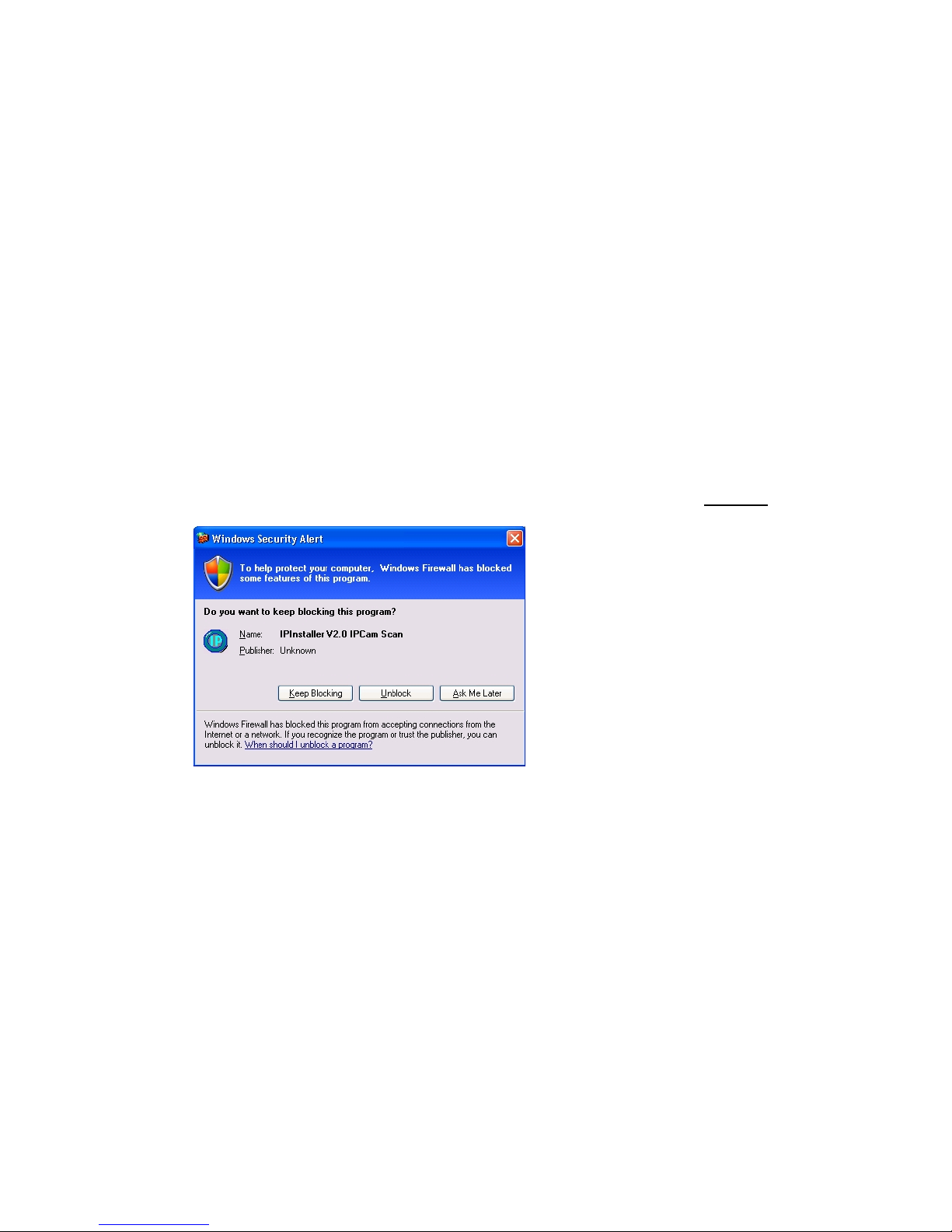

IPInstallerEng.exe to set up IP address of cameras. If OS is Windows XP SP2 or above,
the following Windows Security Alert will popup. Then, please click on Unblock.

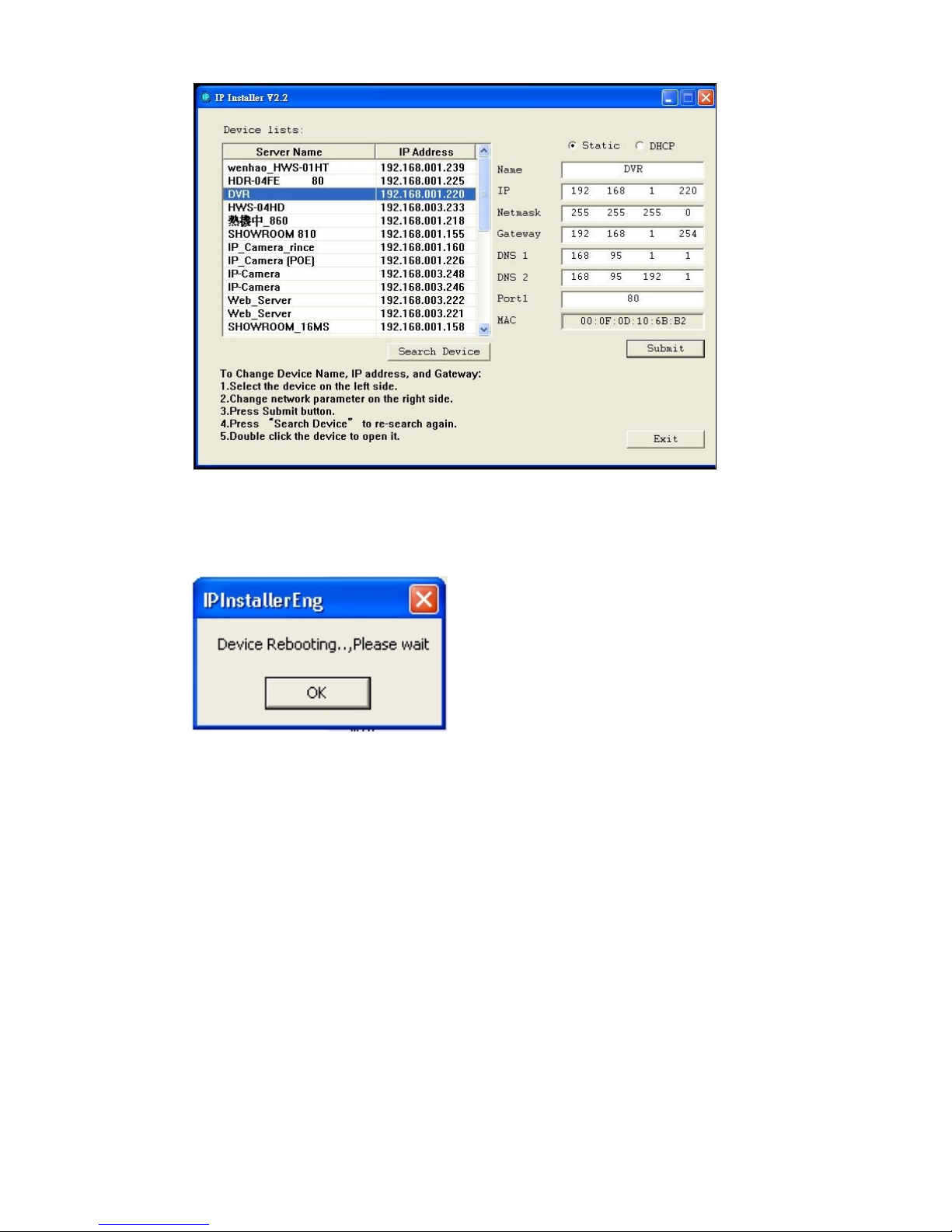

Then, IPInstallerEng.exe will popup:

HYBRID DVR default IP address is 192.168.1.220

58

NOTE: Please input correct network parameters without blank spaces.

On Device Lists, it lists all servers. Click on one server and then its IP setting will show
on the right side. After editing the parameters and clicking on Submit, the following
dialogue box will popup. And, it will reboot the device with new parameters.

59

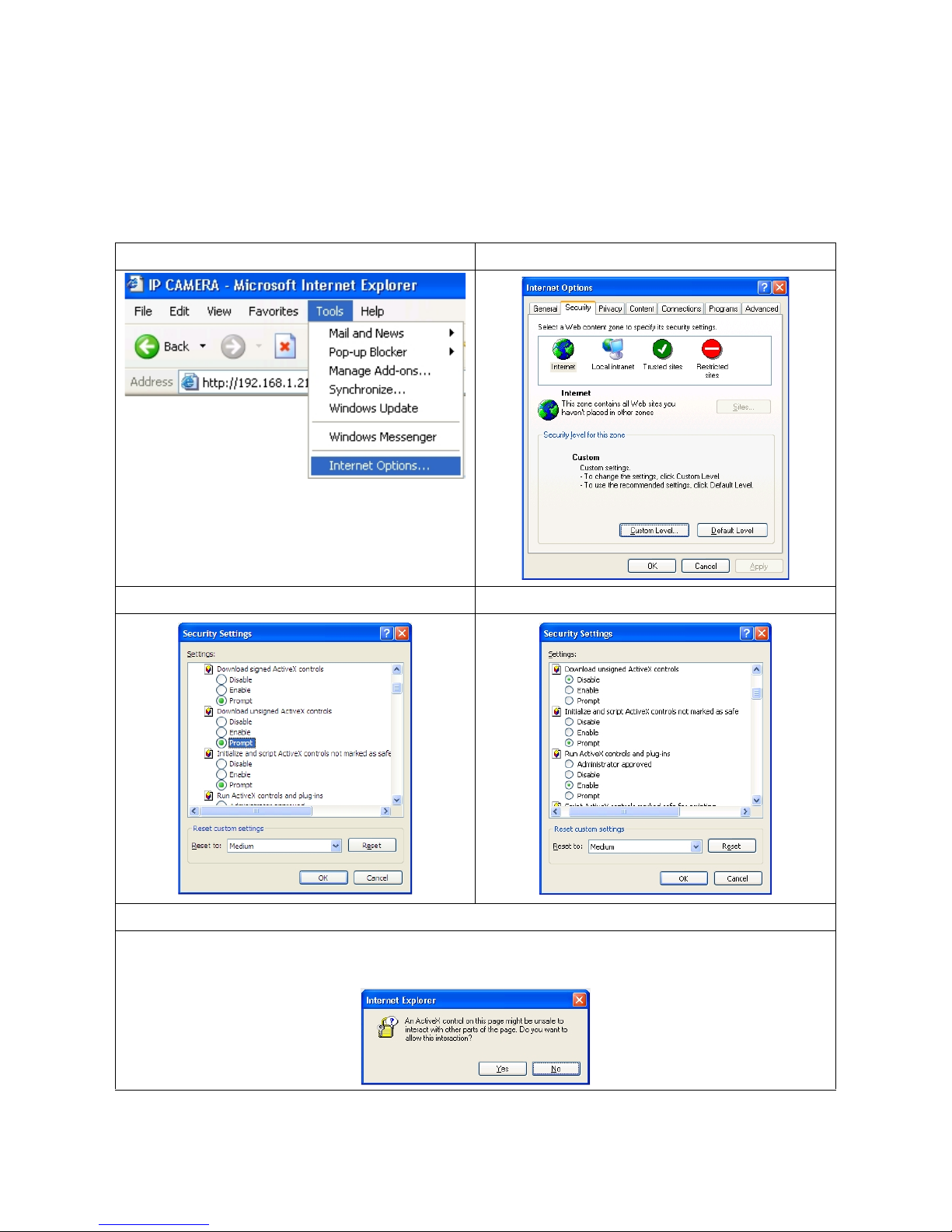

6.2 OPTIONAL MICROSOFT INTERNET EXPLORER SETUP
OPTION 1: DISABLE ACTIVEX WARNING

A. IE  Tools  Internet Options  Security  Custom Level  Security Settings 

Download unsigned ActiveX controls  Enable or Prompt (recommend).

B. IE  Tools  Internet Options  Security  Custom Level  Security Settings 

Initialize and script ActiveX controls not marked as safe  Enable or Prompt

(recommend).

1

2

3

4

5

Above three options are all based on select as the prompt.

As indicated in the dialogue box. Please select "YES."

60

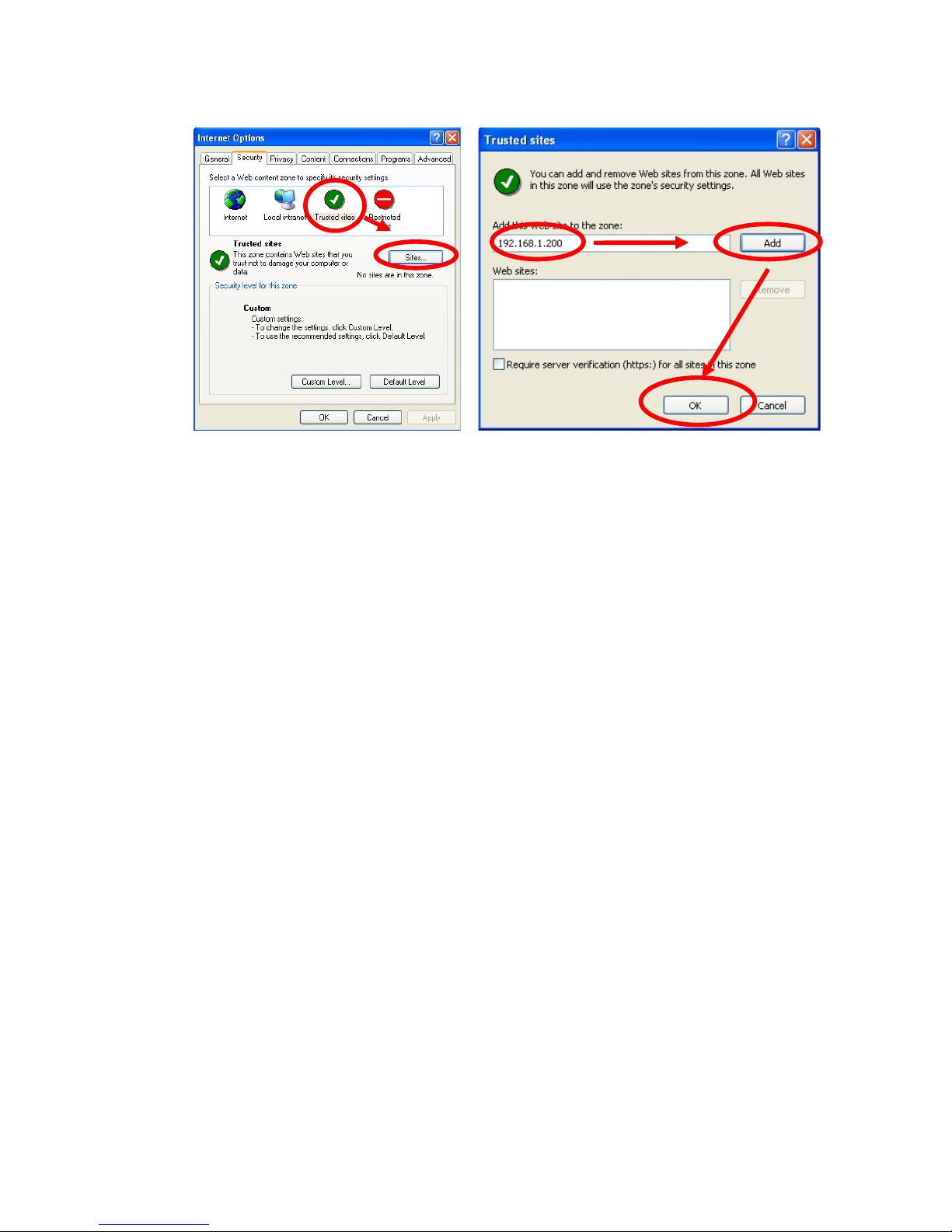

OPTION 2: ADD TO TRUSTED SITES

IE  Tools  Internet Options  Security  Trusted sites  Sites

61

6.3 LOGIN

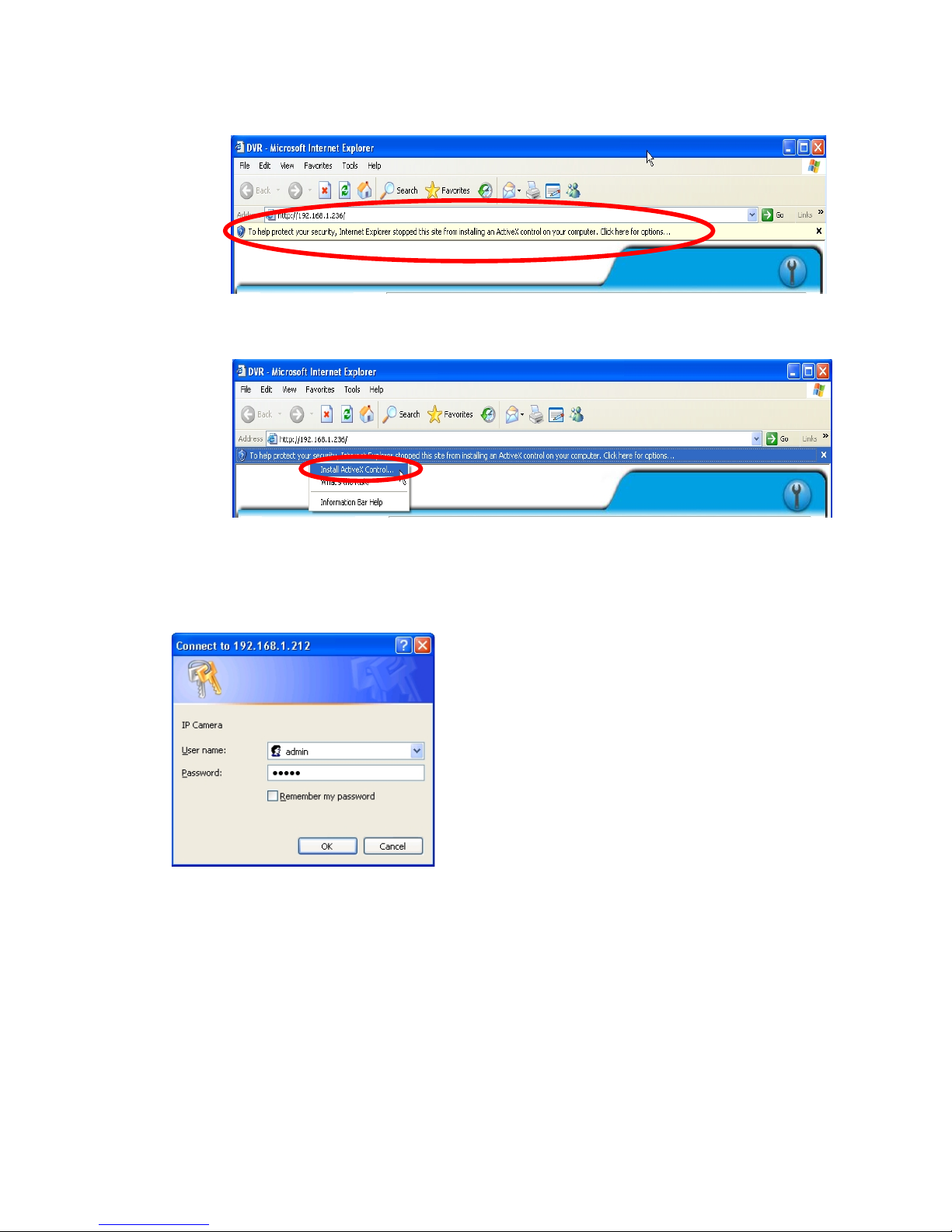

A. INSTALL ACTIVEX

B. START INSTALL ACTIVEX

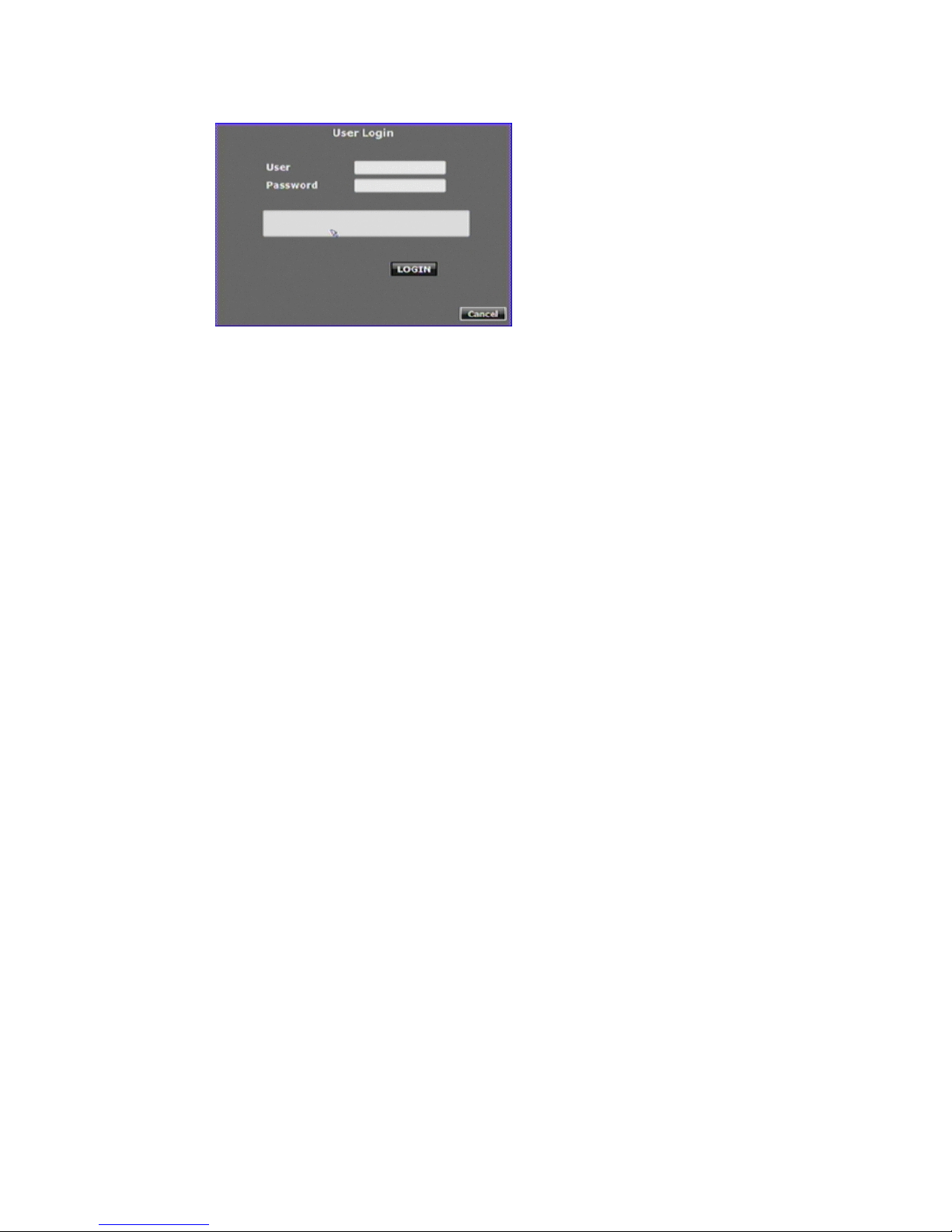

C. ACCOUNT & PASSWORD LOGIN

After IP setup and connect to network or LAN, type IP address on IE Browser
directly. The following User name & Password Login window will popup.

Default user name: admin

Default password: admin

62

6.4 REMOTE CONTROL

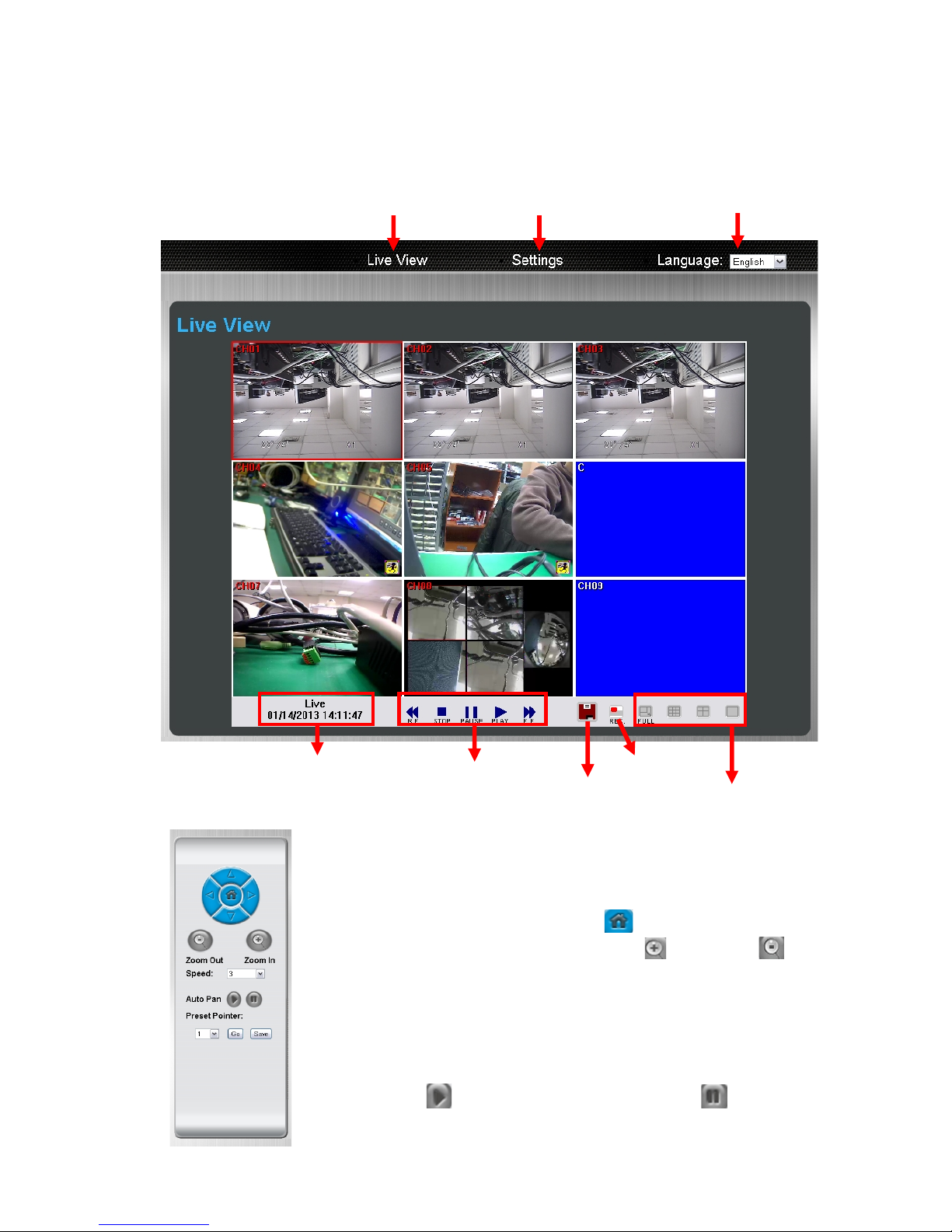

LIVE VIEW

PTZ PANEL

The 4-direction arrows are used to shift the camera view. The bigger value
you select in "Speed", the longer the moving range becomes by each click

on the arrow. If you click the house icon , the camera view turns to

initial position. Use magnifier icons to zoom in / zoom out .

After you adjust the camera view to where you want to set a preset point,
select a number from "Preset Point" drop-down menu, and click "Save"
button to add the point to the reset point list. When you select that point
from the drop-down menu and click "Go", the camera view will move to
where you had set.

Click the button to start auto-pan, click the button to pause.

1

Configuration Page

System Time

Screen Format

Play Back

Record

Video Backup

Live Page

Change Language

63

RECORD

Click to start record the current live video to the PC or storage device. The saved file
is *.ha0 file.

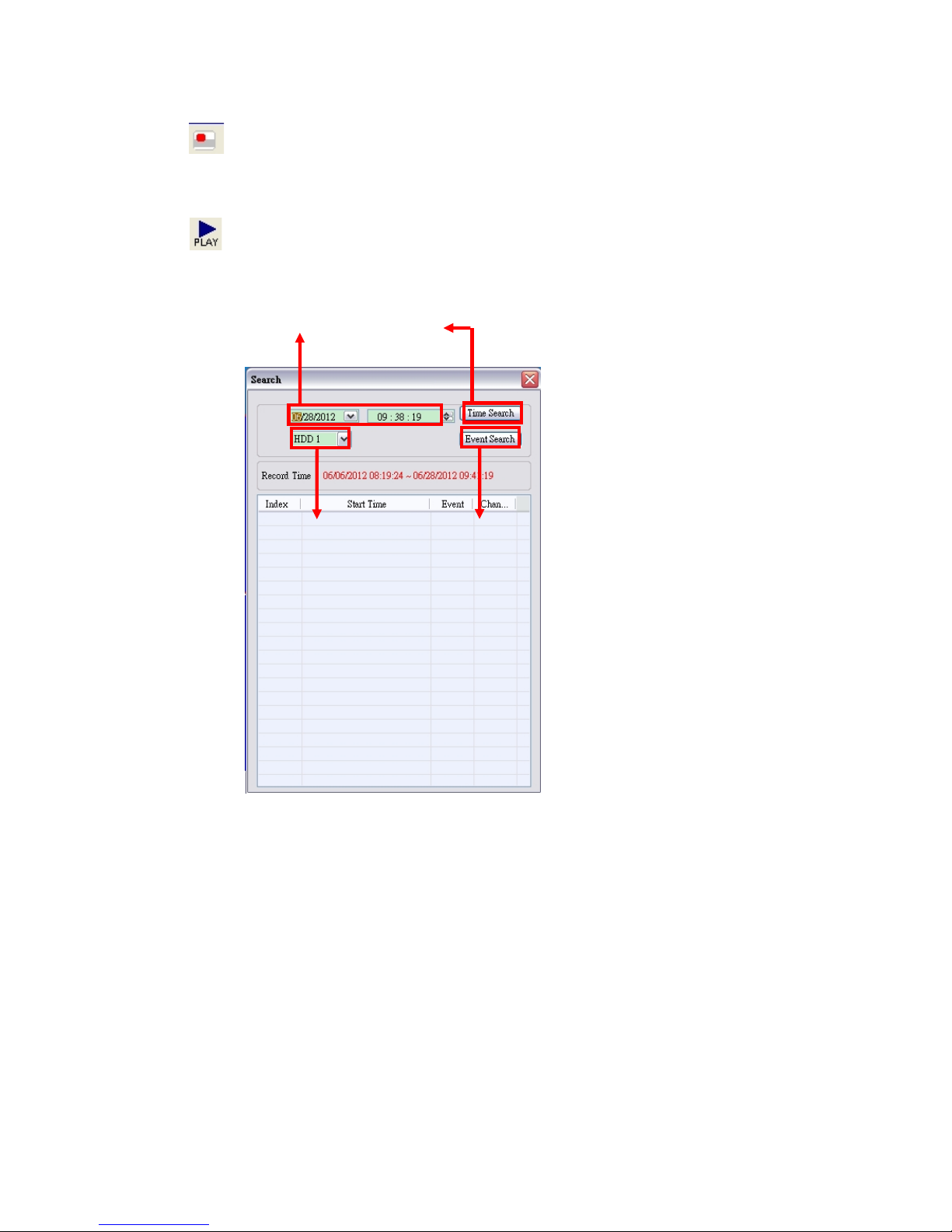

PLAYBACK

Click and select time playback or event playback.

A. HDD Select

User can select HDD1 or HDD2 for playback

B. Playback Time

User can select the time then press “Time Search” for playback.

C. Time Search

User can select the time then press “Time Search” for playback.

D. Event Search

User can select event item by pressing “Event Search” for playback.

HDD Select

Event Search

Playback Time

Time Search

64

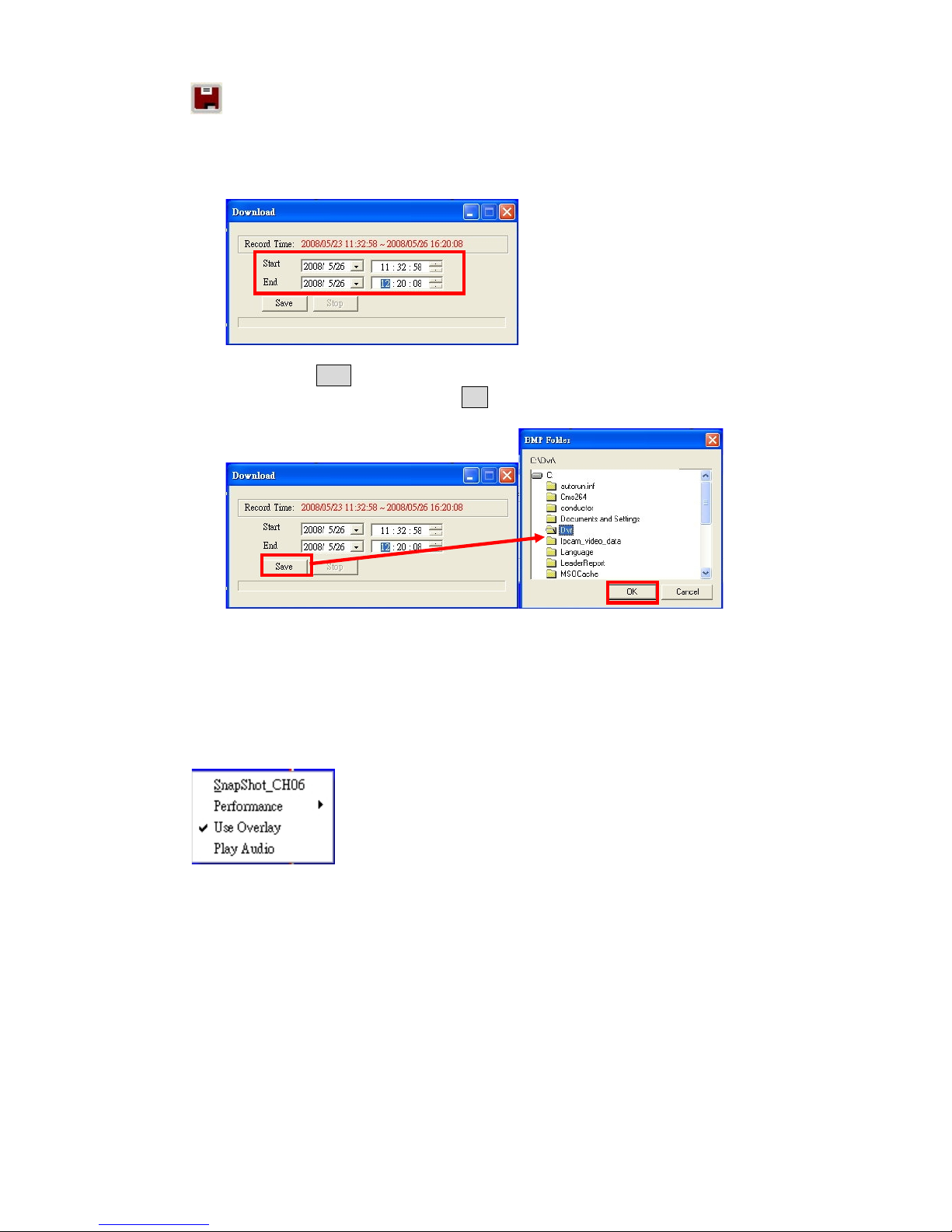

BACKUP

Click to select backup time point. The saved file is *.ha0 file.

First, select Start and End backup time which have to among the Record Time.

Then, click Save button to select the position on PC where the user is going to

backup the data. After that, press OK button to start the backup.

Finally, double-click the left button of the mouse to open the saved backup file. The

backup file will named as the time when start to backup, such as,
(20080526113258.ha0) will be 2008/05/26 11:32:58.

OTHER FUNCTIONS

Right-click the on any channel, and the menu pops up:

A. Snapshot:

User can save any single picture from image.

B. Performance:

User can select image quality (high, medium & low)

C. Use Overlay:

User can use Overlay function. The function can save system resource and promote the
efficacy.

D. Play audio:

User can play audio function by channel.
Note: remote user can receive audio from DVR. However, there’s no influence on
sound recording of playback video whether the audio is played or not.

65

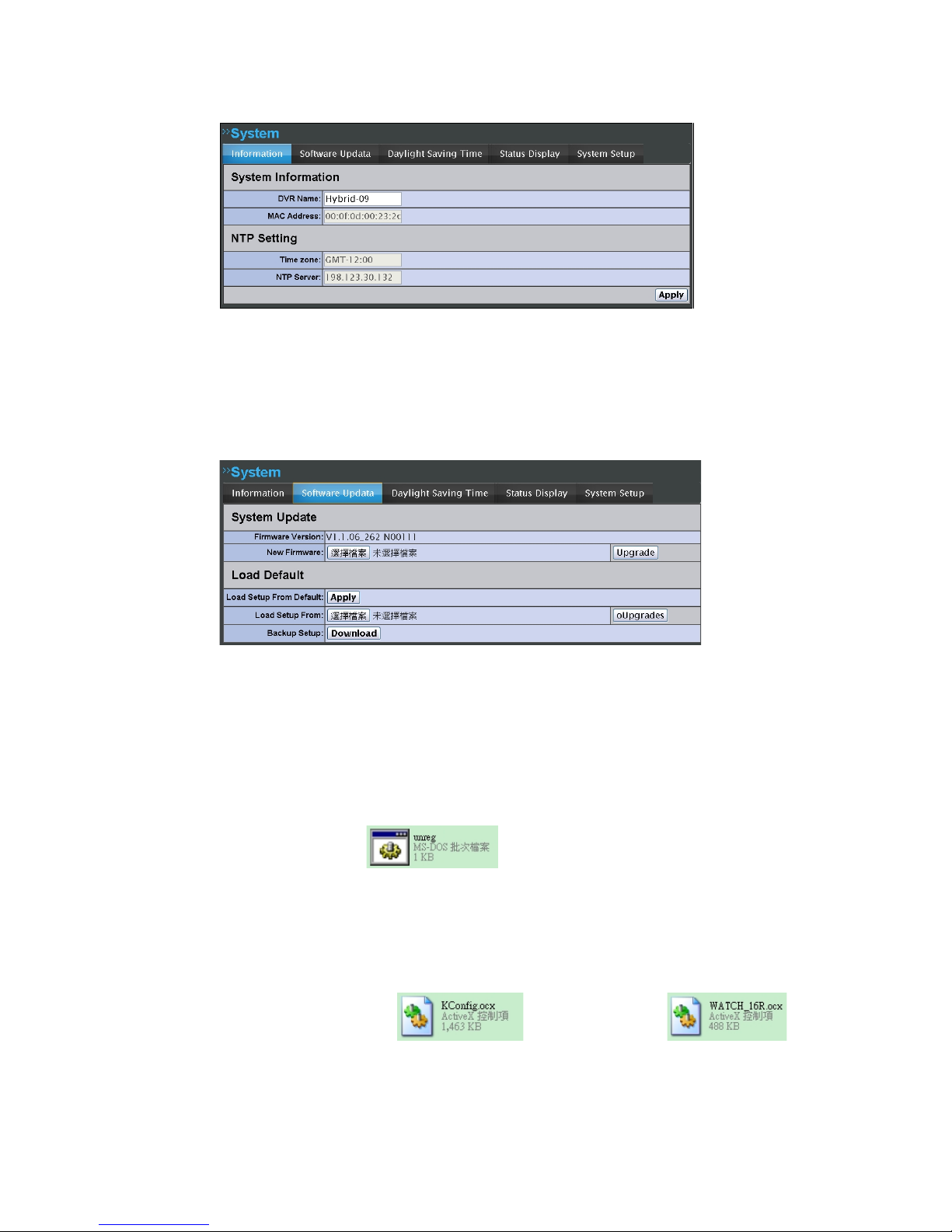

6.5 CONFIGURE

A-1. System - Information

DVR Name: This name will show on the IP Installer.

MAC Address: The MAC address cannot be revised.

Time Zone: The time zone can only be modified on local DVR.

NTP Server: The NTP Server IP address can only be modified on local DVR.

A-2. System – Software Update

System Update: Click on the “Browse” button to select the firmware file and then

press “Upgrade” button to upgrade the firmware.
ActiveX Updating: The ActiveX control should be also updated when you update the
DVR/NVR firmware. Use the tool in the attached CD to uninstall the old ActiveX
control so that the newest version can be registered.

 Automatic Uninstall

Please follow the steps:

1. After updating the DVR/NVR firmware, close the web browser.

2. Run the file "unreg" in the CD to automatically remove the
existing ActiveX component "WATCH_16R" from your PC.

3. Log in the DVR/NVR via web browser again, and the browser will require

you to install the new version of ActiveX control.

 Manual Uninstall

If the tool does not work, please follow the steps to uninstall ActiveX control
manually.

1. Look for the files "KConfig.ocx" and
"WATCH_16R.ocx" in one of the possible paths:
"C:\WINDOWS\Downloaded Program Files"
"C:\WINDOWS\W16R"
"C:\WINDOWS\system32\WATCH_16R"

66

2. "Start" -> "Run" -> Key in: regsvr32(The path of KConfig.ocx) /u -> Click
"OK"
Ex.: regsvr32 C:\WINDOWS\system32\WATCH_16R\KConfig.ocx /u

3. "Start" -> "Run" -> Key in: regsvr32(The path of WATCH_16R.ocx) /u ->

Click "OK"

Ex.: regsvr32 C:\WINDOWS\system32\WATCH_16R\WATCH_16R.ocx /u

4. Log in the DVR/NVR via web browser again, and the browser will require

you to install the new version of ActiveX control.
Load Setup from Default: Click “Apply” to reset the machine and revert all setting
back to default value.
Load Setup from: Click “Browse” to choose a file. You can load setup from your
computer if you ever clicked “Download” and saved the settings before.
Backup Setup: Click “Download” to save a current setting file to PC. You can apply
this file to other DVR so that the setting will be copied to other DVR.

A-3. System – Daylight Saving Time

Give the start and end daylight saving time. During daylight saving, the time will be 1
hour faster.

67

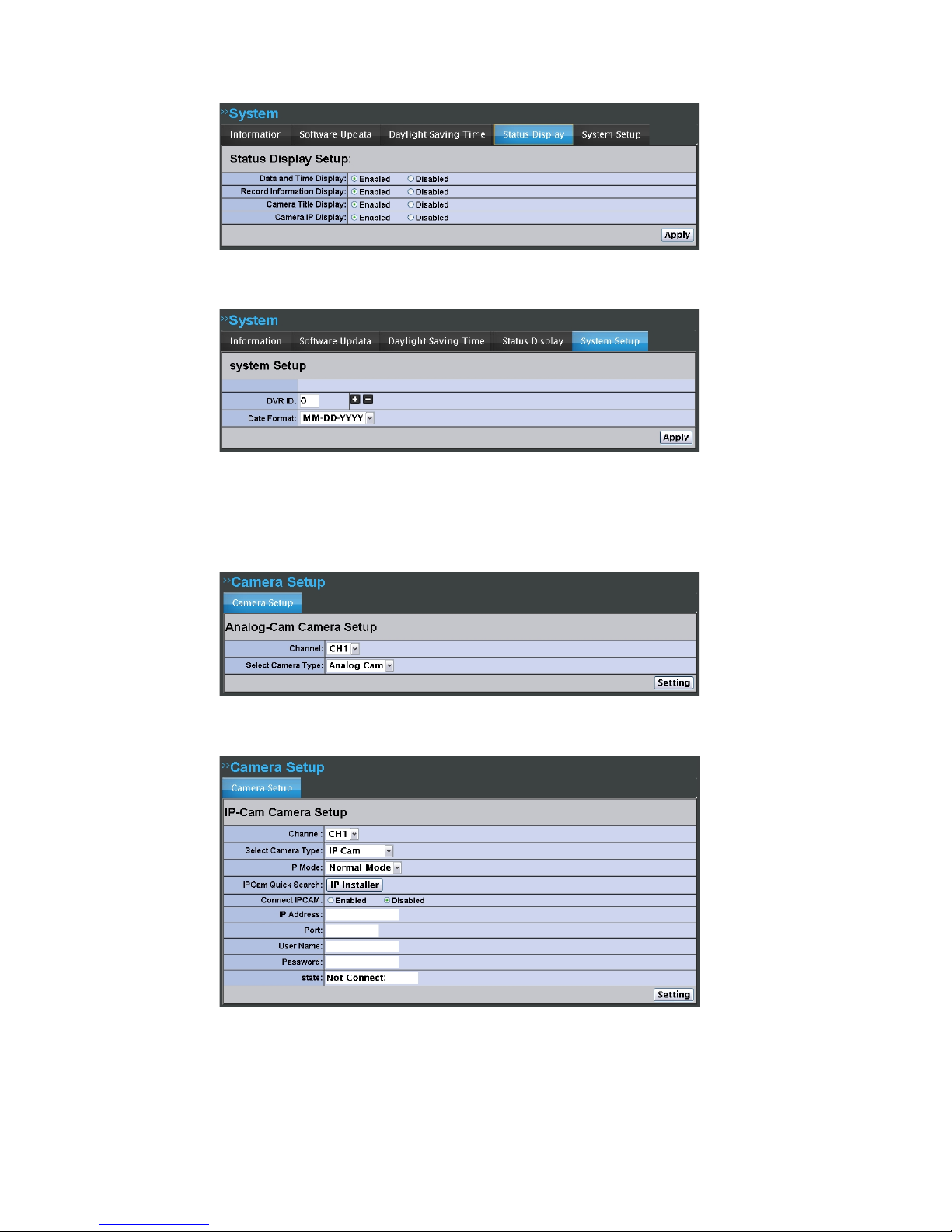

A-4. System – Status Display

Select the items that will be displayed on local DVR.

A-5. System – System Setup

DVR ID: The ID is used for distinguish DVRs when you use remote controller or

RS485. Give different ID when you have several DVRs.

Date Format: Select a format of date display.

B-1. Camera – Camera Setup

Analog Camera:

After connecting the analog camera to DVR, select “Analog Camera” of
corresponding channel.

IP Camera, Normal Mode:

Under Normal mode, Http protocol is used to access camera.
You can key in IP address, port, username, and password manually.
You can either use IP Installer to scan the LAN and find the camera:

68

Click “Edit” to revise the device information. Click “Use” to add this device to
channel.

IP Camera, RTSP Mode:

Under RTSP mode, Rtsp protocol is used to access camera.
Give the IP address, port, username, password, and RTSP path of two streaming.

B-2. Camera - Video Setup

Analog Camera:

Select the channel, and adjust the resolution quality, and frame rate.

IP Camera:

Select the channel, and adjust the resolution quality, and frame rate.

69

B-3. Camera – Image Setup

Analog Camera:

Adjust image contrast, brightness, hue, saturation, and sharpness here. “Dwell Time”
means the swap interval when performing swap on single channel screen.

IP Caemra:

Adjust image contrast, brightness, hue, saturation, and sharpness here. “Dwell Time”
means the swap interval when performing swap on single channel screen.

70

B-4. Camera – Motion Setup

Analog Camera:

Enable motion function, and drag on the screen the motion area. When motion is
detected in the area, the DVR will be triggered and execute alarm action.
Relay Dwell: The value determines the relay triggering time when motion detection
happens.
Buzzer Dwell: The value determines the buzzer sounding time when motion detection
happens.

IP Camera:

Enable motion function, and drag on the screen the motion area. You can setup three
areas. When motion is detected in the area, the DVR will be triggered and execute
alarm action.
Relay Dwell: The value determines the relay triggering time when motion detection
happens.
Buzzer Dwell: The value determines the buzzer sounding time when motion detection
happens.

71

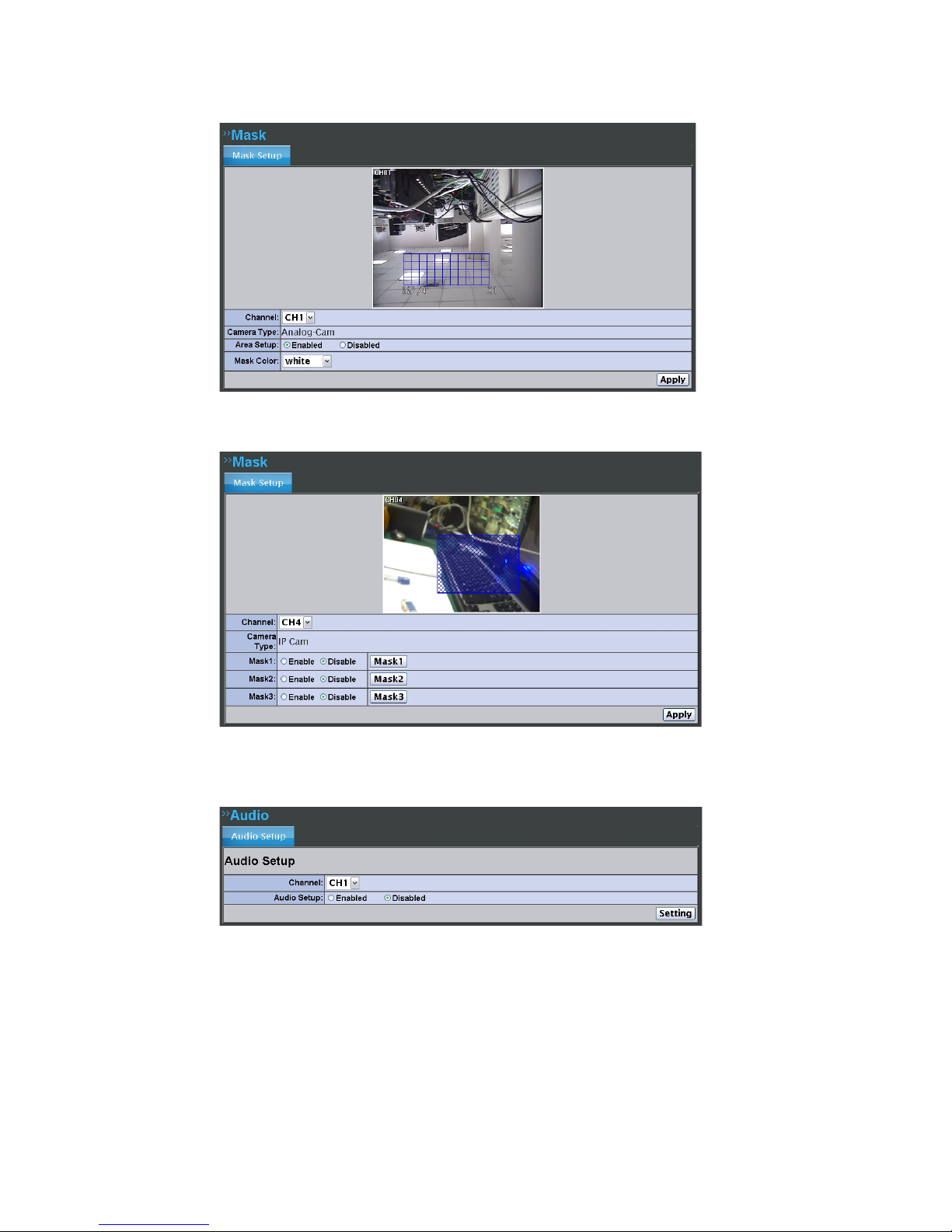

B-5. Camera – Mask Setup

Analog Camera:

Enable mask function, and drag on the screen the mask area. Decide the mask color.
The area will be covered with selected color on live screen and playback video.

IP Camera:

Enable mask function, and drag on the screen the mask area. You can setup three
mask area. The area will be covered with black on live screen and playback video.

B-6. Camera – Audio Setup

Select the channel, and enable or disable the audio recording. No sound will be
recorded in the playback video of the channel that audio setup is not enabled. It
supports at most 4CH audio recording.

72

C-1. Record – Record Setup

Alarm Recording Time: When an event happens, the DVR can record the video at

event timepoint, and send it to mail or FTP. Adjust the recording video length.
Mobile Record: Enable it, and DVR will record the streaming for mobile viewing, so
that you can view playback video on mobile phone.

Record Mode: Manual, Alarm-trigger, or schedule recording.

C-2. Record – Schedule Record

Select the tag on the bottom of calendar, and click on the calendar to draw color. Red
stands for full recording, yellow stands for alarm triggering recording, and green
stands for no recording. Click “Apply”. If you select “Schedule” in record mode
option, the DVR will records video as this schedule.

D-1. Alarm – Alarm Trigger

HDD. Temp. Warning: Enable it to make DVR alarm when the HDD temperature is

higher than the temperature the user sets.
Alarm Auto Switch: Select to switch to split screen or single channel when motion
detection happens.
Video Loss Detect: Enable it to make DVR alarm when camera is disconnected and
video is lost.

Ext. Alarm Detect: Enable it to make DVR alarm when external alarm is triggered.
Ext. Alarm Pole: Normally open or normally closed. Select as the external device

you connect.

73

D-2. Alarm - Alarm Output

Adjust the buzzer sounding time and relay triggering time when external alarm is
triggered or video loss happens.

D-3. Alarm – Alarm Event

When the events happen, the event log will be recorded in the event list. Enable the
event item that you want to record in the event list.

E-1. Ethernet – IP Address

IP Setup: Set up the DVR IP information. Select DHCP to get IP address from

DHCP server or select Static to fill in the IP address manually.
UPnP Port Forwarding: When the DVR is under a router, you can use port
forwarding to allow the WAN connection. Fill in the http port and rtsp port and check
your router setting.

74

E-2. Ethernet – PPPoE

To use PPPoE, fill in the username and password of your ADSL account. The IP
address will be displayed in “IP address” column after PPPoE is dialed successfully.
If you enable the option “send mail after dialed”, DVR will send mail to your mail
account after PPPoE is dialed successfully. “Subject” is the subject of mail.

E-3. Ethernet – DDNS

Some DDNS provider requires users to apply for an account before using their
DDNS service, for example, dyndns.org. If you select dyndns.org, you should go
to their website, and apply with your username and password, the website will
return with a hostname to you.

Fill in the hostname, username, and password that you applied to dyndns.org, and
give the update time. After clicking “Apply”, check the state to see if you apply
DDNS successfully. The DDNS address should be displayed in state column.

Some DDNS provider do not require users to apply for an account before using
their DDNS service, for example, ddns.camddns.com. If you select
ddns.camddns.com, please key in the username as you want.

75

Fill in the username that you want, and give the update time. After clicking “Apply”,
check the state to see if you apply DDNS successfully. The DDNS address should be
displayed in state column.

E-4. Ethernet – Mail

Tick “Alarm” to send video to mail when external alarm is triggered. Tick “Motion”
to send video to mail when motion detection is triggered.
Fill in the mail server information, including mail server address, SMTP port,
username, and password. If the server asks for secure connection, select TLS or SSL
connection way.
Then, fill in the sender and receiver’s mail address and mail subject.

E-5. Ethernet – FTP

Tick “Alarm” to upload video to FTP when external alarm is triggered. Tick
“Motion” to upload video to FTP when motion detection is triggered.
Fill in the FTP server information including the server address, FTP data port,
username, and password. Give the path that you want to save the video.

E-6. Ethernet – DHCP

When the function is enabled, the DVR is as an DHCP server and able to assign IP
address to IP camera. Give the Start IP and End IP for DHCP. Key in lease time here
to decide the frequency that the IP address is renewed.

76

F-1. Authority – Authority Setting

HDD Format Password Check: Enable the option, then DVR will ask for password

when users want to format HDD.
Anonymous Login: Enable the option, then user can access the DVR via web
browser and watch live screen without password. Disable the function, then password
is necessary to access the DVR.
Password Protection: Enable the option, then user has to log in to operate the local
NVR.

F-2. Authority – User Setup

Add User: In the pop up window, set up the username and password for the new user.

The administrator can give authority to the new user by tick at the choice below. (Ex.
Ticking at “PTZ” allows the new user to control the PTZ). In “Masking Channels in
Playback and Network”, you can tick those channels that you don’t want to show to
this user. This user will not see live view or playback video of that channel.

Modify: Click “Edit”, and fill in username and password to edit the user
authentication or password.

77

Remove: Click “Remove” to remove the user.

G-1. Disk – Disk Setup

Overwrite Mode: Enable the function, and the data will be overwritten after the

HDD is full.
Hard Disk Full Warning: When the HDD space is smaller the setting, The buzzer
will sound to remind users.
Auto Deletion: Select “ON”, then on the playback list, users cannot find the
recording data that is older than the reserve day.

Reserve Day: Setup the reserve day between 1~30 days.

G-2. Disk – Disk Information

It shows HDD information of DVR.

H-1. Player

Click the button to download D6Viewer, the DVR

recording file player.

78

APPENDIX A: RECORDING TIME LAPSE (HOURS)

2TB U N IT：H ours

IM A G E Q U A LITY

(M bps)

LO W (0.25M )

M ED IU M (0.5M )

STA N D A R D (1M )

H IG H (1.5M )

A V ER A G E

A V ER A G E

A V ER A G E

A V ER A G E

16CH

960

480

240

160

4TB U N IT：H ours

IM A G E Q U A LITY

(M bps)

LO W (0.25M )

M ED IU M (0.5M )

STA N D A R D (1M )

H IG H (1.5M )

A V ER A G E

A V ER A G E

A V ER A G E

A V ER A G E

16CH

1920

960

480

320

6TB U N IT：H ours

IM A G E Q U A LITY

(M bps)

LO W (0.25M )

M ED IU M (0.5M )

STA N D A R D (1M )

H IG H (1.5M )

A V ER A G E

A V ER A G E

A V ER A G E

A V ER A G E

16CH

2880

1440

720

480

8TB U N IT：H ours

IM A G E Q U A LITY

(M bps)

LO W (0.25M )

M ED IU M (0.5M )

STA N D A R D (1M )

H IG H (1.5M )

A V ER A G E

A V ER A G E

A V ER A G E

A V ER A G E

16CH

3840

1920

960

640

* The value is for reference only

79

APPENDIX B: HDD COMPATIBLE TABLE

Brand

Model

Capacity

others

SEAGATE

ST380815AS

80 GB

7200 10

ST3160815AS

160 GB

7200 10

STM3250820AS

250 GB

7200 10

ST3250310SV

250GB

SV35.3

ST3400620AS

400 GB

7200 10

ST3500320SV

500GB

SV35.3

ST3500410SV

500GB

SV35.5

ST3500320AS

500GB

7200 11

ST3500418AS

500GB

7200 12

ST3500312CS

500GB

Pipeline HD .2

ST3750640AS

750 GB

7200 10

ST3750330AS

750 GB

7200 11

ST31000333AS

1TB

7200 11

ST31000340AS

1TB

7200 11

ST31000340NS

1TB

Barracuda ES.2

ST31000340SV

1TB

SV35.3

ST31000322CS

1TB

Pipeline HD .2

ST31000525SV

1TB

SV35.5

ST31000524AS

1TB SATA3

7200 12

ST1500DL003

1.5TB SATA3

Barracuda LP

ST31500341AS

1.5TB

7200 11

ST32000542AS

2TB

Barracuda LP

ST3320620AS

320 GB

7200

ST3500413AS

500GB

7200

ST3500320NS

500GB

7200

WD

WD1600AAJS

160 GB

7200 CB

WD2500AAKS

250 GB

7200 CB

WD2500AVVS

250 GB

7200 GP

WD3200AVVS-73L2B0

320GB

7200 GP

WD5000AACS

500 GB

7200 GP

WD5000AVVS

500 GB

7200 GP

WD5000AAKS

500GB

7200 CB

WD5002ABYS

500GB

7200 RE

80

WD

WD5000AAKX

500GB SATA3

Caviar Blue

WD5000AUDX

500GB SATA3

Green Power

WD6400AAKS

640 GB

7200 BLUE

WD6400AVVS

640 GB

7200 GP

WD7500AACS

750GB

7200 GP

WD7500AVVS

750GB

7200 GP

WD10EACS

1TB

7200 GP

WD10EADS

1TB

Caviar Green

WD10EVDS

1TB

Green Power

WD10EVVS

1TB

7200 GP

WD10EARS

1TB

Caviar Green

WD10EALX

1TB SATA3

Caviar Blue

WD10EURX

1TB SATA3

Green Power

WD15EADS

1.5TB

7200 GP

WD15EARS

1.5TB

7200 GP

WD15EURS

1.5TB

7200 GP

WD5000AVDS-63U7B0

1.5TB

7200 GP

WD15EVDS

1.5TB

7200 GP

WD20EADS

2.0TB

7200 GP

WD20EVDS-63T3B0

2.0TB

7200 GP

WD20EARS

2.0TB

Caviar Green

WD20EURS

2.0TB

7200 GP

WD30EURS

3TB

CE-GP

WD30EZRX

3TB

7200

HITACHI

HDS721616PLA380

160 GB

7200

HDT725025VLA380

250 GB

7200

HDT725032VLA360

320 GB

7200

HDP725050GLA360

500 GB

7200

HCP725050GLA380

500GB

7200

HDT721010SLA360

1TB

7200

HDS721010CLA332

1TB

7200

HDS722020ALA330

2TB

7200

HDS721050CLA362

500GB

7200

81

APPENDIX C: ERROR MESSAGE LIST

ERROR MESSAGE

ERROR STATUS & REASON

NOTE

DISK ACCESS ERROR!

H.D.D. Data structure Un-normal.

Data does not record into HYBRID DVR or bad sector on

HYBRID DVR H.D.D. Please install another H.D.D. and

perform the record again.

UPDATE FILE ERROR!

Please re-download the update file and update again.

FIRMWARE UPGRADE

FAILED

Please reboot the HYBRID DVR and upgrade the firmware.

Please send the HYBRID DVR back to repair when

HYBRID DVR is disability.

MEDIA ACCESS FAIL!

The USB file format is incorrect (Please format the pen

drive to FAT32) or Pen Drive is setup to ONLY READ mode

(Please annul ONLY READ mode) when reserve the data by

using Pen Drive. The data cannot be burn into CD/DVD

disc. Please change another CD/DVD disc and backup the

file in CD/DVD disc storage.

NO FILE!

There is no upgrade file within Pen Drive or the name of

upgrade file does not correspond with HYBRID DVR

format. Please adjust the upgrade file name based on the

following information.

16CH -> UpdateR.bin

08CH -> Update8.bin

04CH -> Update4.bin

USB DEVICE NOT FOUND

NO USB

Pen Drive undetected. Please Unplug the Pen Drive and plug

it again.

BACKUP START TIME

ERROR

Backup start time error.
BACKUPEND TIME ERROR

Backup end time error.

DISK ERROR

The data cannot be burn into CD/DVD disc. Please change

another CD/DVD disc and backup the file.

FAN FAILED

Fan Error Warning.

NO LOG DATA

No Events Record.

SCHEDULE RECORD

The condition is caused by trying to stop recording when

perform the schedule record. Please setup the record to

manual mode and then stop the record.

PLEASE SELECT ONE

CAMERA

The message will be shown while using the ZOOM function

under split screen condition. Please switch the screen into

full screen mode and then operate the ZOOM function.

V1.0_130115
