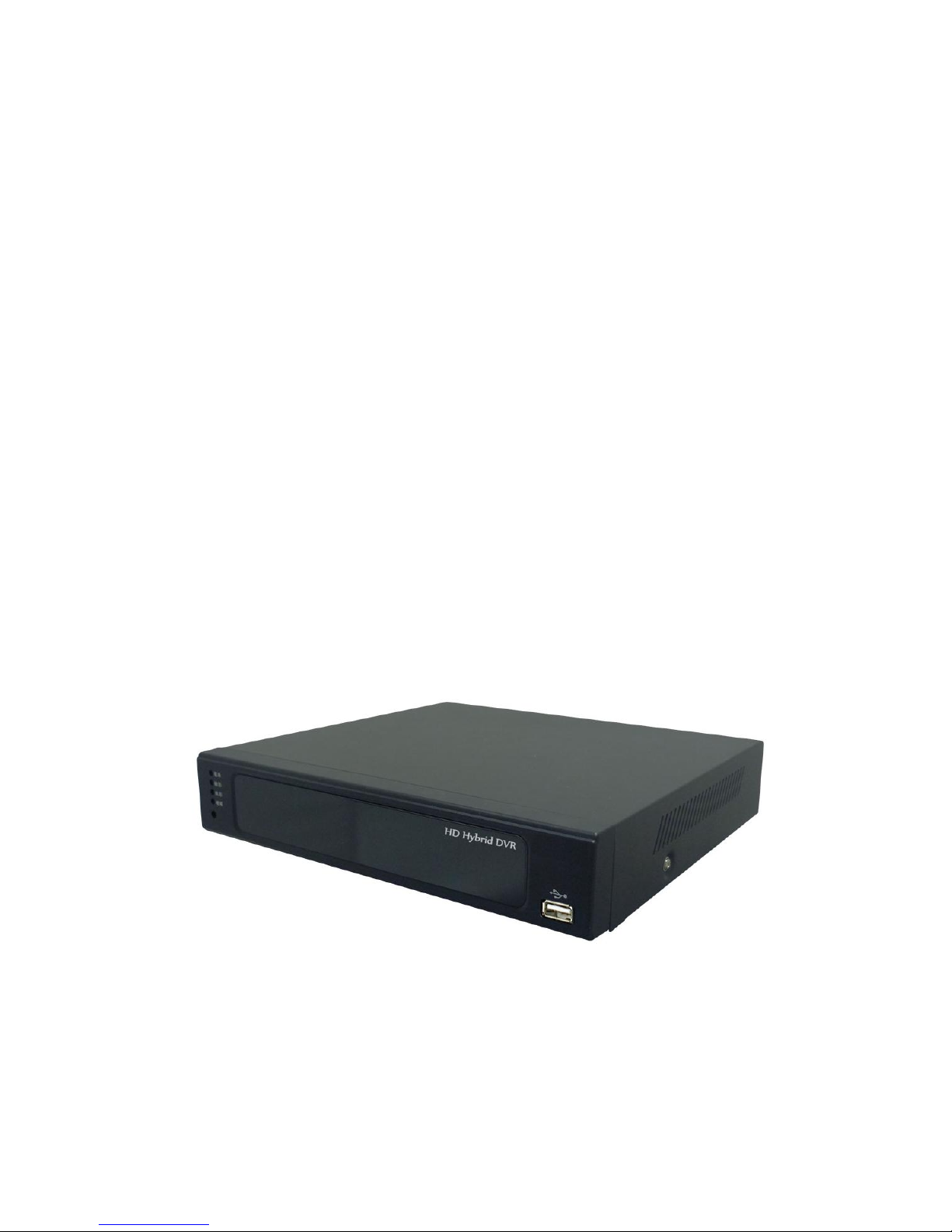

Page 1
USER MANUAL
4 CHANNELS ANALOG HIGH
DEFINITION HYBRID
DIGITAL VIDEO RECORDER
Page 2
2
To obtain the best performance and ensure device function correctly, please read this
instruction manual carefully and completely.
FCC Compliance
USER-INSTALLER CAUTION: YOUR AUTHORITY TO OPERATE THIS FCC VERIFIED
EQUIPMENT COULD BE VOIDED IF YOU MAKE CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE TO
PART 15 OF THE FCC RULES.
NOTE: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE
LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC
RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION
AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
THIS CLASS A DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE
CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.
Page 3
3
WARNINGS, CAUTIONS & COPYRIGHT
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
CAUTION
Explanation of Graphical Symbols
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of insinuated "dangerous voltage"
within the products enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral rhombus is intended to alert the
user to the presence of important operating and maintenance (servicing)
instruction in the literature accompanying the product.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
Page 4
4
SYSTEM USERS OF THE SYSTEM ARE RESPONSIBLE FOR CHECKING AND
COMPLYING WITH ALL FEDERAL, STATE, AND LOCAL LAWS AND STATUTES
COIPCERNING THE MONITORING AND RECORDING OF VIDEO AND AUDIO SIGNALS.
ULTRAK SHALL NOT BE HELD RESPONSIBLE FOR THE USE OF THIS SYSTEM IN
VIOLATION OF CURRENT LAWS AND STATUTES.
COPYRIGHT
THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED TO
THEIR RESPECTIVE COMPANIES.
Page 5
5
TABLE OF CONTENTS
1. INTRODUCTION ............................................................................................................. 6
1.1. FEATURES ........................................................................................................... 6
1.2. SPECIFICATIONS ................................................................................................. 7
Contrast / Brightness / Saturation / Hue .......................................................................... 8
Manual / Schedule / Alarm ................................................................................................. 8
2. HARDWARE OVERVIEW ............................................................................................. 10
2.1. FRONT PANEL ................................................................................................... 10
2.2. BACK PANEL ..................................................................................................... 11
2.3. ALARM TRIGGERING ........................................................................................ 12
2.4. ALARM-IN CONNECTION .................................................................................. 14

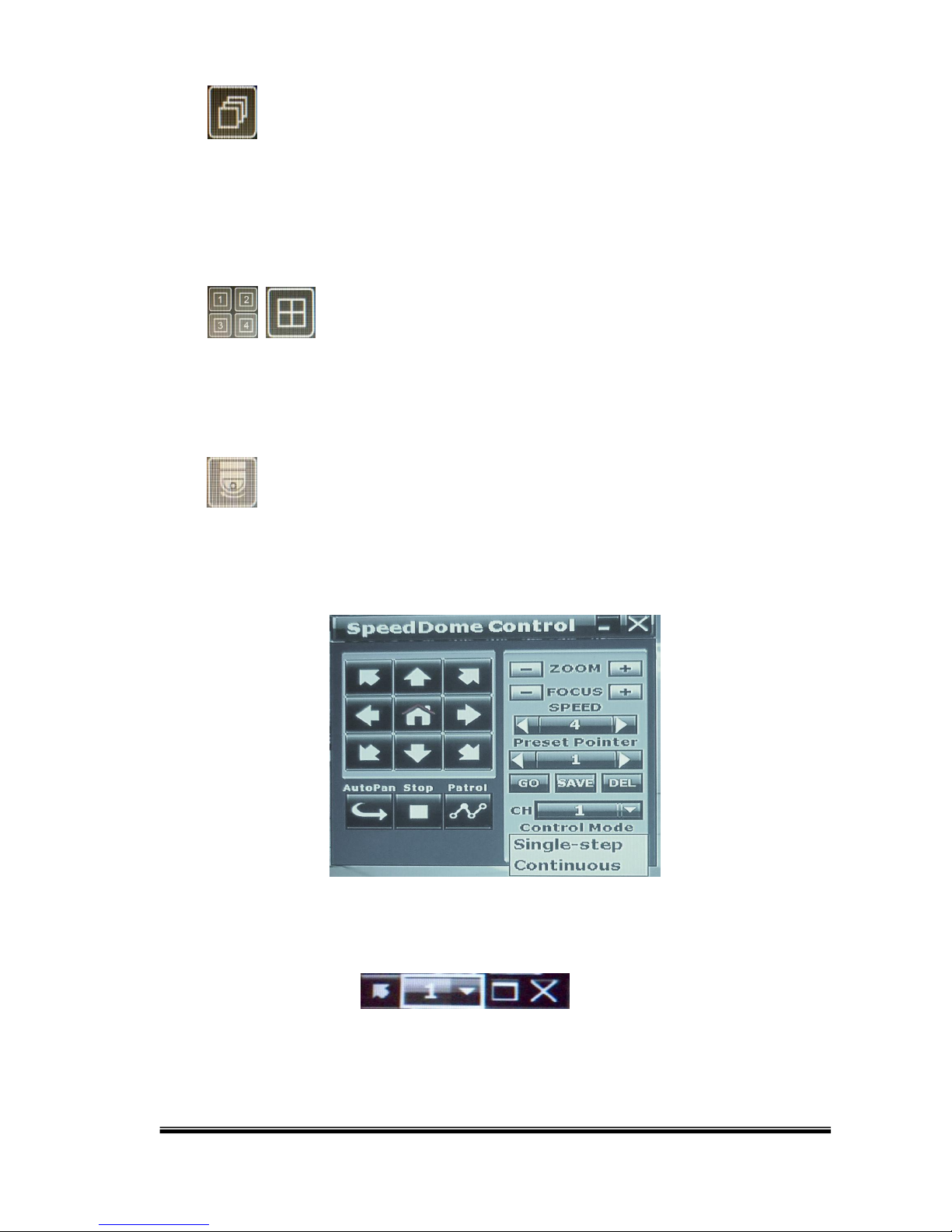

2.5. PTZ (PAN, TILT AND ZOOM) CAMERA ............................................................ 16
3. SYSTEM SETUP ........................................................................................................... 17

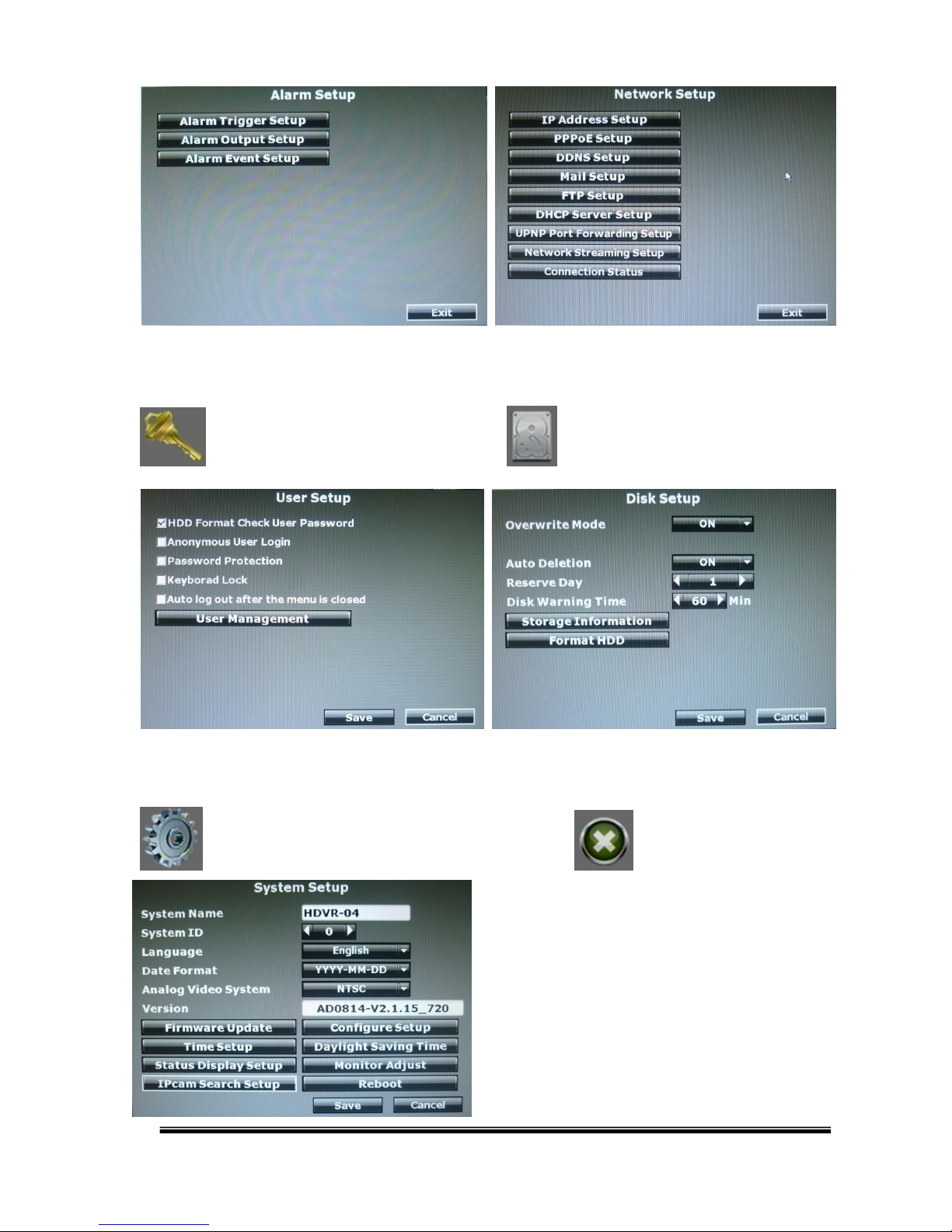

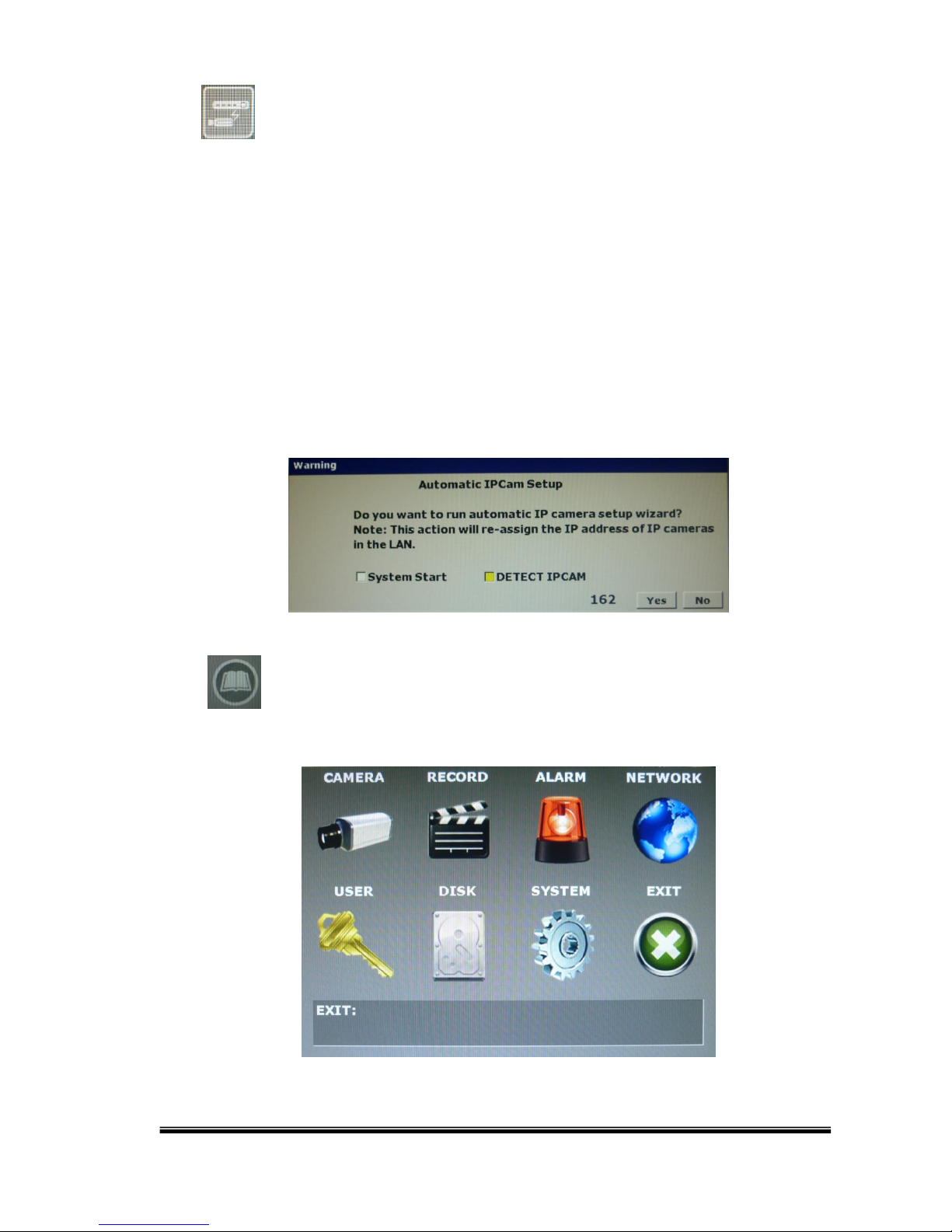

3.1. SETUP MENU INTERFACE (GUI) ...................................................................... 17

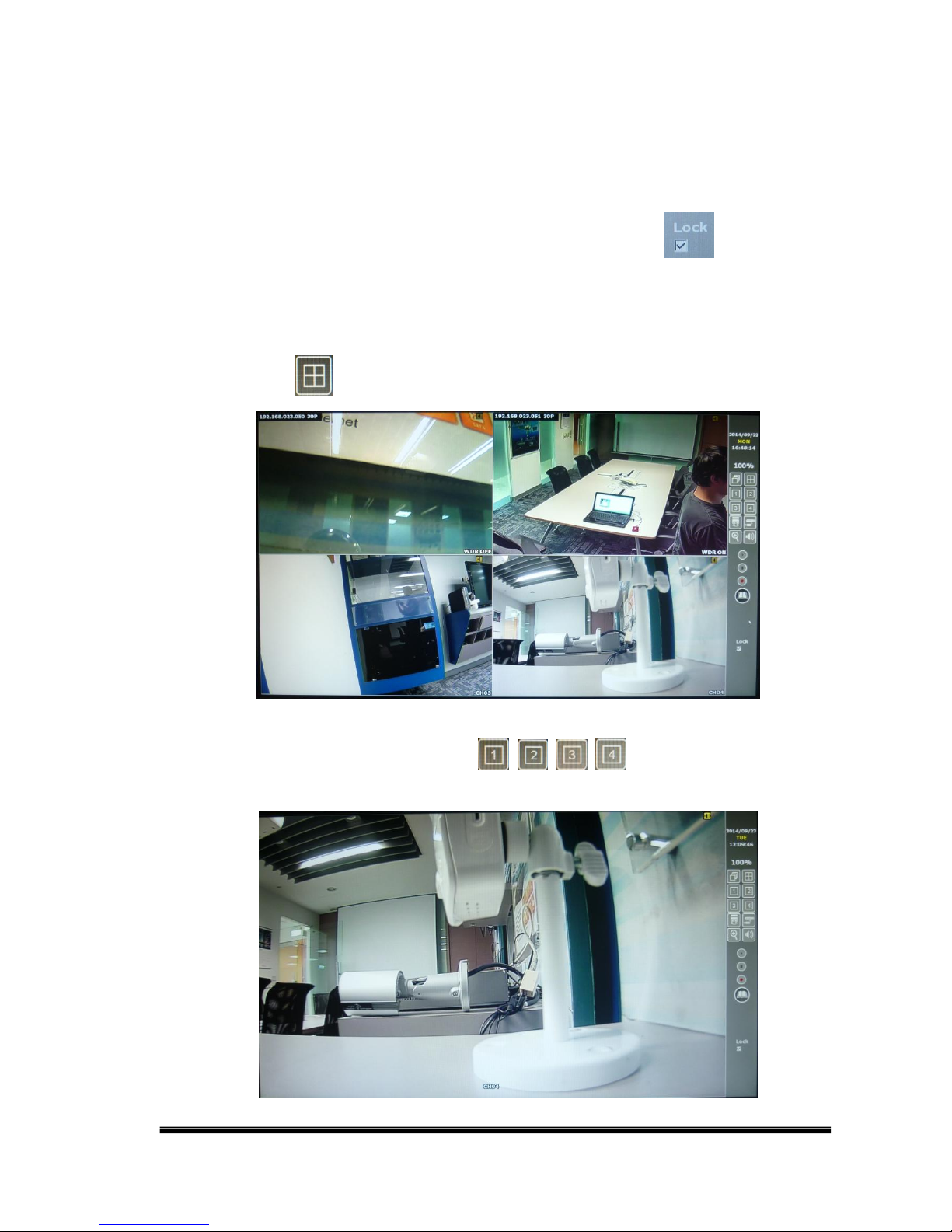

3.2. LIVE VIEWING AND POP-UP MENU ................................................................. 19

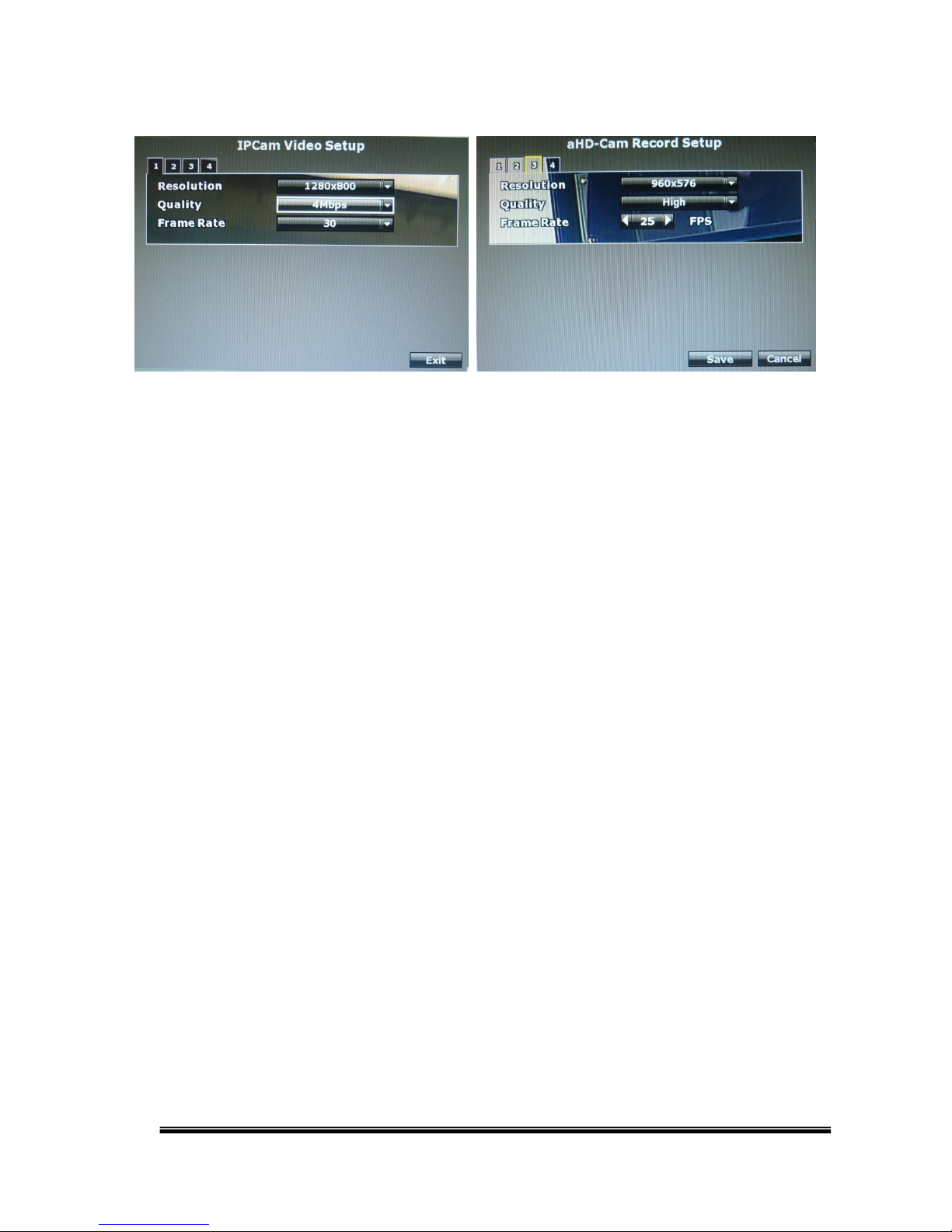

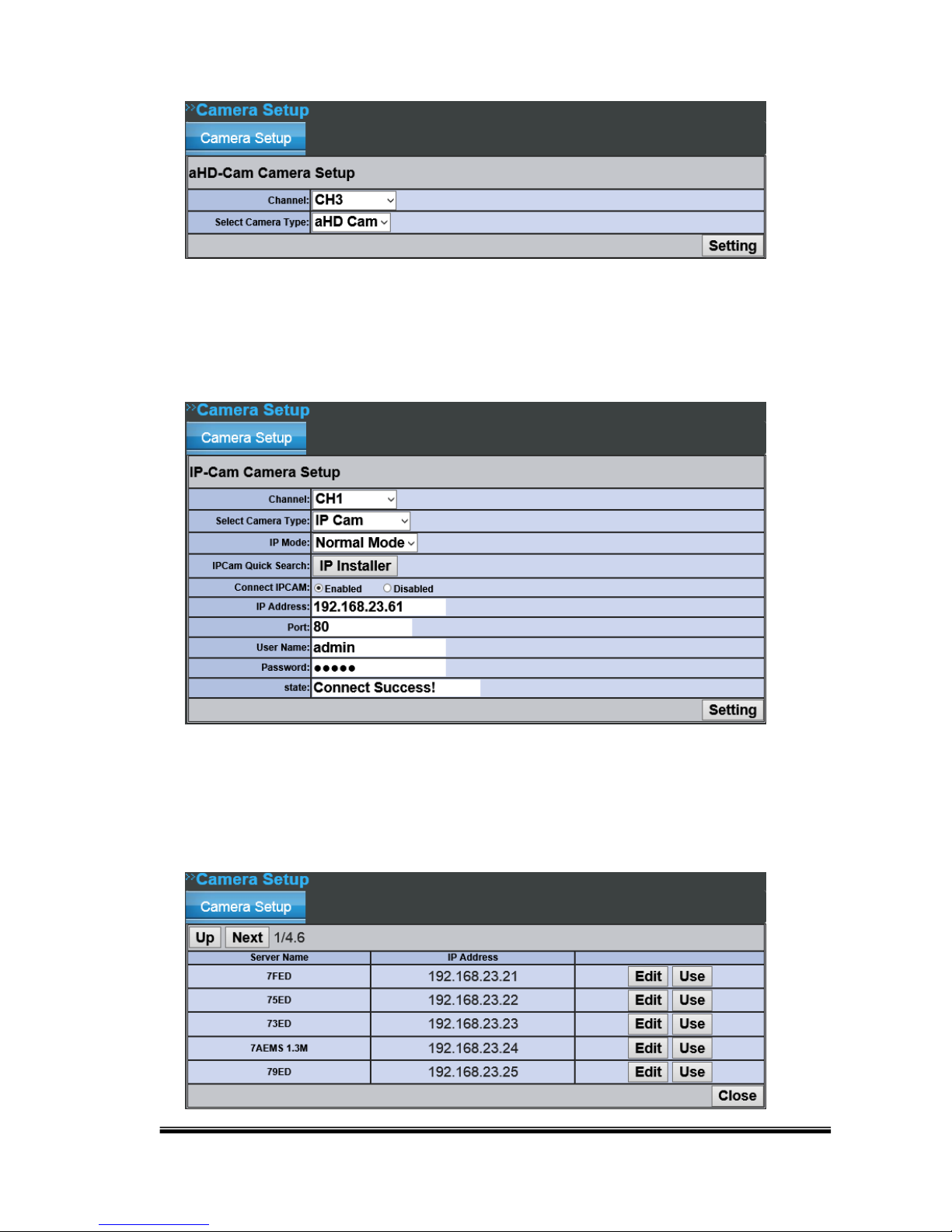

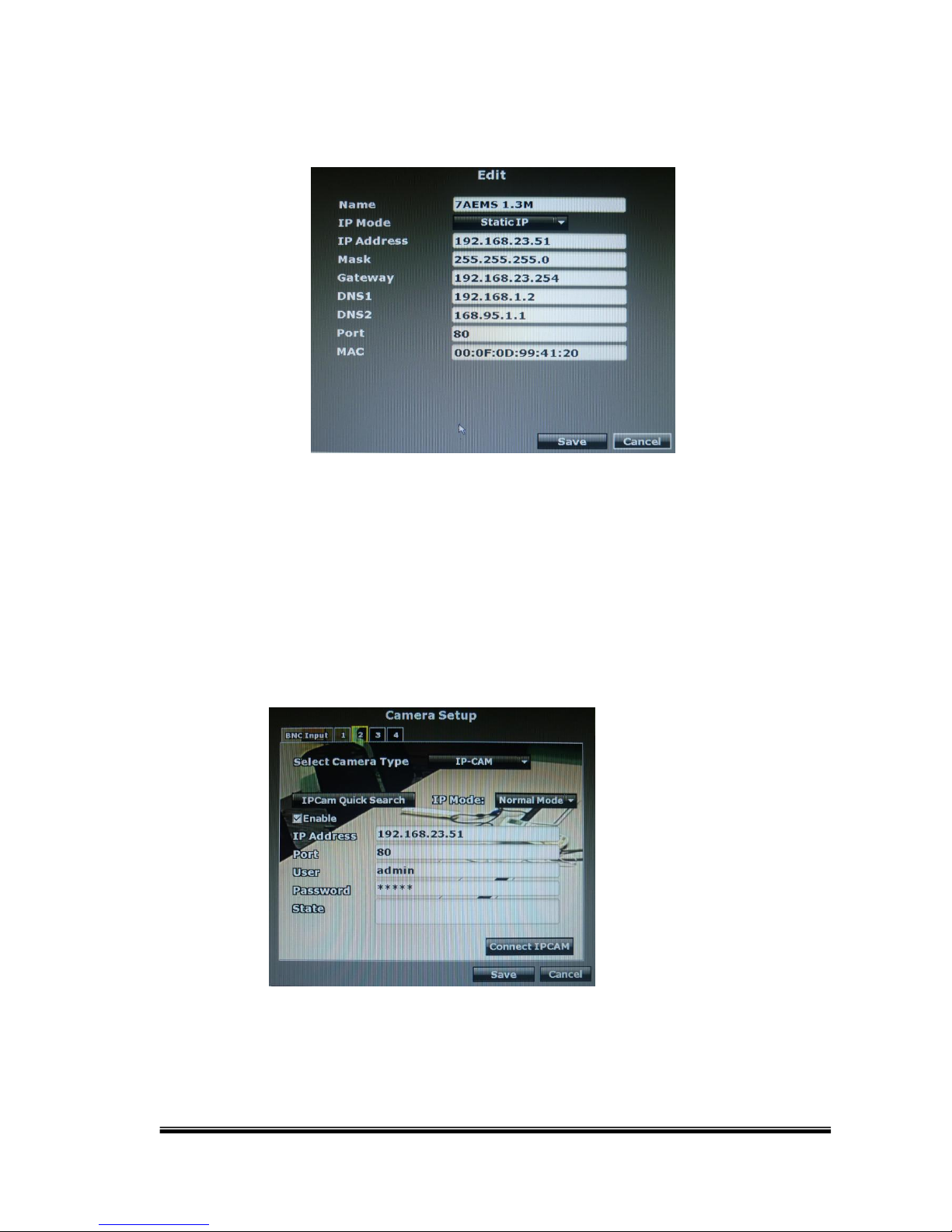

3.3. CAMERA SETUP ................................................................................................ 25

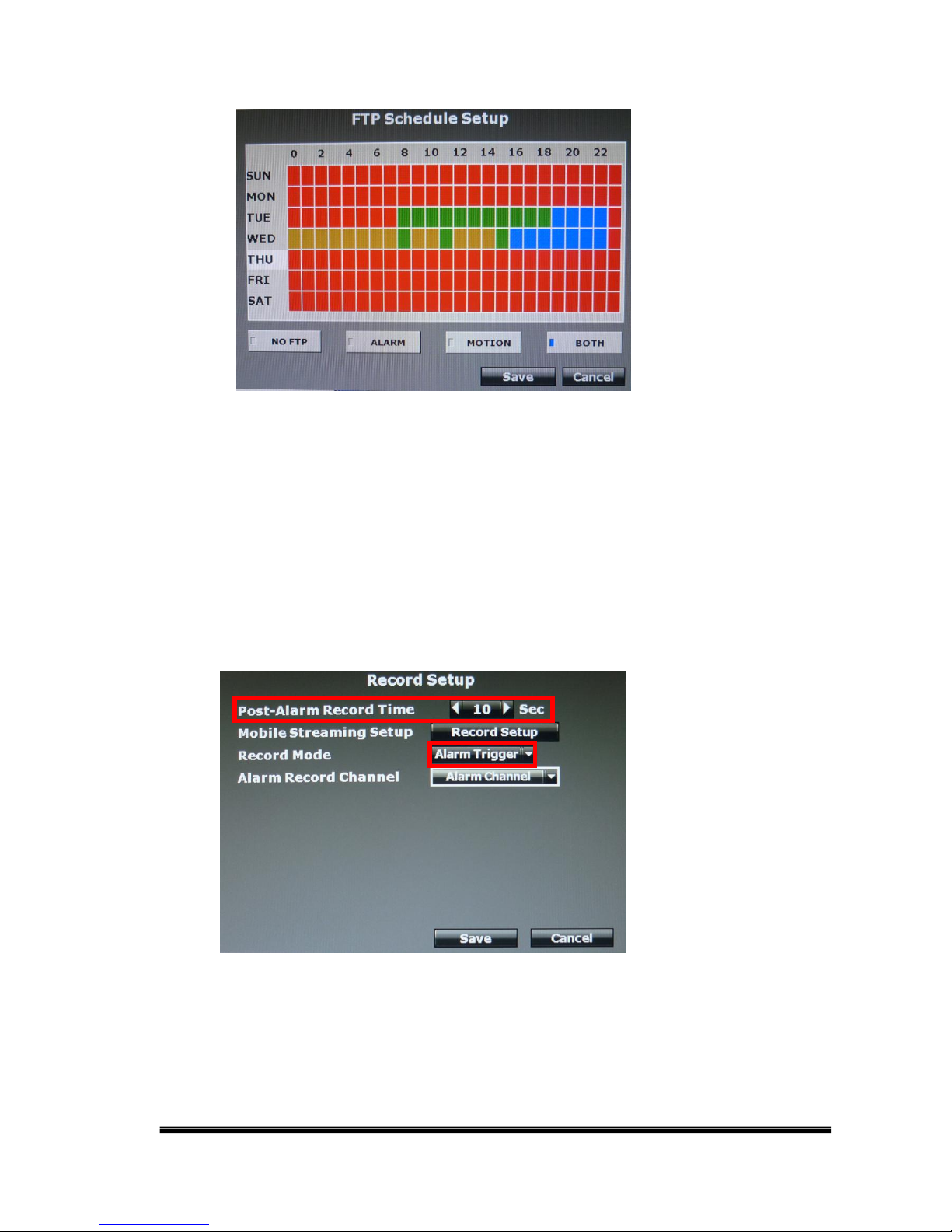

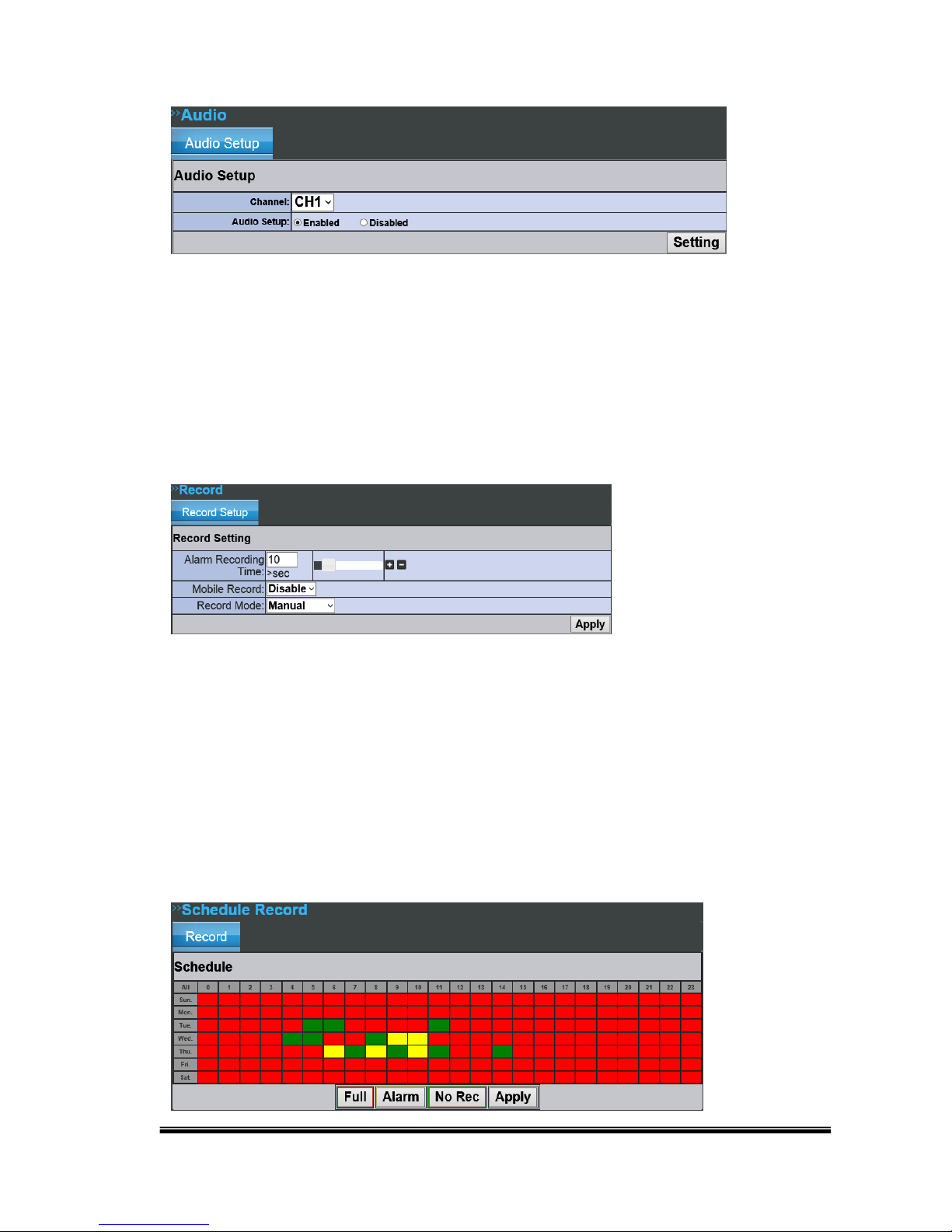

3.4. RECORD SETUP ................................................................................................ 40

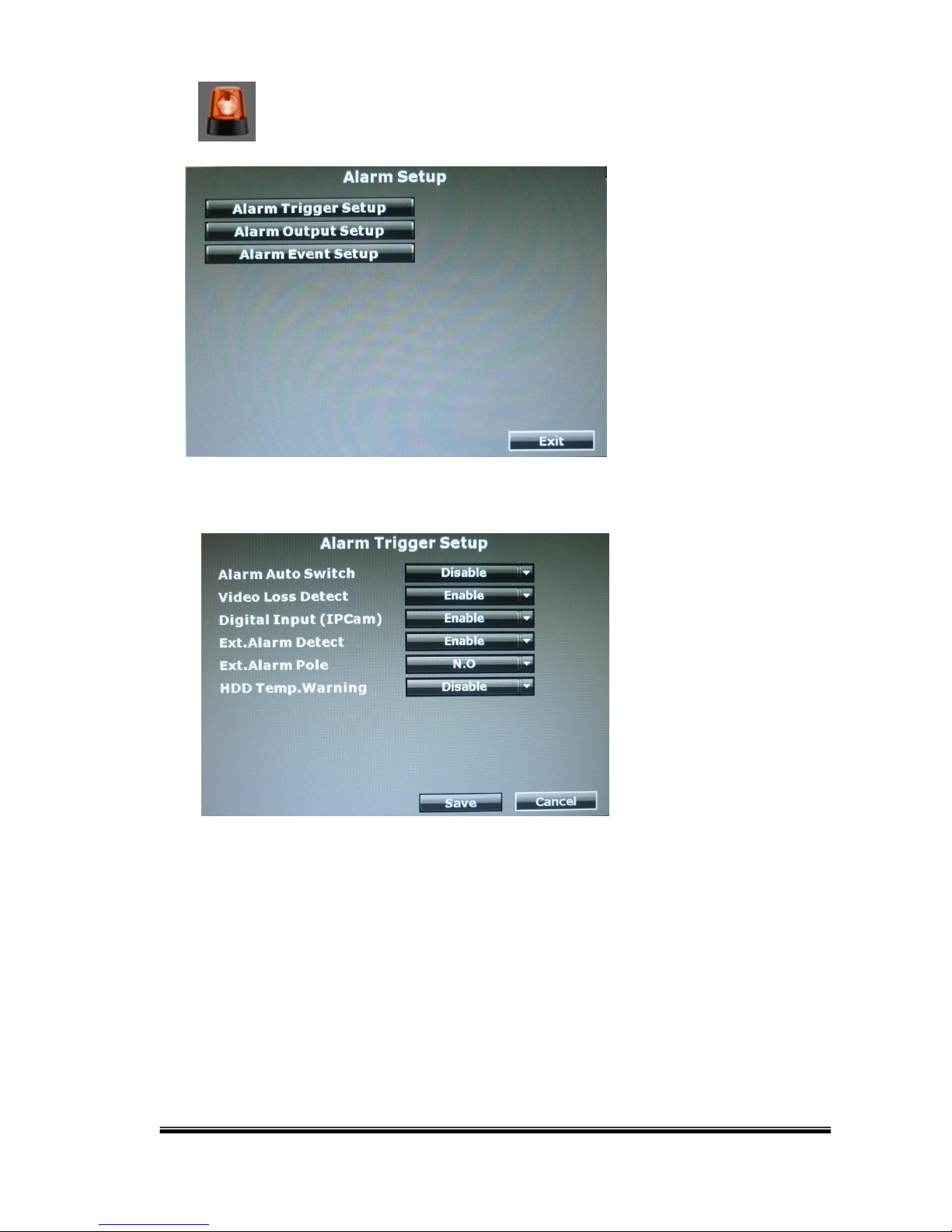

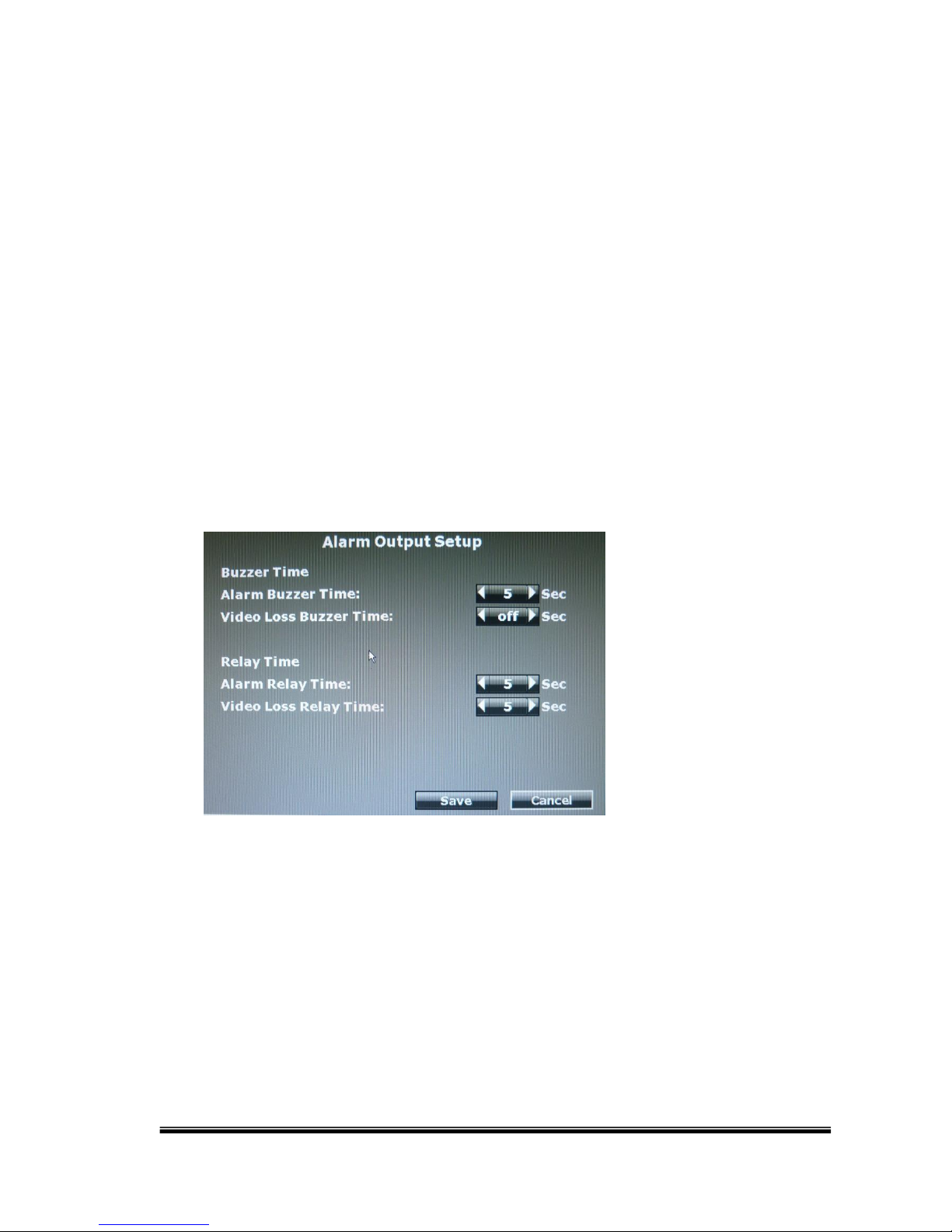

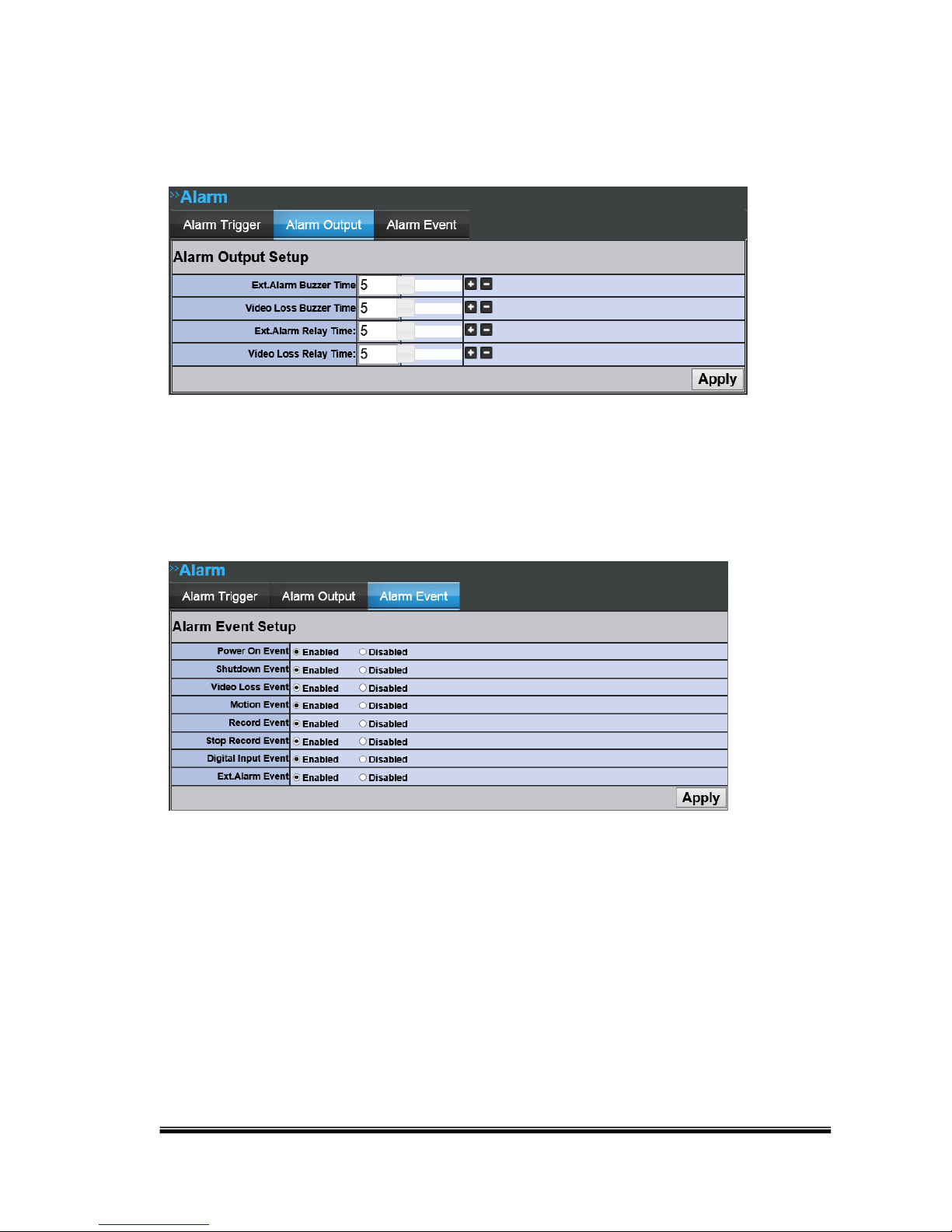

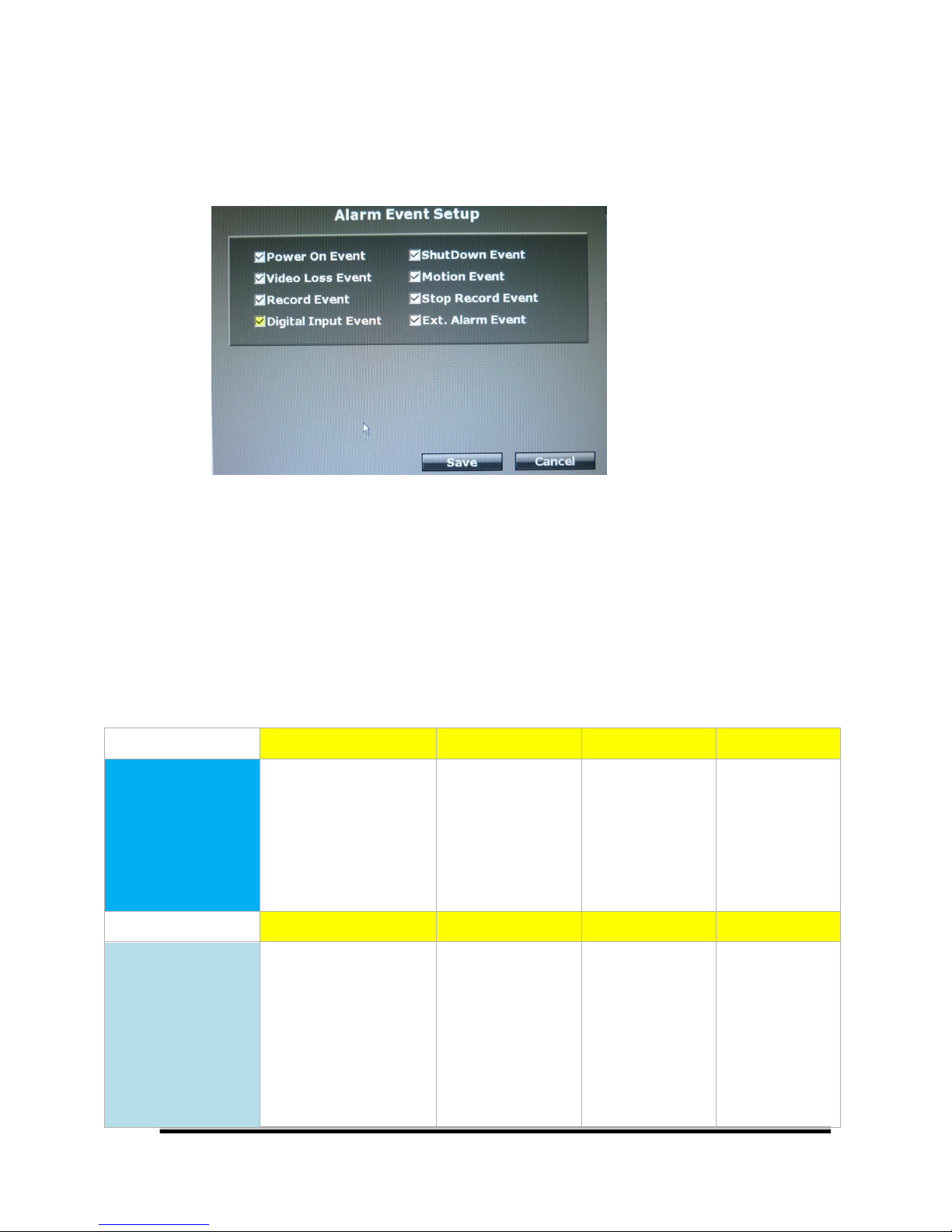

3.5. ALARM SETUP ................................................................................................... 44

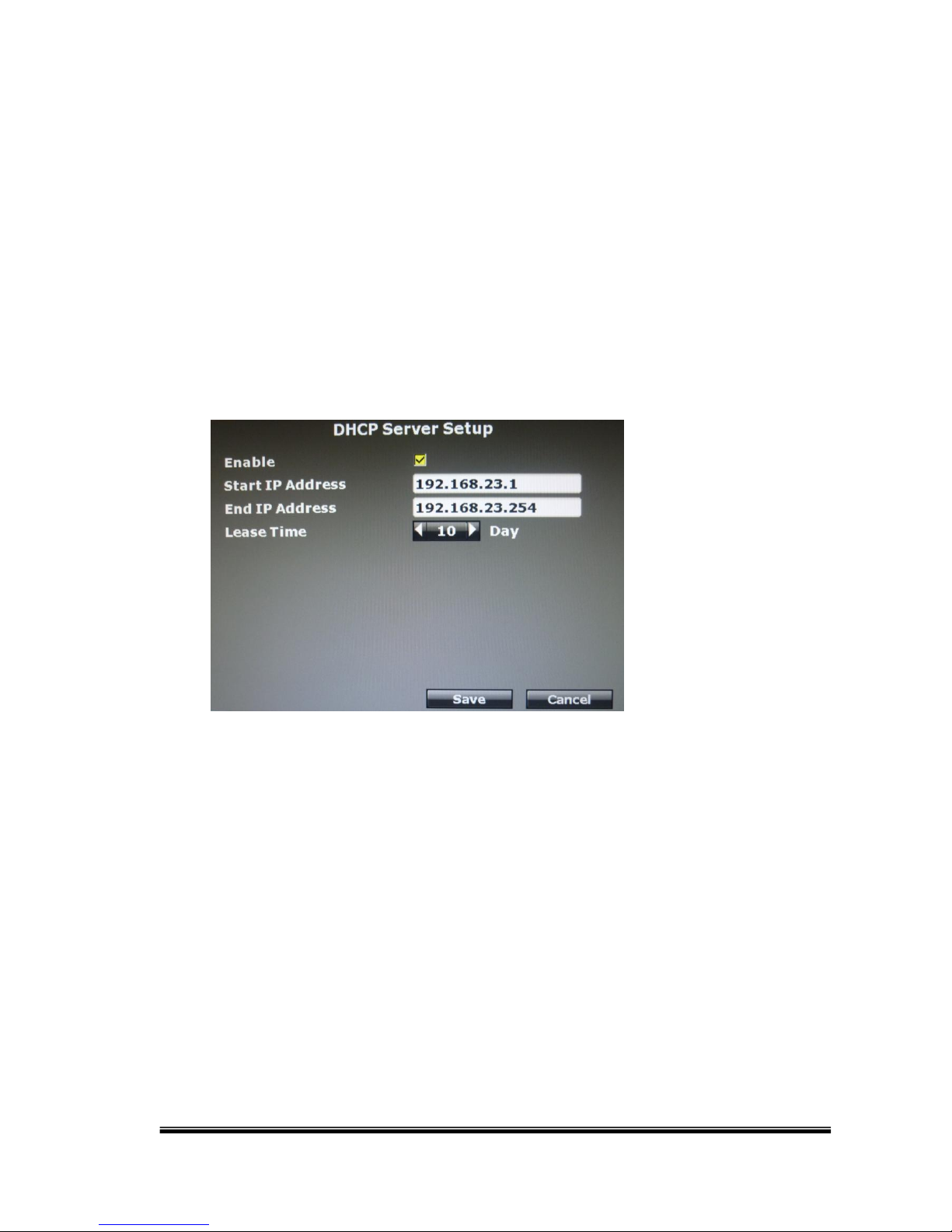

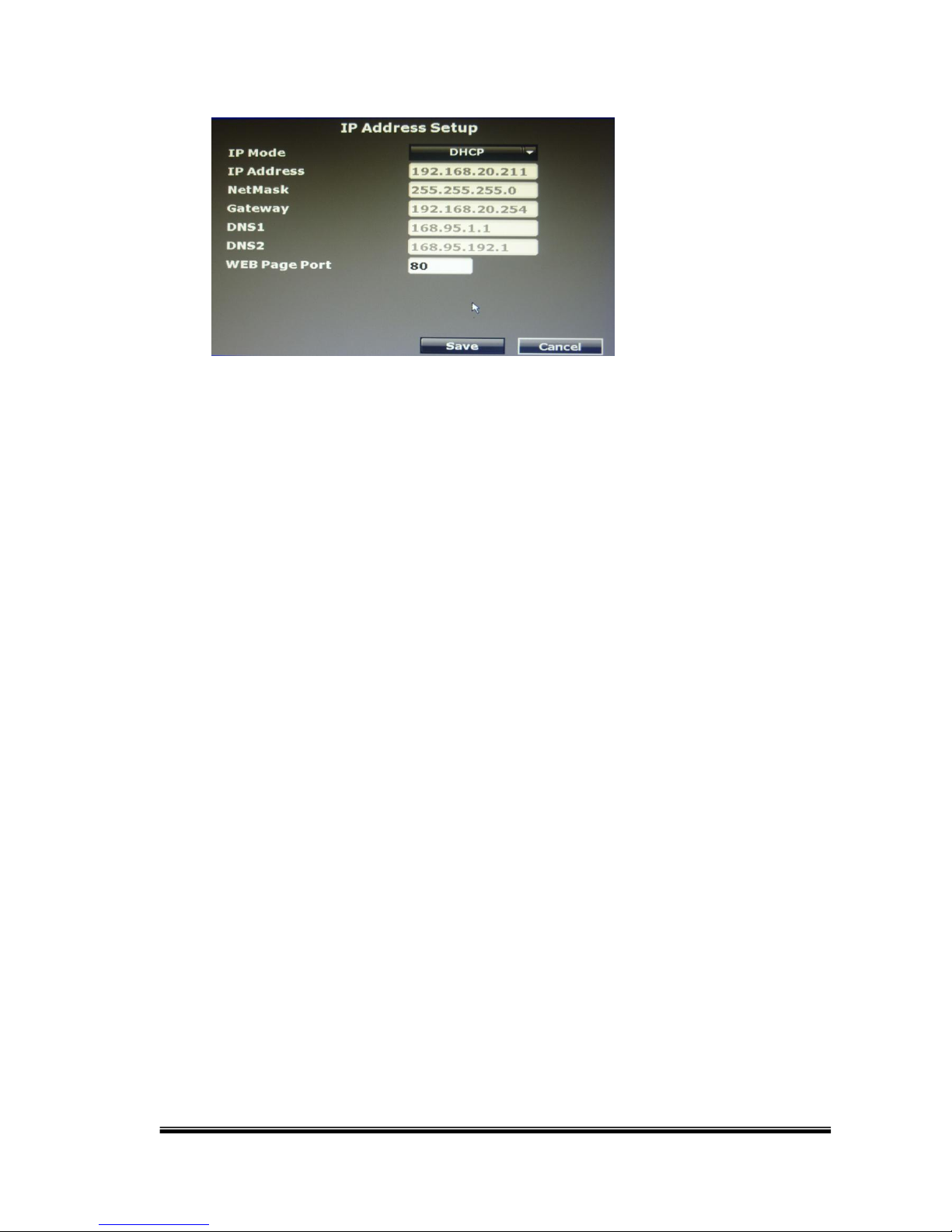

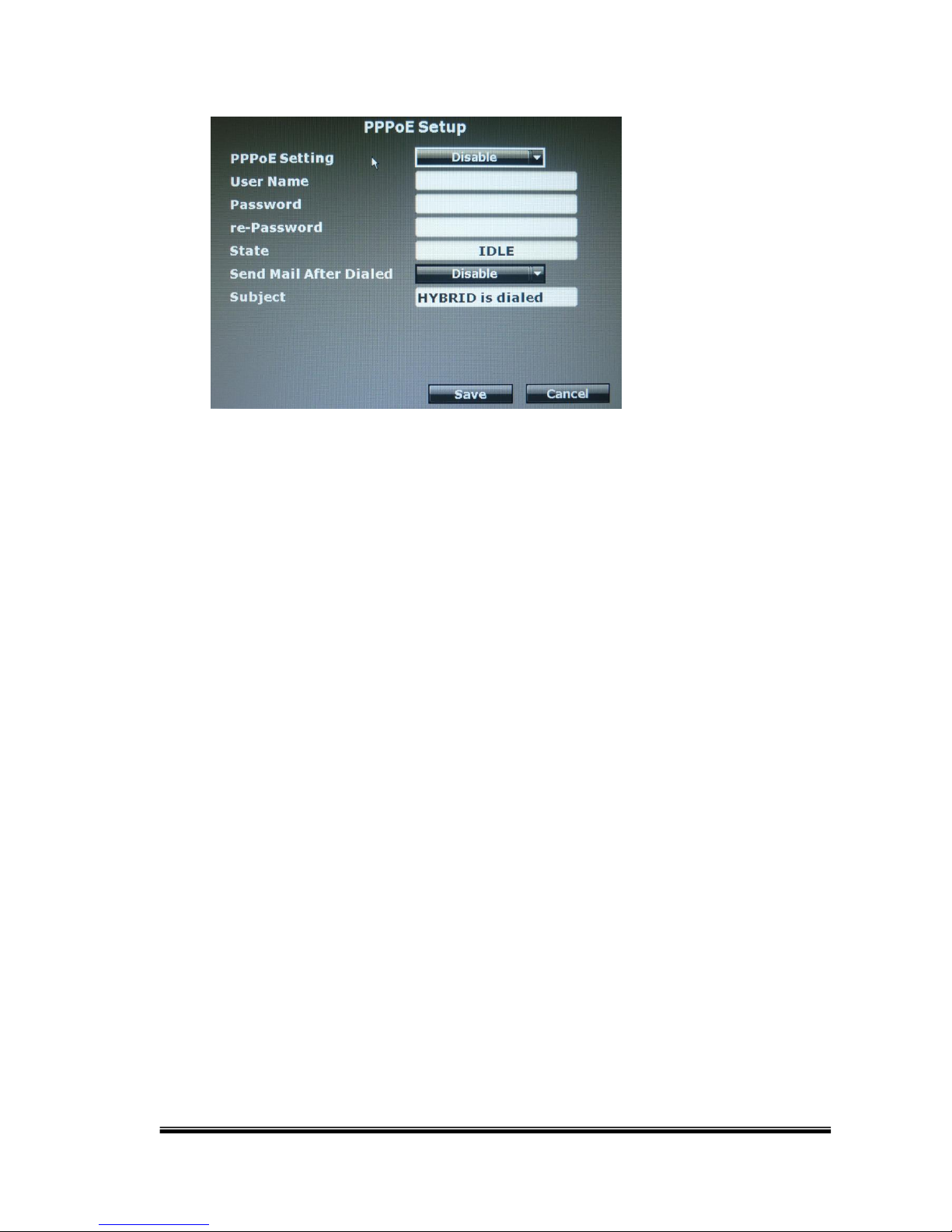

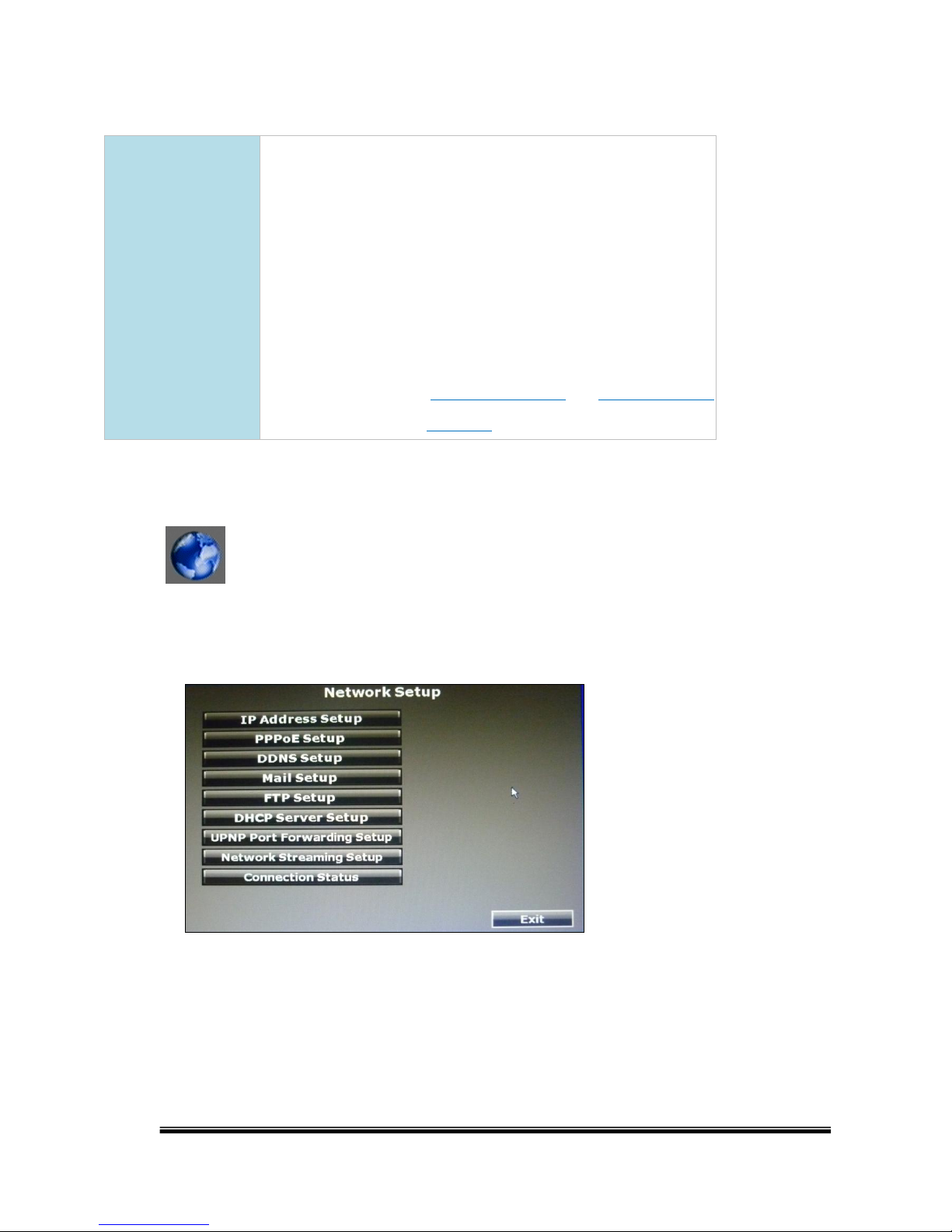

3.6. NETWORK SETUP ............................................................................................. 48

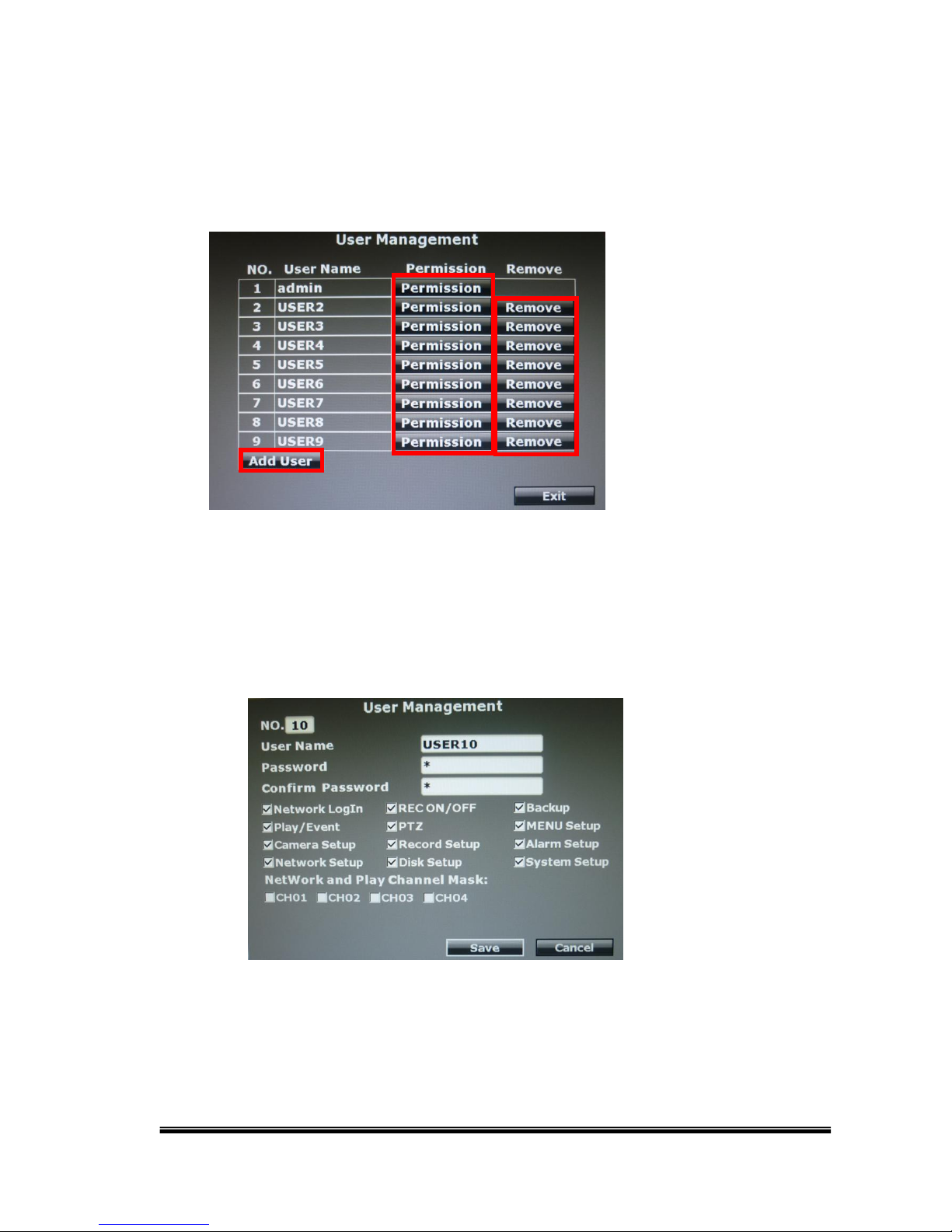

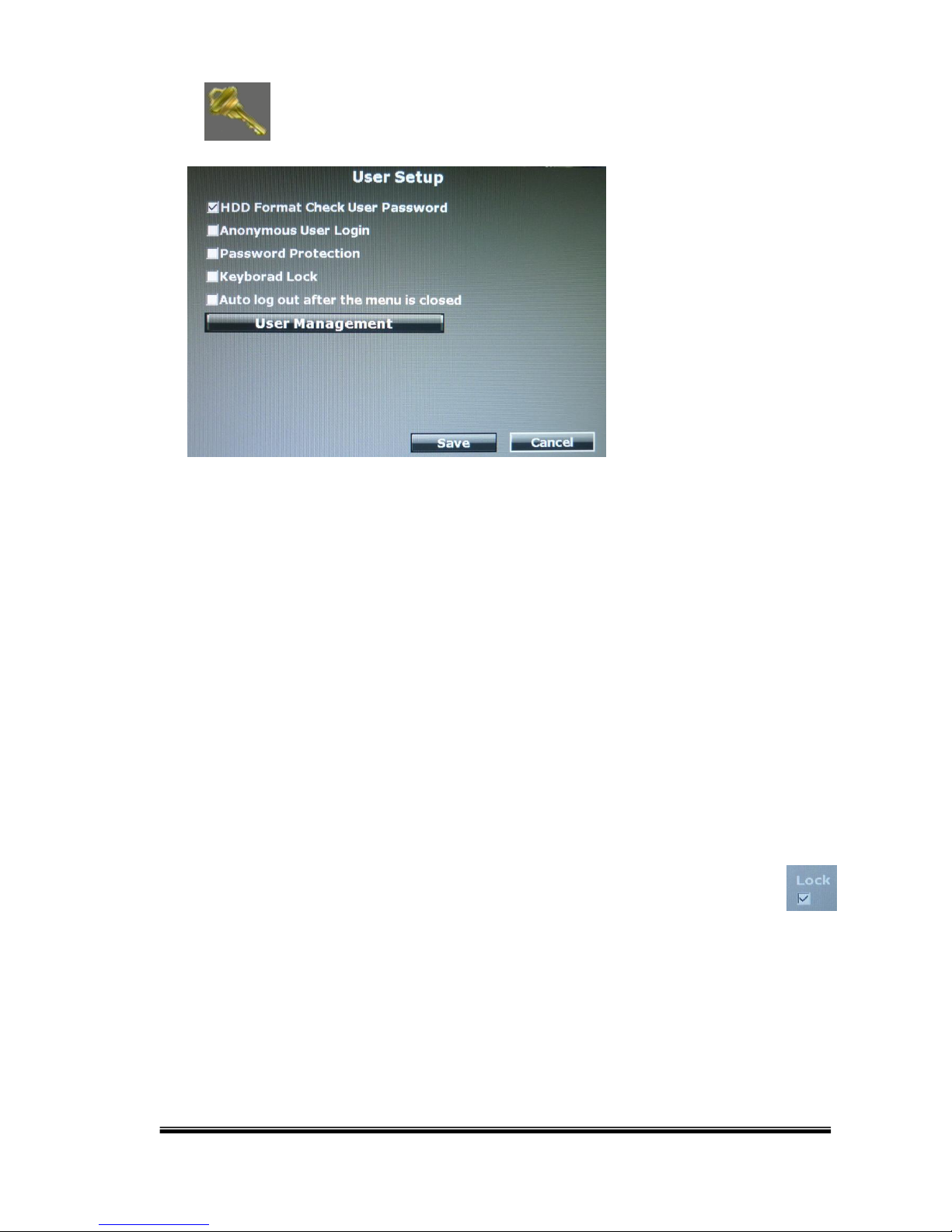

3.7. AUTHORITY SETUP ........................................................................................... 58

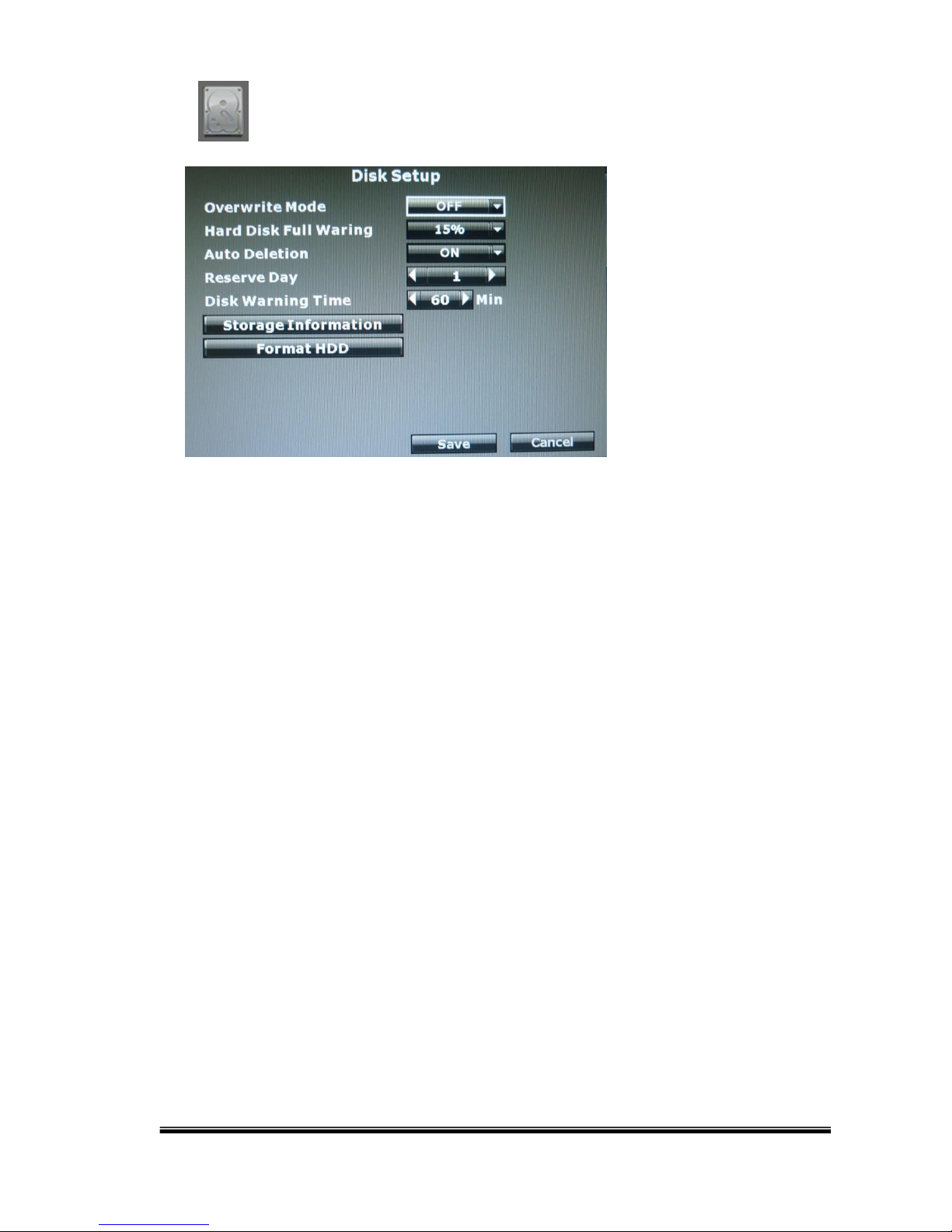

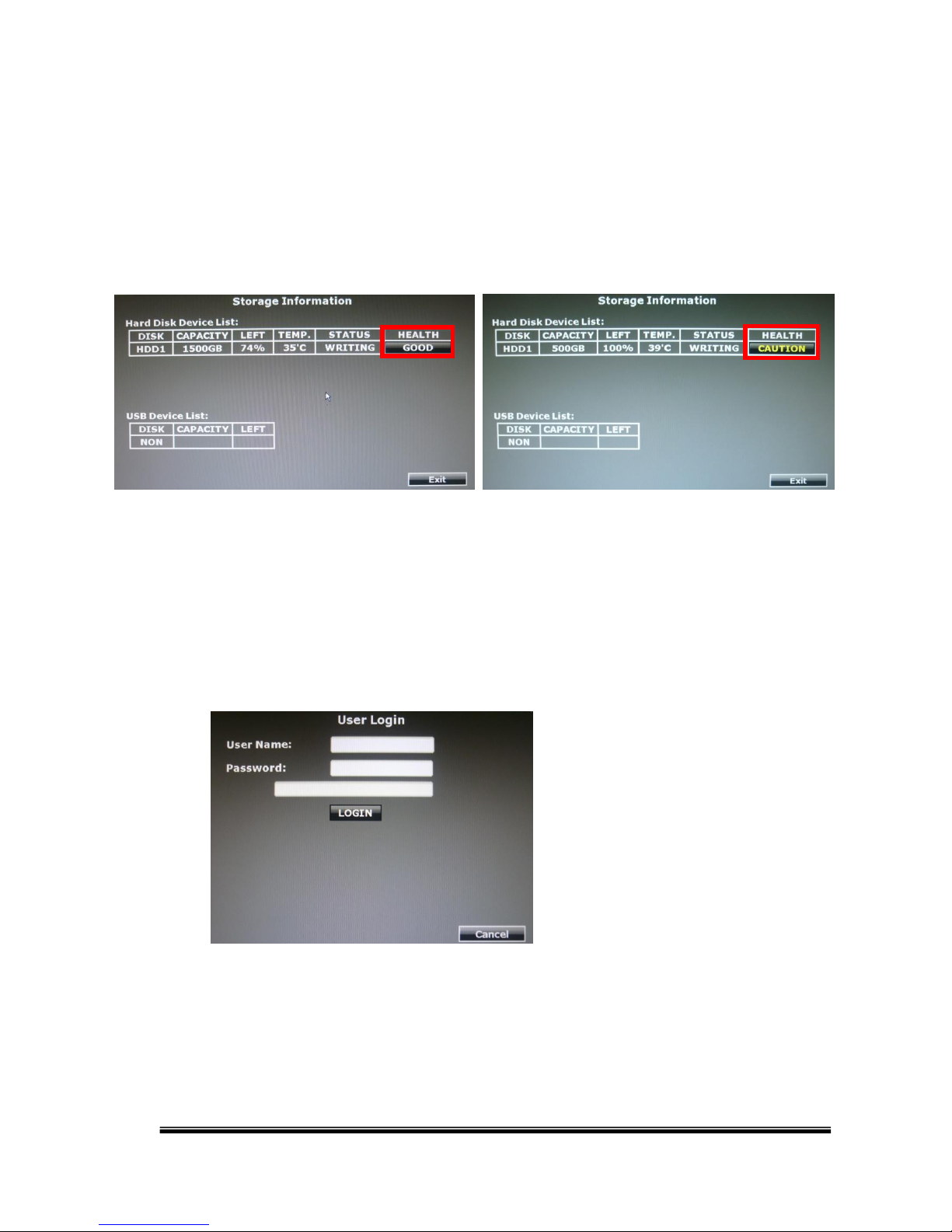

3.8. DISK MANAGEMENT ......................................................................................... 60

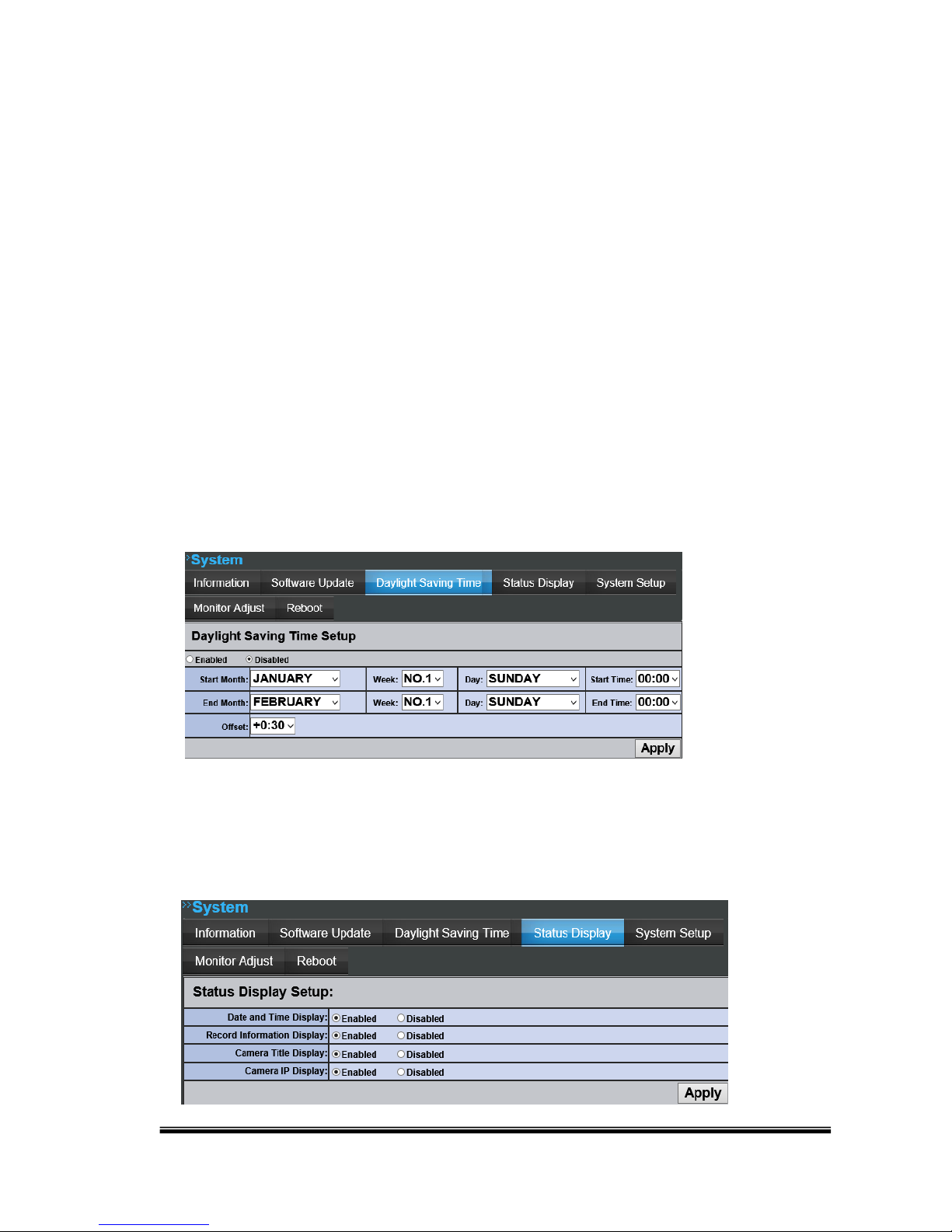

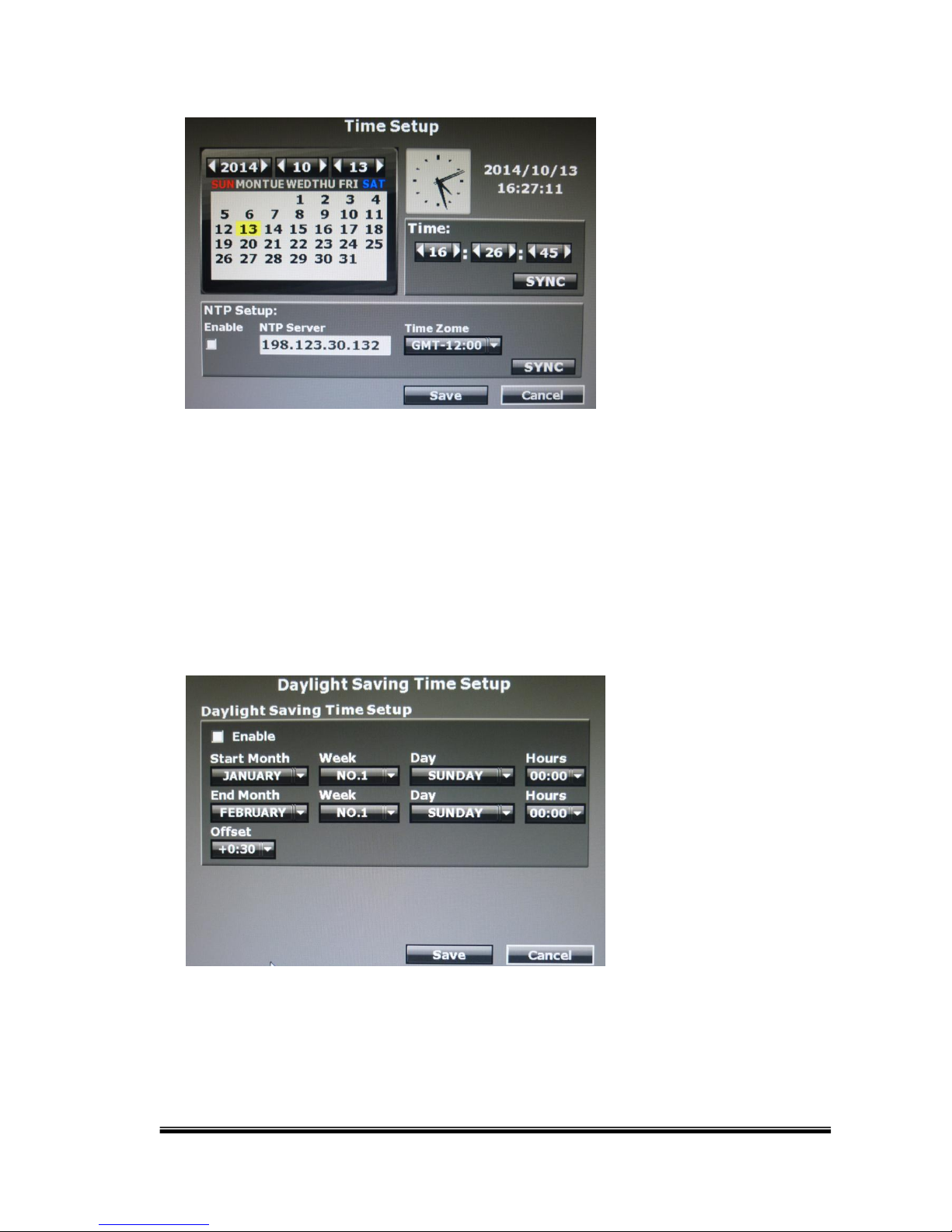

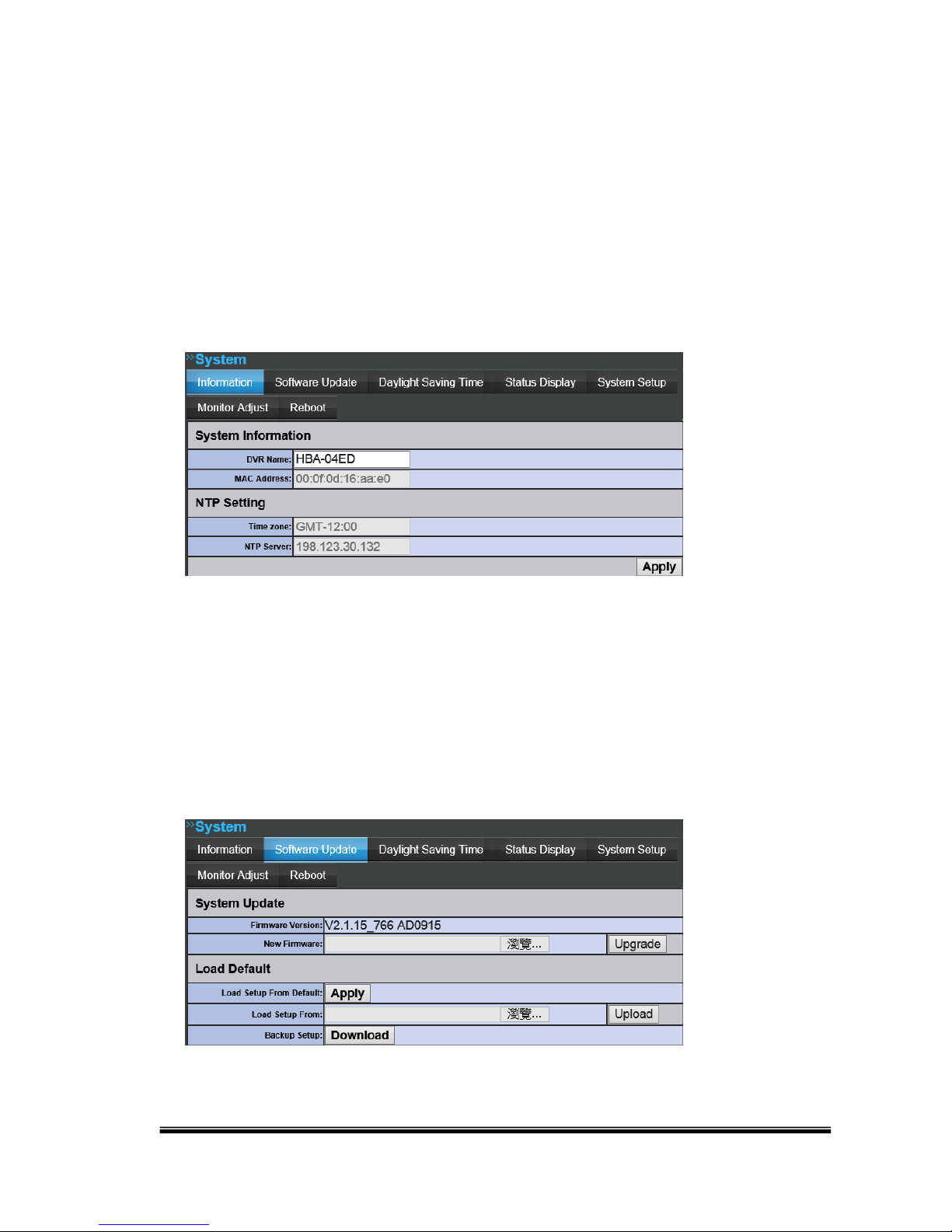

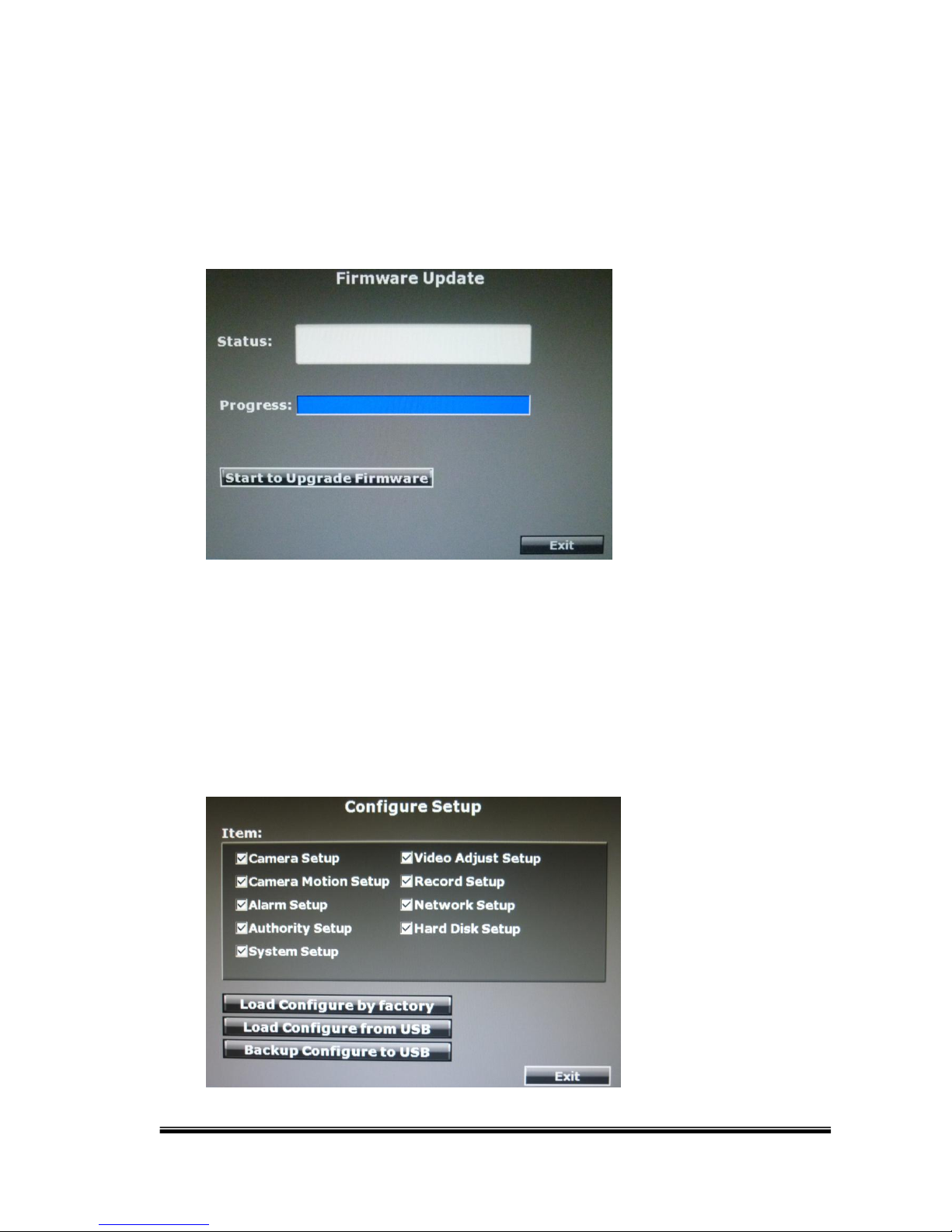

3.9. SYSTEM SETUP ................................................................ ................................ . 62
4. DVR PLAYBACK .......................................................................................................... 67

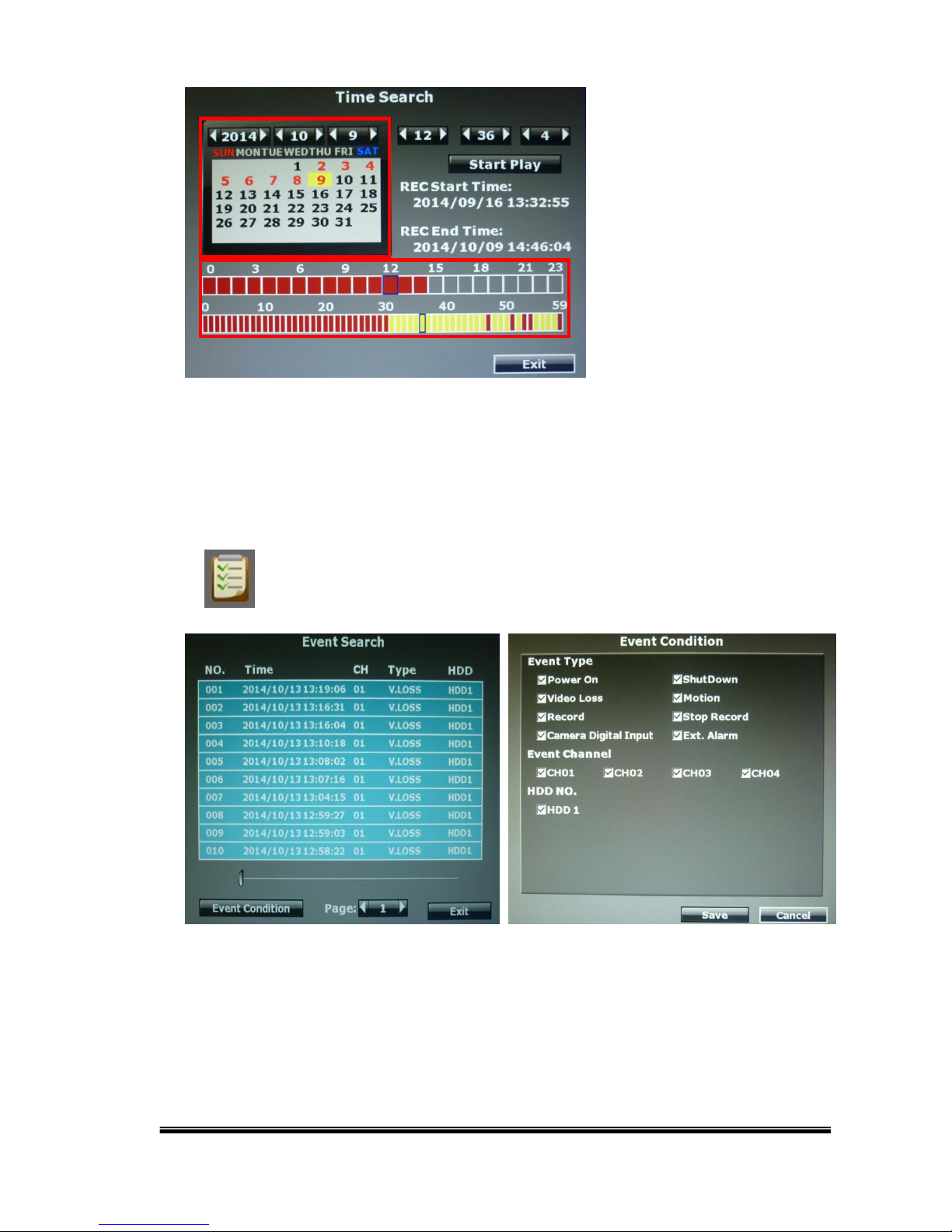

4.1. TIME SEARCH .................................................................................................... 69
4.2. EVENT SEARCH ................................................................................................. 70

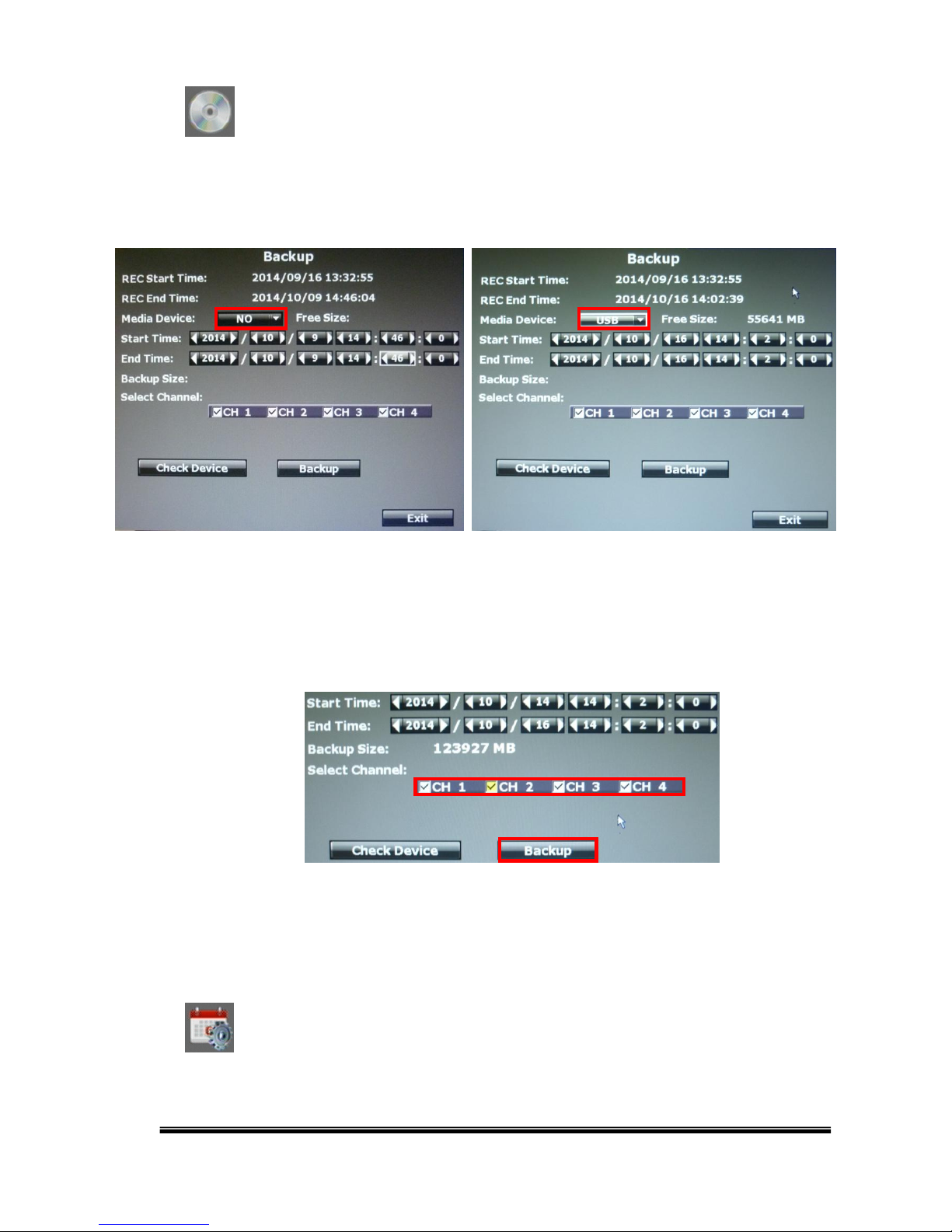

4.3 BACKUP .............................................................................................................. 71

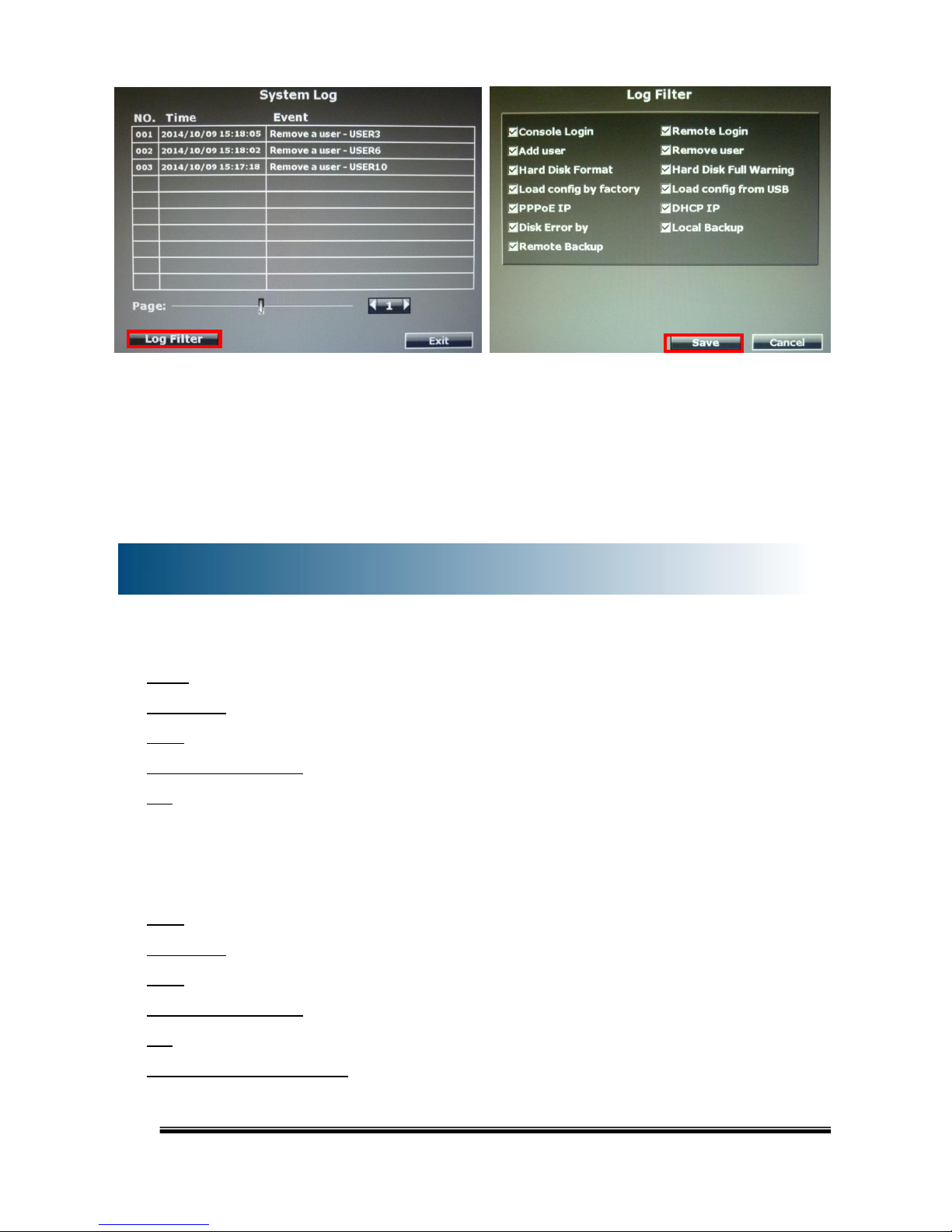

4.4 SYSTEM LOG ...................................................................................................... 71

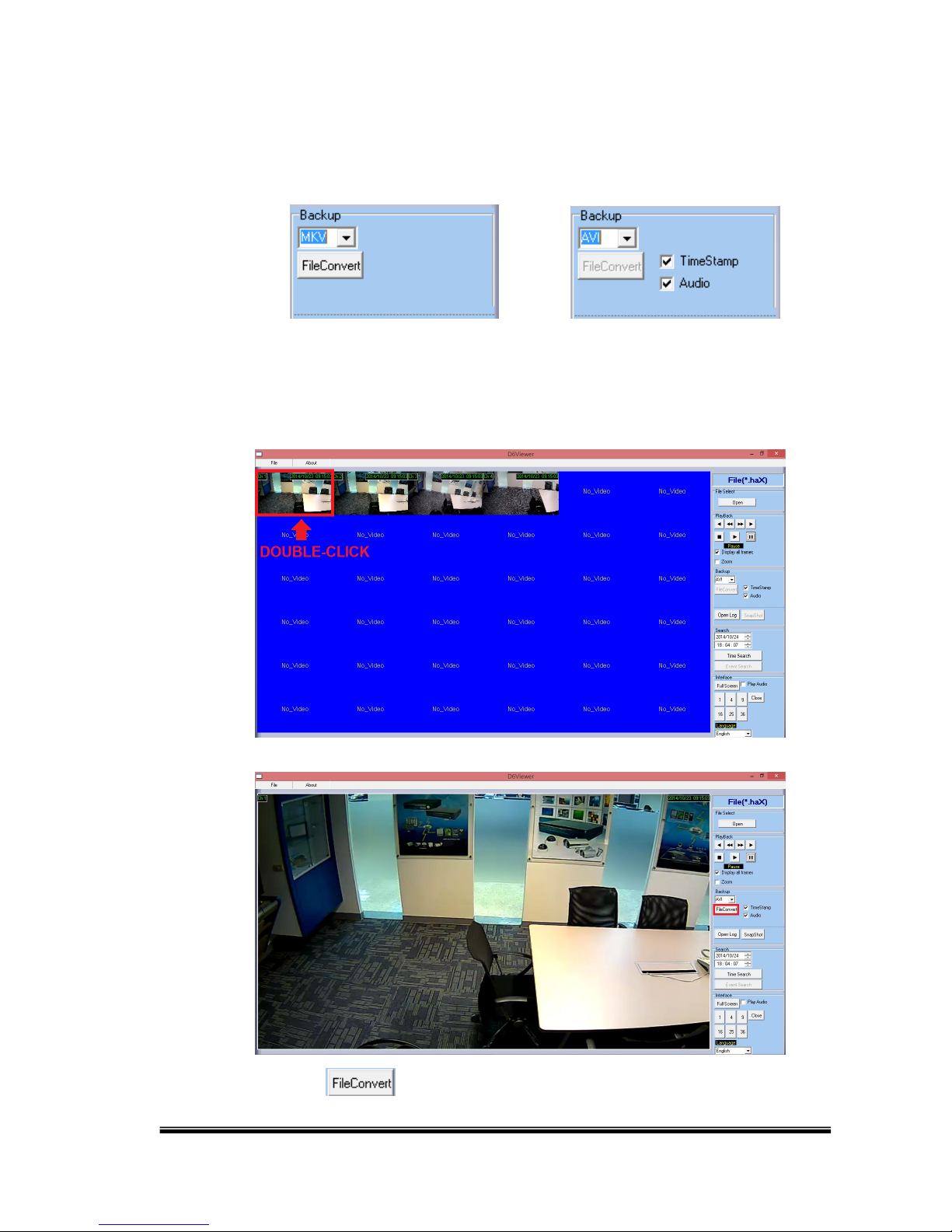

5. BACKUP PLAYBACK ............................................................................................... 72
5.1. MAIN SCREEN SETTING ................................................................................... 73
5.2. PLAYBACK OPERATION ................................................................................... 76

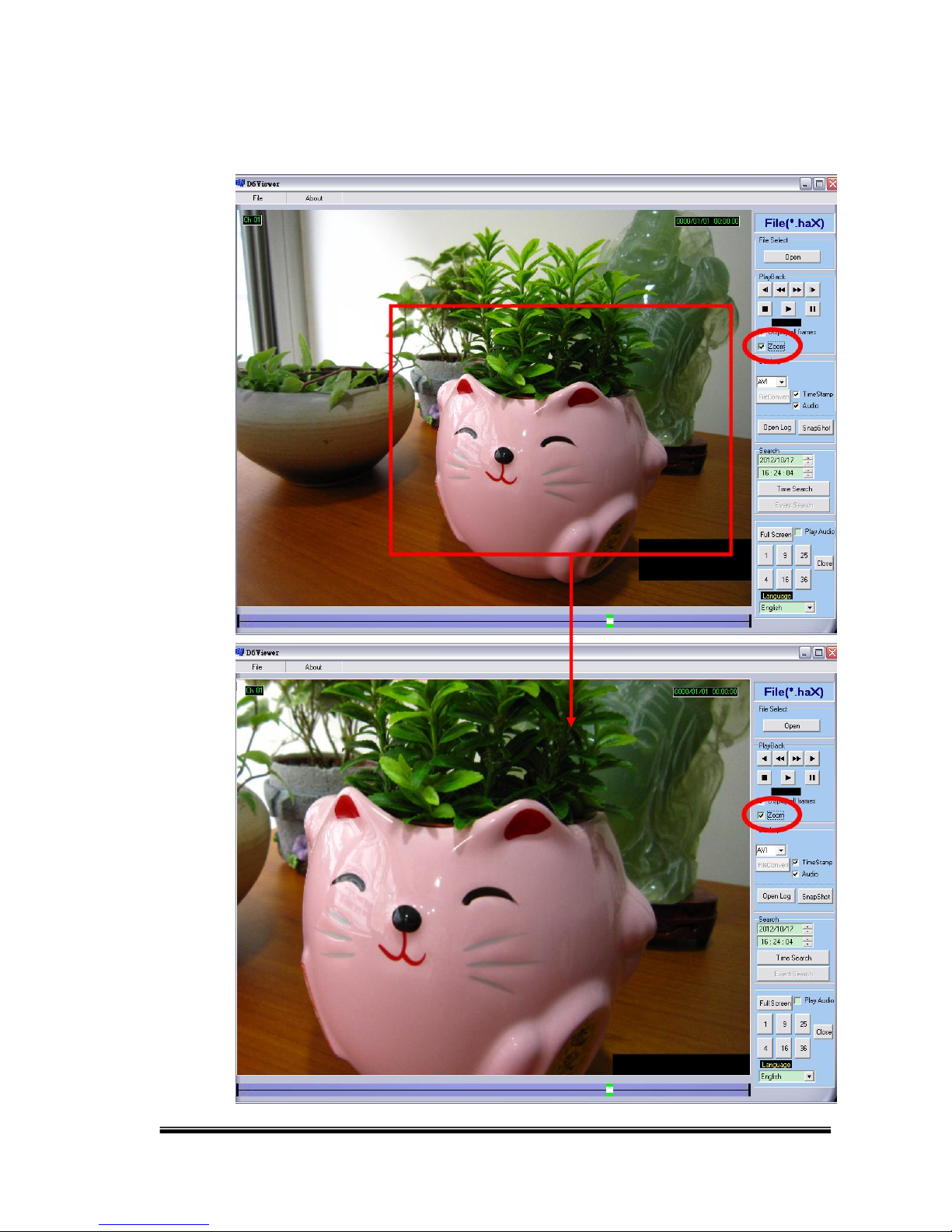

D. ZOOM .................................................................................................................... 78
6. NETWORK VIEWING & PLAYBACK ........................................................................... 80
6.1. IP ADDRESS SETUP ON PC SITE ..................................................................... 81

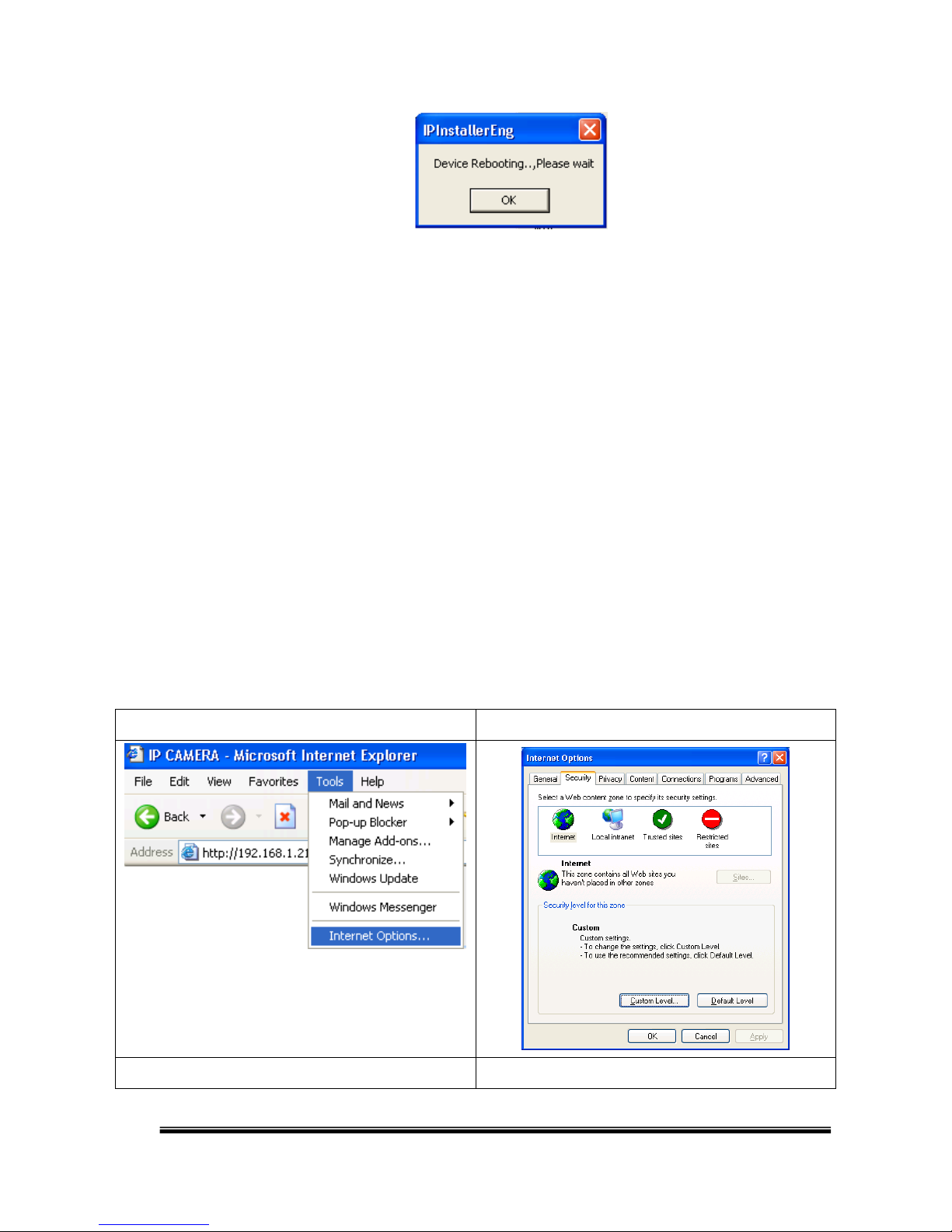

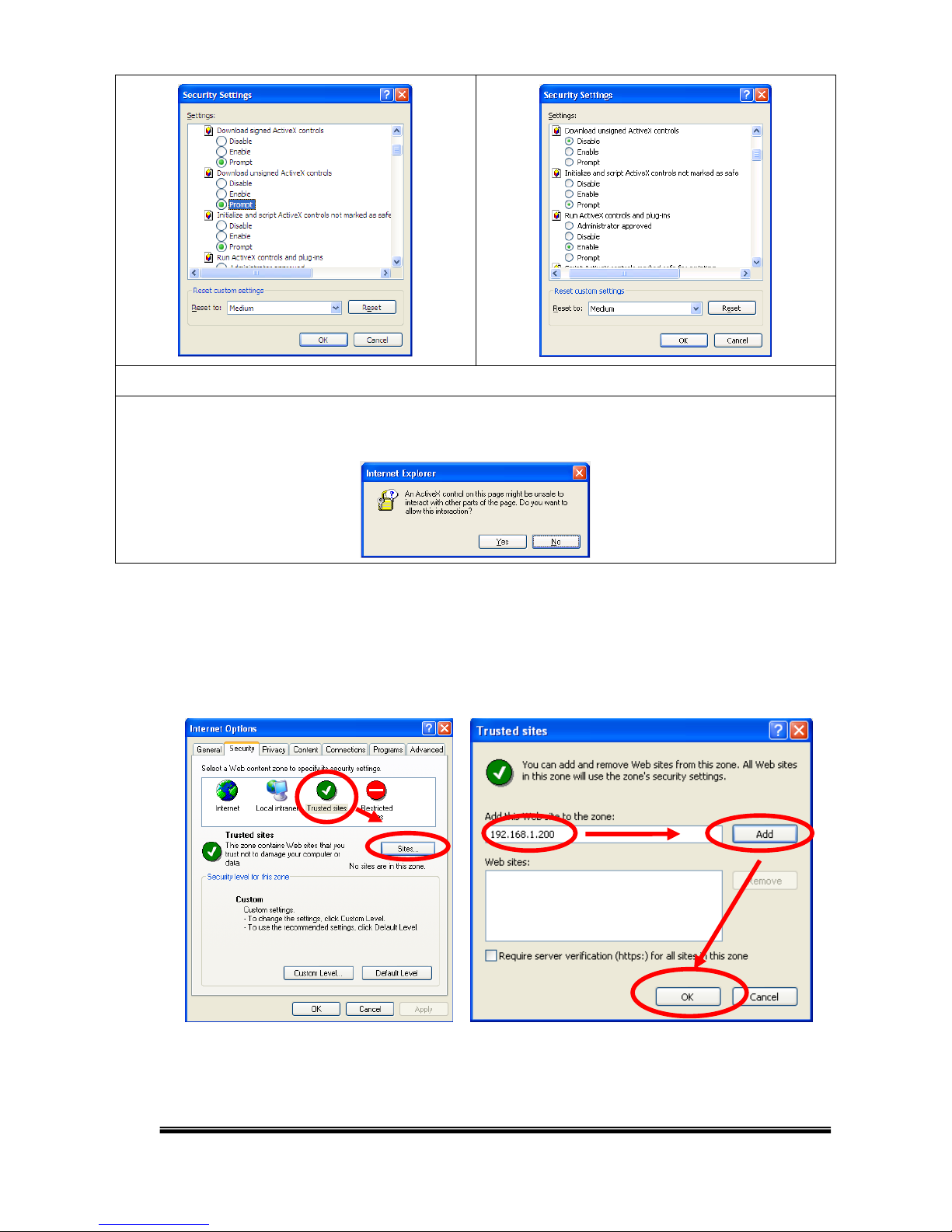

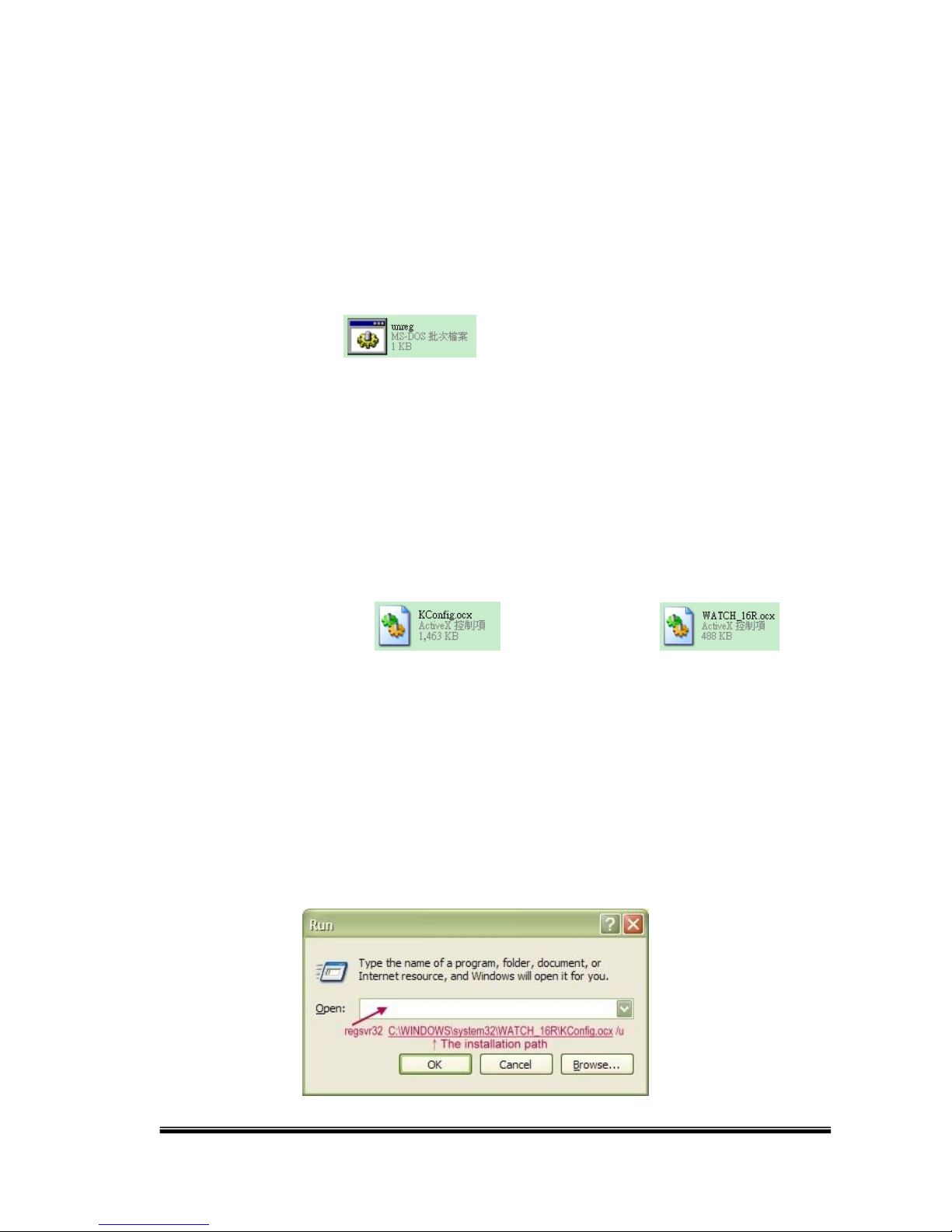

6.2 OPTIONAL MICROSOFT INTERNET EXPLORER SETUP ................................ 82
6.3 LOGIN .................................................................................................................. 84

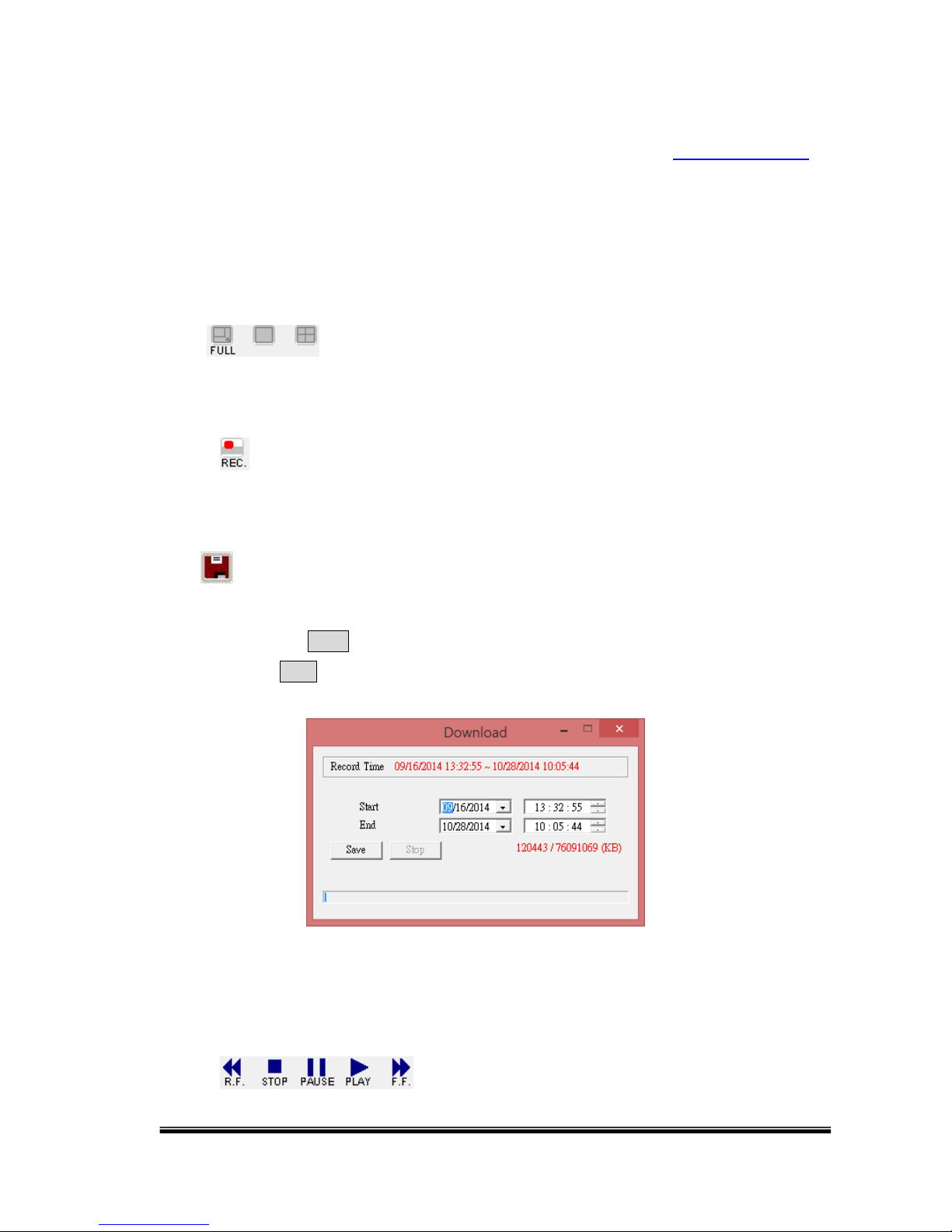

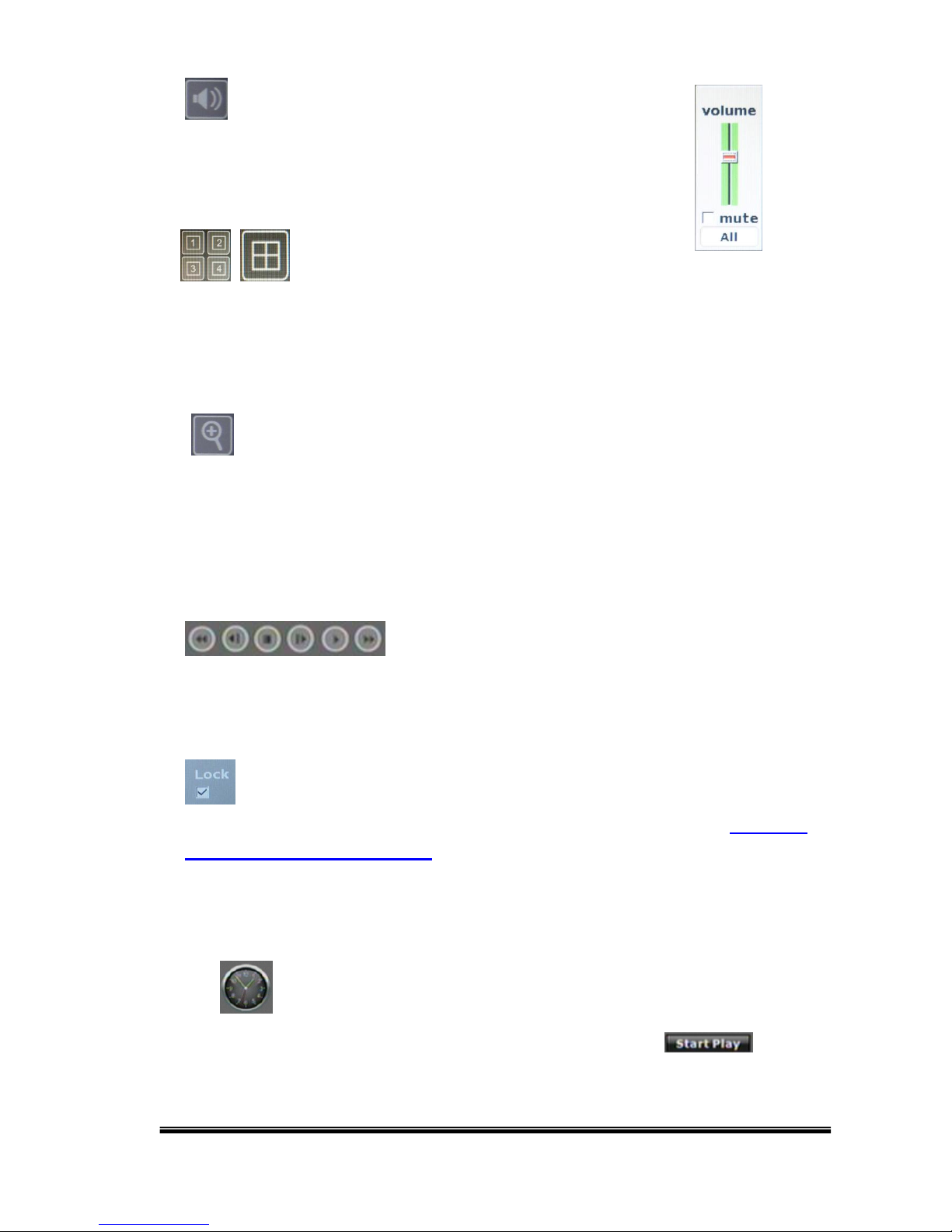

6.4 REMOTE CONTROL ............................................................................................ 85
6.5 CONFIGURE ........................................................................................................ 88
APPENDIX A: RECORDING TIME LAPSE (HOURS) .................................................... 106
APPENDIX B: HDD COMPATIBLE TABLE ................................................................ .... 107
APPENDIX C: ERROR MESSAGE LIST ........................................................................ 110
Page 6
6
1. INTRODUCTION
1.1. FEATURES
■ Support up to 4-channel 720P aHD cameras input.
■ Support up to 4-channel Analog cameras input.
■ Support up to 2-channel IP cameras input.
■ Support H.264 / MPEG4 / MJPEG decoding & H.264 encoding.
■ Analog camera recording rate up to 120 FPS @ 960H.
■ Real-time Display & Playback.
■ Support 5 Megapixel IP Camera for IP camera channel.
■ Audio: 4 in & 1 out.
■ Support 1T HDDs x1.
■ Support CMS (Central Management System) control.
■ Support time-point backup function under Ethernet remote control mode. User
can select any time period to process backup from remote side.
■ Support time-search & event-search function under Ethernet remote control
mode.
■ Up to four online clients for independent remote control; individual live-time,
play-back & time-search function available
■ Support PPPoE/ Static/ DHCP IP & DDNS.
Page 7
1.2. SPECIFICATIONS
MODEL
AHD DVR
Hardware
Video input
BNC x4
Video output
VGA x1 / HDMI x1 / BNC x1
Audio input
RCA x4 for CH1~CH4
Audio output
RCA x1 for speaker
Ethernet
RJ-45, 10/100 Mbps x1
USB
Front : USB 2.0 x1 / Back: USB 2.0 x1
GPIO
Alarm in x2, Relay out x1, RS485
Power
DC12V, 5A
Video and Audio
IP Cam Video Input
Max 2 channels
IP Cam Resolution
Up to 5 Megapixel
IP Cam Frame rate
Up to 30 FPS @ NTSC per CH
Analog Video Input
Max 4 channels
Analog
Resolution
720P
NTSC: 1280 x 720
PAL: 1280 x 720
960H
NTSC: 960 x 480
PAL: 960 × 576
D1
NTSC: 720 x 480
PAL: 720 × 576
Analog Live-time Display
Rate
4 x 30 Frame /sec (NTSC)
4 x 25 Frame /sec (PAL)
IP Cam Audio Input
Max 4 channels
Analog Audio Input
Max 4 channels
Hybrid DVR Functions
OS
Embedded Linux
Page 8
8
Camera Name
Max. 20 characters
Screen Split Control
1, 4
Image Control
Contrast / Brightness / Saturation / Hue
Recording mode
Manual / Schedule / Alarm
Searching and Playback
Search Method
Date / Time / Event
Date/ Time / Event Search
Selectable on the calendar
Log Search
Through the log data to find the video event / time
Playback Speed
Fast Forward X 2 X8 X 16 X32 X64
Picture by picture Playback
Pause / Fast Backward X2 X4 X8
Recording
Resolution
720P
NTSC: 1280 x 720
PAL: 1280 x 720
960H
NTSC: 960 x 480
PAL: 960 x 576
D1
NTSC: 720 x 480
PAL: 720 x 576
Half D1
NTSC: 720 x 240
PAL: 720 x 288
CIF
NTSC: 360 x 240
PAL: 360 x 288
Recording Rate Per Channel
NTSC: Up to 30 FPS
PAL: Up to 25 FPS
Backup Type
USB
Remote Client Software
Monitoring Environment
Hunt CMS, IPMotion
IP / Analog cam Live View
4 Channels
Remote Search
Web site remote time / event search
System Monitoring and Recovery
Monitoring
Watchdog
STORAGE & BACKUP DEVICE
Internal HDD Support
SATA HDD x 1
Page 9
9
External USB Backup Device
USB x2
Networking
Type
Static/ DHCP/ PPPoE/DDNS
Environment
Operating Temperature
0 - 45 ℃ / 32~113 F
Humidity
0~80% RH (non-condensing)
Language
Type
English / Traditional Chinese / Simplified Chinese / Spanish
/ Dutch / Russian / Vietnamese / Italian / French / Thai /
Greek / Japanese / Czech / German / Slovak / Hebrew
/Portuguese / Hungarian
Physical
Color
Black
Dimensions (W x H x D)
218mm × 44mm× 202mm
Weight
1000g
* SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
Page 10
10
2. HARDWARE OVERVIEW

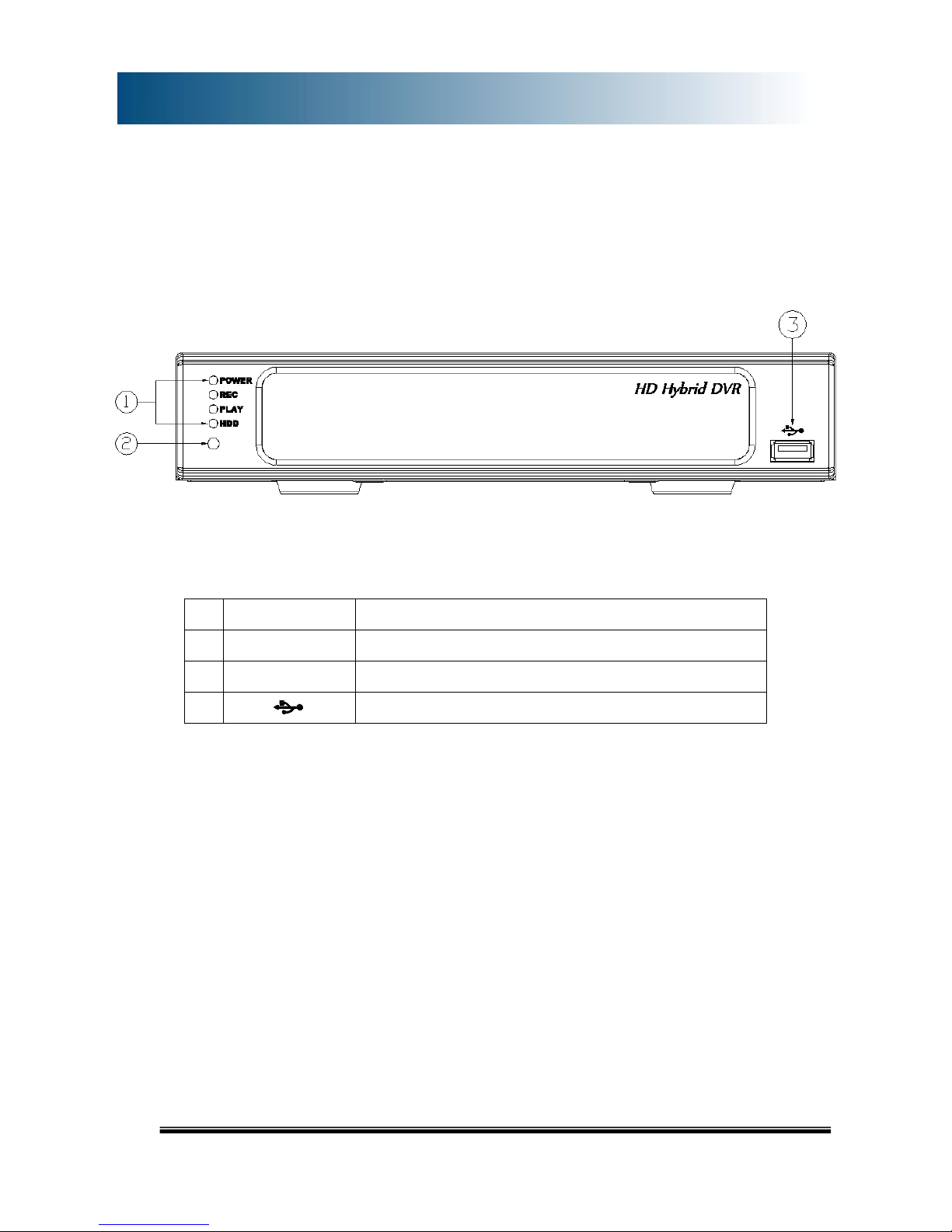

2.1. FRONT PANEL
NO.
LABEL / NAME
OPERATION
1
LED
POWER / REC / PLAY / HDD LED indicators
2
CHANNEL
Video Control / Channel / Split buttons
3
4321
76 8
10 11 12
22
USB Connector/ USB Mouse Connector
Page 11
11

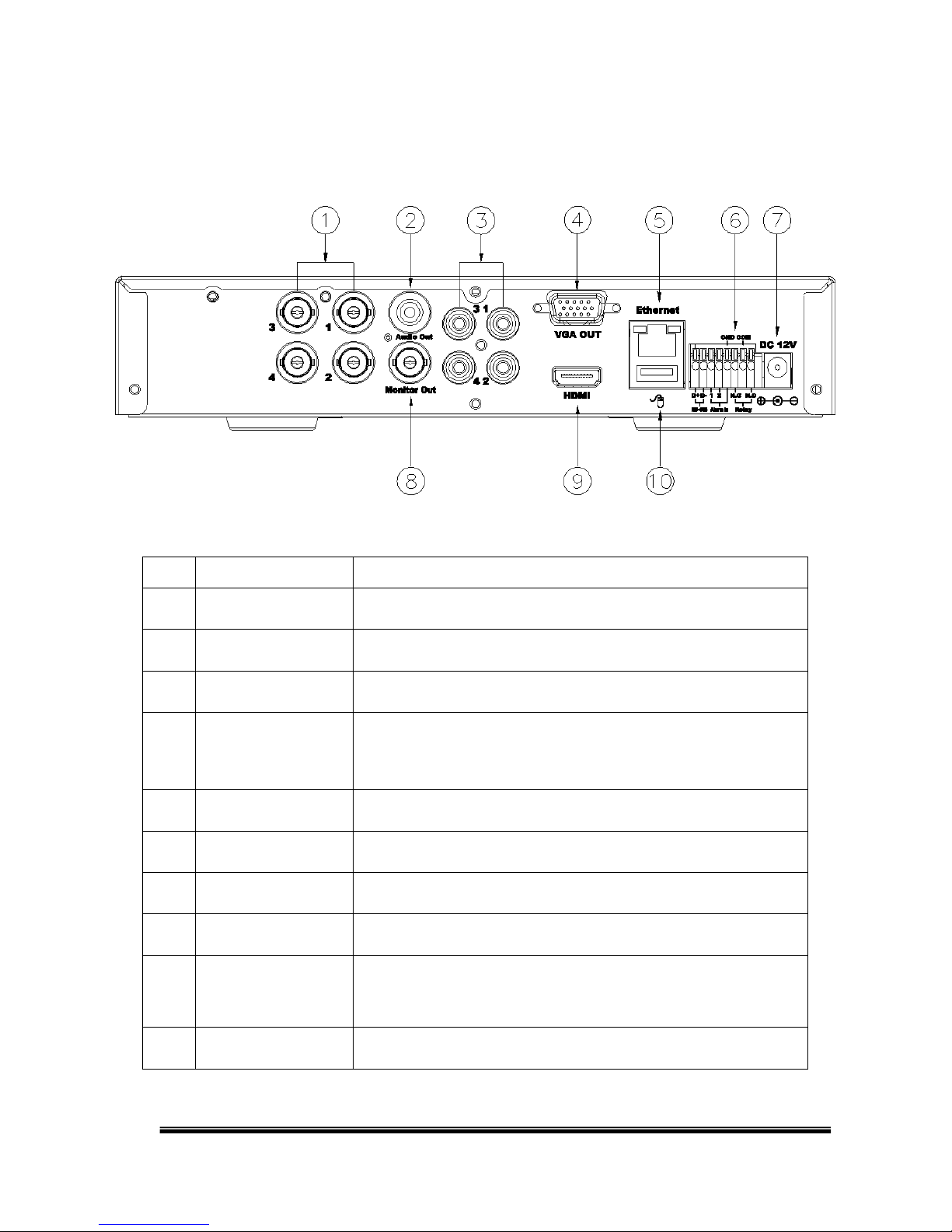

2.2. BACK PANEL
NO.
LABEL
OPERATION
1
VIDEO IN
BNC video input
2
AUDIO OUT
Audio Output
3
AUDIO IN
Audio input
4
VGA OUT
(VIDEO OUT)
LCD monitor connector
5
ETHERNET
RJ-45 connector
6
DI / DO
2 alarm in / RS485 / 1 relay out
7
POWER
Power adapter (DC 12V/5A) connector
8
MONITOR OUT
Monitor display output
9
VIDEO OUT
(HDMI)
HDMI video output
10
MOUSE
USB Mouse Connector
Page 12
12
2.3. ALARM TRIGGERING
There are four types of alarms: Motion detection, Video Loss Alarm, External Alarm,
and Digital Input from Camera. The following are the possible actions when the
alarm is triggered. Every action is configurable (Ex. the screen display pattern, the
relay triggered time.etc) and will be explained in the later chapter.

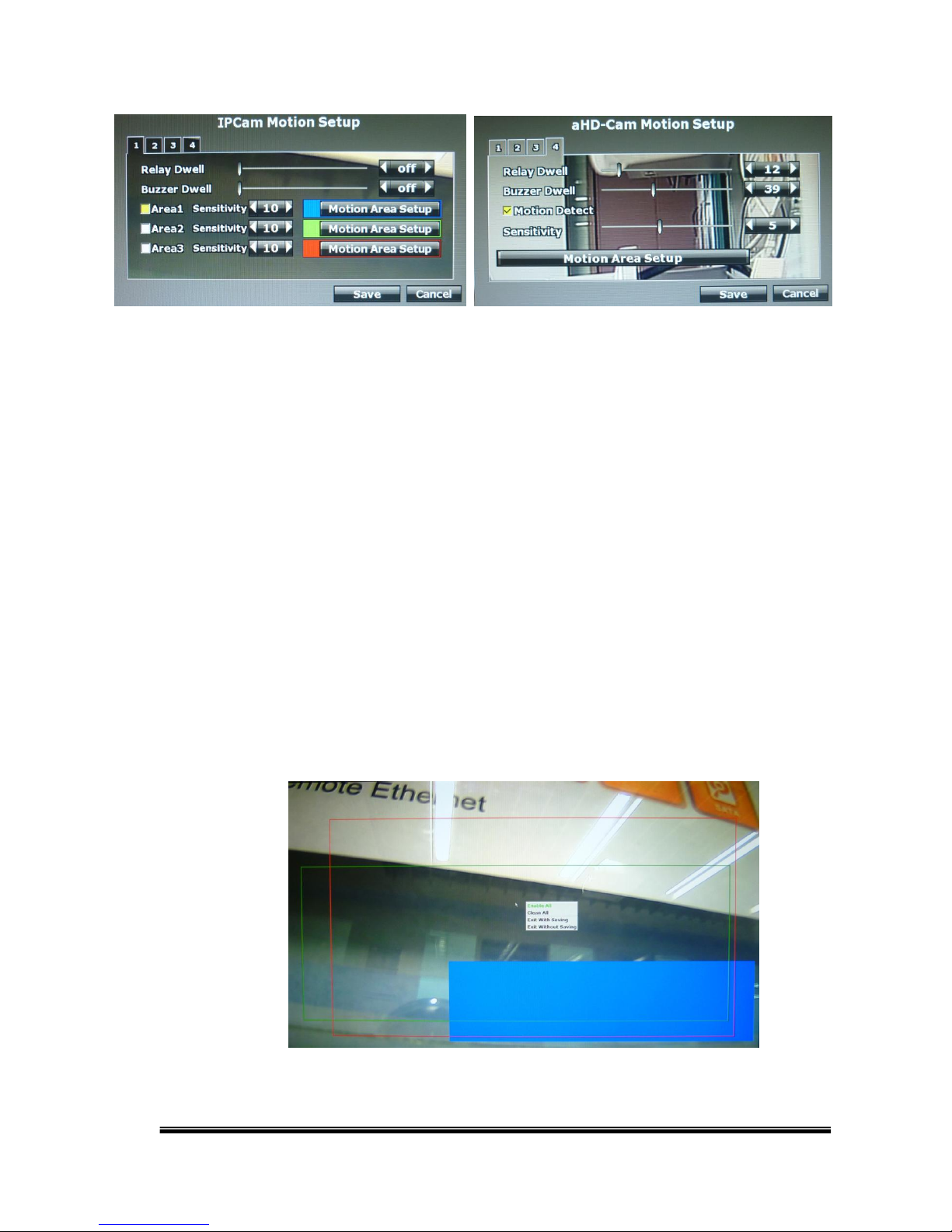

A. When Motion detection occurs:
a. The live screen pattern can be switch to single channel screen or split screen.
b. The external relay/ built-in buzzer can be triggered.
c. The alarm time point can be recorded in the event list, and you can search for
the event in playback.
d. On the channel which the alarm is triggered, the icon pops up to remind
the user.
e. The pre/ post-alarm recording video can be sent to e-mail/ uploaded to FTP.
f. The CGI can be sent to an http server.
B. When the External Alarm or Digital Input from Camera has been triggered:
a. The external relay/ built-in buzzer can be triggered.
b. The alarm time point can be recorded in the event list, and you can search for
the event in playback.
Page 13
13
c. On the channel which the alarm is triggered, the icon pops up to remind
the user.
d. The pre/ post-alarm recording video can be sent to e-mail/ uploaded to FTP.
e. The CGI can be sent to an http server.
C. When Video Loss Alarm occurs:
a. The external relay/ built-in buzzer can be triggered.
b. Alarm time point can be recorded in the event list, and you can search for the
event in playback.
c. On the channel which the alarm is triggered, the icon pops up to remind
the user.
d. The CGI can be sent to an http server.
Page 14
14

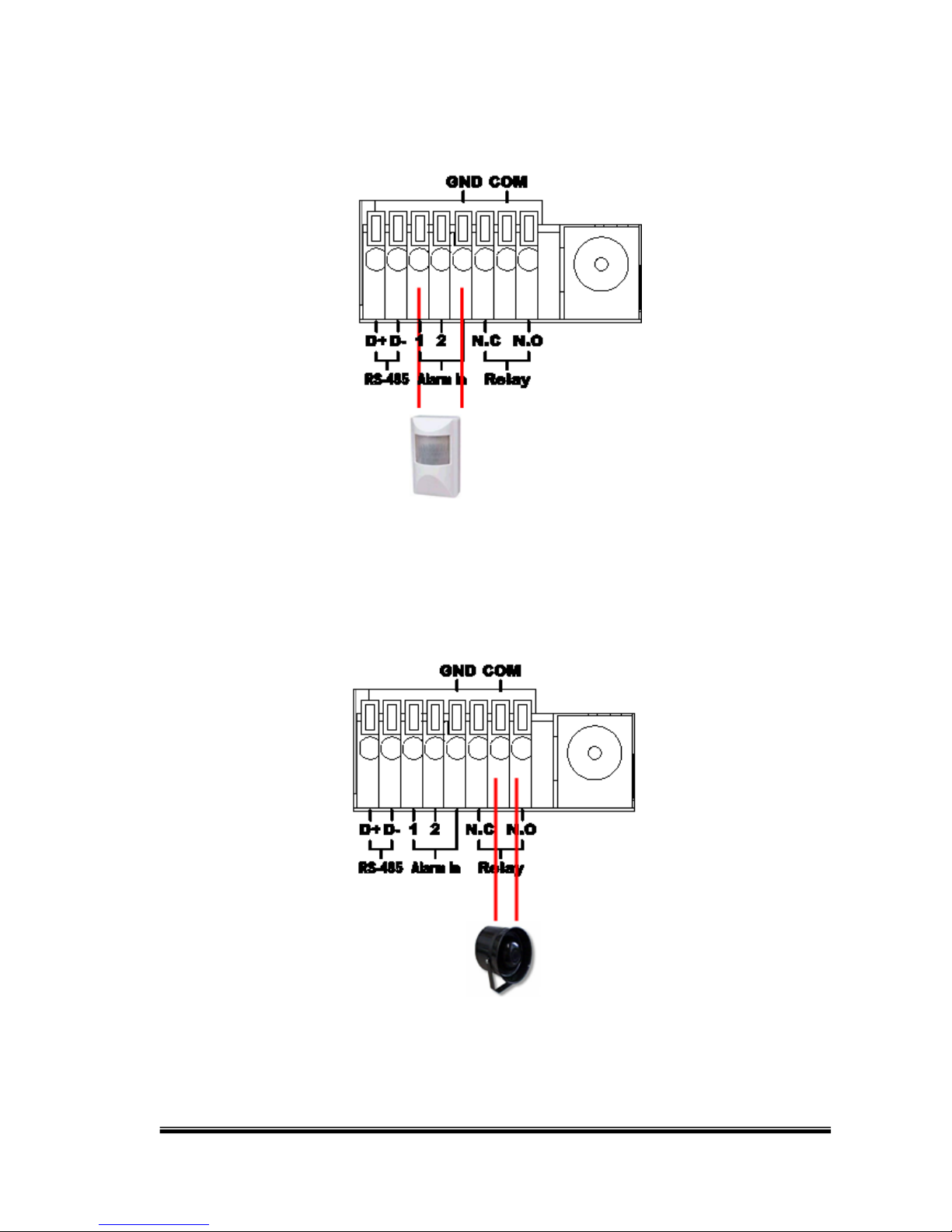

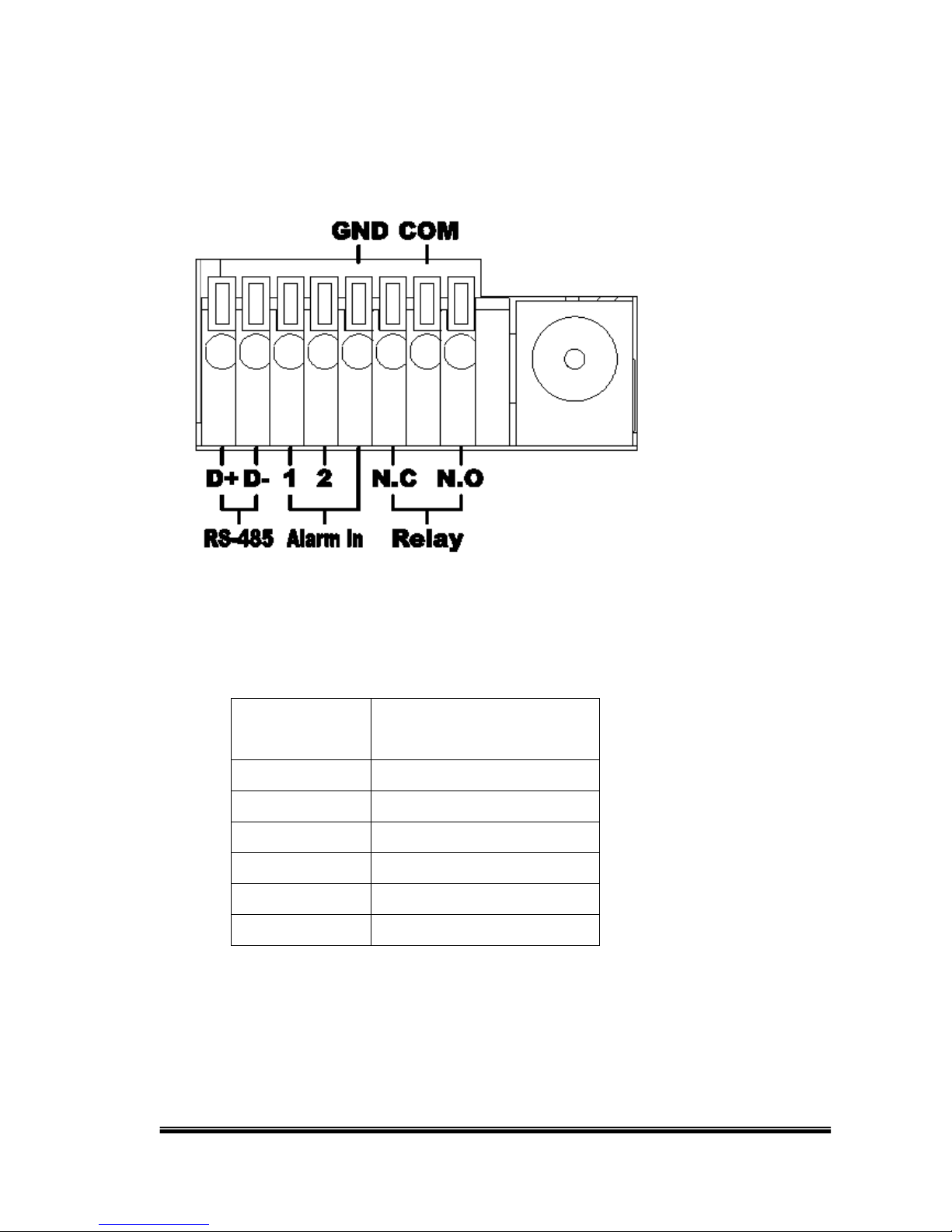

2.4. ALARM-IN CONNECTION
D+
RS-485: sends +/ receives
+
D -
RS-485: sends -/ receives -
GND
Ground
ALARM IN 1-8
Alarm input
N.C
Relay: Normally close
N.O
Relay: Normally open
COM
Relay: Common
Page 15
15
EX1: Connect GND & Alarm to external IR detector.
EX2: Connect N.O & COM to external siren.
Depending on the external device type, you may connect N.C & COM to the external
device.
Page 16
16

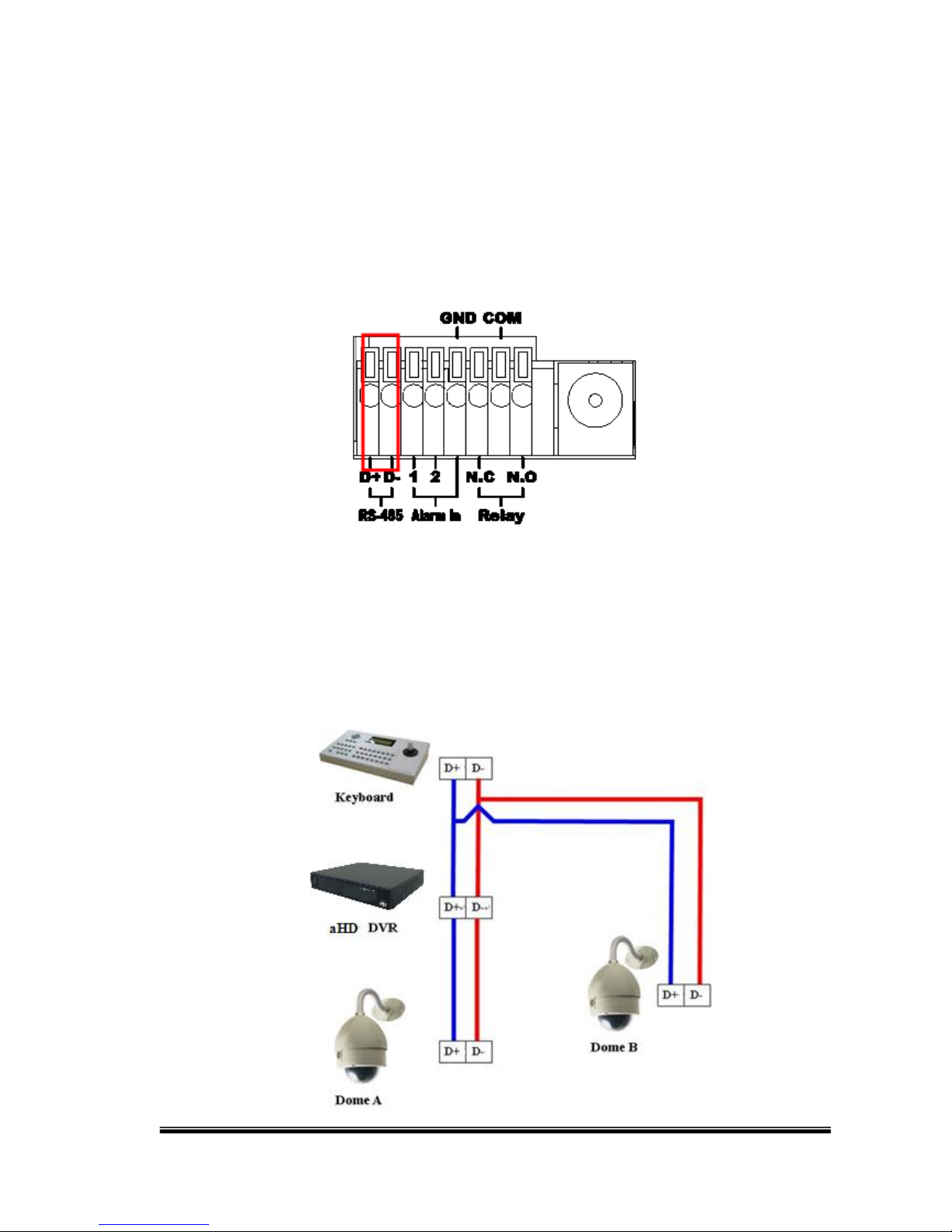

2.5. PTZ (PAN, TILT AND ZOOM) CAMERA
The following diagram shows the connection between the DVR and a PTZ camera &
joystick controller. To control the PTZ camera via DVR please check the CAMERA ID,
BANDRATE (default at 9600 bps) and the RS-485 cable.
Under “Two Core” connection, the controller can control the speed dome without any
built-in protocol into the DVR. Moreover, one keyboard can be connected to a of MAX
256 units.
Page 17
17
3. SYSTEM SETUP
3.1. SETUP MENU INTERFACE (GUI)
A. CAMERA SETUP B. RECORD SETUP
C. ALARM SETUP D. NETWORK SETUP
Page 18
18
E. USER SETUP F. DISK MANAGEMENT
G. SYSTEM SETUP H. EXIT
Page 19
19
3.2. LIVE VIEWING AND POP-UP MENU
If you cannot see the side control menu bar, move the mouse cursor to the right side
of the display screen to make it appear. It is usually set as displayed at default. You
can always make it disappear by ticking off the box under the Lock Control.
There are two types of Live Viewing Modes: Split Screen Mode & Full Screen Mode.
Split Screen Mode: Usually displayed at default. You may also click on the Display
Control icon
from the side control menu bar to enter this mode.
Full Screen Mode: Select icons from to view one specific single
channel. See more description on Display Control.
Page 20
20
A. PLUG & PLAY
When you turn on the machine for the first time or one of the IP addresses are set
ENABLE:OFF, the system will ask you for assigning an IP address to the IP
Cameras for getting automatic connection.
The system will check addresses from 192.168.X.0, with X being the DVR LAN.
Once the user executes the function, the IP address of the IP Camera will
changed if the IP Camera and the DVR address is under a different LAN. The IP
address will be assigned from 192.168.X.50
B. GUI MENU BAR
Page 21
21
C. AUTO SWAP
Click it to start switch dwell for single live view. The interval duration depends on
IP Camera settings at “Image Setup”. On split screen, the switch dwell interval is 5
sec.
D. DISPLAY CONTROL
On Live-viewing and Playback modes, switch the camera channels with display
control icons.
E. PTZ CONTROLLER
On live-view mode, click this button to open the PTZ control panel. NOTE: Only
for PTZ cameras.
After pressing the minimization icon the control panel becomes smaller:
When moving the mouse the arrow will follow the mouse and change direction.
On this mode the user can click on the live view to control direction instead of
using the direction key on the control panel.
Page 22
22
If a fisheye camera is connected:
PTZ Steps:
(1) Select the channel number you want to setup.
(2) Select the View Mode, 360 degrees or 180 degrees.
(3) Select the camera location: ceiling, desk, or wall.
(4) Select the split screen pattern:
: 360 degree panorama view + sub screens x4
: 180 degree flat view + sub screens x2
: sub screens x4
(5) After you set the screen pattern, use the fisheye channel list to select one of
the sub screens. (just as the circle on the picture above). The selected sub
screen will be indicated in a red frame.
(6) For the selected sub screen, use the 4-direction arrows and the “+” (zoom
in) ”-” (zoom out) icon for E-PTZ control.
(7) Control Mode: Select the E-PTZ moving mode, step by step or continuous.
Page 23
23
(8) The AutoPan, Stop, and Patrol buttons are invalid here if the fisheye camera
doesn’t support those function.
F. DIGITAL ZOOM
On live full screen mode, left-click to select a zoom-in or zoom-out range for the
image. The users can right-click for disabling this function. (NOTE: the image can
be zoom-in to max. 16x.)
G. AUDIO VOLUME
Click this button while you are viewing one single channel, and the
audio volume control board will pop up.
H. RECORD AND PLAYBACK CONTROL
The same as the front panel controller.
I. Lock Control
Tick off the box under ‘Lock’ to view the camera channels in Split Screen Mode or
Single Screen Mode without the interface of menu bar aside. To make the menu
bar appear again, simply move your mouse cursor on the right so the menu bar
will pop up.
If you prefer having the menu bar alongside your monitor screen, just tick the box
under ‘Lock’ again to display the menu bar during the Split Screen Mode or Single
Screen Mode.
J. SOUND INPUT/ SOUND OUTPUT / PTZ CONTROL
There little icons displayed on the top-right of the live vide of every channel.
Page 24
24
Click to enable sound output. Click to show the control board.
Please note that if those functions are not supported by the camera linked, you
will not see the corresponding icons.
The sound options do not affect the audio recorded into the video. As long as the
audio setup is enabled, the playback video will include audio even if the sound
output is turned off.

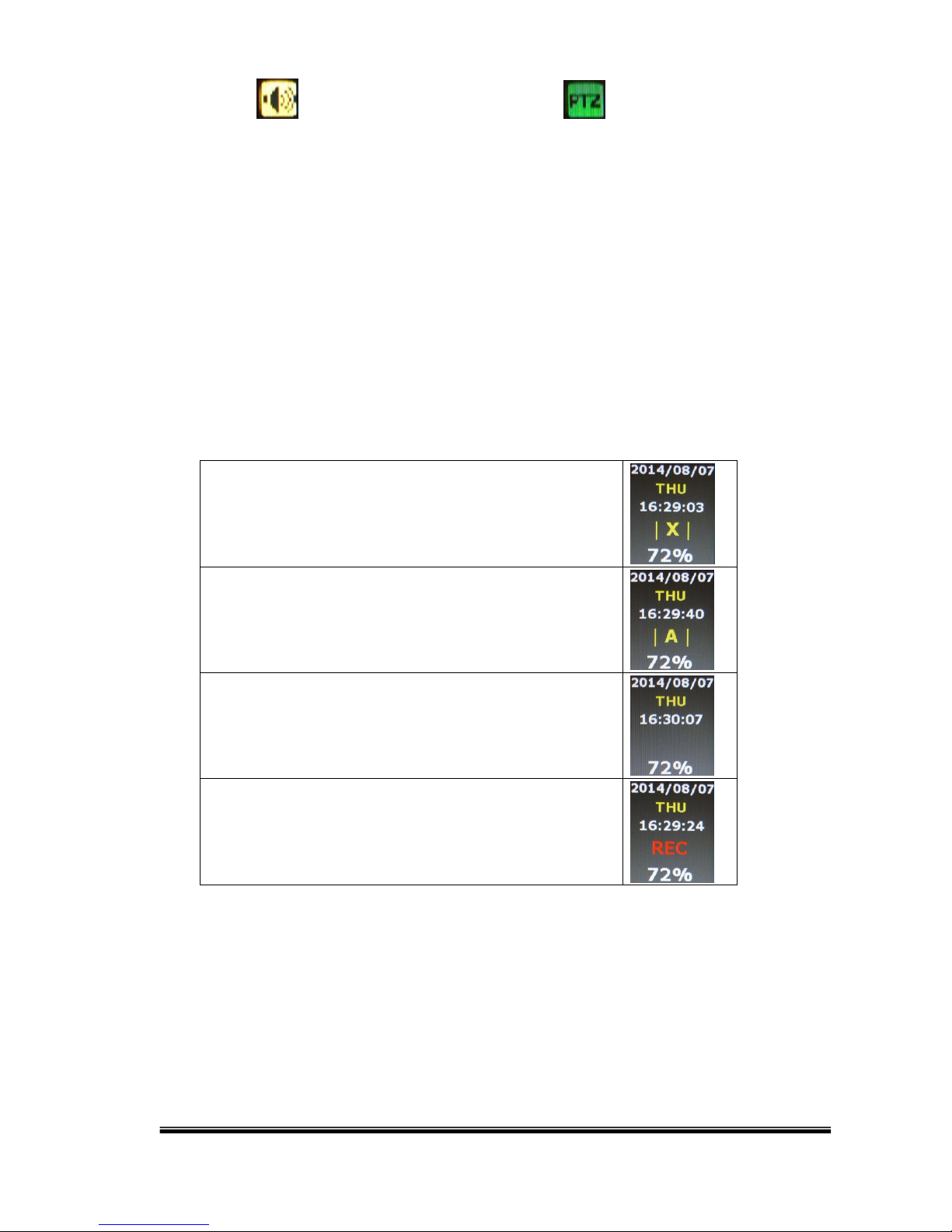

L. RECORDING STATUS
Beneath the date and time, it displays the current recording type:
Record mode: Schedule – NO REC period
Record mode: Schedule – ALARM REC period
Record mode: Alarm trigger
Record mode: Manual – Stop Recording
Record mode: Schedule – FULL REC period
Record mode: Manual – Recording

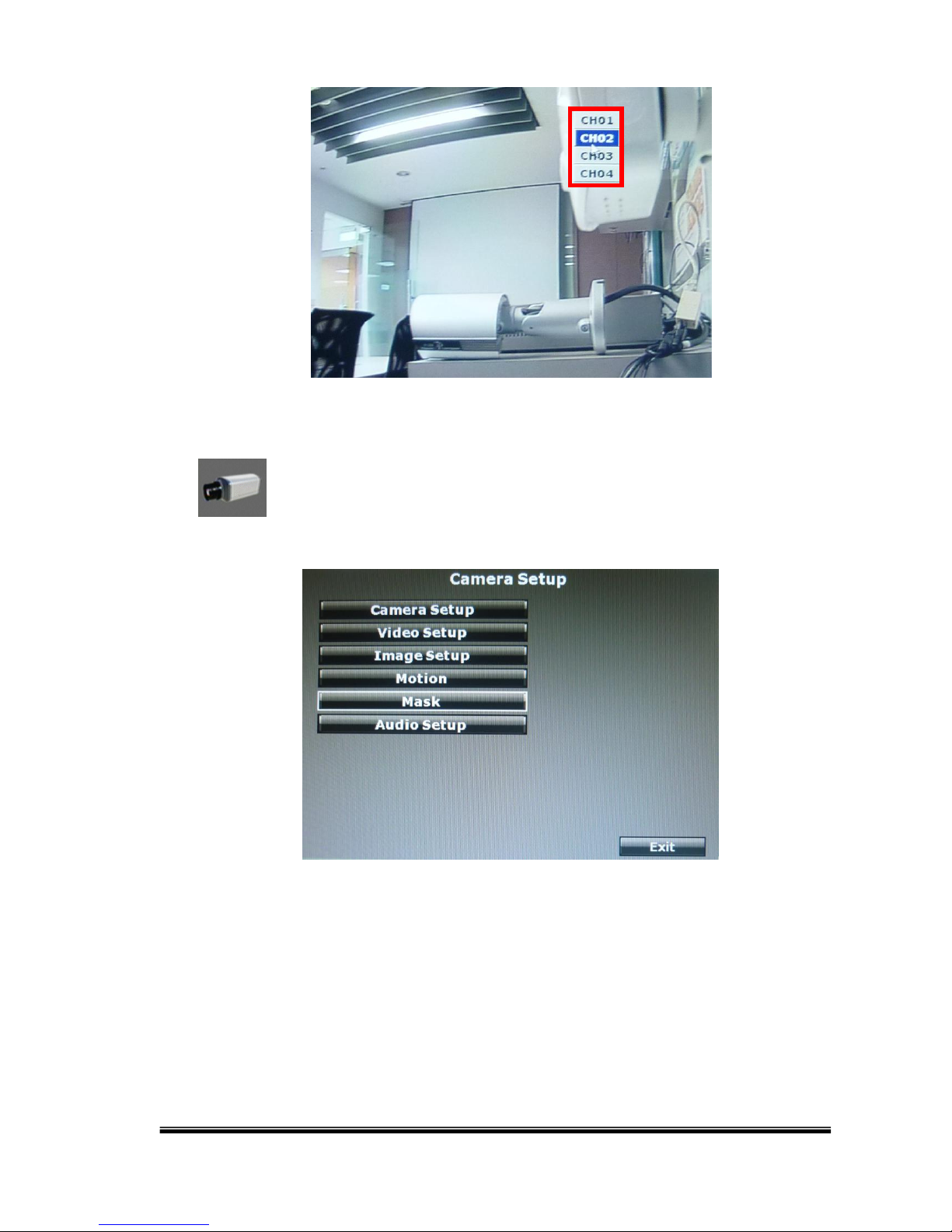

M. FAST SWITCH
Whether you are on Split Screen mode or Single Screen Mode, right click on the
mouse to display a list all 4 channels. Move your mouse cursor up and down to
select on the desired channel you would like to view.
Page 25
25
3.3. CAMERA SETUP

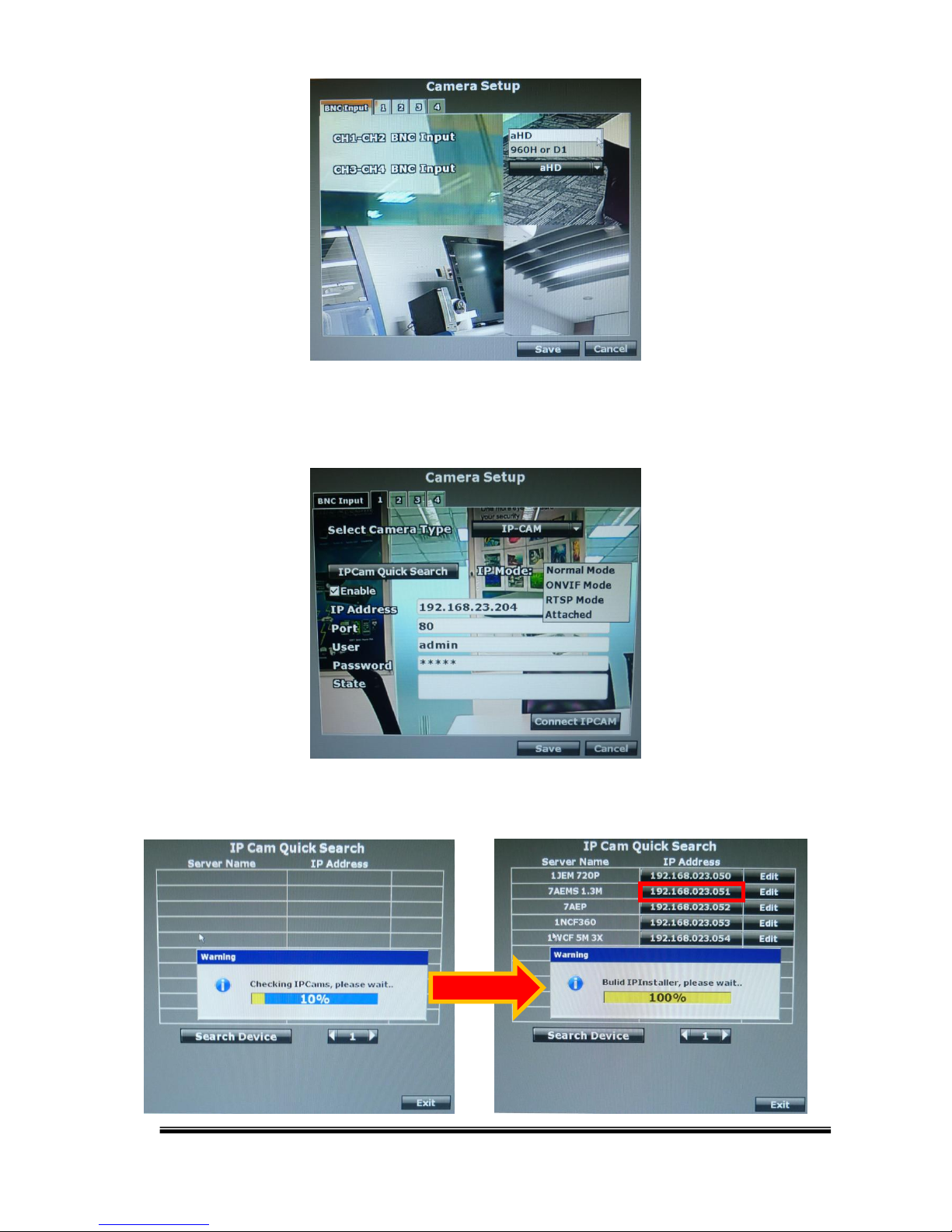

A. Camera Setup
BNC Input: Set up different BNC inputs to assign different cameras to be
displayed on different channels. 960H or D1 is for analog cameras and aHD is
for aHD cameras. You can either assign all channels to import the same types of
signal, or have 2 channels to import signal different to the other 2.
Page 26
26
a. IP Cam Setup
(Caution: ONLY channel 1 & 2 supports IP Cam operations.)
a-1. IP Cam Quick Search
Page 27
27
Click IPCam Quick Search, then click Search Device. The DVR will search for any IP
CAM device that is in connection of the DVR network. Clicking on the IP Cam from the
list will import the device information to the channel without any manual key-in step.
The IP Cam has to be under the same LAN with DVR in order to be successfully
connected. Ex. If the DVR IP address is 192.168.10.33, the IP Cam IP address
should be 192.168.10.X. You can edit the IP address of the IP Cam by clicking Edit.
Click Save to confirm the change.
a-2. Normal Mode
1. Enable: Choose “Normal Mode”
2. IP Address：Insert the IP address of the connecting device.
3. Port：Insert the port number of the connecting device. Default port: 80
Page 28
28
4. User：Insert the user name of the connecting device.
5. Password：Insert the password of the connecting device.
6. State：After clicking the “connect IP CAM” button to test the IP CAM
device, the connection state will reveal among this column.

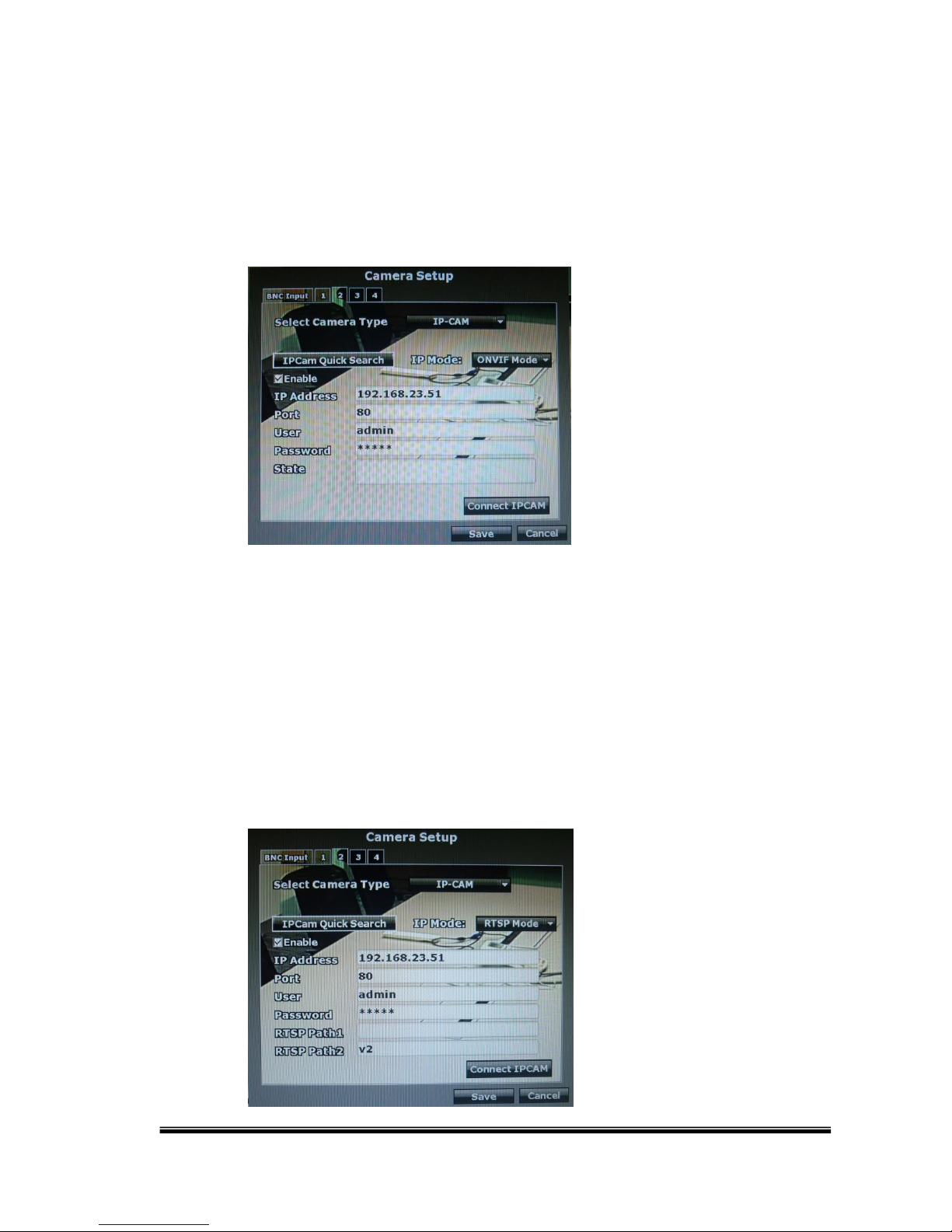

a-3. ONVIF Mode
The camera device supports connection under the service of ONVIF
protocol, but does not support PTZ functions.
a-4. RSTP Mode
Under RTSP Mode, aHD DVR only supports IP address indication, live
video, and video recording. Other functions like motion detection are not
supported.
Page 29
29

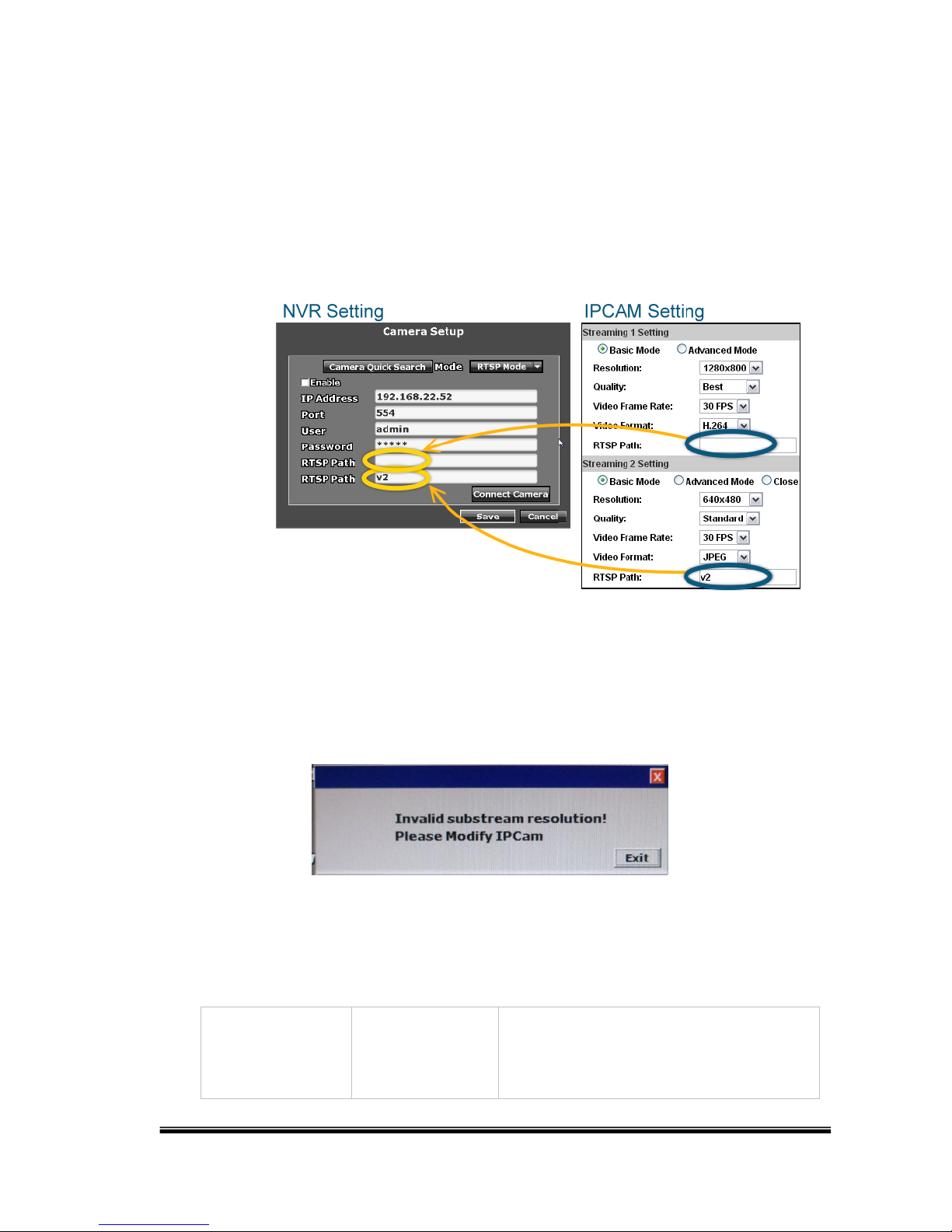

Key-in the IP address, port, username, and password of the device you are
connecting to the DVR. You can find the information on the IP Camera.
To link to the IP camera, check the RTSP Path settings of your IP camera,
and key-in the corresponding values of two streams in “RTSP Path 1” and
“RTSP Path 2”.
Note: When you select RTSP mode, make sure the substream resolution
of camera is VGA (640x480), otherwise you will receive a warning
message when you try to connect to the camera:
Examples of some RTSP settings:
RTSP Path 1
(IP Cam Main
stream)
RTSP Path 2
(IP Cam Sub
stream)
Result
Page 30
30
1920 x 1080
640 x 480
OK.
DVR takes 1920x1080 streaming for
single channel view mode, and 640x480
streaming for split screen mode.
1920 x 1080
N/A
(Fill in nothing on
"RTSP Path 2")
Error Message: ”Invalid Substream
Resolution! Please modify IP Cam.”
DVR takes 1920x1080 streaming for
both single channel view moe and split
screen mode. However, it can only allow
640x480 resolution for split screen, so it
shows a error in return.
640 x 480
N/A
(Fill in nothing on
"RTSP Path 2")
OK.
DVR takes a 640x480 streaming for both
single channel view mode and split
screen mode.
N/A
(Fill in nothing on
"RTSP Path 1")
640 x 480
OK.
DVR takes a 640x480 streaming for both
single channel view mode and split
screen mode.
640 X480
1920 x 1080
OK.
DVR takes 1920x1080 streaming for
single channel view, and 640x480
streaming for split screen.
1920 x 1080
1920 x 1080
Error Message: ”Invalid Substream
Resolution! Please modify IP Cam.”
DVR takes 1920x1080 streaming for
both single channel view and split
screen. However, it can only allow
640x480 resolution for split screen, so it
shows error in return.

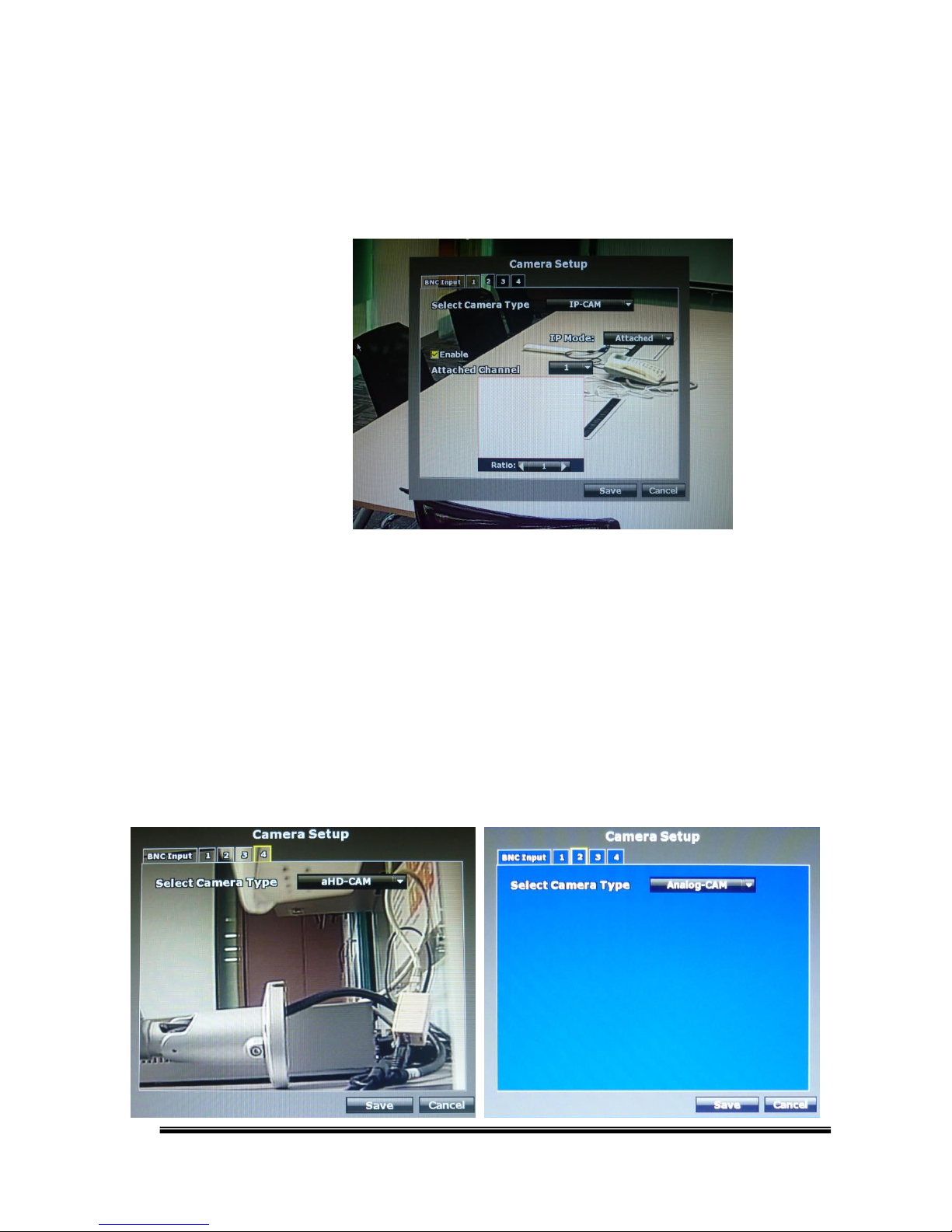

a-5. Attached
This function allows users to set up the channel as an attached channel.
Page 31
31
An attached channel is based on a normal/ RTSP channel that has been
set up, and can display the same live view as the normal/ RTSP channel.
The attached channel is not physically linked to any camera, so it does not
actually increase the bandwidth loading. Therefore, the users cannot setup
motion detection or image adjustment on the attached channel either.
1. Enable: Choose “Attached”.
2. Attached Channel: Assign a normal/ RTSP IP camera channel.
3. Ratio: Adjust the zoom ratio with left and right arrows, and click on the
red frame to drag it to the area where you want to show on the live view.
b. aHD / Analog Camera (aHD and analog cameras both display the same interface.)
CH 1~2: Optional, CH 1~4: Analog cameras or aHD cameras
Page 32
32

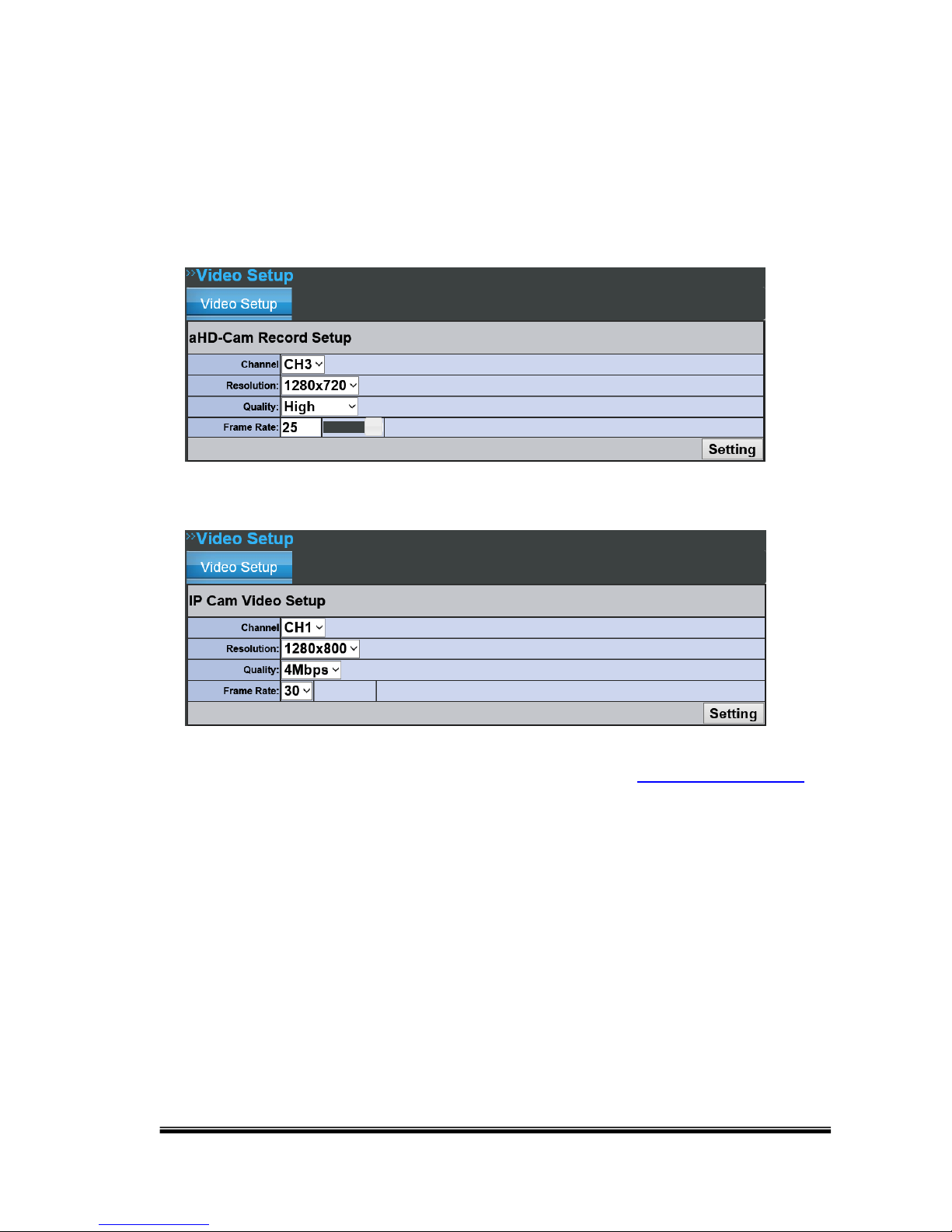

B. Video Setup
Setup Page for IP Camera Setup Page for aHD / Analog Camera
B1. Resolution
Click the drop down list to change the resolution of your connecting device.
B2. Quality
Click the drop down list to change the image quality. For H.264 IP Cam above 1
Megapixel, the resolution options support “1M, 2M, 4M, 6M, 8M”.
For H.264 IP Cams, less than 1 Megapixel, the resolution options include ”Best,
High, Standard, Medium, Low”.
For MPEG IP Cams, the resolution options support “Standard, Medium, Low”.
(The highest resolution option is “standard” due to the chip performance limits of
IP Cam)
For aHD (analog) Cams, the resolution ranges are “Best, High, Standard,
Medium, Low”. (The highest resolution option is “Best”.)
B3. Frame Rate
Click drop down list to change the frame rate of your connecting device.
Page 33
33

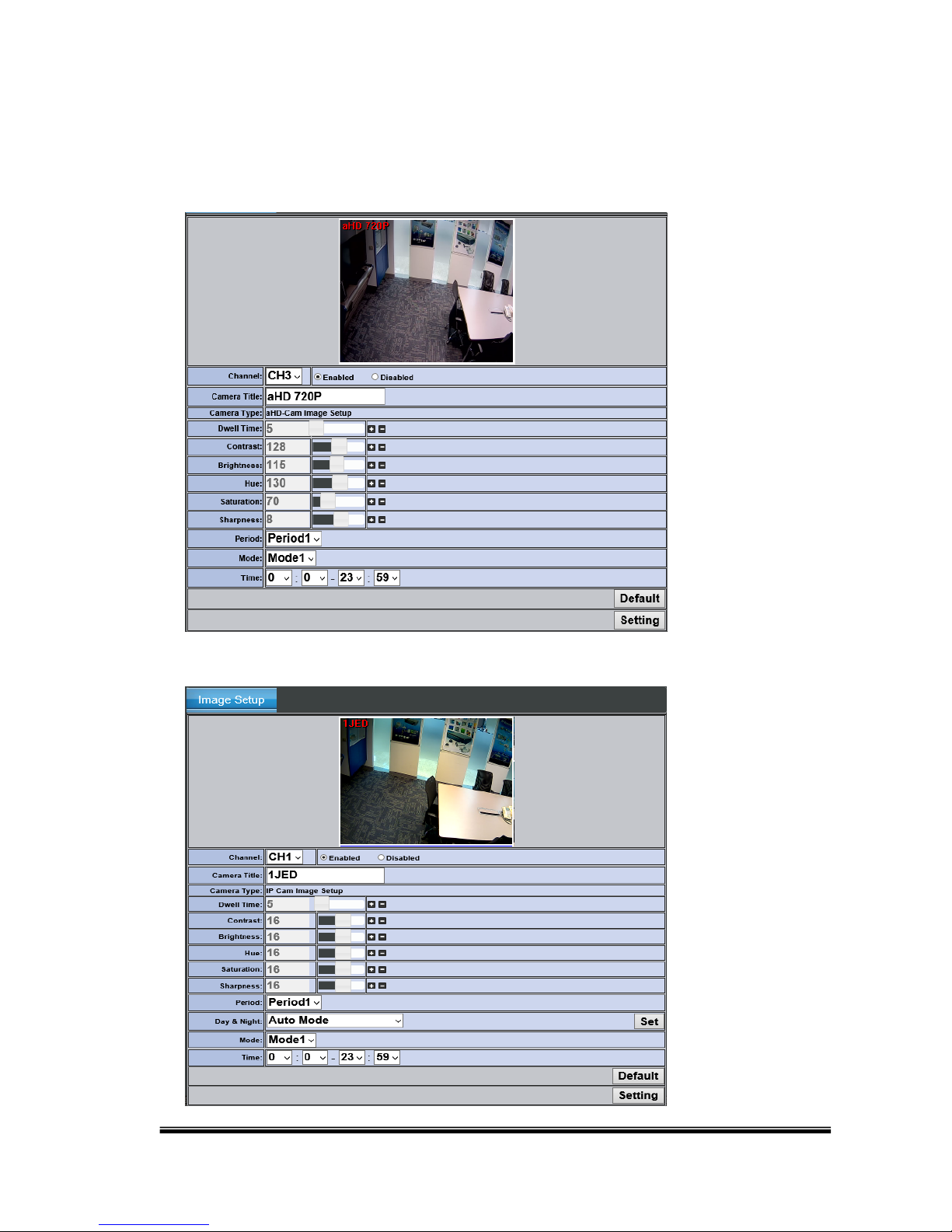

C. Image Setup
Setup Page for IP Camera Setup Page for aHD / Analog Camera
C1. Display
Click to enable or disable the camera display on the screen.
C2. Title
Click to set up the title of the recording device.
C3. Switch Dwell
Press ◄ or ► to change auto switch second. The value is between 5~99.
C4. Contrast
Press ◄ or ► to change contrast level. The adjustment value for IP camera
is between 0~31, for aHD (analog) cam is between 0~255.
C5. Brightness
Press ◄ or ► to change contrast level. The adjustment value for IP camera
is between 0~31, for aHD (analog) cam is between 0~255.
C6. Hue
Press ◄ or ► to change contrast level. The adjustment value for IP camera
is between 0~31, for aHD (analog) cam is between 0~255.
Page 34
34
C7. Saturation
Press ◄ or ► to change contrast level. The adjustment value for IP camera
is between 0~31, for aHD (analog) cam is between 0~255.
C8. Sharpness
Press ◄ or ► to change contrast level. The adjustment value for IP camera
is between 0~31, for aHD (analog) cam is between 0~15.
C9. Period
You can adjust two different image settings and apply them at different
periods of time.
C10. Day & Night (IP Cam Image Setup only)
There are 3 different modes for your IP camera to perform at different time
of the day & night, conditions of weather, environment and locations.
C11. Mode
This option allows you to preset different adjustment of settings and you
may be able to apply any of them of your choice in the late future.
C12. Time
This mode works with Period mode. The settings you have made in Period
mode may be assigned in Time mode. Set the time length to determine how
long your Period may be assigned. The other Time will be automatically
assigned to the other Period left.
C13. Default
You may choose this option to reboot all the system settings to its very
beginning.
Page 35
35

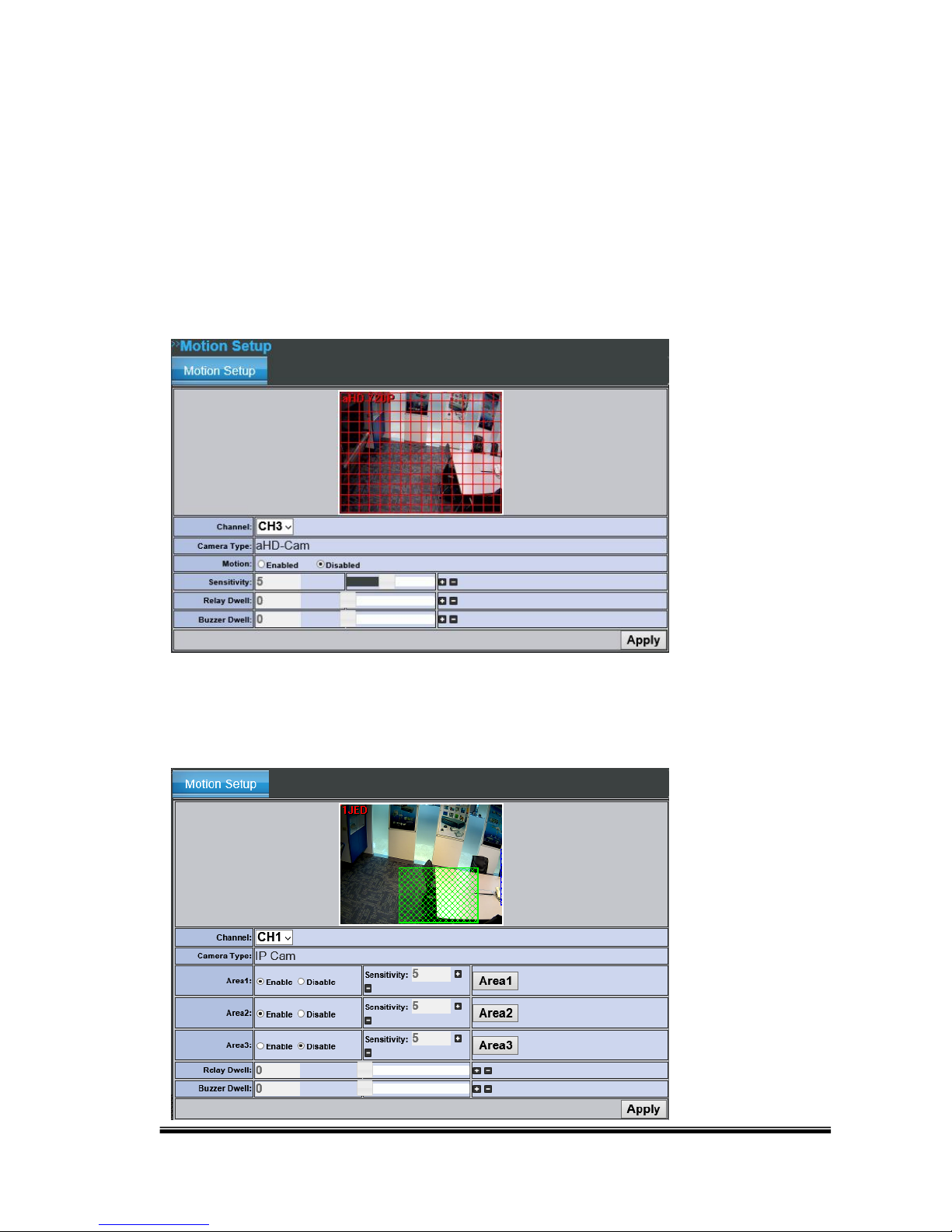

D. Motion
Setup Page for IP Camera Setup Page for aHD / Analog Camera
D1. Relay Dwell
Press ◄ or ► to change the relay time or disable the relay function.
D2. Buzzer Dwell
Press ◄ or ► to change the buzzer time or disable the buzzer function.
D3. Motion Detect ( For aHD / Analog Cam only)
Click to enable Motion Detect for aHD (analog) camera channels.
D4. Area1 / 2 / 3 Sensitivity (For IP Cam only)
Press ◄ or ► to change the sensitivity value of setup motion in 3 Areas
from 1, 2, and 3. Click “Motion Area Setup” and right-click your mouse
button to drag a blue, green, or red area for motion detection.
Right-click the mouse button after dragging the area for detection, once the
Page 36
36
mini menu pops up, select “Exit With Saving” to complete your option.
Select “Enable All” to enable the whole area
for motion detection.
Select “Clean All” to clean the area of the
current color in the view.
Select “Exit Without Saving” to go back to motion setup menu and not
saving any change.
D5. Sensitivity (For aHD / Analog Cam only)
In the Motion Setup screen, right-click the mouse button to display the mini
menu. First, highlight to activate the Enable option to select your desired
area for motion detection. Select “Clean All” to cancel your selection.
Page 37
37
Then you may click on each grid or simply drag your mouse around the
video image where you want to set up the Motion area, or simply choose
Enable All from the mini menu to deselect areas which you do not wish to
keep. After the set up, choose Exit With Saving or Exit Without Saving.

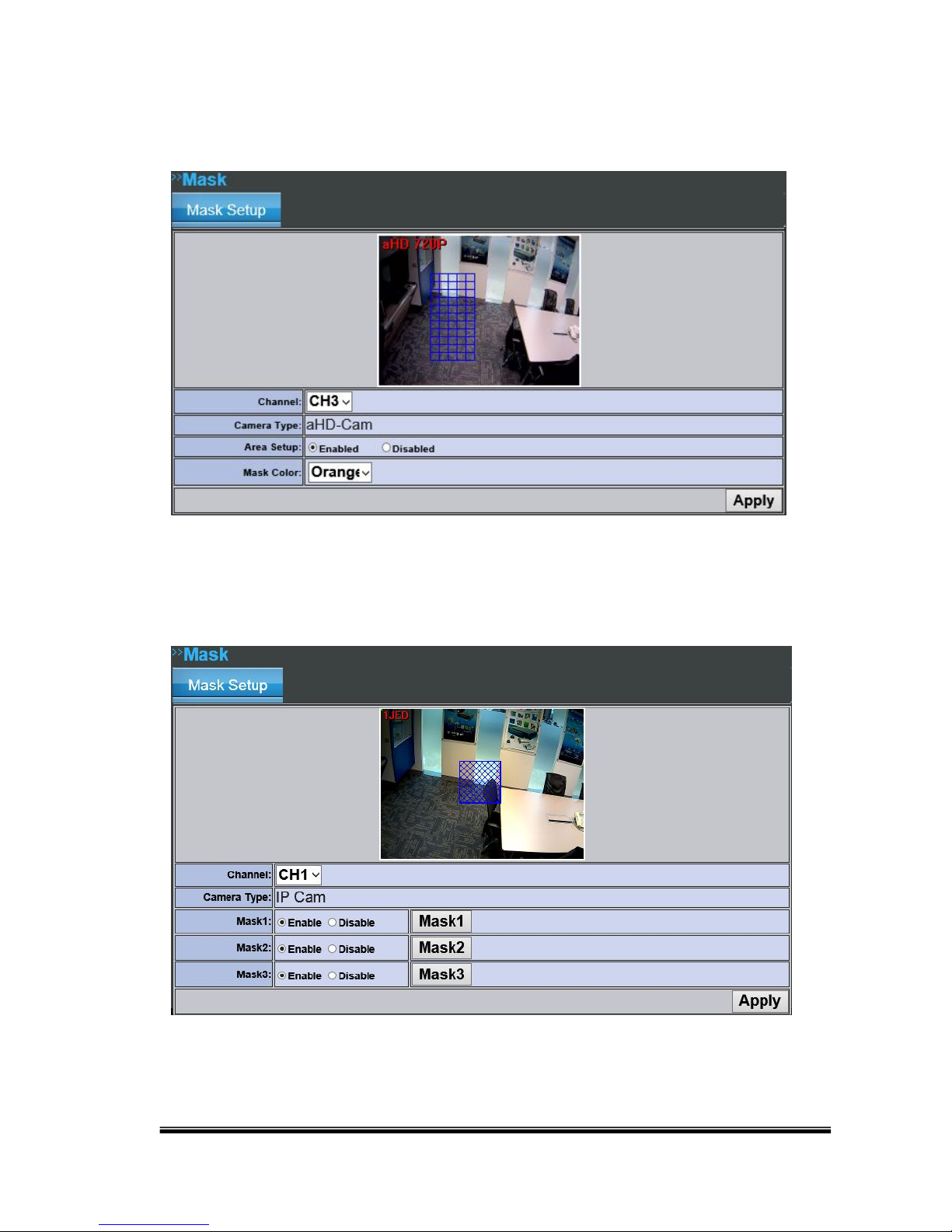

E. Mask Setup
The masked area will not show both in the live view and playback
recording.

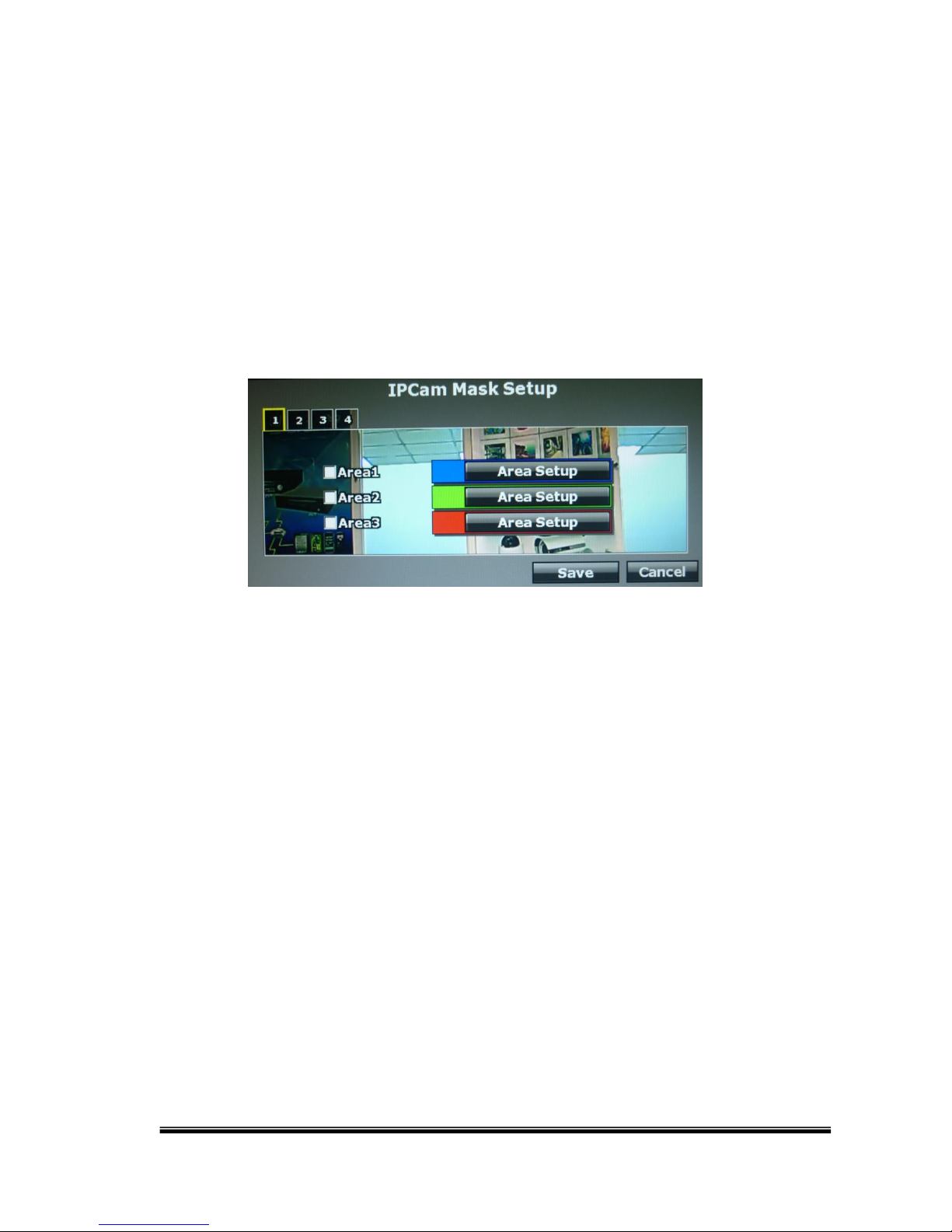

a. IP Cameras:
a1. Area1 / 2 / 3
Tick the “Area1/2/3” box and click “Area Setup” to drag a blue, green or red
area for masking.
a2. Area Setup
After dragging an area, right-click the mouse, select “Exit with saving” to
complete the area setup.
Select “Enable All” to set up global masking.
Select “Clean All” to clean the area of the current color in the view.
Select “Exit Without Saving” to go back to mask setup menu and the setting
you just changed will not be saved.
Page 38
38

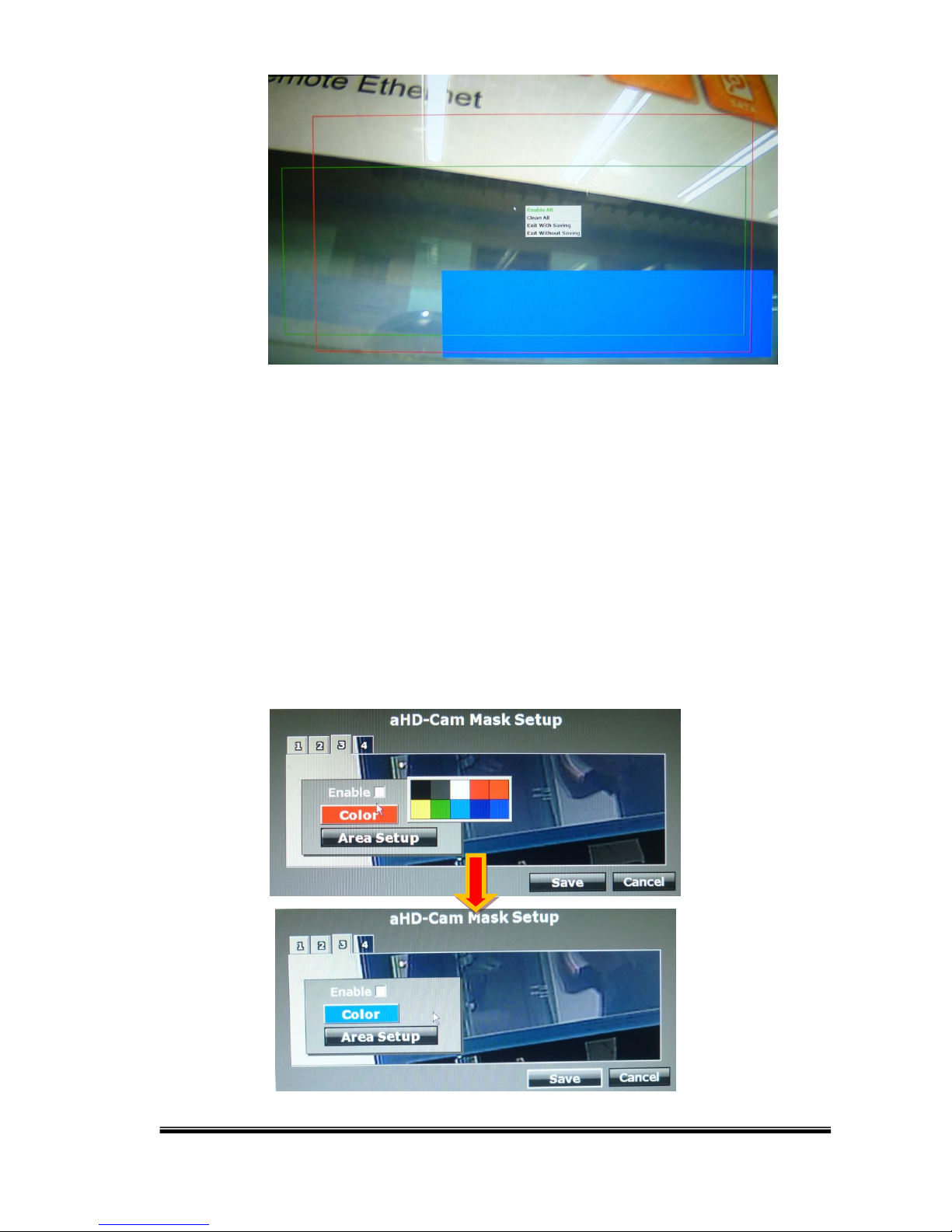

The picture above shows an example of how all 3 different areas are set
within 3 different frames. Each framed area is assigned to each color.
Therefore, the user can only set up 1 area under 1 Area Setup mode. In this
case, the user can only drag the blue frame. If the user wishes to set up
other frames, they need to Exit With/Without Saving and set up the other
frames by clicking on other Area Setup buttons.
b. aHD / Analog Cameras:
b1. You may choose a color which you prefer to set the Mask on by clicking on
the color button. A color palette will show up with a selection of colors.
Page 39
39

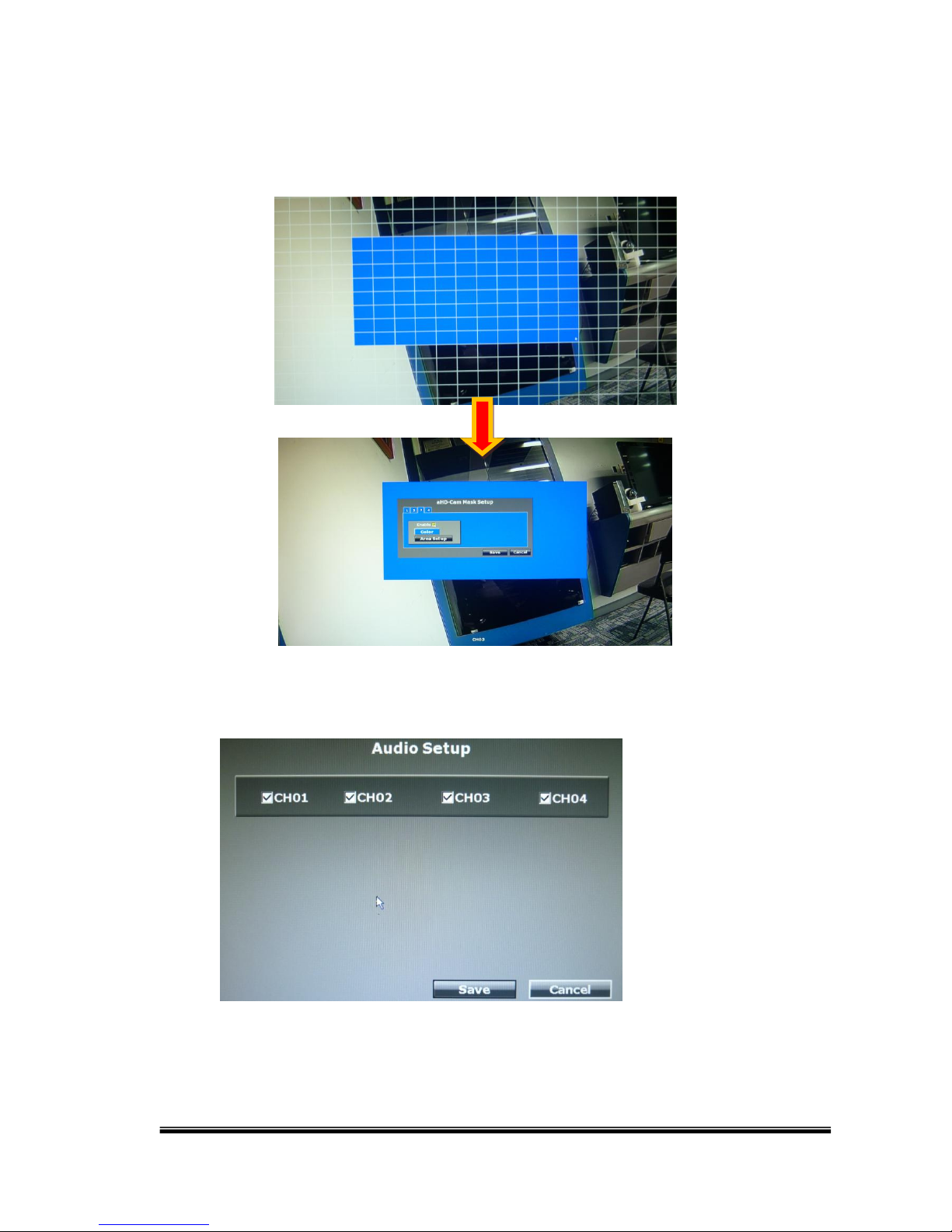

b2. Click or drag your mouse to highlight grids of your mask area. Right click your
mouse to display the mini menu and choose Clean All to rearrange your area. To
exit this mode, either choose Exit With Saving or Exit Without Saving. Once
you are back to the Mask Setup menu, select Enable to begin masking.
F. Audio Setup
If the channel is ticked the sound from camera will be recorded into the
playback video. On the contrary, no sound will be recorded in the playback
video of the channel which is not ticked.
Page 40
40

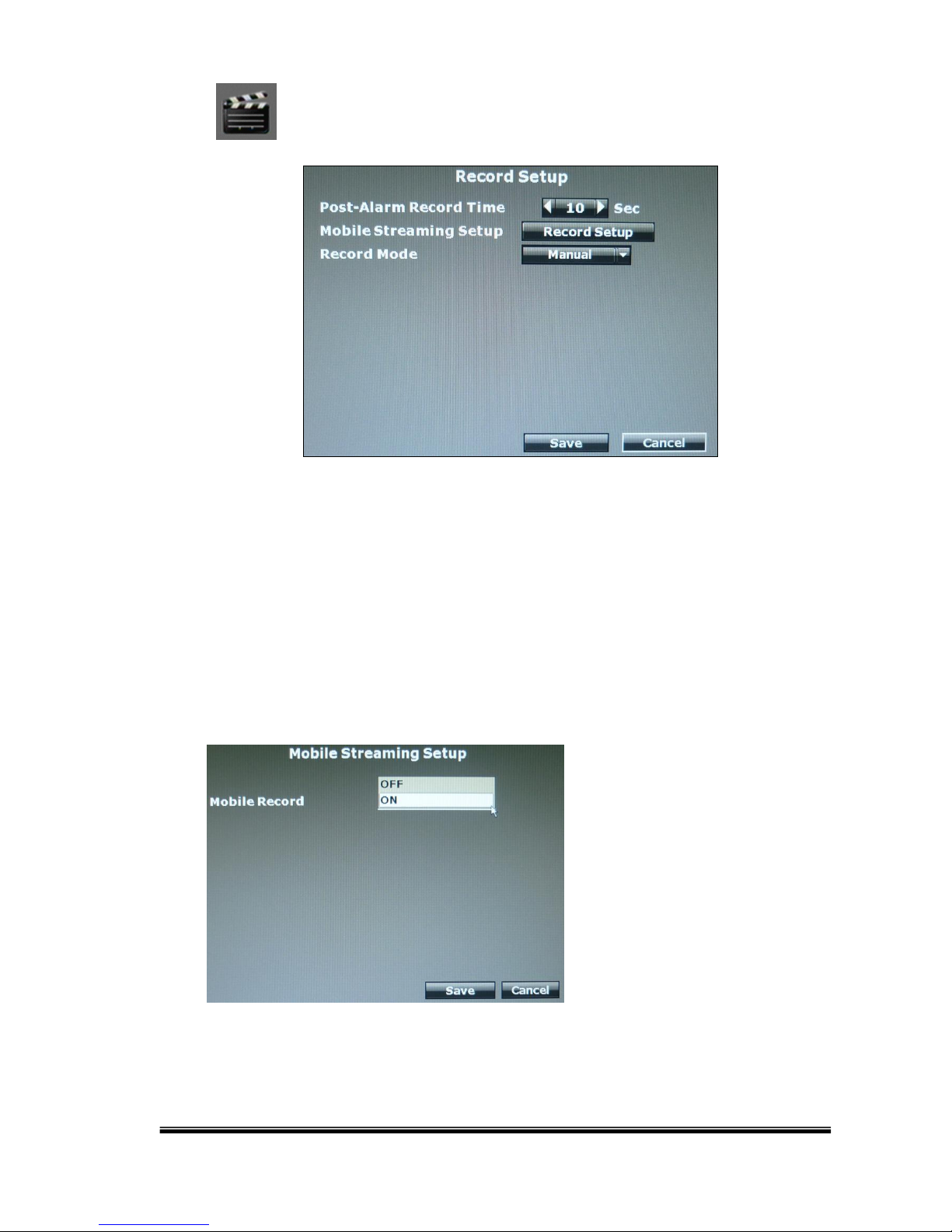

3.4. RECORD SETUP
A. Post-Alarm Record Time
The post-alarm record means the recording will start after the alarm is triggered. If
you set up 5 sec for post-alarm, the alarm recording length will be 5 sec in total.
B. Mobile Streaming Setup
Choose “ON” to record the streaming for mobile viewing.
C. Record Mode
The record mode will be applied to all channels simultaneously. During the
Page 41
41
recording, the DVR will record both main streaming and sub streaming from the
IP Cam. Use the drop down list to switch recording modes.

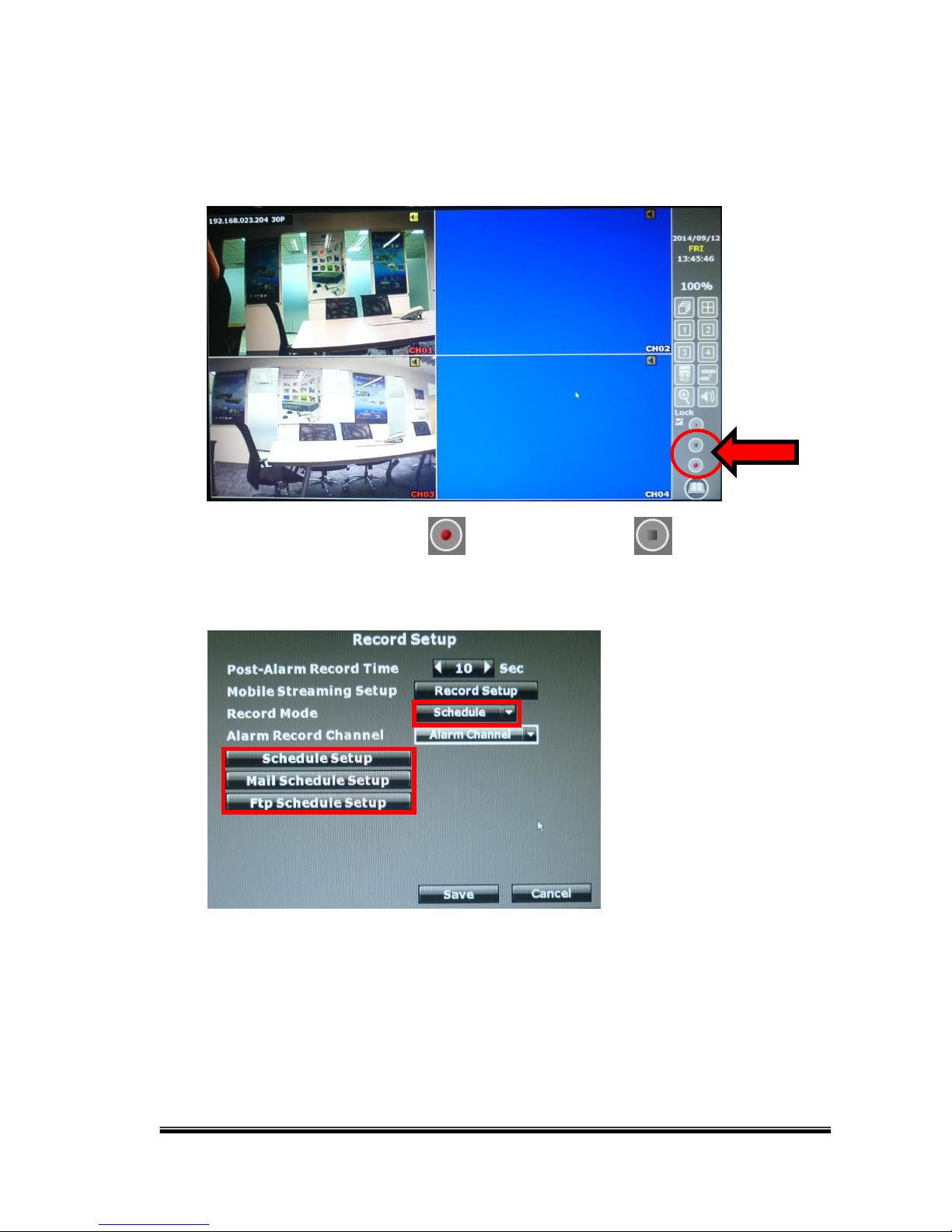

C1. Manual:
On the side menu bar, click to start recording or to stop recording.
C2. Schedule:
Click on the drop down list from the Record Mode on the right, and select
Schedule. There will be three Setup options popping up: Schedule Setup,
Mail Schedule Setup, and FTP Schedule Setup.
Page 42
42
2a. Schedule Setup:
Click the tag “FULL REC”(Red) / “ALARM REC”(Yellow) / “NO REC”(Green),
and then draw on the calendar. The recording type will follow the schedule.
The tag “ALARM REC” includes all the alarm types.
2b. Mail Schedule Setup:
Select the time that the recording video is sent to the mail address. No mail
will be sent during the “NO MAIL” time period even if the motion detection is
triggered.
The tag “ALARM” refers to both external alarm and DI from camera.
Page 43
43

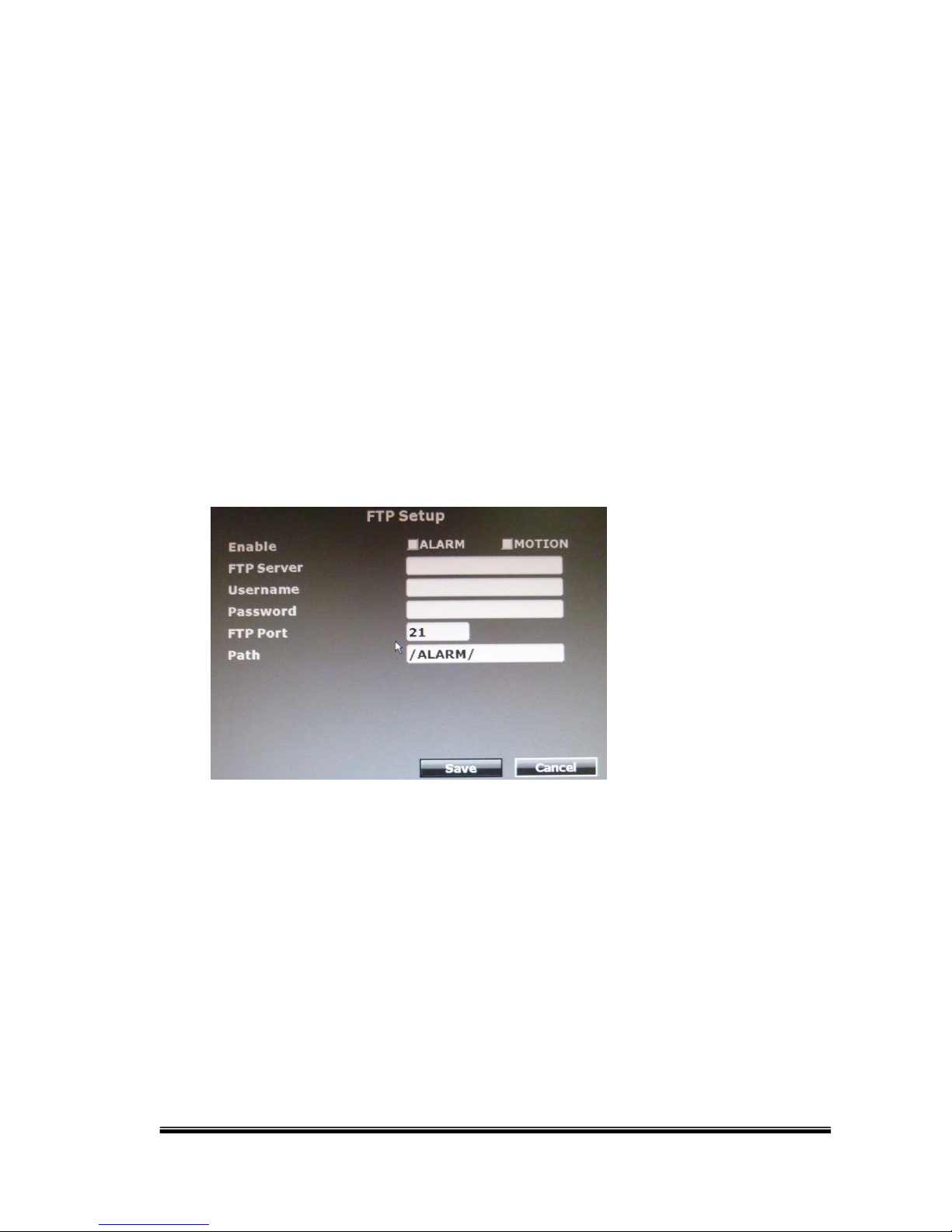

2c. FTP Schedule Setup:
Select the time that the recording video is uploaded to FTP. No file will be
uploaded during “NO MAIL” time period even the motion detection is
triggered.
The tag “ALARM” refers to both external alarm and DI from camera.
C3. Alarm Trigger:
Start recording when any type of alarm event occurs. The recording video
length is based on the setting of Post-Alarm Record Time.
Page 44
44
3.5. ALARM SETUP
A. Alarm Trigger Setup
A-1. Alarm Auto Switch
Click the drop down list to operate the Alarm Auto Switch. When the alarm is
triggered, the screen will be switched to Full Screen, Split Screen (4CH split
screen) or Disable mode.
A-2. Video Loss Detect
Click the drop down list, and choose Enable to switch on /Disable to switch
off the function. When the video loss is detected, the alarm will be triggered.
Page 45
45
A-3. Digital Input (IP Cam)
Click the drop down list and choose Enable to switch on /Disable to switch
off the Digital Input from IP camera. When the DI signal is received from the
camera, the alarm will be triggered.
A-4. Ext. Alarm Detect
Click the drop down list to and choose Enable to switch on /Disable to switch
off the External Alarm Detect function. When the external alarm is detected,
the alarm will be triggered.
A-5. Ext. Alarm Pole
With the drop down list, if the external alarm is setup for normal open, the
option has to switch to N.O.; for the contrary, the option has to switch to N.C.
B. Alarm Output Setup
This control item is divided into two parts, “Buzzer Time” and “Relay Time”.
The user can hold ◄ or ► sign on the screen with the mouse to set the external
buzzer time and video loss buzzer time in “Buzzer Time” option.
The adjustment value is from off to 99 seconds. Moreover, among “Relay Time”
option, the user can hold ◄ or ► sign on the screen to set the external buzzer
time and video loss buzzer time. The adjustment value is from off to 99 seconds
as well.
Page 46
46
The value of Ext. Alarm Buzzer / Relay Time determines the buzzer / relay time
of both external alarm in and digital input (IP Cam).
C. Alarm Event Setup
There are eight types of events that can be selected. When the selected items
occur and trigger, events will be recorded in the log and able to be replayed in the
playback list.
D. Alarm Action and Trigger Condition List
Action \ Type
Motion detection
External Alarm
DI (IP CAM)
Video Loss
Necessary Condition
(All the actions below
can be execute only
when the necessary
condition is met.)
Camera Setup >>Motion
Setup >>Tick "Area 1/2/3"
and set up the area
Alarm Setup >>Alarm
Trigger Setup >>"Ext.
Alarm Detection" set
to "Enable"
Alarm Setup
>>Alarm Trigger
Setup >>"Digital
Input (IP Cam)" set
to "Enable"
Alarm Setup
>>Alarm Trigger
Setup >>"Video
Loss Detection"
set to "Enable"
Action \ Type
Motion detection
External Alarm
DI (IP CAM)
Video Loss
Switch to Single
Channel Screen /
Split Screen
Condition:
Alarm Setup >>Alarm
Trigger Setup >>"Alarm
Auto Switch" set to "Full
Screen(/Split Screen)"
X X X
Page 47
47
Trigger Relay/ Buzzer
Condition:
Camera Setup >>Motion
Setup >>"Relay(/Buzzer)
Dwell" not set to "Off"
(It's enabled as long as the necessary condition is meet)
*p: Trigger length setting: Alarm Setup >>Alarm Output Setup
>>Relay(/Buzzer) Time
*p："Ext. Alarm Relay(/Buzzer) Time" length setting
determines the trigger lenth of both "External Alarm" and
"DI(IP CAM)"
Written in Log
(Can be used for
event search
playback)
Condition:
Alarm Setup >>Alarm Event Setup >>Tick "Motion Even" / "Ext. Alarm Eventt" / "Digital
Input Event" / "Video Loss Event"
Icon on Live Screen
Action \ Type
Motion detection
External Alarm
DI (IP CAM)
Video Loss
Pre- / Post-alarm
Recording
O
Pre-:O Post-:X
Send E-mail / Upload
to FTP with Pre-/
Post-alarm
Recording
(*p[1])
Condition 1:
Network Setup >>Mail(/FTP) Setup >>Tick "Motion(/Alarm)"; And
Record Setup >>"Record Mode" set to "Manual"; And it's on recording
when alarm is triggered
Condition 2:
Network Setup >>Mail(/FTP) Setup >>Tick "Motion(/Alarm)"; And
Record Setup >>"Record Mode" set to "Alarm Trigger"
Condition 3:
Record Setup >>"Record Mode" set to "Schedule"; And Record Setup
>>Schedule Setup >>It's on "Full Rec" or "Alarm Rec" period when
alarm is triggered; And Record Setup >>Mail(/FTP) Schedule Setup
>>It's on "Motion/(Alarm) Mail(/FTP)" period when alarm is triggered
※It's enabled when both necessary nondition and one of above three
conditions are met.
*p: Mail/FTP server setting: Network Setup>>Mail(/FTP) Setup>>Fill
in server information
*p: Pre-/ Post-alarm recording length setting: Record
Setup>>Pre(/Post)-Alarm Record Time
X
Http CGI
Network Setup>>HTTP Notification Setup>>Fill in Http server information and tick
"Enable"
Page 48
48
*p[1]: Another interpretation:
Send E-mail / Upload
to FTP with Pre-/
Post-alarm
Recording
Condition 1:
Record Setup >>"Record Mode" set to "Manual" or "Alarm Trigger".
It's not on "Stop Rec" period; And Network Setup >>Mail(/FTP) Setup
>>Tick "Motion(/Alarm)"
Condition 2:
Record Setup >>"Record Mode" set to "Schedule". It's not on "No
Rec" period; And Mail(/FTP) Schedule Setup >> It's not on "No
Mail(/FTP)" period
※It's enabled when both Necessary Condition and one of above two
conditions are met.
3.6. NETWORK SETUP
This setup menu is purposed for the DVR only, regarding its network connections
and other features which may relate.
Page 49
49
A. IP ADDRESS SETUP
A-1. IP Mode
Press drop down list to change IP mode to Static IP or DHCP.
A-2. IP Address
Set the DVR IP Address.
A-3. NetMask
Set the subnet mask which is usually set to 255.255.255.0.
A-4. Gateway
Set DVR gateway.
A-5. DNS1 & DNS2
Key-in DNS1 and DNS2 that provided by ISP.
A-6. WEB Page Port
Set the DVR http port for web browser. The default port is 80.
Page 50
50
B. PPPoE SETUP
B-1. PPPoE Setting
Press the drop down list to enable or disable PPPoE.
B-2. User Name
Enter the user name (ADSL account) which provided from local ISP.
B-3. Password
Enter the password which provided from local ISP.
B-4. re-Password
Enter the password again to confirm the password.
B-5. State
Present the current status of PPPoE function.
B-6. Send Mail After Dialed
Click the drop down list to enable or disable the function.
B-7. Subject
Insert the mail subject when dialed successfully.
Page 51
51

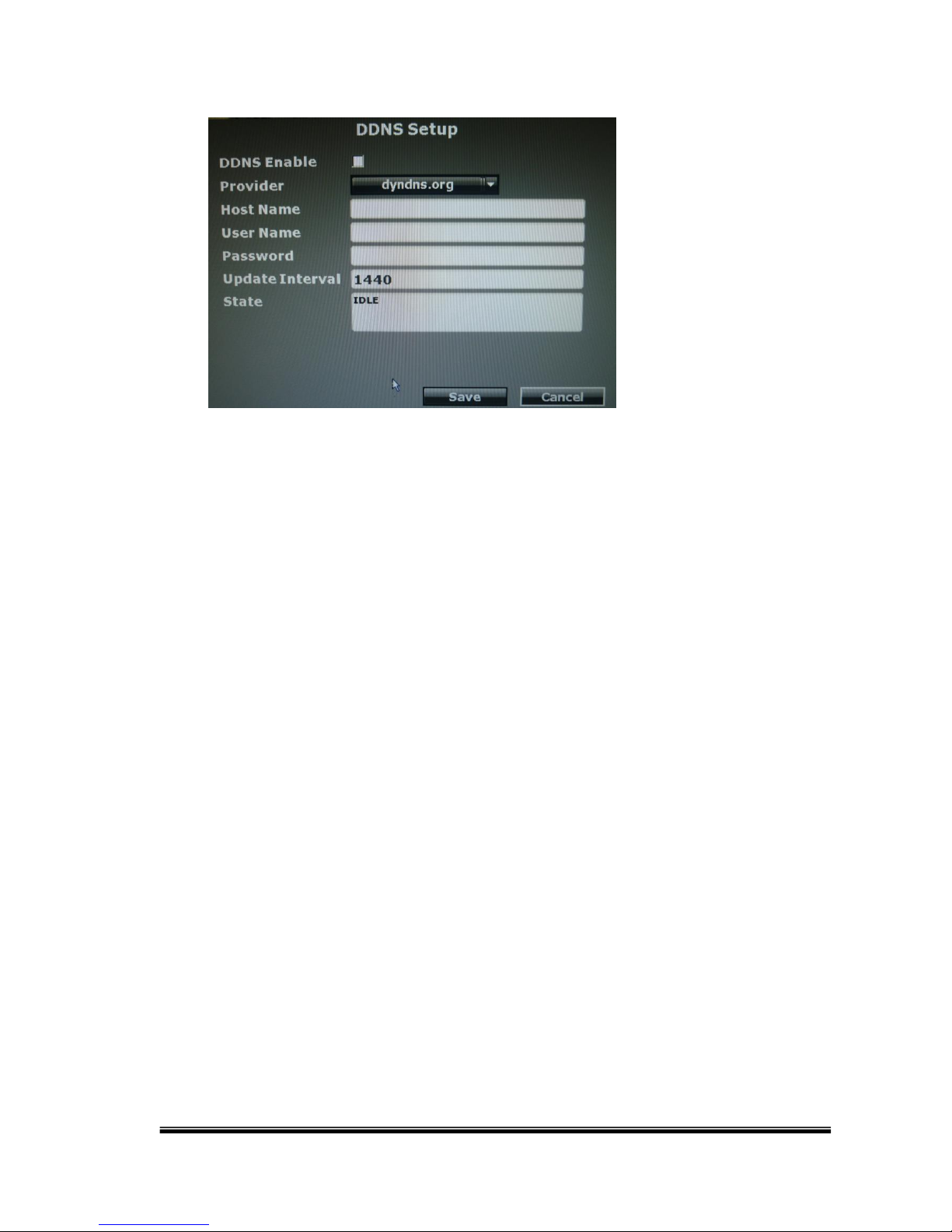

C. DDNS SETUP
C-1. DDNS Enable
Click the checkbox to enable or disable the DDNS function.
C-2. Provider
Click the drop down list to select the DDNS provider.
C-3. Host Name
Type-in the registered host name in the selected provider.
C-4. User Name
Type-in the registered user name in the selected provider.
C-5. Password
Type-in the registered password in the selected provider.
C-6. Update Interval
To set a period of time to update IP address.
C-7. State
The state after apply for DDNS.
Updating: Information update.
Idle: Stop service.
Page 52
52
DDNS registered successfully, now log by
http://<username>.ddns.camddns.com: Registered successfully.
Updating Failed: the name is already registered.
Updating Failed: please check your internet connection.

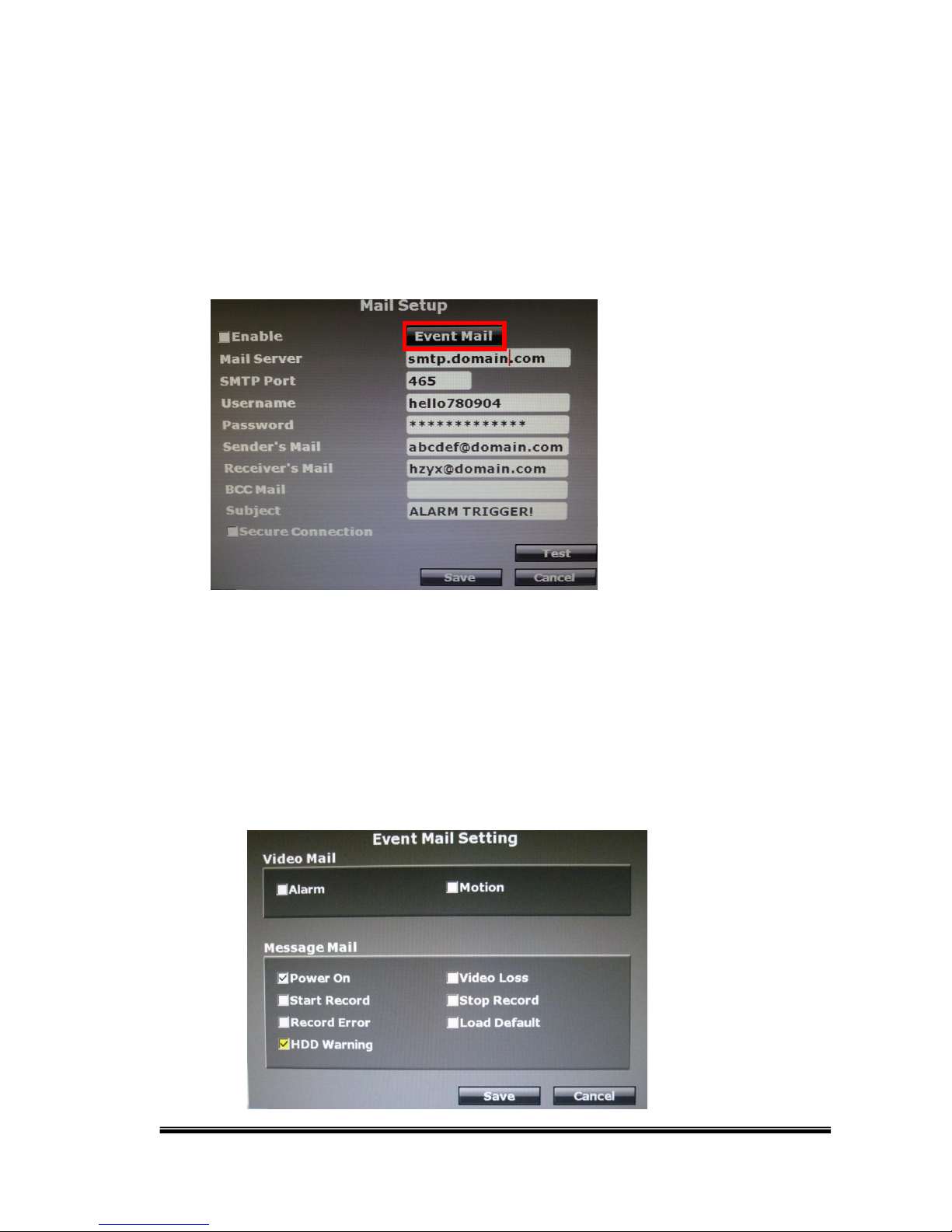

D. MAIL SETUP
D-1. Enable ‘Event Mail’
EVENT MAIL SETTING
Tick “Alarm” to send video to the mail address when external alarm or DI from IP
Cam is triggered. Tick “Motion” to send video to the mail address when motion
detection is triggered.
Page 53
53
D-1a. Alarm / Motion
A video notification will be sent via email for Alarm-in and/or Motion detection
D-1b. Power On
A notification will be sent via email when the DVR starts or reboots.
D-1c. Start Record
A notification will be sent via email when the DVR starts recording.
D-1d. Record Error
A notification will be sent via email if the recording fails, including hardware failures.
D-1e. Video Loss
A notification will be sent via email once the image or the Internet connection is lost.
D-1f. Load Default
A notification will be sent via email when the DVR loads the default settings.
D-1g. HDD Warning
This option is available when DVR detects a hard disk within, which you may set a
temperature limit from 55 to 70 to trigger a warning message sent to the user.
D-2. Mail Server
The IP address of Mail Server
D-3. SMTP Port
SMTP is known as ‘Simple Mail Transfer Protocol’. (Default value is 25)
D-4. Username
The user name while log in to the mail server.
D-5. Password
The password while log in to the mail server.
D-6. Sender’s Mail
The sender’s account when send the mail via this mail server.
Page 54
54
D-7. Receiver’s Mail
The receiver’s mail address.
D-8. BCC Mail
The receiver’s mail address for Bcc Mail.
D-9. Subject
The subject of the mail.
D-10. Secure Connection
Tick the box to choose between SSL or TSL connection.
E. FTP SETUP
E-1. Enable
Tick “Alarm” to upload video files to FTP when external alarm or DI from IP
Cam is triggered. Tick “Motion” to upload video to FTP when motion
detection is triggered.
E-2. FTP Server
The IP address of FTP Server.
E-3. User Name
The username while log in to the ftp server.
Page 55
55
E-4. Password
The password while log in to the ftp server.
E-5. FTP Port
The port number of file transmission. (Default value is 21)
E-6. Path
The FTP path where the user wants to save the information.
F. DHCP Server Setup
F-1. Enable
Use the checkbox to enable or disable the DHCP Server function. When the
function is activated, the DVR can be act as the DHCP server. The DVR will
assign or distribute one of the IP address which is according to the setup IP
address range (start and end IP Address.) to the connecting IP CAM (setup
DHCP function as well).
F-2. Start IP Address
Use the virtual keypad to insert the start IP Address of DHCP server.
F-3. End IP Address
Use the virtual keypad to insert the end IP Address of DHCP server.
Page 56
56
F-4. Lease Time
Press ◄ or ► to change the lease time of DHCP server.

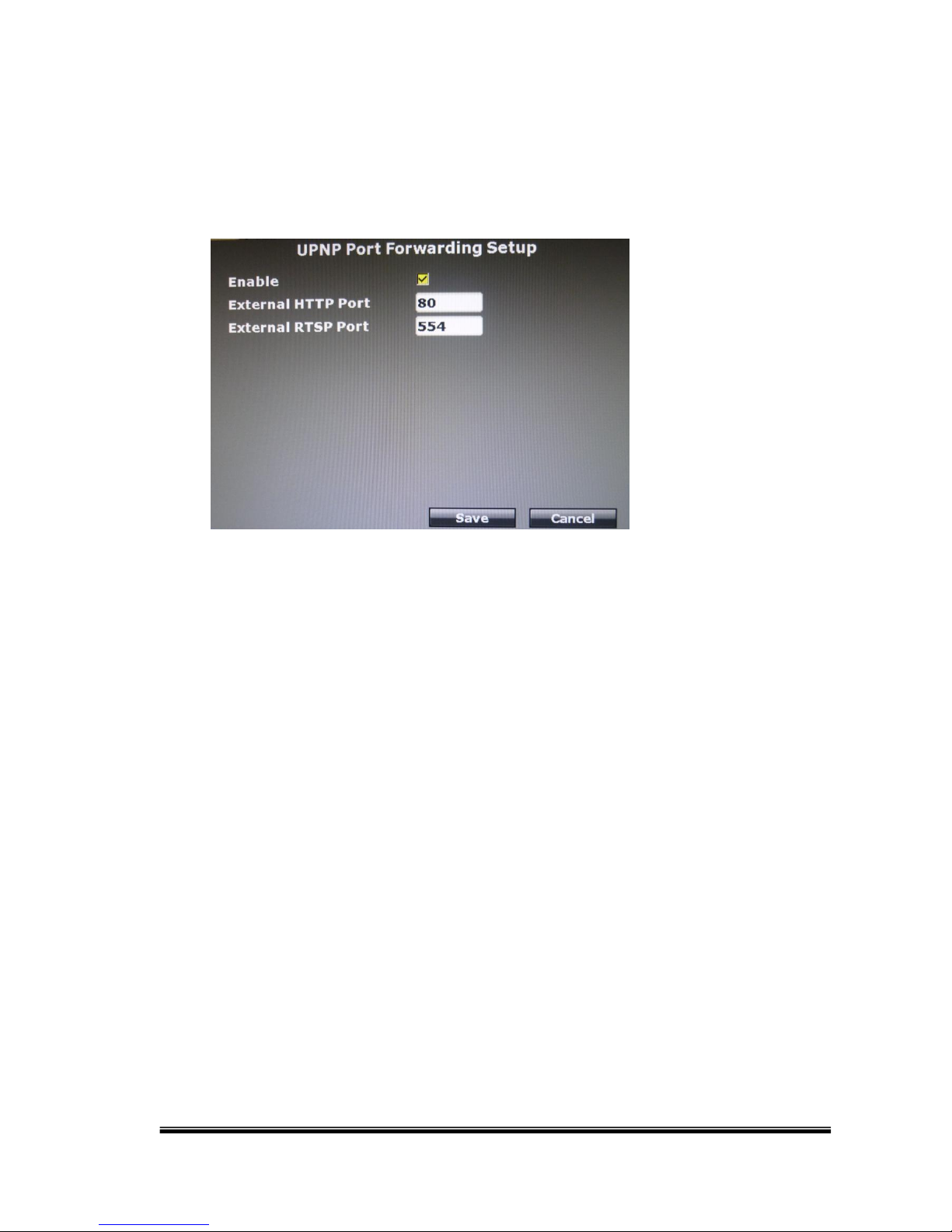

G. UPNP Port Forwarding Setup
G-1. Enable
Use the checkbox to enable or disable UPNP port setup.
G-2. External HTTP Port
Use the virtual keypad to insert the external http port.
G-3. External RTSP Port
Use the virtual keypad to insert the external RTSP port.

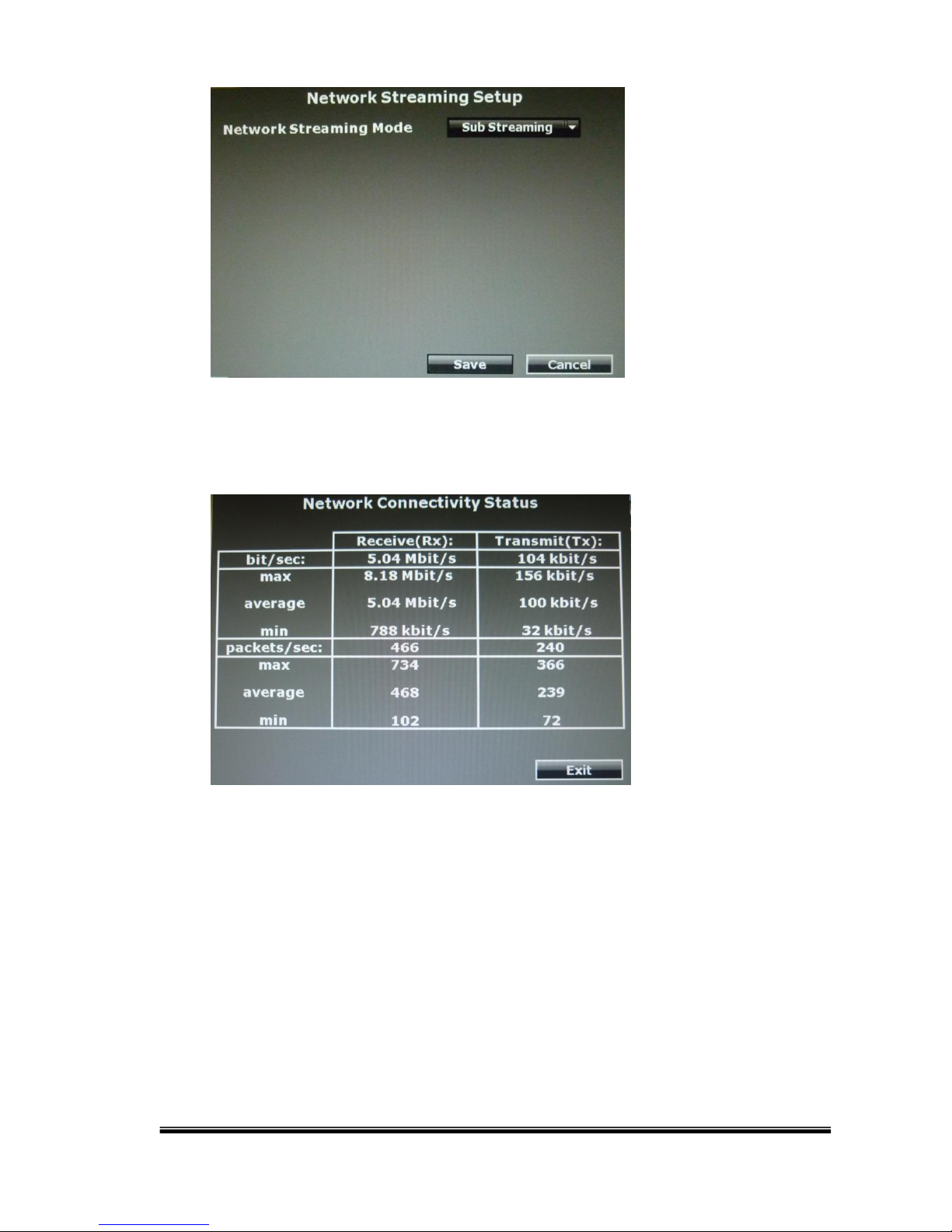

H. Network Streaming Setup
Network Streaming Mode
There are two modes to choose from: Sub Streaming or Main Streaming. You
may choose either one of the modes to set up your streaming bandwidth.
Page 57
57
I. Connection Status
Click on the Connection Status button to browse through details of your
connection status. You may consider how you want to set up your streaming
mode by acquiring information provided here.
Page 58
58
3.7. AUTHORITY SETUP
A. HDD Format Check User Password
Tick the checkbox to enable/disable the HDD Format function. After it is enabled,
the user has to enter the password before performing the HDD formatting.
B. Anonymous User Login
Tick the checkbox to enable/disable the anonymous user login which allows the
user to view live image via IE browser without entering the username/ password.
C. Password Protection
Tick the checkbox to enable or disable the authorization of password protection.
D. Keyboard Lock
Tick the checkbox to enable or disable the operation of the side control
menu bar which is at the right hand side of live view. The control bar
cannot work when the keyboard lock is activated.
E. Auto log out after the menu is closed
Tick the checkbox to enable or disable the operation. If enabled, the system will
log out automatically after the menu closed.
Page 59
59
F. User Management
The administrator can create up to 10 user accounts by clicking on Add User
button. You can also manage user profiles by clicking on the Permission button,
or delete user accounts by clicking on the Remove button.
F-1. Add User
After clicking on the Add User button, a User Management page (in this
case, it is for User No.10) will appear. The administrator can distribute the
authority and the permission settings for the new user.
F-2. Permission
Clicking on the Permission button alongside any particular user will also
direct you to the User Management page where you can modify and alter
the authority settings for any specific user.
Page 60
60
3.8. DISK MANAGEMENT
A. Overwrite Mode
Select “ON” for the oldest recording data to be overwritten by new recording data.
Select “OFF” for the DVR to stop writing data into HDD when its space is full.
B. Hard Disk Full Warning
Under non-overwrite mode, click the drop down list to change value to
20%/15%/10% or 5%. When the HDD space is less than the setting ratio, the
buzzer will start buzzing.
C. Auto Deletion
Select “ON” to discard the recording data that is older than the reserve day.
For example: On 2014/10/19 17:40. The auto deletion is set to “ON”. The reserve
day is set to 3. If the recording data is older than 2014/10/16 17:40, it will not be
available on the playback menu.
D. Reserve Day
Click on ◄ or ► to select how long from 1~30 days of keeping your file. Note: If
the “Overwrite Mode” is set to OFF and the DVR keeps recording, the HDD will
finally get full regardless if “Auto Deletion” is ON.
Page 61
61
E. Disk Warning Time
Set up the interval for displaying a warning message regarding the health
condition of the storage device to the user between 1~60 minutes.
F. Storage Information
The information of the storage device will be displayed on this page.
Your Hard Disk Device needs to be repaired or replaced if its health
condition is displayed in yellow or red.
G. Format HDD
Enter the administrator name and password to proceed formatting the HDD.
Page 62
62
3.9. SYSTEM SETUP
A. System Name
Use the virtual keypad to enter the name of the DVR.
B. System ID
Use ◄ or ► to setup the DVR ID. The adjustment value is between 0~32.
C. Language
Use the drop down list to change the DVR language system. Currently, there are
18 types of different languages available.
D. Date Format
Use the drop down list to change DATE. There are three modes: DD/MM/YYYY,
YYYY/MM/DD and MM/DD/YYYY.
E. Analog Video System
There are two types of analog signal settings to be adapted for your analog/aHD
camera device. If your analog/aHD cameras are connected to the DVR but
nothing happens, it may be because you have the analog/aHD cameras using
two different types of signals. Make sure to adjust the Analog Video System to
one signal only. (either Pal or NTSC)
Page 63
63
F. Version
The firmware version of the DVR will be shown in this column.
G. Firmware Update
Click Firmware Update button to perform firmware updating.
Have your firmware file ready in a USB hard drive, and insert it unto the DVR USB
connector for upgrading. Press Start to Upgrade Firmware to proceed.
H. Configure Setup
Click the checkbox to select which item to be setup by the user. The user can also
load settings to factory default, or load and back up the configuration from USB.
Page 64
64
I. Time Setup
Click the SYNC button within the “Time” block for adjusting and synchronize the
time of the DVR as the system time of the PC. Moreover, if the user clicks the
enable checkbox and the SYNC button within the “NTP Setup” block, the time of
the DVR will be synchronized with the NTP Server.
J. Day Light Saving Time
After enabling the daylight saving time function, the user can use the drop down
list to select the start time and the end time of daylight saving time. After complete
the setting, please click Save button to save the settings.
Page 65
65

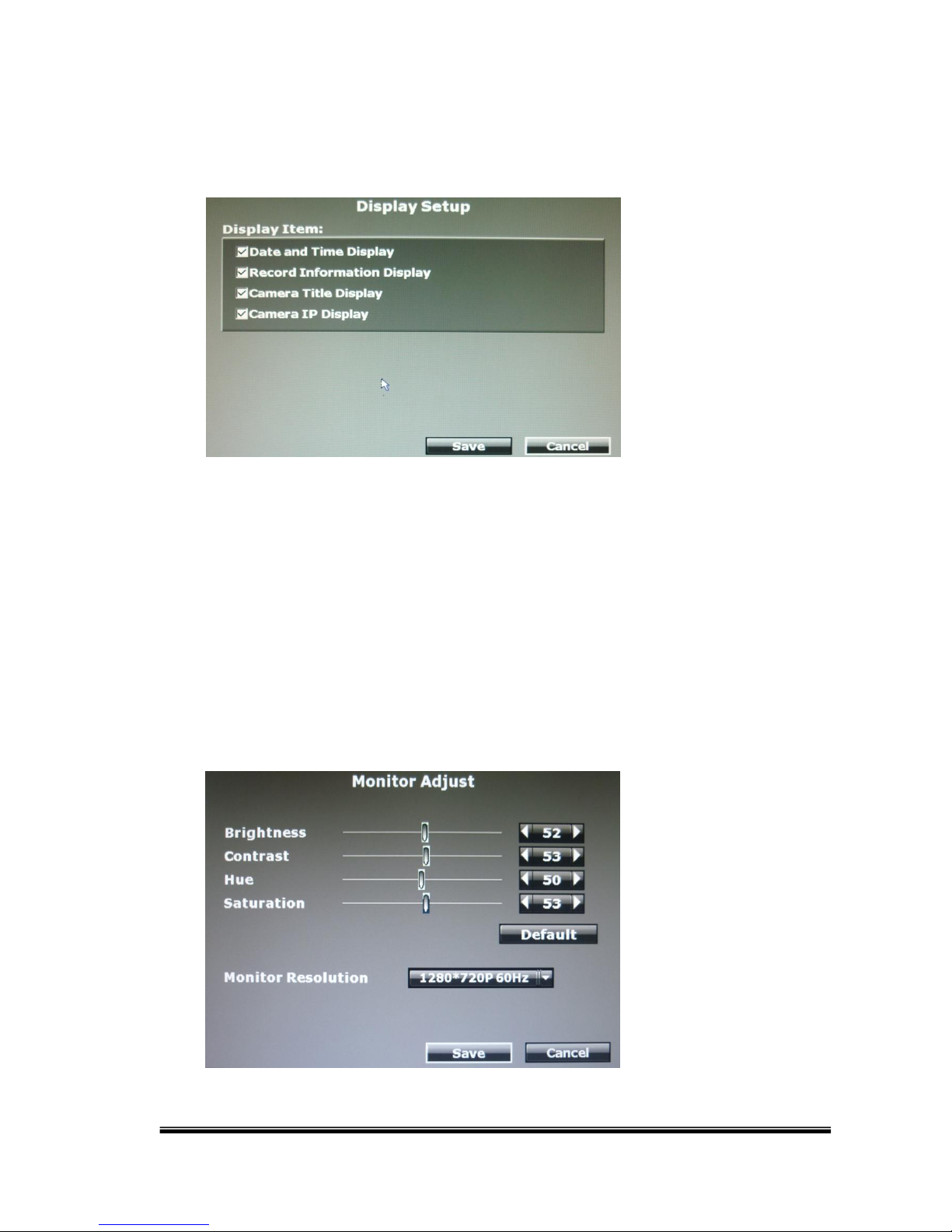

K. Status Display Setup
Use the mouse to click the options, which include “Date and Time Display”,
“Record Information Display”, “Camera Title Display” and “Camera IP Display”.
L. Monitor Adjust
The user can use ◄ or ► to adjust the monitor settings: “Brightness”, “Contrast”,
“Hue” and “Saturation”.
The Resolution can be adjusted. Please check the frame rate which your LCD
monitor supports before any adjustment. If you select a resolution not compatible
with the LCD monitor, the system will automatically undo the recent changes.
Page 66
66

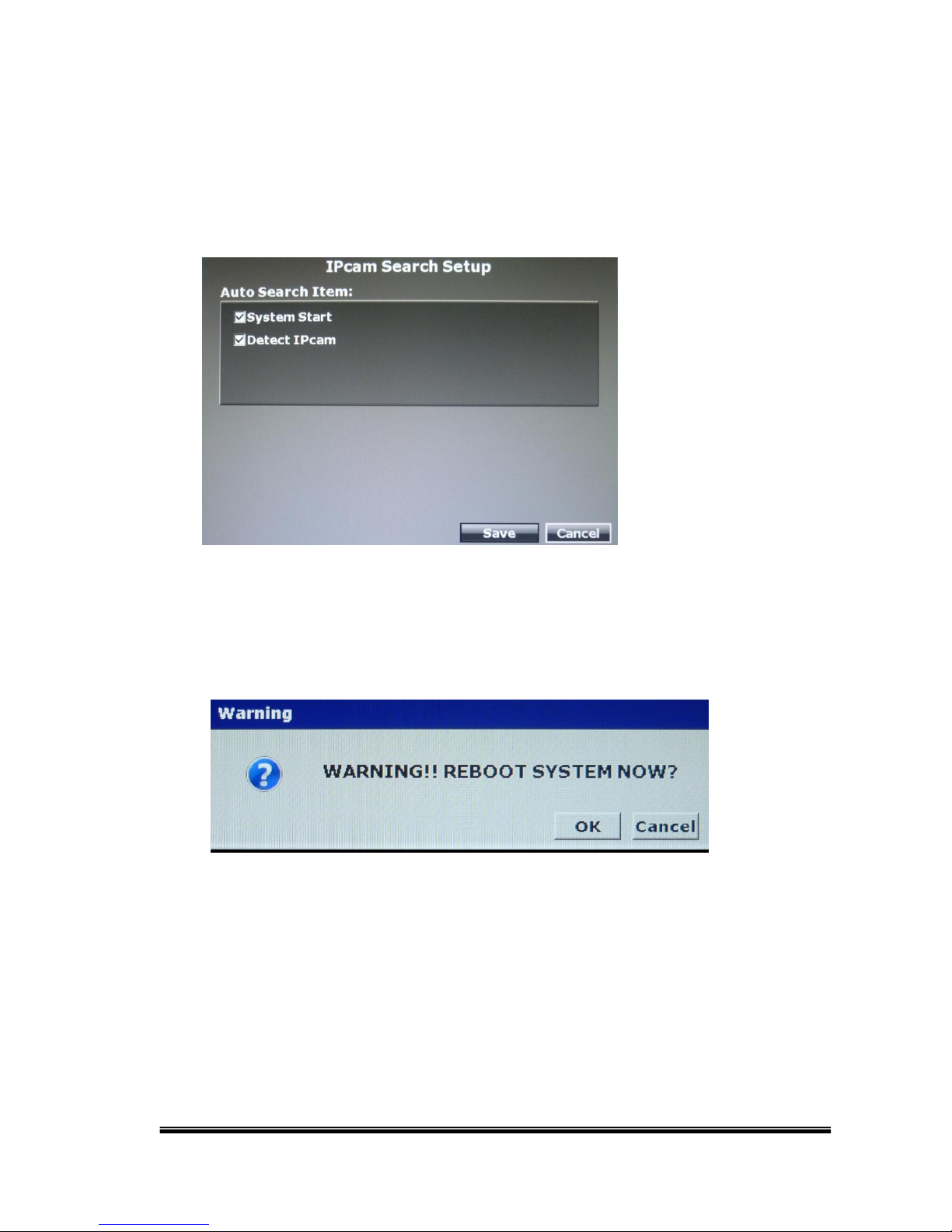

M. IPcam Search Setup
The DVR automatically starts locating any unconnected IP Cam within its LAN if
there is still some channel available. Enable your IPcam Search Setup by ticking
the ‘System Start’ and ‘Detect IPcam’.
N. Reboot
Click to reboot the DVR.
.
Page 67
67
4. DVR PLAYBACK
On the side menu control bar, click icon to enter Playback mode.
There will be a window popping up at the center screen.
Click on icon to enter Time Search page where you
can see the time frame of your recorded video.
(For more functions, please read on 4.1 Time Search)
Page 68
68

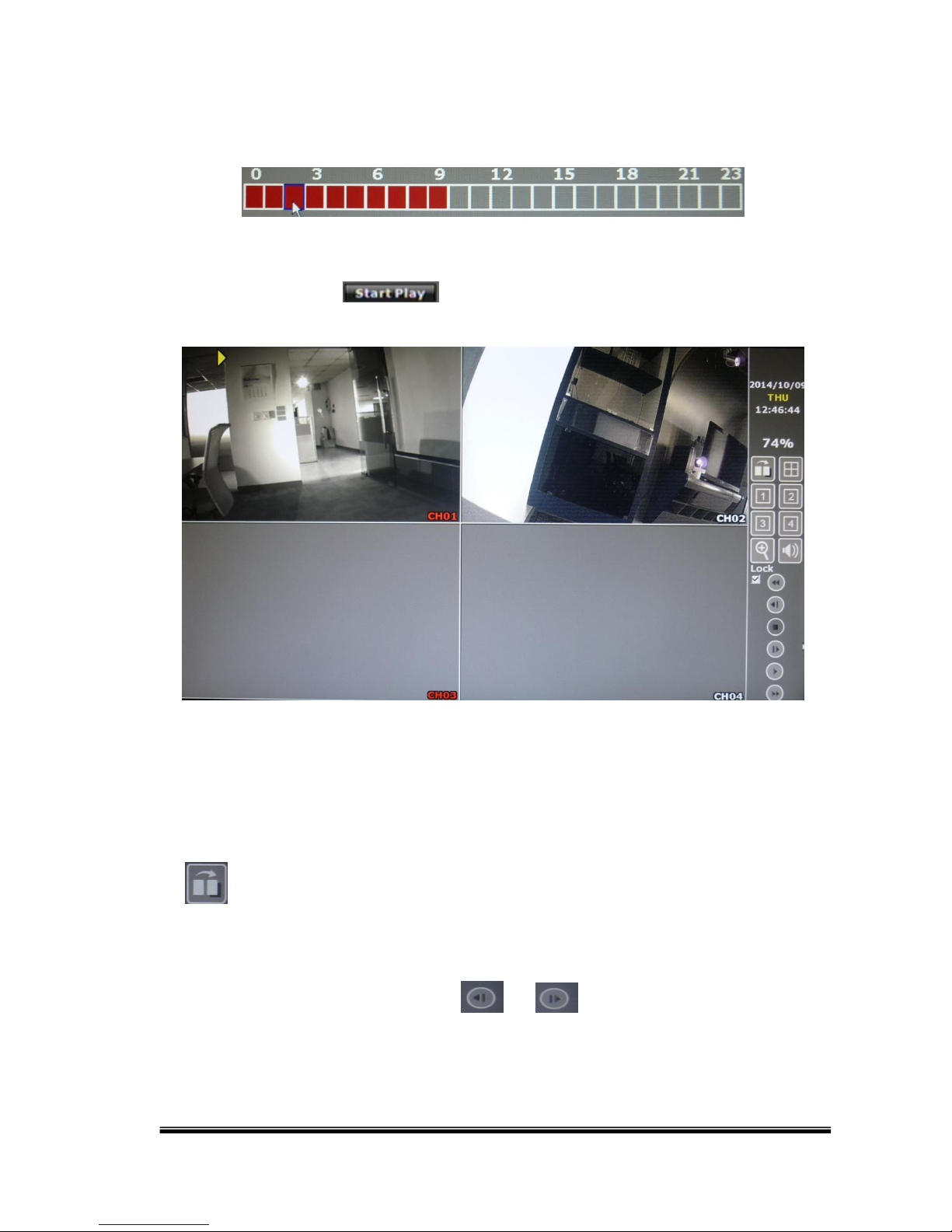

Place your mouse cursor on the grid under the time frame.
It will be highlighted in blue.
Click on button to enter the Playback page.
Note: In Playback mode, the sound output is only enabled on full screen mode.
A. RECORD BACKUP
On playback mode, press this button to backup recording (.da0 video) to the USB
disk .Press this button again to finish the backup. To perform a single image backup
(.jpg single image backup), press or first and then click the “Record
Backup” button to back up any necessary images.
Page 69
69
B. AUDIO VOLUME
Press this button for the audio volume control board to pop up.
C. DISPLAY CONTROL
On playback mode, switch the camera channels by choosing different icons on the
side control menu bar.
D. DIGITAL ZOOM
On live full screen mode, left-click to select a zoom-in or zoom-out range for the
image. The users can right-click to disable this function. (NOTE: the image can be
zoomed-in to max. 16x.)
E. RECORD AND PLAYBACK CONTROL
Click on different icons to perform rewind, fast forward in different speeds, pause
and play. Or click on stop sign to go back to the previous page.
F. Lock Control
Please refer back to the Lock Control guide on the previous chapter: 3.2. LIVE
VIEWING AND POP-UP MENU.
4.1. TIME SEARCH
Select the start of the playback time and then click the button to
playback the recorded data. If a period of time contains the recorded data, the time
point within this page will become red.
Page 70
70
If any of the time point displays in yellow, it means there might be events happening
during this time. Double-click on the yellow grid to look at the video.
4.2. EVENT SEARCH
After entry to the event search page, the user can click on the event log item which is
shown on the list to start playback. Move the mouse cursor to highlight upon the
event. Moreover, the user could click the Event Condition button to enter a list of
events and select specific types to be included for being recorded on the video.
Page 71
71
4.3 BACKUP
Note: You must insert a storage device to enable this function in order for the DVR to target
its backing up path. If nothing shows up in the Media Device drop down list, then you may
press Check Device button to see if the DVR can read your storage device or not.
After you click ◄ or ► to set starting time and ending time for backup, the DVR will
display the Backup Size for your information to prevent overloading. You may also
tick boxes to select channels in Select Channel for managing the backup.
Once you have confirmed all the settings, click Backup button to proceed.
4.4 SYSTEM LOG
The system log holds all of the system records. The maximum quantity of records is
2000. Click the Log Filter button to perform further data filter actions.
NO DEVICE
WITH DEVICE (USB)
Page 72
72
After completing the specific selection, click the Save button to save the settings.
When returning to the system log page, it will only reveal the specific selected items.
5. BACKUP PLAYBACK
SYSTEM REQUIREMENT
CPU: Intel Celeron 1.6G
MEMORY: 256MB.
VGA: 32MB
VGA RESOLUTION: 1024 x 768.
OS: Windows XP / 2000 or above
SUGGESTED REQUIREMENT
CPU: Intel P4 2.8G
MEMORY:512MB or above
VGA:64MB or above
VGA RESOLUTION:1024 x 768
OS: Windows XP / 2000 or above
NETWORK BANDWIDTH: Upload Speed is 256kbps or above
Page 73
73
5.1. MAIN SCREEN SETTING
The player (D6Viewer.exe) is used for playing the DVR backup video.
D6Viewer.exe can be obtained via the Internet; or you can simply obtain it by
performing USB backup and DVD-RW backup operation, because the
software will be created within the USB device right away.
A. MAIN SCREEN

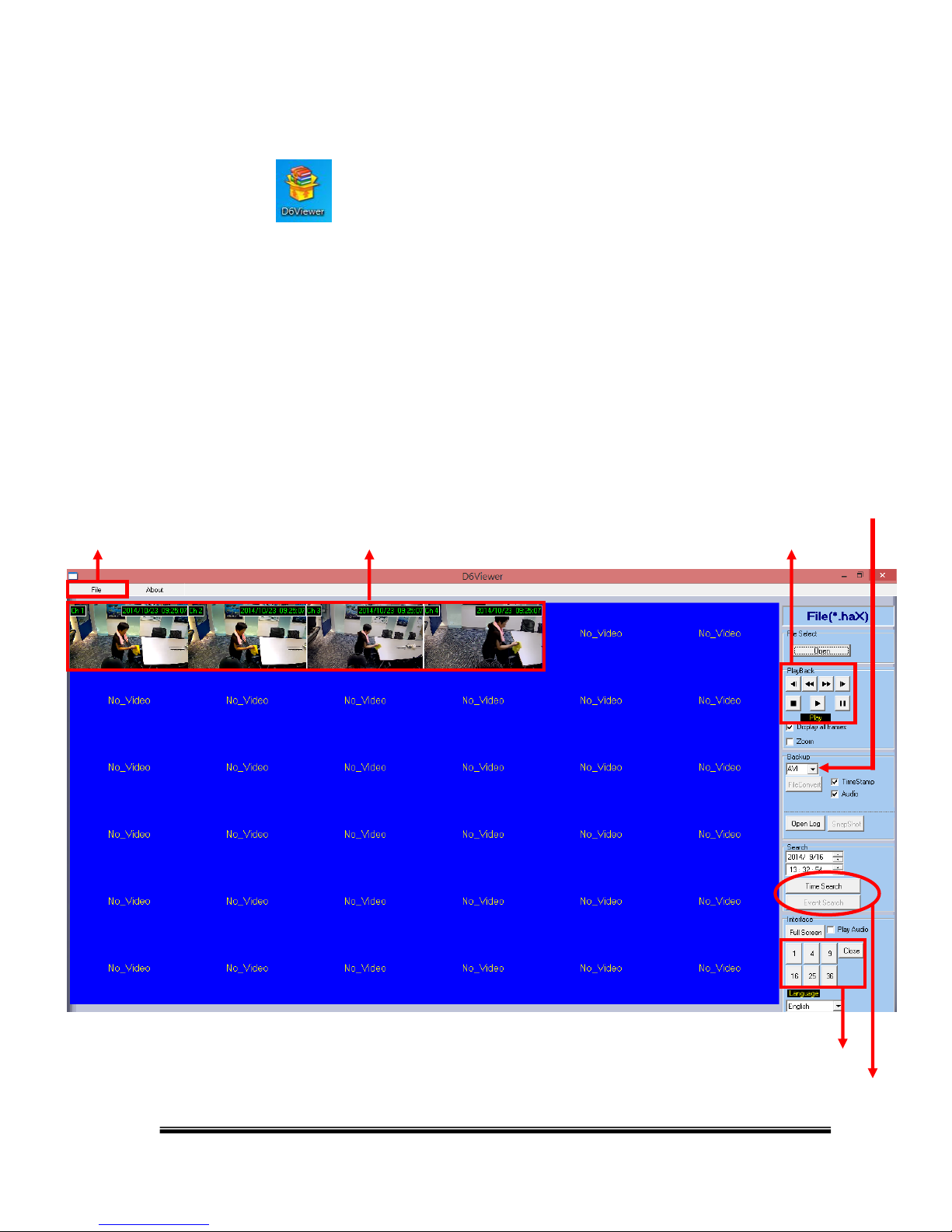

Open the D6Viewer. Using Overlay mode can improve the system resource
performance.
Playback Control
Split Screen
Select Video Source
Channel Select
Select Backup Format
Time &Event Search
Page 74
74
B. HDD PLAY
1. Reading the DVR HDD from PC may not be possible since the DVR HDD is
in Linux format, so you need “Ext2Fsd” to assign a drive letter to the HD. You
can find it in the attached CD or download it from Internet.

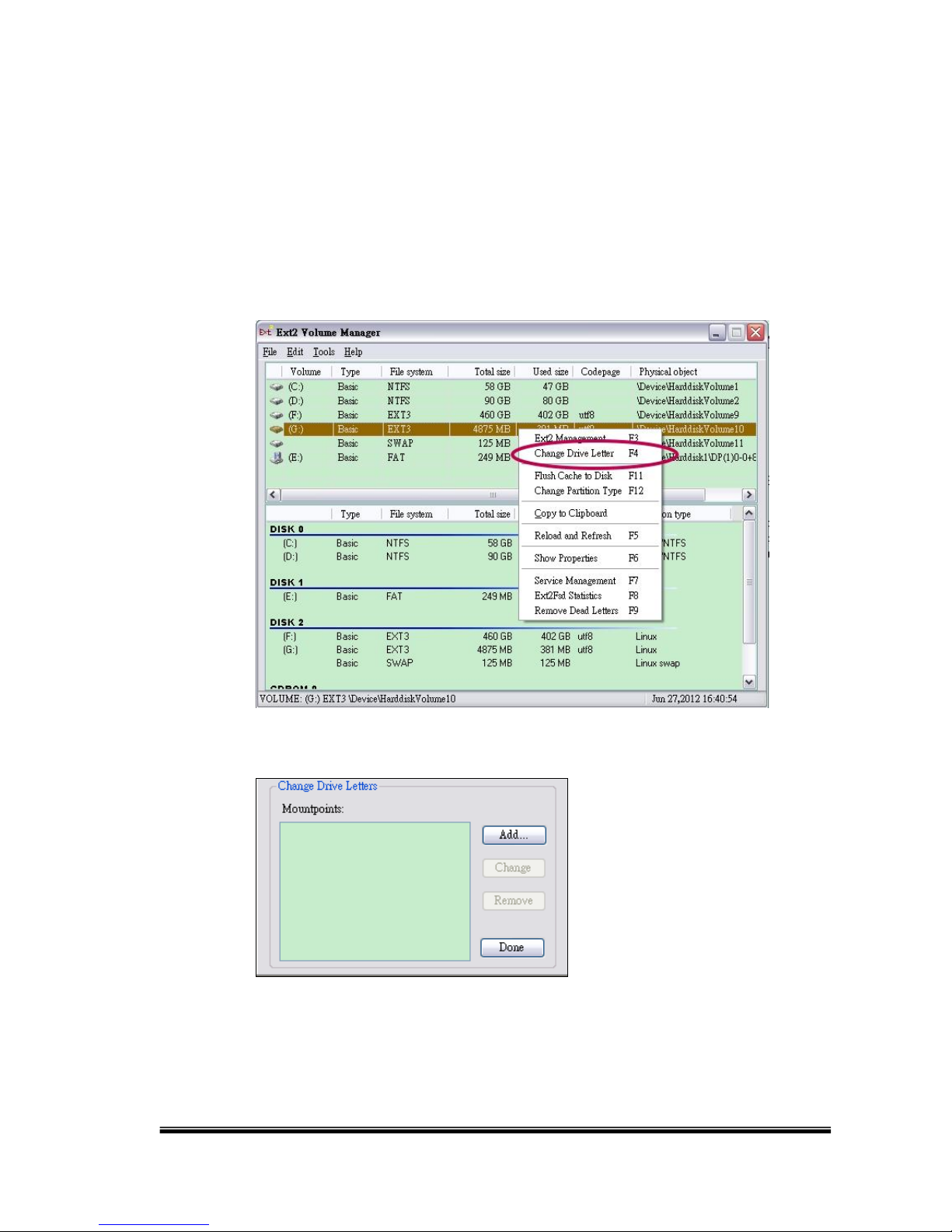

Start the Ext2Fsd, and it will detects all the disks connected with your PC.
Right-click on the DVR HDD and choose “Change Drive Letter”.
Click “Add”
Assign a letter to the HDD, then click “OK” so that the HDD get a drive
letter and can be recognized by Windows.
Page 75
75

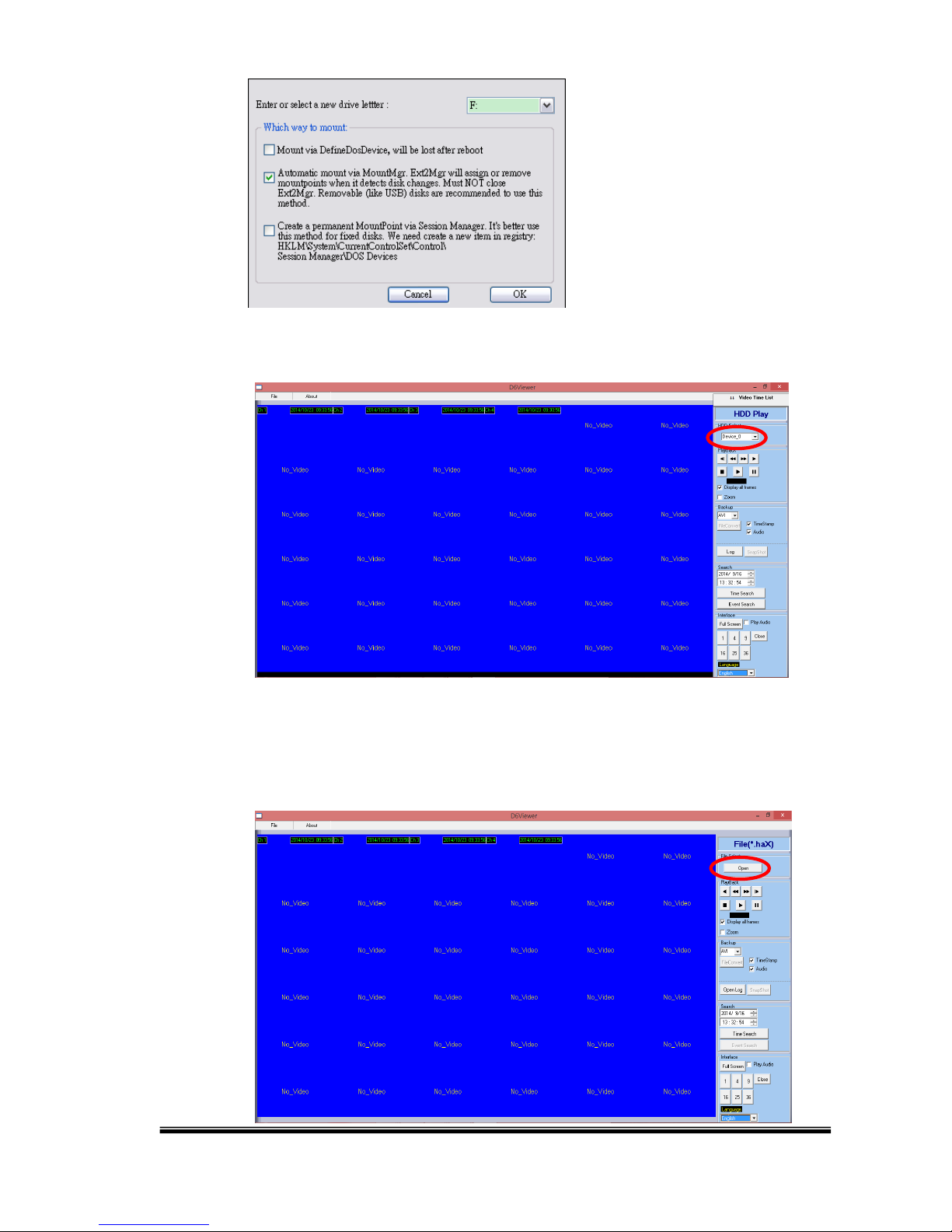

2. Under HDD Play mode, select the DVR HDD to load the video files inside.
C. File Play
1. You can open a single video backup file, select "File->File Play”. Then “Open".
Page 76
76

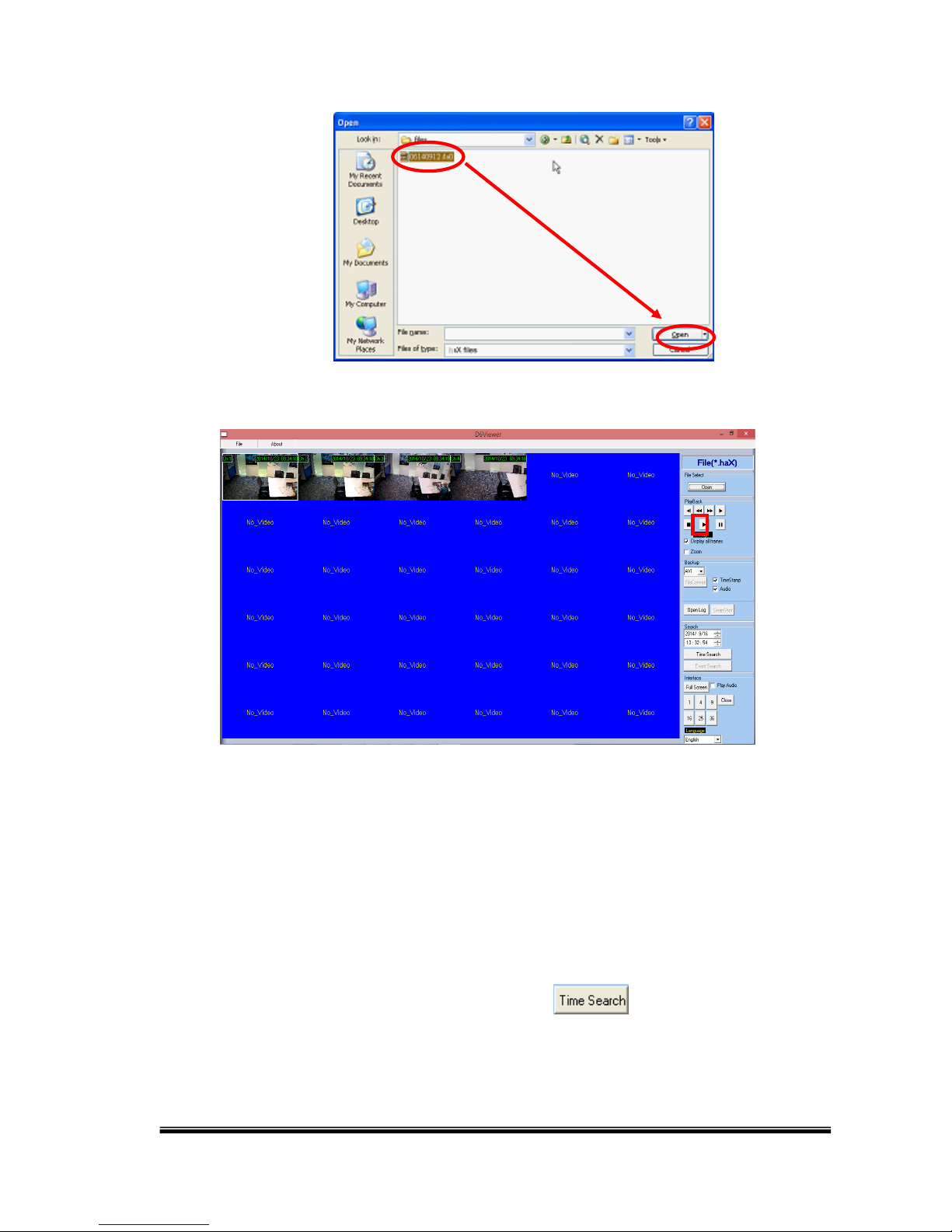

2. Choose the path the .haX file reserved and pick the file to playback.
3. Press the play icon to play the video or pause picture.
5.2. PLAYBACK OPERATION
A. TIME SEARCH
Select the Date and Time and then click to play the video.
Page 77
77

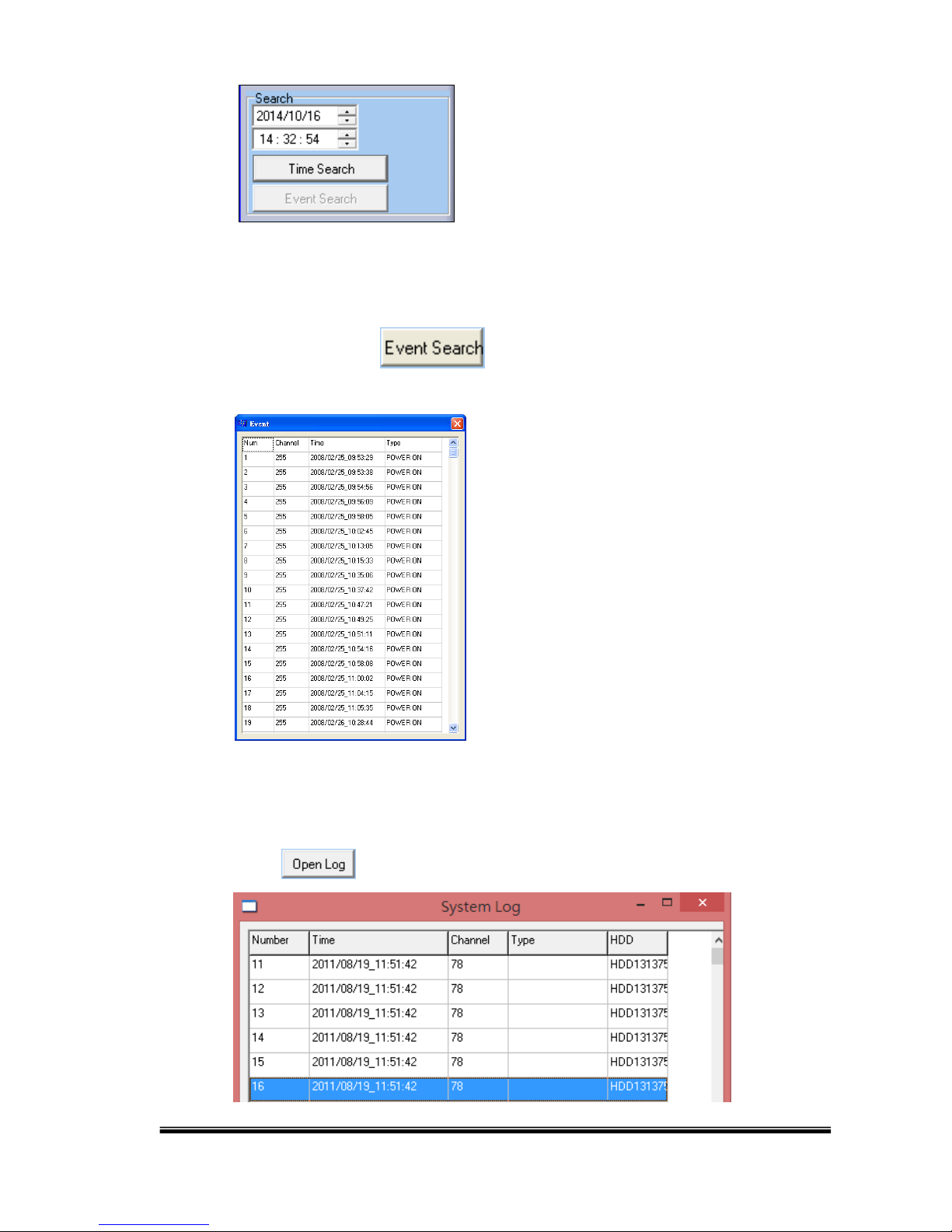

B. EVENT SEARCH
After pressing the button, it will display all the events which are
saved within the DVR HDD (Shown in the following image).
C. LOG
Click to check the log records.
Page 78
78
D. ZOOM
Tick the “Zoom” box and drag an area on the screen, then click the area to
zoom in.
Page 79
79
E. BACKUP FILE TO MKV OR AVI FORMAT
1. There are two types of video formats: MKV and AVI. With AVI file, you
can choose to either include Time Stamp and Audio or not.
MKV AVI
2. After double-clicking on one specific channel display image, the ‘File
Convert’ button will be available. Select the type of video format you would
like to convert to from the Backup drop down list.
Click on button to begin the backup.
Page 80
80
3. A window will pop up for you to enter a file name and edit the file path
directory.
4. While the converting is in process, you may press the
button to pause at any time before it is completed.
6. NETWORK VIEWING & PLAYBACK
SYSTEM REQUIREMENT
CPU: Intel Celeron 1.6G
MEMORY: 256MB.
VGA: 32MB
VGA RESOLUTION: 1024 x 768.
OS: Windows XP / 2000
SUGGESTED REQUIREMENT
CPU: Intel P4 2.8G
MEMORY:512MB or above
VGA: 64MB or above
VGA RESOLUTION:1024 x 768
OS: Windows XP / 2000
NETWORK BANDWIDTH: Upload Speed is 256kbps or above
Page 81
81
6.1. IP ADDRESS SETUP ON PC SITE
When installing cameras inside the LAN or using a network cable to connect them to
PC, IPInstallerEng.exe will set up the IP address of those cameras. On Windows XP
SP2 or above, the following Windows Security Alert will popup. Please click on
Unblock.
Then, the IPInstallerEng.exe will popup. The DVR default IP address is
192.168.1.220
NOTE: Please input correct network parameters without blank spaces.
On “Device Lists”, the software lists all servers. By clicking on the server the IP
settings will be show on the right side. After editing the parameters and clicking on
“Submit”, the following dialogue box will popup. Then, it will reboot the device with
the new parameters.
Page 82
82
6.2 OPTIONAL MICROSOFT INTERNET EXPLORER SETUP
OPTION 1: DISABLE ACTIVEX WARNING
A. IE Tools Internet Options Security Custom Level Security Settings
Download unsigned ActiveX controls Enable or Prompt (recommend).
B. IE Tools Internet Options Security Custom Level Security Settings
Initialize and script ActiveX controls not marked as safe Enable or Prompt
(recommend).
1
2
3
4
Page 83
83
5
All the three options above are all based on the prompted interfaces.
Please click "YES."
OPTION 2: ADD TO TRUSTED SITES
IE Tools Internet Options Security Trusted sites Sites
Page 84
84
6.3 LOGIN

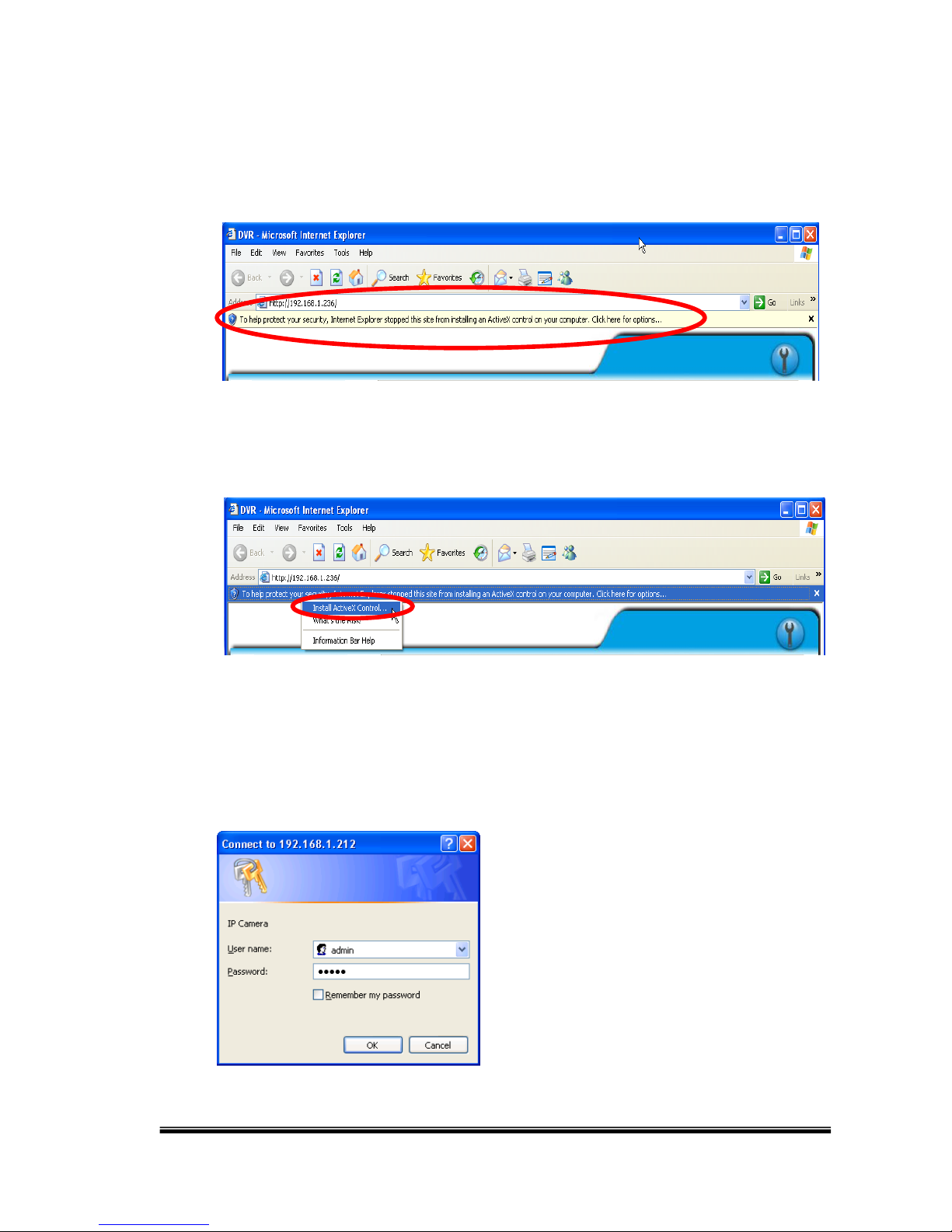

A. INSTALL ACTIVEX
B. START INSTALL ACTIVEX
C. ACCOUNT & PASSWORD LOGIN
After the IP setup and connecting to the network or LAN; type directly the IP
address on the IE Browser directly. The following User name & Password Login
window will popup.
Default user name: admin
Default password: admin
Page 85
85
6.4 REMOTE CONTROL

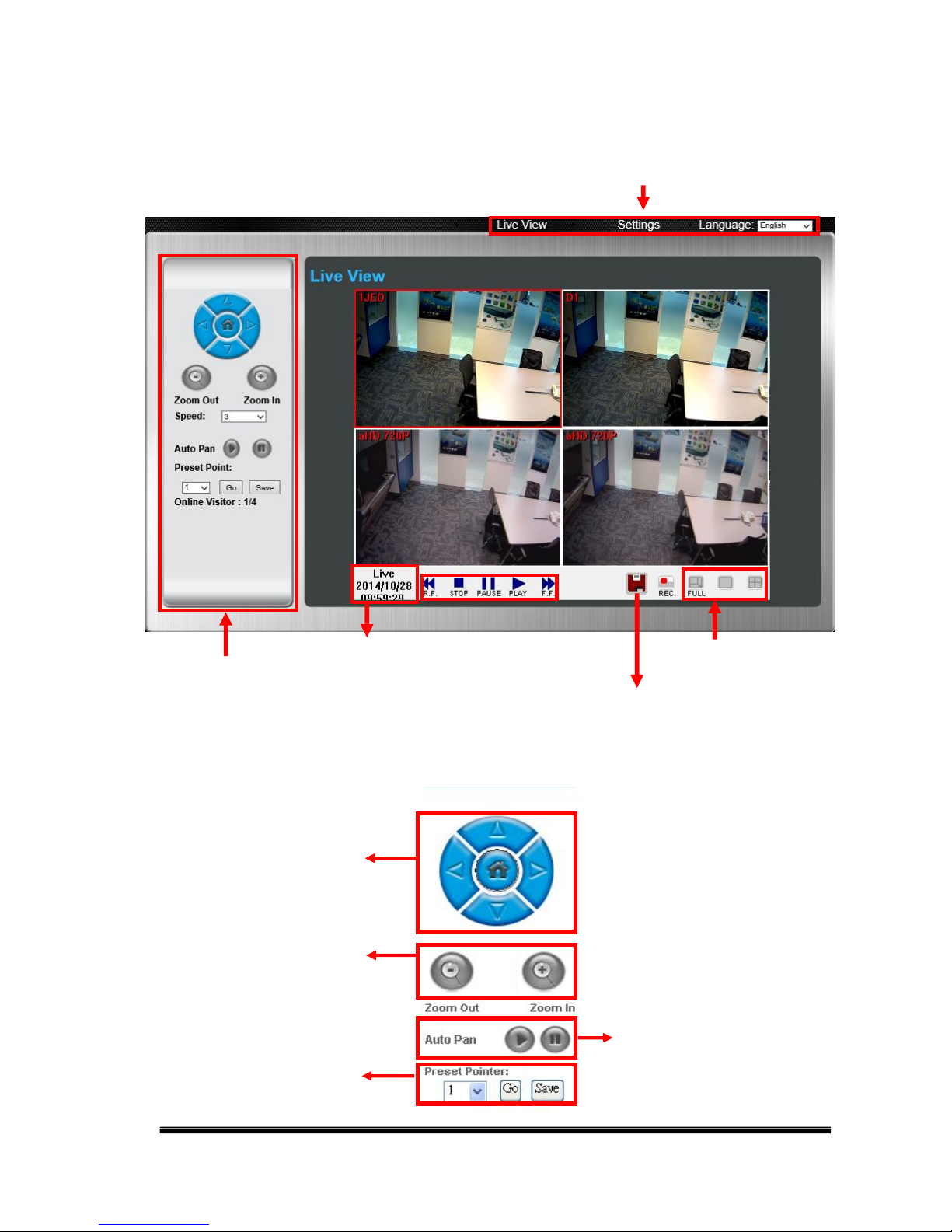

LIVE VIEWING
A. PTZ Control
PTZ control function panel
PTZ Control
System Time
Playback Control
Time-Point Backup
DVR Configuration
REC
Screen Format
Direction
Keys
PTZ
Zoom
In/Out
Preset
Point
Setup
Auto
Pan
Function
Page 86
86
B. DVR Configuration
Users can adjust the language setting, and shift interface for controlling options
by clicking on Live View and Settings. Please read the 6.5 CONFIGURE for
more information about Settings.
C. SYSTEM TIME
Live viewing mode: The current live viewing time.
D. SCREEN FORMAT
Switch screen format and click twice to switch different channels with full screen.
E. REC
Click to start recording live video to PC or storage device.
F. Time-Point Backup
Click the icon to open a window which you can select the Start and End backup
time. Click Save button to select the path for saving the backup file on the PC,
or click Stop to pause recording. The saved file is in *.ha0 format.
The backup file will be named after the time which starts the backup. For
instance, (09162014133255.ha0) means 09/16/2014 13:32:55.
G. Playback Control
Page 87
87

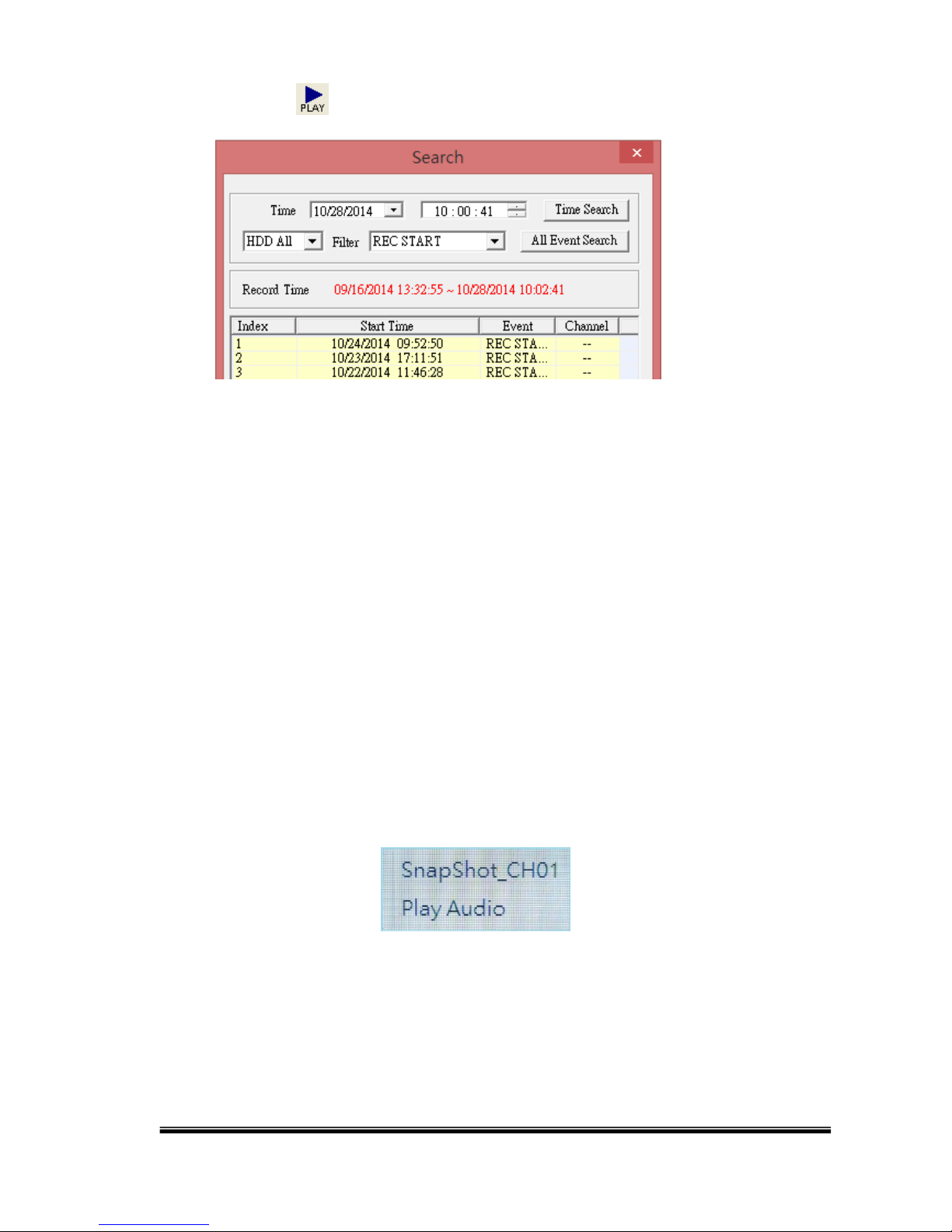

Click the button for the Playback Window to appear.
G1. HDD Select
The user can select whichever HDD for playback.
G2. Playback Time & Time Search
The user can select the time of any choice, then click Time Search to view the
video playback.
G3. Filter & All Event Search
With Filter, select any type of events from the drop down menu, or simply click
All Event Search to browse through all the events in the video recording.
H. OTHER FUNCTIONS
Right-click on any channel with mouse. The following menu will pop up:
H1. Snapshot
Save a single picture from the image.
H2. Play audio
Play audio off the channel.
Page 88
88
Note: a remote user can receive audio from the DVR. The playback
performance is not influenced if the sound is being recorded.
6.5 CONFIGURE
A. System
A1. System – Information
DVR Name: This name of the DVR will be shown on the IP Installer.
MAC Address: It is permanent for the DVR and cannot be revised.
Time Zone: The time zone can only be modified on local DVR.
NTP Server: The NTP Server IP address can only be modified on local DVR.
A2. System – Software update
System Update: Click on the “Browse” button to select the firmware file and
then press “Upgrade” button to upgrade the firmware.
Page 89
89
◎ActiveX Update:
The ActiveX control should be also updated when you update the DVR
firmware. Use the tool in the attached CD to uninstall the old ActiveX control so
that the newest version can be registered.
◆Automatic Uninstall
Please follow the steps:
1. After updating the DVR firmware, close the web browser.
2. Run the file "unreg" in the CD to automatically remove the
existing ActiveX component "WATCH_16R" from your PC.
3. Log in the DVR via web browser again, and the browser will require you
to install the new version of ActiveX control.
◆Manual Uninstall
If the tool does not work, please follow the steps to uninstall ActiveX
control manually.
1. Look for the files "KConfig.ocx" and
"WATCH_16R.ocx" in one of the possible paths:
"C:\WINDOWS\Downloaded Program Files"
"C:\WINDOWS\W16R"
"C:\WINDOWS\system32\WATCH_16R"
2. "Start"->"Run"->Key in:regsvr32(The path of KConfig.ocx)/u->Click "OK"
Ex.: regsvr32 C:\WINDOWS\system32\WATCH_16R\KConfig.ocx/u
Page 90
90
3. "Start"->"Run"->Key in: regsvr32(The path of WATCH_16R.ocx)/u->Click
"OK"
Ex.: regsvr32 C:\WINDOWS\system32\WATCH_16R\WATCH_16R.ocx/u
4. Log in the DVR via web browser again, and the browser will require you to
install the new version of ActiveX control.
Load Setup from Default: Click “Apply” to reset the machine and revert all
setting back to default value.
Load Setup from: Click “Browse” to choose a file. You can load setup from
your computer if you ever clicked “Download” and saved the settings before.
Backup Setup: Click “Download” to save a current setting file to PC. You can
apply this file to other DVR so that the setting will be copied to other DVR.
A-3. System – Daylight Saving Time
Edit the start and end daylight saving time. During daylight saving, the time will be 1
hour faster.
A-4. System – Status Display
Page 91
91
Select the items that will be displayed on local DVR.
A-5. System – System Setup
DVR ID: The ID is used for distinguish DVRs with a remote controller or RS485.
Enter a different ID when you are operating several DVRs at the same time.
Date Format: Select a format of date display.
B. Authority
B-1. Authority – Authority Setting
HDD Format Password Check: Enable the option, then DVR will ask for
password when users want to format HDD.
Anonymous Login: Enable the option, then user can access the DVR via web
browser and watch live screen without password. Disable the function, then
password is necessary to access the DVR.
Password Protection: Enable the option, then user has to log in to operate the local
DVR.
Page 92
92
B-2. Authority – User Setup
Add User: Set up username and password for the new user in the pop-up window.
The administrator can authorize new users to use certain functions by ticking the
choice below. In “Masking Channels in Playback and Network”, you can tick
channels which you do not wish the user to see. As a result, the user will not see a
live view or playback video of that channel.
Modify: Click “Edit”, and fill in username and password to edit the user
authentication or password.
Remove: Click “Remove” to remove the user.
C. Camera
C-1. Camera Setup
Page 93
93
aHD/Analog Camera:
After connecting the aHD/analog camera to DVR, select “aHD/Analog
Camera” to corresponding channel.
IP Camera, Normal Mode:
Under Normal mode, Http protocol is used to access camera. You can key in IP
address, port, username, and password manually. You can click IP Installer button
to scan the LAN and find cameras being connected:
Page 94
94
Click “Edit” to revise the device information. Click “Use” to assign the device to a
channel.
C-2. Video Setup
Select channels from the drop down list to adjust different settings.
aHD/Analog Camera:
IP Camera:
You may refer the rest of the settings to previous chapter: 3.3.CAMERA SETUP
Page 95
95
C-3. Image Setup
Adjust image contrast, brightness, hue, saturation, and sharpness here. “Dwell
Time” means the swap interval when performing swap on single channel screen.
aHD/Analog Camera:
IP Caemra:
Page 96
96
C-4. Motion Setup
aHD/Analog Camera: Enable motion function, and drag on the screen the motion
area. When motion is detected in the area, the alarm will be triggered and action will
be executed.
Relay Dwell: The value determines the relay triggering time when motion detection
happens.
Buzzer Dwell: The value determines the buzzer sounding time when motion
detection happens.
IP Camera:
The functions are all the same as the aHD/analog camera except that you can
setup three areas for motion detection.
Page 97
97
C-5. Mask
aHD/Analog Camera:
Enable mask function, and drag areas to mask on the screen. Decide the mask color
which the area will be covered with on live screen and playback video.
IP Camera:
Enable mask function, and drag on the screen the mask area. You can setup three
mask areas which will be displayed in black on live screen and playback video.
Page 98
98
C-6. Audio
Select the channel, and enable or disable the audio recording. No sound will be
recorded in the playback video of the channel that audio setup is not enabled. It
supports at most 4CH audio recording.
D. Record
D-1. Record Setup
Alarm Recording Time: When an event happens, the DVR can record the video at
event time-point, and send it to mail or FTP. Adjust the recording video length.
Mobile Record: Enable it, and DVR will record the streaming for mobile viewing, so
that you can view playback video on mobile phone.
Record Mode: Manual, Alarm-trigger, or Schedule recording.
D-2. Schedule Record
Page 99
99
Select tags on the bottom of the interface, and click on the calendar with colors.
Red stands for full recording.
Yellow stands for recording triggered by alarm.
Green stands for no recording.
Click “Apply” to confirm.
If you select “Schedule” in record mode option, the DVR will record videos following
the schedule.
D-1. Alarm Trigger
HDD Temp. Warning: Enable it to make DVR alarm when the HDD temperature is
higher than the temperature the user sets. Adjust HDD Temp. Limit Value below.
Alarm Auto Switch: Select to switch to split screen or single channel when motion
detection happens.
Video Loss Detection: Enable it to make DVR alarm when camera is disconnected
and video is lost.
Digital Input(IPCam): Enable it to make DVR alarm when digital input for IP camera
is triggered.
Ext. Alarm Detection: Enable it to make DVR alarm when external alarm is triggered.
Ext. Alarm Mode: Normally open or normally closed. Select as the external device
you connect.
Page 100
100
D-2. Alarm Output
Adjust the buzzer sounding time and relay triggering time when the external
alarm is triggered or video loss happens.
D-3. Alarm Event
When events happen, the event log will be recorded with events in a list. Enable the
events you want to record in the event list.
E. Network
E-1. IP Address
IP Setup: Set up the DVR IP information. Select DHCP to get IP address from DHCP
server or Static to fill in the IP address manually.
UPnP Port Forwarding: When the DVR is under a router, you can use port
forwarding to allow the WAN connection. Fill in the http port and RTSP port and check
your router setting.
Loading...
