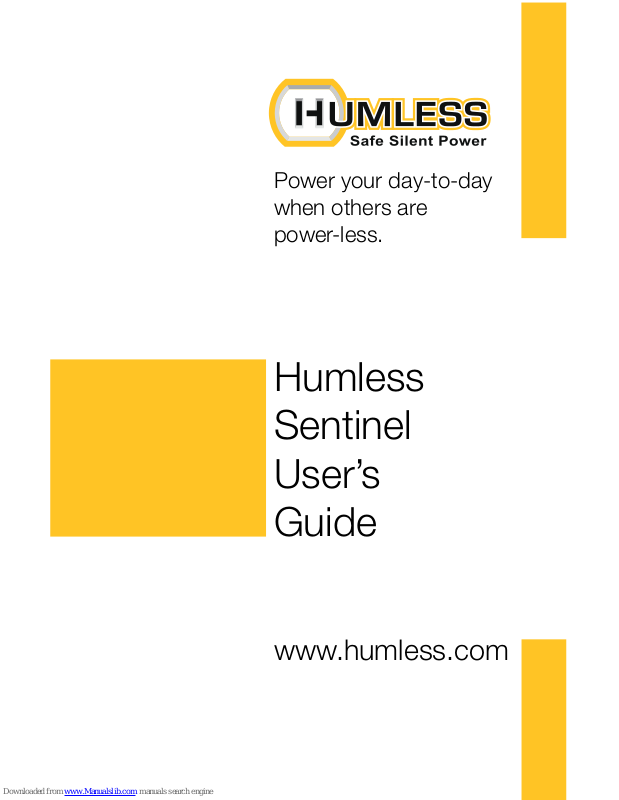

Humless
Sentinel
User’s
Guide
Power your day-to-day
when others are
power-less.
www.humless.com
2
-
humless.com
User’s Guide
Contents
• Safety Instructions page 6
• Meet The Power page 7
• Charging Your Unit page 12
• Powering Your Devices page 13
• Troubleshooting page 14
• Technical Specications page 15
+
3
humless.com
About
Humless
Humless, LLC gives you a seamless solution for
challenging power outages. Our technology is so
advanced that we have no real competitors. There
may be other generators available, but none can
offer you all of the following:
Safe:
No emissions – none. No dangerous risks unlike fossil
fuels and toxic lead-acid batteries (if you can’t throw
it away in your family’s garbage can, it’s not good for
your family).
Silent:
No more loud, continuous, sanity-challenging
generator noises.
Affordable:
The next competitor that compares in power,
1000 watts continuous, costs 3 times more.
Portable:
Easily carried by most, weighing in at 40 lbs. (18 kg.)
Renewable:
Powered and replenished by natural resources such
as the sun, wind and water, as well as mechanical
devices such as hand cranks.
+
4
Trademarks
Humless products are a trademark of Humless, LLC. Other trademarks,
registered trademarks, and product names are the property of their
respective owners and are used herein for identication purposes only.
Notice of Copyright
Humless User’s Guide © March 2012 Humless, LLC. All rights reserved.
Exclusion for Documentation
UNLESS SPECIFICALLY AGREED TO IN WRITING, HUMLESS, LLC
(“HUMLESS”)
(A) MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY,
OR SUITABILITY OF ANY TECHNICAL OF OTHER INFORMATION
PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION.
(B) ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES,
DAMAGES, COSTS OR EXPENSES, WHETHER SPECIAL, DIRECT,
INDIRECT, CONSEQUENTIAL, OR COINCIDENTAL, WHICH MIGHT
ARISE OUT OF THE USE OF SUCH INFORMATION. THE USE OF
ANY SUCH INFORMATION WILL BE ENTIRELY AT THE
USER’S RISK.
(C) REMINDS YOU THAT IF THIS MANUAL IS PRESENTED IN ANY
LANGUAGE OTHER THAN ENGLISH, ALTHOUGH STEPS HAVE
BEEN TAKEN TO MAINTAIN THE ACCURACY OF THE
TRANSLATION, THE ACCURACY CANNOT BE GUARANTEED.
APPROVED HUMLESS CONTENT IS CONTAINED WITHIN THE
ENGLISH LANGUAGE VERSION WHICH IS POSTED AT
WWW.HUMLESS.COM.
Date and Revision
March 2012 Revision A
Product Number
HSS50-120W
Contact Information
Telephone: 1-800-313-4709
Technical Support: help@humless.com
Sales and Customer Service: sales@humless.com
All other issues: info@humless.com
Website: http://www.humless.com
Mailing address: Humless, LLC
4626 N., 300 W., Suite #350
Provo, Utah 84604
U.S.A.
Please feel free to contact us at any time.
humless.com
5
+
Symbols and Terms
The following symbols are used in this guide:
Important Terms
Additional Information
Warnings are conditions and practices that could result in
personal injury.
WARNING
CAUTION
Cautions are conditions and practices that could result in
damage to the unit or other equipment.
The following terms are helpful for you to know and are
used in this guide.
You can nd additional information about products and service at
www.humless.com.
TERM
A
AC
DC
kW
LED
mA
PV
VAC
VDC
W
DEFINITION
Ampere or Amp
Alternating Current
Direct Current
Kilowatt; one thousand Watts
Light Emitting Diode
Milliampere; one thousandth of an ampere
Photovoltaic
Volts AC
Volts DC
Watts
humless.com
6
Safety Instructions
This Section provides important safety and operating
instructions.
Check with medical device manufacturer before powering any
life-support systems or other medical devices or equipment to
insure it is compatible with the power supplied by the Humless
Sentinel.
See Technical Specications on page 14 for the Humless Sentinel
details.
Check with tool and/or equipment manufacturer before powering
any of their products to insure it is compatible with the power
supplied by the Humless Sentinel.
See Technical Specications on page 14 for the Humless Sentinel
details.
WARNING
CAUTION
CAUTION
humless.com
• Before using your unit, read ALL instructions and information in this
user’s guide.
• Although intended for indoor use, it can be used outdoors if sheltered.
DO NOT expose the unit to rain, snow or extreme environments. To
reduce risk of re hazard, DO NOT cover or obstruct fan vents.
Provide a minimum of 6 inches of clearance on all sides of the unit;
otherwise, overheating could occur.
• You may connect as many as 3 DC power sources and 1 AC power
source simultaneously.
• To reduce risk of electrical shock, disconnect all sources of AC and
DC from the unit before attempting any cleaning or maintenance or
before working on any circuits connected. SWITCHING OFF ALL
POWER DISCHARGE PORTS WILL NOT ELIMINATE RISK. TURN
OFF MAIN POWER AND REMOVE RED KEY.
• Inspect all power cords before attempting to charge your unit and
connecting devices to discharge ports. If cords are frayed, damaged
or questionable, DO NOT connect the device to your unit. Doing so
increases the risk of re and electrical shock. Use common sense.
• DO NOT use if your unit has been dropped or damaged in any way. If
damaged, see ‘Contact Information’ on page 2.
• DO NOT attempt to disassemble the unit. There is a high risk of unit
damage as well as personal injury. There are NO serviceable parts.
• Repairs should ONLY be done by a qualied Humless repair technician.
7
Thank you for your purchase. The pure sine wave AC inverter output
makes your unit compatible for use with many of today’s high-tech
electronic devices. It also allows appliance motors to operate more
efciently and at cooler temperatures.
In order to get the most from your unit, be sure to carefully read this
user’s guide. It is important to take some time to become familiar
with the Safety Instructions on page 6 of this guide before operation.
If you still have any questions, please contact our support team.
See Contact Information on page 4.
You should have received the following items in your
Humless Sentinel kit:
1. Unit with carrying harness
2. Shoulder Strap
3. Zippered stow pack (1)
4. AC wall outlet charging cord
5. Red Key (2)
6. USB Universal cell phone charger
7. USB LED light
Red Key
for Main
Power
Things to remember:
• When not in use, turn off all power, including switches, and
remove key.
• Store unit fully charged.
Meet the Power
Let’s Get Started
humless.com
8
Interface Panel
humless.com
CHARGING INPUTS
POWER OUTPUTS
Input A
120 - 240 V
Switch 1
Switch 2
120 V 1000 W max. 120 V 1000 W max.
2.1 A
Tablets / Pads
12 V 10 A max.
12 V 25 A max.
Input B
12 V 16 A max.
Input C
12 V 10 A max.
Outlet A Outlet B
Outlet G
Outlet H
Outlet C
Outlet D
Outlet E
Outlet F
1 A
Cell Phones
AC OUTPUTS
AC INPUT
DC INPUT
DC INPUT
DC OUTPUTS
USB OUTPUTS
USER INSTRUCTIONS
• Insert red key into main power keyhole. Turn right for “ON;” turn left for “OFF.”
Before charging Input C, turn red key to “OFF.” Read instructions under “To Charge.”
• Push and hold green Charge Status button for three seconds to check battery status.
• Provide a minimum of 6 inches of clearance on all sides of the unit. DO NOT cover or
obstruct cooling fan vents; otherwise, overheating could occur.
• Make sure voltage and amperage of input and output sources are compatible with unit.
• When not in use, turn off all power, including switches, and remove key.
TO CHARGE
Instructions are the same for charging AC and DC options:
• AC Input : Connect AC plug into Input A (120-240 V) and wall or generator.
• DC Input : Connect DC plug into Input B (12V 16 A) or Input C (12V 10 A) and also into
the charging source.
When using Input C, make sure that you connect leads to the correct positive
and negative terminals.
On unit, red is the positive-side terminal; black is the negative-side terminal.
Do NOT turn on main power until leads are properly connected.
• AC Input : When charging, the charger light will be red. Once fully charged, the
charger light will turn green.
• DC Inputs: When charging, the charger light is red when charging or fully charged.
• Store unit fully charged.
TO USE
Instructions are the same for using AC, USB and DC options:
• AC Outputs : Connect AC plug into either Outlet A or Outlet B (120 V 1000 W max)
and turn on AC Switch 1.
• USB Outputs : If using a tablet, pad or laptop, connect USB plug into either Outlet E
or Outlet F (2.1 A) and turn on USB Switch 2.
• If using a cell phone or other device, connect USB plug into either Outlet C or
Outlet D (1 A) and turn on USB Switch 2.
• DC Outputs : Connect DC plug into either Outlet G (12 V, 10 A max.) or
Outlet H (12 V, 25 A max.), depending on appliance or device.
Consult with your appliance manufacturer to verify proper voltage and
amperage compatibility.
POWERED BY HUMLESS
C
H
A
R
G
E
S
T
A
T
U
S
P
O
W
E
R
O
U
T
L
E
T
9
Input A
120 - 240 V
AC INPUT
AC INPUT light is red while charging.
AC INPUT light is green when fully charged.
AC Charging Input A
Electrical Shock can occur if AC power cord is damaged or frayed.
Never use a damaged or frayed AC power cord.
Replace with a new cord before proceeding with AC charging.
WARNING
humless.com
Charge Status Indicator
Press and hold green button three seconds to obtain an
accurate reading.
FULL CHARGE STATUS is indicated when all four LEDs are
illuminated and AC and DC charge lights in Charging Inputs
section show green.
C
H
A
R
G
E
S
T
A
T
U
S
10
Input B
12 V 16 A max.
DC INPUT
humless.com
DC Charge light is red while charging.
DC Charge light is green when fully charged.
DC Charge light is red while charging.
DC Charge light is green when fully charged.
DC Charging Input B and Input C
WARNING
Electrical Shock can occur if DC power cord is damaged or frayed.
Never use a damaged or frayed DC power cord.
Replace with a new cord before proceeding with DC charging.
Input C
12 V 10 A max.
DC INPUT
11
?
A green light indicates power is
present - normal operation.
A red light indicates fault, low
battery, or overload.
A green light indicates power is
present - normal operation.
Check with your device manufacturer for proper power requirements
and compatibility.
Check with your device manufacturer for proper power requirements
and compatibility.
There is no light indicator for these ports.
4 USB Outlets
DC Outlets
AC Usage Outlets
Electrical Shock can occur if AC power cord is damaged or frayed.
Never use a damaged or frayed AC power cord.
Replace with a new cord before proceeding with AC charging.
WARNING
humless.com
Switch 1
120 V 1000 W max. 120 V 1000 W max.
Outlet A Outlet B
AC OUTPUTS
Switch 2
Outlet C
Outlet D
Outlet E
Outlet F
USB OUTPUTS
12 V 10 A max.
12 V 25 A max.
Outlet G
Outlet H
DC OUTPUTS
P
O
W
E
R
O
U
T
L
E
T
12
Charging
Your Unit
User Instructions
To Charge
• Insert red key into keyhole. Turn right for “ON;” turn left for
“OFF.” Do not turn on unit rst when charging with Input C. Read
instructions under “To Charge.”
• Push and hold green button for three seconds to check battery status.
• When not in use, turn off all power, including switches, and remove key.
• Provide a minimum of 6 inches of clearance on all sides of the unit. DO
NOT cover or obstruct cooling fan vents; otherwise, overheating
could occur.
• Insert red key into ON/OFF keyhole. Turn right for “ON;” turn left for “OFF.”
• MAKE SURE VOLTAGE AND AMPERAGE OF BOTH CHARGING
SOURCE AND UNIT ARE COMPATIBLE.
• Instructions are the same for charging AC and DC options:
• AC Input: Connect AC plug into Input A (120-240 V) and wall/generator.
• DC Input: Connect DC plug into Input B (12V 16 A) or
Input C (12V 10 A) and also into the charging source.
m
When using Input C, make sure that you connect leads to the
correct positive and negative terminals.
m
On unit, red is the positive-side terminal; black is the
negative-side terminal.
m
WAIT TO TURN ON POWER WITH RED KEY UNTIL LEADS
ARE CONNECTED.
• AC Input: When charging, the charger light will be red. Once fully
charged, the charger light will turn green.
• DC Inputs: When charging, the charger light is red when charging
or fully charged.
• Store unit fully charged.
Consult with your power source manufacturer to verify proper voltage
and amperage compatibility.
humless.com
13
Power
Your Device
To Use
• Provide a minimum of 6 inches of clearance on all sides of the unit.
DO NOT cover or obstruct cooling fan vents; otherwise, overheating
could occur.
• Insert red key into ON/OFF keyhole. Turn right for “ON;” turn left for
“OFF.”
• MAKE SURE VOLTAGE AND AMPERAGE OF BOTH CHARGING
SOURCE AND UNIT ARE COMPATIBLE.
• Instructions are the same for using AC, USB and DC options:
AC Outputs:
• Connect AC plug into either Outlet A or Outlet B (120 V 1000 W
max) and turn on AC Switch 1.
USB Outputs:
• If using a tablet, pad or laptop, connect USB plug into either
Outlet C or Outlet D (2.1 A) and turn on USB Switch 2.
• If using a cell phone or other device, connect USB plug into either
Outlet E or Outlet F (1 A) and turn on USB Switch 2.
DC Outputs:
• Connect DC plug into either Outlet G (12 V, 10 A max.) or
Outlet H (12 V, 25 A max.), depending on appliance or device.
• When not in use, turn either Switch 1 or Switch 2 off and turn
the red key to the left.
Consult with your appliance manufacturer to verify proper voltage and
amperage compatibility.
humless.com
14
Troubleshooting
Your Unit
1. The Charge Status Indicator won’t light up when I push
the green button.
• Make sure red key is inserted into the Main Power keyhole
and it is turned to the “ON” position.
• Battery is below cutoff voltage – charge battery.
2. The red light above Switch 1 on the 120V AC Outlet lights
up and there is no power from outlet.
• Battery is low. Check charge state and recharge battery.
• Load is too high. Turn down appliance or make sure
appliance power ratings are less than 1000W.
• Inverter overheating. Create space around vents and allow
inverter fan to cool the inverter.
3. The Charge Status Indicator lights give different readings
at different times without charging or using any stored
power.
• Charge Status Indicator provides approximate charge
status only.
• Battery pack voltage will settle after charging.
4. DC Input charging light will not light up, even though my
charging source is plugged in.
• Make sure red key is inserted into the Main Power keyhole
and it is turned to the “ON” position.
• Input polarity is reversed. Reverse input polarity.
• Charging source voltage is less than your battery voltage –
try a different charging source.
5. 12V DC Outlet won’t work.
• Make sure red key is inserted into the Main Power Switch
and it is turned to the “ON” position.
• Battery is below cutoff voltage – charge battery.
humless.com
15
Technical Specications
Product Specications:
Dimensions (L x W x H): 18” x 10” x 12”
Weight: 40 lbs.
Internal Lithium Battery Pack:
Voltage: 12.8V
Capacity: 50Ah (600Wh)
Cycle life: 2,000+ cycles
Minimum charge time: < 2.5 hrs
Charge retention: >12 months
Internal Inverter:
Output: 120V AC Pure Sine Wave 1000W Continuous
2000W Peak Integrated AC Charger
Output: PWM 14.6V DC 5.0A
Charging cycles: CC-CV
Charge time 2.5 hrs.
Integrated Charge Controller/BMS:
Input current: 15.0A
Output current: 10.0A
Low voltage cutoff: 10.5V
High voltage cutoff: 15.0V
Outputs:
(2) 120V AC (1000W/2000W Continuous/Peak)
(2) USB Outlets 5V DC @ 2100 mA Max
(2) USB Outlets 5V DC @ 1000 mA Max
(2) 12V DC @ 10A Max (120W)
humless.com
+
-
HUMLESS
4626 North 300 West
Suite #350
Provo, Utah 84604
U.S.A.
Tel: 1-800-313-4709
International Tel: +1 801-762-6006
Fax: +1 801-224-7482
www.humless.com
Loading...
