070715

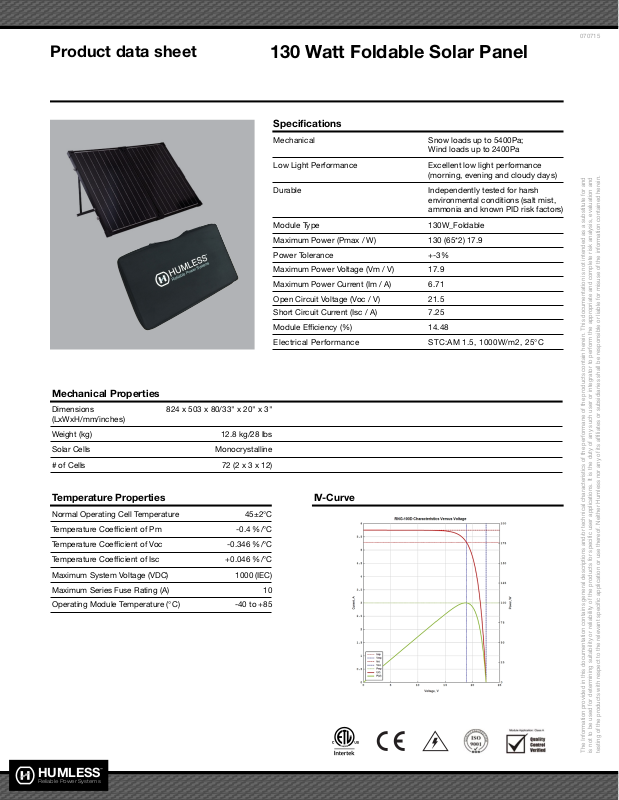

Product data sheet
130 Watt Foldable Solar Panel
Specifications
Mechanical Snow loads up to 5400Pa;
Low Light Performance
Durable Independently tested for harsh
Module Type 130W_Foldable
Maximum Power (Pmax / W) 130 (65*2) 17.9
Power Tolerance +-3%
Maximum Power Voltage (Vm / V) 17.9
Maximum Power Current (Im / A) 6.71
Open Circuit Voltage (Voc / V) 21.5
Short Circuit Current (Isc / A) 7.25
Module Efciency (%) 14.48
Electrical Performance STC:AM 1.5, 1000W/m2, 25°C
Wind loads up to 2400Pa
Excellent low light performance
(morning, evening and cloudy days)
environmental conditions (salt mist,
ammonia and known PID risk factors)
Mechanical Properties
Dimensions
(LxWxH/mm/inches)
Weight (kg)
Solar Cells
# of Cells 72 (2 x 3 x 12)
824 x 503 x 80/33" x 20" x 3"
12.8 kg/28 lbs
Monocrystalline
Temperature Properties
Normal Operating Cell Temperature
Temperature Coefcient of Pm
Temperature Coefcient of Voc -0.346 %/°C
Temperature Coefcient of Isc +0.046 %/°C
Maximum System Voltage (VDC) 1000 (IEC)
Maximum Series Fuse Rating (A) 10
Operating Module Temperature (°C) -40 to +85
45±2°C
-0.4 %/°C
IV-Curve
HUMLESS
Reliable Power Systems
The Information provided in this documentation contains general descriptions and/or technical characteristics of the performane of the products contain herein. This documentation is not intended as a substitute for and
is not to be used for determining suitability or reliability of the products for specific user applications. It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and
testing of the products with respect to the relevant specific application or use thereof. Neither Humless nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
™
