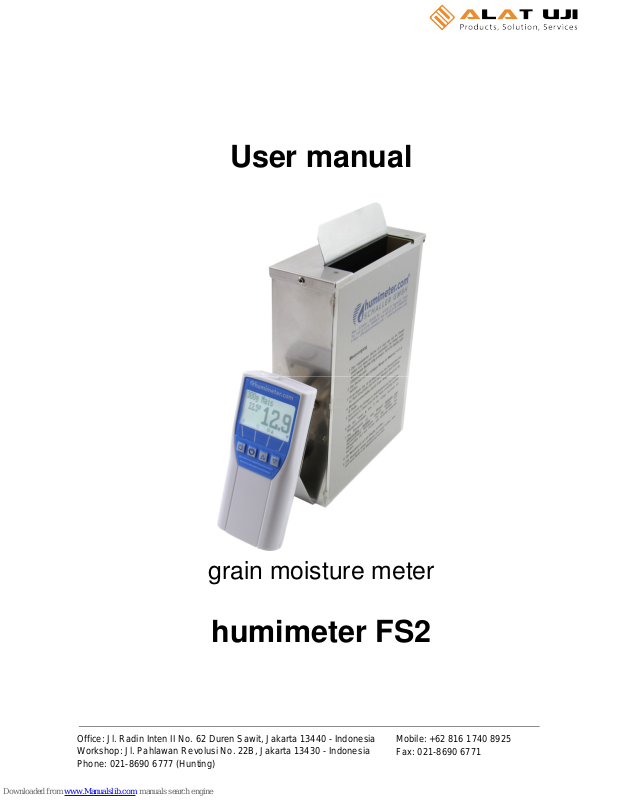

Humimeter FS2 User Manual

User manual

grain moisture meter

humimeter FS2

Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia Phone: 021-8690 6777 (Hunting)

Fax: 021-8690 6771

Mobile: +62 816 1740 8925

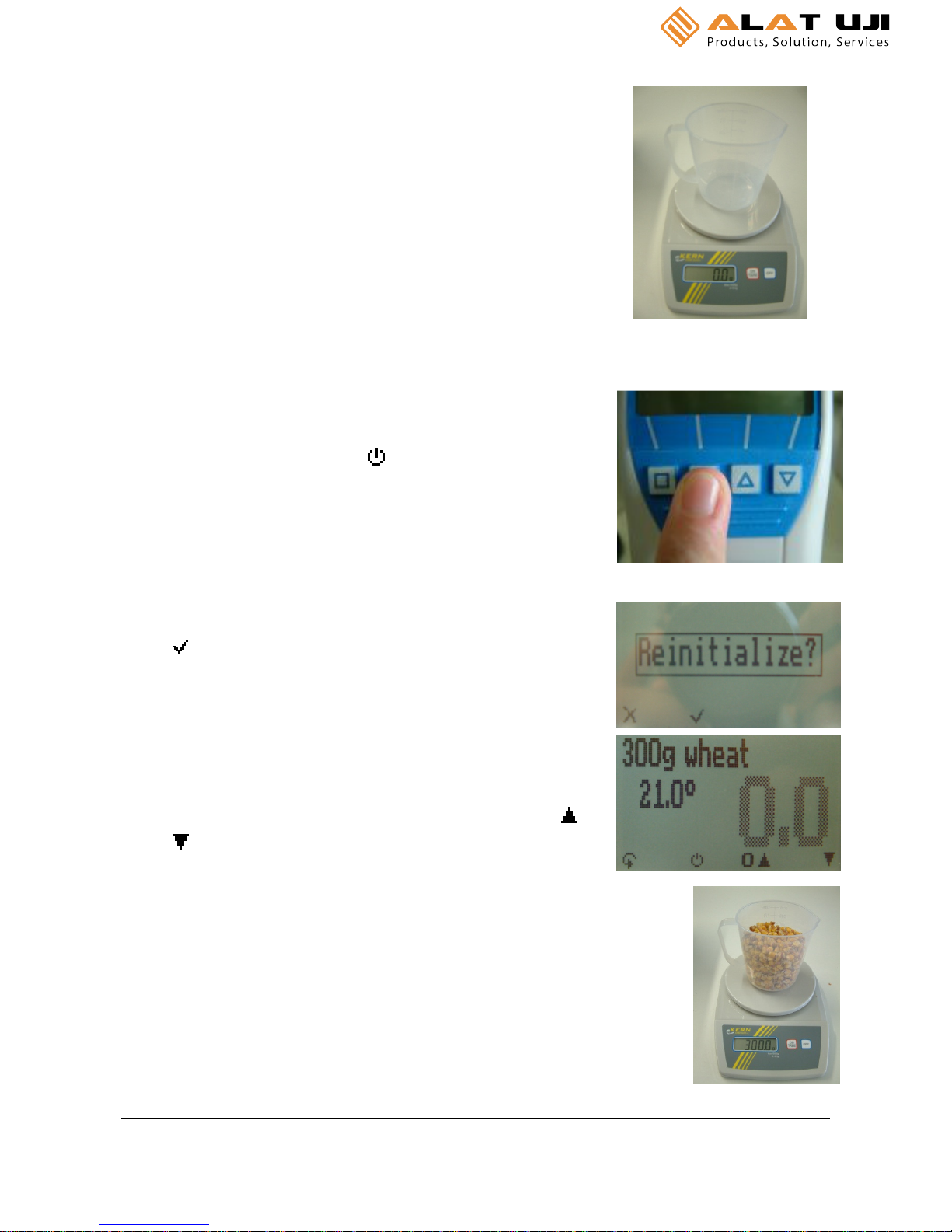

1. Place the empty provided cup (0.5 litre) on the scale and turn the scale on. It shows 0.0 gram.

2. Make sure that the measuring chamber is completely empty. It is important that no material is left in the measuring chamber when you turn on the device.

3. Switch on the humimeter FS2 by pressing the power button ( ) for 3 sec.

4. The next step is a self calibration. The word “reinitialize” will show up on your display. Accept by pressing the

button.

5. Select the right calibration curve for your material under test using the buttons or

.

6. Fill up the cup with the sample material (+/- 1.0g).

The filling quantity needed is shown on the upper left corner of the display of the device.

Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia Phone: 021-8690 6777 (Hunting)

Fax: 021-8690 6771

Mobile: +62 816 1740 8925

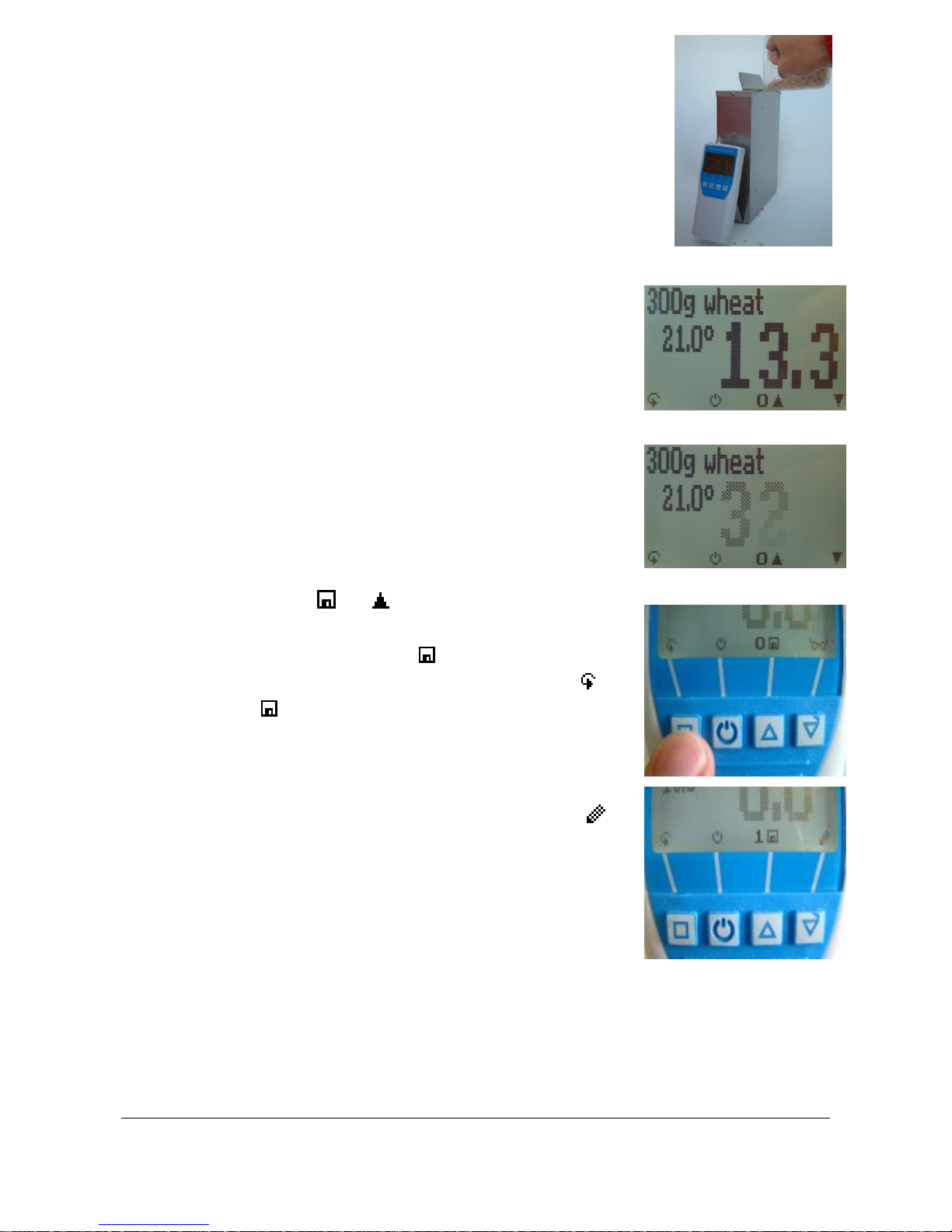

7. Fill up the measuring device with the sample material. The filling needs to be done slowly and constantly to ensure reproducible results.

8. The display shows the measuring result.

9. If the measuring value is blinking, the valid measuring range has been exceeded (limits see list on page 5). In this case the accuracy decreases.

10. To save the results in the store menu press the ( button). Storage was successful when the number in front of the symbol increases. To reach the store menu please press ( ) until the appears.

11. To name the saved results press the button.

12. Empty the humimeter and ensure that no grain rests are accumulated in the measuring chamber.

Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia Phone: 021-8690 6777 (Hunting)

Fax: 021-8690 6771

Mobile: +62 816 1740 8925

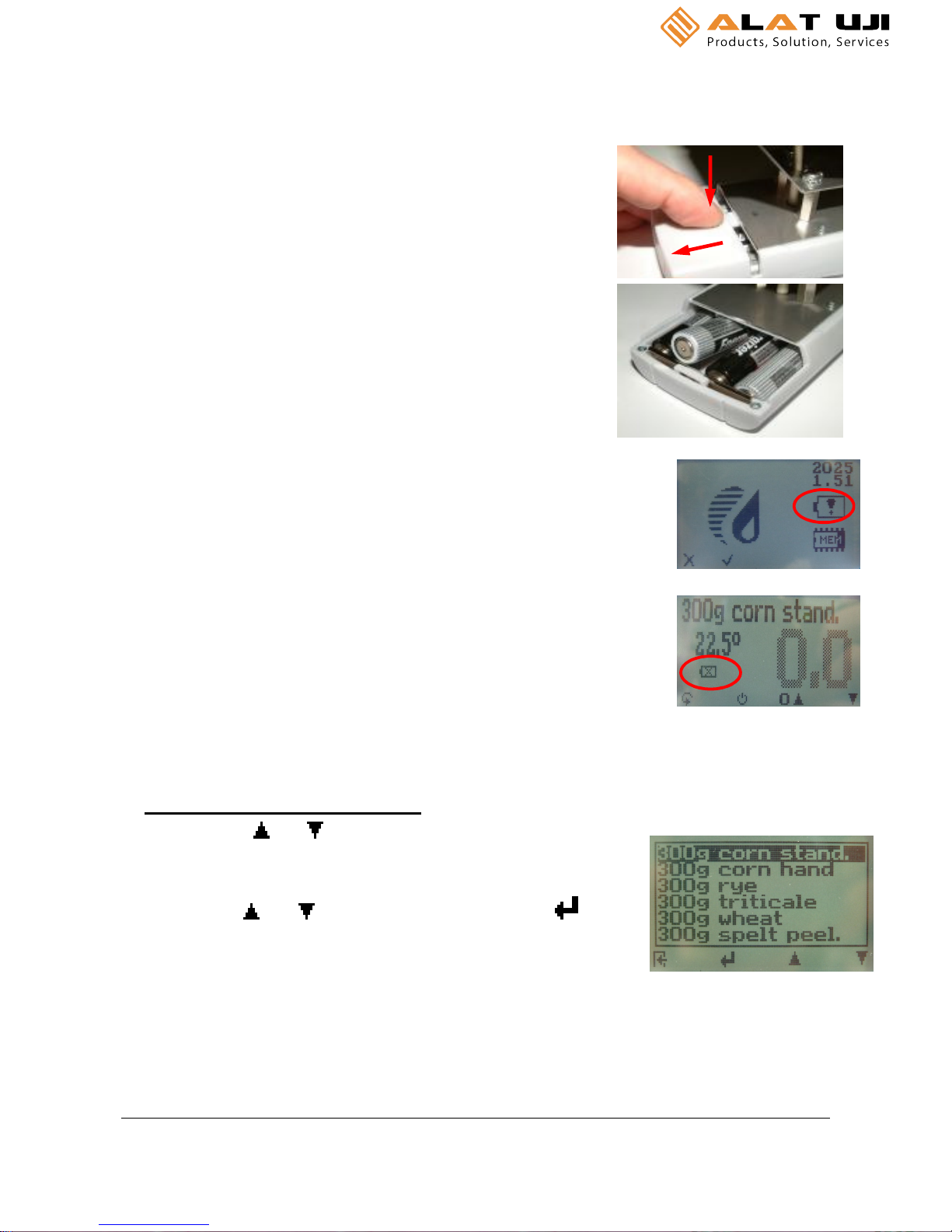

Changing batteries

If the batteries are empty, please proceed as follows:

1.) Press with your finger onto the arrow of the battery cap und pull it back.

2.) Remove the empty batteries.

3.) Put four new batteries in the device. Check the right position of the battery poles.

4.) Press down the batteries and close the cap.

If the battery symbol appears in the measuring window resp. if a critical charge of battery is shown in the status, the batteries have to be changed IMMEDIATELY.

Also remove the batteries if you do not use your humimeter device for a longer period. For eventual resulting damages we cannot provide any warranty.

List of calibration curves

Press the or key in the measuring window for at least 3 seconds and a list with all available sorts will appear. Select your sort by pressing or and confirm with the key. The measurement will continue automatically.

Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia Phone: 021-8690 6777 (Hunting)

Fax: 021-8690 6771

Mobile: +62 816 1740 8925

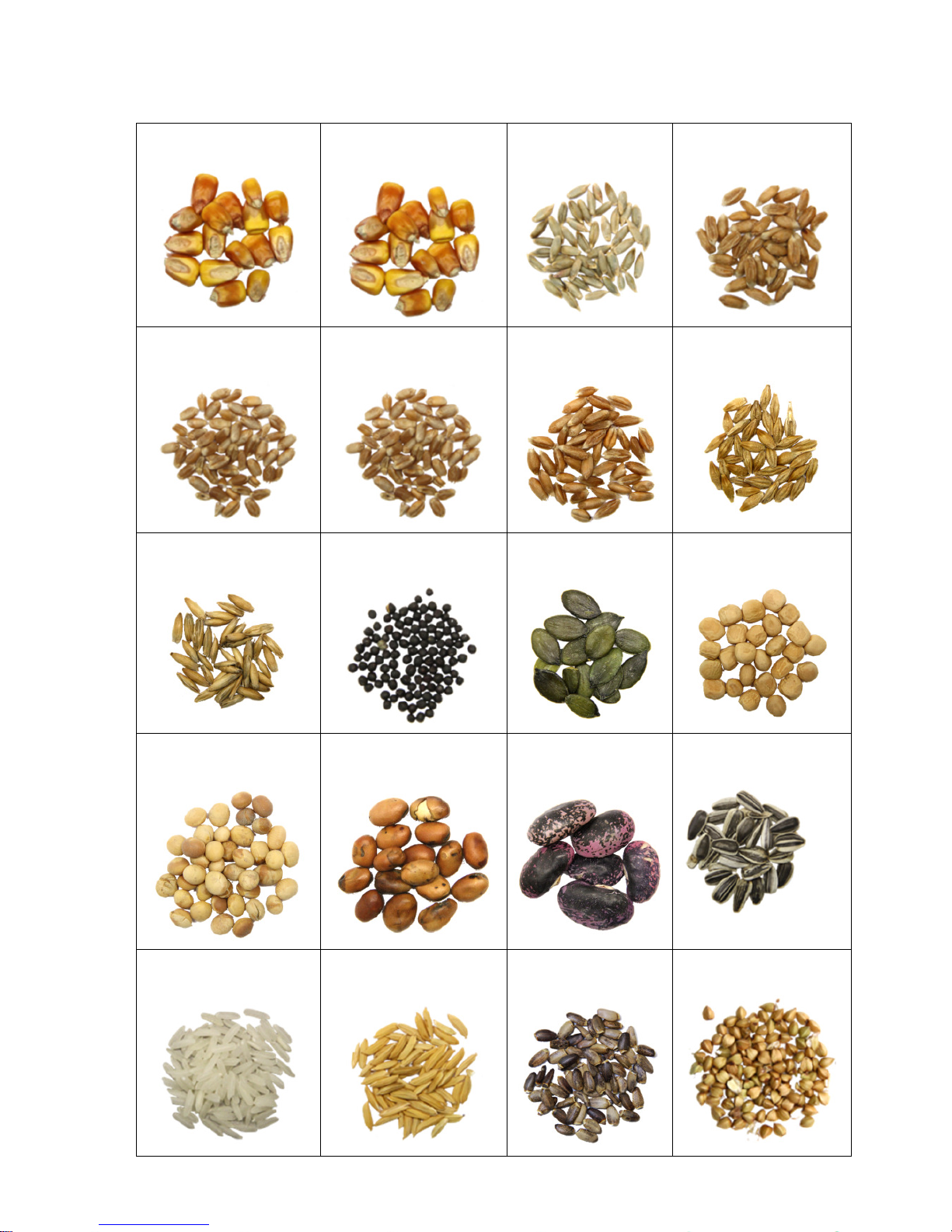

Calibration curves

300g corn

5..40%

300g hand corn

5..40%

300g rye

5..28%

300g triticale

5..28%

300g wheat

5..28%

300g durum

5..28%

300g spelt peeled

5..28%

300g barley

5..28%

190g oats

5..25%

300g rape

5..18%

230g pumpkin seed

2..20%

310g peas

5..25%

300g soybeans

9..18%

295g horse beans

10..20%

277g scarlet runner

8..25%

180g sunflower

5..18%

300g rice peeled

9..25%

250g rice unpeeled

4..30%

300g rice brown

4..26%

300g buckwheat

5..18%

300g millet

5..15%

300g sorghum millet

5..25%

200g jatropha

5..18%

reference

only for internal

use!

Additional calibration curves:

On request Schaller GmbH can develop customized calibration curves for your specific product. Schaller GmbH can also enter already existing calibration curves subsequently.

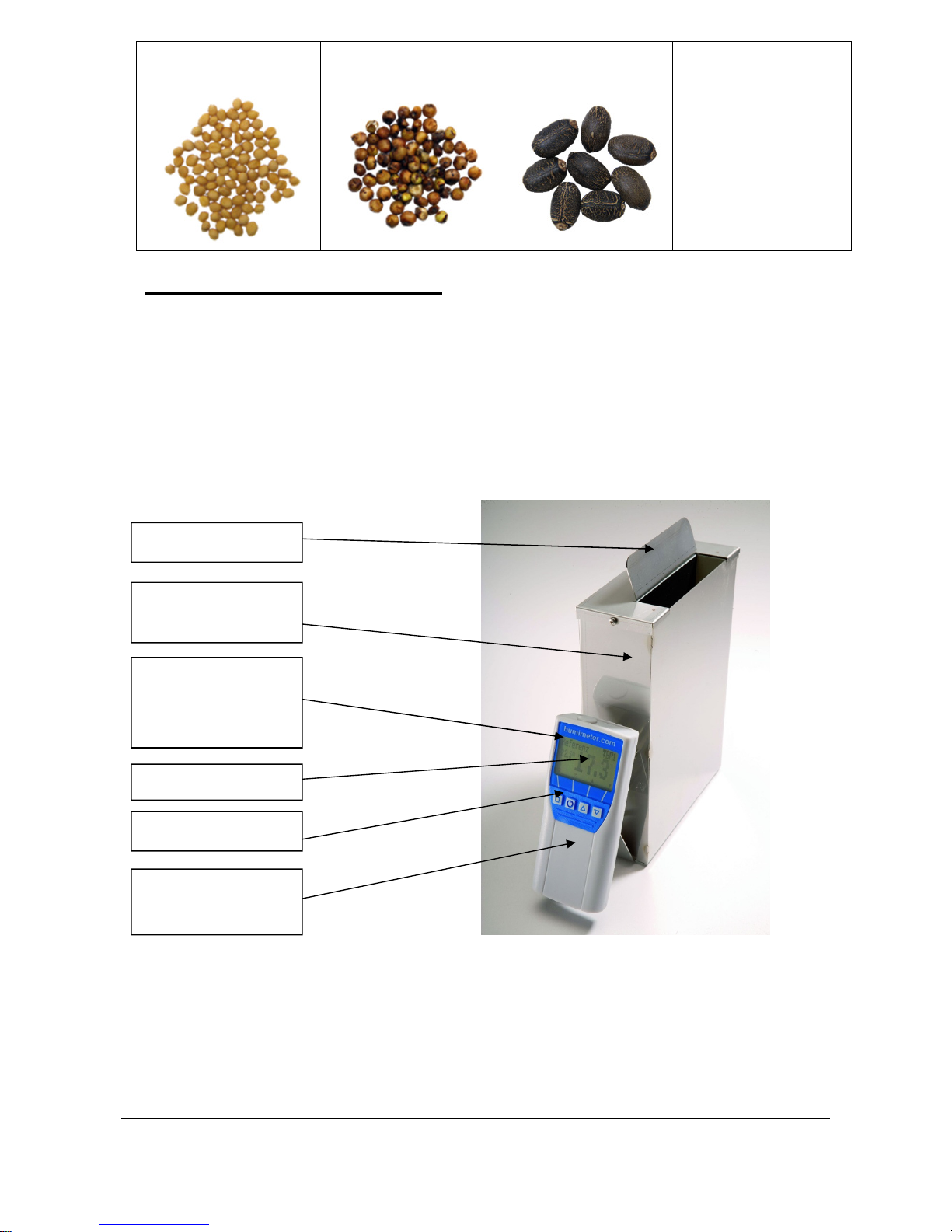

Design of the device

measuring

chamber

name of

calibration

curve

water content

batteries slot

(flipside)

POWER button

filler assistance

Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia Phone: 021-8690 6777 (Hunting)

Fax: 021-8690 6771

Mobile: +62 816 1740 8925

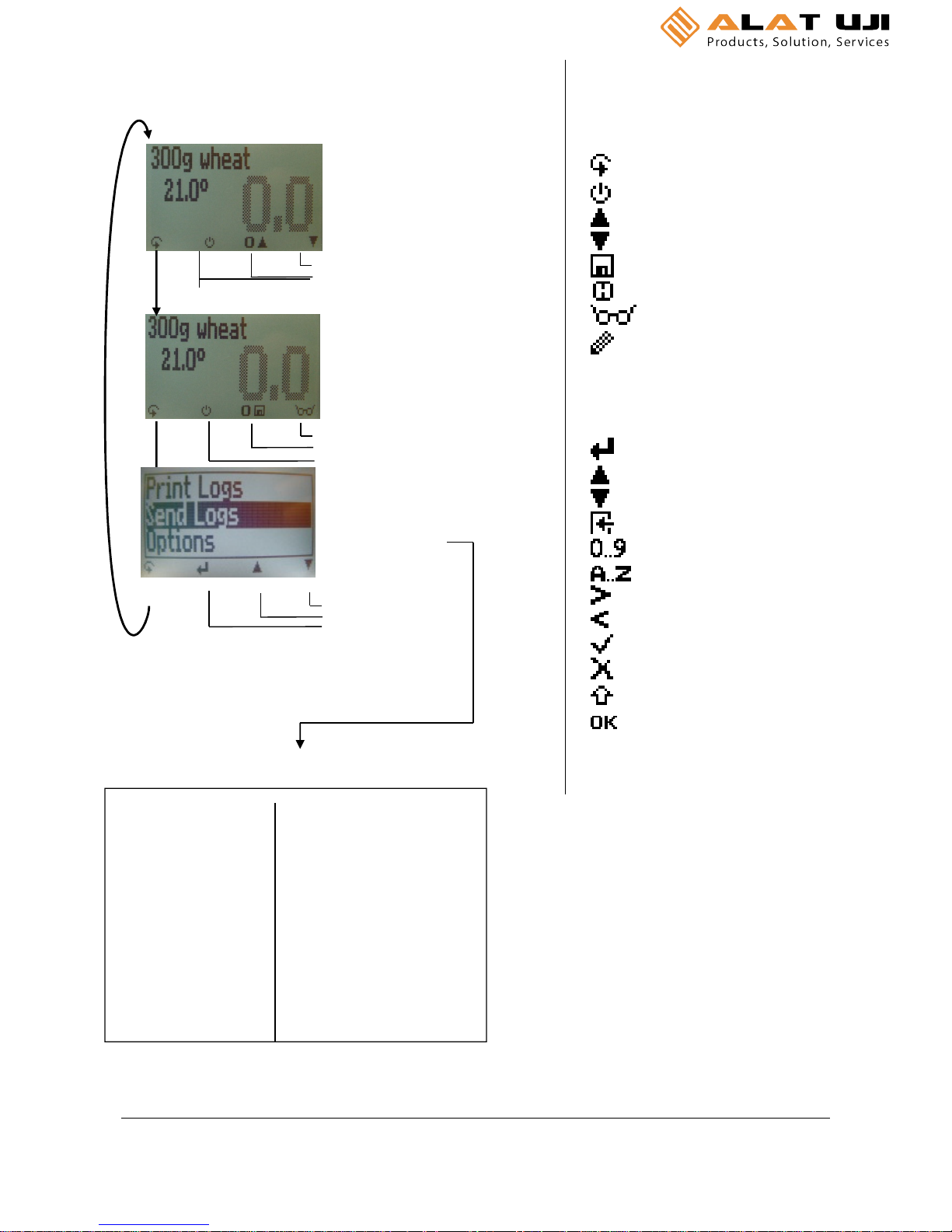

Options

Date / Time Log Time Language Unlock

°C / °F o Userlevel Materialcalib. Password Reset

Next calibration curve

Previous calibration curve

Power off (3 sec.)

Watch saved data (logs) Save new value (log)

Power off (3 sec.)

Switch upper Switch lower

Open this menu / Enter

Type selection

Store menu

Main menu

Edit Logs

Manual Logs Clear Logs

Options

Status

Keypad symbols

Measuring window:

Rolling Menu

Power ON / OFF Switch upper Switch lower

Save

Hold

Watch saved data

Add suppliers data

Menu:

Enter Switch upper Switch lower

Exit

Enter numbers

Enter letters

Next or right

Left

Yes

No

Shift

OK

Menu level overview

Overview main menu

Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia Phone: 021-8690 6777 (Hunting)

Fax: 021-8690 6771

Mobile: +62 816 1740 8925

Determination of the material reference moisture

The principle is a comparison measurement with the dehydration method according to EN ISO712. Take the measured sample and weigh it. Dry it out in an oven and weigh it again.

Notes

-------------------------------------------------------------------------------

Mn: Mass with average moisture content Mt : Mass of the dried sample %F: Calculated moisture content

100% ×

−

=

Mn

MtMn

F

Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia Phone: 021-8690 6777 (Hunting)

Fax: 021-8690 6771

Mobile: +62 816 1740 8925

Notes

-------------------------------------------------------------------------------

Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia Phone: 021-8690 6777 (Hunting)

Fax: 021-8690 6771

Mobile: +62 816 1740 8925

Exemption from liability

For miss-readings and wrong measurements and of this resulting damages we refuse any liability. This is a device for the quick determination of moisture. The moisture depends on multiple conditions and multiple materials. Therefore we recommend a plausibility check of the measuring results. Each device includes a serial number and the guarantee stamp. If those are broken, no claims for guarantee can be made. In case of a faul

Activation of the “super user” function

2 times - Options – Unlock

Enter the 4-digit password using the button (standard is the 4-digit serial number) and confirm by pressing the button.

Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia Phone: 021-8690 6777 (Hunting)

Fax: 021-8690 6771

Mobile: +62 816 1740 8925

Technical data

Resolution of the display 0.1% water content

0.5°C temperature

Measuring range 5 up to 40% depending on the

material

Operation temperature 0 up to +40°C (32 up to 104°F)

Storage temperature -20°C to +60°C

Temperature compensation automatically

Power supply 4 pcs. 1.5 Volt AA Alkaline

batteries (900 measurements)

Auto Switch OFF After approx. 6 minutes

Current consumption 60mA (with light)

Display 128x64 matrix display, lighted

Dimensions 260 x 70 x 250 mm

Weight approx. 1.3 kg (with batteries)

Degree of protection IP 40

Scope of supply FS2 incl. plastic case

digital scale (max. 500g; 0.1g) measuring cup 0.5 liter 4 pcs. 1,5Volt AA Alkaline

Batteries

Device maintenance instructions

To provide a long life of your device please do not expose it to strong mechanical loads or heat e.g. dropping it or direct sunlight exposure. Clean your device using a dry cloth. The measuring chamber needs to be cleaned with a dry and soft brush.

Any kind of wet cleaning damages the device. The instrument is not rainproof. Keep it in dry areas. When the device is not used for a longer period (6 months) or when the batteries are empty, they should be removed to prevent a leakage of the battery acid.

Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia Phone: 021-8690 6777 (Hunting)

Fax: 021-8690 6771

Mobile: +62 816 1740 8925

! IMPORTANT ! please read

Most common reasons for miss readings

• Product temperature out of application range

Material of a temperature below 0°C resp. above +40°C (32 to 104 °F) may cause faulty measurements. The storage of cold material in a warm storage area usually creates condensed water which may lead to major measuring errors.

• Not adjusted material under test

Let your humimeter adjust to the surrounding temperature of the material for approx. half an hour.

A very high temperature difference has a negative effect on the stability of the measurement results.

• Wrong calibration curve

Before measuring your sample, please double-check the correct selection of the calibration curve.

• Wrong filling quantity

Fill in exactly the right weight (± 1.0g) of material in the measuring chamber.

• Wet or mouldy material

• Stored and fermented corn silage from whole grains may

lead to higher value

• Frozen measuring material

• Polluted measuring material

Polluted material e.g. barley spikes or other material mixed with the sample has a negative effect on the measurement
