Page 1
All Humidifiers
Are Not
Created Equal.
All Humidifiers
Are Not
Created Equal.
Page 2
?
Outside air infiltrates your home to replace the thousands of cubic feet of air
consumed by your furnace, water heater and fireplace. When this air is heated,
it dries out your home. You need to replace this moisture with a humidifier.
As an example, if outside air at 20° with 60% relative humidity infiltrates your home and is heated to 72°,
the relative humidity drops to only 8%. You need 25-45% for comfort and well being, but outside air infiltrates
your home and robs you of the necessary humidity.
Proper humidity makes you feel more comfortable, protects your home and furnishings from drying and
cracking, and reduces annoying static electricity that shocks you when you touch anything metal. Because you
are comfortable with a lower thermostat setting, you can save from 10% to 20% on your fuel bill, too.
Humid-Aire humidifiers are the answer to all the dry air problems in your home. When the relative
humidity drops below the set point, the humidifier will automatically begin to supply water to the water
pad or media. As the dry air passes through the water media or pad, air is humidified and carried throughout your home as water vapor. As a result, lower heating costs are achieved. In addition this stops wood
shrinkage, static electricity and other problems which normally occur without humidity.
All Humid-Aire humidifiers produce humidity in a safe and pure water vapor form. No mist or
droplets are present which can carry impurities. All minerals and impurities left from the evaporation
process are flushed down the drain with ease.
MODEL FH 182H FH214H FH212H FH200H FH400(A,B,C)
Type
Bypass flow-through
Self-powered Power rotating pad Power rotating pad
Power rotating disc
flow-through by-pass by-pass
Mounting
Plenum or return supply Warm air plenum Plenum or return supply Plenum or return supply Under duct supply side
Location
Capacity
19.4 21.4 21.2 20.0 13,24, or 32
Gal/Day
Approx. capacity
2800 3200 3200 3200 1800,3600 or 4500
in sq. ft.
Voltage
120 or 24 120 24 24 120
Reservoir or
Fiberglass Fiberglass Stainless Steel Plastic Lexan
Housing
Media
Coated Aluminum pad Coated Aluminum pad Foam pad Foam pad Bronze Disc
Unit HxWxD
14-1/2"x15-1/4-"x8-1/4" 14-1/2"x15-1/4-"x10-3/4" 10-1/2x"11-5/8"x11-1/2" 10"x"13-1/2"x11-1/2" 8-1/2"x"13"x20-3/4"
Plenum Opening
10-1/4"x9-1/8" 10-1/4"x13-3/4" 6-1/4"x7-1/2" 6-1/8"x7-1/2" 11"x12-3/4"
HxW
Features • By-pass damper • Integral fan and motor • Flexible by-pass duct • Flexible by-pass duct • Heavy duty gear motor
• Built-in leveling bubble • Power Cord • 24V transformer • 24V transformer • Separate float
• Saddle valve • Built-in Transformer • 24V motor • 24V motor compartment
• 6" starting collar & Relay • Adjustable float • Adjustable float • External water level
• Wall/Duct Mounted • Wall/Duct Mounted • Saddle valve • Saddle valve • Air Deflector
humidistat humidistat • Water supply tubing • Water supply tubing • Saddle valve
• 15 ft. drain tubing • 15 ft. drain tubing • Wall/duct mount • Wall/duct mount • Tilt-in/tilt out mounting
• Right or left hand • Built-in Leveling humidistat humidistat • Optional Sentinel Auto
air inlet bubble • Right or left hand • Right or left hand Flush
• Completely factory air inlet air inlet • Adjustable float
assembled
Why you need humidity
How do they work
Page 3
Relative humidity is the percentage of moisture in the air compared to its maximum capability to hold
moisture under the same conditions.
The average recommended indoor relative humidity should be around 35% and up to 45% in
warmer climates.The Sahara Desert has an average of 25% relative humidity. However, the average
heated home has between 13 and 16%.
In winter turning up the thermostat to increase the warm air flow does not work. It is this dry
warm air acting like a sponge that soaks up all the moisture from everything it touches.This lack of
moisture will not only leave people feeling cold, but can cause the following additional problems if the
humidity level has not been achieved:
1. Upper respiratory conditions in which you can have itchy skin, dry throat coughs and cracked
nasal membranes, and other physical annoyances.
2. Wooden doors, window frames and furniture joints can shrink, warp or even come apart. Hard
wood floor seams can separate. Dry air can even damage wooden musical instruments.
3. Static electricity caused by dry air is a problem. As you move around on carpeting, there is a
voltage build-up in your body which can shock another person, and even interfere with your
electronic devices.
4. Wall paper may start peeling at the edges.
?
What is relative humidity
?
What effects does dry air cause
FH1000-L
(10,20,24)
FH
(10,16,20)
MA115PH MA115H MA315H
Type Power rotating disc Power rotating disc Steam Steam Steam, self contained
Mounting
Under duct supply side Under duct supply side Plenum Under duct Near area to be humidified
Location
Capacity
10,20,24 10,16,20 14.4 14.4 14.4
Gal/Day
Approx. capacity
1500, 3000 or 3600 1500, 2400 or 3000 2500 2500 2500
in sq. ft.
Voltage
120 120 or 24 120, 208, or 230 120, 208, or 230 120
Reservoir or
Lexan Lexan Stainless Steel Stainless Steel Stainless Steel
Housing
Media
Bronze Discs Bronze Discs Heating element Heating element Heating element
Unit HxWxD
8-1/2"x13"x17-1/4" 8-1/2"x13"x17-1/4" 9-1/2x"11-3/8"x12-1/2" 6-1/2"x"12-3/4"x19-1/2" 13"x"14"x17-3/4"
Plenum Opening
11"x11" 11"x11" 6-1/2"x7-1/2" 15-1/2"x11"
4-7/8"x17-3/4"
HxW Air duct outlet
Features
• Clear-handy hose • Clear-handy hose • Wall/Duct Mounted • Wall/Duct Mounted • For homes or
• Heavy duty gear motor • Perm. lubricated motor humidistat humidistat apartments
• External water level • Separate float • Saddle valve • Saddle valve without forced air
• Direct flush drain assy. compartment • Float with mercury • Float with mercury switch heating system
• Saddle valve • Saddle valve switch • Optional Sentinel Auto Flush • Wall mounted humidistat
• Tilt in/tilt out mounting • Direct flush drain assy. • Optional Sentinel Auto Flush • Water supply tubing • Saddle valve
• Power cord • Power cord • Water supply tubing • Automatically turns on • Float with mercury
• Adjustable float • Adjustable float • Automatically turns on furnace blower when switch
furnace blower when humidity is needed and • Water supply tubing
humidity is needed and off when set humidity • 2 balanced fans @
off when set humidity level is reached 290 CFM
level is reached • Power cord • Power cord
• Power cord
Page 4

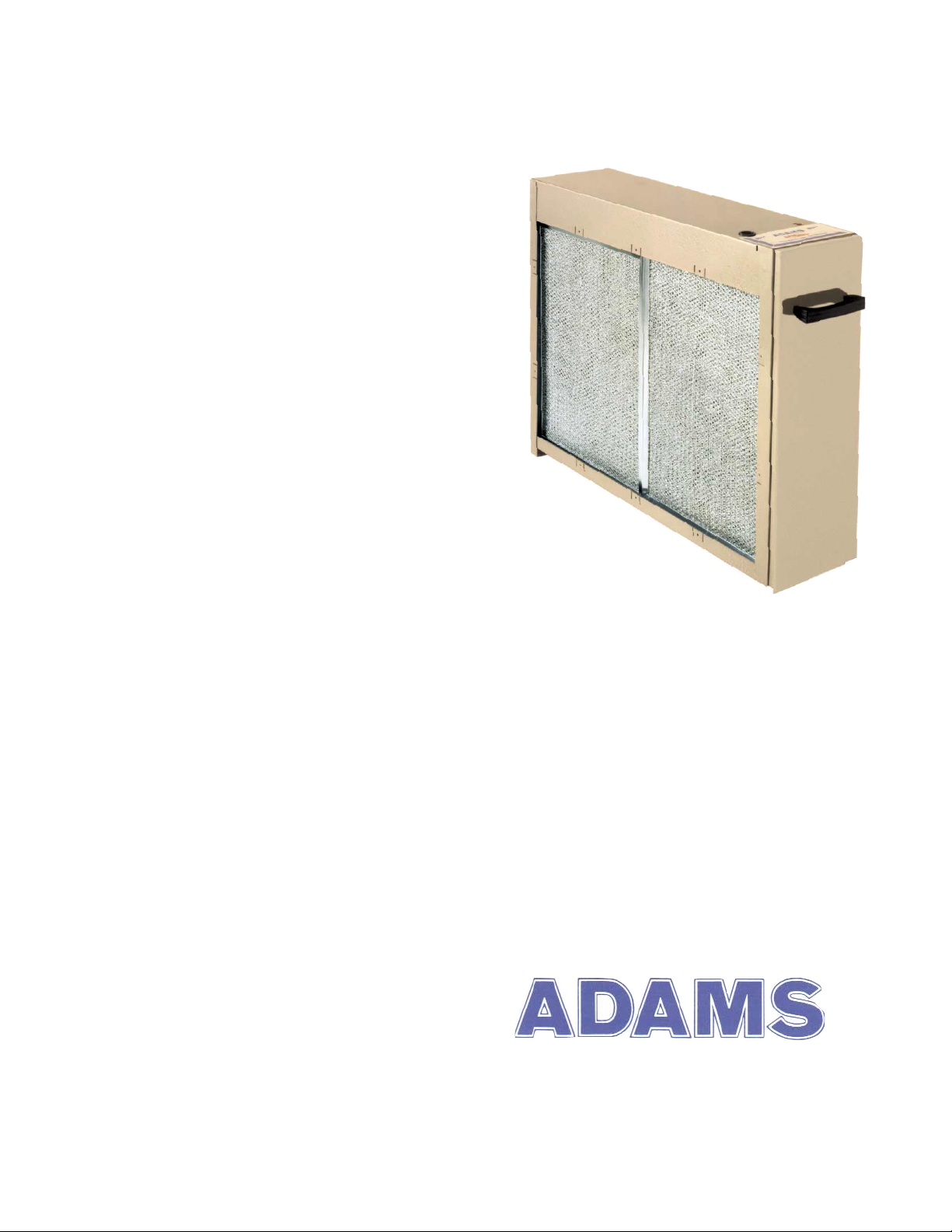

The Adams Cleanaire cuts heating and cooling costs. By
lowering the amount of indoor air exhausted and the
amount of outside air brought in which must be cleaned,
heated, cooled, humidified or dehumidified, Adams
Cleanaire saves you money.
With more insulation and with tighter seals around
doors and windows, the modern home has less natural
ventilation.That’s why so many homeowners open doors
and windows to “air out” their homes. Adams Cleanaire
“airs out” your home without opening doors and
windows.
It saves even more energy, because it doesn’t restrict
airflow the way mechanical filters do as they load.
Allergy sufferers will notice that the small particles are
removed that can irritate your eyes, nose, throat, lungs and even your
skin. Removes 99% of the bacteria-laden pollen and mold spores. Removes
95% of the airborne dust and dirt that gets into your home. Removes cooking
and tobacco smoke.
The principle is called “Electrostatic
Precipitation”, but it’s not that complicated.
The air in your home is continually
circulated through your forced air system
to be heated or cooled. Carrying millions
of airborne dirt and pollen particles, the
air circulating through the ductwork must
pass through the “CLEANAIRE CELL” of
the Adams Electronic Air Cleaner.
Adams Cleanaire electronic air cleaners will
complete your home comfort system.
MANUFACTURING COMPANY
9790 Midwest Ave., Cleveland, Ohio 44125
Telephone (216)587-6801
Fax (216)587-6807
E-mail:[email protected]
How they work.
Form No. FH-99 Printed in U.S.A.
Why you need Cleanaire
®
1
3
2
Most of the large particles are caught on the
pre-filter screen.
The smaller particles proceed through the screen to
the first section of the “CLEANAIRE CELL” where
they receive an intensive positive electrical charge.
Continuing through the “CLEANAIRE CELL” to the
collecting section, the now charged particles are
attracted and held, like a magnet, by a series of
oppositely charged electrical plates...and are held
against these until they are washed off.
